Rear Suspension Adjustments

Rider weight, cargo weight, riding style, trail conditions and vehicle
speed all affect suspension action.

Each rear suspension can be adjusted to suit rider preference and deliver
the best performance for a given set of conditions. However, all
suspension designs and adjustments involve a compromise, or trade-off.
For example, a suspension set up for snow-cross racing would provide a
very stiff ride on the trail. A suspension set up for trail riding would
bottom out harshly on a snow-cross course.

Make adjustments to one area at a time so you can evaluate the change.
For further assistance, please see your POLARIS dealer.

Suspension Performance Tips

• Rider weight usually determines the position at which the spring

preload should be set. However, this may vary with riding style. With
a little experimentation, each rider can find a preferred set-up. These
adjustments are easy to make, involve very little time or effort, and
greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over a

worn slide. It can also improve top speed.

• POLARIS offers track kits for improved flotation in deep snow. See

your dealer for assistance.

Tip: Keep the suspension pivot points lubricated. This will reduce moisture and

rust build-up and ensure proper function of the suspension components.
Grease rear suspension pivots before adjusting the rear suspension. Refer
to the suspension lubrication information beginning on page 80.

48

THE PERFECT FIT

Rear Suspension Adjustments

Initial Spring Preload Setting (Sag Method)

To set up the rear suspension torsion spring preload, measure the
distance between the ground and rear bumper. This is measurement X.

Take the first measurement with no rider and with the rear suspension at
full extension.

Tip: The rear bumper may need to be raised slightly to fully extend the rear

suspension.

Next, have the rider drop down hard on the seat and bounce up and
down several times, collapsing the rear suspension. With the rider
seated, measure the distance between the ground and the rear bumper at
the exact location used for measurement X. This is measurement Y.

To determine sag, commonly referred to as ride-in, subtract
measurement Y from X (sag=X-Y). Adjust sag by rotating the torsion
spring preload cams located on the rear torque arm. See page 49.

The ideal amount of sag for this rear suspension is 2.5 inches (6.4 cm)
(X-Y=2.5 in./6.4 cm).

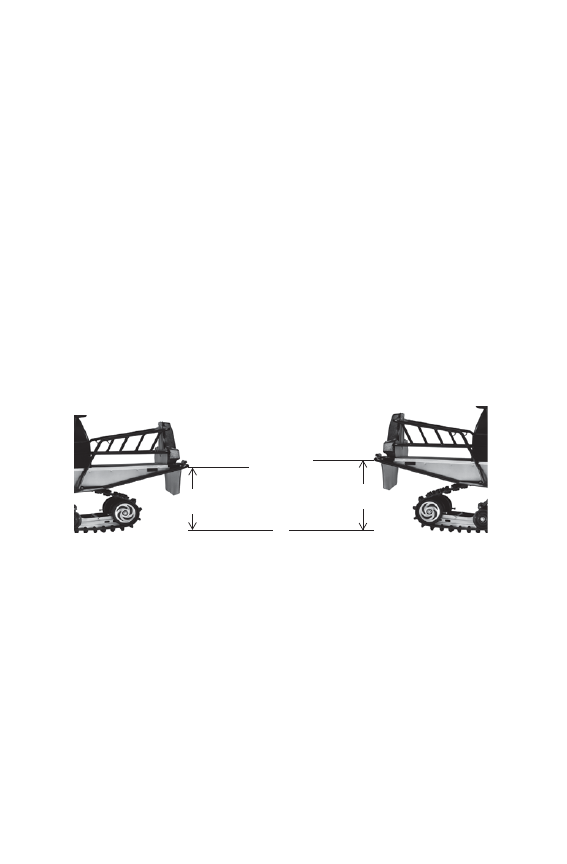

X

Y

No Rider

With Rider

49

THE PERFECT FIT

Rear Suspension Adjustments

Torsion Spring Preload

To adjust rear torsion spring preload, rotate the three-position cam using
the engine spark plug tool. This adjustment is easier to make if tension
is relieved from the spring. Exercise extreme caution if you use this
method of adjustment, and follow the steps below carefully.

WARNING! A sudden release of tension from a spring could result in serious
injury. Wear eye protection and maintain a firm grip on the spring when
removing and installing it.

1. Grasp the spring firmly with both hands.

2. Maintain a firm grip on the spring and carefully remove the long leg

from the guide block. Be prepared for a sudden release of tension.

3. Carefully allow the leg to unwind and relieve tension from the cam.

4. Rotate the cam to the desired setting.

5. Rewind the long leg of the spring. Maintain a firm grip on the spring

while reinstalling it into the guide block.

Tip: Different rate torsion springs may be available if a firmer ride is desired.

Contact your dealer for more information.

The following information is provided only as a guideline to be used for
initial suspension set-up. Your set-up may vary based on your desired
riding style.

Soft (long end of cam to front)

Medium (short end of cam up)

Firm (long end of cam up)

Soft

Medium

Firm

50

THE PERFECT FIT

Rear Suspension Adjustments

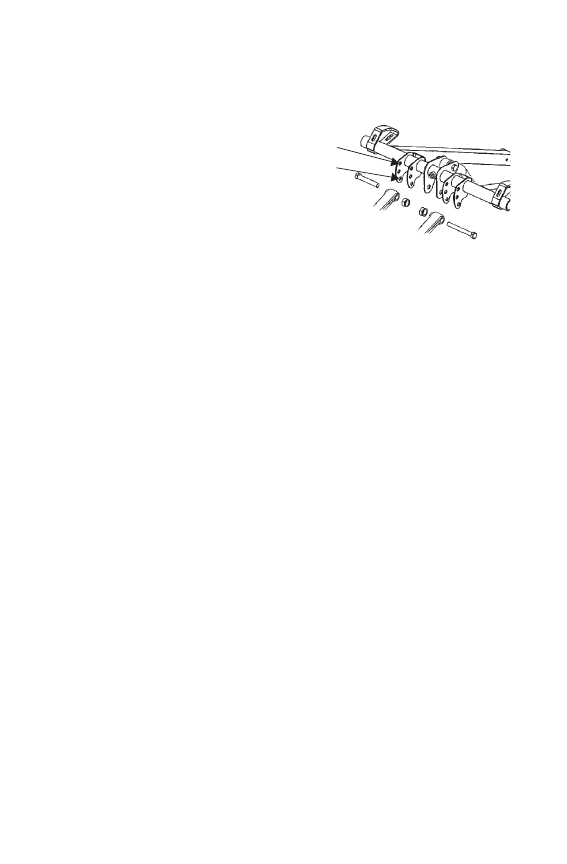

Limiter Strap Position (Ski Pressure)

The following information is
provided only as a guideline to
be used for initial suspension
set-up. Your set-up may vary
based on your desired riding
style.

High: Limiter strap in high
position



increases ski pressure

Low: Limiter strap in low
position decreases ski pressure

Shock Compression Valving

The rear track shocks for this model are gas charged shocks. The
valving on the gas charged shocks is pre-set.

High

Low
