FEATURES

Instrumentation

MFD Digital Display Programs

History Program

Press and release the MODE button until the history program screen is
active. This screen will always display electrical system voltage level
and fuel level (if equipped).

Press and release the SET button to cycle through the Maximum Vehicle
Speed, Maximum Engine RPM and Service Interval Reminder screens.

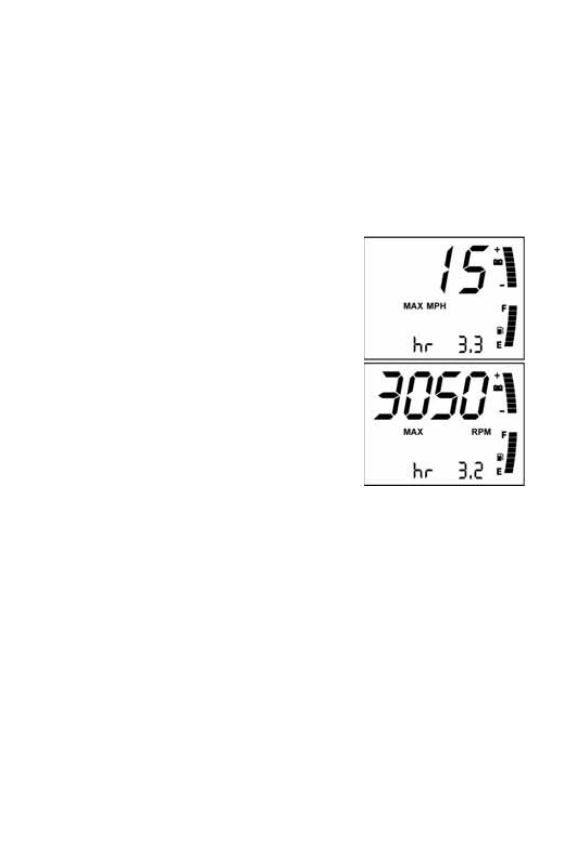

Maximum Speed/Maximum RPM

The gauge automatically logs the maximum
speed and engine RPM even if the history
program is not active in the display.

1. Enter the History Program.

2. Press and release the SET button until

one of the two screens is active.

Tip: The MPH and RPM values are both reset at

the same time. Reset the values before each
run to obtain accurate readings.

3. Press and hold the SET button for three

seconds to reset the recorded maximum
values for both MPH and RPM.

Tip: Due to electrical noise, the MFD may

occasionally display MAX MPH/RPM values
that are not representative of actual values.

FEATURES

Instrumentation

MFD Digital Display Programs

History Program

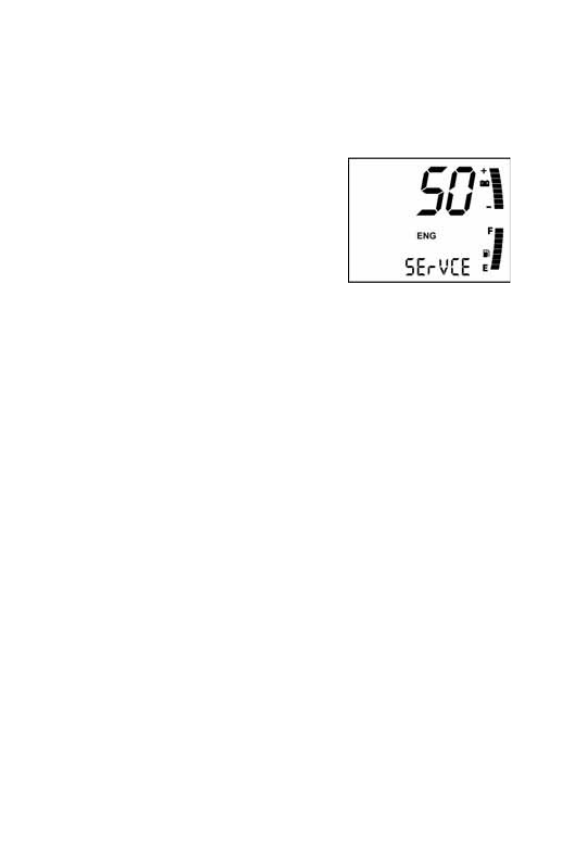

Service Interval Reminder

The gauge logs the number of engine
hours accumulated between service
reminders. When the logged hours
reaches the designated service interval
(set by the user), the gauge provides a
reminder that service is due. “SErVCE”
will flash in the odometer area and
“ENG” will flash in the icon area for five
seconds each time the engine is started
(until the service reminder is reset.) Use
the following procedures to reset the
reminder.

To reset the reminder at the existing interval:

1. Enter the History Program.

2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for ten seconds, continuing to hold

even after the display begins to flash.

4. When the display stops flashing, release the button. The service

interval has been reset.

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
Service Interval Reminder

To reset the reminder at a new interval:

1. Enter the History Program.

2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for five seconds, until the hours begin

to flash. Immediately release the button.

4. Press the button again, up to five times, to advance the reminder in

50-hour increments.

Tip: The maximum interval is 250 hours.

5. Press and release the MODE button to save the new settings.

To disable the service interval reminder:

1. Press the SET button once after reaching 250 hours on the display.

The gauge will display “OFF”.

Gauge Cleaning

1. Wipe the gauge face as needed using a clean cloth and a mild soap

and water solution. Wipe dry with clean, soft cloth.

2. Clean the back side of the gauge using a clean cloth and a mild soap

and water solution. Do not remove the electrical connectors or
protective rubber boot. Do not spray the back side of the gauge or
the wire harness with a pressure washer or other water source.

NOTICE: To prevent damage to the lens, do not use alcohol for cleaning. Do not

allow chemicals or sprays to contact the lens. Immediately clean off
any gasoline that splashes on the gauge during refueling.

THE PERFECT FIT

IQ Front Suspension Adjustments

Independent Front Suspension (IFS)

Break in the suspension for approximately 150 miles (240 km) before
making any fine-tuning adjustments.

Settings will vary from rider to rider, depending on rider weight, vehicle
speed, riding style, and trail conditions. We recommend starting with
factory settings and then customizing each adjustment individually to
suit rider preference. The snowmobile should be methodically tested,
one change at a time, under the same conditions (trail and snow
conditions, vehicle speed, riding position, etc.) after each adjustment
until the best ride is achieved.

IFS Components

1. Skis

2. Front shocks and springs

3. Rod ends

4. A-arms

IFS Adjustment Options

• Front shock spring preload

• Optional springs

• Toe (ski alignment) (see page 106)

• Camber (see your dealer)

Front Shock Spring Preload

The factory preload setting should be appropriate for most riders and
conditions. Please see your POLARIS dealer for assistance before
attempting to adjust preload.

Increasing the spring preload too much may adversely affect the
handling of the snowmobile and the performance of the rear suspension.

Decreasing the spring preload too much may allow the lower spring
retainer to fall off.
