Snowmobile Polaris 600 IQ Widetrak (2017 year). Manual - part 9

39

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Trip Settings

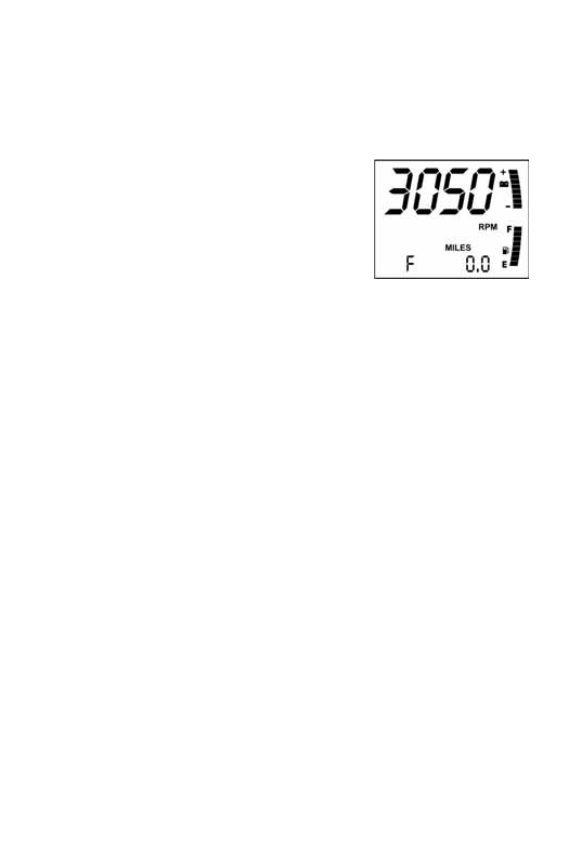

Trip F automatically displays when the
fuel level is low if the snowmobile is
equipped with an electronic fuel gauge.
The fuel symbol and the last fuel bar on
the MFD gauge (if equipped) will blink
when the fuel level reaches 1/8 of a tank.

The Trip F odometer records distance
traveled, and the fuel symbol continues
to blink, until enough fuel is added to
raise the level above 1/4 of a tank. The
Trip F odometer will automatically reset
to zero after refueling.

40

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program

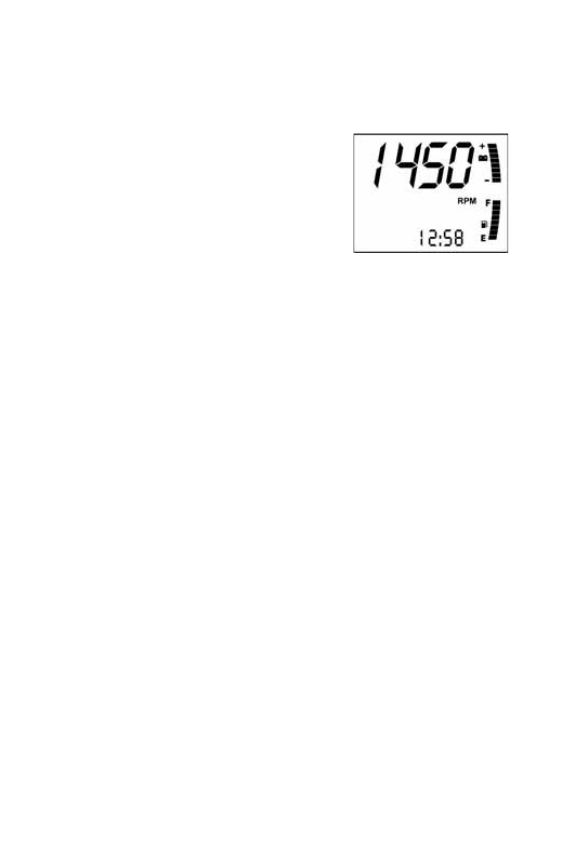

Clock Setting (if equipped)

1. Enter the Performance Program.

2. Press and release the SET button

until the clock screen is active.

3. Press and hold the SET button for

five seconds.

4. When the hour starts flashing,

press the SET switch once to advance one hour. (Press and hold the
SET button to advance the hours quickly.)

5. Press and release the MODE button to save the hour. The minutes

will begin flashing.

6. Set the minutes in the same manner.

7. When finished, press and release the MODE button to save the new

setting. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.

41

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program

Press and release the MODE button until the engine program screen is
active. The default display for this screen includes engine hours,
electrical system voltage level, fuel level (if equipped) and either engine
coolant temperature, air temperature (accessory) or altimeter
(accessory).

Press and release the SET button to cycle through the following screens:
hour meter, engine temperature, air temperature (available as an
accessory), altimeter (available as an accessory) and turbo boost (if
equipped).

Hour Meter

The hour meter records the total hours of
engine operation since manufacture. This
meter cannot be reset.

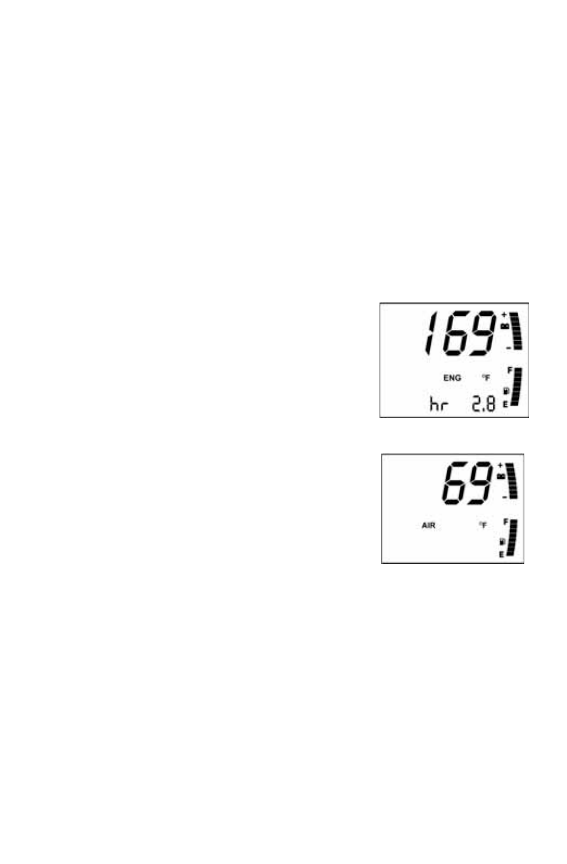

Engine Temperature

A thermometer measures water temperature,
giving an indication of engine temperature.

Air Temperature (if equipped)

The MFD displays actual air temperature in
either standard or metric units.

1. Enter the Engine Program.

2. Press and hold the MODE switch for ten

seconds to switch between standard and
metric units of measurement.

42

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program

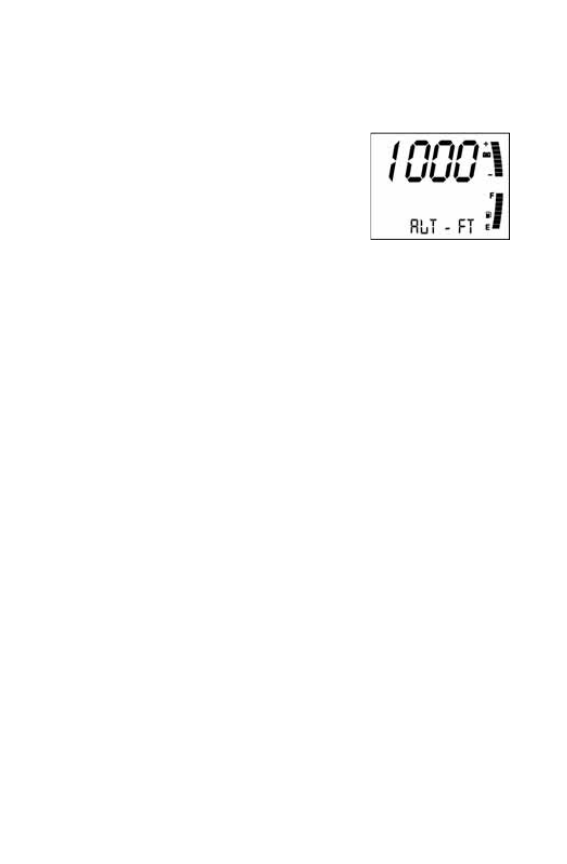

Altitude (if equipped)

The rider can calibrate the altimeter for current
atmospheric conditions. Altimeter accuracy
will be +/-300 ft. (91 m) after adjustment.

1. Enter the Engine Program.

Tip: Press and hold the MODE switch for ten sec-

onds to switch between standard and metric
units of measurement. When "ALt" displays,
the program is in the metric mode.

2. Press and release the SET button until the altimeter screen is active.

3. Press and hold the SET button for five seconds. When the digits

begin to flash, release the button.

4. Press and release the SET button once to advance 50 feet (15 m).

Tip: Press and hold the SET button to advance quickly by 100-foot (30 m)

increments.

5. Adjust the altitude display to within 50 ft. (15 m) of current altitude.

Tip: The gauge reads barometric pressure and allows the rider to compensate

for daily fluctuations in air pressure. The gauge can adjust the displayed
altitude to +/- 1300 ft. (396 m) from the preset value. It will adjust up to
+1300 ft. (396 m) above the calibrated altitude. Once the +1300 ft. (396 m)
offset has been reached, the next adjustment is -1300 ft. (396 m) from the
calibrated altitude, and 50 ft. (15 m) will be added to the altitude each time
the SET button is pressed.

6. Press and release the MODE button to set the reading at the adjusted

value. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.
