COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 7

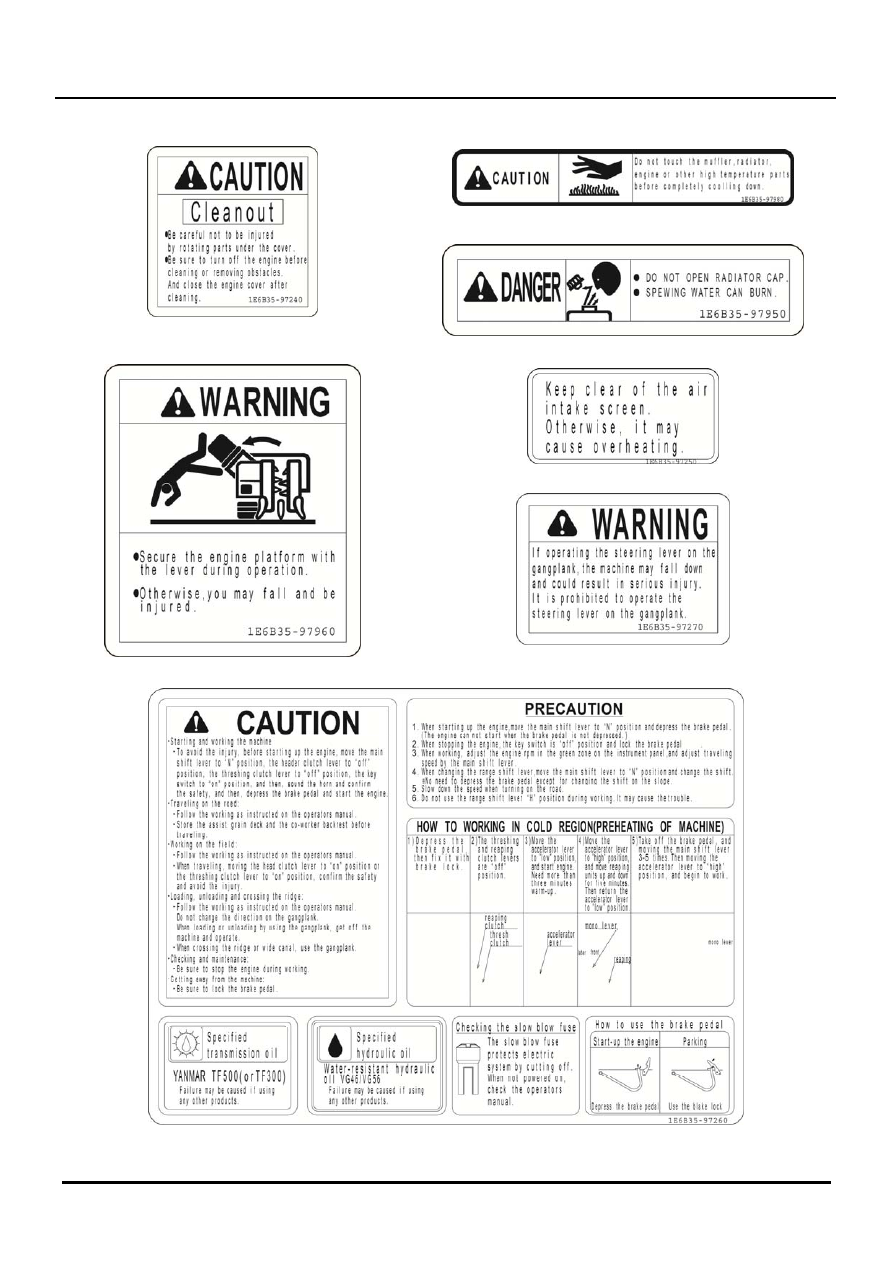

Attachment position of safety labels





29

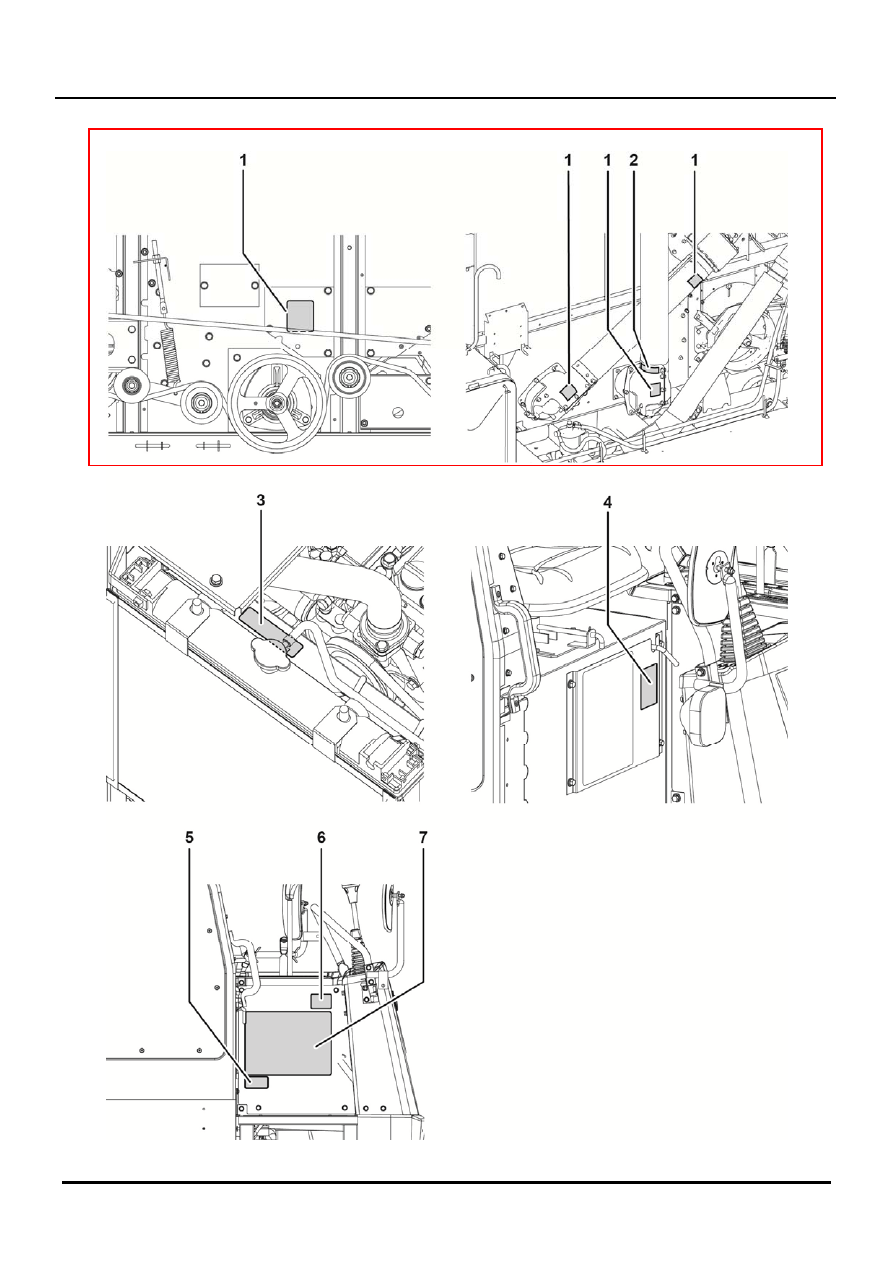

Attachment position of safety labels





30



1



2



3



4



5



6



7





Function of parts



31




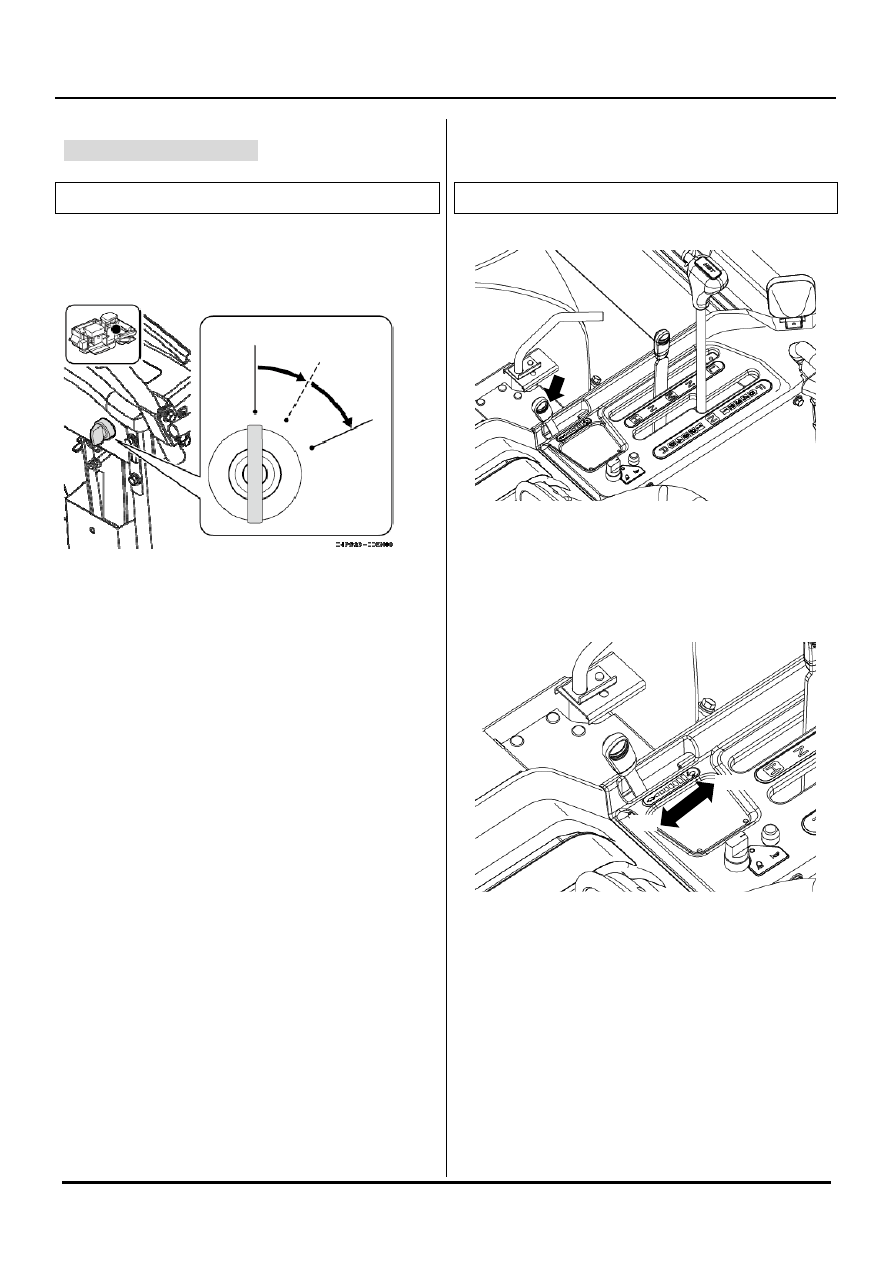

Engine control section



1



Key switch






The key switch is used to start up the engine.







“OFF”:

Used to stop the engine.

All this position, no current flows
and the key can be pulled out.



“ON”:

Current flows through the switches
of electrical parts. The oil pressure
and charging indicators are lit when
the engine stops.



“START UP”:

The starter motor rotates to start up
the engine. Release the key
immediately after start-up of the
engine. The key will automatically
return to the “ON” position for
continuous operation.























2



Accelerator lever









The accelerator lever is used to regulate the engine
speed. Pull the lever backward and push it forward, the
engine speed will decrease and increase respectively.




















OFF

ON

START

UP

Low

High

Function of parts



32




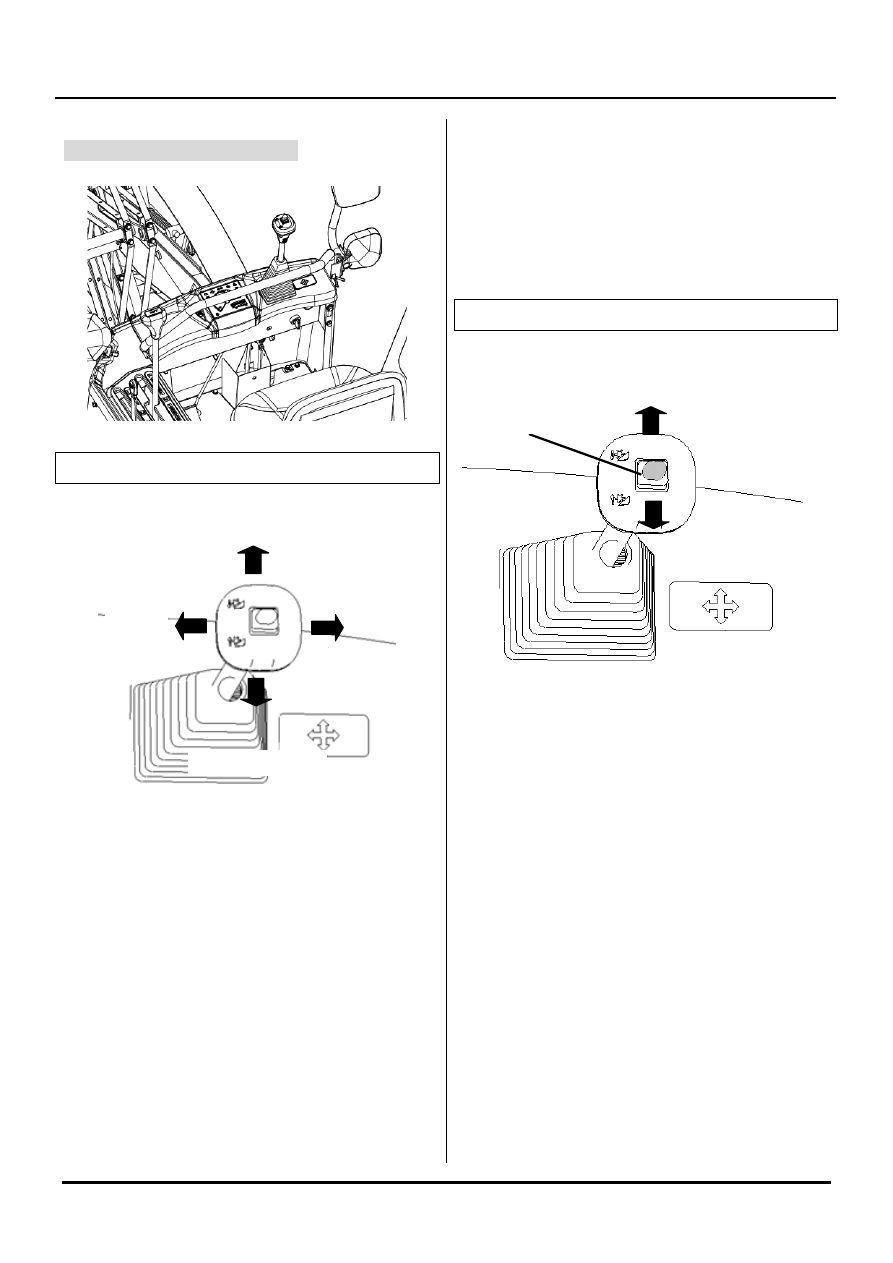

Operation-related section-1









1



Steering lever







After start-up of the engine, push the steering lever
forward, and the header will be lowered; pull the lever
backward, and the header will be raised. During
traveling, the machine will turn left and right by moving
the lever left and right.

























[Precaution]
Be careful to prevent the machine from leaning
forward when moving the steering lever left or right
while traveling. Otherwise, the header may descend
and the crop divider may touch the ground to cause
damages.


2



Direction switch of reel









Move the direction switch forward, and the reel will
descend; move the switch backward, and the reel will
ascend.




Turn

Right

Turn

Left

Header lowers

Header rises

Direction switch

Reel lowers

Reel rises
