COMBINE HARVESTER AW70V, VNQ, AW82V, VNQ. Manual - part 8

Function of parts



33





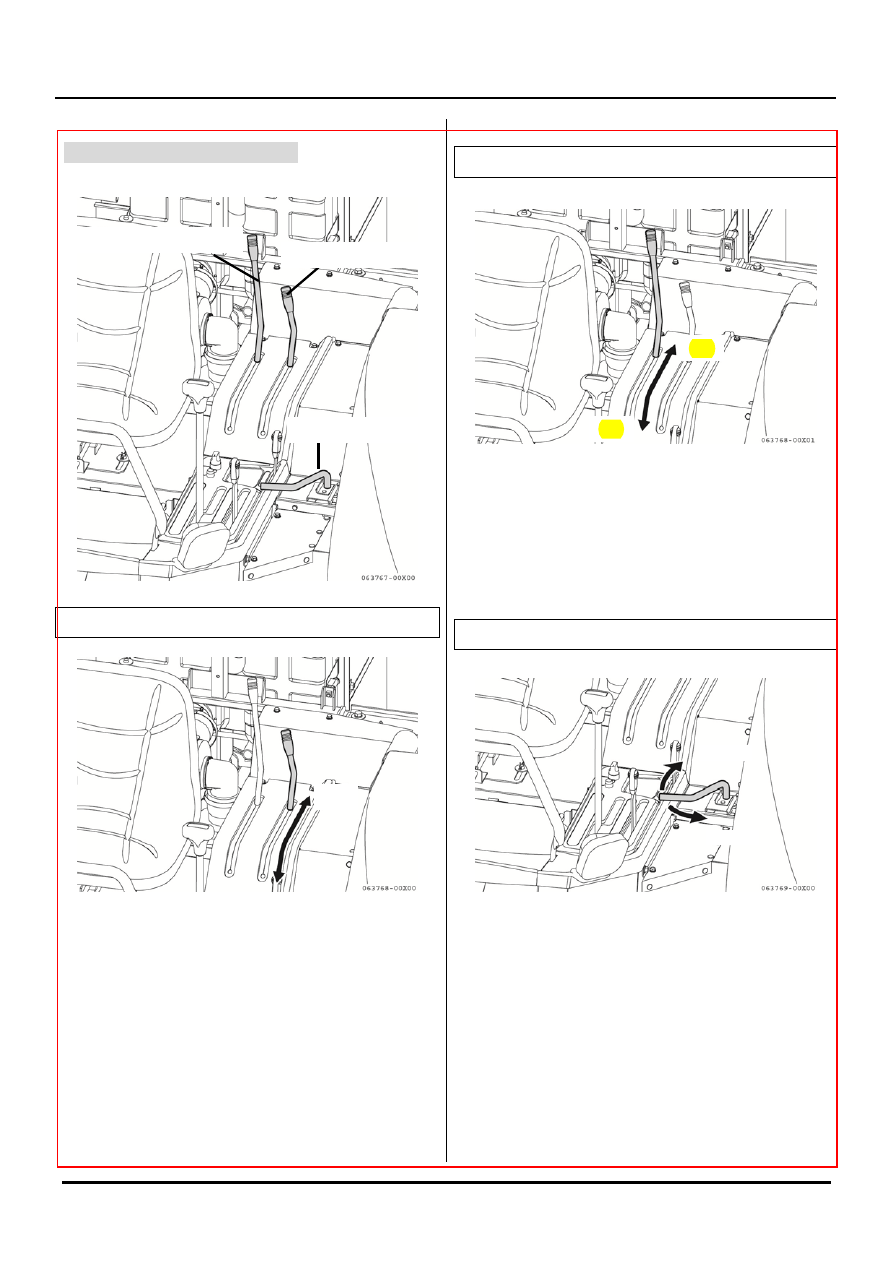

Operation-related section-2







3



Header clutch lever







The reaping section (header) will start working if the
header clutch lever is pulled to “ON”. The section will
stop working if the threshing clutch over is set to “OFF”.

[Precaution]
Adjust the engine speed to “Low” before operation
of the harvesting clutch lever; and regulate the
speed to normal after the lever is put to “ON”. The
threshing clutch must be engaged before
engagement of the header clutch, and be
disengaged in the reverse order.




4



Threshing clutch lever





Pull the lever to “ON”, and the threshing section will
start working; pull it to “OFF”, and the section will stop
working.


[Precaution]
Adjust the engine speed to “Low” before operation
of the threshing clutch lever; and regulate the
speed to normal after the lever is put to “ON”


5



Reversing lever







The reaping section (header) and the feeding chamber
will give loud noise or the harvesting section will stop
working or otherwise fails if the section and chamber are
blocked by straw during harvesting. In this case, use the
lever to reverse the harvesting section to remove
obstacles

[Note]


  Switch the reversing lever after turning off the

header clutch.



  Use reversal function by the engine idling

speed.

Threshing clutch lever



Header clutch lever

Reversing lever

On



Off



On

Off



Forward

Reverse

Function of parts



34





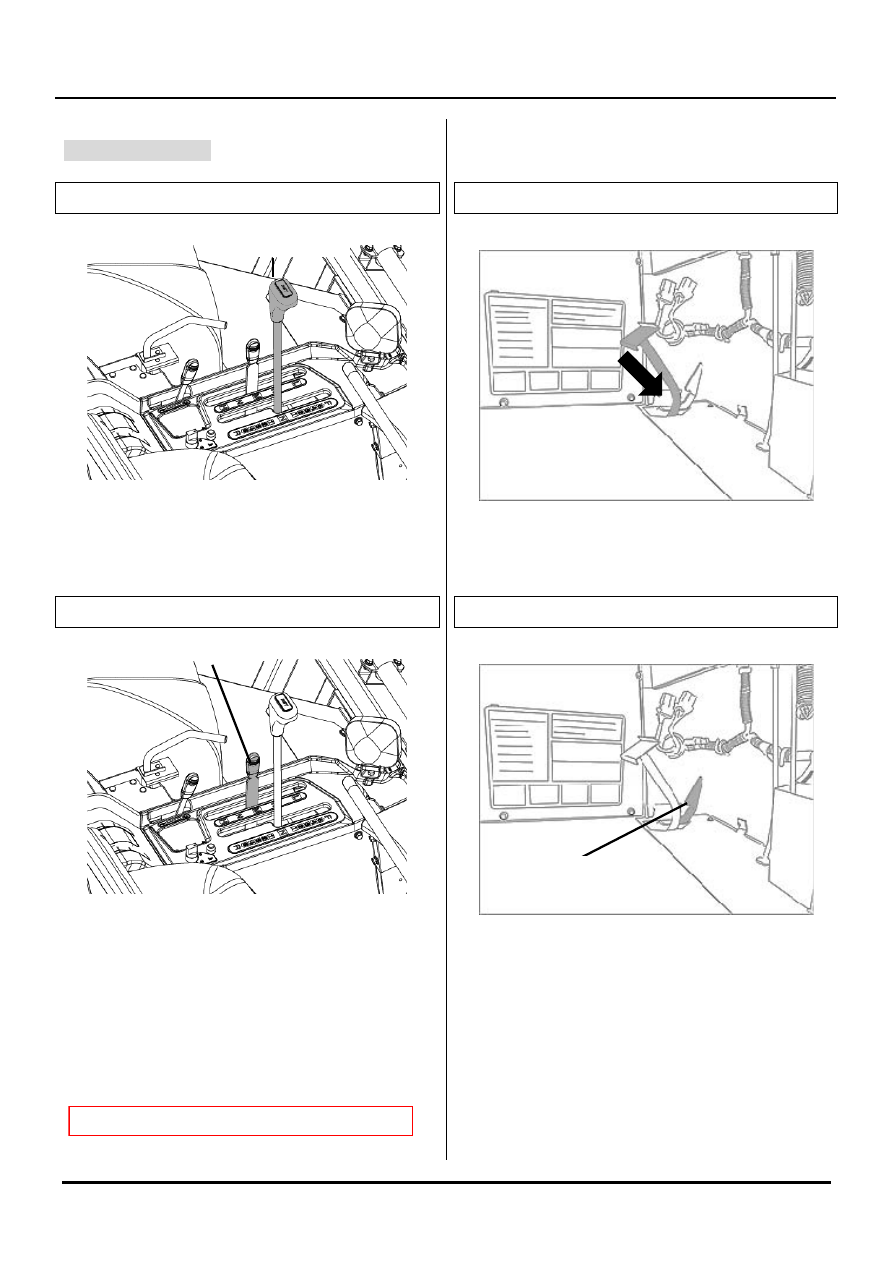

Traveling section



1



Main shift lever (HST)









The main shift lever is used to move the machine
forward or backward during traveling. You can push the
lever to enable step-less speed change.


2



Range shift lever







This lever provides three gears, namely “L” (Low), “M”
(Middle) and “H” (High) according to the purpose and
conditions of operation.

[Precaution]





Be sure to put the main shift lever to “N” in
advance.

Do not change the speed on a slope.










3



Brake pedal







Step the brake pedal for emergency stop of the
machine in traveling.



4



Brake pedal lock









Step the brake pedal and engage the pedal lock to
completely stop the machine. This lock can be released
by stepping the pedal to the floor.






Main shift lever



Range shift lever

Brake pedal lock



LとN間のストッパーに関する記述削除

Function of parts



35





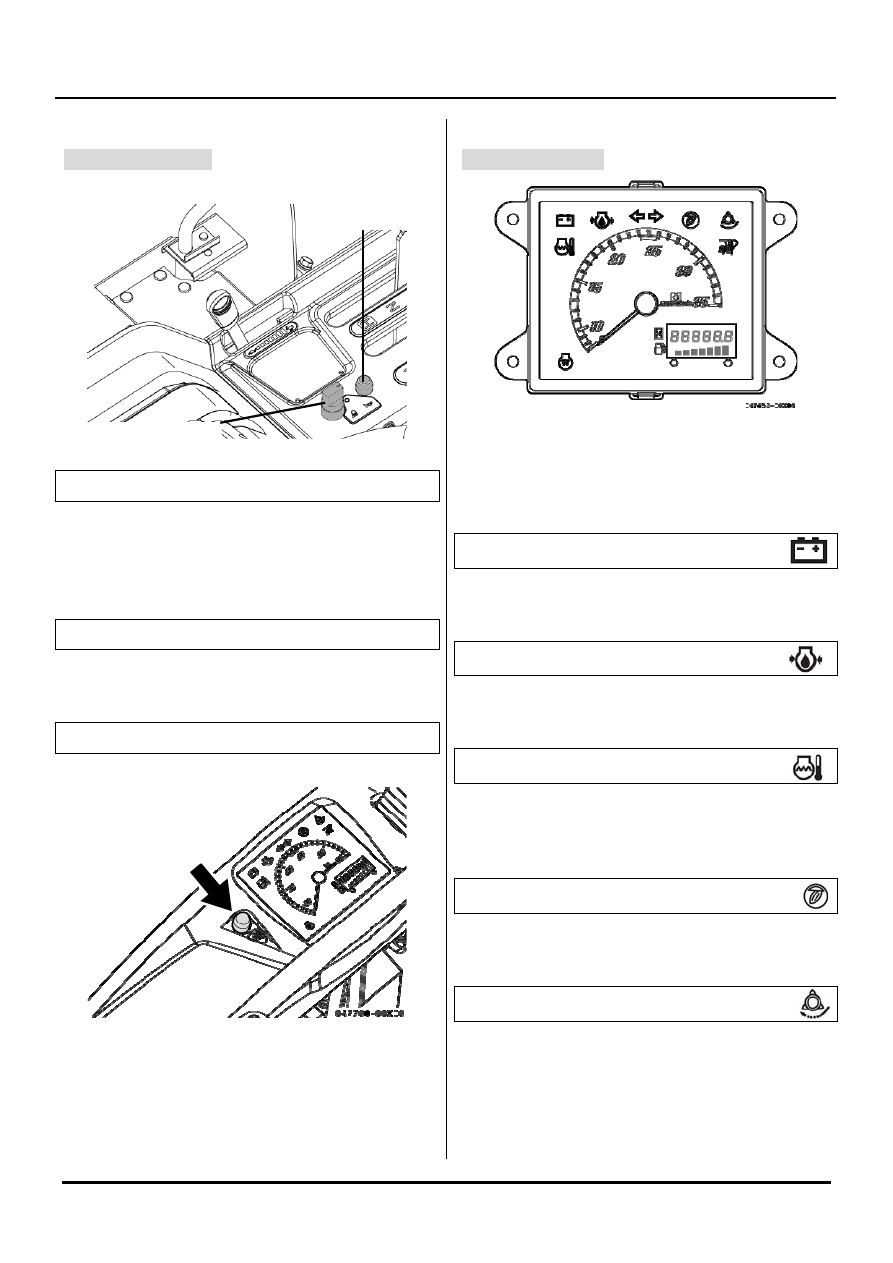

Electrical section









1



Work lamp switch



Pull the key switch to “ON”, and turn the working light
switch clockwise, the head light and work lamp for the
feeder house, reaping section and the rear part will be
lit simultaneously.


2



Horn button



Pull the key switch to “ON” and press the horn button,
the horn will give sound.


3



Buzzer stop button







This button is used to stop the alarm buzzer.











Alarm indicators





The indicators are the alarm devices for abnormalities
in various parts during operation, through which, or
together with the buzzer, the abnormal parts can be
indicated.


1



Charge indicator



This indicator will be lit if the battery is not charged
during operation of the engine.


2



Oil pressure alarm



This indicator will be lit when the pressure of engine
lubricant decreases.


3



Water temperature alarm



This indicator will be lit and the buzzer will give sound
when the temperature of engine cooling water rises
abnormally.


4



Full grain tank alarm



This indicator will be lit and the buzzer will give sound
when the tank is filled with grain.


5



2nd conveyer blocking alarm



This indicator will be lit and the buzzer will give sound
when the revolving speed of secondary auger is lower
than the rated level.



Work lamp switch



Horn button

Function of parts



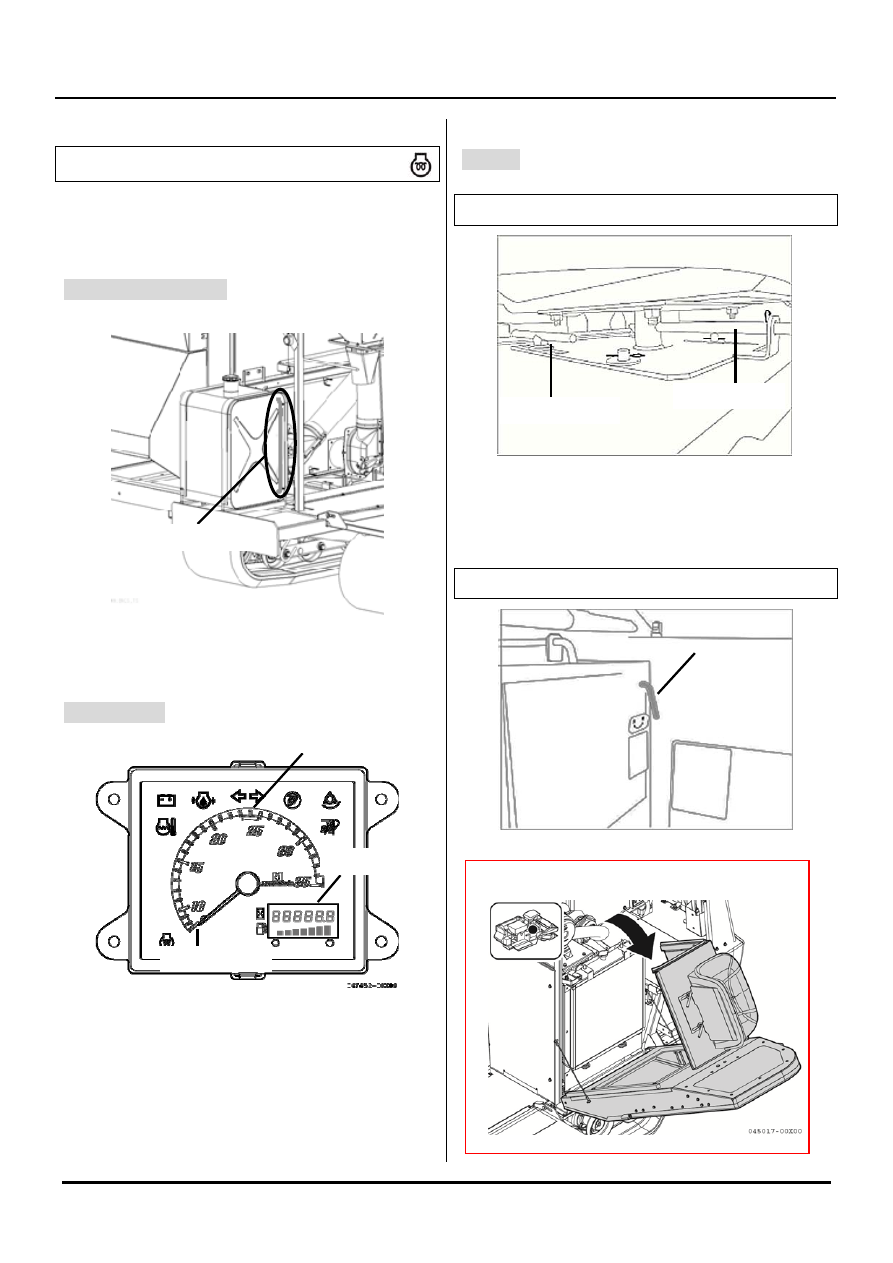

36





6



Warm-up



Pull the key switch to and remain it in “ON”, this
indicator will be lit. The engine can be started up after
the indicator is off.


Fuel level indicator







This indicator is used to display the fuel level in the fuel
tank.


Tachometer








This meter is used to indicate the speed and Usage
hours of the engine. Do not change the engine speed,
and remain the hand in the green zone during
operation.




Others



1



Operator’s seat







Move the adjusting pin, and loosen the bolt to adjust
the seat up and down to the position easy for operation.


2



Engine room cover lock lever







Open the engine room cover with force.





Fuel level indicator



Green zone

Usage hours

Tachometer



Adjusting pin

Adjusting bolt

Lock lever
