Jack Up The Machine

1-66

627333-A

Straight Chassis

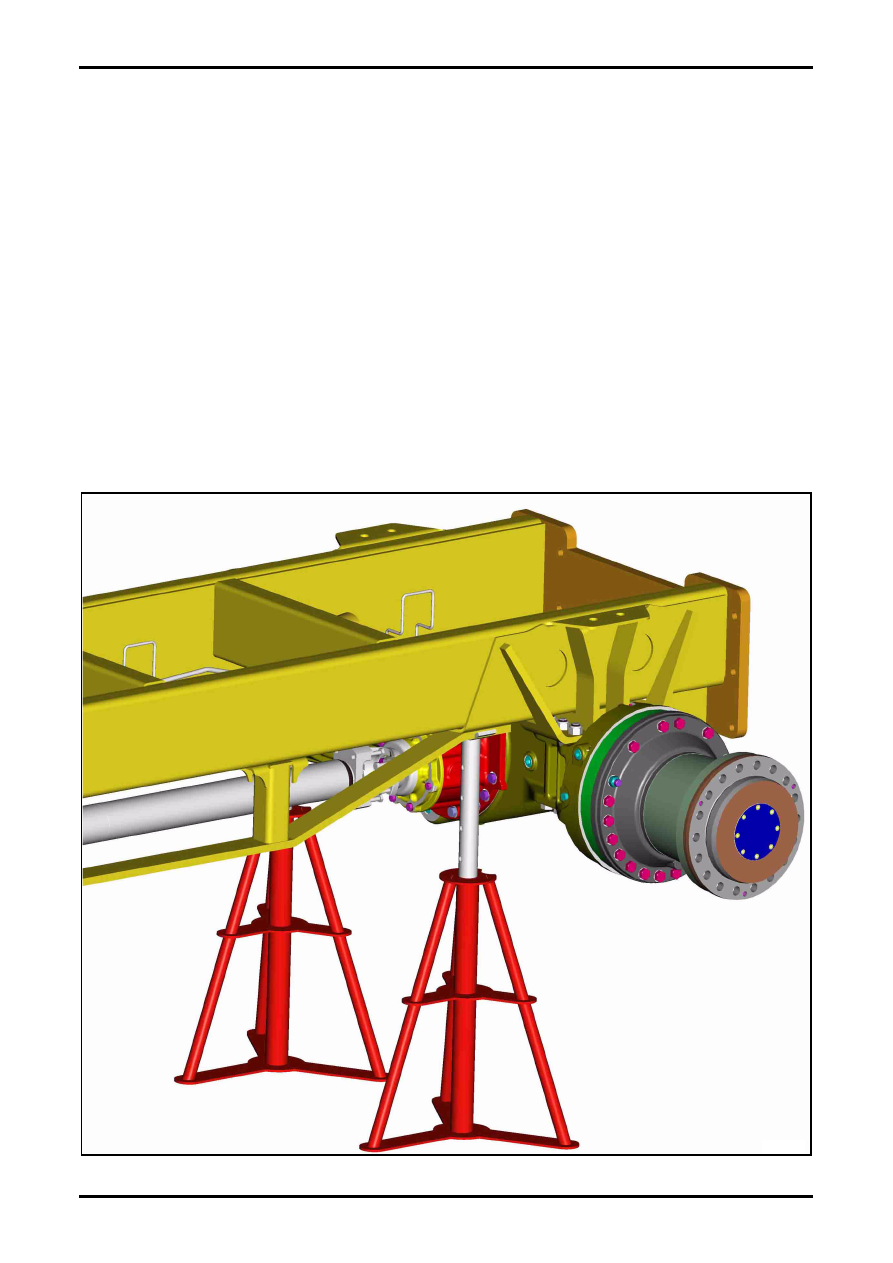

The follow figures shows how to jack up the rear side of

the rear chassis.

m

DANGER: When the machine needs to

jacked up. Be extremely careful. If the

machine falls of the jack, death or serious

injury can result.

m

DANGER: When the machine is jacked

up, always place a support. Place the

machine on the supports, and remove the

jack underneath the machine. A jack can

loose the force and the machine will fall.

Death or serious injury and damage to

the machine will result.

m

WARNING: Use proper supports. Be sure

the supports can carry the weight of the

chassis. Otherwise serious injury, death

and damage to the machine can result.

The weight of the rear chassis is 3880 kg

(8554 lb). This weight is without system.

FIG. 6

q000143s

627333-A

1-67

Jack Up The Machine

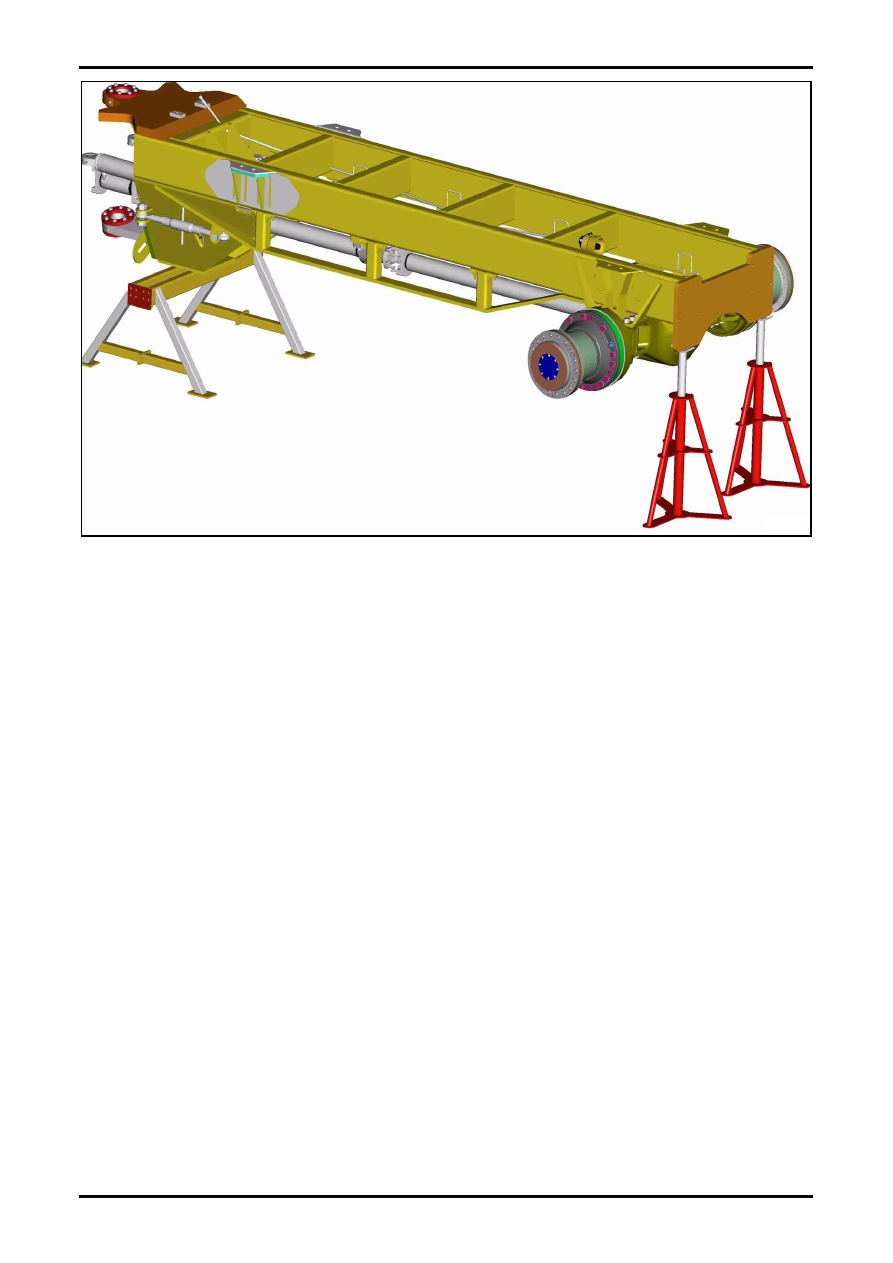

FIG. 7

q000144s

627333-A

1-69

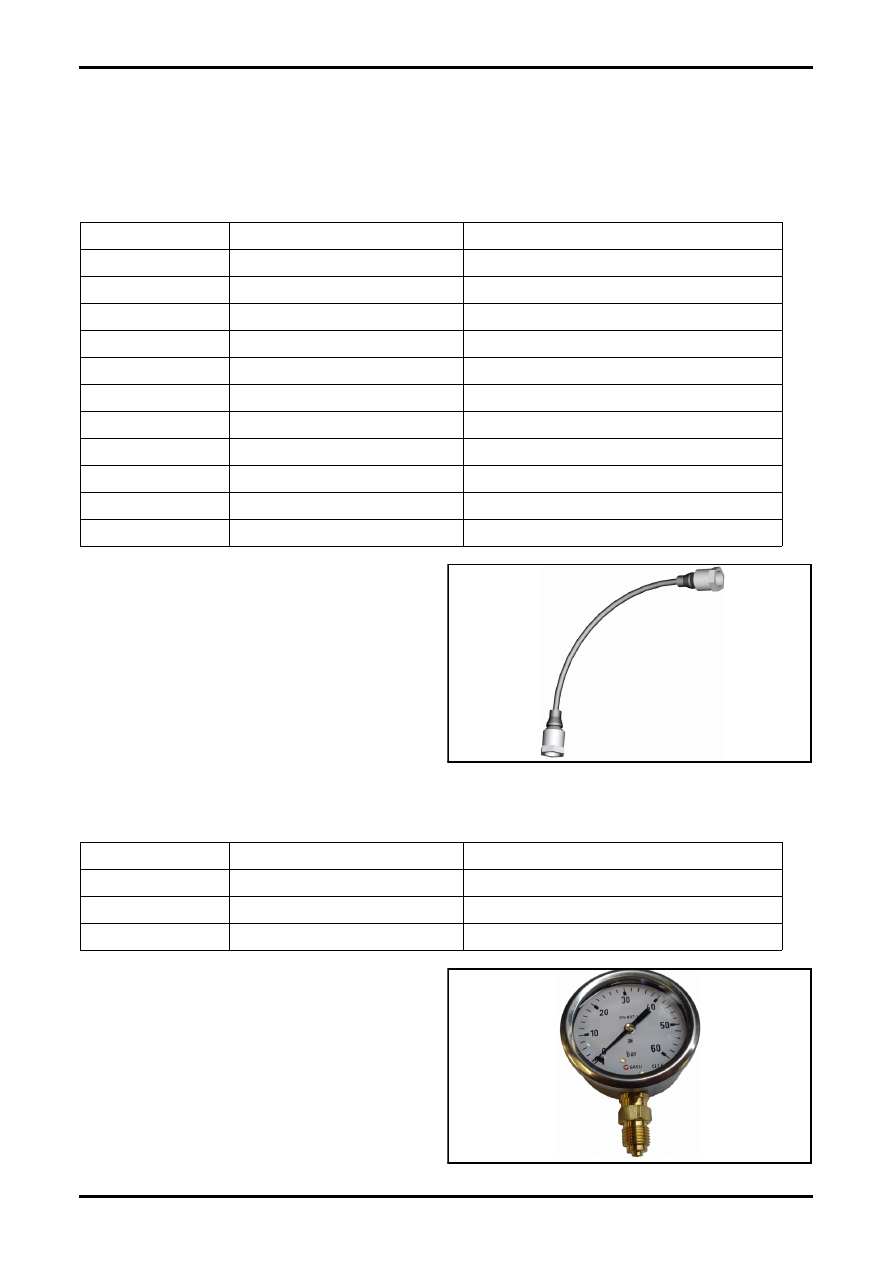

Tooling list

TOOLING LIST

TOOLING LIST

Hoses

FIG. 1: Hose with both sides Mini Mesh connection.

Pressure Gauge

FIG. 2: Pressure Gauge.

Partnumber

Description

Information

E210002

200 mm (7.9 inch)

Both sides Mini Mesh (Female threaded)

E210003

300 mm (11.8 inch)

Both sides Mini Mesh (Female threaded)

E210004

450 mm (17.7 inch)

Both sides Mini Mesh (Female threaded)

E210006

600 mm (23.6 inch)

Both sides Mini Mesh (Female threaded)

E210010

1000 mm (39.4 inch)

Both sides Mini Mesh (Female threaded)

E210010

1500 mm (59 inch)

Both sides Mini Mesh (Female threaded)

E210020

2000 mm (78.7 inch)

Both sides Mini Mesh (Female threaded)

E210030

3000 mm (118 inch)

Both sides Mini Mesh (Female threaded)

E210040

4000 mm (157.5 inch)

Both sides Mini Mesh (Female threaded)

E210050

5000 mm (196.8 inch)

Both sides Mini Mesh (Female threaded)

E210060

6000 mm (236.2 inch)

Both sides Mini Mesh (Female threaded)

FIG. 1

Q000168S

Partnumber

Discription

Information

E211016

16 bar (232 PSI)

1/4 BPS (Male threaded)

E211060

60 bar (870 PSI)

1/4 BPS (Male threaded)

E211250

250 bar (3626 PSI)

1/4 BPS (Male threaded)

FIG. 2

Q000173S

Tooling list

1-70

627333-A

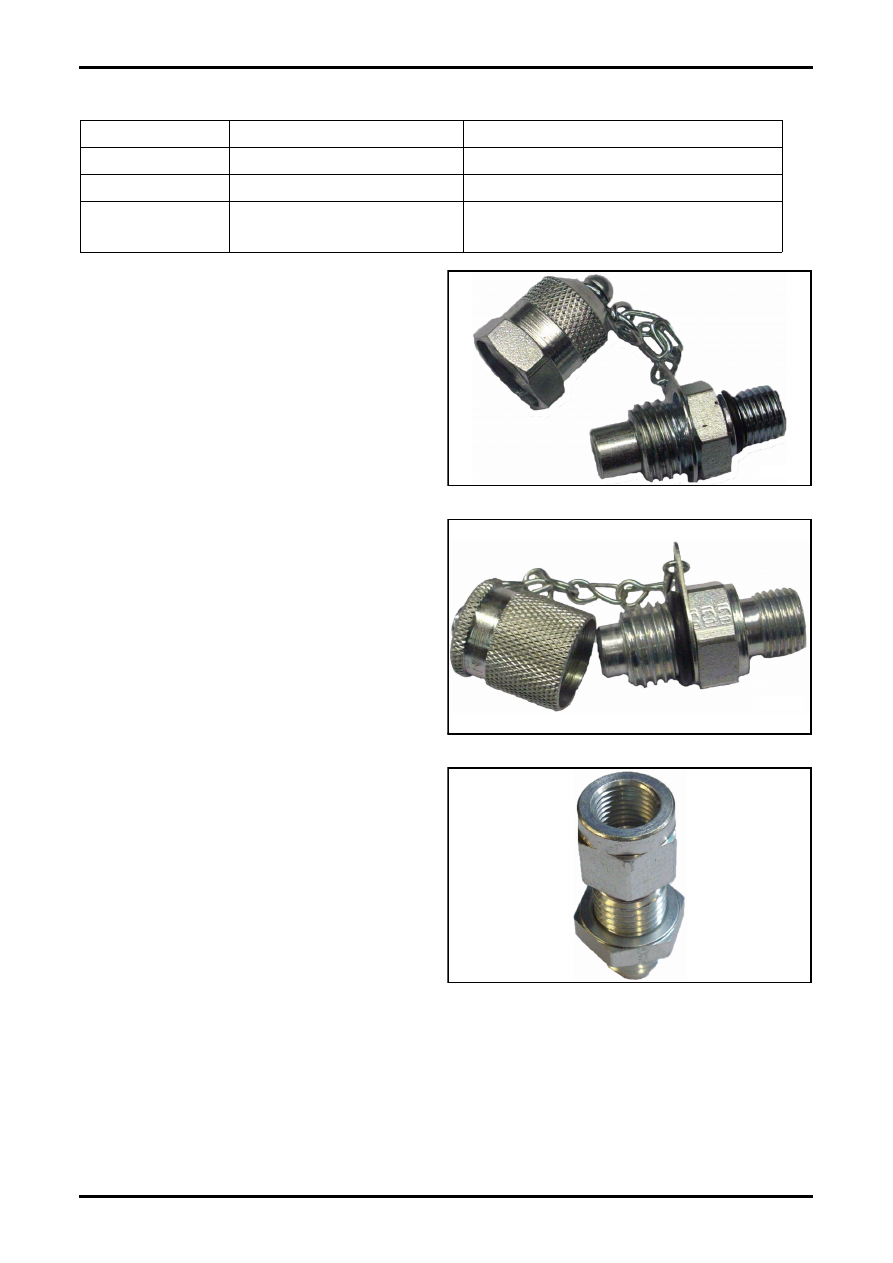

Fitting

FIG. 3: Mini Mesh -> 7/16 UNF.

FIG. 4: Mini Mesh ->1/4 BSP.

FIG. 5: Mini Mesh -> Pressure Gauge 1/4 BSP.

Partnumber

Description

Information

E210105

Mini Mesh -> 7/16 UNF

Both sides Male threaded

E210102

Mini Mesh -> 1/4 BSP

Both sides Male threaded

E210107

Mini Mesh -> Pressure Gauge

1/4 BSP

Mini Mesh, Male threaded
1/4 BSP, Female threaded

FIG. 3

Q000170S

FIG. 4

Q000171S

FIG. 5

Q000172S
