Challenger Terra Gator 3244 Chassis. Manual - part 16

Jack Up The Machine

1-62

627333-A

m

WARNING: Use proper supports. Be sure

the supports can carry the weight of the

chassis. Otherwise serious injury, death

and damage to the machine can result.

The weight of the front chassis is 9470 kg

(20878 lb).

m

WARNING: When the parking brake is

released the vehicle does not have any

park brake function. You must block the

wheels to prevent the vehicle from

moving. Serious personal inury or death

and damge to components can result.

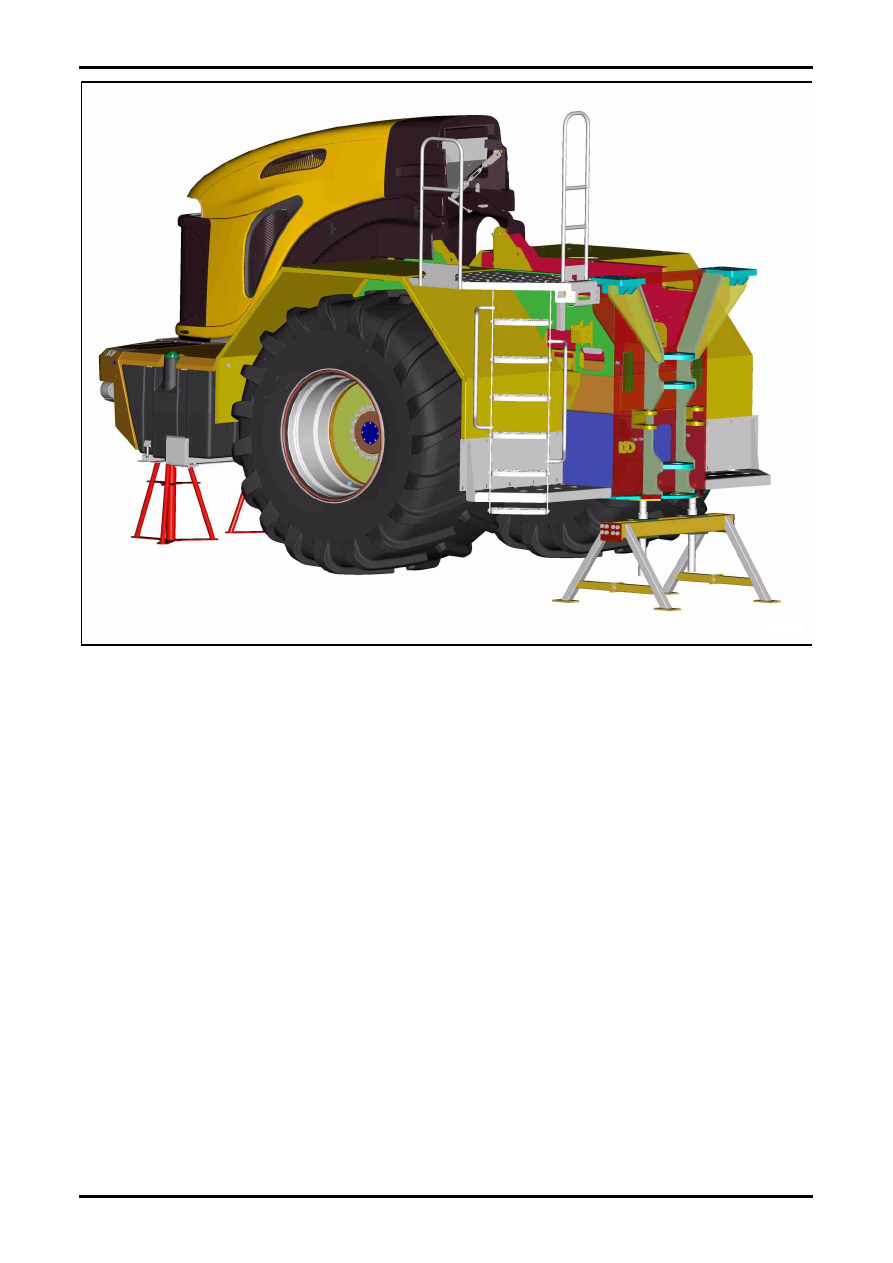

FIG. 2

q000114s

627333-A

1-63

Jack Up The Machine

REAR CHASSIS

m

DANGER: When the machine needs to

jacked up. Be extremely careful. If the

machine falls of the jack, death or serious

injury can result.

m

DANGER: When the machine is jacked

up, always place a support. Place the

machine on the supports, and remove the

jack underneath the machine. A jack can

loose the force and the machine will fall.

Death or serious injury and damage to

the machine will result.

m

WARNING: Use proper supports. Be sure

the supports can carry the weight of the

chassis. Otherwise serious injury, death

and damage to the machine can result.

The weight of the rear chassis is 3880 kg

(8554 lb). This weight is without system.

m

WARNING: When the rear chassis is

disconnect of the front chassis, the

centre of gravity is in front of the axle. If

the chassis falls of the jacks/supports,

the chassis will tip over to the front.

m

WARNING: When the parking brake is

released the vehicle does not have any

park brake function. You must block the

wheels to prevent the vehicle from

moving. Serious personal inury or death

and damge to components can result.

IMPORTANT: If the rear chassis contains a hitch.

Remove the application machine which is in

the hitch, before disassembly the pivot.

Otherwise the centre gravity point can be

behind the axle and the rear will tip backwards.

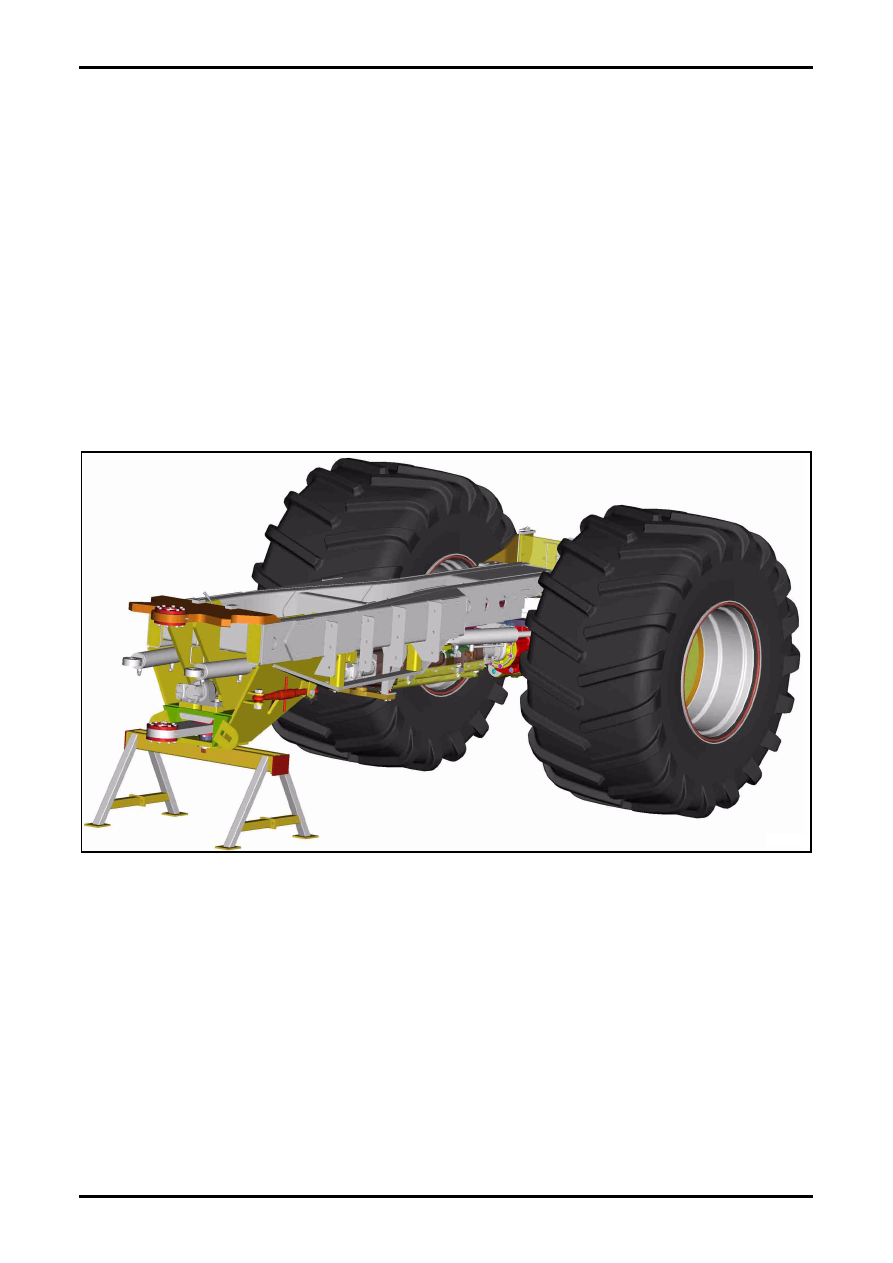

FIG. 3

q000113s

Jack Up The Machine

1-64

627333-A

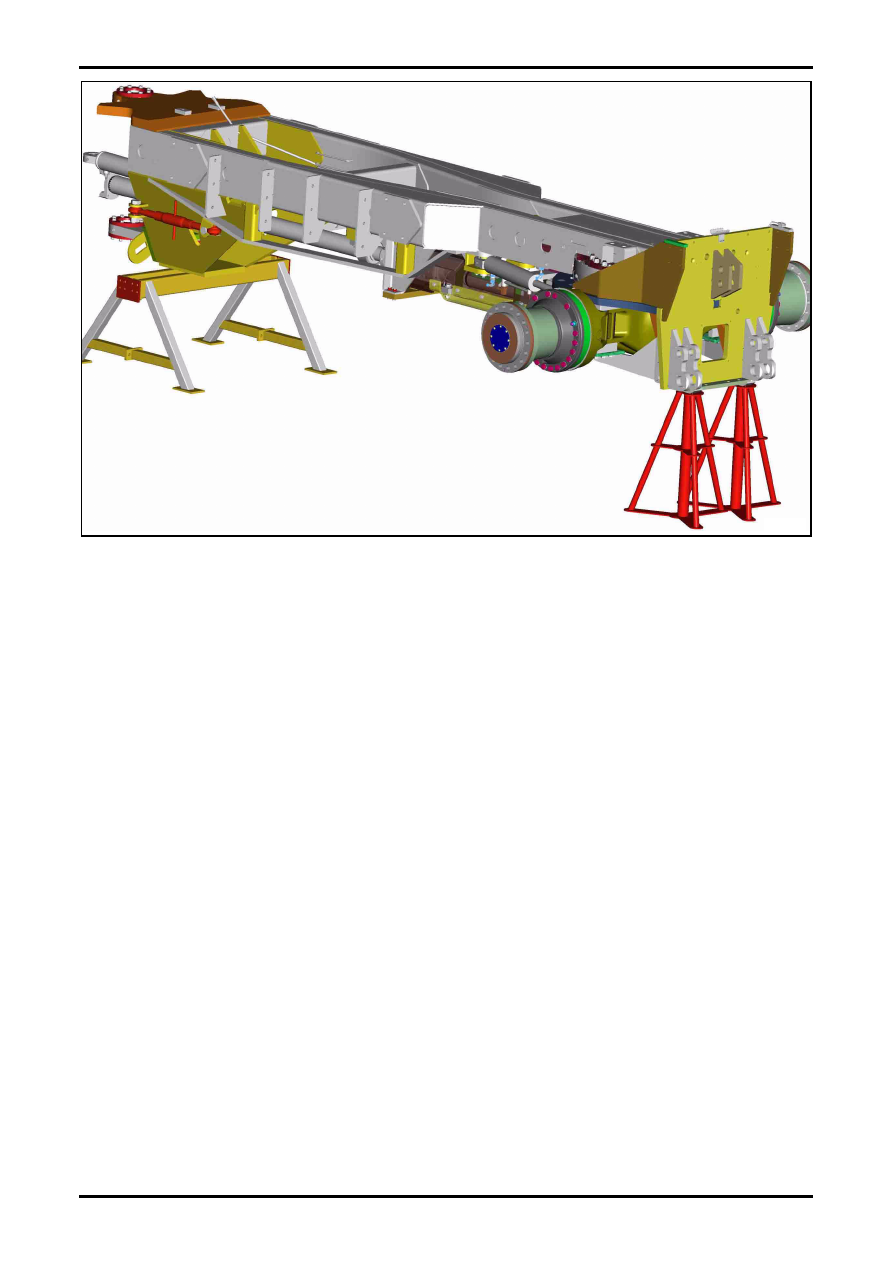

Dog Walk Chassis

The follow figures shows how to jack up the rear side of

the rear chassis.

m

DANGER: When the machine needs to

jacked up. Be extremely careful. If the

machine falls of the jack, death or serious

injury can result.

m

DANGER: When the machine is jacked

up, always place a support. Place the

machine on the supports, and remove the

jack underneath the machine. A jack can

loose the force and the machine will fall.

Death or serious injury and damage to

the machine will result.

m

WARNING: Use proper supports. Be sure

the supports can carry the weight of the

chassis. Otherwise serious injury, death

and damage to the machine can result.

The weight of the rear chassis is 3880 kg

(8554 lb). This weight is without system.

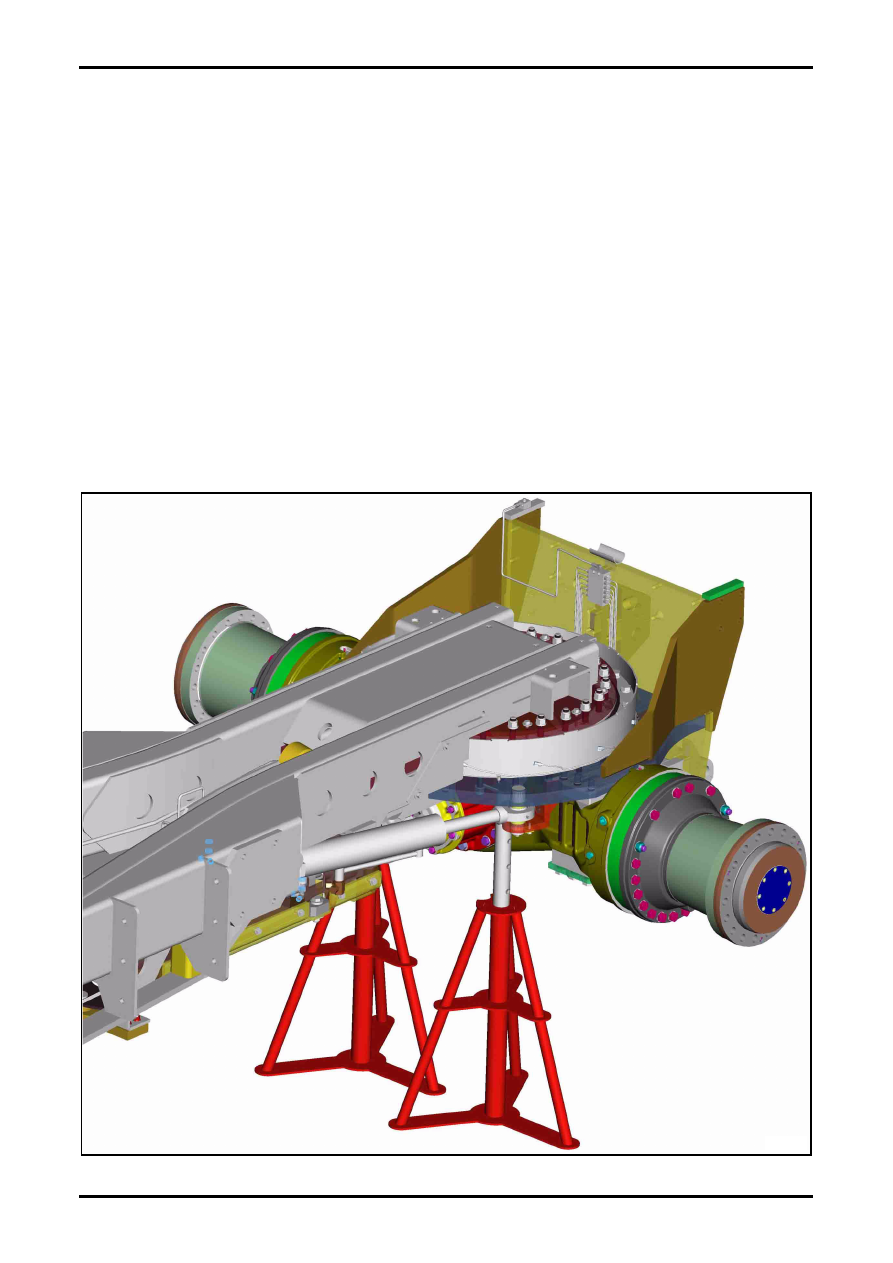

FIG. 4

q000141s

627333-A

1-65

Jack Up The Machine

FIG. 5

q000142s
