-78-

Lubrication Recommendations

Check and lubricate all components at the intervals outlined in the Periodic Maintenance Chart beginning on

 Page 73, or more often under severe use, such as wet or dusty conditions. Items not listed in the chart should
 be lubricated at the general lubrication intervals.



Item

Lube

Method

Engine Oil

SAE15W/40 SG



Add to proper level on dipstick, See

page 82

Brake Fluid

DOT3 or DOT4

Maintain level between fill lines, See

page 92

Transmission Oil(main

gearcase)

SAE15W/40 SG or SAE80W/90

GL-4



See page 85

Transmission Oil(rear

gearcase)

SAE15W/40 SG or SAE80W/90

GL-4



See page 86

Prop Shaft

U-joint lube

Locate fittings and grease

Control Arm Pivot Bushings,

Front/Rear

NLGI No.2

Locate fittings and grease

Stabilizer Bar Bushings,

Front/Rear

NLGI No.2

Locate fittings and grease





-79-

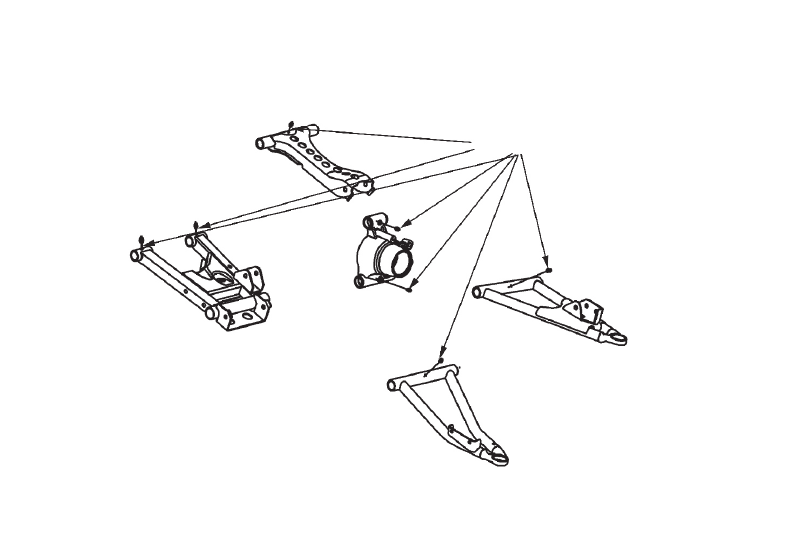

Lubrication Recommendations:

Control  Arm  Pivot
Bushings, Front/Rear

-80-

Engine Oil

Always check and change engine oil at intervals outlined in the Periodic Maintenance Chart beginning on
 page 72. Always change the oil filter whenever changing oil.

SAE15W/40 SG



Oil

We strongly recommend use



of



SAE15W/40 SG



Oil

,

API certified

“

S

”

oil

.

If



SAE15W/40 SG



Oil

 is

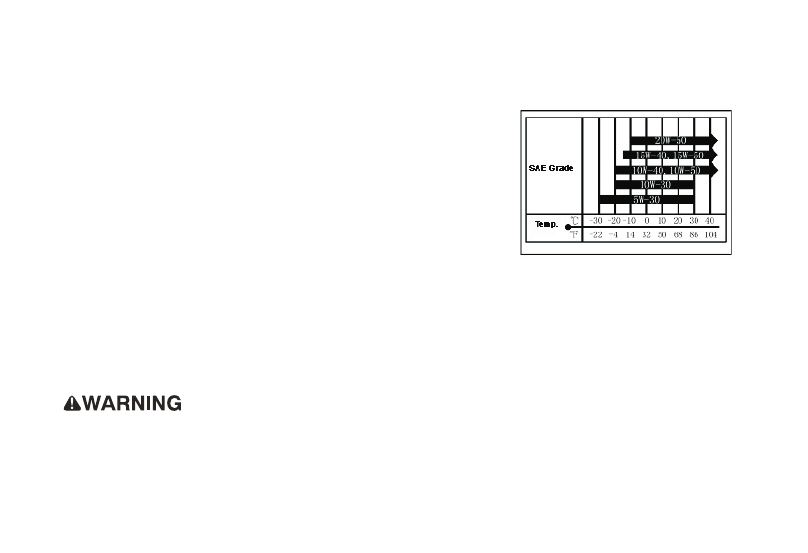

unavailable,choose oil following



the



right



instructions



according  to  the  engine



ambient



temperature.



Oil may need to be changed more frequently if SAE15W/40 SG



oil is not used

.

Follow



the



manufacture

'

s

 instructions for

ambient temperature operation.



CAUTION

Mixing brands or using a non-recommended oil may cause serious damage to the engine. We recommend use

 of



SAE15W/40 SG



Oil, never use substitute or mix oil brands.

Vehicle operation with insufficient, deteriorated, or contaminated engine oil will cause accelerated wear and
 may result in engine seizure, accident and injury. Always perform the maintenance procedure as  outlined in

 the Periodic Maintenance Chart.

G

-81-

Engine Oil

Always check and change engine oil at intervals outlined in the Periodic Maintenance Chart beginning on page
 72. Always change the oil filter whenever changing oil.

Oil Check

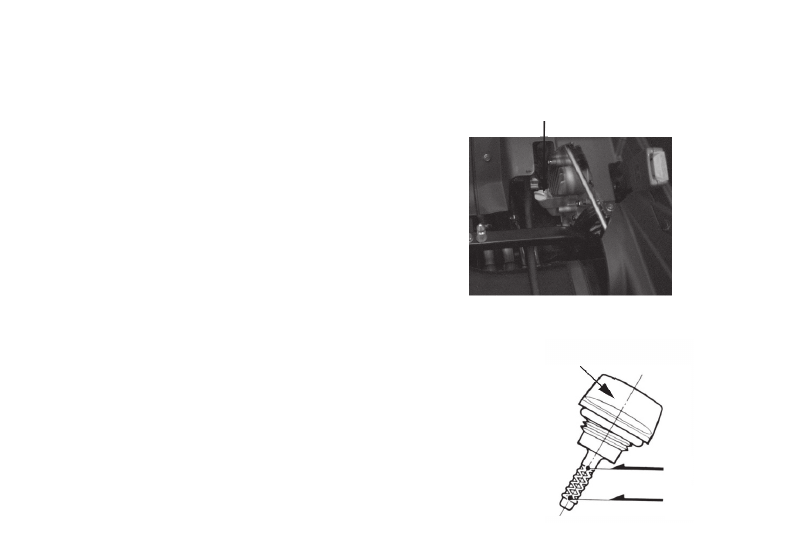

The oil dipstick and fill tube is located on the engine, behind the
passenger seat.

1

.

Position the vehicle on a level surface.

2

.

Place the transmission in PARK.Apply the brakes.

3

.

Start the engine.Allow it to idle for 20-30 seconds.

Stop the engine.

4

．

Remove both seats.Remove the rear service panel.

See page 34.

5

．

Remove the dipstick from the left side.

Wipe it dry with a clean cloth.
6

．

Reinstall the dipstick completely, but do not lock it.

The dipstick must be inserted completely to keep the angle and
depth



of



the



stick



consistent.

7

．

Remove the dipstick and



check



the



level

.

Maintain



the



oil



level



within the



upper



and



lower



limit

.



Do not overfill.

NOTE：

Due to



the



dipstick



entry angle into the crankcase,



the oil level will read higher on the bottom side of the dipstick.
Always read the level on the upper surface of the dipstick.
8

．

Reinstall the dipstick. Seat the lever lock.

Dipstick

Oil dipstick

Upper  limit

Lower limit

-82-

Engine Oil
Oil and Filter Change
CAUTION

Hot oil can cause serious burns to skin. Do not allow hot oil to come into contact with skin.

Always check and change engine oil at intervals outlined in the Periodic Maintenance Chart beginning on
page 72. Always change the oil filter whenever changing oil.

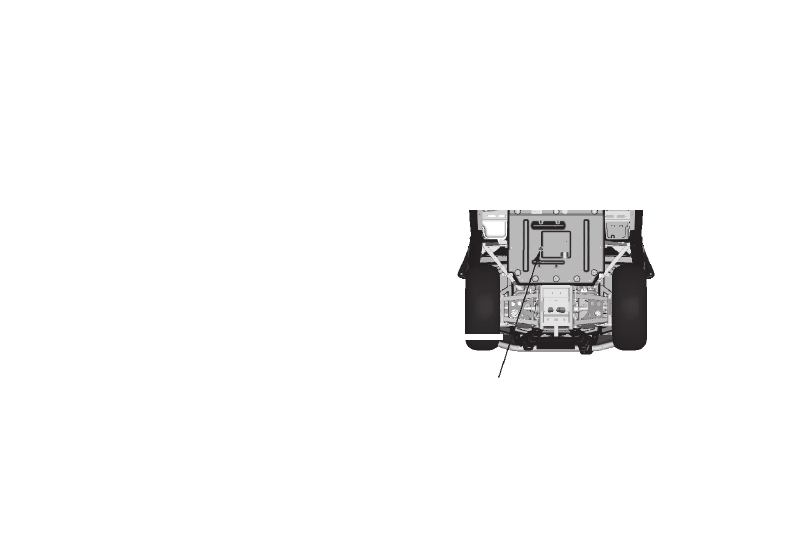

The engine drain plug



is



located



on



the



bottom



of



the



crankcase.

1

.

Position



the



vehicle



on



a



level



surface

.

Place the transmission in PARK.Apply the brakes
2

.

Start



the



engine

.

Allow



it



to



idle



for

 2-3

minutes

.

Stop the engine.
3

.

Clean the area around the drain



plug.

4

.

Place a drain pan beneath engine crankcase



and



remove



the drain plug.
5

.

Allow



the



oil



to



drain



completely

.

6

.

Reinstall



the



sealing



washer



on



the



drain



plug

.

NOTE：

The sealing surface on drain plug and crankcase

should



be



clean



and



free



of



burrs

,

nicks



or



scratches

.

7

．

Drain plug

，

torque

：

22ft

.

lbs

（

30Nm

）

Engine  oil  Drain  plug

-83-

Engine Oil

Oil and Filter Change

8.Using a cap-style oil filter wrench, turn the filter counter-clockwise to remove it.
9.Using a clean dry cloth, clean the filter sealing surface on



the



crankcase

.

10.Lubricate the o-ring on the new filter with a film of fresh engine oil.Check to make sure the o-ring is in good

 condition.

11.Install the new filter and turn by hand until the filter gascket contacts the sealing surface,then turn an

 additional 1/2 turn with special wrench.

12.Remove the dipstick and fill with 2.5L



recommended



oil

.

13.Place the transmission in PARK.Apply the brakes
14. Start the engine.Allow it to idle for 2 minutes.
15.Stop the engine

.

Inspect for leaks.

16.Re-check the oil level on the dipstick and add oil as necessary to bring the level to the upper mark on the

 dipstick.

17.Dispose of used filter and oil properly.

-84-

Gearcases

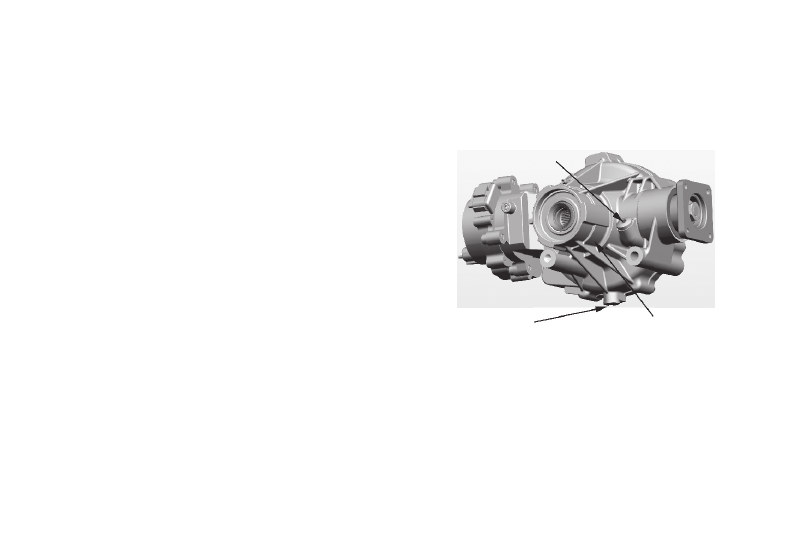

Demand Drive Unit

（

Front Gearcase

）

Always check and change engine oil at intervals outlined in the Periodic Maintenance Chart beginning on

page 72

.

Refer to the Gearcase Specifications Chart on page 86 for
recommended lubricants, capacities and torque specifications.

Fluid Check

The fill plug is located
On the bottom right side of the demand drive unit

.

Maintain



the

fluid level even with the bottom thread of the fill plug hole.
1

．

Position the vehicle on a level surface.

2

．

Remove the fill plug.Check the fluid level.

3

．

Add the recommended fluid as needed.

4

．

Reinstall the fill plug.Torque specifications.

Fluid Change

The drain plug is located on the bottom of the



gearcase

.

1

．

Remove the fill plug.

2

．

Place a drain pan under the drain plug.

3

．

Remove the drain plug.Allow the fluid to drain completely.

4

．

Clean the drain plug.

5

．

Reinstall the drain plug with new o-ring.Torque to specification.

6

．

Add the recommended fluid.



Maintain



the



fouid



level



even



with



the



bottom



thread



of



the



fill



lpug



hole

.

7

．

Reinstall the fill plug with new o-ring.Torque to specification.

8

．

Check for leaks.Discard used fluid properly.

Drain Plug

Fill Plug

Front Gearcase

-85-

Gearcases

Rear Gearcase

Always check and change engine oil at intervals outlined in the Periodic Maintenance Chart beginning on

 page 72.

Refer to the Gearcase Specifications Chart on page 86 for
recommended lubricants, capacities and torque specifications.

Fluid Check

The fill plug is located On the right side of the rear gearcase

.

Maintain



the

fluid level even with the bottom thread of the fill plug hole.
1

．

Position



the



vehicle



on



a



level



surface

.

2

．

Remove



the



fill



plug

.

Check



the



fluid



level

.

3

．

Add



the



recommended



fluid



as



needed

.

4

．

Reinstall



the



fill



plug

.

Torque



to



specification

.

Fluid Change

The drain plug is located on the bottom



right



side



of the



rear gearcase.
1

．

Remove the fill plug.

2

．

Place a drain pan under the drain plug. Remove drain plug.

3

．

Allow the fluid to drain completely.

4

．

Clean the drain plug. Torque to specification.

5

．

Add the recommended fluid. Maintain the fouid level even with the bottom



thread



of



the



fill



lpug



hole

.

6

．

Reinstall the fill plug.Torque to specification.

7

．

Check for leaks.Discard used fluid properly.

FILL Plug

Drain Plug

Rear Gearcase

-86-

Gearcase

Gearcase Specification Chart

Use of other fluids may result in improper operation of components.

Gearcase

Lubricant

Capacity

Fill Plug Torque

Drain Plug/Level
 Check Plug Torque

Transmission of
Main Gearcase

（

CF188-C

）

SAE15W

/40

SG

preliminary

：

2800ml

change

：

2500ml

30 Nm

Transmission of
Transfer



Case

（

196S-C

）

SAE15W/40 SG

preliminary

：

2800ml

change

：

2500ml

30 Nm

Demand Drive Unit

（

Front Gearcase

）

SAE15W/40 SG



or

SAE80W/90 GL-4

330ml(preliminary

)，

280ml



change



(

)

25Nm

25Nm

25Nm

25Nm

Rear Gearcase

SAE15W/40 SG



or

SAE80W/90 GL-4

300ml(preliminary

)，

250ml



change



(

)

-87-

Spark Plugs

CAUTION

Using non-recommended spark plug can result in serious engine damage.
Always use CFMOTO-recommended spark plug. Refer to the specifications section beginning on



page 120

.

Spark Plug Gap/Torque



Model

Electrode Gap

New Plug Torque

Used Plug Torque

DPR7EA-9(NGK)

0.8-0.9mm

18Nm

18Nm



Spark plug condition is indicative of engine operation

.

The



spark



plug



firing end condition should be read

 after the engine is warmed-up and the vehicle is driven at higher speeds.Immediately check the spark plug for
 correct color.See page 88.

A hot exhaust system and engine can cause serious burns.



Wear



protective



gloves



when



removing



a



spark



plug



for



inspection

.

-88-

Spark Plugs

Spark Plug Condition

Normal Plug

The normal insulator tip is gray, tan or light brown.There will be few



combustion deposits. The electrodes are

not burned or eroded.This indicates



the proper type and heat range for the engine and the service.

NOTE:

The tip should not be white.



A white insulator tip indicates overheating,



caused by use of an improper

 spark plug or incorrect throttle body



adjustments.

Wet Fouled Plug

The wet fouled insulator tip is black.



A damp oil film covers the firing



end.



There may be a carbon layer over

 the entire nose.Generally, the



electrodes are not worn.General causes of fouling are excessive oil,



use



of

 non-recommended injection oil or incorrect throttle body adjustments.

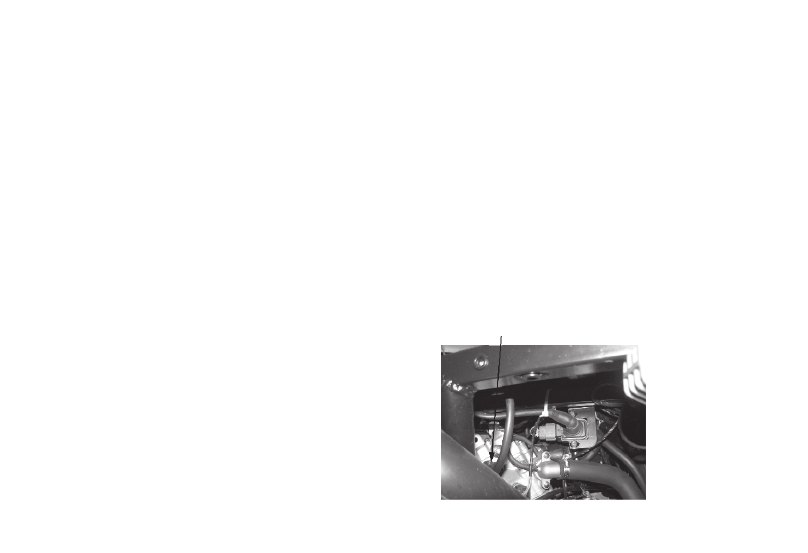

Spark Plug Removal and Replacement

1

.



Remove both seats.

2

.



Remove the rear service



panel. See page 34.

3

.



Remove the spark plug cap.

4.



Using the spark plug wrench



provided in the tool kit,



remove the plug by rotating

it counterclockwise.

5

.



Reverse the procedure for



spark plug installation.

Torque to specification.



See



page 87

.

SPARK PLUG

-89-

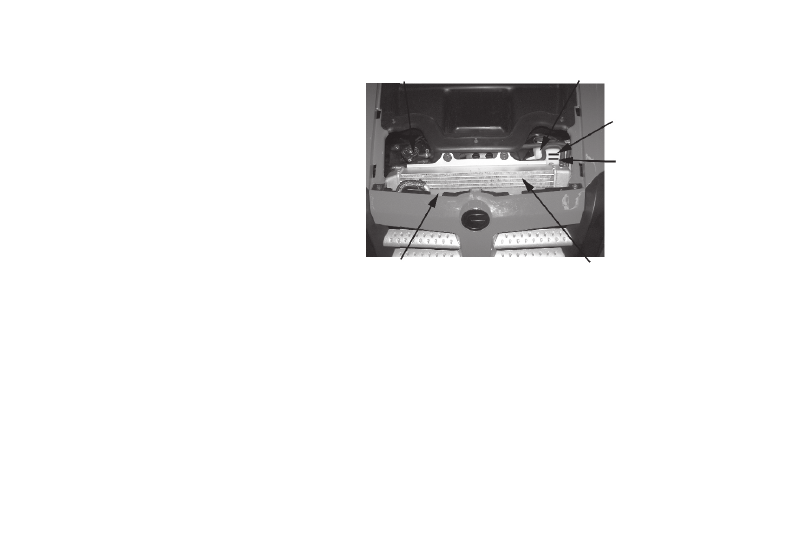

Cooling System

Operation

The engine coolant level is controlled or maintained by the recovery



system.



The recovery system compon-

ents are the overflow bottle, radiator



filler neck,



radiator pressure cap and connecting hose.



As coolant op-

erating temperature



increases, the expanding (heated)



excess coolant is forced out of the radiator, past the

pressure cap, and



into the overflow bottle. As engine coolant temperature decreases, the



contracting



(

cooled

)

coolant



is



drawn



back



up



from



the



tank

,

past



the



pressure cap, and into the radiator.

Adding or Changing Coolant

To ensure that the coolant maintains its ability to protect the engine,



we



recommend that the system be co-

mpletely drained every two



years



and



a



fresh mixture of antifreeze and water added.



We



recommends the



use of



60/40



anti-freeze/coolant or a 50/50 mixture of



high quality aluminum compatible anti-freeze/coolant

and distilled



water.

Premium 60/40 is already premixed and ready to use.



Do



not dilute with water.

NOTE:

Always follow the manufacturer's mixing recommendations for the



freeze protection required in your

 area.

Any time the cooling system has been drained for maintenance or repair,



replace the coolant. If the recovery

 bottle has run dry, the level in the



radiator should be inspected. Add coolant as needed.

-90-

Cooling System

Radiator and Cooling Fan

Always check and clean the screen and radiator fins at the intervals outlined



in the Periodic Maintenance



Chart



beginning



on



page 72

.

Do not



obstruct or deflect air flow through the radiator by installing unauth-

orized



accessories in front of the radiator or behind the cooling fan. Interference



with the radiator air flow can

 lead to overheating and consequent engine damage.

CAUTION

Washing the vehicle with a high-pressure hose could damage the radiator
fins and impair the radiator's effectiveness. Using a high-pressure system is
not recommended.

-91-

Cooling System

Coolant Level

Always check and change
the coolant at the intervals
outlined in the Periodic
Maintenance Chart beginning
on page 72

.

Maintain the coolant level between

the minimum and maximum
marks on the bottle

(

when



the



fluid



is



cool

).

1

.



Position the vehicle on

a level surface.
2

.



Remove the hood. See



page 36.

3

.



View the coolant level in the overflow bottle.

4

.



If the coolant level is below the safe operating range, remove the

cap and use a funnel to add coolant through the opening. Reinstall



the cap.

NOTE:

If coolant must be added often, or if the overflow bottle runs completely

dry, there may be a leak in the system. Have the cooling system inspected by your dealer.

FILLER CAP

RESERVIOR

UPPER
LIMIT

LOWER
LIMIT

RADIATOR

ENGINE OIL RADIATOR

-92-

Cooling System

Radiator Coolant Level

Always check and clean the screen and radiator



fins



at



the



intervals



outlined



in



the



Periodic



Maintenance



Chart



beginning on page 72

.

Do not



obstruct or deflect air flow through the radiator by installing unautho rized

accessories in front of the radiator or behind the cooling fan. InterInterference



with the radiator air flow can

 lead to overheating and



consequentially, engine damage.

Escaping steam can cause severe burns.



Never remove the pressure cap



while the engine is warm or hot.



Always allow the engine to cool before



removing the pressure cap.

1

.



Remove the hood. See page 36.



2

.



Slowly remove the radiator cap.

3

.

View the coolant level through the opening.

4

.



Use a funnel and slowly add coolant as needed.

NOTE:

This procedure is required only if the cooling system has been drained

for maintenance and/or repair. But if the overflow bottle has run dry,



the level in the radiator should also be

inspected.

NOTE:

Use of a non-standard pressure cap will not allow the recovery system

to function properly. See your dealer for the correct replacement part.

-93-

Continuously Variable Transmission (CVT) System

Belt slip is responsible for creating excessive heat that destroys belts,



wears clutch components and causes

 outer clutch covers to fail.



Switch

to low range while operating at slower speeds to extend the life of the



CVT components (belt, cover, etc.).

Failure to comply with the instructions in this warning can result in severe



injury or death.

Do not modify any component of the CVT system. Doing so may reduce its
strength so that a failure may occur at a high speed.



The CVT system has



been precision balanced. Any modification will cause the system to be out of



balance,

creating vibration and additional loads on components

.

The CVT system rotates at high speeds, creating large amounts of force on
clutch components.



Extensive engineering and testing has been conducted
to ensure the safety of this product.



However, as the owner, you have the



following responsibilities to make

 sure this system remains safe:



Always follow all recommended maintenance procedures. See your dealer



as outlined in the owner's manual.

This CVT system is intended for use on  CFMOTO  products only. Do not install



it in any other product.

Always make sure the CVT housing is securely in place during operation.
