Preparing for Automation
Configuring DCOM Access to Your Unit
Setting the General Security Parameters
Note: To modify the security parameters, you need administrator access rights.
To set the general security parameters:
1. From the main window, tap the System Settings button.
2. Tap Control Panel.
3. Tap System and Security > Administrative Tools.
4. Double-tap Component Services.
5. In the Component Services dialog box, go to Console Root >
Component Services > Computers.
6. Right-click My Computer, and then select Properties.
FTB-2 and FTB-2 Pro
247
Preparing for Automation
Configuring DCOM Access to Your Unit

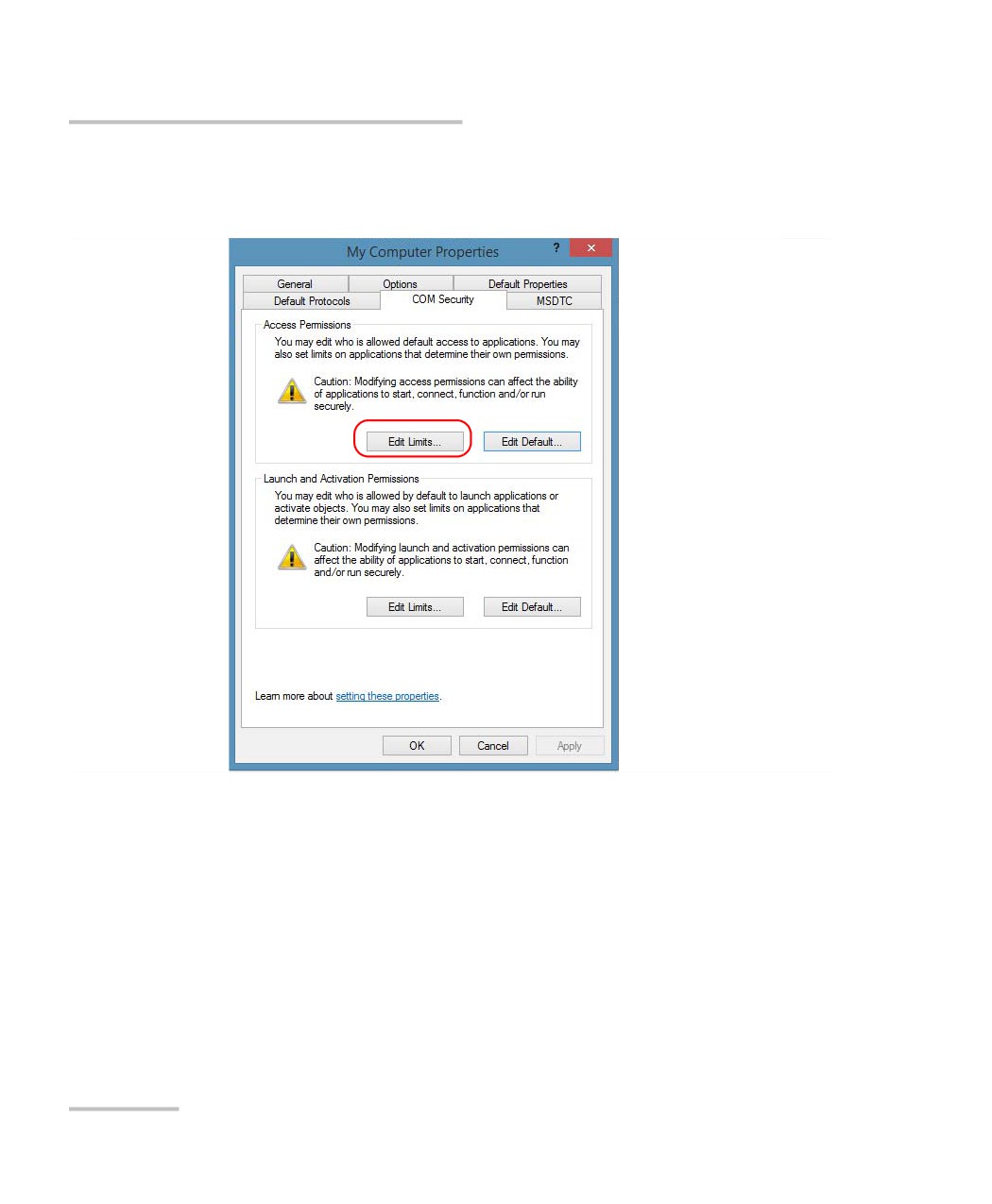

7. In the My Computer Properties dialog box, tap the COM Security tab.
8. Under Access Permissions, tap Edit Limits.
248
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit

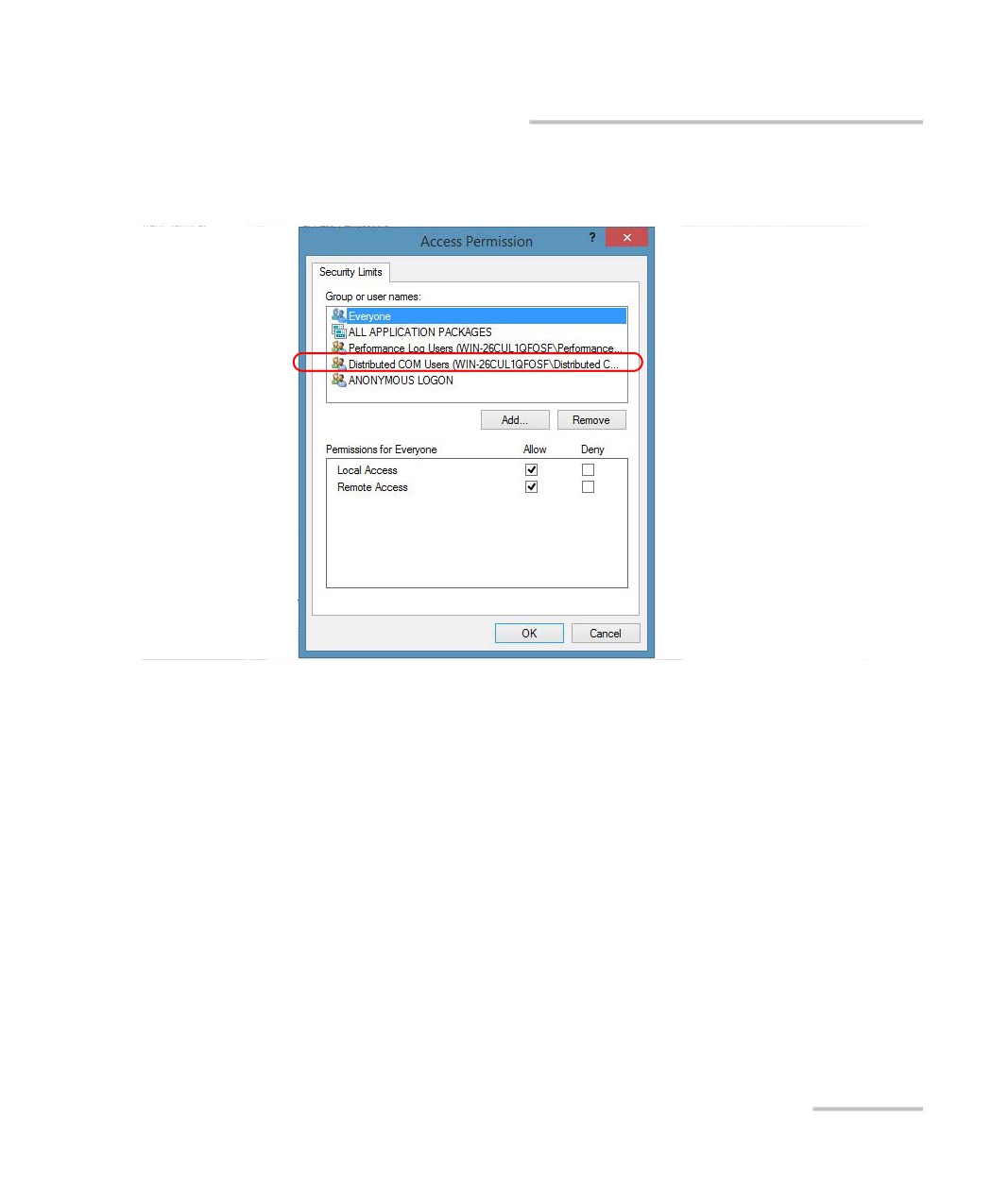

9. In the Access Permission dialog box, ensure that the Distributed COM
Users group appears in the Group or user names list.
10. Tap OK.
11. In the My Computer Properties dialog box, tap the COM Security tab.
FTB-2 and FTB-2 Pro
249
Preparing for Automation
Configuring DCOM Access to Your Unit

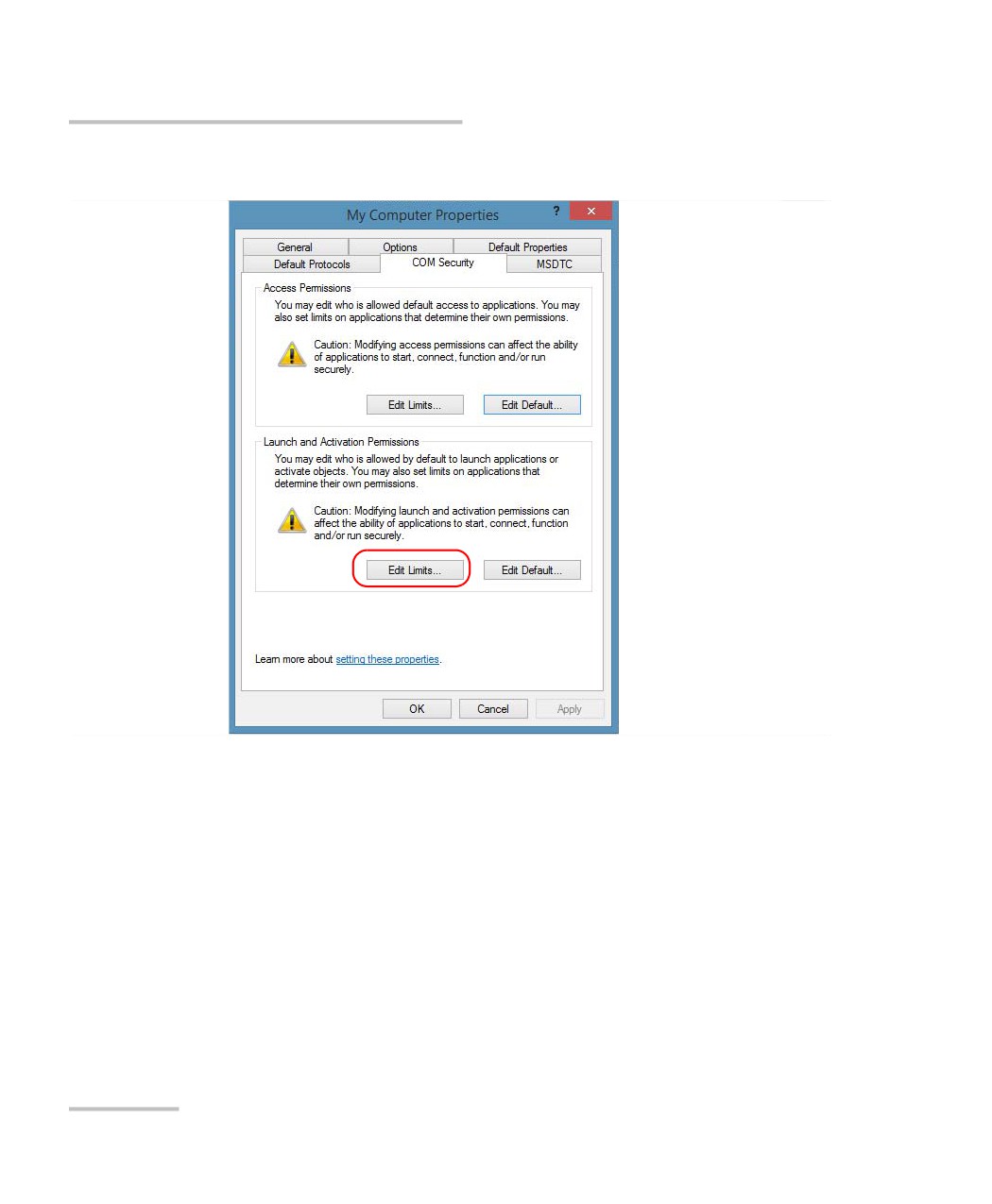

12. Under Launch and Activation Permissions, tap Edit Limits.
250
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit

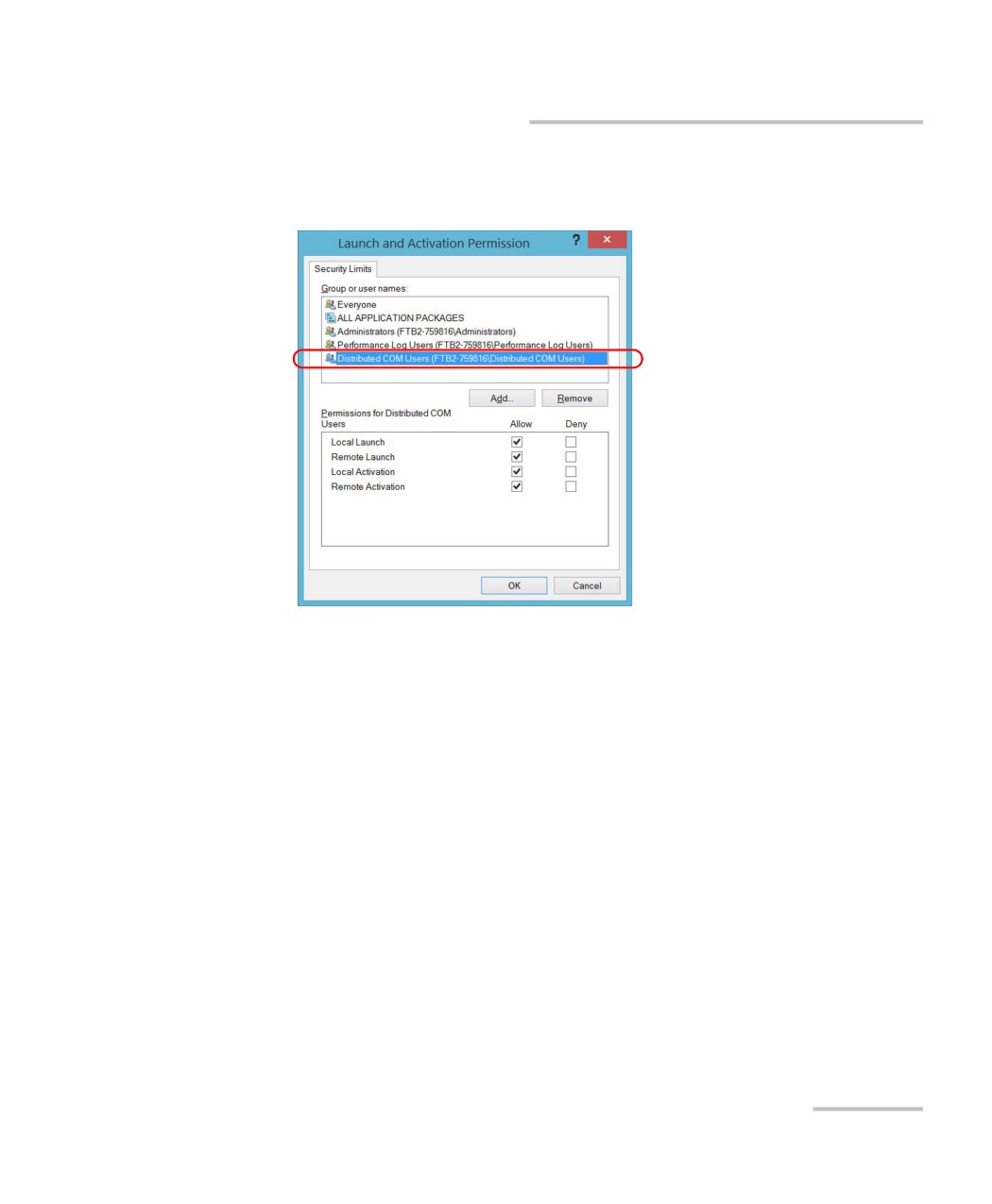

13. In the Access Permission dialog box, ensure that the Distributed COM
Users group appears in the Group or user names list.
You can now allow users to access general DCOM services on your unit.
You can either:
Add a user to the Distributed COM Users group (refer to Microsoft
help).
OR
Add a user explicitly and define both, access and launch permissions
(see procedure below).
Note: If you add a user explicitly, ensure to give remote access rights to the new
user.
FTB-2 and FTB-2 Pro
251
Preparing for Automation
Configuring DCOM Access to Your Unit
To add a user explicitly:
1. In the My Computer Properties dialog box, tap the COM Security tab.
2. Under Access Permission, tap Edit Limits.

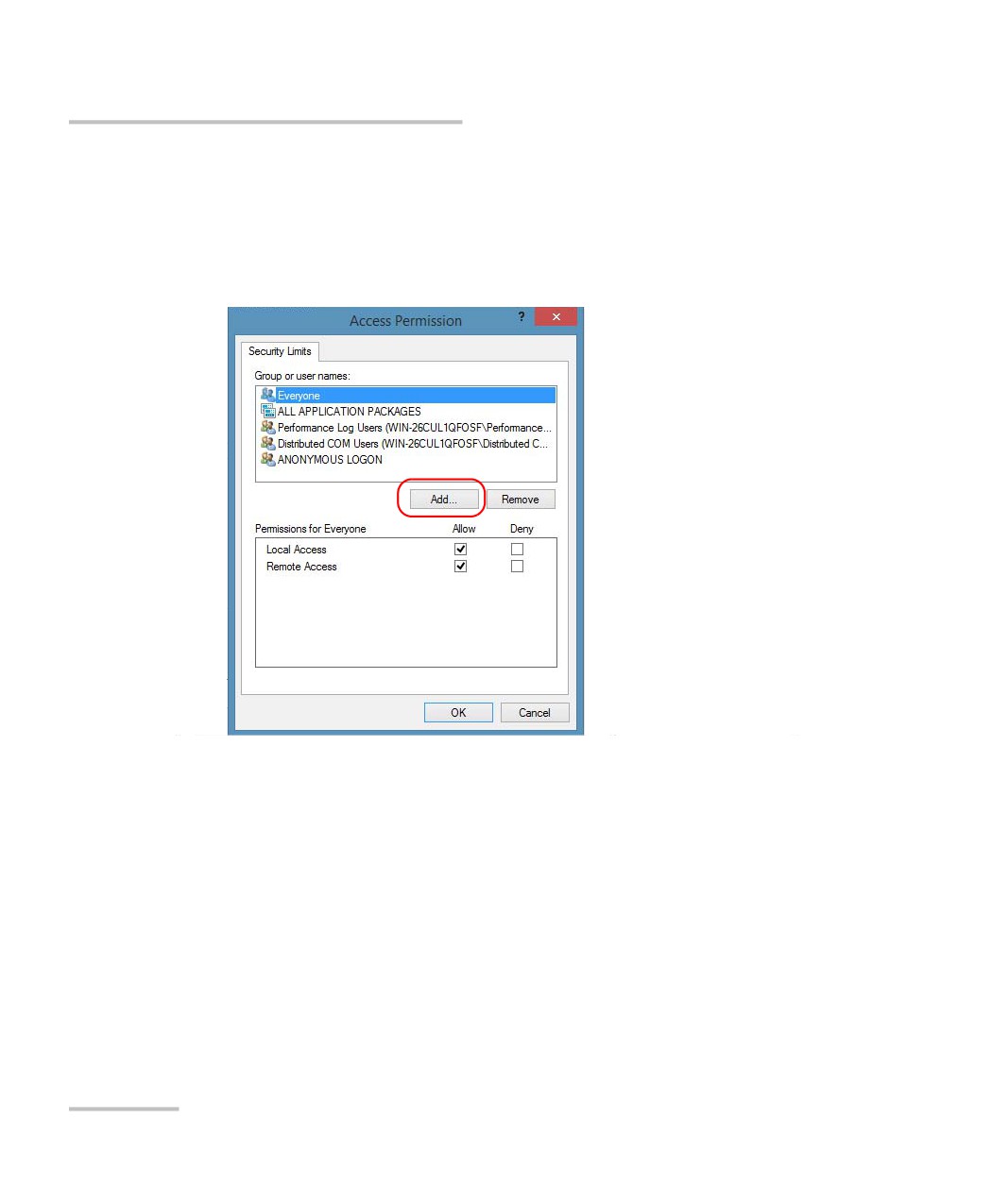

3. In the Access Permission dialog box, tap Add.
252
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit

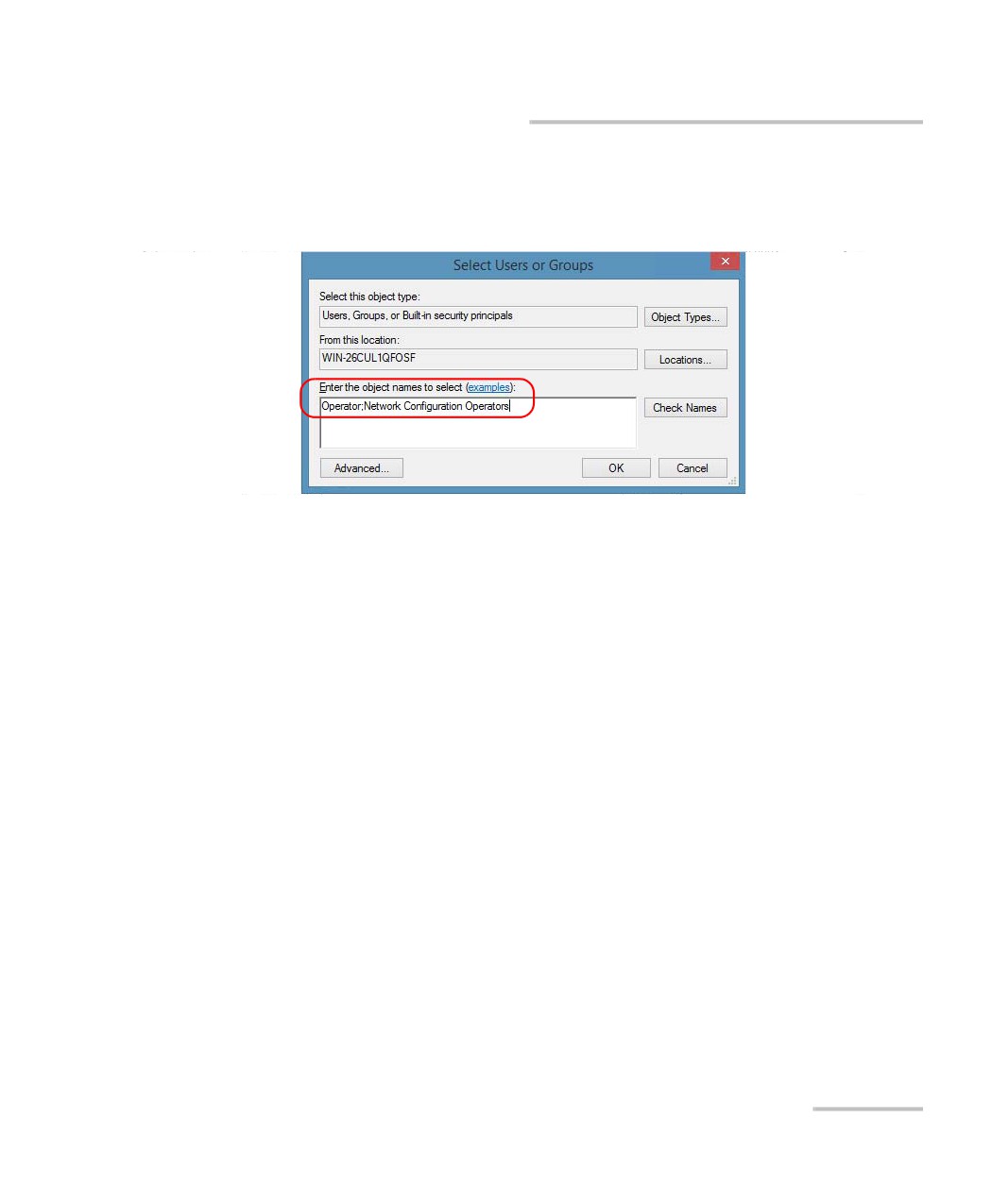

4. In the Select Users or Groups dialog box, under Enter the object
names to select, type the name of the user to whom you want to give
access rights.
5. Tap OK.
FTB-2 and FTB-2 Pro
253
Preparing for Automation
Configuring DCOM Access to Your Unit

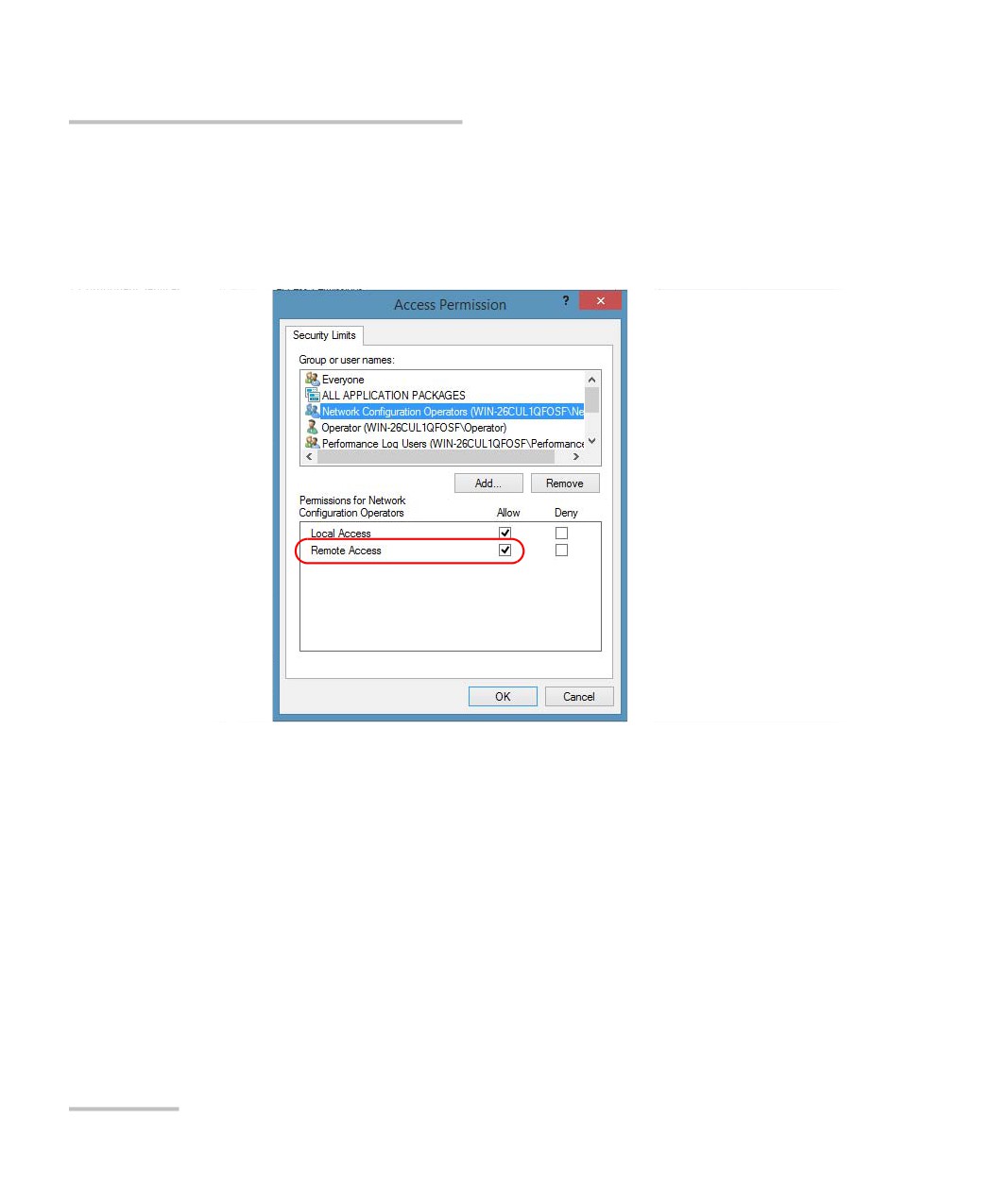

6. Confirm the newly added user has remote access permission as
follows:
6a. In the Access Permission dialog box, select the name of the new
user.
6b. Under Permissions for (new user), ensure Allow is selected for
Remote Access.
6c. Tap OK.
7. In the My Computer Properties dialog box, tap the COM Security tab.
8. Under Launch and Activation Permissions, tap Edit Limits.
254
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit

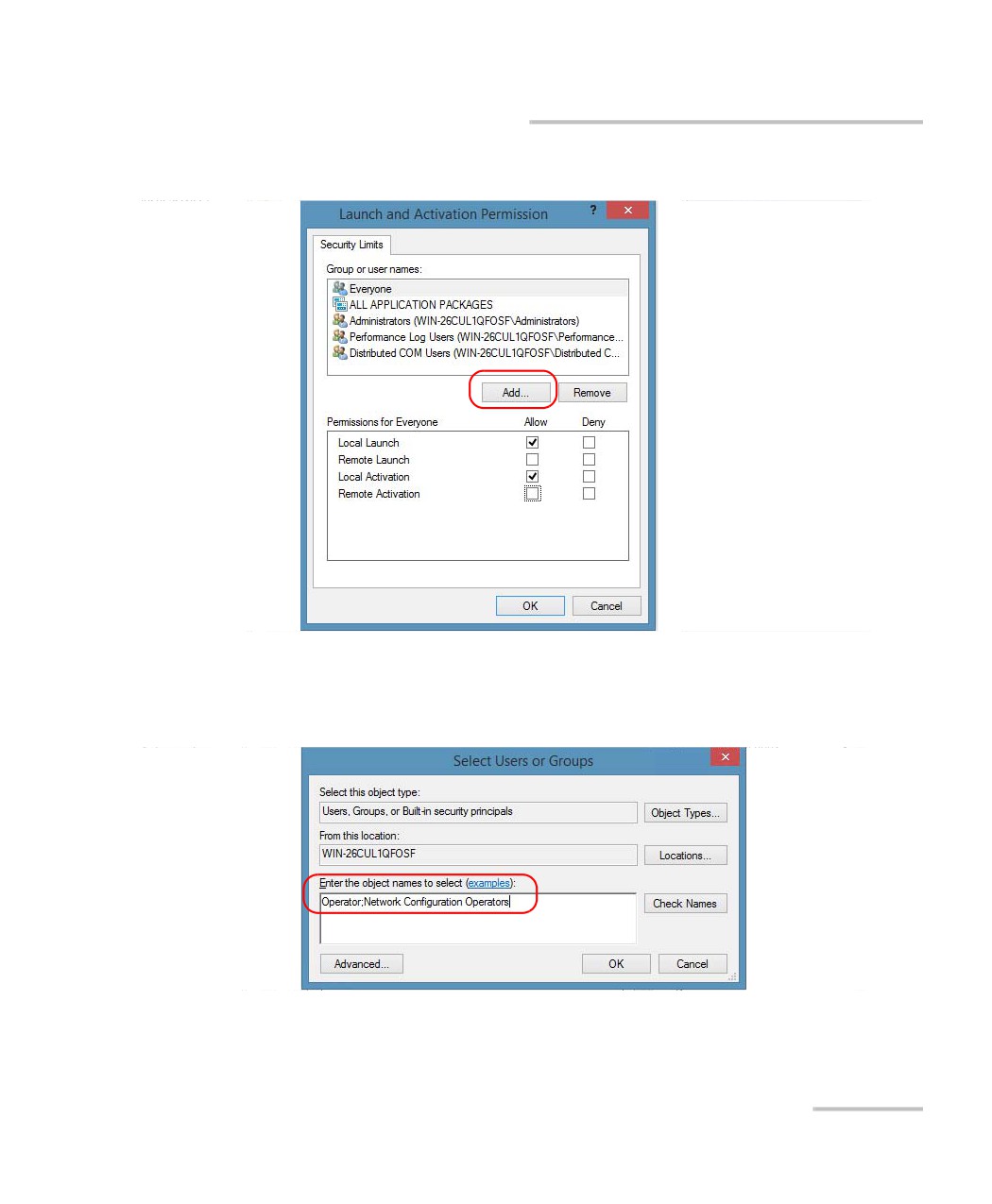

9. In the Launch and Activation Permission dialog box, tap Add.
10. In the Select Users or Groups dialog box, under Enter the object
names to select, type the name of the user to whom you want to give
start and activation access rights.
11. Tap OK.
FTB-2 and FTB-2 Pro
255
Preparing for Automation
Configuring DCOM Access to Your Unit

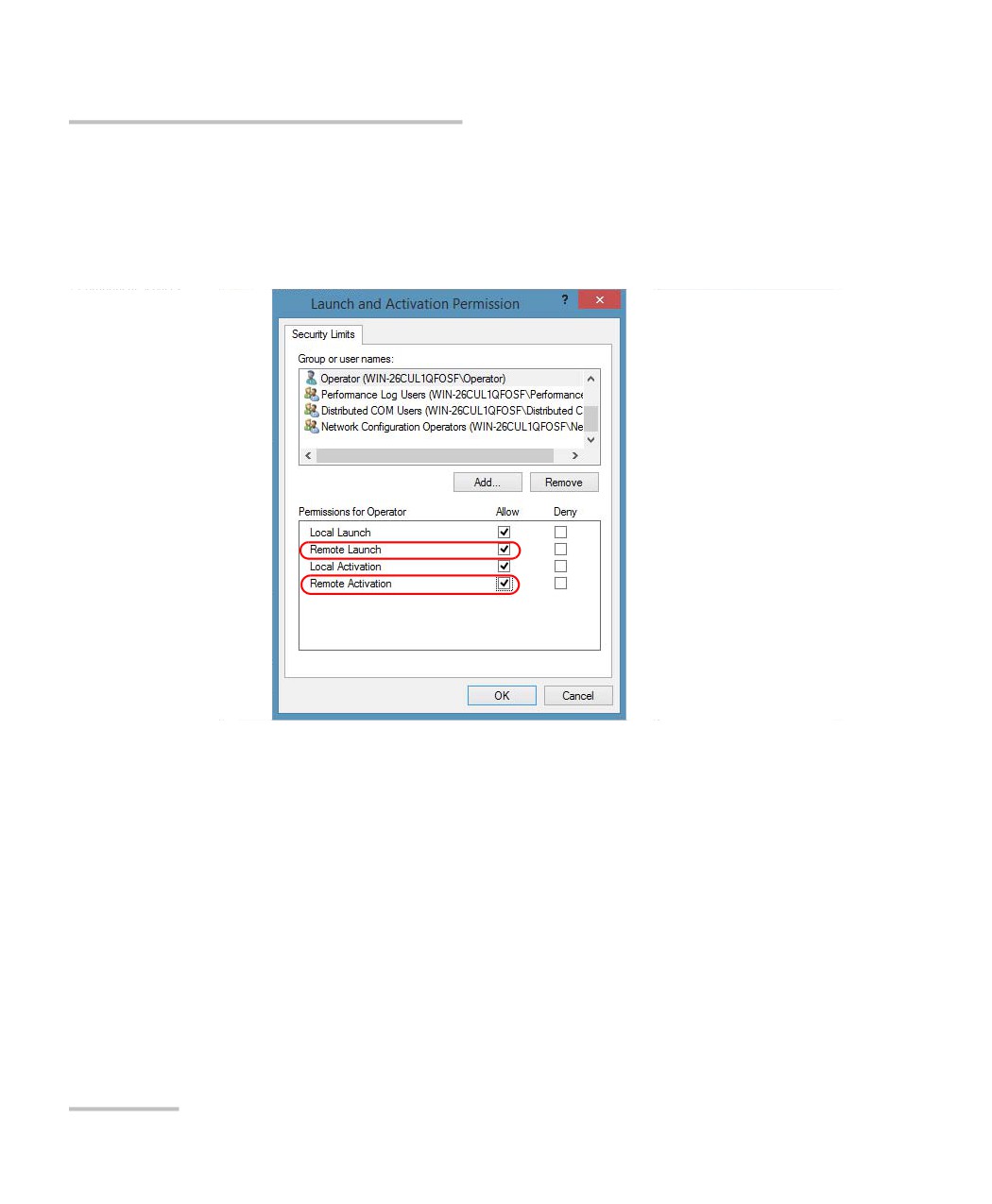

12. Confirm the newly added user has Remote Launch and Remote
Activation permissions as follows:
12a.In the Launch Permission dialog box, select the name of the new
user.
12b.Under Permissions for (new user), ensure Allow is selected for
both Remote Launch and Remote Activation.
12c. Tap OK.
256
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit
Customizing the Specific Security Parameters
Once you have defined the general security parameters, you can define the
specific security parameters.
To customize the specific security parameters:

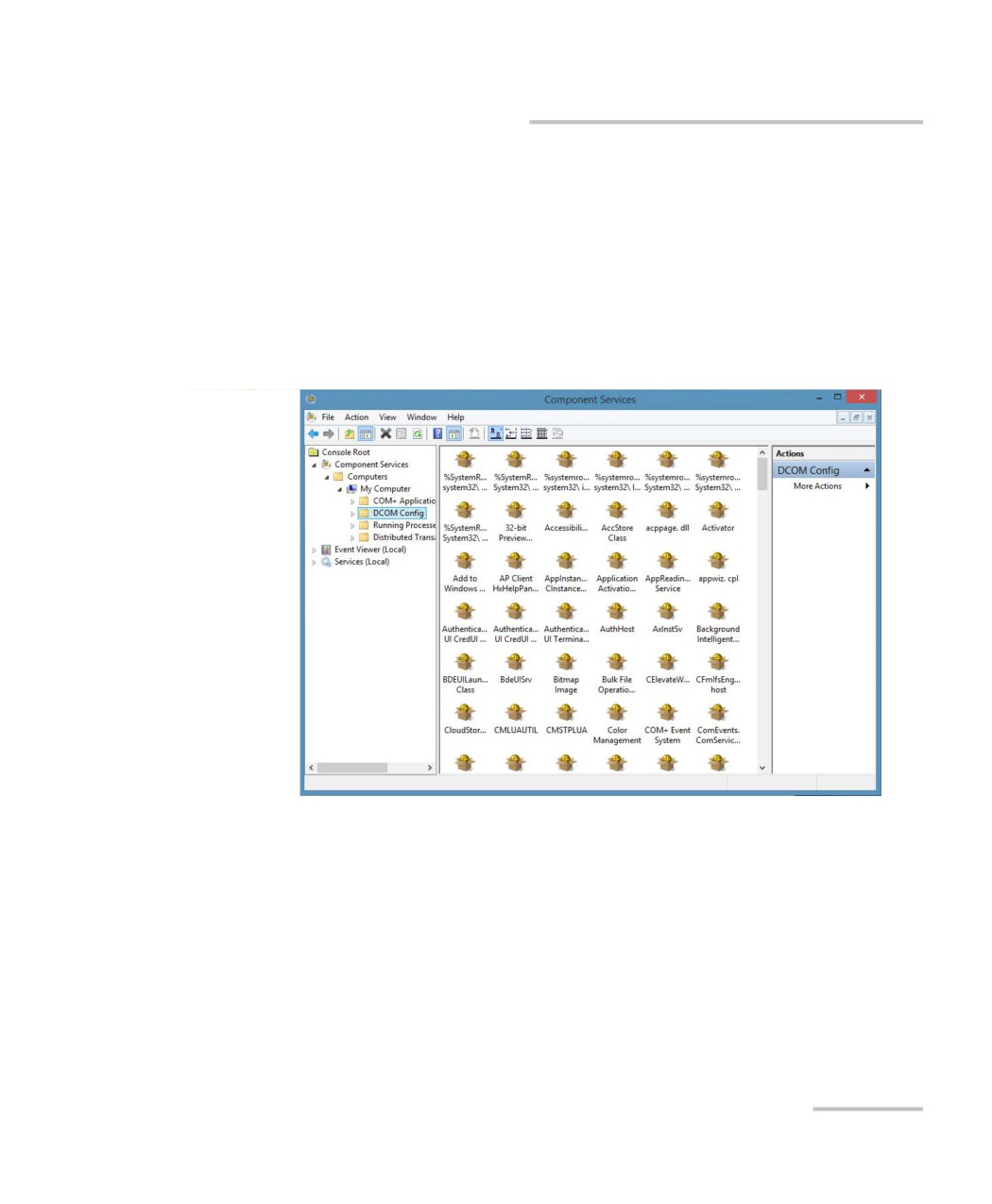

1. From the Component Services window, select: Console Root >
Component Services > Computers > My Computer > DCOM Config
to show the contents of the DCOM Config folder.
2. From DCOM Config, right-click EXFO KernosHost, and select
Properties.
3. Tap the General tab.
FTB-2 and FTB-2 Pro
257
Preparing for Automation
Configuring DCOM Access to Your Unit

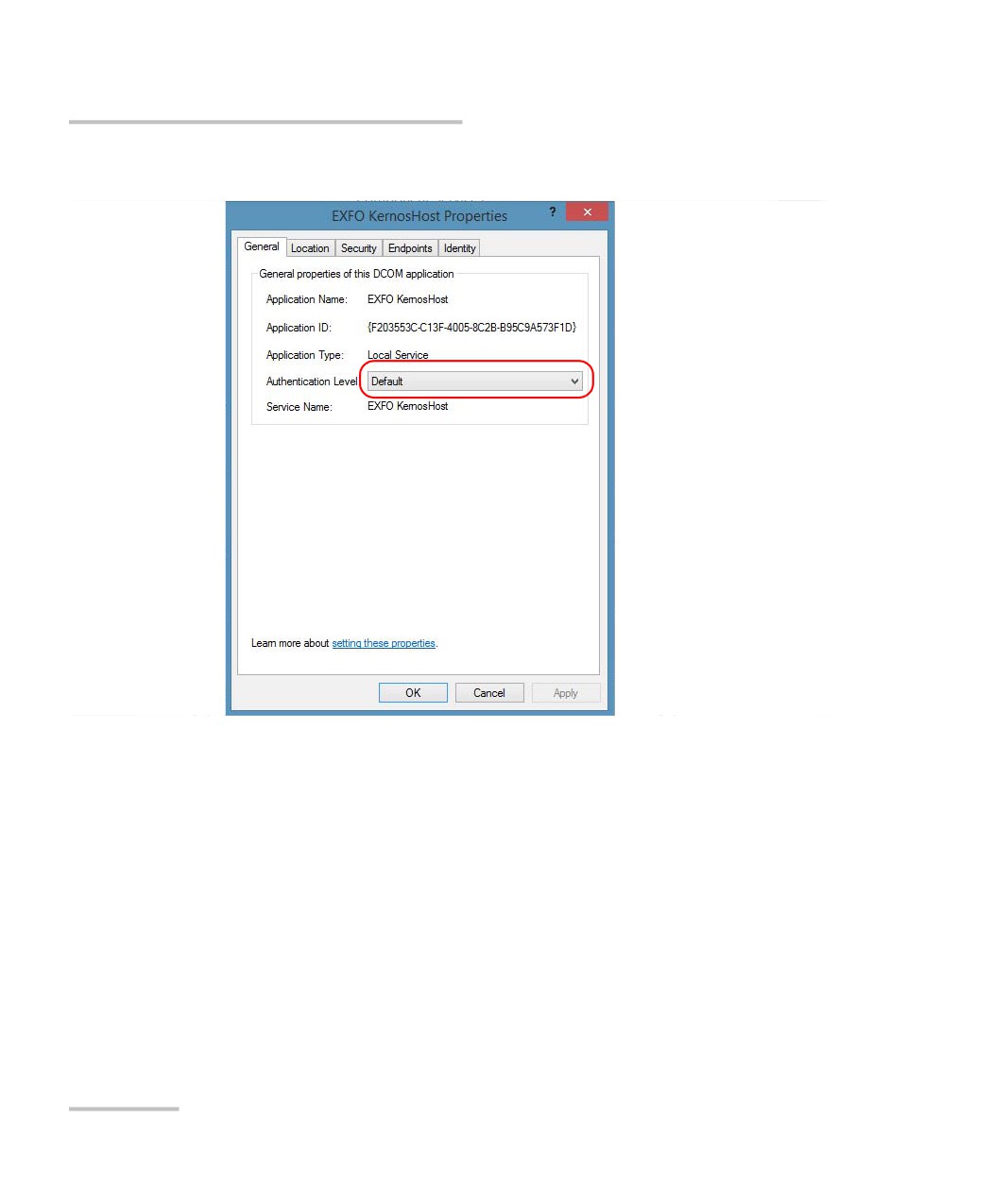

4. In the Authentication Level list, select Default.
258
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit
5. In the EXFO KernosHost Properties dialog box, tap the Security tab.
6. Under Launch and Activation Permissions, select Customize, and
then click Edit to edit the list of allowed users.
IMPORTANT
Customizing access rights sets both remote AND local permissions.
As a result, you will have to specify every user who must have local
access to the system (see Setting the General Security Parameters
on page 247).
If you do not specify local access rights, no user will be able to
access EXFO KernosHost and, therefore, no user will be able to start
ToolBox X.
FTB-2 and FTB-2 Pro
259
Preparing for Automation
Configuring DCOM Access to Your Unit

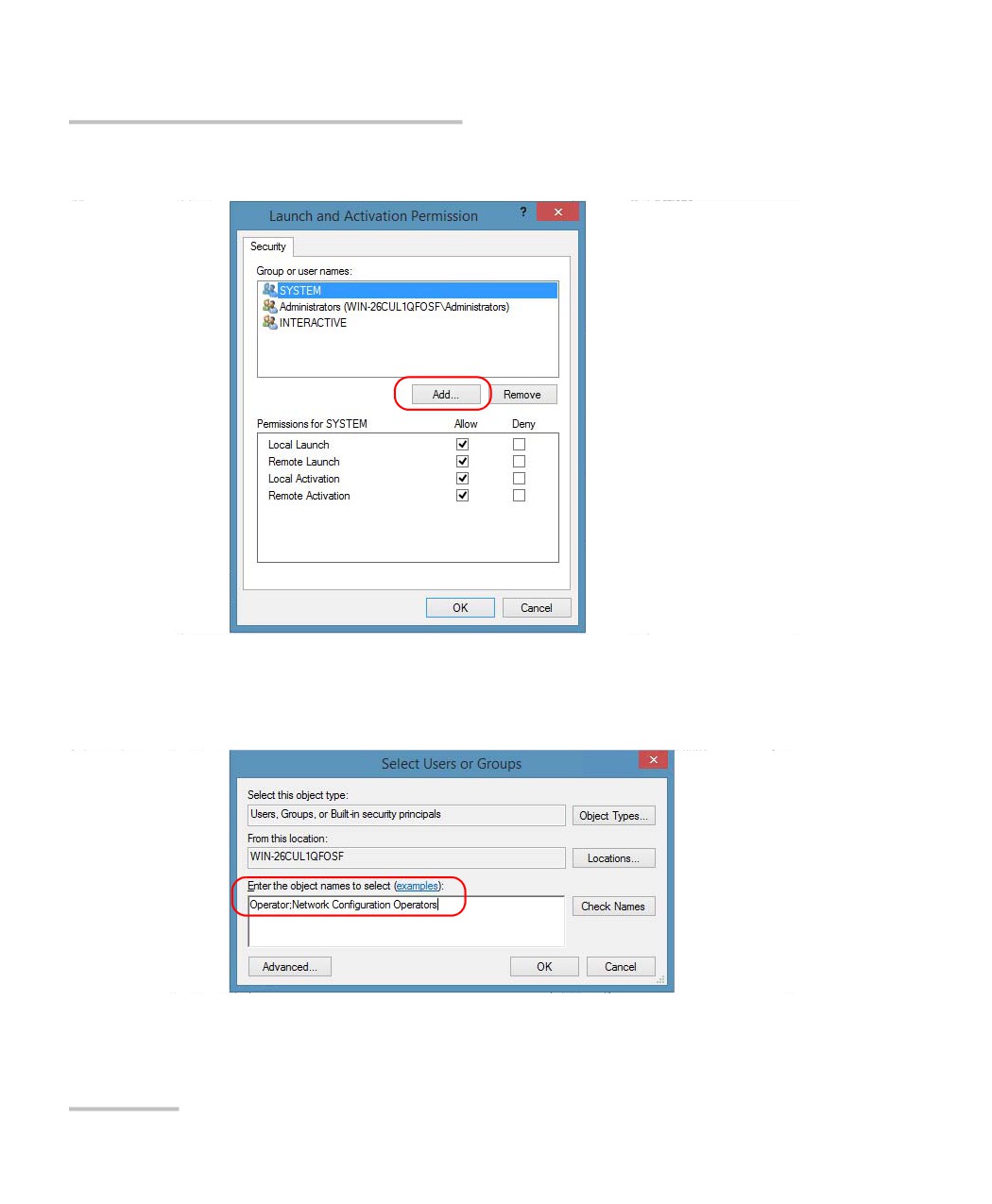

7. In the Launch and Activation Permission dialog box, tap Add.
8. In the Select Users or Groups dialog box, under Enter the object
names to select, type the name of the user to whom you want to give
start and activation permissions for remote access.
9. Tap OK.
260
FTB-2 and FTB-2 Pro
Preparing for Automation
Configuring DCOM Access to Your Unit

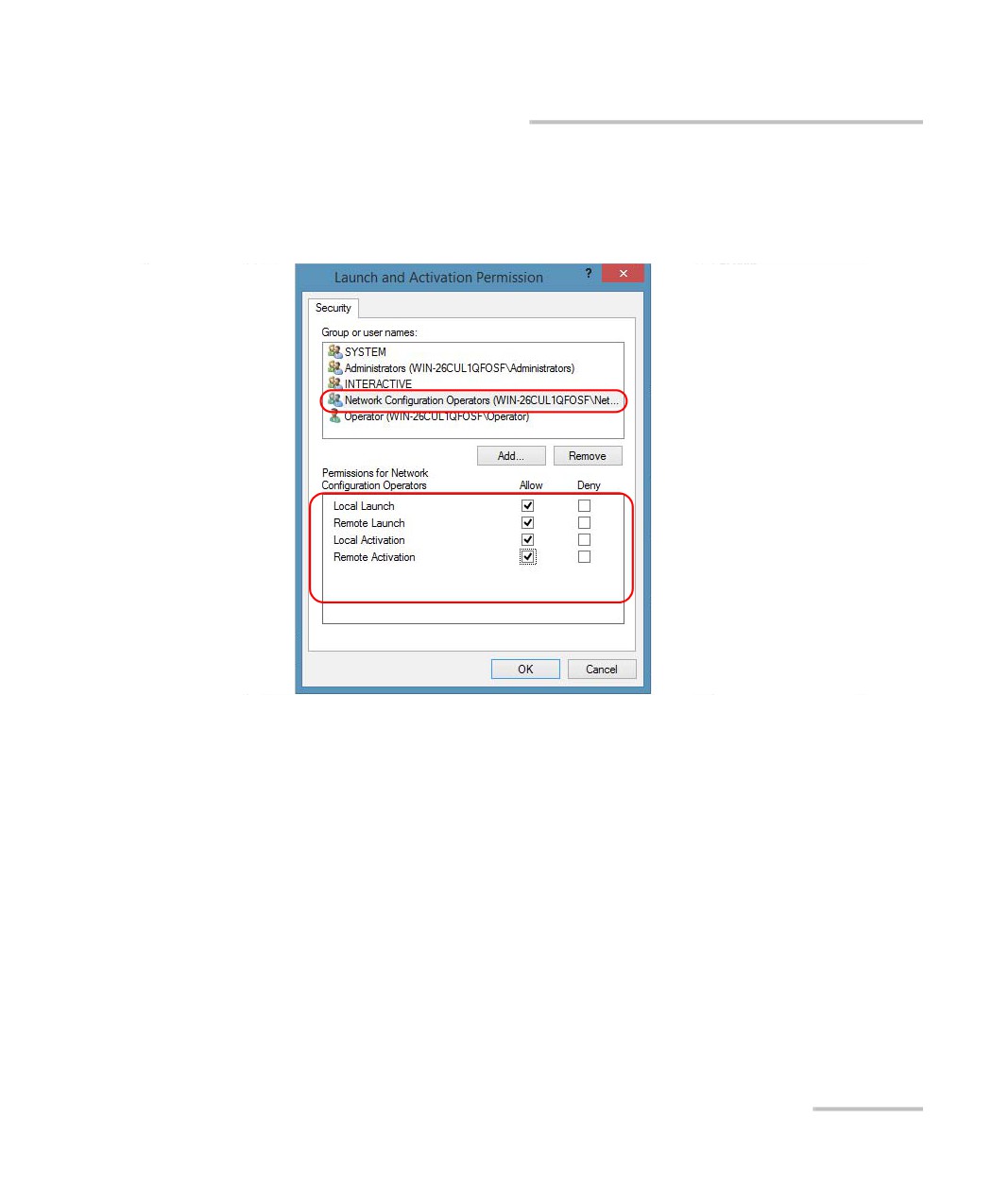

10. In the Launch and Activation Permission dialog box, select a user.
11. To allow this user to start and activate the unit remotely, select Allow
for all four permission choices.
12. Repeat steps 10 and 11 for each newly added user.
13. Tap OK.
FTB-2 and FTB-2 Pro
261
Preparing for Automation
Configuring DCOM Access to Your Unit
14. In the EXFO KernosHost Properties dialog box, tap the Security tab.
15. Under Access Permissions, select Customize, and tap Edit to edit the
list of allowed users.
IMPORTANT
Customizing access rights sets both remote AND local permissions.
As a result, you will have to specify every user who must have local
access to the system (see Setting the General Security Parameters
on page 247).
If you do not specify local access rights, no user will be able to
access EXFO KernosHost and, therefore, no user will be able to start
ToolBox X.
16. In the Access Permission dialog box, tap Add.
262
