Parameter Reference

D-65

EtherCAT Option

Monitor::Communications::Option
Setup::Communications::Option
Parameters::Option Comms::Comms
Parameters::Option Comms::Read Process
Parameters::Option Comms::Write Process
Parameters::Option Comms::Event
Parameters::Option Comms::EtherCAT

Refer to EtherCAT Technical Manual HA501938U001

D-66

Parameter Reference

Ethernet

Monitor::Communications::Base Ethernet
Setup::Communications::Base Ethernet
Parameters::Base Comms::Ethernet

Refer to Chapter 12 Ethernet

EtherNet IP Adapter

Setup::Communications:: Base EtherNet IP
Monitor::Communications::Base Ethernet IP
Parameters::Base Comms::Ethernet IP Adapter

Refer to Appendix A

EtherNet IP Option

Refer to EtherNet IP Technical Manual HA501842U001

Parameter Reference

D-67

Feedbacks

Parameters::Motor Control::Feedbacks

The

Feedbacks

feature allows you to view speed feedback and motor current related diagnostics.

Parameter Name

No.

Path

Default

Range

Units

Writable

Duty Selection

0390

Setup::Motor Control::Control and Type
Parameters::Motor Control::Feedbacks

0:HEAVY DUTY
1:NORMAL DUTY

STOPPED

Heavy Duty

( typically 150%, 60s).

Normal Duty

allowing higher continuous ratings with less overload capability ( typically 110%, 60s).

% are related to the Drive/stack ratings.

For example, a 12A drive ( @4kHz ) under Normal Duty becomes a 10A drive ( @4kHz) under Heavy Duty

DC Link Voltage

0392

Monitor::Motor and Drive
Monitor::Regen Control
Parameters::Motor Control::Feedbacks

0 to 1000

NEVER

This shows the voltage across the dc link capacitors.

Actual Speed RPM

0393

Monitor::Motor and Drive

Parameters:

:Motor

Control::Feedbacks

x.xx

-100000.00 to 100000.00

RPM

NEVER

This parameter changes according to the

Control Strategy:

•

In Vector Control mode the parameter shows the calculated mechanical speed of the motor shaft in rpm.

•

In Volts-Hertz Control mode the parameter shows motor synchronous speed in rpm.

D-68

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Actual Speed rps

0394

Same as PNO 393

x.xx

-1500.00 to 1500.00

rev/s

NEVER

This parameter changes according to the

Control Strategy

•

In Vector Control mode the parameter shows the calculated mechanical speed of the motor shaft in revolutions per second.

•

In Volts-Hertz Control mode, the parameter shows the motor synchronous speed in revolutions per second.

Actual Speed Percent

0395

Same as PNO 393

x.xx

-200.00 to 200.00

NEVER

This parameter changes according to the

Control Strategy

•

In Vector Control mode the parameter shows the calculated mechanical speed of the motor shaft as a percentage of the user
maximum speed setting (

100% Speed in RPM

in the

Scale Setpoint

function).

•

In Volts-Hertz Control mode, the parameter shows the electrical drive output frequency as a percentage of the user maximum
speed setting (

100% Speed in RPM

in the

Scale Setpoint

function).

DC Link Volt Filtered

0396

Same as PNO 393

0 to 1000

NEVER

This shows the filtered voltage across the dc link capacitors.

0397

Parameters::Motor Control::Feedbacks

x.x

-600.0 to 600.0

NEVER

Current in the flux axis (Vector Control)

0398

Parameters::Motor Control::Feedbacks

x.x

-600.0 to 600.0

NEVER

Current in the torque axis (Vector Control)

Actual Torque

0399

Same as PNO 393

x.x

-600.0 to 600.0

NEVER

Calculated torque, based on the Iq current.

Parameter Reference

D-69

Parameter Name

No.

Path

Default

Range

Units

Writable

Actual Field Current

0400

Same as PNO 393

x.x

-200.0 to 200.0

NEVER

Calculated field, based on the Id current.

Motor Current Percent

0401

Same as PNO 393

x.x

0.0 to 600.0

NEVER

This diagnostic shows the level of rms line current being drawn from the drive as a percentage of the rated current of the relevant
motor definition.

Motor Current

0402

Same as PNO 393

x.x

0.0 to 2000.0

NEVER

This diagnostic shows the level of rms line current in Amps being drawn from the Drive.

100% Stack Current A

0403

Parameters::Motor Control::Feedbacks

x.x

0.0 to 2000.0

NEVER

This diagnostic indicates the stack rating in Amps. This reduces as a function of pwm switching frequency.

Stack Current (%)

0404

Parameters::Motor Control::Feedbacks

0 to 500

NEVER

Stack current percentage.

Motor Terminal Volts

0405

Same as PNO 393

0 to 1000

NEVER

Volts between motor phases in Vrms.

CM Temperature

0406

Same as PNO 393

x.x

-25.0 to 200.0

°C

NEVER

Temperature of Control Module in

Centigrade.

D-70

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Heatsink Temperature

0407

Same as PNO 393

x.x

-25.0 to 200.0

°C

NEVER

Power stack heatsink temperature in

Centigrade.

Elec Rotor Speed

0408

Parameters::Motor Control::Feedbacks

x.x

-1500.0 to 1500.0

NEVER

Mechanical speed (shaft speed in

rev

) x number of motor pole pairs. This parameter is not filtered.

Parameter Reference

D-71

Fieldbus Mapping

Parameters::Base Comms::Fieldbus Mapping

Refer to Appendix A

D-72

Parameter Reference

Filter On Torque Dmd

Parameters::Motor Control::Filter On Torque Dmd

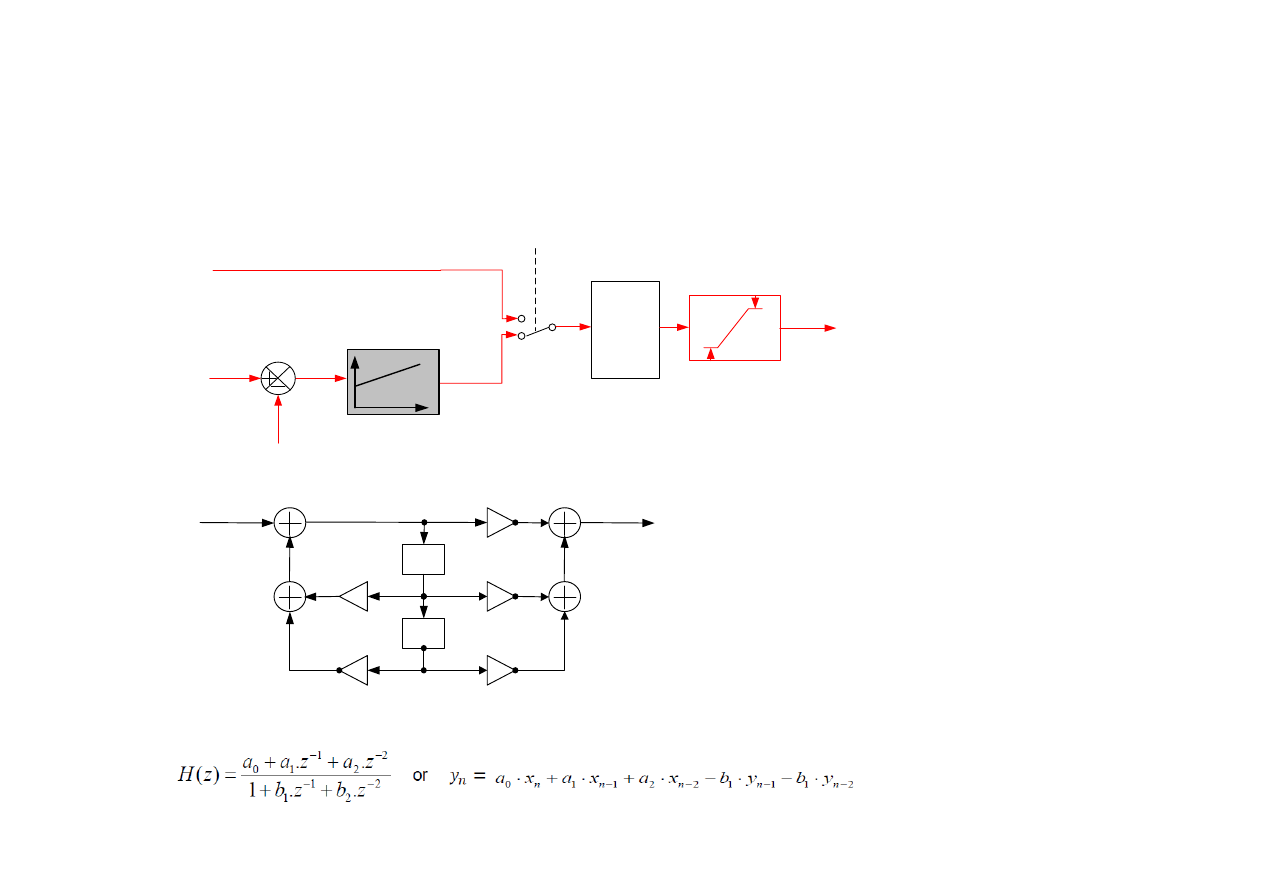

This feature allows to select the type of filter applied to the Torque setpoint:

Either the output of the speed loop PI corrector if the speed loop is active

Or the torque Setpoint .

PI Controller

Torque Limits

Filter On

Torque

Dmd

Speed Demand

Speed Feedback

Torque Setpoint

Speed or

Torque Control

Torque Demand

The general structure of the filter is given below :

-b1

-b2

-1

X(n)

Y(n)

Parameter Reference

D-73

Parameter Name

No.

Path

Default

Range

Units

Writable

Filter Type

1544

Parameters::Motor Control::Filter On
Torque Dmd

0:NONE
1:MAX ATTENUATION
2:MINIMUM PHASE
3:PHASE ADVANCE
4:NOTCH

ALWAYS

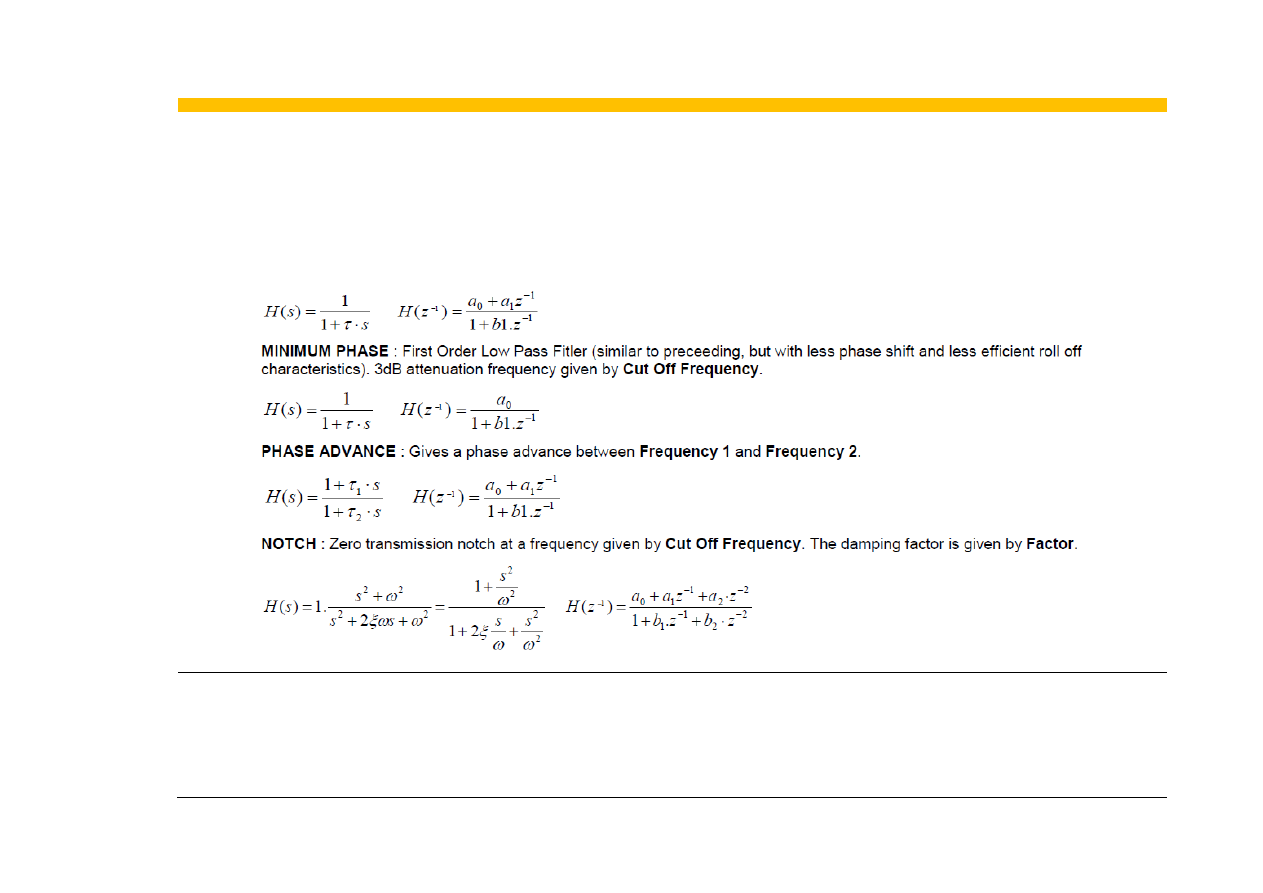

NONE :

no filter applied – no parameter selection

MAX ATTENUATION

: First Order Low Pass Filter (Butterworth form). 3dB attenuation frequency given by

Cut Off Frequency

1545

Parameters::Motor Control::Filter On
Torque Dmd

2000

20 to 6000

ALWAYS

3dB attenuation frequency if Filter Type is MAX ATTENUATION or MINIMUM PHASE

Frequency of Zero transmission if Filter Type is NOTCH

D-74

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Frequency 1

1546

Parameters::Motor Control::Filter On
Torque Dmd

2000

20 to 6000

ALWAYS

Frequency 1 if

Filter Type

PHASE ADVANCE

Frequency 2

1547

Parameters::Motor Control::Filter On
Torque Dmd

2000

20 to 6000

ALWAYS

Frequency 2 if

Filter Type

PHASE ADVANCE

Factor

1548

Parameters::Motor Control::Filter On
Torque Dmd

0.20

0.10 to 1.00

ALWAYS

Damping factor if

Filter Type

NOTCH

Parameter Reference

D-75

Flash File System

Parameters::Device Manager::Flash File System

Parameter Name

No.

Path

Default

Range

Units

Writable

Free Space (kBytes)

1754

Parameters::Device Manager::Flash
File System

NEVER

Indicates the remaning space available in the internal file system, (not on AC30V).

Functional Description

The internal file system on the AC30P / AC30D is primarily used to store the source code for applications. The total space available in 12MB.

D-76

Parameter Reference

Fluxing VHz

Parameters::Motor Control::Fluxing VHz

Designed for VOLTS/Hz motor Control Mode.

This function allows user parameterisation of the conventional (volts/hertz) fluxing strategy of the Drive. This is achieved through three flexible Volts-
to-frequency templates. Starting torque performance can also be tailored through the

Fixed Boost

Acceleration Boost

and

Auto Boost

parameters.

Parameter Name

No.

Path

Default

Range

Units

Writable

VHz Shape

0422

Setup::Motor Control::Control and Type
Parameters::Motor Control::Fluxing VHz

0:LINEAR LAW
1:FAN LAW
2:USER DEFINED
3:APPLICATION DEFINED

STOPPED

Type of volts to frequency template to flux the motor. The choices for this parameter are:

Enumerated Value

VHz Shape

0 : LINEAR LAW

This gives a constant flux characteristic up to the

Base Frequency

(see

Motor Nameplate

function).

1 : FAN LAW

This gives a quadratic flux characteristic up to the

Base Frequency

. This matches the load requirement for fan

and most pump applications

2 : USER DEFINED This gives a user defined flux characteristic up to the

Base Frequency

3 : APPLICATION DEFINED This gives a user the ability to set up and apply fluxing law from the application layer.

V/F SHAPE

LINEAR

FREQUENCY

= BASE FREQUENCY

100%

CONSTANT

POWER RANGE
(field weakening)

OUTPUT VOLTS

QUADRATIC LAW

CONSTANT
TORQUE
RANGE

Parameter Reference

D-77

Parameter Name

No.

Path

Default

Range

Units

Writable

Fixed Boost

0447

Same as PNO 422

0.0

0.0 to 25.0

ALWAYS

This parameter allows for no-load stator resistance voltage drop compensation. This correctly fluxes the motor (under no-load
conditions) at low output frequencies, thereby increasing available motor torque. Fixed boost can be set in addition to auto boost and
acceleration boost.

BASE FREQUENCY

100%

BOOST = 10%

Auto Boost

0448

Parameters::Motor Control::Fluxing VHz

0.0

0.0 to 25.0

ALWAYS

This parameter allows for load dependent stator resistance voltage drop compensation. This correctly fluxes the motor (under load
conditions) at low output frequencies, thereby increasing available motor torque.

Auto Boost

can be set in addition to

Fixed Boost

The value of the

Auto Boost

parameter determines level of additional volts supplied to the motor for 100% load.

Setting the value of auto boost too high can cause the Drive to enter current limit. If this occurs, the Drive will be unable to ramp up in
speed. Reducing the value of auto boost will eliminate this problem.

Acceleration Boost

0450

Parameters::Motor Control::Fluxing VHz

0.0

0.0 to 25.0

ALWAYS

Additional amount of fixed boost when the drive is accelerating.

Energy Saving Enable

0451

Parameters::Motor Control::Fluxing VHz

FALSE

ALWAYS

Enable/Disable energy saving mode to minimize energy consumption.

D-78

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

VHz User Freq

0423

Parameters::Motor Control::Fluxing VHz

STOPPED

Array of user defined frequency for V/f control

VHz User Volts

0435

Parameters::Motor Control::Fluxing VHz

0.0 to 100.0

STOPPED

Array of VHz User Volts for V/f control

Application User Boost

1633

Parameters::Motor Control::Fluxing VHz

0.00

0.00 to 25.00

ALWAYS

User boost for V/Hz control from application

Application Volts

1549

Parameters::Motor Control::Fluxing VHz

0.00

0.00 to 150.00

ALWAYS

Volts for V/Hz control, if fluxing law is done in the application

Energy Saving Lower Lim

1526

Parameters::Motor Control::Fluxing VHz

0.00

0.00 to 1.00

ALWAYS

Energy Saving Lower Limit for application defined fluxing

Vsd Demand

0453

Parameters::Motor Control::Fluxing VHz

x.x

NEVER

The amount of voltage applied in the direct or flux axis

Vsq Demand

0454

Parameters::Motor Control::Fluxing VHz

x.x

NEVER

The amount of voltage applied in the quadrature or torque axis

Parameter Reference

D-79

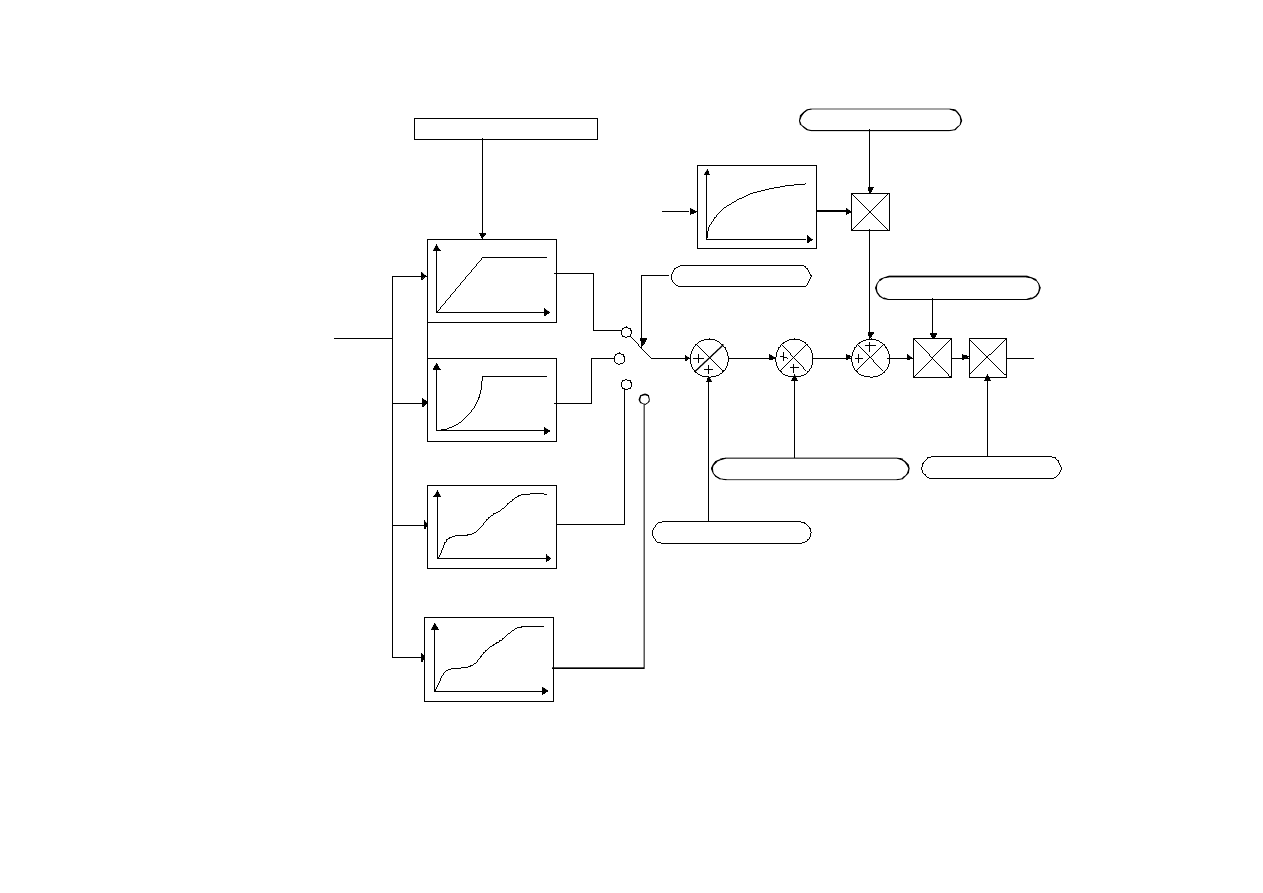

Functional Description

LINEAR LAW

FAN LAW

LOAD FILTER

DEMANDED

DRIVE

MEASURED

LOAD

V/F SHAPE

BASE FREQUENCY

AUTO BOOST

FIXED BOOST

BASE VOLTS

USER DEFINED

(x,y)

ACCELERTN BOOST

ENERGY SAVING

VOLTS

FREQUENCY

APPLICATION DEFINED

(x,y)

D-80

Parameter Reference

V/F Shape

The function allows the user to parameterise the Drive’s conventional V/F motor fluxing scheme. Four V/F shapes are available, LINEAR LAW, FAN
LAW, USER DEFINED, and APPLICATION DEFINED:

♦

Linear Law V/F shape should be used in applications requiring constant motor torque though out the speed range (e.g. machine tools or
hoists).

♦

Fan Law V/F shape provides less torque capabilities for lower speeds, which means some energy savings can be achieved for fan or
pump applications when they operate at lower speed/load setpoints. When choosing fan law shape the user should carefully consider if
such profile is suitable for the overall load cycle of their application.

♦

User Defined V/F shape provides a method for the user to define any profile. 10 user definable (x,y) points are provided. Linear
interpolation is used between each point. The drive also assumes the following points - (0%,0%) and (100%,100%) - though these may
be overridden. For example, (USER FREQ 1 = 0%, USER VOLTAGE 1 = 5%) takes precedence over (0%, 0%).

♦

Application Defined V/F shape provides a method for the user to define any fluxing profile within the application layer. In the application
the user can set desired voltage level for any operating frequency, and the application will dynamically provide that value to the
firmware, via the “Application Volts” parameter. If this mode is used, it is recommended that such application is executed in 1ms time
frame.

For any of these V/F shapes the

Base Frequency

parameter (in the

Motor Nameplate

function) which is the value of Drive output frequency at

which maximum output volts is provided, can be set by the user.

Boost Parameters

♦

Correct no-load motor fluxing at low Drive output frequencies can be achieved by setting the

Fixed Boost

parameter.

♦

Correct motor fluxing under load conditions is achieved by setting the

Auto Boost

parameter. The motor is correctly fluxed when the

Actual Field Current

diagnostic in the

Feedbacks

function reads 100.0% .

♦

Additional

Fixed

Boost

can be applied during acceleration by setting the

Acceleration Boost

parameter. This can be useful for starting

heavy/high stiction loads.

Saving Energy

Energy Saving

mode is provided to allow the user to choose to optimize energy consumption under low load conditions in steady state. As soon

as the load is increased or acceleration is required, the drive suspends energy saving mode, and returns to it only if the load conditions are such that
it is allowed to do so. If enabled, energy saving mode is reducing the voltage of the motor to a level required to maintain specific setpoint speed at a
particular low load. For sustained low load conditions it is not necessary to keep the motor fluxed for rated torque capabilities, so the motor voltage is

Content .. 21 22 23 24 ..
