Parker Variable Speed Drive AC30 series. User’s Manual (2017) - page 21

Parameter Reference

D-33

Parameter Name

No.

Path

Default

Range

Units

Writable

The power parameters cannot be restored from a clone file that was saved on a control module with the parameter 0989 Power Stack
Required set to NONE.

Enumerated Value : Power Parameters

0 : LOAD FROM FILE

1: LEAVE CURRENT VALUES

2 : SET TO DEFAULT VALUES

Other Parameters

1540

Same as PNO 1534

0:LOAD FROM FILE
1:LEAVE CURRENT VALUES
2:SET TO DEFAULT VALUES

ALWAYS

If the parameter

1538 Full Restore

is set to PARTIAL, then the parameter

Other Parameters

allows the user to load the ‘other’

parameters from the file, leave the current values or set the values to the defaults.

Enumerated Value : Power Parameters

Clone Start

1542

Same as PNO 1534

FALSE

ALWAYS

When TRUE this parameter starts the cloning process, either saving or loading depending on the parameter

1537 Clone Direction

The cloning process will only start if the parameter

1543 Clone Status

is IDLE.

Once the cloning has completed the parameter

1543 Clone Status

will be DONE. Set the Clone Start parameter back to FALSE to

return to the IDLE state.

D-34

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Clone Status

1543

Same as PNO 1534

0:IDLE
1:SAVING
2:RESTORING
3:VERIFYING
4:DONE
5:CANNOT START
6:FAILED
7:NO SD CARD
8:VERIFY FAILED
9:FILE NOT OPENED
10:FILE INCOMPATIBLE
11:FILE FAILURE
12:POWER MISMATCH
13:APPLICATION FAILURE
14:PARAMETERS FAILURE

NEVER

This parameter indicates the status of the cloning process.

Enumerated Value : Power Parameters

0 : IDLE

- waiting for the user to start the cloning process.

1: SAVING

- in the process of saving the drive configuration to file.

2 : RESTORING

- in the process of loading the configuration from file.

3 : VERIFYING

- in the process of verifying the clone file either before a load or after a save.

4 : DONE

- the cloning process has completed successfully either for a load or a save.

5 : CANNOT START

- the cloning process cannot start. When restoring a configuration the drive must be stopped.

6 : FAILED

- general failure of the cloning process.

7 : NO SD CARD

- no SD card is fitted.

8 :RS FAILURE

- could not restore the parameters. E.g. the parameters are missing from the clone file.

Notes:

1) The clone file only contains the parameters that were stored in non-volatile memory on the drive when a clone save was

performed. When performing a clone load and a full restore is performed or a LOAD FROM FILE is used for the parameters,
then any parameter not previously saved in the file will be set to its defaults.

2)  Each application parameter is restored only if the parameter definition on the target drive matches the saved parameter.
3)  The clone saving process will take between 3 – 15 seconds depending on the type of SD card used.
4)  When saving a file with the same filename as an existing file on the SD card, the existing file will be overwritten. To prevent

this, use a PC to set the read-only attribute of the file.

5) During the clone loading process the GKP screen may blank momentarily.

Parameter Reference

D-35

Communications Options

Monitor::Communications::Option
Setup::Communications::Option
Parameters::Option Comms::Comms
Parameters::Option Comms::Event
Parameters::Option Comms::Read Process
Parameters::Option Comms::Write Process
Parameters::Option Comms::Option Ethernet *

Refer to any of the following Technical Manuals:

Product Code

Description

Part Number

7003-PB-00

Profibus DP-V1

HA501837U001

7003-PN-00

PROFINET IO *

HA501838U001

7003-DN-00

DeviceNet

HA501840U001

7003-CN-00

ControlNet

HA501936U001

7003-CB-00

CANopen

HA501841U001

7003-IP-00

EtherNet IP *

HA501842U001

7003-EC-00

EtherCAT

HA501938U001

7003-BI-00

BACnet IP *

HA501939U001

7003-BN-00

BACnet MSTP

HA501940U001

7003-RS-00

Modbus RTU

HA501839U001

7003-IM-00

Modbus TCP *

HA501937U001

D-36

Parameter Reference

Configure, (Phase Control)

Parameters::Phase Control::Configure

Used to select Master and slave encoder source.
Gives a diagnostics of the configuration related to the encoder selection for the motor control, the Master ( Reference ) and the Slave.

Parameter Name

No.

Path

Default

Range

Units

Writable

Master Position Src

1745

Parameters::Phase Control::Configure

0:MAIN SPD FEEDBACK
1:SYSTEM BOARD SLOT 1
2:SYSTEM BOARD SLOT 2
3:NONE

STOPPED

Specifies the encoder to be used as the Master, (Reference) input :



MAIN SPEED FEEDBACK

: corresponds to the I/O feedback option



SYSTEM BOARD SLOT 1

: corresponds to the Slot 1 of the system board option



SYSTEM BOARD SLOT 2

: corresponds to the Slot 2 of the system board option



NONE

: no Master selected

Slave Position Src

1744

Parameters::Phase Control::Configure

0:SAME AS MOTOR FBK
1:MAIN SPD FEEDBACK
2:SYSTEM BOARD SLOT 1
3:SYSTEM BOARD SLOT 2

STOPPED

Specifies the encoder to be used as the Slave input. Normally this will be the same as the speed feedback.



SAME AS MOTOT FBK : the Slave encoder is the encoder used as the motor feedback.



MAIN SPEED FEEDBACK : corresponds to the I/O feedback option



SYSTEM BOARD SLOT 1 : corresponds to the Slot 1 of the system board option



SYSTEM BOARD SLOT 2 : corresponds to the Slot 2 of the system board option

By default, the value

SAME AS MOTOT FBK

is selected.

If the Slave and the Motor Feedback are the same encoder, use

SAME AS MOTOT FBK

, otherwise, an error 301 or 302 or 303 will

occur : Motor speed feedback and position feedback ( slave ) cannot be the same.

Setup Successful

1749

Parameters::Phase Control::Configure

NEVER

The configuration of the master, slave and Speed loop encoders is correct

Parameter Reference

D-37

Parameter Name

No.

Path

Default

Range

Units

Writable

Error Number

1750

Parameters::Phase Control::Configure

-32768 to 32767

NEVER

Indicates the nature of the fault giving an error

No error. SetUpSuccessful is TRUE

Feedback vector mode selected, but speed feedback source set to NONE

Encoder feedback requested via the I/O option encoder board, but no hardware is fitted.

Encoder feedback requested via System Board Encoder Slot1, but no system board is fitted.

Encoder feedback requested via System Board Encoder Slot2, but no system board is fitted.

Reference encoder requested via the I/O option encoder board, but no hardware is fitted.

Reference encoder requested via System Board Encoder Slot1, but no hardware is fitted.

Reference encoder requested via System Board Encoder Slot2, but no system board is fitted.

Position loop feedback requested via the I/O option encoder board, but no hardware is fitted.

Position loop feedback requested via System Board Encoder Slot1, but no system board is fitted.

10. Position loop feedback requested via System Board Encoder Slot2, but no system board is fitted.
101. Conflict between selected motor speed feedback and position reference (cannot be the same!) : I/O option encoder board
102. Conflict between selected motor speed feedback and position reference (cannot be the same!) : System Board Encoder Slot1
103. Conflict between selected motor speed feedback and position reference (cannot be the same!) : System Board Encoder Slot2
201. Conflict between selected position reference and position feedback (cannot be the same!) : I/O option encoder board
202. Conflict between selected position reference and position feedback (cannot be the same!) : System Board Encoder Slot1
203. Conflict between selected position reference and position feedback (cannot be the same!) : System Board Encoder Slot2
301. Conflict between selected motor speed feedback and position feedback (cannot be the same!). : I/O option encoder board
302. Conflict between selected motor speed feedback and position feedback (cannot be the same!) : System Board Encoder Slot1
303. Conflict between selected motor speed feedback and position feedback (cannot be the same!) : System Board Encoder Slot2

Master Encoder

1751

Parameters::Phase Control::Configure

0:EMPTY FUNC
1:ESTIMATOR
2:PRIMARY
3:SYSTEM BOARD SLOT 1
4:SYSTEM BOARD SLOT 2
5:OTHER

NEVER

Diagnostic giving the encoder set up as the master encoder

•

SB SLOT1

•

SB SLOT2

•

PRIMARY ( I/O option encoder board )

Slave Encoder

1752

Parameters::Phase Control::Configure

Same as PNO 1751

NEVER

Diagnostic giving the encoder set up as the slave encoder

•

SB SLOT1

•

SB SLOT2

•

PRIMARY (I/O option encoder board)

D-38

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Spd Loop Encoder

1753

Parameters::Phase Control::Configure

Same as PNO 1751

NEVER

Diagnostic giving the encoder set up for the speed loop control

•

SB SLOT1

•

SB SLOT2

•

PRIMARY (I/O option encoder board)

Parameter Reference

D-39

Control Mode

Setup:: Motor Control::Control & Type:: Control Strategy
Parameters::Motor Control::Control & Type::Control Strategy

The control mode block provides the means for selecting the type of motor and the desired method of controlling the motor.

Parameter Name

No.

Path

Default

Range

Units

Writable

Motor Type

or AFE

0511

Setup::Motor Control::Control and Type
Setup::Regen Control
Parameters::Control Mode::Control
Mode

0:INDUCTION MOTOR
1:PMAC MOTOR

2:AFE

STOPPED

Motor type selection parameter

Allows the user to select the type of motor.

Control Strategy

0512

Setup::Motor Control::

Control and

Type

Parameters::Control Mode::Control
Mode

0:VOLTS - HERTZ CONTROL
1:VECTOR CONTROL

STOPPED

This parameter will only become visible if an induction motor is selected. If a PMAC motor is selected, the Control Strategy will
automatically be set to Vector Control.

Select control strategy selection parameter.

Allows the user to select the method of controlling the motor.

Control Type

1533

Setup::Motor Control::Control and Type
Parameters::Control Mode::Control
Mode

0:SENSORLESS
1:ENCODER FEEDBACK

STOPPED

AC30V : This parameter will only become visible if an induction motor is selected, Control Strategy is set to Vector Control, and the
encoder option is fitted. If the encoder option is not fitted, the control strategy is forced to be sensorless.

AC30P/D: This parameter will only become visible if Control Strategy is set to Vector Control. If the encoder option is not fitted,
selecting ENCODER FEEDBACK will give a trip.

This parameter allows selects between sensorless control, and control using encoder feedback.

If an encoder feedback is available, it would normally be the preferred choice as it gives better speed control and higher performance.

D-40

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Control Type

1533

1743

Setup::Motor Control::Control and Type
Parameters::Control Mode::Control
Mode

0:MAIN SPD FEEDBACK
1:SYSTEM BOARD SLOT 1
2:SYSTEM BOARD SLOT 2
3:NONE

STOPPED

This parameter will only become visible if Control Strategy is set to Vector Control and Control Type is set to Encoder Feedback, and
the drive is an AC30P/D

The parameter selects between encoder inputs :

MAIN SPD FEEDBACK : encoder option fitted or resolver option fitted. It corresponds to the option fitted in the I/O options. If selected,
the I/O option has to be set up in the corresponding option ( Resolver or Encoder )

SYSTEM BOARD SLOT 1 : encoder connected on SLOT1 if AC30D

SYSTEM BOARD SLOT 2 : encoder connected on SLOT 2 if AC30D

NONE : no encoder connected – corresponds to SENSORLESS control selected

If an encoder is available, encoder feedback control would normally be the preferred choice as it gives better speed control and higher
performance.

Functional Description

The motor selection is the first step in setting the control mode.

The selection of control strategy comes next, with the permitted settings as follows:

Induction motors can be run in either volts hertz mode or vector mode

Permanent magnet motors can only be run in vector control mode

If vector control is selected, and an encoder option or a resolver option is fitted, it is then necessary to choose whether to select vector control with
encoder feedback for improved performance.

Parameter Reference

D-41

ControlNet Option

Monitor::Communications::Option
Setup::Communications::Option
Parameters::Option Comms::Comms
Parameters::Option Comms::Read Process
Parameters::Option Comms::Write Process
Parameters::Option Comms::Event
Parameters::Option Comms::ControlNet

Refer to ControlNet Technical Manual HA501936U001

D-42

Parameter Reference

Current Limit

Parameters::Motor Control::Current Limit

Designed for all Motor Control Modes

This function allows you to set the maximum level of motor rated current (as a % of the user-set

Motor Current

) which is allowed to flow before

current limit action occurs. If the measured motor current exceeds the current limit value with a motoring load, the motor speed is reduced to control
the excess load. If the measured motor current exceeds the current limit value with a regenerating load, the motor speed is increased up to a
maximum of

100% Speed in RPM (Scale Setpoint).

The maximum value of current limit for a particular motor is limited by the AC30V current rating.

If a motor of larger rating than the AC30V is connected, then the current limit max value is limited by the AC30V current rating.

If a motor of lower rating than the AC30V is connected, then the current limit max value is limited to 300% (if compatible with the AC30V current
rating) for an induction motor (IM) and to the ratio

PMAC Max Current

PMAC Rated Current

for a PMAC motor.

% are always expressed as % of the user set

Motor Current

(rated current of PMAC or IM Motor).

Parameter Name

No.

Path

Default

Range

Units

Writable

Current Limit

0305

Setup::Motor Control::Control and Type
Parameters::Motor Control::Current Limit

150.0

0.0 to 600.0

ALWAYS

This parameter sets the level of motor current, as a % of

Motor Current

(refer to the relevant MOTOR definition , PMAC or IM

function) at which the Drive begins to take current limit action.

Regen Limit Enable

0307

Parameters::Motor Control::Current Limit

TRUE

ALWAYS

This parameter enables or disables regenerative current limit action.

Note that this parameter only works in open-loop VOLTS / Hz motor control mode.

Functional Description

Internal limit : output of the Stack Inv Time module + reduction
as a function of electrical low speed ( < 3Hz ) and as function
of heatsink temperature

minimum

Current limit

Internal limit

Current Limit Output

Parameter Reference

D-43

Current Loop

Setup:: Motor Control::Control & Type:: Motor Type
Parameters::Motor Control::Control Loop

Parameter Name

No.

Path

Default

Range

Units

Writable

Enable Predict Term

0955

Parameters::Motor Control::Current Loop

TRUE

ALWAYS

To enable the predictive term of the current loop.

Functional Description

This is to add the predictive term into the voltage demand formulated by the current regulator so to to increase the dynamic performance of motor
drive. It is recommented to enable this parameter if the permanent magnet motor is used.

D-44

Parameter Reference

Current Sensor Trip

Parameters::Trips::Current Sensor Trip

This function contains parameters associated to the missing current sensor detection and trip condition

Parameter Name

No.

Path

Default

Range

Units

Writable

Current Diff Level

1658

Parameters::Trips::Current Sensor Trip

25.00

0.00 to 100.00

ALWAYS

The percentage of motor rated current which, if exceeded by difference between RMS values of two current sensor measurements,
causes this trip to become active. This trip detects missing, or broken connections in the current sensing circuitry that result in loss of
measurement of one sensor. Enabled in V/Hz mode of operation only.

Parameter Reference

D-45

Data Logger

Parameters::Device Manager::Data Logger

Regularly log the value of the selected parameters to the SD Card

Parameter Name

No.

Path

Default

Range

Units

Writable

Log Enable

1835

Parameters::Device Manager::Data Logger

FALSE

ALWAYS

Set to TRUE to enable the data logger

Log Period

1836

Parameters::Device Manager::Data Logger

1.000

0.500 to 86400.000

ALWAYS

Defines the period between each set of data. The maximum value is equivalent to 24 hours.

Log File Name

1837

Parameters::Device Manager::Data Logger

logfile_

ALWAYS

Defines the first characters of the log file name. The Data Logger automatically appends this name with a 4 digit sequence number and
the extension “.csv”.

Log to New File

1838

Parameters::Device Manager::Data Logger

FALSE

ALWAYS

On a change from FALSE to TRUE the Data Logger creates a new log file and starts saving data to this. The log file sequence number
is automatically incremented each time a new file is created.

Log New File On Reset

1839

Parameters::Device Manager::Data Logger

FALSE

ALWAYS

If TRUE the Data Logger will create a new log file each time the drive is powered up.

Limit Log File Size

1840

Parameters::Device Manager::Data Logger

FALSE

ALWAYS

When TRUE the data logger limits the maximum log file size to 10 M Bytes. When this size is reached the Data Logger creates a new
log file and starts saving data to this. The log file sequence number is automatically incremented each time a new file is created.

D-46

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Log Parameters[0]

Log Parameters[7]

1843
to

1850

Parameters::Device Manager::Data Logger

0000

0000 to 3131

ALWAYS

Defines up to 8 parameters to log.

Log File Size

1841

Parameters::Device Manager::Data Logger

NEVER

The size of the currently active log file. This may be used in the application together with “1836 Log to new File” to force the Data
Logger to create a new log file when the current file reaches an arbitrary size. This value is zero when

1835 Log Enable

is FALSE.

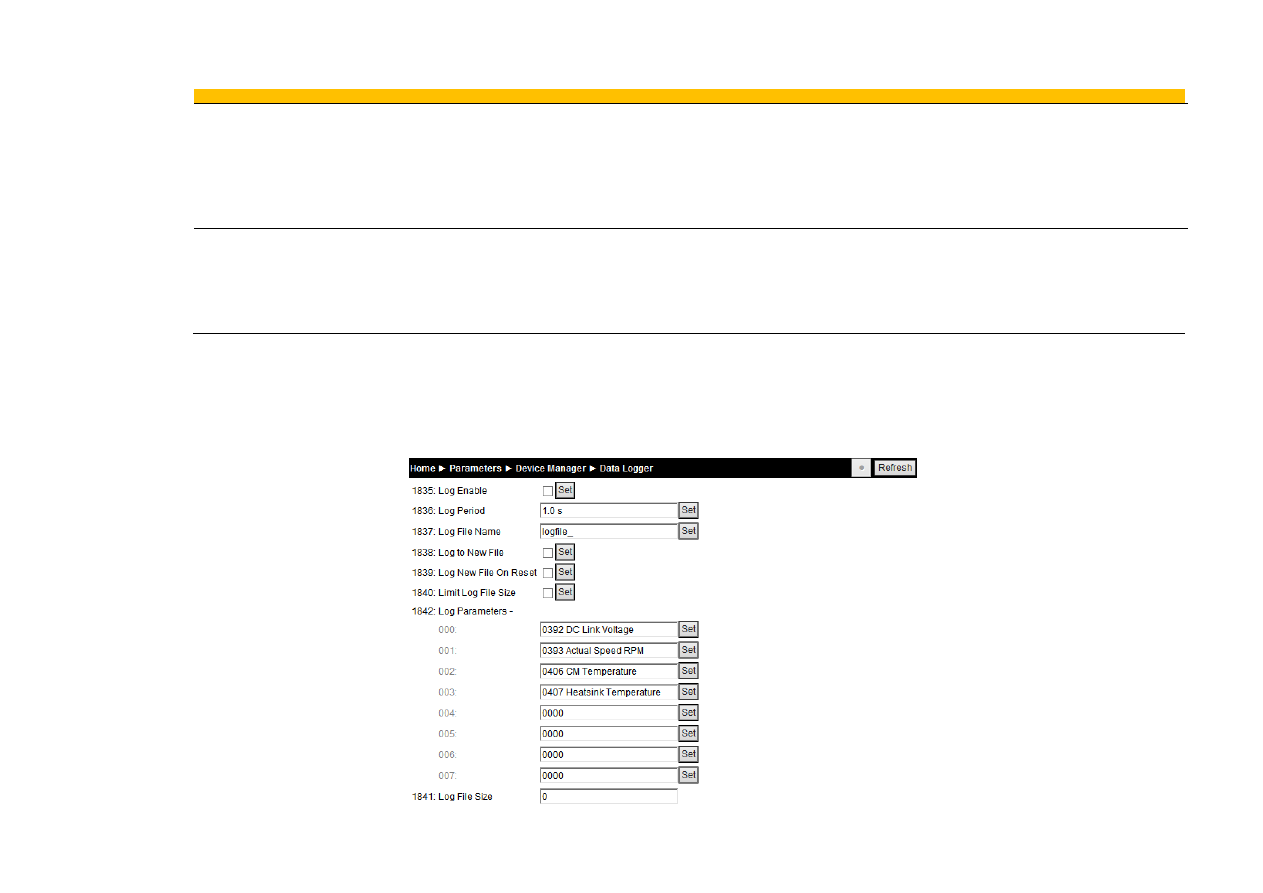

Functional Description

Parameter Reference

D-47

The first few rows of the log file corresponding to this setting would be:

Serial Number,123456789012345
Date and Time,Notes,392 DC Link Voltage,393 Actual Speed RPM,406 CM Temperature,407 Heatsink Temperature,,,,,
2016/02/20 10:19:20.279,Continuation,643.6444,0.0000,31.0000,60.0364,,,,,
2016/02/20 10:19:21.274,,643.6700,0.0000,31.0000,60.0397,,,,,
2016/02/20 10:19:22.274,,643.7726,0.0000,31.0000,60.0397,,,,,
2016/02/20 10:19:23.274,,643.6445,0.0000,31.0000,60.0429,,,,,
2016/02/20 10:19:24.279,,643.6444,0.0000,31.0000,60.0405,,,,,

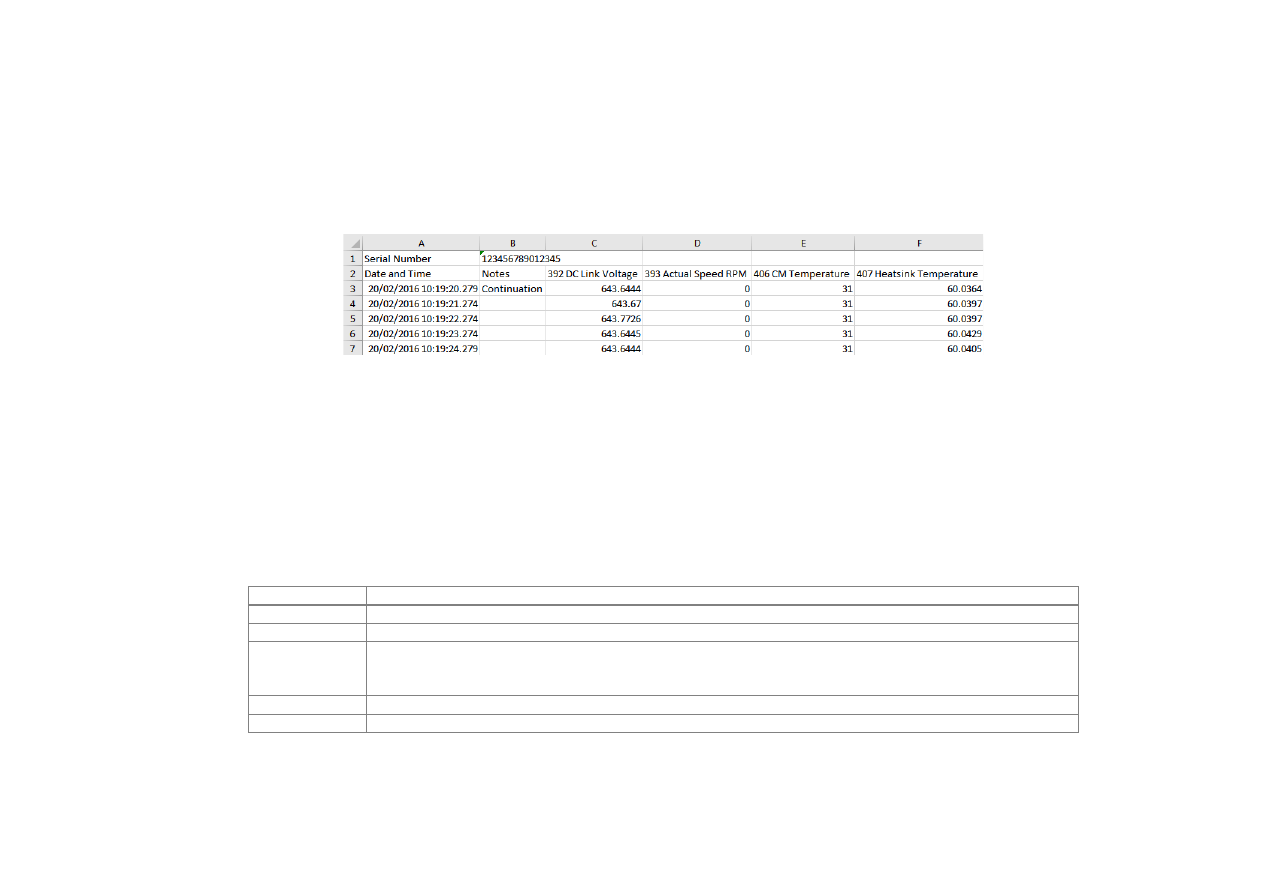

When viewed in Excel the data is organized into columns:

Row 1

The control module serial number

Row 2

column headings

Row 3...

Time stamp, Notes and the data points.

Time stamp

The Time stamp format depends whether the parameter

1186 Time and Date

is valid and updating. This will typically be the case if an option with a

Real Time Clock is fitted. It is also possible to keep this parameter valid over Ethernet. If the time and date is valid the time stamp will be in the
format illustrated above. To display this format correctly in Excel it may be necessary to force the format of this column to be Custom, using this
format string: “dd/mm/yyyy hh:mm:ss.000”.
If the time and date value is not valid, the time stamp will be the age of the control card, expressed as a value in seconds with three decimal places,
(giving resolution to one milli-second).

Notes

The notes column indicates a log event. The notes are:

Note

Description

Power On

Power has been applied to the control module.

Log Start

Log Enable changed from FALSE to TRUE.

Continuation

A new log file has been created due to:

•

changing

1838: Log to New File

from FALSE to TRUE

•

file size exceeding 10 MB and

1840: Limit Log File Size

is TRUE.

Changed setup A change to one or more of the selected parameters to log. This also causes a new log file to be created.
New file name

A change to the file name, causing a new log file to be created.

Data values

The output data values are organized into columns with a header in row 2 indicating the parameter number and name. The values are output in a
formate determined by the parameter data type. String data types are not supported. Enumerated data types are output as integers, with 0
corresponding to the first enumeration in the list.

D-48

Parameter Reference

DC Link Volts Limit

Parameters::Motor Control::DC Link Volts Limit

This function prevents over-voltage faults occurring due to a rapidly changing setpoint.

Parameter Name

No.

Path

Default

Range

Units

Writable

VDC Lim Enable

1641

Parameters::Motor Control::DC Link
Volts Limit

FALSE

STOPPED

Enable

DC Link Volts Limit

during a fast deceleration to prevent overvoltage trip

VDC Lim Level

1642

Parameters::Motor Control::DC Link
Volts Limit

91.0

78.0 to 100.0

STOPPED

Determines the dc link volts at which the

DC Link Volts Limit

sequence is started.

Entered as a percentage of the max DC link voltage (drive overvoltage level = 100%).

VDC Lim Active

1643

Parameters::Motor Control::DC Link
Volts Limit

NEVER

Set True when the deceleration ramp is paused in order to limit the DC link voltage

VDC Lim Output

1644

Parameters::Motor Control::DC Link
Volts Limit

x.x

Min to Max

NEVER

This diagnostic represents the speed setpoint output of the

DC Link Volts limit

Feature in Electrical Hz

Content .. 19 20 21 22 ..
