Parameter Reference

Active Front End (AFE)

Control Screen
Setup:: Regen Control
Monitor:: Regen Control

Active Front End (AFE) is a mode of operation of the drive required for full 4-Q regeneration capabilities. AFE control mode allows a single
AC30P/AC30D drive to act as a 4-Q power supply unit that is capable of drawing (motoring) and supplying (regenerating) sinusoidal, near-unity
power factor current from the supply. The output from the 4-Q Regen drive acts as a DC supply which is used to power other drives on a common
DC Bus system.

AFE Control Mode is available as a standard option in the AC30P/AC30D firmware, however set-up and installation requirements need to be
adhered to in order to use a drive as 4-Q regen unit. These requirements are described in more detail in the paragraphs that follow.

Hardware Requirements

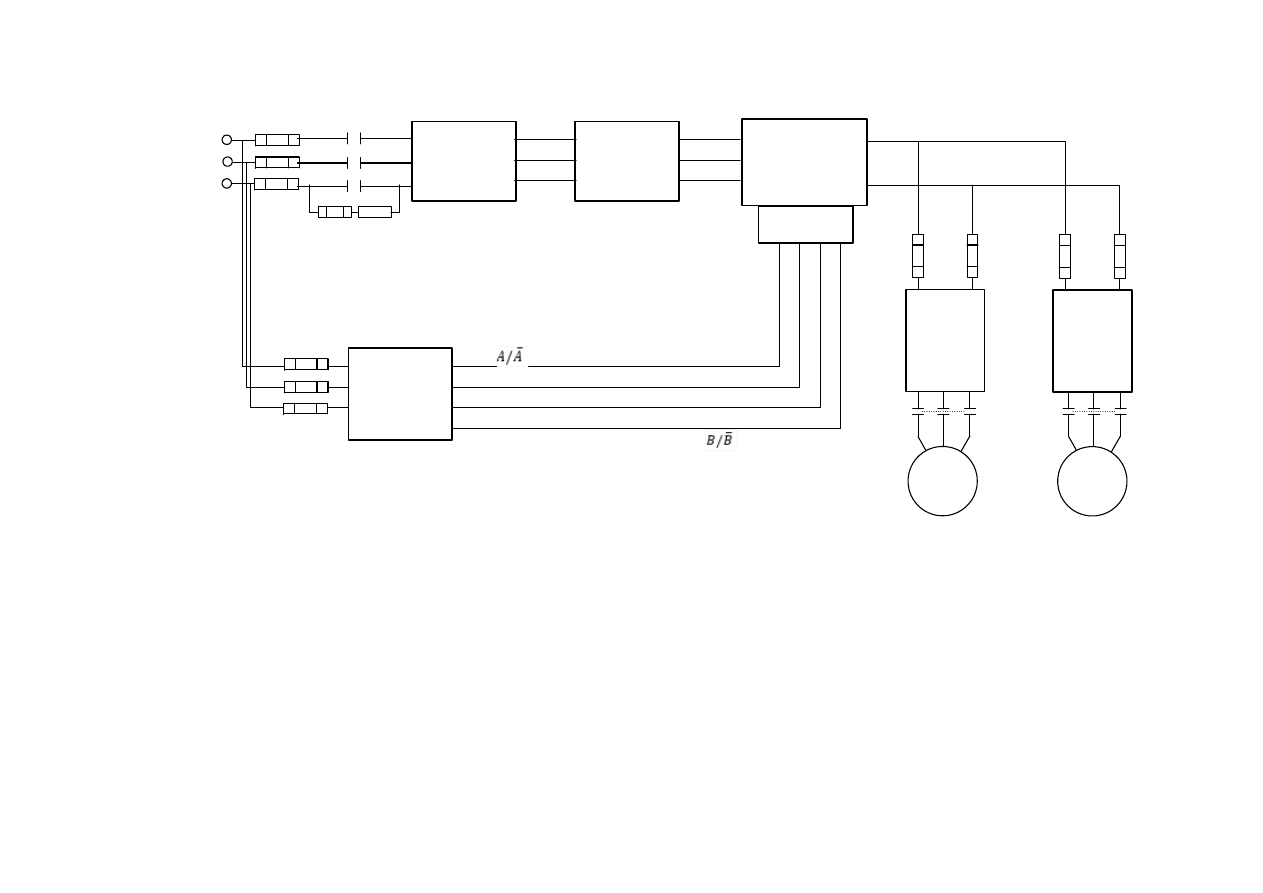

The figure below shows the typical installation configuration of the drive operating in AFE control mode.

Parameter Reference

D-3

Optional EMC

Filter

U (M1)

V (M2)

W (M3)

DC +

DC Link Fuses

LCL Filter

3 – ph

Supply

3 – ph

Input

Contactor

AC30P 4-Q

Line Fuses

External Pre-charge

DC -

Common DC Link

3 – ph

Output

Contactor

DC -

DC +

DC -

AC30

Motor

Encoder Option Card

7004-04-00

Line sync card

LA471892U001

The correct installation requires the following components:

LCL filter

3% and 5% chokes (as part of an LCL filter, custom designed )

Capacitor panel (as part of an LCL filter, custom designed)

Pre-charge resistor with external pre charge control

Thee phase contactors

EMC filter (optional)

AC Line fuses

DC Link fuses

Line sync card (LA471892U001)

Encoder option card (7004-04-00)

Drive Set-up

Typically the system will contain an AC30P/AC30D regen drive providing 4-Q power supply, and one or more drives on the common DC bus.

D-4

Parameter Reference

ALL

drives in the system

MUST

have their internal EMC “Y” caps to earth disconnected.

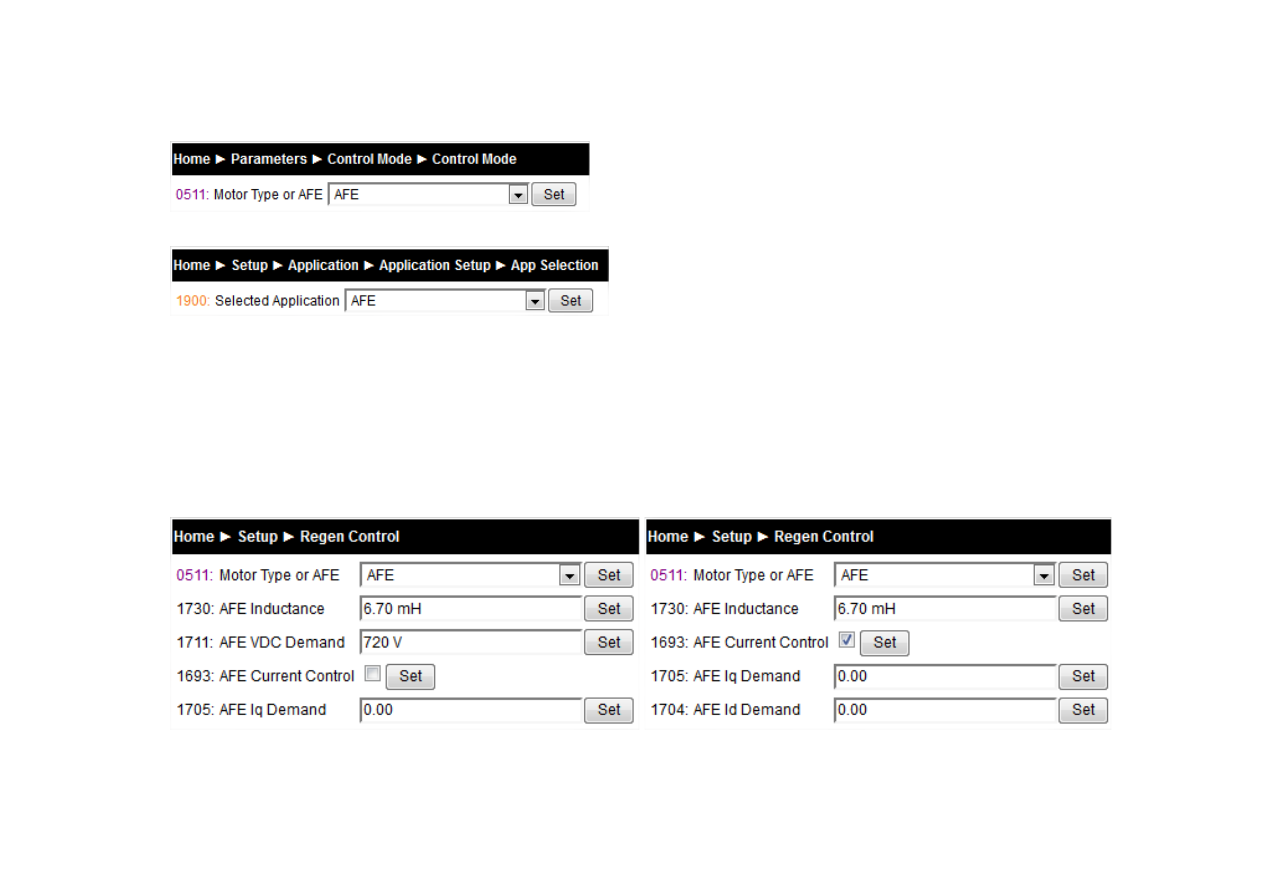

A 4-Q regen drive is set into AFE control mode by setting the

Control Mode “Motor Type or AFE”

parameter to AFE as shown in picture below.

This setting must be accompanied by selection of an appropriate AFE macro from the default application:

If the “Motor Type or AFE” and “Selected Application” do not match, it would not be possible to operate the drive correctly.Both these settings are
necessary for proper configuration of the drive to work as an active front end.

When drive is in AFE mode, its current rating is limited to 85% of the equivalent set up current rating when in one of the motor modes.

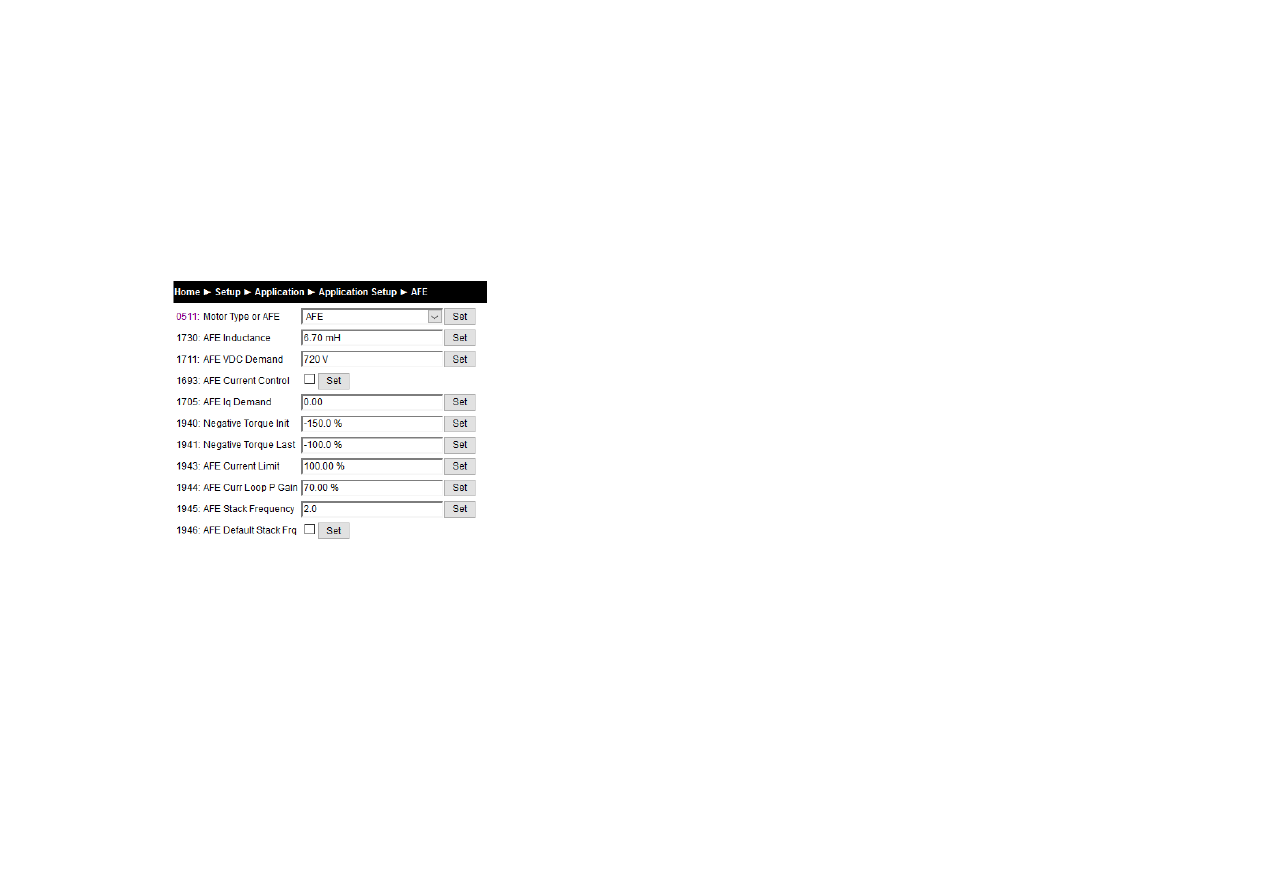

The standard set of AFE parameters required to finalise the drive AFE configuration are located within

Setup/Regen Control

menu. Based on the

“AFE Current Control” bit, AFE would operate in voltage control mode (left), or current control mode (right):

AFE inductance parameter must be set to the value of the total line choke inductance.

Parameter Reference

D-5

AFE VDC Demand parameter sets the required DC link voltage for the common DC link bus. Recommended level for nominal drive voltage rating of
400V (with 820V overvoltage trip level and 410V undervoltage trip level) is 720V.

AFE VDC Min Level parameter defines the level of DC link voltage at which external precharge closure is instigated. By default it is equal to
undervoltage trip level.

For any additional adjustments (if required) the full set of the AFE related parameters can be found in the

Parameters::Regen Control::AFE

menu.

Other (

non-AFE

) drives, supplied through common DC bus

MUST

have the following set-up:

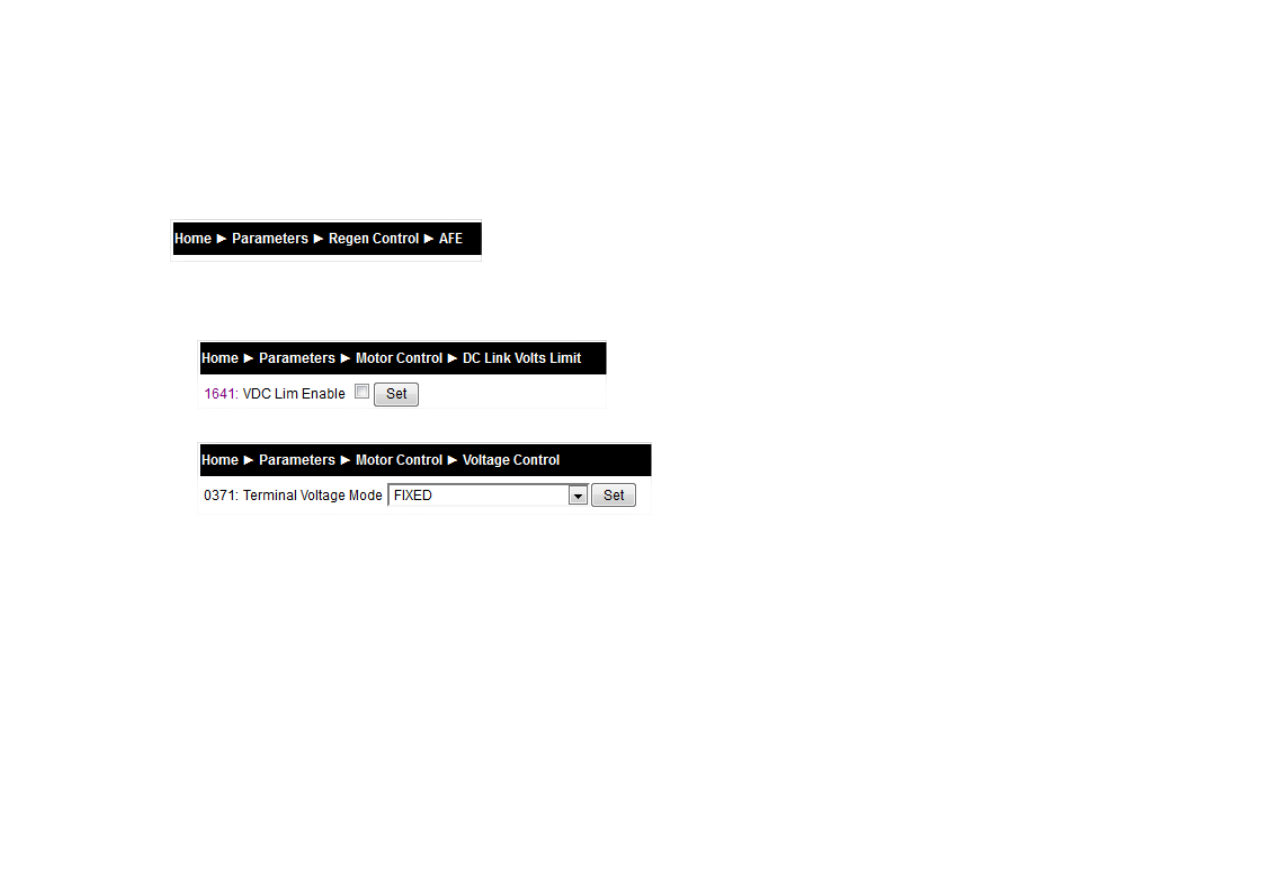

DC Link volts limit feature disabled

If in V/Hz mode the Terminal Voltage Mode parameter set to FIXED

AFE Application

A standard AFE macro (App_5_AFE_Control) is included as part of the default application. It provides necessary application layer logic to operate in
AFE control mode. This macro can be modified (if necessary) using standard AC30 PDQ or PDD tools. It enables the user immediate operation
without any additional diagram logic wiring, providing that electrical connections to digital inputs and outputs are the same as in default AFE macro.

D-6

Parameter Reference

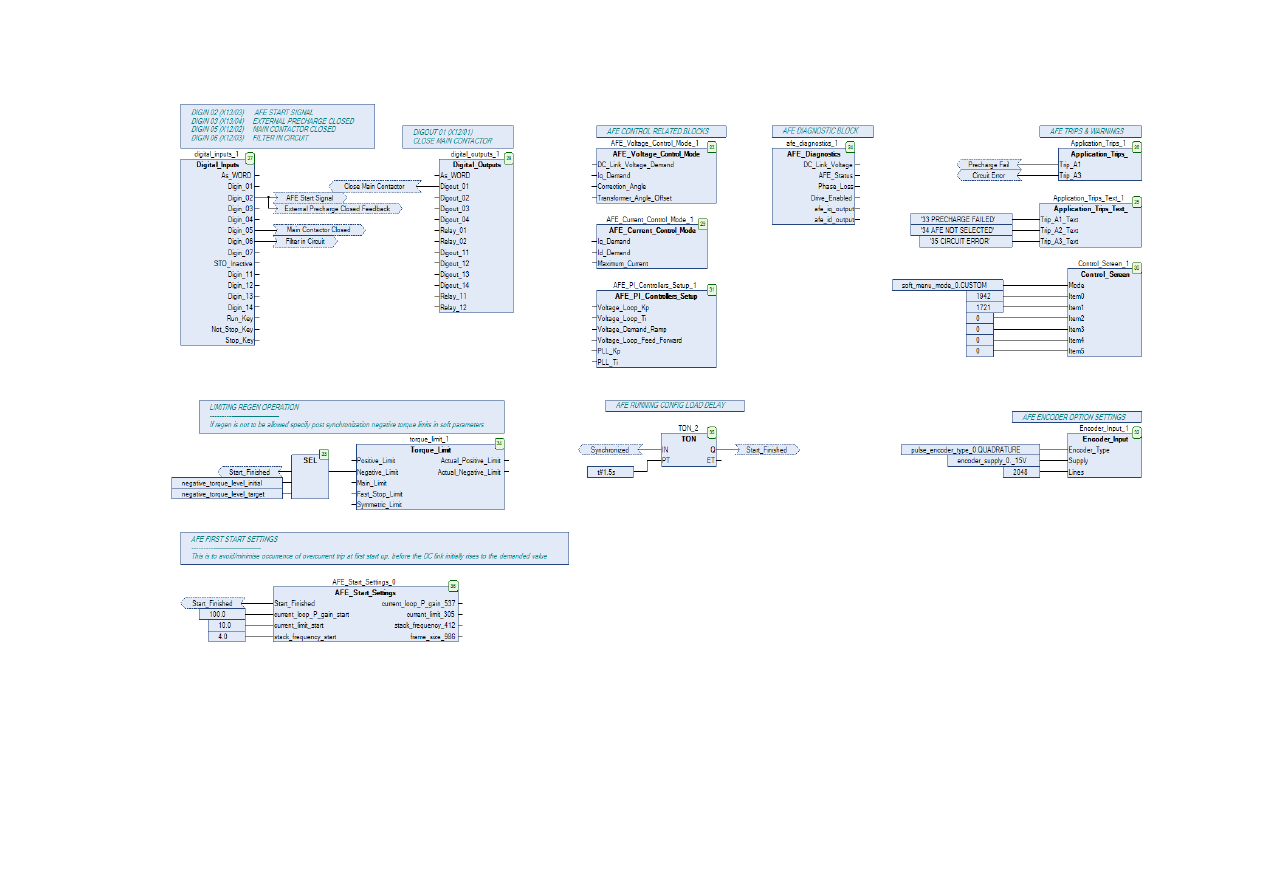

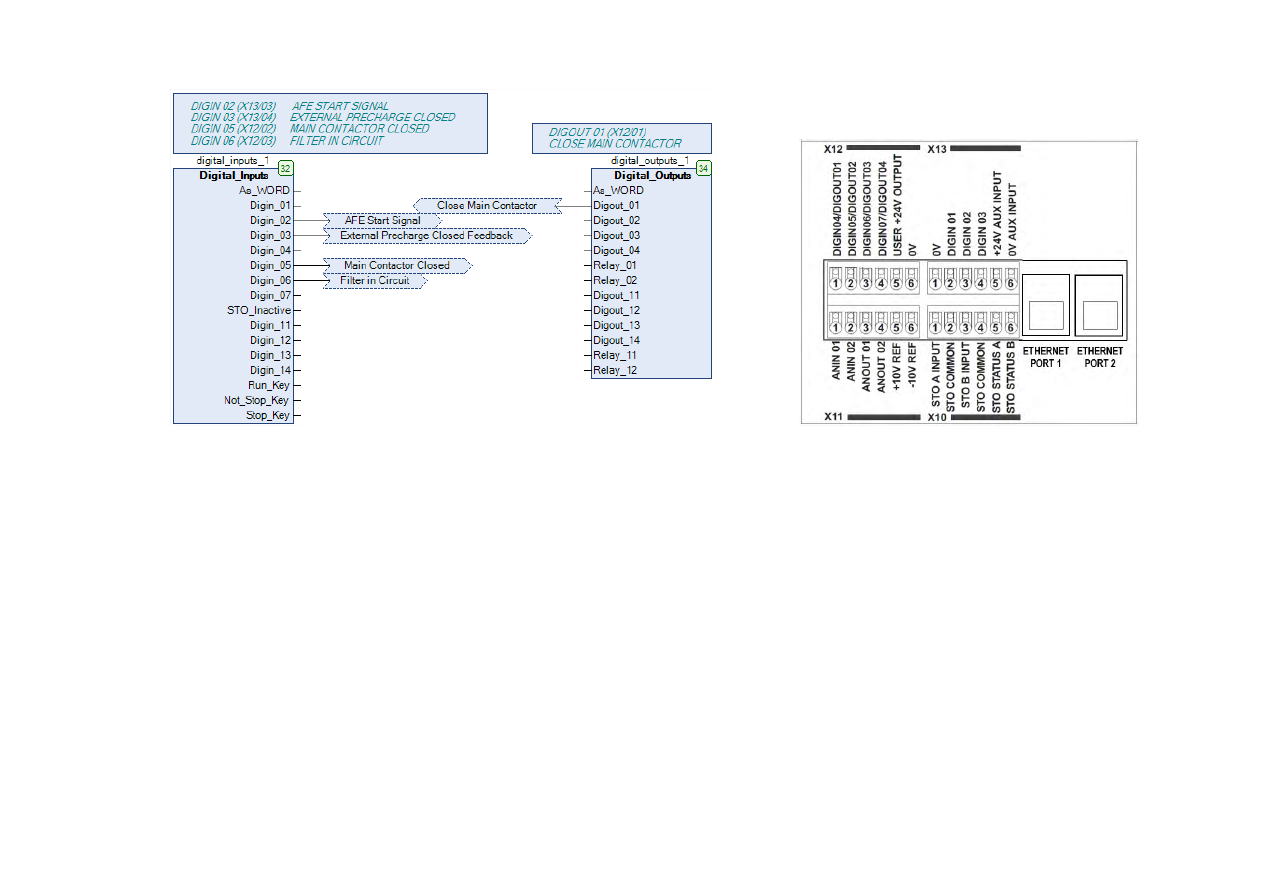

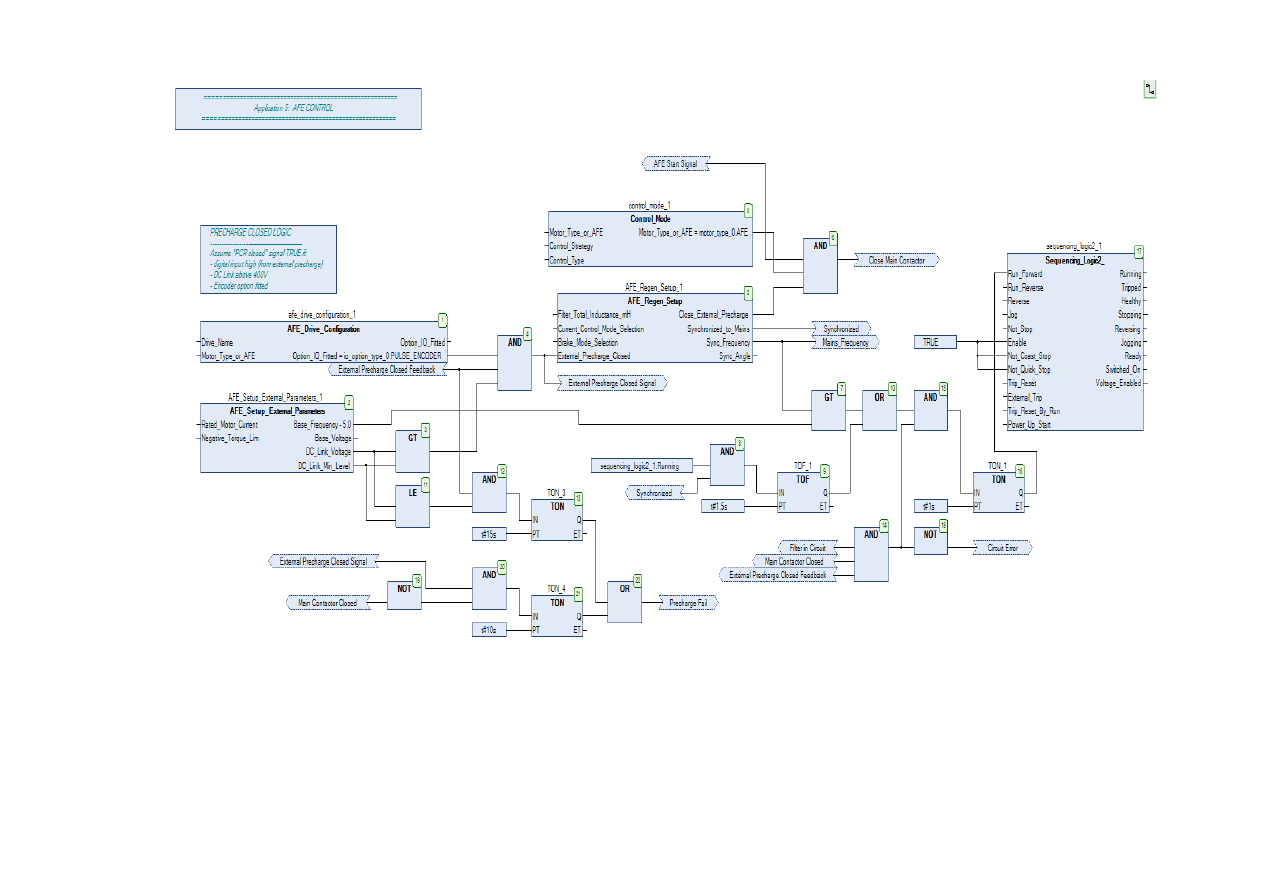

The default macro requires the following electrical wiring diagram for AC30P/AC30D control board. Use of different inputs will need to be
accompanied by the appropriate change in the application.

Parameter Reference

D-7

D-8

Parameter Reference

Parameter Reference

D-9

AFE Start Up Sequence

In order to minimise the potential occurrence of initial current transients when AFE is switched on, an “AFE Start Settings” block was included in the
default macro. It works in conjunction with the following four soft parameters:

1943 AFE Current Limit

1944 AFE Current Loop P Gain

1945 AFE Stack Frequency

1946 AFE Default Stack Frequency

AFE Default Macro Setup Parameters

These soft parameters have to be populated with the values that are required for operation in normal running mode, before first start of AFE mode is
attempted!

Start up values are set as constants within the macro, and can only be changed by reprogramming AFE application into the drive. Soft parameter
1946 AFE Default Stack Frequency allows the user to specify if drive should operate (post start up) with its default switching frequency, or with a
different one, as specified in soft parameter 1945.

It is, by default, set that start up is finished after 1.5 seconds since the run command has taken effect.

D-10

Parameter Reference

Line Synchronisation

Typically the system will contain an AC30P/AC30D regen drive providing 4-Q power supply, and one or more drives on the common DC bus.
However, in order for the AFE control procedures to operate correctly, a synchronization of the IGBT firing sequence to the three phase mains
supply voltage frequency, angle, and direction of rotation need to be performed. This is achieved by using a line sync card (LA471892U001),
connected to a standard AC30 encoder option board (7004-04-00). Failure to successfully synchronise could cause significant supply distortion, poor
power factor, or even catastrophic failure.

AFE Parameter List

The full set of AFE related parameters are given in a table below:

Parameter Name

No.

Path

Default

Range

Units

Writable

AFE Inductance

1730

Setup::Regen Control
Parameters::Regen Control::AFE

0.00

0.00 to 1000.00

ALWAYS

Total inductance (3% + 5%) from the LCL filter in the AFE configuration.

AFE PF Angle Demand

1693

Parameters::Regen Control::AFE

0.00

-90.00 to 90.00

deg

ALWAYS

Sets AFE in current control mode (TRUE) or leaves it in voltage control mode (FALSE).

AFE Id Demand

1705

Same as PNO 1693

0.10

-1.50 to 1.50

ALWAYS

Iq current demand. Set directly in both current control mode, or voltage control mode.

AFE Id Demand

1704

Same as PNO 1693

0.10

-1.50 to 1.50

ALWAYS

Id current demand. Set directly only in current control mode. In voltage control mode set by dc link voltage loop.

AFE Max Current

1706

Parameters::Regen Control::AFE

1.50

0.00 to 1.50

ALWAYS

Maximum allowed current in AFE mode.

AFE Close Ext PCR

1690

Parameters::Regen Control::AFE

FALSE

ALWAYS

Parameter Reference

D-11

Parameter Name

No.

Path

Default

Range

Units

Writable

Link to digital output to send command to close external pre charge

AFE Ext PCR Closed

1691

Parameters::Regen Control::AFE

FALSE

ALWAYS

Link to digital input to provide information if external pcr is closed.

AFE Sync Frequency

1703

Monitor::Regen Control
Parameters::Regen Control::AFE

NEVER

Mains frequency as measured by the AFE module.

AFE Sync Angle

1718

Parameters::Regen Control::AFE

deg

NEVER

Mains angle as measured by the AFE module.

AFE PLL Kp

1694

Parameters::Regen Control::AFE

5.48

0.00 to 30.00

ALWAYS

PLL proportional gain.

AFE PLL Ti

1695

Parameters::Regen Control::AFE

0.0318

0.0000 to 3.0000

ALWAYS

PLL integral term.

AFE VDC Kp

1707

Parameters::Regen Control::AFE

8.27

0.00 to 300.00

ALWAYS

DC link voltage loop proportional gain.

AFE VDC Ti

1708

Parameters::Regen Control::AFE

0.03

0.00 to 3.00

ALWAYS

DC link voltage loop integral term.

AFE VDC Demand

1711

Same as PNO 1693

720

340 to 820

ALWAYS

D-12

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

DC link voltage demand, setpoint for voltage control loop.

AFE VDC Ramp

1709

Parameters::Regen Control::AFE

0.05

0.01 to 100.00

ALWAYS

DC link voltage ramp rate.

AFE VDC Feed Forward

1710

Parameters::Regen Control::AFE

0.0000

-1.5000 to 1.5000

ALWAYS

DC link voltage loop feed forward term.

AFE VDC Min Level

1697

Parameters::Regen Control::AFE

400.00

340.00 to 5000.00

ALWAYS

AFE healthy DC link level, for precharge control, if necessary to be set lower than undervoltage trip level.

AFE Correction Angle

1717

Parameters::Regen Control::AFE

0.00

-90.00 to 90.00

ALWAYS

Angle correction offset.

AFE Transf Angle Offset

1731

Parameters::Regen Control::AFE

0.00

0.00 to 360.00

deg

ALWAYS

Angular offset necessary due to (potential) transformer delta/star connections.

AFE Synchronizing

1712

Parameters::Regen Control::AFE

NEVER

TRUE if AFE in synchronizing state.

AFE Synchronized

1713

Parameters::Regen Control::AFE

NEVER

TRUE if AFE has synchronized to mains frequency.

AFE Enable Drive

1714

Parameters::Regen Control::AFE

NEVER

Parameter Reference

D-13

Parameter Name

No.

Path

Default

Range

Units

Writable

Drive enabled to do AFE.

AFE PF Angle Demand

1692

Parameters::Regen Control::AFE

0.00

-90.00 to 90.00

deg

ALWAYS

Power factor angle demand.

AFE Phase Loss

1715

Parameters::Regen Control::AFE

NEVER

Indicates if phase loss occurred.

AFE Brake Mode

1716

Parameters::Regen Control::AFE

FALSE

ALWAYS

Sets AFE control into brake mode.

AFE Status

1721

Same as PNO 1703

0:INACTIVE
1:SYNCHRONIZING
2:SYCHRONIZED
3:SUPPLY FREQ HIGH
4:SUPPLY FREQ LOW
5:SYNC FAILED

NEVER

AFE module status reporting.

NOTES

1 – To correctly set up AFE mode for frame K

phase fail trip needs to be disable in AFE mode

parameter 1707 needs to be set at 0.75

parameter 1708 needs to be set at 0.02

D-14

Parameter Reference

App Info

Parameters::Application::App Info

Details of the Application loaded in the Drive. An Application is built as part of a project using a suitable programming tool. When downloaded into
the Drive an Application within the Project can be selected to run. Some Projects only contain a single Application, so in this case will always be
selected.

Parameter Name

No.

Path

Default

Range

Units

Writable

Project File Name

1040

Parameters::Application::App Info

NEVER

The name of the file on the programming PC used to store the application. (This does not include the project or projectarchive file
name extension.)

Archive Flags

0410

Parameters::Application::App Info

NEVER

Indicates if the source code corresponding to the loaded configuration in saved in the drive as an archive. For the AC30V the this
archive must be saved on the SD Card. On the AC30P the archive can be saved internally or on the SD Card.

Bit 0

Indicates that the project archive file on the SD card matches the loaded application

Bit 8

Indicates that the project archive file stored internally matches the loaded application

Last Modification

1047

Parameters::Application::App Info

1970/01/01 to 2106/02/07

NEVER

Timestamp of when the loaded Project was last modified. (Note - the RTC option is not required for this.)

IDE Version

1048

Parameters::Application::App Info

NEVER

The version of programming tool (Interactive Development Environment) used to create the loaded Project.

Project Author

1054

Parameters::Application::App Info

NEVER

The Author of the loaded Project as entered in the programming tool when it was created

Project Version

1061

Parameters::Application::App Info

NEVER

The Project version of the loaded Project as entered by the programmer when creating the Project.

Parameter Reference

D-15

Parameter Name

No.

Path

Default

Range

Units

Writable

Project Description

1068

Parameters::Application::App Info

NEVER

A description of up to 80 characters entered by the programmer when creating the Project.

Application Name

1554

Parameters::Application::App Info

NEVER

The name of the selected Application within the loaded Project.

D-16

Parameter Reference

Auto Restart

Setup:: Motor Control::Auto Restart
Parameters::Motor Control::Auto Restart

The Auto Restart feature provides the facility to automatically reset a choice of trip events and restart the drive with a programmed number of
attempts. The number of attempted restarts is monitored. A manual or remote trip reset is required if the drive is not successfully restarted within the
maximum number of restarts. The purpose of this feature is to allow automatic recovery from trip conditions. This is especially useful on remote or
unmonitored sites.

Parameter Name

No.

Path

Default

Range

Units

Writable

AR Enable

1469

Setup::Motor Control::Auto Restart
Parameters::Motor Control::

Auto

Restart

FALSE

ALWAYS

Enables the auto restart function.

AR Mode

1470

Same as PNO 1469

0:TRIP RESET
1:AUTO RESTART
2:AUTO START

ALWAYS

Defines the action that the AR function will take following a trip.

TRIP RESET

Trips will be reset when the trip sources are inactive. The drive will not be restarted.

AUTO RESTART

If it was running the drive will be restarted when the trip sources are inactive and run is active.

AUTO START

The drive will be started when the trip sources are inactive if the run signal is high

Refer to the Functional Description below for more details.

AR Max Restarts

1471

Same as PNO 1469

1 to 20

ALWAYS

Defines the maximum number of restart attempts permitted before the AR function disables itself.

Content .. 17 18 19 20 ..
