Parker Variable Speed Drive AC30 series. User’s Manual (2017)

12-3

Ethernet

Ethernet Setup

CONFIGURATION

To enable communications over the Ethernet an IP address must be set. With the default setting, an attempt at automatically obtaining an IP
address will be made.

Note: The IP address will be obtained or modified when an Ethernet cable is connected or the inverter is powered-up.

For the AC30P or AC30D if one port is already connected to a network, the IP address of the inverter will not be modified when the other port is
connected to a network.

The state of the Ethernet can be monitored using the parameter

0919 Ethernet State

and from the Ethernet icon

on the GKP status bar.

The current IP settings of the inverter can be monitored using the following parameters:

0926 IP Address

0927 Subnet Mask

0928 Gateway Address

The MAC address of the Ethernet port is fixed at the factory and can be read using the parameter

0945 MAC Address

ADVANCED CONFIGURATION

The IP address on the inverter may be set using the following methods:

•

Manually to a fixed address

•

Automatically by a DHCP server connected on the network

•

Automatically by the inverter to a link-local address using Auto-IP (also known as Automatic Private IP Addressing)

The parameters

0929 DHCP

and

0930 Auto IP

are used to determine how the IP address is set. The default of these two parameters is TRUE.

The parameter

0936 Setting Lock

, when set to TRUE, prevents a configuration tool from modifying the IP settings.

Ethernet

12-4

Manually Setting the IP Address

Parameter

Setting

0929 DHCP

FALSE

0930 Auto IP

FALSE

0933 User IP Address

Preferred IP Address

0934 User Subnet Mask

Preferred Subnet Mask

0935 User Gateway Address

Preferred Gateway Address

To set the IP address manually both the DHCP and Auto-IP must be disabled. The IP address, subnet mask and gateway address will be set
from the values in the parameters

0933 User IP Address

0934 User Subnet Mask

0935 User Gateway Address

If the network does not have a gateway to another network then the gateway address may be set to 0.0.0.0

Automatically Assigning an IP Address using DHCP

Parameter

Setting

0929 DHCP

TRUE

0930 Auto IP

FALSE

If the network on which the inverter is connected has a DHCP (Dynamic Host Configuration Protocol) server then the IP address may be
assigned by this server. The DHCP must be enabled. The inverter will then request an IP address, subnet mask and gateway address from the
DHCP server.

Note: There is no guarantee that the DHCP server will provide the same IP address each time. The IP address is requested by the inverter when
the Ethernet port is connected to a network or when the inverter is powered up.

Automatically Assigning an IP Address using Auto-IP

Parameter

Setting

0929 DHCP

FALSE

0930 Auto IP

TRUE

The inverter may assign itself a link-local address automatically using Auto-IP. This would be used where an automatic address is required but
where no DHCP server is available, such as a small local network or when connecting an inverter directly to a PC (point to point). The Auto-IP
must be enabled.

The inverter will choose an IP address randomly from the link-local range

169.254.*.*

. The AC30 checks that no other Ethernet device on the

network is using the address before allocating it. The Inverter will store this IP address (in parameter

0931 Last Auto IP Address

) and attempt

to use it next time Auto-IP is used. The gateway address is fixed to 0.0.0.0

Ethernet

12-6

TYPICAL WIRING CONFIGURATIONS

On the AC30P or AC30D either Ethernet port may be used.

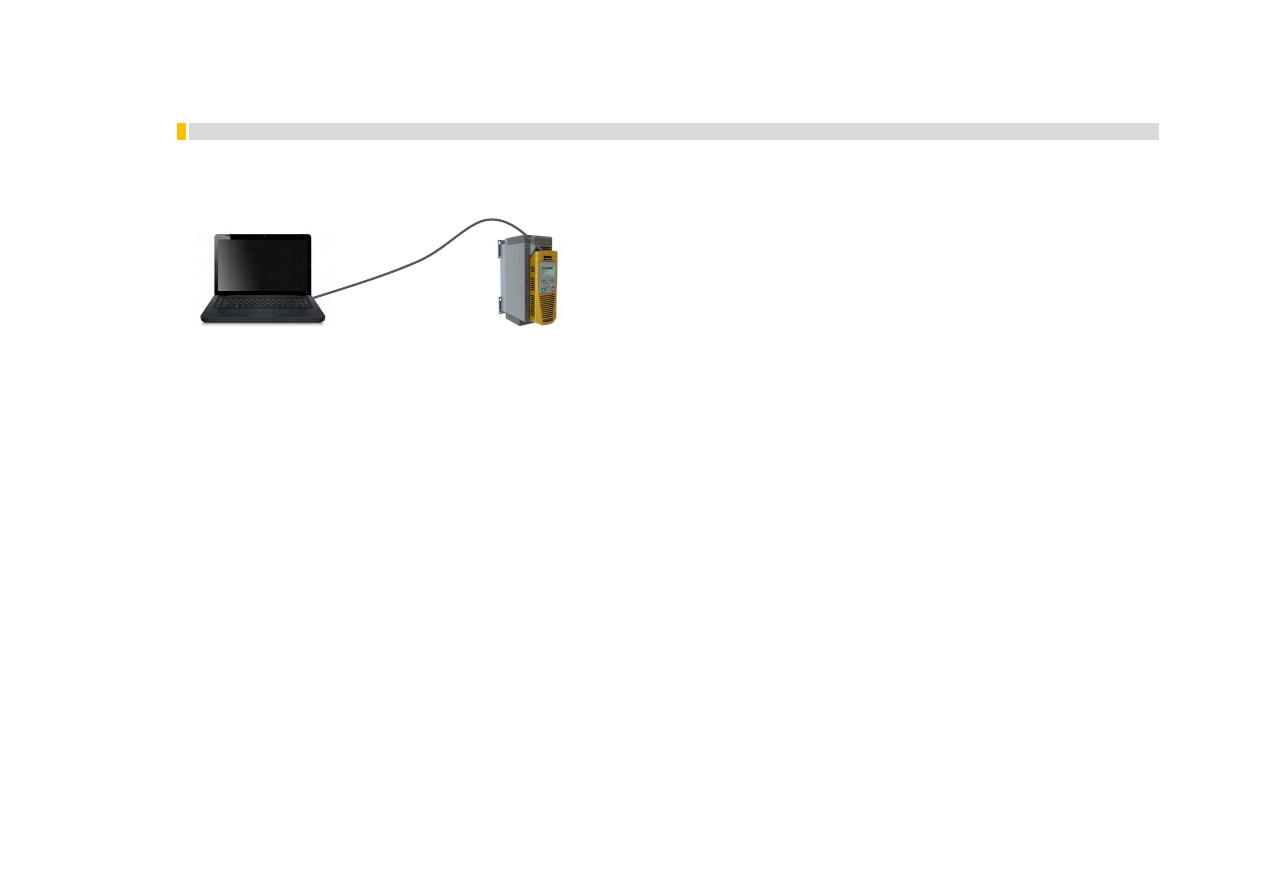

Point to Point Connection

When connecting a PC directly to an inverter either:

•

Both sides use local-link addresses 169.254.*.* (recommended) , or

•

Both sides are set with a fixed IP address (each must be different and on the same subnet)

When using local-link addresses the parameter

0930 Auto IP

must be set to TRUE (see the section

Automatically Assigning an IP Address using

Auto-IP

). Normally the PC is already configured to allow for an Automatic Private IP address. However if problems are encountered check the

PC’s network settings (see the section

Troubleshooting the Ethernet – Changing the Ethernet settings on the PC).

Note: It may take some PCs up to 2 minutes to obtain an Automatic private IP address when the Ethernet cable is plugged in.

12-7

Ethernet

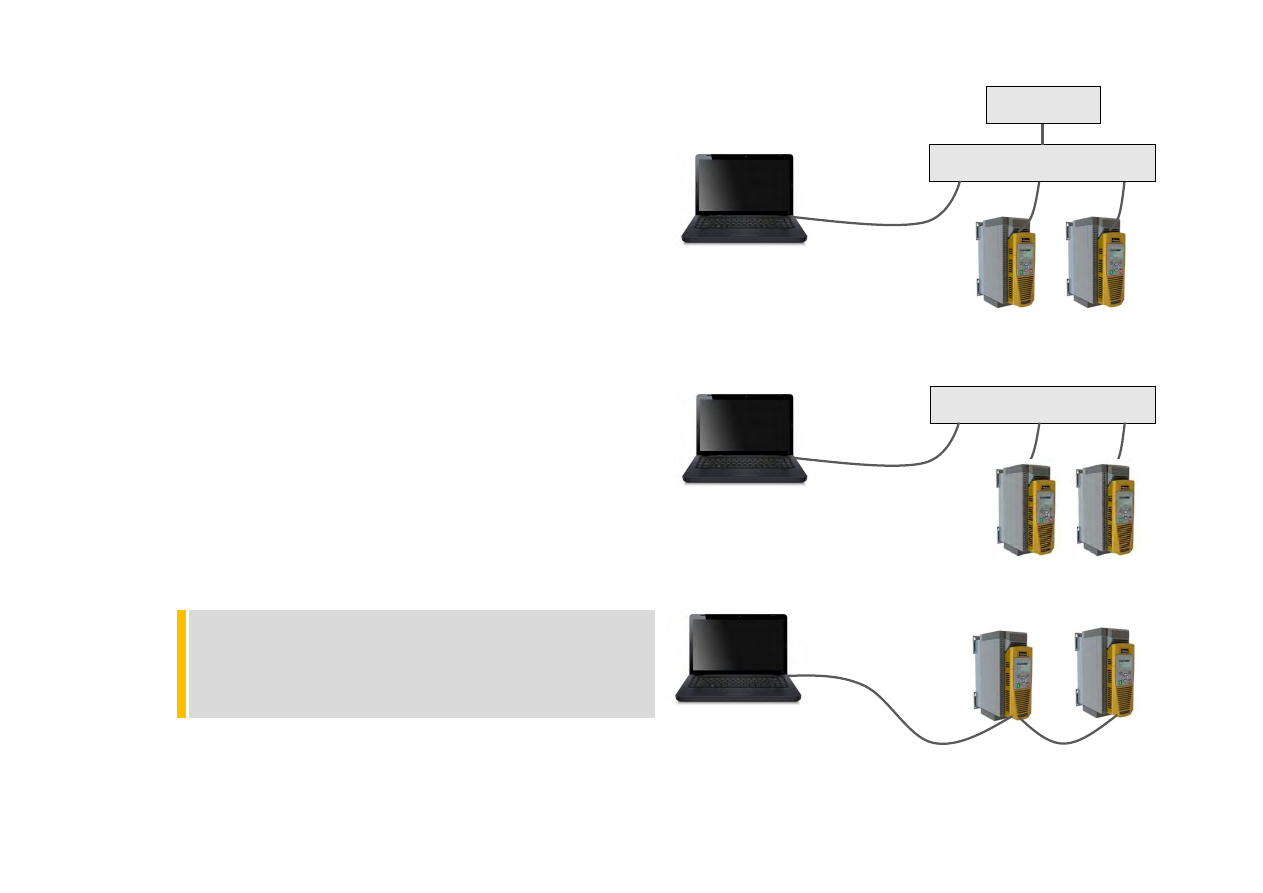

Local Network with a DHCP Server

For the inverter, the parameter

0929 DHCP

must be set to TRUE (see

the section

Automatically Assigning an IP Address using DHCP

Local Network without a DHCP Server

Devices on the network either:

•

Use fixed addresses, in which case the parameters

0929 DHCP

and

0930 Auto IP

must be set to FALSE (see the section

Advanced Configuration -

Manually Setting the IP Address

), or

•

Use link-local addresses, in which case the parameter

0930 Auto

must be set to TRUE (see the section Advance Configuration -

Automatically Assigning an IP Address using Auto-IP

Ethernet Daisy Chaining

The Ethernet on the AC30P or AC30D may be daisy-chained. The
order of the ports is not important, but it is recommended to follow the
order of, for example, Port 2 on the left-hand side inverter to Port 1
on the right-hand side inverter. However, an Ethernet loop MUST be
avoided.

Ethernet Switch

DHCP Server

Ethernet Switch

Ethernet

12-8

ETHERNET PARAMETER SUMMARY

Parameter Name

No.

Path

Default

Range

Units

Writable

Ethernet State

0919

Monitor::Communications::Base Ethernet

Parameters::Base Comms:: Ethernet

0:INITIALISING

1:NO LINK

2:RESOLVING IP

3:RESOLVING DHCP

4:RESOLVING AUTO-IP

5:RESOLVED IP

6:STOPPING DHCP

7:DUPLICATE IP

8:FAULT

NEVER

Ethernet parameter.

Provides the state of the inverter Ethernet link.

Enumerated values:

0: INITIALISING

- Driver initialising

1 :NO LINK

- Ethernet not connected to a network

2: RESOLVING IP

- Waiting for an IP address to be set manually

3: RESOLVING DHCP

- Waiting for a DHCP server to provide an IP address

4: RESOLVING AUTO-IP

- Waiting to Auto-IP to provide an IP address

5: RESOLVED IP

- IP address is set – communication is possible

6: STOPPING DHCP

- Inverter is stopping the DHCP service

7: DUPLICATE IP

- Another device on the network has the same IP address

8: FAULT

- Fault detected

MAC Address

0920

Monitor::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

00-00-00-00-00-00

xx-xx-xx-xx-xx-xx

NEVER

Ethernet parameter.

Provides the Ethernet MAC address.

IP Address

0926

Monitor::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

NEVER

Ethernet parameter.

Provides the current IP address of the Ethernet

12-9

Ethernet

Parameter Name

No.

Path

Default

Range

Units

Writable

Subnet Mask

0927

Monitor::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

NEVER

Ethernet parameter.

Provides the current subnet mask of the Ethernet.

Gateway Address

0928

Monitor::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

NEVER

Ethernet parameter.
Provides the current gateway address of the Ethernet.

Last Auto IP Address

0931

Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

NEVER

Ethernet parameter.

Provides the last Auto-IP IP address used.

Ethernet Diagnostic

0937

Parameters::Base Comms:: Ethernet

0000 0000h

0000 0000h to

FFFF FFFFh

NEVER

Ethernet parameter.

Diagnostic for the Ethernet.

DHCP State

1269

Parameters::Base Comms:: Ethernet

0000 0000h

0000 0000h to

FFFF FFFFh

NEVER

Ethernet parameter.

Diagnostic for the Ethernet DHCP client.

Free Packets

0938

Parameters::Base Comms:: Ethernet

0 to

100

NEVER

Ethernet parameter.

Diagnostic providing the remaining number of Ethernet packets

Free Sockets

1782

Parameters::Base Comms:: Ethernet

0 to

255

NEVER

Ethernet parameter.

Diagnostic providing the remaining number of BSD sockets.

Ethernet

12-10

Parameter Name

No.

Path

Default

Range

Units

Writable

DHCP

0929

Setup::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

TRUE

FALSE

TRUE

ALWAYS

Ethernet parameter.

DHCP enable. Set to TRUE to obtain an IP address from the connected DHCP server.

Auto IP

0930

Setup::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

TRUE

FALSE

TRUE

ALWAYS

Ethernet parameter.

DHCP enable. Set to TRUE to obtain an IP address using Auto-IP.

User IP Address

0933

Setup::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

ALWAYS

Ethernet parameter.

The preferred fixed IP address of the Ethernet.

For the Ethernet to take on this address both DHCP and Auto-IP must be disabled.

User Subnet Mask

0934

Setup::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

ALWAYS

Ethernet parameter.

The preferred fixed subnet mask of the Ethernet.

For the Ethernet to take on this address both DHCP and Auto-IP must be disabled.

User Gateway Address

0935

Setup::Communications::Base Ethernet
Parameters::Base Comms:: Ethernet

0.0.0.0

0.0.0.0 to

255.255.255.255

ALWAYS

Ethernet parameter.

The preferred fixed gateway address of the Ethernet.

For the Ethernet to take on this address both DHCP and Auto-IP must be disabled.

Lock

0936

Parameters::Base Comms:: Ethernet

FALSE

TRUE

ALWAYS

Ethernet parameter.

When set to TRUE, this prevents the IP settings being changed via an IP configuration tool. The IP settings may still be modified
from the GKP and the inverter web Parameters page.

12-11

Ethernet

TROUBLESHOOTING THE ETHERNET

The following parameters are useful for monitoring the IP settings:

0929 IP Address
0928 Subnet Mask
0931 Gateway Address

The state of the Ethernet can be monitored using the parameter

944 Ethernet State

, normal operation is when the state is

RESOLVED IP

, and

from the GKP icon

No IP address - flashing GKP icon

Normally, once the inverter is connected to a network, the GKP Ethernet icon will flash for a short period as the IP address is being resolved, and
then will become a solid icon indicating an IP address has been set. If the icon continues to flash for more than 1 – 2 minutes this can indicate a
problem. Check the parameter

0919 Ethernet State

Resolving IP

The inverter is waiting for a valid IP address to be set automatically, or manually using the parameters:

0933 User IP Address
0934 User Subnet Mask
0935 User Gateway Address

Note that the IP address must be set to a non-zero value.

Resolving DHCP

The inverter is waiting for a DHCP server to provide an IP address. If there is no DHCP server detected on the network then the Ethernet will
stay in this state. If there is no DHCP server the IP address may be obtained using Auto-IP or set manually.

Duplicate IP

Another device on the network with the same IP address has been detected. This will cause communication issues. The Duplicate IP warning
will clear after approximately 1 minute once the conflicting device has been removed or the IP address changed.

Ethernet

12-12

An IP address is set but there is no communication

If there is an IP address set but there are problems communicating with other devices (say a PC) then the IP address may not match the subnet
on which it is connected. The range of the IP address permitted on a network depends upon the particular network. Normally if the IP address is
obtained automatically then the settings will be correct for the network.

If connecting to a PC, the PC settings should also be checked – see the section

Changing the Ethernet settings on the PC

The administrator of a network should be aware of what IP settings are required.

Link detection

When the inverter Ethernet is connected to a network or other device, the Ethernet Link LED will be on and the Ethernet Activity LED will be
flickering.

When first connected, the inverter will attempt to determine the speed and duplex of the Ethernet link. This is done using a method call auto-
negotiation.

Some older devices or hubs do not support auto-negotiation, in which case the inverter will use parallel detection. As parallel detection will only
provide the link speed, the inverter will default to half-duplex.

12-13

Ethernet

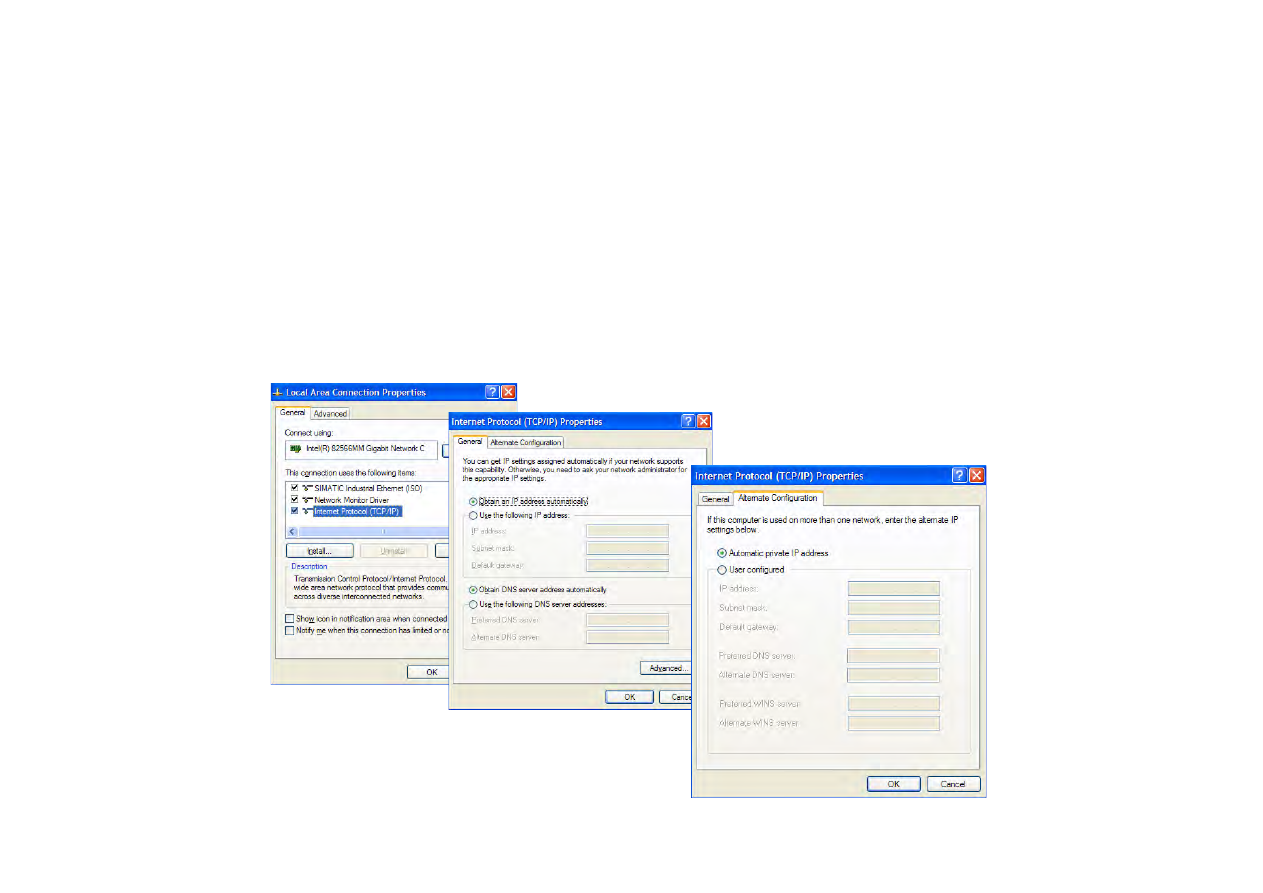

Changing the Ethernet settings on the PC

Normally the PC Ethernet adapter is set to obtain an IP address automatically either from a DHCP server or using an automatic private IP
address (Auto-IP). The adapter settings may be checked / modified as follows:

For

Windows XP

under Control Panel



Network Connections

For

Windows 7

under Control Panel



Network And Sharing Center



Change adapter settings

Right-click on the required network adapter and choose Properties, then double-click on

Internet Protocol (TCP/IP)

(Windows XP) or

Internet

Protocol Version 4 (TCP/IPv4)

(Windows 7).

To use a fixed IP address make sure

Use the following Ip address

under the

General

tab is chosen and enter the required IP address, subnet

mask and default gateway.

To use DHCP or Auto-IP make sure

Obtain IP address automatically

under the

General

tab is selected and under the

Alternate

Configuration

tab that

Automatic private IP

address is selected.

Ethernet

12-14

Web (HTTP) Server

The inverter has a built-in web server. To access the web server the parameter

0944 Web Access

must be set to

LIMITED

(default) or

FULL

To access the inverter, enter the IP address into a web browser. The following browsers are suitable:

•

Internet Explorer 10 or above - recommended

•

Mozilla Firefox 33 or above

•

Google Chrome 48 or above

WEB PAGES

A number of built-in web pages can be accessed from the inverter.

Summary Page

The Summary page displays a summary of the inverter.

Parameters Page

The Parameters page provides access to the inverter parameters similar to the GKP. This page may only be accessed when the parameter

0944

Web Access

is set to

FULL

. The view level of the parameters may be modified using the parameter

0945 Web View Level

Parameters may be modified from this web page. If a parameter is successfully modified, and supports save, it will be saved if the parameter

1738 Enable Auto Save

is set to TRUE. If Enable Auto Save is set to FALSE then the Save button will appear in the parameter menu navigation

bar. Pressing the Save button will save all parameters.

Some parameters may only be modified when in configuration mode, in which case the parameter number will be highlighted

orange

Some parameters may only be modified when the motor is stopped, in which case the parameter number will be highlighted

purple

It is recommended to use the refresh button provided on the parameter menu navigation bar, rather than on the browser itself, to view the latest
parameter values.

Parameters may be continuously monitored by clicking on the “monitoring” button on the parameter menu navigation bar.

12-15

Ethernet

Services Page

The Services page provides a means of restricting access to the web pages with a password using Basic Authentication. This page may only be
accessed when the parameter

0944 Web Access

is set to

FULL

If the web access password is set then access to the Parameters Page and Services Page will be restricted. The default has the password
cleared providing unrestricted access.

The username is fixed to “

ac30

”.

Note 1.

Basic Authenticate is a very low level of defence against unauthorized access. It is the responsibility of the system administrator to

assess the network security and provide adequate protection.

Note 2.

The username and password are case sensitive.

Note 3.

If passwords are lost, they may only be cleared by a return to defaults of all the parameters.

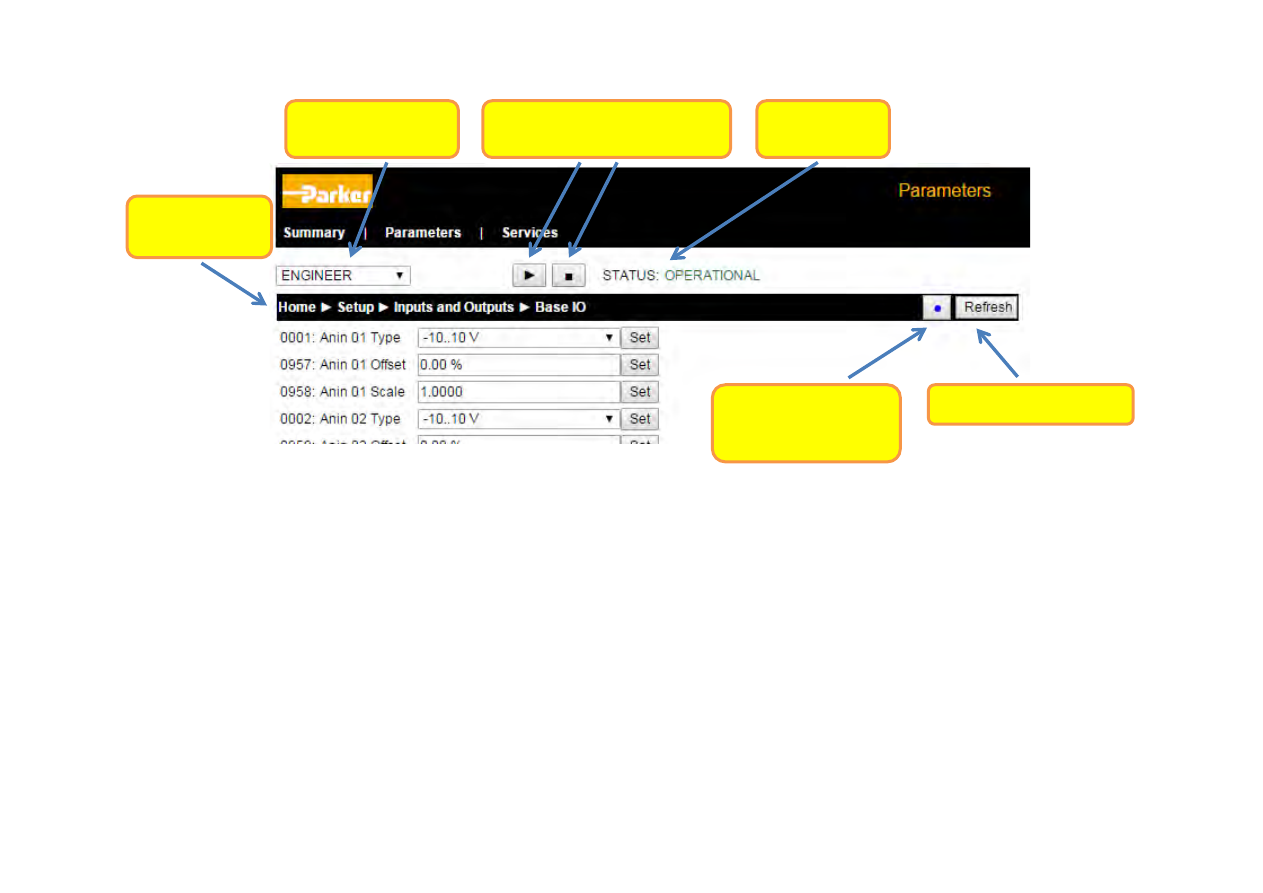

Puts the inverter into operational
or configuration mode

Change parameter
web view level

Parameter menu
navigation bar

Inverter status

Refresh parameter values

Enable / disable
continual monitoring of
parameters

Ethernet

12-16

WEB SERVER PARAMETER SUMMARY

Parameter Name

No.

Path

Default

Range

Units

Writable

Web Access

0944

Setup::Communications::Base Ethernet
Parameters::Base Comms::Web Server

1:LIMITED

0:DISABLED

1:LIMITED

2:FULL

ALWAYS

Web Server parameter.

Enables access to the inverter web server.

Enumerated values:

0: DISABLED

– a web browser is prevented from accessing the inverter web server.

1: LIMITED

– a web browser may access a limited set of pages on the inverter web server.

2: FULL

– a web browser has full access to the pages on the inverter web server, however authentication

will be required if a password has been set.

Web View Level

0945

Parameters::Base Comms::Web Server

1:TECHNICIAN

0:OPERATOR

1:TECHNICIAN

2:ENGINEER

ALWAYS

Web Server parameter.

Sets the view level when accessing parameters via the web server.

Enumerated values:

0: OPERATOR

1: TECHNICIAN

2: ENGINEER

Web Password

0946

Parameters::Base Comms::Web Server

none

ALWAYS

Web Server parameter.

Sets the password for access to restricted inverter web pages such as the Parameters Page. This may only be changed on the
web Services page.

12-17

Ethernet

TROUBLESHOOTING THE WEB SERVER

Troubleshooting of the Ethernet in general is described in the section Troubleshooting below.

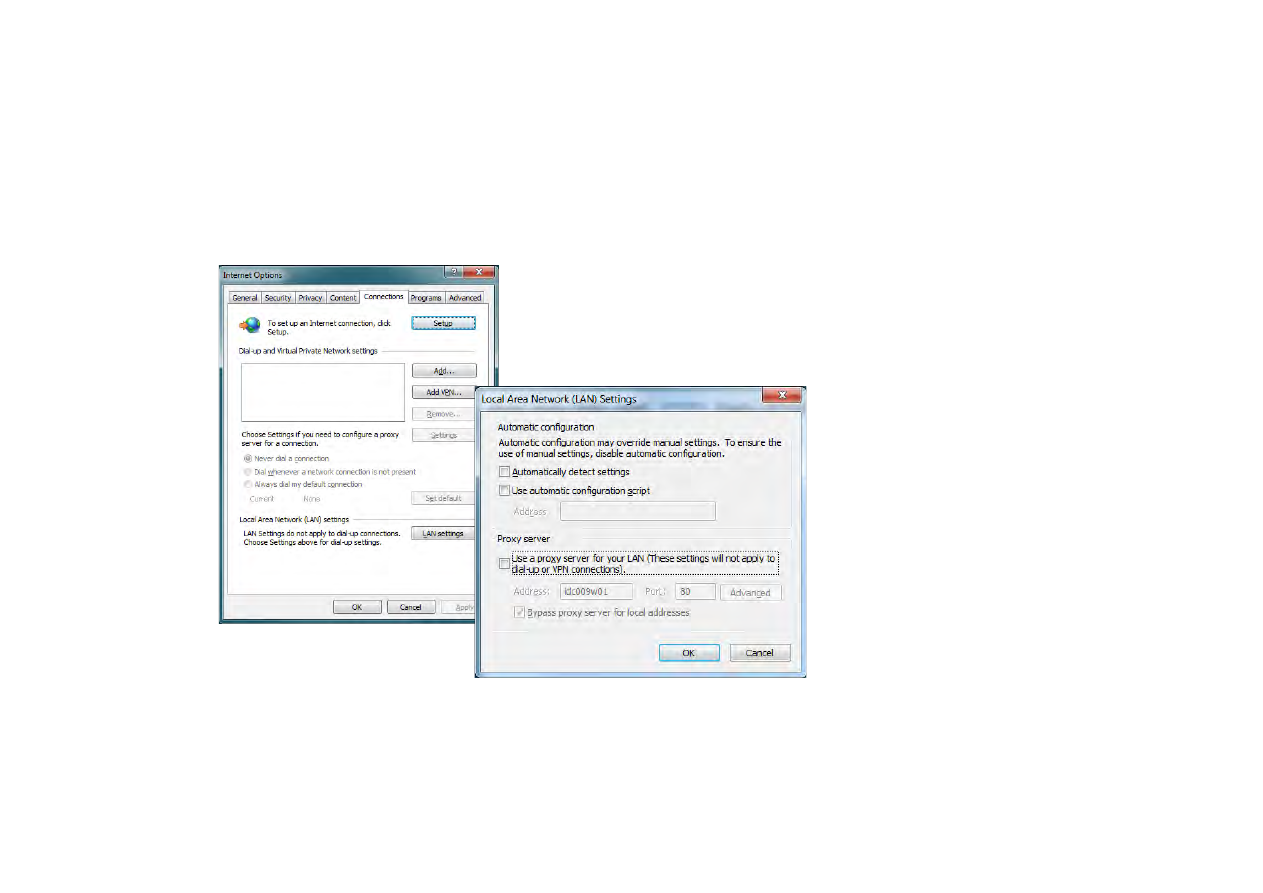

If the inverter web page still cannot be accessed then this may be due to the browser’s

proxy server

settings, especially if the PC has been used

on a corporate network. To check the settings, access the

Internet Options

dialog from within the browser and click on the

Connections

tab,

then click on

LAN settings

. Make sure the

Proxy server

checkbox is cleared, alternatively click on

Advanced

and add the IP address of the

inverter to the

Exceptions

list.

Contact your network administrator before making any changes to your browser settings.

Ethernet

12-18

Precision Time Protocol (PTP)

The Precision Time Protocol (IEEE 1588v2 or IEEE 1588-2008) is implemented in the AC30P and AC30D inverters.

The PTP will synchronize the internal clocks over the Ethernet to better than 1 microsecond. No external master is required for the PTP network;
any of the inverters may become a PTP master.

The initial use of the PTP is for shaft locking applications using the Virtual Master or Real Master control.

Note: Currently up to 16 inverters are supported on a PTP network.

CONFIGURATION

The two Ethernet ports provide a means of daisy chaining the inverters. The port order is not important, but an Ethernet loop must be avoided.
An external Ethernet switch should not be used, unless it is an IEEE 1588v2 transparent switch, as this will reduce the synchronization accuracy
by an indeterminate amount. Ethernet cables should be kept to a minimum length possible.

To enable the PTP set the parameter

1661 PTP Enable

to TRUE on all inverters participating.

In a PTP network, one device will be a master clock and the others will be slave clocks. On the AC30P or AC30D any inverter can become a
master or a slave clock. The decision on which inverter becomes the master is automatic when using the default parameter configuration.
However, it is possible to influence which becomes a master or slave by changing the PTP parameters.

Whilst the inverter is synchronising the icon on the GKP status bar

will flash. Once an inverter has become synchronised to the master

clock or has become the master clock, the diagnostic parameter

1688 PTP Locked

will be set to TRUE and he GKP icon

will stop flashing.

ADVANCED CONFIGURATION

PTP Modes
One-Step and Two-Step modes:

In one-step mode the hardware timestamping directly modifies the network packets, in two-step mode the

timestamps are stored and sent in a second step.

End-to-End (E2E) and Peer-to-Peer (P2P) Delay modes:

In E2E mode the slaves determine the delay between them and the master over the

whole network from end to end. In P2P mode each device only determines the delay to their nearest neighbour and adds this to the packets.
Standard Ethernet switches may be used with the E2E mode but is not recommended as it can add an indeterminate delay between clocks.

Address and ports

The PTP protocol uses the multicast IP address 224.0.1.129 and UDP ports 319 (event) and 320 (general).

Parker Variable Speed Drive AC30 series. User’s Manual (2017) - page 12
