Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 20
FIG NO. ：K0180-01A0

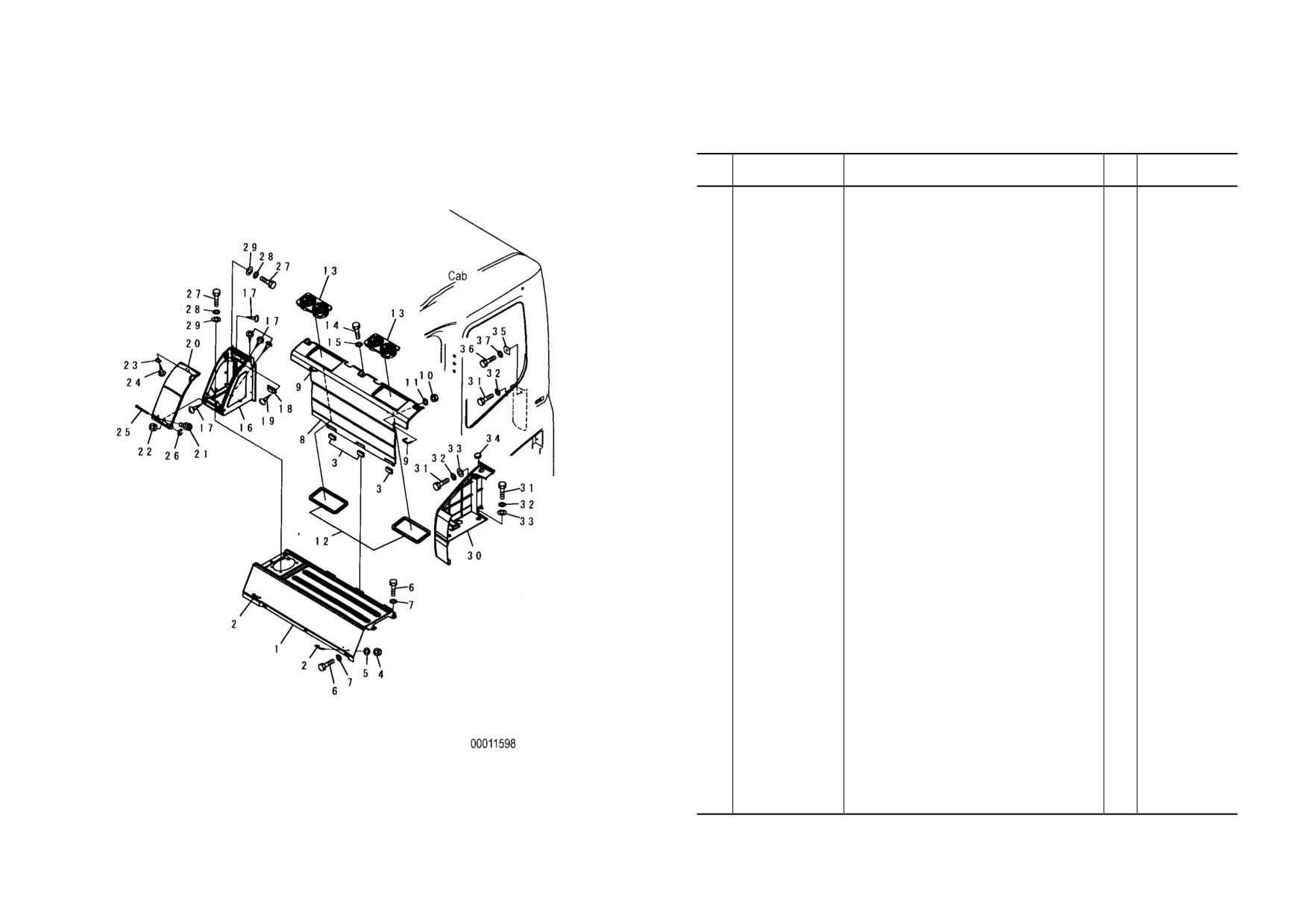

FIG. K0180-01A0
SEAT REAR COVER (WITH AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
208-53-13610
COVER ASS’Y
1
DBB4709~
1
☆
. COVER
1
DBB4709~
2
208-53-12290
. HOOK
2
DBB4709~
3
208-53-12460
. SEAT
3
DBB4709~
4
01580-10403
. NUT
4
DBB4709~
5
01601-20410
. WASHER
4
DBB4709~
6
01010-D0820
BOLT
7
DBB4709~
7
01643-70823
WASHER
7
DBB4709~
208-53-13620
COVER
1
DBB4709~
8
☆
. COVER
1
DBB4709~
9
208-53-12290
.. HOOK
2
DBB4709~
10
01580-10403
.. NUT
4
DBB4709~
11
01601-20410
.. WASHER
4
DBB4709~
12
208-53-13710
. SEAL
2
DBB4709~
13
208-979-7560
GRILLE
2
DBB4709~
14
01010-D0820
BOLT
3
DBB4709~
15
01643-70823
WASHER
3
DBB4709~
208-53-12350
COVER ASS’Y
1
DBB4709~
16
☆
. COVER
1
DBB4709~
17
01370-00408
.. SCREW
10
DBB4709~
18
09452-14503
CATCHER
1
DBB4709~
19
01370-10308
. SCREW
2
DBB4709~
20
208-53-12390
.COVER
1
DBB4709~
21
01023-10406
.. SCREW
2
DBB4709~
22
01580-00403
.. NUT
2
DBB4709~
23
208-53-12410
. PLATE
1
DBB4709~
24
01370-20308
. SCREW
2
DBB4709~
25
208-53-12320
. PIN
1
DBB4709~
26
208-53-12330
. RING
1
DBB4709~
27
01010-D0820
BOLT
5
DBB4709~
28
01643-70823
WASHER
5
DBB4709~
29
01643-71232
WASHER
5
DBB4709~
30
208-53-12730
COVER
1
DBB4709~
31
01010-D0820
BOLT
3
DBB4709~
32
01643-70823
WASHER
3
DBB4709~
33
01643-71232
WASHER
3
DBB4709~
34
09415-02110
CAP
1
DBB4709~
35
208-53-12750
PLATE
1
DBB4709~
36
01010-D0820
BOLT
1
DBB4709~
37
01643-70823
WASHER
1
DBB4709~
KO- 14
PC200,210(LC)-7
PC200,210(LC)-7
KO- 15

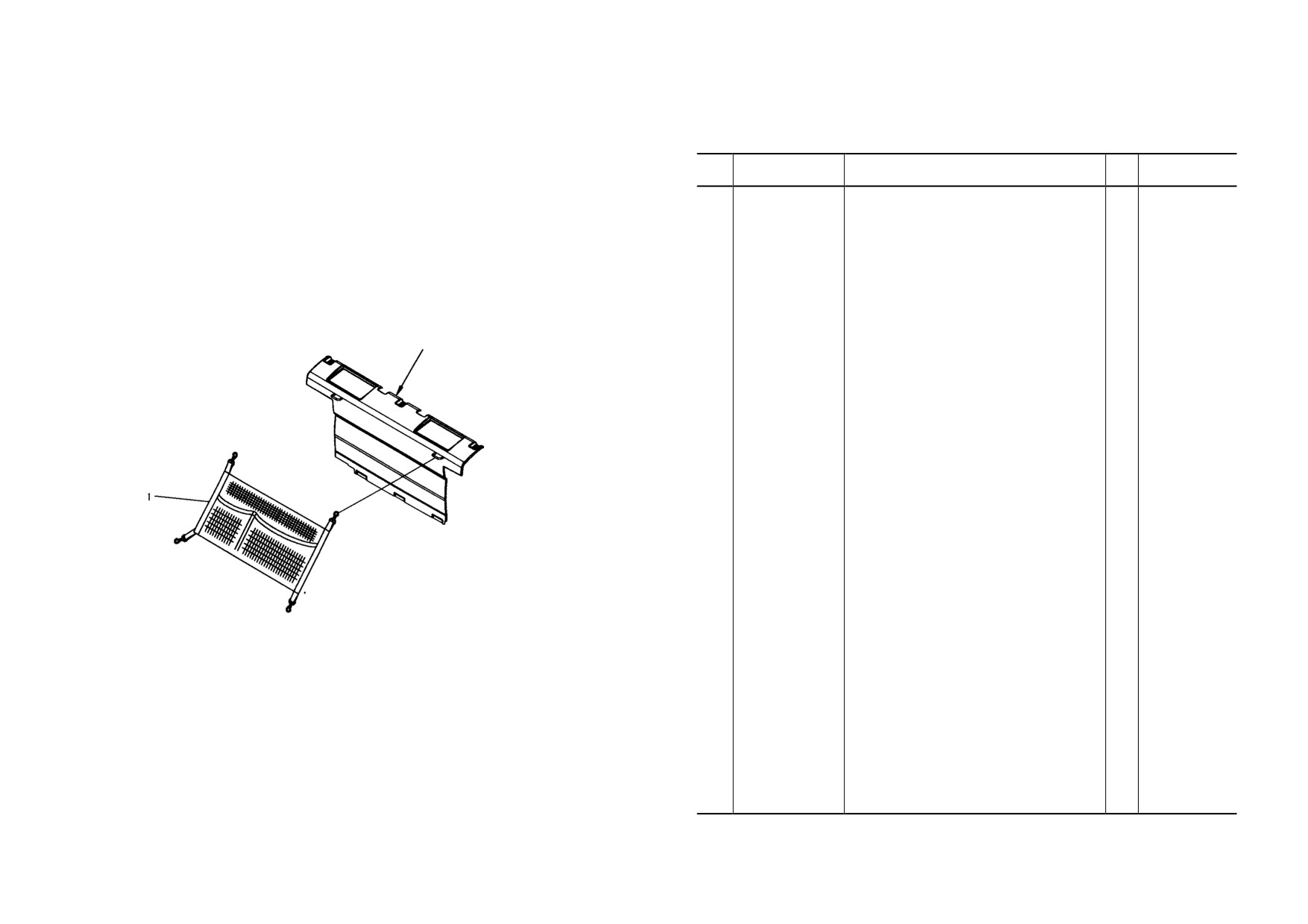

FIG NO. ：KO190-01A0
FIG. KO190-01A0 LUGGAGE BOX NET
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-53-13720
NET
1
DBB4709~
See Fig. K0180-01A0
00018555
KO-18
PC200,210(LC)-7
PC200,210(LC)-7
KO-19
FIG NO. ：K0220-01A0

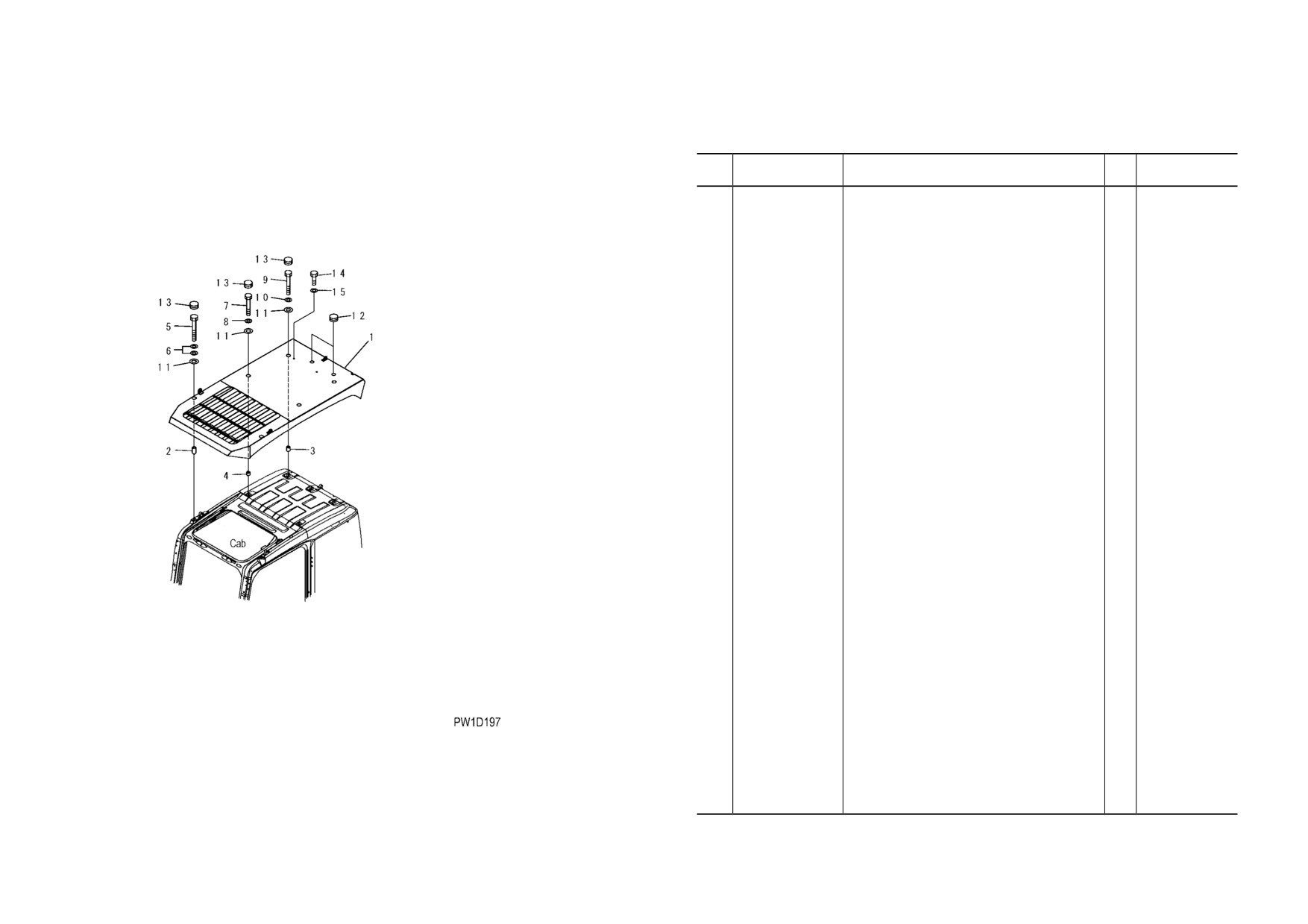

FIG. K0220-01A0 TOP GUARD (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-954-4211
GUARD
1
DBB0001~
2
20Y-954-4220
PIPE
2
DBB0001~
3
20Y-954-4230
PIPE
2
DBB0001~
4
20Y-954-4240
PIPE
2
DBB0001~
5
01011-81220
BOLT
2
DBB0001~
6
01643-31232
WASHER
4
DBB0001~
7
01010-81280
BOLT
2
DBB0001~
8
01643-31232
WASHER
2
DBB0001~
9
01010-81295
BOLT
2
DBB0001~
10
01643-31232
WASHER
2
DBB0001~
11
130-43-64260
WASHER
6
DBB0001~
12
195-Z11-2970
CAP
6
DBB0001~
13
09415-02512
CAP
2
DBB0001~
14
01010-D1220
BOLT
2
DBB0001~
15
01643-71232
WASHER
2
DBB0001~
KO- 20
PC200,210(LC)-7
PC200,210(LC)-7
KO- 21
FIG NO. ：K0230-01A0

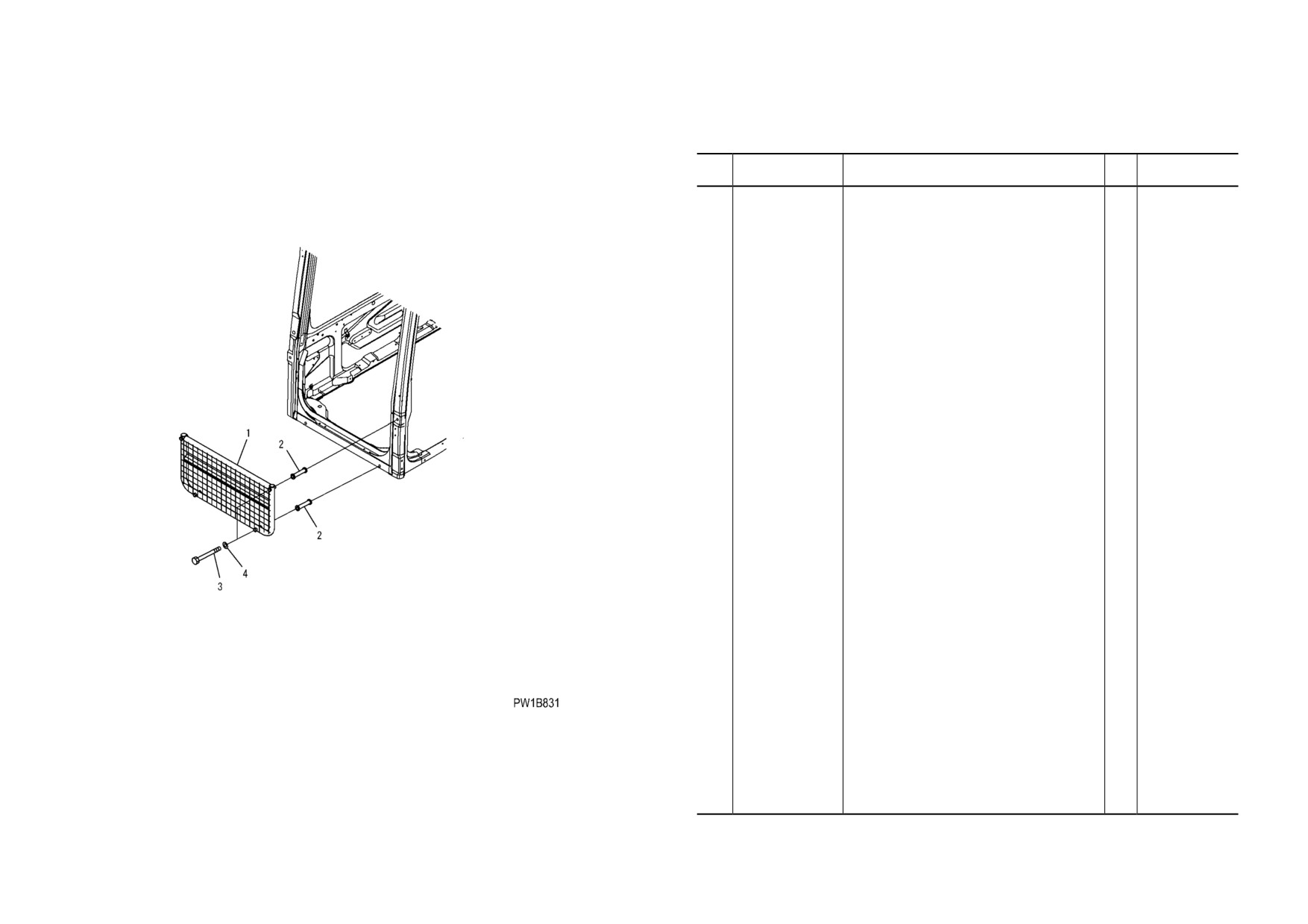

FIG. K0230-01A0 FRONT GUARD (HALF) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-954-5140
GUARD, FRONT/HA
1
DBB0001~
2
22B-954-1760
SPACER
4
DBB0001~
3
01011-D1260
BOLT
4
DBB0001~
4
01643-71232
WASHER
4
DBB0001~
KO- 22
PC200,210(LC)-7
PC200,210(LC)-7
KO- 23
FIG NO. ：K0230-01A1

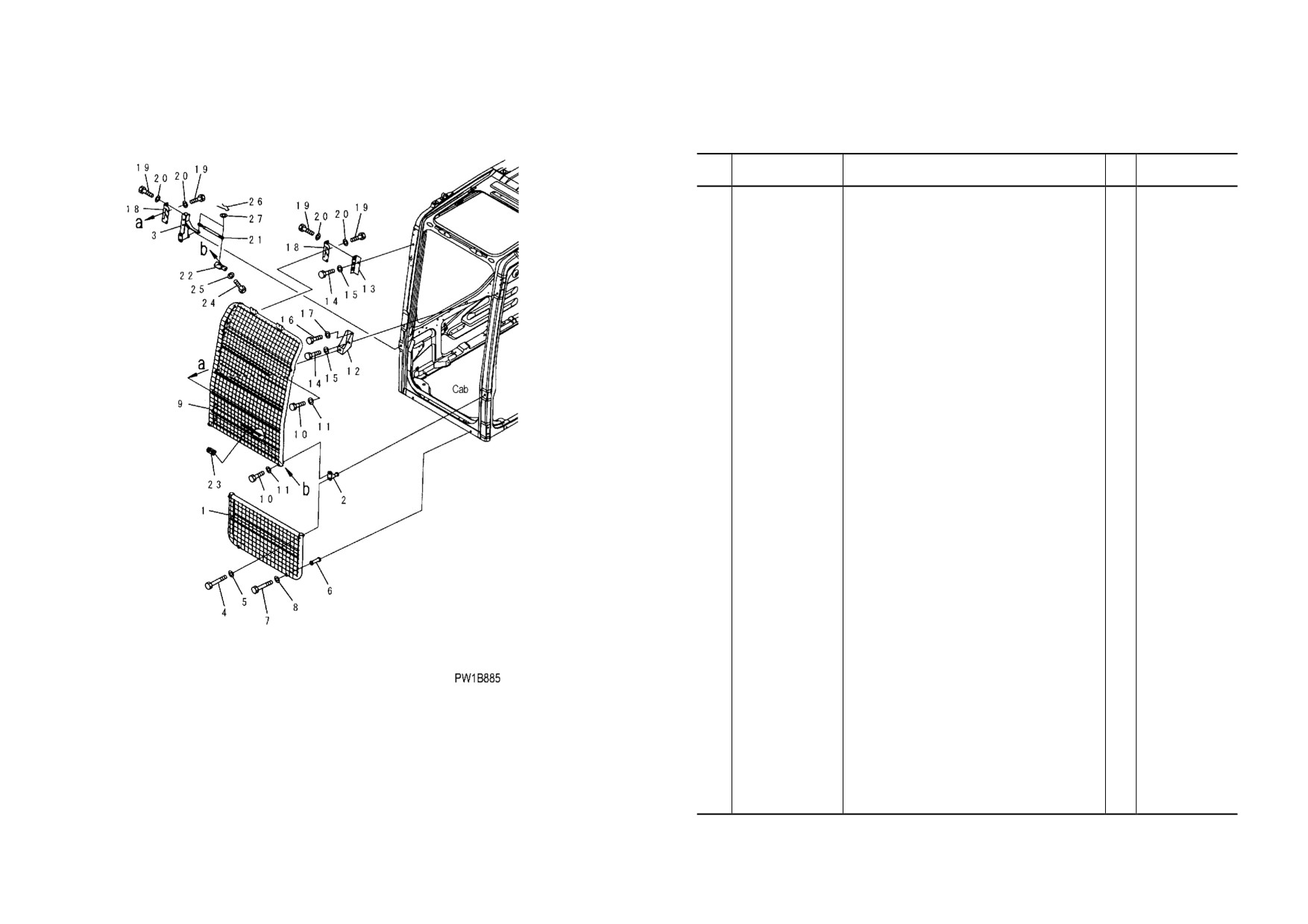

FIG. K0230-01A1 FRONT GUARD (FULL) (LEVEL-1) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-954-5140
GUARD, FRONT/HA
1
DBB0001~
2
22B-954-1720
BRACKET
1
DBB0001~
3
20Y-954-5150
BRACKET
1
DBB0001~
4
01011-D1260
BOLT
2
DBB0001~
5
01643-71232
WASHER
2
DBB0001~
6
22B-954-1760
SPACER
2
DBB0001~
7
01011-D1260
BOLT
2
DBB0001~
8
01643-71232
WASHER
2
DBB0001~
9
20Y-954-5161
GUARD
1
DBB0001~
10
01010-D1275
BOLT
2
DBB0001~
11
01643-71232
WASHER
2
DBB0001~
12
20Y-954-5190
BRACKET
1
DBB0001~
13
22B-954-1750
BRACKET
1
DBB0001~
14
01010-D1225
BOLT
2
DBB0001~
15
01643-71232
WASHER
2
DBB0001~
16
01010-D0625
BOLT
1
DBB0001~
17
01643-70623
WASHER
1
DBB0001~
18
14X-911-1330
HINGE
2
DBB0001~
19
01010-D1025
BOLT
12
DBB0001~
20
01643-71032
WASHER
12
DBB0001~
21
20Y-54-36342
GAS SPRING ASS’Y
1
DBB0001~
22
22B-954-1840
PLATE
1
DBB0001~
23
22B-954-1660
PLATE
1
DBB0001~
24
01010-D0820
BOLT
2
DBB0001~
25
01643-70823
WASHER
2
DBB0001~
26
04052-10833
PIN
2
DBB0001~
27
01643-70823
WASHER
2
DBB0001~
KO- 24
PC200,210(LC)-7
PC200,210(LC)-7
KO- 25
FIG NO. ：K0230-01A2

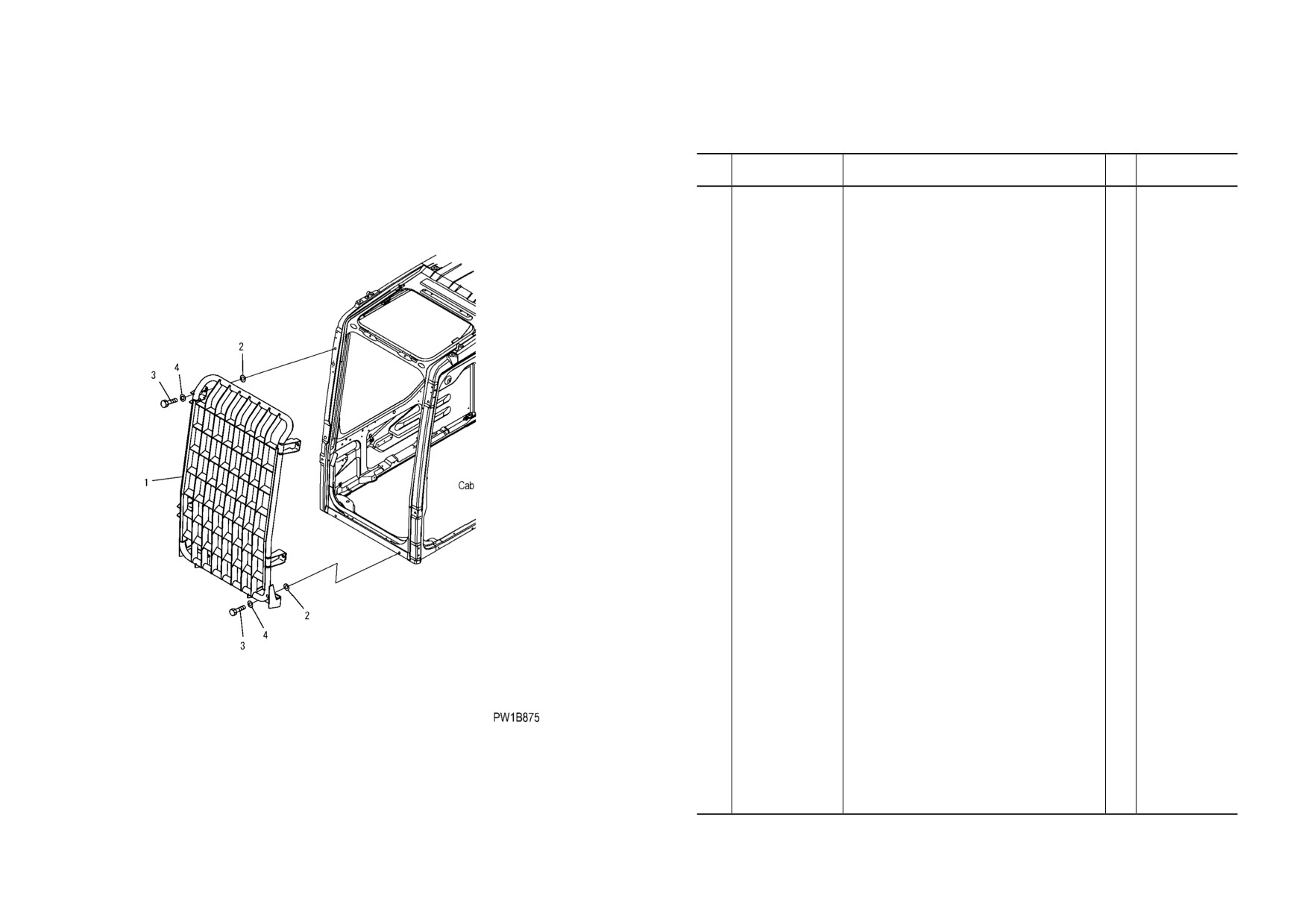

FIG. K0230-01A2 FRONT GUARD (FULL) (LEVEL-2) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-954-4310
GUARD
1
DBB0001~
2
130-43-64260
COLLAR
6
DBB0001~
3
01010-D1240
BOLT
6
DBB0001~
4
01643-71232
WASHER
6
DBB0001~
KO- 26
PC200,210(LC)-7
PC200,210(LC)-7
KO- 27

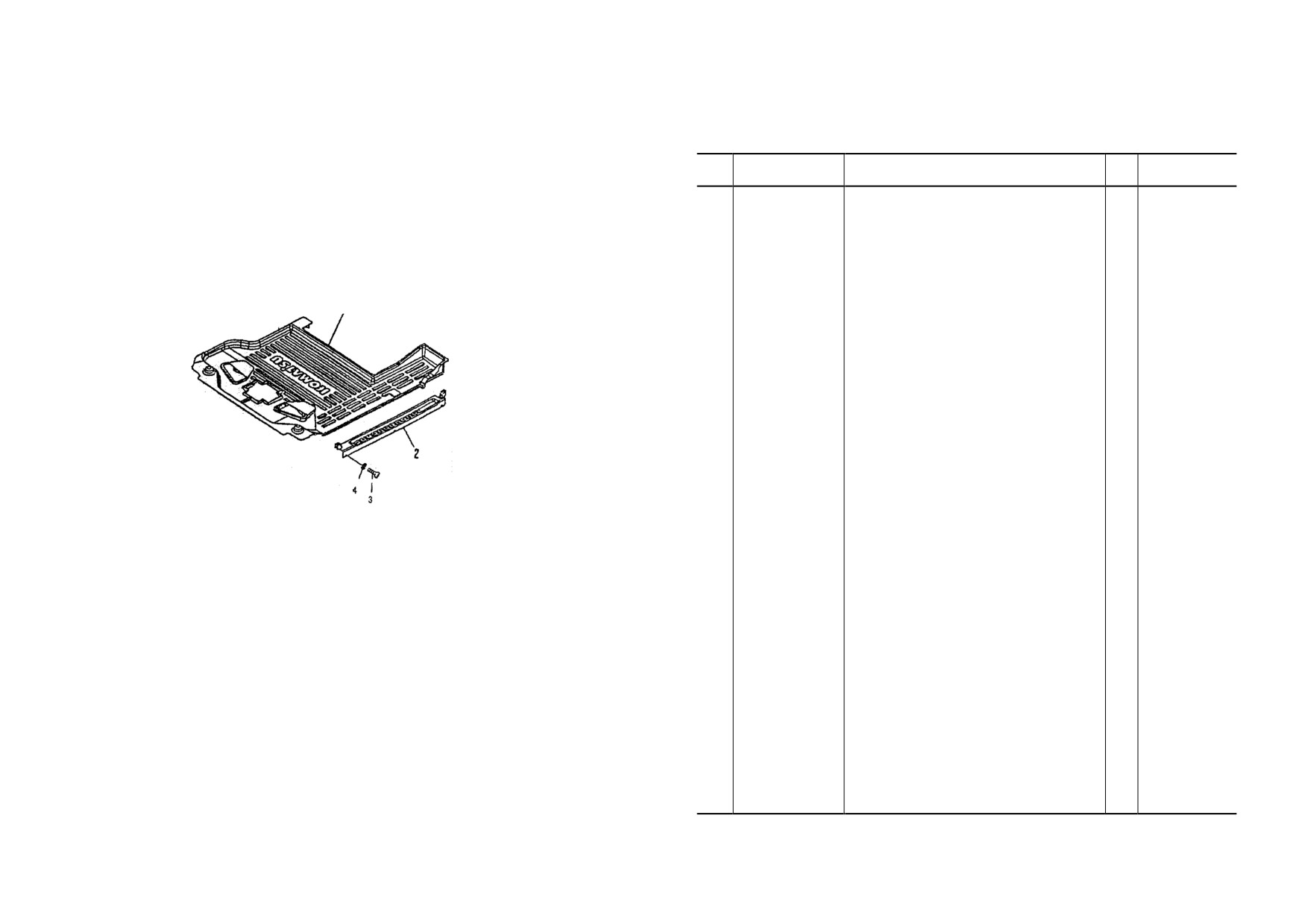

FIG NO. ：K0310-01A0

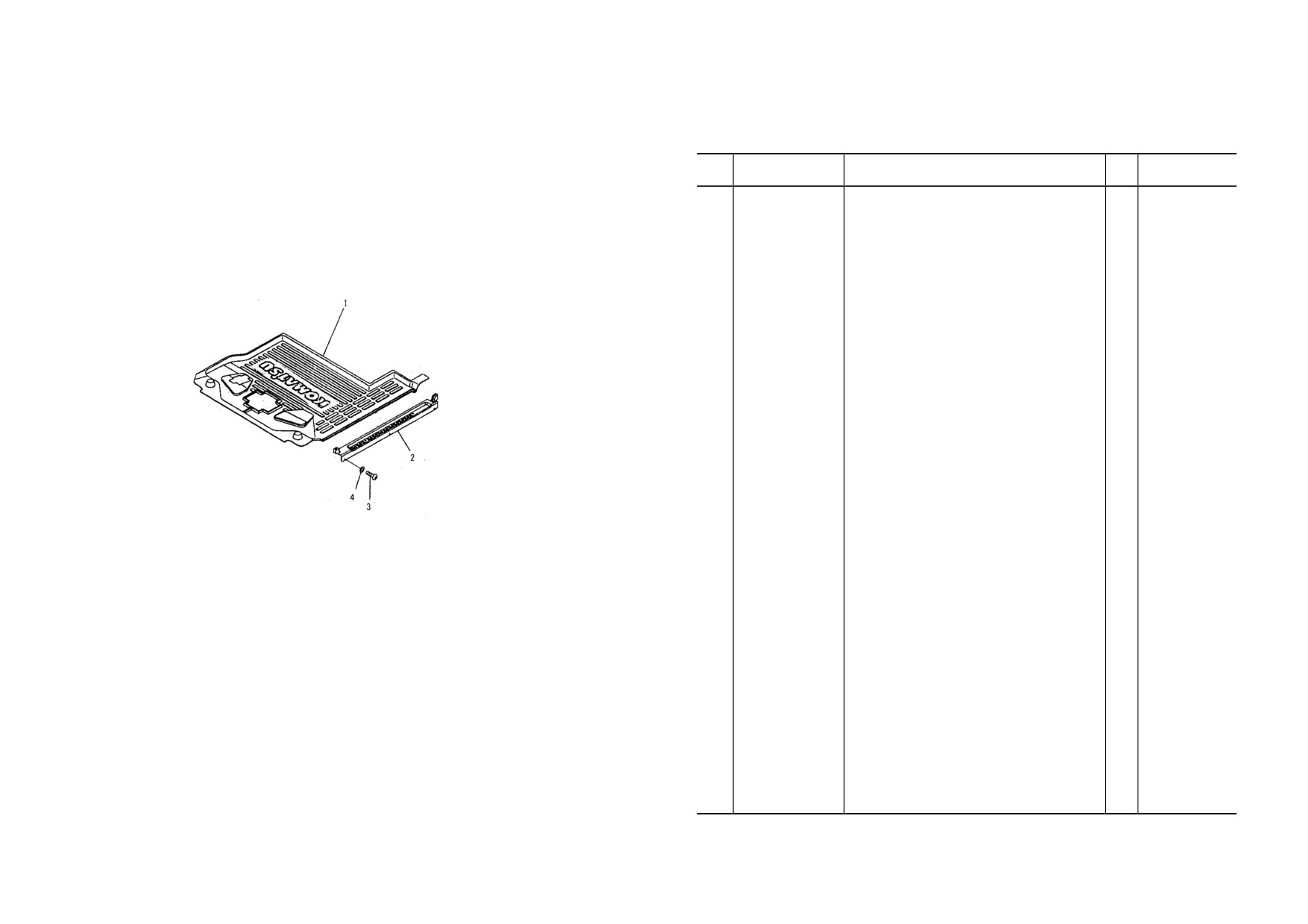

FIG. K0310-01A0 FLOOR MAT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-53-12610
FLOOR MAT, STD
1
DBB4709~
2
20Y-54-51952
COVER
1
DBB4709~
3
01245-00616
SCREW
5
DBB4709~
4
01643-70623
WASHER
5
DBB4709~
1
PW1B866
KO- 30
PC200, 210,220(LC)-7
PC200, 210,220(LC)-7
KO-31
FIG NO. ：K0310-01A1
FIG. K0310-01A1 FLOOR MAT (SPECIAL PIPING FOR BREAKER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
208-53-12710
FLOOR MAT
1
DBB4709~
2
20Y-54-51952
COVER
1
DBB4709~
3
01245-00612
SCREW
5
DBB4709~
4
01643-70623
WASHER
5
DBB4709~
PW1B867
KO- 32
PC200, 210 (LC)-7
PC200, 210 (LC)-7
KO- 33
FIG NO. ：K0320-01A0

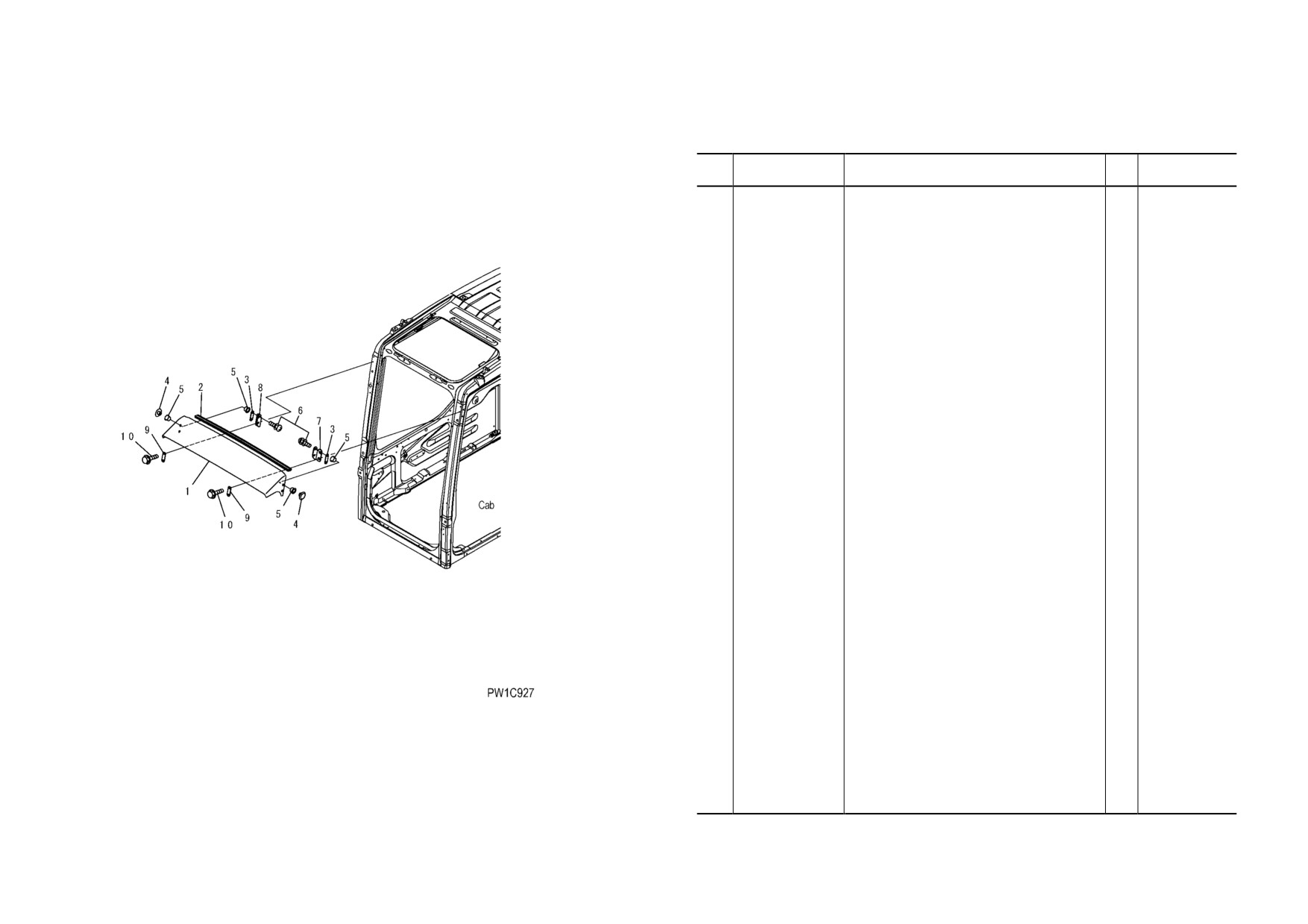

FIG. K0320-01A0 RAIN VISOR (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-52552
VISOR
1
DBB0001~
2
20Y-54-52950
. SEAL
1
DBB0001~
3
20Y-54-52530
PLATE
2
DBB0001~
4
205-54-51720
RETAINER
4
DBB0001~
5
205-54-51730
RACKING
8
DBB0001~
6
01023-20612
SCREW
4
DBB0001~
7
20Y-54-52562
PLATE,L.H
1
DBB0001~
8
20Y-54-52572
PLATE,R.H
1
DBB0001~
9
20Y-54-52530
PLATE
2
DBB0001~
10
01435-40616
BOLT
4
DBB0001~
KO- 40
PC200,210(LC)-7
PC200,210(LC)-7
KO- 41
FIG NO. ：K0330-01A0

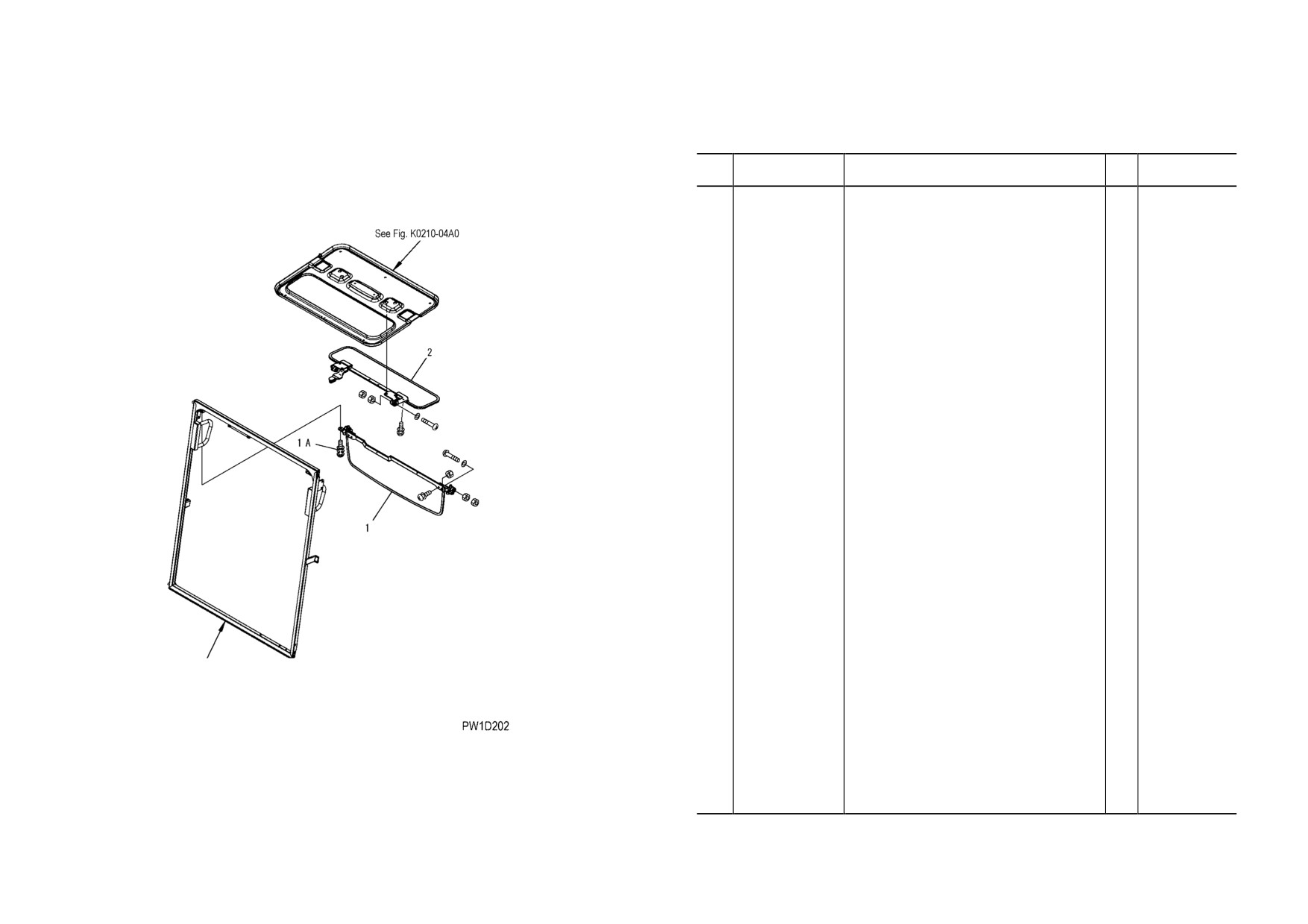

FIG. K0330-01A0 SUN VISOR (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-52510
SUN VISOR, FRONT
1
DBB0001~
01023-20616
. SCREW, FRONT
4
DBB0001~
01570-00605
. NUT, FRONT
4
DBB0001~
01580-00806
. NUT, FRONT
4
DBB0001~
01641-50812
. WASHER, FRONT
2
DBB0001~
1A
01023-70512
SCREW
4
DBB0001~
2
20Y-54-52521
SUN VISOR
1
DBB0001~
01023-20616
. SCREW, ROOF
4
DBB0001~
01245-00816
. SCREW
1
DBB0001~
01580-00806
. NUT, ROOF
4
DBB0001~
01641-50812
. WASHER, ROOF
2
DBB0001~
01643-70823
. WASHER
1
DBB0001~
01643-71032
. WASHER
1
DBB0001~
See Fig. K0210-02A0
KO- 42
PC200,210(LC)-7
PC200,210(LC)-7
KO- 43
