Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 18





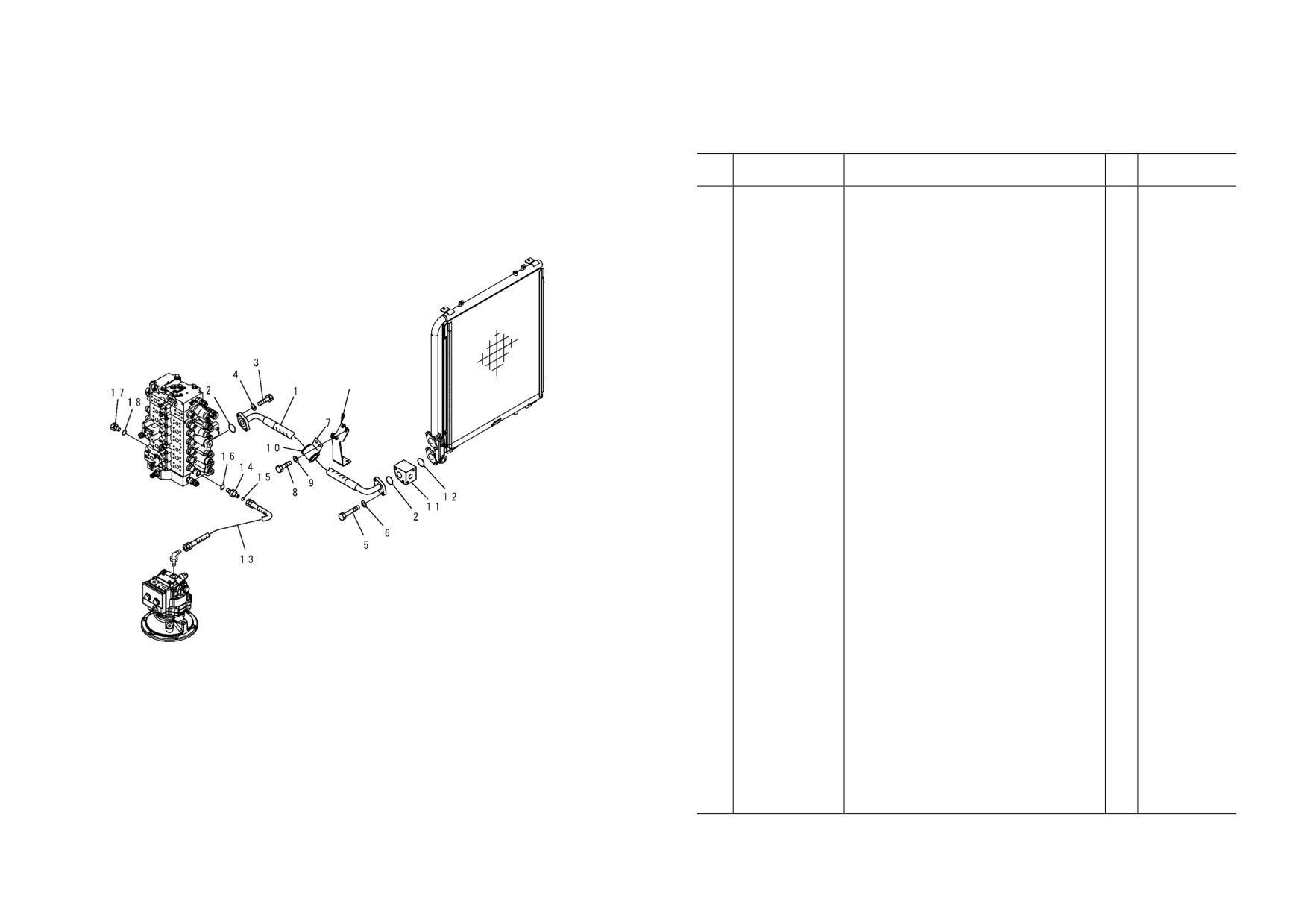

FIG NO. ：H0330-01A1

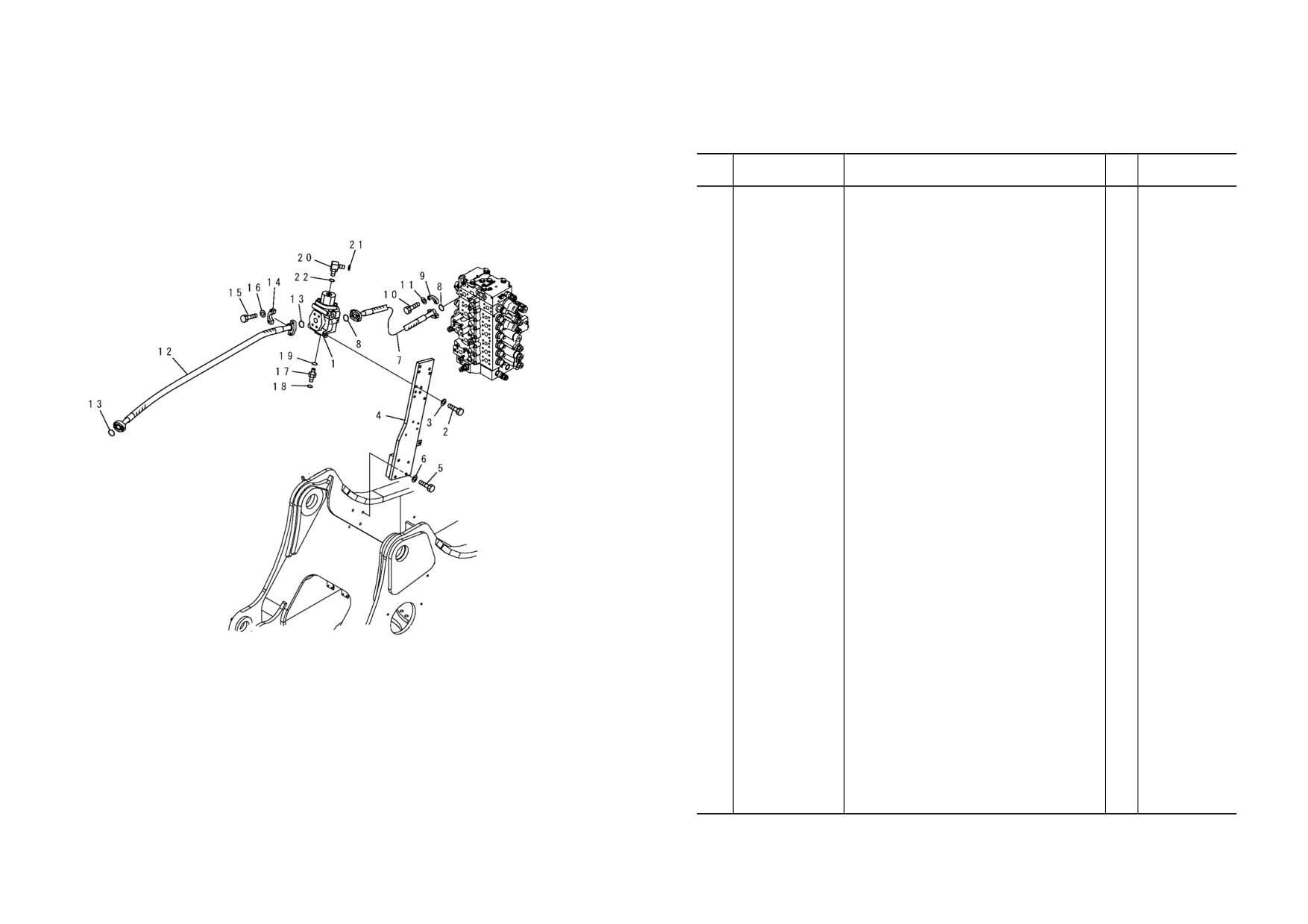

FIG. H0330-01A1 RETURN LINE (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-43390
HOSE, 1100 MM, 1100 MM
1
DBB0001~
2
07000-13048
O-RING
2
DBB0001~
3
01010-81240
BOLT
2
DBB0001~
4
01643-31232
WASHER
2
DBB0001~
5
01011-81220
BOLT
2
DBB0001~
Oil Cooler
6
01643-31232
WASHER
2
DBB0001~
7
20Y-62-41350
CLAMP
1
DBB0001~
8
01010-81225
BOLT
2
DBB0001~
9
01643-31232
WASHER
2
DBB0001~
Main Valve
See Fig. H0320-01A0
10
07095-01449
CUSHION
1
DBB0001~
11
20Y-62-43371
BLOCK
1
DBB0001~
12
07000-13048
O-RING
1
DBB0001~
13
02762-00608
HOSE
1
DBB0001~
14
02781-00628
UNION
1
DBB0001~
15
02896-11018
O-RING
1
DBB0001~
16
07002-12434
O-RING
1
DBB0001~
17
07040-12412
PLUG
1
DBB0001~
18
07002-12434
O-RING
1
DBB0001~
Swing Motor
PW1C036
H1- 42
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 43

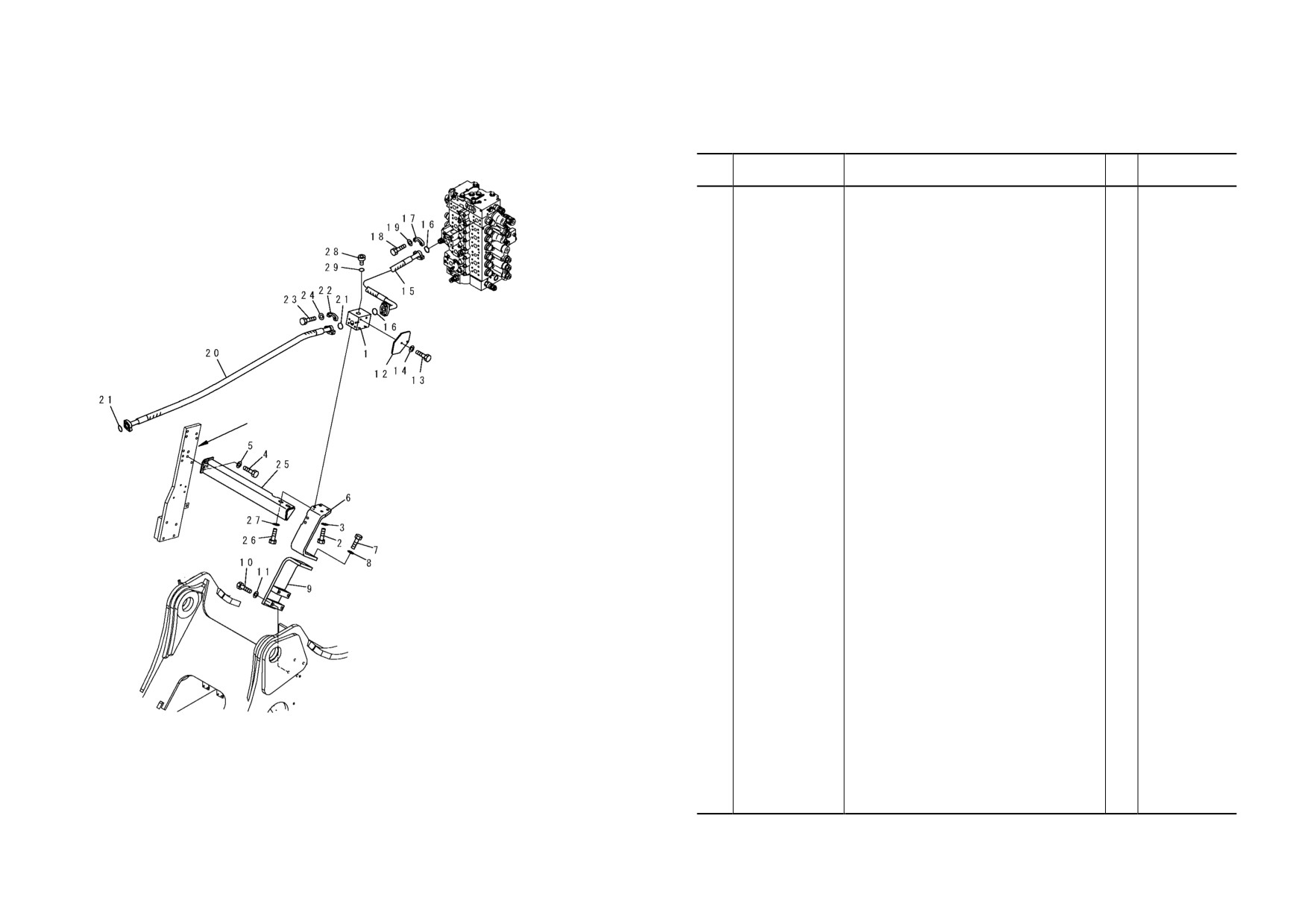

FIG NO. ：H1270-01A0
FIG. H1270-01A0 ATTACHMENT LINES (MAIN L. H.) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-43210
BLOCK
1
DBB0001~
2
01010-81235
BOLT
2
DBB0001~
3
01643-31232
WASHER
2
DBB0001~
4
01010-81245
BOLT
2
DBB0001~
5
01643-31232
WASHER
2
DBB0001~
Main Valve
6
20Y-62-43221
BRACKET
1
DBB0001~
7
01010-81235
BOLT
4
DBB0001~
8
01643-31232
WASHER
4
DBB0001~
9
20Y-62-43230
BRACKET
1
DBB0001~
10
01010-81285
BOLT
4
DBB0001~
11
01643-31232
WASHER
4
DBB0001~
See Fig. H1270-02A0
12
20Y-62-43240
COVER
1
DBB0001~
13
01010-81025
BOLT
2
DBB0001~
14
01643-31032
WASHER
2
DBB0001~
15
07098-01007
HOSE
1
DBB0001~
16
21T-09-11460
O-RING
2
DBB0001~
17
07371-31049
FLANGE
4
DBB0001~
18
07372-21035
BOLT
8
DBB0001~
19
01643-51032
WASHER
8
DBB0001~
20
07097-21016
HOSE
1
DBB0001~
21
07000-13032
O-RING
2
DBB0001~
22
07371-31049
FLANGE
4
DBB0001~
23
07372-21035
BOLT
8
DBB0001~
24
01643-51032
WASHER
8
DBB0001~
25
20Y-62-43262
FRAME
1
DBB0001~
Revolving Frame
26
01010-81245
BOLT
2
DBB0001~
27
175-54-34170
WASHER
2
DBB0001~
28
07040-12412
PLUG
1
DBB0001~
29
07002-12434
O-RING
1
DBB0001~
PW1C037
H1- 56
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 57
FIG NO. ：H1270-01A1

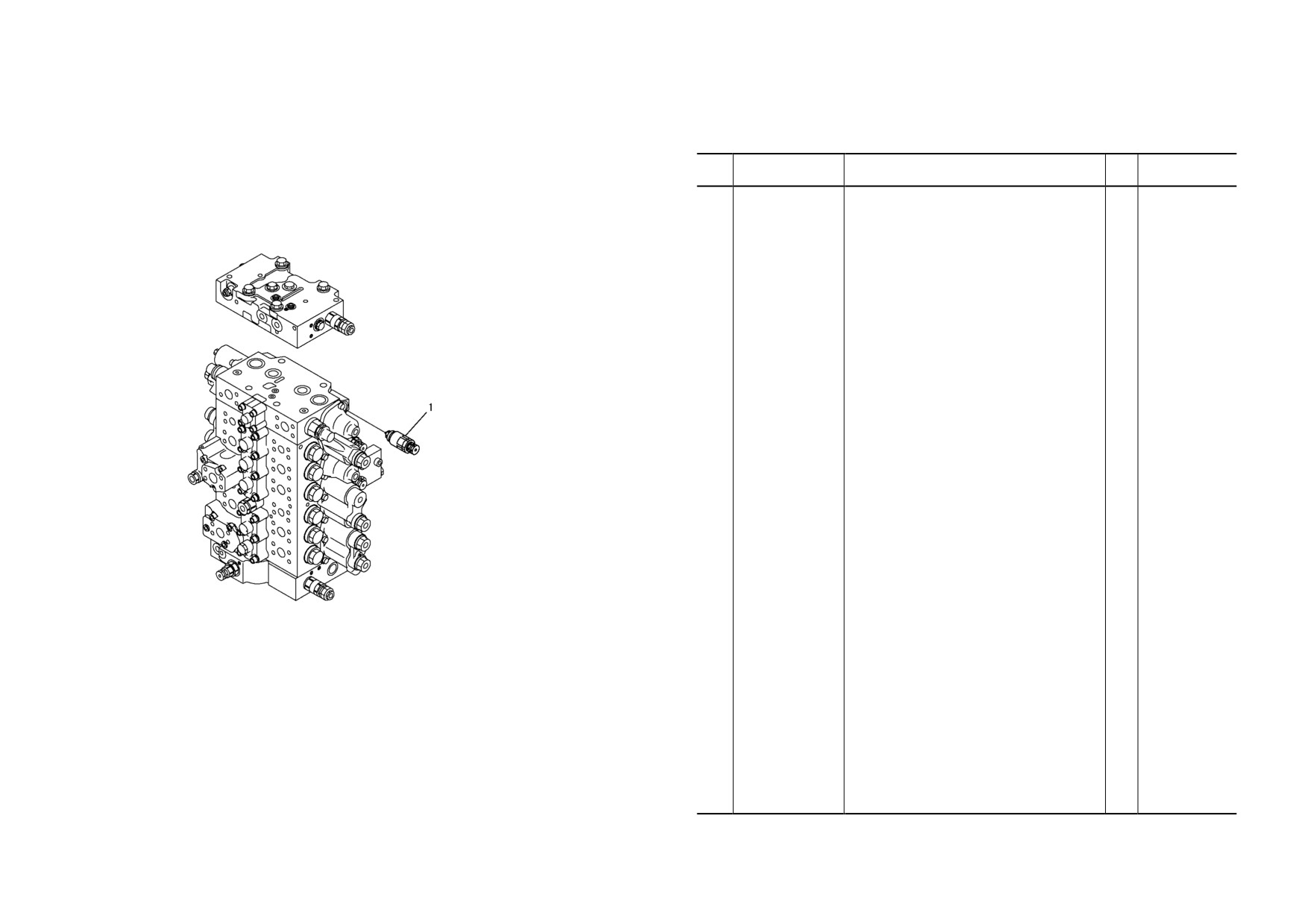

FIG. H1270-01A1 RELIEF VALVE (280 KG/CM2) (FOR SERVICE VALVE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-90-61400)
VALVE ASS’ Y
1
DBB0001~
PW1C828
H1- 58
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 59

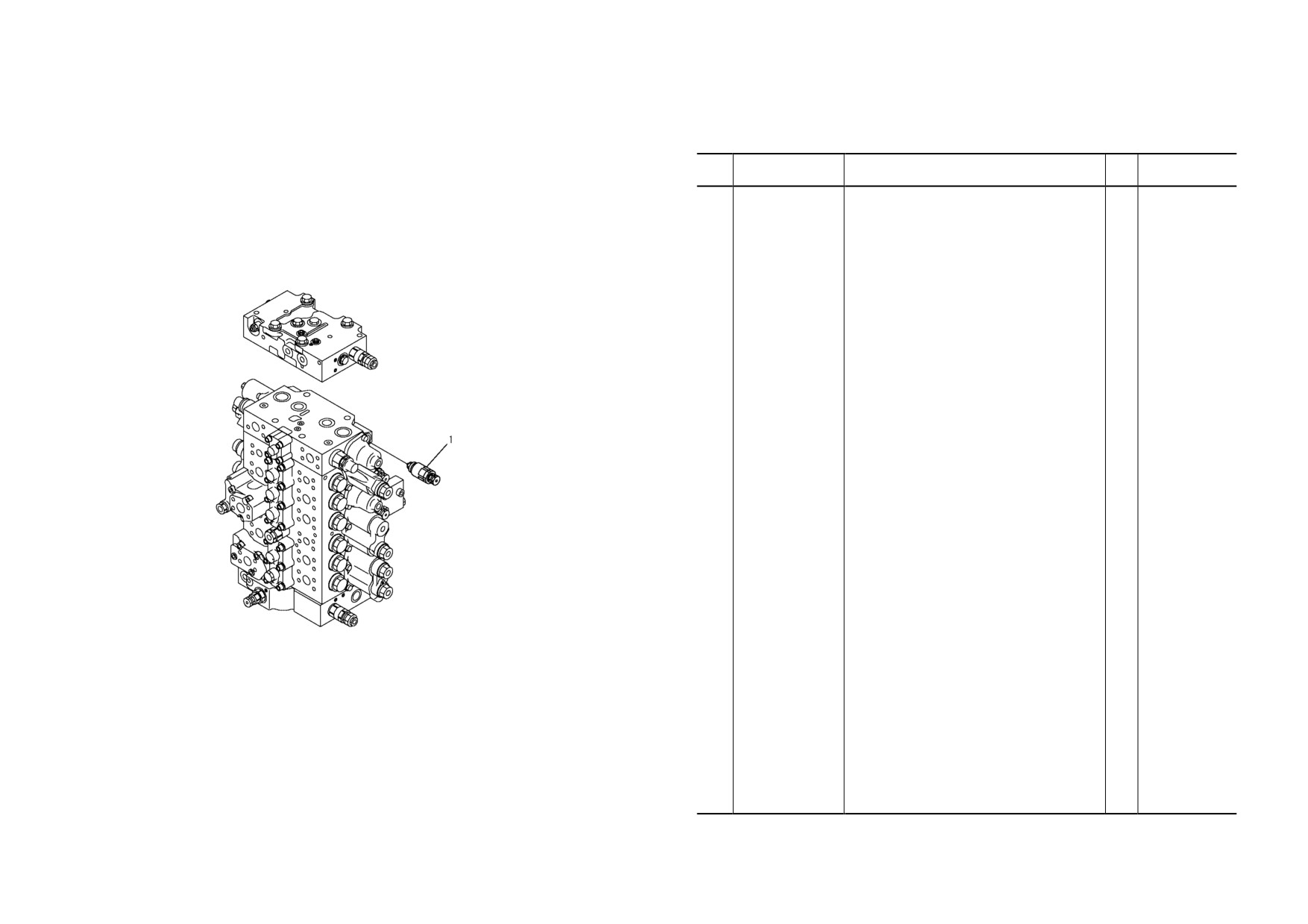

FIG NO. ：H1270-01A2
FIG. H1270-01A2 RELIEF VALVE (210 KG/CM2) (FOR SERVICE VALVE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-90-61200)
RELIEF VALVE
1
DBB0001~
PW1C828
H1- 60
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 61

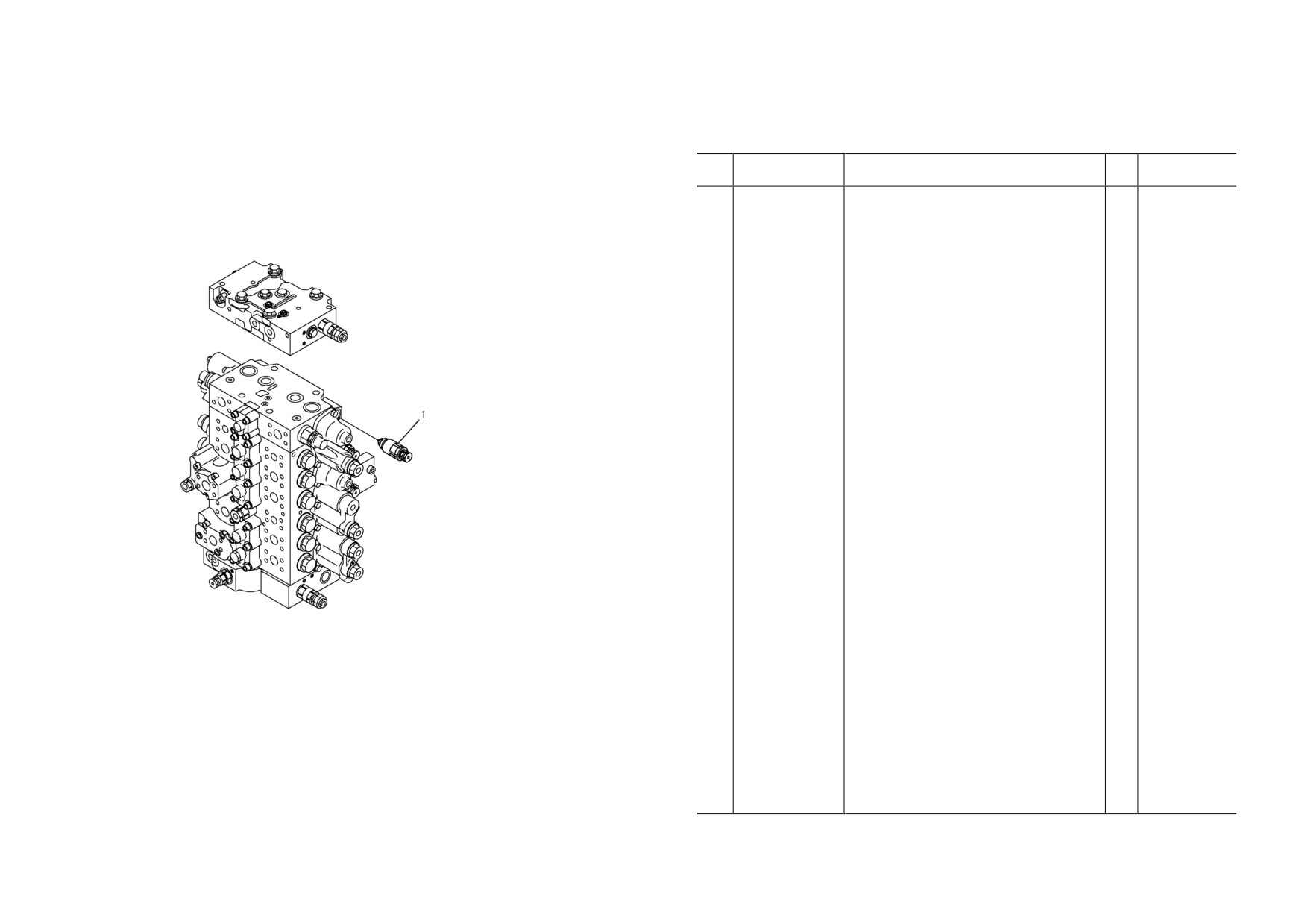

FIG NO. ：H1270-01A3
FIG. H1270-01A3 RELIEF VALVE (250 KG/CM2) (FOR SERVICE VALVE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-90-61300)
RELIEF VALVE
1
DBB0001~
PW1C828
H1- 62
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 63

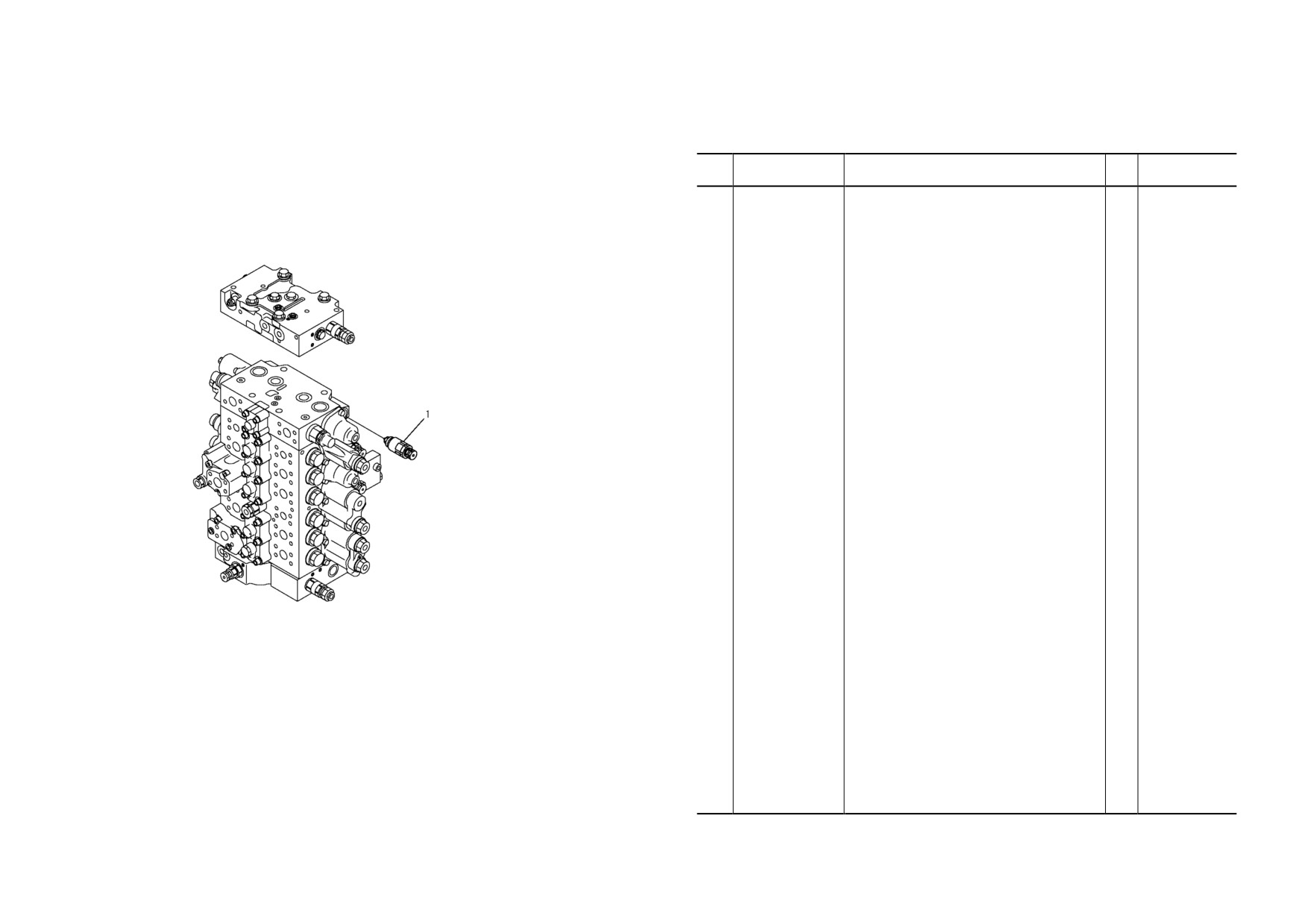

FIG NO. ：H1270-01A4
FIG. H1270-01A4 RELIEF VALVE (175 KG/CM2) (FOR SERVICE VALVE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(723-90-61100)
RELIEF VALVE
1
DBB0001~
PW1C828
H1- 64
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 65
FIG NO. ：H1270-02A0
FIG. H1270-02A0 ATTACHMENT LINES (MAIN R. H.) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(702-21-01910)
VALVE ASS’ Y
1
DBB0001~
2
01010-81040
BOLT
3
DBB0001~
3
01643-31032
WASHER
3
DBB0001~
4
20Y-62-43270
BRACKET
1
DBB0001~
5
01010-81285
BOLT
4
DBB0001~
6
01643-31232
WASHER
4
DBB0001~
7
07097-01005
HOSE
1
DBB0001~
8
21T-09-11460
O-RING
2
DBB0001~
9
07371-31049
FLANGE
4
DBB0001~
10
07372-21035
BOLT
8
DBB0001~
Main Valve
11
01643-51032
WASHER
8
DBB0001~
12
07097-21217
HOSE
1
DBB0001~
13
07000-13038
O-RING
2
DBB0001~
14
07371-51260
FLANGE
4
DBB0001~
15
07372-21245
BOLT
8
DBB0001~
16
01643-31232
WASHER
8
DBB0001~
17
20Y-62-43460
NIPPLE
1
DBB0001~
18
02896-11008
O-RING
1
DBB0001~
19
07002-02034
O-RING
1
DBB0001~
Revolving Frame
20
11Y-62-12160
ELBOW
1
DBB0001~
02782-10210
ELBOW
1
DBB0001~
21
02896-11008
O-RING
1
DBB0001~
22
07002-01423
O-RING
1
DBB0001~
PW1C038
H1- 66
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 67

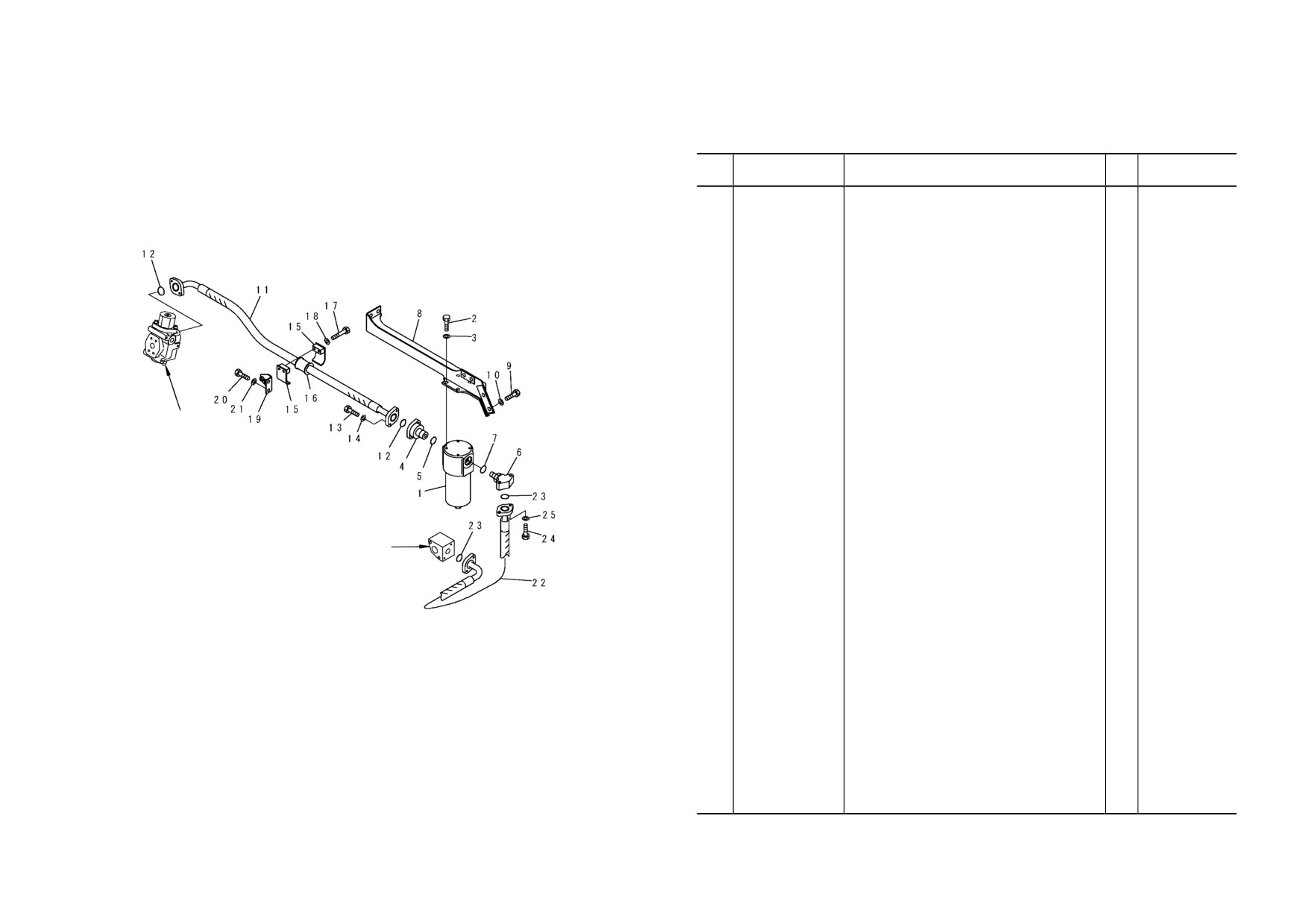

FIG NO. ：H1270-03A0
FIG. H1270-03A0 ATTACHMENT LINES (RETURN ) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(20Y-970-2700)
FILTER ASS’ Y
1
DBB0001~
2
01010-81230
BOLT
4
DBB0001~
3
01643-31232
WASHER
4
DBB0001~
4
20Y-62-43351
FLANGE
1
DBB0001~
5
07002-14234
O-RING
1
DBB0001~
6
20Y-62-43361
ELBOW
1
DBB0001~
7
07002-14234
O-RING
1
DBB0001~
8
20Y-62-43331
FRAME
1
DBB0001~
9
01010-81230
BOLT
4
DBB0001~
10
01643-31232
WASHER
4
DBB0001~
11
20Y-62-43311
HOSE, 1450 MM
1
DBB0001~
See Fig. H1270-02A0
12
07000-13038
O-RING
2
DBB0001~
13
01010-81035
BOLT
4
DBB0001~
14
01643-31032
WASHER
4
DBB0001~
15
07094-11024
CLAMP
2
DBB0001~
16
07095-01038
CUSHION
1
DBB0001~
17
01010-81280
BOLT
2
DBB0001~
18
01643-31232
WASHER
2
DBB0001~
See Fig. H0330-01A1
19
20Y-62-43320
BRACKET
1
DBB0001~
20
01010-81225
BOLT
2
DBB0001~
21
01643-31232
WASHER
2
DBB0001~
22
20Y-62-43381
HOSE, 1000 MM
1
DBB0001~
23
07000-13038
O-RING
2
DBB0001~
24
01010-81035
BOLT
4
DBB0001~
25
01643-31032
WASHER
4
DBB0001~
PW1C039
H1-68
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 69

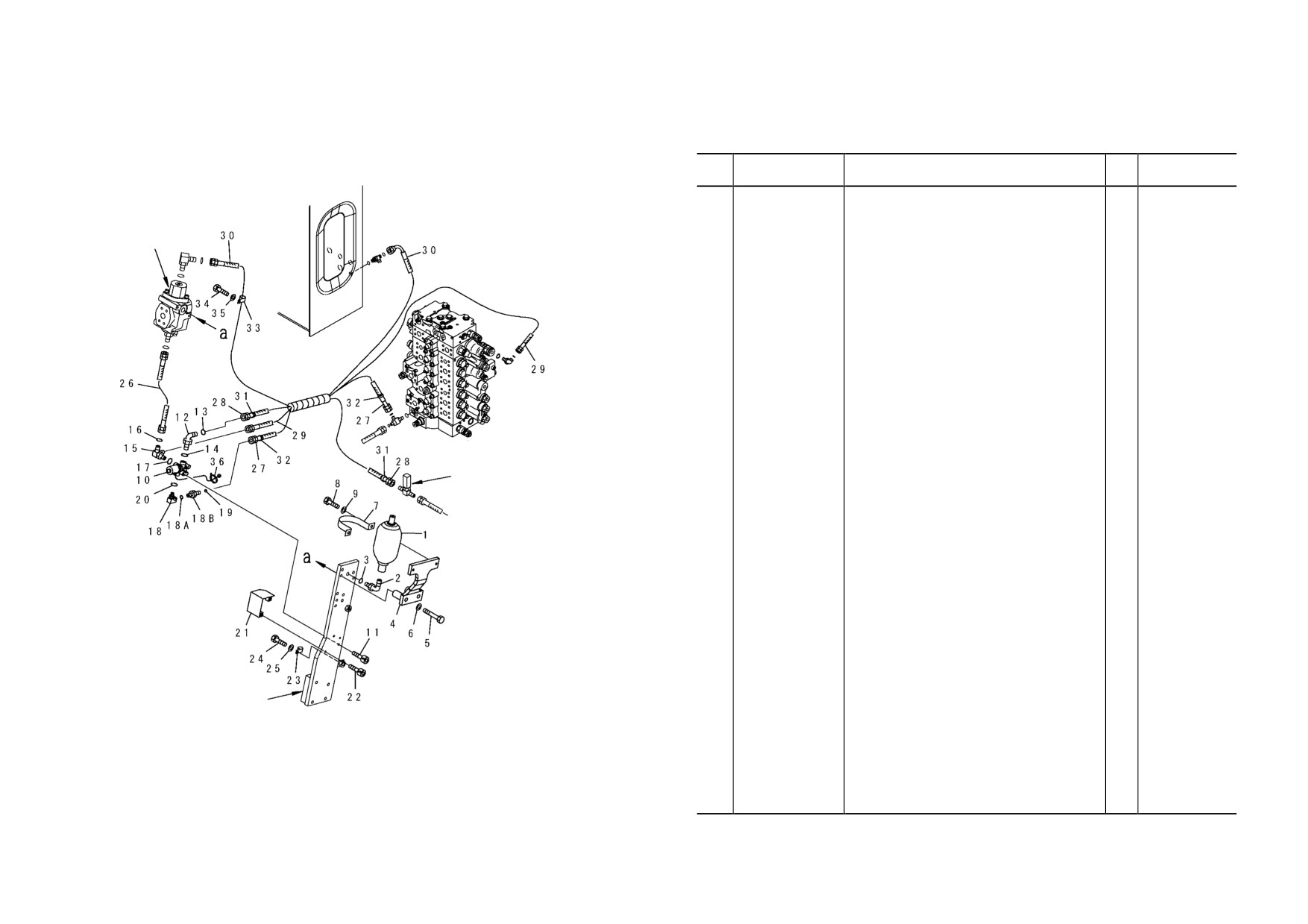

FIG NO. ：H1270-04A0
FIG. H1270-04A0 ATTACHMENT LINES (ACCUMULATOR AND SOLENOLD VALVE) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
Hydraulic Tank
1
(20Y-970-6450)
ACCUMULATOR
1
DBB0001~
2
20Y-62-43290
ELBOW
1
DBB0001~
See Fig. H1270-02A0
3
07002-12434
O-RING
1
DBB0001~
4
20Y-62-43280
BRACKET
1
DBB0001~
5
01010-81295
BOLT
2
DBB0001~
6
01643-31232
WASHER
2
DBB0001~
7
175-61-51750
PLATE
1
DBB0001~
8
01010-81225
BOLT
2
DBB0001~
9
01643-31232
WASHER
2
DBB0001~
10
(20Y-60-32110)
VALVE ASS’ Y
1
DBB0001~
11
01252-80825
BOLT
2
DBB0001~
12
21W-62-43960
ELBOW
1
DBB0001~
13
02896-11008
O-RING
1
DBB0001~
14
07002-01423
O-RING
1
DBB0001~
15
20Y-62-43580
ELBOW
1
DBB0001~
16
02896-11008
O-RING
2
DBB0001~
Main Valve
17
07000-01423
O-RING
1
DBB0001~
Solenoid Valve
18
20F-61-12460
ELBOW
1
DBB0001~
18A
07002-11423
O-RING
1
DBB0001~
18B
11Y-62-12130
NIPPLE
1
DBB0001~
19
02896-11008
O-RING
1
DBB0001~
20
07000-01423
O-RING
1
DBB0001~
21
20Y-62-43530
COVER
1
DBB0001~
22
01252-80825
BOLT
2
DBB0001~
23
04434-50612
CLIP
1
DBB0001~
24
01010-81225
BOLT
1
DBB0001~
25
01643-31232
WASHER
1
DBB0001~
26
21W-62-42240
HOSE
1
DBB0001~
27
02760-002A6
HOSE
1
DBB0001~
28
02760-00212
HOSE
1
DBB0001~
29
02760-00216
HOSE
1
DBB0001~
30
02761-00221
HOSE
1
DBB0001~
See Fig. H1270-02A0
31
20Y-62-22790
BAND, RED
2
DBB0001~
32
20Y-62-22820
BAND, BLUE
2
DBB0001~
PW1C040
33
04434-51212
CLIP
1
DBB0001~
34
01010-81225
BOLT
1
DBB0001~
35
01643-31232
WASHER
1
DBB0001~
36
08034-20536
BAND
2
DBB0001~
H1- 70
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 71

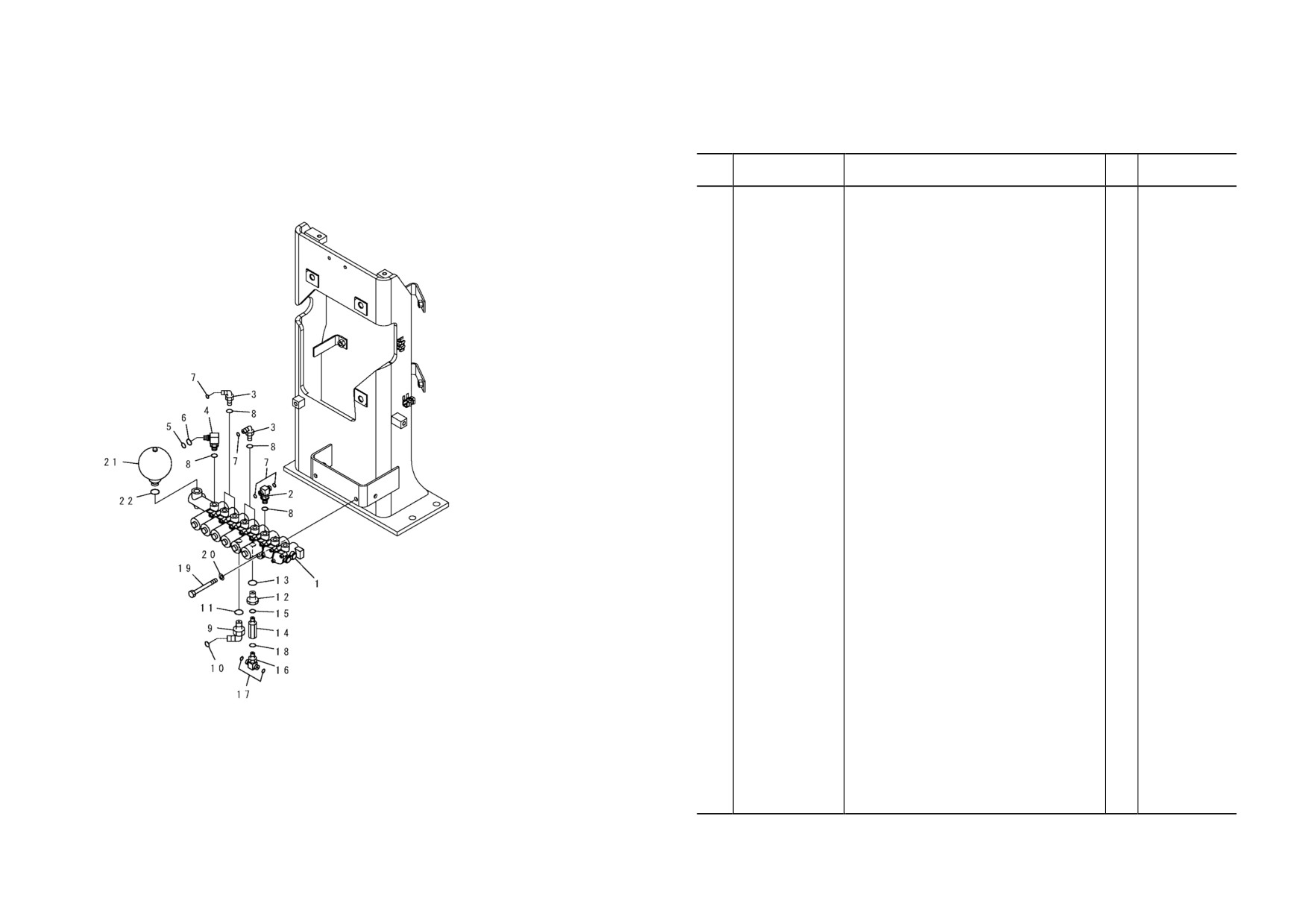

FIG NO. ：H1831-01A1
FIG. H1831-01A1 SOLENOID VALVE (VALVE) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(20Y-60-31212)
VALVE ASS ’Y
1
DBB0001~
2
20Y-62-43690
TEE
1
DBB0001~
Main Valve Bracket
3
11Y-62-12160
ELBOW
4
DBB0001~
4
20Y-62-22271
ELBOW
1
DBB0001~
5
201-60-11390
O-RING
1
DBB0001~
6
20Y-62-19560
O-RING
1
DBB0001~
7
02896-11008
O-RING
6
DBB0001~
8
07002-11423
O-RING
6
DBB0001~
9
02782-10315
ELBOW
1
DBB0001~
10
02896-11009
O-RING
1
DBB0001~
11
07002-12034
O-RING
1
DBB0001~
12
20Y-62-21940
FILTER ASS’ Y
1
DBB0001~
13
07002-12034
O-RING
1
DBB0001~
14
20Y-60-22210
BODY
1
DBB0001~
15
07002-11423
O-RING
1
DBB0001~
16
11Y-62-12250
TEE
1
DBB0001~
17
02896-11008
O-RING
2
DBB0001~
18
07002-11423
O-RING
1
DBB0001~
19
01010-81095
BOLT
2
DBB0001~
20
01643-31032
WASHER
2
DBB0001~
21
22U-60-21330
ACCUMULATOR
1
DBB0001~
22
07002-12034
O-RING
1
DBB0001~
PW1C041
H1- 80
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 81
