Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 19
FIG NO. ：H1840-02A1

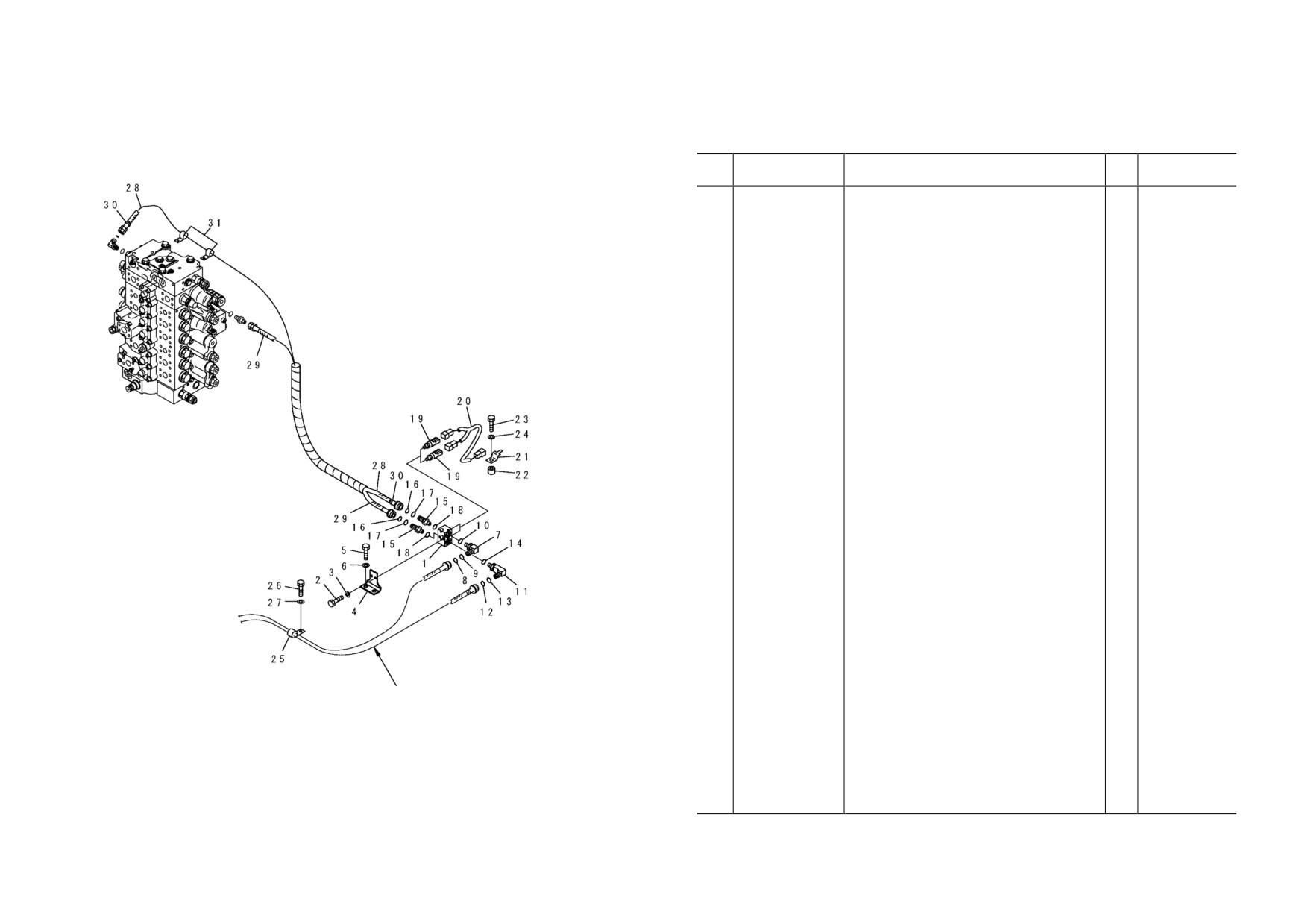

FIG. H1840-02A1 PPC MAIN LINE (BLOCK ) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-43430
BLOCK
1
DBB0001~
2
01010-80820
BOLT
2
DBB0001~
3
01643-30823
WASHER
2
DBB0001~
4
20Y-62-43440
BRACKET
1
DBB0001~
5
01010-81025
BOLT
2
DBB0001~
6
01643-31032
WASHER
2
DBB0001~
7
20Y-62-22271
ELBOW
1
DBB0001~
8
201-60-11390
. O-RING
1
DBB0001~
9
20Y-62-19560
. O-RING
1
DBB0001~
10
07002-01423
O-RING
1
DBB0001~
11
14X-43-14840
ELBOW
1
DBB0001~
Main Valve
12
201-60-11390
. O-RING
1
DBB0001~
13
20Y-62-19560
. O-RING
1
DBB0001~
14
07002-01423
O-RING
1
DBB0001~
15
20Y-62-16630
NIPPLE
2
DBB0001~
16
201-60-11390
. O-RING
2
DBB0001~
17
20Y-62-19560
. O-RING
2
DBB0001~
18
07002-01423
O-RING
2
DBB0001~
19
206-06-61130
SWITCH
2
DBB0001~
20
20Y-06-21330
WIRING HARNESS
1
DBB0001~
21
08053-01512
CLIP
1
DBB0001~
22
195-33-11220
SPACER
1
DBB0001~
23
01010-81045
BOLT
1
DBB0001~
24
01643-31032
WASHER
1
DBB0001~
25
04434-51612
CLIP
1
DBB0001~
26
01010-81225
BOLT
1
DBB0001~
See Fig. K1110-04A1
27
01643-31232
WASHER
1
DBB0001~
28
20Y-62-43520
HOSE, 2100 MM
1
DBB0001~
29
207-62-72720
HOSE, 1400 MM
1
DBB0001~
PW1C042
30
20Y-62-22810
BAND, YELLOW
2
DBB0001~
31
04435-51612
CLIP
2
DBB0001~
H1- 88
PC200, 210(LC)-7
PC200, 210(LC)-7
H1- 89
REVOLVING FRAME AND RELATED PARTS
FIG NO. ：J1110-01A0

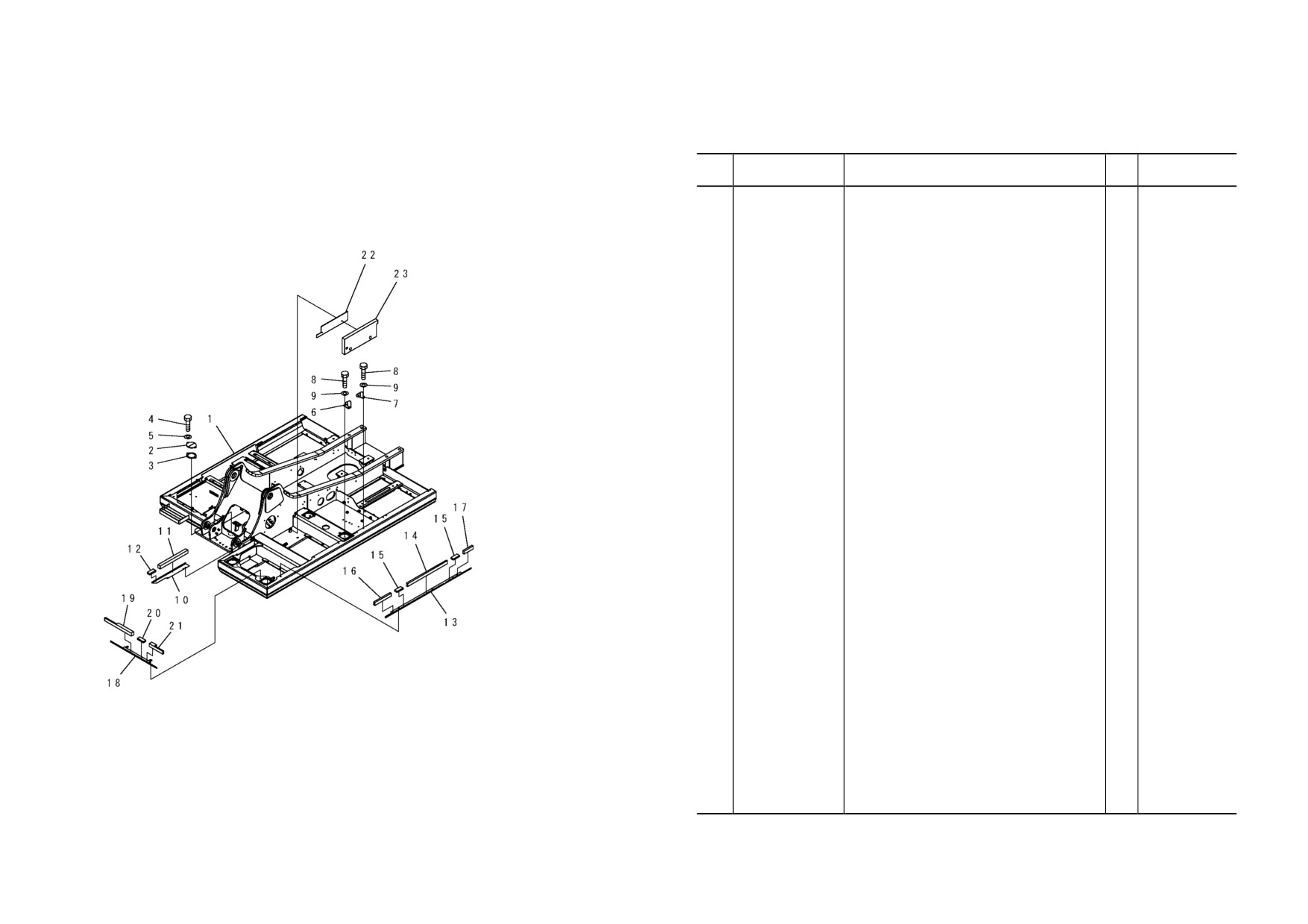

FIG. J1110-01A0 REVOLVING FRAME (COVER AND BRACKET)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-46-D1270
FRAME
1
DBB0001~
2
205-30-71181
COVER
1
DBB0001~
3
205-30-71191
GASKET
1
DBB0001~
4
01010-81230
BOLT
2
DBB0001~
5
01643-31232
WASHER
2
DBB0001~
6
20Y-54-61670
BRACKET
1
DBB0001~
7
20Y-54-61680
BRACKET
1
DBB0001~
8
01010-81230
BOLT
4
DBB0001~
9
01643-31232
WASHER
4
DBB0001~
20Y-46-42411
COVER
1
DBB0001~
10
☆
. COVER
1
DBB0001~
11
20Y-46-42231
. SEAL
1
DBB0001~
12
20Y-46-42460
. SHEET
1
DBB0001~
20Y-46-42422
COVER
1
DBB0001~
13
☆
. COVER
1
DBB0001~
14
20Y-46-42251
. SEAL
1
DBB0001~
15
20Y-46-42460
. SHEET
2
DBB0001~
16
20Y-46-42470
. SEAL
1
DBB0001~
17
20Y-46-42480
.SEAL
1
DBB0001~
20Y-46-42431
COVER
1
DBB0001~
18
☆
. COVER
1
DBB0001~
19
20Y-46-42241
. SEAL
1
DBB0001~
20
20Y-46-42460
. SHEET
1
DBB0001~
21
20Y-46-42490
. SEAL
1
DBB0001~
20Y-46-42440
COVER
1
DBB0001~
22
20Y-46-42381
.COVER
1
DBB0001~
23
20Y-46-42260
. SHEET
1
DBB0001~
PW1B872
JO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
JO- 3
FIG NO. ：J1110-02A0

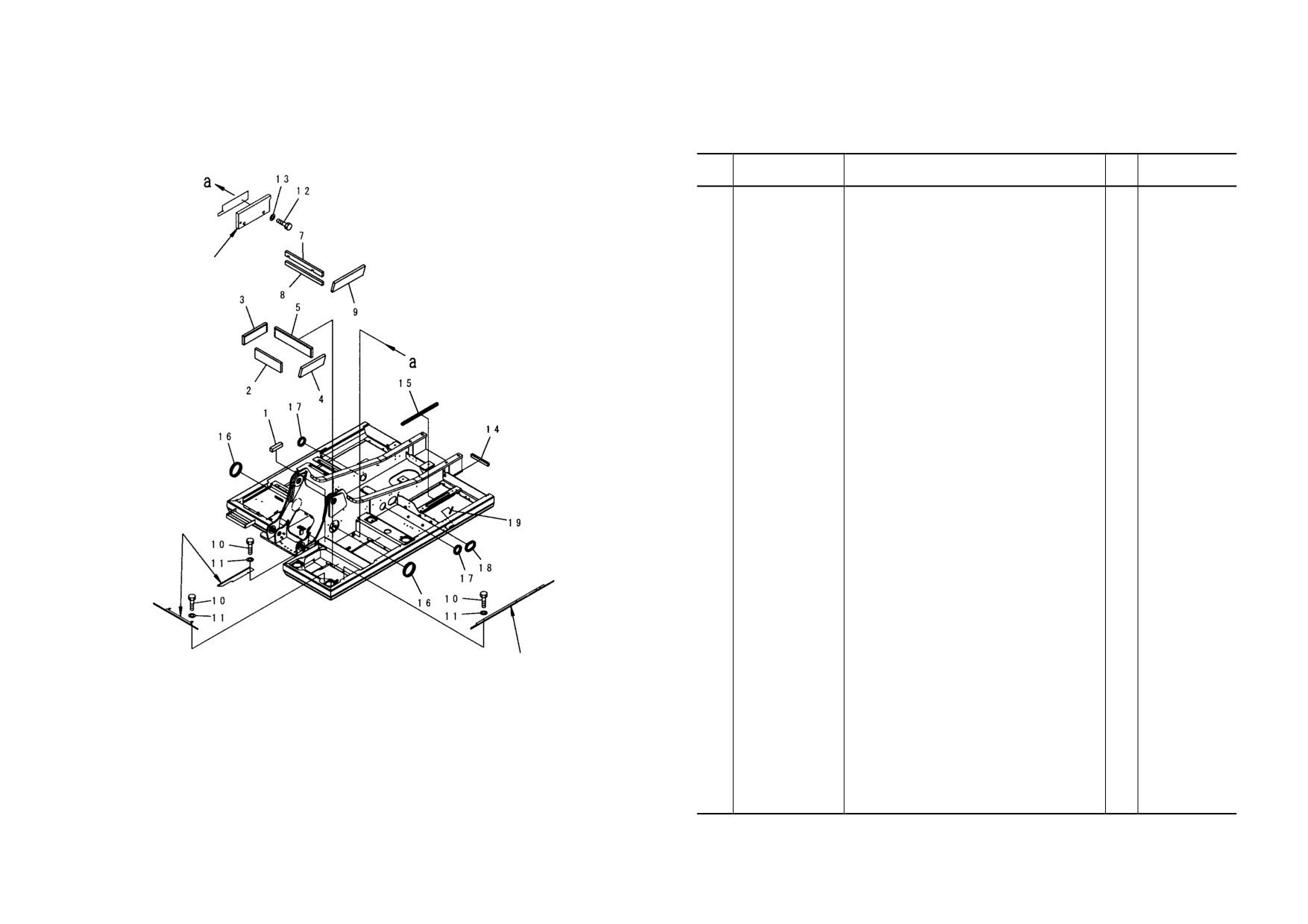

FIG. J1110-02A0 REVOLVING FRAME (SHEET AND GROMMET)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-46-42210
SEAL
1
DBB0001~
2
20Y-46-D1170
SHEET
1
DBB0001~
3
20Y-46-D1180
SHEET
1
DBB0001~
See Fig. J1110-01A0
4
20Y-46-D1190
SHEET
1
DBB0001~
5
20Y-46-D1200
SHEET
1
DBB0001~
7
20Y-46-D1210
SHEET
1
DBB0001~
8
20Y-46-D1220
SHEET
1
DBB0001~
9
20Y-46-D1230
SHEET
1
DBB0001~
10
01010-81035
BOLT
7
DBB0001~
11
01643-31032
WASHER
7
DBB0001~
12
01010-81225
BOLT
2
DBB0001~
13
01643-31232
WASHER
2
DBB0001~
14
20Y-46-21890
SHEET
1
DBB0001~
15
20Y-46-41150
SHEET
1
DBB0001~
16
20Y-46-41170
GROMMET
2
DBB0001~
17
20Y-46-41180
GROMMET
2
DBB0001~
18
20Y-46-41190
GROMMET
1
DBB0001~
See Fig. J1110-01A0
19
20Y-46-11281
GROMMET
1
DBB0001~
See Fig. J1110-01A0
PW1B873
JO- 4
PC200, 210(LC)-7
PC200, 210(LC)-7
JO- 5
FIG NO. ：J1310-01A0

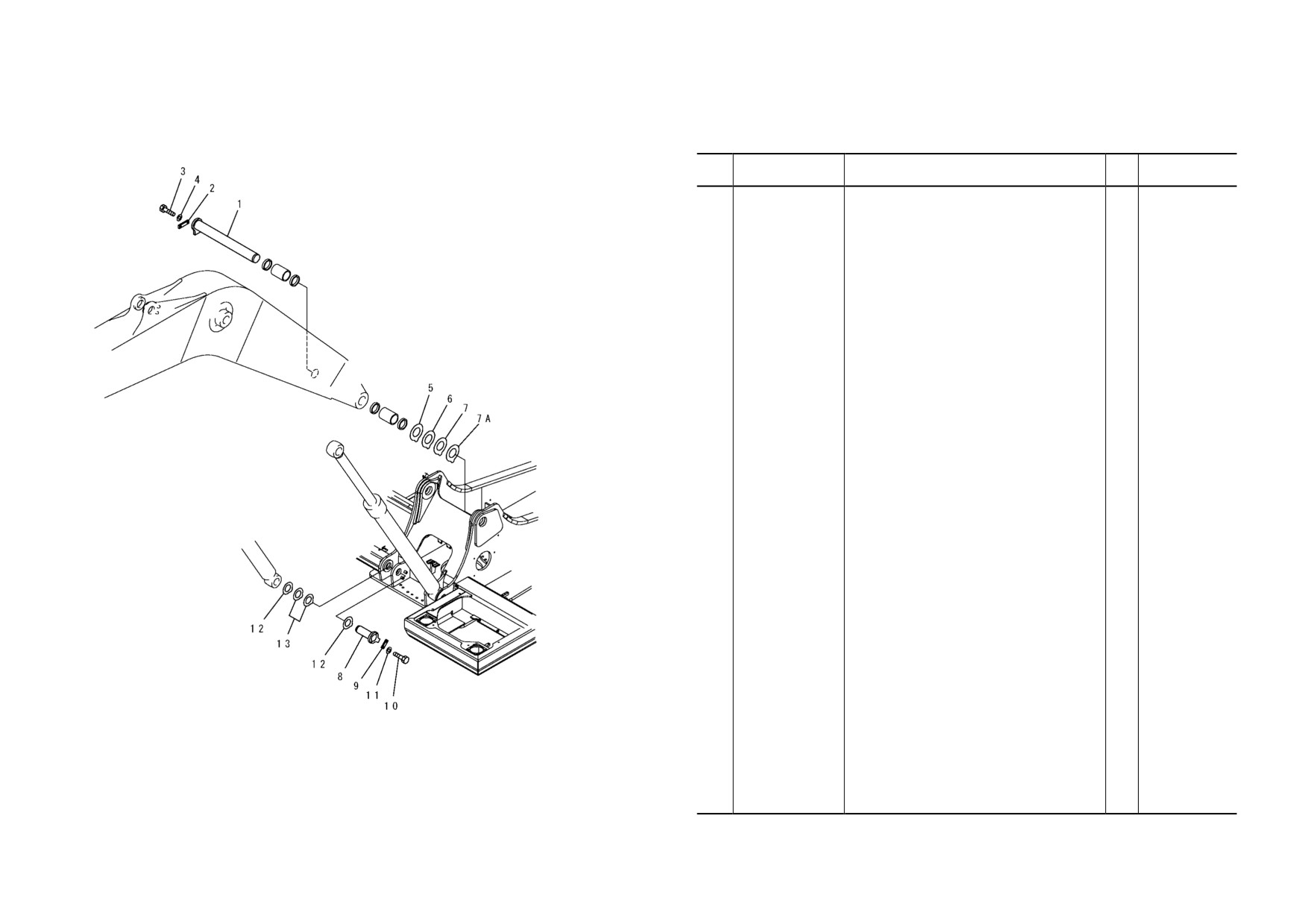

FIG. J1310-01A0 BOOM FOOT PIN
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
206-70-55160
PIN
1
DBB0001~
2
20Y-70-11190
PLATE
1
DBB0001~
3
01010-81640
BOLT
2
DBB0001~
4
01643-31645
WASHER
2
DBB0001~
5
20Y-70-31540
SPACER, 2.0MM
3
DBB0001~
6
20Y-70-31550
SPACER, 2.5MM
1
DBB0001~
7
20Y-70-31560
SPACER, 3.0MM
1
DBB0001~
7A
20Y-70-31570
SPACER, 3.5MM
1
DBB0001~
8
205-70-71210
PIN
2
DBB0001~
Boom
9
205-70-66580
PLATE
2
DBB0001~
10
01010-81235
BOLT
4
DBB0001~
11
01643-31232
WASHER
4
DBB0001~
12
20Y-70-31380
SPACER, 1.0MM
4
DBB0001~
13
20Y-70-31390
SPACER, 2.0MM
4
DBB0001~
Boom Cylinder
Revolving Frame
PW1B865
JO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
JO- 7
OPERATOR’ S COMPARTMENT AND CONTROL SYSTEM
FIG NO. ：K0110-01A2

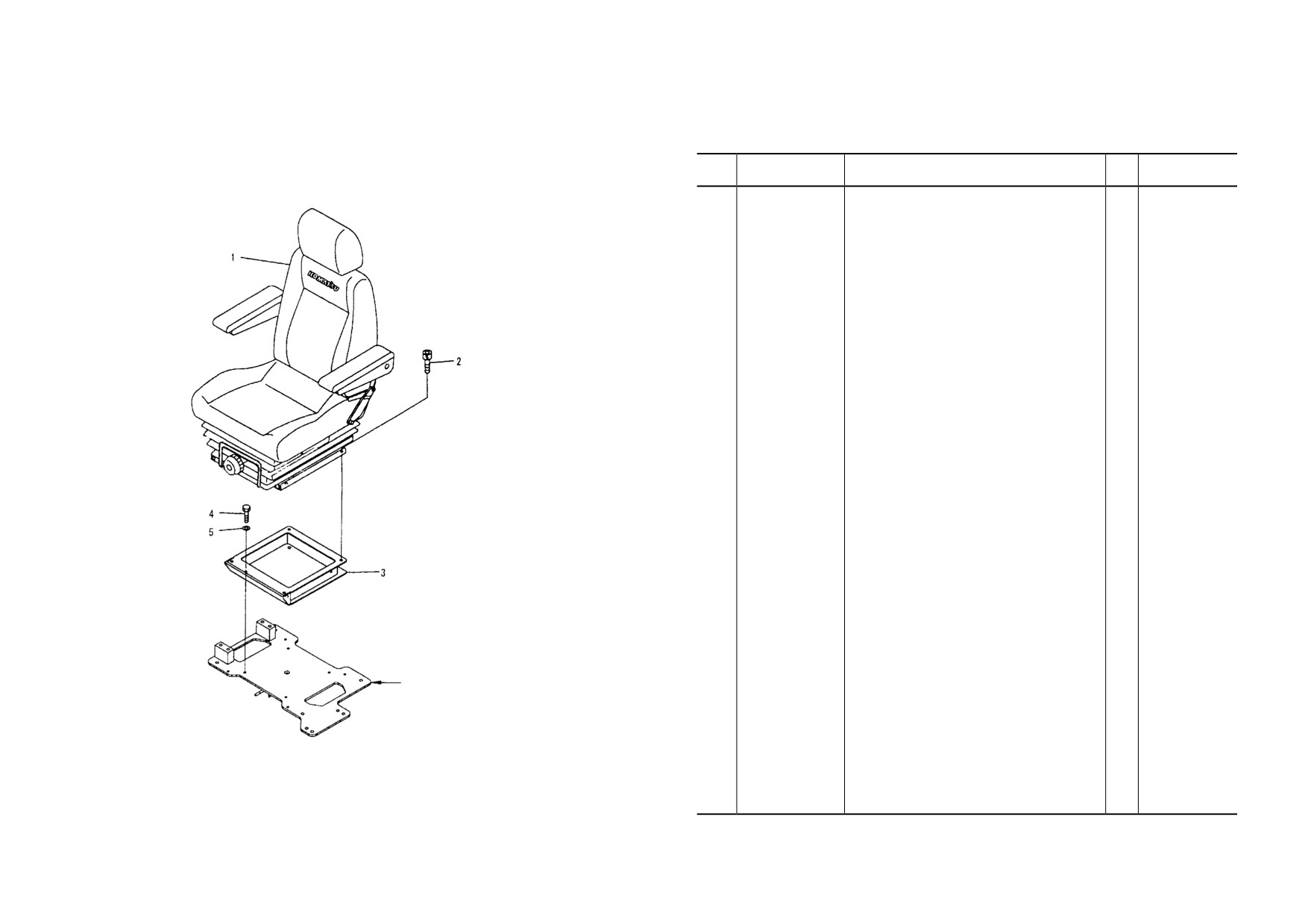

FIG. K0110-01A2 OPERATOR’ S SEAT (SUSPENSION)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-57-D1500
SEAT ASS’ Y, LEATHER
1
DBH0001~
2
01252-80825
BOLT
4
DBH0001~
3
20Y-57-D1390
BRACKET
1
DBH0001~
4
01010-D0825
BOLT
4
DBH0001~
5
01643-70823
WASHER
4
DBH0001~
See Fig. K1110-05A0
PW1B864
KO- 4
PC200,210(LC)-7
PC200,210 (LC)-7
KO- 5
FIG NO. ：K0160-01A0

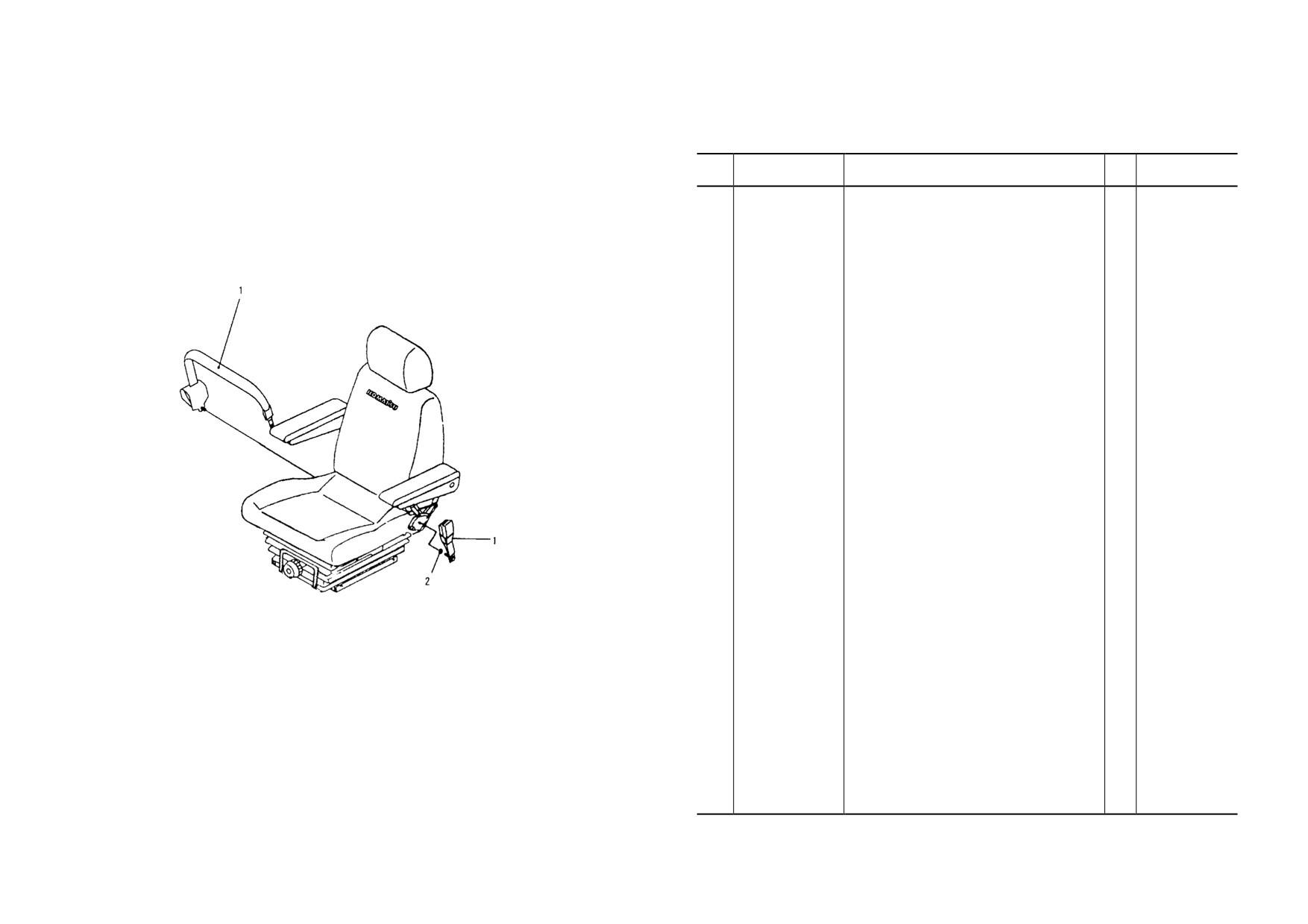

FIG. K0160-01A0 SEAT BELT (50MM WIDE)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
22B-57-11811
BELT, LAP
1
DBH0001~
2
22B-57-11830
.SPACER
1
DBH0001~
PW1B855
KO- 8
PC200,210(LC)-7
PC200,210(LC)-7
KO- 9
FIG NO. ：K0160-01A1

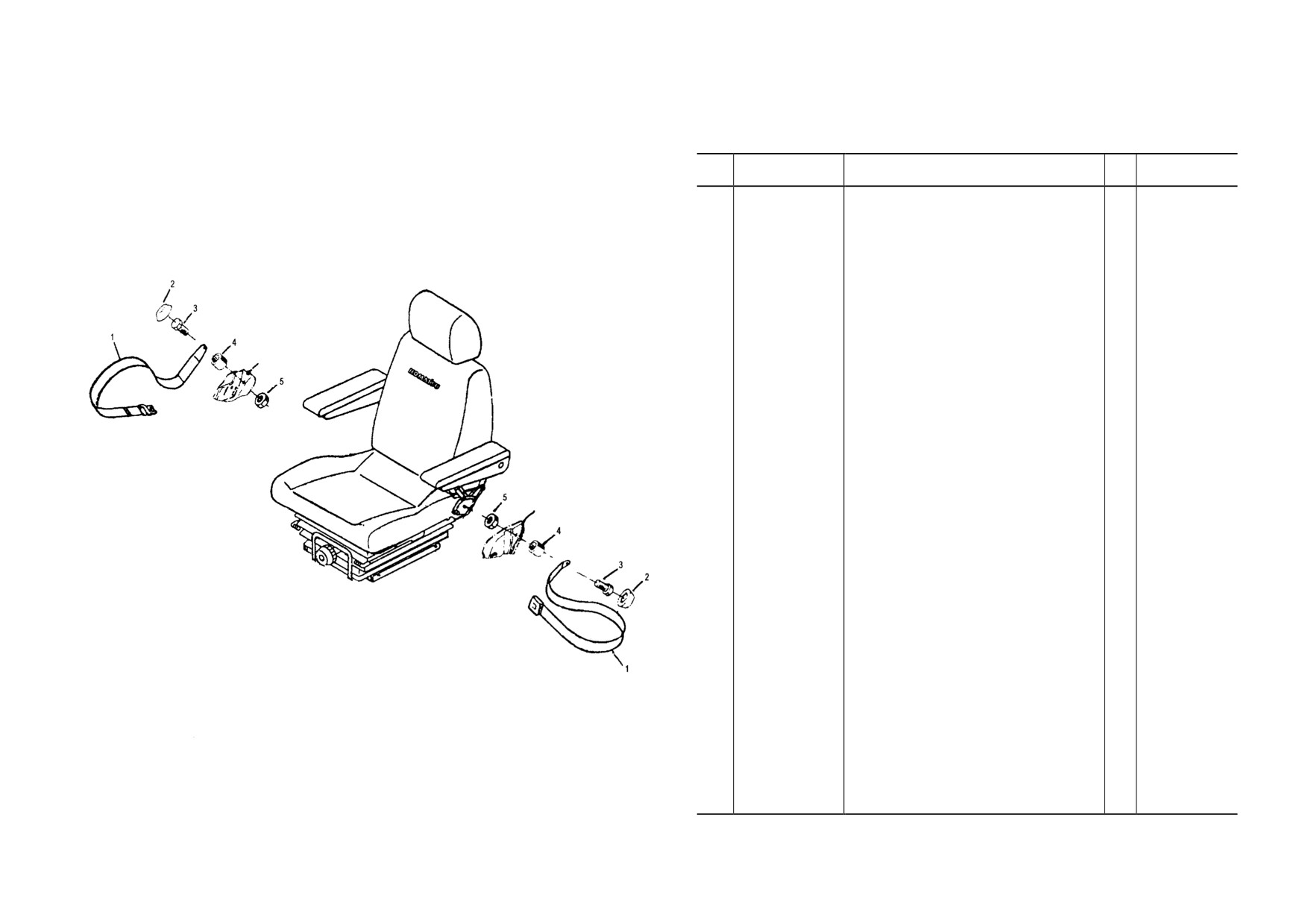

FIG. K0160-01A1 SEAT BELT (78MM WIDE)(OPT) (GRAMMER OF SEAT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
22B-57-11910
BELT, LAP
1
DBB0001~
2
20Y-57-D1370
. BOLT
2
DBB0001~
3
20Y-57-D1380
. WASHER
2
DBB0001~
4
20Y-57-D1360
NUT
2
DBB0001~
PW1B862
KO-10
PC200,210(LC)-7
PC200,210(LC)-7
KO- 11
FIG NO. ：K0160-01A2

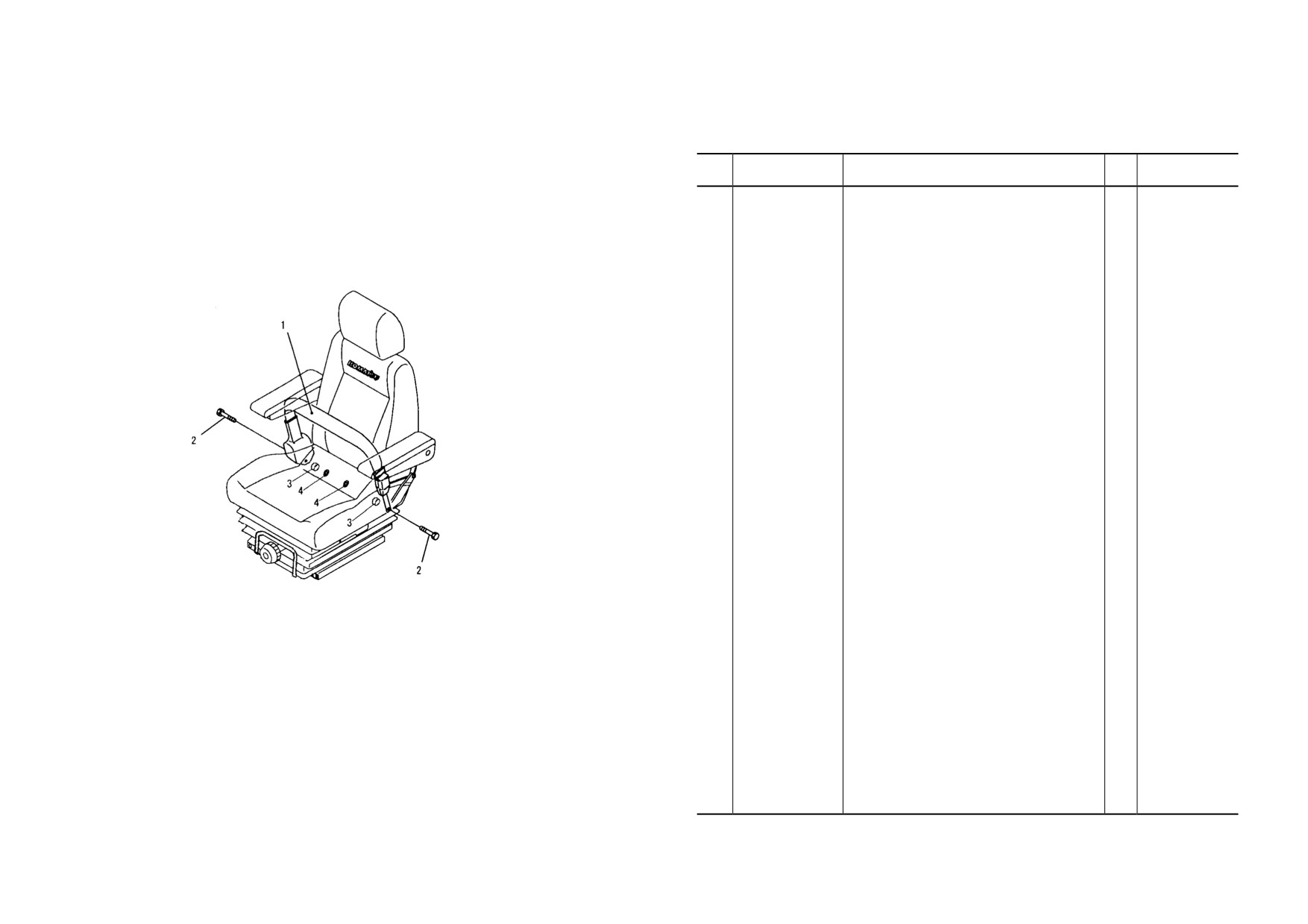

FIG. K0160-01A2 SEAT BELT (50MM WIDE)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
203-57-61121
SEAT BELT ASS’Y
1
DBB0001~
2
132909(GLM)
CAP
2
DBB0001~
3
01010-81035
BOLT
2
DBB0001~
4
115419(GLM)
SPACE
2
DBB0001~
5
01580-01008
WASHER
2
DBB0001~
Seat Righ Side Cover Plate
Seat Righ Side Cover Plate
PWB7638
KO- 12
PC200,210(LC)-7
PC200,210(LC)-7
KO- 13
