Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 9
FIG NO. ：A621P-01A0

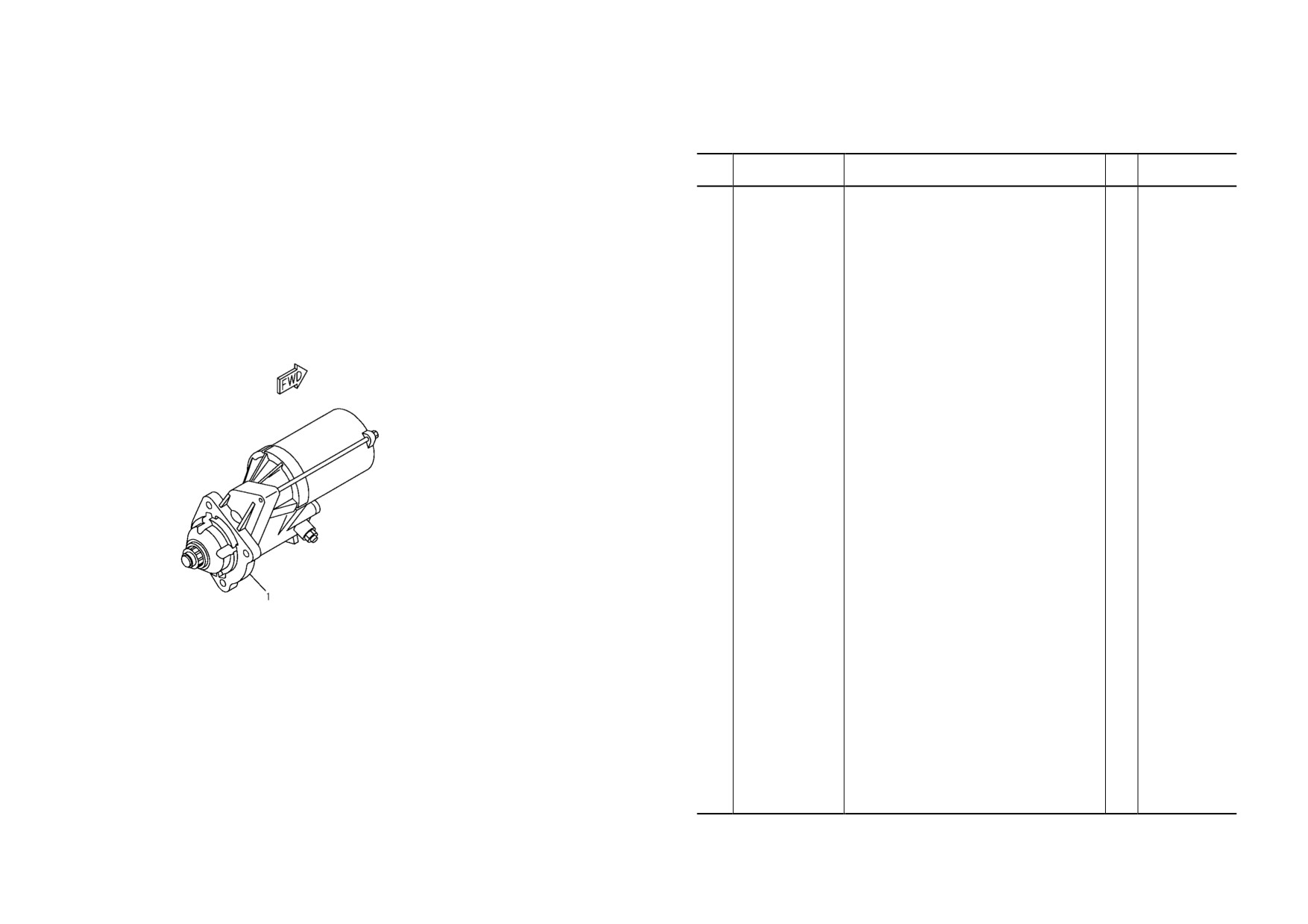

FIG. A621P-01A0 STARTING MOTOR (4.5KW)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(600-863-4110)
STARTING MOTOR ASS’Y
1
26274903-
(4.5KW) (SEE FIG. A621P-02A0)
PMD1103
AA- 142
SAA6D102E-2
SAA6D102E-2
AA- 143
FIG NO. ：A621P-01A1

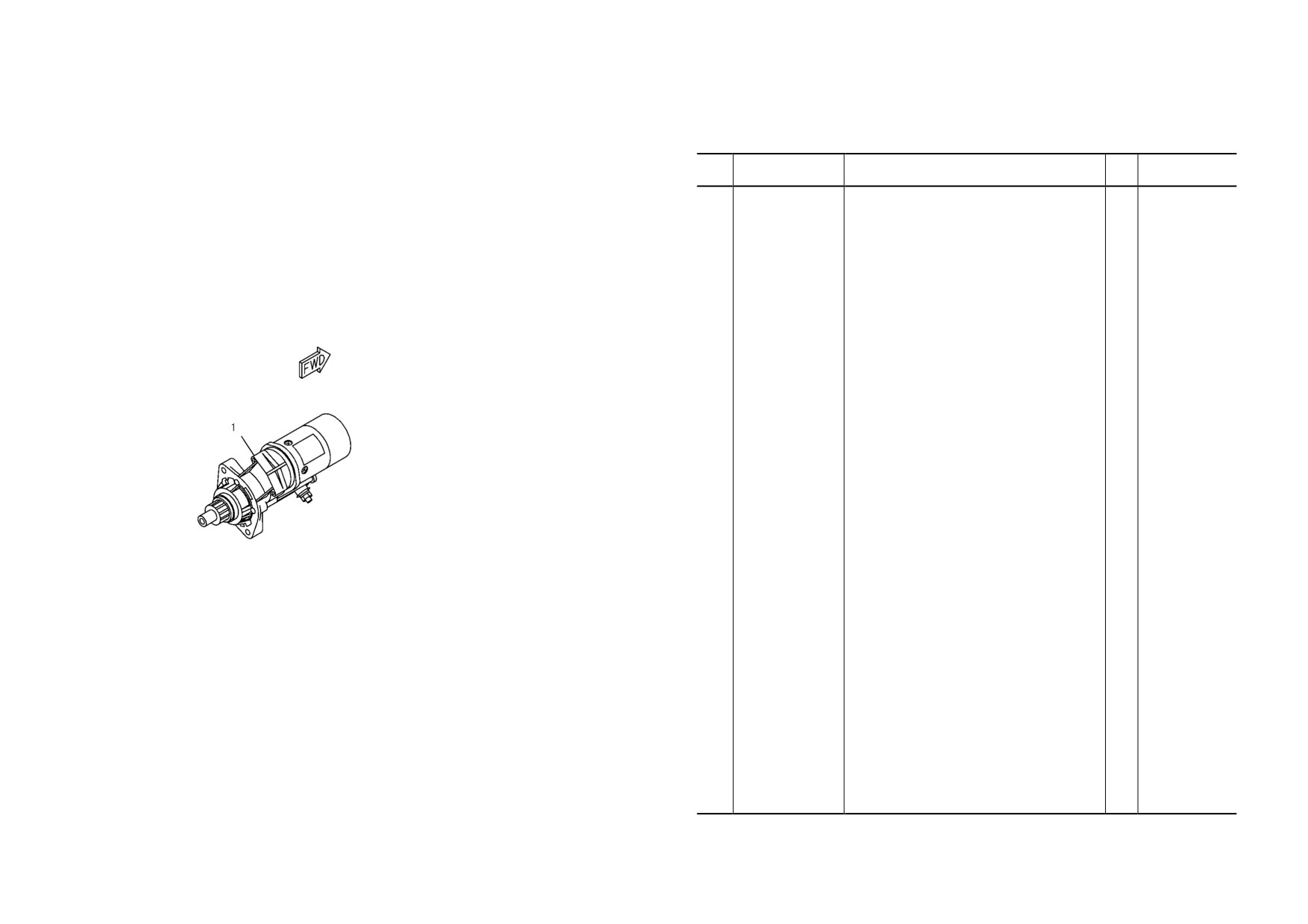

FIG. A621P-01A1 STARTING MOTOR (5.5KW)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(600-863-5110)
STARTING MOTOR ASS’Y
1
26274903-
(5.5KW) (SEE FIG. A621P-02A1)
PMD1186
AA- 144
SAA6D102E-2
SAA6D102E-2
AA- 145
FIG NO. ：A621P-02A0

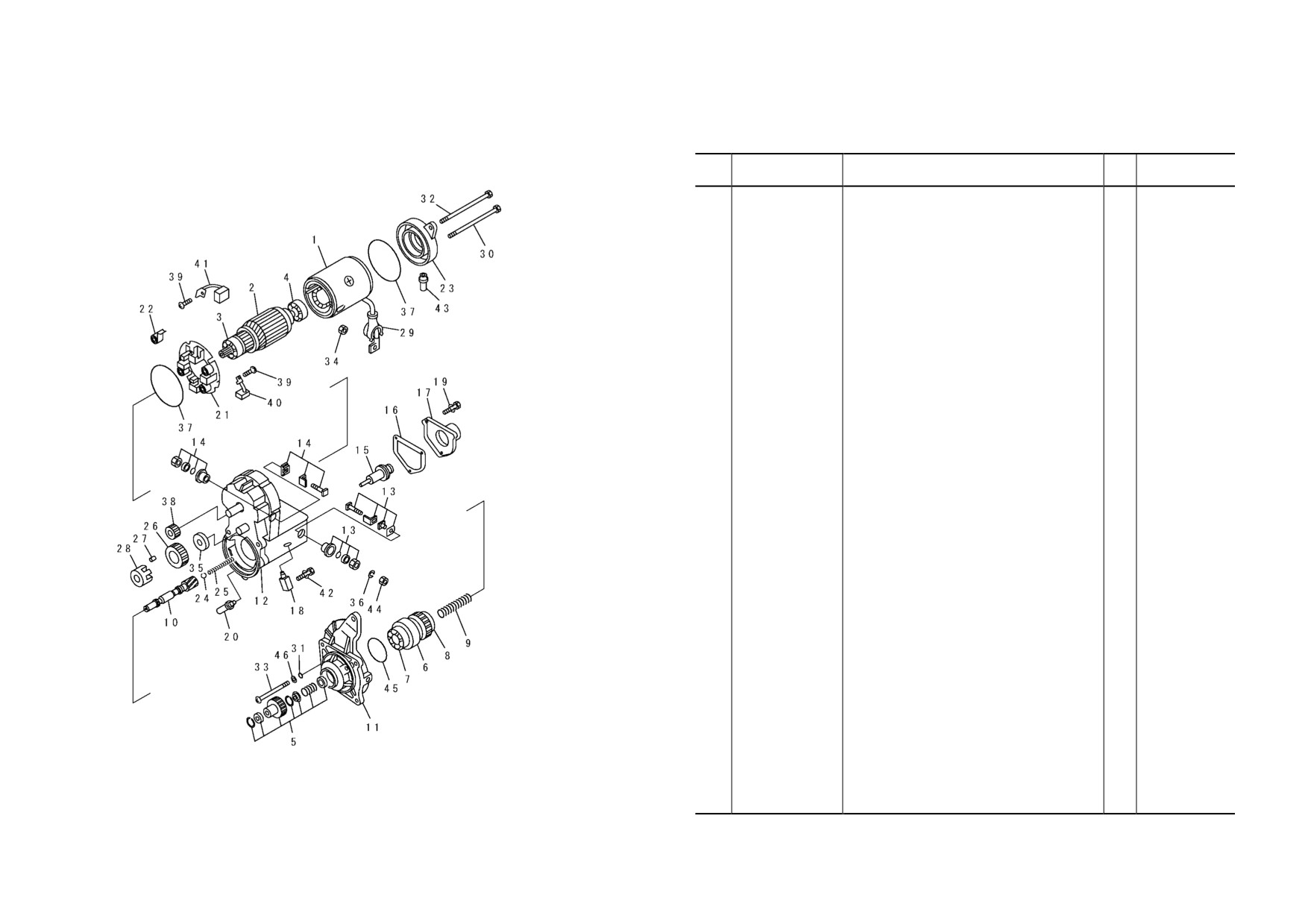

FIG. A621P-02A0 STARTING MOTOR (4.5KW) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
600-863-4110
STARTING MOTOR ASS’Y, (4.5KW)
1
26274903-
THE DENSO PART NUMBER IS THAT ND IS REMOVED
FROM KOMATSU PART NUMBER LISTED BELOW
1
ND028100-2882
. YOKE ASS’Y
1
26274903-
2
ND028062-0130
.. CAP
1
26274903-
3
ND028099-3570
.. STARTER KIT
2
26274903-
4
ND028200-1590
. ARMATURE ASS’Y
1
26274903-
5
ND949100-1930
.. BEARING, BALL
1
26274903-
6
ND949100-1750
.. BEARING, BALL
1
26274903-
ND028300-6551
. CLUTCH ASS’Y
1
26274903-
7
ND028099-3270
.. STARTER KIT
1
26274903-
8
ND028300-6751
.. CLUTCH ASS’Y
1
26274903-
9
ND949100-4500
... STARING, BALL, FRONT
1
26274903-
10
ND949100-1920
... BEARING, BALL, REAR
1
26274903-
11
ND949170-4040
.. SPRING
1
26274903-
12
ND028381-0071
.. SHAFT
1
26274903-
13
ND228401-0633
. HOUSING ASS’Y
1
26274903-
14
ND153400-2410
. MAGNETIC SWITCHA
1
26274903-
15
ND028099-2790
.. STARTER KIT
1
26274903-
16
ND028099-3160
.. STARTER KIT
1
26274903-
17
ND053660-7170
.. PLUNGER
1
26274903-
18
ND053404-0240
.. GASKET
1
26274903-
19
ND053505-0290
.. COVER
1
26274903-
20
ND053480-0110
.. BOLT
1
26274903-
21
ND028065-0250
.. BUSHING
1
26274903-
22
ND028510-5390
.BRUSH HOLDER ASS’Y
1
26274903-
23
ND949173-0571
.. SPRING
4
26274903-
24
ND028501-8091
. FRAME
1
26274903-
25
ND128961-0010
. BALL
1
26274903-
26
ND949170-4070
. SPRING
1
26274903-
27
ND028371-1500
. PINION
1
26274903-
PF3S156
28
ND028306-0070
. ROLLER
5
26274903-
29
ND028063-0030
. RETAINER
1
26274903-
30
ND028327-0171
. RETAINER
1
26274903-
AA- 146
SAA6D102E-2
SAA6D102E-2
AA- 147
FIG NO. ：A621P-02A0
FIG. A621P-02A0 STARTING MOTOR (4.5KW) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
ND128950-0520
. BOLT
2
26274903-
32
ND949020-0600
. WASHER, FELT
1
26274903-
33
ND90801-10050
. O-RING
3
26274903-
34
ND949007-6530
. SCREW
2
26274903-
35
ND90170-10061
. NUT
1
26274903-
36
ND949056-4480
. NUT
1
26274903-
37
ND90258-10001
. WASHER
1
26274903-
38
ND949006-4720
. SCREW
3
26274903-
39
ND90200-06241
. WASHER
3
26274903-
40
ND028062-5790
. COVER
1
26274903-
41
ND949007-6850
. SCREW
1
26274903-
42
ND028901-5190
. SEAL
1
26274903-
AA- 148
SAA6D102E-2
SAA6D102E-2
AA- 149
FIG NO. ：A621P-02A1

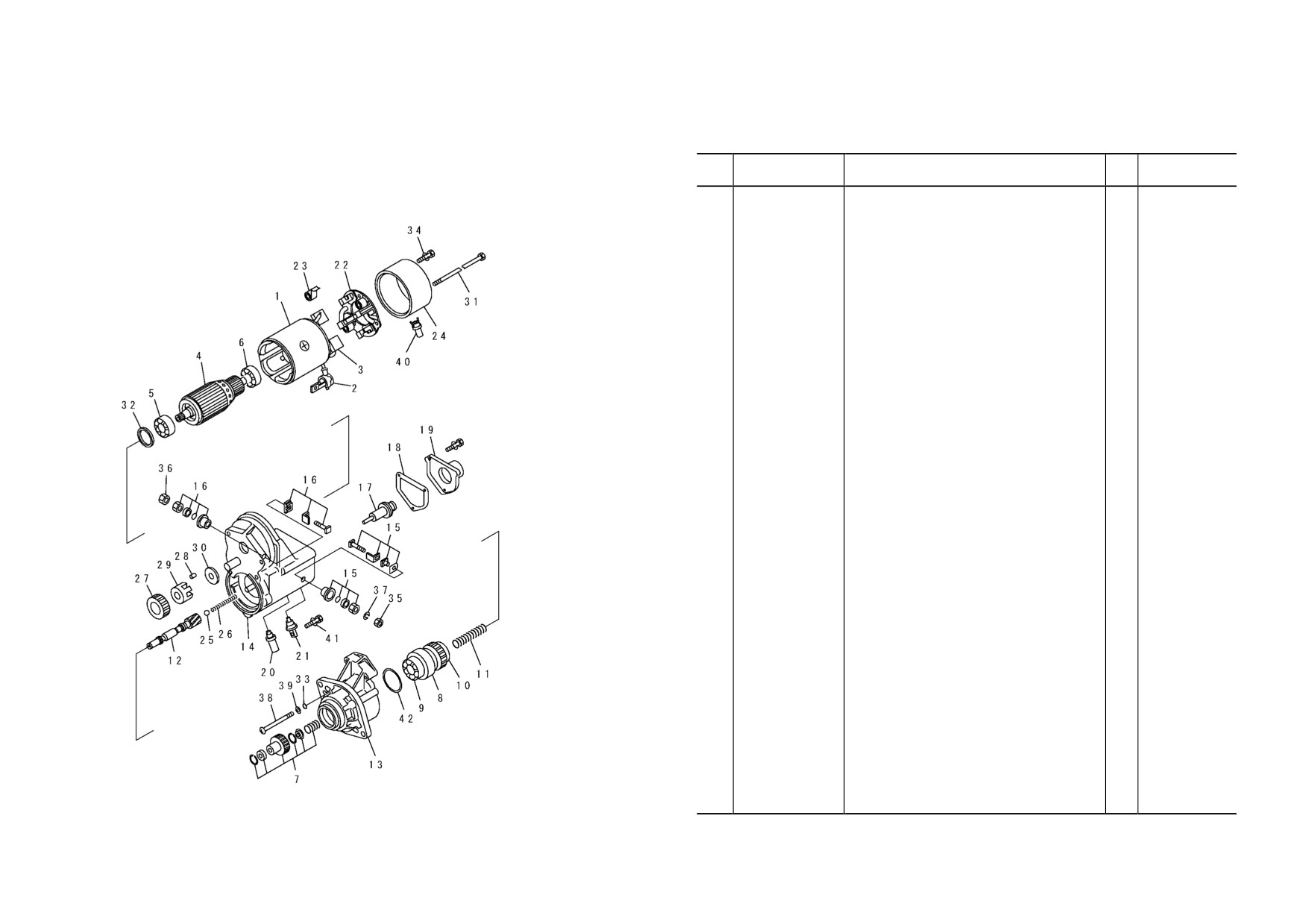

FIG. A621P-02A1 STARTING MOTOR (5.5KW) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
600-863-5110
STARTING MOTOR ASS’Y, (5.5KW)
1
26274903-
THE DENSO PART NUMBER IS THAT ND IS REMOVED
FROM KOMATSU PART NUMBER LISTED BELOW
1
ND028100-5410
. YOKE ASS’Y
1
26274903-
2
ND028200-5250
. RMATURE ASS’Y
1
26274903-
3
ND949100-3161
.. BEARING, BALL
1
26274903-
ND949100-5290
.. BEARING, BALL
1
26274903-
4
ND949100-3540
.. BEARING, BALL
1
26274903-
ND028300-6551
. CLUTCH ASS’Y
1
26274903-
5
ND028099-3270
.. STARTER KIT
1
26274903-
6
ND028300-6751
.. CLUTCH ASS’Y
1
26274903-
7
ND949100-4500
... BEARING, BALL FRONT
1
26274903-
8
ND949100-1920
... BEARING, BALL, REAR
1
26274903-
9
ND949170-4040
.. SPRING
1
26274903-
10
ND028381-0071
.. SHAFT
1
26274903-
11
ND128401-5621
. HOUSING
1
26274903-
12
ND153400-2600
. SWITCH ASS’Y, MAGNETIC
1
26274903-
13
ND028099-5090
.. KIT, STARTER
1
26274903-
14
ND028099-5100
.. KIT, STARTER
1
26274903-
15
ND053660-0443
.. PLUNGER
1
26274903-
16
ND053404-0240
.. GASKET
1
26274903-
17
ND053505-0290
.. COVER, SOLENOID
1
26274903-
18
ND053480-7560
.. BOLT ASS’Y, TERMINAL
1
26274903-
19
ND949047-4440
.. BOLT
3
26274903-
20
ND028065-0250
.. BUSHING, DRAIN
1
26274903-
21
ND028510-0880
. HOLDER ASS’Y, BRUSH
1
26274903-
22
ND028520-0011
.. SPRING, BRUSH
4
26274903-
23
ND028501-7711
. FRAME
1
26274903-
24
ND949120-0240
. BALL, STEEL
1
26274903-
25
ND949170-4070
. SPRING
1
26274903-
26
ND028371-3210
. PINION, STARTER
1
26274903-
27
ND028306-0070
. ROLLER, CLUTCH
5
26274903-
PF3S157
28
ND028063-0030
. RETAINER
1
26274903-
29
ND028062-0130
. CAP
1
26274903-
30
ND949042-3680
. BOLT
1
26274903-
AA- 150
SAA6D102E-2
SAA6D102E-2
AA- 151
FIG NO. ：A621P-02A1
FIG. A621P-02A1 STARTING MOTOR (5.5KW) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
ND90801-10050
. O-RING
3
26274903-
32
ND949042-3690
. BOLT
1
26274903-
33
ND949006-4720
. SCREW
3
26274903-
34
ND949056-4480
. NUT
1
26274903-
35
ND028327-0171
. RETAINER, SNAP
1
26274903-
36
ND90258-10001
. WASHER, SPRING
1
26274903-
37
ND028901-0361
. SEAL
2
26274903-
38
ND028371-3200
. PINION
1
26274903-
39
ND949007-6530
. SCREW
4
26274903-
40
ND028530-1090
. BRUSH ASS’Y
2
26274903-
41
ND028530-1100
. BRUSH ASS’Y
2
26274903-
42
ND949007-6850
. SCREW
1
26274903-
43
ND028062-5790
. COVER
1
26274903-
44
ND90170-10061
. NUT
1
26274903-
45
ND90801-20470
. O-RING
1
26274903-
46
ND90200-06241
. WASHER
3
26274903-
AA- 152
SAA6D102E-2
SAA6D102E-2
AA- 153
FIG NO. ：A621S-01A0

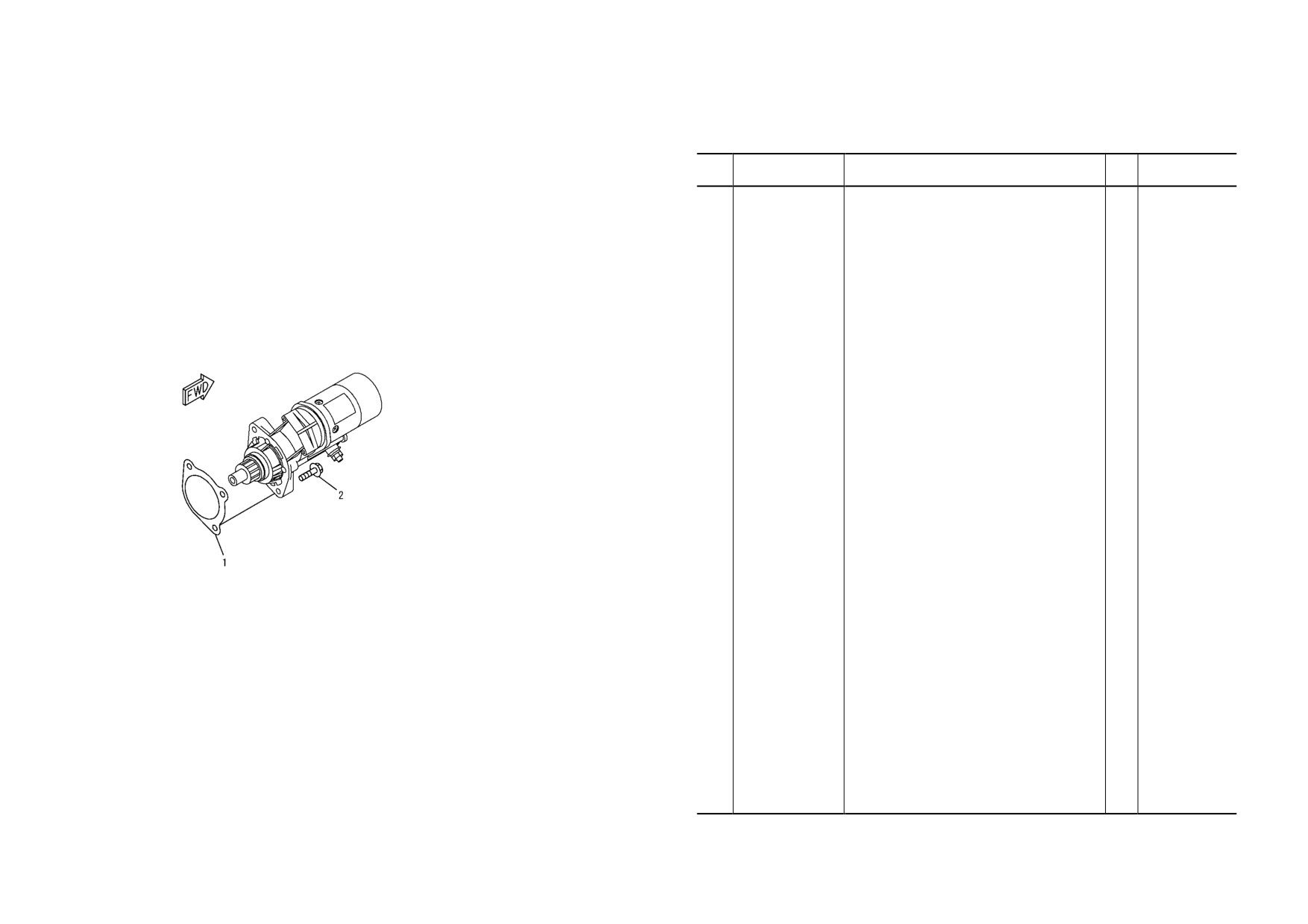

FIG. A621S-01A0 STARTING MOTOR MOUNTING (4.5KW)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-81-6811
GASKET
1
26274903-
2
01435-01035
BOLT
2
26274903-
Starting Motor
PMD1104
AA- 154
SAA6D102E-2
SAA6D102E-2
AA- 155
FIG NO. ：A621S-01A1

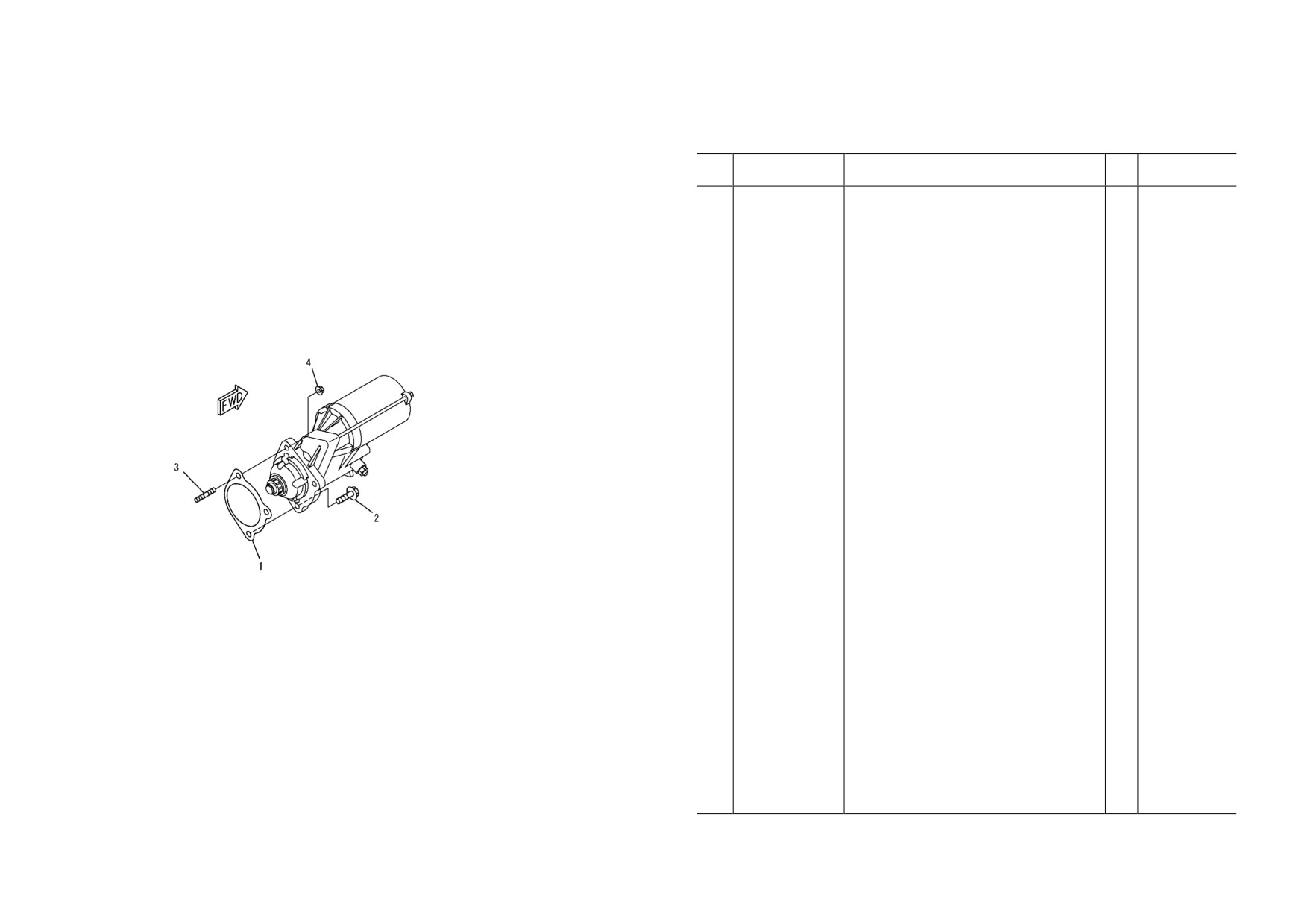

FIG. A621S-01A1 STARTING MOTOR MOUNTING (5.5KW)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-81-6811
GASKET
1
26274903-
2
01435-01035
BOLT
2
26274903-
3
6735-81-6170
STUD
1
26274903-
4
01584-01008
NUT
1
26274903-
Starting Motor
PJD4445
AA-156
SAA6D102E-2
SAA6D102E-2
AA- 157
FIG NO. ：A8110-01A0
FIG. A8110-01A0 REPAIR PARTS ((1/4) (CYLINDER HEAD)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6736-19-1310
GUIDE, 60.50MM
6
26274903-
2
6736-19-1410
GUIDE, 51.75MM
6
26274903-
3
6736-18-1310
GUIDE
12
26274903-
REPAIR PARTS
See subsequent pages for details.
OVERSIZE PARTS
4
6735-11-1870
GASKET, 0.25MM
1
26274903-
6735-11-1840
GASKET, 0.50MM
1
26274903-
PMD0861
AA- 158
SAA6D102E-2
SAA6D102E-2
AA- 159
FIG NO. ：A8110-02A0
FIG. A8110-02A0 REPAIR PARTS (2/4) (CYLINDER BLOCK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
OVERSIZE PARTS
1
6736-29-1410
BUSHING, CAM, NO.1
1
26274903-
2
6736-29-1420
BUSHING, CAM, NO.2,3,4,5,6,7
1
26274903-
REPAIR PARTS
See subsequent pages for details.
STANDARD
3
6736-29-2110
LINER, SALVAGE
6
26274903-
PMD0861
AA- 160
SAA6D102E-2
SAA6D102E-2
AA- 161
