Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 7

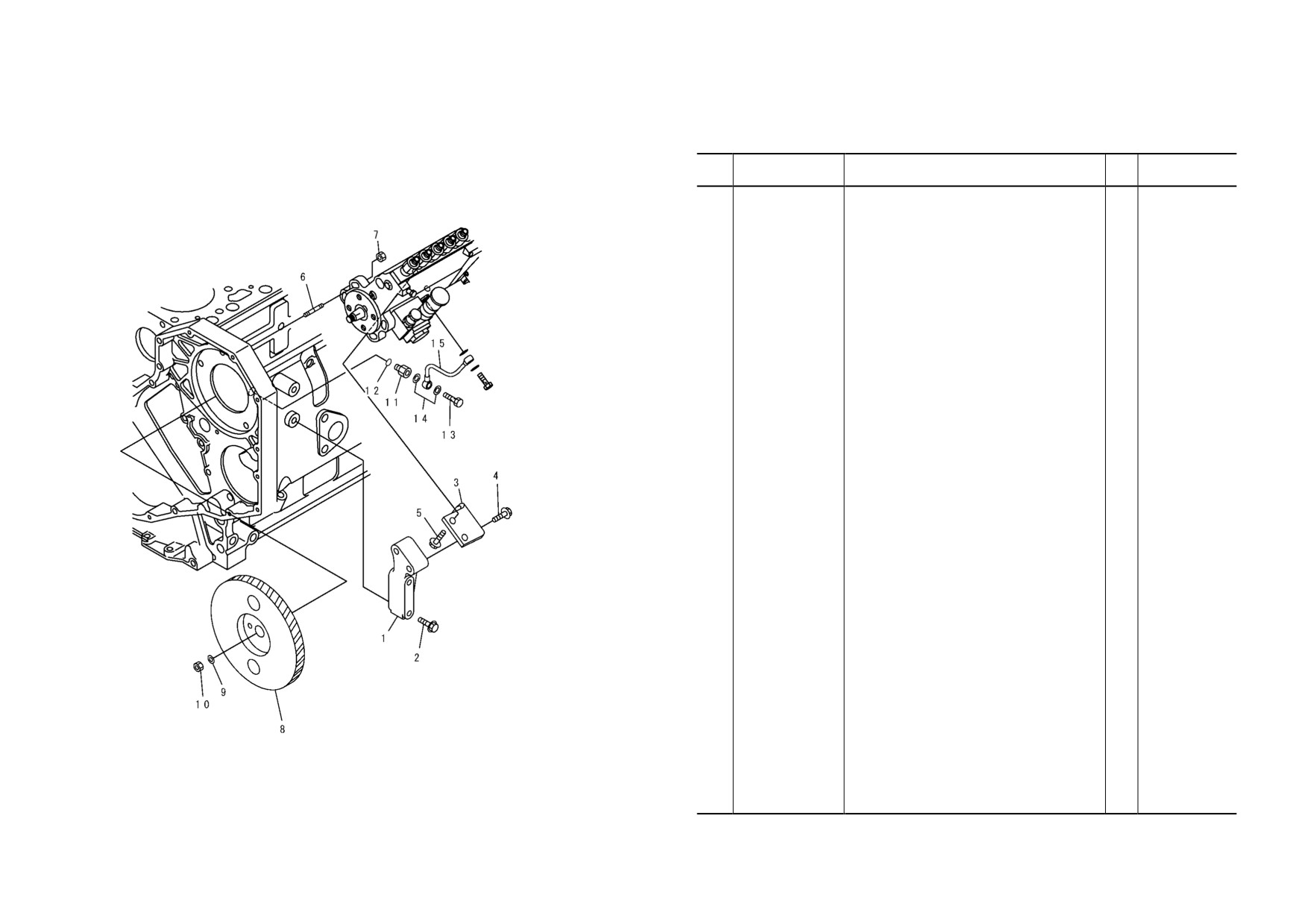

FIG NO. ：A408P-01A0
FIG. A408P-01A0 FUEL INJECTION PUMP MOUNTING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-71-3620
BRACKET
1
26274903-
Fuel Injection Pump
2
6732-61-3110
BOLT
2
26274903-
3
6738-71-3610
BRACKET
1
26274903-
4
6735-71-3220
BOLT
2
26274903-
5
6734-71-5610
BOLT
2
26274903-
6
6738-71-3120
STUD
4
26287632-
7
6736-81-6170
NUT
4
26274903-
8
6738-71-3100
GEAR ASS’Y
1
26274903-
9
6130-32-1361
WASHER
1
26274903-
10
01582-01411
NUT
1
26274903-
11
6732-71-5450
NIPPLE
1
26274903-
12
6215-81-9710
O-RING
1
26274903-
13
07206-30710
BOLT, JOINT
1
26274903-
14
07005-01012
GASKET
2
26274903-
15
6735-71-5411
TUBE, OIL
1
26274903-
Gear Case
PJ6B409
AA- 102
SAA6D102E-2
SAA6D102E-2
AA- 103

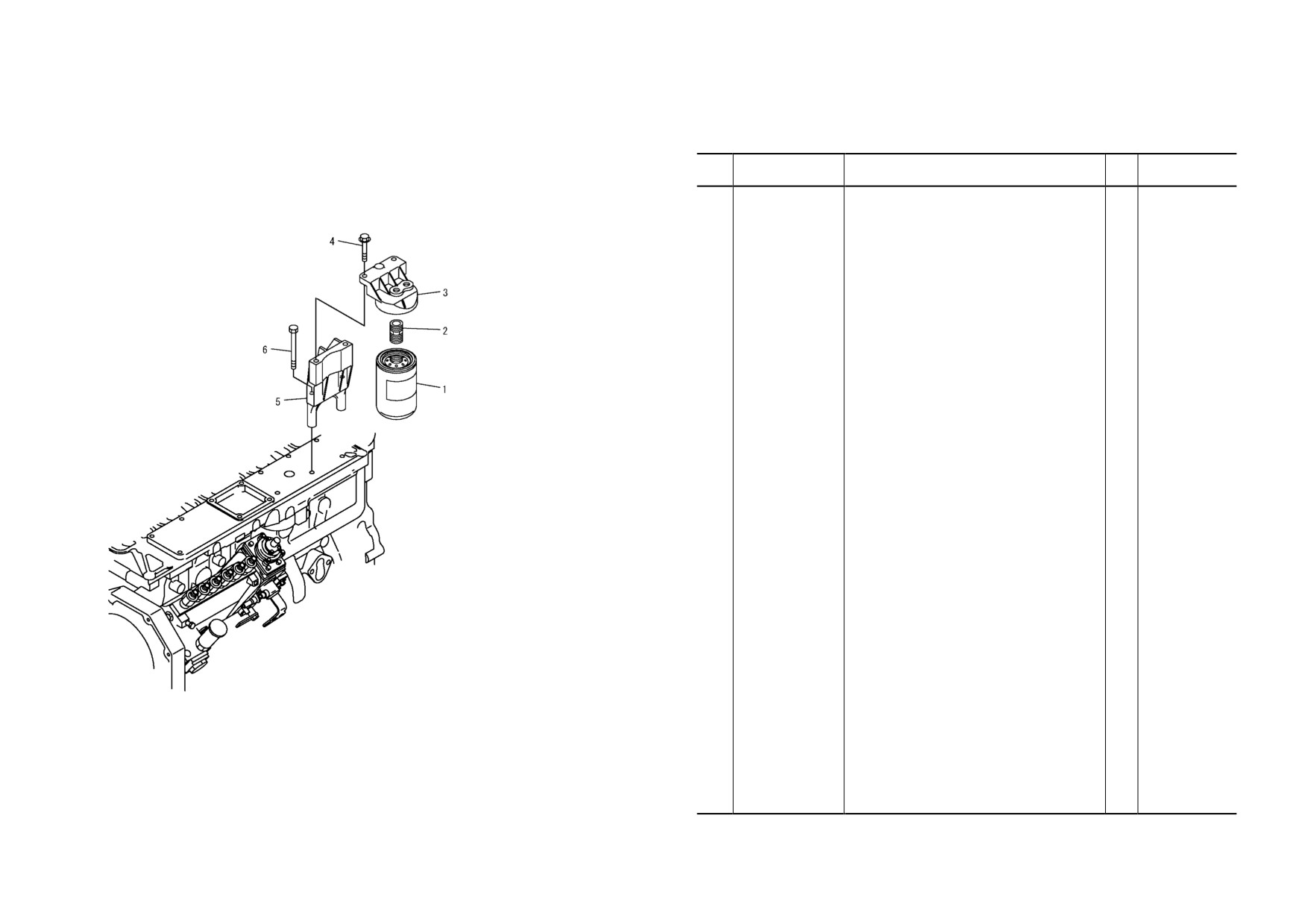

FIG NO. ：A411P-01A1
FIG. A411P-01A1 FUEL FILTER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-71-6111
CARTRIDGE, FUEL
1
26282900-
2
6732-71-6650
ADAPTER
1
26282900-
3
6732-71-6220
HEAD
1
26282900-
4
6732-21-5160
BOLT
2
26282900-
5
6738-71-6720
BRACKET
1
26282900-
6
6742-01-4460
BOLT
3
26282900-
PJ6B406
AA- 104
SAA6D102E-2
SAA6D102E-2
AA- 105

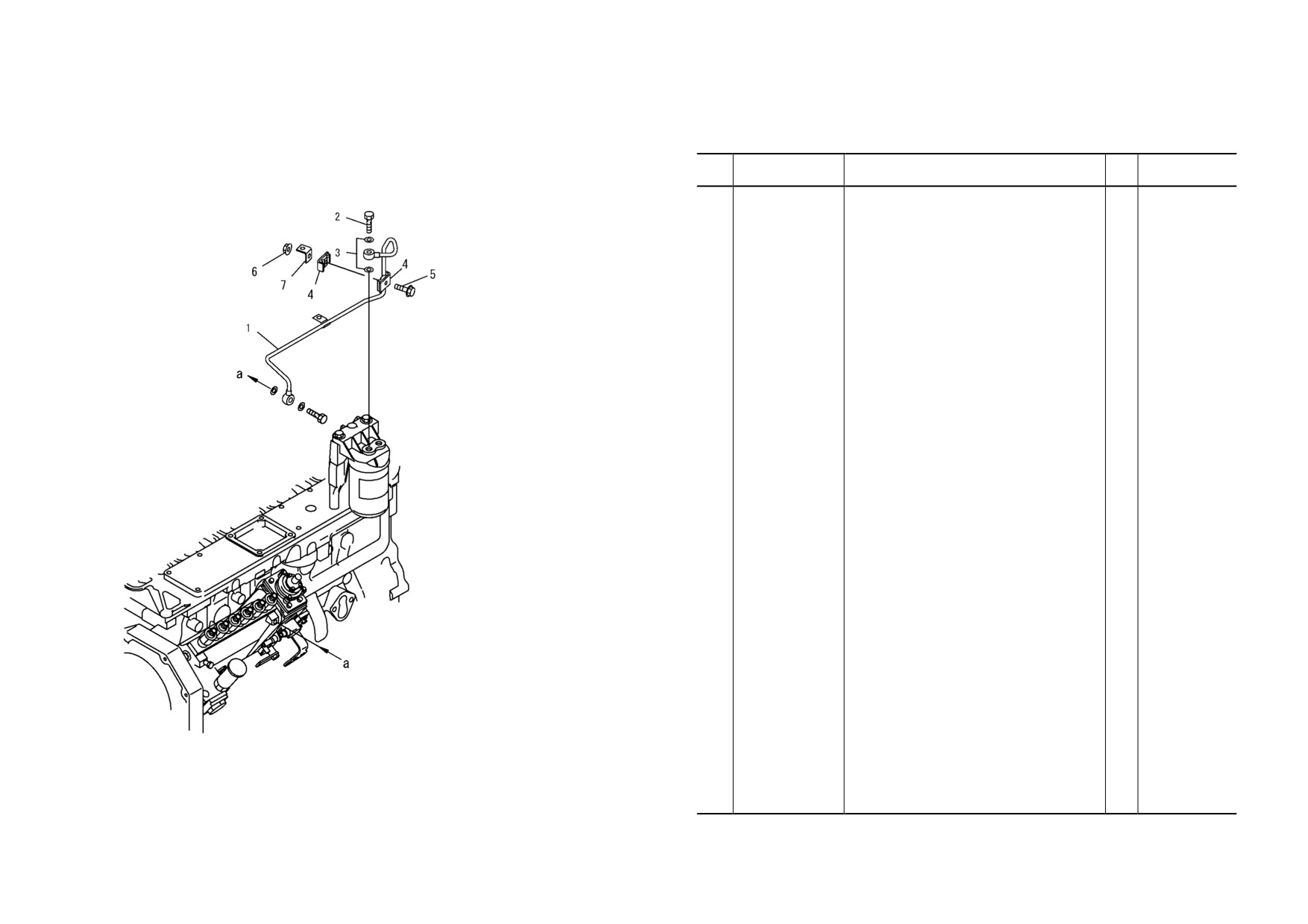

FIG NO. ：A411R-01A1
FIG. A411R-01A1 FUEL FILTER PIPING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-71-5640
TUBE
1
26282900-
2
6732-71-6510
BOLT, JOINT
1
26282900-
3
07005-01212
GASKET
2
26282900-
4
6162-75-5820
CLAMP
2
26282900-
5
6742-01-2630
BOLT
1
26282900-
6
6742-01-2660
NUT
1
26282900-
7
6211-21-5490
BRACKET
1
26282900-
PJ6B407
AA-106
SAA6D102E-2
SAA6D102E-2
AA- 107

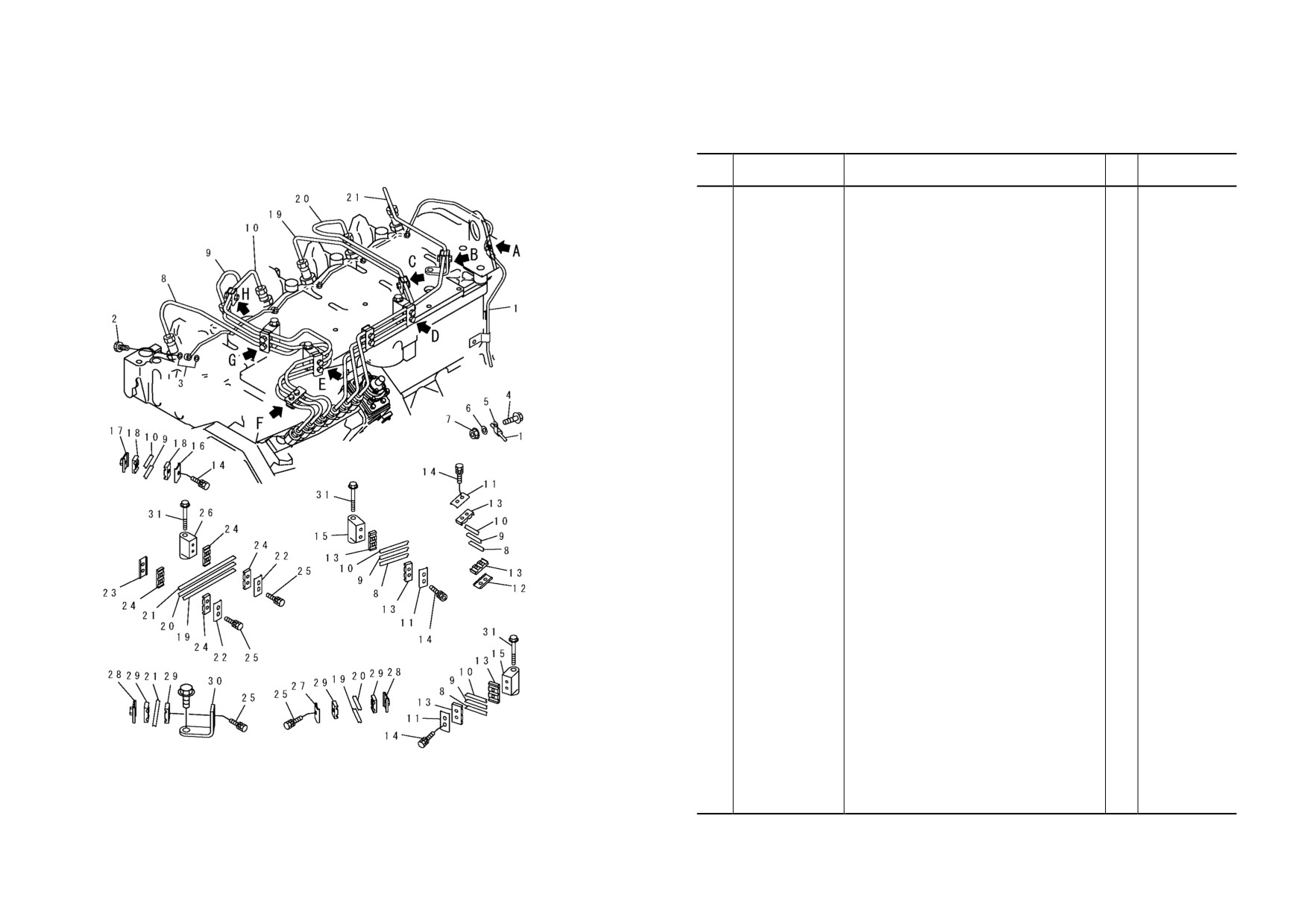

FIG NO. ：A411S-01A0
FIG. A411S-01A0 FUEL INJECTION PIPING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-71-5520
MANIFOLD
1
26274903-
2
6732-71-6240
BOLT, JOINT
6
26274903-
3
6732-71-6260
GASKET
12
26274903-
4
6732-21-5160
BOLT
1
26274903-
5
04434-50508
CLIP
1
26274903-
6
01643-30823
WASHER
1
26274903-
7
6732-71-3210
NUT
1
26274903-
8
6738-71-5110
TUBE, NO.1
1
26274903-
9
6738-71-5120
TUBE, NO.2
1
26274903-
10
6738-71-5130
TUBE, NO.3
1
26274903-
Cylinder Head
11
6734-71-5710
BRACKET
3
26274903-
12
6735-71-5830
BRACKET
1
26274903-
13
6734-71-5720
ISOLATOR
6
26274903-
Fuel Injection Pump
Detail A
14
6734-71-5520
BOLT
7
26274903-
15
6734-71-5741
BRACKET
2
26274903-
16
6735-71-5820
BRACKET
1
26274903-
Detail H
17
6735-71-5840
BRACE
1
26274903-
18
6735-71-5860
ISOLATOR
2
26274903-
19
6735-71-5643
TUBE, NO.4
1
26274903-
20
6735-71-5653
TUBE, NO.5
1
26274903-
21
6735-71-5663
TUBE, NO.6
1
26274903-
22
6734-71-5710
BRACKET
2
26274903-
Detail F
23
6735-71-5830
BRACKET
1
26274903-
Detail E
24
6734-71-5720
ISOLATOR
4
26274903-
Detail D
25
6734-71-5520
BOLT
6
26274903-
26
6734-71-5741
BRACKET
1
26274903-
27
6735-71-5820
BRACKET
1
26274903-
28
6735-71-5840
BRACE
2
26274903-
Detail G
29
6735-71-5860
ISOLATOR
4
26274903-
Detail B
Detail C
30
6732-71-5760
BRACKET
1
26274903-
PJ6B411
31
6734-11-5210
BOLT
3
26274903-
AA- 108
SAA6D102E-2
SAA6D102E-2
AA- 109

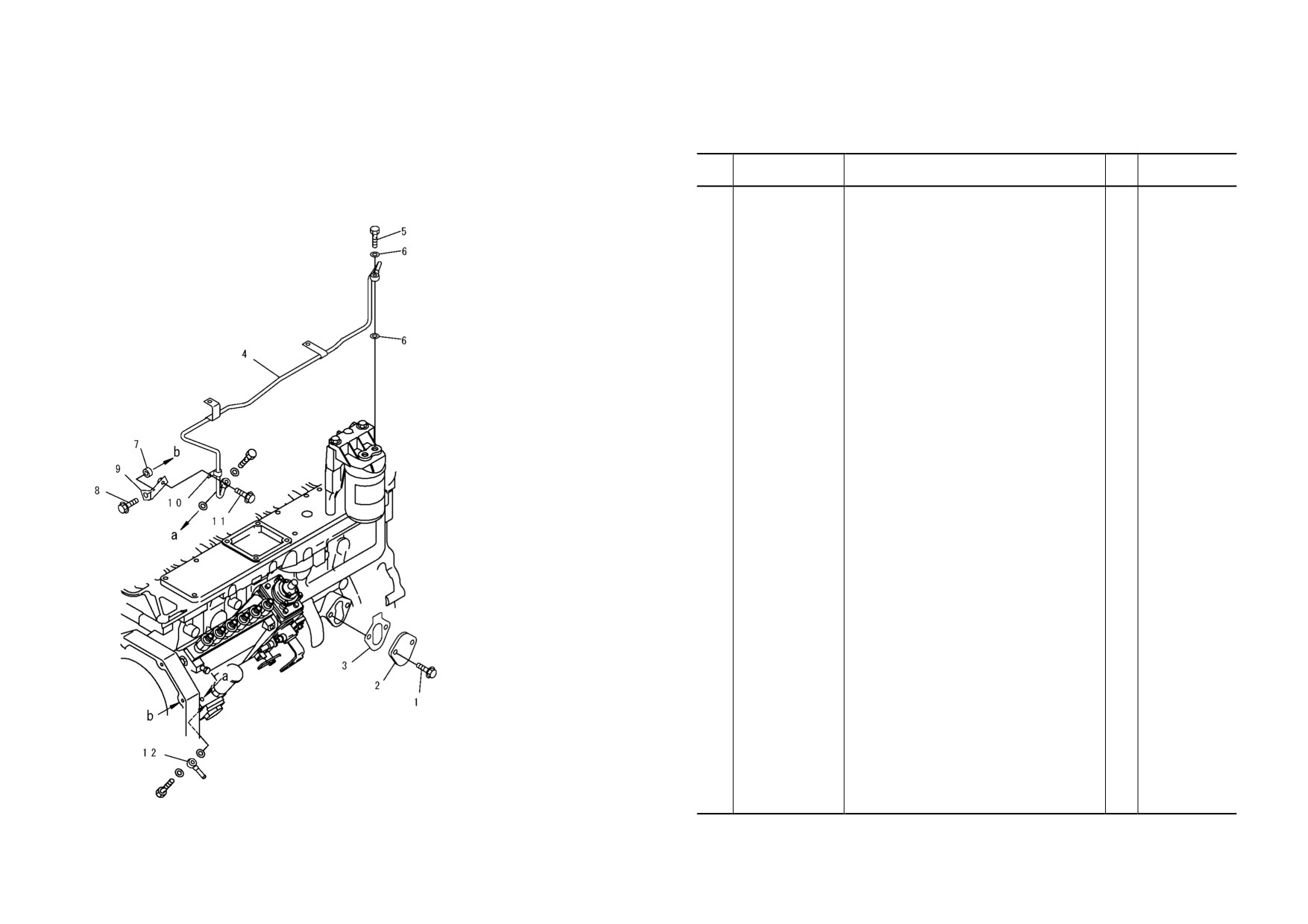

FIG NO. ：A417P-01A1
FIG. A417P-01A1 CYLINDER BLOCK BLIND COVER AND FUEL FILTER PIPING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-71-3220
BOLT
2
26282900-
2
6736-71-5811
PLATE
1
26282900-
3
6735-61-6411
GASKET
1
26282900-
4
6738-71-5630
TUBE
1
26282900-
5
6732-71-6510
BOLT, JOINT
1
26282900-
6
07005-01212
GASKET
2
26282900-
7
6354-81-6310
SPACER
1
26282900-
8
6732-21-6630
BOLT
1
26282900-
9
6736-71-5530
BRACKET
1
26282900-
10
6736-71-5540
CLAMP
1
26282900-
11
6731-71-6270
SCREW
1
26282900-
12
6141-71-1710
JOINT
1
26282900-
PJ6C313
AA- 110
SAA6D102E-2
SAA6D102E-2
AA- 111

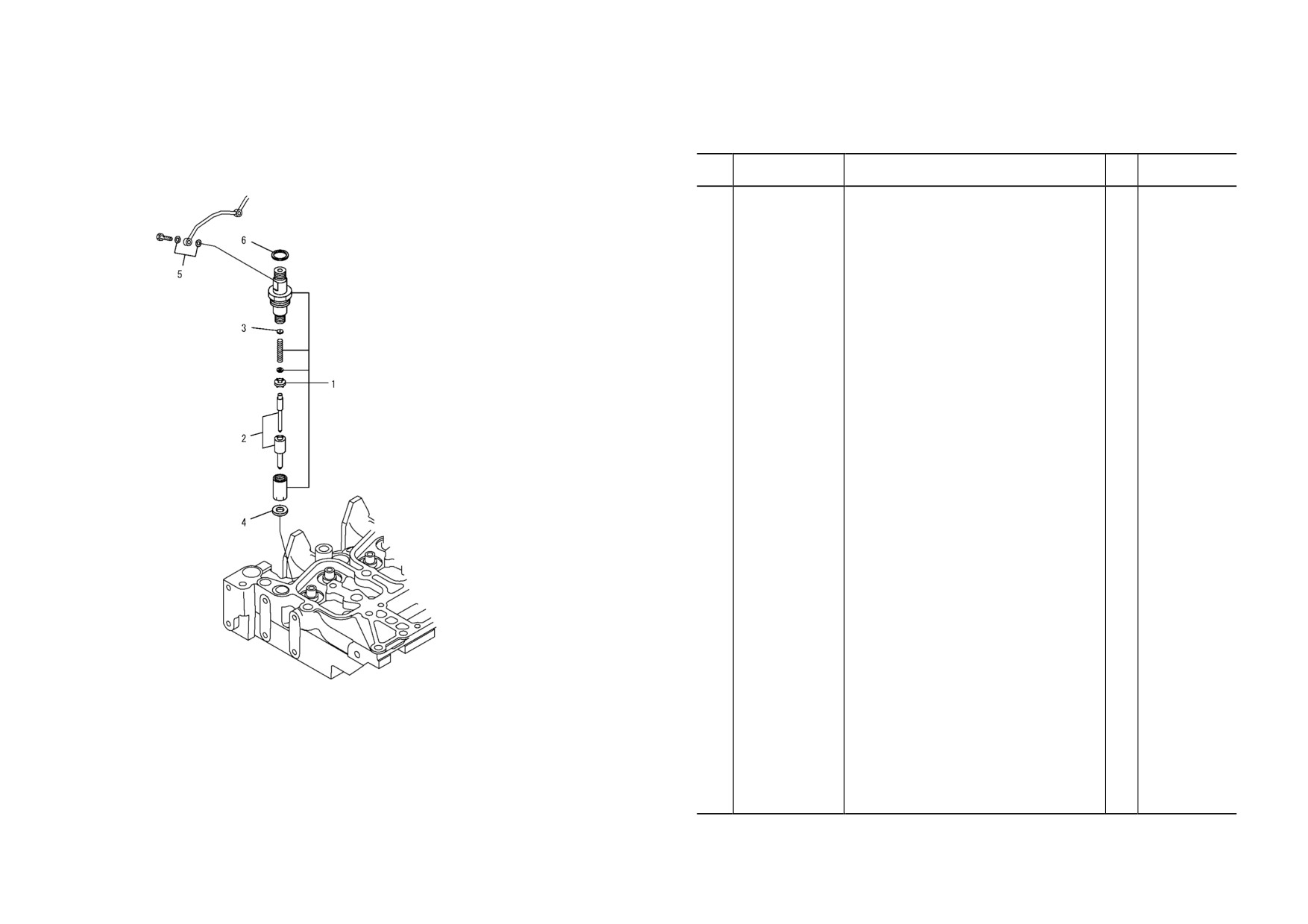

FIG NO. ：A4219-01A0
FIG. A4219-01A0 INJECTION NOZZLE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6738-11-3090
KIT, NOZZLE HOLDER
6
26274903-
1
6738-11-3100
. NOZZLE HOLDER ASS’Y
1
26274903-
2
6738-11-3120
.. NOZZLE
1
26274903-
3
6734-11-3610
.. SHIM, 1.00MM
1
26274903-
6734-11-3620
.. SHIM, 1.04MM
1
26274903-
6734-11-3630
.. SHIM, 1.08MM
1
26274903-
6734-11-3640
.. SHIM, 1.10MM
1
26274903-
6734-11-3650
.. SHIM, 1.14MM
1
26274903-
6734-11-3660
.. SHIM, 1.18MM
1
26274903-
6734-11-3670
.. SHIM, 1.20MM
1
26274903-
6734-11-3680
.. SHIM, 1.24MM
1
26274903-
6734-11-3690
.. SHIM, 1.28MM
1
26274903-
6734-11-3710
.. SHIM, 1.30MM
1
26274903-
6734-11-3720
.. SHIM, 1.34MM
1
26274903-
6734-11-3730
.. SHIM, 1.38MM
1
26274903-
6734-11-3740
.. SHIM, 1.40MM
1
26274903-
6734-11-3750
.. SHIM, 1.44MM
1
26274903-
6734-11-3760
.. SHIM, 1.48MM
1
26274903-
6734-11-3770
.. SHIM, 1.50MM
1
26274903-
6734-11-3780
.. SHIM, 1.54MM
1
26274903-
6734-11-3790
.. SHIM, 1.58MM
1
26274903-
6734-11-3810
.. SHIM, 1.60MM
1
26274903-
6734-11-3820
.. SHIM, 1.64MM
1
26274903-
6734-11-3830
.. SHIM, 1.68MM
1
26274903-
6734-11-3840
.. SHIM, 1.70MM
1
26274903-
6734-11-3850
.. SHIM, 1.74MM
1
26274903-
6734-11-3860
.. SHIM, 1.78MM
1
26274903-
6734-11-3870
.. SHIM, 1.80MM
1
26274903-
6734-11-3880
.. SHIM, 1.84MM
1
26274903-
6734-11-3890
.. SHIM, 1.88MM
1
26274903-
Cylinder Head
6734-11-3910
.. SHIM, 1.90MM
1
26274903-
6734-11-3920
.. SHIM, 1.94MM
1
26274903-
6734-11-3930
.. SHIM, 1.98MM
1
26274903-
PJD4922
4
6736-11-3430
.. GASKET
1
26274903-
5
6732-71-6260
. GASKET
2
26274903-
6
6732-11-3850
. SEAL
1
26274903-
AA- 112
SAA6D102E-2
SAA6D102E-2
AA- 113
FIG NO. ：A423V-01A0
FIG. A423V-01A0 FUEL JOINT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6144-71-5750
JOINT
1
26274903-
Fuel Injection Pump
PFD2191
AA- 114
SAA6D102E-2
SAA6D102E-2
AA- 115
FIG NO. ：A501P-01A0

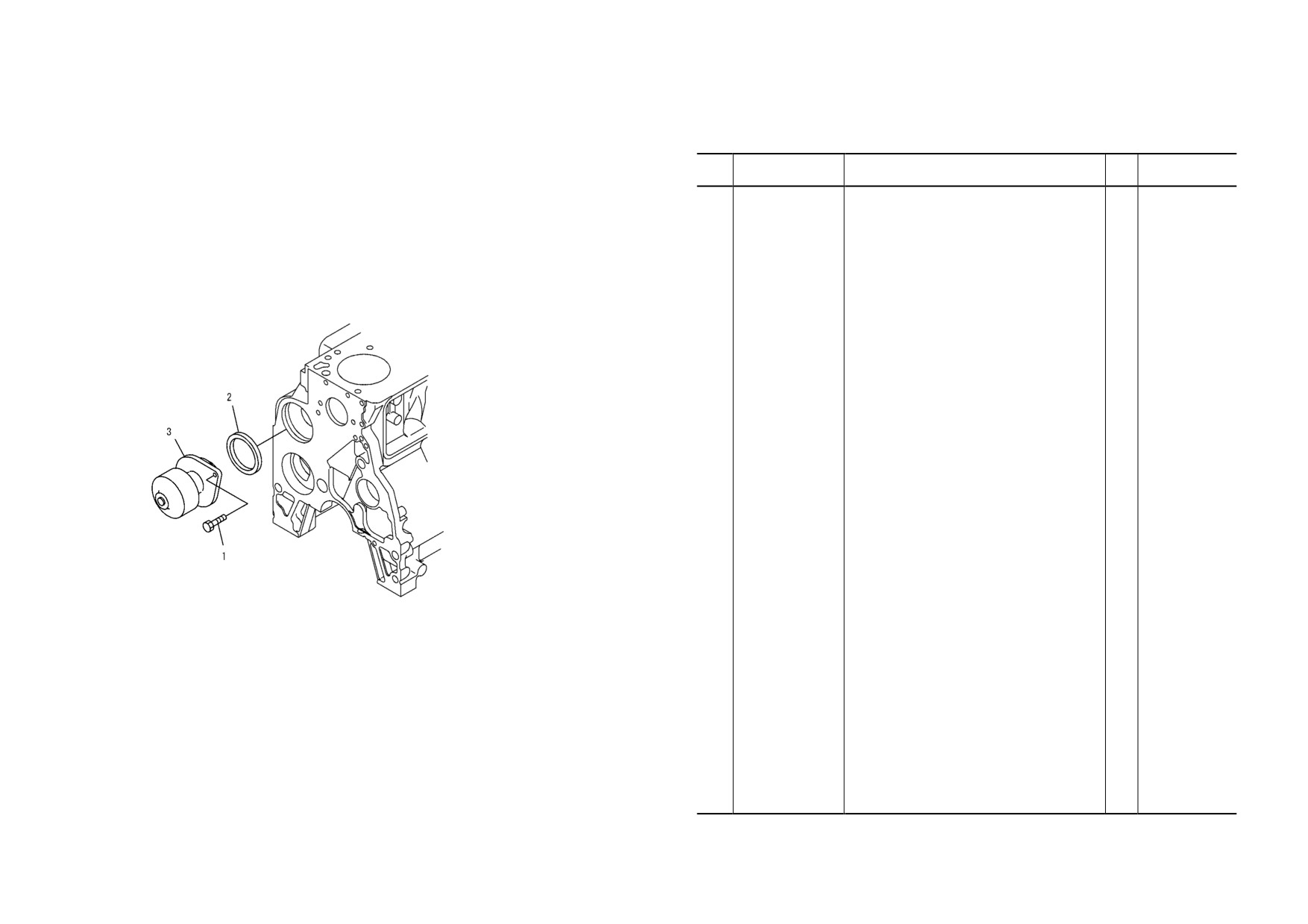

FIG. A501P-01A0 WATER PUMP
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-41-1260
BOLT
2
26274903-
2
6736-61-1520
SEAL
1
26274903-
3
6735-61-1502
WATER PUMP ASS’Y
1
26274903-
PMD0854
AA- 116
SAA6D102E-2
SAA6D102E-2
AA- 117

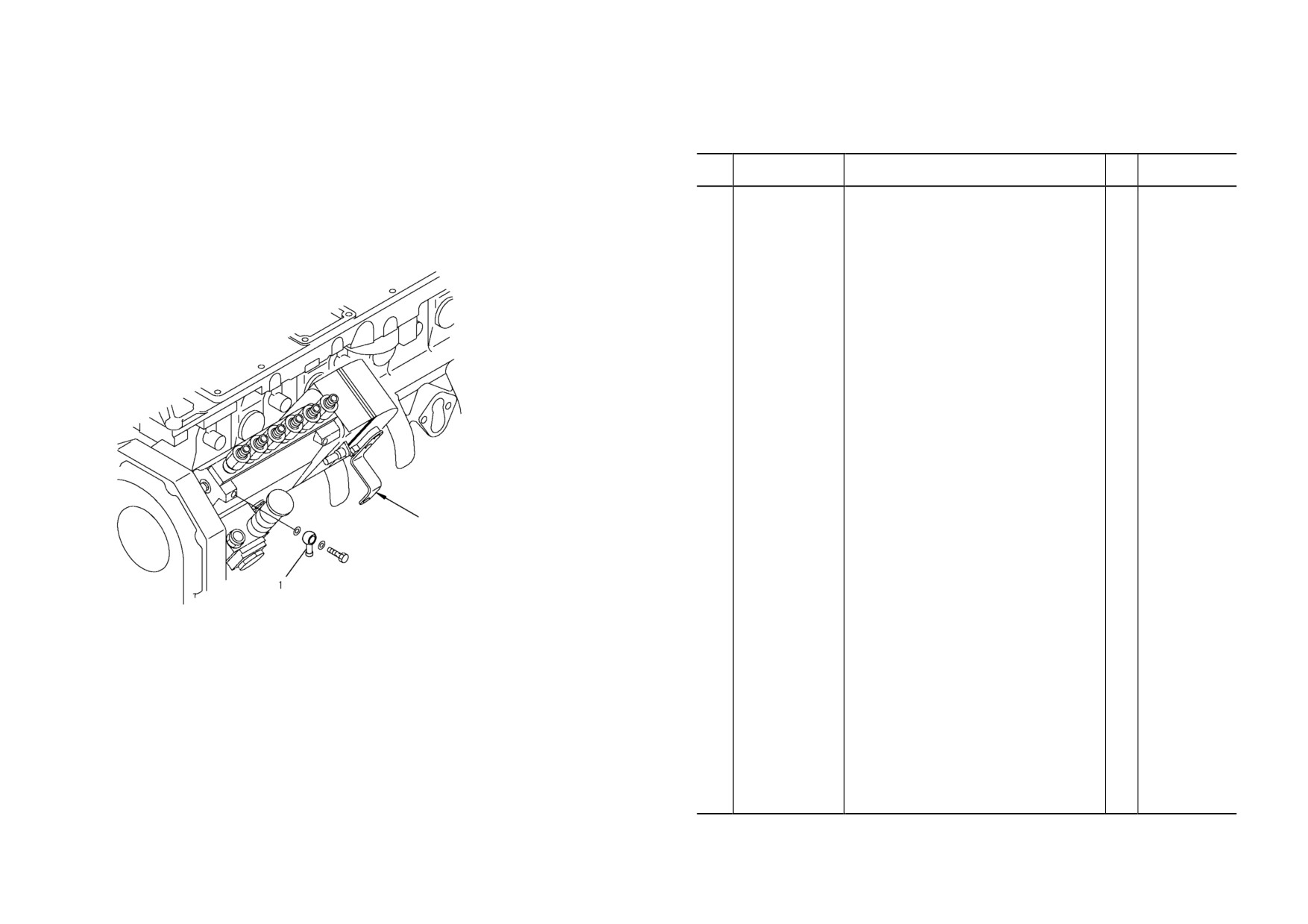

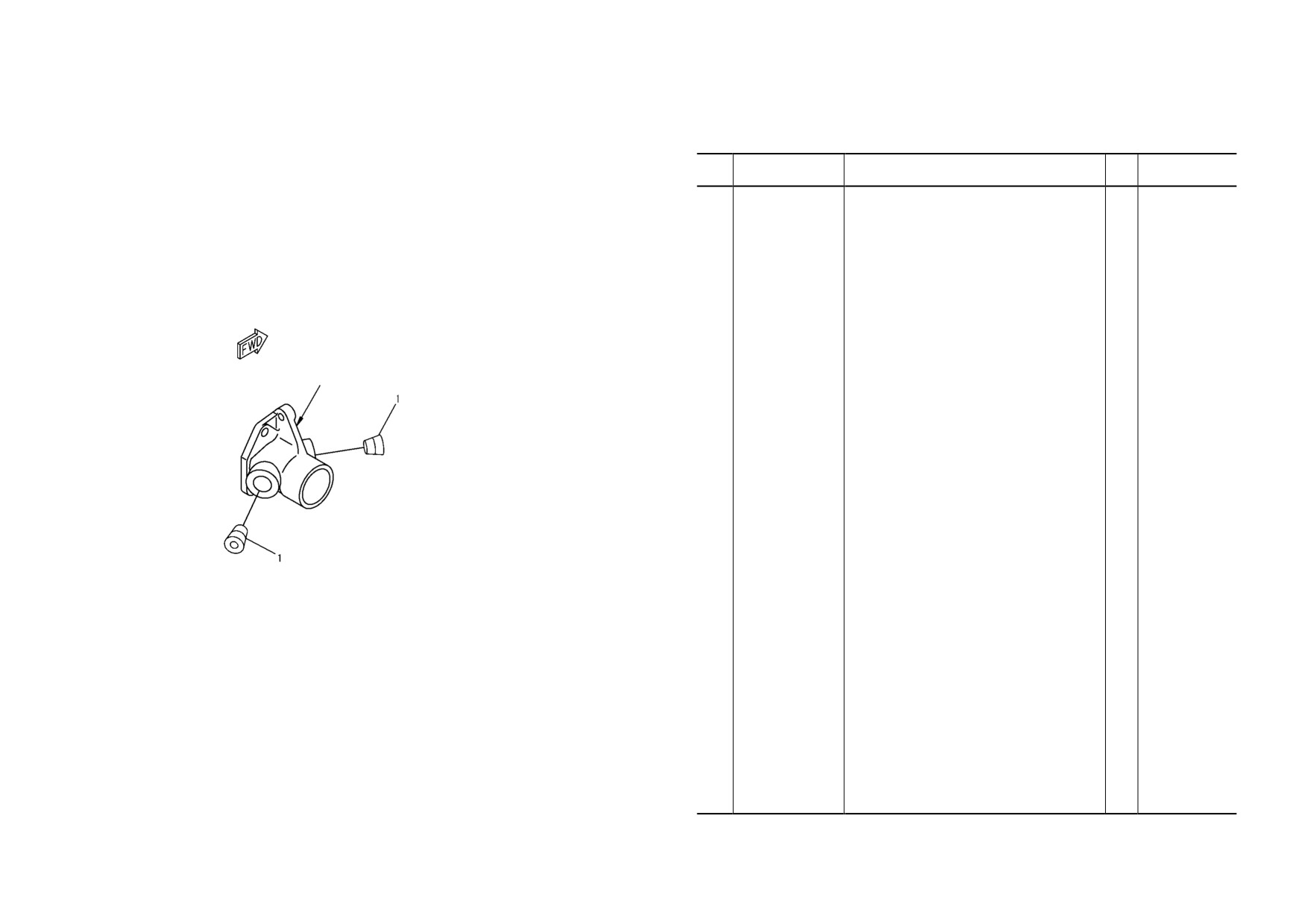

FIG NO. ：A501R-01A0

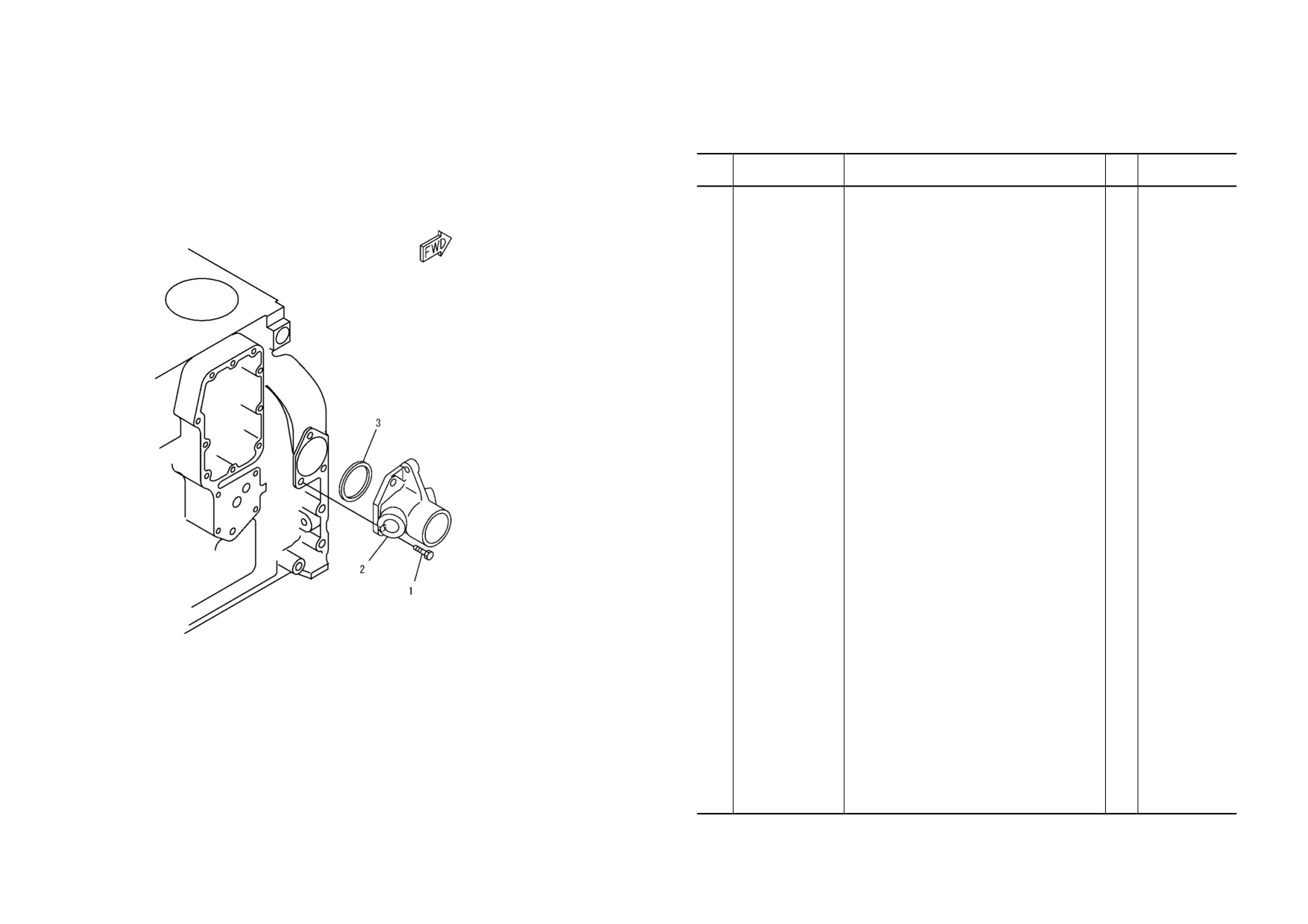

FIG. A501R-01A0 WATER CONNECTOR
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-71-3220
BOLT
3
26274903-
2
6734-61-6110
CONNECTOR
1
26274903-
3
6732-61-6130
SEAL
1
26274903-
PJ6B426
AA- 118
SAA6D102E-2
SAA6D102E-2
AA- 119
FIG NO. ：A501S-01A0
FIG. A501S-01A0 WATER CONNECTOR PLUG
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-11-1910
PLUG
2
26274903-
Water Connector
PJ6B427
AA- 120
SAA6D102E-2
SAA6D102E-2
AA- 121
