Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 8
FIG NO. ：A5019-01A0

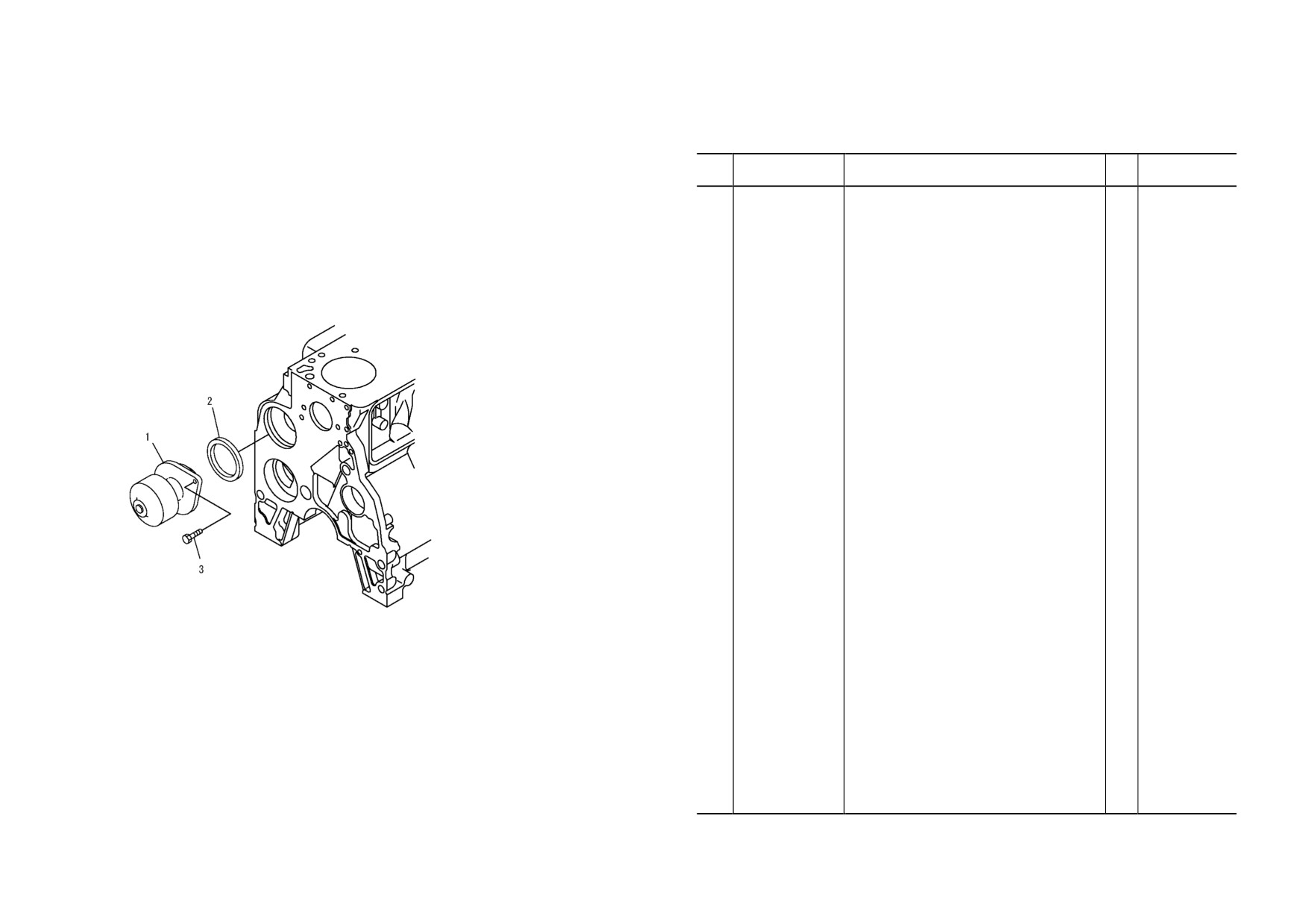

FIG. A5019-01A0 WATER PUMP (HARDENING PULLEY)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6736-61-1202
KIT, WATER PUMP
1
26274909-
1
6735-61-1102
. WATER PUMP ASS’Y
1
26274909-
2
6736-61-1520
. SEAL
1
26274903-
3
6732-41-1260
BOLT
2
26274903-
PJ6B451
AA- 122
SAA6D102E-2
SAA6D102E-2
AA- 123
FIG NO. ：A502P-01A2

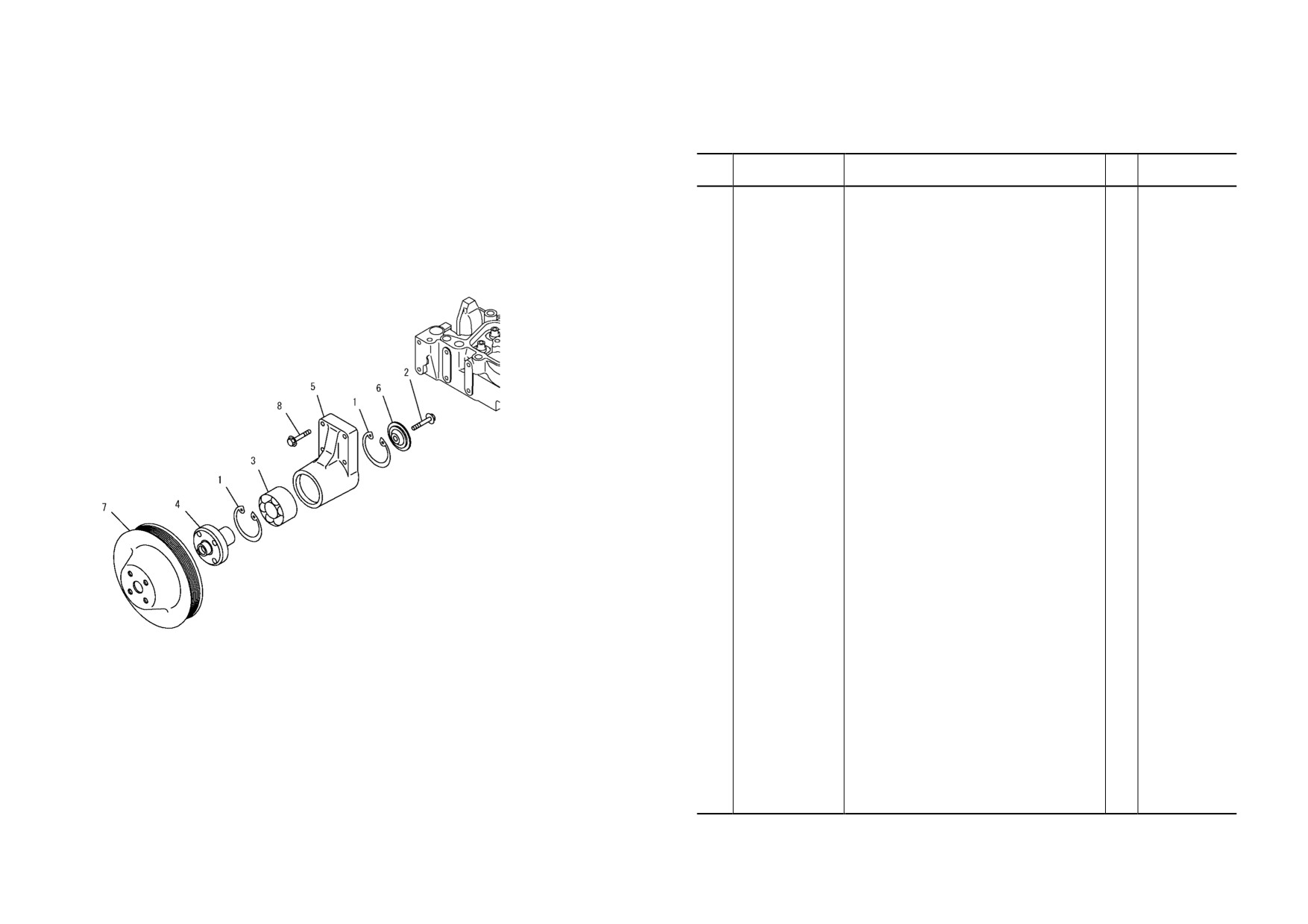

FIG. A502P-01A2 ALTERNATOR DRIVE PULLEY
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6732-61-3120
SUPPORT ASS’Y
1
26282900-
1
6732-61-3450
. RING, SNAP
2
26282900-
2
6732-61-3440
. BOLT
1
26282900-
3
6732-61-3420
. BEARING, BALL
1
26282900-
4
6732-61-3410
. HUB
1
26282900-
5
☆
. SUPPORT
1
26282900-
Cylinder Head
6
6732-61-3430
. RETAINER
1
26282900-
7
6738-61-3170
PULLEY
1
26282900-
8
6732-61-3170
BOLT
4
26282900-
PMD0855
AA- 124
SAA6D102E-2
SAA6D102E-2
AA- 125
FIG NO. ：A5030-01A0

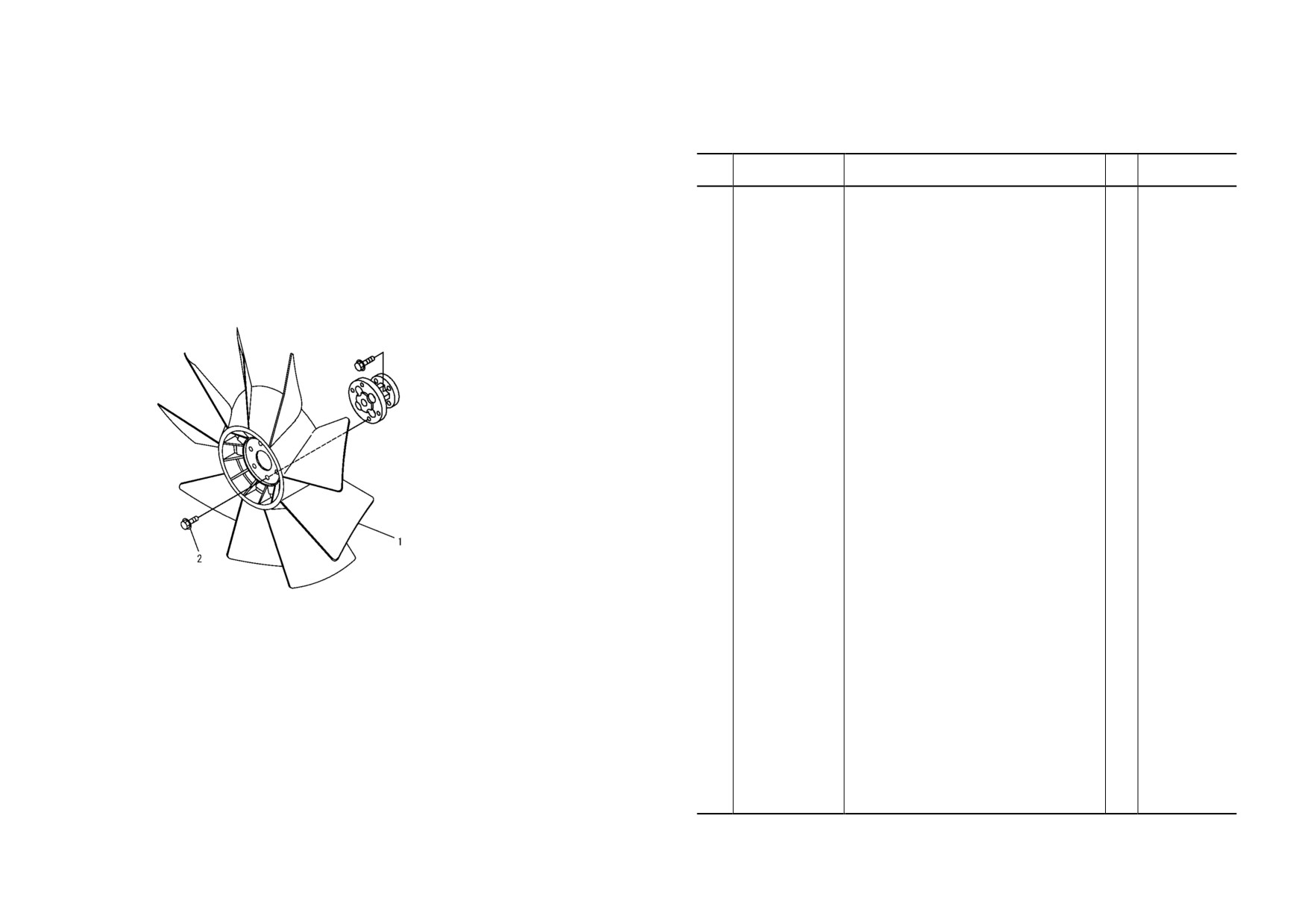

FIG. A5030-01A0 COOLING FAN
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
600-625-7620
FAN, COOLING
1
26274903-
2
01435-01020
BOLT
4
26274903-
PJ6B432
AA- 126
SAA6D102E-2
SAA6D102E-2
AA- 127
FIG NO. ：A504P-01A0

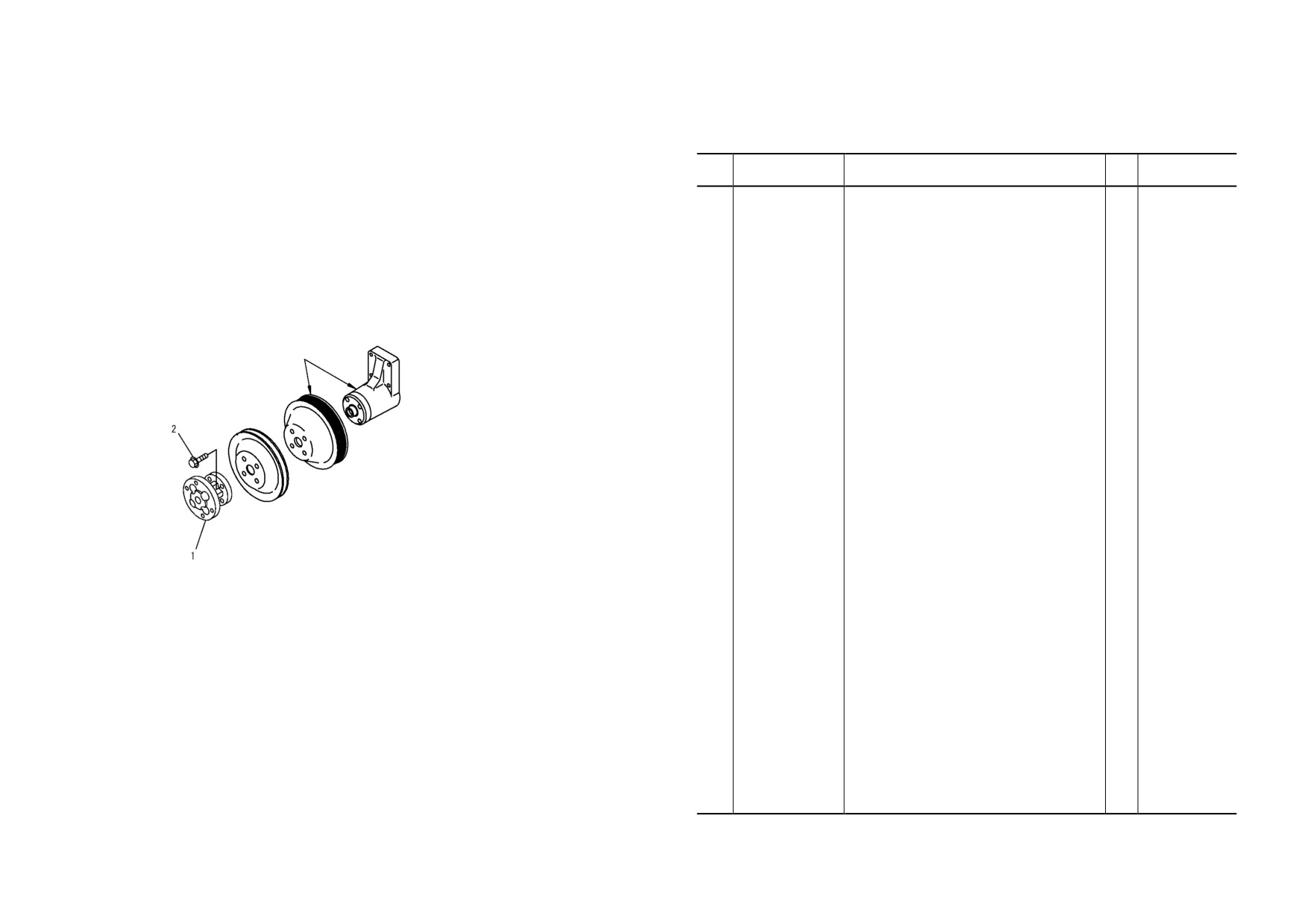

FIG. A504P-01A0 FAN SPACER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-61-3610
SPACER
1
26274903-
2
01435-01035
BOLT
4
26274903-
See of Fan Drive Pulley
PJ6B422
AA- 128
SAA6D102E-2
SAA6D102E-2
AA- 129
FIG NO. ：A601P-01A0

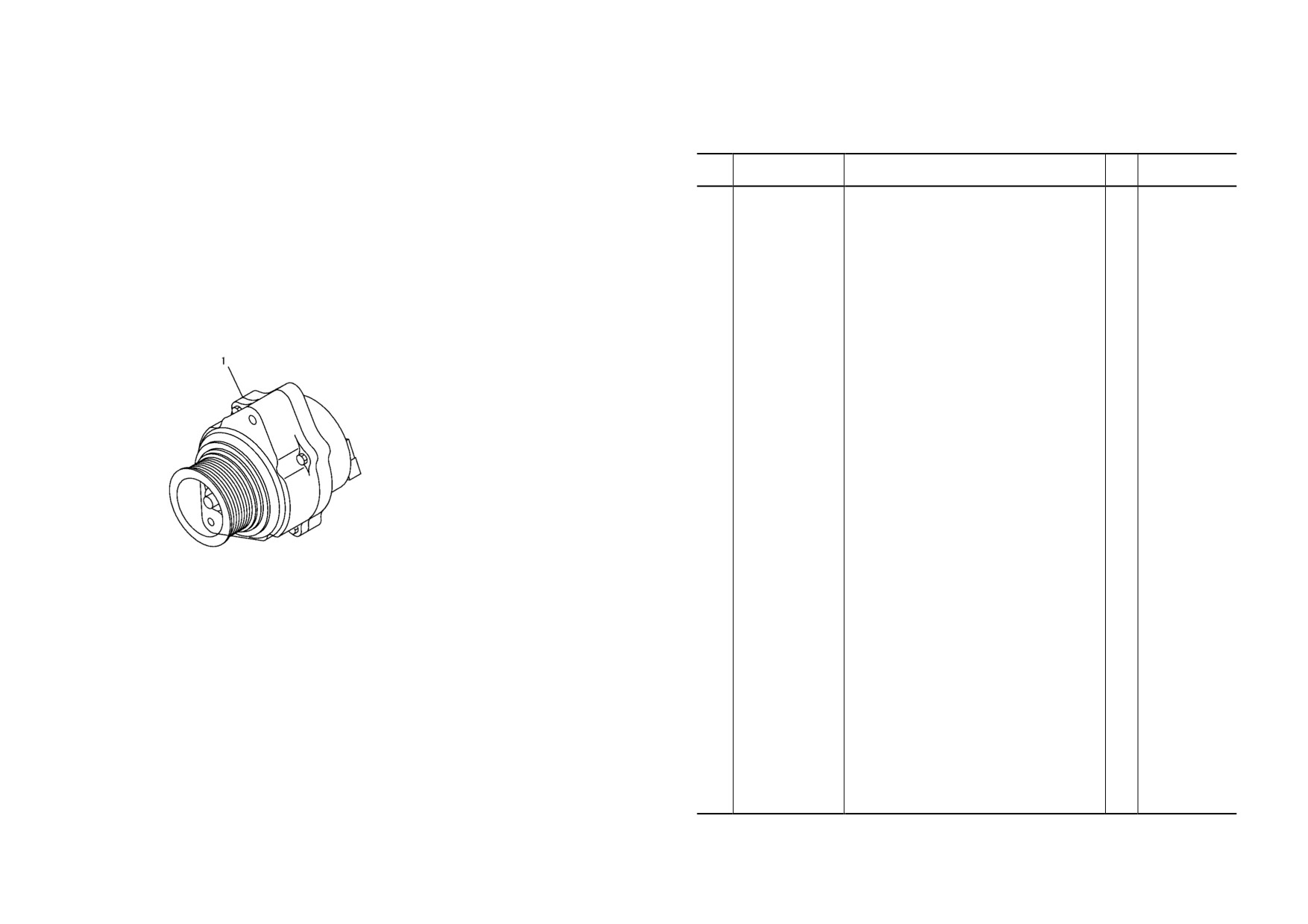

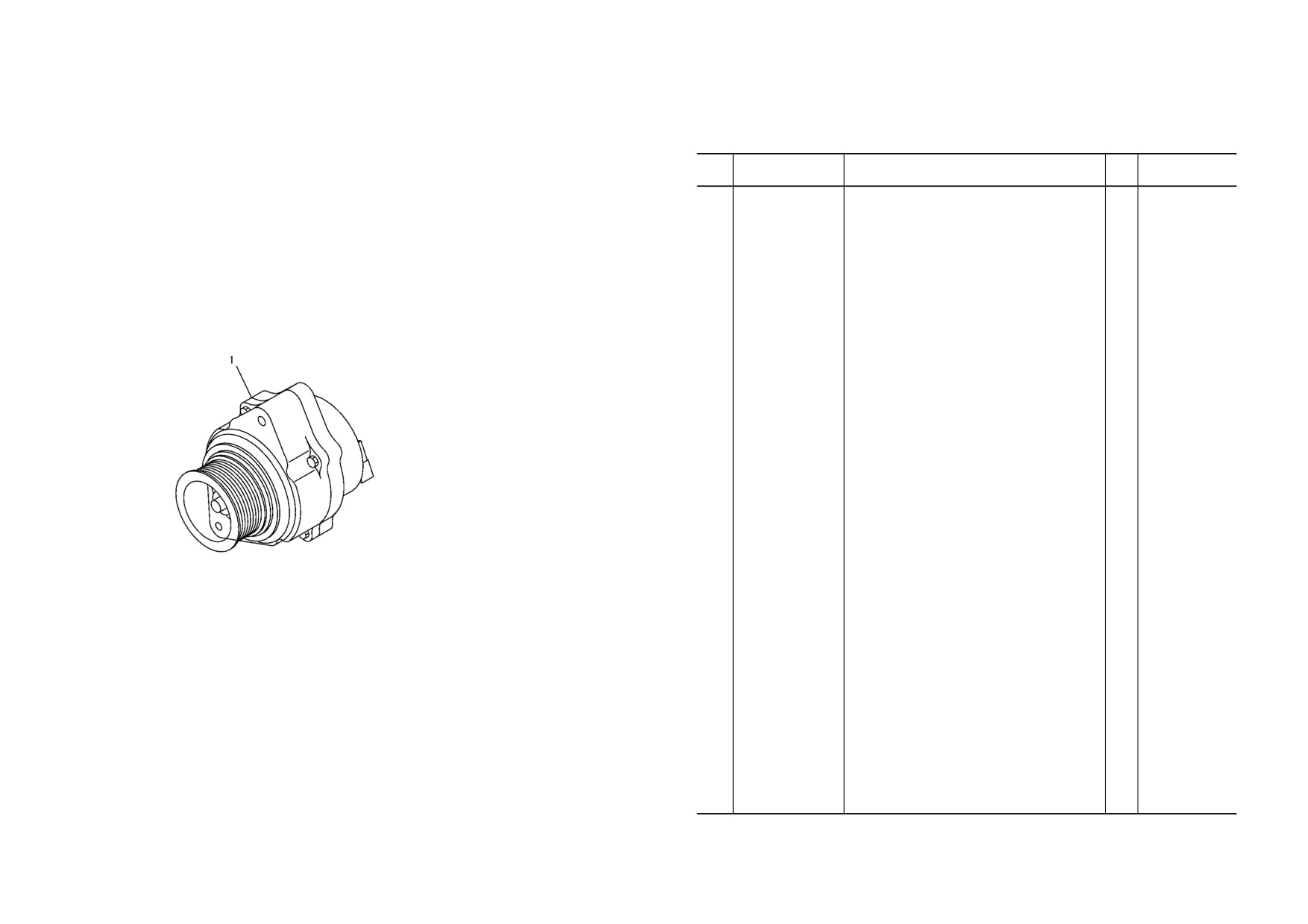

FIG. A601P-01A0 ALTERNATOR (35A)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(600-861-3410)
ALTERNATOR A. (35A), (SEE FIG. A601P-02A0)
1
DBB0001~DBB4708
600-861-3411
ALTERNATOR A. (35A), (SEE FIG. A601P-02A0)
1
DBB4709~
PMD1097
AA- 130
SAA6D102E-2
SAA6D102E-2
AA- 131
FIG NO. ：A601P-01A1
FIG. A601P-01A1 ALTERNATOR (OPT)
(60A)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(600-861-6410)
ALTERNATOR A. (60A), (SEE FIG. A601P-02A1)
1
26274903-
PMD1097
AA- 132
SAA6D102E-2
SAA6D102E-2
AA- 133
FIG NO. ：A601P-02A0

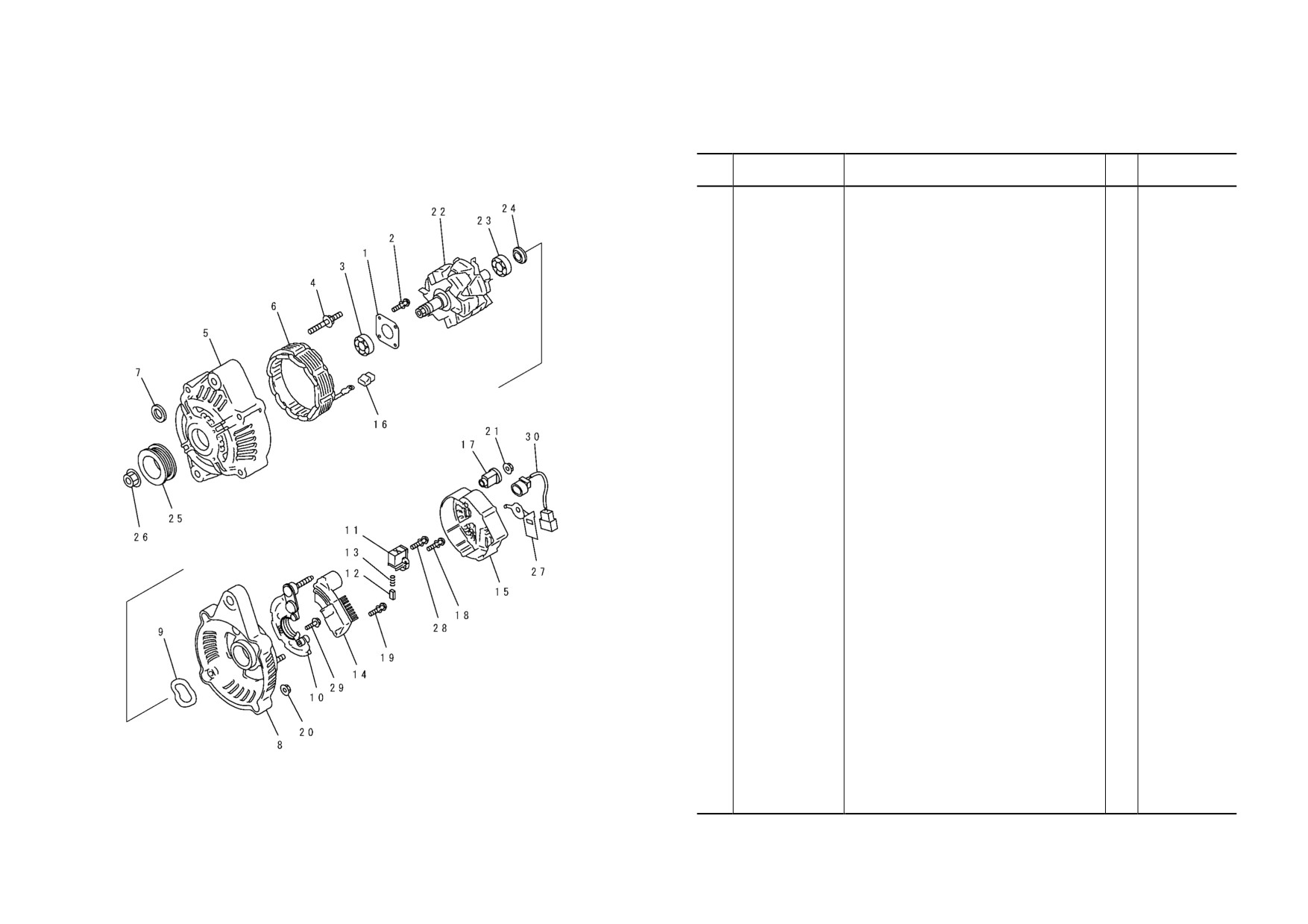

FIG. A601P-02A0 ALTERNATOR (35A) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
600-861-3410
ALTERNATOR A. (35A)
1
DBB0001~DBB4708
600-861-3411
THE DENSO PART NUMBER IS THAT ND IS REMOVED
FROM KOMATSU PART NUMBER LISTED BELOW
1
DBB4709~
ND121400-0840
. FRAME ASS’Y
1
DBB0001~
1
ND021411-0450
.. PLATE
1
DBB0001~
2
ND949006-6970
.. SCREW
4
DBB0001~
3
ND949100-3361
.. BEARING, BALL
1
DBB0001~
4
ND949043-2000
.. BOLT, STUD
4
DBB0001~
5
ND021401-3671
.. FRAME
1
DBB0001~
6
ND021100-4360
.. STATOR ASS’Y
1
DBB0001~
7
ND021045-0530
.. COLLAR
1
DBB0001~
8
ND021501-9560
. FRAME, REAR
1
DBB0001~
9
ND021542-0220
.. WASHER
1
DBB0001~
10
ND021580-5060
. HOLDER
1
DBB0001~
ND021620-2201
. BRUSH HOLDER ASS’Y
1
DBB0001~
11
ND021626-0240
.. BRUSH HOLDER
1
DBB0001~
12
ND021660-0510
.. BRUSH
2
DBB0001~
13
ND949170-6990
.. SPRING
2
DBB0001~
14
ND126000-2310
. REGULATOR ASS’Y
1
DBB0001~
15
ND021551-2910
. COVER, REAR
1
DBB0001~
16
ND021605-1360
. BUSHING
4
DBB0001~
17
ND021605-2490
. BUSHING
1
DBB0001~
18
ND949006-5460
. SCREW
6
DBB0001~
19
ND91310-04251
. SCREW
2
DBB0001~
20
ND949056-2481
. NUT
8
DBB0001~
21
ND949056-1001
. NUT
1
DBB0001~
22
ND021200-4132
. ROTOR ASS’Y
1
DBB0001~
23
ND949100-2790
.. BEARING, BALL
1
DBB0001~
24
ND021506-0070
.. COVER
1
DBB0001~
25
ND021041-8680
. PULLEY
1
DBB0001~
26
ND949056-2520
. NUT
1
DBB0001~
27
ND021751-1990
. CLIP
1
DBB0001~
28
ND949007-7000
. SCREW
1
DBB0001~
PG3A119
29
ND949047-7870
. BOLT
1
DBB0001~
30
ND021700-2680
. WIRE
1
DBB0001~DBB4708
AA- 134
SAA6D102E-2
SAA6D102E-2
AA- 135
FIG NO. ：A601P-02A1

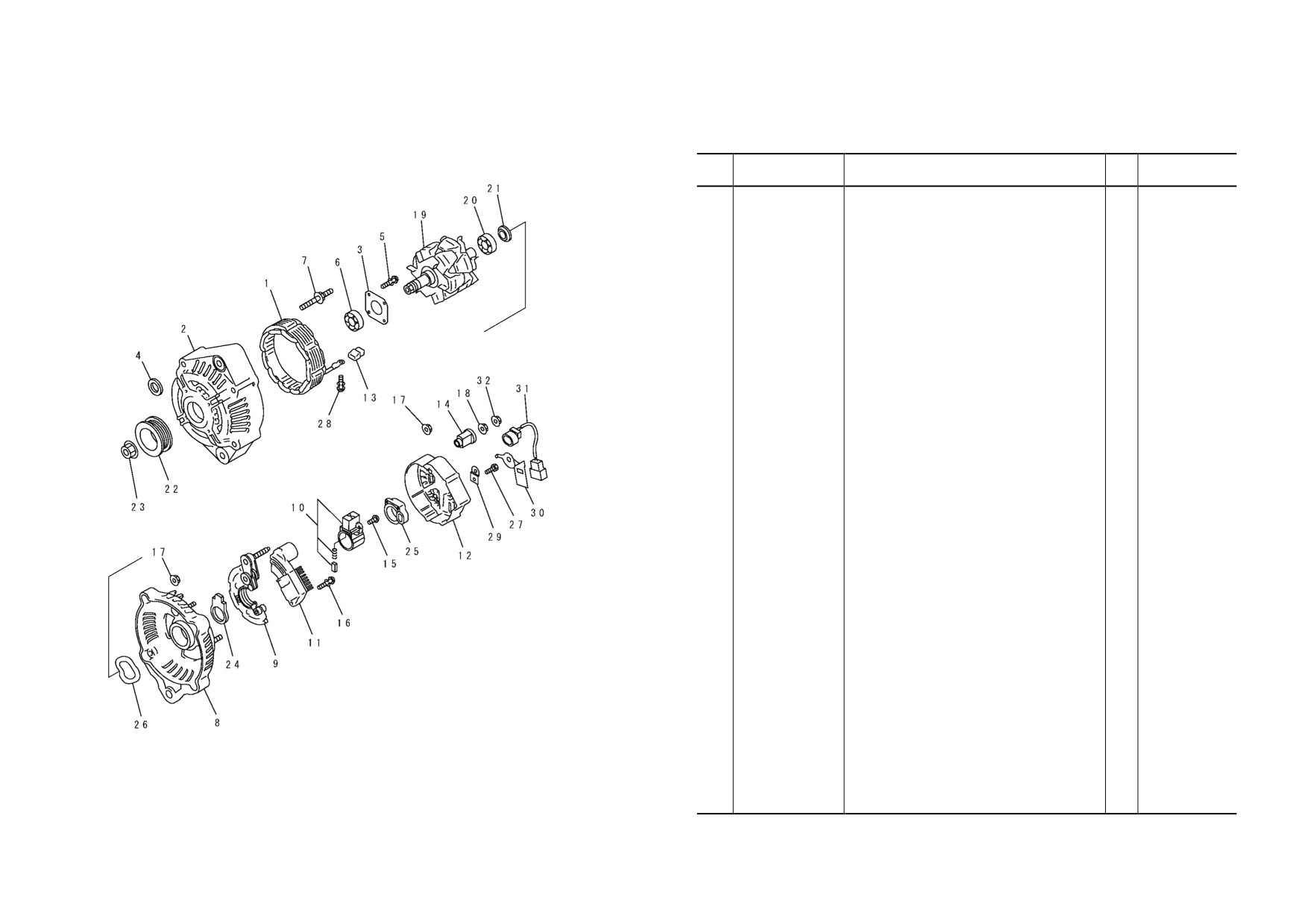

FIG. A601P-02A1 ALTERNATOR (60A) (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
600-861-6410
ALTERNATOR A. (35A)
1
26274903-
THE DENSO PART NUMBER IS THAT ND IS REMOVED
FROM KOMATSU PART NUMBER LISTED BELOW
ND121400-0800
. RAME ASS’Y
1
26274903-
1
ND021100-4210
.. TATOR ASS’Y
1
26274903-
2
ND021401-4980
.. FRAME
1
26274903-
3
ND021411-0570
.. PLATE
1
26274903-
4
ND021045-0530
.. COLLAR
1
26274903-
5
ND949006-5590
.. SCREW
4
26274903-
6
ND949100-5010
.. BEARING, BALL
1
26274903-
7
ND949043-2000
.. BOLT, STUD
4
26274903-
8
ND021501-8050
. FRAME, REAR
1
26274903-
9
ND021580-4820
. HOLDER
1
26274903-
10
ND021620-2720
. BRUSH HOLDER ASS’Y
1
26274903-
11
ND126000-2320
. BRUSH HOLDER ASS’Y
1
26274903-
12
ND021551-2480
. COVER
1
26274903-
13
ND021605-1970
. BUSHING
4
26274903-
14
ND021605-2480
. BUSHING
1
26274903-
15
ND949006-5460
. SCREW
3
26274903-
16
ND91310-04251
. SCREW
2
26274903-
ND949007-5110
. SCREW
2
26274903-
17
ND949056-2481
. NUT
7
26274903-
18
ND949056-3080
. NUT
1
26274903-
19
ND021200-4141
. ROTOR ASS’Y
1
26274903-
20
ND949100-2790
.. BEARING, BALL
1
26274903-
21
ND021506-0070
.. COVER
1
26274903-
22
ND021041-8620
. PULLEY
1
26274903-
23
ND949056-2520
. NUT
1
26274903-
24
ND021626-0190
. SEAL
1
26274903-
25
ND021626-0250
. SEAL
1
26274903-
26
ND021542-0160
. WASHER
1
26274903-
27
ND949006-6401
. SCREW
1
26274903-
28
ND949007-6280
. SCREW
4
26274903-
29
ND021602-5230
. PLATE
1
26274903-
PG3A127
30
ND021751-1990
. CLIP
1
26274903-
31
ND021700-2680
. WIRE
1
26274903-
32
ND92150-06061
. NUT
1
26274903-
AA- 136
SAA6D102E-2
SAA6D102E-2
AA- 137
FIG NO. ：A601S-01A2

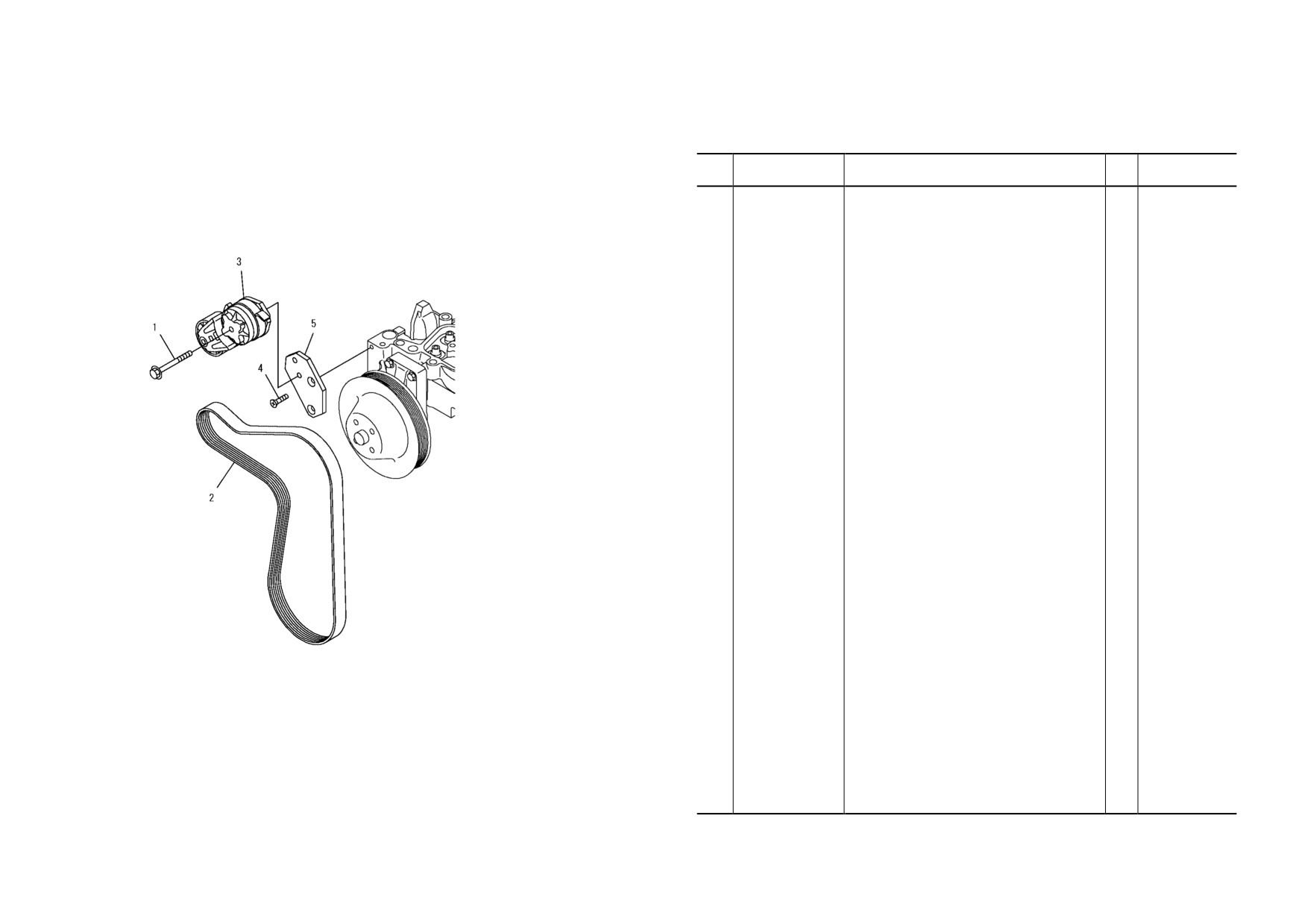

FIG. A601S-01A2 BELT TENSIONER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-61-4120
BOLT
1
26282900-
2
6732-61-4170
BELT
1
26282900-
3
6736-61-4110
TENSIONER
1
26282900-
4
6732-61-4220
SCREW
2
26282900-
5
6732-61-3910
PLATE
1
26282900-
Cylinder Head
Fan Drive Pulley
PMD0856
AA- 138
SAA6D102E-2
SAA6D102E-2
AA- 139
FIG NO. ：A601T-01A0

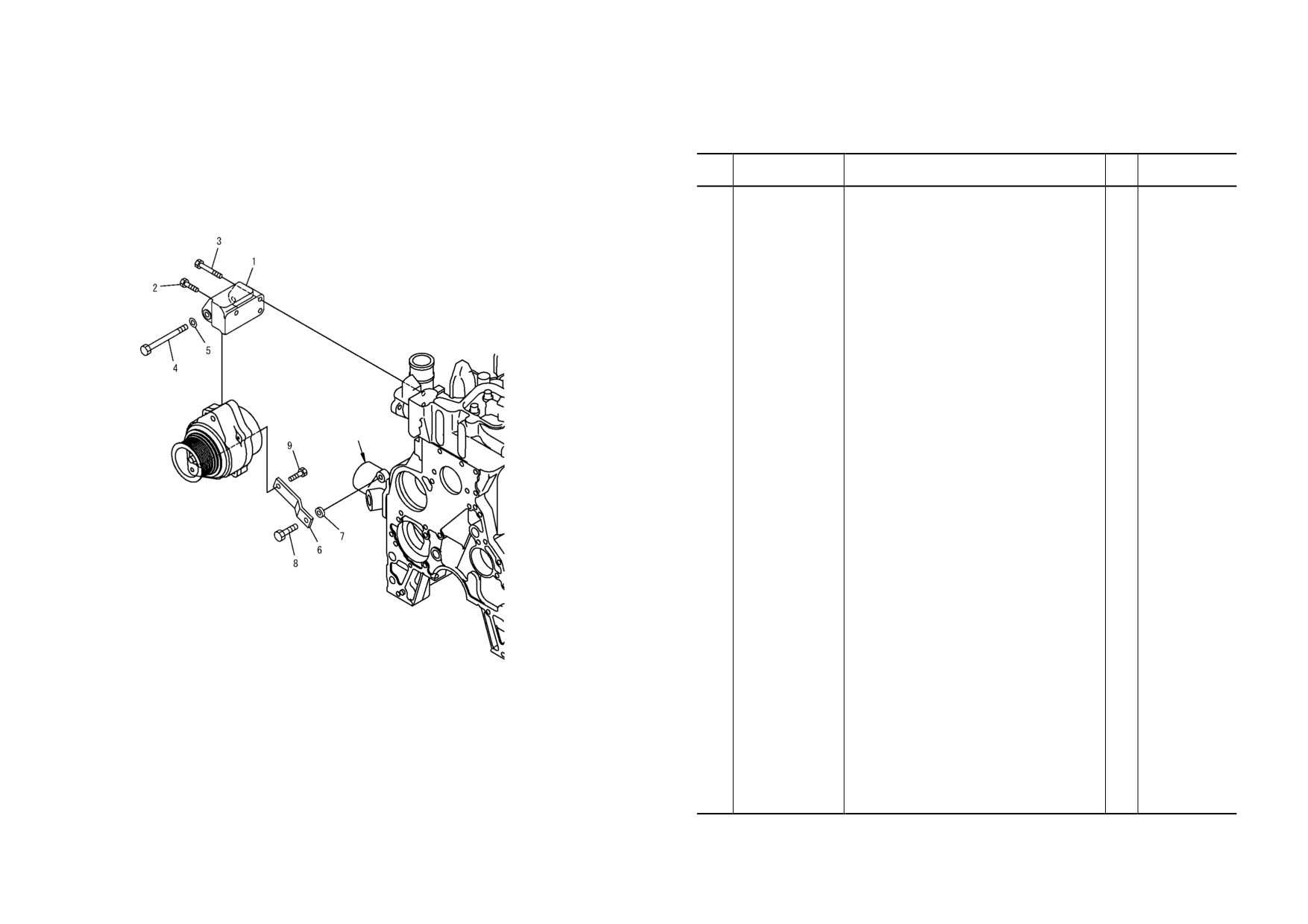

FIG. A601T-01A0 ALTERNATOR MOUNTING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-81-6611
BRACKET
1
26274903-
2
6732-21-5160
BOLT
1
26274903-
3
6736-21-3210
BOLT
2
26274903-
4
01018-31095
BOLT
1
26274903-
5
01641-01016
WASHER
1
26274903-
6
6732-81-6560
PLATE
1
26274903-
7
6732-81-6690
SPACER
1
26274903-
8
6732-21-5160
BOLT
1
26274903-
9
6732-21-6630
BOLT
1
26274903-
Water Connector
Alternator
PJ6B401
AA- 140
SAA6D102E-2
SAA6D102E-2
AA- 141
