Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 5
FIG NO. ：A219P-01A0

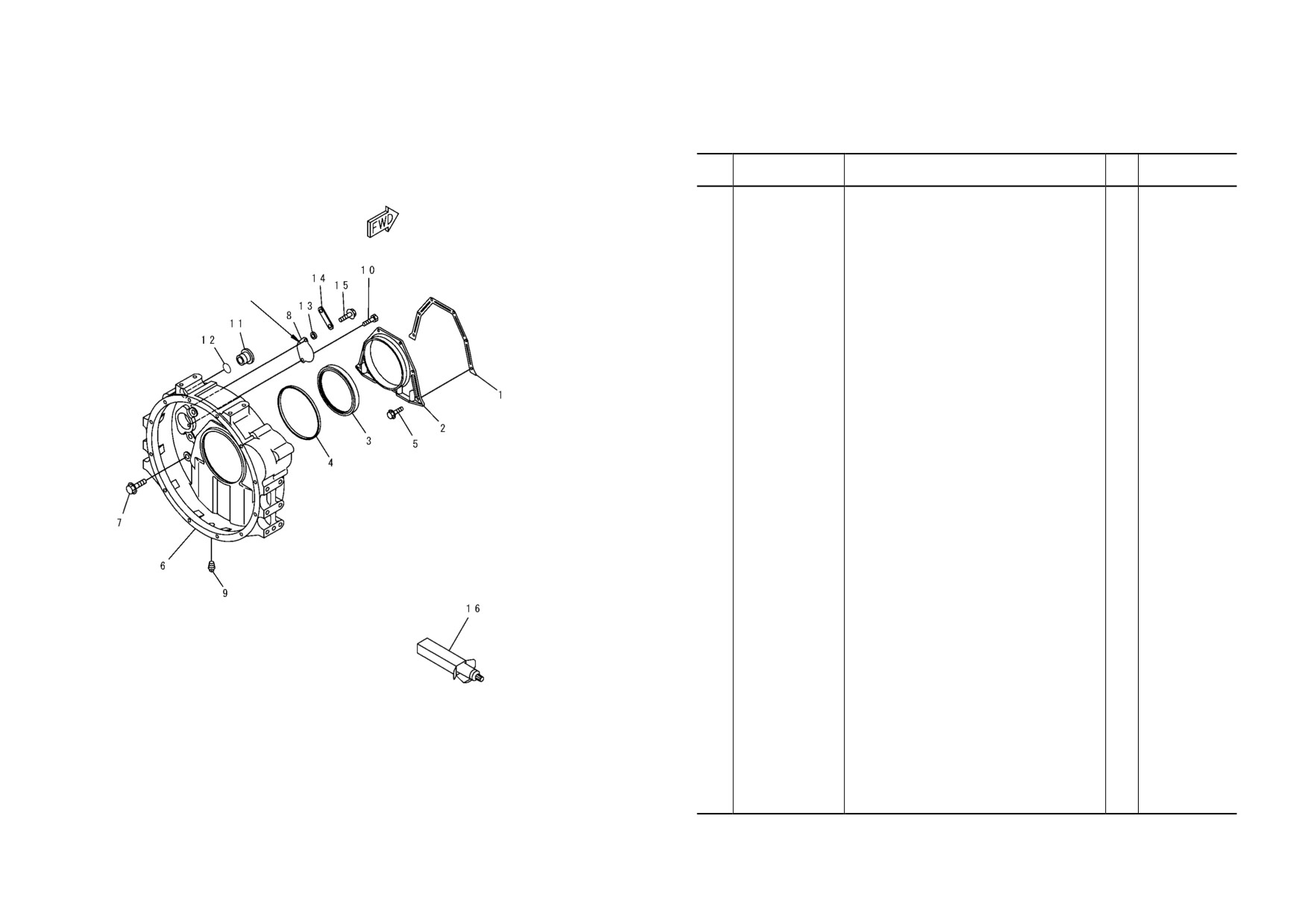

FIG. A2219-01A0 FLYWHEEL HOUSING
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-21-4191
GASKET
1
26274903-
2
6731-21-4240
COVER, REAR
1
26274903-
3
6736-21-4220
SEAL
1
26274903-
4
6732-21-4170
GASKET
1
26274903-
5
6732-21-4290
BOLT
6
26274903-
LG-7 Coating
6
6732-21-4111
HOUSING, FLYWHEEL
1
26274903-
7
6732-21-4220
BOLT
8
26274903-
8
6732-21-4130
PLATE
1
26274903-
9
02721-00813
PULG
1
26274903-
10
6732-21-4120
BOLT
2
26274903-
11
6732-21-4150
PLUG
1
26274903-
12
6732-21-4161
O-RING
1
26274903-
13
6110-23-6490
SPACER
1
26274903-
14
6301-11-4630
PLATE
1
26274903-
15
6732-21-5160
BOLT
1
26274903-
16
(09920-00150)
LIQUID GASKET, LG-7,150G
AR
26274903-
PJ6B440
AA- 62
SAA6D102E-2
SAA6D102E-2
AA- 63
FIG NO. ：A223P-01A0

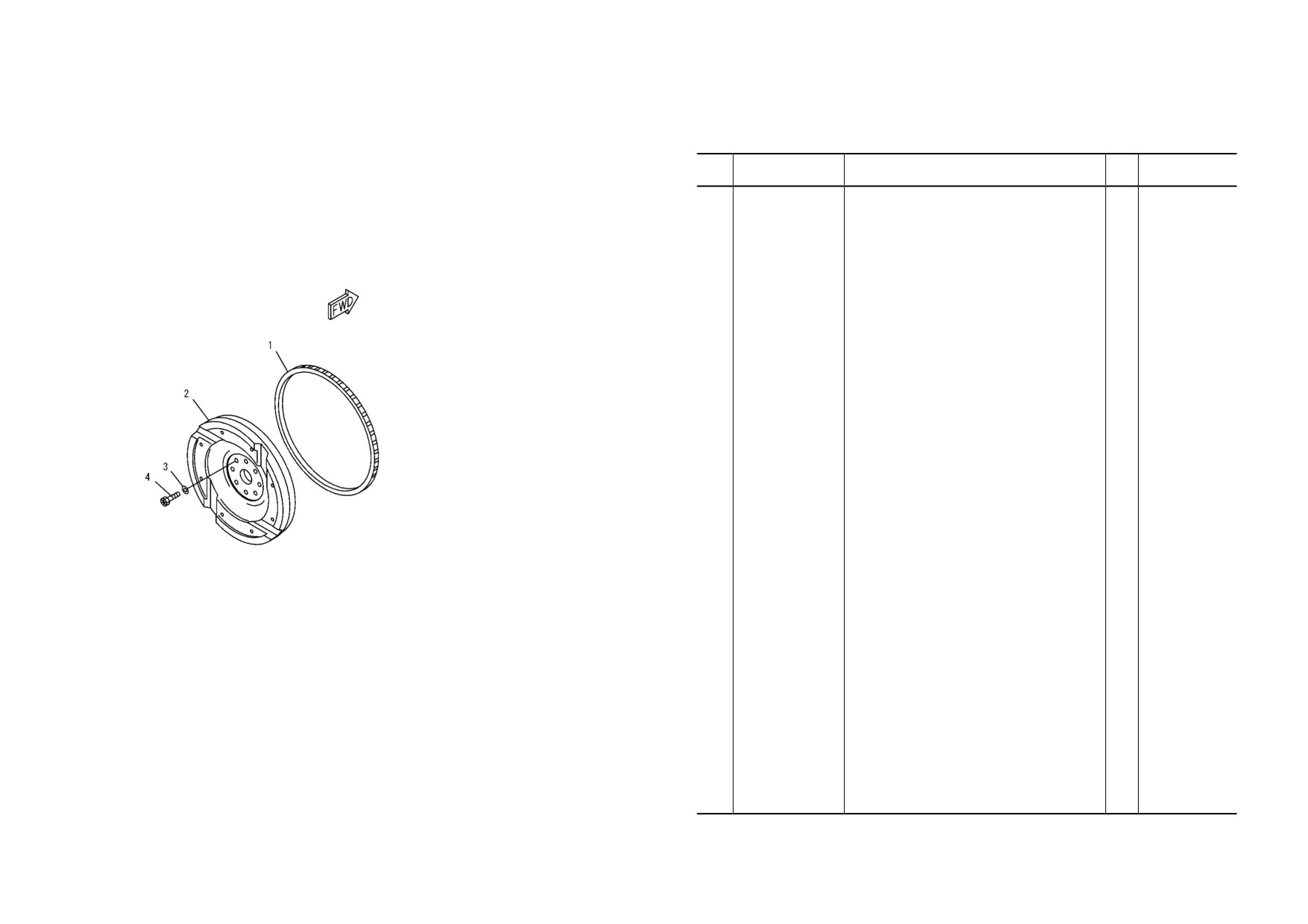

FIG. A223P-01A0 FLYWHEEL
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6738-31-4200
FLYWHEEL ASS’Y
1
26274903-
1
6732-31-4180
. GEAR, RING
1
26274903-
2
☆
. FLYWHEEL
1
26274903-
3
6732-31-4120
WASHER
8
26274903-
4
6732-31-4130
BOLT
8
26274903-
PMD1070
AA- 64
SAA6D102E-2
SAA6D102E-2
AA- 65
FIG NO. ：A2319-01A0

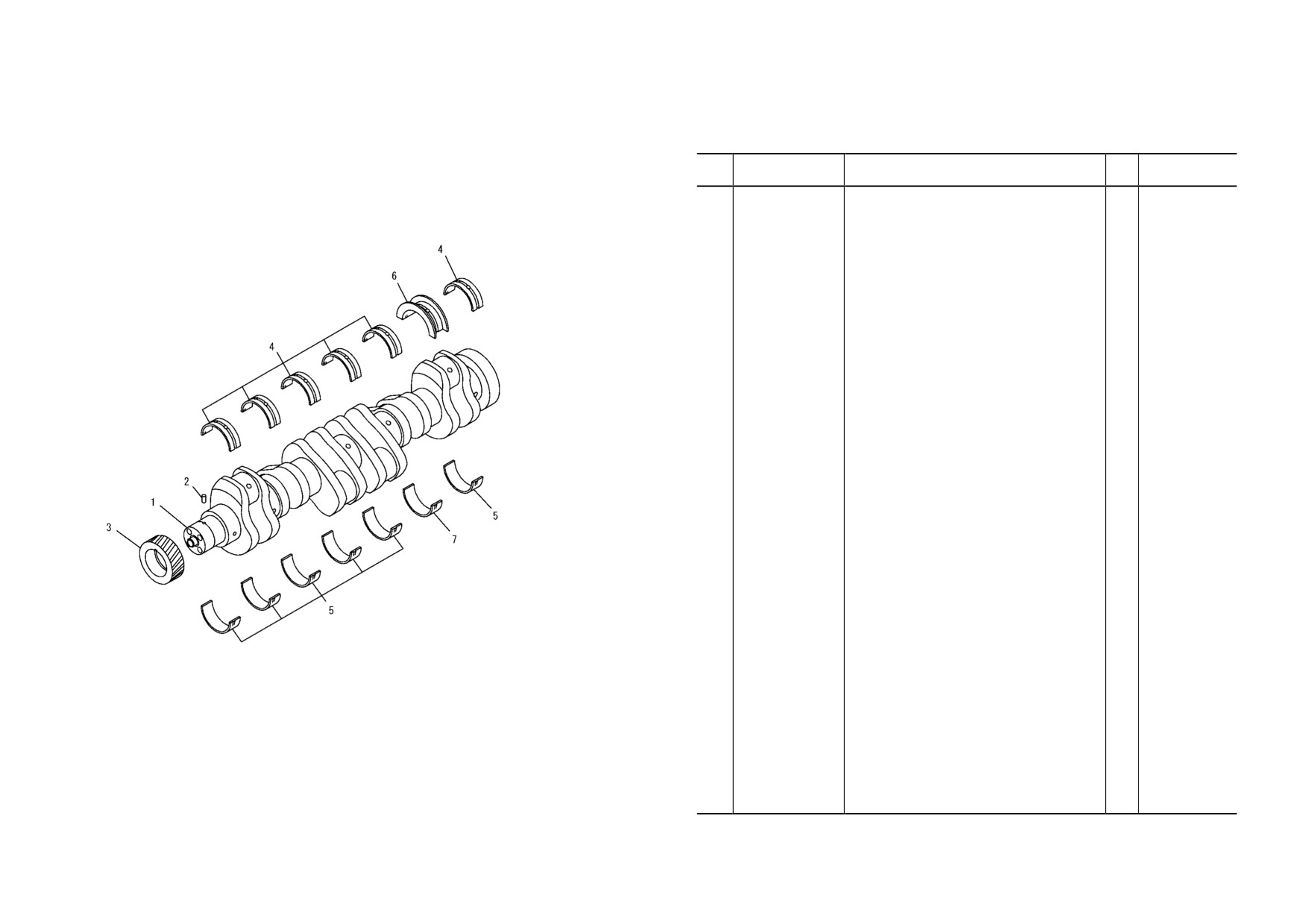

FIG. A2319-01A0 CRANKSHAFT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6735-01-1310
CRANKSHAFT ASS’Y
1
26274903-
1
☆
. CRANKSHAFT
1
26274903-
2
6732-21-6150
. PIN
1
26274903-
3
6732-31-1211
. GEAR
1
26274903-
6736-21-8110
MAIN METAL ASS’Y
6
26274903-
4
☆
. METAL, UPPER
1
26274903-
5
☆
. METAL, LOWER
1
26274903-
6736-21-8610
THRUST METAL ASS’Y
1
26274903-
6
☆
. METAL, THRUST
1
26274903-
7
☆
. METAL, LOWER
1
26274903-
REFER TO FIG. NOS. OF REPAIR PARTS FOR
O.S., U.S., AND SERVICE PARTS
PMD1071
AA- 66
SAA6D102E-2
SAA6D102E-2
AA- 67

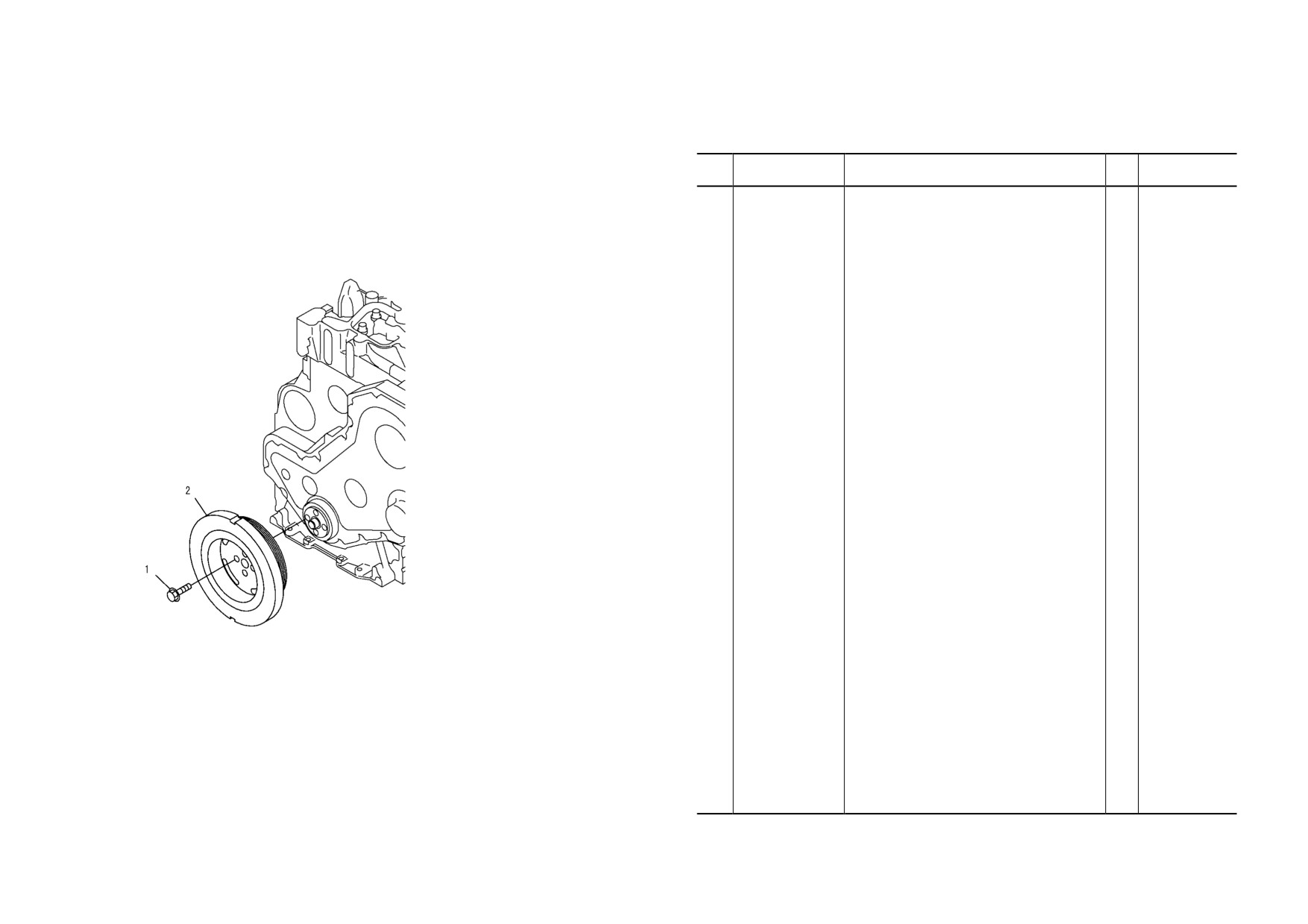

FIG NO. ：A233P-01A0
FIG. A233P-01A0 DAMPER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-31-8120
BOLT
4
26274903-
2
6735-31-8120
DAMPER
1
26274903-
PMD1072
AA- 68
SAA6D102E-2
SAA6D102E-2
AA- 69

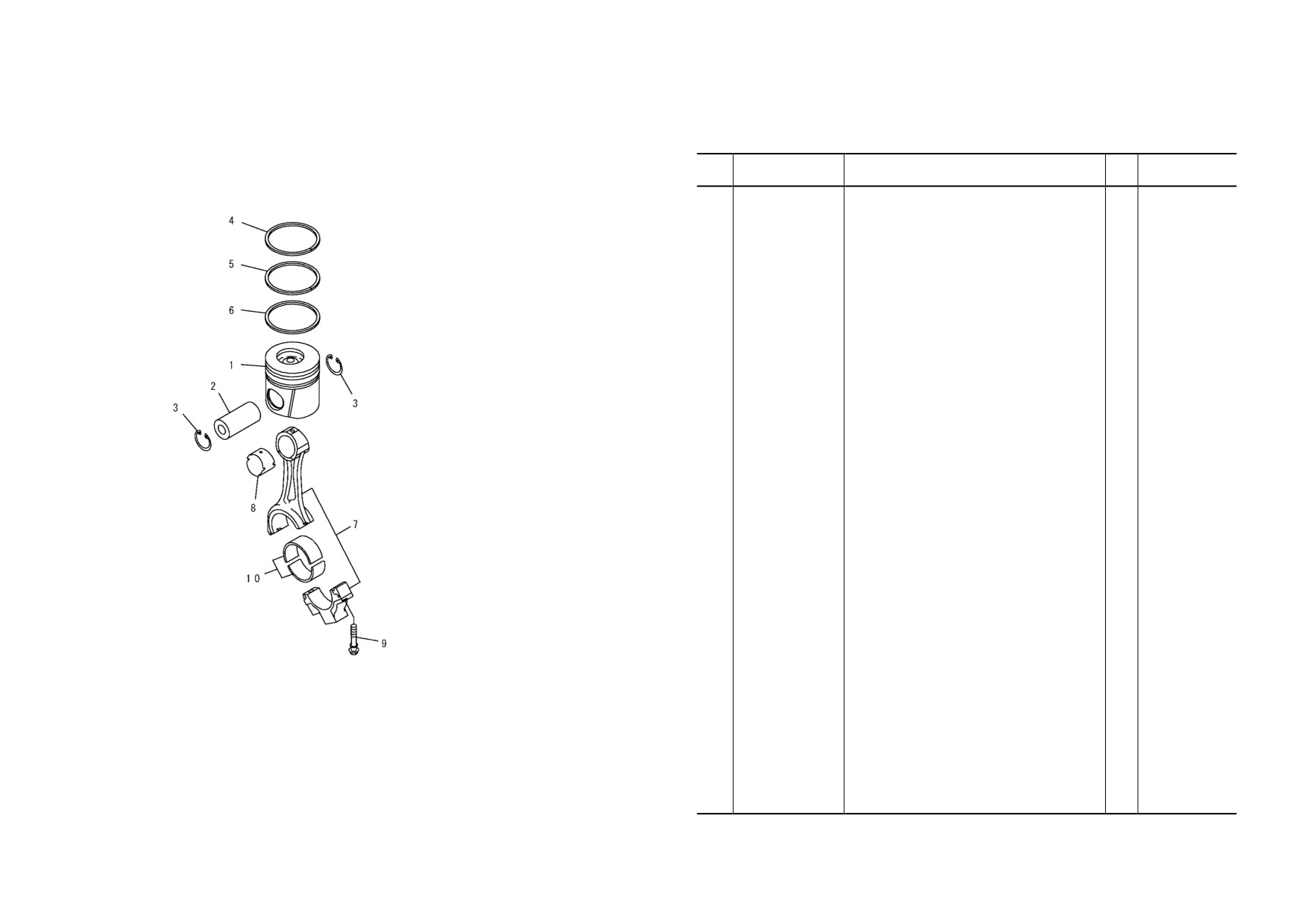

FIG NO. ：A2359-01A0
FIG. A2359-01A0 PISTON
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-31-2111
PISTON
6
26292269-
2
6732-31-2410
PIN
6
26274903-
3
6732-31-2420
RING, SNAP
12
26274903-
6738-31-2031
PISTON RING ASS’Y
6
26292269-
4
☆
.RING, TOP
1
26292269-
5
☆
.RING, SECOND
1
26274903-
6
☆
.RING, OIL
1
26274903-
6732-31-3101
CONNECTING ROD A
6
26274903-
7
☆
.ROD
1
26274903-
8
6732-31-3131
.BUSHING
1
26274903-
9
6732-31-3310
.BOLT
2
26274903-
10
6732-31-3410
METAL
12
26274903-
REFER TO FIG. NOS. OF REPAIR PARTS FOR
O.S., U.S., AND SERVICE PARTS.
PMD0835
AA- 70
SAA6D102E-2
SAA6D102E-2
AA- 71

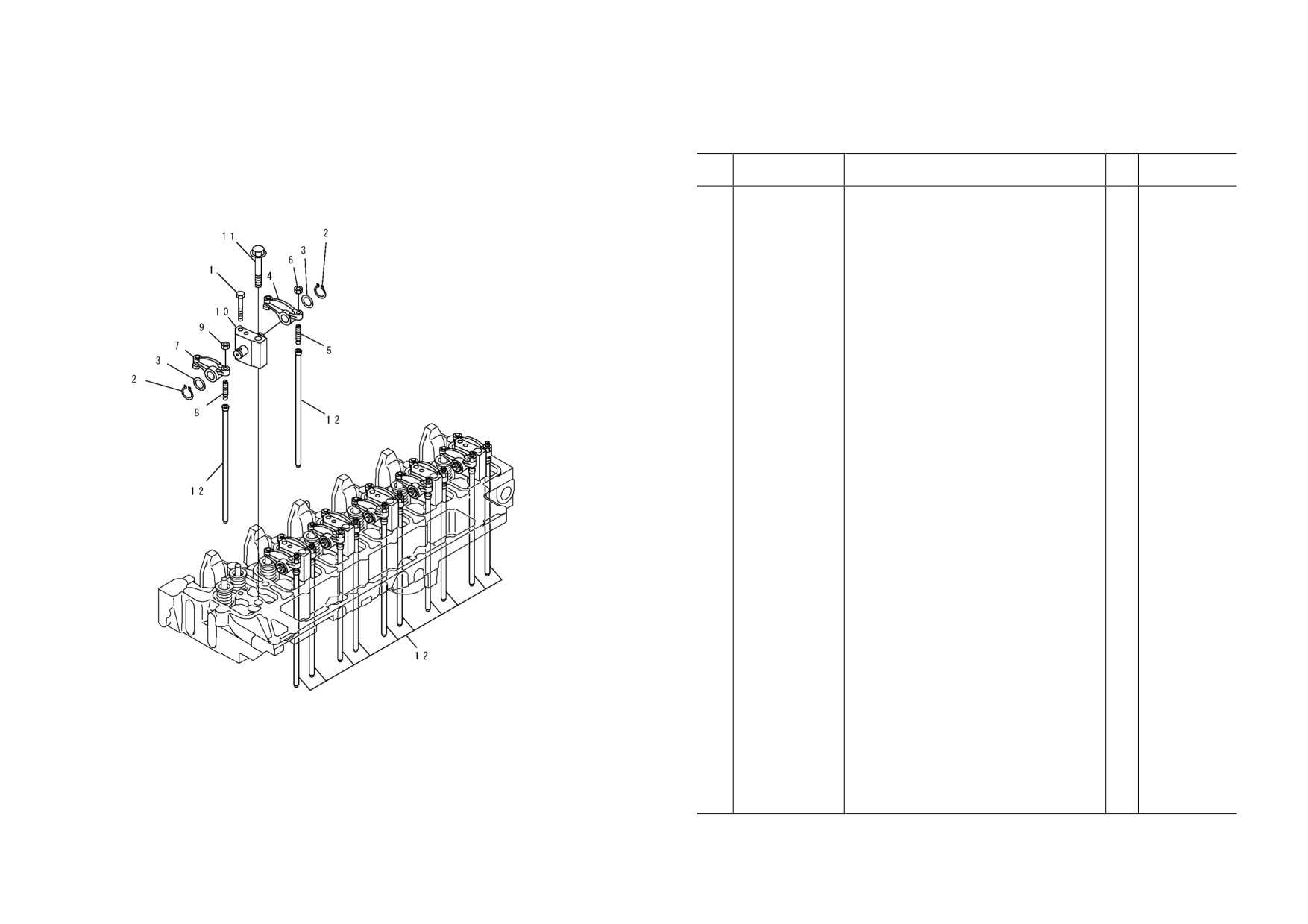

FIG NO. ：A241P-01A0
FIG. A241P-01A0 ROCKER ARM
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-41-5180
BOLT
6
26274903-
2
6732-41-5170
RING, SNAP
12
26274903-
3
6732-41-5160
WASHER
12
26274903-
4
6732-41-5400
ARM ASS’Y
6
26274903-
5
6731-41-5270
.SCREW
1
26274903-
6
6735-41-5550
.NUT
1
26274903-
7
6732-41-5200
ARM ASS’Y
6
26274903-
8
6731-41-5270
.SCREW
1
26274903-
9
6735-41-5550
.NUT
1
26274903-
10
6736-41-5110
BRACKET ASS’Y
6
26274903-
11
6732-11-1640
BOLT
6
26274903-
12
6732-41-3111
ROD, PUSH
12
26274903-
PMD1074
AA- 72
SAA6D102E-2
SAA6D102E-2
AA-73

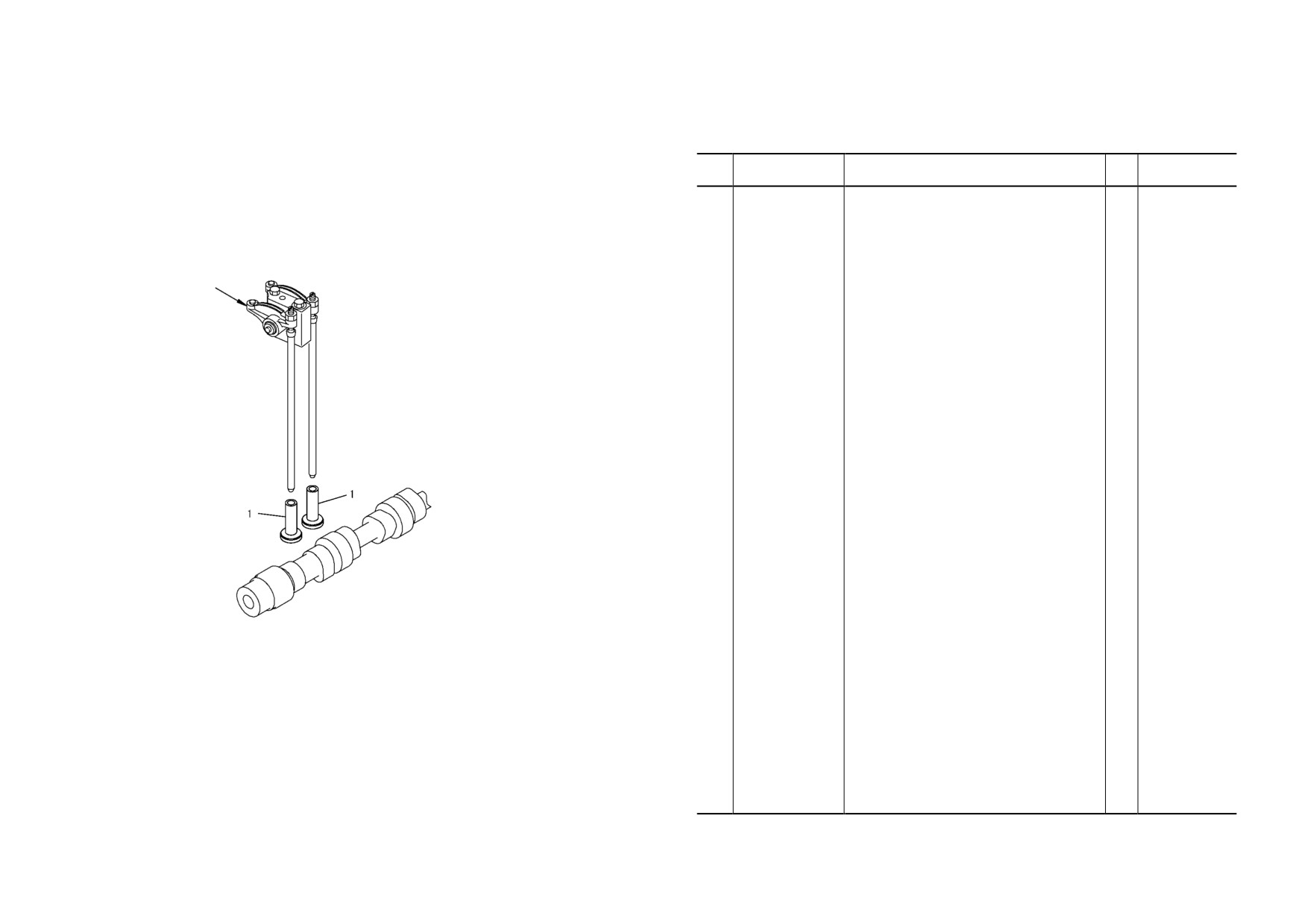

FIG NO. ：A241R-01A0
FIG. A241R-01A0 TAPPET
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-41-2112
TAPPET
12
26274903-
Rocker Arm
Camshaft
PMD0838
AA- 74
SAA6D102E-2
SAA6D102E-2
AA- 75

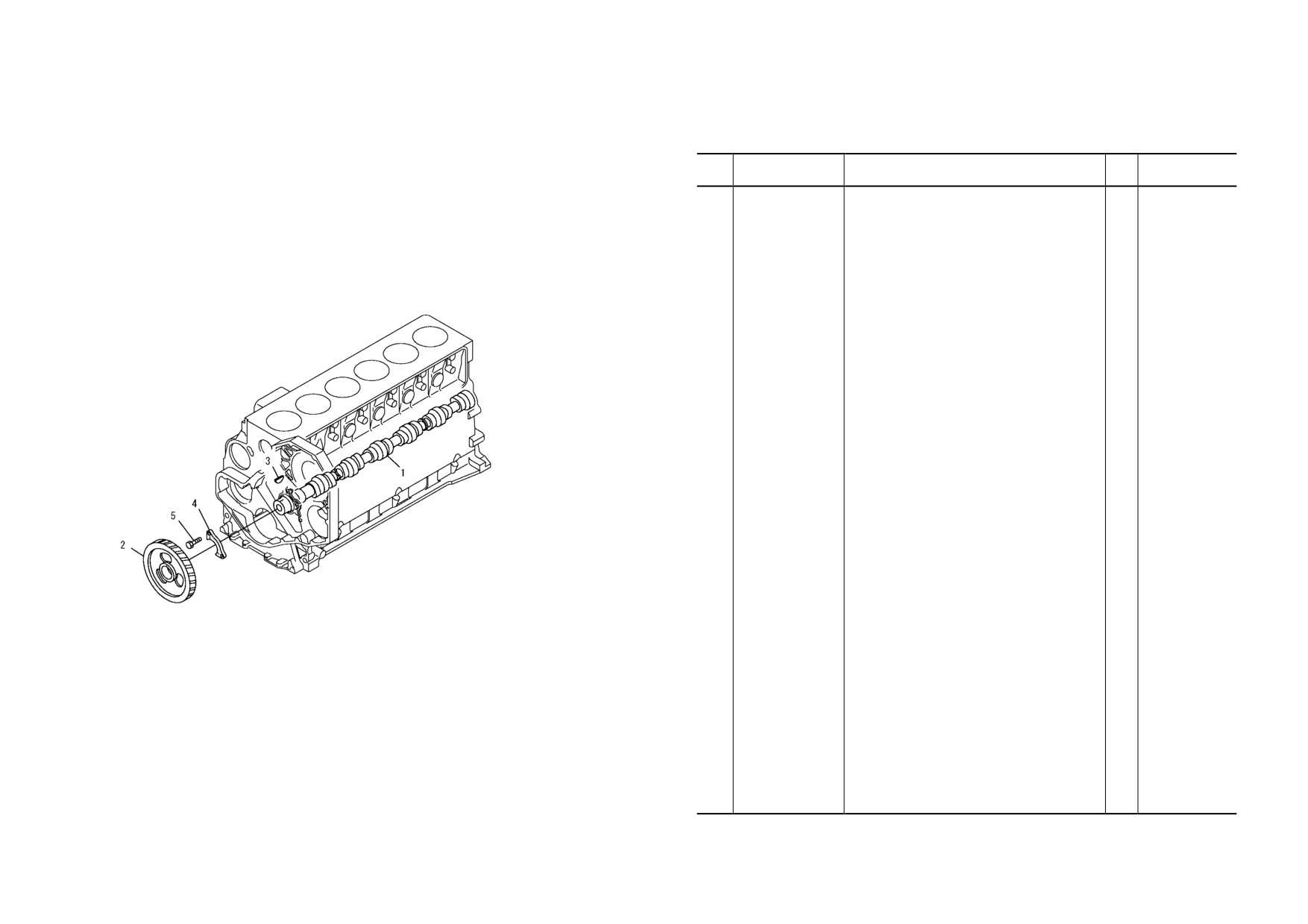

FIG NO. ：A2419-01A0
FIG. A2419-01A0 CAMSHAFT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6735-41-1111
CAMSHAFT
1
26274903-
2
6732-41-1231
GEAR
1
26274903-
3
6732-41-1280
KEY
1
26274903-
4
6732-41-1220
SUPPORT, THRUST
1
26274903-
5
6732-41-1260
BOLT
2
26274903-
Cylinder Block
PMD1075
AA- 76
SAA6D102E-2
SAA6D102E-2
AA- 77

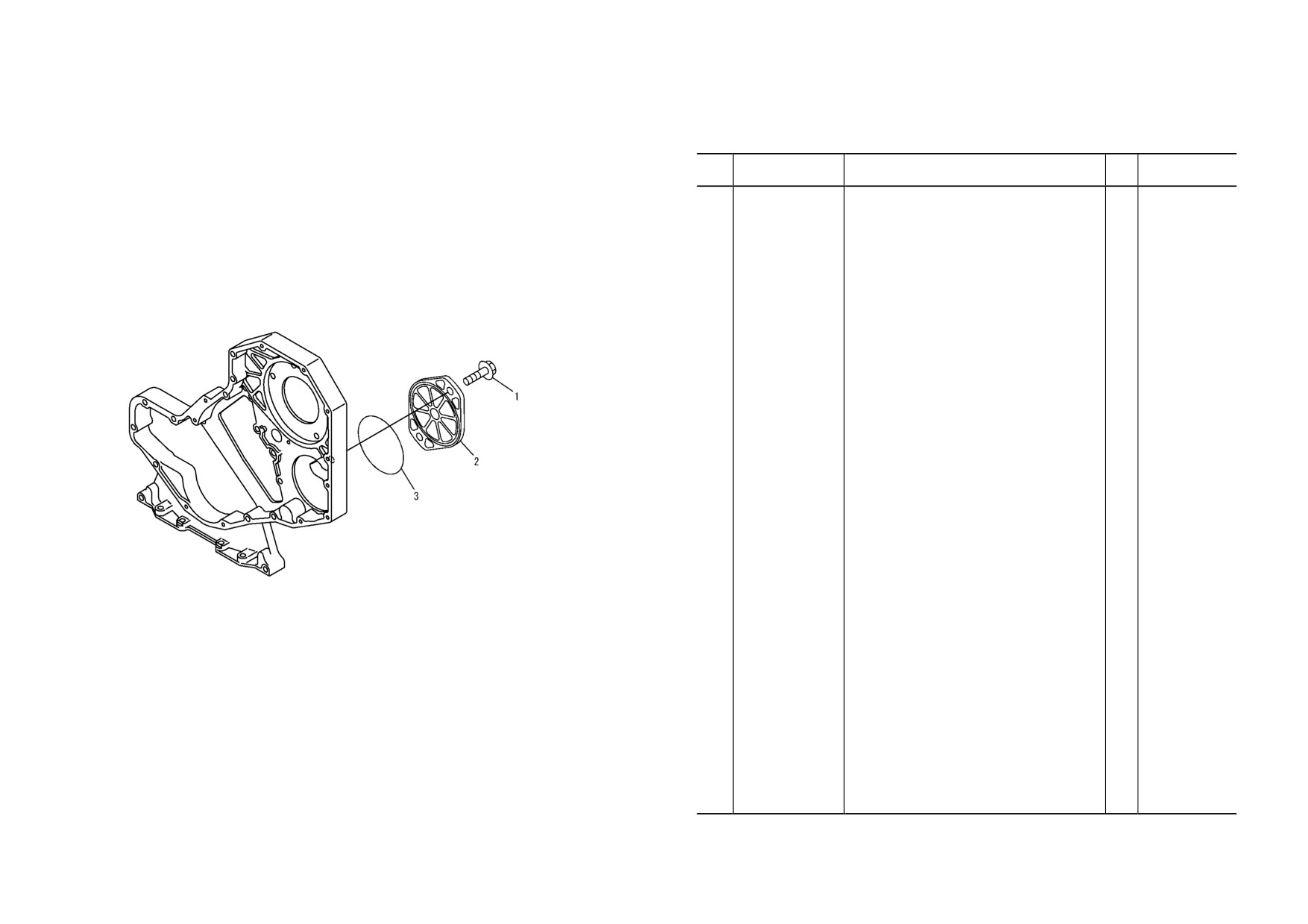

FIG NO. ：A261P-01A0
FIG. A261P-01A0 FRONT GEAR TRAIN COVER
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6732-51-5130
BOLT
2
26274903-
2
6732-21-9330
COVER
1
26274903-
3
07000-72110
O-RING
1
26274903-
Gear Case
PJD5920
AA- 78
SAA6D102E-2
SAA6D102E-2
AA- 79

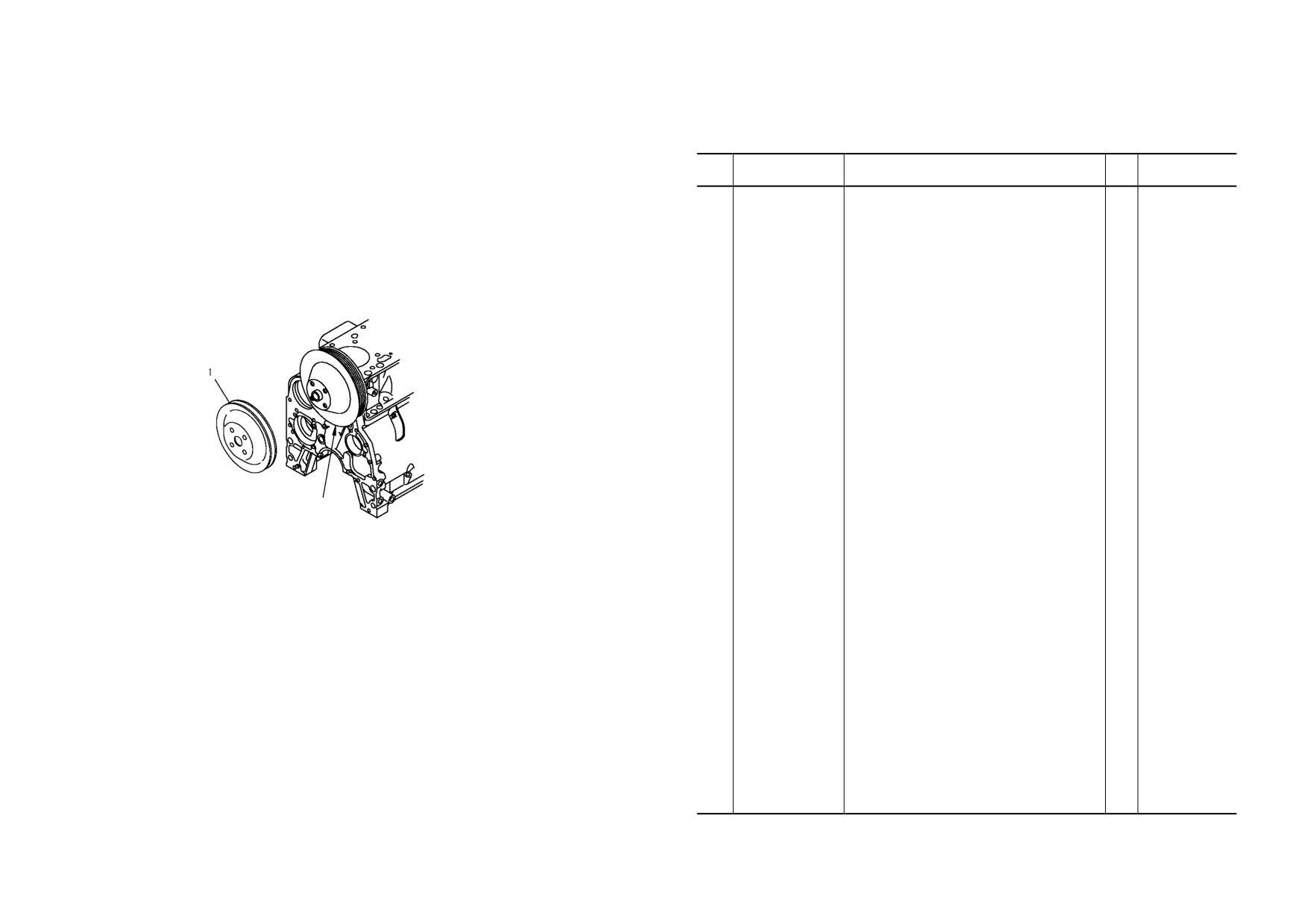

FIG NO. ：A267P-01A1
FIG. A267P-01A1 ACCESSORY PULLEY
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
6738-91-1510
PULLEY
1
26282900-
Fan Drive Pulley
PJ6B398
AA- 80
SAA6D102E-2
SAA6D102E-2
AA- 81
