2.5. MACHINE ACCESS COMPARTMENTS AND DOORS

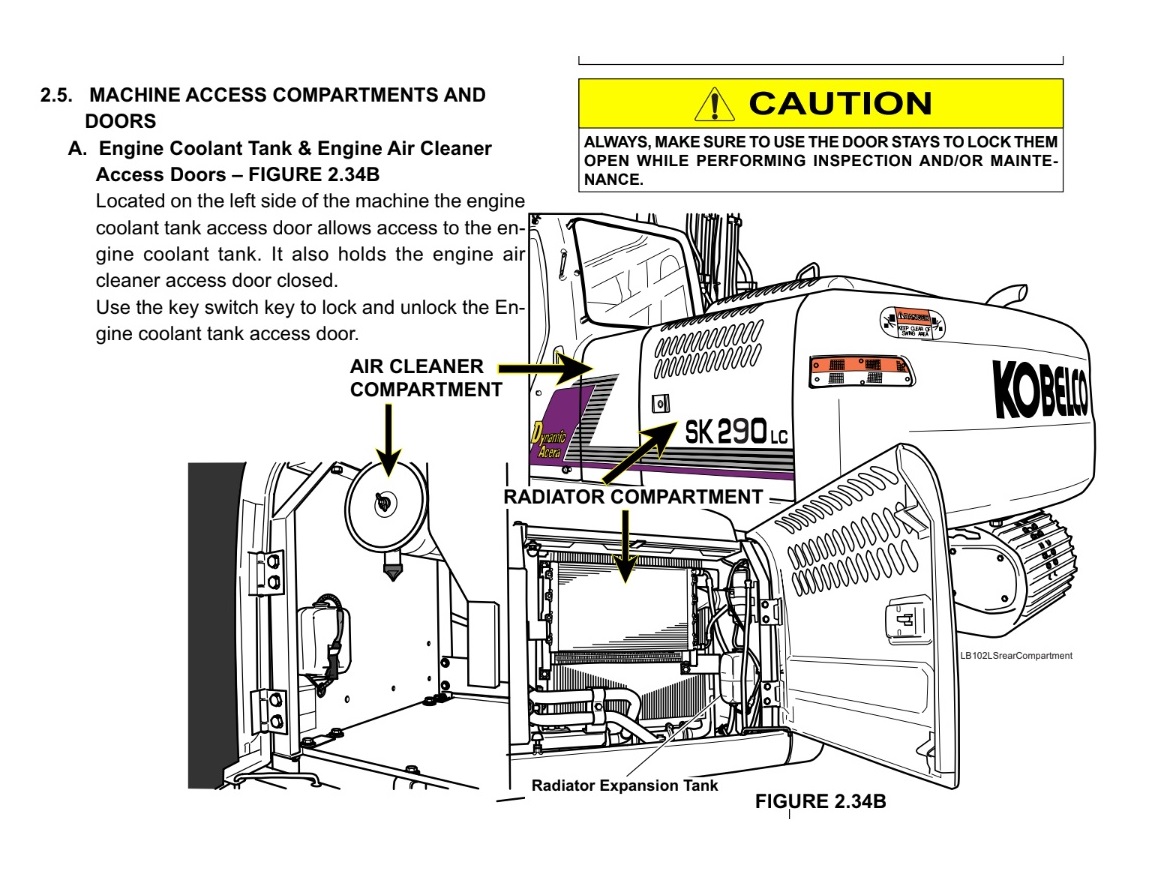

A. Engine Coolant Tank & Engine Air Cleaner Access Doors - FIGURE 2.34B

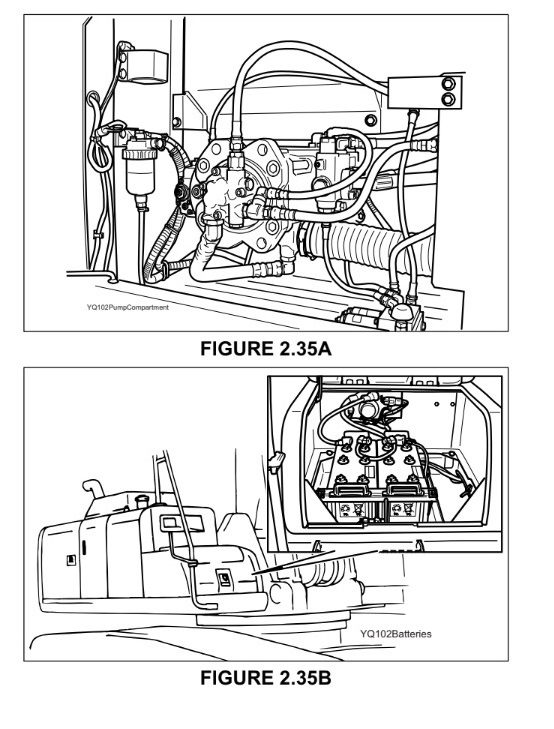

В. Main Pump Access Door - FIGURE 2.35A

Locate on the right side of the machine this door allows access to the main pump.
A CAUTION

ALWAYS, MAKE SURE TO USE THE DOOR STAYS TO LOCK THEM OPEN WHILE PERFORMING INSPECTION AND/OR MAINTENANCE.

C. Battery Box Access Cover - FIGURE 2.35B

Located on the right front of the upper frame. This cover allows access to the batteries and battery relay. This access cover is also locked and unlocked using the ignition key.

Use stay to lock the cover open.

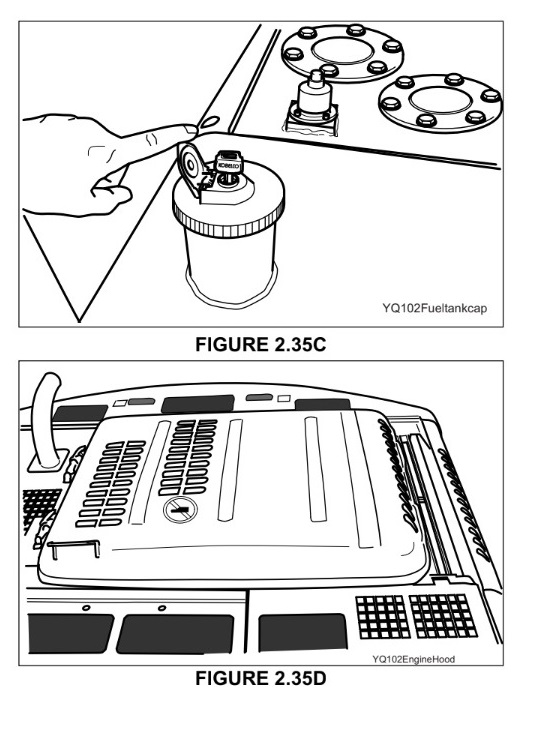

D. Fuel Cap-FIGURE 2.35C

Stop engine and remove cap on fuel tank. Fill to desired level or to full capacity. See Section 4 for proper tank capacity.

A WARN I N G

MAKE SURE ENGINE IS OFF AND KEEP BATTERY COVER AND ENGINE HOOD CLOSED WHEN FUELING.

E. Engine Cover - FIGURE 2.35D

Open engine cover with ignition key (if locked) after stopping engine.

Use stay to support it.

Kobelco Dynamic Acera

Kobelco Construction Machinery America LLC
Safety
KOBELCO

Kobelco Construction Machinery America LLC
Page 2-1
Dynamic Лсега 01 /02

1.1 GENERAL SAFETY INFORMATION
WARNING
Do Not operate or perform any maintenance on this machine until all instructions found in this manual have been thoroughly read and understood. Improper operation or maintenance of this machine may cause accidents and could result in serious injury or death.

Always keep this manual in the operators seat pocket.

If it is missing or damaged, place an order with an authorized KOBELCO distributor for a replacement. If you have any questions, please consult an authorized KOBELCO distributor.
1. Most accidents, which occur during operation, are due to neglect of precautionary measures and safety rules. Sufficient care should be taken to avoid these accidents. Erroneous operation, lubrication or maintenance services are very dangerous and may cause injury or death of personnel. Therefore all precautionary measures, NOTES, DANGERS, WARNINGS and CAUTIONS contained in this manual and on the machine should be read and understood by all personnel before starting any work with or on the machine.

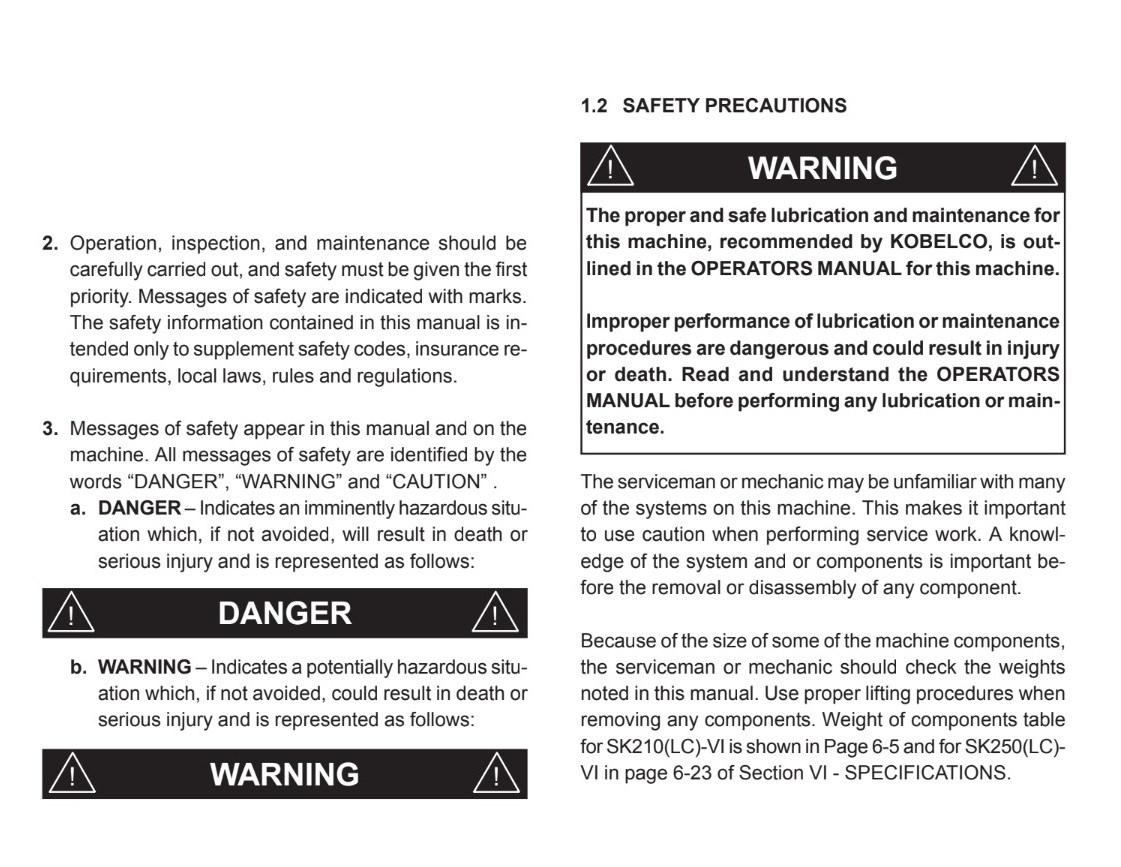

с. CAUTION - Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against possible damage to the machine and its components and is represented as follows:

4. It is very difficult to forecast every danger that may occur during operation. However, safety can be ensured by fully understanding proper operating procedures for this machine according to methods recommended by KO-BELCO.

5. While operating the machine, be sure to perform work with great care, so as not to damage the machine, or allow accidents to occur.

6. Continue studying this manual until all Safety, Operation and Maintenance procedures are completely understood by all persons working with the machine.

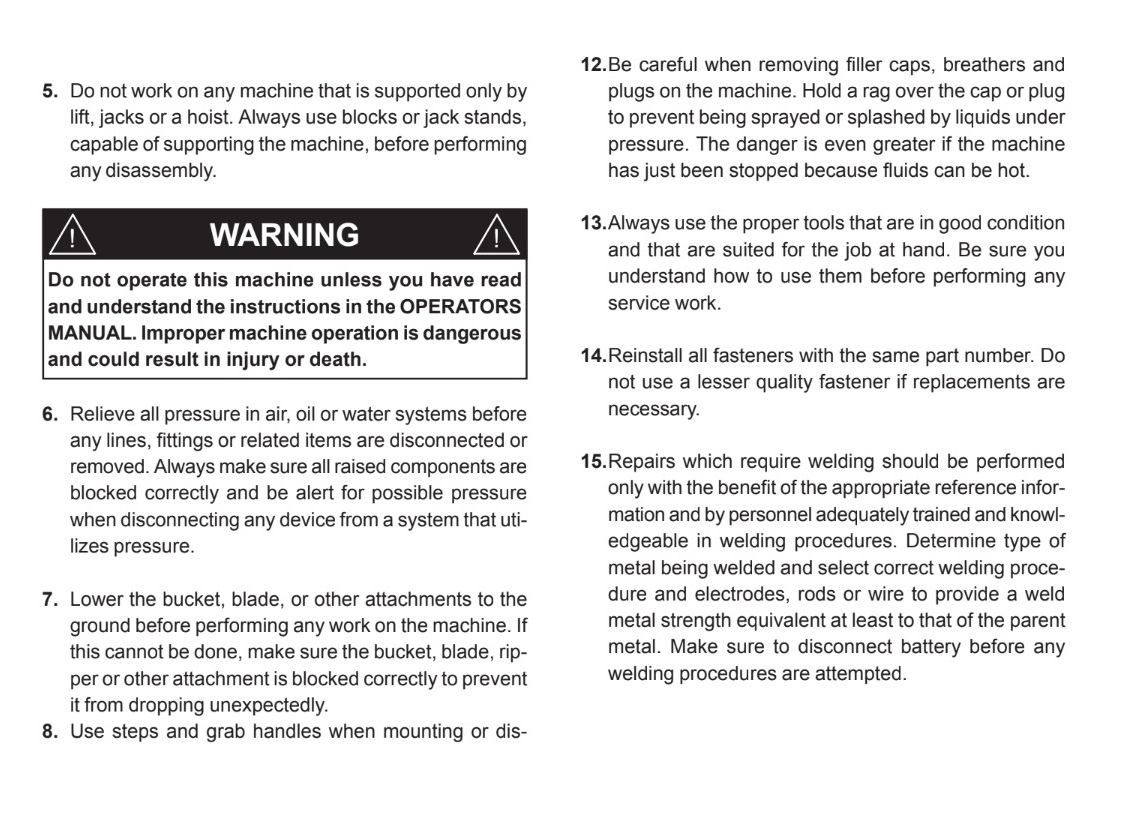

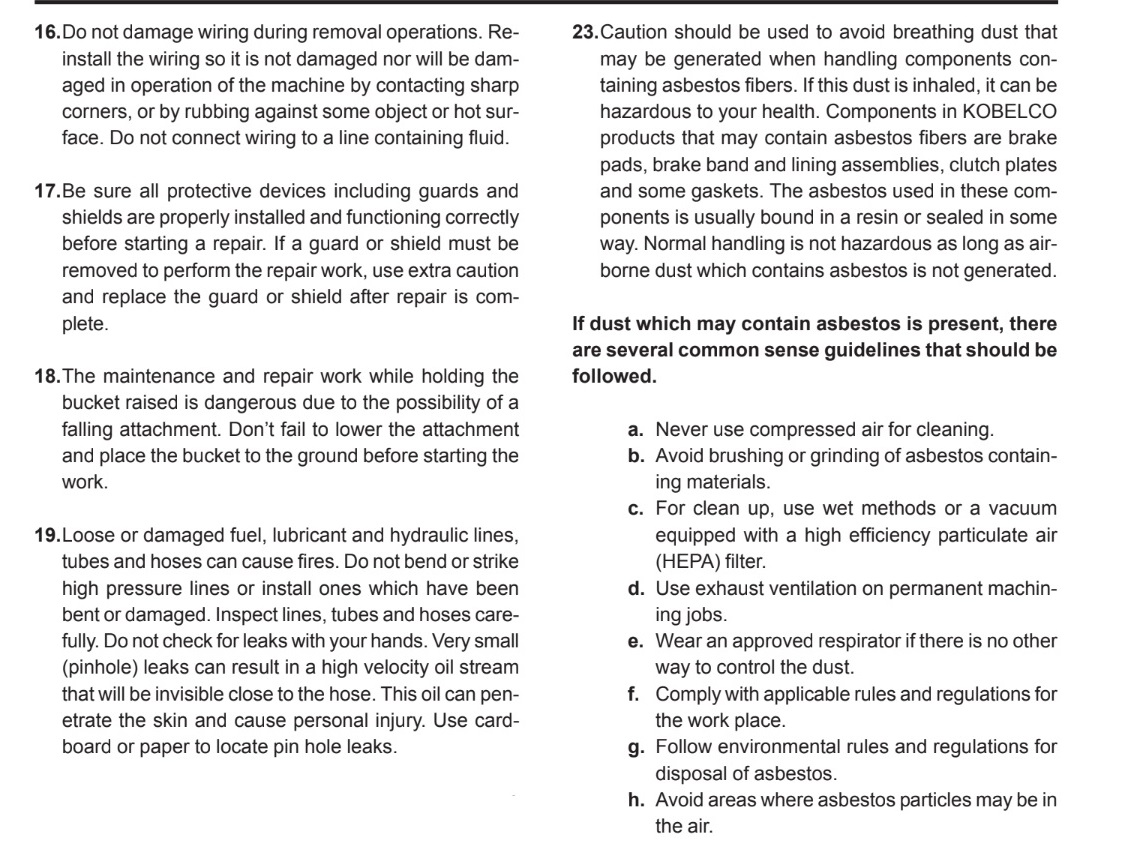

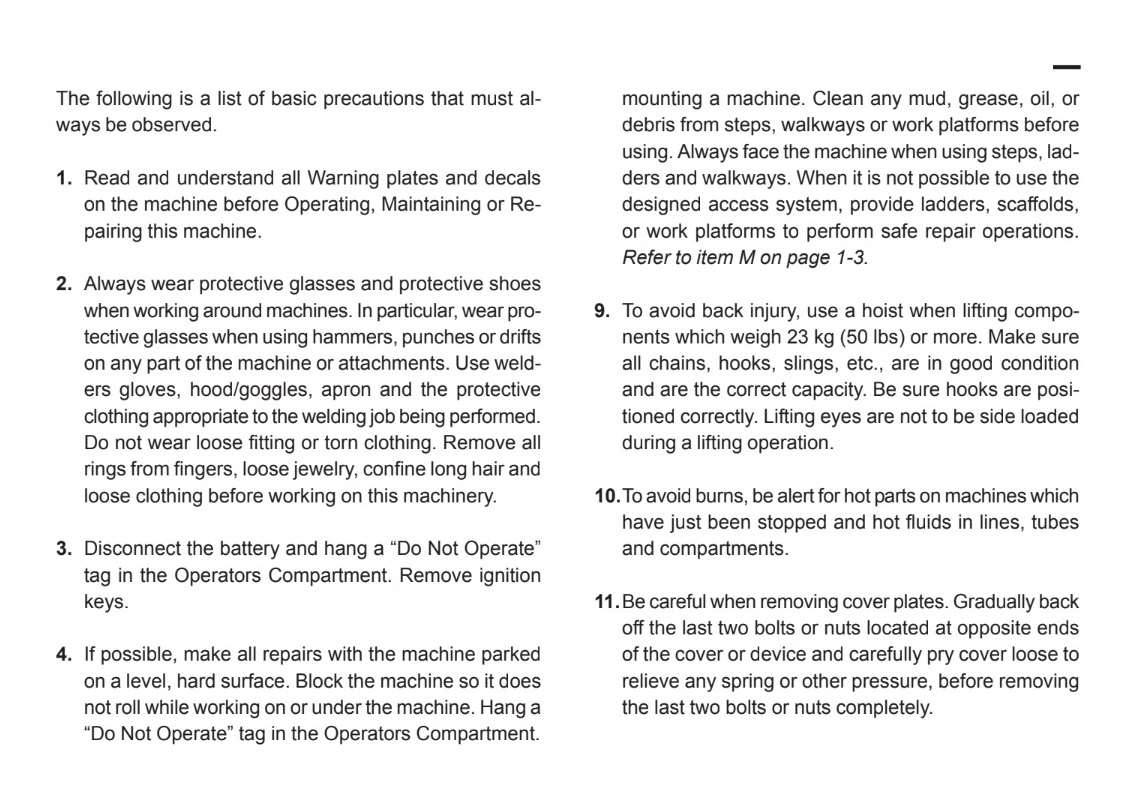

20.Tighten connections to the correct torque. Make sure that ail heat shields, clamps and guards are installed correctly to avoid excessive heat, vibration or rubbing against other parts during operation. Shields that protect against oil spray onto hot exhaust components in event of a line, tube or seal failure must be installed correctly.

21.Do not operate a machine if any rotating part is damaged or contacts any other part during operation. Any high speed rotating component that has been damaged or altered should be checked for balance before reusing.

22.Be careful when servicing or separating the tracks. Chips can fly when removing or installing a track pin. Wear safety glasses and long sleeve protective clothing. Tracks can unroll very quickly when separated. Keep away from front and rear of machine. The machine can move unexpectedly when both tracks are disengaged from the sprockets. Block the machine to prevent it from moving.

1.3 PRE-START SAFETY

Many failures that occur during machine operation or servicing result from neglecting fundamental safety precautions. The following safety precautions are given to prevent such failures, but they are only a part of what you must follow. Read, understand and follow all safety precautions found in this manual and on the machine thoroughly before operating the machine.
A. OBSERVE SAFETY PRECAUTIONS

Follow all safety rules, precautions, and operating procedures. If there are other personnel and flagmen working in the area, have them observe the specified signs.
B. WEAR PROTECTIVE CLOTHING

Wear well fitting safety shoes, hard hat, and working clothes, and put on protective glasses, face shield, ear protection and gloves. When necessary, wear reflective vest.
C. READ and UNDERSTAND THE OPERATORS MANUAL

Before operating the machine, read and understand this operators manual thoroughly in order to use the mchine effectively and safely.

D. KEEP OPERATORS MANUAL IN MACHINE CAB

Keep this manual in the specified storage area located behind the operators seat for quick reference. Should the operators manual become lost or damaged, contact an authorized KOBELCO distributor to order the operators Manual.
E. HOW TO HANDLE LIFE HAMMER

A life hammer is provided on the right side of cab. In case of emergency, take the life hammer, break the cab glass, and escape from the cab. In addition, the life hammer is equipped with a cutter on the lever side to cut the seat belt, etc.
F. PREPARE FOR EMERGENCIES

Have a fire extinguisher and first aid kit ready for emergencies. Know how to operate the fire extinguisher and know where the First Aid Kit is located for easy access in case of emergency.

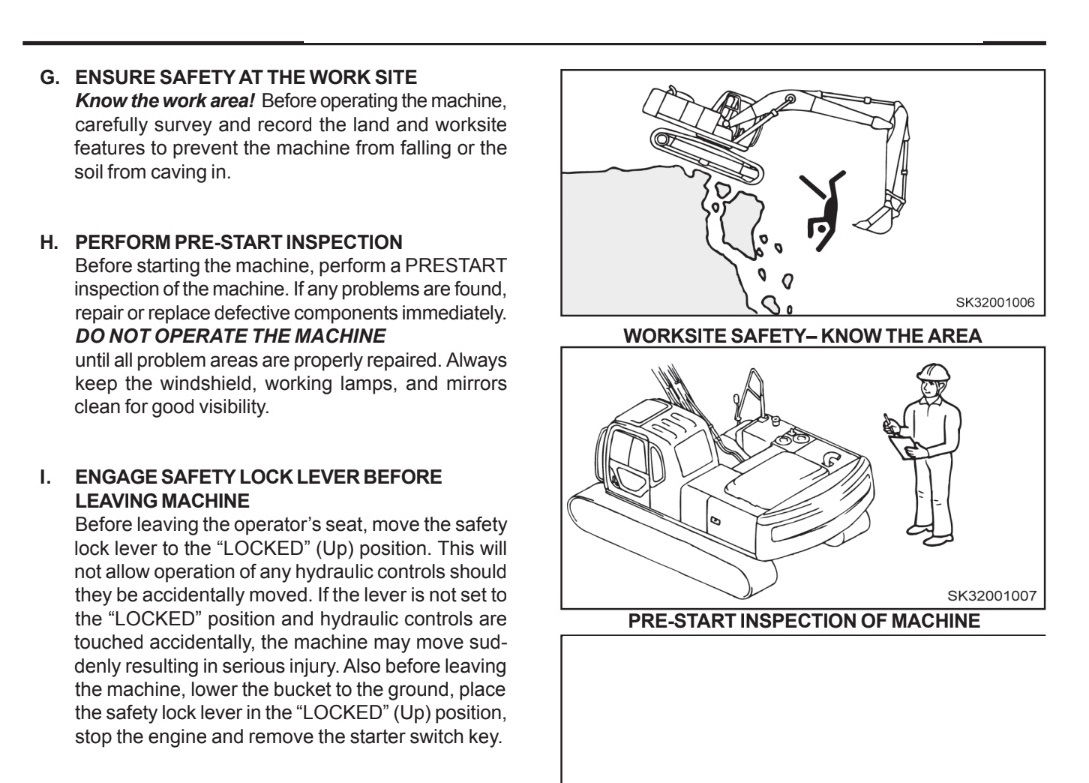

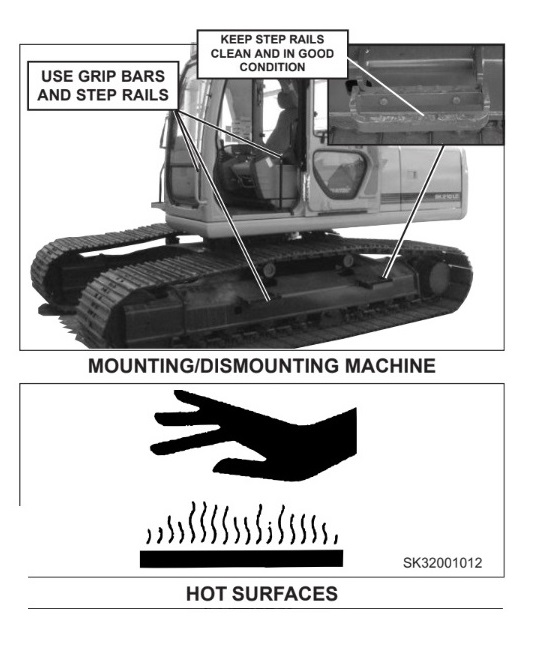

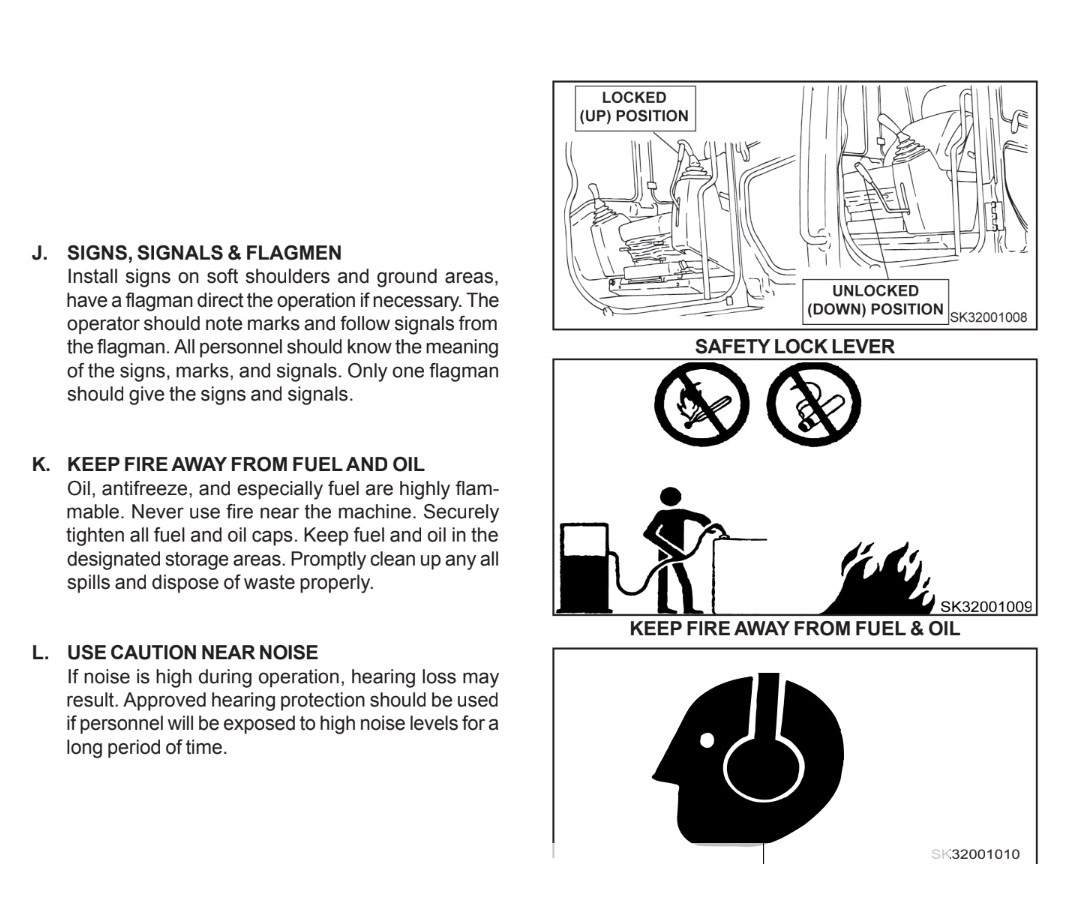

M. MOUNTING & DISMOUNTING MACHINE

When getting on and off the machine, always maintain three point contact by using the handrails and step. Inspect and clean handrails, step, and mounting parts. Remove slippery materials, such as lubricants, and mud. Always place the cab door entrance parallel to the tracks before stopping the engine for dismounting.

N. AVOID HOT SURFACES & AREAS

Immediately after the machine is operated, the temperature and pressure of the engine coolant, engine oil, and hydraulic oil are very high. Burns may result if caps are removed, or oil, water, or filters are changed under these conditions. Wait until the temperature goes down, before attempting to check fluids or change filters.
