Kobelco SK160LC-6E / ED190 / SK210LC-6E / SK250LC-6E / SK290LC-6E / SK330LC-6E. Service Manual - page 7

О. USE THE PROPER OPTIONAL ATTACHMENT

Use only optional attachments designed for and approved by KOBELCO. Read, understand and follow all instructions in the manual accompanying the optional attachment. Use of any optional attachment not approved by KOBELCO in writing, can cause serious injury to personnel, damage to the machine and its components and shorten the life of the machine. Contact an authorized KOBELCO Dealer for optional attachments available for the machine.

P. PREVENT FIRES

Leaking or spilled fuel, lubricants and hydraulic oil are fire hazards. Clean and properly dispose of spills as they occur. Repair or replace all leaking components to prevent fire. Also, clean the machine regularly removing all debris to help prevent fires, pay particular attention to removal of leaves, sticks, paper etc. Keep fire extinguisher in an accessible area and know how to use the fire extinguisher should a fire occur.

1.4 SAFETY DURING OPERATION A. STARTING ENGINE

Sit in the operator’s seat. Sound the horn before starting the engine to alert people the machine is being started. Make sure no one is near the machine. Do not short circuit the starter circuit or battery to start the engine. This may cause serious injury or cause damage the electrical system. MOUNTING/DISMOUNTING MACHINE

1.5 INSPECTION &MAINTENANCE SAFETY

A. “TAG-OUT’’MACHINE

Before performing any inspection or maintenance procedures to the machine, fill out and post to the operators controls a “DO NOT OPERATE ” tag to warn persons not to start the machine.Also inform the supervisor and all operators that the machine is under inspection or maintenance and they will be informed when the machine is ready for normal operation.
B. TOOLS &EQUIPMENT

Use the proper tools and equipment for the task at hand. Know the proper use of the tools and equipment before starting any inspection or maintenance procedures.
C. PERSONAL EQUIPMENT

Wear well fitting work clothes,hard hat,safety shoes and gloves. Confine long hair,loose clothing and remove all jewelry before attempting any inspection or maintenance procedures to this machine or attachments.

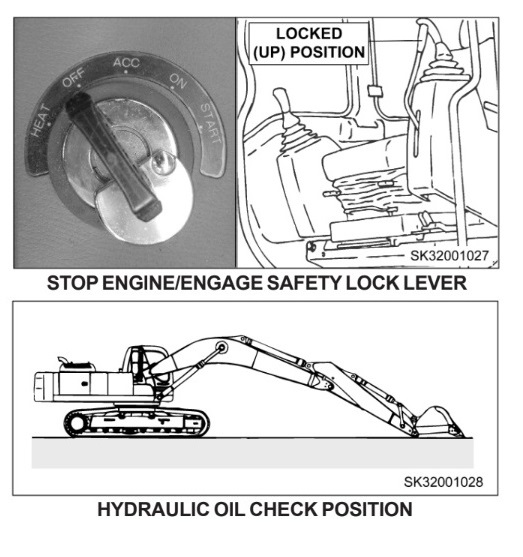

D. STOP THE ENGINE

BE CERTAIN TO TURN ENGINE OFF AND LA CE THE SAFETY LOCK LEVER IN THE “LOCKED” (UP) POSITION before attempting any inspection or maintenance procedures to the machine. Failure to stop engine could result in serous bodily injury or death.

E. SET THE ATTACHMENT

Always set the machine in the hydraulic oil check position on firm level ground before attempting any in spection or maintenance procedures to the machine. If it is not possible to put the machine in this position, secure the boom, arm and attacment to help prevent sudden movement. ALWAYS PLACE AT-TACHMENTS ON THE GROUND AND RAISE THE SAFETY LOCK LEVER BEFORE LEAVING THE CAB.

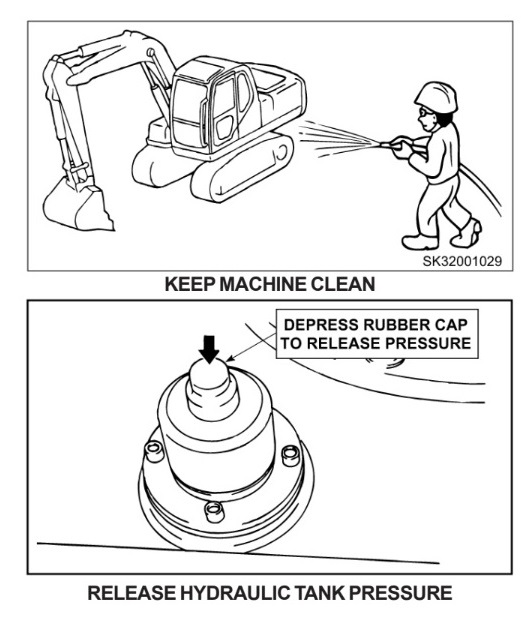

F. CLEAN THE MACHINE

Keep the machine clean and free of debris, excess or spilled lubricants, fuel and fluids. Use aproved solvents, detergents and water to clean the machine and its components on a regular basis. Be careful not to allow water to reach electri cal components. Serious damage can occur to the electrical system by allowing water to reach the electrical components. Never clean inside of cab, or electrical components with pressurized water or steam.

G. PRESSURIZED FLUIDS & LUBRICANTS

Always release pressure from hydraulic reservoir, engine coolant, fuel system and all systems cotaining pressure before removing any caps or components BE CAUTIOUS OF HOT FLUIDS AND GASSES FROM SYSTEMS ON MACHINES THAT HAVE JUST BEEN STOPPED. ALLOW SUFFICIENT TIME FOR SYSTEMS TO COOL BEFORE PERFORMING ANY INSPECTION OR MAINTENANCE PROCEDURES.

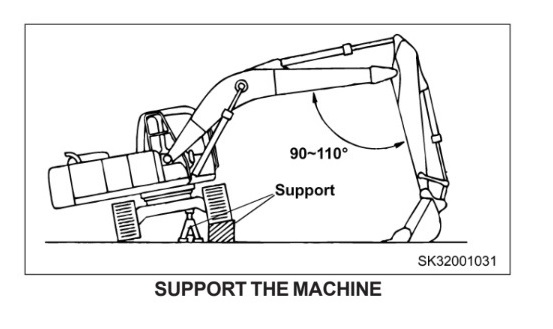

SUPPORT THE MACHINE

If it becomes necessary to raise the machine for inspection or maintenance, always support the machine by positioning the machine as shown in the illustration and use safety supports or blocks, with a sufficient capacity rating to support the machine, under the tracks. NEVER INSPECT OR PERFORM MAINTENANCE PROCEDURES UNDER A RAISED MACHINE THAT IS NOT SUFFICIENTLY SUPPORTED.

I. REFUELING

Move the machine to a well ventilated area for refueling. Use only specified fuel as described in the MAINTENANCE section of this operators manual. Immediately clean up all spilled fuel and dispose of properly. After refueling is complete, securely tighten fuel cap.

J. HYDRAULIC PRESSURE

Under normal conditions,all circuits of the hydraulic system are under extreme pressure.When inspecting for leaks, use a small piece of cardboard, wood or metal to locate leaks.SMALL (PINHOLE) LEAKS CAN BE DANGEROUS IF CONTACT WITH SKIN OR EYES IS MADE.Wear approved safety glasses or face shield,gloves, hard hat, safety shoes and work clothes during all inspection and maintenance procedures.
