5.16.1

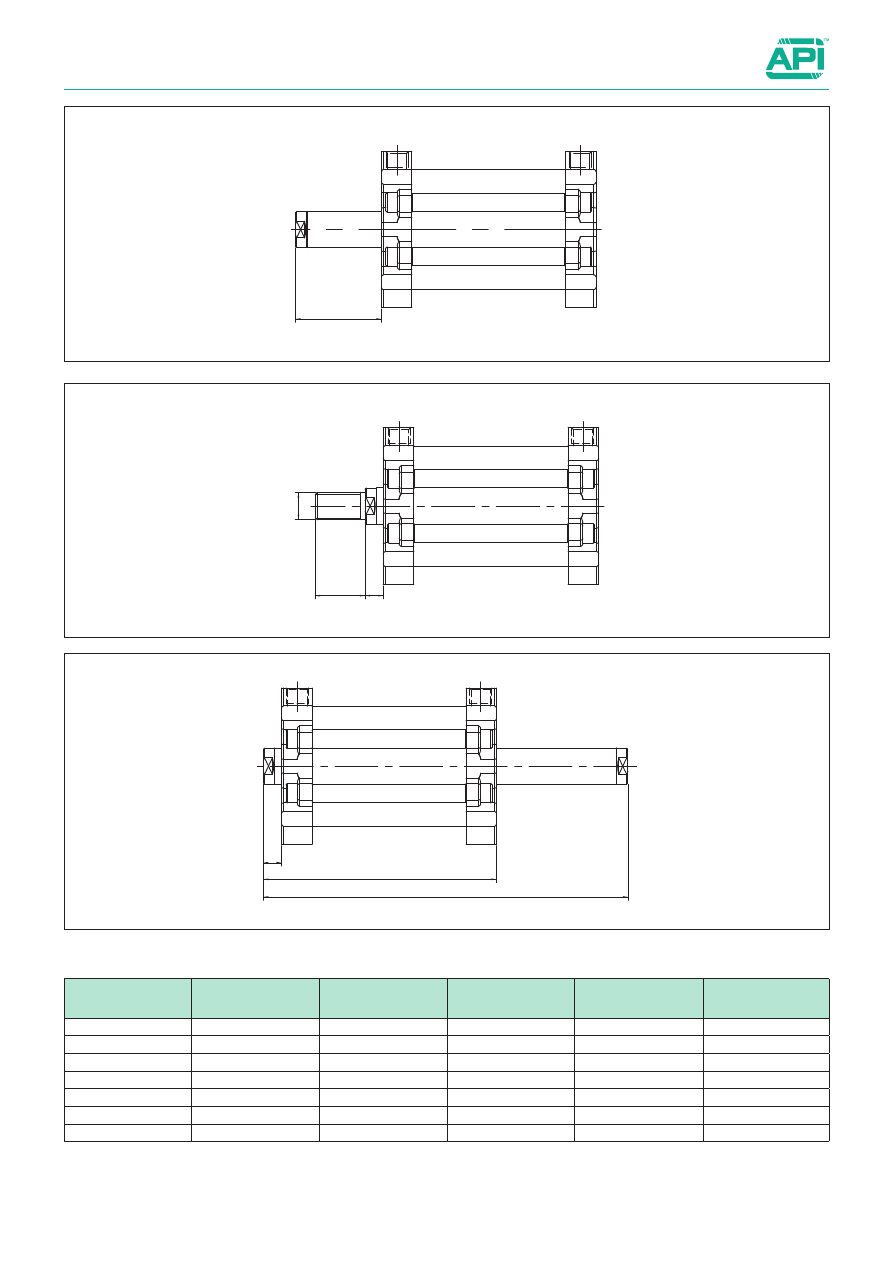

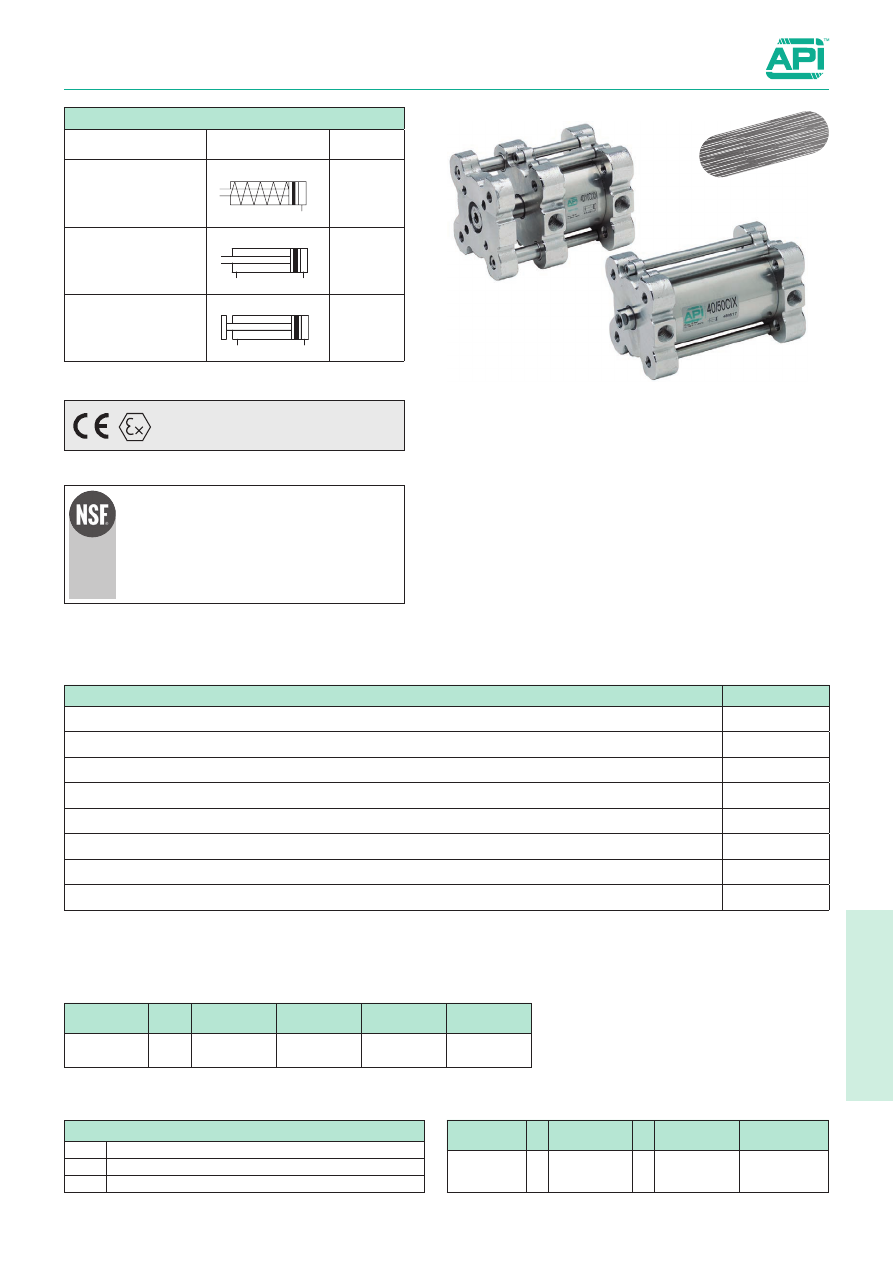

Stainless Steel Compact Cylinders ISO 21287

Bores from 25 to 100 mm

Series of stainless steel compact cylinders conforming to ISO
21287 standards.
Round tube and external tie-rods are the features of this cylinder
with clean design and attention to details.
A particular attention was put to the end caps where there are no
cavities, thus eliminating contamination traps.
All series CIX is with elastic dampers on the piston
Only magnetic version available
One or more magnetic reed switches can be mounted.

The options can be combined (when this is possible).
The suffix of the options are to be added to the model number of the standard product, as shown in the following table.

How to order:

63/100CIXMP

100

CIX

Bore

Stroke

Type

Option

Seals kits

n. 1

Rod seal

n. 2

Tube O-ring

n. 1

Piston lip-seal

How to order: 32 / SG / CIXP

CIX

Bore

Seal kit

Type

Option

Options

Suffix

Single acting, rear spring

(page 5.16.4)

Male thread on piston-rod

(page 5.16.4)

Through-rod

(page 5.16.4)

Seals FKM -20°C ÷ +150°C

Scraper ring only FKM -20°C ÷ +80°C

Low temperature seals -40°C ÷ +80°C

Extended rod (indicate the requested WH dimension in mm. E.g.: WH-50)

WH-...

Special on request

Standard executions

Version

Symbol

Type

Single acting magnetic

with female thread

CIXS

Double acting magnetic

with female thread

CIX

Double acting magnetic

anti-rotating

CIXN

Stainless Steel

Lubrication with synthetic grease long lasting
for applications with low start up, granting low
friction and a permanent lubrication film.
Fully composed by non-toxic elements
conforming to directive FDA section 21 CFR 178
about accidental contact with food ( registered
NSF H1 ).

For the magnetic reed switches type ASV see from page 1.110.1.
For mounting accessories

see from page 5.40.1

For rod accessories

see from page 5.20.1 and 5.25.1

II 2Gc IIC T5
II 2Dc T100°C

On request, they can be supplied according to 2014/34/EU -

ATEX

Maximum radial load diagram

S (mm)

F (N)

100

150

Ø16

Ø20/25

Ø32/40

Ø50/63

Ø80

Ø100

5.16.2

Stainless Steel Compact Cylinders ISO 21287

Bores from 25 to 100 mm

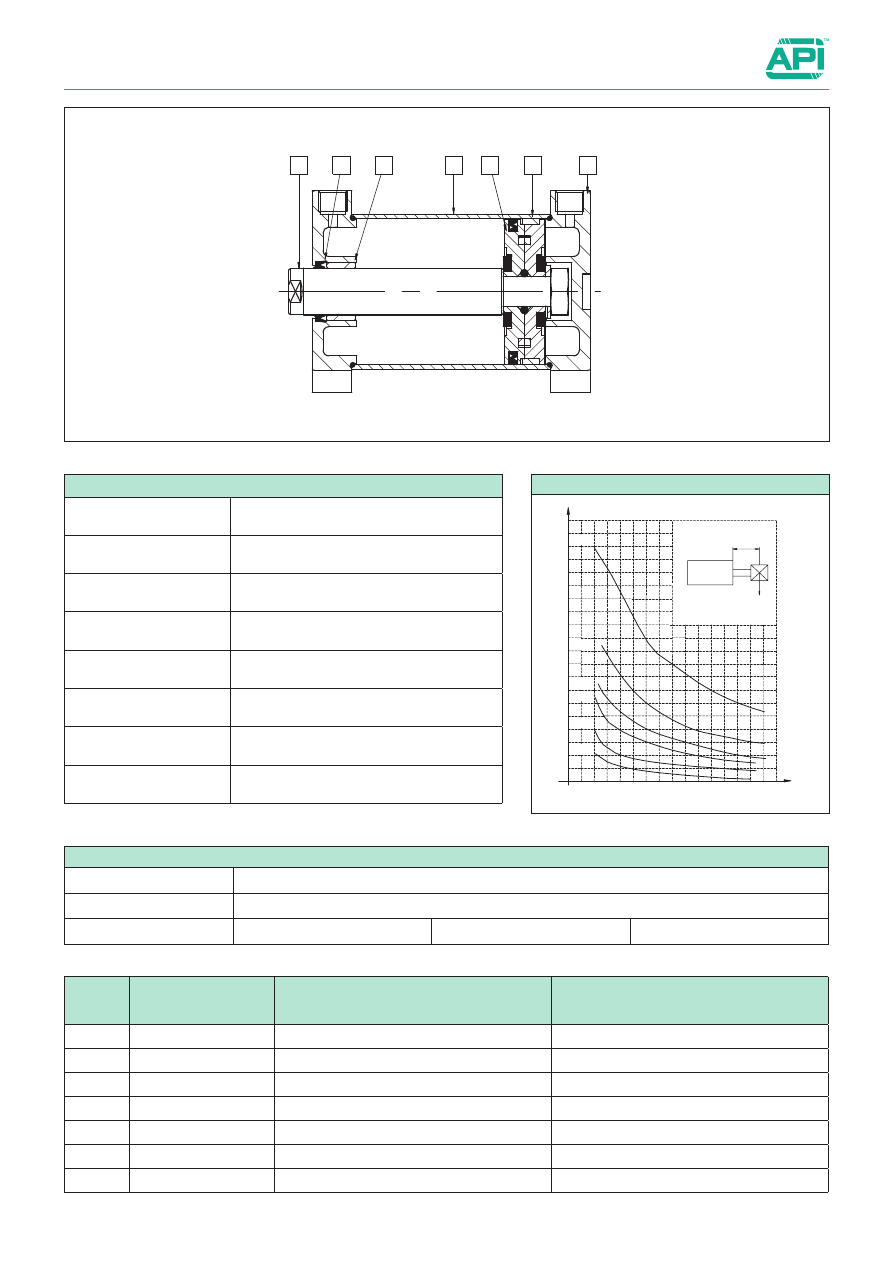

Techinical data

Technical data

Fluid

Compressed filtered air with or without lubrication. Lubrication, if started, must be continued.

Pressure

Single acting 2 ÷ 10 bar - Double acting 1 ÷ 10 bar

Temperature range

-20°C ÷ +80°C (standard /V1)

-20°C ÷ +150°C (V)

-40°C ÷ +80°C (BT)

Materials (standard types)

Rod

Stainless steel AISI 316L

Bushing

Sintered bronze self-lubricated

Heads

Stainless steel AISI 316L

Tube

Stainless steel AISI 316L

Piston

Aluminium

Guide ring

PTFE

Rod seals

Polyurethane

Other seals

Nitrilic rubber NBR

Bore

(mm)

Standard strokes

CIXS

Standard strokes

CIX

Standard strokes

CIXN

5, 10, 15, 20, 25

(5÷25) 5, 10, 15, 20, 25, 30, 40, 50, 60

(5÷300)

5, 10, 15, 20, 25, 30, 40, 50, 60

(5÷200)

5, 10, 15, 20, 25

(5÷25) 5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷400)

5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷300)

5, 10, 15, 20, 25

(5÷25) 5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷400)

5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷300)

5, 10, 15, 20, 25

(5÷25) 5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷400)

5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷300)

5, 10, 15, 20, 25

(5÷25) 5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷400)

5, 10, 15, 20, 25, 30, 40, 50, 60, 80

(5÷300)

15, 20, 25

(15÷25) 15, 20, 25, 30, 40, 50, 60, 80

(15÷500) 15, 20, 25, 30, 40, 50, 60, 80

(15÷400)

100

15, 20, 25

(15÷25) 15, 20, 25, 30, 40, 50, 60, 80, 100

(15÷500) 15, 20, 25, 30, 40, 50, 60, 80, 100

(15÷400)

ØMM

ØDA

ZA + corsa

ØRR

5.16.3

Stainless Steel Compact Cylinders ISO 21287

Bores from 25 to 100 mm

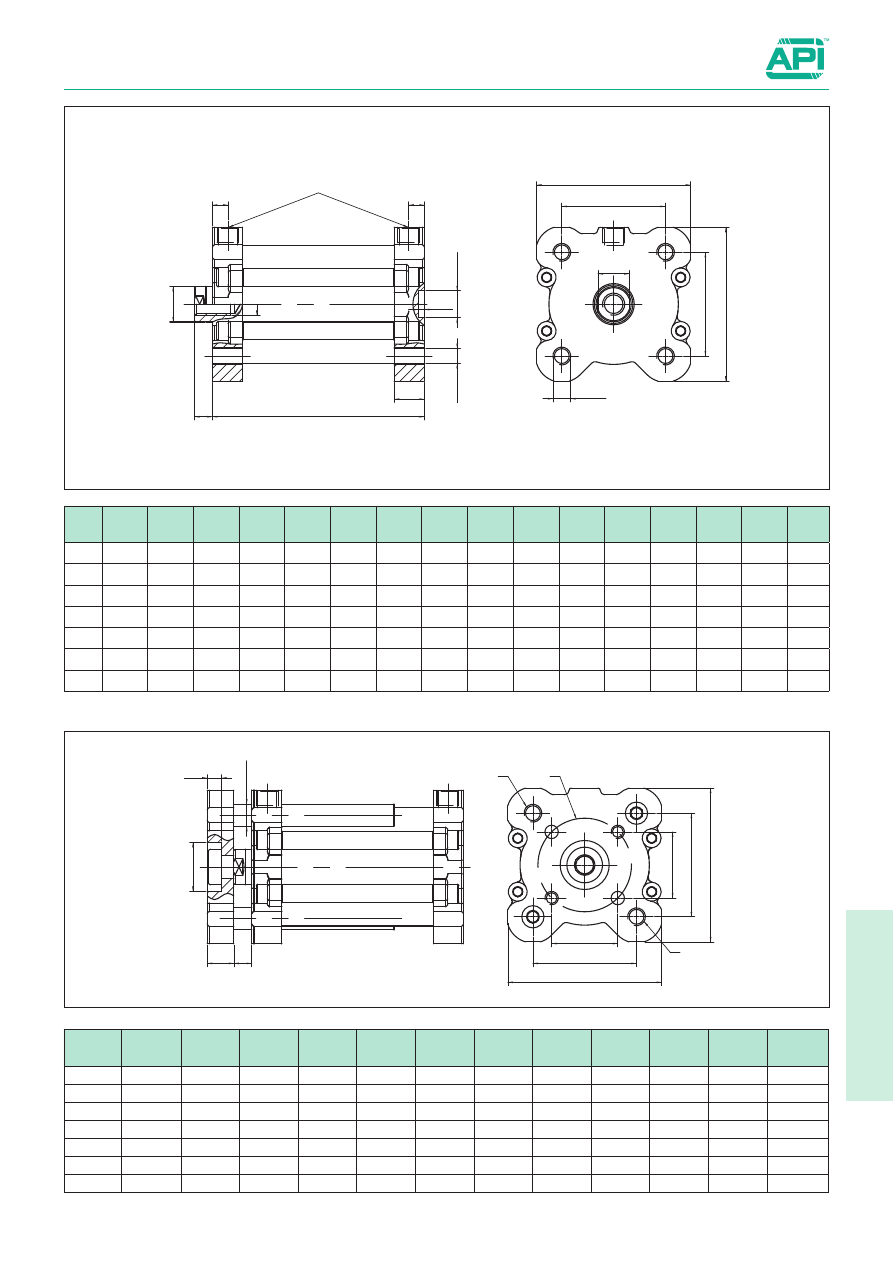

Standard dimensions

Type:

CIX - CIXS

(mm)

Ø MM

Ø DA

+0.1

4,1

2,1

G 1/8

32,5

47,5

2,1

G 1/8

5,1

7,5

2,1

M10

G 1/8

6,4

46,5

7,5

2,6

M10

G 1/8

6,4

56,5

2,6

M12

G 1/8

8,4

M10

2,6

100

M12

G 1/8

8,4

116

M10

8,5

2,6

ØBB

ØF

MF WH

ØC

ØMN

(mm)

+0,1

ØBB

±0,1

ØF

+0,1

ØC

15.6

4,5

47.5

32,5

19.8

5,5

23.3

5,5

46,5

29.7

6,5

56,5

35.4

6,5

M10

7,5

100

116

56.6

M10

7,5

Type:

...N

WH + stroke

Stainless Steel Compact Cylinders ISO 21287

Bores from 25 to 100 mm

Option

ZJ + stroke

ZM + stroke

Type:

...T

(mm)

M8x1.25

M10x1.25

M12x1.25

M16x1.5

100

M16x1.5

Type:

...M

Type:

...P

5.16.4

Available stroke: 1÷25

5.20.1

Mounting Accessories for Stainless Steel Cylinders

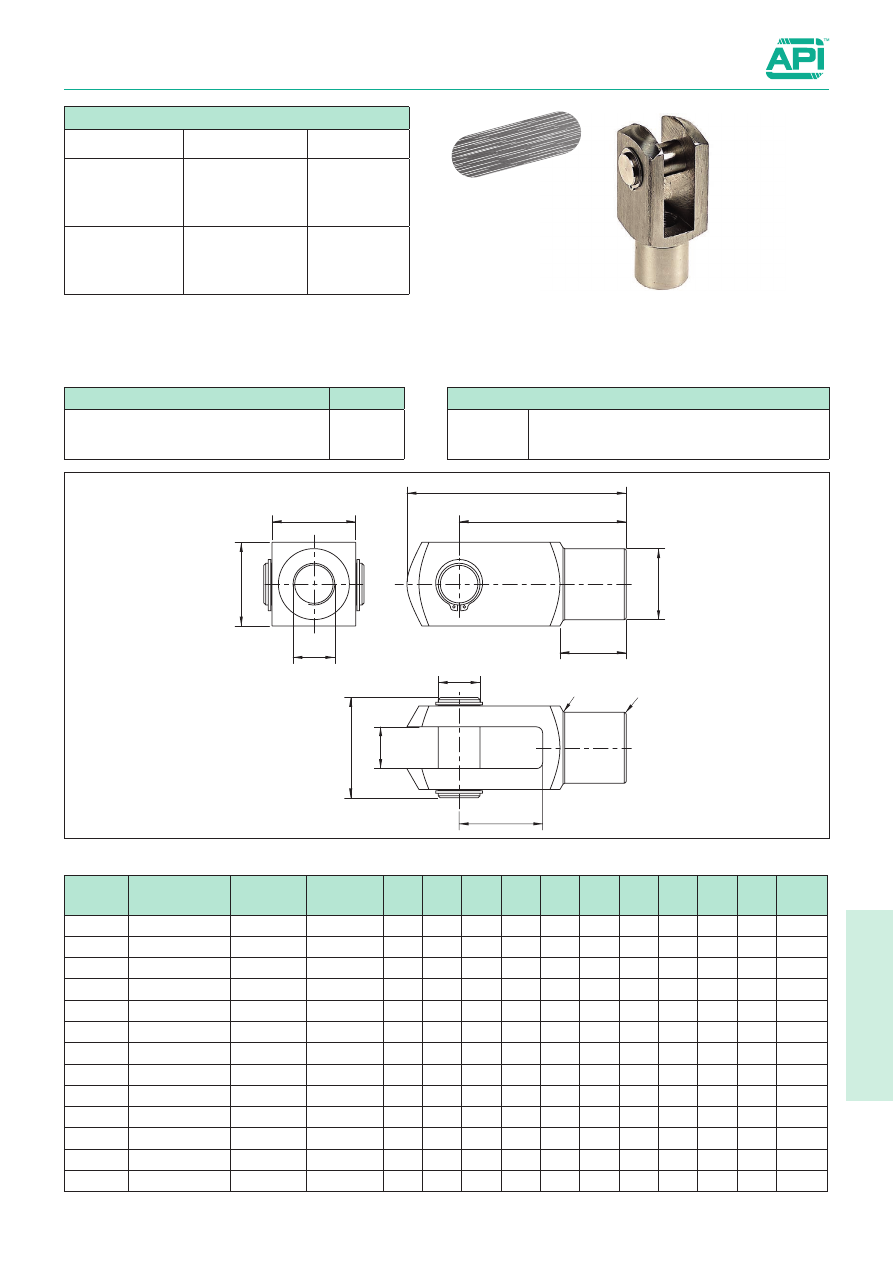

Clevis ISO

and DIN

Clevis conforming to ISO and DIN standards.
It’s provided with a pin and 2 seegers.
The clevis is mounted on the cylinder rod and allows a swinging
movement.

Standard executions

Version

Symbol

Type

ISO Female clevis

FFX..ISO

DIN Female clevis

FFX..DIN

Options

Suffix

Special version on request

/ S

Technical data

Materials

Body and clip: Stainless steel AISI 316
Seeger:

Stainless steel AISI 316

Stainless Steel

For the accessories of bore 125-160-200 mm, apply for availability because they have to be produced on request only.

Type:

FFX..ISO
FFX..DIN

Code

Item

For cylinder

ø mm

B12

Weight

(g)

041052

FFX04ISO/DIN

8-10

M4x0,7

0,5

041071

FFX05DIN

M5x0,8

7,5

13,5

0,5

041053

FFX06ISO/DIN

12-16

M6x1

0,5

041054

FFX08ISO

M8x1,25

0,5

041055

FFX10ISO

25-32

M10x1,25

0,5

041070

FFX10DIN

32**

M10x1,5

0,5

041056

FFX12ISO

M12x1,25

0,5

153

041216

FFX12DIN

40**

M12x1,75

0,5

153

041057

FFX16ISO

50-63

M16x1,5

320

041078

FFX16DIN

50-63**

M16x2

320

041058

FFX20ISO

80-100

M20x1,5

105

680

041112

FFX27ISO

125

M27x2

148

110

041113

FFX36ISO

160-200

M36x2

188

144

* For cylinders not conforming to standard

** For RDX, RDMX and RDMAX series cylinders

5.25.1

Mounting Accessories for Stainless Steel Cylinders

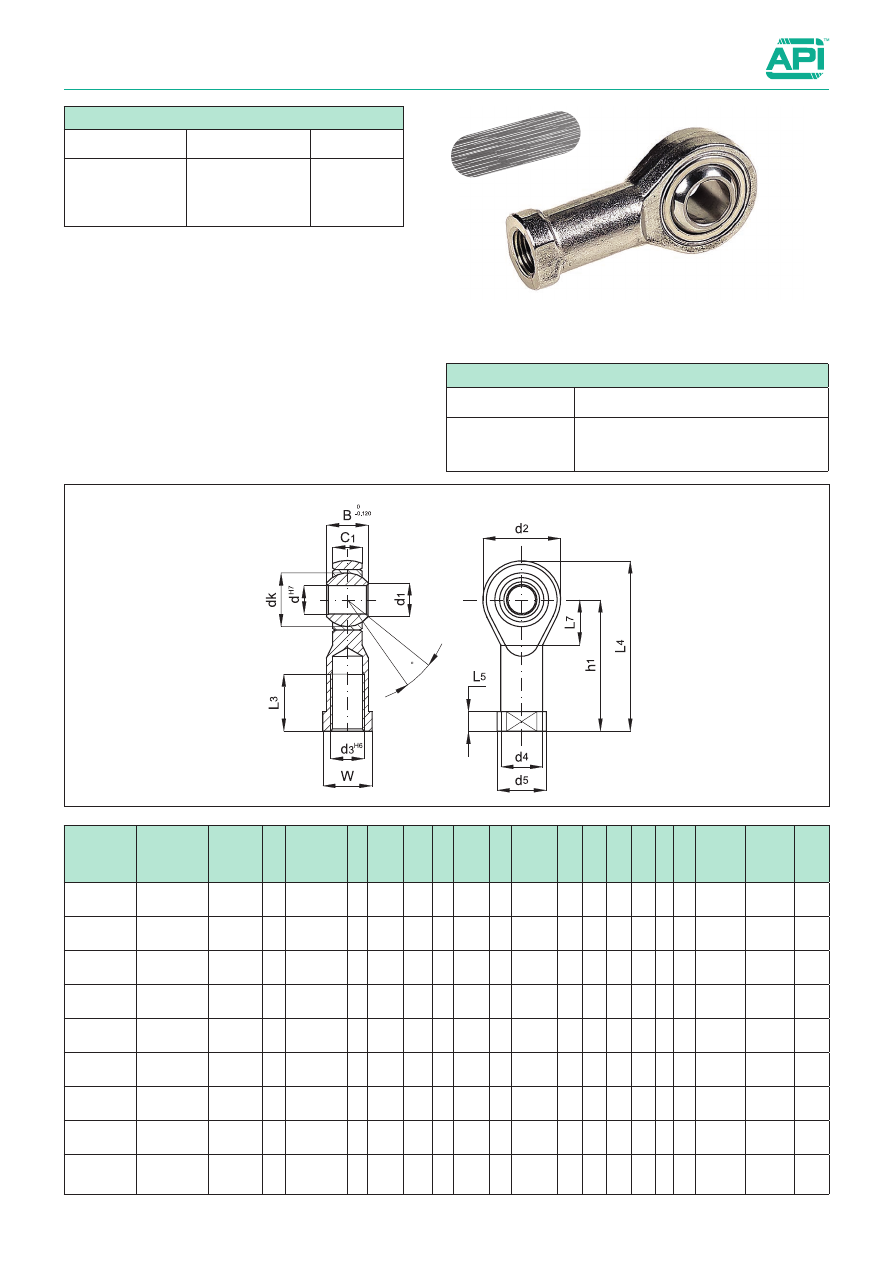

Bearings - Bearing heads DIN 648-K and ISO 8139

Self-lubricating bearing heads servicing-free and conforming to
DIN 648-K and ISO 8139 standards.
The bearing head is mounted on the cylinder rod.

Type:

RFX..SE

Standard executions

Version

Symbol

Type

With female thread

RFX..SE

Technical data

Temperature range

-30 °C ÷ +150 °C

Materials

Body: Stainless Steel AISI 431
Sphere: Stainless Steel AISI 316
External ring: Stainless Steel AISI 316 TI

Code

Item

For cylin.

ISO

ø mm

Static

load

(daN)

a°

Weight

(g)

041576

RFX4SE

8-10

7,7 18

11 11,112 27 10 36

4 10 9

600

041570

RFX6SE

12-16

6,75

8,9 20

13 12,700 30 12 40

5 11 11

700

041577

RFX8SE

10,4 24 12,50 16 15,875 36 16 48

5 13 14

1200

040009

RFX10SE

25-32

10 M10x1,25 14 10,50 12,9 28

19 19,050 43 20 57 6,5 15 17

1400

041578

RFX12SE

12 M12x1,25 16

15,4 32 17,50 22 22,225 50 22 66 6,5 17 19

1900

112

040011

RFX16SE

50-63

16 M16x1,5 21

19,3 42

27 28,575 64 28 85

8 23 22

4800

220

041579

RFX20SE

80-100

20 M20x1,5 25

24,3 50 27,50 34 34,925 77 33 102 10 27 30

5200

406

041580

RFX30SE

125

M27x2

34,8 70

50 50,800 110 51 145 15 36 41

10800

1120

041581

RFX35SE

160-200 35

M36x2

37,7 80

58 57,150 125 56 165 17 41 50

12400

1595

Stainless Steel

5.25.10

Mounting Accessories for Stainless Steel Cylinders

Bearings - Self-aligned articulated couplings

Axial self-aligned articulated couplings mounted on the cylinder
rod.
They are fit for applications with high tractions and allow to com-
pensate the angular and parallel misalignments.
They are provided with hexagonal nut in the standard version.

* For cylinders not conforming to standards.

Type:

GBX

Technical data

Material

Stainless Steel AISI 303

Code

Item

For cylin.

ISO

Ø mm

M CH

° CH

Maximum load

(N) in thust and

traction

Weight

(g)

041734

GBX008

8-10

M4x0,7

2,2 15,5

8,5

14,5

1 10 3,2 10

750

041735

GBX010

12-16

M6x1

3,2 17,5

8,5

14,5

1 10

1200

041736

GBX020

M8x1,25

24,5

12,5

2 20

2500

041737

GBX040

25-32

M10x1,25

2 20 12

5000

230

041738

GBX060

M12x1,25

2 20 12

5000

230

041739

GBX100

50-63

M16x1,5

108

22 33,5

2 32 19

10000

650

041721

GBX120

80-100

M20x1,5

122

22 33,5

2 40 19

10000

710

041740

GBX130

125

M27x2

147

54 13,5

40 24

1600

Standard executions

Version

Symbol

Type

Axial

GBX

Options

Suffix

Special versions on request

/ S

Stainless Steel

5.26.1

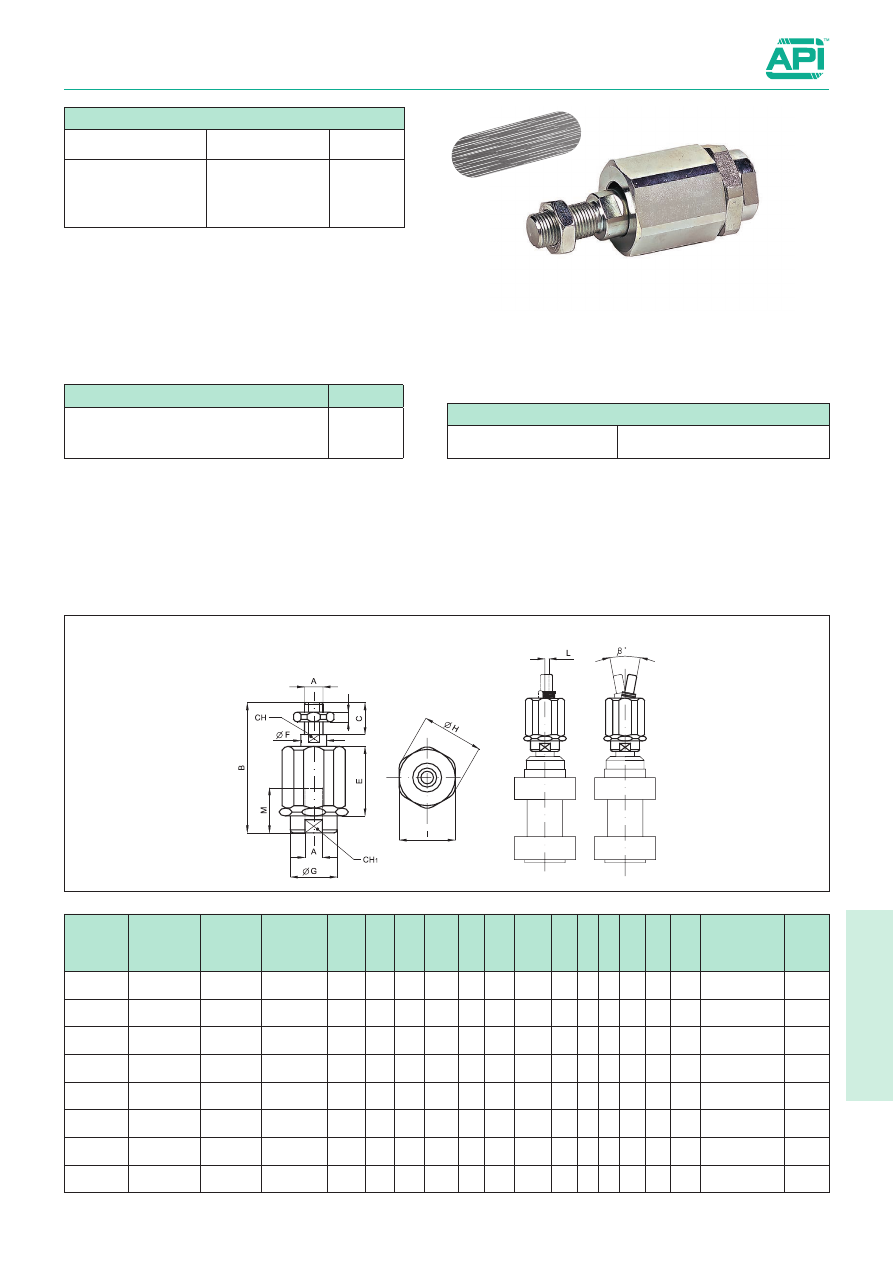

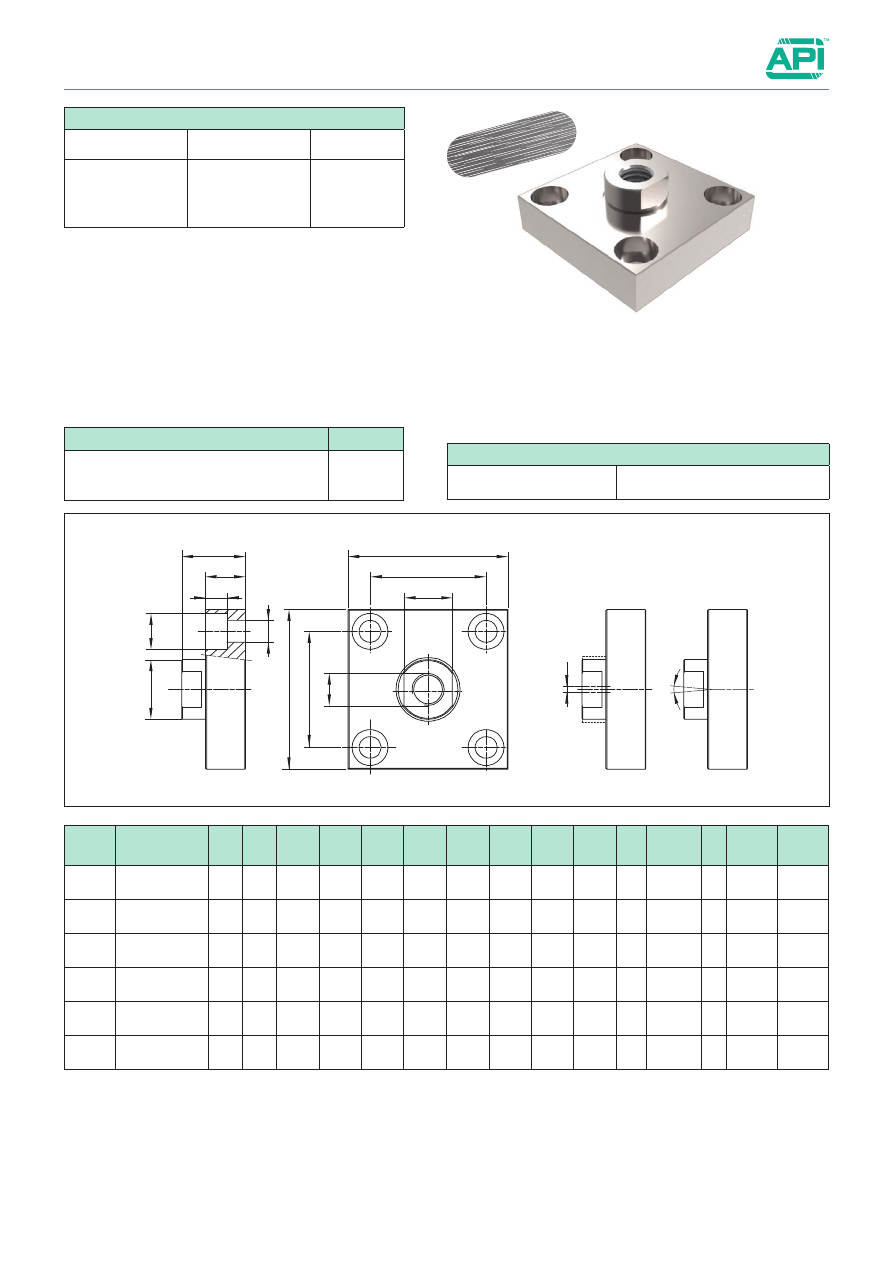

Mounting Accessories for Stainless Steel Cylinders

Self-aligned articulated couplings

Axial self-aligned articulated couplings mounted on the cylinder
rod.
They are suitable for applications with high tractions and allow to
compensate the angular and parallel misalignments.

Ø G

Ø H

Ø I

Type:

GCX

Standard executions

Version

Symbol

Type

Self-aligned
articulated couplings

GCX

Options

Suffix

Special version on request

/ S

Technical data

Material

Stainless Steel AISI 303

Code

Item

Ø G

Ø H

Ø I

Weight

(g)

041728 GCXM10x1,25

±0,15

6,6

M10x1,25 2

0,4÷0,8

0,3

041729 GCXM12x1,25

±0,2

M12x1,25 2

0,4÷0,8

0,4

041730

GCXM16x1,5

±0,2

M16x1,5

0,4÷0,8

0,9

041731

GCXM20x1,5

±0,2

M20x1,5

0,4÷0,8

1,1

041732

GCXM27x2

±0,2

M27x2

0,4÷0,8

1,1

041733

GCXM36x2

125

125 90

±0,2

M36x2

3 0,4÷0,95

3,4

Stainless Steel

5.30.1

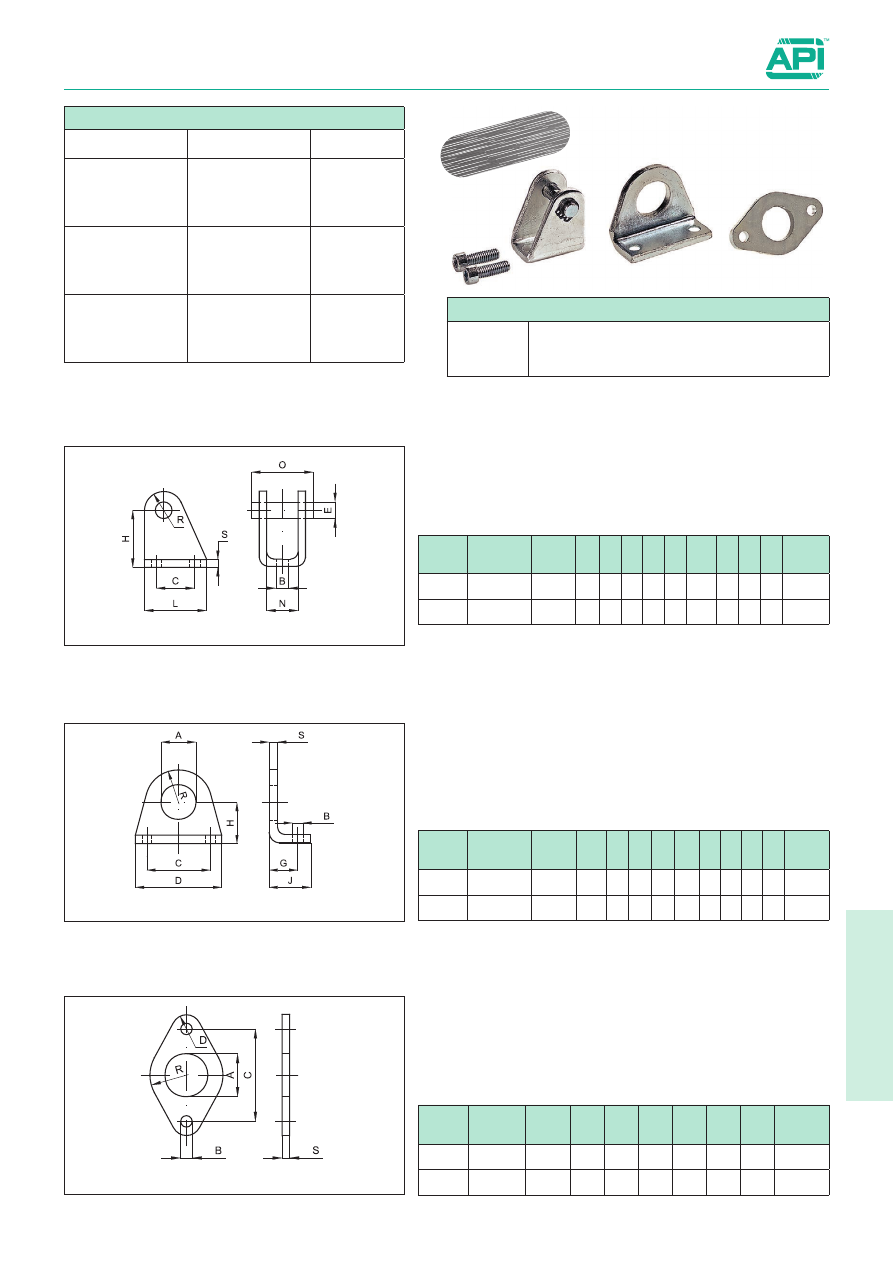

Mounting Accessories for Stainless Steel Cylinders

Mountings for ISO 6432

Complete with a pin and 2 seegers in the standard version.

Type:

CFX

Rear clevis

Type:

Foot

Type:

Flange

Standard executions

Version

Symbol

Type

Rear clevis

(with pin)

CFX

Foot

Flange

Technical data

Material

Stainless Steel AISI 304

Code

Item

For cyl.

ø mm

Weight

(g)

040046 CFX12-16

5,5 6 15 27 25 12,1 24 7

040047 CFX20-25 20-25 6,5 8 20 30 32 16,1 31 10 4

Code

Item

For cyl.

ø mm

S Weight

(g)

040026 PX12-16

16,1 5,5 32 42 14 20 20 13 4

040027 PX20-25 20-25 22,1 6,6 40 54 17 25 25 20 5

Code

Item

For cyl.

ø mm

Weight

(g)

040006 FX12-16

5,5

040007 FX20-25 20-25

6,6

Stainless Steel

5.35.1

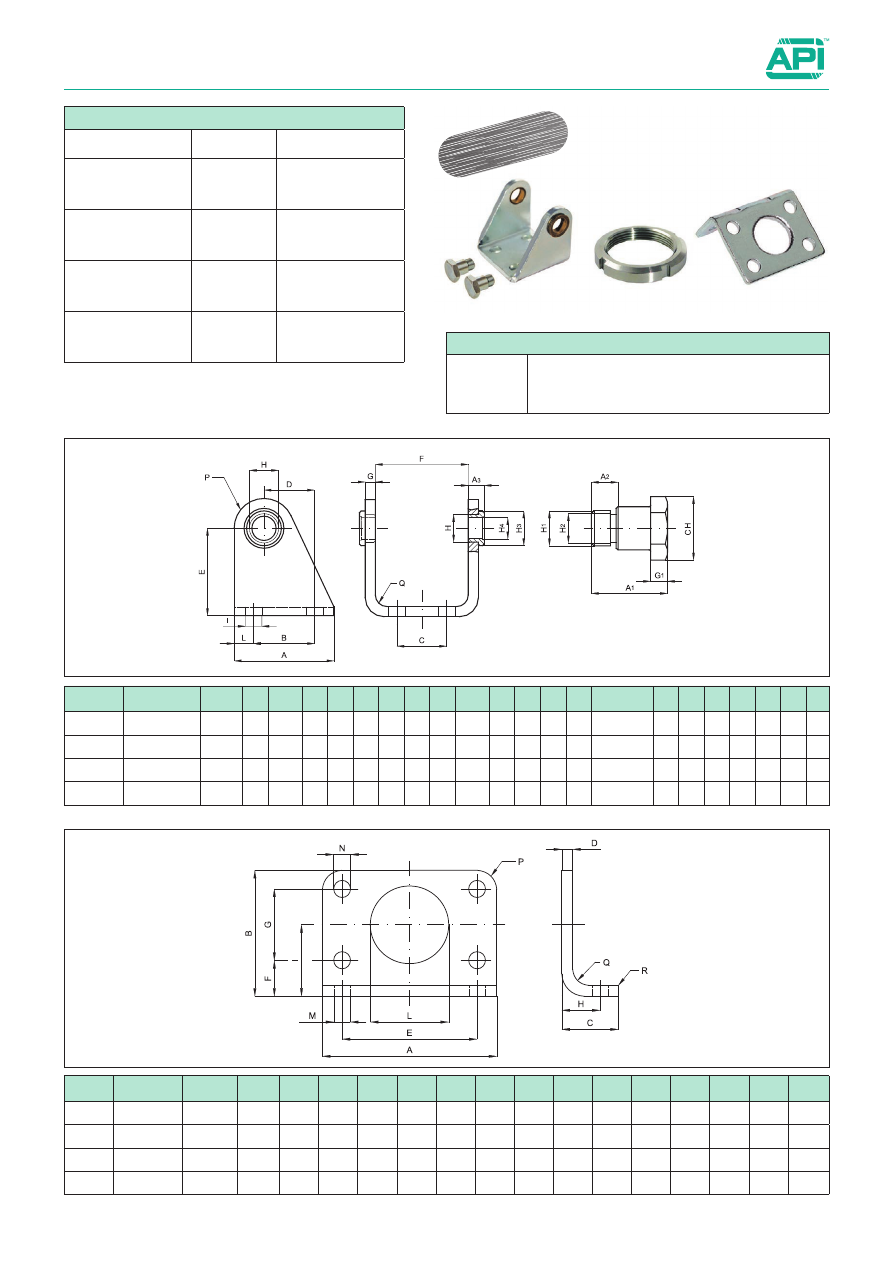

Mounting Accessories for Stainless Steel Cylinders

Mounting for round cylinders

Rear clevis

Type:

CFX..AQM

Kit provided with two pins

Code

Item

Ø mm

040113

CFX32AQM

24 20 20 35 38,1

12 10

M8x1

12 10 13

040111

CFX40AQM

50 21,6

30 28 27 40 46,1

15 12

M10x1

15 12 17

10 13

040139

CFX50AQM

54 26,4

8,5 34 36 30 45 57,1

18 14

M12x1,5

20 14 19

10 14

040031

CFX63AQM

65 33,5 13 8,5 35 42 34 50 70,1

20 16

M14x1,5

23 16 19

15 16

Technical data

Materials

Body:

Stainless steel AISI 304

Bushes:

DELRIN

Standard executions

Version

Symbol

Type

Rear clevis

(with pin)

CFX..AQM

Foot flange

PX..AQM

Heads nut

GHX..AQM

Pins

SECX..AQM

Code

Item

Ø mm

Ø L

Ø M

Ø N

040119 PX32AQM

040120 PX40AQM

040137 PX50AQM

040138 PX63AQM

Foot flange

Type:

PX..AQM

Stainless Steel

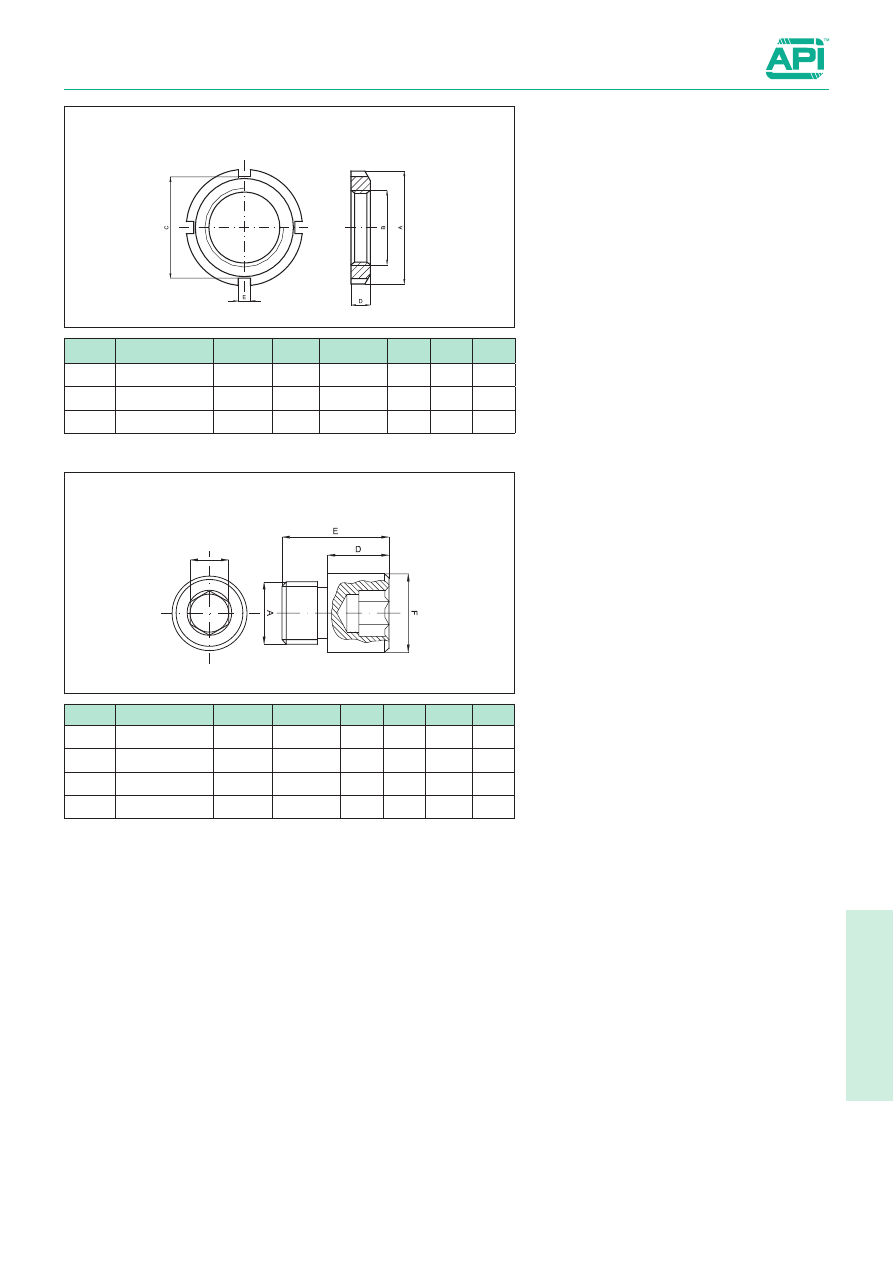

Code

Item

Ø mm

040069

GHX32AQM

Ø 45

M30x1,5

040187

GHX40AQM

Ø 50

M38x1,5

040188 GHX50/63AQM

50/63

Ø 58

M45x1,5

Heads nut

Type:

GHX...AQM

5.35.2

Code

Item

Ø mm

040174

SECX32AQM

M8x1

Ø 10

040175

SECX40AQM

M10x1

9,5

16,5

Ø 12

040176

SECX50AQM

M12x1,5

Ø 14

040177

SECX63AQM

M14x1,5

Ø 16

Kit composed by two pins

Pins

Type:

SECX..AQM

Mounting Accessories for Stainless Steel Cylinders

Mounting for round cylinders

5.40.1

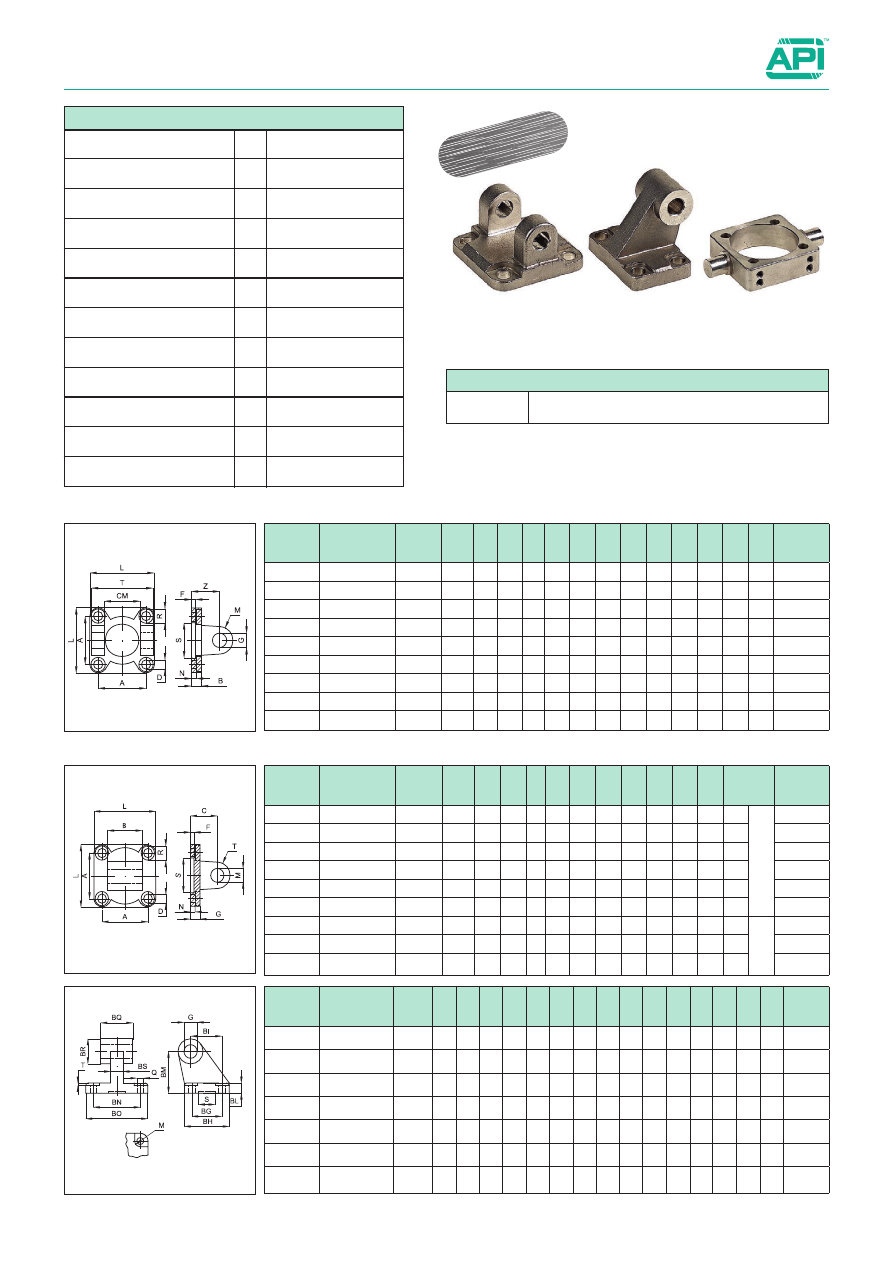

Mounting Accessories for Stainless Steel Cylinders

Mountings for ISO 15552

The pin is to be ordered separately: for the pin see page 5.40.2 (SECX..AQIS)

Type:

CFX

Rear clevis MP2

Type:

CMX

Rear eye MP4

Note: The mounting screws are to be ordered separately. (see

page 5.50.1).

For the accessories of bore 125-160-200 mm, apply for
availability.

OUTLINE OF THE MOUNTING

ACCESSORY SHOWN

FROM ABOVE

Type:

ASVX

Rear 90° hinge

CETOP RP 107P

Standard executions

Version

Sym.

Type

Rear clevis

CFX..AQIS

Rear eye

CMX..AQIS

Rear 90° hinge
CETOP RP 107P

ASVX..AQIS

Pin with rear clevis MP2
with seeger

SECX..AQIS

Narrow rear clevis

CFSX..AQIS

Narrow rear eye with bearing
DIN 648K

CMSX..AQIS

Rear 90° hinge with bearing
DIN 648K

ASSX..AQIS

Anti-rotating pin for narrow
rear clevis

SECX..ARAQIS

Flange VDMA

FLVX..AQIS

Low foot

PBX..AQIS

Round adjustable centre
trunnion (tie rod)

CTX..AQIS

Technical data

Material

Stainless Steel AISI 304 - 316

Code

Item

For cyl.

ø mm

Weight

(g)

040012

CFX032AQIS

32,5

45 6,6 11 5,5

040830

CFX040AQIS

55 6,6 11 5,5

040801

CFX050AQIS

46,5

15 6,5

040014

CFX063AQIS

56,5

15 6,5

040013

CFX080AQIS

040838

CFX100AQIS

100

115 11

60 110

040005

CFX125AQIS

125

110 140 13,5 20

70 130

040797

CFX160AQIS

160

140 180 18

90 170

040798

CFX200AQIS

200

175 220 18

90 170

Code

Item

For cyl.

ø mm

Weight

(g)

040805

CMX032AQIS

32,5

6,6 11 5,5

-0,2
-0,6

040806

CMX040AQIS

6,6 11 5,5

040802

CMX050AQIS

46,5

15 6,5

040808

CMX063AQIS

56,5

15 6,5

040016

CMX080AQIS

11 18 10

040799

CMX100AQIS

100

115 11 18 10

040008

CMX125AQIS

125

110

140 13,5 20 10

-0,5
-1,2

040800

CMX160AQIS

160

140

180 18 26 10

040804

CMX200AQIS

200

175

220 18 26 11

Code

Item

For cyl.

ø mm

M BG BH BI

BL BM BN BO BS BR BQ G

Weight

(g)

040809

ASVX032AQIS

6,6 11

26 10 1,6 20

040810

ASVX040AQIS

6,6 11

28 12 1,6 20

040812

ASVX050AQS

32 12 1,6 20

040813

ASVX063AQIS

40 16 1,6 20

040814

ASVX080AQIS

50 16 2,5 20

040815

ASVX100AQIS

100

60 20 2,5 20

040816

ASVX125AQIS

125

94 124 30

70 25 3,2

Stainless Steel

5.40.2

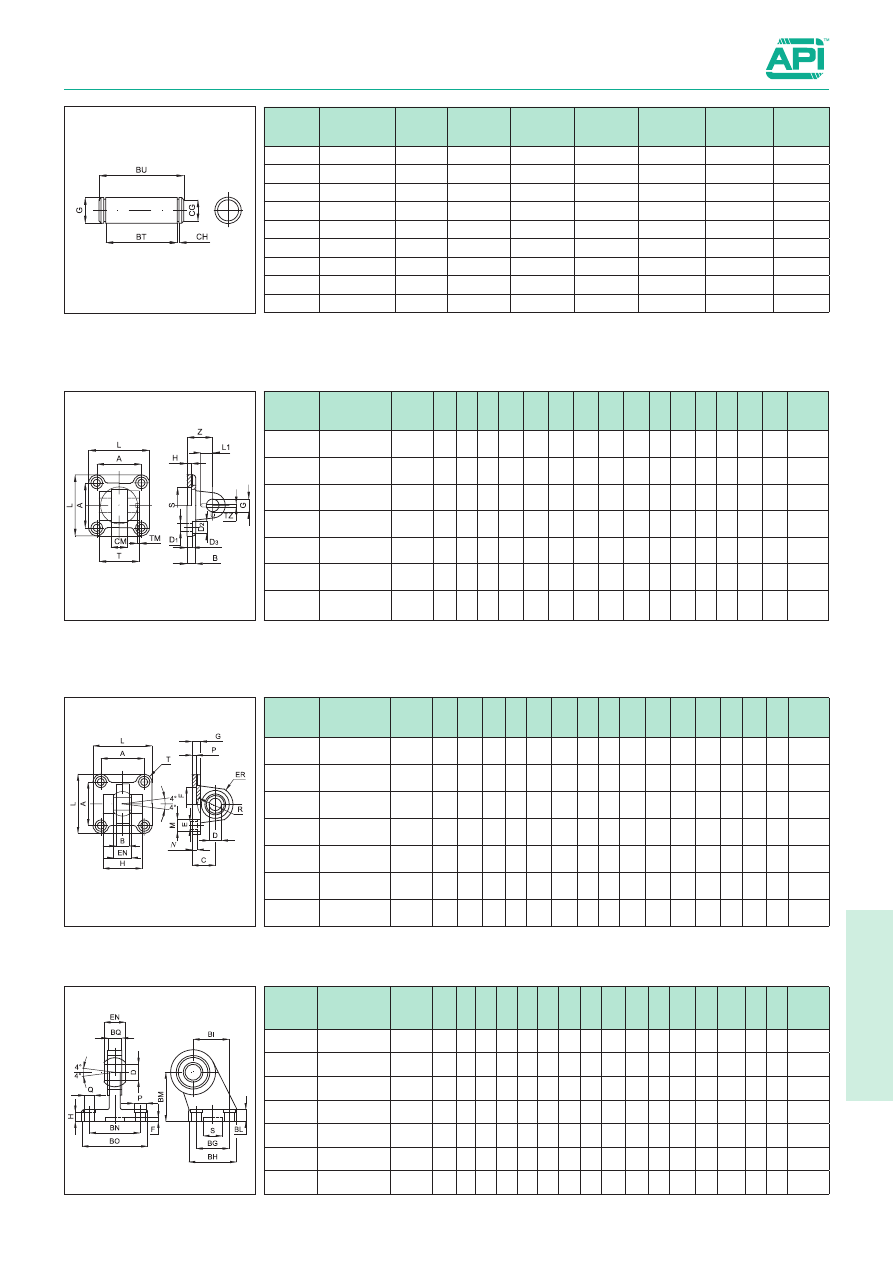

Mounting Accessories for Stainless Steel Cylinders

Mountings for ISO 15552

It is supplied with 2 seegers included.

Type:

SECX

Pin for rear clevis MP2

Type:

CFSX

Narrow rear clevis for rear

male trunnion with bearing

DIN 648 K

Type:

CMSX

Narrow rear eye for rear

male trunnion with bearing

DIN 648 K

The pin is to be ordered separately: for the pin see page 5.40.3 (SECX..ARAQIS)

Type:

ASSX

Rear 90° hinge with bearing

DIN 648 K

Code

Item

For cyl. ø

Weight (g)

040829

SECX032AQIS

9,6

1,1

040831

SECX040AQIS

11,5

1,1

040811

SECX050AQIS

11,5

1,1

040832

SECX063AQIS

15,2

1,1

040015

SECX080AQIS

15,2

1,1

040839

SECX100AQIS

100

111

1,3

118

040818

SECX125AQIS

125

132

23,9

1,3

139

040819

SECX160AQIS

160

171,5

28,6

1,6

178

040820

SECX200AQIS

200

171,5

28,6

1,6

178

Code

Item

For cyl.

ø mm

T CM A

TA TZ

Weight

(g)

040821

CFSX032AQIS

45 34 14 32,5 22

5,5

10 6,6 11

3,3 11,5

040822

CFSX040AQIS

55 40 16 38

5,5

12 6,6 11

4,3

040823

CFSX050AQIS

65 45 21 46,5 27

6,5

4,3

040824

CFSX063AQIS

75 51 21 56,5 32

6,5

4,3

040825

CFSX080AQIS

95 65 25 72

4,3

040826

CFSX100AQIS

100

115 75 25 89

6,3

040833

CFSX125AQIS

125

140 97 37 110 50

30 13,5 20

6,3

Code

Item

For cyl.

ø mm

EN ER

R Weight

(g)

040834

CMSX032AQIS

32,5 10,5 22 10

30 10 6,6

45 10,5 5,5

040835

CMSX040AQIS

25 12

35 10 6,6

5,5

040836

CMSX050AQIS

46,5 15

27 16

40 10

6,5

51 19

040010

CMSX063AQIS

56,5 15

32 16

45 12

6,5

040837

CMSX080AQIS

36 20

45 14

040848

CMSX100AQIS

100

41 20

55 16

11 115 18

040849

CMSX125AQIS

125

110 26

50 30

60 20 13,5 140 20

Code

Item

For cyl.

ø mm

M BG BH BI BL BM BN BO EN ER BQ

Weight

(g)

040850

ASSX032AQIS

6,6 11 18 31 21 10 32 38 51

14 15 10,5 10

8,5

040851

ASSX040AQIS

6,6 11 22 35 24 10 36 41 54

16 18

8,5

040852

ASSX050AQS

15 30 45 33 12 45 50 65

21 20

16 10,5 20

040853

ASSX063AQIS

15 35 50 37 12 50 52 67

21 23

16 10,5 20

040854

ASSX080AQIS

11 18 40 60 47 14 63 66 86

25 27

20 11,5 20

040855

ASSX100AQIS

100

11 18 50 70 55 15 71 76 96

25 30

20 12,5 20

040856

ASSX125AQIS

125

13,5 20 60 90 70 20 90 94 124 37 40

5.40.3

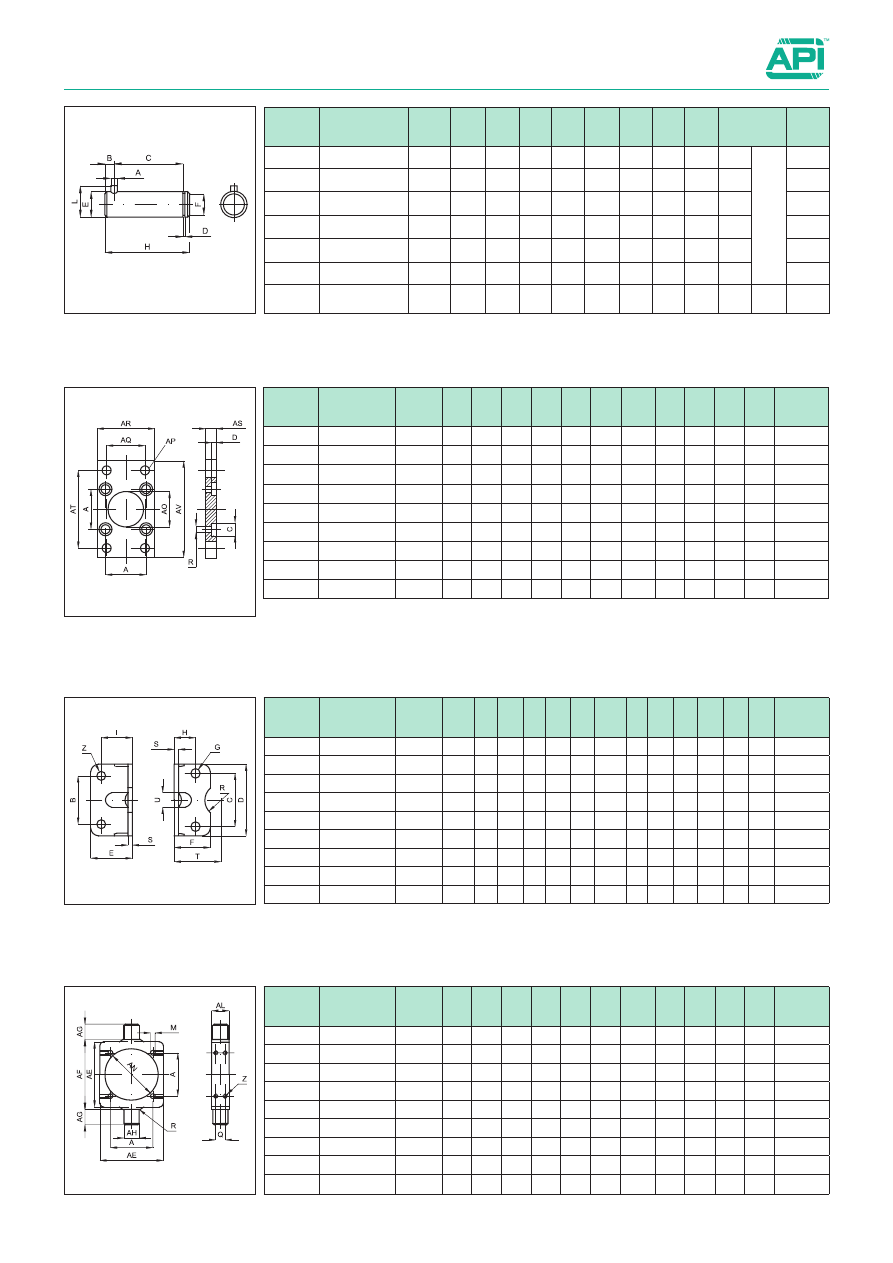

Mounting Accessories for Stainless Steel Cylinders

Mountings for ISO 15552

Type:

FLVX

Flange VDMA MF1 / MF2

It is supplied with 1 seeger included.

Type:

SECX - AR

Anti-rotating pin for narrow

rear clevis

Lowered head screws type VBTRX (see page 5.35.1) must be used with this mounting accessory.

It is supplied singly.

Type:

PBX

Low foot MS1

Type:

CTX

Round adjustable centre trunnion

(tie rod) MT4

Code

Item

For cyl.

ø mm

Weight

(g)

040857

SECX032ARAQIS

32,5

1,1

9,6

4,5

-1

040858

SECX040ARAQIS

1,1

11,5

040859

SECX050ARAQIS

1,1

15,2

040860

SECX063ARAQIS

101

15,2

040861

SECX080ARAQIS

1,3

040862

SECX100ARAQIS

100

1,3

040863

SECX125ARAQIS

125

1,6

28,6

110

-2

Code

Item

For cyl.

ø mm

Weight (g)

040864

FLVX032AQIS

32,5

6,5

10,5

040865

FLVX040AQIS

6,5

040840

FLVX050AQIS

46,5

110

5,5

040866

FLVX063AQIS

56,5

100

120

5,5

040867

FLVX080AQIS

126

150

040868

FLVX100AQIS

100

115

150

170

040869

FLVX125AQIS

125

110

13,5

140

180

205

9,5

040870

FLVX160AQIS

160

140

180

115

230

260

10,5

040871

FLVX200AQIS

200

175

220

135

270

300

12,5

Code

Item

For cyl.

ø mm

Weight

(g)

040872

PBX032AQIS

32,5

15,75 24

040873

PBX040AQIS

36 17,5 15

040874

PBX050AQIS

46,5

21,75 32

040875

PBX063AQIS

56,5

21,75 32

50 22,5 18

040876

PBX080AQIS

63 22,5 17

040877

PBX100AQIS

100

75 115 57

26,5 41

71 27,5 24

040878

PBX125AQIS

125

110

90 140 70

040879

PBX160AQIS

160

140 115 180 75 100 18

115 32,5

040880

PBX200AQIS

200

175 135 220 100 100 18

47,5 70

12 135 37,5

Code

Item

For cyl.

ø mm

Weight (g)

040881

CTX032AQIS

32,5

6,25

040882

CTX040AQIS

1,5

6,25

040883

CTX050AQIS

46,5

1,6

8,25

040884

CTX063AQIS

56,5

1,6

8,25

040885

CTX080AQIS

102

110

1,6 10,25 12

040550

CTX100AQIS

100

125

132

107

10,25 15

040886

CTX125AQIS

125

110

155

160

134

12,25 15

M10

040887

CTX160AQIS

160

140

190

200

171

2,5 16,25 18

M12

040888

CTX200AQIS

200

175

240

250

214

2,5 16,25 18

M12

For this accessories order separately 8 screws. (see page 5.50.1)

5.50.1

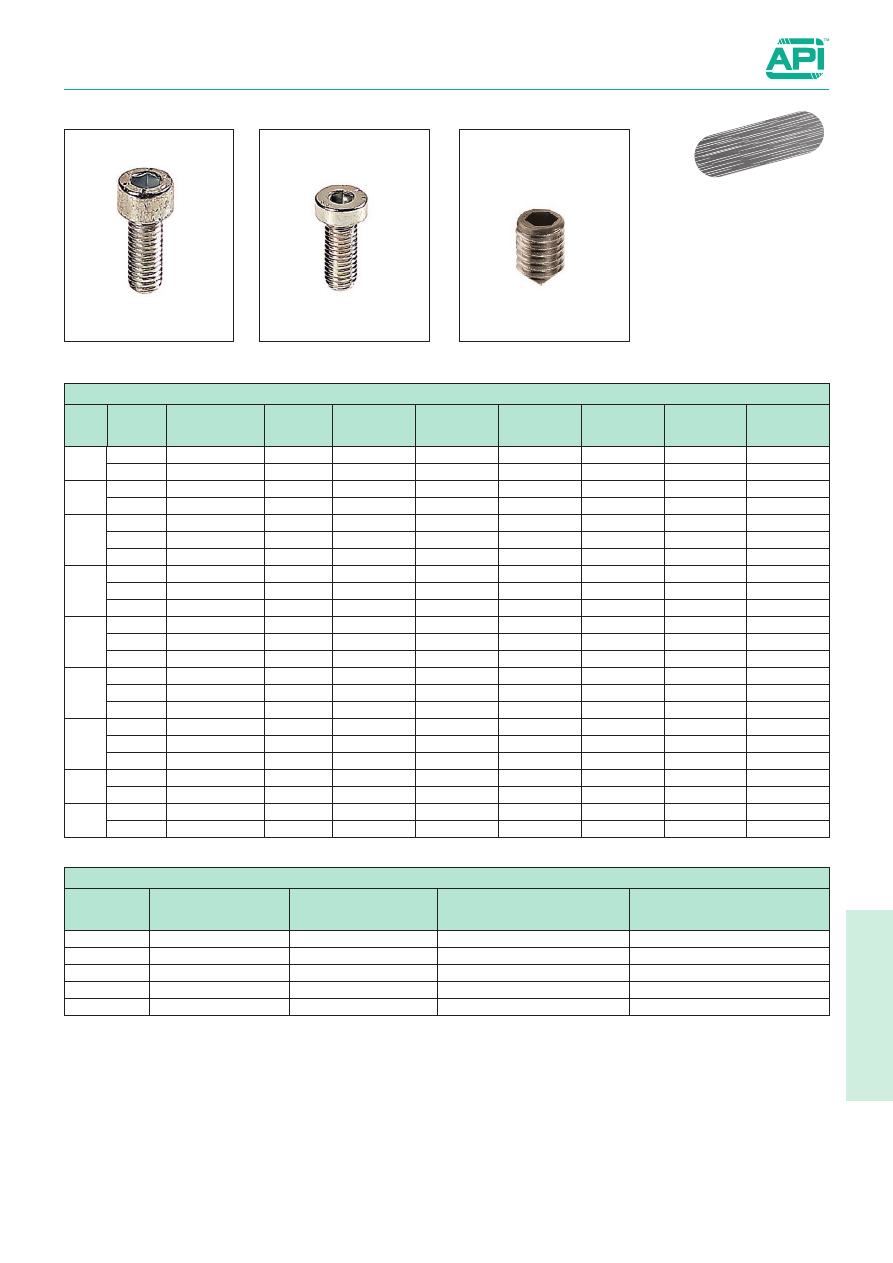

Mounting Accessories for Stainless Steel Cylinders

Mounting screw

FIXING SCREWS FOR CYLINDERS STAINLESS STEEL

Cyl.

Code

Item

Norm

CFX

CMX

CFSX

CMSX

FLVX

PBX

040787

VTCEIXM6x18

UNI5931

■

040792

VBTRXM6x18

DIN6912

■

040787

VTCEIXM6x18

UNI5931

■

040792

VBTRXM6x18

DIN6912

■

VTCEIXM8x16

UNI5931

■

040788

VTCEIXM8x20

UNI5931

■

040793

VBTRXM8x20

DIN6912

■

VTCEIXM8x16

UNI5931

■

040788

VTCEIXM8x20

UNI5931

■

040793

VBTRXM8x20

DIN6912

■

040789

VTCEIXM10x20

UNI5931

■

040794

VBTRXM10x20

DIN6912

■

881479

VTCEIXM10x25

UNI5931

■

100

040789

VTCEIXM10x20

UNI5931

■

040794

VBTRXM10x20

DIN6912

■

881479

VTCEIXM10x25

UNI5931

■

125

VTCEIXM12x25

UNI5931

■

040705

VTCEIXM12x30

UNI5931

■

VBTRXM12x30

DIN6912

■

160

040791

VTCEIXM16x30

UNI5931

■

040796

VBTRXM16x30

DIN6912

■

200

040791

VTCEIXM16x30

UNI5931

■

040796

VBTRXM16x30

DIN6912

■

VTCEI - UNI5931

VBTR - DIN6912

GRAINS - UNI5927

GRAINS FOR INTERMEDIATE HINGE STAINLESS STEEL

Cylinder

Code

Item

Norm

CTX

32/40

885125

M5x5

UNI5927

■

50/63

885119

M6x10

UNI5927

■

80/100

883534

M8x10

UNI5927

■

125

884990

M10x14

UNI5927

■

160/200

885126

M12x20

UNI5927

■

Type:

VTCEIX

Type:

VBTRX

Type:

GRAINS

Stainless Steel

Notes

Content .. 33 34 35 36 ..
