1.80.41

Parallel Hand Grips with long stroke

Bores from 10 to 32 mm





Double acting

N.

Component

Material

1

Body

Aluminium

2

Piston rod

Stainless steel

3

End cover

Aluminium

4

Piston

Brass

5

Magnet holder

Brass

6

Fingers

Steel alloy

7

Gear rod

Carbon steel

8

Gear cover

Iron

9

Gear

Stainless steel

10

Piston rod seal

NBR

11

Guide rod seal

NBR

12

Seeger

Iron

13

Cushion distancer

Iron

14

Piston rod cushion

Polyurethane

15

End cover O-ring

NBR

16

Piston seal

NBR

17

Piston O-ring

NBR

18

Seeger

Steel

19

Seeger

Steel

20

Seeger

Steel

21

Seeger

Steel

22

Nut

Steel

23

Magnet

Plastic magnet

Materials

A

B

C

Type:

10 / .. PPD

Item

A

B

C

D

L

M

N

10/20PPD

52

36

30

30

100 (80)

76

56

10/40PPD

68

52

46

46

136 (96)

112

72

10/60PPD

86

70

64

64

174 (114)

150

90

1

1.80.42

Parallel Hand Grips with long stroke

Bores from 10 to 32 mm





Double acting

A

B

C

Type:

16 / .. PPD

A

B

C

L

D

Type:

20 / .. PPD

Item

A

B

C

D

L

M

N

16/30PPD

60

45

26

26

128 (98)

98

68

16/60PPD

90

75

56

56

188 (128)

158

98

16/80PPD

110

95

76

76

228 (148)

198

118

Item

A

B

C

D

L

M

N

20/40PPD

71

58

40

40

157 (117)

119

79

20/80PPD

113

100

82

82

239 (159)

201

121

20/100PPD

133

120

102

102

279 (179)

241

141

1.80.43

Parallel Hand Grips with long stroke

Bores from 10 to 32 mm





Double acting

A
B

C

L

D

Type:

 25 / .. PPD

A

B

C

L

D

Type:

32 / .. PPD

Item

A

B

C

D

L

M

N

25/50PPD

88

70

50

50

192 (142)

146

96

25/100PPD

142

124

104

104

296 (196)

250

150

25/120PPD

160

142

122

122

334 (214)

288

168

Item

A

B

C

D

L

M

N

32/70PPD

110

86

69

69

240 (170)

188

118

32/120PPD

158

134

117

117

338 (218)

286

166

32/160PPD

202

178

161

161

422 (262)

370

210

1

1.80.50

Parallel Hand Grips with 3 fingers

Bores from 25 to 63 mm





Double acting

Series of pneumatic parallel hand grips with 3 fingers available in
5 different sizes.
They are standard magnetic with groves on the body allowing the
direct mounting of magnetic reed switches.

For magnetic reed switch type ASC see from page 1.110.1.

How to order : 32PPE

Technical data

Type

25PPE

32PPE

40PPE

50PPE

63PPE

Fluid

Compressed filtered air with or without lubrication. Lubrication, if be used, must be continous

Pressure

1,5 ÷ 7 bar

Temperature range

0 °C ÷ +80° C

Max. operation frequency

180 cycle / min.

Lubrication

Piston:

with or without lubrication

Levers:

lubrication is required on moving parts

Stroke of open/close (mm)

6

8

8

12

16

Ports

M5

Standard executions

Version

Code

Item

Bore 25 mm

075053

25PPE

Bore 32 mm

075054

32PPE

Bore 40 mm

075055

40PPE

Bore 50 mm

075056

50PPE

Bore 63 mm

075057

63PPE

32

PPE

Bore

Type

Parallel Hand Grips with 3 fingers

Bores from 25 to 63 mm





Double acting

1.80.51

F (N)

L (mm)

40

50

60

30

20

10

0

10

20

30

40

50

Length of the gripping point

Gripping force

0.6MPa

0.5MPa

0.4MPa

0.3MPa

0.2MPa

F (N)

L (mm)

80

100

60

40

20

0

10

20

30

40

50

Length of the gripping point

Gripping force

0.6MPa

0.5MPa

0.4MPa

0.3MPa
0.2MPa
0.1MPa

25PPE

32PPE

F (N)

L (mm)

250

300

200

100

350

150

50

0

10 20 30 40 50 60 70

Length of the gripping point

Gripping force

0.6MPa

0.5MPa
0.4MPa
0.3MPa

0.2MPa

0.1MPa

F (N)

L (mm)

100

200

120

80

40

0

10

20

30

40

50

Length of the gripping point

Gripping force

0.6MPa

0.5MPa

0.4MPa
0.3MPa

0.2MPa
0.1MPa

F (N)

L (mm)

400

500

300

100

200

0

20

40

60

80

100

Length of the gripping point

Gripping force

0.6MPa

0.5MPa
0.4MPa

0.3MPa

0.2MPa
0.1MPa

50PPE

40PPE

63PPE

N.

Component

Material

1

Body

Aluminium

2

Front head

Aluminium

3

Piston rod

Steel

4

Piston

Aluminium

5

End cover

Aluminium

6

Magnet holder

Aluminium

7

Magnet

Plastic magnet

8

Fingers

Steel

9

Action lever

Steel

10

Screw

Stainless steel

11

Finger cover

Stainless steel

12

O-ring

NBR

13

Piston seals

NBR

14

End cover O-ring

NBR

15

Piston rod seals

NBR

Materials

Gripping forces

1

1.80.52

Parallel Hand Grips with 3 fingers

Bores from 25 to 63 mm





Double acting

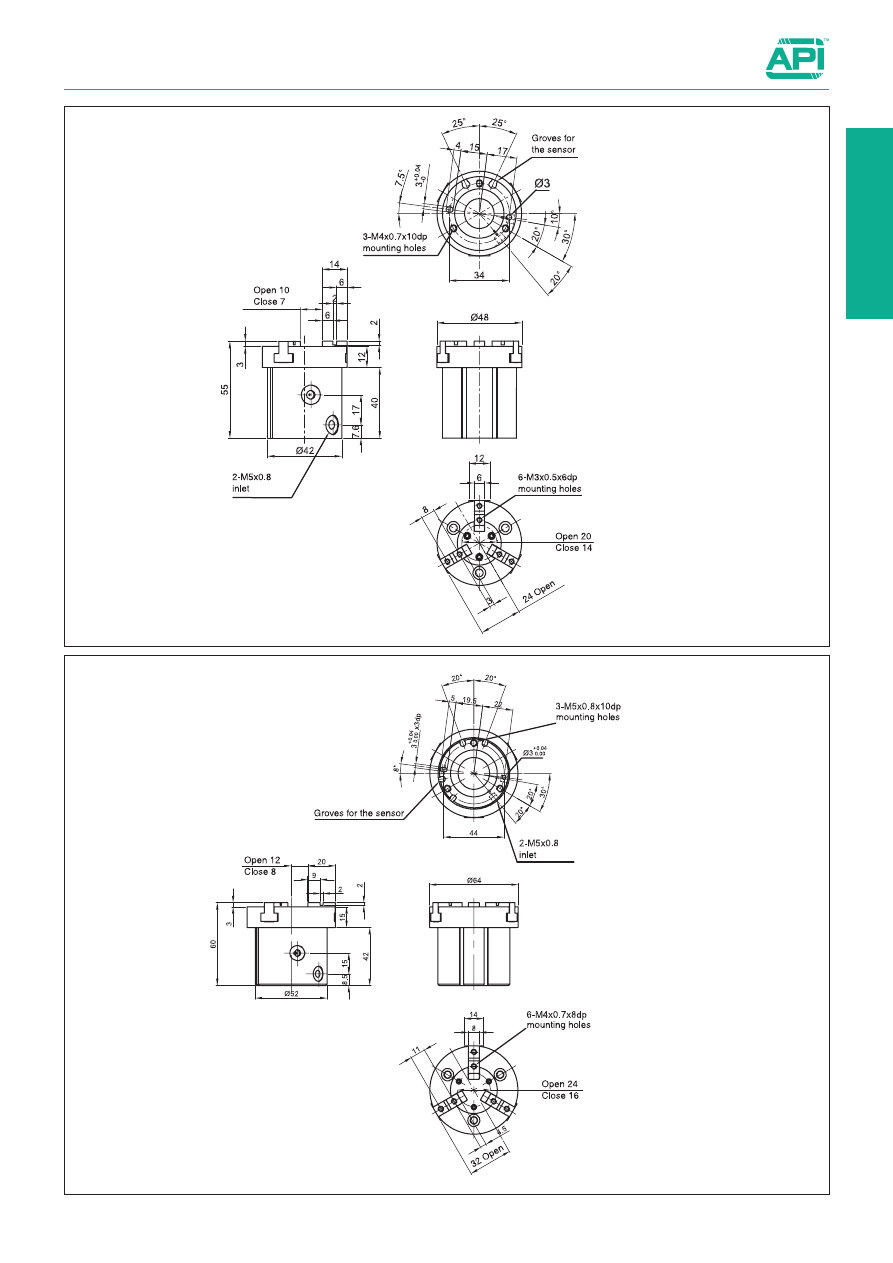

Type:

25PPE

Type:

32PPE

1.80.53

Parallel Hand Grips with 3 fingers

Bores from 25 to 63 mm





Double acting

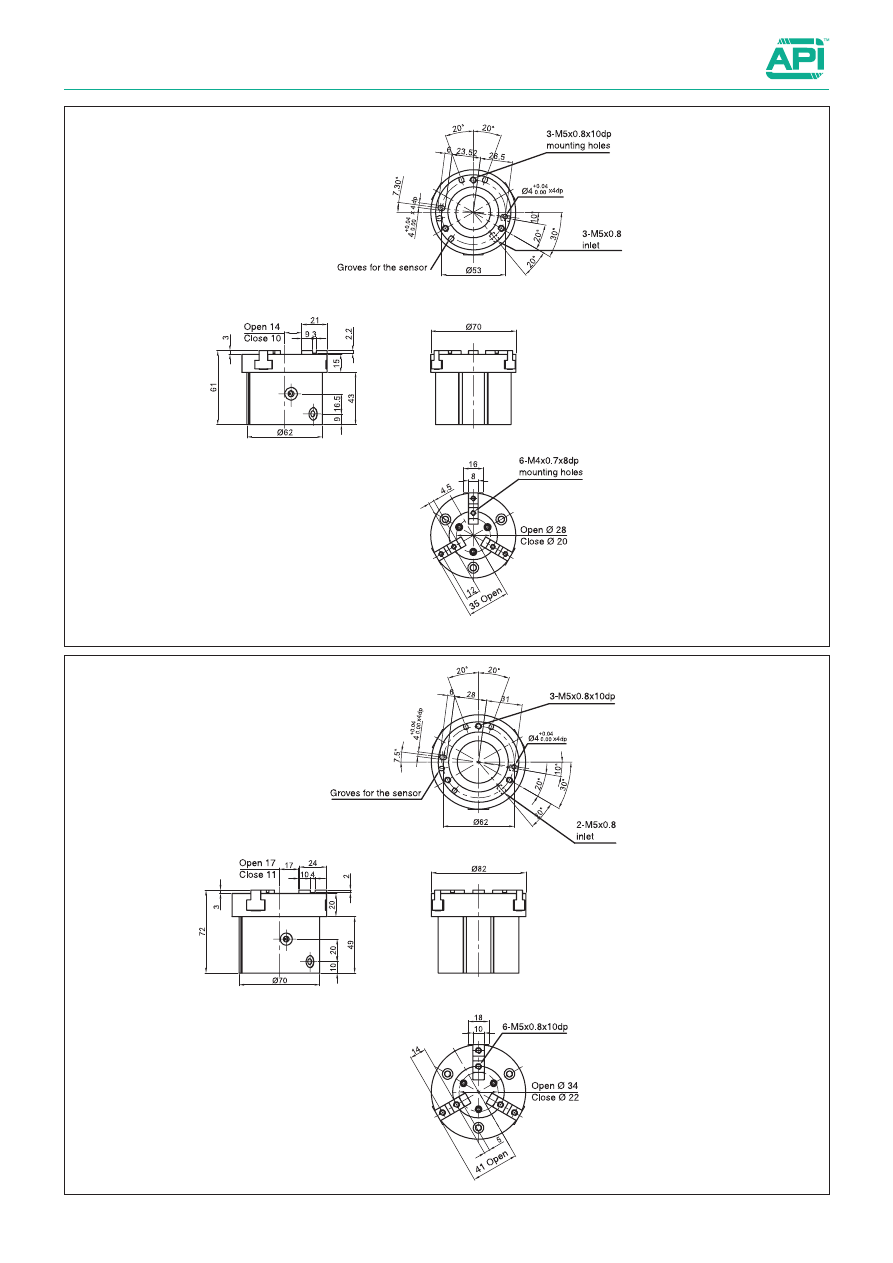

Type:

40PPE

Type:

50PPE

1

1.80.54

Parallel Hand Grips with 3 fingers

Bores from 25 to 63 mm





Double acting

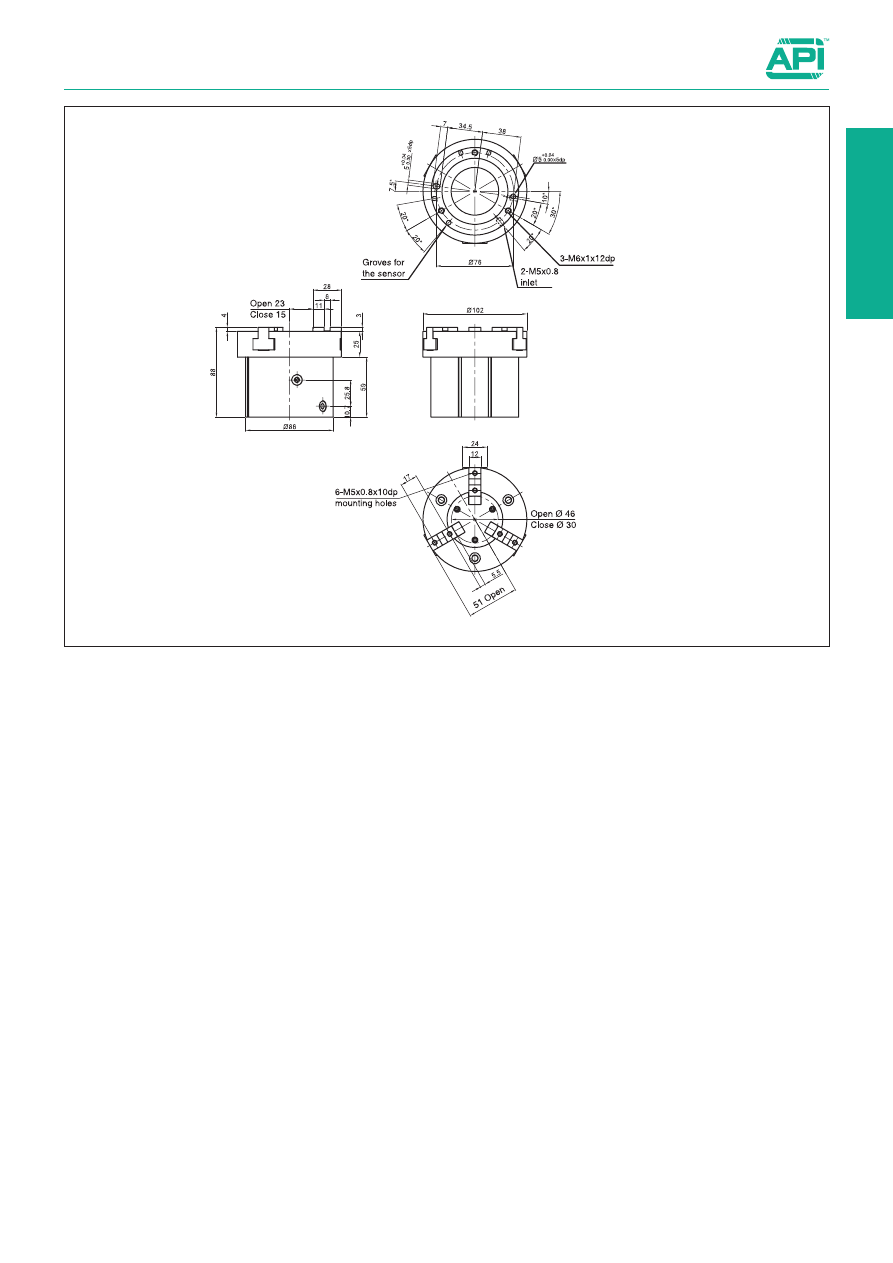

Type:

63PPE

Hand Grippers

Mounting accessories for series PAB - PAC - PPB - PPC

A B

Type:

PM

B

Type:

PF

Item

A

B

C

D

E

F

G

H

I

J

K

L

16PF

6

20,5 16

5

6

M4x0,7p 17

34

26

14

22 4,5

20PF

8

25,5 20

7

7

M4x0,7p 21

45

35

16

26 5,5

25PF

10 30,5 25

8

10 M4x0,7p 26

52

40

20

32 6,5

32PF

12 40,5 32

10

15 M4x0,7p 34

60

46

26

40 6,5

1.80.60

Item

A

B

C

D

E

F

G

H

I

J

K

16PM

15

15

3

10

16

17

34

26

14

22

4,5

20PM

15

15

3

10

18

21

45

35

16

26

5,5

25PM

25

17

5

14

26

26

52

40

20

32

6,5

32PM

25

20

6

16

30

34

60

46

26

40

6,6

Standard executions

Version

Code

Item

Mounting with male
thread for hand grip Ø 16

075058

16PM

Mounting with male
thread for hand grip Ø 20

075059

20PM

Mounting with male
thread for hand grip Ø 25

075064

25PM

Mounting with male
thread for hand grip Ø 32

075065

32PM

Mounting with female
thread for hand grip Ø 16

075066

16PF

Mounting with female
thread for hand grip Ø 20

075067

20PF

Mounting with female
thread for hand grip Ø 25

075068

25PF

Mounting with female
thread for hand grip Ø 32

075069

32PF

1

1.85.1

Mounting Accessories for Cylinders

Clevis ISO



Clevis conforming to ISO 8140 standards.
The FF..ISO version is provided complete with clips, the
FFP..ISO version is provided with a pin and 2 seegers, while for the
FFN..ISO version is provided only the clevis body.
The clevis is mounted on the cylinder rod and allows a swinging
movement.

A

B

b

l2

e

S

L

L1

T

n

d1

d

d2

a

B12

f x45°

r

r

 Type:

FF..ISO

* For cylinders not conforming to standards.

Technical data

Material

White zinc plated steel

Options

Suffix

Special versions on request

/ S

Standard executions

Version

Symbol

Type

Female clevis

with clip

FF..ISO

Female clevis

with pin and seeger

FFP..ISO

Female clevis

body only

FFN..ISO

Code

Item

For cylinder

Ø mm

d

a

A

S

B

b

d

1

T

L

2

d

2

e

f

L

L

1

n

r

Weight

(g)

041001

FF04ISO/DIN

8-10

M4x0,7

4

11

19

9

8

4

15

5

8

6

0,5

21

16

8

0,5

7

041002

FF06ISO/DIN

12-16

M6x1

6

16

28

14

12

6

23

6

10

9

0,5

31

24

12

0,5

19

041003

FF08ISO/DIN

20

M8x1,25

8

22

37

19

16

8

31

8

14

12

0,5

42

32

16

0,5

47

041004

FF10ISO

25-32

M10x1,25 10

26

46

23

20

10

39

10

18

15

0,5

52

40

20

0,5

89

041005

FF12ISO

40

M12x1,25 12

32

55

28

24

12

47

12

20

18

0,5

62

48

24

0,5

153

041006

FF16ISO

50-63

M16x1,5

16

40

72

36

32

16

62

14

26

24

1

83

64

32

1

320

041007

FF20ISO

80-100

M20x1,5

20

48

88

44

40

20

72

16

34

30

1

105

80

40

1

680

041008

FFP24ISO

*

M24x2

25

-

-

-

50

25

-

-

42

36

1

132 100

50

1

1330

041009

FFP27ISO

125

M27x2

30

-

-

-

55

30

-

-

48

38

1

148 110

54

1

1810

041010

FFP36ISO

160-200

M36x2

35

-

-

-

70

35

-

-

60

40

1

188 144

72

1

3890

041068

FFP42ISO

250

M42x2

40 104,3

-

-

85

40

-

-

70 63,5

1

232 168

84

5

5300

041069

FFP48ISO

320

M48x2

50 117,3

-

-

96

50

-

-

82

73

1

265 192

96

5

7900

1.85.5

Mounting Accessories for Cylinders

Clevis DIN

A

B

b

l2

e

S

L

L1

T

n

d1

d

d2

a

B12

f x45°

r

r

 Type:

FF..DIN

Technical data

Material

White zinc plated steel

Code

Item

d

a

A

B

b

d

1

S

T

L

2

d

2

e

f

L

L

1

n

r

Weight

(g)

041001

FF04ISO/DIN

M4x0,7

4

11

9

8

4

19

15

5

8

6

0,5

21

16

8

0,5

7

041022

FF05DIN

M5x0,8

5

13,5

12

10

5

23

19

6

9

7,5

0,5

26

20

10

0,5

12

041002

FF06ISO/DIN

M6x1

6

16

14

12

6

28

23

6

10

9

0,5

31

24

12

0,5

19

041003

FF08ISO/DIN

M8x1,25

8

22

19

16

8

37

31

8

14

12

0,5

42

32

16

0,5

47

041025

FF10DIN

M10x1,5

10

26

23

20

10

46

39

10

18

15

0,5

52

40

20

0,5

89

041026

FF12DIN

M12x1,75

12

32

28

24

12

55

47

12

20

18

0,5

62

48

24

0,5

153

041027

FF14DIN

M14x2

14

-

-

27

14

-

-

-

24

22,5

1

72

56

28

1

224

041028

FF16DIN

M16x2

16

40

36

32

16

72

62

14

26

24

1

83

64

32

1

320

041030

FF20DIN

M20x2,5

20

48

44

40

20

88

72

16

34

30

1

105

80

40

1

680

041067

FFP24DIN

M24x3

25

-

-

50

25

-

-

-

42

36

1

132

100

50

1

1330

Options

Suffix

Special versions on request

/ S

Standard executions

Version

Symbol

Type

Female clevis

with clip

FF..DIN

Female clevis

with pin and seeger

FFP..DIN

Female clevis

body only

FFN..DIN

Clevis conforming to UNI 1676 - DIN 71752 standards.
The FF..DIN version is provided complete with clips, the
FFP..DIN version is provided with a pin and 2 seegers, while for the
FFN..DIN version is provided only the clevis body.
The clevis is mounted on the cylinder rod and allows a swinging
movement.

1

1.85.10

Mounting Accessories for Cylinders

Clevis CNOMO

Clevis conforming to CNOMO standards.
The female clevis FF..CN version is provided complete with clips, the
FFP..CN version is provided with a pin and 2 seegers, while the
FFN..CN version is provided only the clevis body.
The male clevis FM..CN version is provided complete with a pin
and 2 seegers, while the FMN..CN version is provided only the
clevis body.
The clevis is mounted on the cylinder rod and allows a swinging
movement.

A1

G

H

L2

L

L3

K

C

L1

n

J

d1

E

A
B

D

B1

 Type:

FF..CN

Technical data

Material

White zinc plated steel

Code

Item

For cylinder

Ø mm

A

A

1

B

B

1

C

D

H11 d1 h11

E

H8

G

H

L

1

J

L

2

K

L

3

L

n

Weight

(g)

041081

FF10CN

25-32

M10x1,5 28

18

25

36

11

8

8

22

22

36

20

10

45

41

14

16

94

041082

FF16CN

40-50

M16x1,5 44

26

40

51

18

12

12

36

26

50

26

12

64

60

17

25

253

041084

FF20CN

63-80

M20x1,5 53

34

49

63

22

16

16

45

34

63

30

15

80

74 18,5 33

530

041086

FF27CN

100-125

M27x2

73

42

69

85

30

20

20

63

42

81

45

19

105

98

30

40

1110

041088 FFP36CN

160-200

M36x2

-

50

-

115

40

25

25

80

50

-

75

-

140

-

45

-

2160

Options

Suffix

Special versions on request

/ S

Standard executions

Version

Symbol

Type

Female clevis

with clip

FF..CN

Female clevis

with pin and seeger

FFP..CN

Female clevis

body only

FFN..CN

Male clevis

with pin and seeger

FM..CN

Male clevis

body only

FMN..CN

1.85.15

Mounting Accessories for Cylinders

Clevis CNOMO

 Type:

FMCN

Code

Item

For cylinder

Ø mm

A

1

F

1

M

3

P

4

Q

h8

S

4

T

3

U

3

Z

1

041041

FM10CN

25-32

M10x1,5

20

11

22

8

6

25

45

36

041042

FM16CN

40-50

M16x1,5

30

18

32

12

10

34

64

51

041044

FM16CN

63-80

M20x1,5

36

22

36

16

12

41

80

63

041046

FM27CN

100-125

M27x2

50

30

45

20

17,5

58

105

85

041048

FM36CN

160-200

M36x2

70

40

63

25

20

81

140

115

1

1.85.20

Mounting Accessories for Cylinders

Clevis with male thread

Female clevis with male thread, complete with a pin and 2 seegers
in the standard version.
The clevis is mounted on the cylinder rod and allows a swinging
movement.

Type:

FE

Code

Item

A

Ø

B

D

D

2

E

E

1

F

H

N

041061

FEM10

10

10

20

M10x1,25

39

27

20

22

27

041062

FEM12

12

12

24

M12x1,25

46

32

24

24

31

041063

FEM16

16

16

32

M16x1,5

61

42

32

32

39

041064

FEM20

20

20

40

M20x1,5

77

52

40

40

49

041065

FEM27

25

25

50

M27x2

98

66

50

43

59

041066

FEM33

28

28

55

M33x2

110

74

56

56

64

Technical data

Material

Yellow zinc plated steel

Standard executions

Version

Symbol

Type

Female clevis
with male thread

FEM..

Options

Suffix

Special versions on request

/ S

1

1.90.1

Mounting Accessories for Cylinders

Bearings - Bearing heads

Self-lubricating bearing heads servicing-free and conforming to
DIN 648-K and ISO 8139 standards.
The bearing head is mounted on the cylinder rod.

a

The options can be combined (when this is possible).

 Type:

RF..SE

Technical data

Temperature range

-30 °C ÷ +150 °C

Materials

Body:

Zinc / nickel plated steel

Sphere:

Hardened ground polished steel

External ring:

Self-lubricating brass/ PTFE

Code

Item

For cylin.

ISO

Ø mm

d

d

3

B

C

1

d

1

d

2

d

4

d

5

dk

h

1

L

3

L

4

L

5

L

7

W

Static

load

(daN)

a° Weight

(g)

041551

RF4SE

8-10

5

M4

8

6

7,7 18

9

11 11,112 27 10

36

4

10

9

600

13

19

041552

RF6SE

12-16

6

M6

9

6,75

8,9 20

10

13 12,700 30 12

40

5

11 11

700

13

26

041553

RF8SE

20

8

M8

12

9

10,4 24 12,50 16 15,875 36 16

48

5

13 14

1200

14

46

041554

RF10SE

25-32

10 M10x1,25 14 10,50 12,9 28

15

19 19,050 43 20

57

6,5 15 17

1400

13

75

041555

RF12SE

40

12 M12x1,25 16

12

15,4 32 17,50 22 22,225 50 22

66

6,5 17 19

1900

13

112

041557

RF16SE

50-63

16 M16x1,5 21

15

19,3 42

22

27 28,575 64 28

85

8

23 22

4800

15

220

041559

RF20SE

80-100

20 M20x1,5 25

18

24,3 50 27,50 34 34,925 77 33

102

10

27 30

5200

14

406

041562

RF30SE

125

30

M27x2

37

25

34,8 70

40

50 50,800 110 51

145

15

36 41 10800 17

1120

041563

RF35SE

160-200 35

M36x2

43

28

37,7 80

46

58 57,150 125 56

165

17

41 50 12400 19

1595

041571

RF40SE

250

40

M42x2

49

33

45,2 91

53

65 66,670 142 60 187,5 19

45 55

17

041572

RF50SE

320

50

M48x2

60

45

56,6 117 65

75 82,500 160 65 218,5 23

58 65

12

Standard executions

Version

Symbol

Type

With female thread

RF..SE

Options

Suffix

With male thread

RM..SE

With female thread (big pitch)

G

With left thread

S

1.90.10

Mounting Accessories for Cylinders

Bearings - Self-aligning articulated couplings

Axial self-aligning articulated couplings mounted on the cylinder
rod.
They are fit for applications with high tractions and allow to com-
pensate the angular and parallel misalignments.
They are provided with hexagonal nut in the standard version.



D

* For cylinders not conforming to standards.

 Type:

GB

Technical data

Material

Zinc plated steel

Code

Item

For cylin.

ISO

Ø mm

A

B

C

D

E

F

G

H

I

L

M CH

b

° CH

1

Maximum load

(N) in thust and

traction

Weight

(g)

041701

GB008

8-10

M4x0,7

33

8

2,2 15,5

6

8,5

14,5

12

1 10 3,2 10

12

750

20

041700

GB005

*

M5x0,8

38,5 13,5 2,5 17,5

6

8,5

14,5

13

1 10

5

10

7

1200

20

041702

GB010

12-16

M6x1

39

12

3,2 17,5

6

8,5

14,5

13

1 10

5

10

7

1200

23

041703

GB020

20

M8x1,25

55

16

4

24,5

8

12,5

19

17

2 20

7

10

10

2500

60

041704

GB040

25-32

M10x1,25

73

20

5

34

14

21

32

30

2 20 12

10

19

5000

230

041705

GB050

*

M10x1,5

73

20

5

34

14

21

32

30

2 20 12

10

19

5000

230

041706

GB060

40

M12x1,25

77

24

6

34

14

21

32

30

2 20 12

10

19

5000

230

041707

GB090

*

M12x1,75

77

24

6

34

14

21

32

30

2 20 12

10

19

5000

230

041708

GB100

50-63

M16x1,5

108

32

8

54

22 33,5

45

41

2 32 19

10

30

10000

650

041709

GB120

80-100

M20x1,5

122

40

9

54

22 33,5

45

41

2 40 19

10

30

10000

710

041711

GB130

125

M27x2

147

54 13,5

71

-

59

60

55

-

40 24

-

32

-

1600

041712

GB160 - 200 160-200

M36x2

241

72

14

125

-

56

80

75

-

40 36

-

50

-

5100

041713

GB250

250

M42x2

271

82

16

148

-

64

98

85

-

40 36

-

60

-

9200

041714

GB320

320

M48x2

271

82

18

-

-

-

-

90

-

40 42

-

60

-

-

Standard executions

Version

Symbol

Type

Axial

GB

Options

Suffix

Special versions on request

/ S















Content      ..     9      10      11      12     ..
