Api Pneumatic. GENERAL CATALOG (2019) - page 10
1

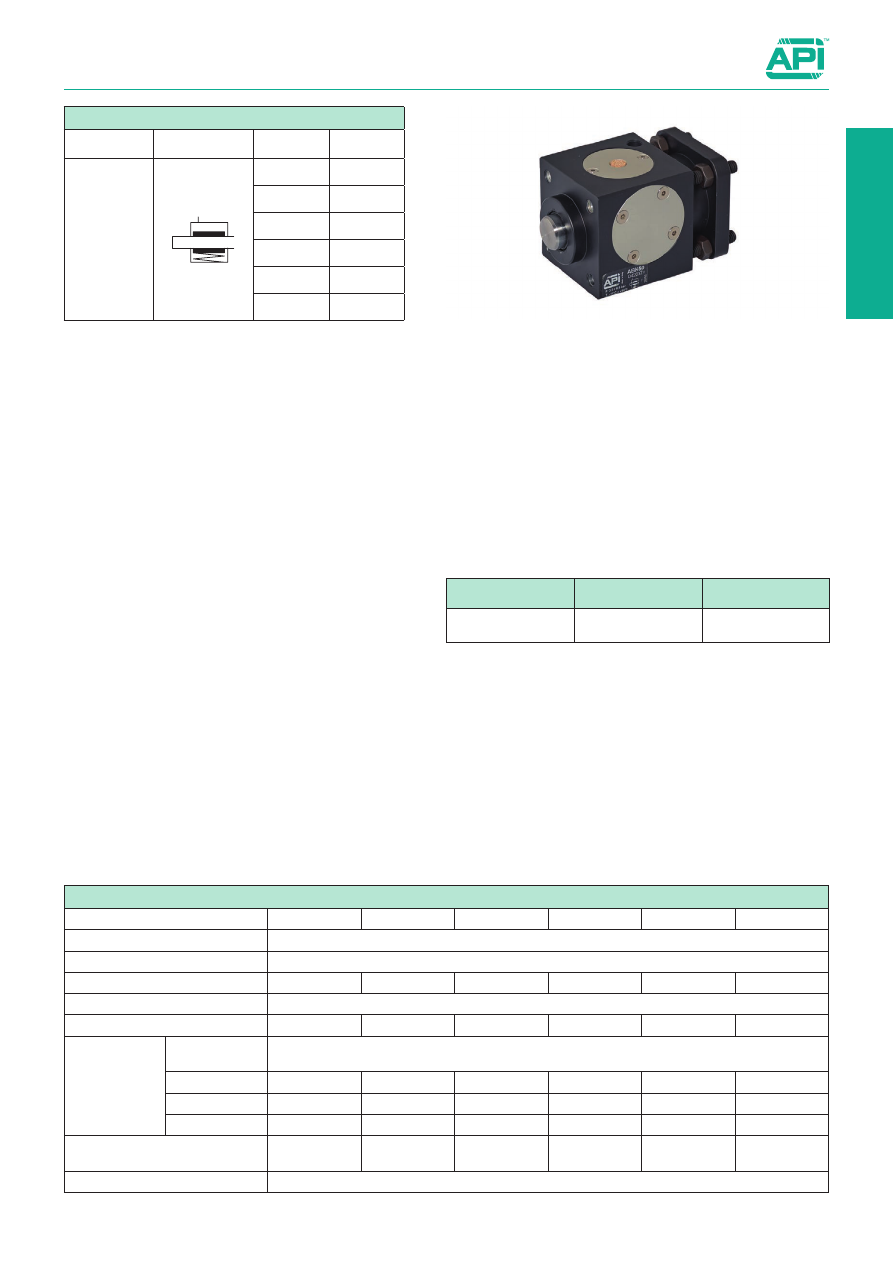

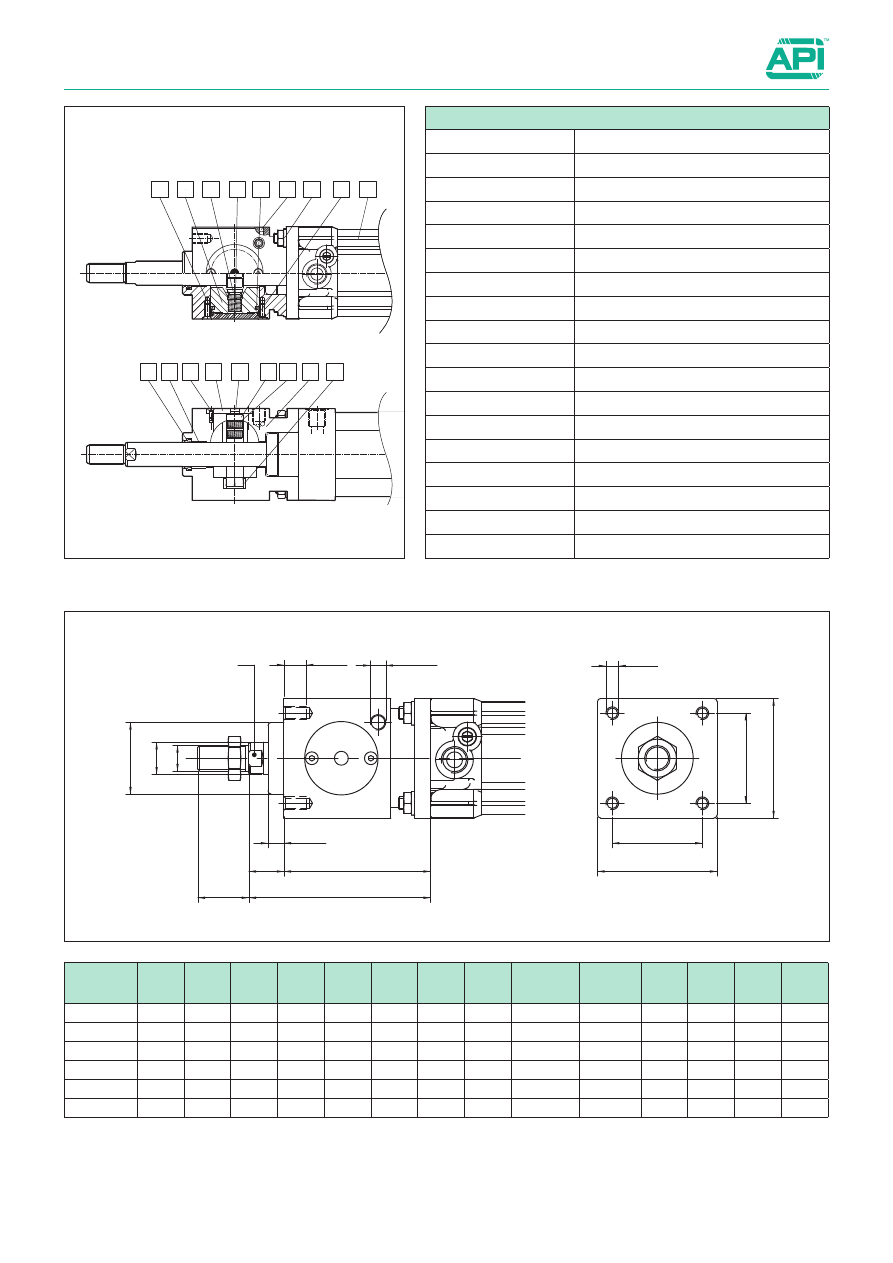

Dynamic piston-rod brake for Cylinders ISO 15552
Bores from 32 to 100 mm
ABK
050
Type
Cylinder bore
Option
Technical data
Bores (mm)
32
40
50
63
80
100
Fluid
Compressed filtered air with or without lubrication
Pressure range
4 ÷ 6.5 bar
Min. working pressure (bar)
4.0
4.0
3.5
3.5
3.0
3.0
Locking model
Secure locking of piston rod in any position
Locking force (N)
510
860
1275
2060
3300
4620
Lock braking
precision (mm)
V (mm/sec)
(Horizontal axis) operate with a load ratio of 70% or less,
(Vertical axis) Operate with a load ratio of 35% or less
50 (mm/sec)
±0.7
±0.8
±0.9
±0.8
±0.8
±1
100 (mm/sec)
±1
±1
±1
±1
±1.2
±1.4
200 (mm/sec)
±1.3
±1.6
±1.4
±1.8
±2.1
±2.4
Allowable energy (max)
J(N • m) J(E
k=
½
mv
2
)
0.84
1.41
2.2
3.31
4.98
7.57
Temperature range
-10 °C ÷ +60° C
1.75.30
Seal kits not available.
Standard executions
Version
Symbol
Code
Item
Normally
closed
042035
ABK32
042036
ABK40
042037
ABK50
042038
ABK63
042039
ABK80
042040
ABK100
Series of dynamic locking-rod units for cylinders ISO15552. The
piston-rod brakes series ABK can be supplied normally closed
The peculiarity of this series is to lock the cylinder piston-rod while
moving and to hold it still even in presence of pressure in the
chamber.
A special feature of the series ABK is the absolute absence of axial
movement and rotation of the cylinder piston-rod.

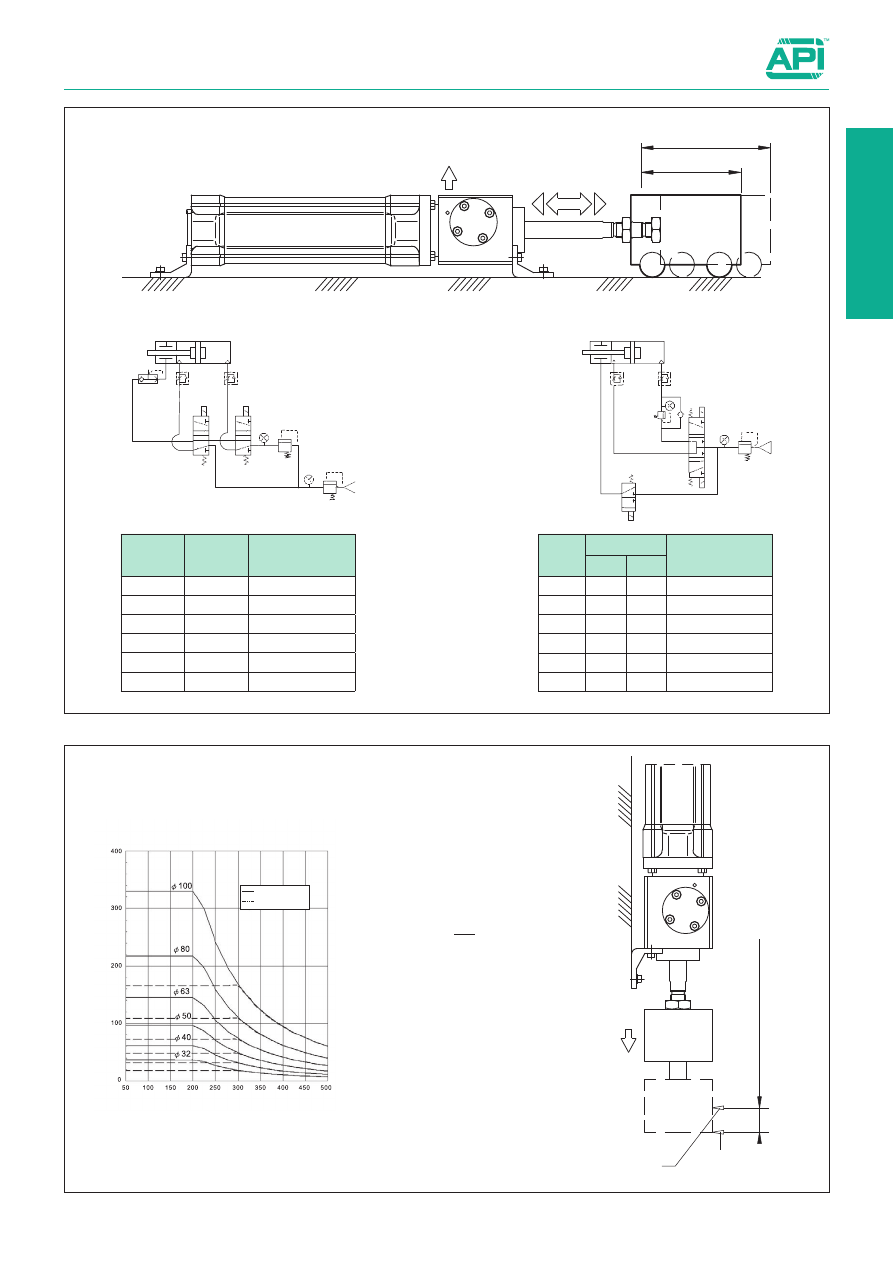

For the application of the piston-rod brake ABK to a cylinder
ISO15552 is necessary to order the cylinder with the rod predis-
posed for this (the extended one in hardened steel, option B1, see
page 1.5.1).
How to order: ABK050
