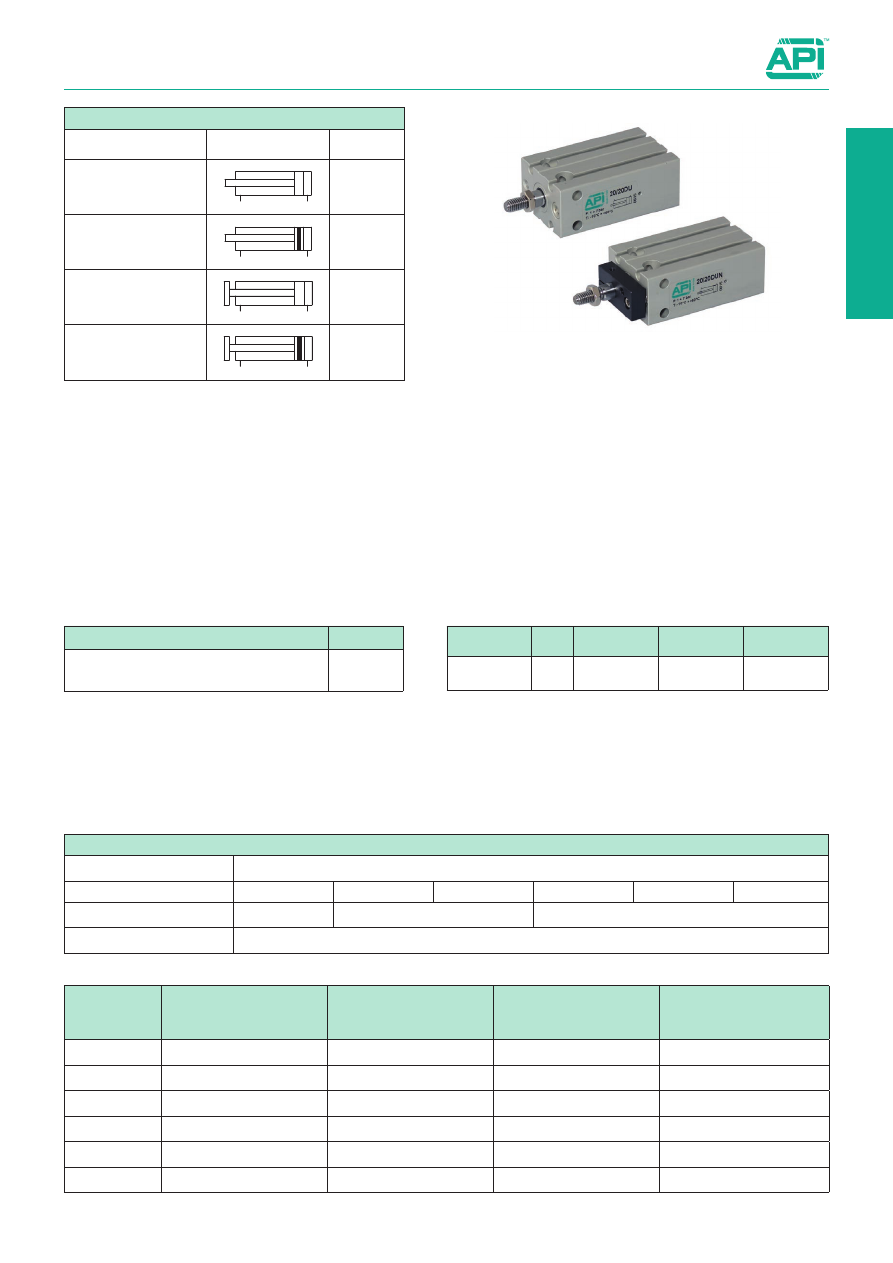

Compact Cylinders

Bores from 6 to 32 mm



Double acting

Series of compact cylinders double acting.

The barrel with grooves allow the mounting of the magnetic reed
switches directly in the tube without brackets; the magnetic reed
switches will not protrude out the barrel profile. One or more
magnetic reed switches can be mounted on the cylinder.
Six sides of this cylinder can be attached unto objects for space-
saving purpose.

For the magnetic reed switches type ASC see from page 1.110.2.
For rod mountings see from page 1.85.1.

20

/

30

DUM

Bore

/

Stroke

Type

Option

Technical data

Fluid

Compressed filtered air with or without lubrication. Lubrication, if started, must be continued.

Bore

Ø 6

Ø 10

Ø 16

Ø 20

Ø 25

Ø 32

Pressure range

3 ÷ 7 bar

1,5 ÷ 7 bar

1 ÷ 7 bar

Temperature range

-10 °C ÷ + 60°C

Bore

(mm)

Standard stroke

DU

Standard stroke

DUM

Standard stroke

DUN

Standard stroke

DUNM

6

-

5, 10, 15, 20, 25, 30

-

5, 10, 15, 20, 25, 30

10

-

5, 10, 15, 20, 25, 30

-

5, 10, 15, 20, 25, 30

16

5, 10, 15, 20, 25, 30

5, 10, 15, 20, 25, 30

5, 10, 15, 20, 25, 30

5, 10, 15, 20, 25, 30

20

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

25

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

32

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

5, 10, 15, 20, 25, 30, 40, 50

Standard executions

Version

Symbol

Type

Double acting,
not magnetic

DU

Double acting,
magnetic

DUM

Double acting,
not magnetic,
anti-rotating

DUN

Double acting,
magnetic, anti-rotating

DUNM

Options

Suffix

Special on request

/ S

How to order: 20/30 DUM

1.18.1

1.18.2

Compact Cylinders

Bores from 6 to 32 mm

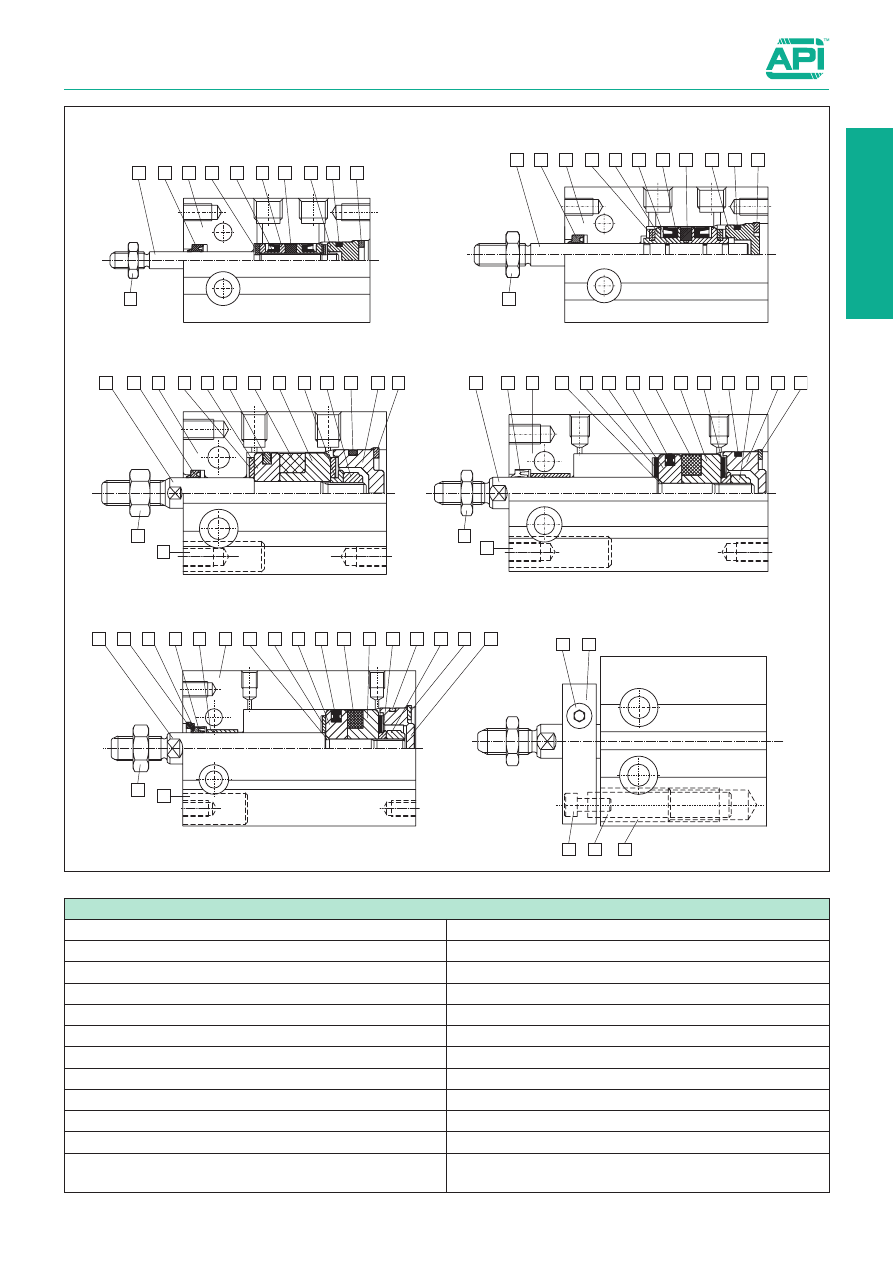

  Materials

 Materials



1

  End cover

Hard anodised aluminium alloy

AM

  Retaining ring

Carbon steel nickel plating



2

 Piston

Brass (Ø6 ÷ Ø10) Hard anodised aluminium (Ø16 ÷ Ø32)

AN

  Magnet

Magnetic material



3

  Piston rod

Stainless steel (Ø6 ÷ Ø16) - Carbon steel (Ø20 ÷ Ø32)

AO

  Retaining ring

Carbon steel nickel plating



4

  Cylinder tube

Hard anodised aluminium alloy

AP

  Piston nut

Carbon steel galvanizated



5

  Magnet holder

Hard anodised aluminium alloy

AQ

  Rod washer

Stainless steel



6

  T-washer

Carbon steel nickel plating

AR

   Screw plug

Hard anodised aluminium alloy



7

  O-ring

Nitrile rubber NBR

AS

   Guide plate

Hard anodised aluminium alloy



8

  Oilless bearing

Oil-impregnated sintered alloy

BT

   Screw

Carbon steel nickel plating



9

  Rod packing

PU (Ø6 ÷ Ø16) - Nitrile rubber NBR (Ø20 ÷ Ø32)

BK

   Screw

Carbon steel nickel plating



AT

  Piston packing

Nitrile rubber NBR

BL

   Guide stem

Carbon steel



AK

  Rubber lining

Nitrile rubber NBR

BM

  Oilless bearing

Oil-impregnated sintered alloy



AL

  Cylinder gasket  Nitrile rubber NBR

BN

  Rod end nut

Stainless steel (Ø6 ÷ Ø10)











Carbon steel nickel plating (Ø16 ÷ Ø32)

6

1

12

10

2

11

4

9

3

15

16

6

1

16

10

2

11

4

9

3

15

12

6

15

16

10

2

7

4

9

3

1

17

12

13

8

11

7

18

19

20

21

22

23

18

18

24

24

24

Type:

DU - DUN

(Bore Ø16 ÷ Ø32)

Bore Ø16

Bore Ø20

Bore Ø25 - Ø32

Anti-rotating
version

1

1.18.3

Compact Cylinders

Bores from 6 to 32 mm

  Materials

 Materials



1

  End cover

Hard anodised aluminium alloy

AM

  Retaining ring

Carbon steel nickel plating



2

  Piston

Brass (Ø6 ÷ Ø10) Hard anodised aluminium (Ø16 ÷ Ø32)

AN

  Magnet

Magnetic material



3

  Piston rod

Stainless steel (Ø6 ÷ Ø16) - Carbon steel (Ø20 ÷ Ø32)

AO

  Retaining ring

Carbon steel nickel plating



4

  Cylinder tube

Hard anodised aluminium alloy

AP

  Piston nut

Galvanized carbon steel



5

  Magnet holder

Hard anodised aluminium alloy

AQ

  Rod washer

Stainless steel



6

  T-washer

Carbon steel nickel plating

AR

  Screw plug

Hard anodised aluminium alloy



7

  O-ring

Nitrile rubber NBR

AS

  Guide plate

Hard anodised aluminium alloy



8

  Oilless bearing

Oil-impregnated sintered alloy

BT

  Screw

Carbon steel nickel plating



9

  Rod packing

PU (Ø6 ÷ Ø16) - Nitrile rubber NBR (Ø20 ÷ Ø32)

BK

  Screw

Carbon steel nickel plating



AT

  Piston packing

Nitrile rubber NBR

BL

  Guide stem

Carbon steel



AK

  Rubber lining

Nitrile rubber NBR

BM

  Oilless bearing

Oil-impregnated sintered alloy



AL

  Cylinder gasket

Nitrile rubber NBR

BN

  Rod end nut

Stainless steel (Ø6 ÷ Ø10)









Carbon steel nickel plating (Ø16 ÷ Ø32)

1

17

12

14

10

2

11

4

9

3

14

12

1

10

2

7

11

4

9

3

15

6

1

12

5

10

14

2

11

4

9

3

15

16

6

1

16

5

10

14

2

11

4

9

3

15

12

6

15

16

5

10

14

2

7

4

9

3

1

17

12

13

8

11

7

18

19

20

21

22

23

18

18

24

24

24

24

24

Type:

DUM - DUNM

(Bore Ø6 ÷ Ø32)

Bore Ø6

Bore Ø16

Bore Ø10

Bore Ø20

Bore Ø25 - Ø32

Anti-rotating
version

1.18.4

Compact Cylinders

Bores from 6 to 32 mm



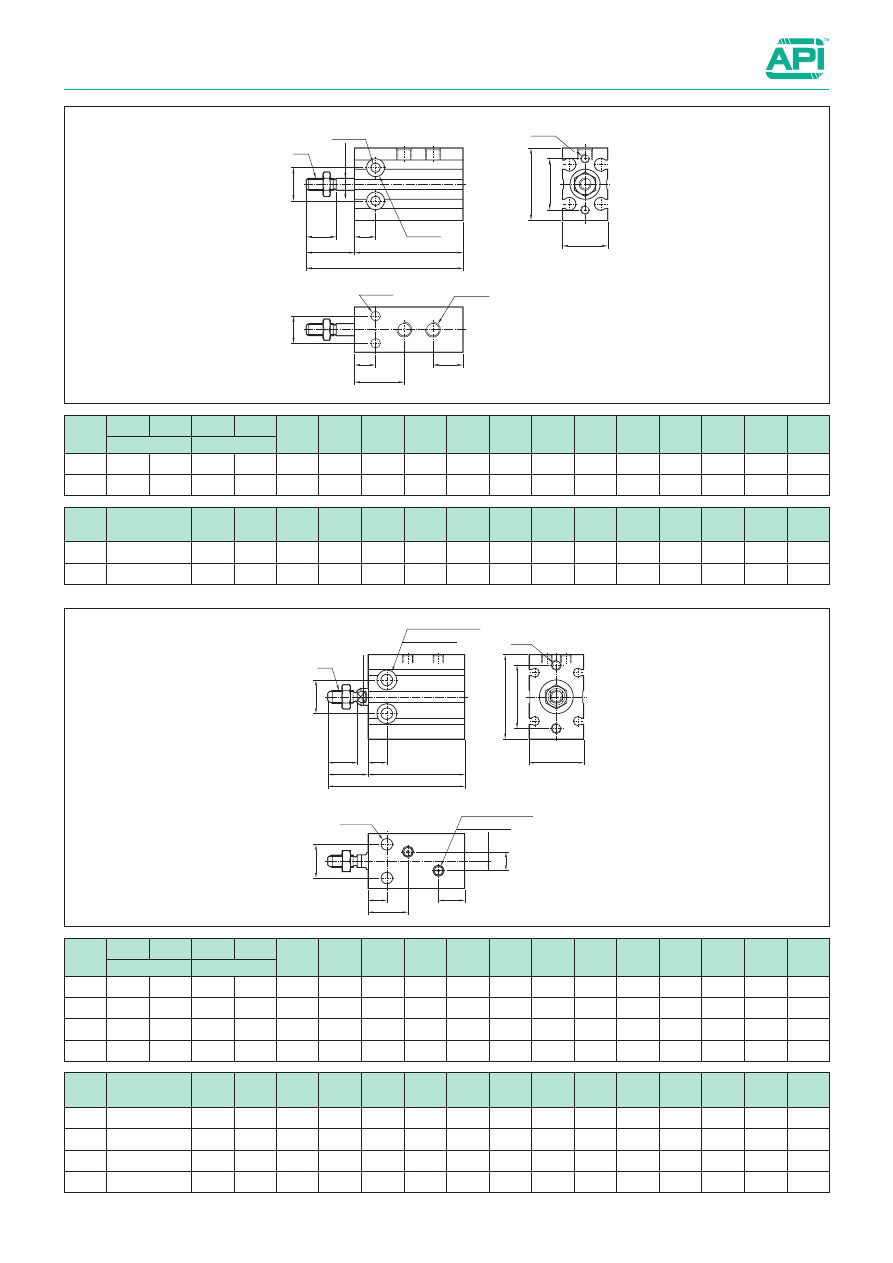

Standard dimensions

Ø P (x2)

M5 (x2)

T3

E

QB

QA

N (x4)

D

T1

S

KK

T2

ØMM

L

E

ØT (x4)

C

Ø P (x2)

Type:

DU - DUM

Bore: 6 - 10

KK

L

C

E

A + Stroke

B + Stroke

M5 (x2) Ø16 ÷ Ø25

1/8 (x2) Ø32

T2

ØMM

N (x4)

S

D

T1

Ø P (x2)

E

QA

T3

QB

M5 (x2) Ø16 ÷ Ø25

1/8 (x2) Ø32

F

FB

Type:

DU - DUM

Bore: 16 - 32

A + stroke

B + stroke

Ø

(mm)

A

B

A

B

C

D

E

F

FB

L

KK

MM

N

P

QA

QB

S

DU

DUM

6

-

-

33

46

13

22

7

-

-

7

M3

3

M3

3,2

15

10

13

10

-

-

36

52

16

24

7

-

-

10

M4

4

M3

3,2

15

11

18

Ø

(mm)

A

B

A

B

C

D

E

F

FB

L

KK

MM

N

P

QA

QB

S

DU

DUM

16

30

46

40

56

16

32

7

4

2

12,5

M5

6

M4

4,3

14

11,5

20

20

36

55

46

65

19

40

9

9

4,5

14

M6

8

M5

5,2

18

12,5

26

25

40

63

50

73

23

50

10

9

4,5

18

M8

10

M5

5,5

21,5

12,5

32

32

42

69

52

79

27

62

11

13,5

4,5

22

M10

12

M6

6,6

23

13

40

Ø

(mm)

T

T1

T2

T3

6

Ø 6 depth 4.8

17

10

7

10

Ø 6 depth 5

17

10

7

Ø

(mm)

T

T1

T2

T3

16

Ø 7,6 depth 6,5

25

14

12

20

Ø 9 depth 7,6

30

16

16

25

Ø 9,5 depth 9

38

20

20

32

Ø 11 depth 11

48

24

24

1

1.18.5

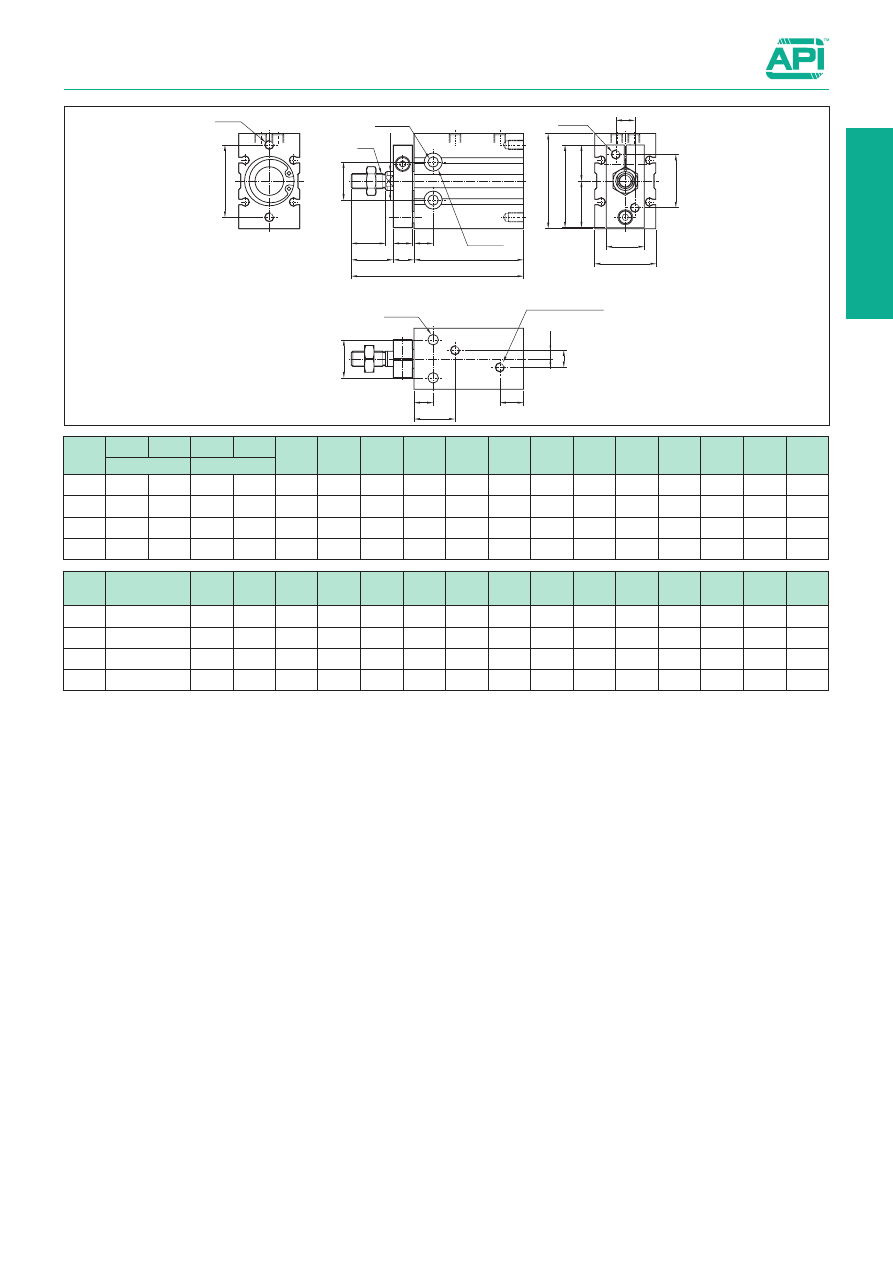

Compact Cylinders

Bores from 6 to 32 mm



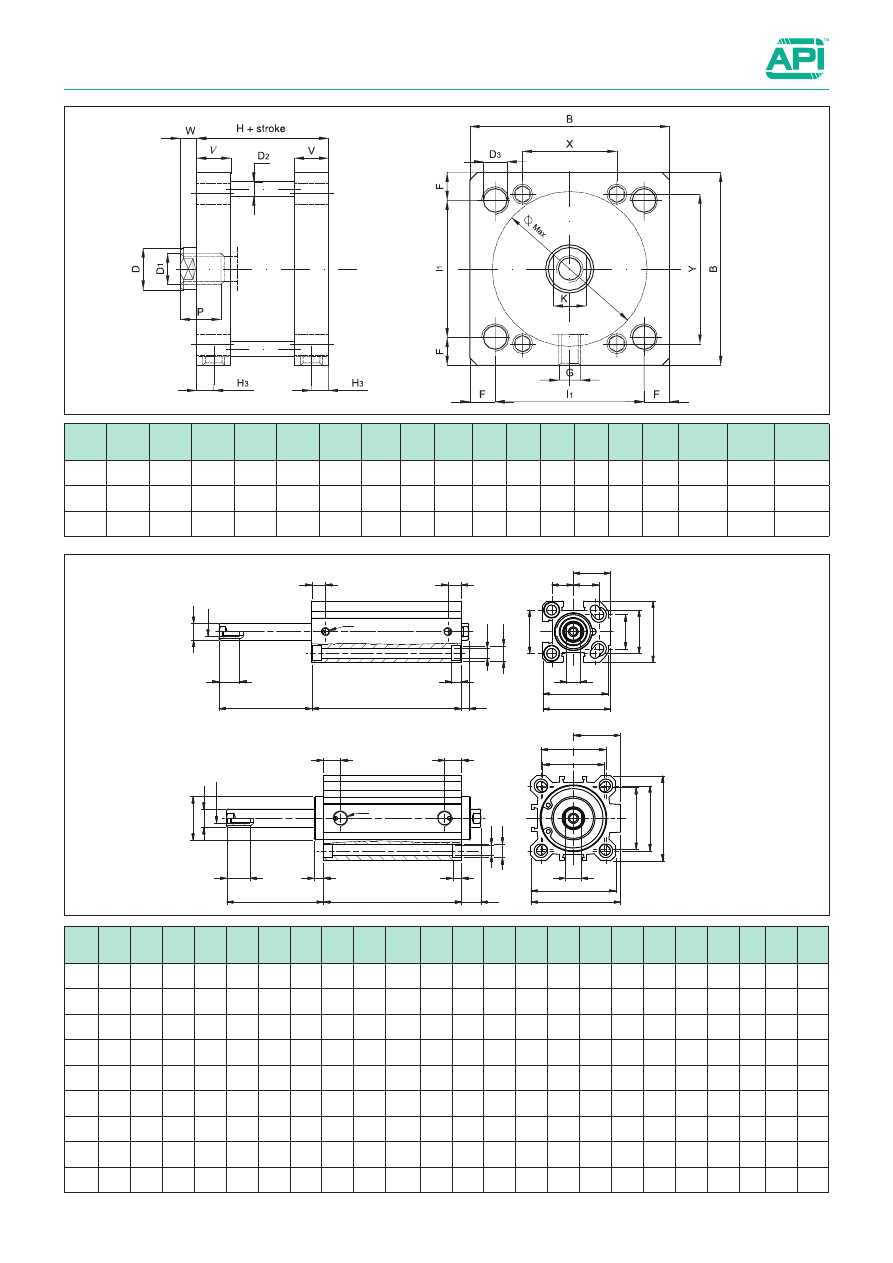

Standard dimensions

N1 (x2)

D

S

V

KK

T2

ØMM

L

G

H

E

ØT (x4)

C

Ø P (x2)

U

YX

Z1

Ø P (x2)

M5 (x2) Ø16 ÷ Ø25

T3

E

QB

QA

1/8 (x2) Ø32

F

FB

Z2

T1

N (x2)

Type:

DUN - DUNM

Bore: 16 - 32

A + stroke

B + stroke

Ø

(mm)

A

B

A

B

C

D

E

F

FB

G

H

L

KK

MM

N

N1

P

DU

DUM

16

30

56

40

66

17

32

7

4

2

8

9

12,5

M5

6

M4

M4

4,3

20

36

65

46

75

20

40

9

9

4,5

8

9

14

M6

8

M5

M4

5,2

25

40

73

50

83

22

50

10

9

4,5

10

11

18

M8

10

M5

M5

5,5

32

42

84

52

94

29

62

11

13,5

4,5

12

13

22

M10

12

M6

M5

6,5

Ø

(mm)

T

T1

T2

T3

QA

QB

S

U

V

X

Y

Z1

Z2

16

Ø 7,6 depth 6,5

25

14

12

14

11,5

20

28

13

12,5

15,5

6

18

20

Ø 9 depth 7,6

30

16

16

18

12,5

26

33

16

13,5

19,5

8

20

25

Ø 9,5 depth 9

38

20

20

21,5

12,5

32

43,5

20

19

24,5

10

28

32

Ø 11 depth 11

48

24

24

23

13

40

51,5

24

21

30,5

12

32

1

1.20.1

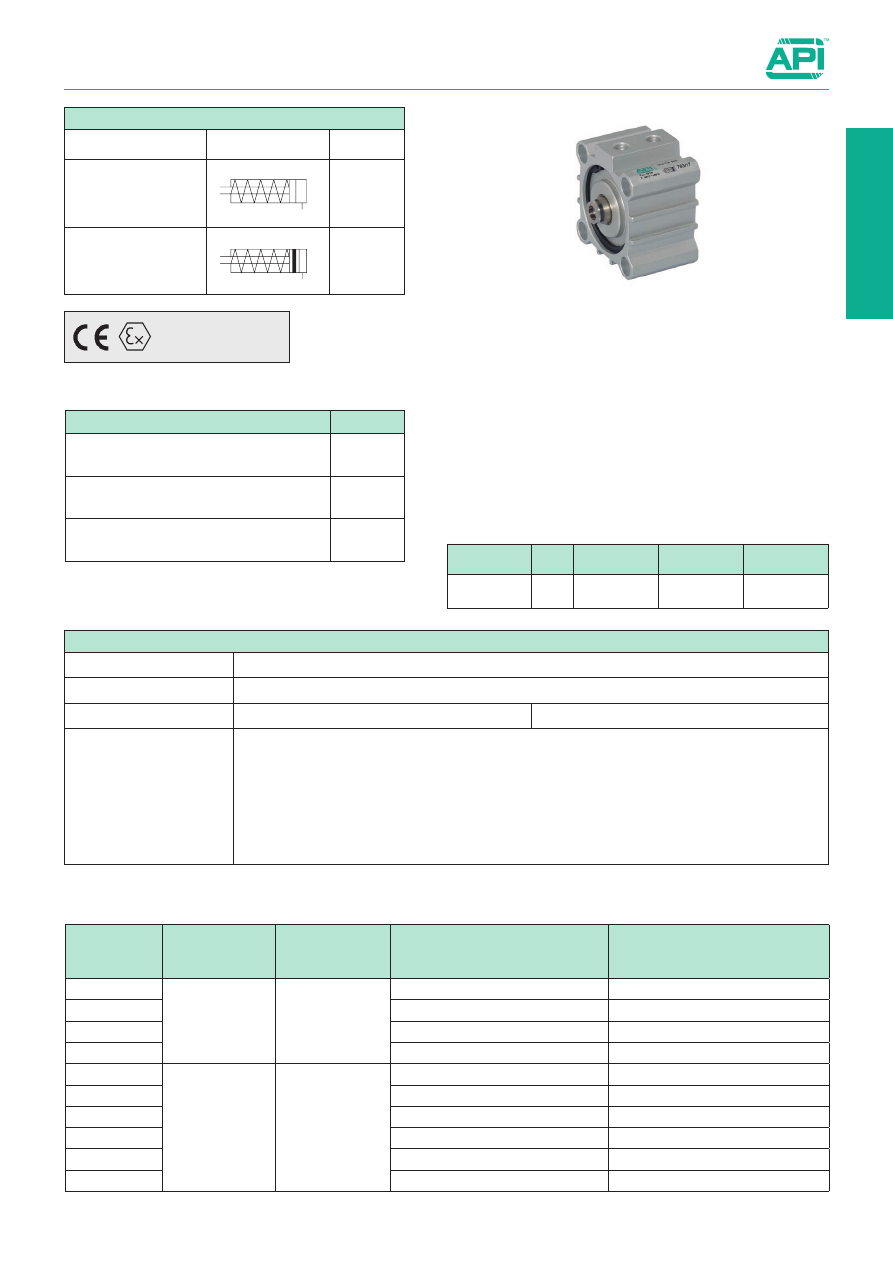

Short Stroke Cylinders

Bores from 12 to 100 mm





Single acting

Series of short stroke cylinders with extruded aluminium profile
barrel and fixing holes directly made on it.
In the magnetic type the sensor can be fixed in the groove for
sensor mounting by the bracket not included in the kit.
The magnetic version is provided with elastic dampers set on the
heads.
For the magnetic reed switches type ASV see from page 1.110.1.
For the bracket type AS108

see page 1.120.1

For mounting accessories

see from page 1.20.20.

For the rod with male thread

see nipple page 1.20.20.

For rod accessories

see from page 1.85.1.

How to order: 50 / 50 BSMT

The options can be combined (when this is possible)

On request, they can be supplied

according to 2014/34/EU -

ATEX

II 2Gc IIC T5
II 2Dc T100°C

50

/

50

BSM

T

Bore

/

Stroke

Type

Option

Bore

(mm)

Standard strokes

(mm)

Max stroke

(mm)

Thrust force at 6 bar

(N)

Traction force of the spring

(N)

12

5, 10, 15, 20, 25

25

51

5

16

106

6

20

170

6

25

258

13

32

5, 10, 15, 20, 25,

30, 40, 50

50

441

18

40

729

20

50

1070

40

63

1720

49

80

2880

76

100

4400

131

Standard executions

Version

Symbol

Type

Non magnetic

BS

Magnetic

BSM

Options

Suffix

Rear spring

from bore

12 to 63 mm.

T

Seals FKM

       -20°C ÷ +150°C

V

Special versions on request

/ S

Technical data

Fluid

Compressed filtered air with or without lubrication. Lubrication, if started, must be continued.

Pressure

2 ÷ 10 bar

Temperature range

-20°C ÷ +80°C (standard)

-20°C ÷ +150°C (V)

Materials

Heads:

from 12 to 25 mm.:  Brass



from 32 to 100 mm.: Aluminium

Tube:

Anodised aluminium

Rod:

Stainless steel AISI 303

Seals:

NBR

Piston:

Non magnetic:

from 12 to 32 mm: Delrin



from 40 to 100 mm: Aluminium



Magnetic:

from 12 to 63 mm: Delrin



from 80 to 100 mm: Aluminium

1.20.2

Short Stroke Cylinders

Bores from 12 to 100 mm





Single acting

K

A

I11

B

I1

I1

F

4

G

H

W

H3

H3

D

1

D

P

L

D

3

D

4

D

4

D

3

H

W

G

P

D

1

D

L

H3

H3

I5

K

I5

N

I6

I3

I2

I5

B

A

E

G

H3

H3

P

H

W

D

1

D

D

4

D

3

L

K

N

A

I5

I5

I1

I2

E

B

L1

L1

L

L

Type:

BS - BSM

Ø 16 ÷ 25

Ø 12

Ø 32 ÷ 100

* for strokes 40 - 50: Ø 32-40-50-63-80-100 add +10 mm
* for strokes 15 - 20 - 25: Ø 12 add +5 mm

* for strokes 25: Ø 16-20 add +6 mm



//  Ø 25 add +1 mm

* for stroke 40-50: Ø 32-40-50-63-80-100 add +10 mm

Type:

BS

mm

Ø

A

B

D
Ø

D1

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

W

12

25

25

6

M3

3,7

5,6

-

M5

17*

5,5

15,5

-

-

-

-

5

3,5

-

-

6

3,5

16

34

30

8

M4

4,7

7,5

19

M5

27

8

-

18

12

20

10

6

4,6

3,5

32

8

4,5

20

40

36

10

M5

5,8

9

22

M5

27

8

-

20

15

25,5 12,7

8

5,7

5,7

38,5

10

5

25

44,5

40

10

M5

5,8

9

24,5 1/8"

28,5 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

5,5

32

51

46

12

M6

5,8

9

27

1/8" 29,5* 11,5

36

32

-

34

-

10

5,7

-

48

12

6

40

58

55

12

M6

5,8

9

30,5 1/8" 29,5*

11

42

42

-

40

-

10

5,7

-

55

12

6

50

70

65

16

M8

6,8

11

37,5 1/8" 34,5* 11,5

50

50

-

50

-

13

6,8

-

65

12

7,5

63

89

80

16

M8

9

14

46

1/8"

37*

11

62

62

-

60

-

13

8,8

-

80

14

7

80

105

100

20

M10

9

14

55

1/4"

46*

14

82

82

-

77

-

17

9

-

100

15

8

100

131

124

25

M12

11

17,2

69

1/4"

56*

16

103

103

-

94

-

22

11

-

124

20

10

Type:

BSM

mm

Ø

A

B

D
Ø

D1

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

W

12

25

25

6

M3

3,7

5,6

-

M5

27

5,5

15,5

-

-

-

-

5

3,5

-

-

6

3,5

16

34

30

8

M4

4,7

7,5

19

M5

32*

8

-

18

12

20

10

6

4,6

3,5

32

8

4,5

20

40

36

10

M5

5,8

9

22

M5

32*

8

-

20

15

25,5 12,7

8

5,7

5,7

38,5

10

4,5

25

44,5

40

10

M5

5,8

9

24,5 1/8" 38,5* 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

5,5

32

51

46

12

M6

5,8

9

27

1/8" 39,5* 11,5

36

32

-

34

-

10

5,7

-

48

12

5,5

40

58

55

12

M6

5,8

9

30,5 1/8" 39,5*

11

42

42

-

40

-

10

5,7

-

55

12

6,5

50

70

65

16

M8

6,8

11

37,5 1/8" 39,5* 11,5

50

50

-

50

-

13

6,8

-

65

12

7,5

63

89

80

16

M8

9

14

46

1/8"

42*

11

62

62

-

60

-

13

8,8

-

80

14

6,5

80

105

100

20

M10

9

14

55

1/4"

46*

14

82

82

-

77

-

17

9

-

100

15

8

100

131

124

25

M12

11

17,2

69

1/4"

56*

16

103

103

-

94

-

22

11

-

124

20

10

+ stroke

+ stroke

+ stroke

1

Short Stroke Cylinders

Bores from 12 to 100 mm





Single acting

1.20.3

D

1

D

F

4

G

D

3

D

4

L

P

H

W

H3

H3

I11

K

A

I1

I1

B

I6

I3

E

I5

K

I5

N

A

I2

I5

B

G

H

W

P

D

1

D

H3

H3

L

D

3

D

4

I5

I1

E

I

I

5

2

B

K

N

A

D

3

D

4

H

L

S

W

H3

H3

G

P

D

1

D

D

2

L1

L1

L

L

Type:

BST - BSMT

Ø 16 ÷ 25

Ø 12

Ø 32 ÷ 100

* for strokes 20-25: Ø 20 add +11 mm  //  Ø 25 add +6 mm  //  Ø 32 add +5 mm
* for stroke 30: Ø 32 add +10 mm
* *BST: H= 17 // BSMT: H= 27

mm

Ø

A

B

D
Ø

D1

D2

Ø

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

S

W

12

25

25

6

M3

-

3,7

5,6

-

M5

**

5,5 15,5

-

-

-

-

5

3,5

-

-

6

-

3,5

16

34

30

8

M4

-

4,7

7,5

19

M5

32*

8

-

18

12

20

10

6

4,6

3,5

32

8

-

4,5

20

40

36

10

M5

-

5,8

9

22

M5

32*

8

-

20

15

25,5 12,7

8

5,7

5,7 38,5

10

-

4,5

25

44,5

40

10

M5

-

5,8

9

24,5 1/8"

38,5* 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

-

5,5

32

51

46

12

M6 24,5 5,8

9

27

1/8"

39,5 11,5

36

32

-

34

-

10

5,7

-

48

12

5

11

40

58

55

12

M6

28

5,8

9

30,5 1/8"

39,5

11

42

42

-

40

-

10

5,7

-

55

12

6

12,5

50

70

65

16

M8

34

6,8

11

37,5 1/8"

39,5 11,5

50

50

-

50

-

13

6,8

-

65

12

6

13,5

63

89

80

16

M8 38,5

9

14

46

1/8"

42

11

62

62

-

60

-

13

8,8

-

80

14

8

15

+ stroke

+ stroke

+ stroke

+ stroke

+ stroke

+ stroke

1.20.10

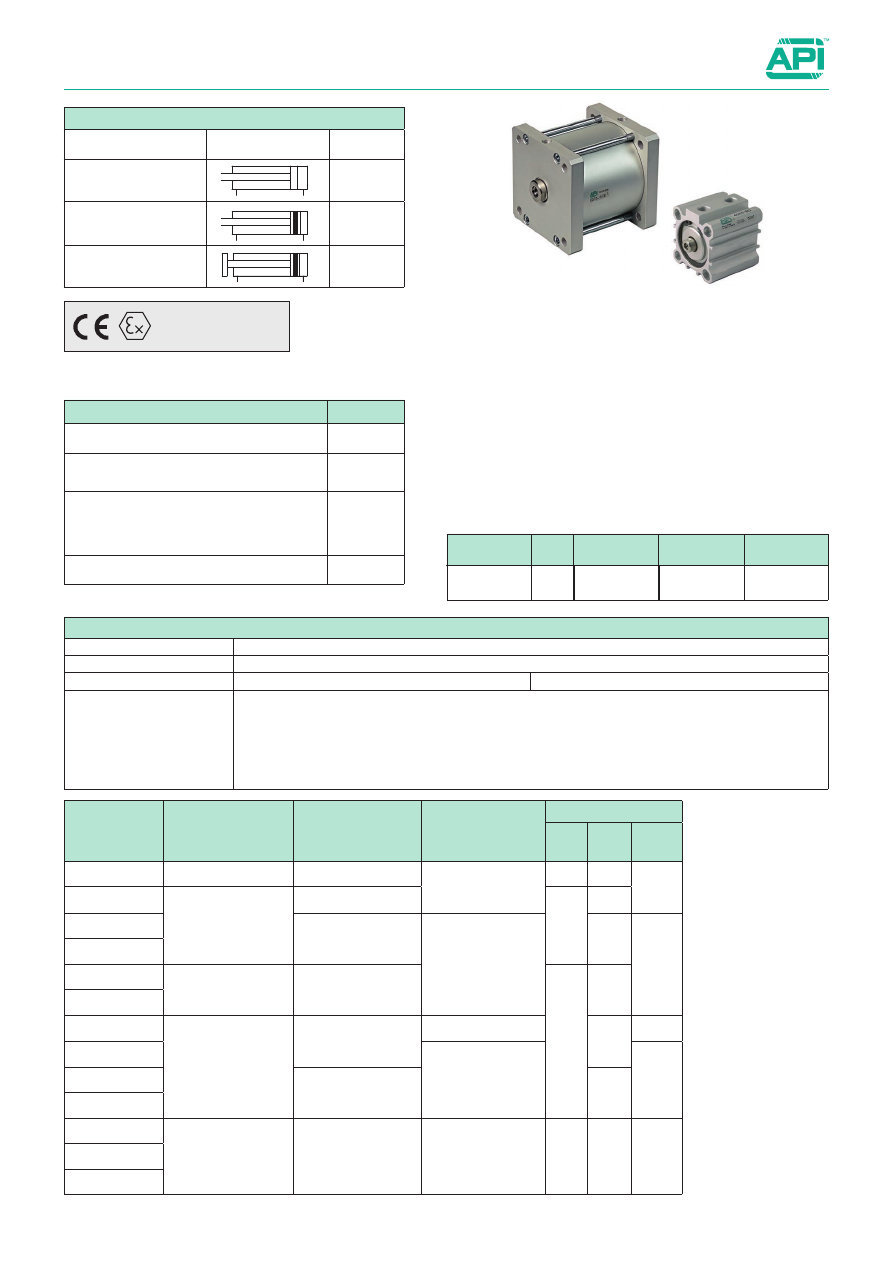

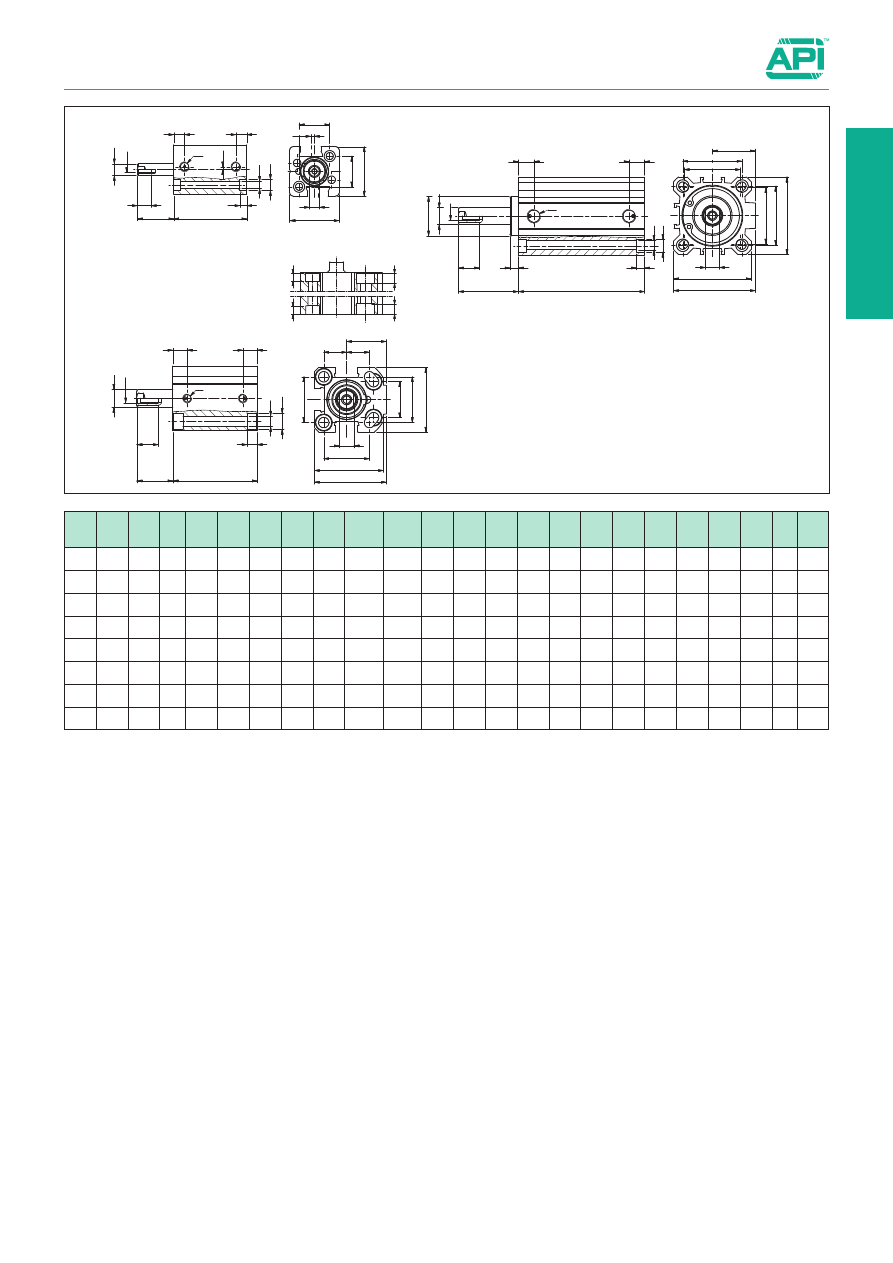

Short Stroke Cylinders

Bores from 12 to 200 mm





Double acting

See page 1.1.3 to cal-
culate the cylinder
force.

Should you require
intermediate strokes,
the overall dimensions
of the cylinder body will
be those of the cylinder
of the following stand-
ard stroke (in fact the
intermediate stroke is
obtained applying a
distancer).

Series of short stroke cylinders with extruded aluminium profile
barrel (up to the bore 100 mm) and fixing holes directly in the
profile.
In the magnetic type, up to the bore 100 mm, the sensor can
be fixed in the groove for sensor mounting by the bracket not
included in the kit.
The sensor is to be fixed on the external tie rods with the bores
125, 160 and 200 mm.
Standard elastic dampers (except the non magnetic type up to
the bore 100 mm).
For the magnetic reed switches type ASV see from page 1.110.1.
For the bracket type AS108

see page 1.120.1

For mounting accessories

see from page 1.20.20.

For the rod with male thread

see nipple page 1.20.20.

For rod accessories

see from page 1.85.1.

How to order: 40 / 50 BDP

The options can be combined (when this is possible)

On request, they can be supplied

according to 2014/34/EU -

ATEX

II 2Gc IIC T5
II 2Dc T100°C

40

/

50

BD

P

Bore

/

Stroke

Type

Option

Bore (mm)

Standard strokes

BD (mm)

Standard strokes

BDM (mm)

Standard strokes

BDMN (mm)

Max stroke (mm)

BD

BDM BDMN

12

5, 10, 15, 20, 25, 30, 40 5, 10, 15, 20, 25, 30, 40

-

40

40

-

16

5, 10, 15, 20, 25, 30,

40, 50

5, 10, 15, 20, 25, 30, 40,

50, 60, 80, 100,

50

100

20

5, 10, 15, 20, 25, 30,

40, 50, 60, 80, 100, 125

5, 10, 15, 20, 25,

30, 40, 50, 60,

80, 100, 125

125

125

25

32

5, 10, 15, 20, 25, 30, 40,

50, 60, 80, 100,

5, 10, 15, 20, 25, 30,

40, 50, 60, 80, 100,

125, 160

100

160

40

50

10, 15, 20, 25, 30, 40,

50, 60, 80, 100,

10, 15, 20, 25, 30, 40,

50, 60, 80, 100, 125,

160, 200

10, 15, 20, 25, 30, 40,

50, 60, 80, 100, 125

200

125

63

10, 15, 20, 25, 30,

40, 50, 60, 80,

100, 125, 160

160

80

10, 15, 20, 25, 30, 40,

50, 60, 80, 100, 125,

160, 200, 250

250

100

125

25, 50, 75, 100, 125,

160, 200, 250

25, 50, 75, 100, 125,

160, 200, 250

-

250

250

-

160

200

Standard executions

Version

Symbol

Type

Non magnetic

BD

Magnetic

BDM

Anti-rotating magnetic
from bore 20 to 100 mm

BDMN

Options

Suffix

Through rod

from bore 16 to 100 mm.

P

Seals FKM

-20°C ÷ +150°C

from bore 12 to 100 mm.

V

Special male thread (indicate the requested thread.
E.g.: R-M10x1,5).

The dimension AM of the special thread will be the same as
the standard. The cylinder will be supplied without rod nut.

R-M...

Special versions on request

/ S

Technical data

Fluid

Compressed filtered air with or without lubrication. Lubrication, if started, must be continued.

Pressure

2 ÷ 10 bar

Temperature range

-20°C ÷ + 80°C (standard)

-20°C ÷ +150°C (V)

Materials

Heads:

from 12 to 25 mm.:  Brass



from 32 to 100 mm.: Aluminium

Tube:

Anodised aluminium

Rod:

Stainless steel AISI 303

Seals:

NBR

Piston:

Non magnetic:

from 12 to 32 mm: Delrin
from 40 to 200 mm: Aluminium

  Magnetic:

from 12 to 63 mm: Delrin
from 80 to 200 mm: Aluminium

1

1.20.11

Short Stroke Cylinders

Bores from 12 to 200 mm



Double acting

K

A

I11

B

I1

I1

F

4

G

H

W

H3

H3

D

1

D

P

L

D

3

D

4

D

4

D

3

H

H

W

G

P

D

1

D

L

H3

H3

I5

K

I5

N

I6

I3

I2

I5

B

A

E

G

H3

H3

P

W

D

1

D

D

4

D

3

L

K

N

A

I5

I5

I1

I2

E

B

D

2

S

L1

L1

L

L

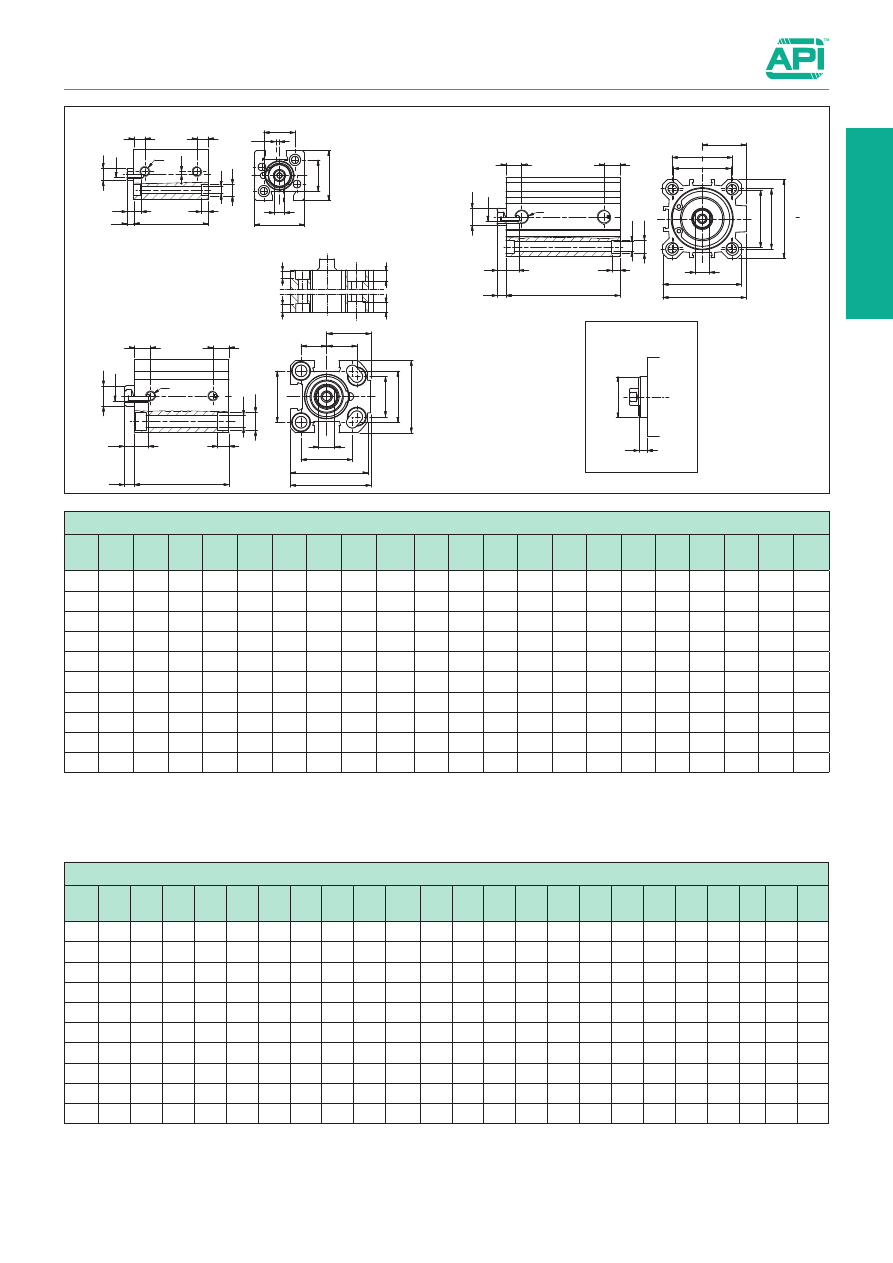

Type:

BD - BDM

Ø 16 ÷ 25

Ø 12

Ø 32 ÷ 100

+ stroke

+ stroke

+ stroke

* for strokes 30 - 40 - 50: Ø 16 - 20 add +1 mm
* for strokes 40 - 50: Ø 25 add +1 mm

*

for strokes

 ≥ 25: Ø 16-20 add +6 mm

 //

Ø 25 add +1 mm

Type:

BD

mm

Ø

A

B

D
Ø

D1

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

W

12

25

25

6

M3

3,7

5,6

-

M5

17

5,5

15,5

-

-

-

-

5

3,5

-

-

6

3,5

16

34

30

8

M4

4,7

7,5

19

M5

27*

8

-

18

12

20

10

6

4,6

3,5

32

8

4,5

20

40

36

10

M5

5,8

9

22

M5

27*

8

-

20

15

25,5 12,7

8

5,7

5,7

38,5

10

5

25

44,5

40

10

M5

5,8

9

24,5 1/8" 28,5* 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

5,5

32

51

46

12

M6

5,8

9

27

1/8"

29,5

11,5

36

32

-

34

-

10

5,7

-

48

12

6

40

58

55

12

M6

5,8

9

30,5 1/8"

29,5

11

42

42

-

40

-

10

5,7

-

55

12

6

50

70

65

16

M8

6,8

11

37,5 1/8"

34,5

11,5

50

50

-

50

-

13

6,8

-

65

12

7,5

63

89

80

16

M8

9

14

46

1/8"

37

11

62

62

-

60

-

13

8,8

-

80

14

7

80

105

100

20

M10

9

14

55

1/4"

46

14

82

82

-

77

-

17

9

-

100

15

8

100

131

124

25

M12

11

17,2

69

1/4"

56

16

103

103

-

94

-

22

11

-

124

20

10

Type:

BDM

mm

Ø

A

B

D
Ø

D1

D2

Ø

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

S

W

12

25

25

6

M3

-

3,7

5,6

-

M5

27

5,5 15,5

-

-

-

-

5

3,5

-

-

6

-

3,5

16

34

30

8

M4

-

4,7

7,5

19

M5

32*

8

-

18

12

20

10

6

4,6

3,5

32

8

-

4,5

20

40

36

10

M5

-

5,8

9

22

M5

32*

8

-

20

15

25,5 12,7

8

5,7

5,7 38,5 10

-

4,5

25

44,5

40

10

M5

-

5,8

9

24,5 1/8" 38,5* 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

-

5,5

32

51

46

12

M6 24.5 5,8

9

27

1/8" 39,5 11,5

36

32

-

34

-

10

5,7

-

48

12

5

5,5

40

58

55

12

M6

28

5,8

9

30,5 1/8" 39,5

11

42

42

-

40

-

10

5,7

-

55

12

6

6,5

50

70

65

16

M8

34

6,8

11

37,5 1/8" 39,5 11,5

50

50

-

50

-

13

6,8

-

65

12

6

7,5

63

89

80

16

M8 38.5

9

14

46

1/8"

42

11

62

62

-

60

-

13

8,8

-

80

14

8

6,5

80

105 100

20

M10

44

9

14

55

1/4"

46

14

82

82

-

77

-

17

9

-

100 15

10

8

100

131 124

25

M12

56

11

17,2

69

1/4"

56

16

103 103

-

94

-

22

11

-

124 20 10,5

10

Only for BDM
Ø 32÷100

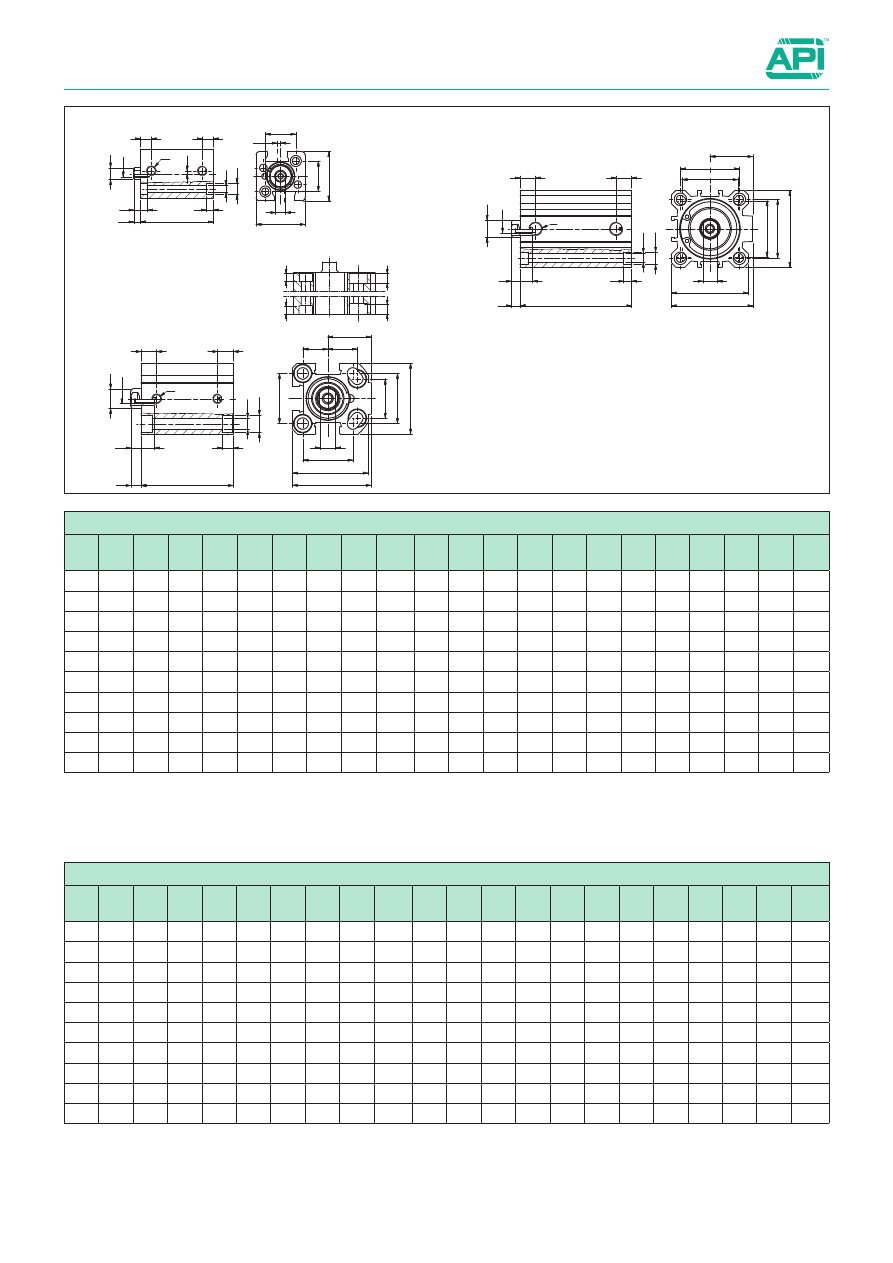

1.20.15

Short Stroke Cylinders

Bores from 12 to 200 mm



Double acting

Type:

BD - BDM

Ø

mm

B

D
Ø

D

1



Ø

D

2



Ø

D

3



Ø

F

G

H

3

I

1

K

P

V

W

X

Y

Ø est.

max.

H

(NBR)

H

(VITON)

125

140

30

M14

10

M12

15

1/4”

10

110

28

25

22

10

77

123

132

78

83

160

180

40

M20

12

M16

20

3/8”

12

140

36

30

26

12

94

157

168

87

91

200

220

40

M20

14

M16

22,5

3/8”

12

175

36

30

26

12

126

193

210

87

105

L

W

H+stroke

W+stroke

H+stroke

W+stroke

D

1

D

P

H3

H3

G

D

3

D

4

I6

I3

I2

I5

B

K

N

A

G

H3

H3

L

S

W

D

3

D

4

D

1

D

P

K

N

A

D

2

I5

I1

I5

I2

B

E

E

I5

Type:

BDP - BDMP

Ø 16 ÷ 25

Type:

BDP - BDMP

Ø 32 ÷ 100

mm

Ø

A

B

D
Ø

D1

D2

Ø

D3

Ø

D4

Ø

E

G

H

H3

I1

I2

I3

I5

I6

K

L

L1

N

P

S

W

16

34

30

8

M4

-

4,7

7,5

19

M5

32*

8

-

18

12

20

10

6

4,6

3,5

32

8

-

4,5

20

40

36

10

M5

-

5,8

9

22

M5

32*

8

-

20

15

25,5 12,7

8

5,7

5,7 38,5 10

-

4,5

25

44,5

40

10

M5

-

5,8

9

24,5 1/8" 38,5* 10,5

-

26

15,5

28

14

8

5,7

5,7

42

10

-

5,5

32

51

46

12

M6 24.5 5,8

9

27

1/8" 39,5 11,5

36

32

-

34

-

10

5,7

-

48

12

5

11

40

58

55

12

M6

28

5,8

9

30,5 1/8" 39,5

11

42

42

-

40

-

10

5,7

-

55

12

6

12,5

50

70

65

16

M8

34

6,8

11

37,5 1/8" 39,5 11,5

50

50

-

50

-

13

6,8

-

65

12

6

13,5

63

89

80

16

M8 38.5

9

14

46

1/8"

42

11

62

62

-

60

-

13

8,8

-

80

14

8

15

80

105 100

20

M10

44

9

14

55

1/4"

46

14

82

82

-

77

-

17

9

-

100 15

10

18

100

131 124

25

M12

56

11

17,2

69

1/4"

56

16

103 103

-

94

-

22

11

-

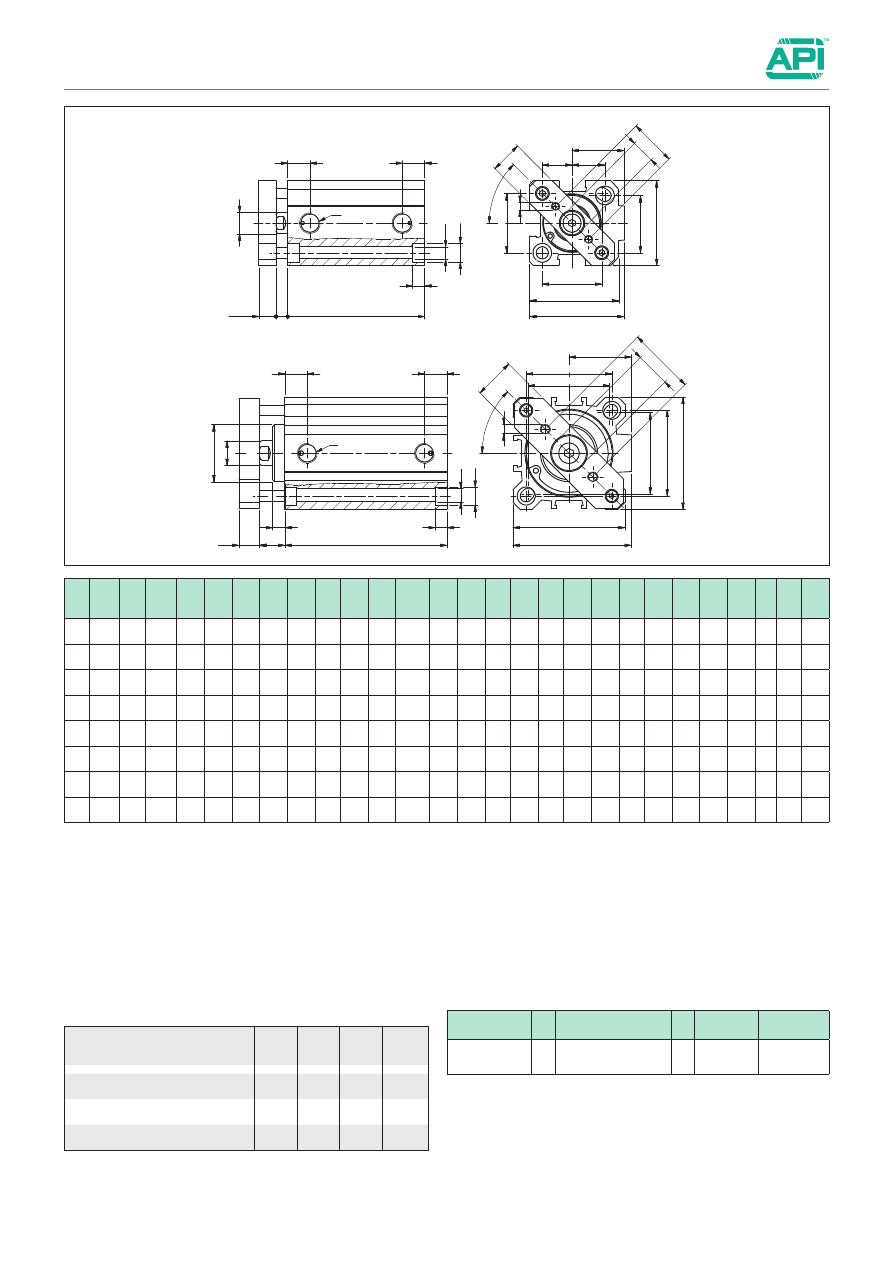

124 20 10,5 20,5

* for strokes ≥ 25: Ø 16 - 20 add +6 mm // Ø 25 add +1 mm

1.20.16

Short Stroke Cylinders

Bores from 12 to 200 mm



Double acting

How to order: 50 / SG / BDP

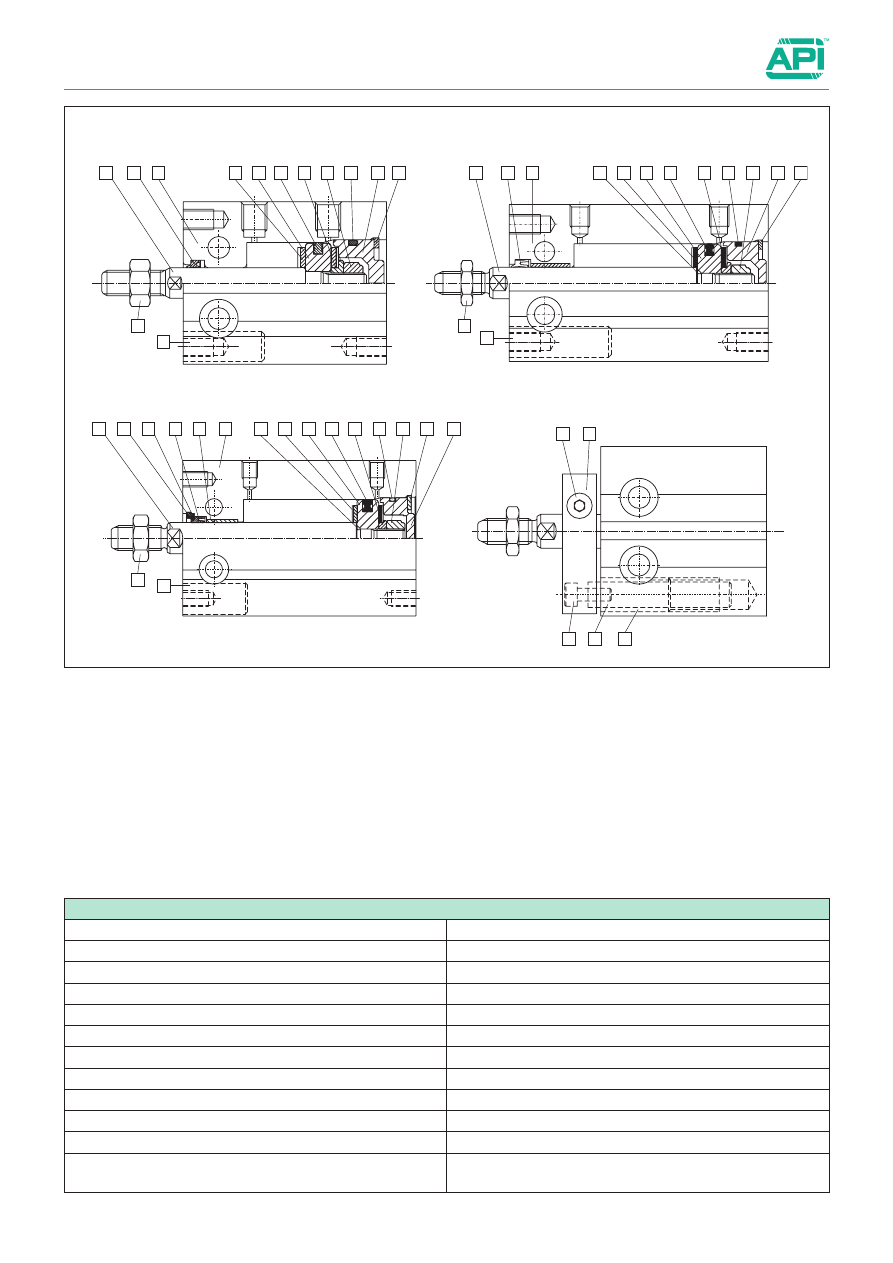

The seal kit for the cylinders in non-standard executions is to be
composed according to the option.

The magnetic ring to be ordered separately.

Seal kit.
Here are the quantities and the description of the components
comprised in each kit.

Type:

BDMN

Description

N°

BD

BDM BDMN

Rod seal

1

●

●

●

Tube O-ring

2

●

●

●

Lip seal

2

●

●

●

50

/

SG

/

BD

P

Bore

/

Seal kit

/

Type

Option

T

I5

I5

I1

I5

I2

B

N

A

I4

D

5

D

6

T

H+stroke

W

L

S1

G

D

D

2

S

H3

H3

D

3

D

4

E

H+stroke

D

3

D

4

L

W

S1

G

H3

H3

D

N

A

I3

I5

I6

I5

E

I2

B

I4

D

5

α

T

D

6

α

Ø

mm

A

B

a

D
Ø

D

2



Ø

D

3



Ø

D

4



Ø

D

5

D

6



Ø

E

G

H

H

3

I

1

I

2

I

3

I

4

I

5

I

6

K

L

L

1

N

S

S

1

T

W

20

40

36

45°

10

-

5,8

9

M4 11

22

M5

32*

8

-

20

15

20 25,5 12,7 8

5,7 5,7 38,5

-

8

15 4,5

25 44,5 40

45°

10

-

5,8

9

M4 11 24,5 1/8” 38,5* 10,5

-

26 15,5 22

28

14

8

5,7 5,7

42

-

8

15 5,5

32

51

46 41,5° 12 24,5 5,8

9

M5 17

27 1/8” 39,5 11,5 36

32

-

28

34

-

10 5,7

-

48

5

10 20

11

40

58

55

45°

12

28

5,8

9

M5 17 30,5 1/8” 39,5

11

42

42

-

33

40

-

10 5,7

-

55

6

10 20 12,5

50

70

65

45°

16

34

6,8

11

M6 22 37,5 1/8” 39,5 11,5 50

50

-

42

50

-

13 6,8

-

65

6

12 30 13,5

63

89

80

45°

16 38,5

9

14

M6 22

46 1/8”

42

11

62

62

-

50

60

-

13 8,8

-

80

8

12 30

15

80 105 100 45°

20

44

9

14

M8 28

56 1/4”

46

14

82

82

-

65

77

-

17

9

-

100 10 14 50

18

100 131 124 45°

25

56

11 17,2 M10 30

69 1/4”

56

16 103 103

-

80

94

-

22

11

-

124 10,5 14 50 20,5

* for strokes ≥ 25: Ø 20 add +6 mm // Ø 25 add +1 mm

1.20.20

Short Stroke Cylinders

Bores from 12 to 200 mm





Mountings

Material: Aluminium
Notes: This accessory must be ordered together with the cylinder.

Material: Zinc plated steel

Type:

CM

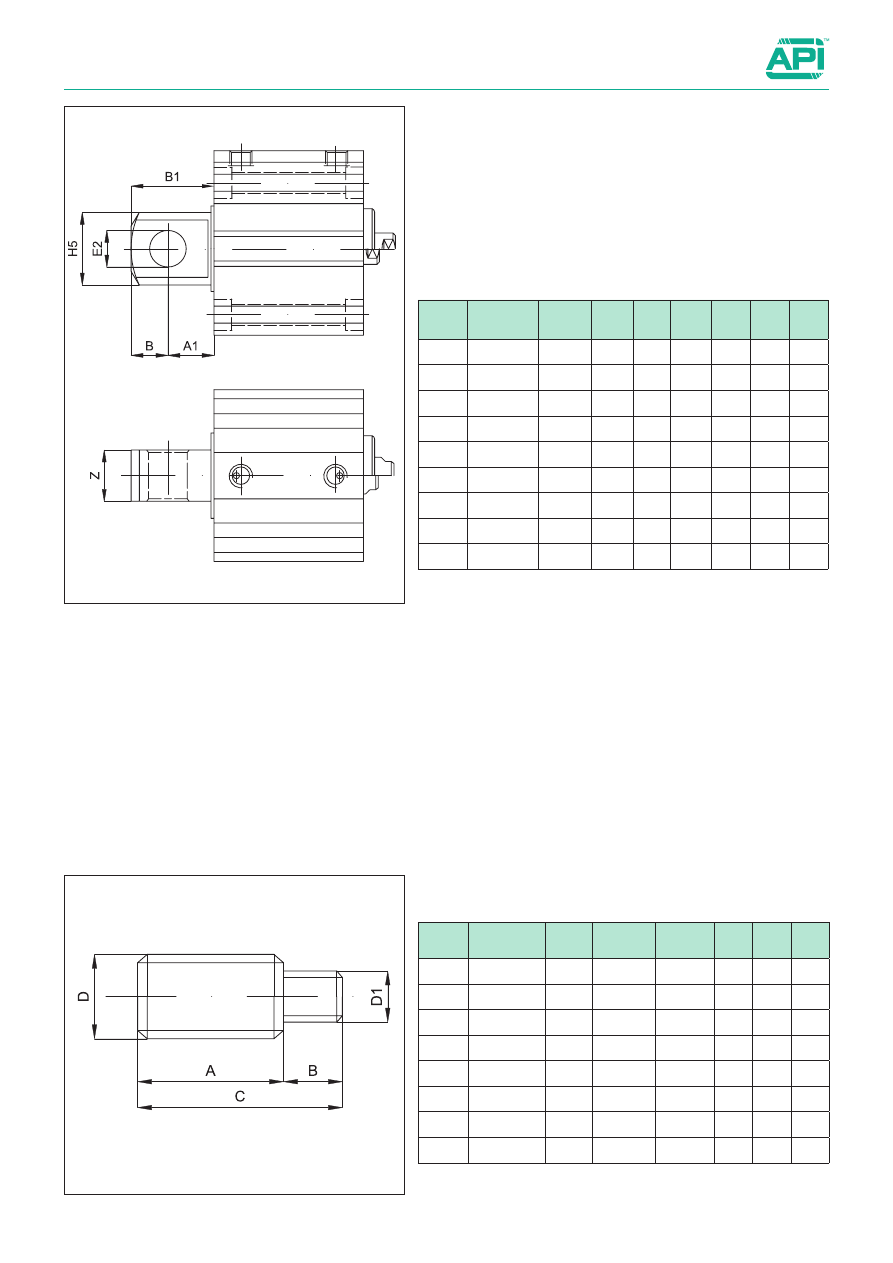

Rear eye

Type:

N

Nipple for rod

Code

Item

Ø

mm

A

1

B

E

2



Ø (H8)

H

5



Ø

Z

B

1

040070 CM16ALB

16

8

6

6

12

7

14

040071 CM20ALB

20

10

8

8

16

9

18

040072 CM25ALB

25

10

8

8

16

9

18

040073 CM32ALB

32

13

10

10

20

14

23

040074 CM40ALB

40

15

12

12

24

16

27

040075 CM50ALB

50

15

12

12

24

17

27

040076 CM63ALB

63

19

16

16

32

22

35

040077 CM80ALB

80

19

16

16

32

22

35

040078 CM100ALB

100

23

20

20

40

26

43

Code

Item

Ø

mm

D

D

1

A

B

C

040079

N6-3AQB

12

M6x1

M3x0,5

16

6,5

22,5

040080

N6-4AQB

16

M6x1

M4x0,7

15

8

23

040081

N8-5AQB

20-25

M8x1,25

M5x0,8

20

10

30

040082 N10-6AQB

32-40 M10x1,25

M6x1

22

12

34

040083 N12-8AQB

50-63 M12x1,25 M8x1,25

24

14

38

040084 N16-8AQB

50-63

M16x1,5

M8x1,25

32

14

46

040085 N16-10AQB

80

M16x1,5

M10x1,5

32

15

47

040086 N20-12AQB

100

M20x1,5 M12x1,75

40

20

60

1

1.20.21

Short Stroke Cylinders

Bores from 12 to 200 mm



Mountings

The kit includes 2 high feet; the tie rods for the mounting of the feet are not included.
Material: Aluminium

Type:

P

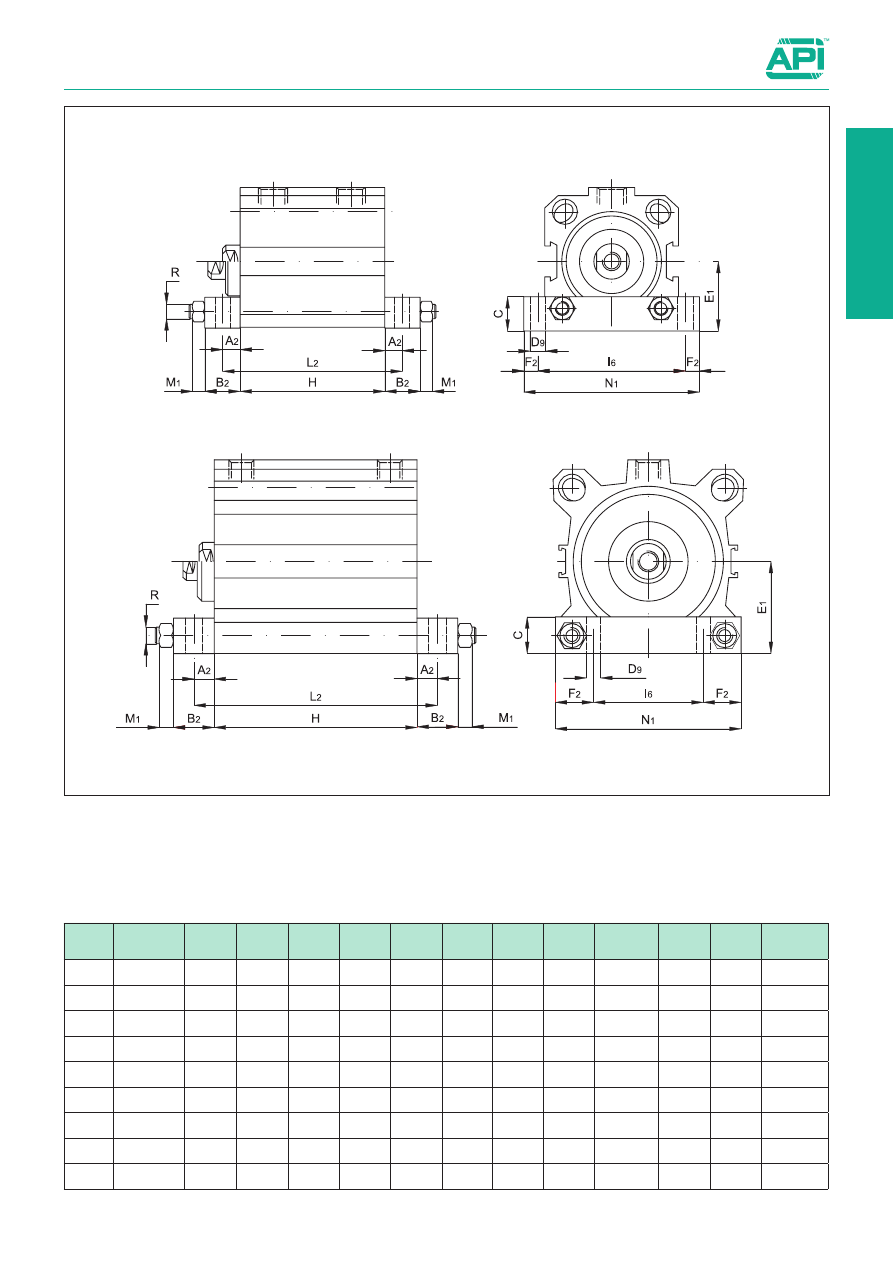

High foot Ø 16 ÷ 63

High foot Ø 80 ÷ 100

* The dimension H is according to the stroke and the bore of the cylinder.

Code

Item

Ø

mm

A

2

B

2

C

D

9



Ø

E

1

F

2

I

6

L

2

M

1

N

1

R
Ø

040087

P16ALB

16

5

10

10

3,5

17

5

30

H*+10

2,4

40

M3

040088

P20ALB

20

5

10

10

5,5

18

5

40

H*+10

4

50

M5

040095

P25ALB

25

6

12

12

5,5

20

7,5

45

H*+12

4

60

M5

040089

P32ALB

32

6

12

12

5,5

24

5

50

H*+12

4

60

M5

040090

P40ALB

40

6

12

12

5,5

27,5

5

60

H*+12

4

70

M5

040091

P50ALB

50

7,5

15

15

6,5

32,5

5

70

H*+15

5

80

M6

040092

P63ALB

63

7,5

15

15

8,5

40

7,5

85

H*+15

6,5

100

M8

040093

P80ALB

80

10

20

20

8,5

50

20

60

H*+20

6,5

100

M8

040094

P100ALB

100

10

20

20

10,5

62

22

80

H*+20

8

124

M10

1

1.23.1

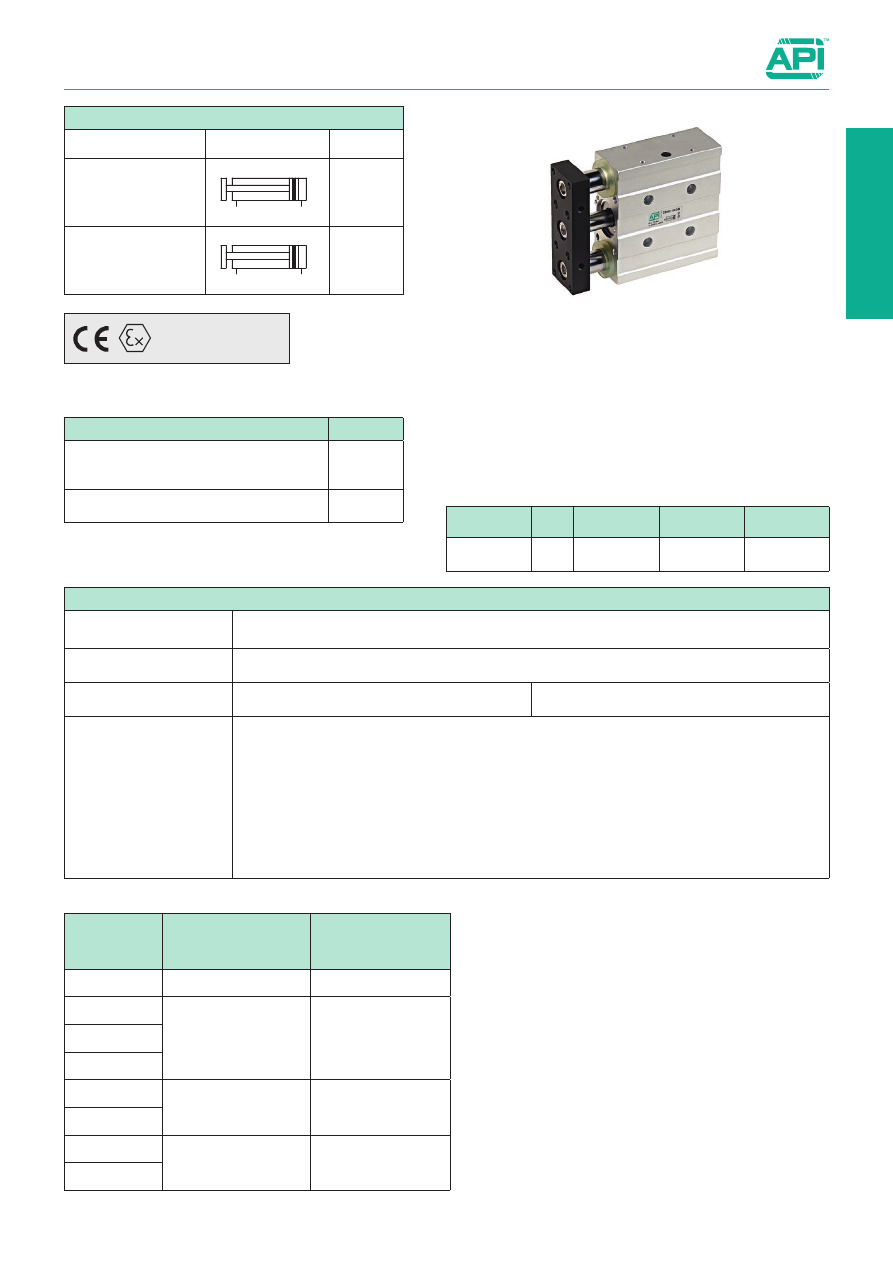

Compact Guided Cylinders

Bores from 10 to 63 mm



Double acting

Series of compact guided cylinders magnetic as standard.
A one piece body is provided with grooves allowing the mounting
of the magnetic reed switch without further brackets; this makes
the magnetic sensor not protrude outside the body itself.
The bottom plates are provided with elastic cushionings.

For the magnetic reed switches type ASC see from page 1.110.1.

How to order: 32 / 50 GEDBV

The options can be combined (when this is possible).

See page 1.1.3 to calculate the cylinder force.

Should you require intermediate strokes, the overall dimen-
sions of the cylinder body will be those of the cylinder with
the following standard stroke (in fact the intermediate stroke
is obtained applying a distancer).

On request, they can be supplied

according to 2014/34/EU -

ATEX

II 2Gc IIC T5
II 2Dc T100°C

32

/

50

GEDB

V

Bore

/

Stroke

Type

Option

Technical data

Fluid

Compressed filtered air with or without lubrication. Lubrication, if started, must be continued.

Pressure

1,5 ÷ 9 bar

Temperature range

-10°C ÷ +70°C (standard)

-20°C ÷ +150°C (V)

Materials

Bottom plates:

Anodised aluminium

Body:

Anodised aluminium

Plate:

Anodised aluminium

Guiding rods:

GEDB: Chrome-plated and ground steel



GEDS: Chrome steel hardened and chrome-plated

Rod:

Chrome-plated steel C 45

Seals:

Nitrile rubber (NBR) - Piston: Brass

Guiding bushings:

GEDB: Sintered bronze



GEDS: Spherical bearings

Bore

(mm)

Standard strokes

(mm)

Max stroke

(mm)

10

25, 50, 75, 100

100

16

25, 50, 75, 100, 125,

150, 175, 200

200

20

25

32

30, 50, 75, 100, 125,

150,175, 200, 250

250

40

50

30, 50, 75, 100, 125,

150

150

63

Standard executions

Version

Symbol

Type

With self-lubricating
bushings

GEDB

With spherical bearings

GEDS

Options

Suffix

Seals FKM

      -20°C ÷ +150°C

V

Special versions on request

/ S

1.23.2

Compact Guided Cylinders

Bores from 10 to 63 mm





Loads

Bore

mm

Type

Stroke mm

Unit: Kg.

25

30

50

75

100

125

150

Ø 10

GEDB

8

6

4

8

6

4

3

GEDS

1,5

1,2

1

4

3,5

3

2,5

Ø 16

GEDB

8

6

4

8

6

4

3

GEDS

1,5

1,2

1

4

3,5

3

2,5

Ø 20

GEDB

14

12

10

12

10

8

5

GEDS

2,5

2,1

2

8

6

4

3

Ø 25

GEDB

20

18

16

20

18

15

12

GEDS

7

6

5

20

16

13

10

Ø 32

GEDB

27

24

22

24

22

20

18

GEDS

9

8

7

25

22

27

18

Ø 40

GEDB

27

24

22

24

22

20

18

GEDS

9

8

9

25

22

20

18

Ø 50

GEDB

45

42

40

45

40

35

30

GEDS

12

11

9,5

40

32

28

25

Ø 63

GEDB

45

42

40

45

40

35

30

GEDS

12

11

9,5

40

32

28

25

Bore

mm

Type

Stroke mm

Unit: N

25

30

50

75

100

125

150

Ø 10

GEDB

25

20

15

25

20

15

10

GEDS

3

2,5

2

4

3

2

1,5

Ø 16

GEDB

25

20

15

25

20

15

10

GEDS

3

2,5

2

4

3

2

1,5

Ø 20

GEDB

40

35

30

40

35

30

25

GEDS

4

3

2

15

12

10

8

Ø 25

GEDB

65

55

50

65

55

50

40

GEDS

2

10

8

30

25

20

16

Ø 32

GEDB

90

80

70

90

75

60

45

GEDS

18

16

14

50

45

40

35

Ø 40

GEDB

90

80

70

90

75

60

45

GEDS

18

16

14

50

45

40

35

Ø 50

GEDB

150

130

110

150

120

100

80

GEDS

35

30

25

100

85

70

55

Ø 63

GEDB

150

130

110

150

120

100

80

GEDS

35

30

25

120

85

70

55

Note: Cylinders from 75 mm stroke are supplied with double guiding bushings.

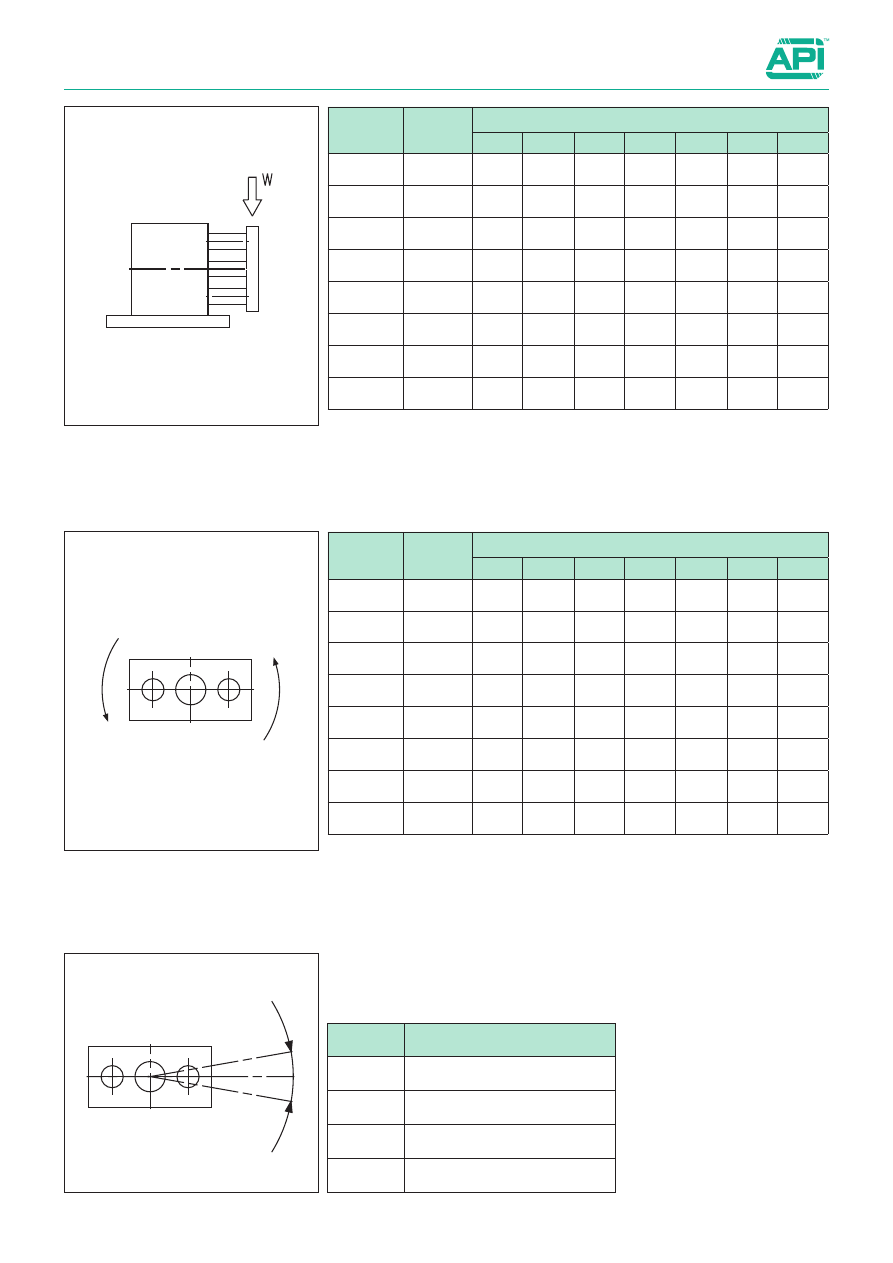

Admissible transverse load

Note: Cylinders from 75 mm stroke are supplied with double guiding bushings.

Maximum admissible torque

Non-rotating accuracy

Bore mm

Non-rotating accuracy

u

Ø 10
Ø 16

± 0,18

Ø 20
Ø 25

± 0,17

Ø 32
Ø 40

± 0,16

Ø 50
Ø 63

± 0,15
