Rexroth: Screw Assemblies. Catalog (R999001185/2018-10) - page 9





121
Accessories
Z
L6
L6
4xP1)
A
L1
L2
SEE-F-Z 17 - 30
L
L3
4xP1)
B
A
SEE-F-Z 40
1) Depth Q
Size
(mm)
Weight
complete
m
d0
D1
D2
D3
L
L1
L2
L3
A
d3
L6
W
X
Y
Z
V
P
Q
(kg)
g6
H8
20
70
72
106
60
32
15
10
80
45
3
88
9
14.0
8.5
58
M5
10
1.84
25
70
72
106
60
32
15
10
80
45
3
88
9
14.0
8.5
58
M5
10
1.81
32
85
90
130
66
33
18
12
100
57
4
110
11
17.5
11.0
70
M6
12
3.13
40
85
90
130
66
33
18
12
100
57
4
110
11
17.5
11.0
70
M6
12
3.03
50
95
102
142
66
33
18
14
106
69
4
121
11
17.5
11.0
80
M6
12
3.47
122
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Bearing assembly LAF
Fixed bearing with angular-
contact thrust ball bearing LGF
Double-thrust, screw-down,
series
LGF-B-…
LGF-A-…
Double-thrust, screw-on,
Series
LGF-C-…
The fixed bearing consists of:
--
Angular-contact thrust ball bearing LGF
-–
Slotted nut NMA..., NMZ...
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Module
Single parts
Weight
Angular-contact thrust ball bearing
Slotted nut
complete
d0 x P
Part number
Abbreviation
Part number
Abbreviation
Part number
(kg)
20 x 5/10/20/40
R1590 012 00
LGF-B-1255
R3414 009 06
NMZ 12x1
R3446 003 04
0.385
25 x 5/10/25
R1590 017 00
LGF-B-1762
R3414 010 06
NMZ 17x1
R3446 004 04
0.485
R1590 017 30
NMA 17x1
R3446 014 04
0.520
32 x 5/10/20/32/64
R1590 020 00
LGF-B-2068
R3414 001 06
NMZ 20x1
R3446 005 04
0.645
R1590 020 30
NMA 20x1
R3446 015 04
0.740
40 x 5
R1590 030 00
LGF-B-3080
R3414 011 06
NMZ 30x1.5
R3446 006 04
0.855
R1590 030 30
NMA 30x1.5
R3446 016 04
0.980
40 x 10/12/16/20/25/30/40
R1590 325 30
LGF-C-2575
R3414 015 06
NMA 25x1.5
R3446 011 04
1.600
50 x 5
R1590 035 30
LGF-B-3590
R3414 026 06
NMA 35x1.5
R3446 012 04
1.360
50 x 10/12/16/20/25/30/40
R1590 330 30
LGF-C-3080
R3414 027 06
NMA 30x1.5
R3446 016 04
1.760
63 x 10/20/40
R1590 040 30
LGF-B-40115
R3414 028 06
NMA 40x1.5
R3446 018 04
2.500
80 x 10/20
R1590 050 30
LGF-A-50140
R3414 029 06
NMA 50x1.5
R3446 019 04
5.130
Size
Load ratings1)
Bearing friction torque
Rigidity (axial)
Rigidity against tilting
Limit speed
with sealing disk
Rfb
(grease)
dyn. C
stat. C0
MRL
(N/µm)
Rkl
nG
d0 x P
(N)
(N)
(Nm)
(Nm/mrad)
(rpm)
20x5/10/20/40
17,000
24,700
0.16
375
50
3,800
25x5/10/25
18,800
31,000
0.24
450
80
3,300
32x5/10/20/32/64
26,000
47,000
0.30
650
140
3,000
40x5
29,000
64,000
0.50
850
300
2,200
40 x 10/12/16/20/25/30/40
44,500
111,000
0.60
1 300
450
2,600
50x5
41,000
89,000
0.60
900
400
2,000
50 x 10/12/16/20/25/30/40
47,500
127,000
0.75
1 500
620
2,200
63x10/20/40
72,000
149,000
1.30
1 200
750
1,600
80x10/20
113,000
250,000
2.60
1 400
1 500
1,200
1) See page 189 for load on bearing
123
Accessories
LGF-B-…
t
B
LGF-B-…
LGF-A-…
with slotted nut NMZ
M6
with slotted nut NMA
M6
M6
3
B1
J
LGF-C-…
B
with slotted nut NMA
M6
M6
M6
3
B
1
J
Size
Dimensions (mm)
Mounting dimensions (mm)
Mounting holes
d
D
B
B1
J
Da
da
Minimum
d3
t
d0 x P
min
max
min
max
number1)
(mm)
(°)
20x5/10/20/40
12-0.010
55-0.013
25-0.25
17
42
30
33
16
29
3
6.8
120
25x5/10/25
17-0.010
62-0.013
25-0.25
17
48
34
37
23
33
3
6.8
120
32x5/10/20/32/64
20-0.010
68-0.013
28-0.25
19
53
40
43
25
39
4
6.8
90
40x5
30-0.010
80-0.013
28-0.25
19
63
50
53
40
49
6
6.8
60
40 x 10/12/16/20/25/30/40
25-0.005
75-0.010
56-0.50
47
58
45
48
32
44
7
6.5
45
50x5
35-0.010
90-0.015
34-0.25
25
75
59
62
45
58
4
8.8
90
50 x 10/12/16/20/25/30/40
30-0.005
80-0.010
56-0.50
47
63
50
53
40
49
11
6.5
30
63x10/20/40
40-0.010
115-0.015
46-0.25
36
94
71
80
56
70
12
8.5
30
80x10/20
50-0.005
140-0.010
54-0.25
45
113
88
100
63
87
12
10.5
30
1) The number of mounting holes can vary upwards
Suitable for screw ends: Form
51
81
91
51A
81A
91A
52
82
92
52A
82A
92A
124
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Bearing assembly LAN
Fixed bearing with angular-
contact thrust ball bearing LGN
Double-thrust
Series
LGN-B-…
LGN-A-…
Double-thrust, in pairs,
Series
LGN-C-…
The fixed bearing consists of:
--
Angular-contact thrust ball bearing LGN
-–
Slotted nut NMA..., NMZ...
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Module
Single parts
Weight
Angular-contact thrust ball bearing
Slotted nut
complete
d0 x P
Part number
Abbreviation
Part number
Abbreviation
Part number
(kg)
6 x 1/2
R1590 106 00
LGN-B-0624
R3414 002 06
NMZ 6x0.5
R3446 001 04
0.040
8 x 1/2/2.5/5
R1590 106 00
LGN-B-0624
R3414 002 06
NMZ 6x0.5
R3446 001 04
0.040
12 x 2/5/10
R1590 106 00
LGN-B-0624
R3414 002 06
NMZ 6x0.5
R3446 001 04
0.040
16 x 5/10/16
R1590 110 00
LGN-B-1034
R3414 003 06
NMZ 10x1
R3446 002 04
0.110
20 x 5/10/20/40
R1590 112 00
LGN-B-1242
R3414 004 06
NMZ 12x1
R3446 003 04
0.215
25 x 5/10/25
R1590 117 00
LGN-B-1747
R3414 005 06
NMZ 17x1
R3446 004 04
0.248
R1590 117 30
NMA 17x1
R3446 014 04
0.290
32 x 5/10/20/32/64
R1590 120 00
LGN-B-2052
R3414 006 06
NMZ 20x1
R3446 005 04
0.345
R1590 120 30
NMA 20x1
R3446 015 04
0.440
40 x 5
R1590 130 00
LGN-B-3062
R3414 007 06
NMZ 30x1.5
R3446 006 04
0.465
R1590 130 30
NMA 30x1.5
R3446 016 04
0.590
40 x 10/12/16/20/25/30/40
R1590 225 30
LGN-C-2557
R3414 014 06
NMA 25x1.5
R3446 011 04
0.840
50 x 5
R1590 135 30
LGN-B-3572
R3414 022 06
NMA 35x1.5
R3446 012 04
0.740
50 x 10/12/16/20/25/30/40
R1590 230 30
LGN-C-3062
R3414 023 06
NMA 30x1.5
R3446 016 04
0.980
63 x 10/20/40
R1590 140 30
LGN-A-4090
R3414 024 06
NMA 40x1.5
R3446 018 04
1.250
80 x 10/20
R1590 150 30
LGN-A-50110
R3414 025 06
NMA 50x1.5
R3446 019 04
2.930
Size
Load ratings1)
Bearing friction torque with sealing disk
Rigidity (axial)
Rigidity against tilting
Limit speed (grease)
dyn. C
stat. C0
MRL
Rfb
Rkl
nG
d0 x P
(N)
(N)
(Nm)
N/µm
(Nm/mrad)
(rpm)
6x1/2
6,900
8,500
0.04
200
8
6,800
8x1/2/2.5/5
6,900
8,500
0.04
200
8
6,800
12x2/5/10
6,900
8,500
0.04
200
8
6,800
16x5/10/16
13,400
18,800
0.12
325
25
4,600
20x5/10/20/40
17,000
24,700
0.16
375
50
3,800
25x5/10/25
18,800
31,000
0.24
450
80
3,300
32x5/10/20/32/64
26,000
47,000
0.30
650
140
3,000
40x5
29,000
64,000
0.50
850
300
2,200
40 x 10/12/16/20/25/30/40
44,500
111,000
0.60
1,300
450
2,600
50x5
41,000
89,000
0.60
900
400
2,000
50 x 10/12/16/20/25/30/40
47,500
127,000
0.75
1,500
620
2,200
63x10/20/40
72,000
149,000
1.30
1,200
750
1,600
80x10/20
113,000
250,000
2.60
1,400
1,500
1,200
1) See page 189 for load on bearing
125
Accessories
LGN-B-…
LGN-B-…
LGN-A-…
with slotted nut NMZ
with slotted nut NMA
B
LGN-C-…
with slotted nut NMA
B
Size
(mm)
Mounting dimensions (mm)
d
D
B
Da
da
d0 x P
min
max
min
max
6 x 1/2
6 -0.010
24-0.010
15-0.25
16
19
9
15
8 x 1/2/2.5/5
6 -0.010
24-0.010
15-0.25
16
19
9
15
12 x 2/5/10
6 -0.010
24-0.010
15-0.25
16
19
9
15
16 x 5/10/16
10-0.010
34-0.010
20-0.25
25
28
14
24
20 x 5/10/20/40
12-0.010
42-0.010
25-0.25
30
33
16
29
25 x 5/10/25
17-0.010
47-0.010
25-0.25
34
37
23
33
32 x 5/10/20/32/64
20-0.010
52-0.010
28-0.25
40
43
25
39
40 x 5
30-0.010
62-0.010
28-0.25
50
53
40
49
40 x 10/12/16/20/25/30/40
25-0.005
57-0.010
56-0.05
45
48
32
44
50 x 5
35-0.010
72-0.011
34-0.25
59
62
45
58
50 x 10/12/16/20/25/30/40
30-0.005
62-0.010
56-0.50
50
53
40
49
63 x 10/20/40
40-0.005
90-0.010
46-0.25
71
80
56
70
80 x 10/20
50-0.005
110-0.010
54-0.25
88
100
63
87
Suitable for screw ends: Form
For screws 8 x 2.5: Form 831, 931
For screws 6 x 1; 6 x 2; 8 x 1; 8 x 2: Form 831
51
81
831
51A
81A
52
82
931
52A
82A
91
91A
92
92A
126
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Bearing assembly LAD
Floating bearing with deep-
groove ball bearing
The floating bearing system consists of:
--
deep-groove ball bearing as per
DIN 625
2RS
-–
retaining ring DIN 471 (2 pcs)
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Single parts
Load ratings
Deep-groove ball bearing DIN 625
Retaining ring DIN 471
dyn. C
stat. C0
d0 x P
Part number
Abbreviation
Part number
Abbreviation
Part number
(N)
(N)
8 x 1/2/2.5/5
R1590 605 00
625.2RS
R3414 048 00
5x0.6
R3410 742 00
1,140
380
12 x 2/5/10
R1590 606 00
626.2RS
R3414 043 00
6x0.7
R3410 736 00
2,450
900
16 x 5/10/16
R1590 610 00
6200.2RS
R3414 049 00
10x1
R3410 745 00
6,000
2,240
20 x 5/10/20/40
R1590 612 00
6201.2RS
R3414 042 00
12x1
R3410 712 00
6,950
2,650
R1590 615 00
6202.2RS
R3414 074 00
15x1
R3410 748 00
7,800
3,250
25 x 5/10/25
R1590 617 00
6203.2RS
R3414 050 00
17x1
R3410 749 00
9,500
4,150
32 x 5/10/20/32/64
R1590 620 00
6204.2RS
R3414 038 00
20x1.2
R3410 735 00
12,700
5,700
R1590 625 00
6205.2RS
R3414 063 00
25x1.2
R3410 750 00
14,300
6,950
40 x 5/10/12/16/20/25/30/40
R1590 630 00
6206.2RS
R3414 051 00
30x1.5
R3410 724 00
19,300
9,800
50 x 5/10/12/16/20/25/30/40
R1590 635 00
6207.2RS
R3414 075 00
35x1.5
R3410 725 00
25,500
13,200
63 x 10/20/40
R1590 650 00
6210.2RS
R3414 077 00
50x2
R3410 727 00
36,500
20,800
80 x 10/20
R1590 660 00
6212.2RS
R3414 078 00
60x2
R3410 764 00
52,000
31,000
Suitable for screw ends: Form
L1
For screws 8 x 1; 8 x 2: Form 41
41
02
61
21
62
71
31
72
127
Accessories
B
Size
(mm)
Weight
complete
d0 x P
d
D
B
(kg)
8 x 1/2/2.5/5
5
16
5
0,005
12 x 2/5/10
6
19
6
0,008
16 x 5/10/16
10
30
9
0,030
20 x 5/10/20/40
12
32
10
0,035
15
35
11
0,043
25 x 5/10/25
17
40
12
0,064
32 x 5/10/20/32/64
20
47
14
0,106
25
52
15
0,125
40 x 5/10/12/16/20/25/30/40
30
62
16
0,195
50 x 5/10/12/16/20/25/30/40
35
72
17
0,288
63 x 10/20/40
50
90
20
0,453
80 x 10/20
60
110
22
0,783
128
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Bearing assembly LAL
Fixed bearing with angular-
contact thrust ball bearing LGL
Double-thrust, screw-down, for inexpensive
designs
The fixed bearing consists of:
--
Angular-contact thrust ball bearing LGL
-–
Slotted nut NMG..., NMZ...
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Module
Single parts
Angular-contact thrust ball bearing unit
Slotted nut
Load ratings1)
dyn. C
stat. C0
d0x P
Part number
Abbreviation
Part number
(N)
(N)
Abbreviation
Part number
6 x 1/2
R1590 406 00
LGL-D-0624
R3414 038 06
1,340
1,250
NMZ 6x0.5
R3446 001 04
8 x 1/2/2.5/5
R1590 406 00
LGL-D-0624
R3414 038 06
1,340
1,250
NMZ 6x0.5
R3446 001 04
12 x 2/5/10
R1590 406 00
LGL-D-0624
R3414 038 06
1,340
1,250
NMZ 6x0.5
R3446 001 04
12 x 5/10
R1590 412 00
LGL-A-1244
R3414 040 06
13,200
17,900
NMG 12x1
R3446 002 02
16 x 5/10
R1590 412 00
LGL-A-1244
R3414 040 06
13,200
17,900
NMG 12x1
R3446 002 02
20 x 5
R1590 412 00
LGL-A-1244
R3414 040 06
13,200
17,900
NMG 12x1
R3446 002 02
25 x 5/10
R1590 415 00
LGL-A-1547
R3414 041 06
16,400
22,400
NMG 15x1
R3446 011 02
32 x 5/10
R1590 420 00
LGL-A-2060
R3414 042 06
27,500
40,000
NMG 20x1
R3446 005 02
1) See page 189 for load on bearing
Suitable for screw ends: Form
81
831/83
81A
83A
82
841/84
82A
84A
Ball Screw Assemblies
BASA | Screw Assemblies
129
Accessories
n
d2
B
Ø 0,2
A1
H
n
d2
B
Ø 0,2
A1
H
Size
(mm)
Weight of bearing
d
D
A1)
A2
n
m
H
B
d2
+0.03
d0x P
-0.01
-0.25
(kg)
6 x 1/2
6
20.50
24
35
15
26
13
12
4.5
0,023
8 x 1/2/2.5/5
6
20.50
24
35
15
26
13
12
4.5
0,023
12 x 2/5/10
6
20.50
24
35
15
26
13
12
4.5
0,023
12 x 5/10
12
35.45
44
50
32
38
22
20
6.6
0,120
16 x 5/10
12
35.45
44
50
32
38
22
20
6.6
0,120
20 x 5
12
35.45
44
50
32
38
22
20
6.6
0,120
25 x 5/10
15
38.45
47
51
35
39
24
22
6.6
0,140
32 x 5/10
20
50.45
60
60
47
47
30
28
6.6
0,300
130
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Bearing assembly LAS
Fixed bearing with angular-contact
thrust ball bearing LGS
Double-thrust, series LAS-E
The fixed bearing consists of:
--
Angular-contact ball bearing LGS as per
DIN 628. Not available as a separate
part.
--
Slotted Nut NMA
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. Pillow
1)
Block Units, assembly group Bearing
Unit, etc.).
Size
LAS
LGS
Slotted nut
Weight complete
C
C0
nG 1)
d0 x P
Part number
Abbreviation
Abbreviation
Part number
m
(kg)
(kN)
(kN)
(min-1)
16 x 5/10/16
R159A 410 01
LGS-E-1030
NMZ 10x1
R3446 002 04
0.13
20
25.8
13,500
20 x 5/10/20/40
R159A 412 01
LGS-E-1232
NMZ 12x1
R3446 003 04
0.16
21.7
29.2
11,700
25 x 5/10/25 2)
R159A 417 01
LGS-E-1747
NMA 17x1
R3446 014 04
0.29
27.9
31.9
8,550
32 x 5/10/20/32/64
R159A 420 01
LGS-E-2047
NMA 20x1
R3446 015 04
0.57
39.9
63.8
8,550
40 x 5/10/12/16/20/25/30/40
R159A 430 01
LGS-E-3072
NMA 30x1.5
R3446 016 04
1.68
98.3
163.1
5,850
50 x 5/10/12/16/20/25/30/40
R159A 435 01
LGS-E-3580
NMA 35x1.5
R3446 012 04
2.19
111.2
188.5
4,950
63 x 10/20/40
R159A 440 01
LGS-E-4090
NMA 40x1.5
R3446 016 08
2.74
140.8
257.7
4,500
80 x 10/20
R159A 450 01
LGS-E-50110
NMA 50x1.5
R3446 019 04
4.95
211.2
392.3
3,600
1) Values as a guide for low bearing load, good heat dissipation and suitable lubricating greases with low consistency
2) Version 1+1
Suitable for screw ends: Form
81
81A
82
82A
131
Accessories
B
1)
B
d0 x P
(mm)
d
D
B
Da
da
min.
max.
min.
max.
16 x 5/10/16
10 -0.008
30 -0.009
36
22.9
25.8
14.2
22.0
20 x 5/10/20/40
12 -0.008
32 -0.011
40
25.0
27.8
16.2
24.0
25 x 5/10/25
17 -0.008
47 -0.011
28
36.2
41.4
22.6
35.0
32 x 5/10/20/32/64
20 -0.010
47 -0.011
56
36.0
41.0
25.6
35.0
40 x 5/10/12/16/20/25/30/40
30 -0.010
72 -0.013
76
56.5
65.0
37.0
55.5
50 x 5/10/12/16/20/25/30/40
35 -0.012
80 -0.013
84
63.0
71.0
44.0
62.0
63 x 10/20/40
40 -0.012
90 -0.015
92
72.0
81.0
49.0
71.0
80 x 10/20
50 -0.012
110 -0.015
108
89.0
100.0
61.0
88.0
132
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Slotted Nuts NMA, NMZ and NMG for fixed bearings
Slotted nut NMA
B
0,005
A
c
f
--
For maximum vibratory loads
--
For new designs
A
MA = tightening torque for slotted nut
FaB = axial breaking load of slotted nut
MAG= tightening torque for set screw
Abbreviation
Part number
(mm)
MA
FaB
MAG
Mass
d
D
B
c
m
e
f
g
(Nm)
(kN)
(Nm)
(g)
NMA 15x1
R3446 020 04
M15x1
30
18
5
M5
24
4
5
10
100
3
60
NMA 17x1
R3446 014 04
M17x1
32
18
5
M5
26
4
5
15
120
3
70
NMA 20x1
R3446 015 04
M20x1
38
18
5
M6
31
4
6
18
145
5
130
NMA 25x1.5
R3446 011 04
M25x1.5
45
20
6
M6
38
5
6
25
205
5
160
NMA 30x1.5
R3446 016 04
M30x1.5
52
20
6
M6
45
5
7
32
250
5
200
NMA 35x1.5
R3446 012 04
M35x1.5
58
20
6
M6
51
5
7
40
280
5
230
NMA 40x1.5
R3446 018 04
M40x1.5
65
22
6
M6
58
6
8
55
350
5
300
NMA 45x1.5
R9130 342 15
M45x1.5
70
22
6
M6
63
6
8
65
360
5
340
NMA 50x1.5
R3446 019 04
M50x1.5
75
25
8
M6
68
6
8
85
450
5
430
NMA 60x2
R9130 342 16
M60x2.0
90
26
8
M8
80
6
8
100
550
15
650
NMA 70x2
R9130 342 17
M70x2.0
100
28
9
M8
90
8
10
130
650
15
790
NMA 90x2
R9163 113 51
M90x2.0
130
32
13
M10
118
8
10
200
900
20
1,530
NMA 15 to NAM 40 with 4 segments
NMA 45 to NAM 90 with 6 segments
Slotted nut NMZ
B
0,005
A
c
-–
For existing designs
A
m
--
For timing belt side drive
-–
For driven nuts
g
MA = tightening torque for slotted nut
0,5
FaB = axial breaking load of slotted nut
e
Set screw
MAG= tightening torque for set screw
Abbreviation
Part number
(mm)
MA
FaB MAG
Mass
d
D
B
d1
c
m
b
t
e
f
g
(Nm)
(kN)
(Nm)
(g)
NMZ 6x0.5
R3446 001 04
M6x0.5
16
8
12
4
M4
3
2.0
11.0
2.5
3.5
2
17
1
10
NMZ 10x1
R3446 002 04
M10x1
18
8
14
4
M4
3
2.0
14.0
2.5
3.5
6
31
1
10
NMZ 12x1
R3446 003 04
M12x1
22
8
18
4
M4
3
2.0
17.0
2.5
3.5
8
38
1
15
NMZ 17x1
R3446 004 04
M17x1
28
10
23
5
M5
4
2.0
22.5
3.0
4.0
15
57
3
28
NMA 20x1
R3446 005 04
M20x1
32
10
27
5
M5
4
2.0
26.0
3.0
4.0
18
69
3
35
NMZ 25x1.5
R3446 007 04
M25x1.5
45
20
40
10
M6
5
2.0
35.0
4.0
5.0
25
211
5
55
NMA 30x1.5
R3446 006 04
M30x1.5
45
12
40
6
M6
5
2.0
37.5
4.0
5.0
32
112
5
75
NMZ 45x1.5
R3446 032 04
M45x1.5
65
14
59
7
M6
6
2.5
-
-
-
65
181
5
170
NMZ 55x2
R3446 033 04
M55x2
75
16
68
8
M6
7
3.0
-
-
-
95
229
5
230
NMZ 60x2
R3446 031 04
M60x2
80
16
73
8
M6
7
3.0
-
-
-
100
255
5
250
NMZ 70x2
R3446 034 04
M70x2
92
18
85
9
M8
8
3.5
-
-
-
130
305
15
360
NMZ 80x2
R3446 035 04
M80x2
105
18
95
9
M8
8
3.5
-
-
-
160
355
15
460
NMZ 90x2
R3446 036 04
M90x2
120
20
108
10
M8
10
4.0
-
-
-
200
410
15
700
133
Accessories
Assembly tool for
slotted nut
General-purpose socket wrench insert for
slotted nuts NMA / NMZ
--
Available on request
NMA: consisting of components:
NMZ: consisting of components: ZMS
AMS, ZMS and ZME
and ZME
B
Slotted nut NMG
--
For inexpensive designs
Polyamide
insert
min. 0.3
Abbreviation
Part number
Dimensions (mm)
MA
Mass
d
D
B
d1
a
b
(Nm)
(g)
NMG 12x1
R3446 002 02
M12x1
21
7.6
18
18
3
8
10
NMG 15x1
R3446 011 02
M15x1
24
8.6
21
21
4
10
13
NMG 20x1
R3446 005 02
M20x1
32
9.6
27
27
4
18
24
MA = tightening torque for slotted nut
B
0,01
A
Ring nut GWR
g
A
--
For angular-contact thrust ball bearing LGN
--
For cylindrical single nut ZEM-E-S
Attention:
Use a threadlocker (for example,
Loctite 638) to secure against loosening
MA = tightening torque for housing nut
Abbreviation
Part number
Dimensions (mm)
MA
Mass
D
d
B
e
f
g
(Nm)
(g)
GWR 18x1
R1507 040 33
M18x1
8.5
8
12.5
2.5
3
6
10.0
GWR 23x1
R1507 240 35
M23x1
13.0
8
18.0
2.5
3
8
15.0
GWR 26x1.5
R1507 240 22
M26x1.5
16.5
8
20.5
2.5
3
10
16.5
GWR 30x1.5
R1507 340 34
M30x1.5
17.0
8
23.0
3.0
4
20
29.0
GWR 36x1.5
R1507 040 23
M36x1.5
22.0
8
29.0
3.0
4
25
35.0
GWR 40x1.5
R1507 140 03
M40x1.5
25.0
8
33.0
3.0
4
28
39.5
GWR 45x1.5
R1507 240 04
M45x1.5
28.0
8
38.0
3.0
4
30
55.0
GWR 50x1.5
R1507 240 25
M50x1.5
31.0
10
40.0
4.0
5
45
86.0
GWR 55x1.5
R1507 340 05
M55x1.5
36.0
10
46.0
4.0
5
50
96.0
GWR 58x1.5
R1507 440 32
M58x1.5
43.0
10
50.0
4.0
5
58
84.0
GWR 60x1
R1507 440 28
M60x1
43.0
10
51.0
4.0
5
60
97.0
GWR 62x1.5
R1507 440 29
M62x1.5
43.0
12
53.0
5.0
6
60
127.0
GWR 65x1.5
R1507 440 26
M65x1.5
47.0
12
55.0
4.0
5
70
136.0
GWR 70x1.5
R1507 440 06
M70x1.5
42.0
12
58.0
4.0
5
75
216.0
GWR 78x2
R1507 567 27
M78x2
54.0
15
67.0
6.0
7
90
286.0
GWR 92x2
R1507 640 09
M92x2
65.0
16
82.0
6.0
7
125
385.0
GWR 95x2
R1507 667 28
M95x2
68.0
16
82.0
6.0
7
130
425.0
GWR 112x2
R1507 740 11
M112x2
82.0
18
100.0
8.0
8
175
596.0
GWR 115x2
R1507 767 29
M115x2
85.0
18
100.0
8.0
8
200
664.0
134
Screw Assemblies | Ball Screw Assemblies BASA
Accessories

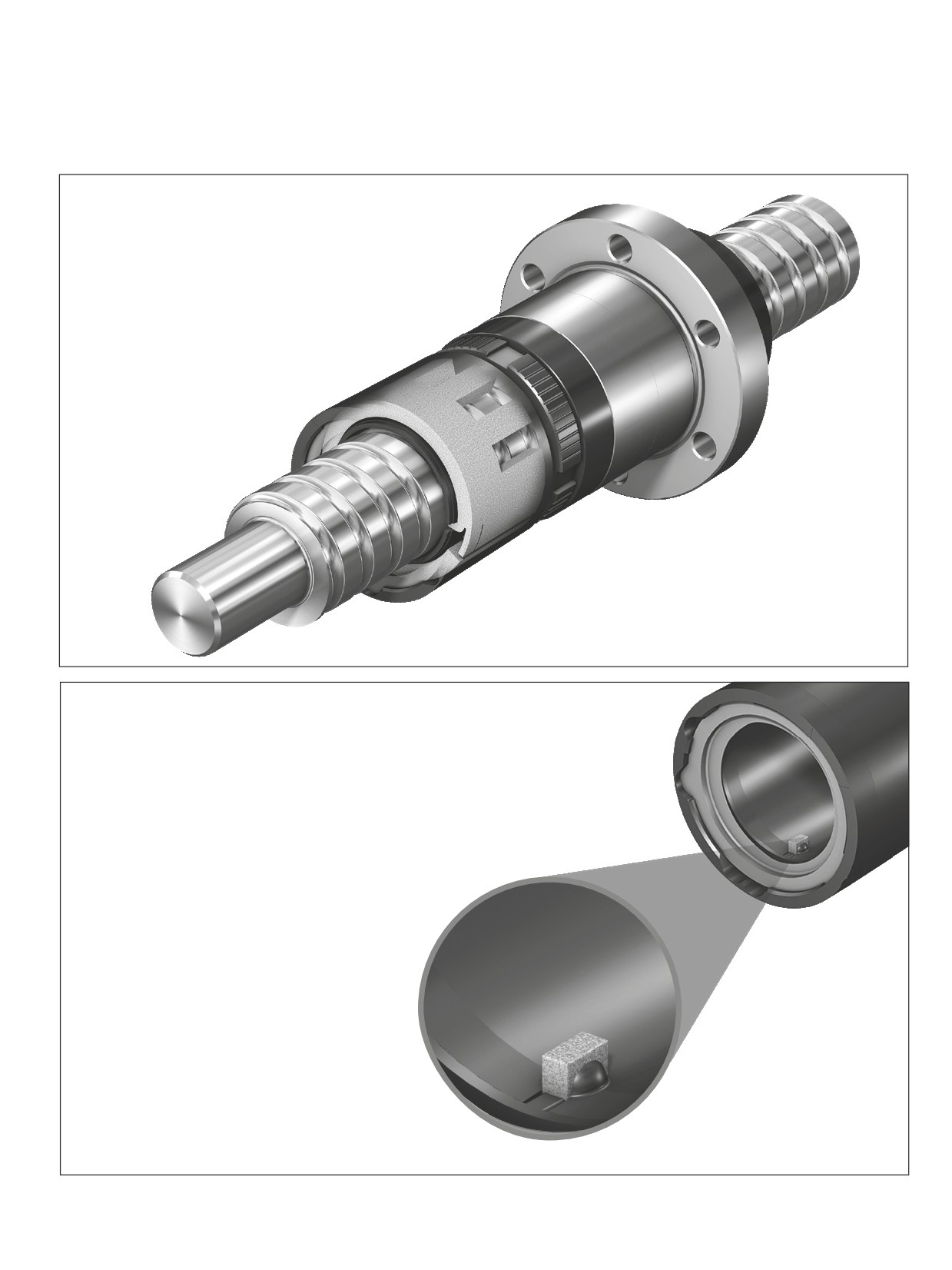

Ball Screw Assembly with front lube unit
Characteristic features
Further highlights
Equipped with Rexroth’s functionally reliable, series-made front
--
Delivered with the Ball Screw Assembly ready-mounted.
lube unit, a Ball Screw Assembly can attain an exceptionally long
-–
Attaches to one side of the nut, thus saving space.
travel life without relubrication. Thanks to intensive development
-–
Can be used in all mounting positions, both in horizontal and
work and thorough testing under realistic conditions, the use of
vertical installations.
front lube units combined with prelubricated nuts enables you
--
Available for almost all nut types with diameters 20 to 40
to achieve lifelong, optimal lubrication of Rexroth precision Ball
-–
Easy to integrate in constructions by attaching it either on the
Screw Assemblies.
flange side or on the opposite side of the single-start nuts.
From its built-in oil reservoir, the front lube unit delivers the precise
--
When attached to both sides, it also meets the lubrication
amount of oil required to replenish the used amounts of oil in the
needs of high-capacity two-start nuts (FED-E-B).
soap matrix of the grease. The oil is applied directly to the raceway
--
Can be used in all normal ambient conditions, except in wet or
of the ball screws via the low-friction point-contact zone of the
dusty environments.
open-pored foam. This optimized delivery minimizes lubricant
consumption and allows you to achieve lifelong lubrication.
Ecologically sound
The front lube unit ideally combines eco-friendliness with cost-
efficiency. It minimizes oil consumption and keeps the surround-
ings clean. This helps to conserve resources.
Lubrication concept
This logo indicates that the Rexroth Ball Screw Assembly with
prelubed nut and front lube unit are lubed for life.
Note: The front lube unit is not suitable for use with driven nuts.
Lifelong lubrication
The effective life of the Rexroth front lube unit matches the service life curve of the Ball Screw
Assembly. When operated within the recommended load limits, a Ball Screw Assembly equipped with
a Front Lube Unit will require no relubrication, thanks to the optimal delivery of lubricant. Based on our
extensive tests, the lubrication performance of the front lube unit can now be reliably predicted for the
first time. With a Front Lube Unit from Rexroth, a Ball Screw Assembly can run trouble-free for
five years or 300 million revolutions without any relubrication.
Structural design of front lube units
1
1 Seal
2 Housing and cover
2
--
Material: special plastic
3
3 Open-pored foam
4 Housing nut
4
5 Intermediate ring
5
6 Recirculation cap
6
7 Ball nut
8 Ball screw
7
Notes
When selecting the size for the stroke, consider the dimensions of the VSE.
8
When setting up a system, do not allow the VSE to collide with a stop or other
components.
135
Accessories
Contact zone of the open-pored foam















Content      ..     7      8      9      10     ..
