Screw Assemblies | Ball Screw Assemblies BASA
Accessories

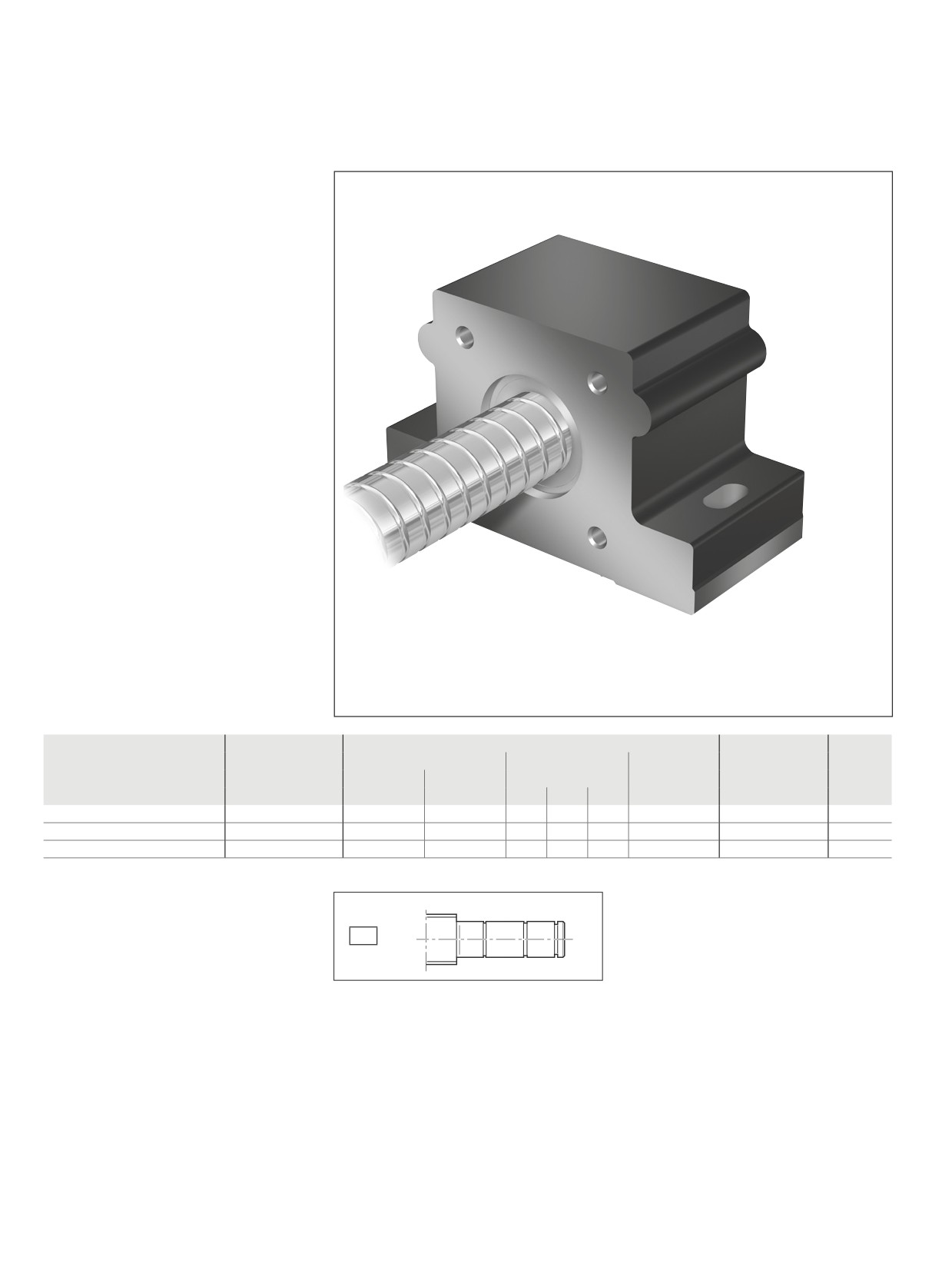

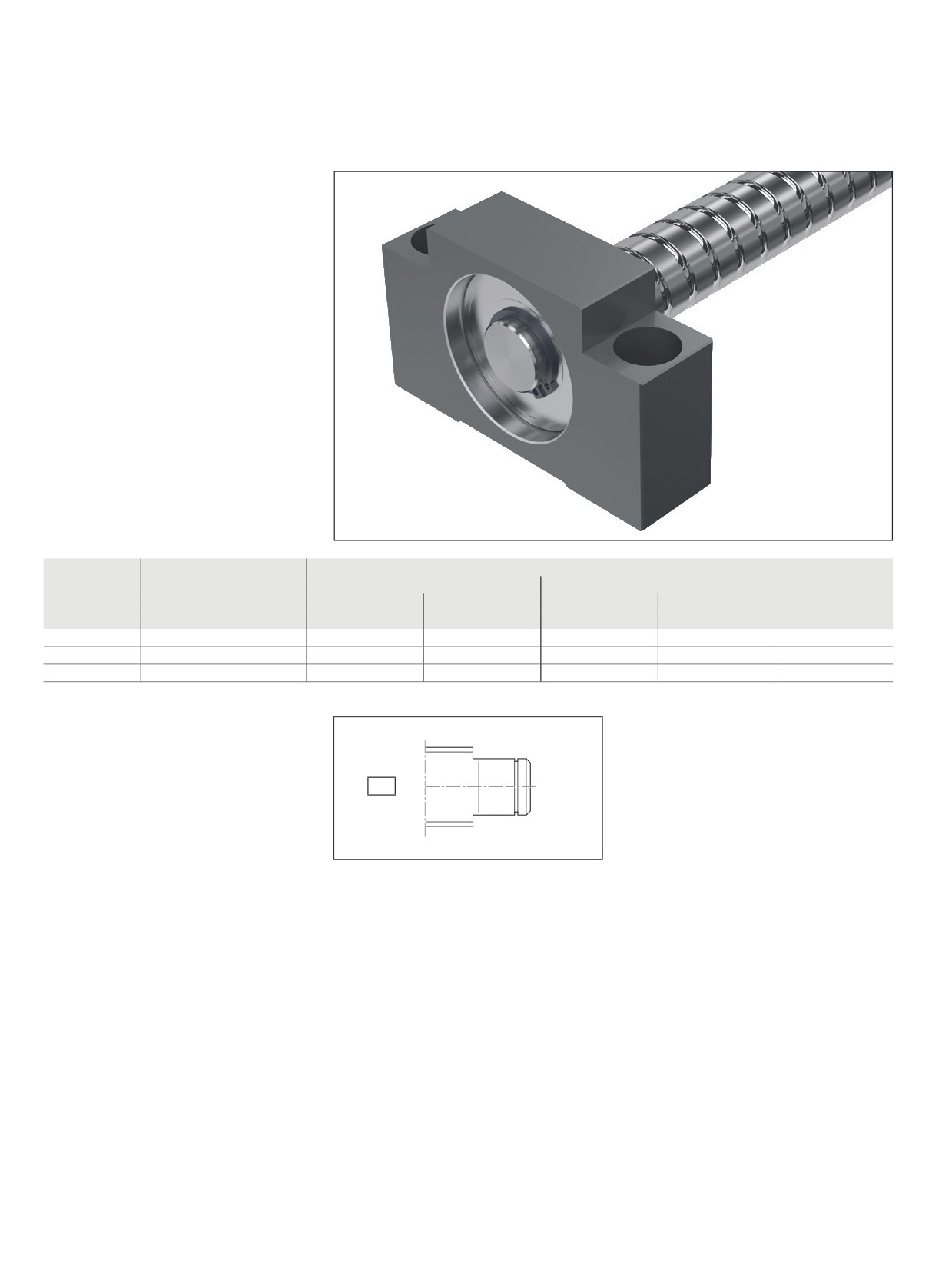

Pillow Block Unit SEC-L assembly, aluminum
Floating bearing with DIN 625
deep-groove ball bearing
The pillow block unit consists of:
--
Precision pillow block housing made of
aluminum with reference edges on both
sides
--
Deep-groove ball bearing as per
DIN 625
--
Retaining ring DIN 471
-–
Cover
All parts are delivered unmounted.
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Deep-groove ball bearing as per DIN 625
Retaining ring as
Weight
block
Load ratings (radial)
(mm)
Designation
per DIN 471
complete
dyn. C
stat. C0
DIN 625...
d0 x P
Part number
(N)
(N)
d
D
B
(kg)
20x5/10/20/40
R1594 615 00
7,800
3,250
15
35
11
6202.2RS
15x1
1.24
32x5/10/20/32/64
R1594 620 00
12,700
5,700
20
47
14
6204.2RS
20x1.2
1.66
40x5/10/12/16/20/25/30/40
R1594 630 00
19,300
9,800
30
62
16
6206.2RS
30x1.5
2.74
Suitable for screw ends: Form
31
107

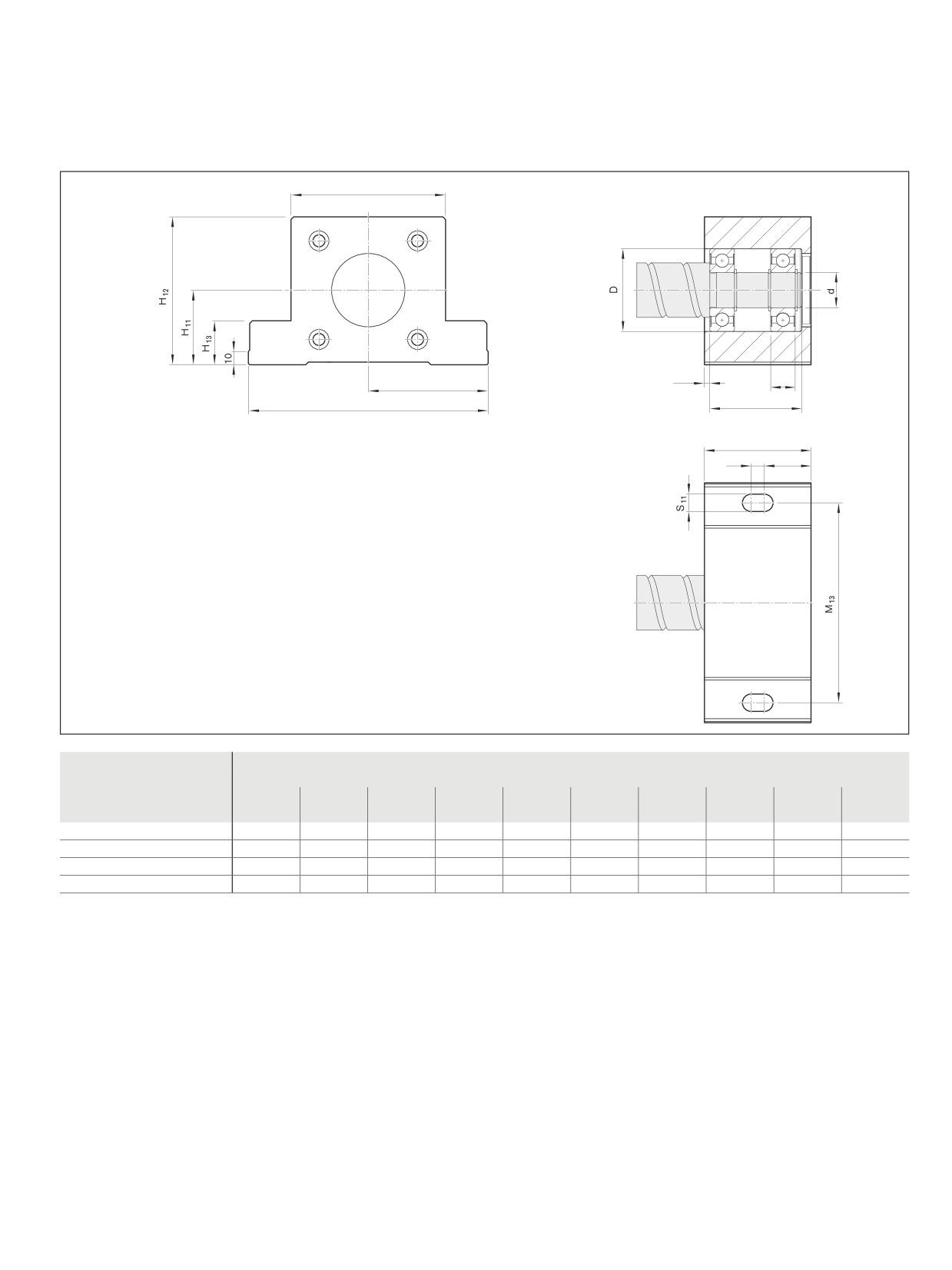

Accessories
M
12
M11
4
B
L31
2 x M11
B11
10
B12
Size
(mm)
B11
B12
L31
M11
M12
M13
H11
H12
H13
S11
d0 x P
±0.015
±0.015
20x5/10/20/40
60
25
47
72.5
80
120
41
81
28
10.5
32x5/10/20/32/64
70
30
60
72.5
103
120
46
91
28
10.5
40x5/10/12/16/20/25/30/40
80
35
68
90.0
116
150
56
111
33
13.0
108
Screw Assemblies | Ball Screw Assemblies BASA
Accessories

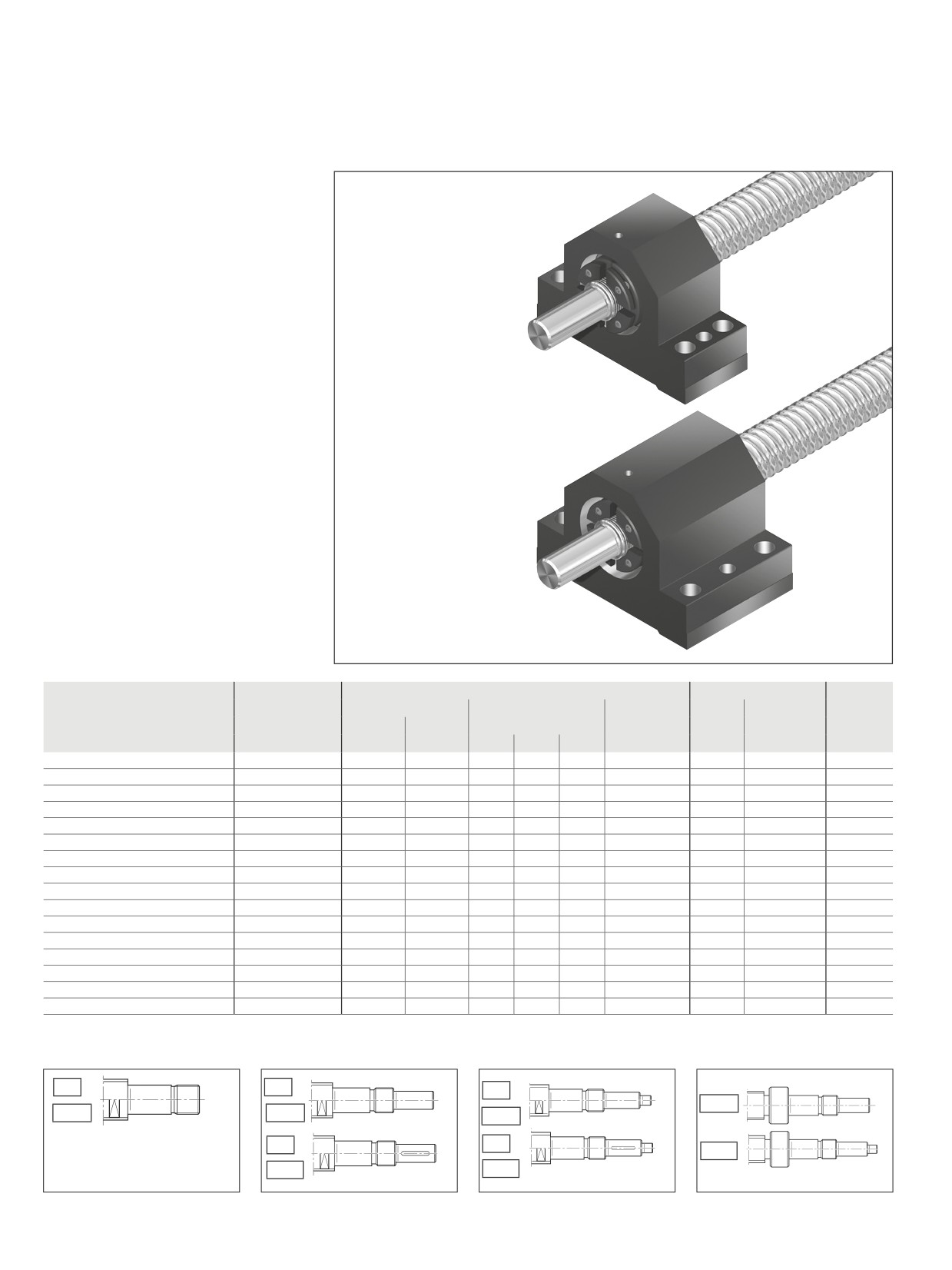

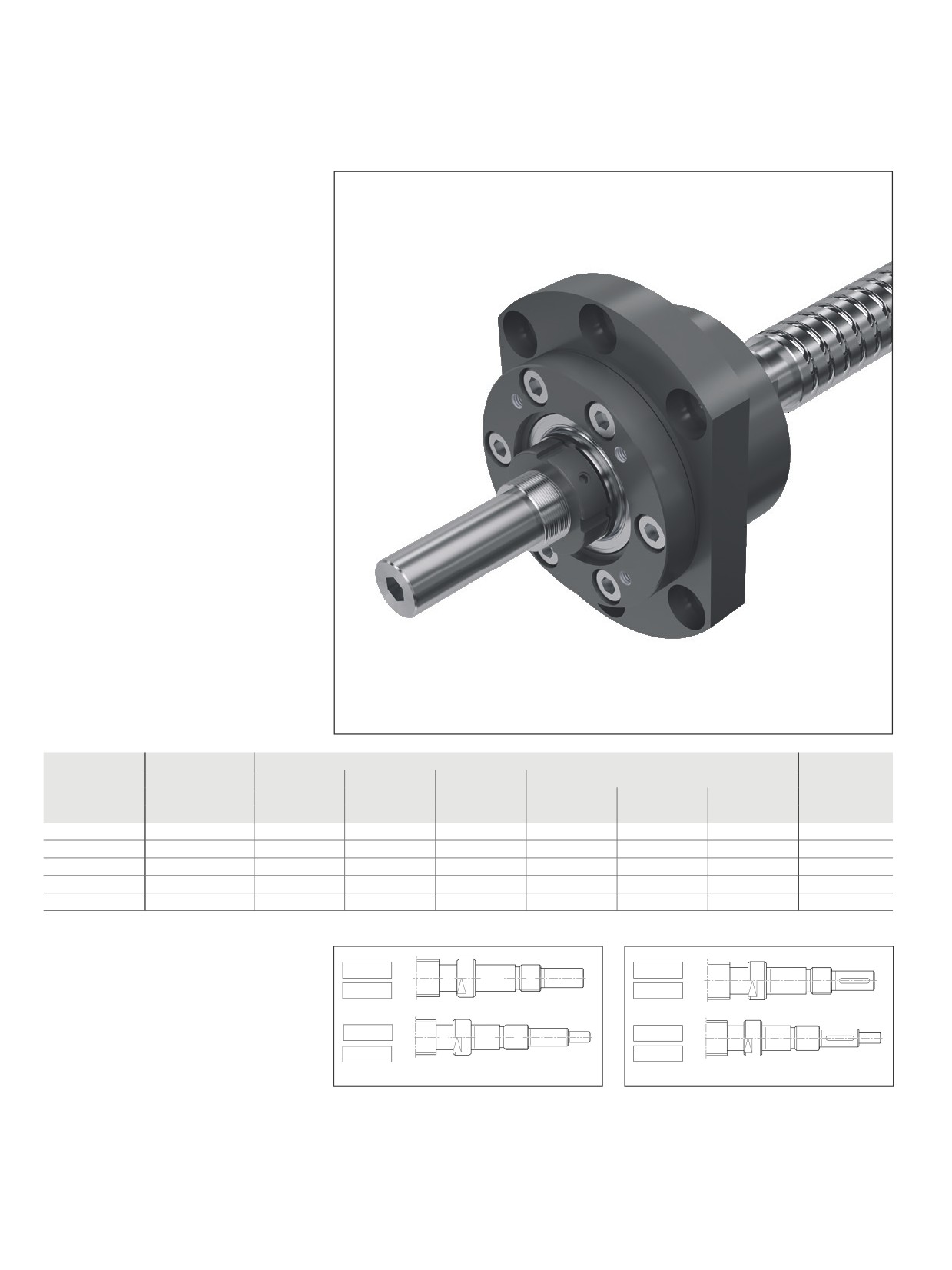

Pillow Block Unit SES-F assembly, steel
Fixed bearing with angular-
contact thrust ball bearing
LGF-B-…, LGF-C-...
The pillow block unit consists of:
--
Precision pillow block housing made of
steel with reference edges on both sides
--
Angular-contact thrust ball bearing LGF...
-–
Slotted nut NMZ
The slotted nut is delivered unmounted.
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Angular-contact thrust ball bearing
Slotted nut
Weight
block
Load ratings (axial)
(mm)
Abbreviation
Abbreviation
complete
dyn. C
stat. C0
MA
d0 x P
Part number
(N)
(N)
d
D
B
(Nm)
(kg)
20x5/10/20/40
R1595 012 20
17,000
24,700
12
55
25
LGF-B-1255
8
NMZ 12x1
3.37
25x5/10/25
R1595 017 20
18,800
31,000
17
62
25
LGF-B-1762
15
NMZ 17x1
3.38
32x5/10/20/32/64
R1595 020 20
26,000
47,000
20
68
28
LGF-B-2068
18
NMZ 20x1
4.31
40x5
R1595 030 20
29,000
64,000
30
80
28
LGF-B-3080
32
NMZ 30x1.5
6.31
40x10/12/16/20/25/30/40
R1595 330 20
47,500
127,000
30
80
56
LGF-C-3080
32
NMZ 30x1.5
7.53
Screw end Form 81, 81A, 82, 82A
designed for motor mounting.
81
81A
82
82A
Further information on the bearing pair can
be found on page 122.
109
Accessories

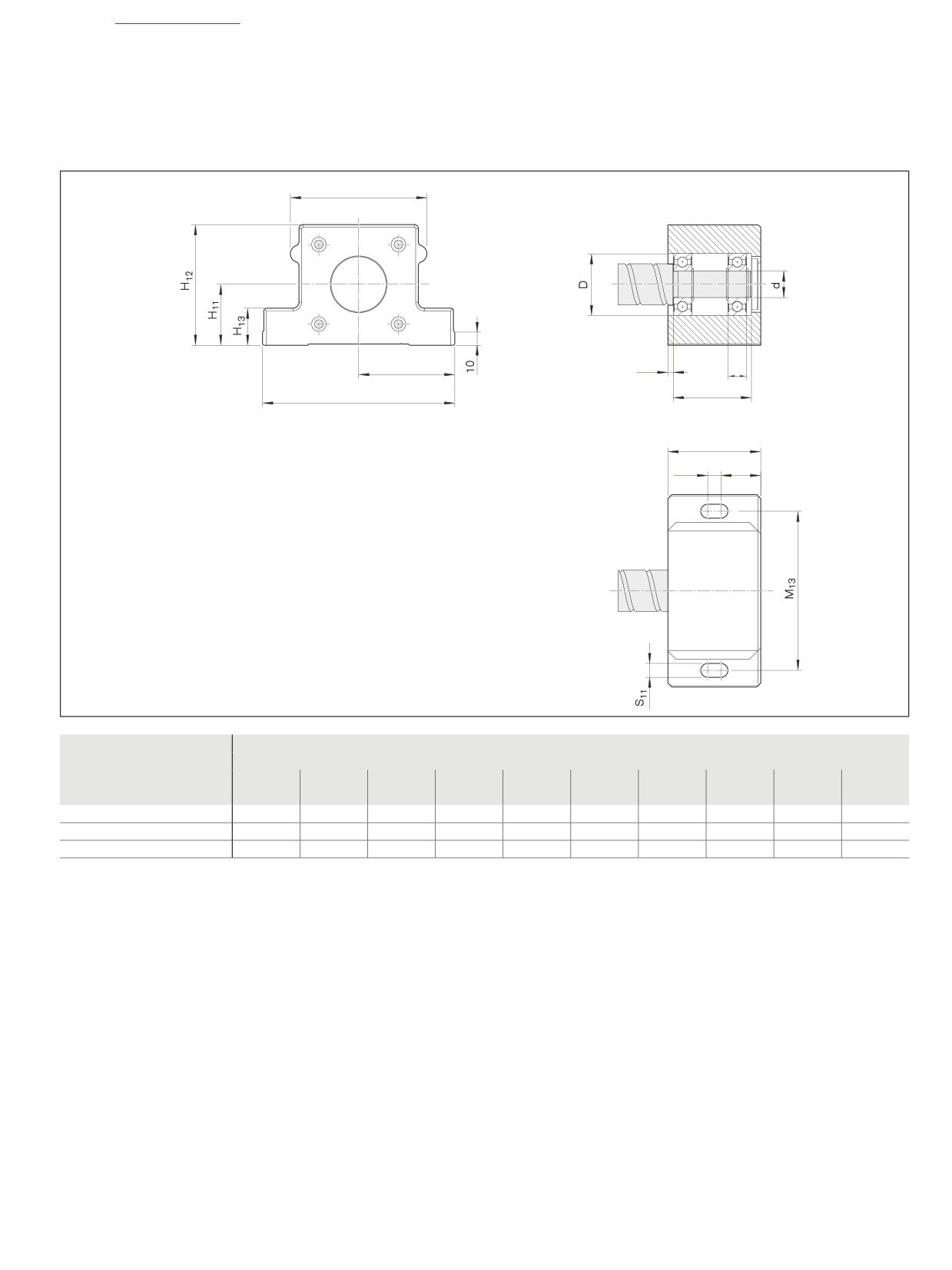

Fastening thread
B
M2
Centering diameter D
L

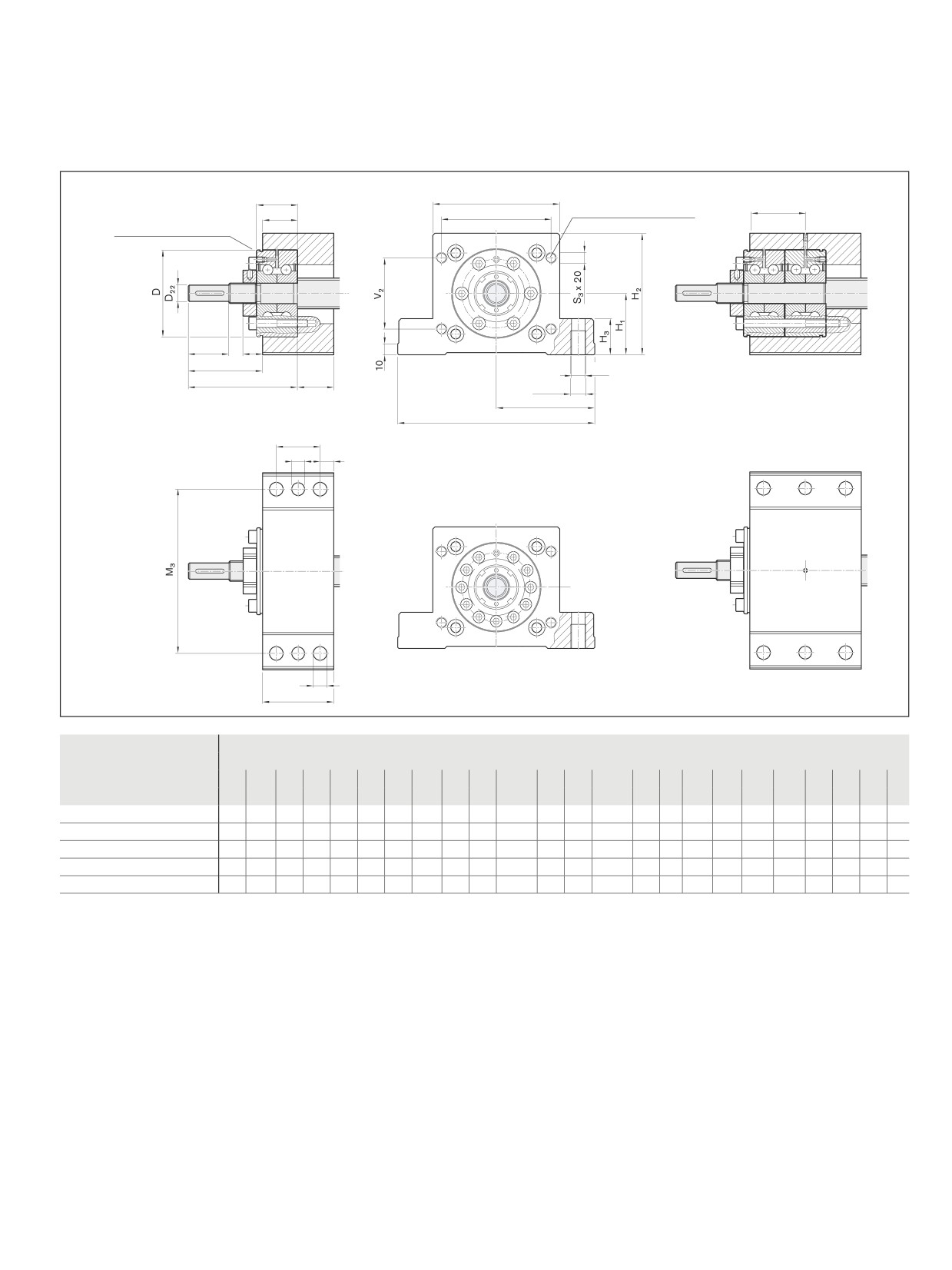

V1
S3 x T3 for motor flange
341)
4
for motor flange
L22
L3
L2
S1
L20
L1
S4 x T4
M1
2 x M1
B3
S2
B
2
S1
B1
Size
(mm)
d0xP
B1
B2
B3
L1
L2
L3
L4
L20
L22
D22
M1
M2
M3
H1
H2
H3
S1
S2
S3
S4
T3
T4
V1
V2
±0.015
±0.015
20x5/10/20/40
60
10.0
40
42
42
15
18
60
25
10
72.5
80
120
41
81
28
10.5
9.7
M8
M12
20
20
66
50
25x5/10/25
60
10.0
40
42
57
17
18
75
30
15
72.5
80
120
41
81
28
10.5
9.7
M8
M12
20
20
66
50
32x5/10/20/32/64
60
10.0
40
40
58
18
20
78
35
16
72.5
103
120
46
91
28
10.5
9.7
M8
M12
20
20
90
46
40x5
65
12.5
40
45
73
20
20
93
50
25
90.0
116
150
56
111
33
12.5
11.7
M10
M14
20
22
100
65
40x10/12/16/20/25/30/40
85
12.5
60
37
82
20
48
130
50
25
90.0
116
150
56
111
33
12.5
11.7
M10
M14
20
22
100
65
1) With part number R1595 330 20 only
110
Screw Assemblies | Ball Screw Assemblies BASA
Accessories

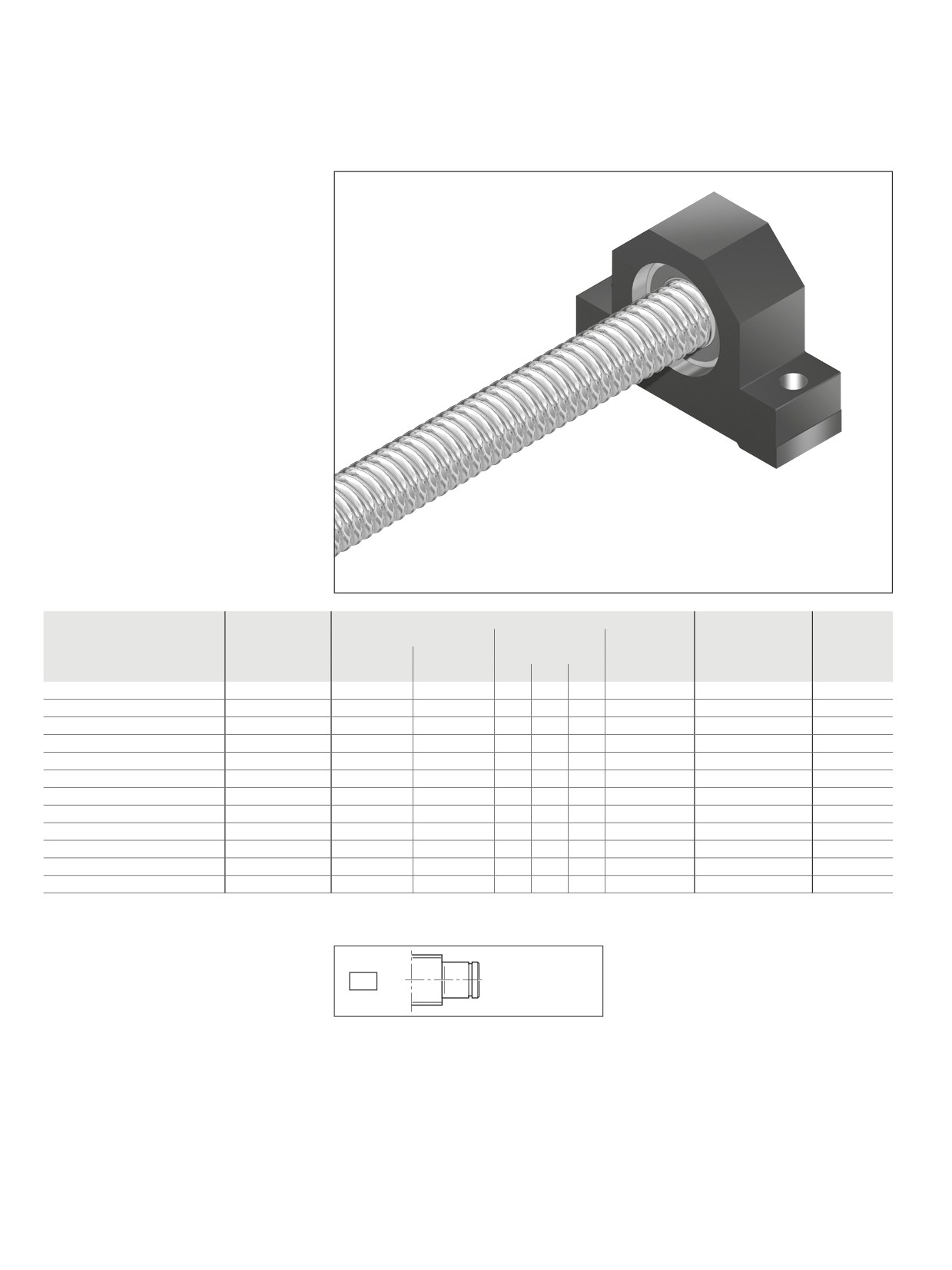

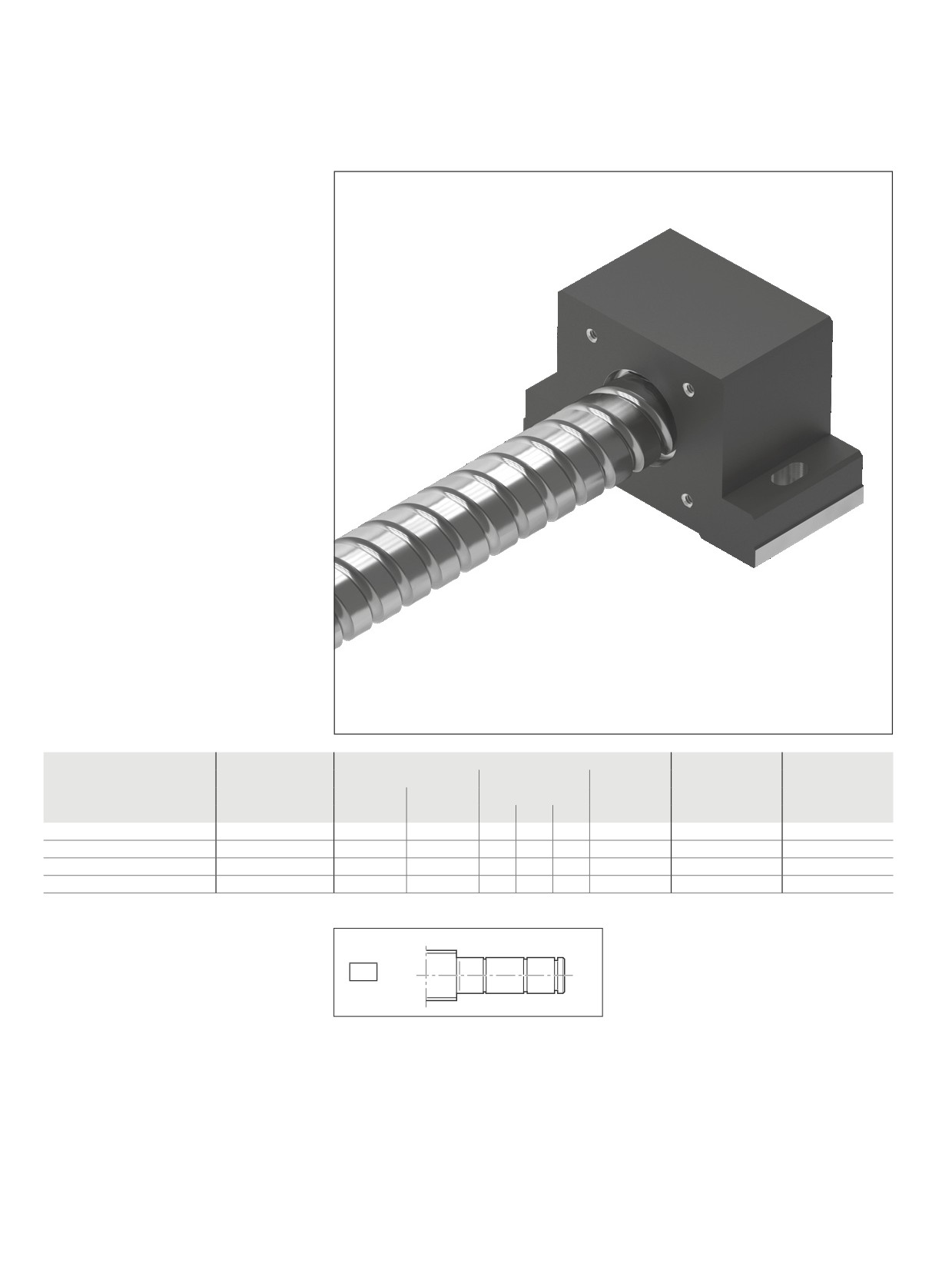

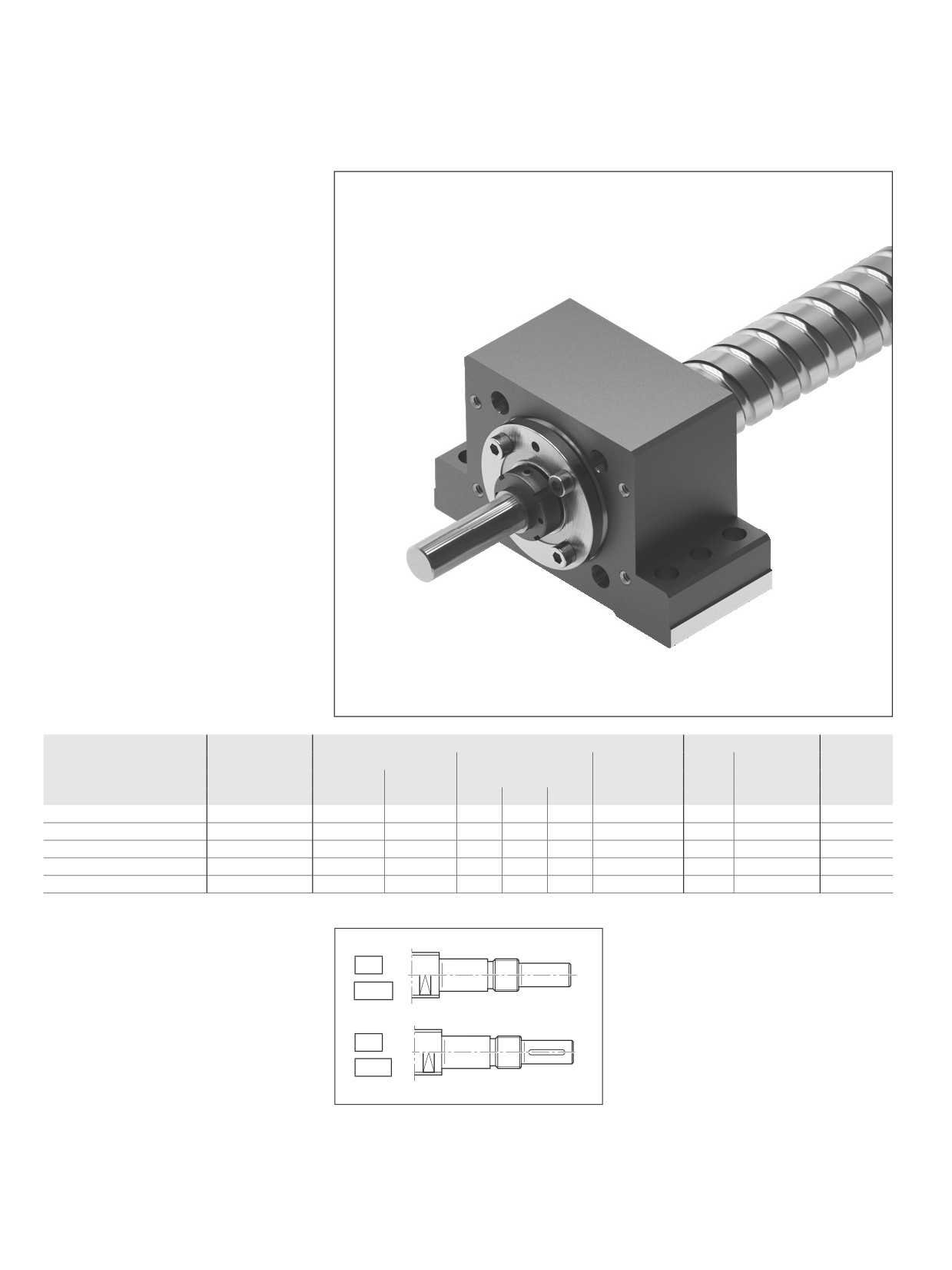

Pillow Block Unit SES-L assembly, steel
Floating bearing with DIN 625
deep-groove ball bearing
The pillow block unit consists of:
--
Precision pillow block housing made of
steel with reference edges on both sides
--
Deep-groove ball bearing as per
DIN 625
--
Retaining ring DIN 471
-–
Cover
All parts are delivered unmounted.
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Deep-groove ball bearing as per DIN 625
Retaining ring as
Weight complete
block
Load ratings (radial)
(mm)
Designation
per DIN 471
dyn. C
stat. C0
DIN 625...
d0 x P
Part number
(N)
(N)
d
D
B
(kg)
20x5/10/20/40
R1595 615 00
7,800
3,250
15
35
11
6202.2RS
15x1
3.26
25x5/10/25
R1595 617 00
9,500
4,150
17
40
12
6203.2RS
17x1
3.39
32x5/10/20/32/64
R1595 620 00
12,700
5,700
20
47
14
6204.2RS
20x1.2
4.74
40x5/10/12/16/20/25/30/40
R1595 630 00
19,300
9,800
30
62
16
6206.2RS
30x1.5
7.30
Suitable for screw ends: Form
31
111

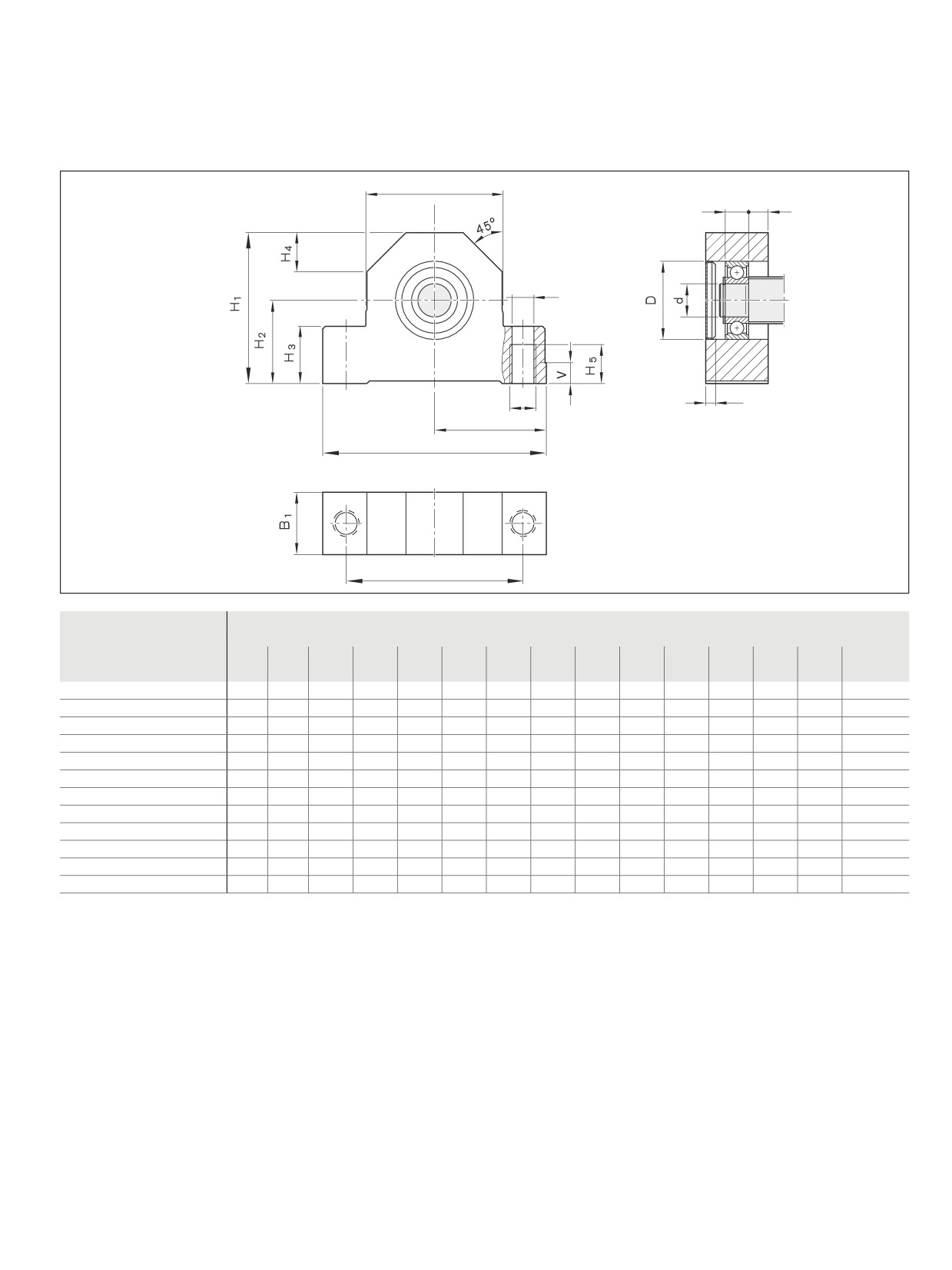

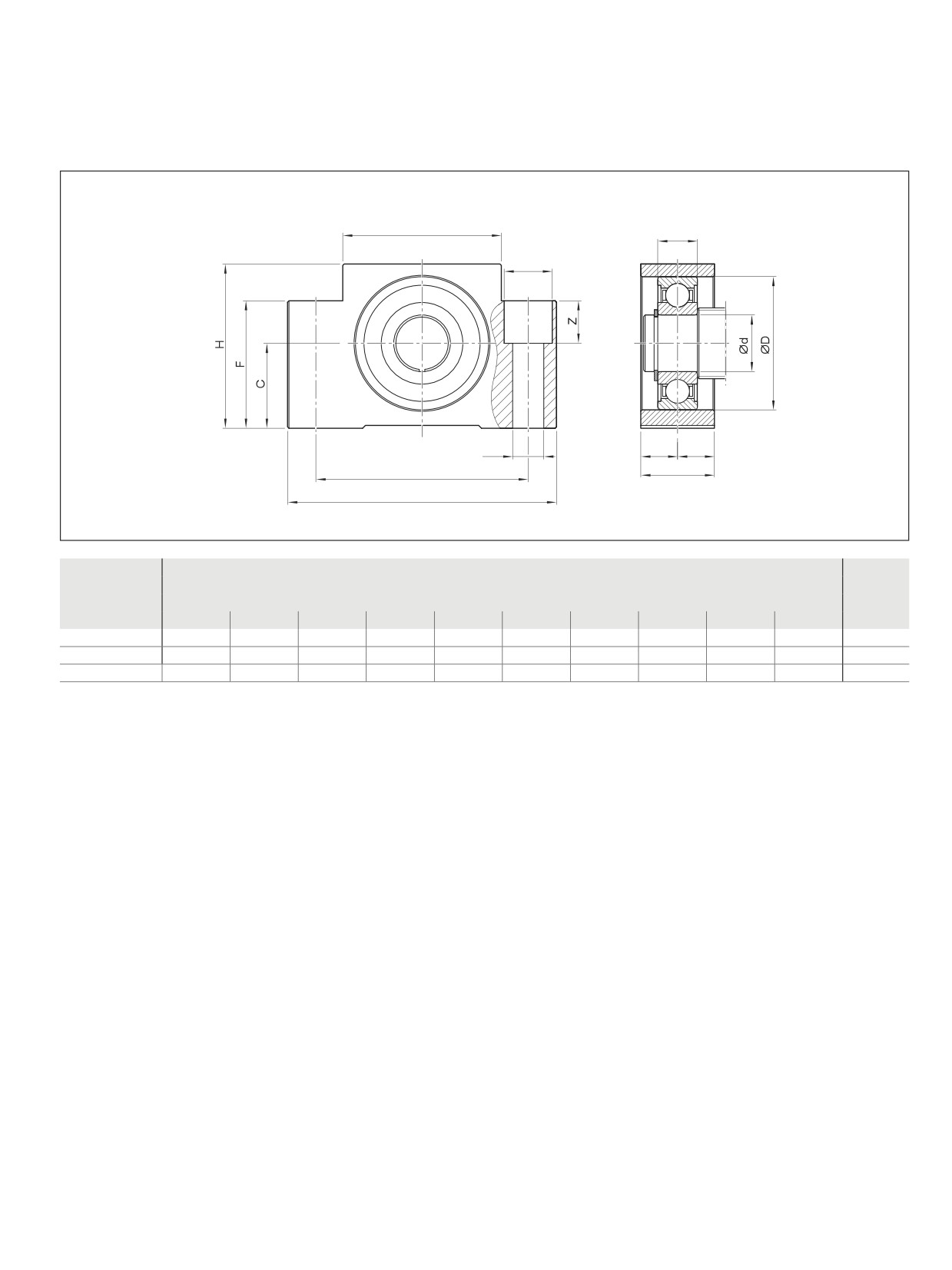

Accessories
M12
4
B
M11
2 x M11
L31
B11
10
B12
Size
(mm)
B11
B12
L31
M11
M12
M13
H11
H12
H13
S11
d0 x P
±0.015
±0.015
20x5/10/20/40
60
25.0
47
72.5
80
120
41
81
28
10.5
25x5/10/25
64
27.0
51
72.5
80
120
41
81
28
10.5
32x5/10/20/32/64
70
30.0
60
72.5
103
120
46
91
28
10.5
40x5/10/12/16/20/25/30/40
80
35.0
68
90.0
116
150
56
111
33
13.0
112
Screw Assemblies | Ball Screw Assemblies BASA
Accessories

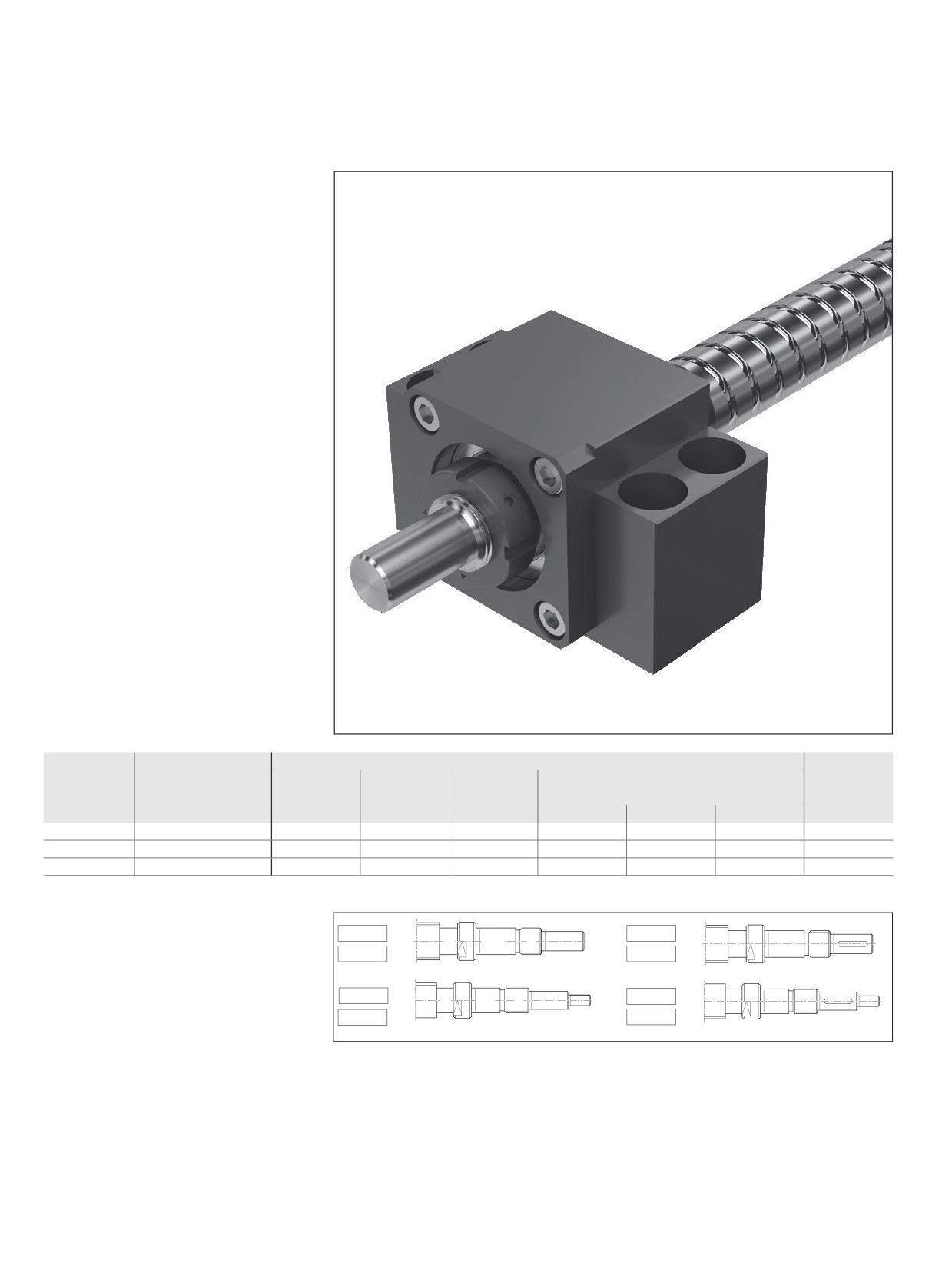

Pillow Block Unit SEB-F assembly
Fixed bearing with angular-
contact thrust ball bearing
LGN-B-…
LGN-C-…
The pillow block unit consists of:
--
Precision pillow block housing made of
steel with reference edges on both sides
--
Angular-contact thrust ball bearing LGN
-–
Slotted nut NMA or NMZ
-–
Ring nut GWR
The slotted nut is delivered unmounted.
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Angular-contact thrust ball bearing
Slotted nut
Weight
block
Load ratings (axial)
Dimensions (mm)
Abbreviation
Abbreviation
complete
dyn. C
stat. C0
MA
d0 x P
Part number
(N)
(N)
d
D
B
(Nm)
(kg)
6 x 1/2
R1591 106 00
6,900
8,500
6
24
15
LGN-B-0624
2.0
NMZ 6x0.5
0.38
8 x 1/2/2.5/5
R1591 106 00
6,900
8,500
6
24
15
LGN-B-0624
2.0
NMZ 6x0.5
0.38
12 x 2/5/10
R1591 106 20
6,900
8,500
6
24
15
LGN-B-0624
2.0
NMZ 6x0.5
0.38
16 x 5/10/16
R1591 110 20
13,400
18,800
10
34
20
LGN-B-1034
6.0
NMZ 10x1
0.87
20 x 5/10/20/40
R1591 112 20
17,000
24,700
12
42
25
LGN-B-1242
8.0
NMZ 12x1
1.12
25 x 5/10/25
R1591 117 20
18,800
31,000
17
47
25
LGN-B-1747
15.0
NMZ 17x1
1.65
25 x 5/10/25
R1591 117 30
18,800
31,000
17
47
25
LGN-B-1747
15.0
NMA 17x1
1.69
32 x 5/10/20/32/64
R1591 120 20
26,000
47,000
20
52
28
LGN-B-2052
18.0
NMZ 20x1
1.93
32 x 5/10/20/32/64
R1591 120 30
26,000
47,000
20
52
28
LGN-B-2052
18.0
NMA 20x1
2.03
40 x 10/12/16/20/25/30/40
R1591 225 30
44,500
111,000
25
57
56
LGN-C-2557
25.0
NMA 25x1.5
5.13
40 x 5
R1591 130 20
29,000
64,000
30
62
28
LGN-B-3062
32.0
NMZ 30x1.5
2.64
40 x 5
R1591 130 30
29,000
64,000
30
62
28
LGN-B-3062
32.0
NMA 30x1.5
2.77
50 x 5
R1591 135 30
41,000
89,000
35
72
34
LGN-B-3572
40.0
NMA 35x1.5
4.66
50 x 10/12/16/20/25/30/40
R1591 230 30
47,500
127,000
30
62
56
LGN-C-3062
32.0
NMA 30x1.5
7.04
63 x 10/20/40
R1591 140 30
72,000
149,000
40
90
46
LGN-A-4090
55.0
NMA 40x1.5
10.49
80 x 10/20
R1591 150 30
113,000
250,000
50
110
54
LGN-A-50110
85.0
NMA 50x1.5
15.61
Suitable for screw ends: Form
For screws 6 x 1/2 and 8 x 1/2/2.5/5:
Form 831, 931
51
81
91
831
51A
81A
91A
82
92
931
82A
92A
113

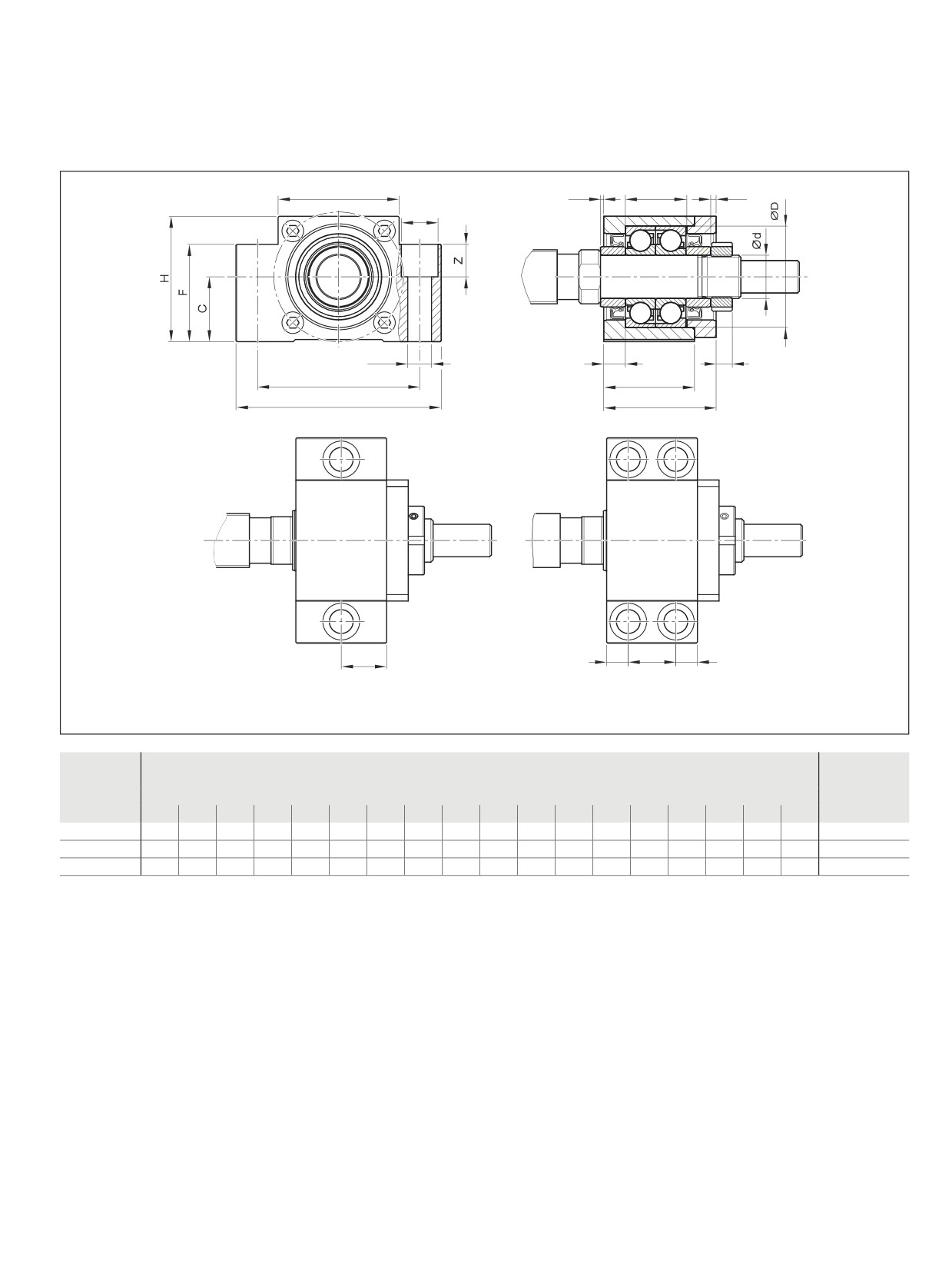

Accessories

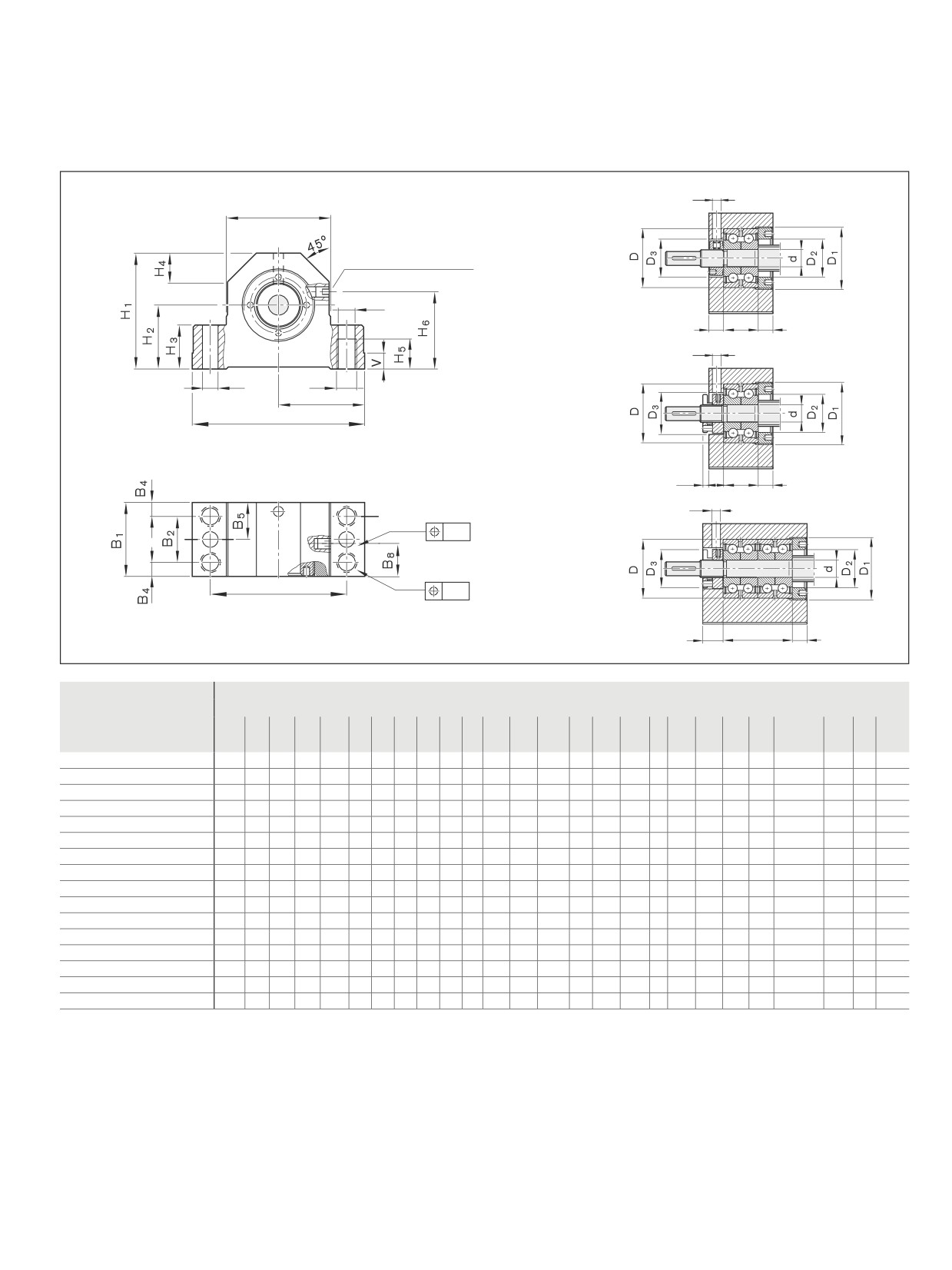

LGN-B-…
∅
5
L
3
with slotted nut NMZ
Lube port sealed with
DIN 913 set screw
wrench size SW
1
S
B3
B
B7
LGN-B-…
∅5
with slotted nut
NMA
S
3
S
2
M
2 x M
B6
B3
B
B7
LGN-C-…
∅5
2 x S 3
with slotted nut NMA
Ø P
4 x S1 / S2
L 4
Ø
P
B3
B
B7
Size
(mm)
M
L3
L4
H1
H2
H3
H4
H5
H6
B1
B2
B3
B4
B5
B6
B7
B8
V
S1
S2
S3
SW
D1
D2
D3
P
d0 x P
js7
±0.02
H12
6 x 1/2
31.0
38
50
34
18
13
8
9
22
32
16
8.5
8.0
16.0
-
8.5
16.0
6
5.3
M6
3.7
3
M26x1.5
16.5
18
0.10
8 x 1/2/2.5/5
31.0
38
50
34
18
13
8
9
22
32
16
8.5
8.0
16.0
-
8.5
16.0
6
5.3
M6
3.7
3
M26x1.5
16.5
18
0.10
12 x 2/5/10
31.0
38
50
41
22
13
8
9
22
32
16
8.5
8.0
16.0
-
8.5
16.0
6
5.3
M6
3.7
3
M26x1.5
16.5
18
0.10
16 x 5/10/16
43.0
52
68
58
32
22
14
15
37
37
23
8.5
7.0
18.5
-
8.5
18.5
8
8.4
M10
7.7
4
M36x1.5
22.0
27
0.15
20 x 5/10/20/40
47.0
60
77
64
34
22
16
15
40
42
25
8.5
8.5
21.0
-
8.5
21.0
8
8.4
M10
7.7
4
M45x1.5
28.0
32
0.15
25 x 5/10/25
54.0
66
88
72
39
27
18
18
45
46
29
10.5
8.5
23.0
-
10.5
23.0
10
10.5
M12
9.7
4
M50x1.5
31.0
36
0.20
25 x 5/10/25
54.0
66
88
72
39
27
18
18
45
46
29
10.5
8.5
23.0
7.5
10.5
23.0
10
10.5
M12
9.7
4
M50x1.5
31.0
36
0.20
32 x 5/10/20/32/64
56.0
70
92
77
42
27
19
18
48
49
29
10.5
10.0
24.5
-
10.5
24.5
10
10.5
M12
9.7
4
M55x1.5
36.0
42
0.20
32 x 5/10/20/32/64
56.0
70
92
77
42
27
19
18
48
49
29
10.5
10.0
24.5
7.5
10.5
24.5
10
10.5
M12
9.7
4
M55x1.5
36.0
42
0.20
40 x 10/12/16/20/25/30/40
63.0
80
105
98
58
32
23
21
64
89
62
20.5
13.5
44.5
-
12.5
54.5
12
12.6
M14
9.7
4
M62x1.5
43.0
48
0.20
40 x 5
63.0
80
105
90
50
32
22
21
56
53
32
12.5
10.5
26.5
-
12.5
26.5
12
12.6
M14
9.7
4
M65x1.5
47.0
53
0.20
40 x 5
63.0
80
105
90
50
32
22
21
56
53
32
12.5
10.5
26.5
7.5
12.5
26.5
12
12.6
M14
9.7
4
M65x1.5
47.0
53
0.20
50 x 5
72.0
92
118
105
58
38
25
22
63
70
43
20.5
13.5
35.0
-
15.5
32.5
12
12.5
M14
9.7
4
M78x2
54.0
60
0.20
50 x 10/12/16/20/25/30/40
72.0
92
118
112
65
38
25
22
70
92
65
20.5
13.5
46.0
-
15.5
57.5
12
12.5
M14
9.7
4
M78x2
54.0
53
0.20
63 x 10/20/40
95.0
130
160
138
73
50
35
22
78
85
58
22.5
13.5
42.5
-
16.5
39.5
16
12.5
M14
9.7
4
M95x2
68.0
72
0.20
80 x 10/20
102.5
145
175
165
93
50
40
36
98
98
58
25.5
20.0
49.0
-
18.5
45.5
16
17.3
M20
11.7
4
M115x2
85.0
90
0.20
114
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Pillow Block Unit SEB-L assembly
Floating bearing with
DIN 625 deep-groove ball bearing
The pillow block unit consists of:
--
Precision pillow block housing made of
steel with reference edge on one side
--
Deep-groove ball bearing as per
DIN 625
--
Retaining ring DIN 471
-–
Cover
All parts are delivered unmounted.
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Deep-groove ball bearing as per DIN 625
Retaining ring as
Weight
block
Load ratings (radial)
(mm)
Designation
per DIN 471
complete
dyn. C
stat. C0
DIN 625...
d0 x P
Part number
(N)
(N)
d
D
B
(kg)
8 x 1/2/2.5/5
R1591 605 00
1,900
590
5
16
5
625.2RS
5x0.6
0.14
12 x 2/5/10
R1591 606 20
2,450
900
6
19
6
626.2RS
6x0.7
0.18
16 x 5/10/16
R1591 610 20
6,000
2,240
10
30
9
6200.2RS
10x1
0.54
20 x 5/10/20/40
R1591 612 20
6,950
2,650
12
32
10
6201.2RS
12x1
0.73
25 x 5/10/25
R1591 617 20
9,500
4,150
17
40
12
6203.2RS
17x1
0.96
32 x 5/10/20/32/64
R1591 620 20
12,700
5,700
20
47
14
6204.2RS
20x1.2
1.24
40 x 5
R1591 630 20
19,300
9,800
30
62
16
6206.2RS
30x1.5
1.66
40 x 10/12/16/20/25/30/40
R1591 630 10
19,300
9,800
30
62
16
6206.2RS
30x1.5
1.82
50 x 5 1)
R1591 635 10
25,500
13,200
35
72
17
6207.2RS
35x1.5
2.66
50 x 10/12/16/20/25/30/40 1)
R1591 635 20
25,500
13,200
35
72
17
6207.2RS
35x1.5
2.87
63 x 10/20/40 1)
R1591 650 20
36,500
20,800
50
90
20
6210.2RS
50x2
5.39
80 x 10/20 1)
R1591 660 20
52,000
31,000
60
110
22
6212.2RS
60x2
7.09
1) without cover
Suitable for screw ends: Form
41
115
Accessories
L
3
B
B
2
1
S
S
2
BD
M
L
1
L4
Size
(mm)
L1
L3
L4
H1
H2
H3
H4
H5
B1
B2
M
V
S1
S2
Cover
d0 x P
±0.02
js7
H12
BD
8 x 1/2/2.5/5
62
38
50
34
18
13
11
9
13
4.0
31.0
6
5.3
M6
2.6
12 x 2/5/10
62
38
50
41
22
13
11
9
15
4.5
31.0
6
5.3
M6
2.6
16 x 5/10/16
86
52
68
58
32
22
15
15
24
7.5
43.0
8
8.4
M10
3.8
20 x 5/10/20/40
94
60
77
64
34
22
17
15
26
8.0
47.0
8
8.4
M10
3.8
25 x 5/10/25
108
66
88
72
39
27
19
18
28
8.0
54.0
10
10.5
M12
3.7
32 x 5/10/20/32/64
112
70
92
77
42
27
20
18
34
10.0
56.0
10
10.5
M12
4.8
40 x 5
126
80
105
90
50
32
23
21
38
11.0
63.0
12
12.6
M14
4.5
40 x 10/12/16/20/25/30/40
126
80
105
98
58
32
23
21
38
11.0
63.0
12
12.6
M14
4.5
50 x 5
144
92
118
105
58
38
25
22
41
12.0
72.0
12
12.5
M14
-
50 x 10/12/16/20/25/30/40
144
92
118
112
65
38
25
22
41
12.0
72.0
12
12.5
M14
-
63 x 10/20/40
190
130
160
138
73
50
35
22
46
13.0
95.0
16
12.5
M14
-
80 x 10/20
205
145
175
165
93
50
40
36
50
14.0
102.5
16
17.3
M20
-
116
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Pillow Block Unit SED-F-Z assembly
Fixed bearing with angular-
contact thrust ball bearing
The pillow block unit consists of:
--
Precision pillow block housing made
of steel
--
2 pre-tensioned angular-contact thrust
ball bearings
--
Slotted nut
-–
Cover
-–
Radial shaft seal
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Angular-contact thrust ball bearing
Slotted nut
block
dyn. C
stat. C0
max. axial
(mm)
MA
load
d0
Part number
(N)
(N)
(N)
d
D
B
(Nm)
20
R159651500
8,800
12,700
5,490
15
32
18
10
25
R159652000
18,600
27,500
12,900
20
47
28
18
32
R159652500
21,000
34,900
15,600
25
52
30
25
Suitable for screw ends: Form
8A
8B
8AB
8BB
9A
9B
9AB
9BB
117
Accessories
C1
C2
E
B
ØY
ØX
N
K
W
L
A
J
Q1
Q
P
Q
SED-F-Z 15
SED-F-Z 20 - 25
Size
(mm)
Weight
complete
m
d0
A
H
C
E
F
L
J
K
C1
C2
N
Q1
P
Q
W
X
Y
Z
(kg)
20
80
50
30
41
40
25
31
7
1.5
1.5
5
12.5
-
-
60
11
17
15
0.62
25
95
58
30
56
45
42
52
8
1.5
2.5
10
-
22
10
75
11
17
15
1.39
32
105
68
35
66
25
48
61
10
0.0
3.4
14
-
30
9
85
11
-
-
1.92
118
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Pillow Block Unit SED-L-S assembly
Floating bearing with deep-
groove ball bearing
The pillow block unit consists of:
--
Pillow block housing made of steel
-–
Deep-groove ball bearing
-–
Retaining ring
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow block
Deep-groove ball bearing
Load capacities, radial
(mm)
d0
dyn. C
stat. C0
d
D
B
Part number
(N)
(N)
20
R159661500
5,600
2,530
15
32
9
25
R159662000
12,800
6,600
20
47
14
32
R159662500
14,000
7,850
25
52
15
Suitable for screw ends: Form
41
119
Accessories
E
B
ØY
ØX
R/2
R/2
W
R
A
Size
(mm)
Weight
complete
m
d0
A
H
C
E
F
R
W
X
Y
Z
(kg)
20
80
50
30
41
40
20
60
9
14
11
0.40
25
95
58
30
56
45
26
75
11
17
15
0.70
32
105
68
35
66
25
30
85
11
-
-
0.89
120
Screw Assemblies | Ball Screw Assemblies BASA
Accessories
Flange bearing assembly SEE-F-Z
Fixed bearing with angular-
contact thrust ball bearing
The bearing assembly consists of:
--
precision flanged housing made of steel
-–
2 pre-tensioned angular-contact thrust
ball bearings
--
Slotted nut
-–
Cover
-–
Radial shaft seal
Separate technical dimensioning to
determine the limit values is absolutely
necessary for all attachments (e.g. pillow
block units, bearing assembly, etc.)
Size
Complete pillow
Angular-contact thrust ball bearing
Slotted nut
block
dyn. C
stat. C0
max. axial load
(mm)
d0
d
D
B
MA
Part number
(N)
(N)
(N)
(Nm)
20
R159751700
25,900
40,500
32,000
17
47
30
15
25
R159752000
25,900
40,500
32,000
20
47
30
18
32
R159752500
29,900
58,500
46,400
25
62
30
25
40
R159753000
29,900
58,500
46,400
30
62
30
32
50
R159754000
32,500
73,000
54,300
40
72
30
55
Suitable for screw ends: Form
8A
8B
8AB
8BB
9A
9B
9AB
9BB















Content      ..     6      7      8      9     ..
