Oras catalogue (2019)

Oras Electra

6626C Cover part for shower faucet, 12 V

ø170

Cover part for thermostatic shower

Colour: Chrome

faucet. Touchless operated, with

a temperatur adjustment handle.

Electrical Connection: 12 VDC

Temperature handle equipped with

Working pressure: 100 - 1000 kPa

safety stop, which can be bypassed by

Flow-rate at 300 kPa: 0.23 l/s

pressing the button (preset to 38°C).

Max. flow period: 60 s (10/30/60/90/120/150/1

Electrical connection 12 V. Body part Oras

80/210/240/300 s)

Bluebox (No. 2081 or 2080), transformer

(No. 199275) and right cable length (No.

Hot water supply: max. +70°C

200510 -200570), has to be ordered

Automatic flush period: 30 s (30/60/90/120/18

separately. Parameters can be changed

0/240/300/360/480/600 s)

with a magnetic key, included in the

EMC Directive: 2014/30/EU

package.

Recognition range: optimally preset

Protection class: IP 55

Automatic flush: off

(off/6/12/18/24/30/36/48/60/72 h)

Afterflow period: 3 s (1/2/3/4/5/6/7/8/9/10 s)

EN standard: EN 15091, EN 1111

.4ADA50-aifiea.

6 414150 085840

6627C Cover part for shower faucet, 12 V

ø170

Cover part for thermostatic shower

Colour: Chrome

faucet. Push button operated, with

a temperatur adjustment handle.

Electrical Connection: 12 VDC

Temperature handle equipped with

Working pressure: 100 - 1000 kPa

safety stop, which can be bypassed by

Flow-rate at 300 kPa: 0.23 l/s

pressing the button (preset to 38°C).

Max. flow period: 45 s (15/30/45/60/75/90/105

Electrical connection 12 V. Body part Oras

/120/135/150 s)

Bluebox (No. 2081 or 2080), transformer

(No. 199275) and right cable length (No.

Hot water supply: max. +70°C

200510 -200570), has to be ordered

Automatic flush period: 30 s (30/60/90/120/18

separately. Parameters can be changed

0/240/300/360/480/600 s)

with a magnetic key, included in the

EMC Directive: 2014/30/EU

package.

Protection class: IP 55

Automatic flush: off

(off/6/12/18/24/30/36/48/60/72 h)

EN standard: EN 15091, EN 1111

.4ADA50-aififh.

6 414150 085857

6657C Cover part for shower faucet, 6 V

160

Touchless wall-mounted shower faucet

Colour: Chrome

with a temperature limiter. Battery

operated

Pressure loss with flow (0.2 l/s): 300 kPa

6 V (2CR5). Body part (Oras No. 6227A)

Working pressure: 100 - 1000 kPa

has to be ordered separately.

Flow-rate at 300 kPa: 0.2 l/s

Parameters are changed with a magnetic

Max. flow period: 5 min

key included in the package.

Hot water supply: max. +70°C

Opening range: 0 - 5 cm

EMC Directive: 2004/108/EY

Recognition range: 60 cm (50 / 60 cm)

Protection class: IP 55

Noise class: I (ISO 3822)

Battery: Lithium 2CR5 6 V

Afterflow period: 5 s

.4ADA50-afjjii.

6 414150 059988

Oras Electra

6227A Body for washbasin or shower faucet

185

88 max

Thermostatic body part for touchless

58 min

wall-mounted faucets. Non-return valve

Working pressure: 100 - 1000 kPa

G 1/2

and litter filters are included.

Hot water supply: max. +70°C

A cover part (Oras No. 6207C, 6208C,

More information: 6207C, 6208C, 6257C,

6257C, 6607C, 6657C) has to be ordered

6607C, 6657C

separately.

G 1/2

.4ADA50-agaaid.

6 414150 060083

6507C Cover part for urinal flusher, 12 V

140

Cover part for touchless wall-mounted

Colour: Chrome

urinal flusher. Electrical connection 12

V via a separate power supply (Oras No.

Electrical Connection: 12 VDC

199275). Body part (Oras No. 6527A) has

Working pressure: 100 - 1000 kPa

to be ordered separately. Parameters are

Hot water supply: max. +70°C

changed through a push button in the

Min. current consumption: 0 A

sensor.

EMC Directive: 2004/108/EY

Recognition range: 40 cm (30 / 40 / 50 cm)

Protection class: IP 55

Pre-flush period: 2 s ON (ON / OFF)

Automatic flush: 24 h ON (ON / OFF)

Afterflush period: 6 s (3 / 6 / 10 s)

.4ADA50-agaadi.

6 414150 060038

6557C Cover part for urinal flusher, 6 V

140

Cover part for touchless wall-mounted

Colour: Chrome

urinal flusher. Battery operated 6 V. Body

part (Oras No. 6527A) has to be ordered

Working pressure: 100 - 1000 kPa

separately. Parameters are changed

Hot water supply: max. +70°C

through a push button in the sensor.

EMC Directive: 2004/108/EY

Recognition range: 40 cm (30 / 40 / 50 cm)

Protection class: IP 55

Pre-flush period: 2 s ON (ON / OFF)

Battery: Lithium 2CR5 6 V

Automatic flush: 24 h ON (ON / OFF)

Afterflush period: 6 s (3 / 6 / 10 s)

.4ADA50-agaacb.

6 414150 060021

Oras Electra

6527A Body for urinal flusher

88 max

Body part for touchless wall-mounted

185

58 min

urinal flusher. Non-return valve and litter

Pressure loss with flow (0.2 l/s): 65 kPa

filters are included.

Working pressure: 50 - 1000 kPa

A cover part (Oras No. 6507C, 6557C) has

Flow-rate at 300 kPa: 0.44 l/s

to be ordered separately.

Hot water supply: max. +70°C

G 1/2

.4ADA50-agaaja.

6 414150 060090

199501 Bus transformer, 230/12 V

123

The bus transformer is designed to be

Colour: Black

used with Oras products No. 6661FTX,

6662FTX and 6664FTX. A maximum of 10

Protection class: IP 40

shower panels can be connected to the

transformer at a time. Shower panels can

be switched off at the transformer’s ON/

OFF switch for cleaning and maintenance

operations. An automatic disinfection

flush can be activated by an integrated

switch. If there is a power cut, the

transformer automatically turns off any

shower panels that are on. Transformer

installation must be carried out by a

qualified electrician

.4ADA50-ahfaih.

6 414150 075087

199502 Bus transformer, 230/12 V

123

The bus transformer is designed to be

Colour: Black

used with Oras products No. 6661FTX,

6662FTX and 6664FTX. A maximum of 10

Protection class: IP 40

shower panels can be connected to the

transformer at a time. Shower panels can

be switched off at the transformer’s ON/

OFF switch for cleaning and maintenance

operations. An automatic disinfection

flush can be activated by an integrated

switch. If there is a power cut, the

transformer automatically turns off any

shower panels that are on. Equipped

with an option that enables external

control of a cleaning mode and automatic

disinfection flushing. Transformer

installation must be carried out by a

qualified electrician.

.4ADA50-ahfaje.

6 414150 075094

Oras Electra

199275 Transformer, 230/12 VDC 1A

The power supply is designed for use with

products (12 V). A maximum 5 of these

Electrical Connection: 230 VAC

items can be connected to the power

Output current: 1 A

supply at a time (please check the amount

EMC Directive: 2004/108/EY

of items from the products installation

230 V

Protection class: IP 00

guide, because it could be limited

INPUT: 230V 50Hz 150mA

OUTPUT: 12V

1A 12 W

smaller). The total length of the cable

12 V

between the power supply and the faucet

may not exceed 100 m. Low-voltage

cable 2 x > = 0.5 mm². The transformer

is installed in a 70 mm appliance box

equipped with a cover.

Power supply installation must be carried

out by a qualified electrician.

.4ADA50-afihhg.

6 414150 058776

Oras Electra

Oras No. 197002

Oras No. 197033/4

Protective casing of stainless

Extension cord

steel

for hand shower, length 4 m

covers the power source box and

solenoid valve

.4ADA50-aaiibi.

.4ADA50-adjidg.

6 414150 008818

6 414150 039836

Oras No. 199500

Oras No. 197033/5

Plug transformer, 230/12 VDC

Extension cord

The plug transformer is designed

for hand shower, length 5 m

to be used with washbasin faucet

(12 V). One plug transformer can be

connected with one faucet. Ensure

the compatibility of the product.

.4ADA50-ahbiaf.

.4ADA50-adjied.

6 414150 071805

6 414150 039843

Oras No. 6930

Oras No. 200510

Raising kit 60 mm

Connection cable

for the washbasin faucets 6330F,

L=1000

6331F, 6332F, 6333F, 6334FT,

6335FT, 6336FT and 6337FT. It is

possible to heighten the faucet with

60 mm with a raising kit. The raising

kit is very useful in places where

more space between the washbasin

and faucet (e.g. filling up a bowl) is

needed.

.4ADA50-agfifj.

.4ADA50-aihcdd.

6 414150 065859

6 414150 087233

Oras No. 6931

Oras No. 200515

Raising kit 140 mm

Connection cable

for the washbasin faucets 6330F,

L=1500

6331F, 6332F, 6333F, 6334FT,

6335FT, 6336FT and 6337FT. It is

possible to heighten the faucet

with 140 mm with a raising kit. The

raising kit is very useful in places

where more space between the

washbasin and faucet (e.g. filling up

a bowl) is needed.

.4ADA50-agfigg.

.4ADA50-aihcea.

6 414150 065866

6 414150 087240

Oras No. 197033/2

Oras No. 200520

Extension cord

Connection cable

for hand shower, length 2 m

L=2000

.4ADA50-adjibc.

.4ADA50-aihcfh.

6 414150 039812

6 414150 087257

Oras No. 197033/3

Oras No. 200525

Extension cord

Connection cable

for hand shower, length 3 m

L=2500

.4ADA50-adjicj.

.4ADA50-aihcge.

6 414150 039829

6 414150 087264

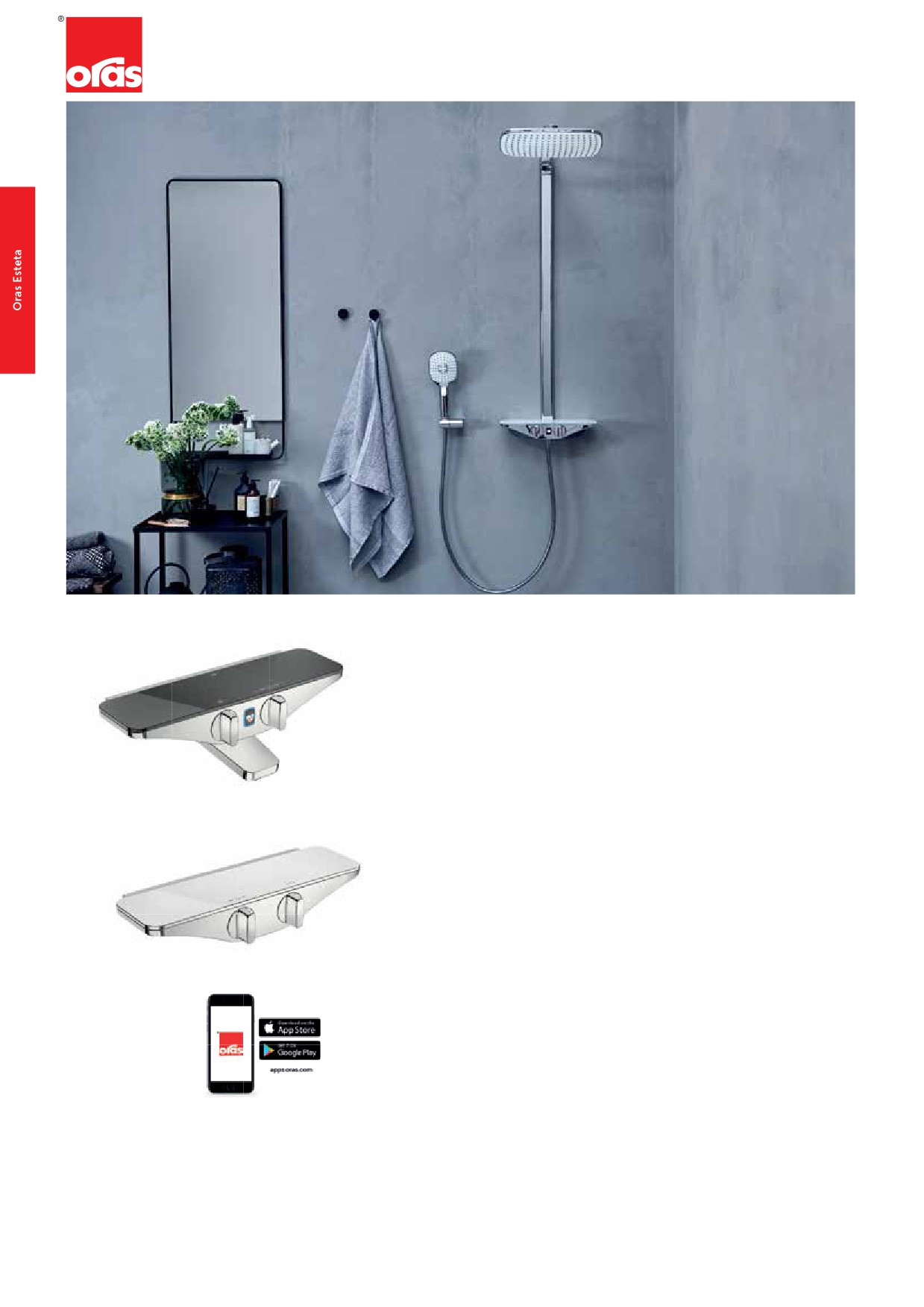

Oras Esteta

Getting the most out of life - living to the fullest - demands a lot from your

body. Make your moment in the shower about recovering, relaxing and re-

loading. Oras showers nurture your body - and your spirit.

Advanced user experience and sleek design

Oras Esteta offer a unique solution for a modern bathroom where sleek and

elegant design meets practicality. To adjust the temperature and water flow

is easy and hidden safety button ensures safe water temperature. The real

glass shelf brings a feeling of added luxury as well as more storage area to

the bathroom. The shower faucet is available in two color option: white and

grey. The hand shower has a modern, round design which makes it a perfect

fit for different bathroom styles. The large full-body head shower embraces

you with a gentle and natural rain that covers the body at once, enabling you

to have a perfect shower moment.

Revolutionary shower experience called Wellfit

Oras Esteta Wellfit is the advanced version of our Oras Esteta shower sys-

tem. With truly ground-breaking technology, it provides all the functions of

a professional hot and cold water body treatment- at the touch of a button.

Simply select from one of the three programs - RECOVER, RELAX, RELOAD

- that designate specific intervals of hot and cold water spray via your hand

shower. You can also program your own sequence using Oras App.

Oras Esteta

7560U-11 Shower faucet

Thermostatic shower faucet with easy-to-

Colour: White

use control handles. Temperature limiter

in the handle. Spacious shelf made of

Pressure loss with flow (0.2 l/s): 230 kPa

safety glass.The faucet is equipped with

Working pressure: 100 - 1000 kPa

eccentric unions with silencer, litter filters

Flow-rate at 300 kPa: 0.23 l/s

and non-return valves.

Hot water supply: max. +80°C

Noise class: I (ISO 3822) Oras lab.

EN standard: EN 1111

.4ADA50-aicjbh.

6 414150 082917

7560U-15 Shower faucet

Thermostatic shower faucet with easy-to-

Colour: Grey

use control handles. Temperature limiter

in the handle. Spacious shelf made of

Pressure loss with flow (0.2 l/s): 230 kPa

safety glass.The faucet is equipped with

Working pressure: 100 - 1000 kPa

eccentric unions with silencer, litter filters

Flow-rate at 300 kPa: 0.23 l/s

and non-return valves.

Hot water supply: max. +80°C

Noise class: I (ISO 3822) Oras lab.

EN standard: EN 1111

.4ADA50-aicjce.

6 414150 082924

7540U-11 Bath and shower faucet

Thermostatic bath and shower faucet

Colour: White

with easy-to-use control handles.

Temperature limiter in the handle.

Pressure loss with flow (0.2 l/s): 230 kPa

Spacious shelf made of safety glass. The

Working pressure: 100 - 1000 kPa

faucet is equipped with eccentric unions

Flow-rate at 300 kPa: 0.28/0.23 l/s

with silencer, litter filters and non-return

Hot water supply: max. +80°C

valves.

Noise class: I (ISO 3822) Oras lab.

EN standard: EN 1111

.4ADA50-aicjff.

6 414150 082955

Oras Esteta

7540U-15 Bath and shower faucet

Thermostatic bath and shower faucet

Colour: Grey

with easy-to-use control handles.

Temperature limiter in the handle.

Pressure loss with flow (0.2 l/s): 230 kPa

Spacious shelf made of safety glass. The

Working pressure: 100 - 1000 kPa

faucet is equipped with eccentric unions

Flow-rate at 300 kPa: 0.28/0.23 l/s

with silencer, litter filters and non-return

Hot water supply: max. +80°C

valves.

Noise class: I (ISO 3822) Oras lab.

EN standard: EN 1111

.4ADA50-aicjgc.

6 414150 082962

7562U-11 Shower faucet, 6 V

Thermostatic shower faucet with Wellfit

Colour: White

body treatment. Easy-to-use control

handles. Temperature limiter in the

Pressure loss with flow (0.2 l/s): 300 kPa

handle. Spacious shelf made of safety

Working pressure: 100 - 1000 kPa

glass. The Wellfit body treatment can be

Flow-rate at 300 kPa: 0.2 l/s

individualized using the Oras App. The

Hot water supply: max. +70°C

faucet is equipped with eccentric unions

EMC Directive: 2014/30/EU

with silencer, litter filters and non-return

valves.

Protection class: IP 55

Noise class: I (ISO 3822) Oras lab.

Battery: AA 1.5 V Lithium x 4

EN standard: EN 1111 , EN 15091

.4ADA50-aicjjd.

6 414150 082993

7562U-15 Shower faucet, 6 V

Thermostatic shower faucet with Wellfit

Colour: Grey

body treatment. Easy-to-use control

handles. Temperature limiter in the

Pressure loss with flow (0.2 l/s): 300 kPa

handle. Spacious shelf made of safety

Working pressure: 100 - 1000 kPa

glass. The Wellfit body treatment can be

Flow-rate at 300 kPa: 0.2 l/s

individualized using the Oras App. The

Hot water supply: max. +70°C

faucet is equipped with eccentric unions

EMC Directive: 2014/30/EU

with silencer, litter filters and non-return

valves.

Protection class: IP 55

Noise class: I (ISO 3822) Oras lab.

Battery: AA 1.5 V Lithium x 4

EN standard: EN 1111 , EN 15091

.4ADA50-aidaag.

6 414150 083006

The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,

and their usage is licensend for Orasgroup. Other brands and trade names

are property of the respective owners.

Oras Esteta

7542U-11 Bath and shower faucet, 6 V

Thermostatic bath and shower faucet

Colour: White

with Wellfit body treatment. Easy-to-use

control handles and diverter. Temperature

Pressure loss with flow (0.2 l/s): 300 kPa

limiter in the handle. Spacious shelf made

Working pressure: 100 - 1000 kPa

of safety glass. The Wellfit body treatment

Flow-rate at 300 kPa: 0.28/0.2 l/s

can be individualized using the Oras App.

Hot water supply: max. +70°C

The faucet is equipped with eccentric

unions with silencer, litter filters and non-

EMC Directive: 2014/30/EU

return valves.

Protection class: IP 55

Noise class: I (ISO 3822) Oras lab.

Battery: AA 1.5 V Lithium x 4

EN standard: EN 1111 , EN 15091

.4ADA50-aidadh.

6 414150 083037

7542U-15 Bath and shower faucet, 6 V

Thermostatic bath and shower faucet

Colour: Grey

with Wellfit body treatment. Easy-to-use

control handles and diverter. Temperature

Pressure loss with flow (0.2 l/s): 300 kPa

limiter in the handle. Spacious shelf made

Working pressure: 100 - 1000 kPa

of safety glass. The Wellfit body treatment

Flow-rate at 300 kPa: 0.28/0.2 l/s

can be individualized using the Oras App.

Hot water supply: max. +70°C

The faucet is equipped with eccentric

EMC Directive: 2014/30/EU

unions with silencer, litter filters and non-

return valves.

Protection class: IP 55

Noise class: I (ISO 3822) Oras lab.

Battery: AA 1.5 V Lithium x 4

EN standard: EN 1111 , EN 15091

.4ADA50-aidaee.

6 414150 083044

The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,

and their usage is licensend for Orasgroup. Other brands and trade names

are property of the respective owners.

Oras Esteta

7590U-11 Shower system

Thermostatic shower system with large

Colour: White

overhead shower and a hand shower.

Spacious shelf made of safety glass,

Pressure loss with flow (0.2 l/s): 210 kPa

Easy-to-use control handles and diverter.

Working pressure: 100 - 1000 kPa

Temperature limiter in the handle. Oras

Flow-rate at 300 kPa: 0.23/0.24 l/s

Hydractiva Style hand shower with 3

Hot water supply: max. +80°C

spray modes: Sensitive (large & gently),

Intense (powerful) and Pulse (massage),

Noise class: I (ISO 3822) Oras lab.

wall bracket included. Overhead shower

EN standard: EN 1111

size: 360 mm x 220 mm. The faucet is

equipped with eccentric unions with

silencer, litter filters and non-return

valves.

.4ADA50-aidahf.

6 414150 083075

7590U-15 Shower system

Thermostatic shower system with large

Colour: Grey

overhead shower and a hand shower.

Spacious shelf made of safety glass,

Pressure loss with flow (0.2 l/s): 210 kPa

Easy-to-use control handles and diverter.

Working pressure: 100 - 1000 kPa

Temperature limiter in the handle. Oras

Flow-rate at 300 kPa: 0.23/0.24 l/s

Hydractiva Style hand shower with 3

Hot water supply: max. +80°C

spray modes: Sensitive (large & gently),

Noise class: I (ISO 3822) Oras lab.

Intense (powerful) and Pulse (massage),

wall bracket included. Overhead shower

EN standard: EN 1111

size: 360 mm x 220 mm. The faucet is

equipped with eccentric unions with

silencer, litter filters and non-return

valves.

.4ADA50-aidaic.

6 414150 083082

Oras Esteta

7591U-11 Shower system

Thermostatic shower system with a

Colour: White

spout, large overhead shower and a

hand shower. Spacious shelf made of

Pressure loss with flow (0.2 l/s): 230 kPa

safety glass, Easy-to-use control handles

Working pressure: 100 - 1000 kPa

and diverter. Temperature limiter in

Flow-rate at 300 kPa: 0.27/0.23 l/s

the handle. Oras Hydractiva Style hand

Hot water supply: max. +80°C

shower with 3 spray modes: Sensitive

(large & gently), Intense (powerful) and

Noise class: I (ISO 3822) Oras lab.

Pulse (massage), wall bracket included.

EN standard: EN 1111

Overhead shower size: 360 mm x

220 mm. The faucet is equipped with

eccentric unions with silencer, litter filters

and non-return valves.

.4ADA50-aidbbc.

6 414150 083112

7591U-15 Shower system

Thermostatic shower system with a

Colour: Grey

spout, large overhead shower and a

hand shower. Spacious shelf made of

Pressure loss with flow (0.2 l/s): 230 kPa

safety glass, Easy-to-use control handles

Working pressure: 100 - 1000 kPa

and diverter. Temperature limiter in

Flow-rate at 300 kPa: 0.27/0.23 l/s

the handle. Oras Hydractiva Style hand

Hot water supply: max. +80°C

shower with 3 spray modes: Sensitive

Noise class: I (ISO 3822) Oras lab.

(large & gently), Intense (powerful) and

Pulse (massage), wall bracket included.

EN standard: EN 1111

Overhead shower size: 360 mm x

220 mm. The faucet is equipped with

eccentric unions with silencer, litter filters

and non-return valves.

.4ADA50-aidbcj.

6 414150 083129

Oras Esteta

7592U-11 Shower system, 6 V

Thermostatic shower system with Wellfit

Colour: White

body treatment, large overhead shower

and a hand shower. Spacious shelf made

Pressure loss with flow (0.2 l/s): 210 kPa

of safety glass, Easy-to-use control

Working pressure: 100 - 1000 kPa

handles and diverter. Temperature limiter

Flow-rate at 300 kPa: 0.2/0.24 l/s

in the handle. Oras Hydractiva Style hand

Hot water supply: max. +70°C

shower with 3 spray modes: Sensitive

(large & gently), Intense (powerful) and

EMC Directive: 2014/30/EU

Pulse (massage), wall bracket included.

Protection class: IP 55

Overhead shower size: 360 mm x 220

Noise class: I (ISO 3822) Oras lab.

mm. The Wellfit body treatment can be

Battery: AA 1.5 V Lithium x 4

individualized using the Oras App. The

EN standard: EN 1111 , EN 15091

faucet is equipped with eccentric unions

with silencer, litter filters and non-return

valves.

.4ADA50-aidbfa.

6 414150 083150

7592U-15 Shower system, 6 V

Thermostatic shower system with Wellfit

Colour: Grey

body treatment, large overhead shower

and a hand shower. Spacious shelf made

Pressure loss with flow (0.2 l/s): 210 kPa

of safety glass, Easy-to-use control

Working pressure: 100 - 1000 kPa

handles and diverter. Temperature limiter

Flow-rate at 300 kPa: 0.2/0.24 l/s

in the handle. Oras Hydractiva Style hand

Hot water supply: max. +70°C

shower with 3 spray modes: Sensitive

EMC Directive: 2014/30/EU

(large & gently), Intense (powerful) and

Pulse (massage), wall bracket included.

Protection class: IP 55

Overhead shower size: 360 mm x 220

Noise class: I (ISO 3822) Oras lab.

mm. The Wellfit body treatment can be

Battery: AA 1.5 V Lithium x 4

individualized using the Oras App. The

EN standard: EN 1111 , EN 15091

faucet is equipped with eccentric unions

with silencer, litter filters and non-return

valves.

.4ADA50-aidbgh.

6 414150 083167

The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,

and their usage is licensend for Orasgroup. Other brands and trade names

are property of the respective owners.

Oras Esteta

7593U-11 Shower system, 6 V

Thermostatic shower system with Wellfit

Colour: White

body treatment, a spout, large overhead

shower and a hand shower. Spacious shelf

Pressure loss with flow (0.2 l/s): 300 kPa

made of safety glass, Easy-to-use control

Working pressure: 100 - 1000 kPa

handles and diverter. Temperature limiter

Flow-rate at 300 kPa: 0.24/0.2 l/s

in the handle. Oras Hydractiva Style hand

Hot water supply: max. +70°C

shower with 3 spray modes: Sensitive

(large & gently), Intense (powerful) and

EMC Directive: 2014/30/EU

Pulse (massage), wall bracket included.

Protection class: IP 55

Overhead shower size: 360 mm x 220

Noise class: I (ISO 3822) Oras lab.

mm. The Wellfit body treatment can be

Battery: AA 1.5 V Lithium x 4

individualized using the Oras App. The

EN standard: EN 1111 , EN 15091

faucet is equipped with eccentric unions

with silencer, litter filters and non-return

valves.

.4ADA50-aidcdf.

6 414150 083235

7593U-15 Shower system, 6 V

Thermostatic shower system with Wellfit

Colour: Grey

body treatment, a spout, large overhead

shower and a hand shower. Spacious shelf

Pressure loss with flow (0.2 l/s): 300 kPa

made of safety glass, Easy-to-use control

Working pressure: 100 - 1000 kPa

handles and diverter. Temperature limiter

Flow-rate at 300 kPa: 0.24/0.2 l/s

in the handle. Oras Hydractiva Style hand

Hot water supply: max. +70°C

shower with 3 spray modes: Sensitive

EMC Directive: 2014/30/EU

(large & gently), Intense (powerful) and

Pulse (massage), wall bracket included.

Protection class: IP 55

Overhead shower size: 360 mm x 220

Noise class: I (ISO 3822) Oras lab.

mm. The Wellfit body treatment can be

Battery: AA 1.5 V Lithium x 4

individualized using the Oras App. The

EN standard: EN 1111 , EN 15091

faucet is equipped with eccentric unions

with silencer, litter filters and non-return

valves.

.4ADA50-aidcec.

6 414150 083242

The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,

and their usage is licensend for Orasgroup. Other brands and trade names

are property of the respective owners.

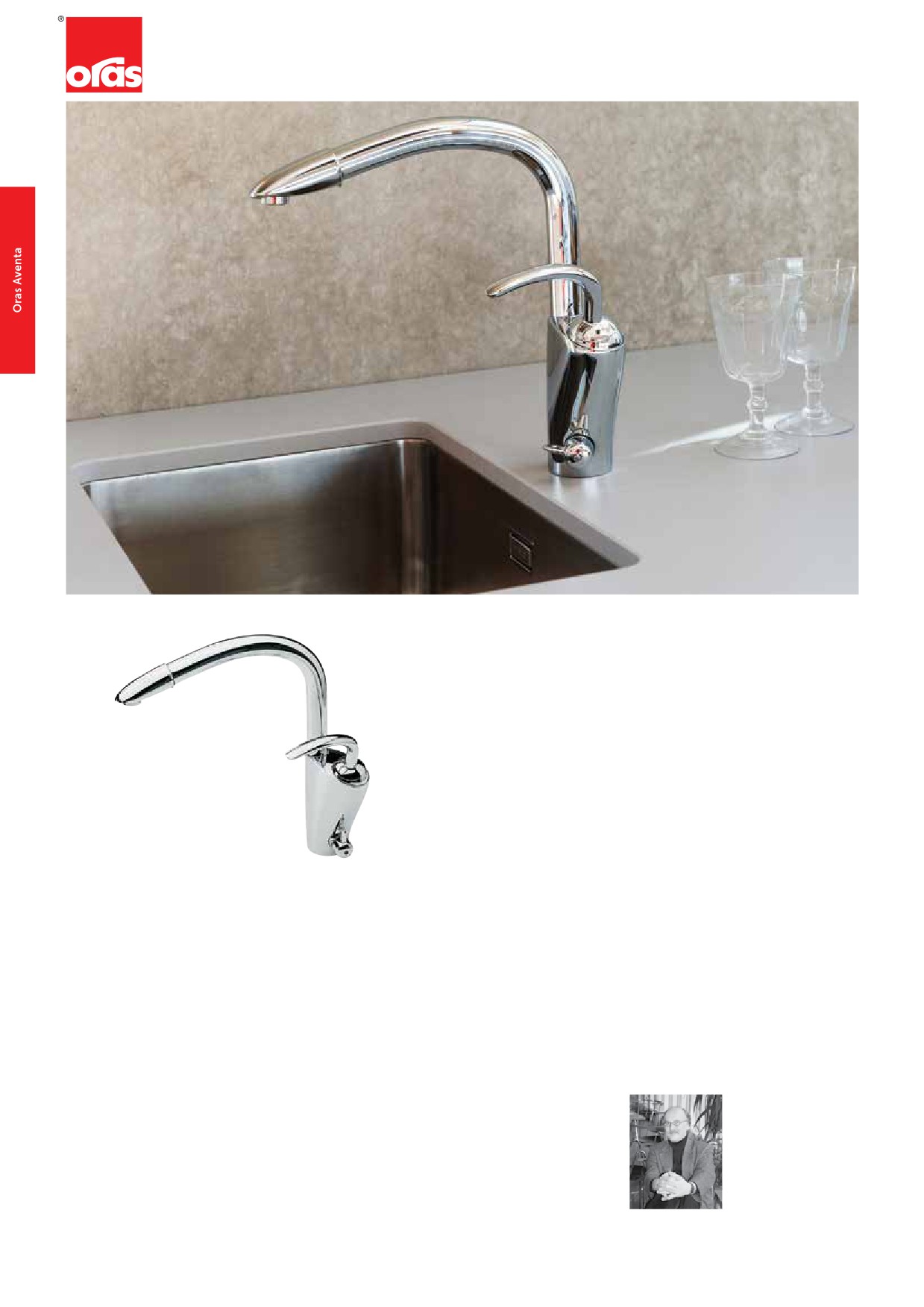

Oras Aventa

5930 Kitchen faucet

Kitchen faucet with swivel pull-out spout

Colour: Chrome

with aerator. Spout swing angle 60°

(factory default) or 110°.

Pressure loss with flow (0.2 l/s): 285 kPa

Working pressure: 50 - 1000 kPa

250 - 750

Flow-rate at 300 kPa: 0.21 l/s

Hot water supply: max. +80°C

ø 35 - 38

Noise class: I (ISO 3822)

ø 10

.4ADA50-aehbbe.

6 414150 047114

5930F Kitchen faucet

Ettgrepps köksblandare med utdragbar

Colour: Chrome

pip. Pipens svängradie 60° eller 110°.

Pressure loss with flow (0.2 l/s): 330 kPa

F = Flexibel anslutning

Working pressure: 50 - 1000 kPa

250 - 750

Flow-rate at 300 kPa: 0.19 l/s

ø 35 - 38

Hot water supply: max. +80°C

Noise class: I (ISO 3822)

G 3/8

.4ADA50-aehcfb.

6 414150 047251

5932 Kitchen faucet with dishwasher valve

Kitchen faucet with swivel pull-out spout,

Colour: Chrome

aerator and dishwasher valve. Spout

swing angle 60° (factory default) or 110°.

Pressure loss with flow (0.2 l/s): 285 kPa

Working pressure: 50 - 1000 kPa

250 - 750

Flow-rate at 300 kPa: 0.21 l/s

ø 35 - 38

Hot water supply: max. +80°C

Noise class: l (ISO 3822)

ø 10

G 1/2

.4ADA50-aehbcb.

6 414150 047121

Oras Inspera

Oras Inspera is a complete collection of modern bathroom and kitchen

faucets for all spaces: The range covers washbasin faucets with top- and

side-operated levers and a swivel spout. The elegantly shaped touchless

faucets are hygienic and easy-to-use and the number one solution for all

bathrooms.

Side-operated kitchen faucets come with swivel spout and an optional,

extremely handy, pull-down spout. Different sizes and height options grant

more possibilities for planning and bring more comfort to the user. The

shower area can be perfected with the beautifully designed Oras Inspera

thermostatic shower and bath (and concealed) faucets.

The absolute highlights of the Oras Inspera product family are the exclusive

Rosegold lifestyle edition washbasin faucet and the spectacular Oras

Inspera touchless faucet with a fascinating *Mikado® spray - the perfection

of each unique bathroom.

*Mikado is a registered trademark of Neoperl GmbH.

Oras Inspera

3030F Kitchen faucet

Kitchen faucet with high swivel spout.

Colour: Chrome

Spout’s swing angle is factory preset at

120° (can be limited to 0° or 60°). There

Pressure loss with flow (0.2 l/s): 300 kPa

are also in-built limitation options for

Working pressure: 50 - 1000 kPa

water temperature and maximum flow-

Flow-rate at 300 kPa: 0.2 l/s

rate.

Hot water supply: max. +80°C

F = with flexible pipes

Noise class: I (ISO 3822)

EN standard: EN 817

.4ADA50-aicgjg.

6 414150 082696

3035F Kitchen faucet with dishwasher valve, 3 V

Kitchen faucet with smart dishwasher

Colour: Chrome

valve and high swivel spout. Spout’s

swing angle is factory preset at 120° (can

Pressure loss with flow (0.2 l/s): 300 kPa

be limited to 0° or 60°). Dishwasher valve

Working pressure: 50 - 1000 kPa

closes automatically after 4 or 12 hours

Flow-rate at 300 kPa: 0.2 l/s

(one push opens the valve for 4 hours,

Hot water supply: max. +70°C

pushing for 5 seconds opens the valve for

Dishwasher valve open period: 4 h / 12 h

l=400

12 hours). Battery operated, 3 V. There are

G 3/8

also in-built limitation options for water

EMC Directive: 2014/30/EU

temperature and maximum flow-rate.

Protection class: IP 55

F = with flexible pipes

Noise class: I (ISO 3822)

G 3/8

Battery: AA 1.5 V Lithium x 2

EN standard: EN 817, EN 15091

.4ADA50-aichac.

6 414150 082702

3032F Kitchen faucet

Kitchen faucet with pull-out spout.

Colour: Chrome

Swivel spout with pull-out spout/spray

and aerator. Spout’s pull-out length can

Pressure loss with flow (0.2 l/s): 300 kPa

be fixed. Spout’s swing angle is factory

Working pressure: 50 - 1000 kPa

preset at 120° (can be limited to 40°-80°).

Flow-rate at 300 kPa: 0.18 l/s

There are also in-built limitation options

Hot water supply: max. +80°C

for water temperature and maximum

Noise class: I (ISO 3822)

flow-rate.

F = with flexible pipes

EN standard: EN 817

.4ADA50-aichcg.

6 414150 082726

Oras Inspera

3031F Kitchen faucet with dishwasher valve, 3 V

Kitchen faucet with smart dishwasher

Colour: Chrome

valve and with pull-out spout. Swivel

spout with pull-out spout/spray and

Pressure loss with flow (0.2 l/s): 300 kPa

aerator. Spout’s pull-out length can be

Working pressure: 50 - 1000 kPa

fixed. Spout’s swing angle is factory

Flow-rate at 300 kPa: 0.18 l/s

preset at 120° (can be limited to 40°-80°).

Hot water supply: max. +70°C

Dishwasher valve closes automatically

l=400

after 4 or 12 hours (one push opens the

Dishwasher valve open period: 4 h / 12 h

G 3/8

valve for 4 hours, pushing for 5 seconds

EMC Directive: 2014/30/EU

opens the valve for 12 hours). Battery

Protection class: IP 55

operated, 3 V. There are also in-built

Noise class: I (ISO 3822)

limitation options for water temperature

Battery: AA 1.5 V Lithium x 2

G 3/8

and maximum flow-rate.

EN standard: EN 817, EN 15091

F = with flexible pipes

.4ADA50-aichea.

6 414150 082740

3000F Washbasin faucet

Washbasin faucet. Fixed spout, aerator

Colour: Chrome

and pop-up waste. There are also in-built

limitation options for water temperature

Pressure loss with flow (0.1 l/s): 100 kPa

and maximum flow-rate.

Working pressure: 50 - 1000 kPa

F = with flexible pipes

Flow-rate at 300 kPa (with flow controller):

0.1 l/s

Hot water supply: max. +80°C

Noise class: I (ISO 3822)

EN standard: EN 817

.4ADA50-aicdag.

6 414150 082306

3001F High washbasin faucet

High washbasin faucet with fixed spout

Colour: Chrome

and aerator.

F = with flexible pipes

Pressure loss with flow (0.1 l/s): 100 kPa

Working pressure: 50 - 1000 kPa

Flow-rate at 300 kPa (with flow controller):

0.1 l/s

Hot water supply: max. +80°C

Noise class: I (ISO 3822)

EN standard: EN 817

.4ADA50-aicdfb.

6 414150 082351

Oras catalogue (2019) - page 4
