WT9 Dynamic LSA. AIRCRAFT MAINTENANCE MANUAL (AS-AMM-01-000, 22. 05. 2017)

Effectivity:

ALL

28. 04. 2021

PARKING, MOORING,
STORAGE AND
RETURN TO SERVICE

(7) Pre-flight inspection:

(a) Carry out the pre-flight inspection (POH, Chapter 4).

(8) Instructions for continued airworthiness:

(a) Verify all airworthiness directives complied with.
(b) Verify all service letters, bulletins, and instructions complied with.

B. Return to service after long term storage (over 91 days)

(1) Parking:

(a) Remove all covers and adhesive tapes.
(b) Unmoor the aircraft.

(2) Aircraft exterior:

(a)  Remove the canopy cover.
(b)  Remove foils from exterior lights.
(c)  Clean the aircraft (Chapter 12-20).
(d)  Clean the canopy (Chapter 12-20).
(e)  Lubricate

the

aircraft

according

lubrication

schedule

(Chapter 12-20).

(3) Aircraft interior:

(a) Remove cover from the instrument panel.

(4) Electrical system:

(a) Check condition of batteries; reinstall the battery (Chapter 24-30)

and the ELT battery (Chapter 25-60).

(5) Fuel system:

(a) Fill the fuel tanks (Chapter 12-10).

(6) Landing gear

(a) Clean the brakes.

(7) Powerplant:

(a) Carry out the procedure for engine back to operation according

to the Operators Manual for Rotax Engine Type 912 Series
(Ref. No. OM-912), latest edition.

(8) Annual inspection:

(a) Carry out the annual inspection prior to flying the aircraft

(Chapter 05-20).

GENERAL

PLACARDS

AND MARKINGS

11-00

GENERAL

1. INTRODUCTION

Placards are used for identification and indication purposes. They show the function,
directional movements, position identifications, operating instructions, operating
limitations of systems and equipment.
Self-adhesive plastic foils are used for all placards except for the metal aircraft
manufacturer

’

s placard.

Missing, or placards with poor readability must be replaced.

2. MAINTENANCE PRACTICES

A. Replacing damaged placards

Type of maintenance:

Line

Personnel qualification:

Independent certifying staff qualified in accordance

with Part-66 or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Hot air gun

1 pc

Putty knife (plastic or wooden)

1 pc

Clean cloth

Technical benzine

Persons

Tab. 11-1 Recommended tools, materials, persons and documentation

CAUTION

USE THE HOT AIR GUN CAREFULLY AND SET TO LOW
TEMPERATURE.

NOT

ALLOW

THE

STRUCTURE

TEMPERATURE TO EXCEED 55

C WHEN USING HOT AIR GUN.

OVERHEATING MAY RESULT IN LOSS OF STRUCTURAL
INTEGRITY.

(1) Removing old placard:

(a)  Heat the placard with a hot air gun if necessary.
(b)  Lift one corner of the placard.
(c)  Tear off the placard.

(2) Installation new placard:

(a) Clean the surface to remove residual adhesive and dirt

from the surface.

(b) Remove the protective backing from the new placard.
(c) Put the new placard in the correct position and ensure that the placard

is firmly adhered.

EXTERIOR PLACARDS AND MARKINGS

PLACARDS

AND MARKINGS

11-20

EXTERIOR PLACARDS AND MARKINGS

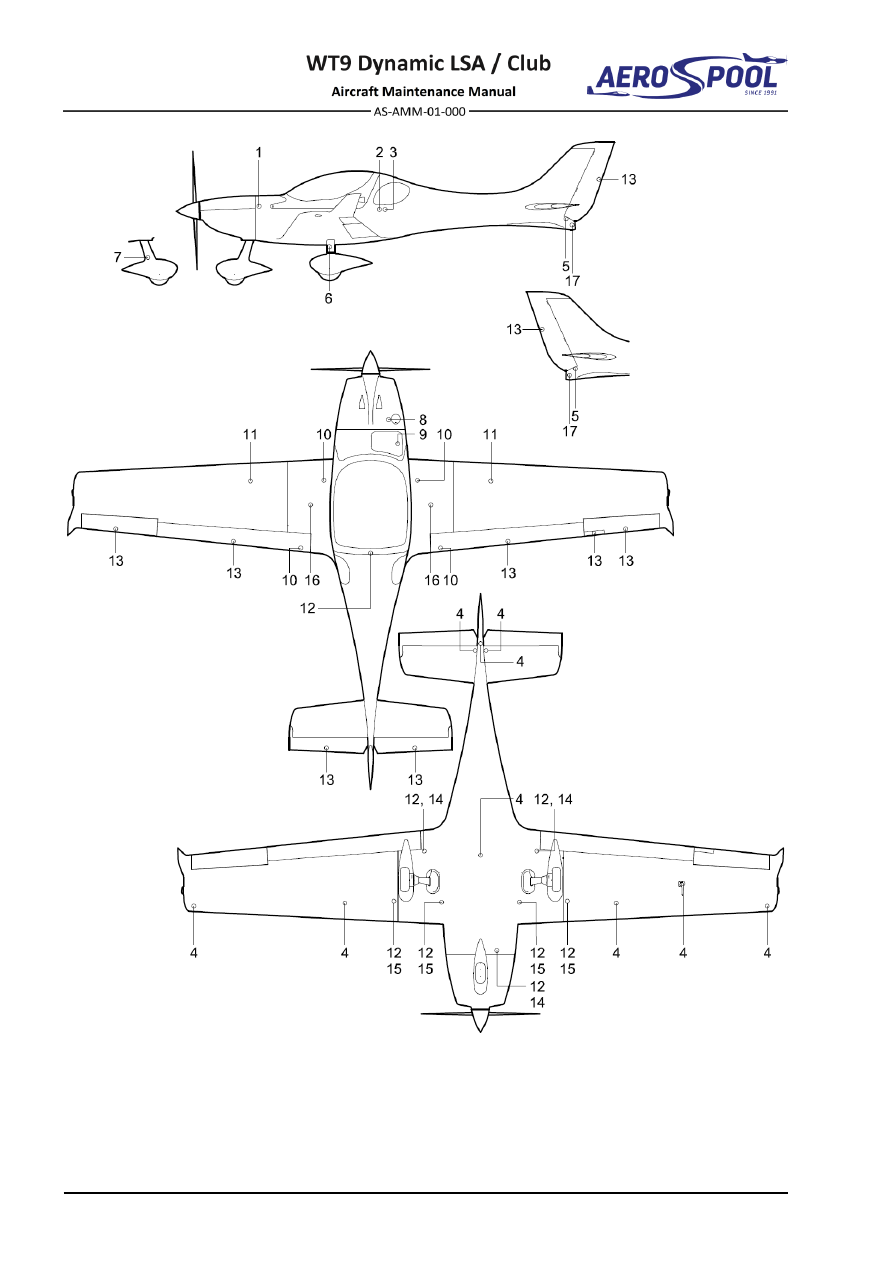

Exterior placards and markings are listed in the Tab. 11-3.

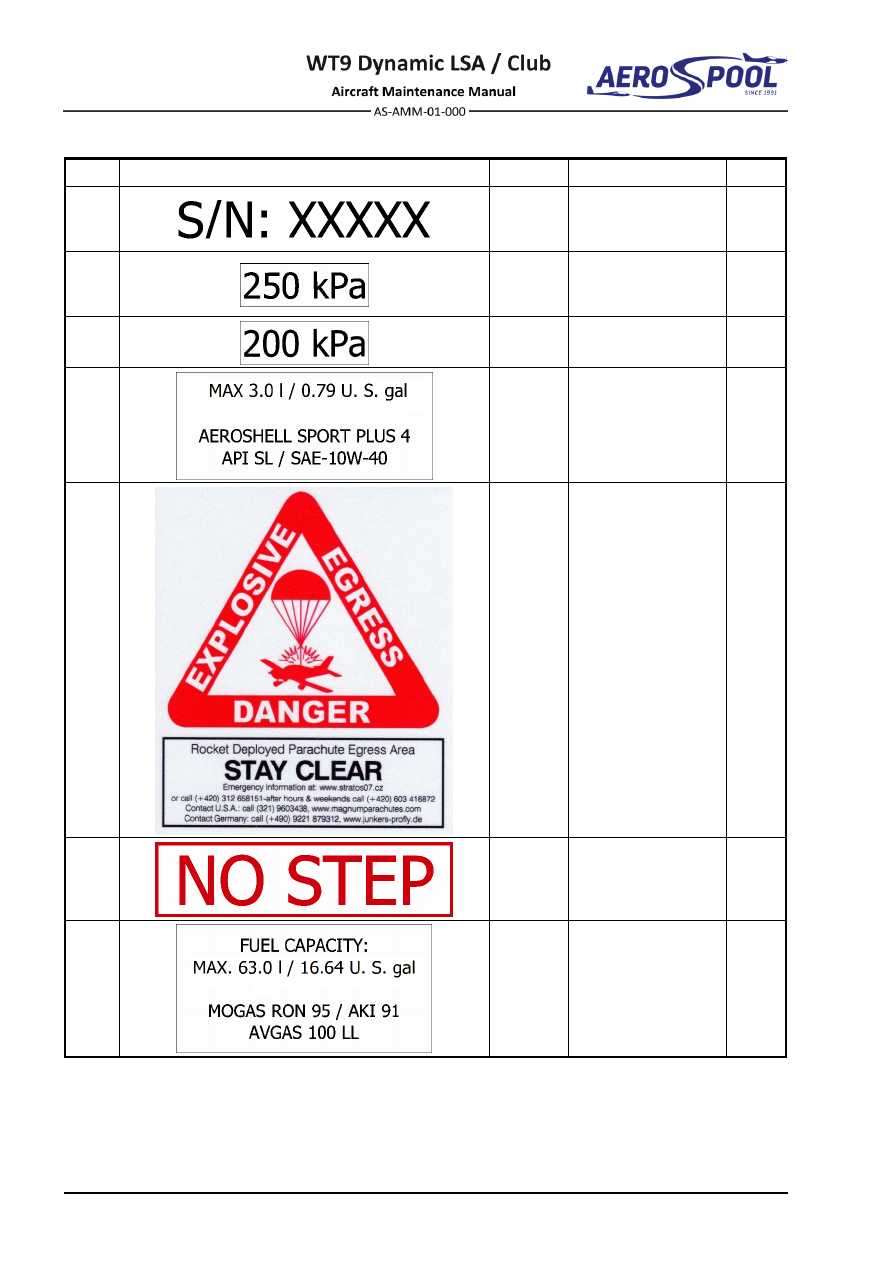

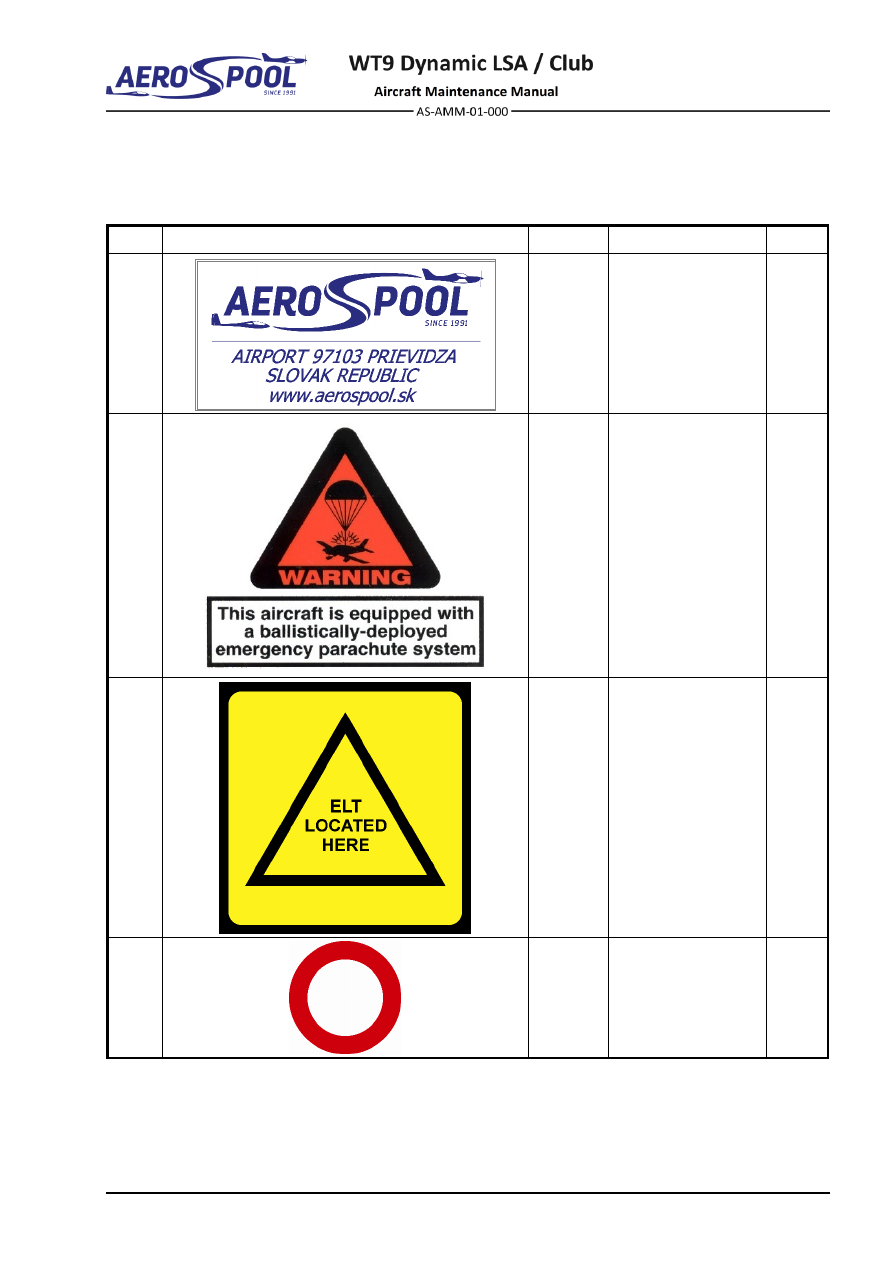

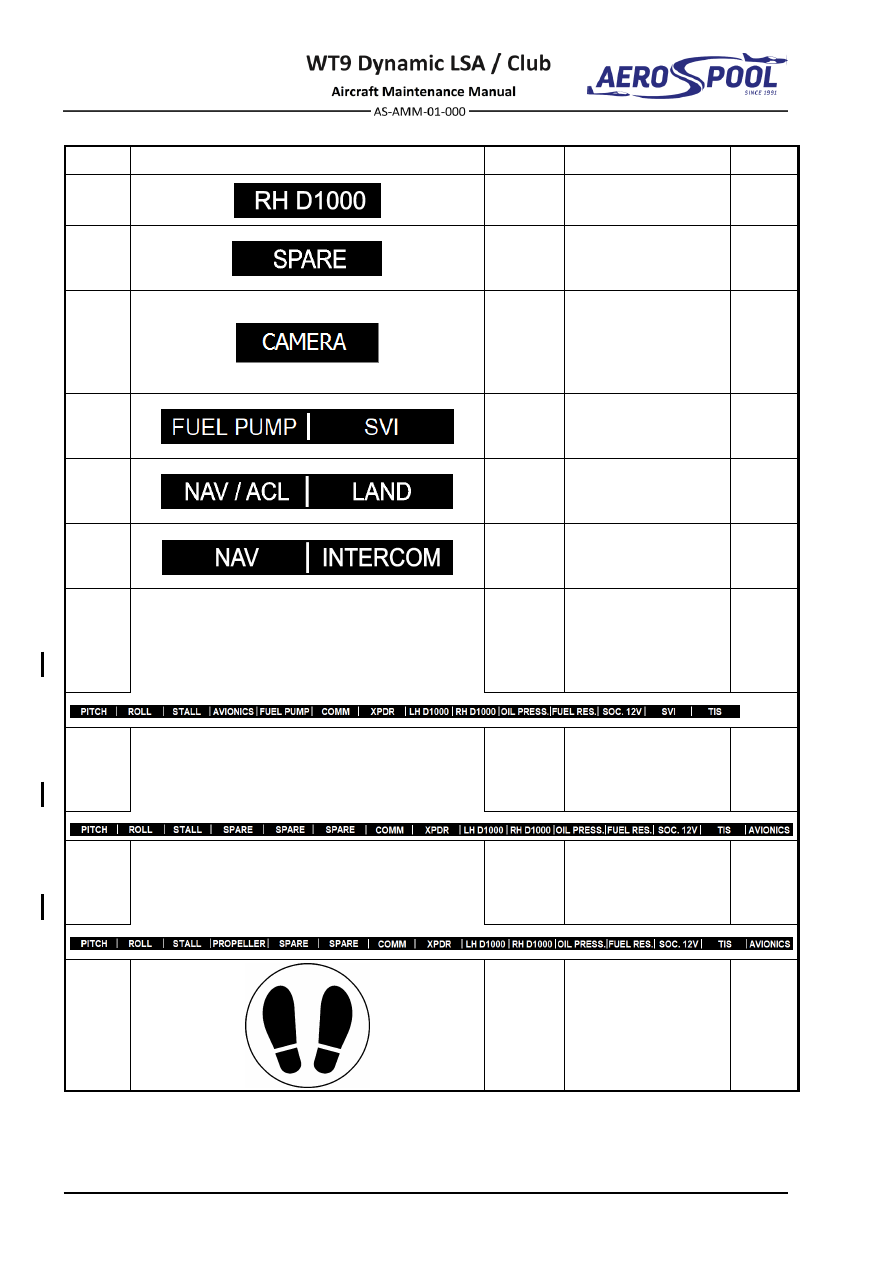

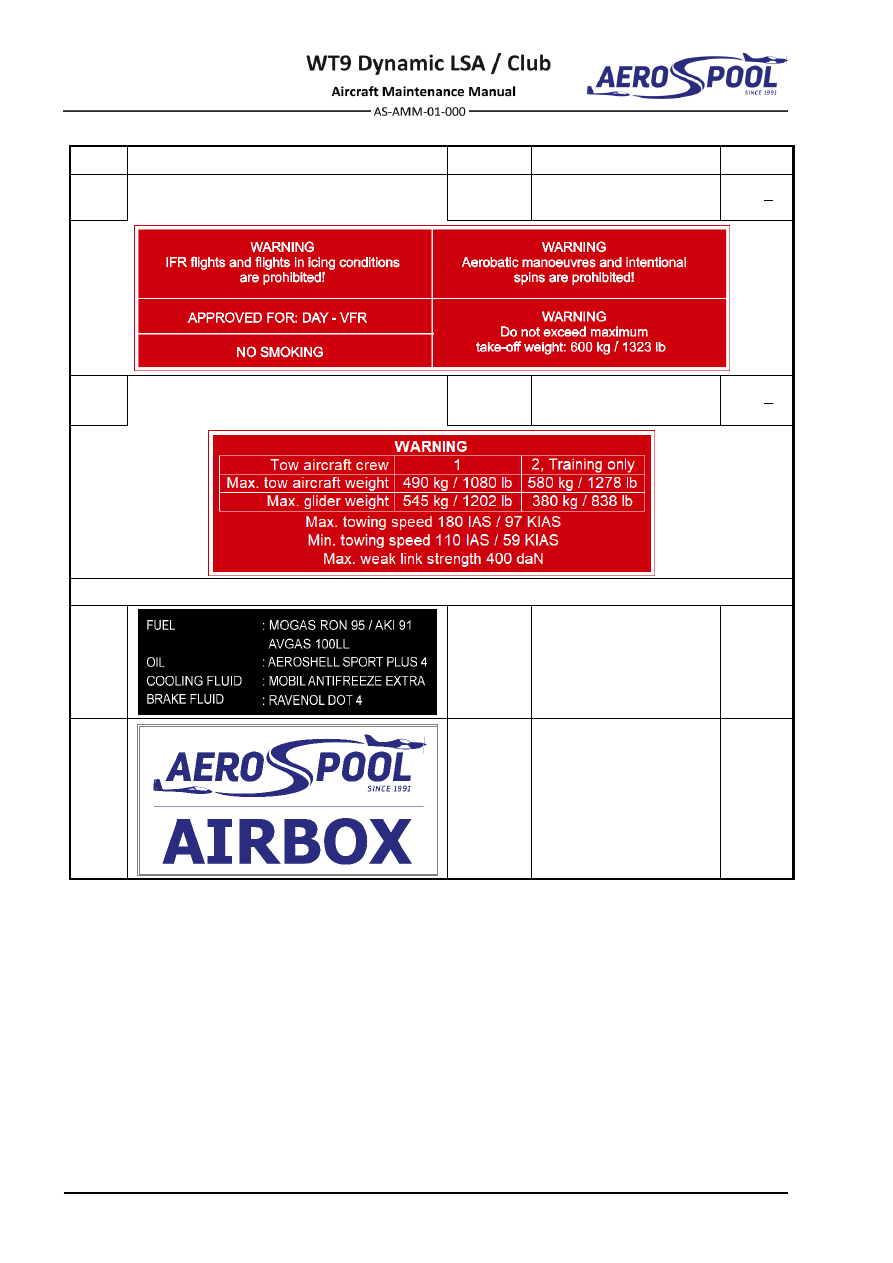

ITEM.

PLACARD

COLOUR LOCATION

FIG.

White /

blue

Fuselage LH / RH
front part

11-1

Black /

orange

Fuselage LH / RH
center part

11-1

Yellow /

black

Fuselage LH / RH
center part

11-1

Red

Fuselage / wing
bottom part,
horizontal stabilizer
bottom part,
pitot-static probe

11-1

Tab. 11-3 List of Exterior Placards (page 1 of 3)

Effectivity:

ALL

28. 04. 2021

PLACARDS
AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

Acc. to

color

design

Fuselage LH / RH
rear part below
rudder

11-1

White /

black

Outer part of the
main landing gear
legs

11-1

White /

black

Right part of the
nose wheel cover

11-1

White /

black

Upper engine
cowling near oil
inspection door

11-1

Red /

black

Emergency
parachute system
cover

11-1

10.

White /

red

Wing center
section, wing flaps

11-1

11.

White /

black

Near fuel tank caps

11-1

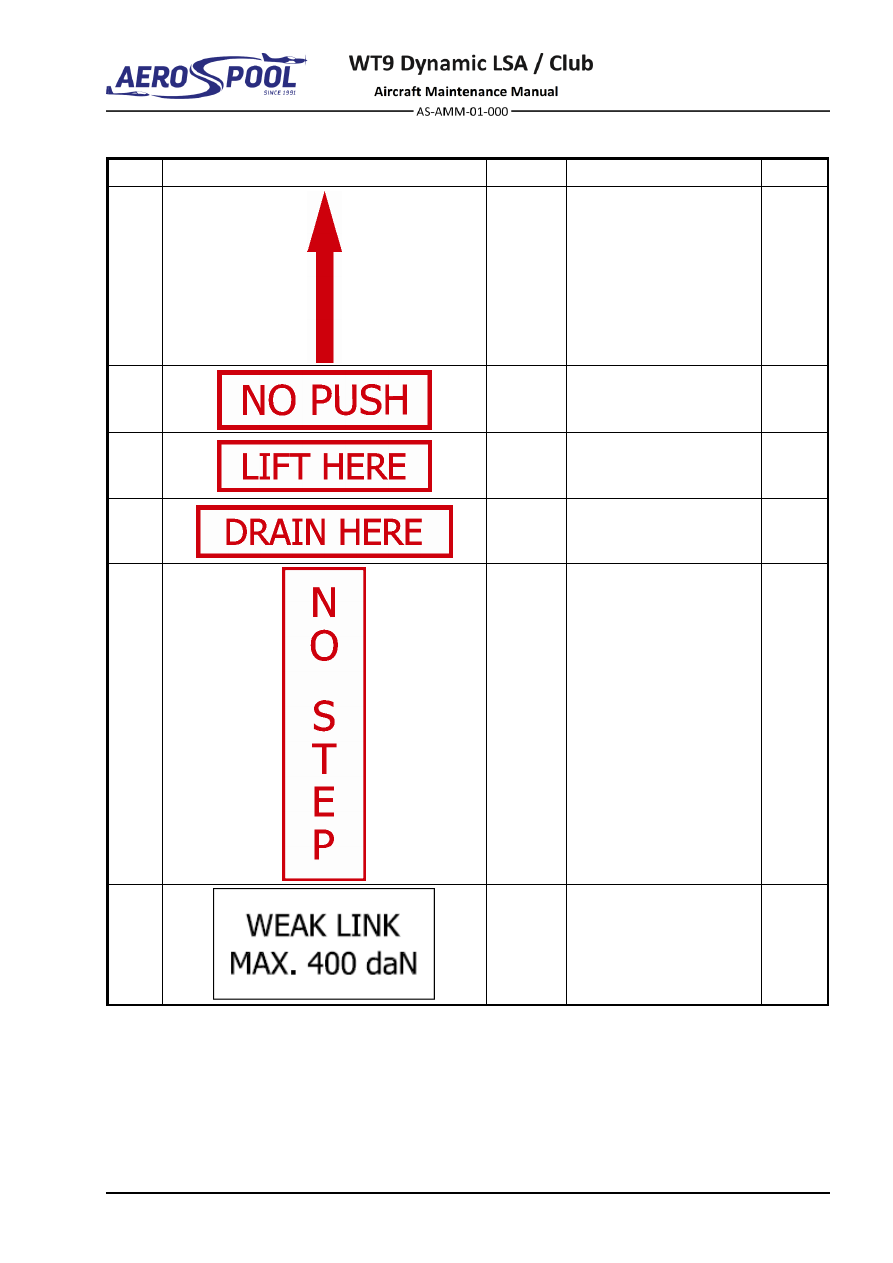

Tab. 11-3 List of Exterior Placards (page 2 of 3)

EXTERIOR PLACARDS AND MARKINGS

PLACARDS

AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

12.

Red

Near jack points and
drain valves on the
fuselage / wing center
section bottom part;
symmetrically next to
canopy opening lever

11-1

13.

White /

red

Trailing edge of the
control surfaces and trim
tab

11-1

14.

White /

red

Near jack points on the
fuselage / wing center
section bottom part

11-1

15.

White /

red

Near drain valves on the
fuselage / wing bottom
part

11-1

16.

White /

red

Wing center section

11-1

17.

White /

black

Fuselage LH / RH rear
part below rudder
(towing version only)

11-1

Tab. 11-3 List of Exterior Placards (page 3 of 3)

INTERIOR PLACARDS AND MARKINGS

PLACARDS

AND MARKINGS

11-30

INTERIOR PLACARDS AND MARKINGS

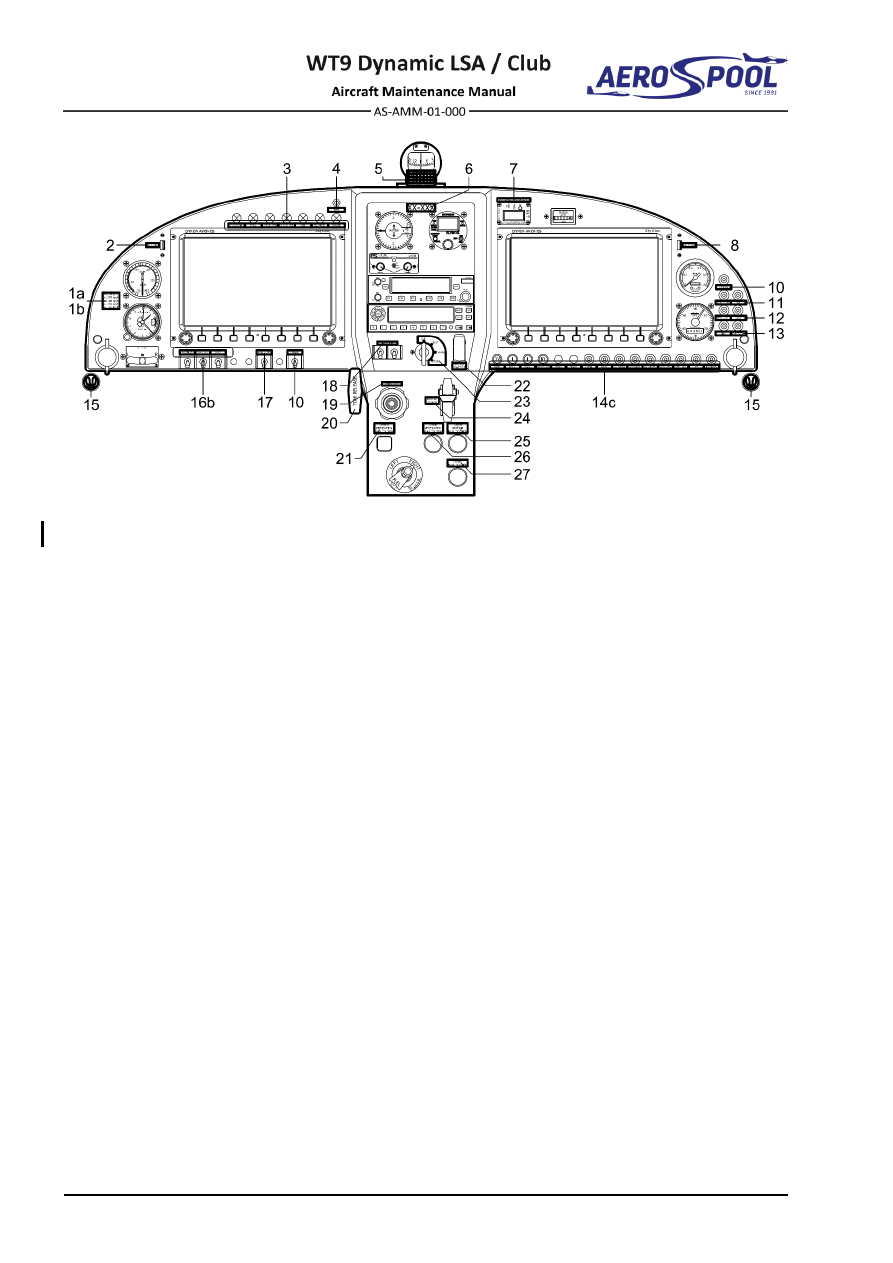

Interior placards and markings are listed in the Tab. 11-4.

ITEM.

PLACARD

COLOUR LOCATION

FIG.

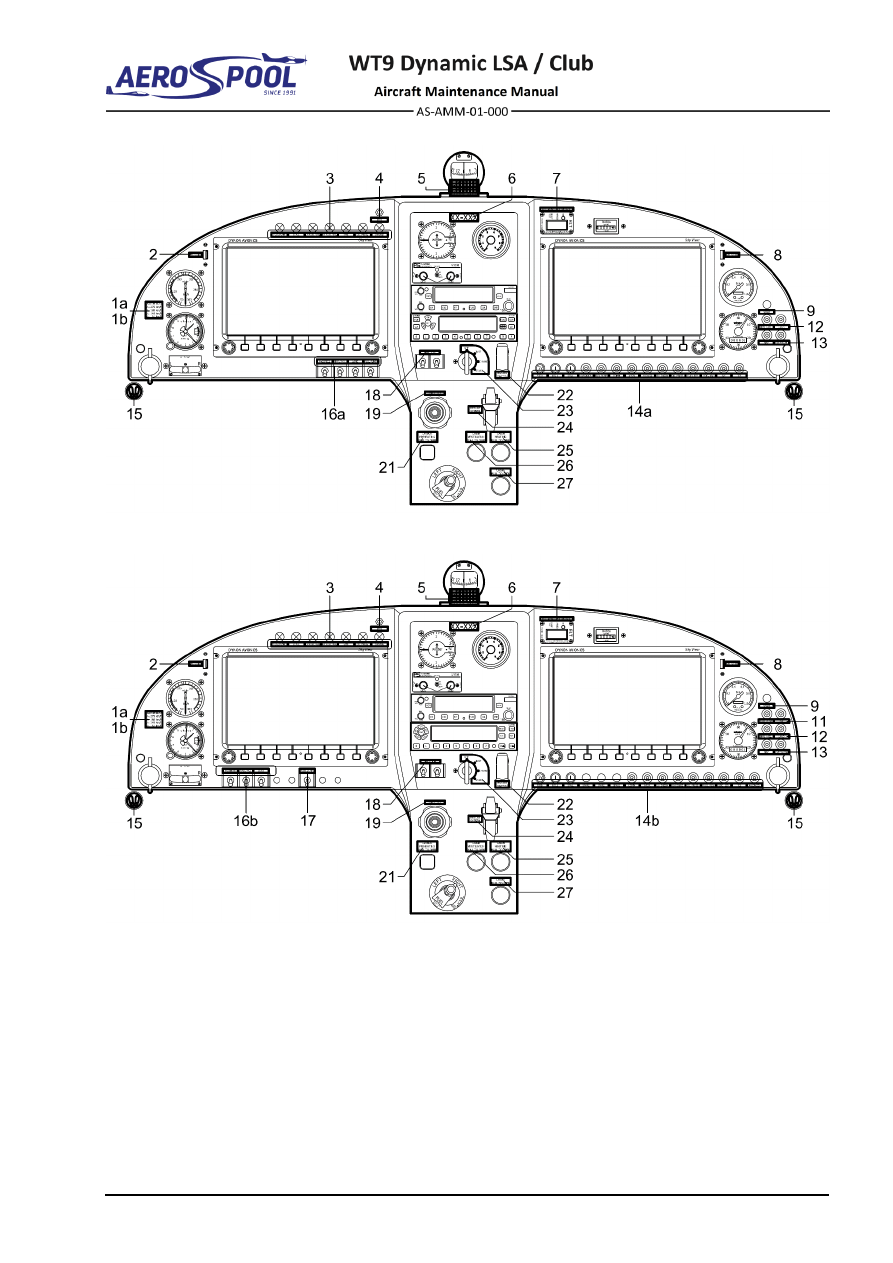

INSTRUMENT PANEL

1a.

Black /

white

Instrument panel LH
- near airspeed
indicator

11-2
11-3

1b.

Black /

white

LH Dynon SkyView
USB port

11-2
11-3

Black /

white

Instrument panel LH

–

below signalizing

lights

11-2
11-3

Black /

white

Instrument panel LH

–

below test button

11-2
11-3

White /

black

Magnetic compass

11-2
11-3

Black /

white

Instrument panel
center part

11-2
11-3

Black /

white

Instrument panel RH
- above ELT remote
control

11-2
11-3

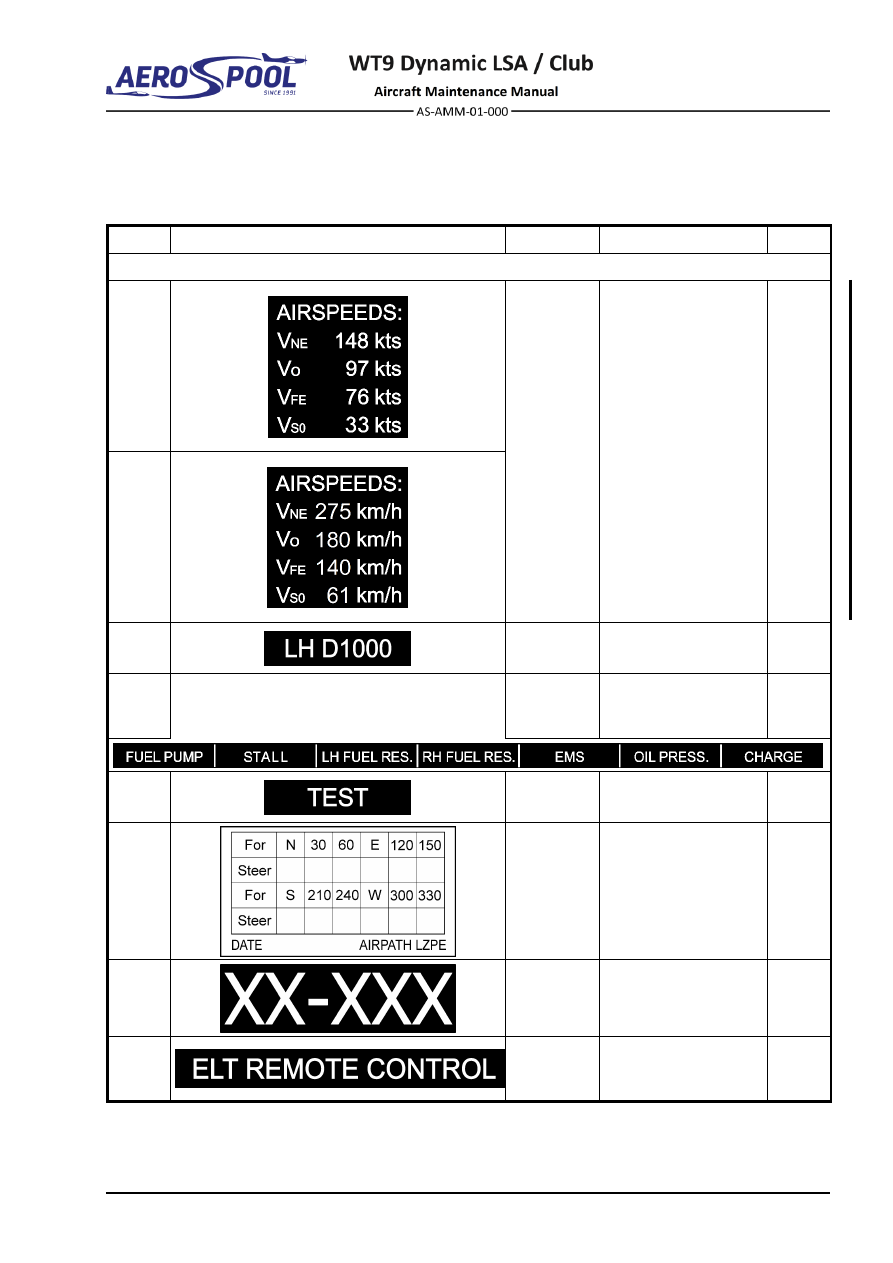

Tab. 11-4 List of Interior Placards (page 1 of 6)

Effectivity:

ALL

28. 04. 2021

PLACARDS
AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

Black /

white

RH Dynon SkyView
USB port

11-2
11-3

Black /

white

Instrument panel RH
- bellow the circuit
breakers

11-2

10.

Black /

white

Instrument panel RH
- bellow the circuit
breaker and
instrument panel LH
- above the switch

11-3

11.

Black /

white

Instrument panel RH
- bellow the circuit
breakers

11-3

12.

Black /

white

Instrument panel RH
- bellow the circuit
breakers

11-2
11-3

13.

Black /

white

Instrument panel RH
- bellow the circuit
breakers

11-2
11-3

14a.

Black /

white

Instrument panel
RH, bellow the circuit
breakers
(up to S/N 20005
inclusive)

11-2

14b.

Black /

white

Instrument panel
RH, bellow the circuit
breakers
(from S/N 21001)

11-2

14c.

Black /

white

Instrument panel
RH, bellow the circuit
breakers
(towing version only)

11-3

15.

Black /

white

LH / RH rudder
control pedal
adjustment handle

11-2
11-3

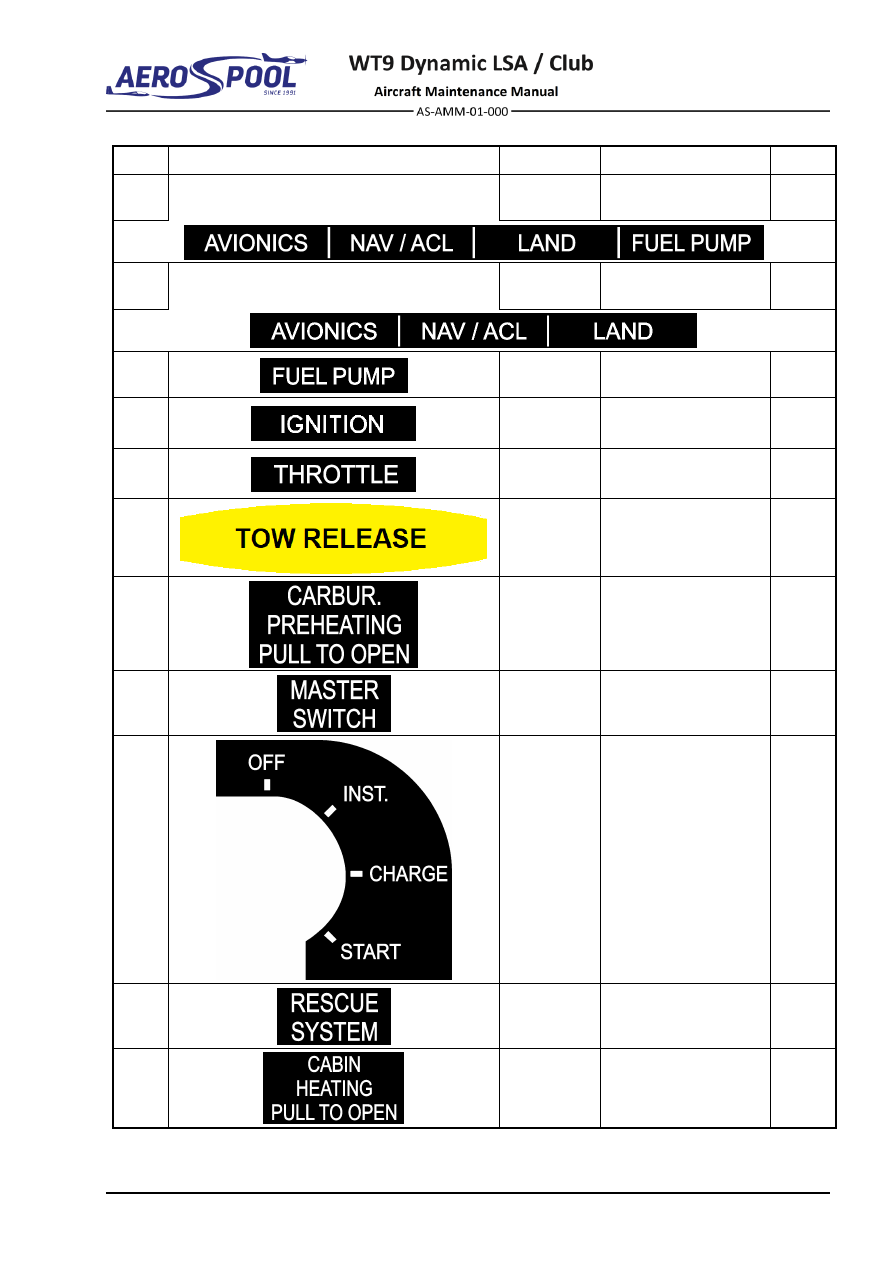

Tab. 11-4 List of Interior Placards (page 2 of 6)

INTERIOR PLACARDS AND MARKINGS

PLACARDS

AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

16a.

Black /

white

Instrument panel LH -
above the switches

11-2

16b.

Black /

white

Instrument panel LH -
above the switches

11-3

17.

Black /

white

Instrument panel LH -
above the switch

11-3

18.

Black /

white

Instrument panel
center part

11-2
11-3

19.

Black /

white

Central console

11-2
11-3

20.

Yellow

Tow release handle,
left side of central
tunnel near throttle

11-3

21.

Black /

white

Central console

11-2
11-3

22.

Black /

white

Instrument panel
center part

11-2
11-3

23.

Black /

white

Instrument panel
center part

11-2
11-3

24.

Black /

white

Central console

11-2
11-3

25.

Black /

white

Central console

11-2
11-3

Tab. 11-4 List of Interior Placards (page 3 of 6)

Effectivity:

ALL

28. 04. 2021

PLACARDS
AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

26.

Black /

white

Central console

11-2
11-3

27.

Black /

white

Central console

11-2
11-3

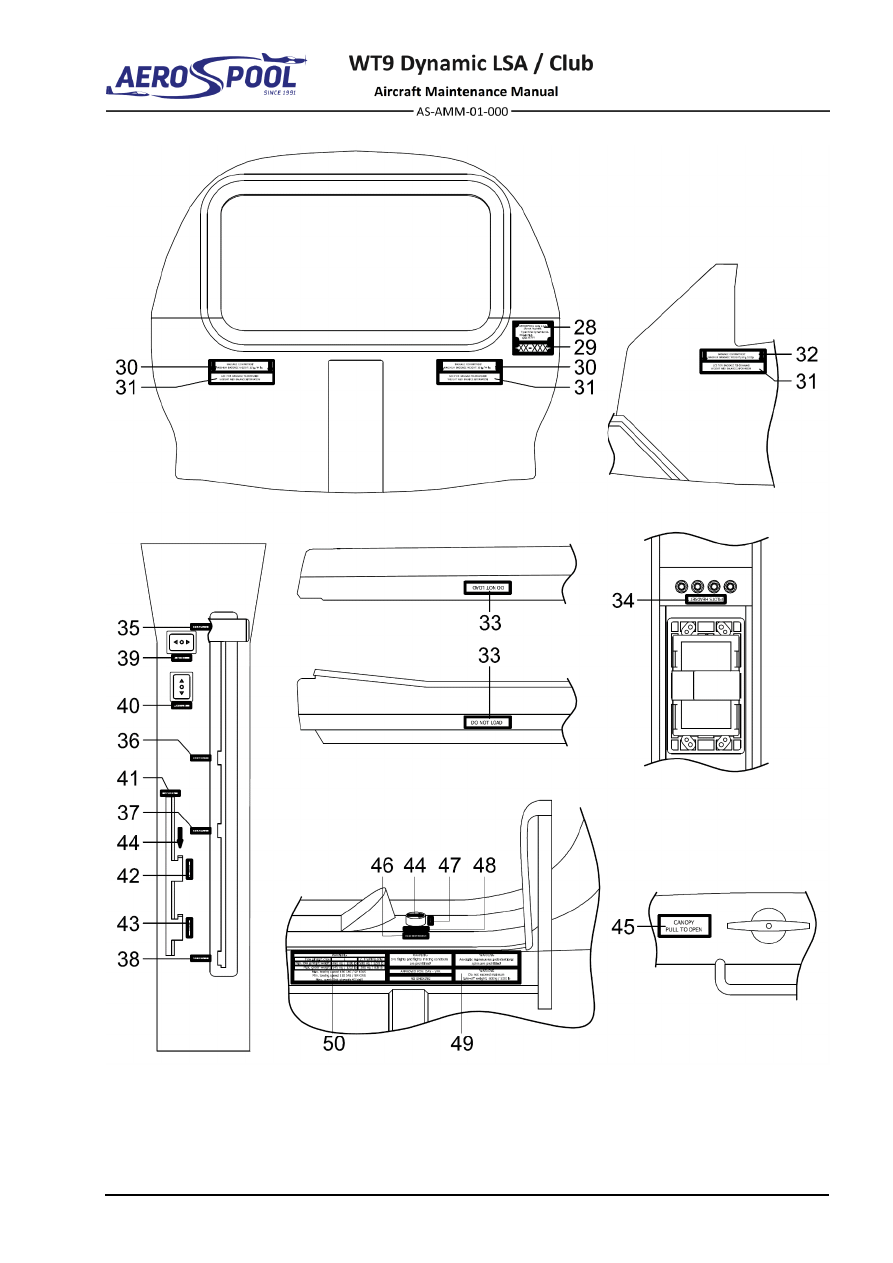

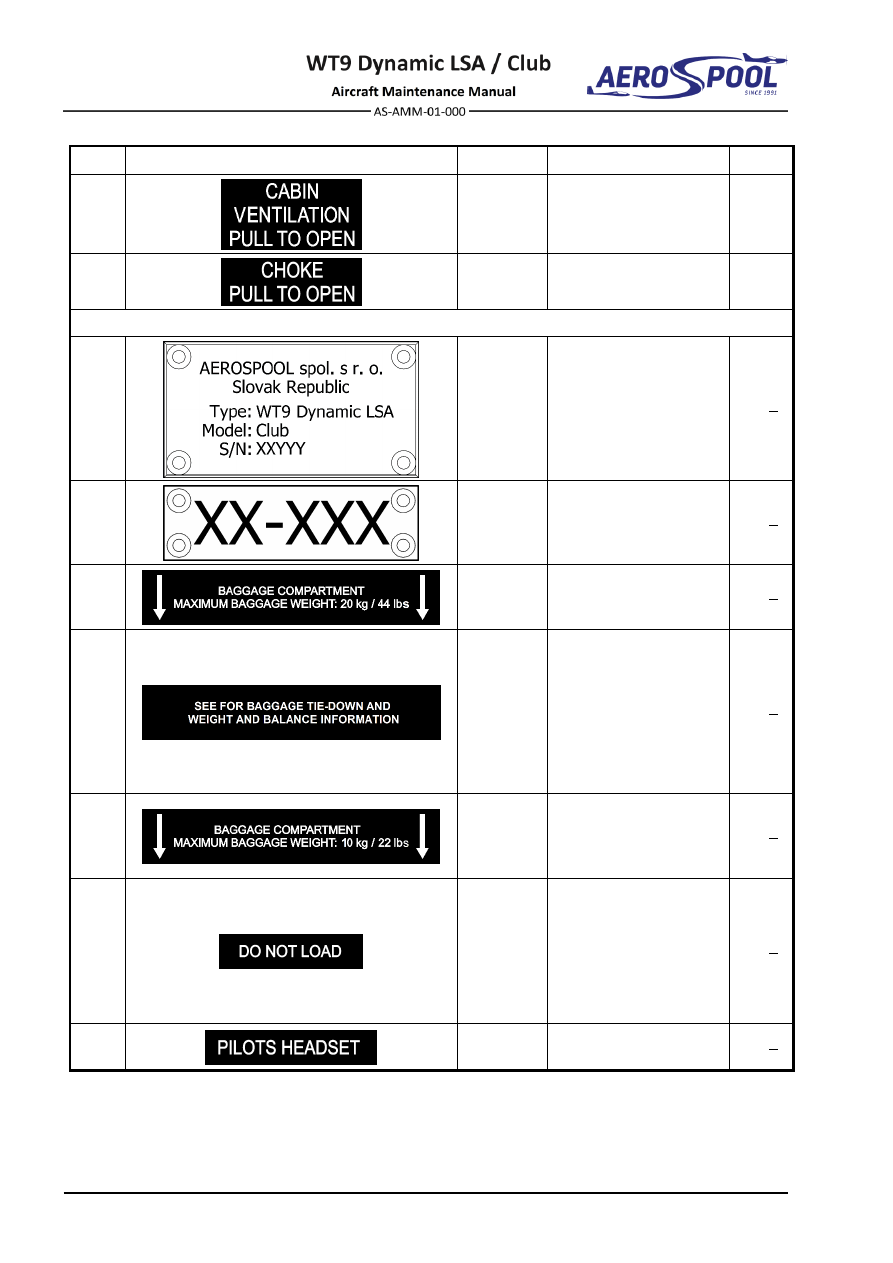

REAR AND FRONT BAGGAGE COMPARTMENTS:

28.

Metal

LH side of the baggage
compartment bulkhead

11-4

29.

Metal

LH side of the baggage
compartment bulkhead

11-4

30.

Black /

white

LH / RH side of the
rear baggage
compartment bulkhead

11-4

31.

Black /

white

LH / RH side of the
rear baggage
compartment

–

baggage bulkhead
LH / RH side of the
front baggage
compartment

–

central

tunnel

11-4

32.

Black /

white

LH / RH side of the
front baggage
compartment

–

central

tunnel

11-4

33.

Black /

white

LH / RH side of:
rear baggage
compartment

–

flap

torsion tube’s cover

front baggage
compartment

–

fuel

filter’s cover

11-4

34.

Black /

white

Central tunnel near
headset connectors

11-4

Tab. 11-4 List of Interior Placards (page 4 of 6)

INTERIOR PLACARDS AND MARKINGS

PLACARDS

AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

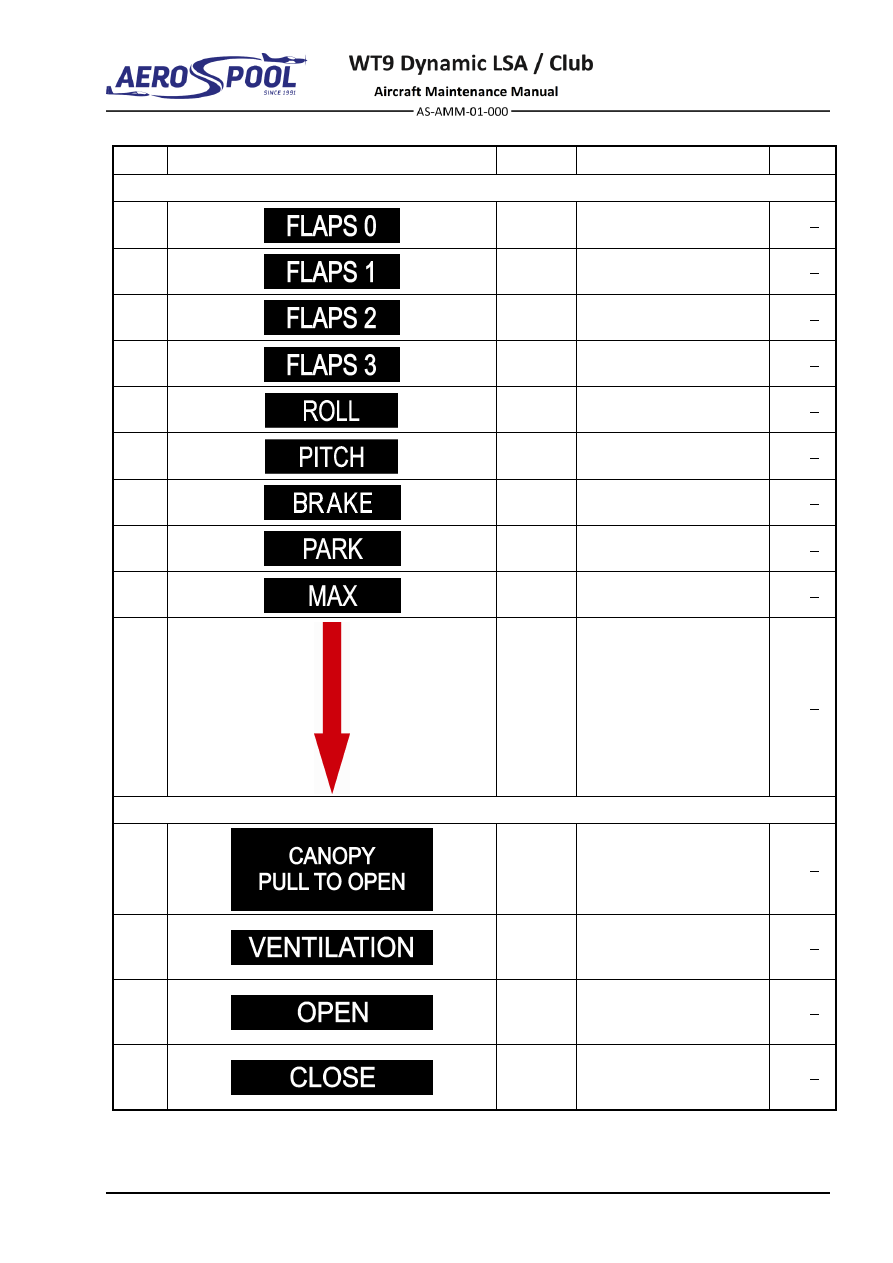

PEDESTAL PANEL

35.

Black /

white

Flap control slotted link

11-4

36.

Black /

white

Flap control slotted link

11-4

37.

Black /

white

Flap control slotted link

11-4

38.

Black /

white

Flap control slotted link

11-4

39.

Black /

white

Roll trim switch

11-4

40.

Black /

white

Pitch trim switch

11-4

41.

Black /

white

Brake control slotted link

11-4

42.

Black /

white

Brake control slotted link

11-4

43.

Black /

white

Brake control slotted link

11-4

44.

Red

Brake control slotted
link; Ventilation control
knob

11-4

CANOPY FRAME / FUSELAGE

45.

Black /

white

Right side of the canopy
frame, near the canopy
opening lever

11-4

46.

Black /

white

LH / RH side of canopy
frame, near the
ventilation control knob

11-4

47.

Black /

white

LH / RH side of canopy
frame, near the
ventilation control knob

11-4

48.

Black /

white

LH / RH side of canopy
frame, near the
ventilation control knob

11-4

Tab. 11-4 List of Interior Placards (page 5 of 6)

Effectivity:

ALL

28. 04. 2021

PLACARDS
AND MARKINGS

ITEM.

PLACARD

COLOUR LOCATION

FIG.

49.

Red /

white

Left side of the cockpit

11-4

50.

Red /

white

Left side of the cockpit
(towing version only)

11-4

ENGINE COMPARTMENT

51.

Black /

white

Firewall in the engine
compartment, near the
overflow bottle

11-5

52.

White /

blue

Airbox

11-5

Tab. 11-4 List of Interior Placards (page 6 of 6)
