WT9 Dynamic LSA. AIRCRAFT MAINTENANCE MANUAL (AS-AMM-01-000, 22. 05. 2017) - page 7

GENERAL

TOWING

AND TAXIING

09-00 GENERAL

1. INTRODUCTION

You can move the aircraft on the ground with:

•

pushing / pulling

•

the tow bar

•

taxiing

When towing or handling the aircraft close to obstacles (buildings, other aircraft)
a wing walker should follow the aircraft and inform about a danger of the aircraft
collision with the obstacles.

TOWING

AND TAXIING

09-10 TOWING

1. DESCRIPTION

The aircraft can be moved for a short distance by means of towing by holding
the blade roots. Handle the propeller by holding the blade root

– never blade tip.

There is also possibility of using tow bar that attaches to the nose landing gear.

CAUTION

AVOID EXCESSIVE  PRESSURE  AT THE AIRCRAFT CONTROL SURFACES
AND  THE  WING  TIPS.  THE  PERPENDICULAR  PRESSURE  ON  THE
SURFACE OF THE AIRFRAME SANDWICH SHELL THIN SKIN LAYERS CAN
PRODUCE  A  CREATION  OF  PRINTS.  THESE  PRINTS  CAN  WEAKEN  A
SANDWICH  SHELL.  DURING  THE  AIRCRAFT  TOWING  HOLD  THE
PROPELLER BLADE ROOT, NEVER THE BLADE TIP!

WHEN TOWING THE AIRCRAFT AS WELL AS DURING MANUAL HANDLING
PAY INCREASED ATTENTION NOT TO DAMAGE WINGS, TAIL SURFACES
OR OTHER PARTS OF THE AIRCRAFT.

WARNING

MAKE  SURE  THAT  THE  PINS  OF  THE  TOW  BAR  ARE  CORRECTLY
ENGAGED  IN  THE  NOSE  LEG.  IF  THE  PINS  ARE  NOT  CORRECTLY
ENGAGED,  THE  TOW  BAR  CAN  DETACH.  THE  AIRCRAFT  CAN  CAUSE
INJURY TO PERSONS.

CAUTION

WHEN TOWING THE AIRCRAFT AS WELL AS DURING MANUAL HANDLING
PAY INCREASED ATTENTION NOT TO DAMAGE WINGS, TAIL SURFACES
OR OTHER PARTS OF THE AIRCRAFT.

MAKE SURE THAT THE AIRCRAFT IS ON LEVEL GROUND. IF YOU TRY TO
MOVE THE AIRCRAFT ON GROUND THAT IS NOT LEVEL, YOU CAN LOSE
CONTROL OF THE AIRCRAFT.

THE NOSE WHEEL STEERING IS COUPLED WITH THE RUDDER CONTROL.
WHEN TOW BAR IS ATTACHED, THE NOSE WHEEL MAY NOT BE ROTATED
THROUGH FULL MOVEMENT RANGE TO PREVENT DAMAGE OF NOSE
GEAR.

Effectivity:

ALL

22. 05. 2017

TOWING
AND TAXIING

2. MAINTENANCE PRACTICES

Aircraft towing

Type of maintenance:

Line

Personnel qualification:

Pilot/Owner qualified in accordance with M.A.803
or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Tow bar

1 pc

Wheel chocks

1 pc

Persons

Tab. 09-1 Recommended tools, materials, persons and documentation

(1) Aircraft towing:

(a) Attach the tow bar to the nose wheel leg (1, Fig. 09-1).

(b) Remove the wheel chocks.

(d) Move the aircraft to its new position.

(e) Put wheel chocks in front and behind the main wheels.

(f)

Remove the tow bar (1).

(g) Set the brake lever to

PARK

position.

TOWING

AND TAXIING

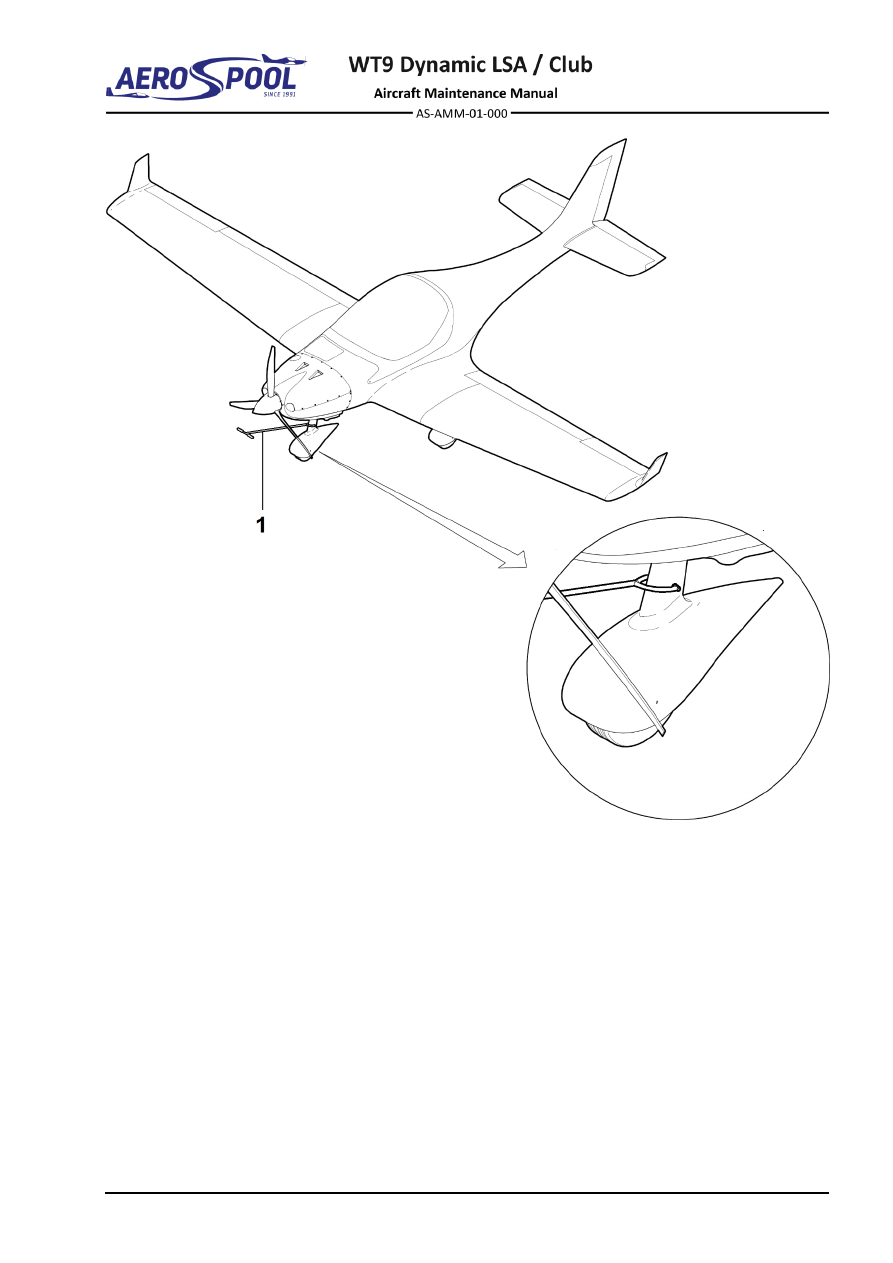

Fig. 09-1 Tow Bar

TAXIING

TOWING

AND TAXIING

09-20 TAXIING

1. DESCRIPTION

Taxiing is a way of aircraft moving, using the aircraft power plant thrust. For taxiing
procedures refer to Pilot´s Operating Handbook (Chapter 4).

WARNING

DO NOT TAXI THE AIRCRAFT UNLESS YOU HAVE BEEN TRAINED
TO TAXI AND YOU HAVE BEEN AUTHORIZED.

MAKE SURE THAT THERE ARE NO PERSONS OR OBJECTS NEAR
THE AIRCRAFT. THE AIRCRAFT CAN INJURE PERSONS AND
OBJECTS CAN DAMAGE THE AIRCRAFT.

CAUTION

ADAPT THE TAXIING SPEED TO THE TERRAIN CONDITIONS,
OBSTACLES AND TRAFFIC AT THE AIRPORT AND TO WIND SPEED
AND DIRECTION.

2. MAINTENANCE PRACTICES

Aircraft taxiing

Type of maintenance:

Line

Personnel qualification:

Pilot/Owner qualified in accordance with M.A.803
or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Persons

Tab. 09-1 Recommended tools, materials, persons and documentation

(1) Aircraft taxiing:

(a) Perform according to

Pilot´s Operating Handbook (Chapter 4).

CONTENTS

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

10 PARKING, MOORING,

STORAGE AND RETURN

TO SERVICE

CONTENTS

GENERAL ......................................................................... 3

INTRODUCTION ....................................................................... 3

10-10

PARKING / STORAGE ..................................................... 5

DESCRIPTION .......................................................................... 5

MAINTENANCE PRACTICES ................................................... 5

Parking .............................................................................. 5

Temporary storage (30 to 90 days) ................................... 7

Long term storage (over 91 days) ..................................... 9

10-20

MOORING ....................................................................... 11

GENERAL ................................................................................ 11

MAINTENANCE PRACTICES ................................................. 11

Mooring ........................................................................... 11

10-30

RETURN TO SERVICE ................................................... 13

GENERAL ................................................................................ 13

MAINTENANCE PRACTICES ................................................. 13

Return to service after temp. storage (30 to 90 days) ..... 13

Return to service after long term storage (over 91 days) 14

GENERAL

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

10-00

GENERAL

1. INTRODUCTION

This chapter determines instructions needed for parking and mooring of the aircraft
at all expected weather conditions. A procedure for anchoring the aircraft must always
be realized if strong wind or long term parking of aircraft is expected. This chapter also
contains instructions that should be executed during storage of the aircraft.

PARKING / STORAGE

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

10-10

PARKING / STORAGE

1. DESCRIPTION

Parking  procedure  depends  on  parking  time  (or  on  expected  weather  conditions).
If adverse weather conditions are expected (very strong wind, downpours, sand storm
etc.), the aircraft should be parked inside a hangar. When parking inside the hangar,
carry out the same operations as during a short-time parking.
When  parking  on  a  surface  without  sufficient  loading  capacity,  e.g.  asphalt  surface
at high temperatures or wet soft surface, there is a danger that wheels will sink into
the surface. Park the aircraft on a hard surface of the apron where mooring equipment
is built in. Do not park on a surface with insufficient loading capacity.
Storage  procedure  is  intended  to  protect  the  aircraft,  if  removal  from  service  is
assumed.  The  main  aim  is  to  prevent  from  corrosion  and  damage  of  aircraft  parts
exposed to weather.
Depending  on  the  time  after  which  the  aircraft  will  remain  inactive,  the  storage  is
divided on:

•

temporary storage (30 to 90 days)

•

long term storage (over 91 days).

If possible, park the aircraft in a hangar.

2. MAINTENANCE PRACTICES

A. Parking

Type of maintenance:

Line

Personnel qualification:

Pilot/Owner qualified in accordance with M.A.803
or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Pitot-static tubes canvas cover

1 pc

Cabin canvas cover

1 pc

VOR antenna cover

2 pcs

Persons

Tab. 07-1 Recommended tools, materials, persons and documentation

(1) Parking procedure:

(a) Position the aircraft on levelled surface, headed towards wind

(if possible).

(b) Check wing flaps if retracted.
(c) Set the parking brake to

PARK

position.

(d) Close vent windows, close and lock the canopy.
(e) Install canopy cover (1, Fig. 10-1).
(f)

lnstall pitot-static probe canvas cover (2).

(g) Install VOR antenna cover (3).

Effectivity:

ALL

28. 04. 2021

PARKING, MOORING,
STORAGE AND
RETURN TO SERVICE

NOTE

In the case of parking under bad weather conditions, moor the aircraft
to avoid of its damage (Chapter 10-20).

NOTE

Under snow or arctic conditions, or when icing or snowing is expected,
cover the aircraft with suitable covers.

–

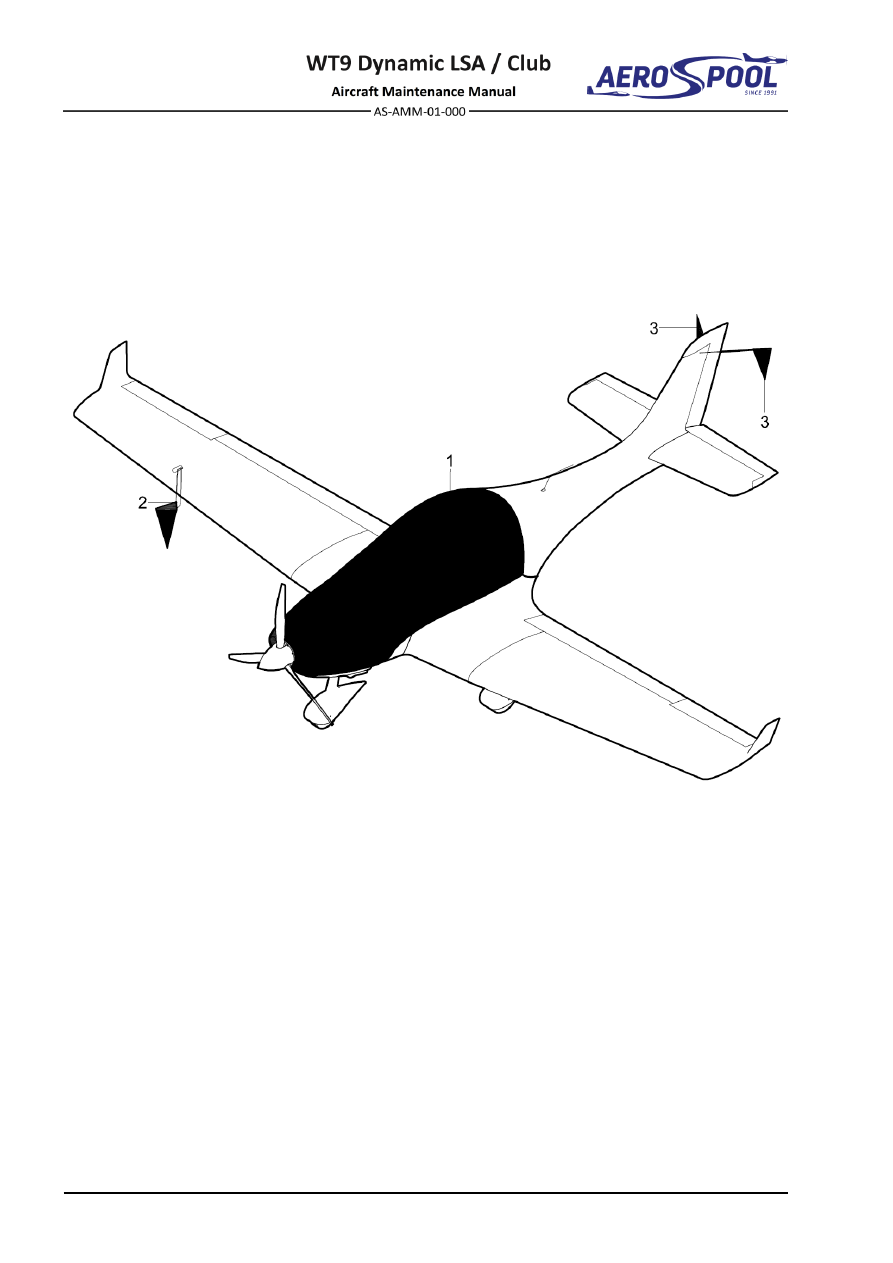

Canopy cover

–

VOR antenna cover

–

Pitot-static probe canvas cover

–

Propeller blade covers

Fig. 10-1 Aircraft Parking

PARKING / STORAGE

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

B. Temporary storage (30 to 90 days)

Type of maintenance:

Line

Personnel qualification:

Independent certifying staff qualified in accordance
with Part-66 or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Persons

Tab. 07-2 Recommended tools, materials, persons and documentation

(1) Parking and mooring:

(a) Park and moor the aircraft (see 2.A. and Chapter 10-20).

(2) Aircraft exterior:

(a) Clean the aircraft (Chapter 12-20).
(b) Lubricate

the

aircraft

according

lubrication

schedule

(Chapter 12-20).

(c)  Clean the canopy (Chapter 12-20).
(d)  Install canopy cover (1, Fig. 10-1).
(e)  Install pitot-static probe canvas cover (2).
(f)

Install VOR antenna cover (3)

(g) Install propeller blade covers (4)

(3) Aircraft interior:

(a) Clean and cover the instruments and panel.
(b) Clean the pilot compartment.

(4) Electrical system:

(a) Remove the battery (Chapter 24-30) and store it in a suitable place

outside of the aircraft.

(5) Fuel system:

(a) Fill the fuel tanks completely (Chapter 12-10).
(b) Every month carry out a test for water contamination of the fuel tanks

(Chapter 12-10).

(6) Landing gear:

(a) Inflate tires to the correct pressure (Chapter 12-10).
(b) Rotate wheels regularly - three to four revolutions every 30 days.

Effectivity:

ALL

28. 04. 2021

PARKING, MOORING,
STORAGE AND
RETURN TO SERVICE

(7) Powerplant:

(a) Carry out the procedure for engine preservation according

to the Operators Manual for Rotax Engine Type 912 Series
(Ref. No.OM-912), latest edition.

(b) Propeller EVRA PerformanceLine 175/xxx/805.5:

To prevent oxidation, lightly coat the metal shields of propeller leading
edges with liquid paraffin. This is recommended before parking
in highly humid and rainy, especially in marine environment.
Propeller WOODCOMP KW-31:
For storage instruction refer to (UM-

05 EN, ISSUE 21.01.2014)”,

or latest issue.

PARKING / STORAGE

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

C. Long term storage (over 91 days)

Type of maintenance:

Line

Personnel qualification:

Independent certifying staff qualified in accordance
with Part-66 or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Protective foil

Lithium grease NLGI 3 MOL Liton LTA 3EP

Persons

Tab. 07-3 Recommended tools, materials, persons and documentation

(1) Parking and mooring:

(a) Park and moor the aircraft (see 2.A. and Chapter 10-20).

(2) Aircraft exterior:

(b) Clean the aircraft (Chapter 12-20).
(c) Lubricate

the

aircraft

according

lubrication

schedule

(Chapter 12-20).

(d) Clean the canopy (Chapter 12-20).
(e) Install canopy cover (1, Fig. 10-1).
(f)

lnstall pitot-static probe canvas cover (2).

(g) Install VOR antenna cover (3)
(h) Protect the exterior lights with foil.

(3) Aircraft interior:

(a) Clean and cover the instruments and panel.
(b) Clean the pilot compartment.

(4) Electrical system:

(a) Remove the battery (Chapter 24-30), ELT battery (Chapter 25-60)

and store it in a suitable place outside of the aircraft.

(5) Fuel system:

(a) Drain fuel tanks (Chapter 12-10).

(6) Landing gear

(a)  Inflate tires to the correct pressure (Chapter 12-10).
(b)  Clean and use Vaseline to preserve the brake system.
(c)  Rotate wheels regularly - three to four revolutions every 30 days.

Effectivity:

ALL

28. 04. 2021

PARKING, MOORING,
STORAGE AND
RETURN TO SERVICE

(7) Powerplant:

(a) Carry out the procedure for engine preservation according

to the Operators Manual for Rotax Engine Type 912 Series
(Ref. No. OM-912), latest edition.

(b) Propeller EVRA PerformanceLine 175/xxx/805.5:

05 EN, ISSUE 21.01.2014)”,

or latest issue.

MOORING

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

10-20

MOORING

1. GENERAL

The aircraft is moored when parked outside (on apron). A correct mooring is highly
important if strong wind is expected, or during long-time parking. When a strong wind
affects the aircraft (e.g. storm), the aircraft structure could be damaged. When strong
wind is expected, park the aircraft inside a hangar. If this is not possible, the aircraft
has to be moored.

2. MAINTENANCE PRACTICES

A. Mooring

The following tie-down points are provided on the aircraft:

•

On the wings

–

install tie-down screws into hole located in the left and right

lower wing surface (near inspection hole).

•

On the nose landing gear

Type of maintenance:

Line

Personnel qualification:

Pilot/Owner qualified in accordance with M.A.803
or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Wheel chocks

4 pcs

Nylon or polypropylene rope Ø10 mm

Anchor

6 pcs

Tie-down screw

2 pcs

Propeller blade covers

3 pcs

Adhesive tape

Persons

Tab. 07-4 Recommended tools, materials, persons and documentation

CAUTION

NEVER ATTACH MOORING ROPES DIRECTLY TO THE AIRCRAFT
STRUCTURE - USE ALWAYS THE SPECIFIED TIE-DOWN POINTS.

NOTE

Nylon or polypropylene ropes with the minimum diameter of 10 mm (3/8 in)
are recommended for mooring. Do not use hemp ropes.

NOTE

Steel ropes, or steel chains provided with suitable shortening mechanisms
can be used for mooring as well.

Effectivity:

ALL

28. 04. 2021

PARKING, MOORING,
STORAGE AND
RETURN TO SERVICE

(1) Aircraft mooring:

(a) Park the aircraft (Chapter 10-10, 2.A.)
(b) Put the chocks (1, Fig. 10-2) in front of and behind main landing gear

wheels.

an adhesive tape.

(d) Protect the fuel tank caps from water accumulation around the caps

using adhesive tape.

(e) Install propeller blades covers (2).
(f)

Screw the tie-down screws (3) into the wing tie-down points (lower
surface).

(g) Fix the anchor (4) to the ground or use available built in equipment

at the parking place.

(h) Moor the tie-down screws (3) to the ground using suitable ropes (5).

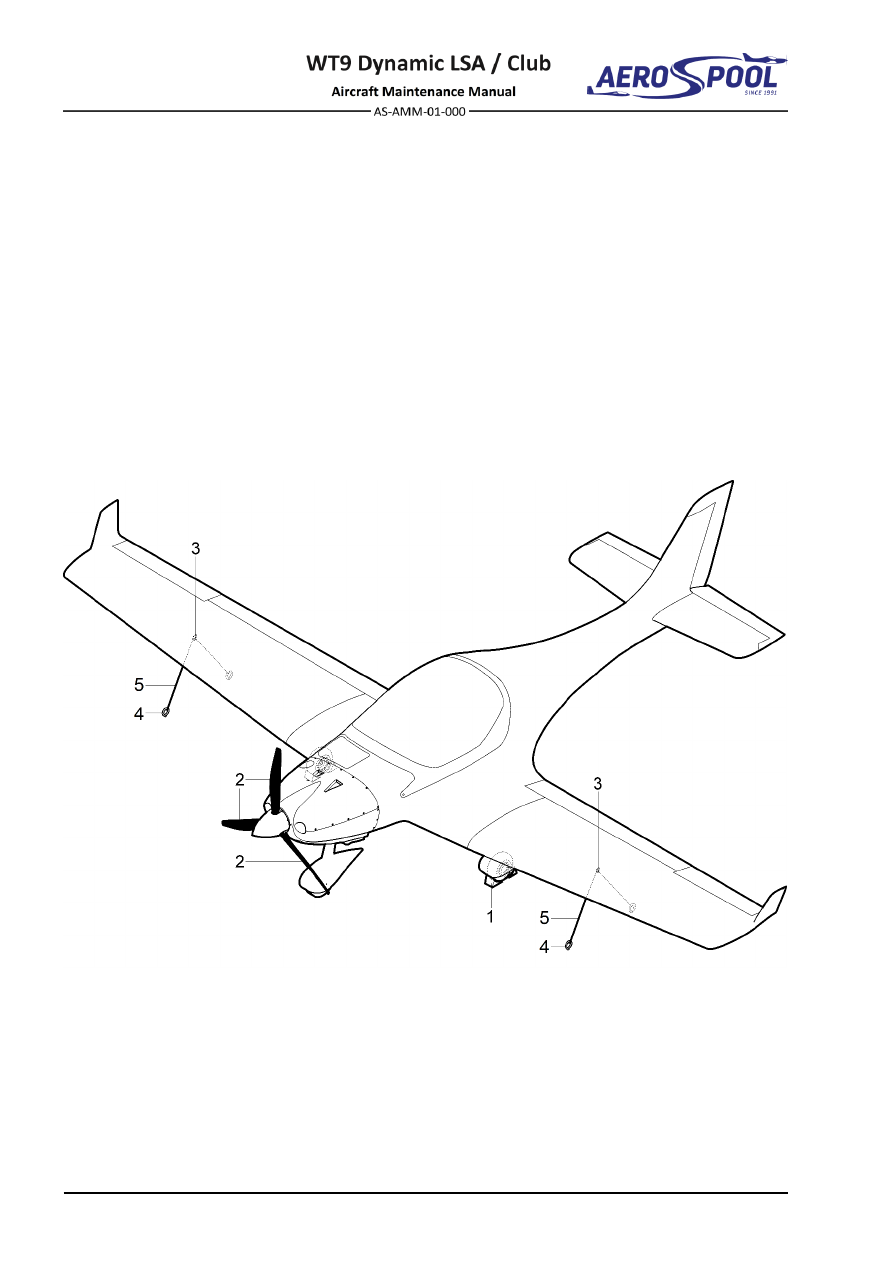

Fig. 10-2 Aircraft Mooring

RETURN TO SERVICE

PARKING, MOORING,

STORAGE AND

RETURN TO SERVICE

10-30

RETURN TO SERVICE

1. GENERAL

Depending on the time the aircraft was inactive, the aircraft must be prepared
for the return to service after temporary or long-term storage.

2. MAINTENANCE PRACTICES

Type of maintenance:

Line

Personnel qualification:

Independent certifying staff qualified in accordance
with Part-66 or higher.

Recommended tools, materials, persons and documentation:

ITEM

QUANTITY

Persons

Tab. 07-5 Recommended tools, materials, persons and documentation

A. Return to service after temp. storage (30 to 90 days)

(1) Parking and mooring:

(a) Remove all covers and adhesive tapes.
(b) Unmoor the aircraft.

(2) Aircraft exterior:

(a)  Remove the canopy cover.
(b)  Clean the aircraft (Chapter 12-20).
(c)  Clean the canopy (Chapter 12-20).
(d)  Lubricate

the

aircraft

according

lubrication

schedule

(Chapter 12-20).

(3) Aircraft interior:

(a) Remove the cover of the instrument panel.

(4) Electrical system:

(a) Check the condition of the battery; install the battery

(Chapter 24-30).

(5) Fuel system:

(a) Carry out a test for water contamination of the fuel tanks

(Chapter 12-10).

(6) Powerplant:

(a) Carry out the procedure for engine back to operation according

to the Operators Manual for Rotax Engine Type 912 Series
(Ref. No. OM-912), latest edition.

Content .. 5 6 7 8 ..
