Takeuchi Hydraulic excavator TB290 (Serial No. 190000001~). Parts Manual - page 6
CAB MOUNT
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CAB MOUNT
1
0568660100
CAB
1
see page (1/3)
3
1100041030
BOLT
2
4
1100041090
BOLT
2
5
1140020010
WASHER, spring
4
6
1141550010
WASHER
4
7
1101041245
BOLT
2
8
1140020012
WASHER, spring
2
9
1141550012
WASHER
2
10
1130040016
NUT
4
11
1140020016
WASHER, spring
4
12
1141110016
WASHER
4
16
0568663070
STOPPER
1
17
1140020020
WASHER, spring
1
18
1130540020
NUT
1
19
1141110020
WASHER
1
21
0568663010
DUCT ASSY
1
21-1
0568663020
DUCT
1
21-2
0568660012
SPONGE
1
21-3
0568660013
SPONGE
1
21-4
0568663014
SEAL
4
22
0568663060
COVER
1
23
1654605056
RUBBER
1
sold by the meter
26
1100040814
BOLT
4
27
1100040820
BOLT
1
28
1140020008
WASHER, spring
5
29
1141110008
WASHER
5
M1e140
Reference:M1E140
Page:5-12
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

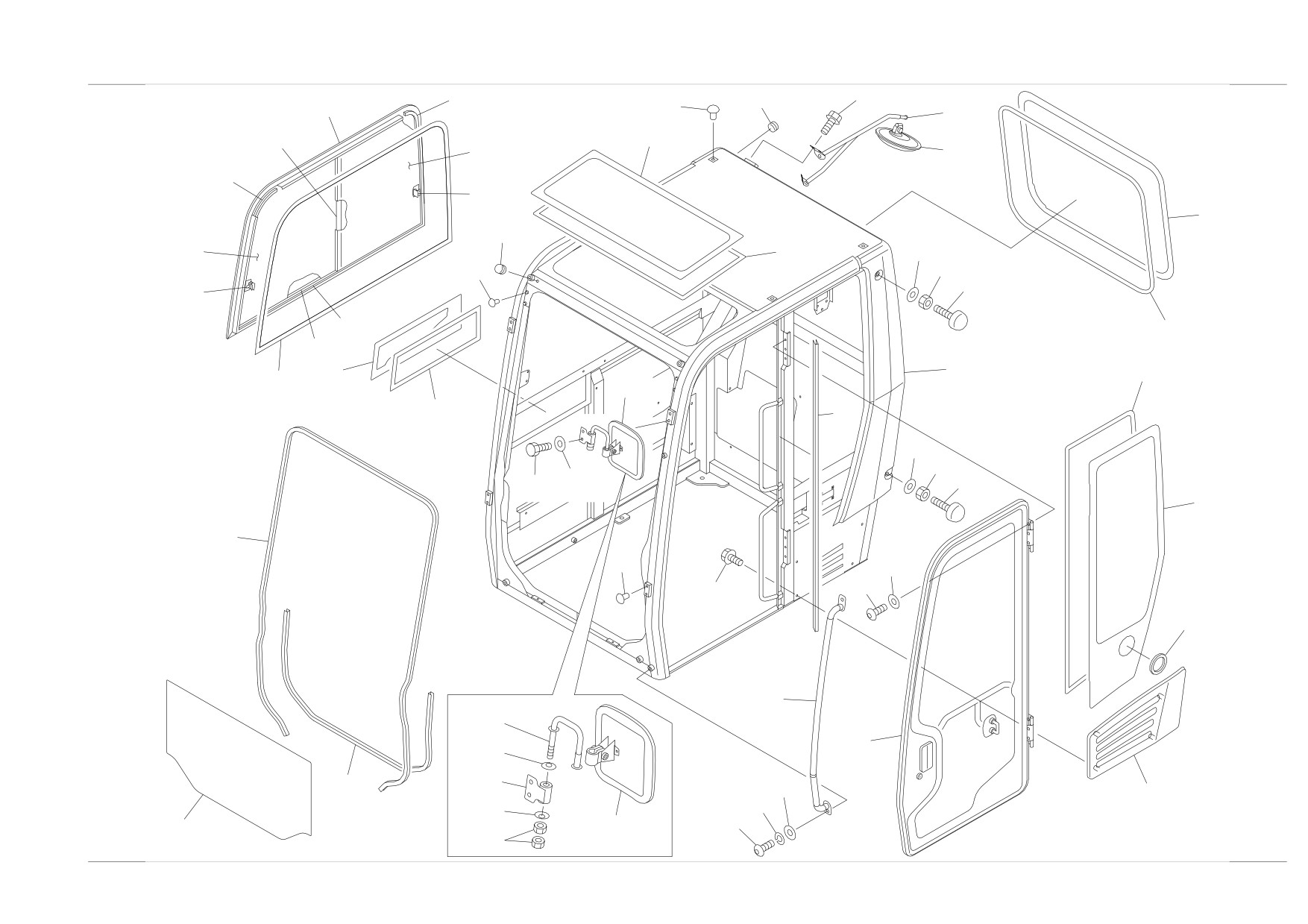

CAB (1/3)
8-9
65
118
8-1
84
89-1
8-7
9
8-3
89-2
8-8
8-4
6
65
8-2
14
82
9592
60
8-4
8-5
11
8-6
1
10
7
13
79
12
63
9592
95
60
117
5
61
83
93
113
115
28
88
79-2
2
79-5
79-1
62
94
15
96
79-5
114
4
79-3
79-4
M1E150a
S=1/24, 1/15
Reference M1E150a
ﾍﾟｰｼﾞ
5-13
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

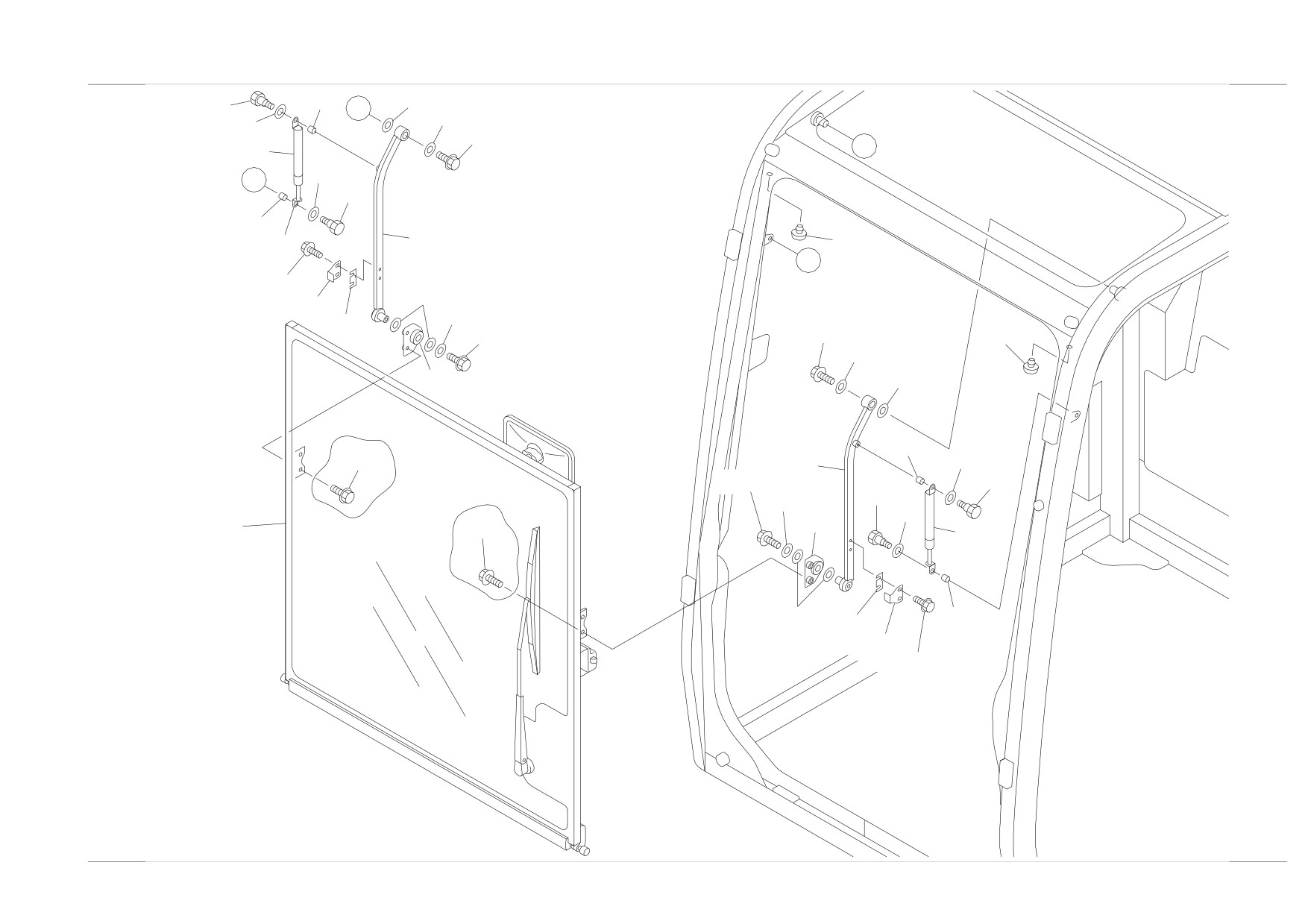

CAB (1/3)
120X
73
109
75
74
116
X
69
Y
74109
120
67-1
76
69
Y
67-7
67-2
67-6
67-3
67-8
67-5
116
76
75
67-4
73
120
116
74
68-1
68-5
109
109
68-3
74
68-4
3
116
69
68-2
120
68-8
68-6
68-7
M1E150b
S=1/12
Reference M1E150a
ﾍﾟｰｼﾞ
5-13
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

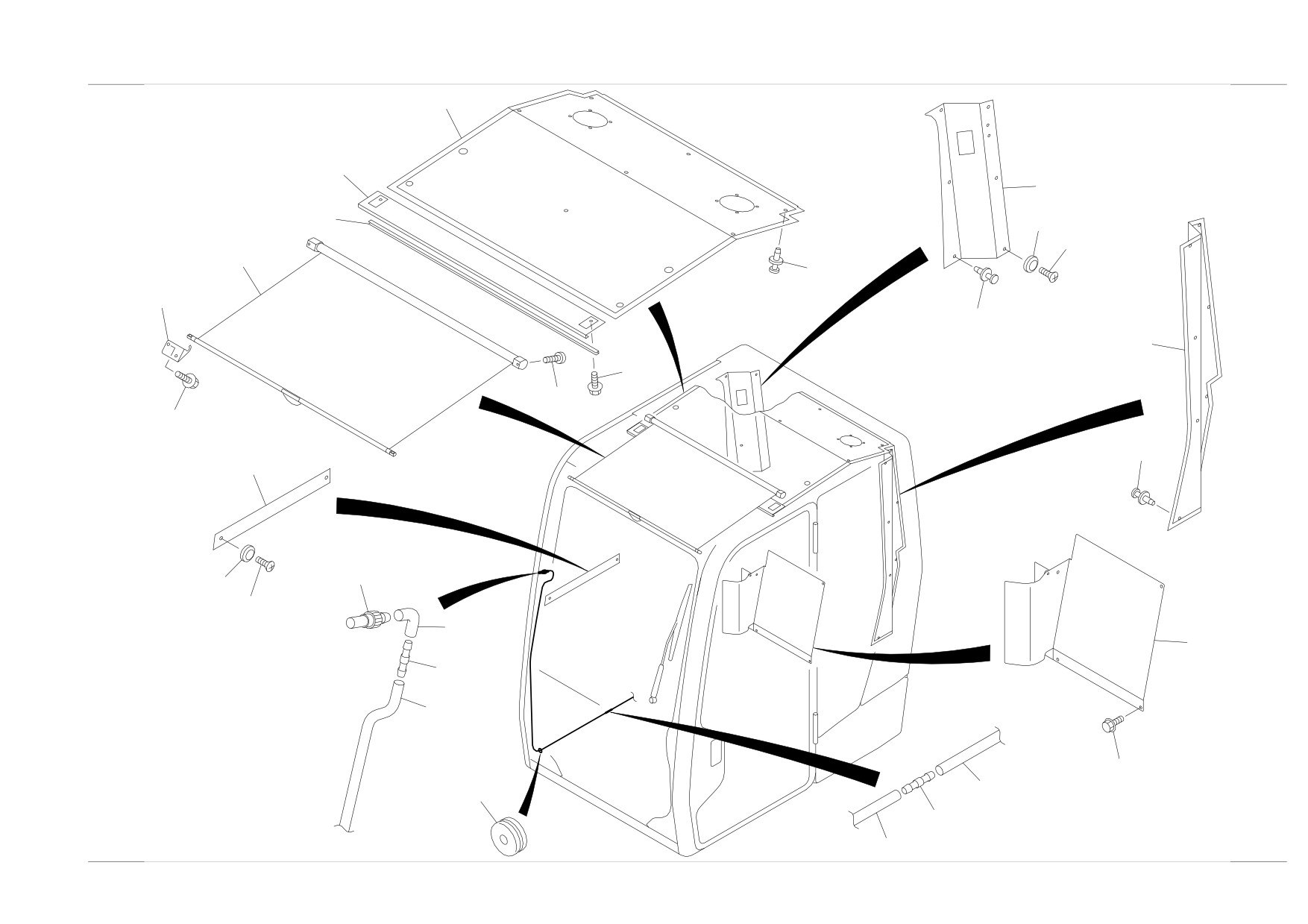

CAB (1/3)
32
45
34
46
37
106
44
36
47
36
35
115
98
115
36
33
50
37
106
52
121
51
53
115
54
86
87
M1E150c
53
S=1/16, 1/25
Reference M1E150a
ﾍﾟｰｼﾞ
5-13
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

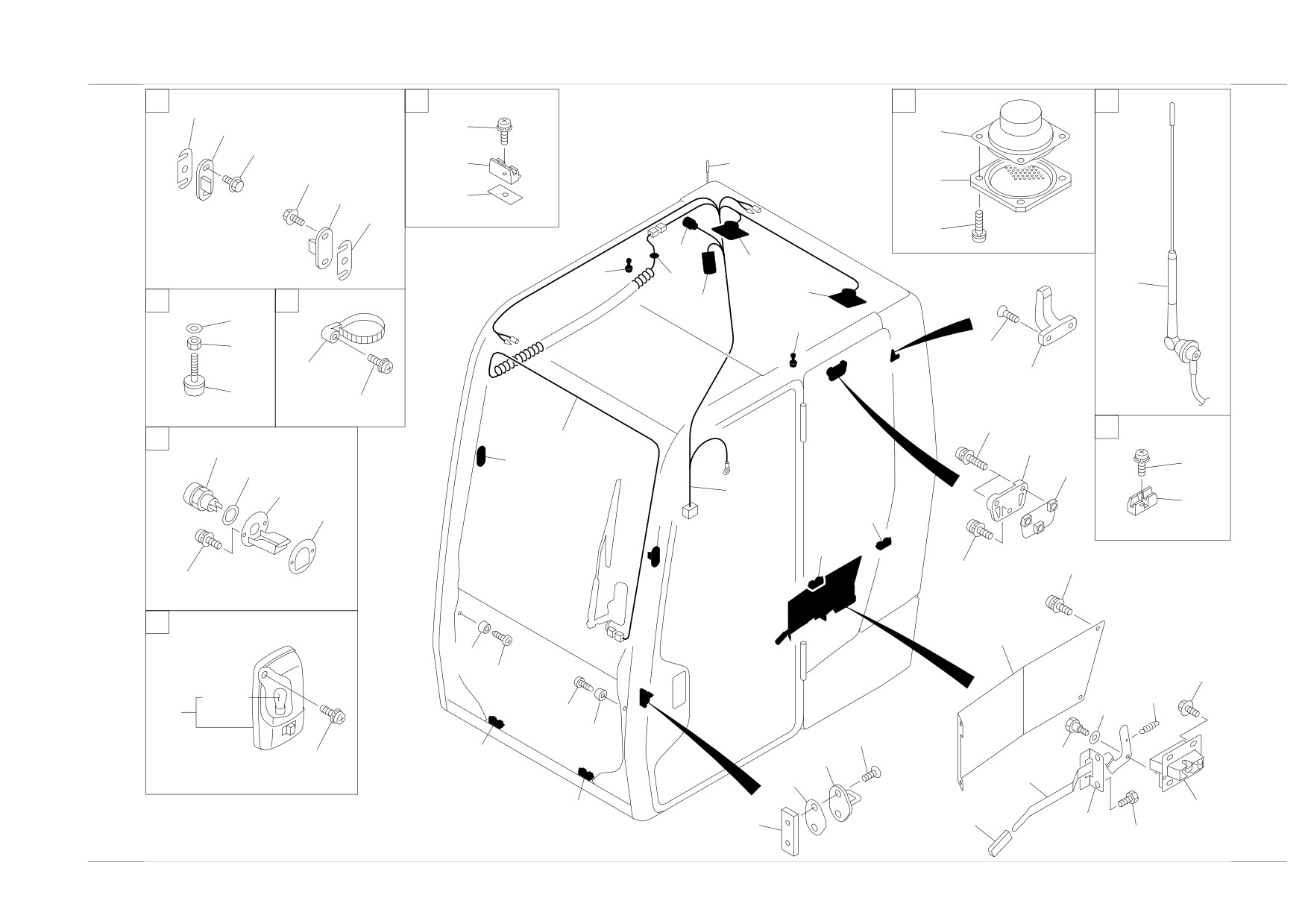

CAB (1/3)
a
b
g
h
71
70
102
40
111
16
h
111
41
70
85
71
97
e
g
c
d
g
55
c
d
f
43
c
90
105
64
39
42
101
104
j
e
19
48
56
a
102
59
49
57
18
17
58
j
a
j
102
103
100
f
27
81
116
107
25
38-1
24
38
107
81
110
b
99
29
23
21
30
b
20
22
31
26
112
M1E150d
S=1/8, 1/10, 1/20
Reference M1E150a
ﾍﾟｰｼﾞ
5-13
CAB (1/3)
Item Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0568660100
CAB ASSY
1
1
X
**********
CAB
1
M
2
0568660300
DOOR ASSY
1
M
see page (3/3)
3
0568660400
SASH ASSY, front
1
M
see page (2/3)
4
0568660510
GLASS
1
M
5
0568660520
GLASS
1
M
6
0568660530
GLASS
1
M
7
0568660540
GLASS
1
M
8
0568660550
SASH ASSY
1
M
8-1
0568660551
FRAME
1
M
8-2
0568660552
GLASS
1
M
8-3
0568660553
GLASS
1
M
8-4
0568660554
LOCK ASSY
2
M
8-5
0568660555
GLASSRUN (IN)
1
M
8-6
0568660556
GLASSRUN (OUT)
1
M
8-7
0568660557
SEAL
1
M
8-8
0568660558
STOPPER (IN)
1
M
8-9
0568660558
STOPPER (OUT)
1
M
9
0568660560
GLASS
1
M
10
1654646315
DAM
1
M
sold by the meter
11
1654646292
DAM
1
M
sold by the meter
12
1654615140
DAM
1
M
sold by the meter
13
1654647140
DAM
1
M
sold by the meter
14
1654615255
DAM
1
M
sold by the meter
15
0568660570
COVER
1
M
16
0378607111
HOLDER
2
M
17
0378607112
HOLDER
2
M
18
0568660580
HARNESS, wiring
1
M
19
0568660590
HARNESS, wiring
1
M
20
0568660600
LOCK
1
M
21
0568660610
LEVER
1
M
22
1650100415
GRIP
1
M
23
1654010800
PIN
1
M
24
0578602196
WASHER
1
M
25
0007000096
SPRING
1
M
26
0568660620
BRACKET
1
M
27
0568660630
COVER
1
M
28
0568626600
GROMMET
1
M
29
1654011708
STRIKER
1
M
30
0578600126
SHIM
AR
M
31
0568660780
PLATE
1
M
32
0568660640
COVER
1
M
33
0568660650
COVER
1
M
34
0568660660
COVER
1
M
35
0568660670
COVER
1
M
36
1652900014
RIVET
20
M
37
1652900016
WASHER
3
M
38
1703007300
LAMP, room
1
M
38-1
1703007301
BULB
1
M
39
1654004800
HANGER
1
M
40
1705003500
SPEAKER
2
M
41
1705003550
GRILLE
2
M
42
1651101046
STOPPER
2
M
43
0378607164
WASHER
2
M
44
0568660680
BLIND
1
M
45
0568660690
BRACKET
1
M
Reference:M1E150a
Page:5-13
CAB (1/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
46
1654648093
TRIM
1
M
sold by the meter
47
0568660700
BRACKET
1
M
48
1654011930
HOLDER
1
M
49
0378607920
PLATE
1
M
50
1711910040
NOZZLE
1
M
51
1711910014
JOINT
1
M
52
1711910016
JOINT
1
M
53
1711919140
HOSE
1
M
sold by the meter
54
0568660750
CAP
1
M
55
1705003460
ANTENNA
1
M
56
1711900066
SOCKET
1
M
57
0568660710
BRACKET
1
M
58
0568660720
PACKING
1
M
59
1654011735
WASHER
1
M
60
1651101042
STOPPER
2
M
61
1654631370
SEAL
1
M
sold by the meter
62
1654631165
SEAL
1
M
sold by the meter
63
1654649153
SEAL
1
M
sold by the meter
64
1652221050
BAND
1
M
65
1654011710
CAP
2
M
67
0568660730
ARM ASSY (R.H.)
1
M
67-1
0568660731
ARM (R.H.)
1
M
67-2
0083252100
WASHER
2
M
67-3
0578600401
WASHER
1
M
67-4
0348603870
BRACKET
1
M
67-5
1100790820
BOLT
1
M
67-6
0568660736
BRACKET
1
M
67-7
1106690616
BOLT
2
M
67-8
0378607195
SHIM
AR
M
68
0568660740
ARM ASSY (L.H.)
1
M
68-1
0568660741
ARM (L.H.)
1
M
68-2
0083252100
WASHER
2
M
68-3
0578600401
WASHER
1
M
68-4
0348603870
BRACKET
1
M
68-5
1100790820
BOLT
1
M
68-6
0568660736
BRACKET
1
M
68-7
1106690616
BOLT
2
M
68-8
0378607195
SHIM
AR
M
69
1653900075
SPRING, gas
2
M
70
0378607980
STRIKER
2
M
71
0378607205
SHIM
AR
M
73
0083252100
WASHER
2
M
74
0568660760
PACKING
4
M
75
0578600401
WASHER
2
M
76
1652516003
CUSHION
2
M
79
0568660770
MIRROR ASSY (L.H.)
1
M
79-1
0568660771
HOLDER
1
M
79-2
0568660772
STAY
1
M
79-3
1656500140
MIRROR
1
M
79-4
1130040016
NUT
2
M
79-5
1225111016
WASHER, conical
2
M
81
1652102012
STOPPER
2
M
82
1653303008
CAP
4
M
83
1653303010
CAP
10
M
84
1653303012
CAP
8
M
85
0378607223
SHIM
AR
M
Reference:M1E150a
Page:5-13
CAB (1/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
86
1711919300
HOSE
1
M
sold by the meter
87
1711910014
JOINT
1
M
88
0568660790
HANDRAIL
1
M
89
0568660800
MIRROR ASSY, rear
1
M
89-1
0568660801
STAY
1
M
89-2
1656500050
MIRROR
1
M
90
1130090010
NUT
2
M
92
1130040010
NUT
2
M
93
1654011705
WASHER
6
M
94
1654011706
WASHER
2
M
95
1654011900
WASHER
4
M
96
1140090010
WASHER, spring
2
M
97
1150120412
SCREW
8
M
98
1120590412
SCREW
2
M
99
1150410414
SCREW
2
M
100
1150410512
SCREW
2
M
101
1150420512
SCREW
1
M
102
1150410616
SCREW
8
M
103
1150420616
SCREW
1
M
104
1150420625
SCREW
2
M
105
1120790412
SCREW
2
M
106
1120790612
SCREW
3
M
107
1122500412
SCREW
2
M
109
0568660810
BOLT
4
M
110
1120890825
SCREW
2
M
111
1100790616
BOLT
4
M
112
1106690616
BOLT
2
M
113
1120990820
SCREW
6
M
114
1120991025
SCREW
2
M
115
1100740616
BOLT
12
M
116
1100790820
BOLT
10
M
117
1100041020
BOLT
2
M
118
1100741025
BOLT
4
M
120
0568660820
BUSHING
4
M
121
0568660830
COVER
1
M
M1e150
Reference:M1E150a
Page:5-13
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

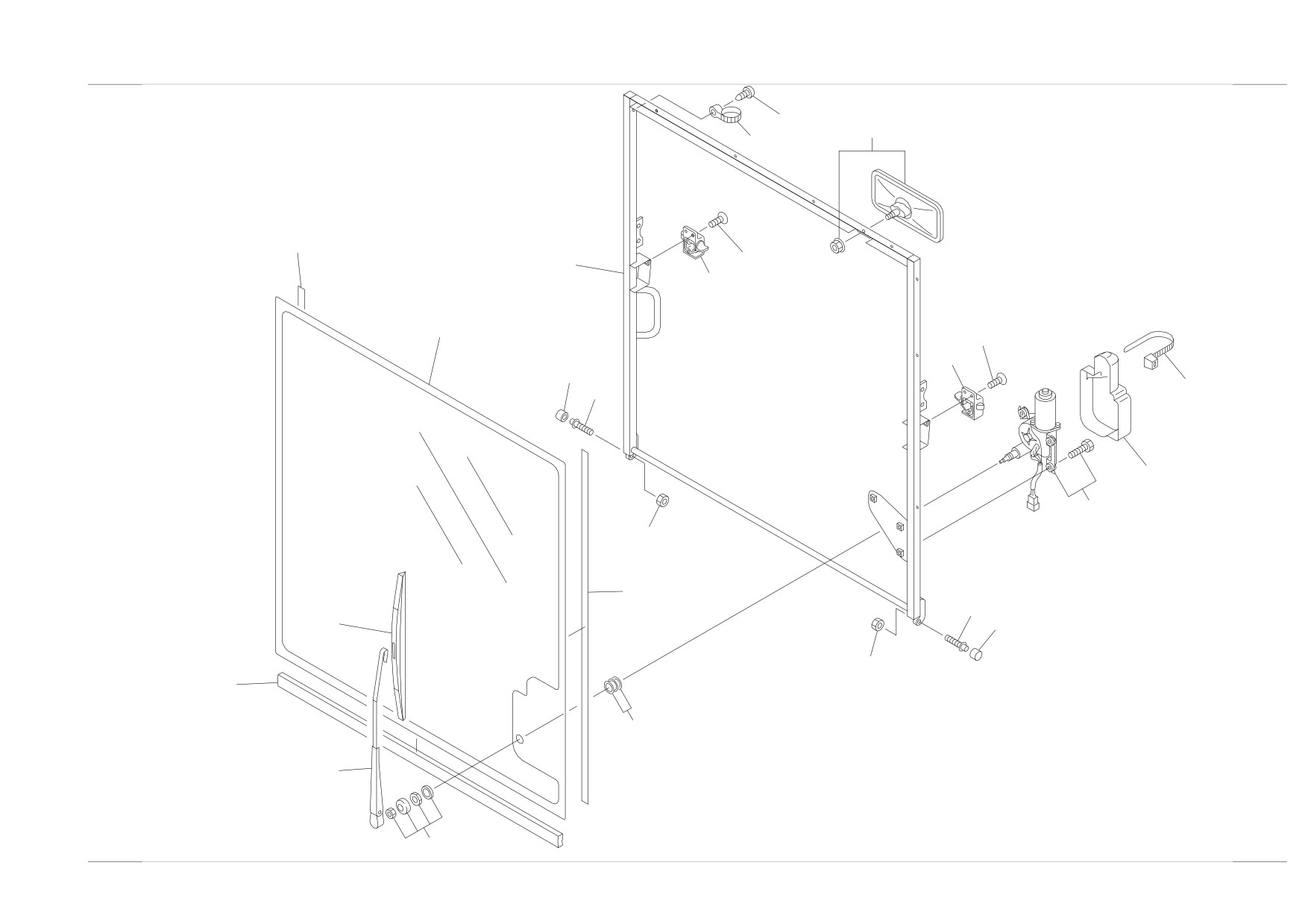

CAB (2/3) (front sash)
17
18
9
3
1
16
14
2
16
13
7
11
15
8
4
12
3
11
6
7
12
10
4
5
M1E160
4
S=1/12
Reference M1E160
ﾍﾟｰｼﾞ
5-14
CAB (2/3) (front sash)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0-1
0568660400
SASH ASSY, front
1
M
1
0568660410
FRAME
1
M
2
0568660430
GLASS
1
M
3
1654615093
DAM
2
M sold by the meter
4
1704051212
MOTOR, wiper
1
M
5
1704000100
ARM, wiper
1
M
6
1704200530
BLADE
1
M
7
0578600470
ROLLER
2
M
8
1704400002
COVER
1
M
9
1652221050
BAND
4
M
10
0378607710
SEAL
1
M
11
0578600406
BOLT
2
M
12
1130090010
NUT
2
M
13
0578600480
HANDLE
1
M
14
0578600490
HANDLE
1
M
15
1652200005
BAND
5
M
16
1120800616
SCREW
4
M
17
1122400512
SCREW
4
M
18
1654005460
MIRROR, room
1
M
M1e160
Reference:M1E160
Page:5-14
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
CAB (3/3) (door)
10
26
3
25
1
16
28
27
6
18
5
23
29
17
20
2
1920
1318
21
1514
11
12
9
31
8
7
24
5
6
22
30
32
4
M1E170
S=1/15
Reference M1E170
ﾍﾟｰｼﾞ
5-15

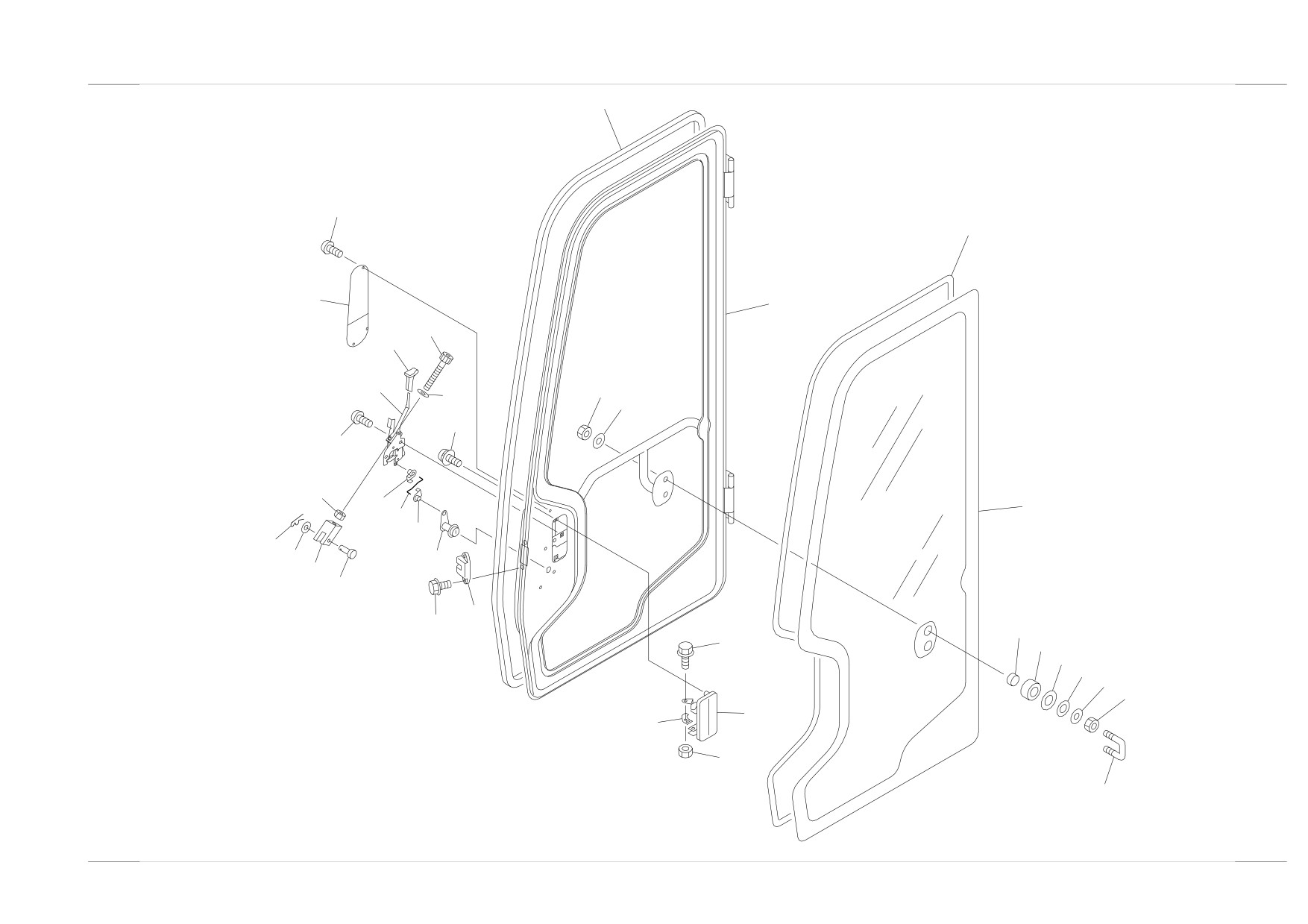

CAB (3/3) (door)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-2
0568660300
DOOR ASSY
1
M
1
0568660310
DOOR
1
M
2
0568660330
GLASS, door
1
M
3
1654643396
DAM
1
M
sold by the meter
4
1654005900
STRIKER
1
M
5
1654011706
WASHER
4
M
6
1130090010
NUT
4
M
7
0378607164
WASHER
2
M
8
0378610408
SEAL
2
M
9
0378610410
COLLAR
2
M
10
1654605044
SEAL
1
M
sold by the meter
11
0068620400
LOCK ASSY
1
M
12
1106690612
BOLT
2
M
13
1214000004
PIN, snap
1
M
14
1654011933
PIN
1
M
15
1654011934
YOKE
1
M
16
1110040430
SCREW, cap
1
M
17
1131242004
NUT
1
M
18
1654012004
WASHER
2
M
19
0378610419
ROD
1
M
20
0398610900
SNAP
2
M
21
1653611527
LOCK ASSY
1
M
22
1654008600
HANDLE
1
M
23
1150410612
SCREW
2
M
24
1654011812
WASHER
2
M
25
0568660340
COVER
1
M
26
1150420512
SCREW
3
M
27
0568660350
CONTROL ASSY
1
M
28
1654008800
KNOB
1
M
29
1150410616
SCREW
2
M
30
0378607448
STRIKER
1
M
31
1106640616
BOLT
1
M
32
1131212605
NUT
1
M
M1e170
Reference:M1E170
Page:5-15
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
CAB INTERIOR
2
33
41
32
42
45
18
1
9
17
16
34
3-14
3-17
3-20
3-1
3-3
33
3-12
32
3-5
3-8 3-7
3-18
3-6
3-6
3-4
3-22
3-15
3-18
3-23
3-11
3-15
3-22
3-5
3-16
3-21
35
3-18
3-10
3-15
19
33
3-13
36
32
3-2
M1E181
S=1/12, 1/35
3-11
Reference M1E181
ﾍﾟｰｼﾞ
5-16

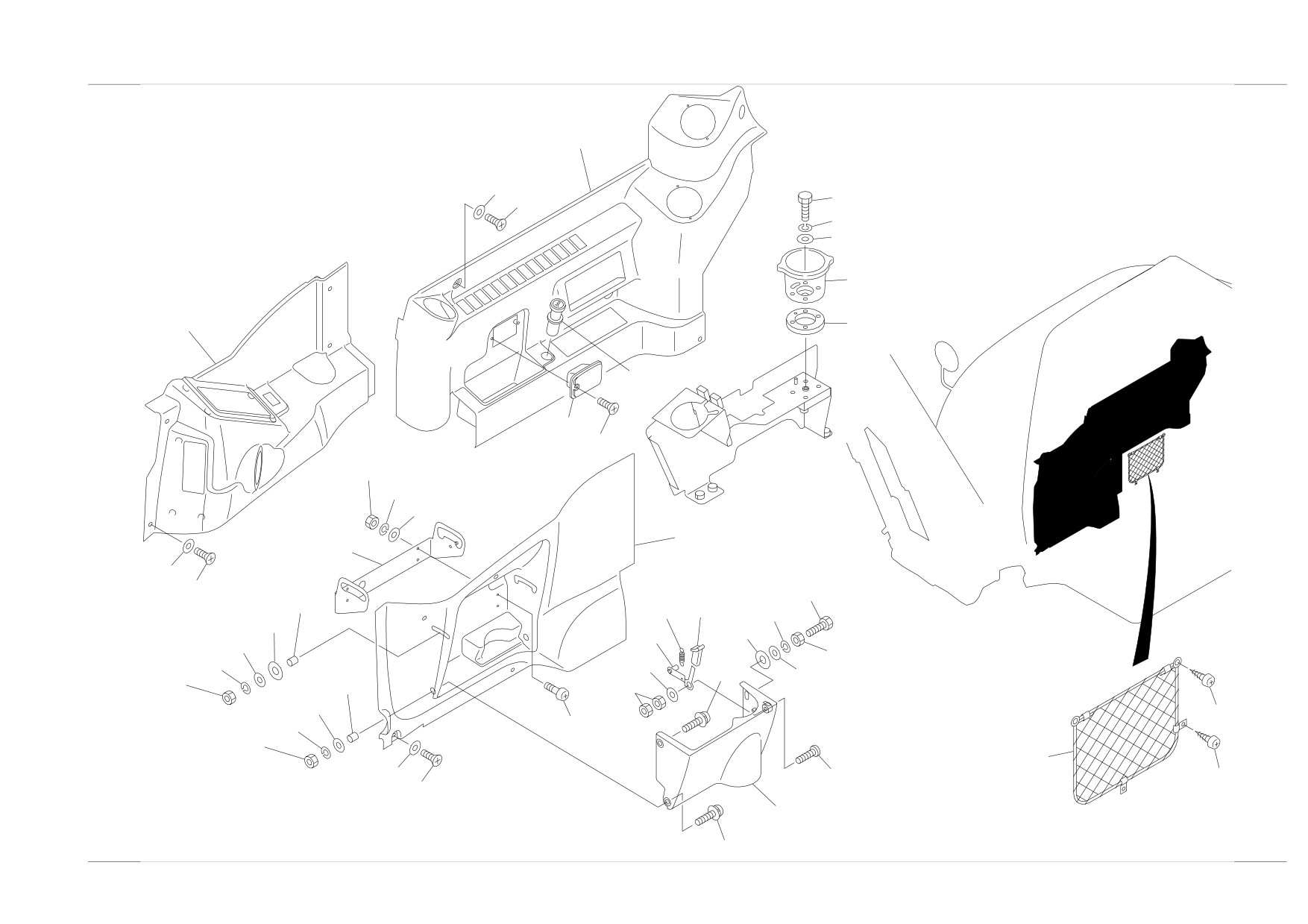

CAB INTERIOR
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CAB INTERIOR ASSY
1
0568661010
PANEL
1
2
0568661020
PANEL
1
3
0568661100
PANEL ASSY
1
3-1
0568661110
PANEL
1
3-2
0568661120
POCKET
1
3-3
0568661130
BRACKET
1
3-4
0378606250
LEVER
1
3-5
0378606134
COLLAR
3
3-6
0378606280
SPACER
2
3-7
1654008800
KNOB
1
3-8
0007000123
SPRING
1
3-10
1120590512
SCREW
4
3-11
1150020635
SCREW
3
3-12
1100040630
BOLT
1
3-13
1111820830
BOLT
1
3-14
1130040005
NUT
4
3-15
1130040006
NUT
4
3-16
1130190008
NUT
2
3-17
1140020005
WASHER, spring
4
3-18
1140020006
WASHER, spring
4
3-20
1141110005
WASHER
4
3-21
0003600110
WASHER
2
3-22
0003600043
WASHER
2
3-23
0003608252
WASHER
1
9
0378606131
SPONGE
1
16
1654010500
ASHTRAY
1
17
1711900059
LIGHTER
1
18
0578601010
HOLDER
1
19
1654010600
POCKET
1
M
32
1120790620
SCREW
13
33
1652900016
WASHER
13
34
1120630412
SCREW
2
35
1150410416
SCREW
2
36
1150410412
SCREW
2
41
1100040816
BOLT
1
42
1140020008
WASHER, spring
1
45
0003608003
WASHER
1
M1e181
Reference:M1E181
Page:5-16
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

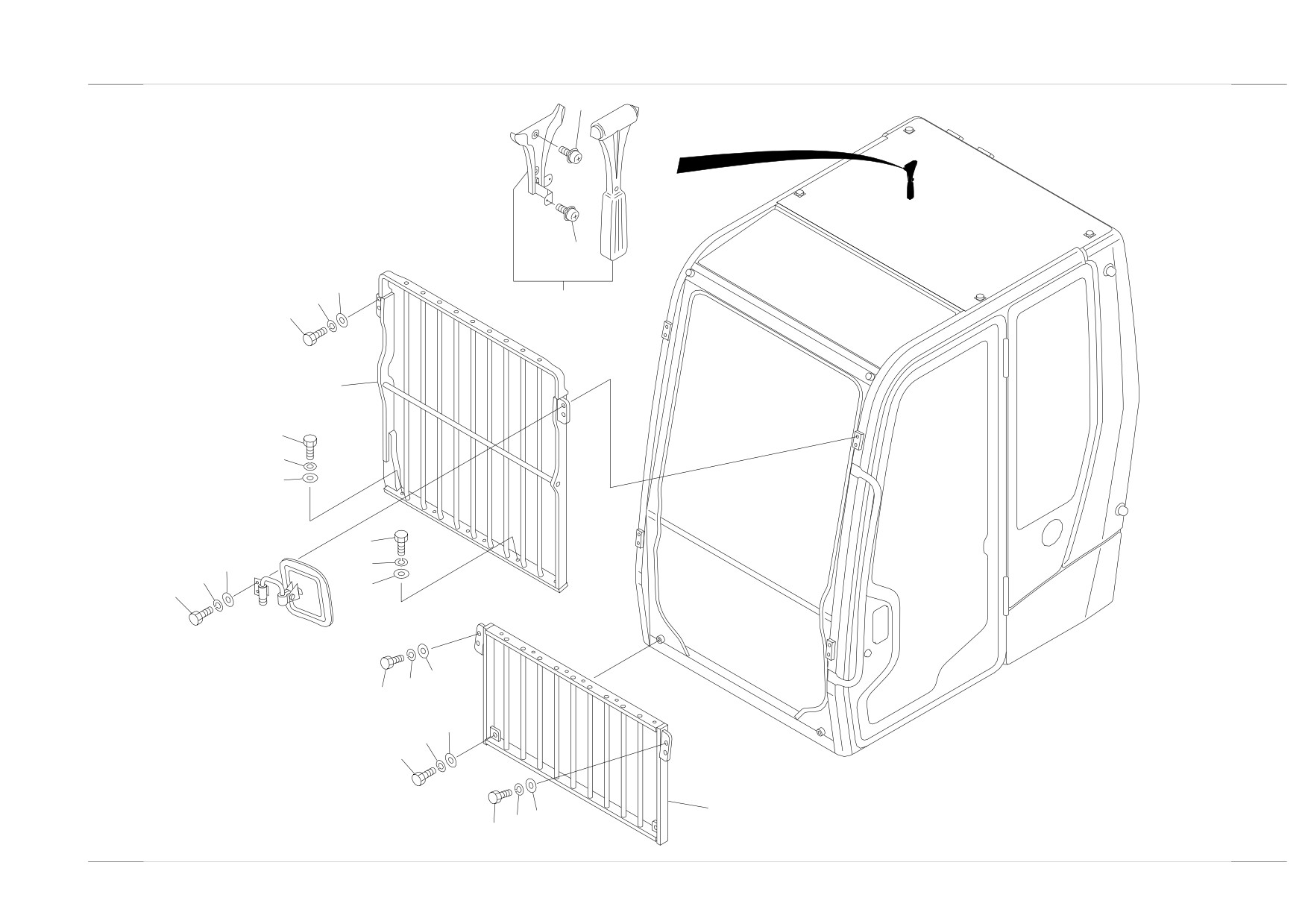

FRONT GUARD
19
20
15
13
18
8
2
7
12
14
9
15
13
13
15
9
15
13
8
14
12
6
1
15
13
8
M1E190
S=1/5,1/20
Reference M1E190
ﾍﾟｰｼﾞ
5-17

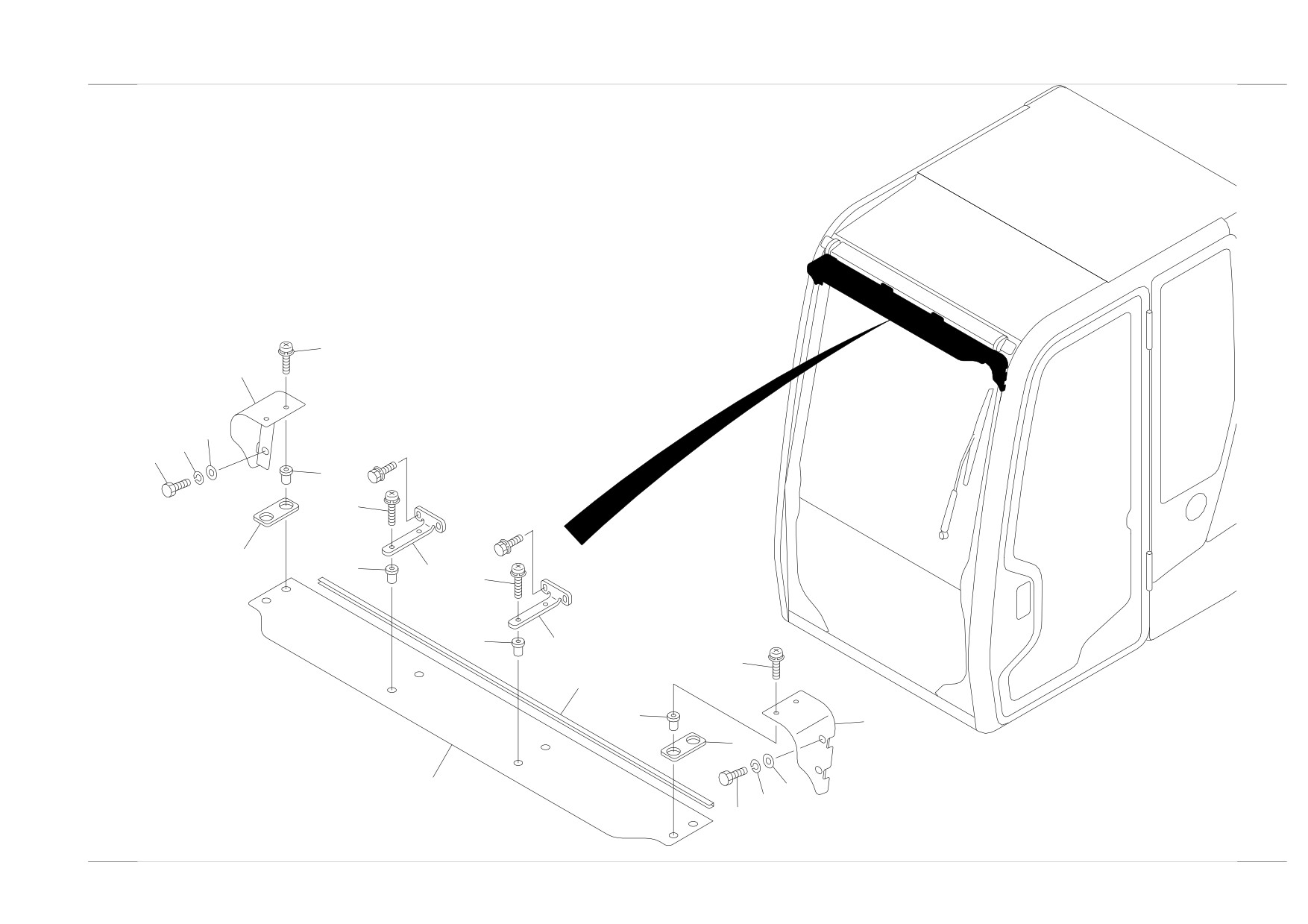

FRONT GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
GUARD ASSY, front
1
0568662330
GUARD
1
M
2
0568662310
GUARD
1
M
6
1100041230
BOLT
2
7
1100041235
BOLT
2
8
1100041030
BOLT
6
9
1100041035
BOLT
6
12
1140020012
WASHER, spring
4
13
1140020010
WASHER, spring
12
14
1141110012
WASHER
4
15
1141110010
WASHER
12
18
1654011920
HAMMER
1
M
19
1122410412
SCREW
2
20
1122410304
SCREW
1
M1e190
Reference:M1E190
Page:5-17
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

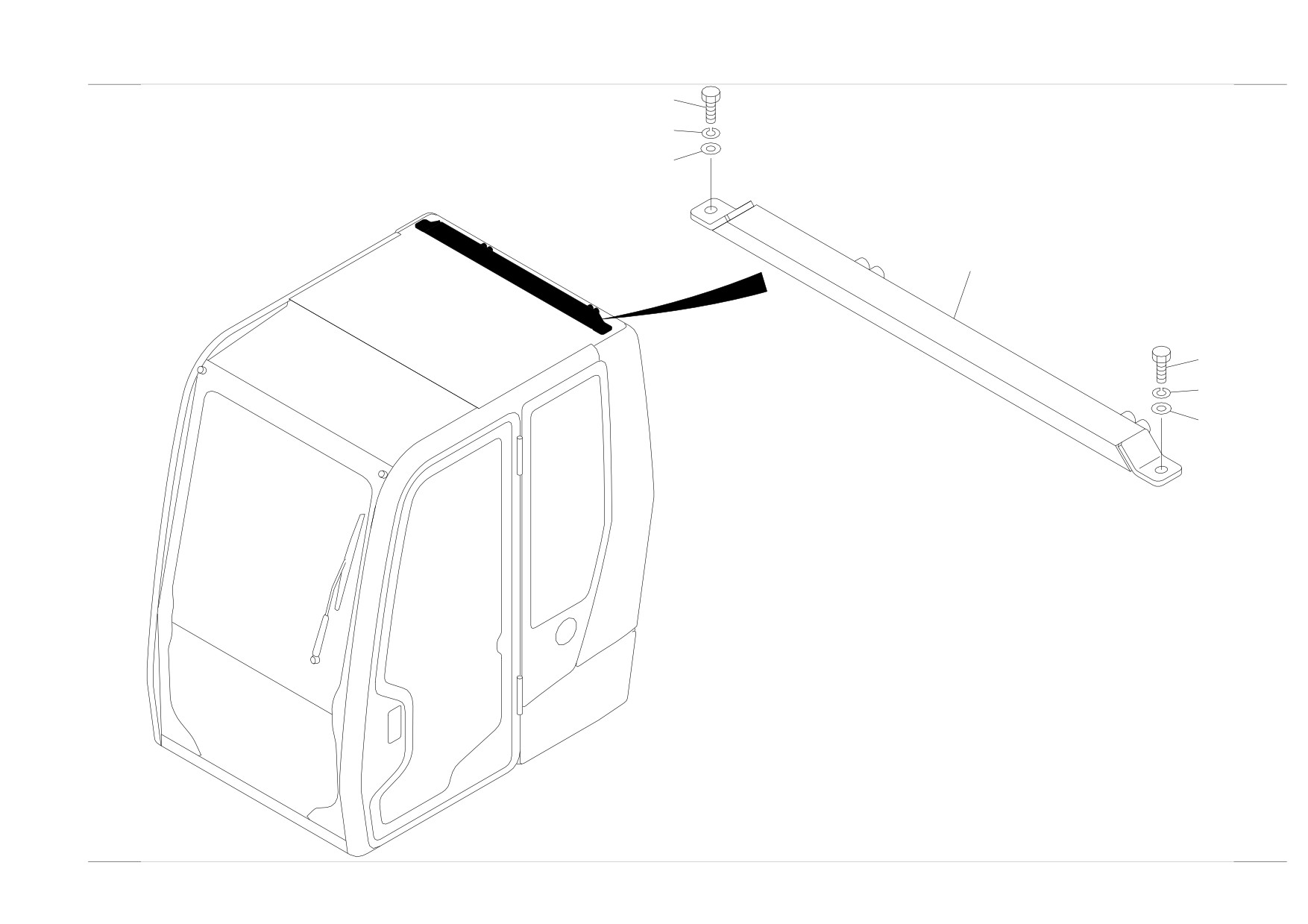

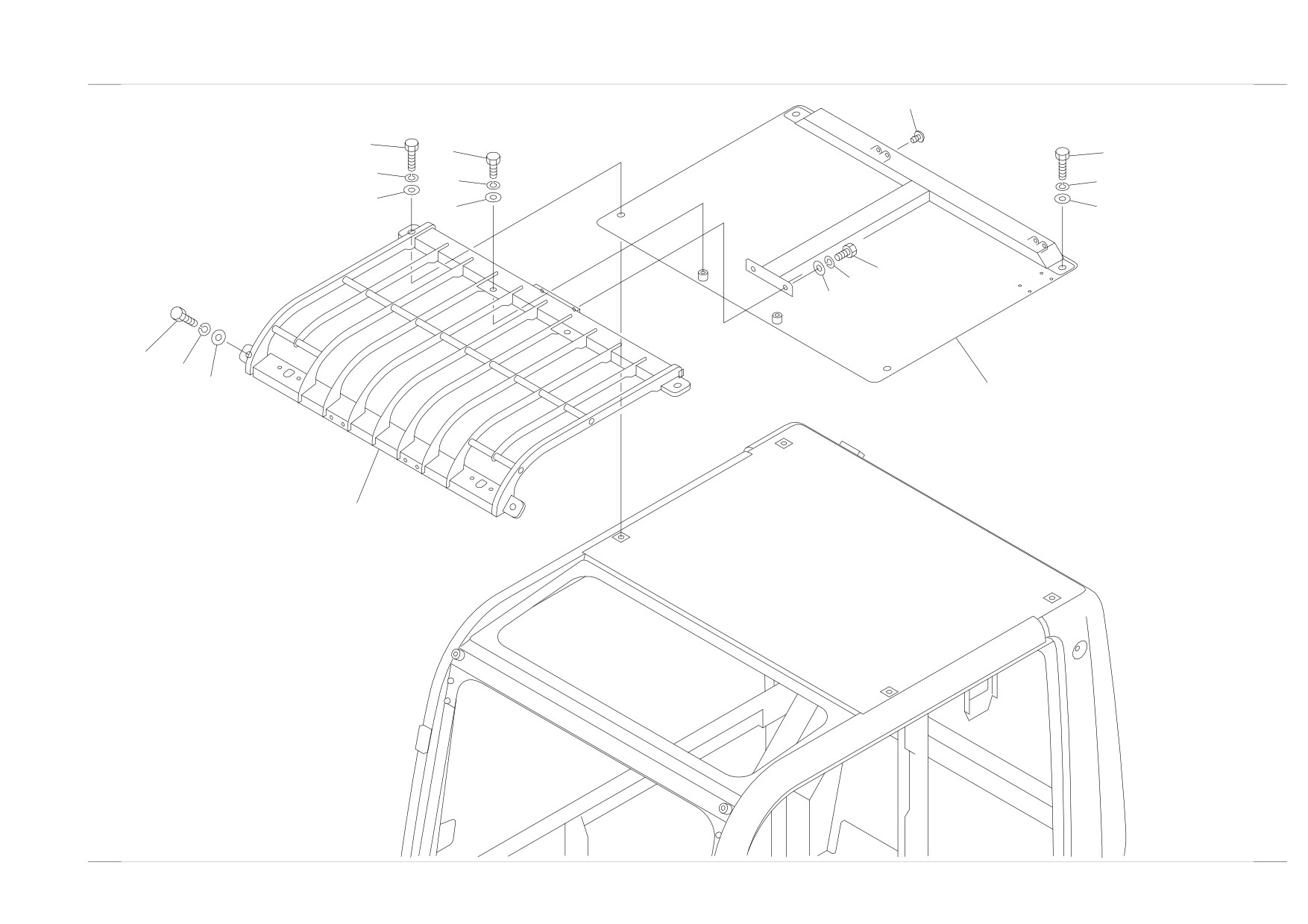

ROOF GUARD
17
7
8
7
12
13
12
14
15
14
9
13
15
6
12
14
2
1
M1E200
S=1/14
Reference M1E200
ﾍﾟｰｼﾞ
5-18
ROOF GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
GUARD ASSY, roof
1
0568662410
GUARD
1
M
2
0568662430
GUARD
1
M
6
1100041230
BOLT
2
7
1100041240
BOLT
4
8
1100041030
BOLT
2
9
1100041025
BOLT
2
12
1140020012
WASHER, spring
6
13
1140020010
WASHER, spring
4
14
1141110012
WASHER
6
15
1141110010
WASHER
4
17
1653303010
cap
4
M
M1e200
Reference:M1E200
Page:5-18
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
RAIN GUARD
23
3
263438
22
24
5
22
4
24
22
4
23
21
22
2
5
1
38
2634
M1E210
S=1/8, 1/20
Reference M1E210
ﾍﾟｰｼﾞ
5-19
RAIN GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
GUARD ASSY, rain
1
0568662190
GUARD
1
M
2
0568662200
STAY (L.H.)
1
M
3
0568662210
STAY (R.H.)
1
M
4
0568662520
BRACKET
2
M
5
0568662530
RUBBER
2
M
21
1654606079
SEAL
1
M sold by the meter
22
1652520006
NUT
8
M
23
1150410625
SCREW
4
24
1150410630
SCREW
4
26
1100040820
BOLT
4
34
1140020008
WASHER, spring
4
38
1141110008
WASHER
4
M1e210
Reference:M1E210
Page:5-19
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

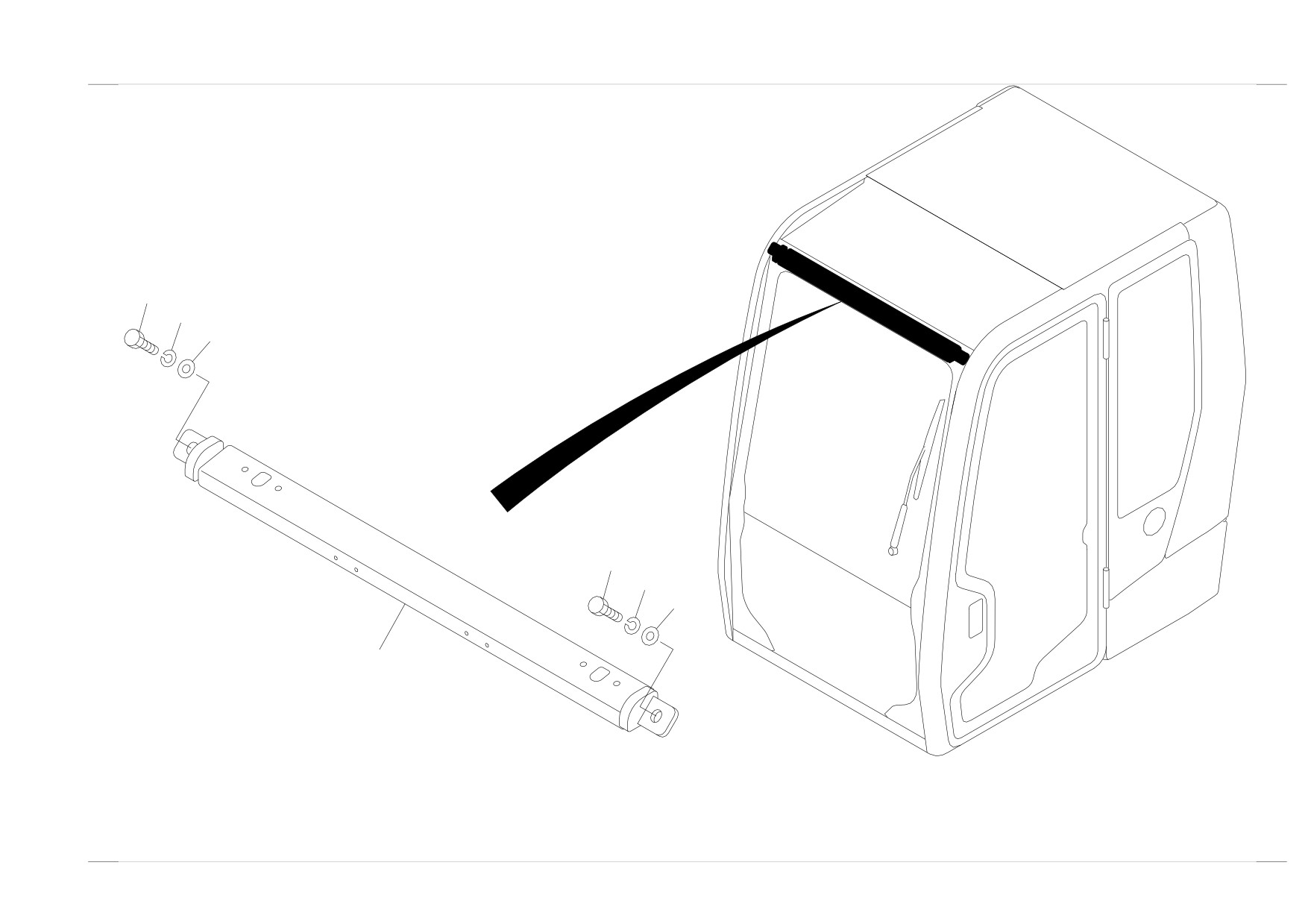

FRONT STAY
31
36
40
31
36
40
10
M1E220
S=1/8, 1/20
Reference M1E220
ﾍﾟｰｼﾞ
5-20
FRONT STAY
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
STAY ASSY, front
10
0568662710
STAY
1
M
31
1100041230
BOLT
2
36
1140020012
WASHER, spring
2
40
1141110012
WASHER
2
M1e220
Reference:M1E220
Page:5-20
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
REAR STAY
32
36
40
15
32
36
40
M1E230
S=1/8, 1/20
Reference M1E230
ﾍﾟｰｼﾞ
5-21
REAR STAY
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
STAY ASSY, rear
15
0568662910
STAY
1
M
32
1100041240
BOLT
2
36
1140020012
WASHER, spring
2
40
1141110012
WASHER
2
M1e230
Reference:M1E230
Page:5-21
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

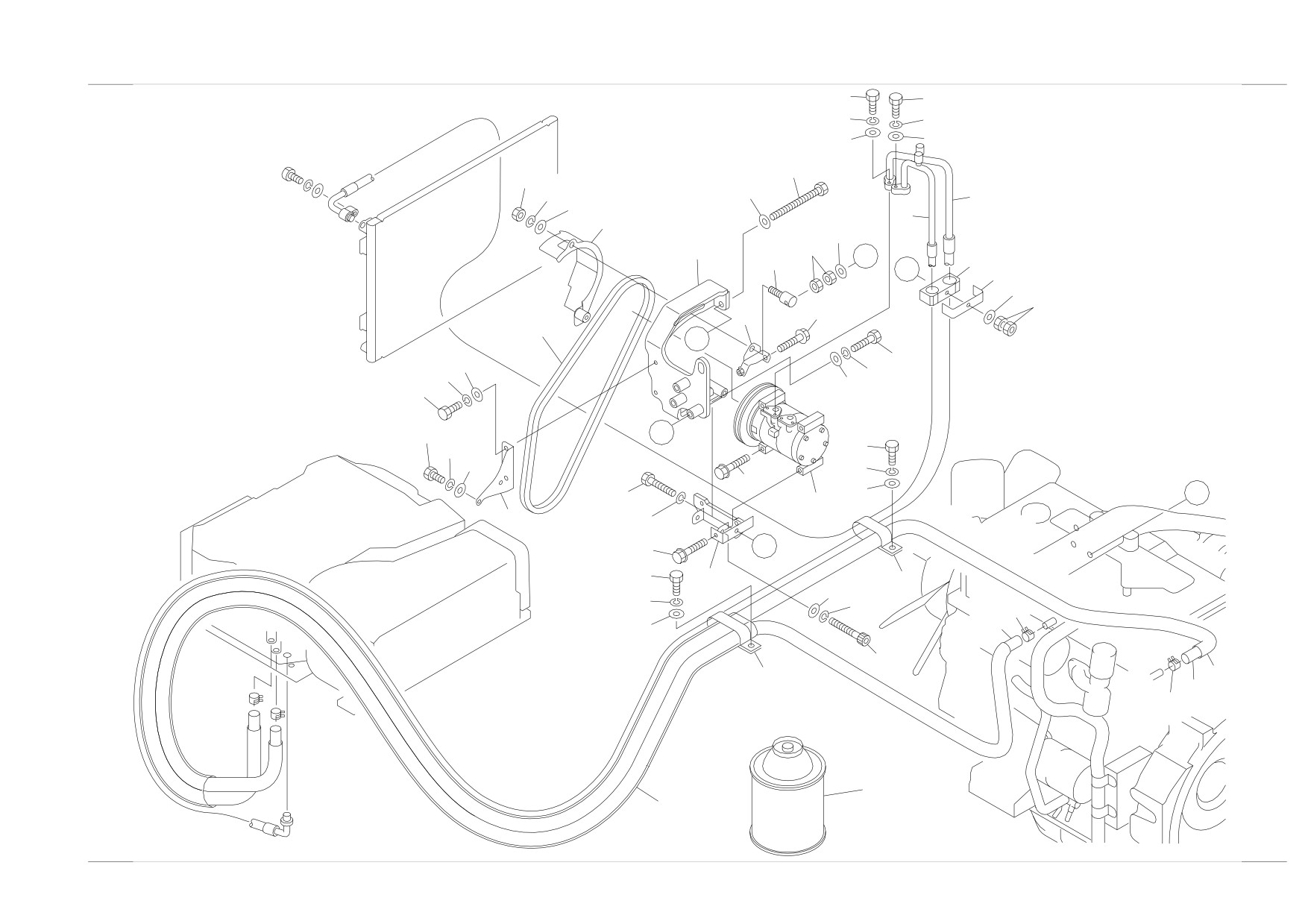

AIR CONDITIONER (1/4) (compressor)
14
14
23
23
27
27
13
2226
28
10
3038
9
28
1
21
X
12
7
Y
8
2821
18
3
11
X
19
25
162428
29
Z
1624
15
28
24
18
28
Z
17
6
2
24
Y
18
15
4
31
24
2925
36
32
28
34
20
31
3334
36
37
35
M0E100
S=1/12
Reference M0E100
ﾍﾟｰｼﾞ
5-22
AIR CONDITIONER (1/4) (compressor)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
0564648100
COMPRESSOR ASSY
1
1
0564641300
BRACKET
1
2
0564641310
BRACKET
1
3
0564641320
BRACKET
1
4
0564641330
BRACKET
1
6
1911513820
COMPRESSOR
1
7
0394612120
RUBBER
1
8
0394612130
PLATE
1
9
1911514201
HOSE ASSY
1
10
1911514204
HOSE ASSY
1
11
1621074053
V-BELT
1
12
0564619210
SHAFT
1
13
0394602010
BOLT
1
14
1100040625
BOLT
2
15
1100040816
BOLT
2
16
1100040825
BOLT
4
17
1100040860
BOLT
1
18
1106640880
BOLT
3
19
1100041055
BOLT
3
20
1110141000
SCREW, cap
1
21
1130040008
NUT
4
22
1130040012
NUT
1
23
1140020006
WASHER, spring
2
24
1140020008
WASHER, spring
7
25
1140020010
WASHER, spring
4
26
1140020012
WASHER, spring
1
27
1141110006
WASHER
2
28
1141110008
WASHER
9
29
1141110010
WASHER
4
30
1141550012
WASHER
1
31
0007300018
CLAMP
2
32
1911521670
HOSE
1
33
1911521770
HOSE
1
34
1531325100
PROTECTOR
2
sold by the meter
35
1531345150
PROTECTOR
1
sold by the meter
36
1533120021
BAND
2
37
X
**********
GAS
11
not service
38
0564648110
GUARD
1
M0e100
Reference:M0E100
Page:5-22
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

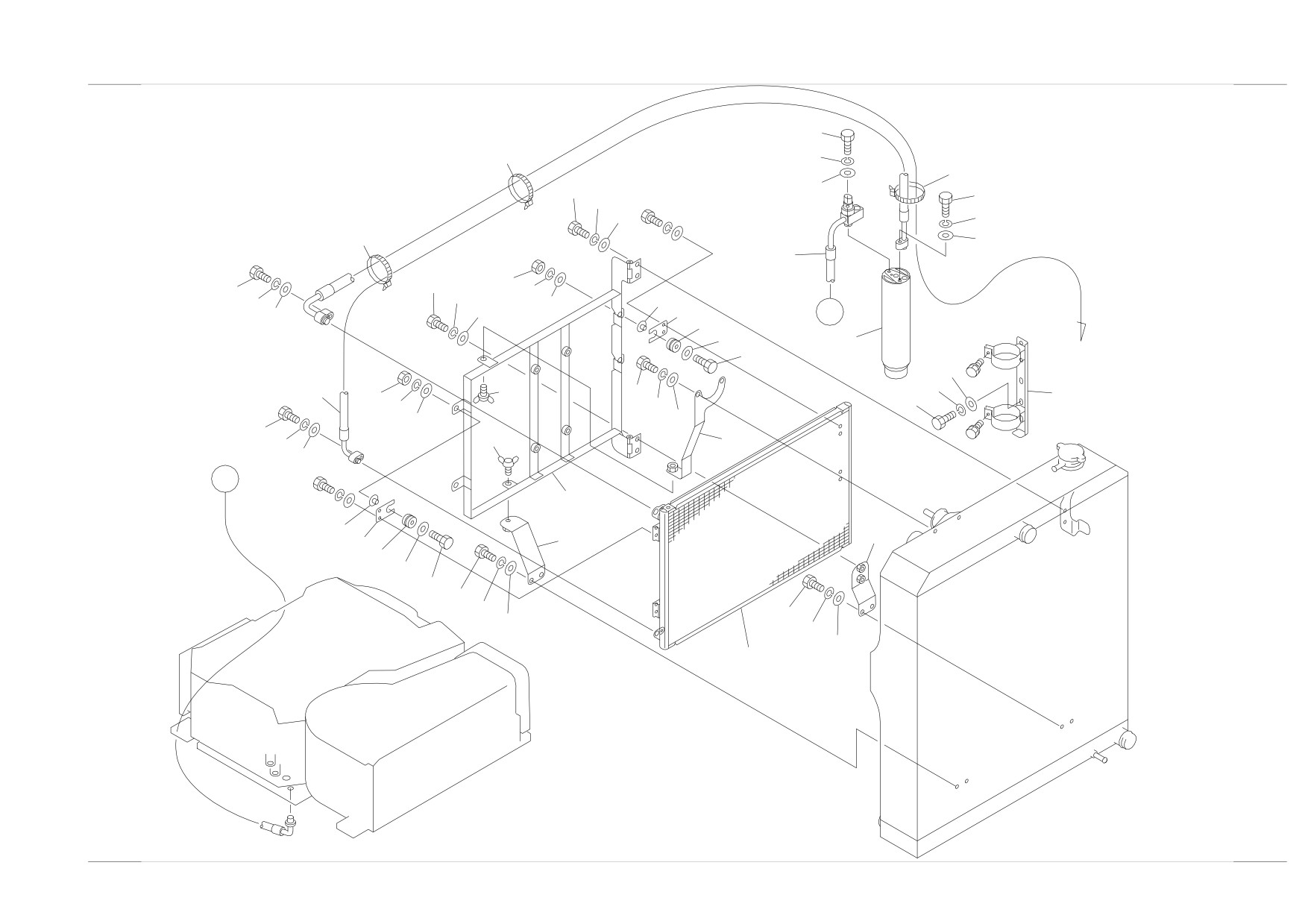

AIR CONDITIONER (2/4) (condenser)
14
26
15
26
16
14
1822
23
15
26
16
12
21
14
1822
22
7
15
23
23
8
X
16
6
9
2319
TO COMPRESSOR
2223
11
24
18
10
21
17
22
22
23
23
14
24
2
15
16
X
1
7
3
4
8
6
23 19
18
2223
1822
23
5
M0E110
S=1/12
Reference M0E110
ﾍﾟｰｼﾞ
5-23
AIR CONDITIONER (2/4) (condenser)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-2
0564648200
CONDENSER ASSY
1
1
0564648210
BRACKET
1
2
0564647220
BRACKET
1
3
0564647230
BRACKET
1
4
0564647240
BRACKET
1
5
1911513830
CONDENSER
1
6
1911513831
BUSHING
4
7
1911513832
COLLAR
4
8
1911513833
BRACKET
4
9
1911513660
DRYER
1
10
1911513665
BRACKET
1
11
1911514102
HOSE ASSY
1
12
1911514103
HOSE ASSY
1
14
1100040625
BOLT
4
15
1140020006
WASHER, spring
4
16
1141110006
WASHER
4
17
1100040816
BOLT
2
18
1100040820
BOLT
10
19
1100040835
BOLT
4
21
1130040008
NUT
4
22
1140020008
WASHER, spring
16
23
1141110008
WASHER
20
24
1121530816
BOLT, wing
2
26
1652231100
BAND
3
M0e110
Reference:M0E110
Page:5-23
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

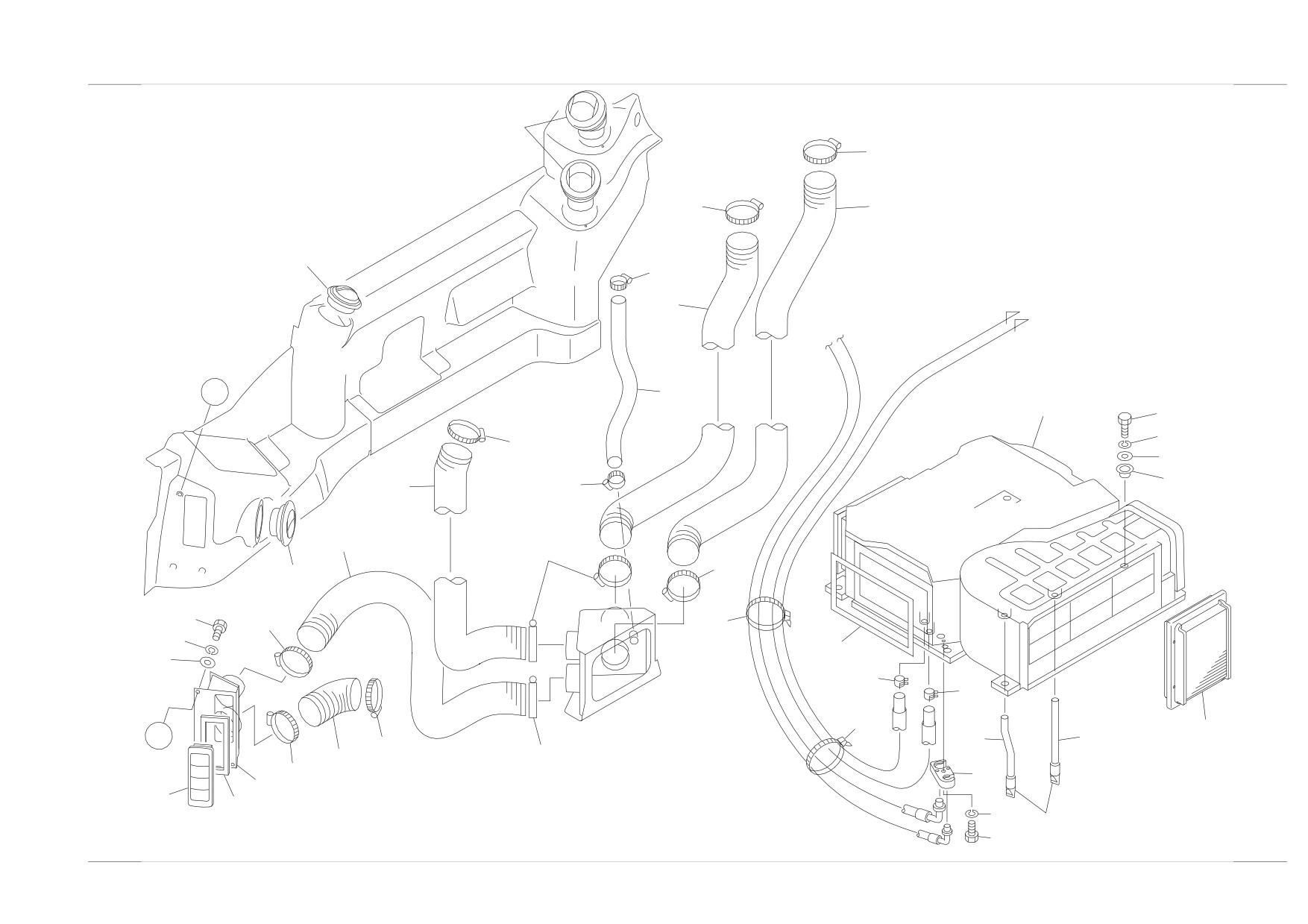

AIR CONDITIONER (3/4) (air-conditioner unit-1)
19
27
27
14
18
28
14
T
X
15
2
22
23
27
24
1
28
13
14
27
27
17
9
27
29
10
30
11
26
26
29
X
4
6
4
27
27
12
27
3
7
16
8
21
5
20
M1E320
S=1/12
Reference M1E320
ﾍﾟｰｼﾞ
5-24
AIR CONDITIONER (3/4) (air-conditioner unit-1)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-3
0564647300
UNIT ASSY, air conditioner
1
1
0554602350
COLLAR
5
2
1911513810
UNIT, air conditioner
1
3
1911513130
CONNECTOR
1
4
1911513805
HOSE
2
5
1911513150
CONNECTOR
2
6
1911513680
FILTER
1
7
0564647310
DUCT
1
8
0564647301
SPONGE
1
9
1100040612
BOLT
3
10
1140020006
WASHER, spring
3
11
1141110006
WASHER
3
12
1566165016
HOSE
1
13
1566165090
HOSE
1
14
1566165120
HOSE
3
15
1531419045
HOSE
1
sold by the meter
16
1911510001
LOUVER
1
17
1911510002
LOUVER
1
18
1911510004
LOUVER
1
19
1911510003
LOUVER
2
20
1100040625
BOLT
1
21
1140020006
WASHER, spring
1
22
1100040835
BOLT
5
23
1140020008
WASHER, spring
5
24
1141110008
WASHER
5
26
1533120021
BAND
2
27
1533001065
BAND
10
28
1533700028
BAND
2
29
1652231250
BAND
2
30
0564647302
SPONGE
1
M1e320
Reference:M1E320
Page:5-24
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

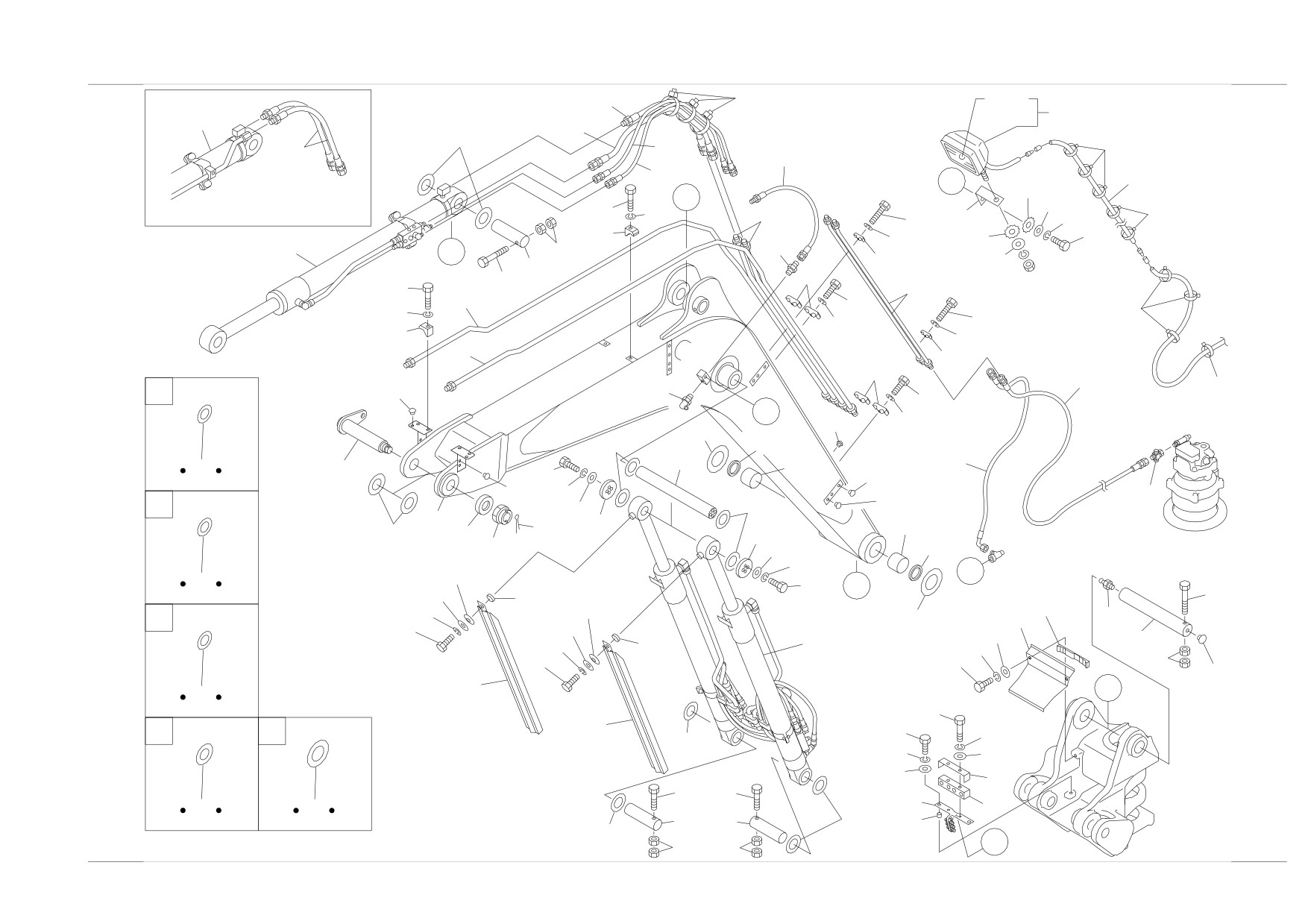

BOOM (1/4)
46
41
42-1
42
44
63
W
41
62
46
38
61
12
S
66
R
33
without arm shut-off valve
56
41
32
11
8
31
60
24
13
78
45
39
30
R
29
59
72
14
4
26
58
56
9
56
32
41
60
32
13
30
10
59
4
52
V
65
47
41
56
S
57
32
Y
SH-B
V
1-42
18
53
1-41
19
79
80
15
55
65
67
31
67
54
W
V
33
1
1-41
90
48
Z
88
89
4833
1-42
31
35
U
92
93
94
55
T
34
27
36
32
35
7
X
Y
3
40
28
34
71
43
16
32
36
30
28
70
29
87
2
T
23
83
84
22
Y
Z
2
70
30
X
30
71
91
5
75
75
68
20
76
77
21
73
74
6
17
17
X
69
X
U
M1F010
29
29
S=1/27
Reference M1F010
ﾍﾟｰｼﾞ
6-1
BOOM (1/4)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY
BOOM ASSY (with arm shut-off valve)
1
0566067200
BOOM
1
1-41
0002707501
BUSHING
2
1-42
1432200075
SEAL, dust
2
2
0566067110
COVER, rod
2
3
0566066703
COVER
1
4
0566066704
CLAMP
4
5
0566014500
CLAMP
1
6
0566066810
PROTECTOR
1
7
0567353307
RUBBER
1
8
0566013100
BRACKET
1
9
0566066710
PIPE (R.H.)
1
10
0566066720
PIPE (L.H.)
1
11
0566019500
PIPE
2
12
0566051310
HARNESS, wiring
1
13
0566066713
CLAMP
4
14
0001618002
PIN
1
15
0011909002
PIN
1
16
0011578009
PIN
1
17
0001617002
PIN
2
18
0011596009
PIN
1
19
0003600156
SHIM
AR
t=1.0mm
20
0003600203
SHIM
AR
t=0.2mm
21
0003600218
SHIM
AR
t=1.0mm
22
1100040850
BOLT
2
23
0003600221
SHIM
AR
t=1.0mm
24
1100041020
BOLT
1
26
1100141220
BOLT
1
27
1100141240
BOLT
1
28
1102041225
BOLT
2
29
1130040012
NUT
8
30
1140020008
WASHER, spring
6
1140020008
WASHER, spring
8
with arm shut-off valve
31
1140020010
WASHER, spring
9
32
1140020012
WASHER, spring
10
33
1141110010
WASHER
9
34
0003600057
WASHER
2
35
1225120022
WASHER, conical
2
36
0003600159
COLLAR
2
38
1934802070
HOSE ASSY
1
39
1511050002
ADAPTOR
1
40
1560001000
FITTING, grease
1
41
1652201005
BAND
10
42
1703002700
LAMP ASSY
1
42-1
1703002706
BULB
43
0566067500
CYLINDER ASSY, boom
1
see page (2/4)
44
0566070200
CYLINDER ASSY, arm
1
see page (3/4)
45
0566070300
CYLINDER ASSY, arm (with shut-off valve)
1
see page (4/4)
46
1804743067
HOSE ASSY
2
1804743067
HOSE ASSY
1
with arm shut-off valve
47
1560001675
FITTING, grease
1
48
0566054648
PLATE
2
52
0565067050
HOSE ASSY (with arm shut-off valve)
1
18010-22275
53
0565067060
HOSE ASSY (with arm shut-off valve)
1
18010-52130
54
0007263004
CROSS
1
with arm shut-off valve
Reference:M1F010
Page:6-1
BOOM (1/4)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
55
1100041035
BOLT
8
56
1100041250
BOLT
8
57
1652533016
CAP
2
58
0565041020
PIPE
2
with arm shut-off valve
59
1534000012
CLAMP
2
with arm shut-off valve
60
1100040870
BOLT
2
with arm shut-off valve
61
0566070020
HOSE ASSY (with arm shut-off valve)
1
18010-22120
62
0566070030
HOSE ASSY (with arm shut-off valve)
1
18010-22111
63
1804740096
HOSE ASSY
1
with arm shut-off valve
65
1652533018
CAP
16
66
1140330010
WASHER
1
67
1652533017
CAP
17
68
0566070010
TEE
1
69
0566038400
COLLAR
2
70
1100040825
BOLT
4
71
1141110008
WASHER
6
72
1141110012
WASHER
1
73
0003600199
SHIM
AR
t=0.2mm
74
0003600217
SHIM
AR
t=0.5mm
75
1100141210
BOLT
2
76
0003600204
SHIM
AR
t=0.5mm
77
0003600205
SHIM
AR
t=1.0mm
78
1140330012
WASHER
1
79
0003600109
SHIM
AR
t=0.5mm
80
0003600108
SHIM
AR
t=0.2mm
83
0003600220
SHIM
AR
t=0.5mm
84
0003600219
SHIM
AR
t=0.2mm
87
1652533021
CAP
1
88
0566066788
WASHER
1
89
1132130048
NUT
1
90
1210010890
PIN, split
1
91
0003608252
WASHER
2
92
0003600251
SHIM
AR
t=1.0mm
93
0003600215
SHIM
AR
t=0.5mm
94
0003600214
SHIM
AR
t=0.2mm
M1f010
Reference:M1F010
Page:6-1
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

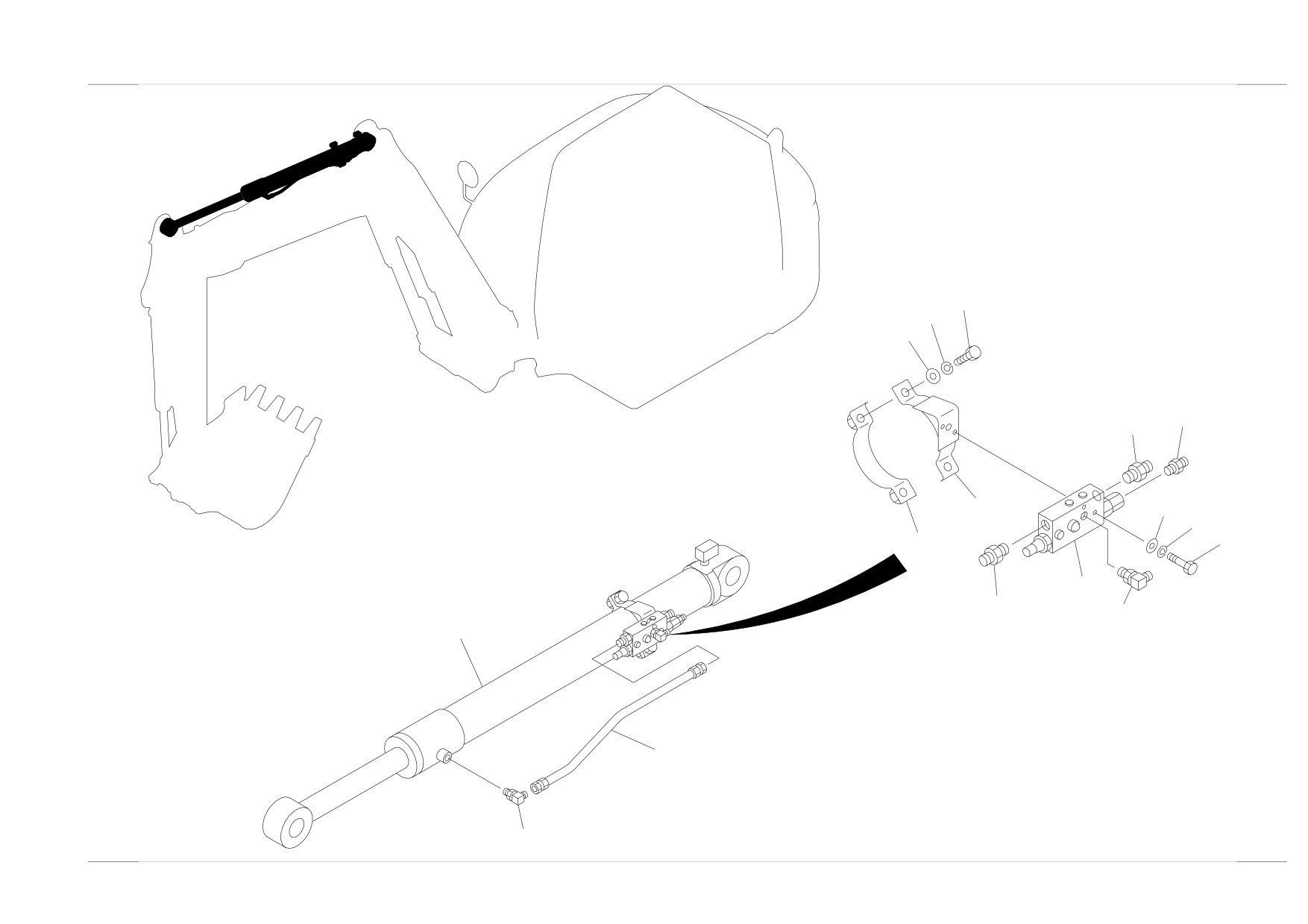

BOOM (2/4) (boom cylinder)
15
25
18
20
24
23
9
28
8
22
7
28
4
21
2
1
3
11
12
25
24
32
6
19
15
10
17
13
32
29
18
14
30
23
20
18
5
29
7
22
16
19
8
31
21
17
11
14
12
31 30
M1F020
S=1/15, 1/20, 1/40
Reference M1F020
ﾍﾟｰｼﾞ
6-2
BOOM (2/4) (boom cylinder)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
0566067500
CYLINDER ASSY, boom
1
1
1900109800
CYLINDER, boom (L.H.)
1
2
1900109900
CYLINDER, boom (R.H.)
1
3
0566067510
PIPE (L.H.)
1
4
0566067520
PIPE (R.H.)
1
5
0566067530
PIPE (L.H.)
1
5-6
1420010180
O-RING
1
6
0566067540
PIPE (R.H.)
1
6-6
1420010180
O-RING
1
7
0566067550
CLAMP
2
8
0566067590
CLAMP
2
9
1901742900
VALVE, emergency shut-off
1
10
1901743000
VALVE, emergency shut-off
1
11
0566067570
PROTECTOR
2
12
0566067580
CLAMP
2
13
1534000022
CLAMP
2
14
1100040850
BOLT
2
15
1100041040
BOLT
4
16
1100041050
BOLT
2
17
1140020008
WASHER, spring
2
18
1140020010
WASHER, spring
6
19
1141110008
WASHER
2
20
1141110010
WASHER
4
21
1512340013
ELBOW
2
1420010180
O-RING
1
22
0881710311
ELBOW (with orifice)
2
1420010110
O-RING
1
23
0007236041
ADAPTOR
2
1420010180
O-RING
1
24
1515012040
ELBOW
2
1420010110
O-RING
1
25
1515600200
ADAPTOR
2
1420010110
O-RING
1
28
1515010042
ELBOW
2
1420010180
O-RING
1
29
0566067320
HOSE ASSY
2
18010-52095
30
0566067330
HOSE ASSY
2
18010-52103
31
0566067340
HOSE ASSY
2
18045-01116
32
1652201005
BAND
2
M1f020
Reference:M1F020
Page:6-2
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

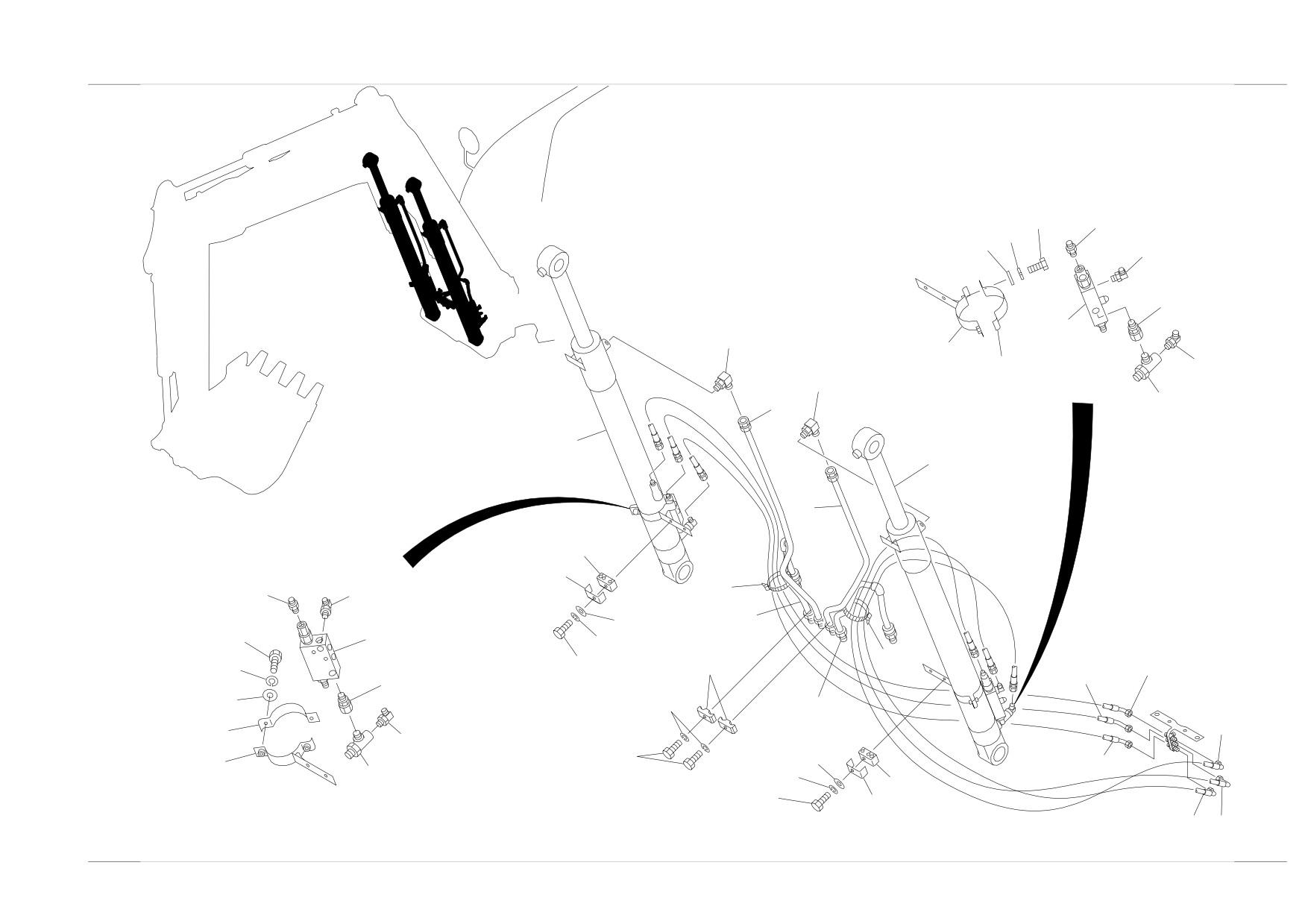

BOOM (3/4) (arm cylinder)
7
10
11
3
2
1
5
9
8
12
4
6
M1F030
S=1/10, 1/15, 1/40
Reference M1F030
ﾍﾟｰｼﾞ
6-3
BOOM (3/4) (arm cylinder)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0-2
0566070200
CYLINDER ASSY, arm
1
1
1900109700
CYLINDER, arm
1
2
0566070210
CLAMP
1
3
0566070220
CLAMP
1
4
0566070230
PIPE
1
5
0566066713
CLAMP
1
6
1515010042
ELBOW
1
1420010180
O-RING
1
7
1100041035
BOLT
2
8
1100041255
BOLT
1
9
1140020012
WASHER, spring
1
10
1140020010
WASHER, spring
2
11
1141110010
WASHER
2
12
1652533015
CAP
2
M1f030
Reference:M1F030
Page:6-3
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
BOOM (4/4) (arm cylinder, with shut-off valve)
7
10
11
14
13
3
12
9
8
2
5
13
15
1
4
6
M1F040
S=1/10, 1/15, 1/40
Reference M1F040
ﾍﾟｰｼﾞ
6-4
