Takeuchi Hydraulic excavator TB290 (Serial No. 190000001~). Parts Manual - page 5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

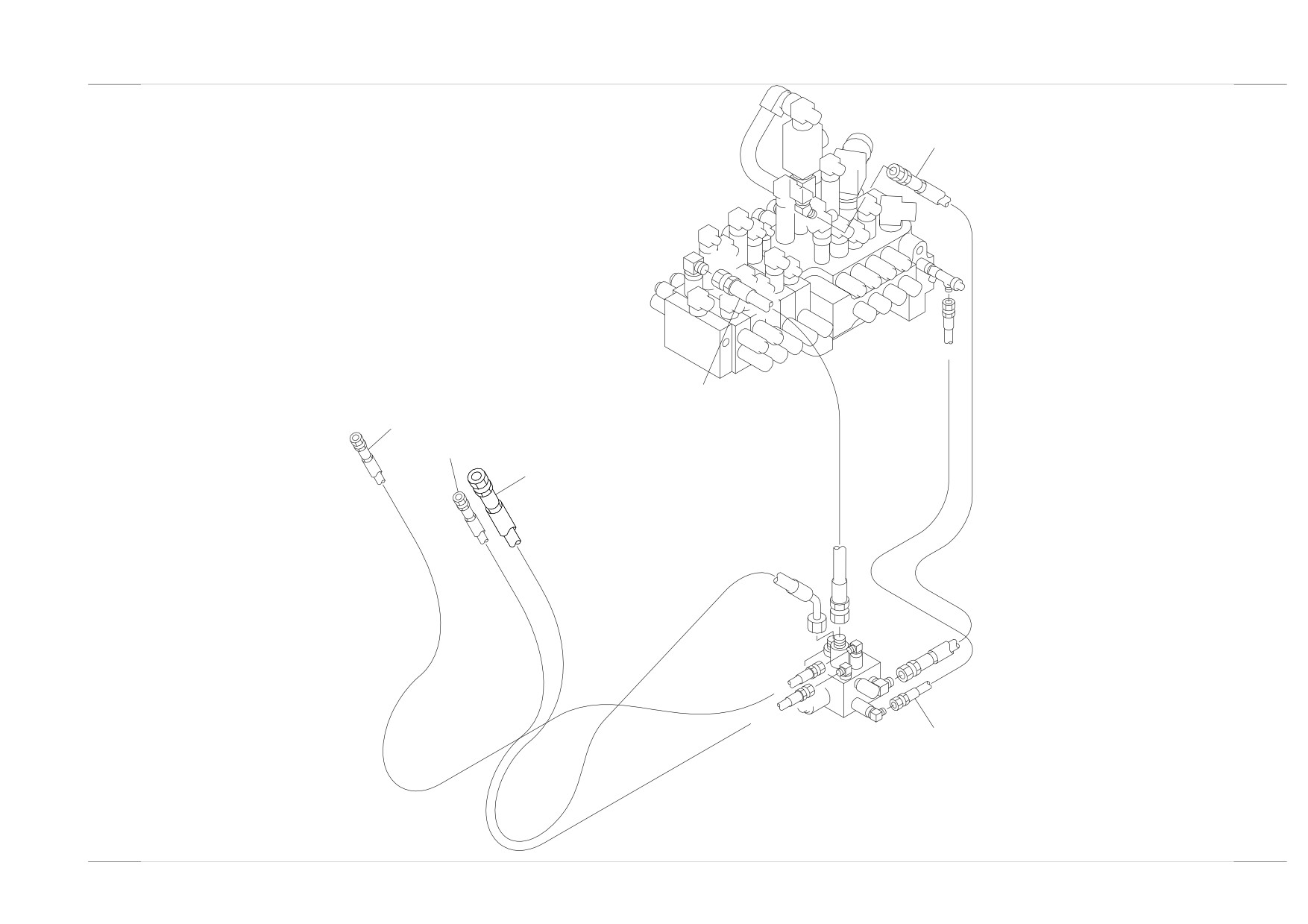

PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
66
ST
A9
PP1L
35
64
63
43
3S2P
3S2A
3ST
3S3B
3S3A
3SP
65
M0D090d
S=1/10
Reference M0D090a
ﾍﾟｰｼﾞ
4-12
PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
1
0567043790
PIPE
1
2
0567043020
HOSE ASSY
1
3
0567043030
HOSE
1
4
0567043040
PIPE
1
5
0567043050
HOSE
1
sold by the meter
6
0567043060
HOSE ASSY
1
18045-00245
7
0567043070
HOSE ASSY
1
18045-00265
8
0567043080
HOSE ASSY
1
18010-53058
9
0567043090
HOSE ASSY
1
18010-23074
11
0567043110
HOSE ASSY
1
18010-24205
12
0567043120
HOSE ASSY
1
18047-61245
13
0567043130
HOSE ASSY
1
18010-23030
14
0567043140
HOSE ASSY
1
15
0567043150
HOSE ASSY
1
16
0567043160
HOSE ASSY
1
18045-40280
17
0567043170
HOSE ASSY
1
18015-50275
19
0567043190
HOSE ASSY
1
21
0567043210
HOSE ASSY
1
18045-40270
22
0567043820
HOSE ASSY
1
23
0567043830
HOSE ASSY
1
24
0567043840
HOSE ASSY
1
18045-41245
25
0567043850
HOSE ASSY
1
18045-41250
26
0567043260
HOSE ASSY
1
18047-20175
27
0567043270
HOSE ASSY
1
18047-20148
28
0567043280
HOSE ASSY
1
18045-40116
29
0567043290
HOSE ASSY
1
18045-40104
31
0567043310
HOSE ASSY
1
18045-41116
32
0567043320
HOSE ASSY
1
18045-41098
35
0567043350
HOSE ASSY
1
18015-40091
37
0567043370
HOSE ASSY
1
18010-26075
38
0567043380
HOSE ASSY
1
18010-22094
41
0567043410
HOSE ASSY
1
18045-40080
42
0567043420
HOSE ASSY
1
18045-40070
43
0567043890
HOSE ASSY
1
18015-47200
44
0567043440
HOSE ASSY
1
18010-22054
45
0567043450
HOSE ASSY
1
18010-22108
46
0567043460
HOSE ASSY
1
18010-22038
47
0567043470
HOSE ASSY
1
18010-22140
48
0567043480
HOSE ASSY
1
49
0567043490
HOSE ASSY
1
18010-52140
51
0567043510
HOSE ASSY
1
18010-52056
52
0567043520
HOSE ASSY
1
18010-22148
53
0567043530
HOSE ASSY
1
54
0567043540
HOSE ASSY
1
18010-23046
55
0567043550
HOSE ASSY
1
18015-50300
60
1531335050
PROTECTOR
1
sold by the meter
63
0567043630
HOSE ASSY
1
18010-22195
64
0567043640
HOSE ASSY
1
18015-00195
65
0567043650
HOSE ASSY
1
18010-22092
66
0567043660
HOSE ASSY
1
18010-23116
67
1530525017
HOSE
1
sold by the meter
69
1530525092
HOSE
1
sold by the meter
70
1530534030
HOSE
1
sold by the meter
71
1530547020
HOSE
1
sold by the meter
72
1534100312
CLAMP
2
Reference:M0D090a
Page:4-12
PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
73
1534100313
PLATE
2
74
0007300030
CLAMP
3
76
1110041025
SCREW, cap
4
77
1110041070
SCREW, cap
4
78
1140020010
WASHER, spring
4
79
1141110010
WASHER
4
80
1533700041
BAND
8
81
1533700048
BAND
4
82
1533700070
BAND
4
83
1533700102
BAND
8
85
0567043770
HOSE ASSY
1
190000003~190000007
18045-20106
0567044850
HOSE ASSY
1
190000008~
M
18045-21066
86
0567043780
HOSE ASSY
1
190000003~190000007
18045-20094
0567044860
HOSE ASSY
1
190000008~
M
18045-21062
89
0567043690
HOSE ASSY
1
190000003~190000007
18045-20048
0567044890
HOSE ASSY
1
190000008~
M
18045-21086
91
0567043710
HOSE ASSY
1
190000003~190000007
18045-20074
0567043960
HOSE ASSY
1
190000008~
M
18045-21060
92
0567043720
HOSE ASSY
1
190000003~190000007
18010-53080
0567043970
HOSE ASSY
1
190000008~
M
18010-23048
97
0567043810
HOSE ASSY
1
18010-26034
98
0565067110
HOSE ASSY
1
18010-22210
99
0565067120
HOSE ASSY
1
18010-52250
100
0565067130
HOSE ASSY
1
18045-00106
102
0567043870
HOSE ASSY
1
18015-40245
M0d090
Reference:M0D090a
Page:4-12
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

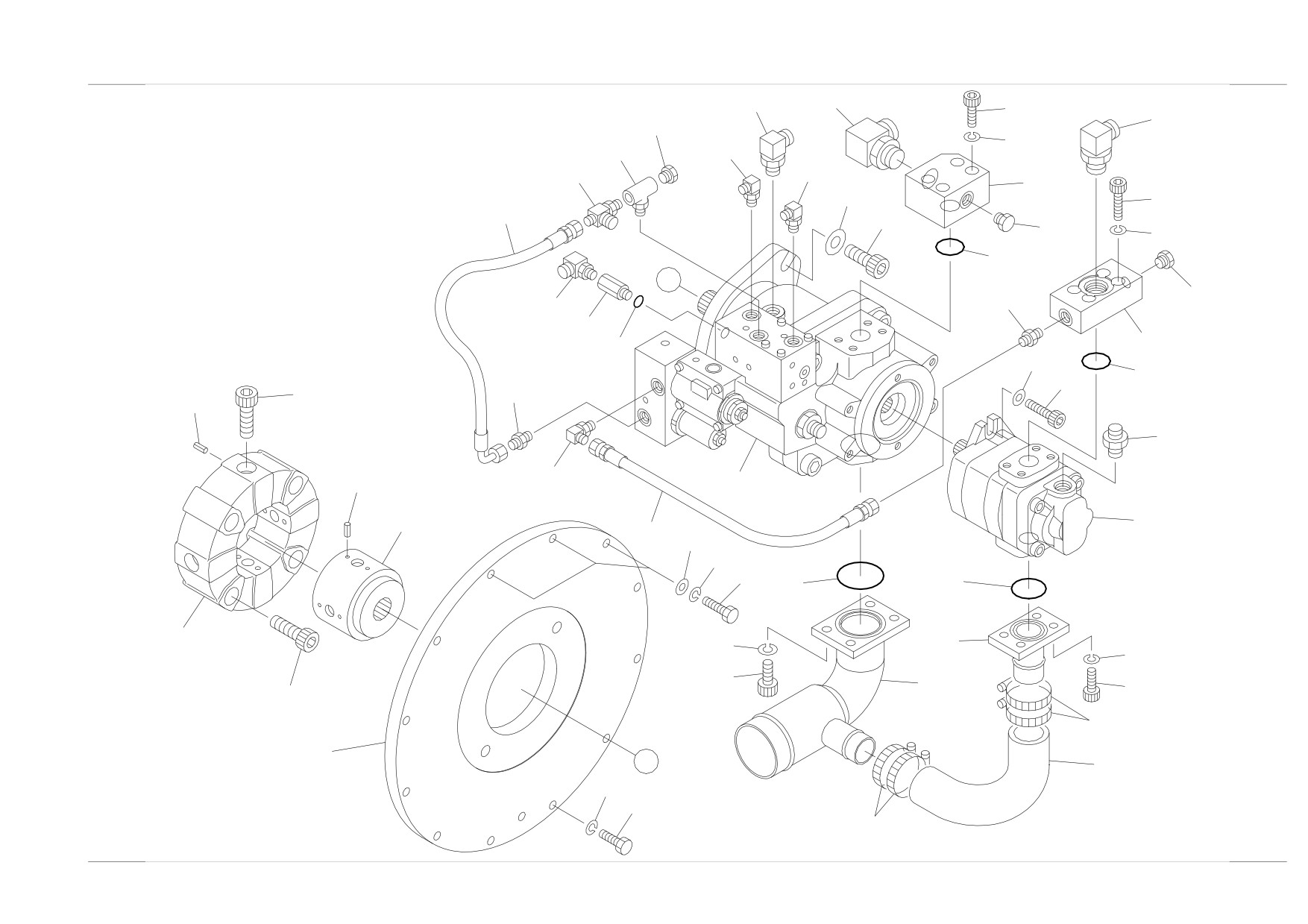

PUMP DRIVE
19
20
30
21
23
34
16
13
15
13
3
36
29
8
27
23
34
25
X
14
23
18
17
5
24
37
25
29
11-3
12
11-5
22
11-5
13
9
11-2
10
7
38 35
32
40
39
11-1
33
4
34
28
2
30
11-3
26
1
X
6
35 31
26
M0D010
S=1/7
Reference M0D010
ﾍﾟｰｼﾞ
4-13
PUMP DRIVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PUMP ASSY, drive
1
0565225010
HOUSING
1
2
0565225100
PIPE
1
3
0565225020
FLANGE
1
4
0881521250
NIPPLE
1
5
0565224210
FLANGE
1
6
0565223520
HOSE
1
7
0565225040
HOSE ASSY
1
18045-00044
8
0565225050
HOSE ASSY
1
18010-52034
9
1902026700
PUMP, hydraulic
1
10
1902026800
PUMP, gear
1
11
1602040100
COUPLING ASSY
1
11-1
1602000800
COUPLING
1
11-2
1602040102
BOSS, coupling
1
11-3
1602031650
SCREW, cap
8
11-5
1213000510
PIN, spring
12
12
1512370008
ADAPTOR (with filter)
1
1420010110
O-RING
1
13
1515012040
ELBOW
3
1420010110
O-RING
1
14
1515600200
ADAPTOR
1
1420010110
O-RING
1
15
1512373007
TEE
1
1420010110
O-RING
1
16
1513370048
TEE
1
M
1420010110
O-RING
1
M
17
0007213028
BUSHING
1
18
1515010130
ELBOW
1
1420010110
O-RING
1
19
1515200067
ELBOW
1
1420310908
O-RING
1
20
1515010133
ELBOW
1
1420010240
O-RING
1
21
1515010043
ELBOW
1
1420010240
O-RING
1
22
1515600577
ADAPTOR
1
1420010180
O-RING
1
23
1501750002
PLUG
3
1420010110
O-RING
1
24
1420010110
O-RING
1
25
1420110350
O-RING
2
26
1533700054
BAND
4
27
1111041645
SCREW, cap
2
28
1110041230
SCREW, cap
4
29
1110041040
SCREW, cap
6
30
1110041030
SCREW, cap
8
31
1100041035
BOLT
9
32
1100041045
BOLT
3
33
1140420012
WASHER, spring
4
34
1140420010
WASHER, spring
12
35
1140020010
WASHER, spring
12
36
1141550016
WASHER
2
37
1141550010
WASHER
2
38
0003600020
WASHER
3
39
1420110400
O-RING
1
40
1420110550
O-RING
1
Reference:M0D010
Page:4-13
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

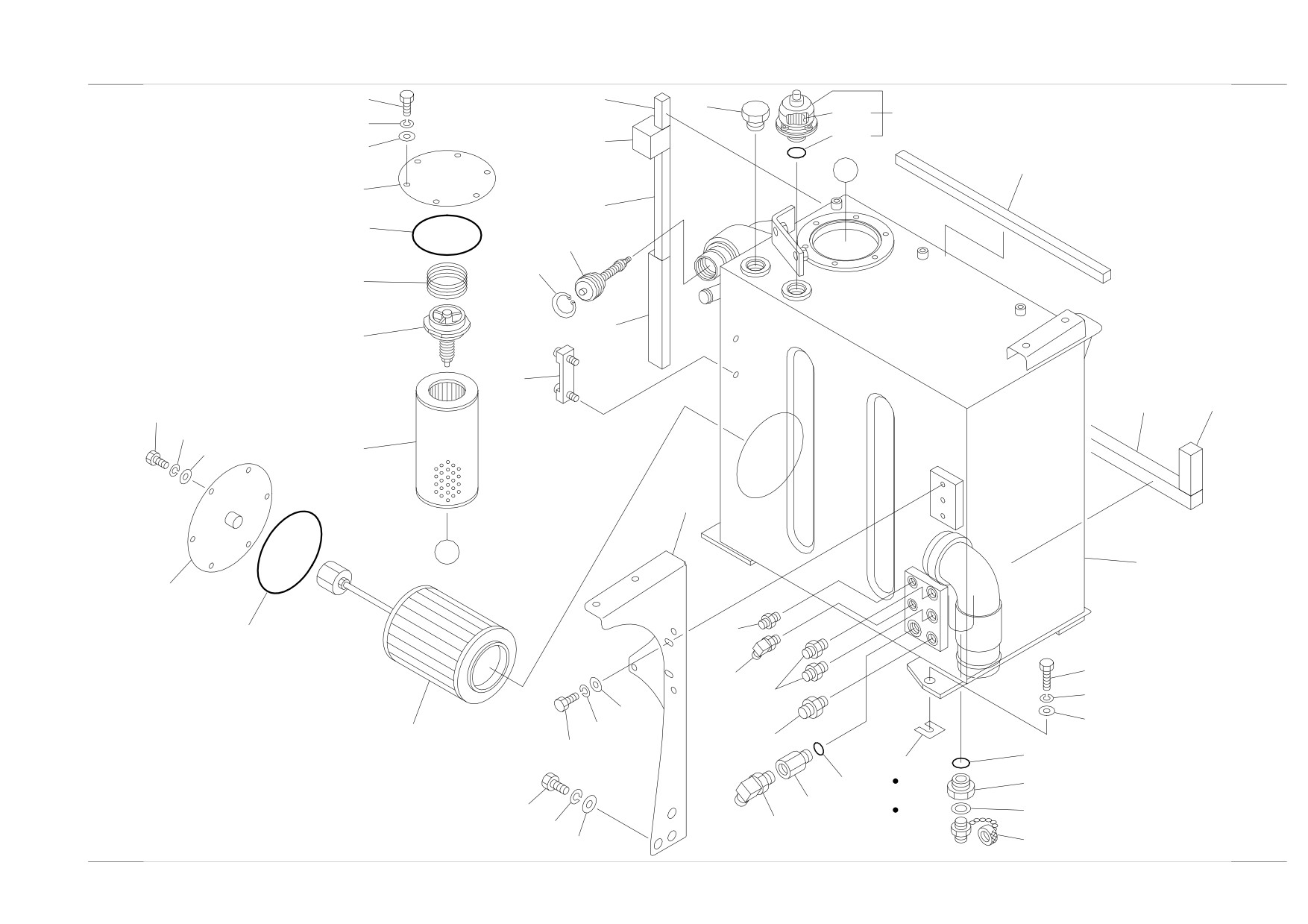

HYDRAULIC TANK
12
35
14
3-1
3
13
3-2
37
18
34
X
5
36
10
19
20
6
48
8
15
38
39
12 13
18
7
2
X
1
4
42
11
21
22
23
13
17
17
9
13
43
16
44
30
47
41
31
40
46
24
32
25 26
45
M1D060
27
S=1/10
Reference M1D060
ﾍﾟｰｼﾞ
4-14
HYDRAULIC TANK
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TANK ASSY, hydraulic
1
0568041100
TANK, hydraulic
1
2
0568040050
BRACKET
1
3
1552002700
BREATHER, air
1
3-1
1552002715
ELEMENT
1
3-2
1420010300
O-RING
1
4
0568040040
COVER
1
5
0568014500
COVER
1
6
0007000031
SPRING
1
7
1551103900
FILTER
1
8
1551100300
VALVE
1
9
1550100120
FILTER
1
10
1420101250
O-RING
1
11
1420101600
O-RING
1
12
1100041020
BOLT
12
13
1140020010
WASHER, spring
12
14
1501750010
PLUG
1
1420010290
O-RING
1
15
1553020685
GAUGE
1
16
1100041025
BOLT
2
17
0003600243
WASHER
6
18
1141110010
WASHER
12
19
1540141025
VALVE, check
1
20
1221010042
RING, snap
1
21
1100041035
BOLT
4
22
1515012040
ELBOW
1
1420010110
O-RING
1
23
1515600201
ADAPTOR
2
1420010140
O-RING
1
24
1515010042
ELBOW
1
1420010180
O-RING
1
25
1101041230
BOLT
3
26
1140020012
WASHER, spring
3
27
0003600026
WASHER
3
30
0323054001
SHIM
AR
t=1.0mm
31
0323054002
SHIM
AR
t=2.3mm
32
0323054003
SHIM
AR
t=3.2mm
34
1654349053
SPONGE
1
sold by the meter
35
1654349006
SPONGE
1
sold by the meter
36
1654349024
SPONGE
1
sold by the meter
37
1654346005
SPONGE
1
sold by the meter
38
1654341053
SPONGE
1
sold by the meter
39
1654341009
SPONGE
1
sold by the meter
40
0007213011
BUSHING
1
41
1420010180
O-RING
1
42
1515600200
ADAPTOR
1
1420010110
O-RING
1
43
1515600572
ADAPTOR
1
1420010140
O-RING
1
44
1420010290
O-RING
1
45
1554502250
PLUG
1
46
1541400722
WASHER
1
47
0568021200
BUSHING
1
48
0568041010
SPONGE
1
sold by the meter
M1d061
Reference:M1D060
Page:4-14
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

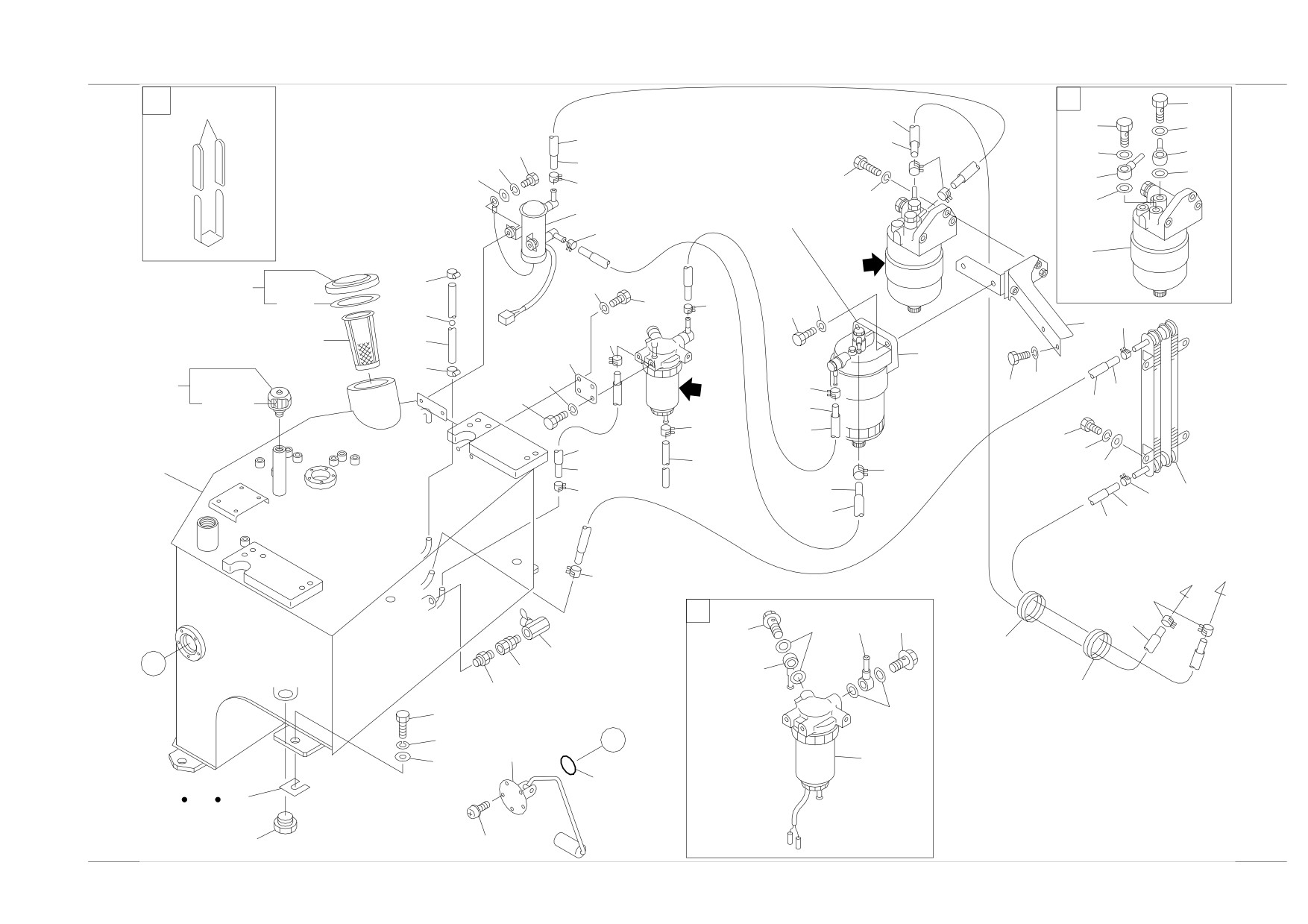

FUEL TANK & FUEL PIPING (1/2)
c
b
67
44
32
44
45
31
24
39
43
45
23
565554
43
45
39
57
See "FUEL T ANK &
15
45
6
FUEL PIPING (2/2)"
39
7
b
65
14
2
15
2-5
11
39
57
64
39
9
39
3
63
10
8
65
14
69
39
a
68 16
12
26
69-2
32
21
37
29
11
28
36
14
1
20
39
17
39
22
66
39
30
25
33
TO ENGINE
39
39
a
32
42
40
41
41
c
59
Y
40
58
c
70
71
42
16
Y
4
5
50
46
51
52
53
M0D020
61
47
S=1/10,1/12
Reference M0D020
ﾍﾟｰｼﾞ
4-15
FUEL TANK & FUEL PIPING (1/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TANK ASSY, fuel
1
0568133400
TANK
1
2
1552101300
CAP
1
2-5
1552101305
PACKING
1
3
1552100720
STRAINER
1
4
1553202700
SENDER, fuel
1
5
1910188033
STRAINER
1
I894144-9333
6
1910274034
PUMP, fuel
1
I898068-2750
7
1910257031
FILTER, fuel
1
I898143-8260
8
1552002500
FILTER, fuel (KAKO)
1
see page (2/2)
9
0568132010
BRACKET
1
10
0578100048
PLATE
1
11
1100040816
BOLT
6
12
1100040825
BOLT
2
14
1140020008
WASHER, spring
8
15
1140020010
WASHER, spring
5
16
1140020012
WASHER, spring
6
17
1141110010
WASHER
4
20
1531209036
HOSE
1
sold by the meter
21
1531209060
HOSE
1
sold by the meter
22
1531209100
HOSE
1
sold by the meter
23
1531209080
HOSE
1
sold by the meter
24
1531209240
HOSE
1
sold by the meter
25
1531214150
HOSE
1
sold by the meter
26
1531209130
HOSE
1
sold by the meter
28
1531118026
PROTECTOR
1
sold by the meter
29
1531118050
PROTECTOR
1
sold by the meter
30
1531118090
PROTECTOR
1
sold by the meter
31
1531118070
PROTECTOR
1
sold by the meter
32
1531118120
PROTECTOR
3
sold by the meter
33
1531118140
PROTECTOR
1
sold by the meter
36
1531007026
HOSE
1
sold by the meter
37
1533120009
BAND
1
39
1533120015
BAND
14
40
1910188052
JOINT
2
I515411-2231
41
1910288051
BOLT
2
I109675-1460
42
1910172053
PACKING
2
I109630-0850
43
1910230052
JOINT
2
I897383-4270
44
1910230053
BOLT
2
I109675-0951
45
1910230054
PACKING
4
I109630-0860
46
1420000450
O-RING
1
47
1150110510
SCREW
5
50
0003600026
WASHER
4
51
0323054001
SPACER
AR
t=1.0mm
52
0323054002
SPACER
AR
t=2.3mm
53
0323054003
SPACER
AR
t=3.2mm
54
1100040625
BOLT
2
55
1140020006
WASHER, spring
2
56
0003600110
WASHER
2
57
1100041040
BOLT
5
58
1511420003
ADAPTOR
1
59
1521500003
VALVE, ball
1
61
1501750010
PLUG
1
1420010290
O-RING
1
63
1531010035
HOSE
1
sold by the meter
64
1553000001
FLOAT
1
Reference:M0D020
Page:4-15
FUEL TANK & FUEL PIPING (1/2)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
65
1533700015
BAND
2
66
1911300260
COOLER, fuel
1
67
0872433150
TUBE
4
68
1101041230
BOLT
2
69
1552002800
BREATHER, air
1
69-2
1552002802
ELEMENT
1
70
1515600201
ADAPTOR
1
1420010140
O-RING
1
71
1101041235
BOLT
4
M0d020
Reference:M0D020
Page:4-15
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
FUEL TANK & FUEL PIPING (2/2) (fuel filter)
11
X
12
5
10
6
12
2
11
12
10
1
12
9
4
X
3
8
7
N2D190
S=1/5
Reference N2D190
ﾍﾟｰｼﾞ
4-16

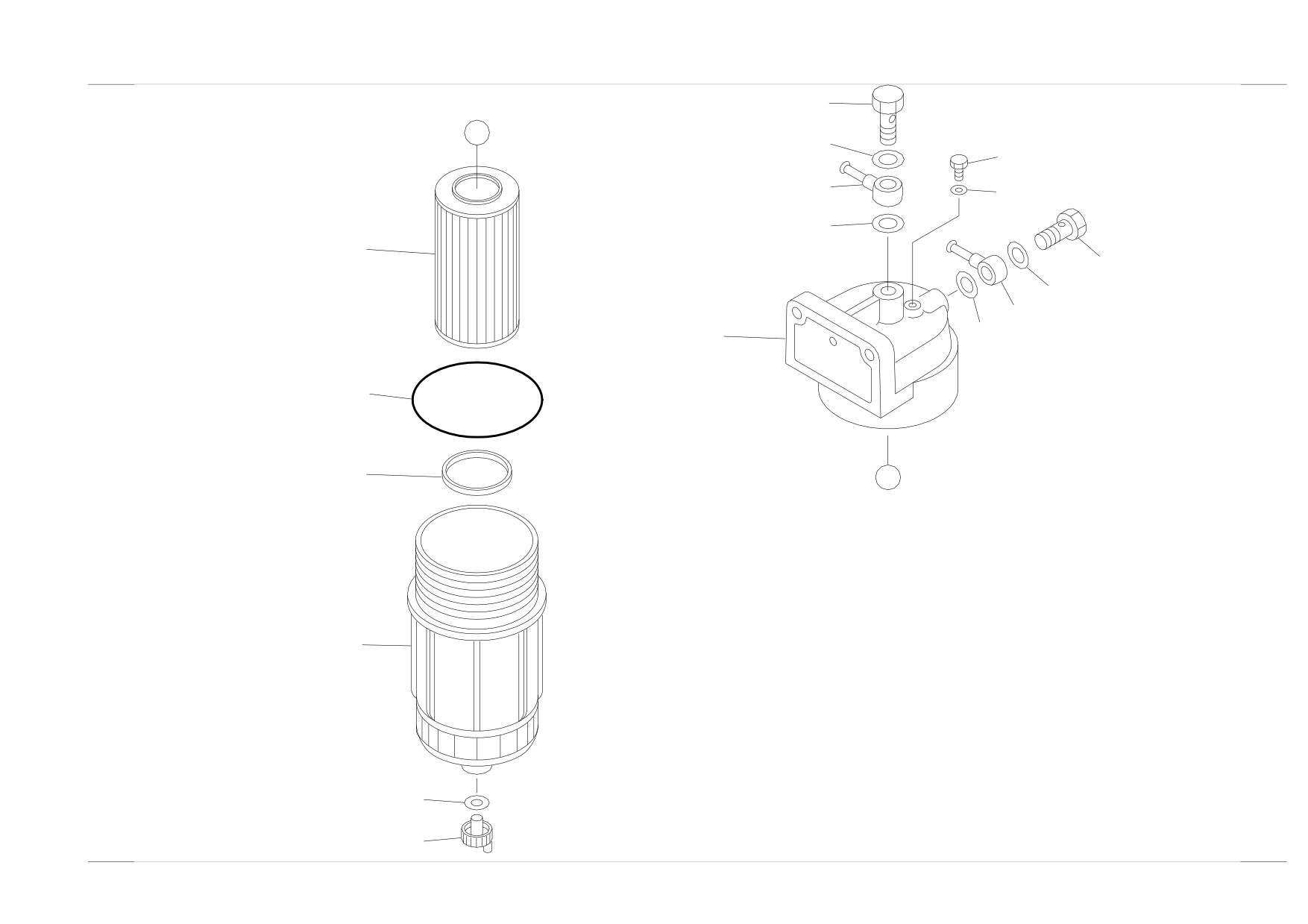

FUEL TANK & FUEL PIPING (2/2) (fuel filter)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0-1
1552002500
FILTER, fuel
1
1
1552002501
HEAD ASSY
1
2
1552002502
ELEMENT ASSY
1
3
1552002503
CASE
1
4
1552002504
RING
1
5
1552002505
PLUG
1
6
1552002506
GASKET
1
7
1552002507
PLUG
1
8
1552002508
GASKET
1
9
1552002509
O-RING
1
10
1552002510
JOINT
2
11
1552002511
BOLT
2
12
1552002512
GASKET
4
N2d190
Reference:N2D190
Page:4-16
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

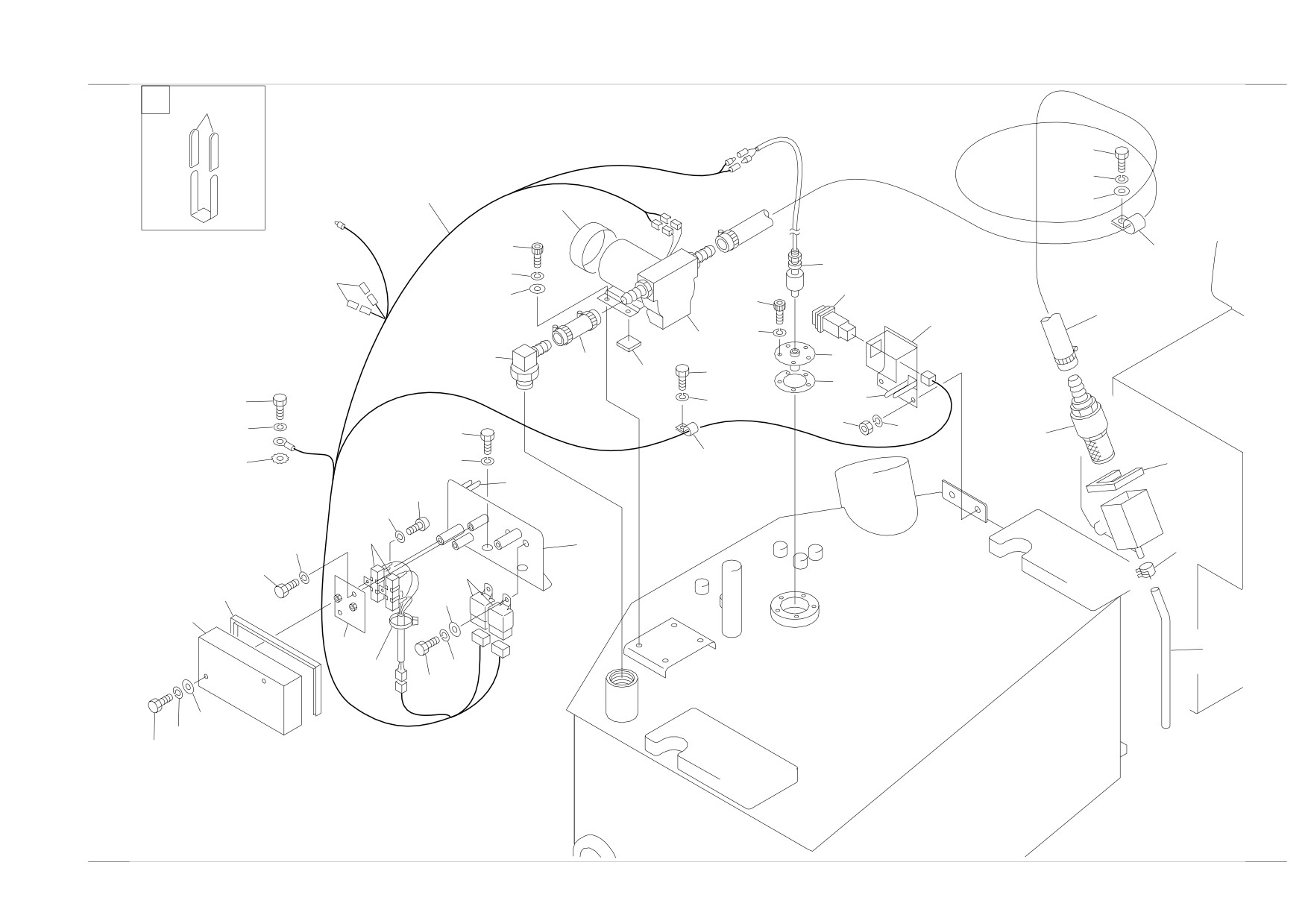

FUEL SUPPLY PUMP
b
40
31
32
9
16
33
17
23
4
18
9-1
35
19
17
6
11
18
10
15
1
7
5
38
8
b
38
39
36
39
26
29
13
37
30
41
21
b
20-4
20-5
20-2
18
2
34
24
12
22
27
3
20
14
20-6
2526
27
26
28
M0D030
S=1/8
Reference M0D030
ﾍﾟｰｼﾞ
4-17
FUEL SUPPLY PUMP
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0568133600
PUMP ASSY, fuel supply
1
1
0568130020
COVER
1
2
0568133630
BRACKET
1
3
0568133640
COVER
1
4
0568127490
SWITCH, level
1
5
0568121020
RUBBER
1
6
0568133610
HOSE ASSY
1
7
0568133620
HOSE ASSY
1
8
1553200800
PACKING
1
9
0568133650
HARNESS, wiring
1
9-1
1730500008
DIODE (3A yellow)
2
10
1711910230
PUMP
1
11
0568133660
COVER
1
12
1711900124
RELAY
2
13
1552001100
STRAINER
1
14
1531207027
HOSE
1
sold by the meter
15
1513350018
ELBOW
1
16
1711910208
COVER
1
17
1110040512
SCREW, cap
9
18
1140020005
WASHER, spring
11
19
1141110005
WASHER
4
20
0334230120
RESISTOR
1
20-2
1730500016
RESISTOR
2
20-4
1120530306
SCREW
2
20-5
1140020003
WASHER, spring
2
20-6
1652200003
BAND
1
21
1653916015
TRIM
1
sold by the meter
22
1654606034
RUBBER
1
sold by the meter
23
0007300003
CLAMP
1
24
1100040510
BOLT
2
25
1100040612
BOLT
2
26
1140020006
WASHER, spring
6
27
1141110006
WASHER
4
28
1100040660
BOLT
2
29
1100041230
BOLT
2
30
1140020012
WASHER, spring
2
31
1100040816
BOLT
1
32
1140020008
WASHER, spring
1
33
1141110008
WASHER
1
34
1533120511
CLAMP
1
35
1700000039
SWITCH
1
36
1130040006
NUT
2
37
1140330010
WASHER
1
38
1100041016
BOLT
2
39
1140020010
WASHER, spring
2
40
0872433150
TUBE
4
41
1711900105
CLAMP
1
M0d030
Reference:M0D030
Page:4-17

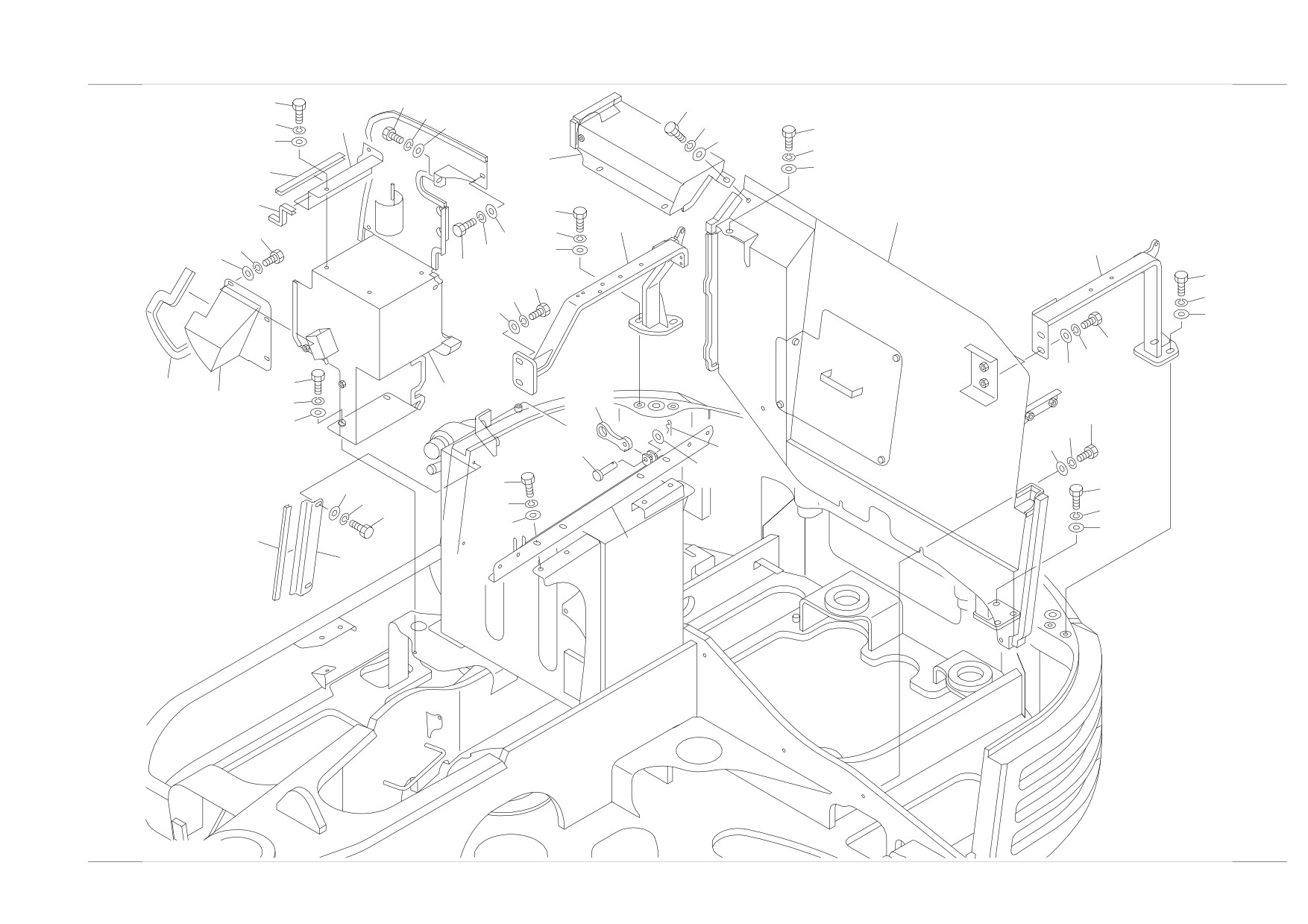

TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

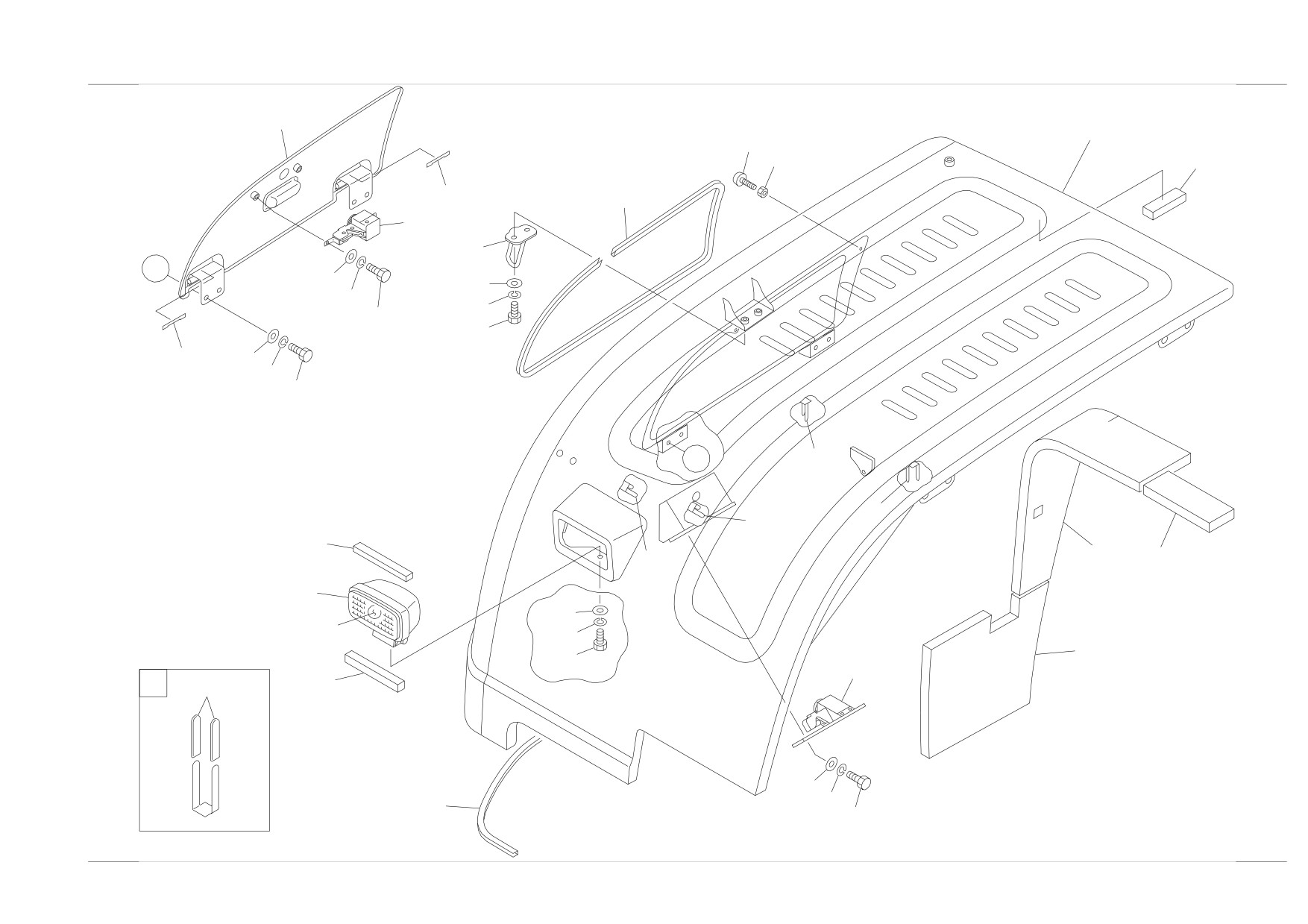

COVER (1/6)
Y
1
22
2
21
2651
25
50
3545
4460
57
X
2651
Z
23
25
36
4536
57
45
25
57
23
11
25
5126
Y
25
24
26
41
27
51
29
30
51
45
36
26
57
45
25
57
14
59
36
2651
10
45
41
57
45
57
X
27
Z
29
30
15
59
M0E011a
S=1/16
Reference M0E011a
ﾍﾟｰｼﾞ
5-1
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
COVER (1/6)
31
34
3745
44
19-1
57
45
35
57
50
45
5
19-2
57
19-3
39
4
9
4431
8
56
445658
31
39
4639
46
58
58
584639
34
18-2
6
12-2
18-1
45
57
4536
12-3
57
12-4
12-5
56
37
39
44
45
46
31
57
53
16-2
12-1
16-1
M0E011b
S=1/15
Reference M0E011a
ﾍﾟｰｼﾞ
5-1
COVER (1/6)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
COVER ASSY
1
0568269100
HOOD ASSY, engine
1
see page (2/6)
2
0568269200
COVER ASSY, side
1
see page (3/6)
4
0568269410
PARTITION ASSY (L.H.)
1
see page (4/6)
5
0568268440
PARTITION ASSY (C)
1
see page (5/6)
6
0568268460
PARTITION ASSY (R.H.)
1
see page (6/6)
8
0568267610
BRACKET (L.H.)
1
9
0568267630
BRACKET (R.H.)
1
10
0568267800
HINGE ASSY (L)
1
11
0568267850
HINGE ASSY (R)
1
12
0568268650
BRACKET ASSY
1
12-1
0568268660
BRACKET
1
12-2
0568268670
STOPPER
1
12-3
0004012035
PIN
1
12-4
1214000008
PIN, snap
1
12-5
1141110010
WASHER
1
14
0568268710
BRACKET
1
15
0568268720
BRACKET
1
16
0568267740
PLATE ASSY
1
16-1
0568267741
PLATE
1
16-2
1654606029
SEAL
1
sold by the meter
18
0568267480
PLATE ASSY
1
18-1
0568267490
PLATE
1
18-2
1654606053
TRIM
1
sold by the meter
19
0568268510
PLATE ASSY
1
19-1
0568268520
PLATE
1
19-2
1654606024
TRIM
1
sold by the meter
19-3
1653916015
TRIM
1
M
sold by the meter
21
0568267370
BRACKET
1
22
1656500050
MIRROR
1
23
0568267752
SPRING, gas
2
24
0568267753
SPRING, gas
1
25
0343503200
PIN
6
26
1214000008
PIN, snap
6
27
1652515100
RUBBER, cushion
4
29
0003900062
SPACER
AR
t=2.0mm
30
0003900063
SPACER
AR
t=3.2mm
31
1100040820
BOLT
8
34
1100041020
BOLT
5
35
1100041025
BOLT
5
36
1100041030
BOLT
14
37
1100041035
BOLT
6
39
1101041235
BOLT
11
41
1110041025
SCREW, cap
2
44
1140020008
WASHER, spring
10
45
1140020010
WASHER, spring
34
46
1140020012
WASHER, spring
11
50
1141110008
WASHER
4
51
1141110010
WASHER
6
53
1141550012
WASHER
3
56
0003608252
WASHER
6
57
0003600025
WASHER
34
58
0003612004
WASHER
8
59
1130040005
NUT
4
60
1130040008
NUT
2
M0e011
Reference:M0E011a
Page:5-1
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

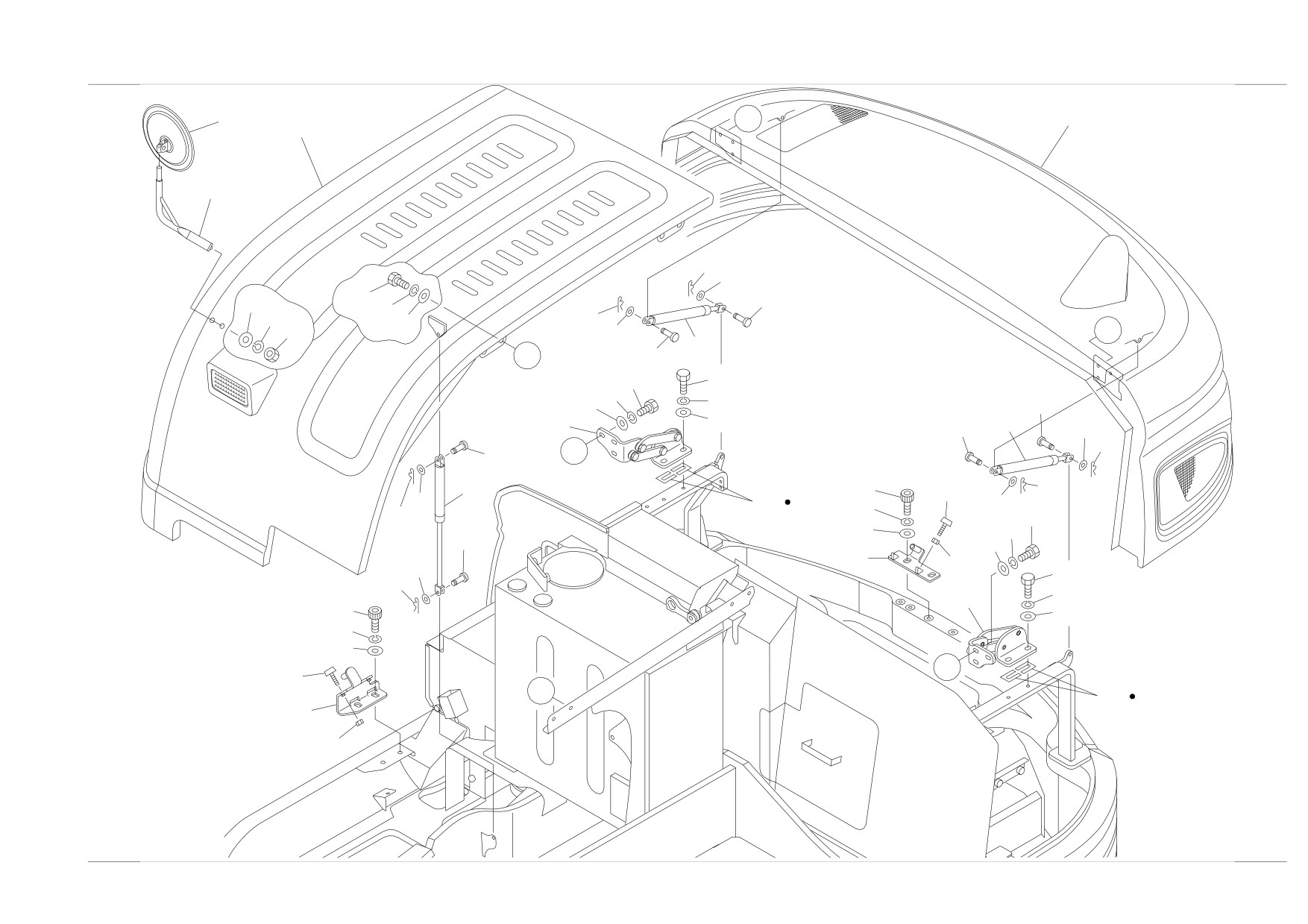

COVER (2/6) (engine hood)
16-1
20
14
11
16
12
16
18
20
27
21
6
17
2530
44
233132
1
13
24
29
28
43
4
26
22
3
30
25
27
7
15
10
8
9
41
2
5
42
M0E021
S=1/13
Reference M0E021
ﾍﾟｰｼﾞ
5-2

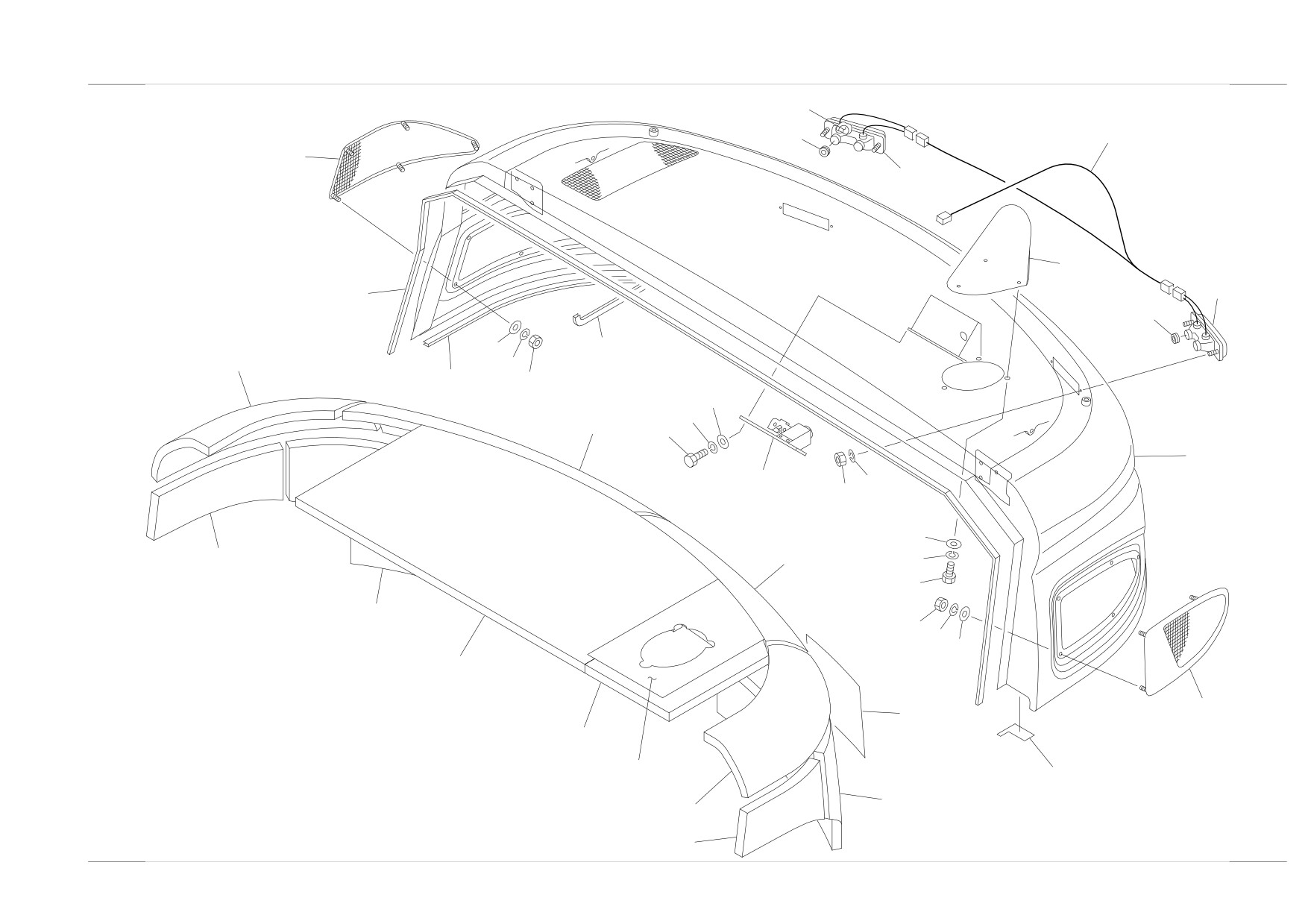

COVER (2/6) (engine hood)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0568269100
HOOD ASSY, engine
1
1
0568269110
HOOD, engine
1
2
0568269102
ABSORBENT, noise
1
3
0568268103
ABSORBENT, noise
1
4
0568269104
INSULATOR
1
5
0568268105
ABSORBENT, noise
1
6
0568268106
ABSORBENT, noise
1
7
0568269107
ABSORBENT, noise
1
8
0568269108
INSULATOR
1
9
0568269109
INSULATOR
1
10
0568267160
NET
1
11
0568267170
NET
1
12
0568266890
PIPE
1
13
0568268180
LOCK
1
14
0568266185
HARNESS, wiring
1
15
0568269101
INSULATOR
1
16
1703007000
LAMP, tail
2
16-1
1703007003
BULB
2
17
1654606282
SEAL
1
sold by the meter
18
1654606270
SEAL
1
sold by the meter
20
1652051400
GROMMET
4
21
1654606057
TRIM
1
sold by the meter
22
1100040816
BOLT
3
23
1100041025
BOLT
2
24
1140020004
WASHER, spring
4
25
1140020006
WASHER, spring
10
26
1140020008
WASHER, spring
3
27
1141110006
WASHER
10
28
1141110008
WASHER
3
29
1130030004
NUT
4
30
1130030006
NUT
10
31
1140020010
WASHER, spring
2
32
1141110010
WASHER
2
41
0568268181
SPONGE
1
M
42
0568268182
ABSORBENT, noise
1
43
0568268183
ABSORBENT, noise
1
44
0568269184
INSULATOR
1
M0e021
Reference:M0E021
Page:5-2
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
COVER (3/6) (side cover)
2-1
1
27
29
19
2-6
33
2-2
6
X
2-5
24
2-4
22
2-3
26
2-6
24
22
26
X
A
A
A
28
4
A
5
13
24
13-1
22
3
20
11
A
18
31
25
17
2321
M0E030
S=1/12
Reference M0E030
ﾍﾟｰｼﾞ
5-3
COVER (3/6) (side cover)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0568269200
COVER ASSY, side
1
1
0568268210
COVER, side
1
2
0568268300
COVER ASSY
1
2-1
0568268310
COVER
1
2-2
1653611799
LOCK
1
2-3
1100040816
BOLT
2
2-4
1140020008
WASHER, spring
2
2-5
1141110008
WASHER
2
2-6
0568268306
RUBBER
2
3
0568268203
ABSORBENT, noise
1
4
0568268204
ABSORBENT, noise
1
5
0568268205
ABSORBENT, noise
1
6
0568267360
BRACKET
1
11
0568268180
LOCK
1
13
1703006200
LAMP ASSY
1
13-1
1703006205
BULB
1
17
1654605144
TRIM
1
sold by the meter
18
1654306016
SPONGE
1
sold by the meter
19
1654342010
SPONGE
1
sold by the meter
20
1100040825
BOLT
1
21
1100041025
BOLT
2
22
1140020008
WASHER, spring
9
23
1140020010
WASHER, spring
2
24
1141110008
WASHER
7
25
1141110010
WASHER
2
26
1100040820
BOLT
6
27
1652515100
RUBBER, cushion
2
28
1654302016
SPONGE
1
sold by the meter
29
1130040005
NUT
2
31
0872433150
TUBE
8
33
1653916140
TRIM
1
sold by the meter
M0e031
Reference:M0E030
Page:5-3
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

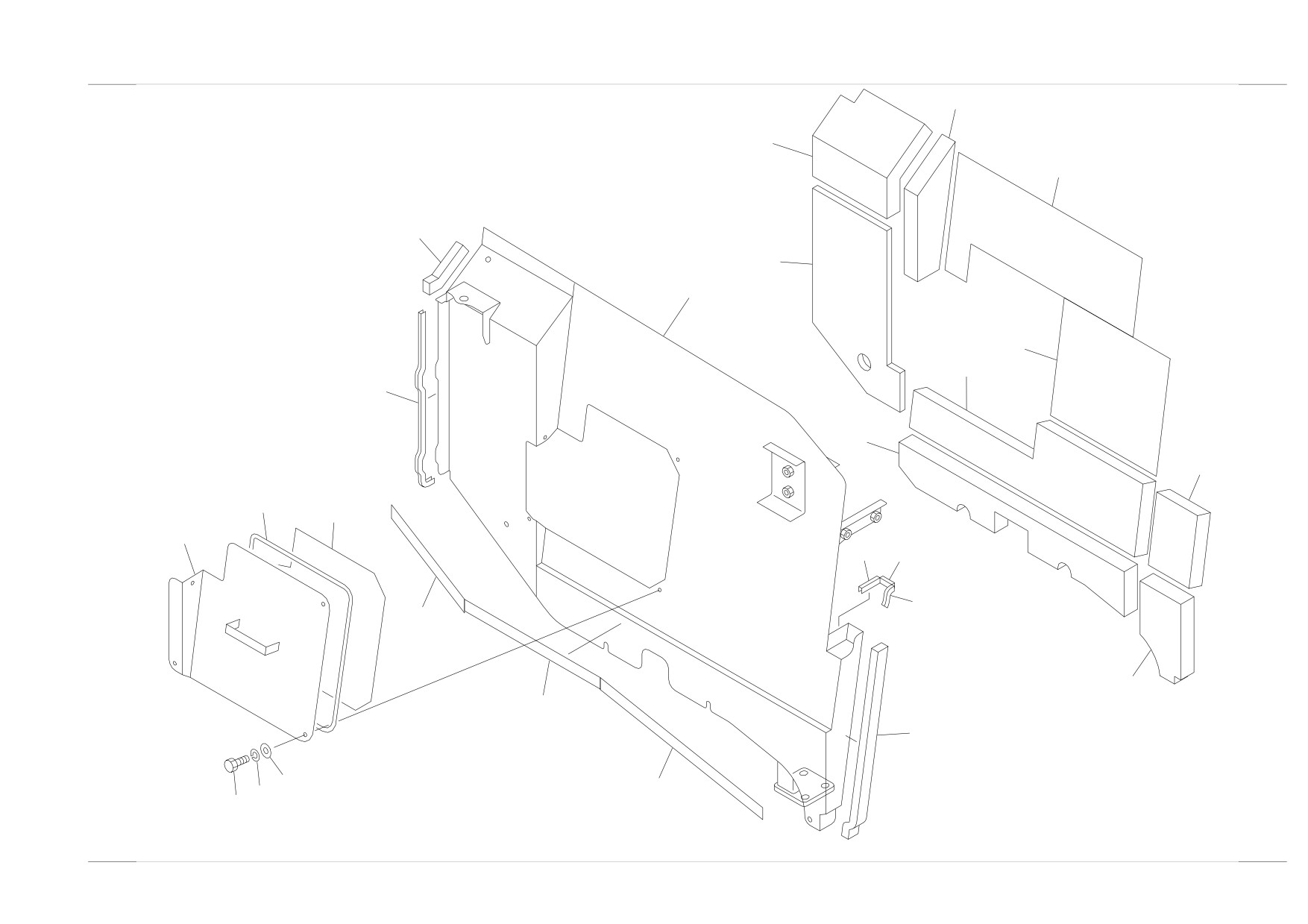

COVER (4/6) (partition-L.H.)
6
7
9
24
10
1
8
5
21
3
4
17-3
17-2
17-1
26
27
26
15
2
14
22
20
13
19
18
M0E041
S=1/12
Reference M0E041
ﾍﾟｰｼﾞ
5-4
COVER (4/6) (partition-L.H.)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0568269410
PARTITION ASSY (L.H.)
1
1
0568268420
PARTITION
1
2
0568266491
ABSORBENT, noise
1
3
0568268413
ABSORBENT, noise
1
4
0568268414
ABSORBENT, noise
1
5
0568268415
ABSORBENT, noise
1
6
0568268416
ABSORBENT, noise
1
7
0568269417
ABSORBENT, noise
1
8
0568268418
INSULATOR
1
9
0568268419
INSULATOR
1
10
0568269418
ABSORBENT, noise
1
13
0568266495
SEAL
1
14
0568266496
SEAL
1
15
0568266497
SEAL
1
17
0568268530
COVER ASSY
1
17-1
0568268540
COVER
1
17-2
0568268532
INSULATOR
1
17-3
0568268533
SEAL
1
18
1100040612
BOLT
4
19
1140020006
WASHER, spring
4
20
1141110006
WASHER
4
21
1654606048
SEAL
1
sold by the meter
22
1654342047
SPONGE
1
sold by the meter
24
0568268402
SPONGE
1
26
1653916005
SEAL
2
M
sold by the meter
27
1653916004
SEAL
1
M
sold by the meter
M0e041
Reference:M0E041
Page:5-4
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

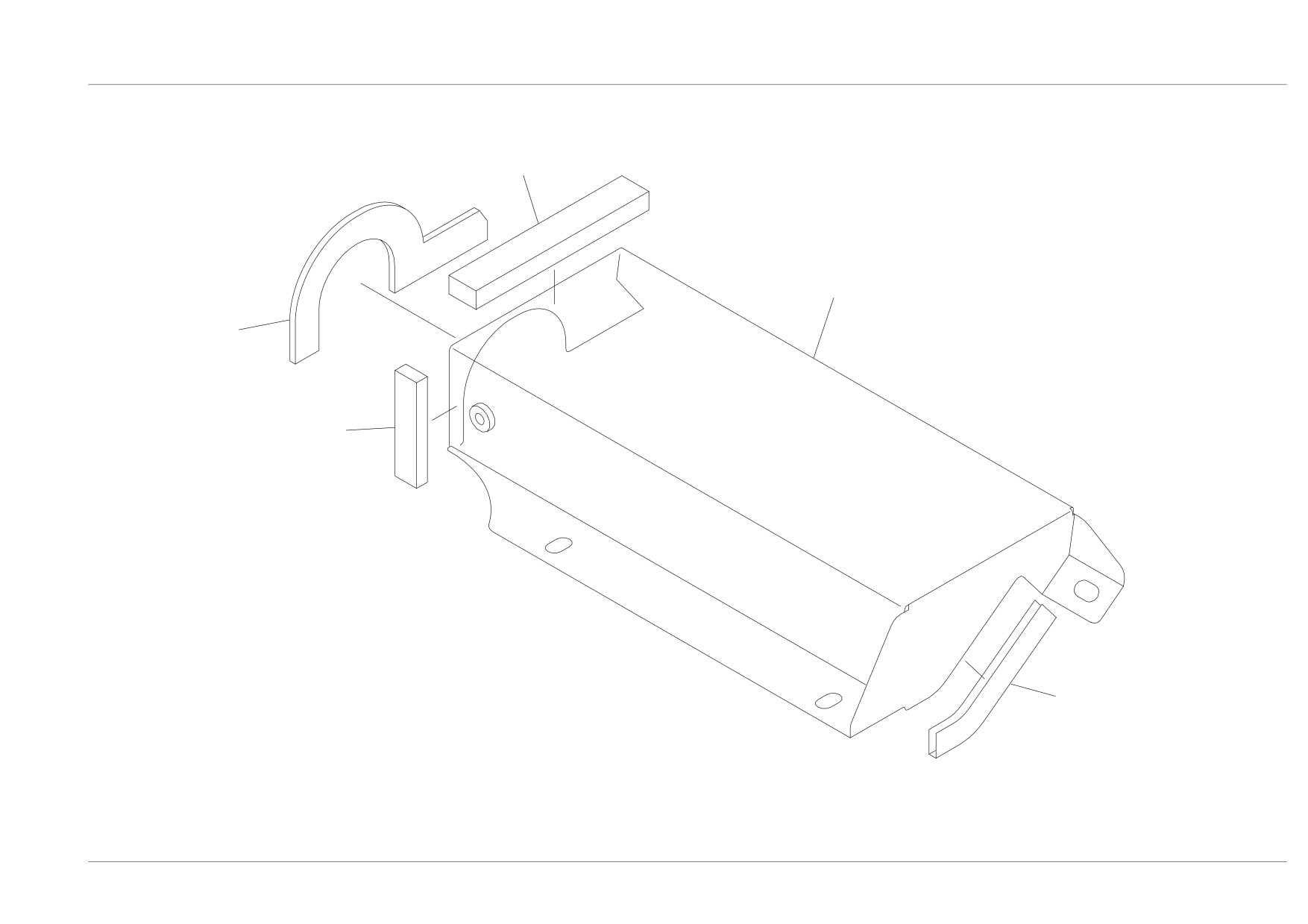

COVER (5/6) (partition-C)
5
1
6
7
2
M1E051
S=1/4
Reference M1E051
ﾍﾟｰｼﾞ
5-5
COVER (5/6) (partition-C)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0568268440
PARTITION ASSY (C)
1
1
0568268450
PARTITION
1
2
1654606013
SEAL
1
sold by the meter
5
1654343016
SPONGE
1
6
0568266446
SPONGE
1
7
0568267463
SPONGE
1
M1e051
Reference:M1E051
Page:5-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
COVER (6/6) (partition-R.H.)
13
8
9
4
10
14
11
15
12
6
1
M1E061
S=1/8
Reference M1E061
ﾍﾟｰｼﾞ
5-6
COVER (6/6) (partition-R.H.)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0568268460
PARTITION ASSY (R.H.)
1
1
0568268470
PARTITION
1
4
0568268464
SPONGE
1
6
0568268466
SPONGE
1
8
1654606088
SEAL
1
M sold by the meter
9
1654606023
SEAL
1
sold by the meter
10
1654606010
SEAL
1
sold by the meter
11
1654606033
SEAL
1
M sold by the meter
12
1654606029
SEAL
1
M sold by the meter
13
1654601010
TRIM
1
M sold by the meter
14
1654606008
SEAL
1
sold by the meter
15
1653916015
TRIM
1
M sold by the meter
M1e061
Reference:M1E061
Page:5-6
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

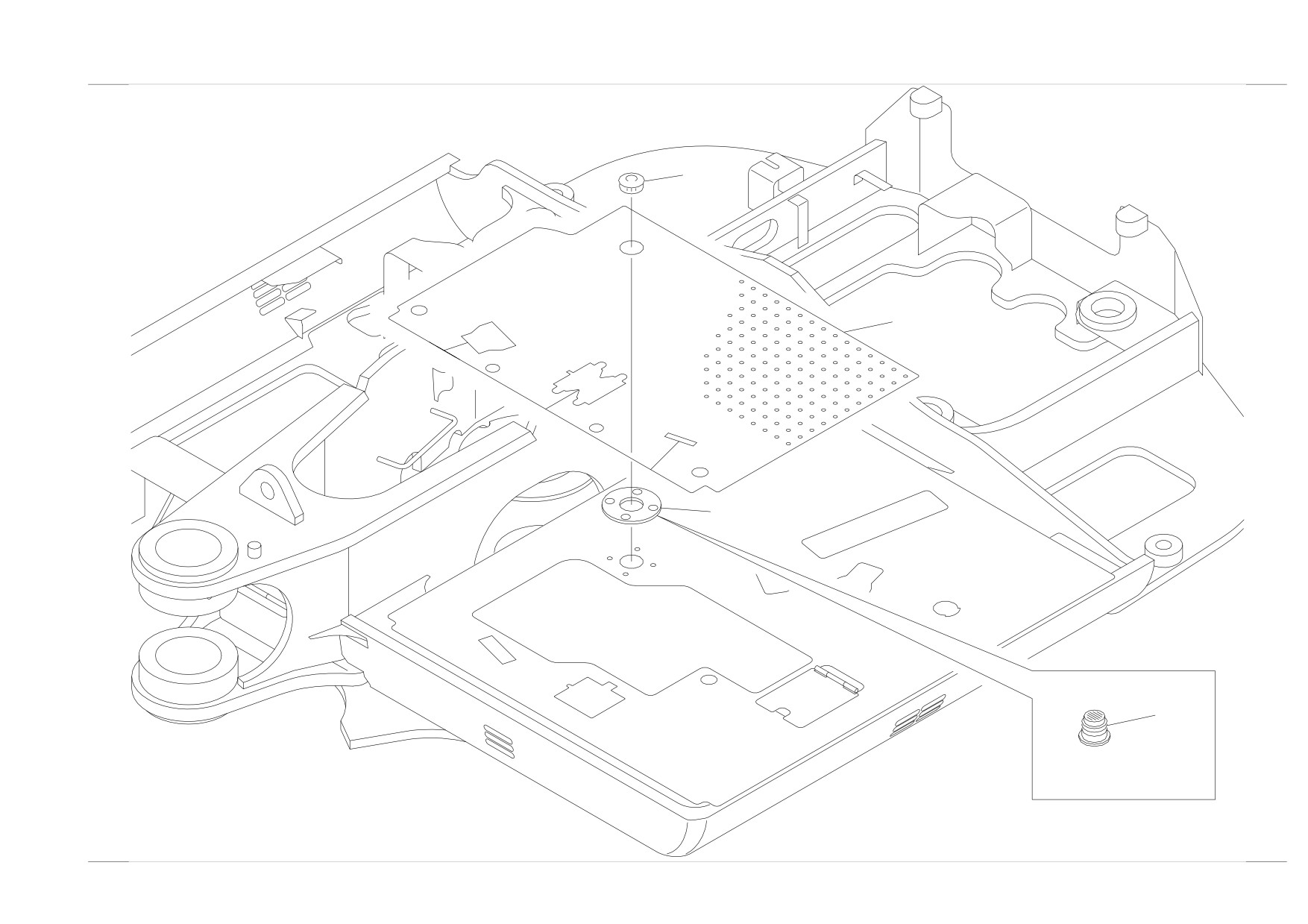

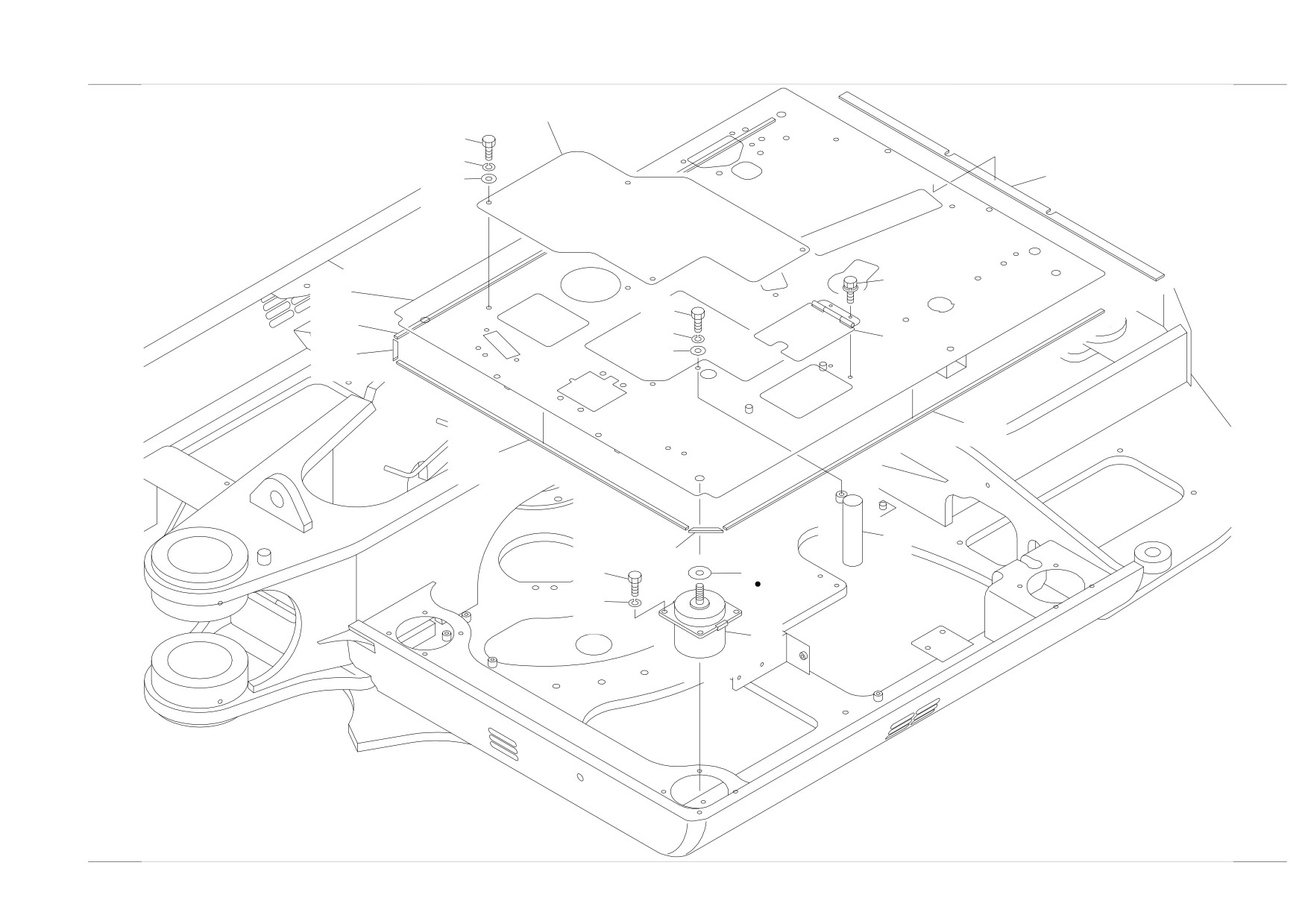

FLOOR PLATE
3
14
15
22
16
26
1
14
23
15
4
16
24
23
21
5
24
9
12
13
8
2
M1E070
S=1/12
Reference M1E070
ﾍﾟｰｼﾞ
5-7
FLOOR PLATE
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
PLATE ASSY, floor
1
0563538810
PLATE
1
2
0563538660
MOUNT
4
3
0563538840
COVER
1
4
0563538640
COVER ASSY
1
5
0563538650
PIPE
1
8
1140020010
WASHER, spring
16
9
1101041030
BOLT
16
12
0003600121
SHIM
1
t=1.2mm
13
0003600062
SHIM
1
t=3.2mm
14
1100040820
BOLT
5
15
1140020008
WASHER, spring
5
16
1141110008
WASHER
5
21
0563538661
SEAL
1
22
0563538662
SEAL
1
23
0563538663
SEAL
2
24
0563538664
SEAL
2
26
1100560620
BOLT, sems
2
M1e071
Reference:M1E070
Page:5-7
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

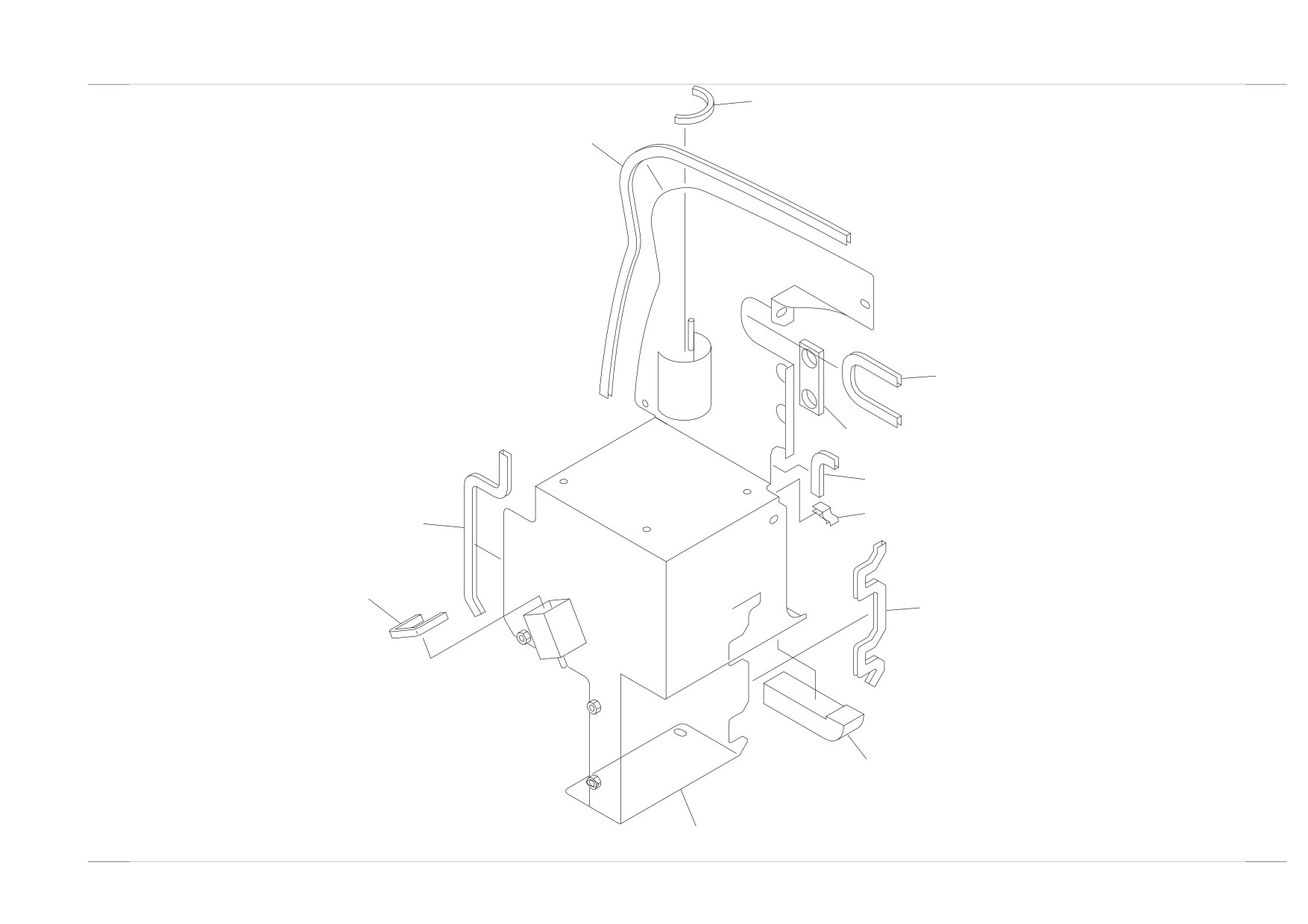

FLOOR MAT
4
1
3
2
with foot switch
M1E080
S=1/12
Reference M1E080
ﾍﾟｰｼﾞ
5-8
FLOOR MAT
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
MAT ASSY, floor (with foot switch)
MAT ASSY, floor (without foot switch)
1
0563539010
MAT, floor
1
2
0573500240
BOOT
1
with foot switch
3
0373507423
SPONGE
1
without foot switch
4
1652533013
CAP
1
without foot switch
M1e080
Reference:M1E080
Page:5-8
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

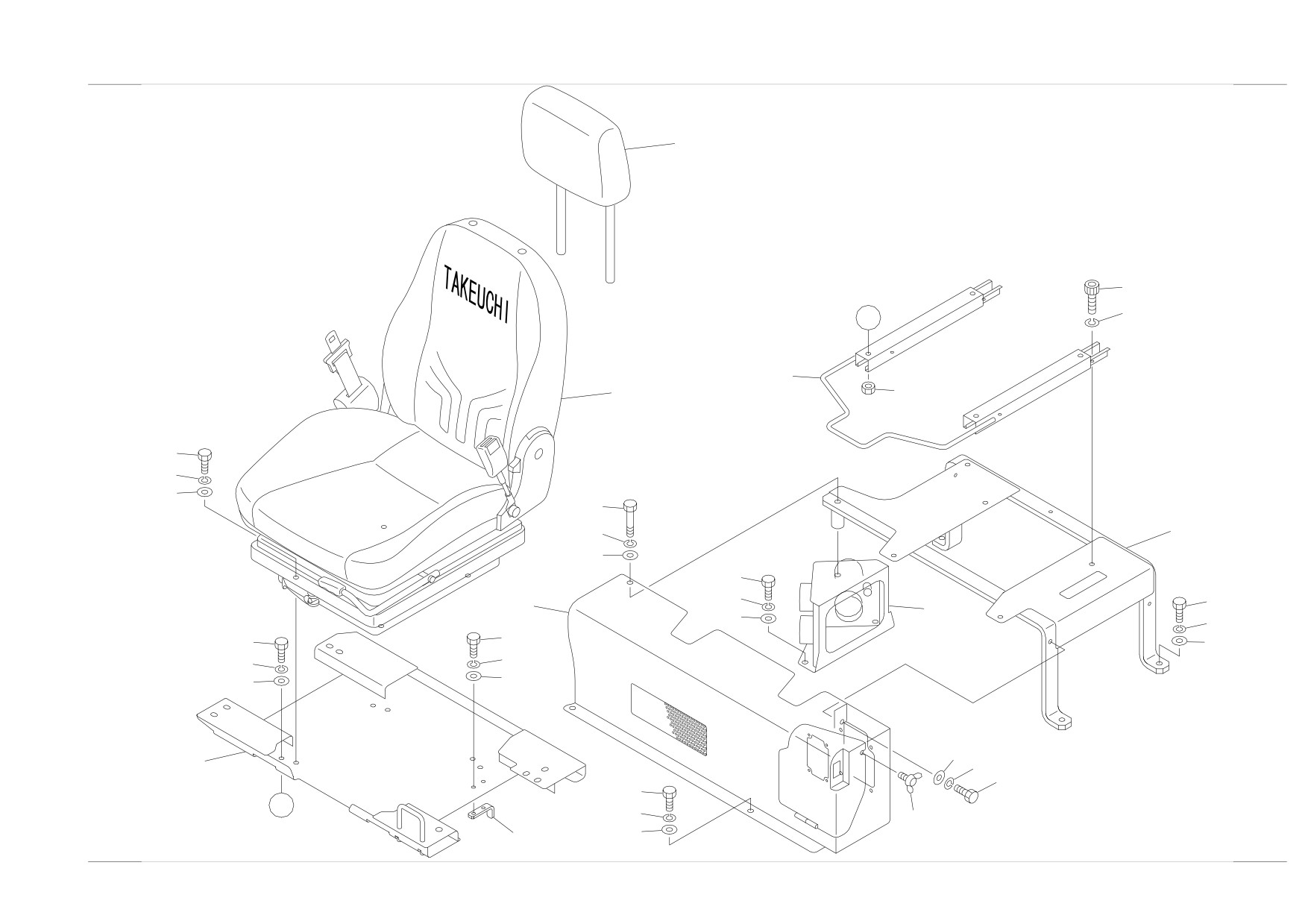

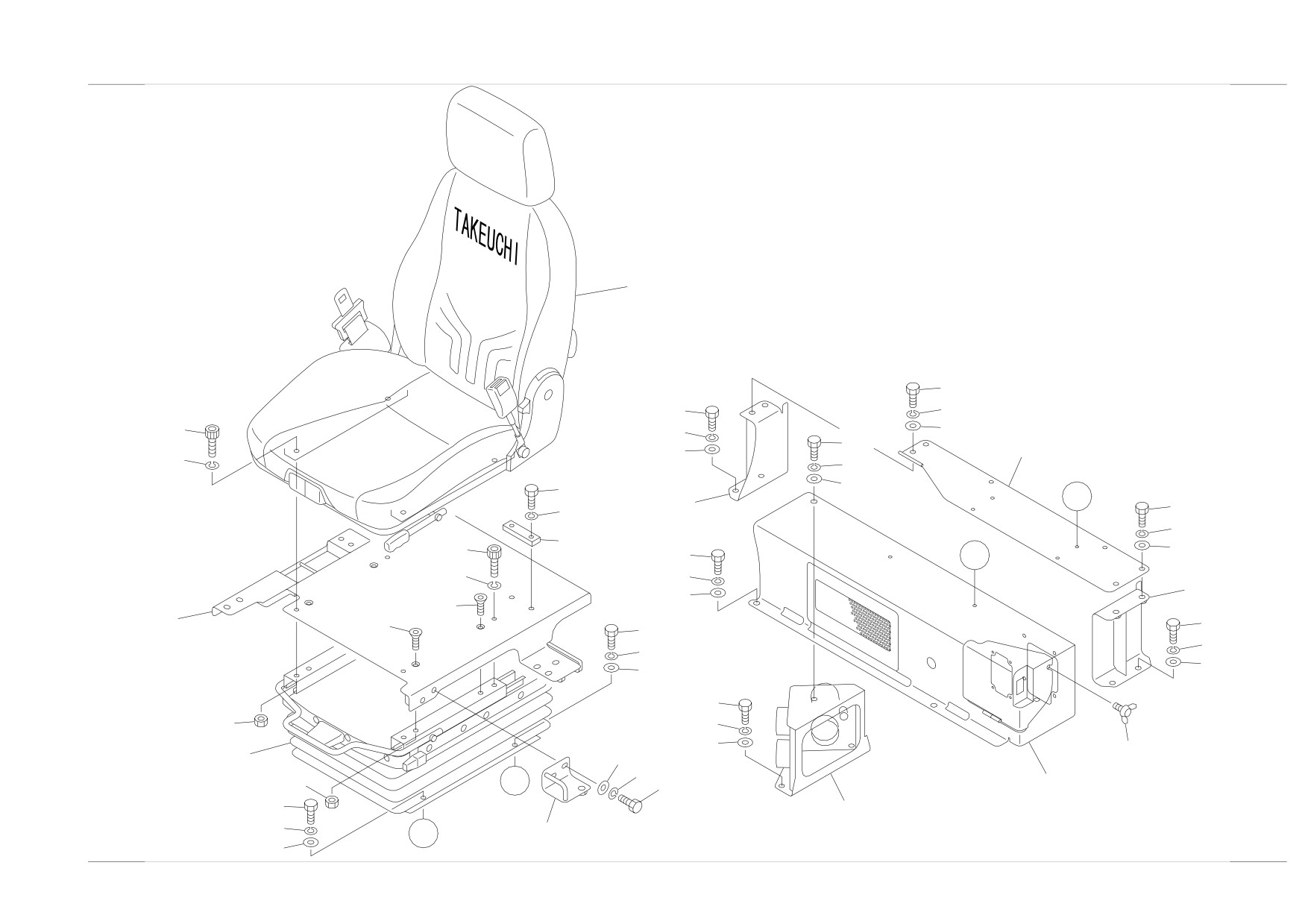

SEAT (1/2)
6
12
17
X
2
1
24
11
16
21
13
15
5
20
10
15
14
4
8
20
15
11
11
20
16
16
21
21
3
2015
10
10
X
15
25
20
M1E091
7
S=1/12
Reference M1E091
ﾍﾟｰｼﾞ
5-9
SEAT (1/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
SEAT ASSY
1
1914100071
SEAT ASSY
1
see page (2/2)
2
1914100119
RAIL ASSY, slide
1
3
0563422830
PLATE
1
M
4
0563422840
COVER
1
5
0563422650
BOX
1
6
1914100111
REST, head
1
7
0563422670
STOPPER
1
8
0563422980
DUCT
1
10
1100041030
BOLT
5
11
1100040820
BOLT
10
12
1110020820
SCREW, cap
4
13
1100041085
BOLT
1
14
1100041035
BOLT
3
15
1140020010
WASHER, spring
9
16
1140020008
WASHER, spring
10
17
1140420008
WASHER, spring
4
20
1141110010
WASHER
9
21
1141110008
WASHER
10
24
1130040008
NUT
2
25
1121530816
BOLT, wing
1
M1e091
Reference:M1E091
Page:5-9
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
SEAT (2/2)
1
2
8
22
16
9
4
21
15
5
18
14
6
3
13
11
11
12
20
11
11
11
19
10
11
7
11
23
Reference G7E310
ﾍﾟｰｼﾞ
5-10

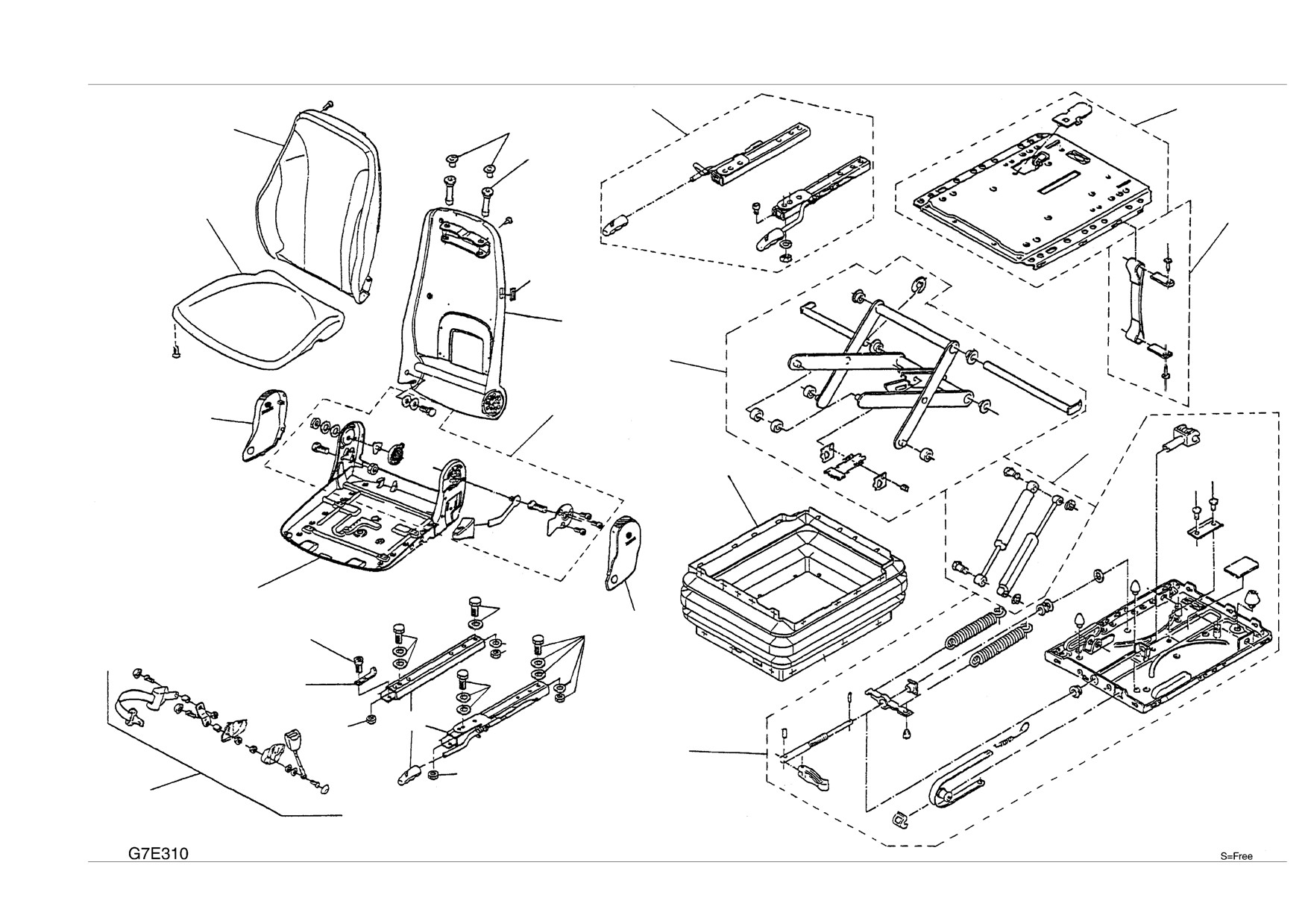

SEAT (2/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1914100071
SEAT ASSY
1
1
1914101072
RAIL ASSY
1
2
1914102072
PLATE ASSY
1
3
1914103071
BOOT
1
4
1914104072
ANGLE ASSY
1
5
1914105072
LINK ASSY
1
6
1914106072
DAMPER ASSY
1
7
1914107072
SPRING ASSY
1
8
1914101071
TRIM
1
9
1914102071
TRIM
1
10
1914110072
RAIL ASSY
1
11
1914111072
BOLT ASSY
1
12
1914112072
COVER (L.H.)
1
13
1914113072
FRAME
1
14
1914114072
COVER (R.H.)
1
15
1914115072
FRAME
1
16
1914116072
GUIDE
2
18
1914118072
JOINT ASSY
1
19
1914119072
PLATE
1
20
1914120072
SCREW, cap
1
21
1914121072
PLATE
1
22
1914122072
PLUG
2
23
1914123072
BELT ASSY, seat
1
M1e100
Reference:G7E310
Page:5-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
SEAT (1/3) (air suspension type)
1
10
10
15
12
15
20
10
5
20
17
15
14
20
Y
7
10
16
15
31
12
20
10
X
17
15
6
20
13
3
10
13
11
15
16
20
21
10
24
15
20
2
25
2015
24
Y
10
4
11
8
16
X
9
M1E111
21
S=1/12
Reference M1E111
ﾍﾟｰｼﾞ
5-11
SEAT (1/3) (air suspension type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
SEAT ASSY
1
1914100123
SEAT ASSY
1
see page (2/3)
2
1914100124
SUSPENSION ASSY, air
1
see page (3/3)
3
0563422930
PLATE
1
4
0563422940
COVER
1
5
0563422950
PLATE
1
6
0563422960
BRACKET
1
7
0563422970
BRACKET
1
8
0563422980
DUCT
1
9
0563422990
STRIKER
1
10
1100041030
BOLT
16
11
1100040816
BOLT
6
12
1110020820
SCREW, cap
4
13
1120800816
SCREW
4
14
1100040825
BOLT
2
15
1140020010
WASHER, spring
16
16
1140020008
WASHER, spring
8
17
1140420008
WASHER, spring
4
20
1141110010
WASHER
16
21
1141550008
WASHER
6
24
1130040008
NUT
4
25
1121530816
BOLT, wing
1
31
0563422901
PLATE
1
M1e111
Reference:M1E111
Page:5-11
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

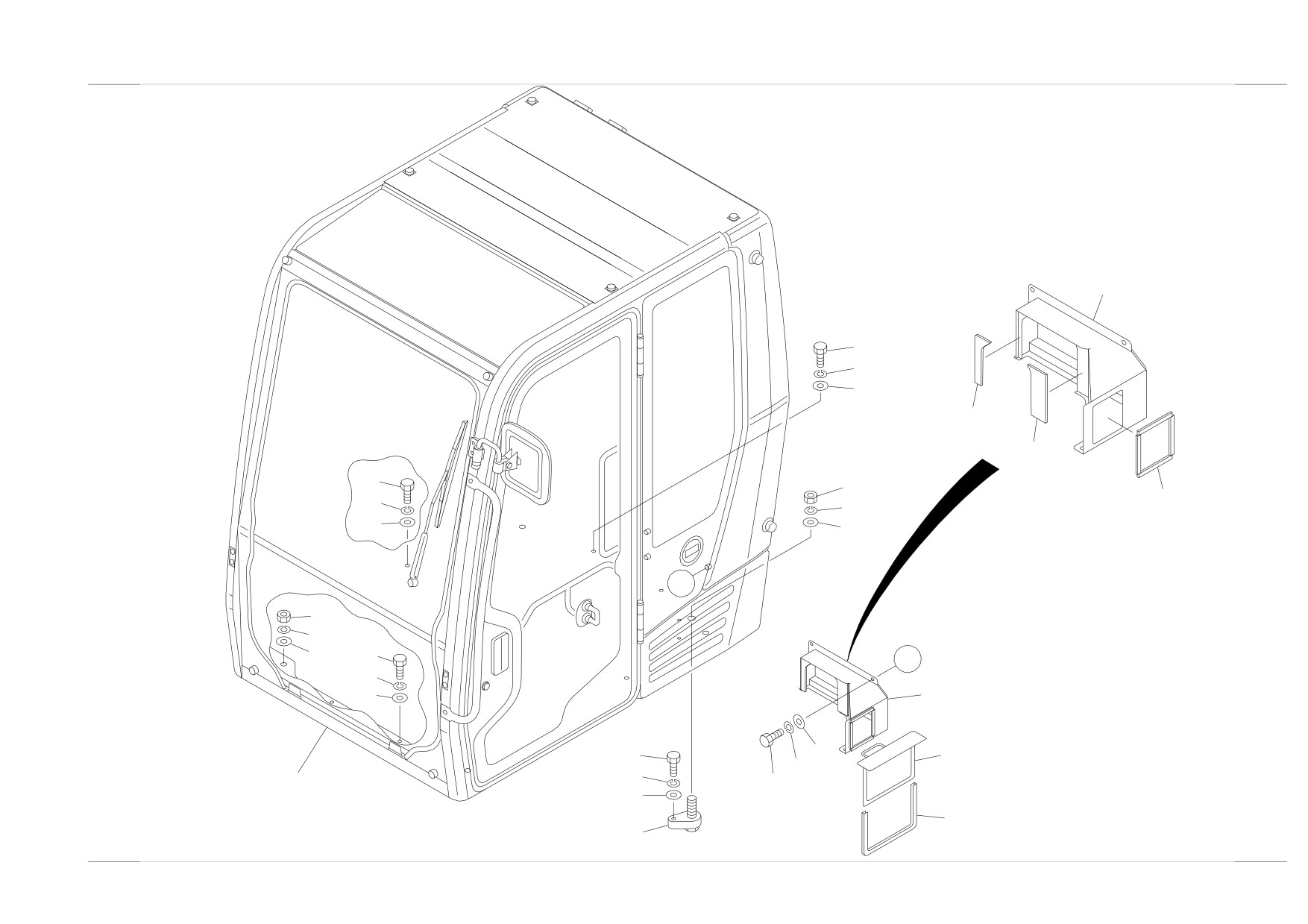

CAB MOUNT
21-1
4
5
6
21-3
21-2
7
18
8
21-4
17
9
19
X
10
11
12
3
X
5
6
21
27
22
29
28
28
1
26
29
23
16
M1E140
S=1/12, 1/18
Reference M1E140
ﾍﾟｰｼﾞ
5-12
