Takeuchi Hydraulic excavator TB290 (Serial No. 190000001~). Parts Manual - page 4





VALVE & ACCESSORIES (1/2) (with blade float)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
14-13
1420010110
O-RING
1
14-14
1901751600
VALVE, solenoid
1
14-15
0007213028
BUSHING
1
14-16
1512375004
ELBOW
1
1420010110
O-RING
1
16
0565067660
PIPE
1
17
1110040820
SCREW, cap
6
18
1110041025
SCREW, cap
2
with high press. 3rd aux. line
19
1110041040
SCREW, cap
3
20
1100141000
BOLT
2
22
1100041230
BOLT
5
24
1140020008
WASHER, spring
12
25
1140020010
WASHER, spring
7
1140020010
WASHER, spring
9
with high press. 3rd aux. line
26
1140020012
WASHER, spring
5
28
1141110008
WASHER
10
29
1141110010
WASHER
7
1141110010
WASHER
11
with high press. 3rd aux. line
30
1141550012
WASHER
5
32
0565068040
VALVE ASSY, solenoid (with blade float)
1
190000003~190000007
32-1
1901759600
VALVE, solenoid
2
32-2
1515600577
ADAPTOR
1
1420010180
O-RING
1
32-3
1512374014
TEE
2
1420010180
O-RING
1
32-4
0881501100
BLOCK, valve
1
32-5
0007213011
BUSHING
1
32-6
0565068041
BUSHING
1
32-7
1420010180
O-RING
2
32
0565068240
VALVE ASSY, solenoid (with blade float)
1
190000008~
M
32-1
1901759600
VALVE, solenoid
2
32-2
1512374014
TEE
2
1420010180
O-RING
1
32-3
0881501100
BLOCK, valve
1
32-4
0565068041
BUSHING
1
32-5
1420010180
O-RING
2
32-6
0007213012
BUSHING
1
M
32-7
1515600201
ADAPTOR
1
M
1420010140
O-RING
1
M
32-8
1110040665
SCREW, cap
2
32-9
1140020006
WASHER, spring
2
32-10
0565068090
BRACKET
1
M
33
1110040665
SCREW, cap
2
190000003~190000007
34
1140020006
WASHER, spring
2
190000003~190000007
35
1141110006
WASHER
2
190000003~190000007
36
1100040820
BOLT
2
37
1110041020
SCREW, cap
2
38
1110040850
SCREW, cap
2
39
1130040008
NUT
2
41
1515012040
ELBOW
1
1420010110
O-RING
1
42
1700100126
TRANSMITTER, pressure
1
43
0565068210
BUSHING
1
46
1101041230
BOLT
2
190000008~
47
1140020012
WASHER, spring
2
190000008~
48
1141110012
WASHER
2
190000008~
Reference:M0D050a
Page:4-3
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

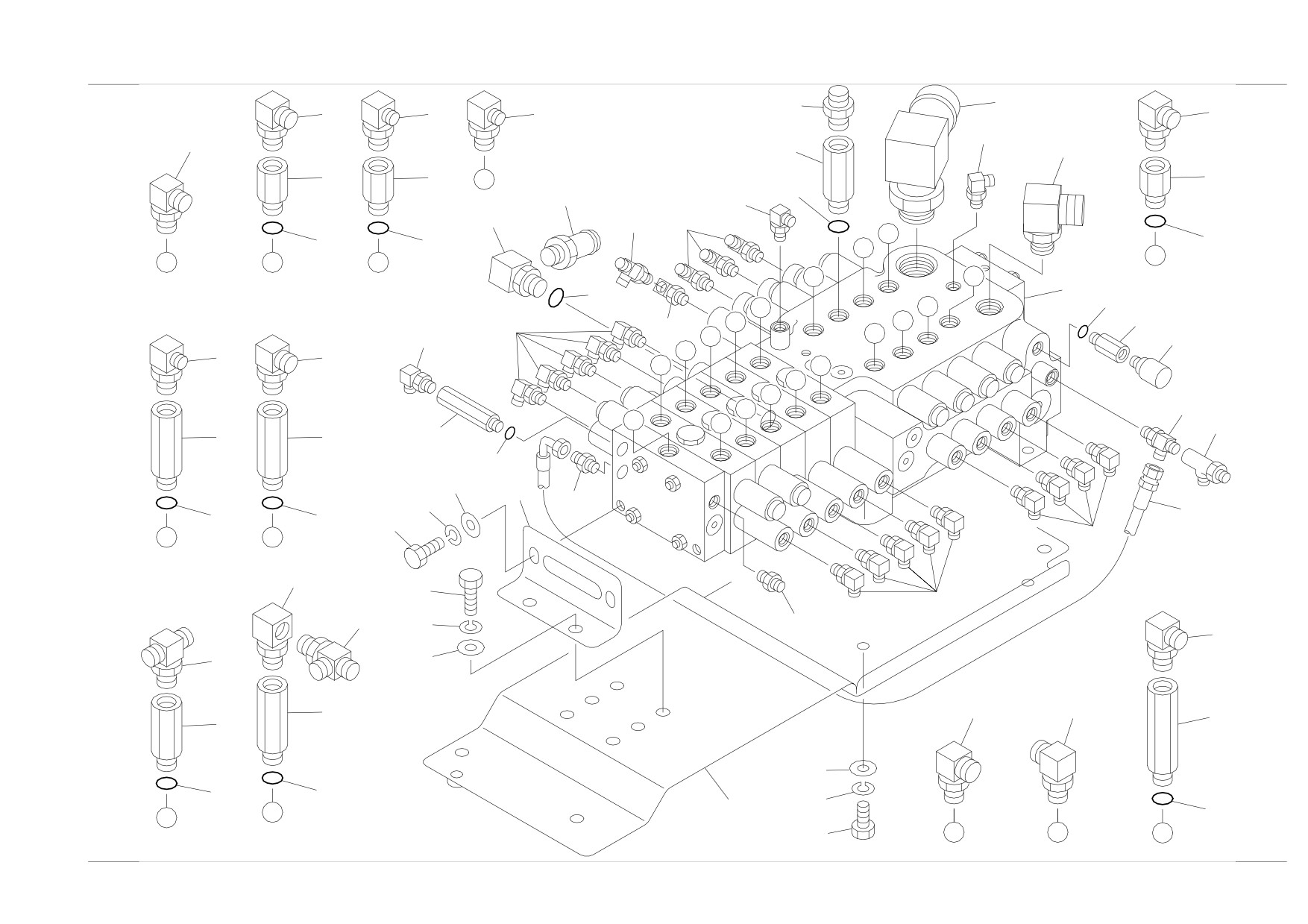

VALVE & ACCESSORIES (2/2)
1
16
8
9
9
8
10
8
2
11
6
6
f
23
20
5
10
12
10
15
20
20
p q
20
k
a
b
c
h
b
22
20
35
n
e c
k
24
10
g
10
25
b
21
d
9
8
b
f
b
a
c
15
n
a
26
4
4
34
35
33
28
32
17
29
20
20
30
d
e
10
3
31
10
14
32
17
8
13
33
7
7
4
18
2
33
20
20
32
g
h
27
20
n
p
q
30
M1D101
S=1/6
Reference M1D101
ﾍﾟｰｼﾞ
4-4
VALVE & ACCESSORIES (2/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0565068120
VALVE SUB ASSY, control
1
0565068130
VALVE SUB ASSY, control (with high press. 3rd aux. line)
1
1
0565067511
ELBOW
1
1420010380
O-RING
1
2
0007213038
BUSHING
2
M
3
1513300015
ELBOW
1
1420010180
O-RING
1
4
0007213013
BUSHING
3
5
0007224006
NIPPLE
1
6
0007213011
BUSHING
6
7
1515010132
ELBOW
3
1420010180
O-RING
1
8
1515010042
ELBOW
9
1420010180
O-RING
1
9
1515010051
ELBOW
4
1420010180
O-RING
1
10
1515012040
ELBOW
20
1420010110
O-RING
1
11
1515010133
ELBOW
1
1420010240
O-RING
1
12
1513300016
ELBOW
1
1420010180
O-RING
1
13
1512374002
TEE
1
1420010180
O-RING
1
14
1512373005
TEE
1
1420010180
O-RING
1
15
1512370011
TEE
2
1420010110
O-RING
1
16
1515600202
ADAPTOR
1
1420010180
O-RING
1
17
1515600200
ADAPTOR
2
1420010110
O-RING
2
18
0007213026
BUSHING
1
M
20
1420010180
O-RING
14
21
1700100069
SWITCH, pressure
1
22
1901049100
VALVE, control
1
23
0007213010
BUSHING
1
24
0007213028
BUSHING
1
25
1513300022
ELBOW
1
1420010110
O-RING
1
26
1512340001
TEE
1
with high press. 3rd aux. line
1420010110
O-RING
1
27
0565068050
BRACKET
1
28
0565067545
BRACKET
1
29
0565068170
HOSE ASSY
1
18010-52086
30
1100041225
BOLT
6
31
1100041230
BOLT
2
32
1140020012
WASHER, spring
8
33
1141550012
WASHER
8
34
0007213041
BUSHING
1
M
35
1420010110
O-RING
2
M
M1d101
Reference:M1D101
Page:4-4
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

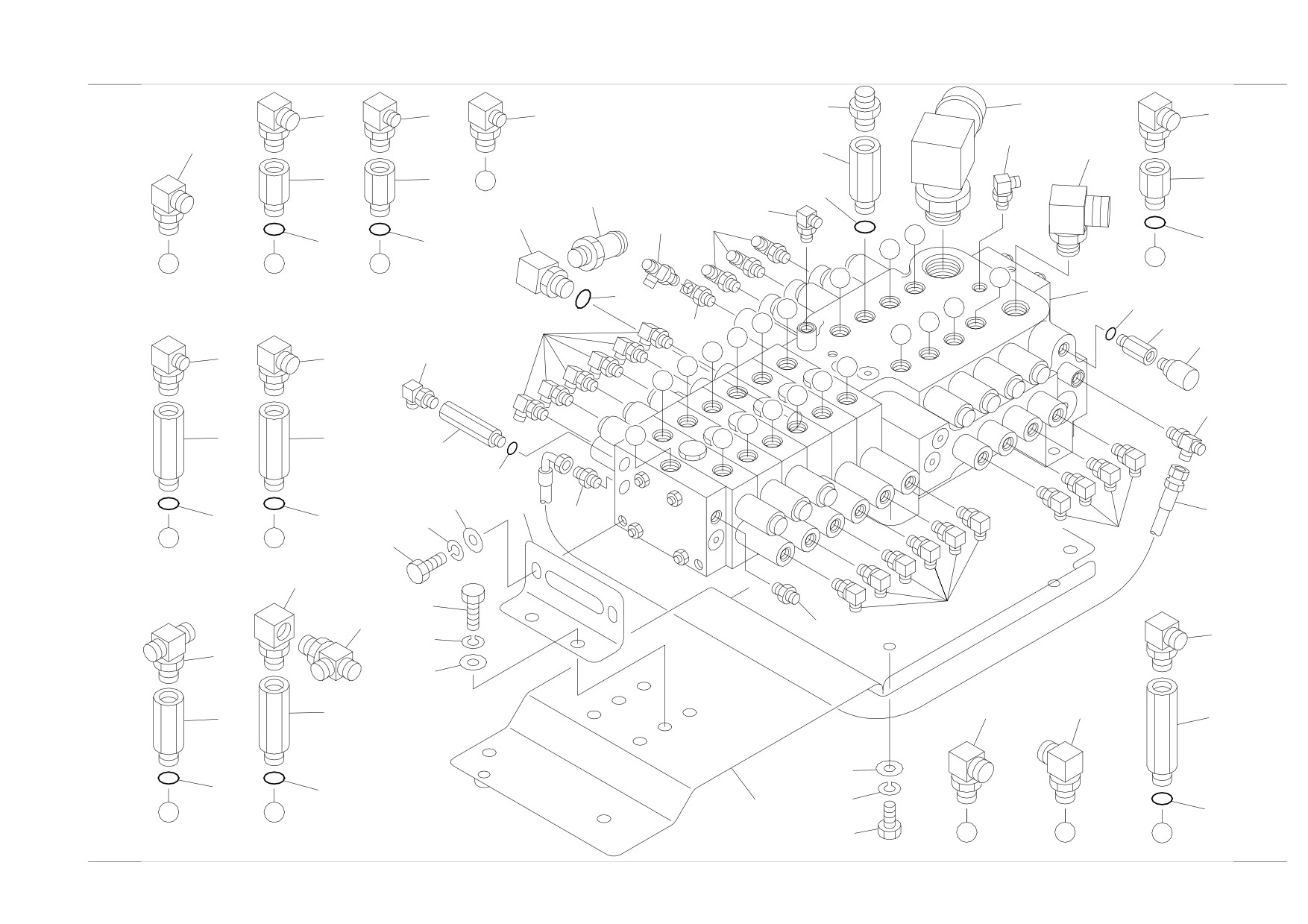

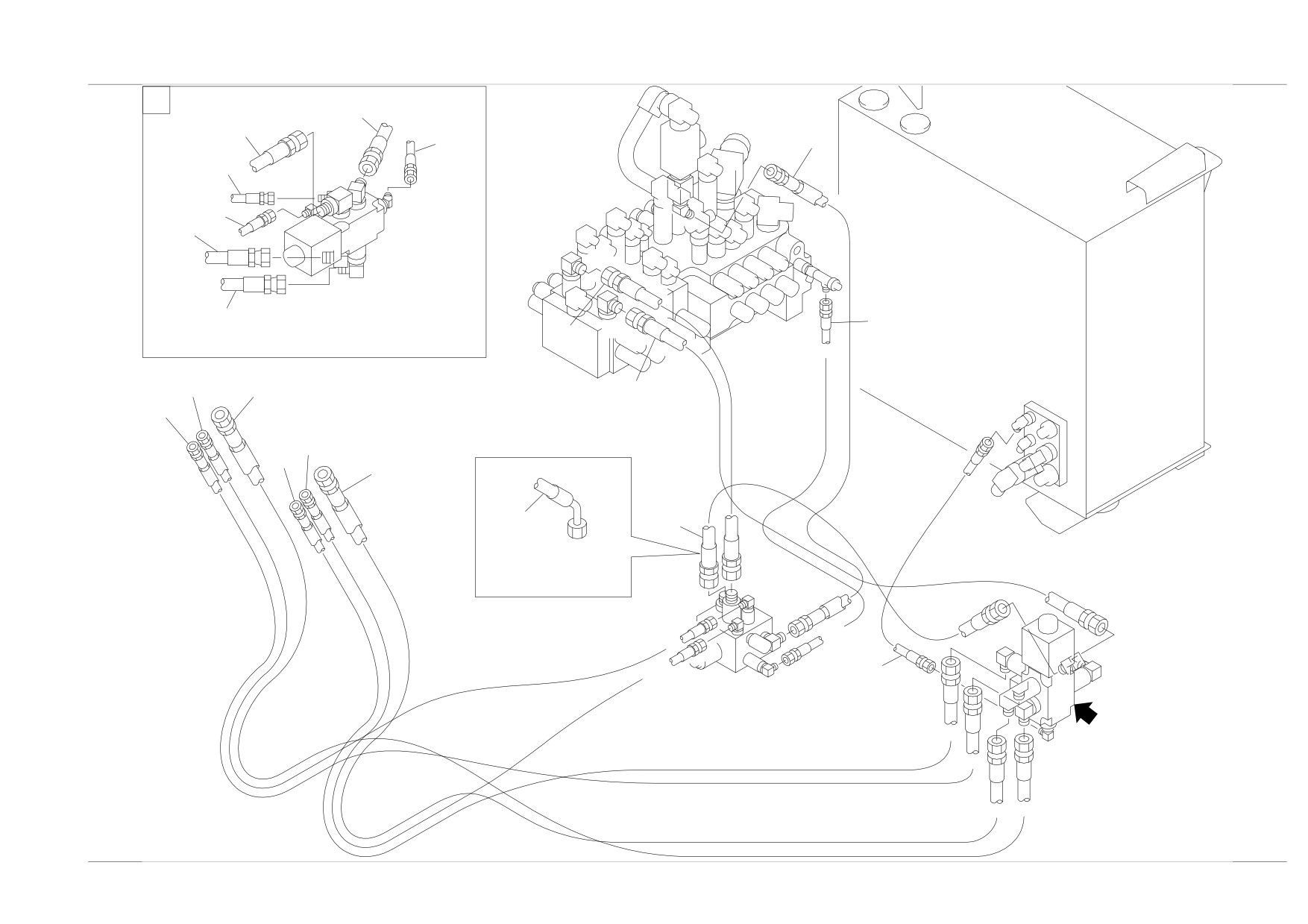

VALVE & ACCESSORIES (1/2) (angle blade type)
5-6
12-2
5-14
16
5-10
5-7
5-11
12-3
5-3
5-12
28
24
5-16
5-1
36
12-1
5-9
5-2
22
29
4
26
5-17
1925
30
5-9
5-13
5-2
5-6
5-5
5-6
5-18
1
22
26
30
M0D060a
S=1/10
Reference M0D060a
ﾍﾟｰｼﾞ
4-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
VALVE & ACCESSORIES (1/2) (angle blade type)
8-3
8-8
7
39 24
28241
8-7
8-2
8-6
42
7-4
8-1
8-5
7-1
43
41
7-3
7-2
29
25
20
7-4-2
7-4-4
7-4-1
7-4-3
13-6
6-9
6-3
13-5
28 24
17
13-1
11-4
38
17
9-3
6-5
9-1
6-2
24
24
28
11-6
9-2
28
13-2
29
13-3
9-4
11-1
6-4
13-3
25
11-3
9-4
9-5
37
M0D060b
11-3
S=1/8, 1/20
Reference M0D060a
ﾍﾟｰｼﾞ
4-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
VALVE & ACCESSORIES (1/2) (angle blade type)
32-2
32-1
32-8
32-6
32-4
32-9
32-7
32-5
32-1
32-2
33
32-7
32-4
34
35
32-5
32-7
32-6
32-5
32-10
32-3
32-3
32-3
32-2
190000003~190000007
46
47
48
31-4
31-5
31-2
31-5
31-3
31-8
18
31-7
31-6
25
29
M0D060c
31-1
S=1/8, 1/20
Reference M0D060a
ﾍﾟｰｼﾞ
4-5

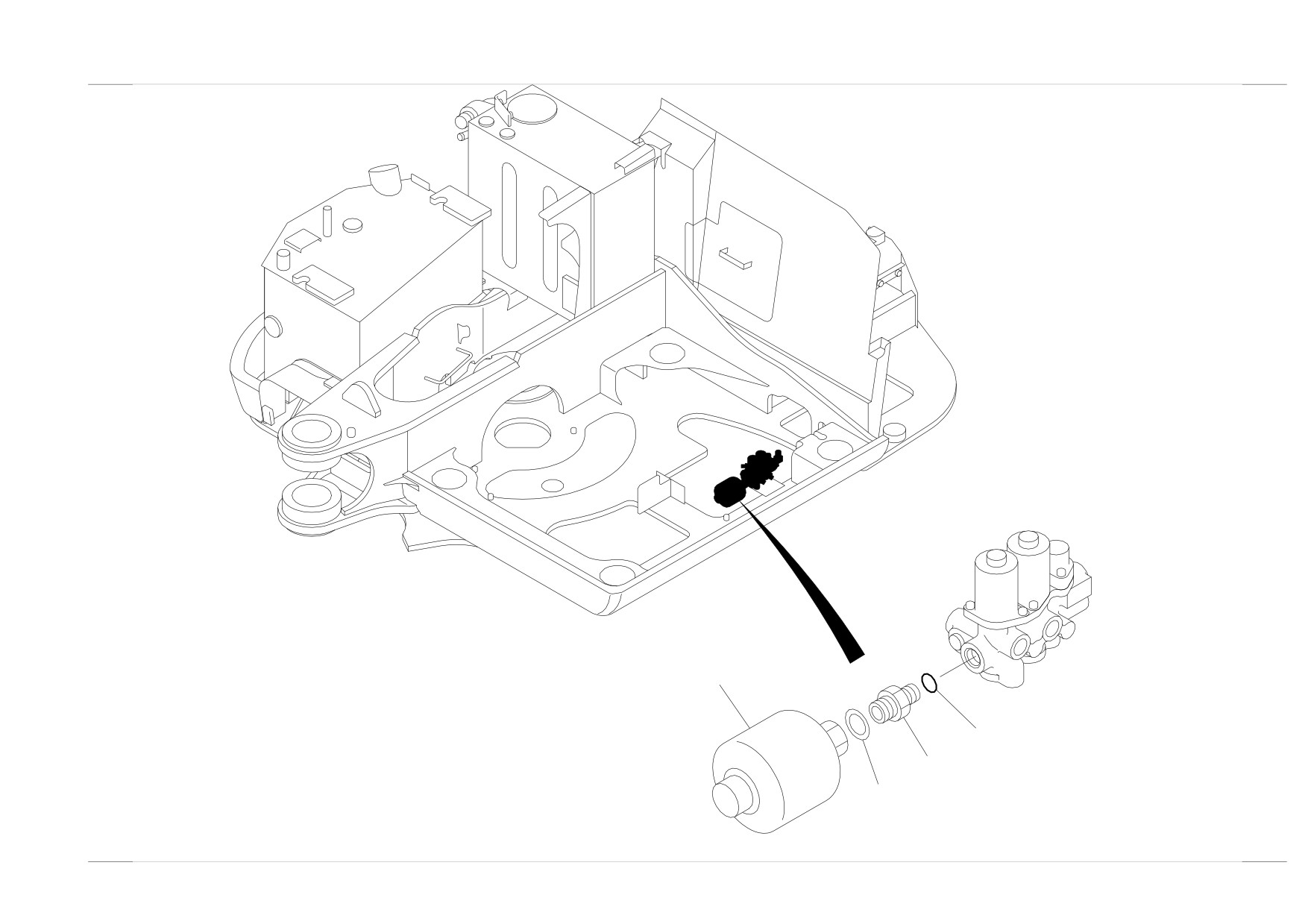

VALVE & ACCESSORIES (1/2) (angle blade type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
VALVE ASSY, control
1
0565068180
VALVE SUB ASSY, control
1
see page (2/2)
4
0565068060
BRACKET
1
5
0565068190
VALVE ASSY, control (for slewing)
1
5-1
0565067555
BRACKET
1
5-2
0007203006
ADAPTOR
2
5-3
1512373008
TEE
1
1420010240
O-RING
1
5-5
1515010132
ELBOW
1
1420010180
O-RING
1
5-6
1515012040
ELBOW
3
1420010110
O-RING
1
5-7
1513370031
TEE
1
1420010110
O-RING
1
5-9
1420010180
O-RING
2
5-10
1100041016
BOLT
3
5-11
1140020010
WASHER, spring
3
5-12
1141110010
WASHER
3
5-13
1901049200
VALVE, control
1
5-14
1901735300
VALVE, shuttle
1
1420010110
O-RING
1
5-16
0007990091
ADAPTOR
1
5-17
1515600571
ADAPTOR
1
1420010110
O-RING
1
5-18
1513390015
TEE
1
M
6
0565067560
VALVE ASSY, solenoid
1
6-2
1515100110
ELBOW
1
1420010110
O-RING
1
6-3
1515012041
ELBOW
1
M
1420010140
O-RING
1
6-4
1515012040
ELBOW
2
1420010110
O-RING
1
6-5
1515600571
ADAPTOR
1
1420010110
O-RING
1
6-9
1901748900
VALVE, solenoid
1
7
0565067570
FILTER ASSY
1
7-1
1515010051
ELBOW
1
1420010180
O-RING
1
7-2
1512350003
ELBOW
1
1420010180
O-RING
1
7-3
1501750002
PLUG
1
1420010110
O-RING
1
7-4
1551200600
FILTER
1
7-4-1
1551200601
ELEMENT
1
7-4-2
1551200602
COVER, head
1
7-4-3
1551200603
CASE
1
7-4-4
1551200604
O-RING
1
8
0565067590
MANIFOLD ASSY
1
8-1
0375020040
MANIFOLD
1
8-2
0007213028
BUSHING
1
8-3
1515012040
ELBOW
2
1420010110
O-RING
1
8-5
1512370011
TEE
2
1420010110
O-RING
1
8-6
1420010110
O-RING
1
8-7
1513390015
TEE
1
Reference:M0D060a
Page:4-5
VALVE & ACCESSORIES (1/2) (angle blade type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
8-8
1513900002
SOCKET
1
9
0565068160
VALVE ASSY, reducing
1
9-1
0007213041
BUSHING
1
9-2
1420010110
O-RING
1
9-3
1512370011
TEE
1
1420010110
O-RING
1
9-4
1515012040
ELBOW
3
1420010110
O-RING
1
9-5
1901760800
VALVE, reducing
1
11
0565067610
VALVE ASSY, solenoid
1
11-1
1513370046
BUSHING (with filter)
1
1420010110
O-RING
1
11-3
1515012040
ELBOW
2
1420010110
O-RING
1
11-4
1515600200
ADAPTOR
2
1420010110
O-RING
1
11-6
1901752100
VALVE, solenoid
1
12
0565067620
VALVE ASSY, stop
1
12-1
1513350005
CONNECTOR
1
1420010240
O-RING
1
12-2
1512374018
TEE
1
1420010240
O-RING
1
12-3
1901723700
VALVE, stop
1
13
0565067630
VALVE ASSY, solenoid
1
13-1
0007213028
BUSHING
1
13-2
1512375004
ELBOW
1
1420010110
O-RING
1
13-3
1515012040
ELBOW
3
1420010110
O-RING
1
13-5
1420010110
O-RING
1
13-6
1901752100
VALVE, solenoid
1
16
0565067660
PIPE
1
17
1110040820
SCREW, cap
6
18
1110041025
SCREW, cap
2
19
1110041040
SCREW, cap
3
20
1100141000
BOLT
2
22
1100041230
BOLT
5
24
1140020008
WASHER, spring
12
25
1140020010
WASHER, spring
9
26
1140020012
WASHER, spring
5
28
1141110008
WASHER
10
29
1141110010
WASHER
9
30
1141550012
WASHER
5
31
0565068030
VALVE ASSY, solenoid (angle blade type)
1
31-1
0565068031
BRACKET
1
31-2
1901751000
VALVE, solenoid
1
31-3
1513370046
BUSHING (with filter)
1
1420010110
O-RING
1
31-4
1515012040
ELBOW
2
1420010110
O-RING
1
31-5
1515100110
ELBOW
2
1420010110
O-RING
1
31-6
1110041020
SCREW, cap
2
31-7
1140020010
WASHER, spring
2
31-8
1141110010
WASHER
2
32
0565068040
VALVE ASSY, solenoid (with blade float)
1
190000003~190000007
Reference:M0D060a
Page:4-5
VALVE & ACCESSORIES (1/2) (angle blade type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
32-1
1901759600
VALVE, solenoid
2
32-2
1515600577
ADAPTOR
1
1420010180
O-RING
1
32-3
1512374014
TEE
2
1420010180
O-RING
1
32-4
0881501100
BLOCK, valve
1
32-5
0007213011
BUSHING
1
32-6
0565068041
BUSHING
1
32-7
1420010180
O-RING
2
32
0565068240
VALVE ASSY, solenoid (with blade float)
1
190000008~
M
32-1
1901759600
VALVE, solenoid
2
32-2
1512374014
TEE
2
1420010180
O-RING
1
32-3
0881501100
BLOCK, valve
1
32-4
0565068041
BUSHING
1
32-5
1420010180
O-RING
2
32-6
0007213012
BUSHING
1
M
32-7
1515600201
ADAPTOR
1
M
1420010140
O-RING
1
M
32-8
1110040665
SCREW, cap
2
32-9
1140020006
WASHER, spring
2
32-10
0565068090
BRACKET
1
M
33
1110040665
BOLT
2
190000003~190000007
34
1140020006
WASHER, spring
2
190000003~190000007
35
1141110006
WASHER
2
190000003~190000007
36
1100040820
BOLT
2
37
1110041020
SCREW, cap
2
38
1110040850
SCREW, cap
2
39
1130040008
NUT
2
41
1515012040
ELBOW
1
1420010110
O-RING
1
42
1700100126
TRANSMITTER, pressure
1
43
0565068210
BUSHING
1
46
1101041230
BOLT
2
190000008~
47
1140020012
WASHER, spring
2
190000008~
48
1141110012
WASHER
2
190000008~
M0d060
Reference:M0D060a
Page:4-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
VALVE & ACCESSORIES (2/2) (angle blade type)
16
1
8
9
9
8
10
8
2
11
6
6
f
23
20
5
10
12
15
10
20
20
p q
20
k
a
b
c
h
b
22
20
35
n
e c
k
24
10
25
g
b
21
10
d
9
8
b
f
d
b
a
c
15
a
n
c
4
4
34
35
33
28
29
20
20
32
17
d
e
30
10
3
31
14
10
17
8
32
13
33
7
7
4
18
2
33
20
20
g
32
h
27
20
n
p
q
30
M1D121
S=1/6
Reference M1D121
ﾍﾟｰｼﾞ
4-6
VALVE & ACCESSORIES (2/2) (angle blade type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0565068180
VALVE SUB ASSY, control
1
1
0565067511
ELBOW
1
1420010380
O-RING
1
2
0007213038
BUSHING
2
M
3
1513300015
ELBOW
1
1420010180
O-RING
1
4
0007213013
BUSHING
4
5
0007224006
NIPPLE
1
6
0007213011
BUSHING
7
7
1515010132
ELBOW
3
1420010180
O-RING
1
8
1515010042
ELBOW
9
1420010180
O-RING
1
9
1515010051
ELBOW
6
1420010180
O-RING
1
10
1515012040
ELBOW
22
1420010110
O-RING
1
11
1515010133
ELBOW
1
1420010240
O-RING
1
12
1513300016
ELBOW
1
1420010180
O-RING
1
13
1512374002
TEE
1
1420010180
O-RING
1
14
1512373005
TEE
1
1420010180
O-RING
1
15
1512370011
TEE
2
1420010110
O-RING
1
16
1515600202
ADAPTOR
1
1420010180
O-RING
1
17
1515600200
ADAPTOR
3
1420010110
O-RING
1
18
0007213026
BUSHING
1
M
20
1420010180
O-RING
16
21
1700100069
SWITCH, pressure
1
22
1901050300
VALVE, control
1
23
0007213010
BUSHING
1
24
0007213028
BUSHING
1
25
1513300022
ELBOW
1
1420010110
O-RING
1
27
0565068050
BRACKET
1
28
0565067545
BRACKET
1
29
0565068170
HOSE ASSY
1
18010-52086
30
1100041225
BOLT
6
31
1100041230
BOLT
2
32
1140020012
WASHER, spring
8
33
1141550012
WASHER
8
34
0007213041
BUSHING
1
M
35
1420010110
O-RING
2
M
M1d121
Reference:M1D121
Page:4-6
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

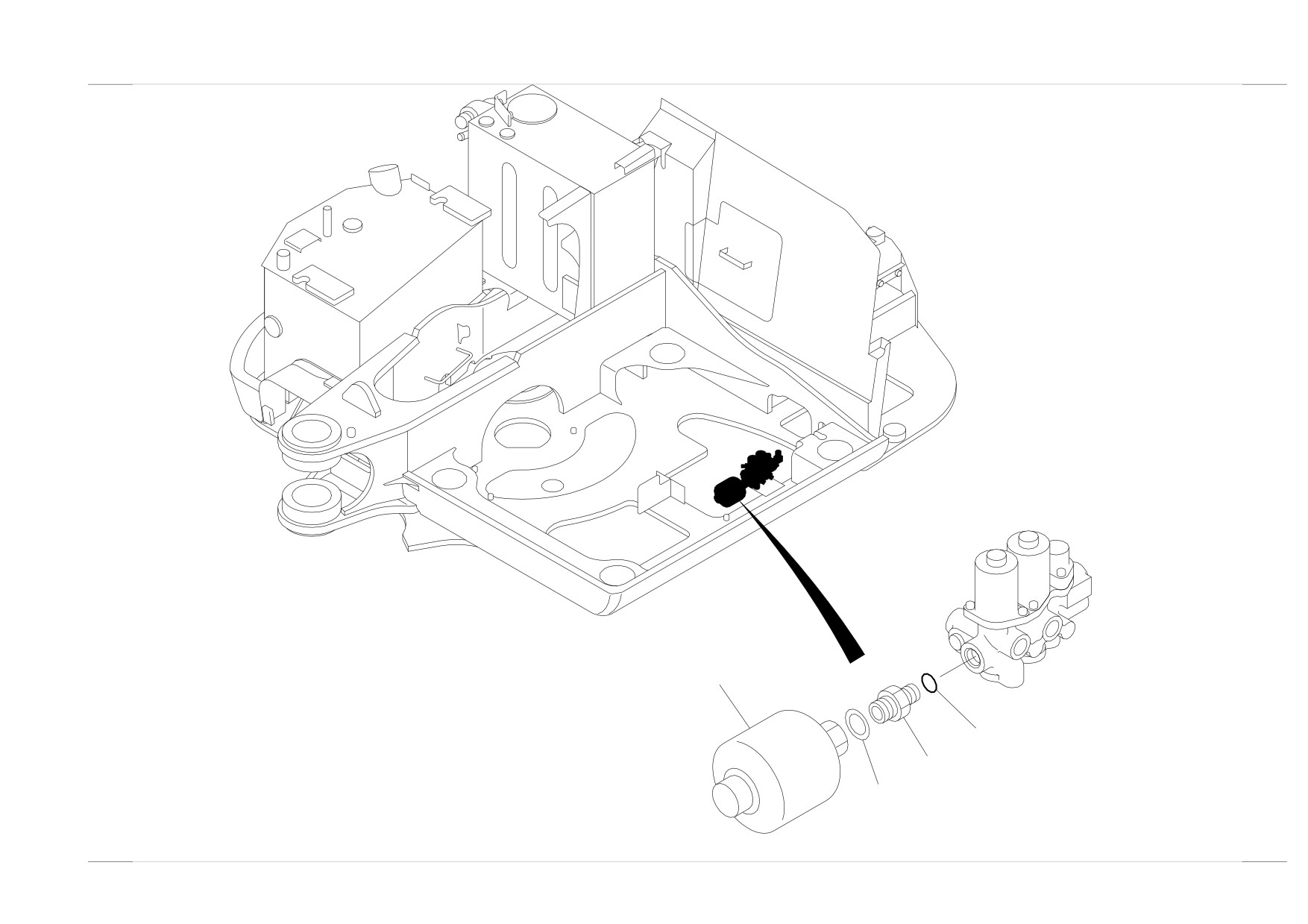

ACCUMULATOR
4
2
1
3
M1D030
S=1/5, 1/20
Reference M1D030
ﾍﾟｰｼﾞ
4-7
ACCUMULATOR
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
ACCUMULATOR ASSY
1
0007200223
ADAPTOR
1
1420010140
O-RING
1
2
1420010140
O-RING
1
3
1432160004
SEAL
1
4
1552200020
ACCUMULATOR
1
M1d030
Reference:M1D030
Page:4-7
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

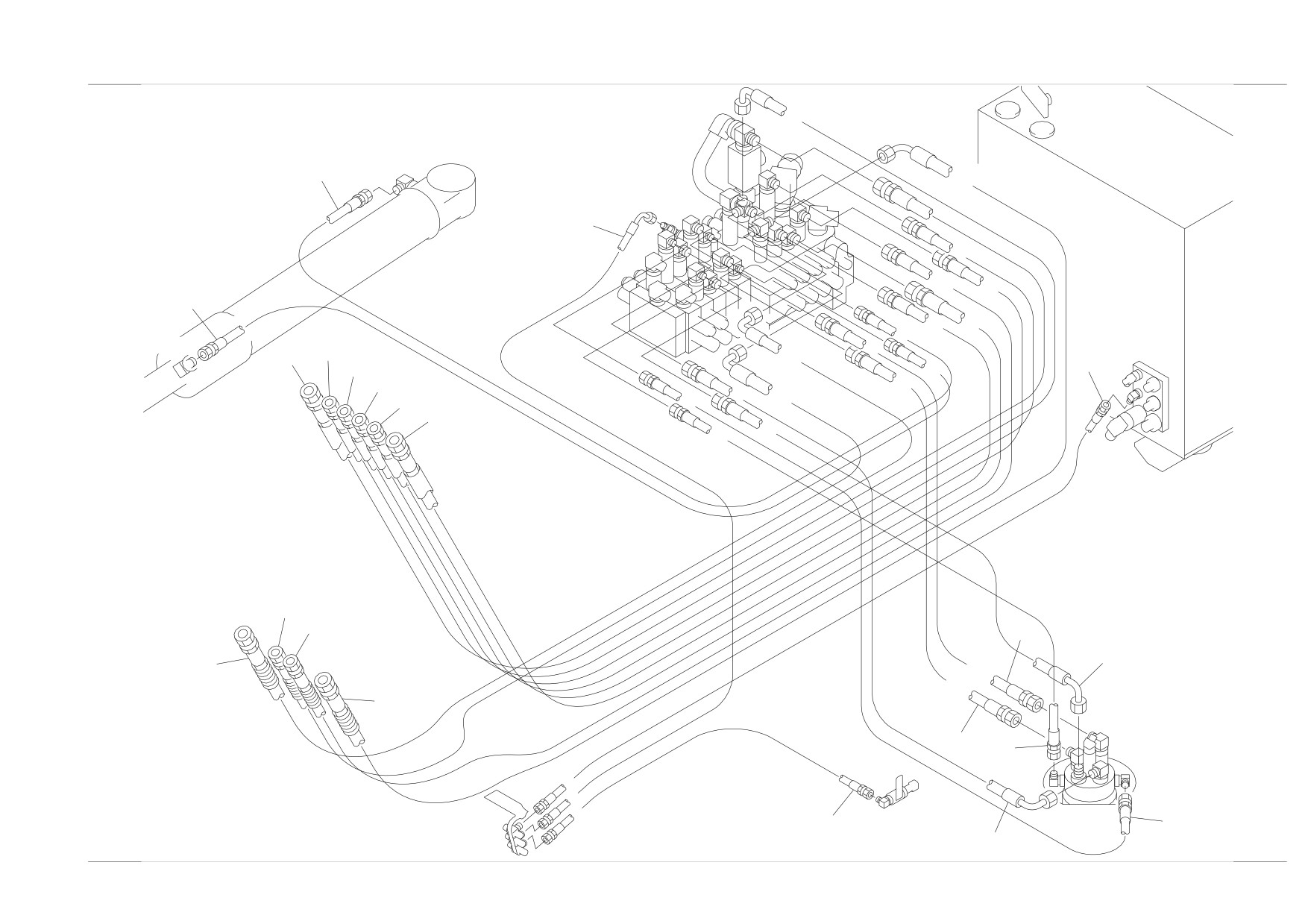

PIPING; UPPER
81
82
81
70
71
69
82
T1
80
67
80
80
X
X
P
80
T2
14
2
1
A1
83
77
73
72
72
73
77
B1
83
83
3
4
76
78
5
79
M1D040a
74
83
S=1/14
Reference M1D040a
ﾍﾟｰｼﾞ
4-8
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

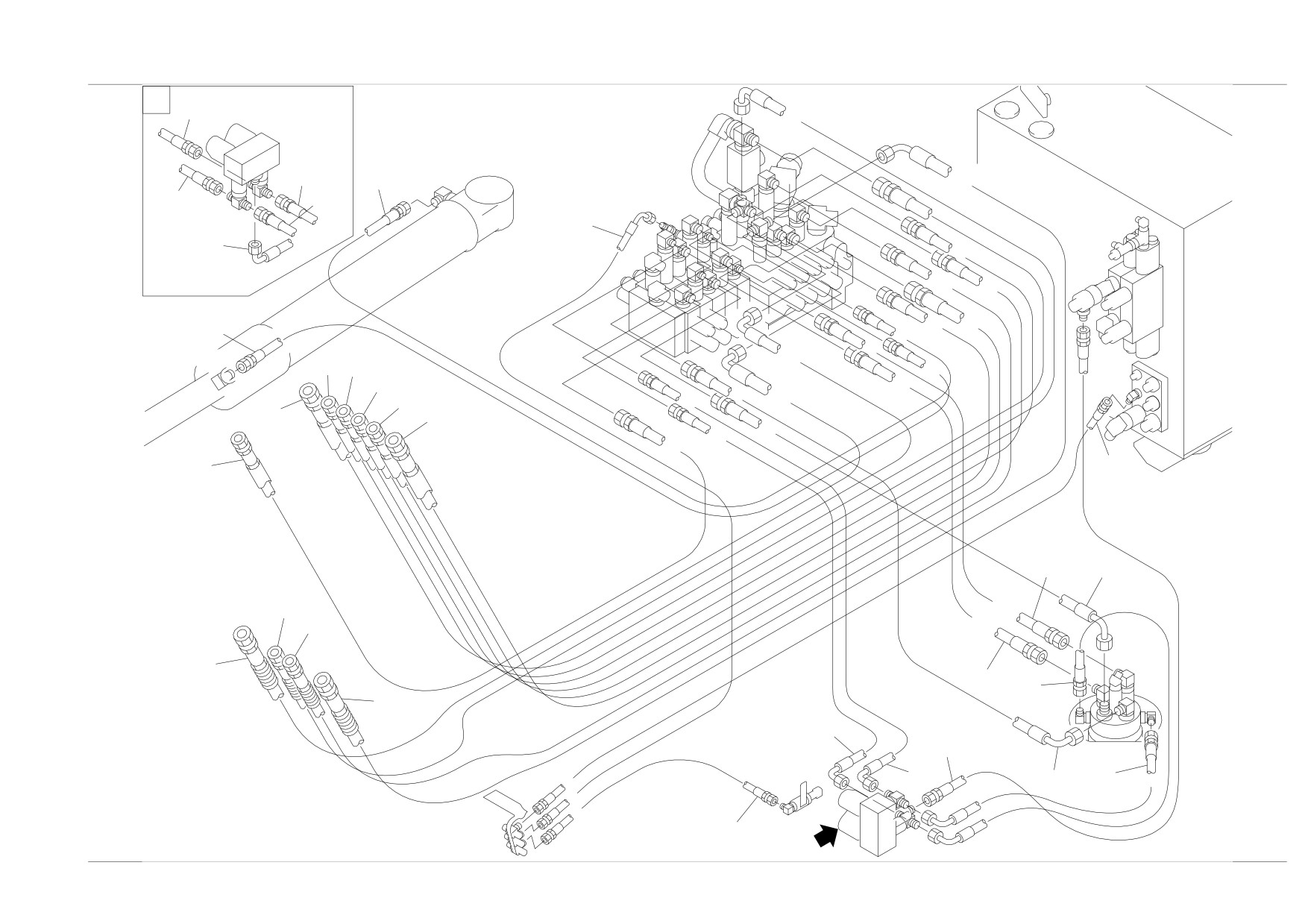

PIPING; UPPER
Pa1
PS
Pa1
PLS
51
L-IN
44
97
L-OUT
A
S-T
CVT3
PP1
76
13
78
8
S-T
S-A1
79
A4
37
PP32
P2
74
S-B1
38
Pi1
12
Dr
A
T3
T6
PI
T5
7
T1
A3
SH-A
T4
PL
PA1
PGUp
11
SMM
PPS
52
A
6
SH-B
PGLo
53
47
SMDB
42
60
SMA
SMB
41
54
SJ-G
SJ-P
48
SOLP
SOLT
46
SOLC
45
MP4
SOLA
9
MT4
SOLB
49
M1D040b
S=1/12
Reference M1D040a
ﾍﾟｰｼﾞ
4-8
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER
A3
STOP IN
26
SWG-H
B4-R
Pa4
99
A1
A4-R
B1
27
B3
B2
A5
SWG-R
A6
55
A4-F
B5
98
1915
B6
T2
A7
A8
B4-F
1621
A9
17
B7
B8
B9
102
101
2223
28
32
24
SJ-D
SJ-B
25
SJ-C
29
34
SJ-F
1
PSW
2
SJ-E
3
SJ-A
33
100
M1D040c
31
S=1/12
Reference M1D040a
ﾍﾟｰｼﾞ
4-8
PIPING; UPPER
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
1
0567043790
PIPE
1
2
0567043020
HOSE ASSY
1
3
0567043030
HOSE
1
4
0567043040
PIPE
1
5
0567043050
HOSE
1
sold by the meter
6
0567043060
HOSE ASSY
1
18045-00245
7
0567043070
HOSE ASSY
1
18045-00265
8
0567043080
HOSE ASSY
1
18010-53058
9
0567043090
HOSE ASSY
1
18010-23074
11
0567043110
HOSE ASSY
1
18010-24205
12
0567043120
HOSE ASSY
1
18047-61245
13
0567043130
HOSE ASSY
1
18010-23030
14
0567043140
HOSE ASSY
1
15
0567043150
HOSE ASSY
1
16
0567043160
HOSE ASSY
1
18045-40280
17
0567043170
HOSE ASSY
1
18015-50275
19
0567043190
HOSE ASSY
1
21
0567043210
HOSE ASSY
1
18045-40270
22
0567043820
HOSE ASSY
1
23
0567043830
HOSE ASSY
1
24
0567043840
HOSE ASSY
1
18045-41245
25
0567043850
HOSE ASSY
1
18045-41250
26
0567043260
HOSE ASSY
1
18047-20175
27
0567043270
HOSE ASSY
1
18047-20148
28
0567043280
HOSE ASSY
1
18045-40116
29
0567043290
HOSE ASSY
1
18045-40104
31
0567043310
HOSE ASSY
1
18045-41116
32
0567043320
HOSE ASSY
1
18045-41098
33
0567043330
HOSE ASSY
1
18045-20132
34
0567043340
HOSE ASSY
1
18045-20098
37
0567043370
HOSE ASSY
1
18010-26075
38
0567043380
HOSE ASSY
1
18010-22094
41
0567043410
HOSE ASSY
1
18045-40080
42
0567043420
HOSE ASSY
1
18045-40070
44
0567043440
HOSE ASSY
1
18010-22054
45
0567043450
HOSE ASSY
1
18010-22108
46
0567043460
HOSE ASSY
1
18010-22038
47
0567043470
HOSE ASSY
1
18010-22140
48
0567043480
HOSE ASSY
1
49
0567043490
HOSE ASSY
1
18010-52140
51
0567043510
HOSE ASSY
1
18010-52056
52
0567043520
HOSE ASSY
1
18010-22148
53
0567043530
HOSE ASSY
1
54
0567043540
HOSE ASSY
1
18010-23046
55
0567043550
HOSE ASSY
1
18015-50300
60
1531335050
PROTECTOR
1
sold by the meter
67
1530525017
HOSE
1
sold by the meter
69
1530525092
HOSE
1
sold by the meter
70
1530534030
HOSE
1
sold by the meter
71
1530547020
HOSE
1
sold by the meter
72
1534100312
CLAMP
2
73
1534100313
PLATE
2
74
0007300030
CLAMP
3
76
1110041025
SCREW, cap
4
77
1110041070
SCREW, cap
4
Reference:M1D040a
Page:4-8
PIPING; UPPER
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
78
1140020010
WASHER, spring
4
79
1141110010
WASHER
4
80
1533700041
BAND
8
81
1533700048
BAND
4
82
1533700070
BAND
4
83
1533700102
BAND
8
97
0567043810
HOSE ASSY
1
18010-26034
98
0565067110
HOSE ASSY
1
18010-22210
99
0565067120
HOSE ASSY
1
18010-52250
100
0565067130
HOSE ASSY
1
18045-00106
101
0567043860
HOSE ASSY
1
18015-40265
102
0567043870
HOSE ASSY
1
18015-40245
M1d041
Reference:M1D040a
Page:4-8
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd auxiliary line)
81
82
81
70
71
69
82
T1
80
67
80
80
X
X
P
80
T2
14
2
1
A1
83
77
73
72
72
73
77
B1
83
83
3
4
76
78
5
79
M1D150a
74
83
S=1/14
Reference M1D150a
ﾍﾟｰｼﾞ
4-9
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd auxiliary line)
P
PS
P
PLS
L-IN
44
51
97
L-OUT
A
S-T
CVT3
PP1
76
13
78
8
S-T
S-A1
79
PP32
A4
37
P2
74
S-B1
38
Pi1
12
Dr
A
T3
T6
PI
T5
T1
7
A3
SH-A
T4
PL
P
PGUp
11
SMM
PPS
52
A
a1
6
SH-B
a1
PGLo
53
47
SMDB
42
SMA
60
SMB
41
54
SJ-G
SJ-P
48
SOLP
SOL
46
SOLC
MP4
45
SOLA
9
MT4
SOLB
49
M1D150b
S=1/12
Reference M1D150a
ﾍﾟｰｼﾞ
4-9
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd auxiliary line)
A3
ST
26
SWG-H
B4-R
P
99
A1
A4-R
B1
27
B3
B2
A5
SWG-R
A6
A4-F
55
B5
98
1915
B6
16
T2
A7
A8
B4-F
21
17
B7
B8
B9
102
a4
2223
28
32
24
SJ-D
SJ-B
25
SJ-C
29
34SJ-F
1
PSW
2
SJ-E
3
SJ-A
33
100
M1D150c
31
S=1/12
Reference M1D150a
ﾍﾟｰｼﾞ
4-9
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd auxiliary line)
66
STOP
A9
PP1L
35
64
63
43
3S2P
3S2A
3ST
3S3B
3S3A
3SP
65
M1D150d
S=1/10
Reference M1D150a
ﾍﾟｰｼﾞ
4-9
PIPING; UPPER (with high pressure 3rd auxiliary line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
1
0567043790
PIPE
1
2
0567043020
HOSE ASSY
1
3
0567043030
HOSE
1
4
0567043040
PIPE
1
5
0567043050
HOSE
1
sold by the meter
6
0567043060
HOSE ASSY
1
18045-00245
7
0567043070
HOSE ASSY
1
18045-00265
8
0567043080
HOSE ASSY
1
18010-53058
9
0567043090
HOSE ASSY
1
18010-23074
11
0567043110
HOSE ASSY
1
18010-24205
12
0567043120
HOSE ASSY
1
18047-61245
13
0567043130
HOSE ASSY
1
18010-23030
14
0567043140
HOSE ASSY
1
15
0567043150
HOSE ASSY
1
16
0567043160
HOSE ASSY
1
18045-40280
17
0567043170
HOSE ASSY
1
18015-50275
19
0567043190
HOSE ASSY
1
21
0567043210
HOSE ASSY
1
18045-40270
22
0567043820
HOSE ASSY
1
23
0567043830
HOSE ASSY
1
24
0567043840
HOSE ASSY
1
18045-41245
25
0567043850
HOSE ASSY
1
18045-41250
26
0567043260
HOSE ASSY
1
18047-20175
27
0567043270
HOSE ASSY
1
18047-20148
28
0567043280
HOSE ASSY
1
18045-40116
29
0567043290
HOSE ASSY
1
18045-40104
31
0567043310
HOSE ASSY
1
18045-41116
32
0567043320
HOSE ASSY
1
18045-41098
33
0567043330
HOSE ASSY
1
18045-20132
34
0567043340
HOSE ASSY
1
18045-20098
35
0567043350
HOSE ASSY
1
18015-40091
37
0567043370
HOSE ASSY
1
18010-26075
38
0567043380
HOSE ASSY
1
18010-22094
41
0567043410
HOSE ASSY
1
18045-40080
42
0567043420
HOSE ASSY
1
18045-40070
43
0567043890
HOSE ASSY
1
18015-47200
44
0567043440
HOSE ASSY
1
18010-22054
45
0567043450
HOSE ASSY
1
18010-22108
46
0567043460
HOSE ASSY
1
18010-22038
47
0567043470
HOSE ASSY
1
18010-22140
48
0567043480
HOSE ASSY
1
49
0567043490
HOSE ASSY
1
18010-52140
51
0567043510
HOSE ASSY
1
18010-52056
52
0567043520
HOSE ASSY
1
18010-22148
53
0567043530
HOSE ASSY
1
54
0567043540
HOSE ASSY
1
18010-23046
55
0567043550
HOSE ASSY
1
18015-50300
60
1531335050
PROTECTOR
1
sold by the meter
63
0567043630
HOSE ASSY
1
18010-22195
64
0567043640
HOSE ASSY
1
18015-00195
65
0567043650
HOSE ASSY
1
18010-22092
66
0567043660
HOSE ASSY
1
18010-23116
67
1530525017
HOSE
1
sold by the meter
69
1530525092
HOSE
1
sold by the meter
70
1530534030
HOSE
1
sold by the meter
Reference:M1D150a
Page:4-9
PIPING; UPPER (with high pressure 3rd auxiliary line)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
71
1530547020
HOSE
1
sold by the meter
72
1534100312
CLAMP
2
73
1534100313
PLATE
2
74
0007300030
CLAMP
3
76
1110041025
SCREW, cap
4
77
1110041070
SCREW, cap
4
78
1140020010
WASHER, spring
4
79
1141110010
WASHER
4
80
1533700041
BAND
8
81
1533700048
BAND
4
82
1533700070
BAND
4
83
1533700102
BAND
8
97
0567043810
HOSE ASSY
1
18010-26034
98
0565067110
HOSE ASSY
1
18010-22210
99
0565067120
HOSE ASSY
1
18010-52250
100
0565067130
HOSE ASSY
1
18045-00106
102
0567043870
HOSE ASSY
1
18015-40245
M1d151
Reference:M1D150a
Page:4-9
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
81
82
81
70
71
69
82
T1
80
67
80
80
X
X
P
80
T2
14
2
1
A1
83
77
73
72
72
73
77
B1
83
83
3
4
76
78
5
79
M0D070a
74
83
S=1/14
Reference M0D070a
ﾍﾟｰｼﾞ
4-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
P
PS
P
PLS
L-IN
44
97
51
L-OUT
A
S-T
CVT3
PP1
76
13
78
8
S-T
S-A1
79
PP32
A4
37
P2
74
S-B1
75
38
Pi1
12
Dr
A
T3
T6
PI
T5
7
T1
A3
SH-A
T4
PL
P
PGUp
11
SMM
PPS
52
A
a1
6
SH-B
a1
PGLo
53
47
SMDB
42
60
SMA
SMB
41
54
SJ-G
SJ-P
48
SOLP
SOL
46
SOLC
45
MP4
SOLA
9
MT4
SOLB
49
M0D070b
S=1/12
Reference M0D070a
ﾍﾟｰｼﾞ
4-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
A3
ST
26
SWG-H
B4-R
P
99
A1
A4-R
B1
27
B3
B2
A5
SWG-R
A6
55
A4-F
B5
98
1915
B6
T2
A7
A8
B4-F
1621
17
B7
B8
a4
2223
28
32
24
SJ-D
SJ-B
25
SJ-C
29
34
SJ-F
1
PSW
2
SJ-E
3
SJ-A
33
100
M0D070c
31
S=1/12
Reference M0D070a
ﾍﾟｰｼﾞ
4-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
X
36
4SP1
62
61
66
ST
59
4SP2
4C3
4T
58
56
4C2
4C1
A9
4C4
57
B9
65
35
190000003~190000007
PP1L
64
57
36
59
T3
63
58
56
62
62
190000003~
3S2P
190000007
3S2A
4SP1
3ST
4SP2
3SP
3S3B
3S3A
61
X
4C2
4T
4C3
4C1
4C4
M0D070d
S=1/10
Reference M0D070a
ﾍﾟｰｼﾞ
4-10

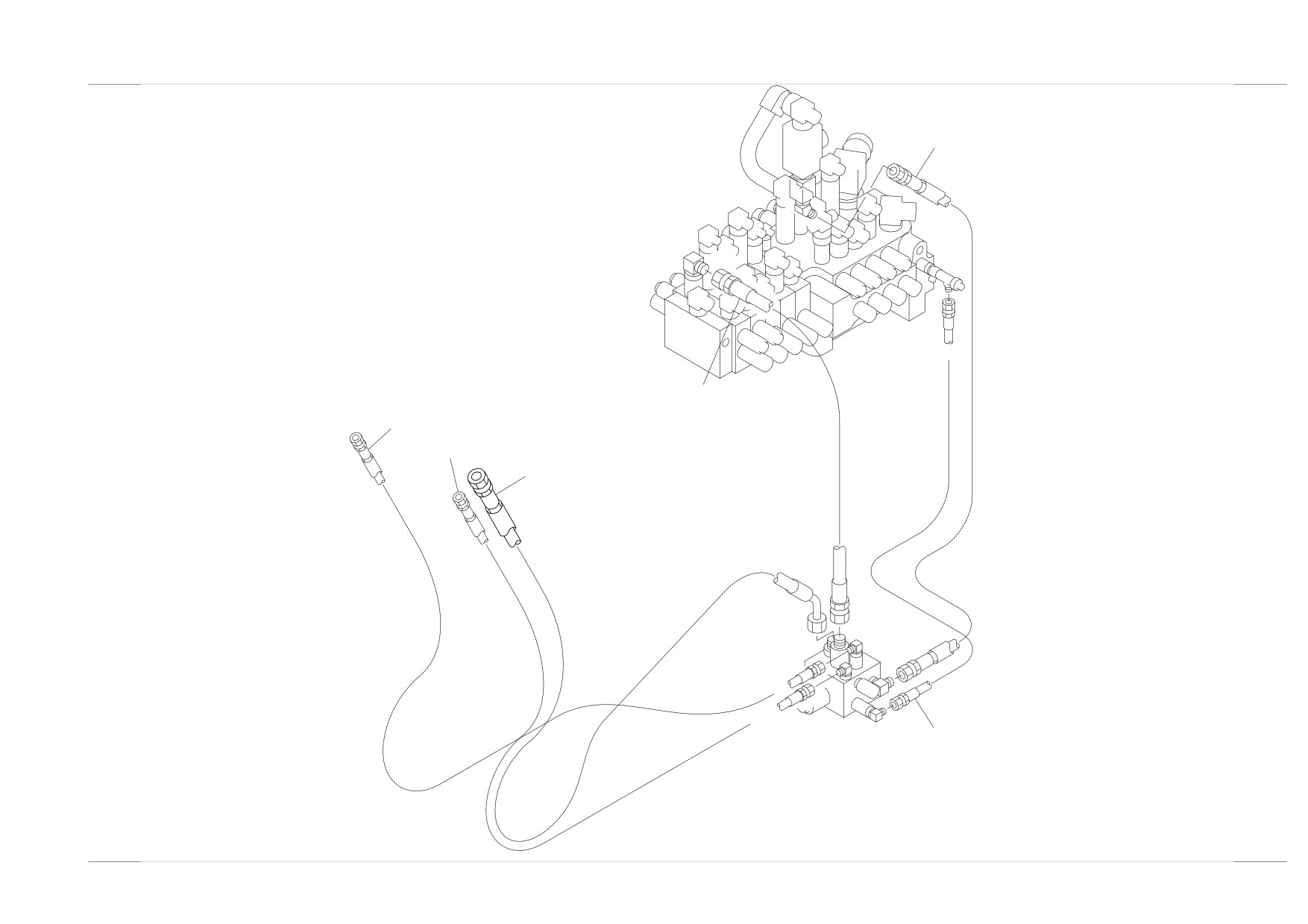

PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
1
0567043790
PIPE
1
2
0567043020
HOSE ASSY
1
3
0567043030
HOSE
1
4
0567043040
PIPE
1
5
0567043050
HOSE
1
sold by the meter
6
0567043060
HOSE ASSY
1
18045-00245
7
0567043070
HOSE ASSY
1
18045-00265
8
0567043080
HOSE ASSY
1
18010-53058
9
0567043090
HOSE ASSY
1
18010-23074
11
0567043110
HOSE ASSY
1
18010-24205
12
0567043120
HOSE ASSY
1
18047-61245
13
0567043130
HOSE ASSY
1
18010-23030
14
0567043140
HOSE ASSY
1
15
0567043150
HOSE ASSY
1
16
0567043160
HOSE ASSY
1
18045-40280
17
0567043170
HOSE ASSY
1
18015-50275
19
0567043190
HOSE ASSY
1
21
0567043210
HOSE ASSY
1
18045-40270
22
0567043820
HOSE ASSY
1
23
0567043830
HOSE ASSY
1
24
0567043840
HOSE ASSY
1
18045-41245
25
0567043850
HOSE ASSY
1
18045-41250
26
0567043260
HOSE ASSY
1
18047-20175
27
0567043270
HOSE ASSY
1
18047-20148
28
0567043280
HOSE ASSY
1
18045-40116
29
0567043290
HOSE ASSY
1
18045-40104
31
0567043310
HOSE ASSY
1
18045-41116
32
0567043320
HOSE ASSY
1
18045-41098
33
0567043330
HOSE ASSY
1
18045-20132
34
0567043340
HOSE ASSY
1
18045-20098
35
0567043350
HOSE ASSY
1
18015-40091
36
0567043360
HOSE ASSY
1
190000003~190000007
18015-40078
0567044360
HOSE ASSY
1
190000008~
M
18015-40052
37
0567043370
HOSE ASSY
1
18010-26075
38
0567043380
HOSE ASSY
1
18010-22094
41
0567043410
HOSE ASSY
1
18045-40080
42
0567043420
HOSE ASSY
1
18045-40070
44
0567043440
HOSE ASSY
1
18010-22054
45
0567043450
HOSE ASSY
1
18010-22108
46
0567043460
HOSE ASSY
1
18010-22038
47
0567043470
HOSE ASSY
1
18010-22140
48
0567043480
HOSE ASSY
1
49
0567043490
HOSE ASSY
1
18010-52140
51
0567043510
HOSE ASSY
1
18010-52056
52
0567043520
HOSE ASSY
1
18010-22148
53
0567043530
HOSE ASSY
1
54
0567043540
HOSE ASSY
1
18010-23046
55
0567043550
HOSE ASSY
1
18015-50300
56
0567043560
HOSE ASSY
1
190000003~190000007
18015-40185
0567044560
HOSE ASSY
1
190000008~
M
18015-40215
57
0567043570
HOSE ASSY
1
190000003~190000007
18015-40190
0567044570
HOSE ASSY
1
190000008~
M
18015-40210
58
0567043580
HOSE ASSY
1
190000003~190000007
0567044580
HOSE ASSY
1
190000008~
M
59
0567043590
HOSE ASSY
1
190000003~190000007
Reference:M0D070a
Page:4-10
PIPING; UPPER (with high pressure 3rd & 4th auxiliary line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
59
0567044590
HOSE ASSY
1
190000008~
M
60
1531335050
PROTECTOR
1
sold by the meter
61
0567043610
HOSE ASSY
1
18010-22120
62
0567043620
HOSE ASSY
1
190000003~190000007
18015-47074
0567044620
HOSE ASSY
1
190000008~
M
18015-40052
63
0567043630
HOSE ASSY
1
18010-22195
64
0567043640
HOSE ASSY
1
18015-00195
65
0567043650
HOSE ASSY
1
18010-22092
66
0567043660
HOSE ASSY
1
18010-23116
67
1530525017
HOSE
1
sold by the meter
69
1530525092
HOSE
1
sold by the meter
70
1530534030
HOSE
1
sold by the meter
71
1530547020
HOSE
1
sold by the meter
72
1534100312
CLAMP
2
73
1534100313
PLATE
2
74
0007300030
CLAMP
3
75
1513390015
TEE
1
M
76
1110041025
SCREW, cap
4
77
1110041070
SCREW, cap
4
78
1140020010
WASHER, spring
4
79
1141110010
WASHER
4
80
1533700041
BAND
8
81
1533700048
BAND
4
82
1533700070
BAND
4
83
1533700102
BAND
8
97
0567043810
HOSE ASSY
1
18010-26034
98
0565067110
HOSE ASSY
1
18010-22210
99
0565067120
HOSE ASSY
1
18010-52250
100
0565067130
HOSE ASSY
1
18045-00106
M0d070
Reference:M0D070a
Page:4-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

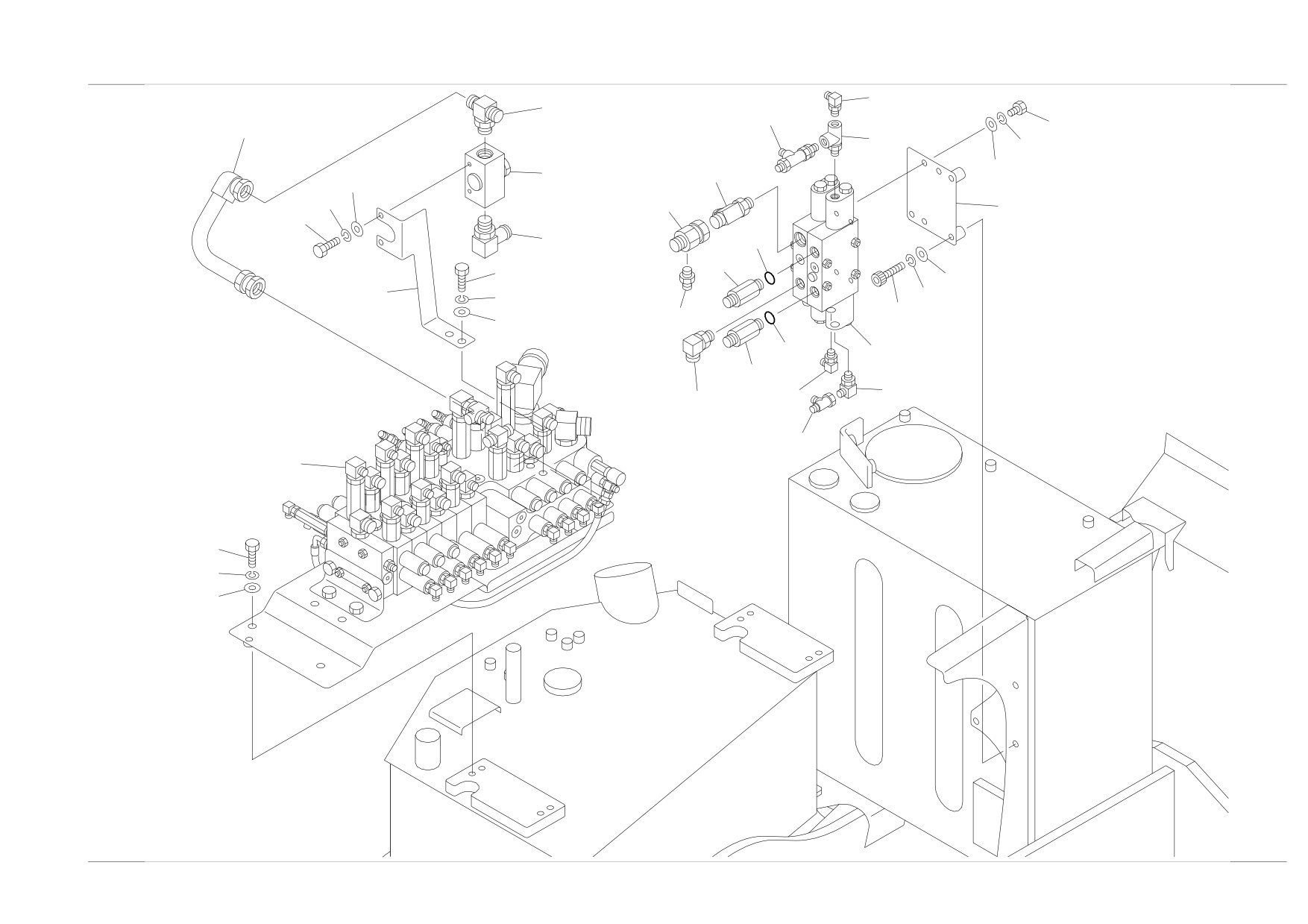

PIPING; UPPER (with blade float)
81
82
81
70
71
69
82
T1
80
67
80
80
X
X
P
80
T2
14
2
1
A1
83
77
73
72
72
73
77
B1
83
83
3
4
76
78
5
79
M0D080a
74
83
S=1/14
Reference M0D080a
ﾍﾟｰｼﾞ
4-11
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

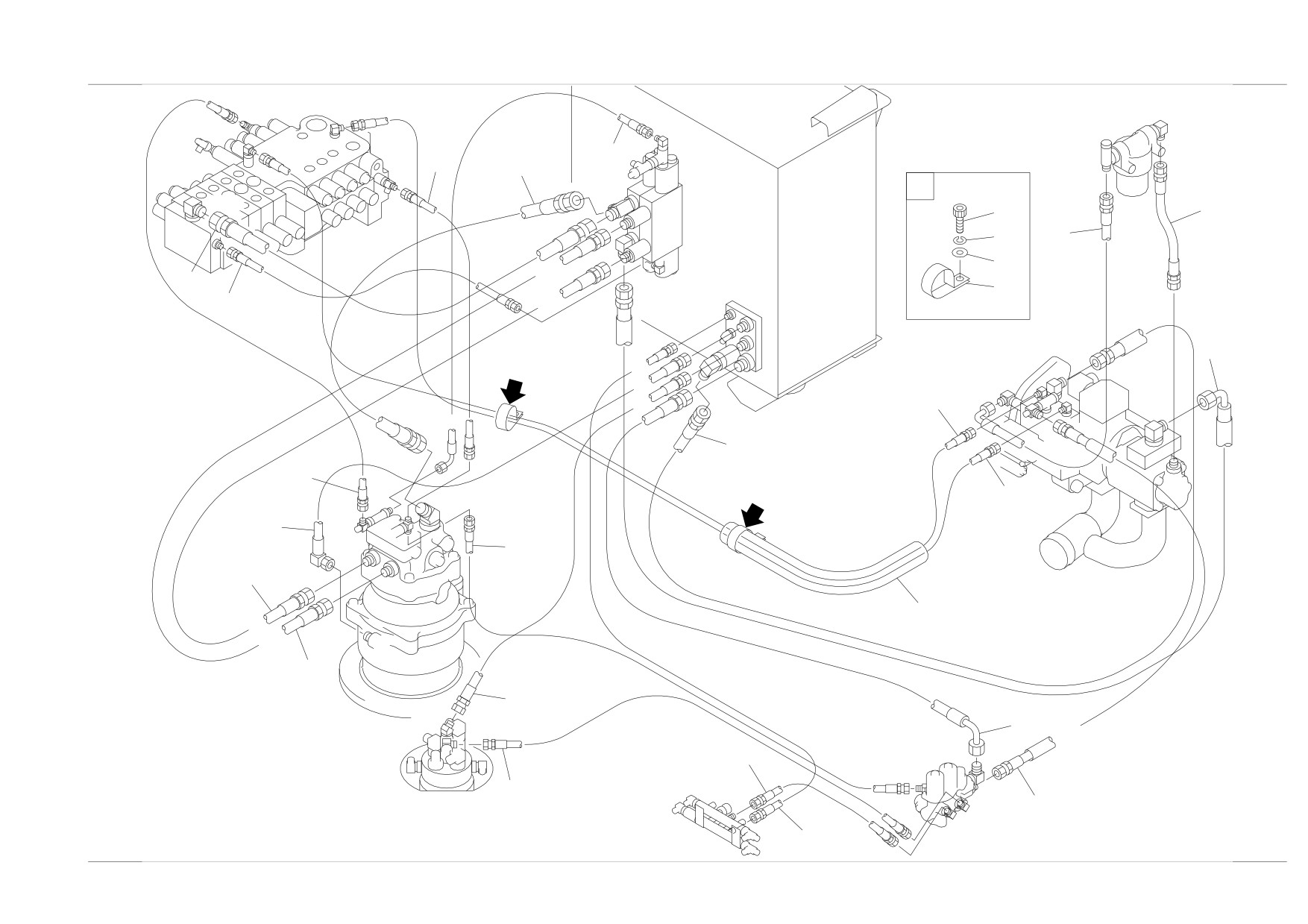

PIPING; UPPER (with blade float)
P
PS
P
PLS
51
L-IN
44
97
L-OUT
S-T
A
CVT3
PP1
76
13
78
8
S-T
79
S-A1
A4
37
PP32
P2
74
S-B1
38
Pi1
12
Dr
A
T3
T6
PI
T5
7
T1
A3
SH-A
T4
PL
P
PGUp
11
SMM
PPS
52
A
a1
6
SH-B
a1
PGLo
53
47
SMDB
42
60
SMA
SMB
41
54
SJ-G
SJ-P
48
SOLP
SOL
46
SOLC
45
MP4
SOLA
9
MT4
SOLB
49
M0D080b
S=1/12
Reference M0D080a
ﾍﾟｰｼﾞ
4-11
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

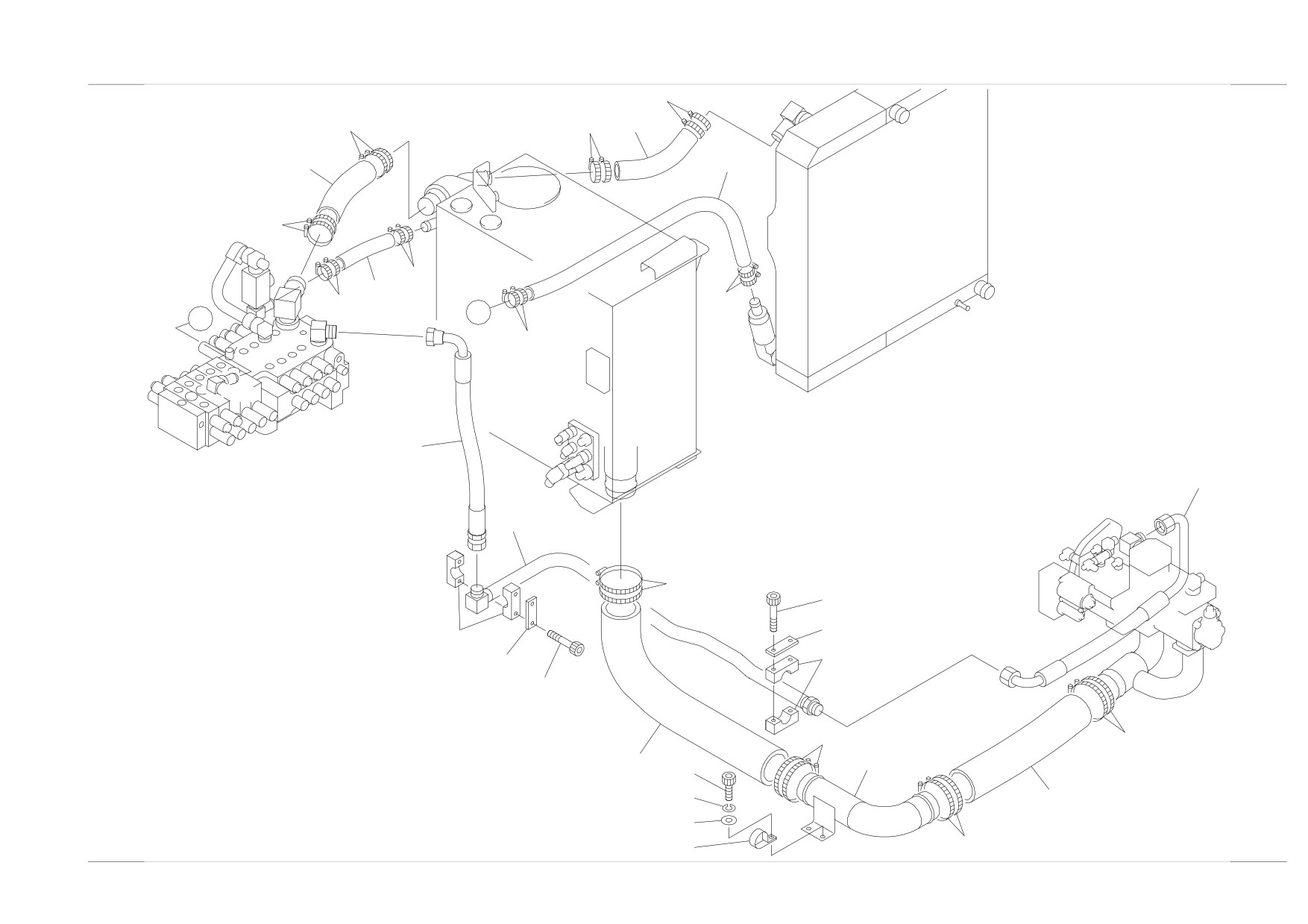

PIPING; UPPER (with blade float)
X
86
A3
STOP IN
91
SWG-H
B4-R
F1
26
85
89
Pa4
F2
99
FT
92
A1
190000003~
190000007
A4-R
B1
B3
B2
T
27
A5
A6
SWG-R
19
A4-F
B5
B6
1516
T2
A7
A8
B4-F
21
55
A9
17
B7
B8
B9
102
98
101
28
32
22
SJ-D
SJ-B
23
SJ-C
24
29
91
SJ-F
25
86
92
SJ-A
F1
FT
1
F2
85
89
SJ-E
PSW
31
2
F2
3
F1
100
M0D080c
X
S=1/12
Reference M0D080a
ﾍﾟｰｼﾞ
4-11

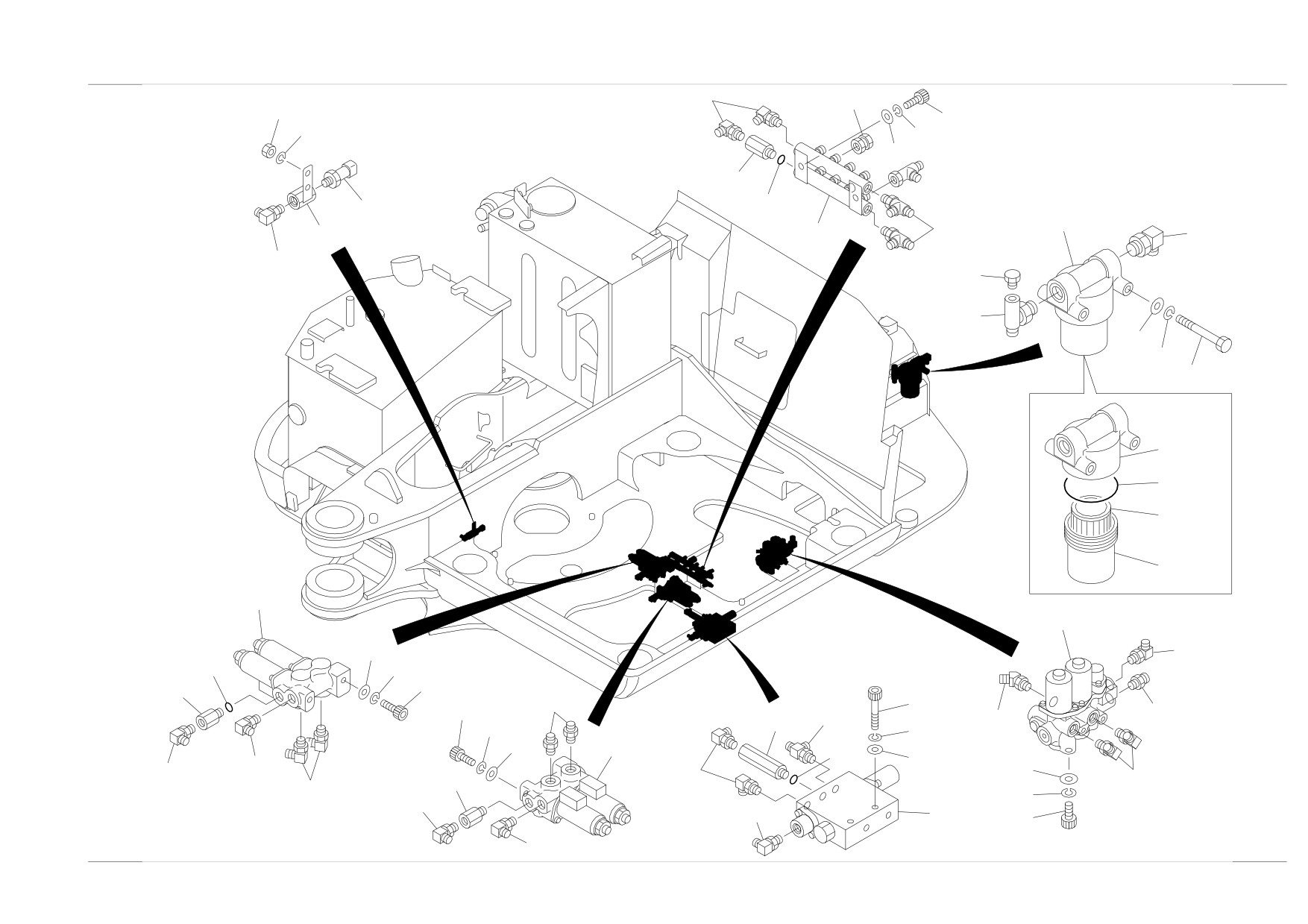

PIPING; UPPER (with blade float)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY, upper
1
0567043790
PIPE
1
2
0567043020
HOSE ASSY
1
3
0567043030
HOSE
1
4
0567043040
PIPE
1
5
0567043050
HOSE
1
sold by the meter
6
0567043060
HOSE ASSY
1
18045-00245
7
0567043070
HOSE ASSY
1
18045-00265
8
0567043080
HOSE ASSY
1
18010-53058
9
0567043090
HOSE ASSY
1
18010-23074
11
0567043110
HOSE ASSY
1
18010-24205
12
0567043120
HOSE ASSY
1
18047-61245
13
0567043130
HOSE ASSY
1
18010-23030
14
0567043140
HOSE ASSY
1
15
0567043150
HOSE ASSY
1
16
0567043160
HOSE ASSY
1
18045-40280
17
0567043170
HOSE ASSY
1
18015-50275
19
0567043190
HOSE ASSY
1
21
0567043210
HOSE ASSY
1
18045-40270
22
0567043820
HOSE ASSY
1
23
0567043830
HOSE ASSY
1
24
0567043840
HOSE ASSY
1
18045-41245
25
0567043850
HOSE ASSY
1
18045-41250
26
0567043260
HOSE ASSY
1
18047-20175
27
0567043270
HOSE ASSY
1
18047-20148
28
0567043280
HOSE ASSY
1
18045-40116
29
0567043290
HOSE ASSY
1
18045-40104
31
0567043310
HOSE ASSY
1
18045-41116
32
0567043320
HOSE ASSY
1
18045-41098
37
0567043370
HOSE ASSY
1
18010-26075
38
0567043380
HOSE ASSY
1
18010-22094
41
0567043410
HOSE ASSY
1
18045-40080
42
0567043420
HOSE ASSY
1
18045-40070
44
0567043440
HOSE ASSY
1
18010-22054
45
0567043450
HOSE ASSY
1
18010-22108
46
0567043460
HOSE ASSY
1
18010-22038
47
0567043470
HOSE ASSY
1
18010-22140
48
0567043480
HOSE ASSY
1
49
0567043490
HOSE ASSY
1
18010-52140
51
0567043510
HOSE ASSY
1
18010-52056
52
0567043520
HOSE ASSY
1
18010-22148
53
0567043530
HOSE ASSY
1
54
0567043540
HOSE ASSY
1
18010-23046
55
0567043550
HOSE ASSY
1
18015-50300
60
1531335050
PROTECTOR
1
sold by the meter
67
1530525017
HOSE
1
sold by the meter
69
1530525092
HOSE
1
sold by the meter
70
1530534030
HOSE
1
sold by the meter
71
1530547020
HOSE
1
sold by the meter
72
1534100312
CLAMP
2
73
1534100313
PLATE
2
74
0007300030
CLAMP
3
76
1110041025
SCREW, cap
4
77
1110041070
SCREW, cap
4
78
1140020010
WASHER, spring
4
79
1141110010
WASHER
4
Reference:M0D080a
Page:4-11
PIPING; UPPER (with blade float)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
80
1533700041
BAND
8
81
1533700048
BAND
4
82
1533700070
BAND
4
83
1533700102
BAND
8
85
0567043770
HOSE ASSY
1
190000003~190000007
18045-20106
0567044850
HOSE ASSY
1
190000008~
M
18045-21066
86
0567043780
HOSE ASSY
1
190000003~190000007
18045-20094
0567044860
HOSE ASSY
1
190000008~
M
18045-21062
89
0567043690
HOSE ASSY
1
190000003~190000007
18045-20048
0567044890
HOSE ASSY
1
190000008~
M
18045-21086
91
0567043710
HOSE ASSY
1
190000003~190000007
18045-20074
0567043960
HOSE ASSY
1
190000008~
M
18045-21060
92
0567043720
HOSE ASSY
1
190000003~190000007
18010-53080
0567043970
HOSE ASSY
1
190000008~
M
18010-23048
97
0567043810
HOSE ASSY
1
18010-26034
98
0565067110
HOSE ASSY
1
18010-22210
99
0565067120
HOSE ASSY
1
18010-52250
100
0565067130
HOSE ASSY
1
18045-00106
101
0567043860
HOSE ASSY
1
18015-40265
102
0567043870
HOSE ASSY
1
18015-40245
M0d080
Reference:M0D080a
Page:4-11
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

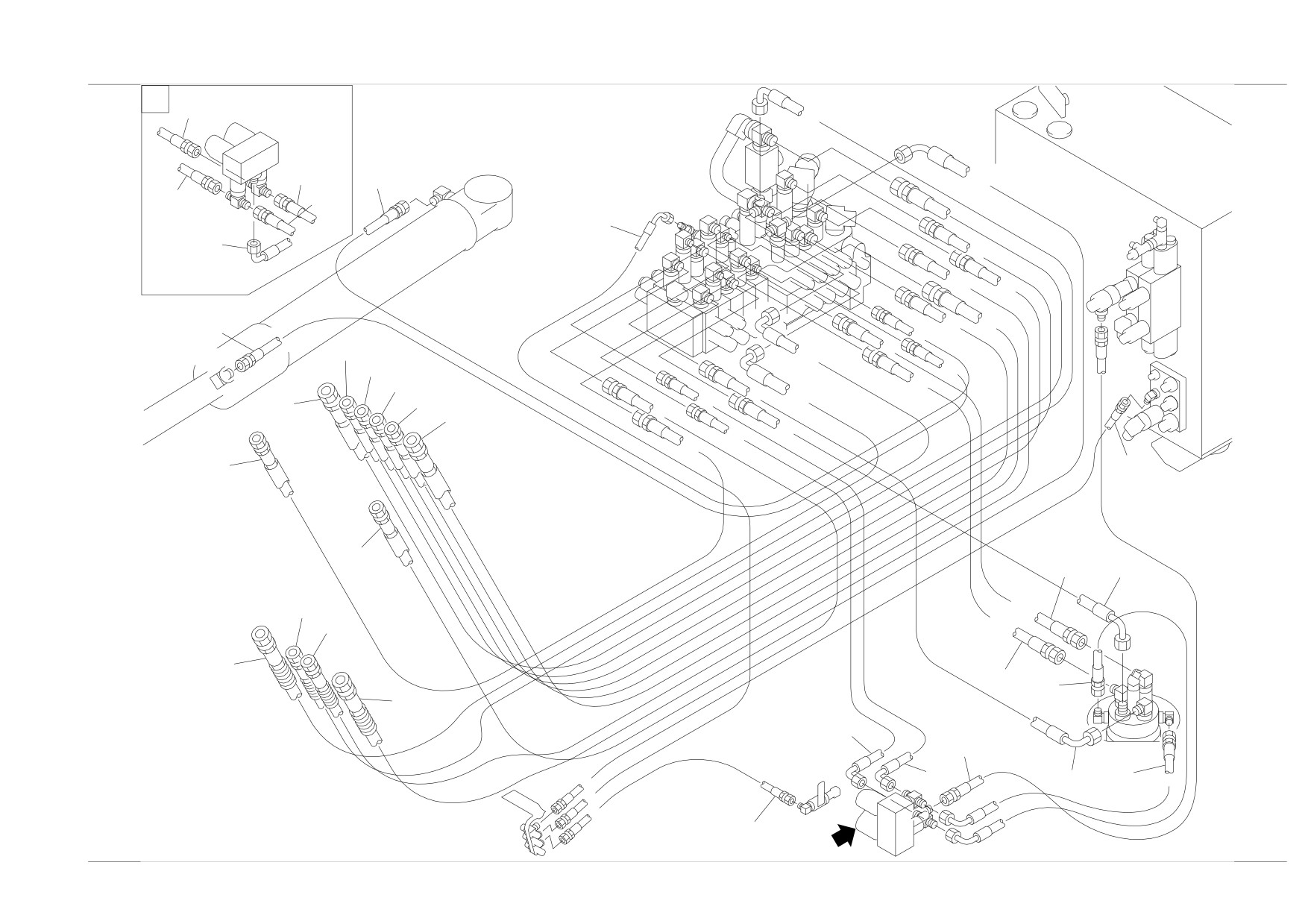

PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
81
82
81
70
71
69
82
T1
80
67
80
80
X
X
P
80
T2
14
2
1
A1
83
77
73
72
72
73
77
B1
83
83
3
4
76
78
5
79
M0D090a
74
83
S=1/14
Reference M0D090a
ﾍﾟｰｼﾞ
4-12
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

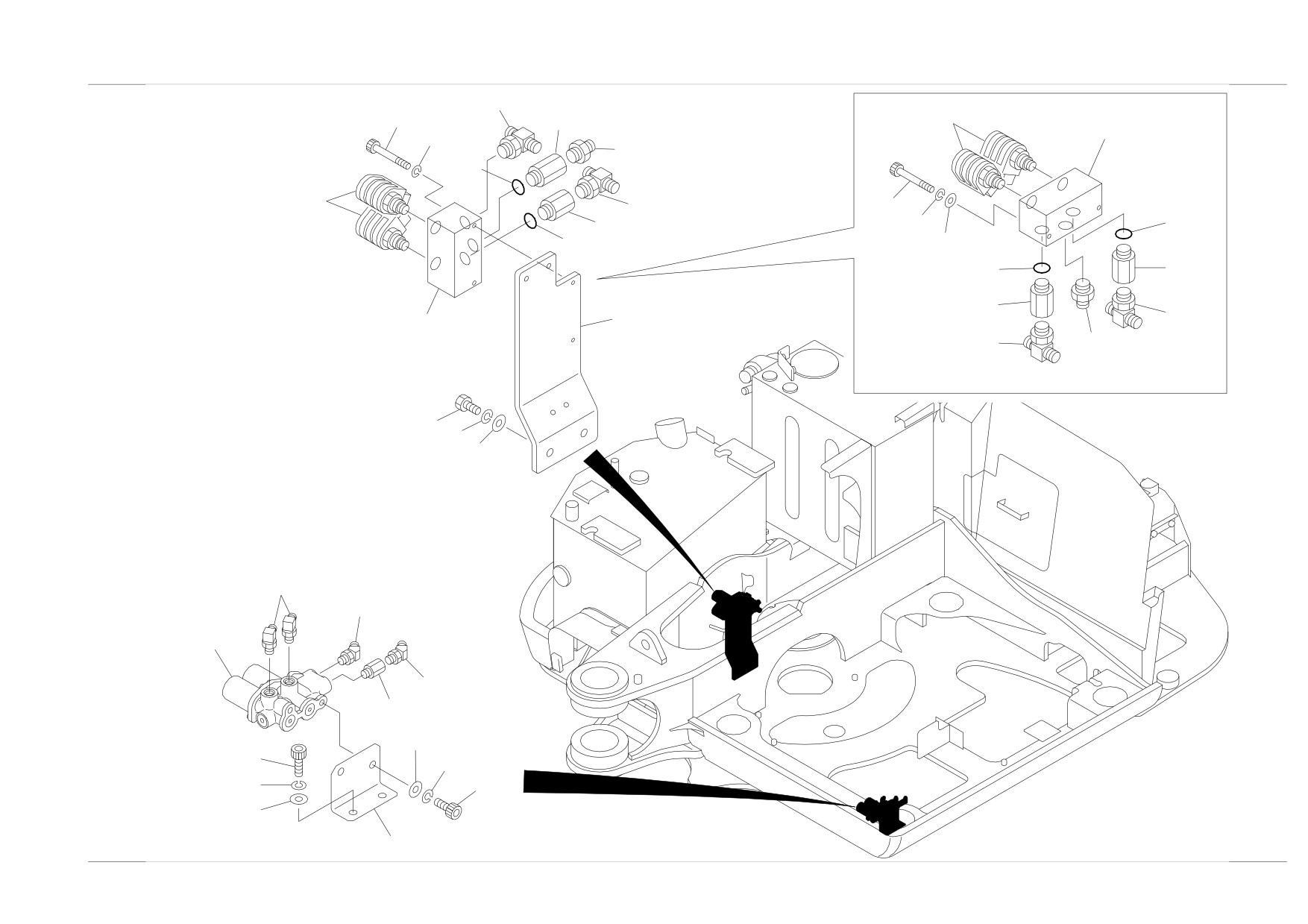

PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
P
PS
P
PLS
51
L-IN
44
97
L-OUT
S-T
A
CVT3
PP1
76
13
78
8
S-T
79
S-A1
A4
37
PP32
P2
74
S-B1
38
Pi1
12
Dr
A
T3
T6
PI
T5
7
T1
A3
SH-A
T4
PL
P
PGUp
11
SMM
PPS
52
A
a1
6
SH-B
a1
PGLo
53
47
SMDB
42
60
SMA
SMB
41
54
SJ-G
SJ-P
48
SOLP
SOL
46
SOLC
45
MP4
SOLA
9
MT4
SOLB
49
M0D090b
S=1/12
Reference M0D090a
ﾍﾟｰｼﾞ
4-12
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

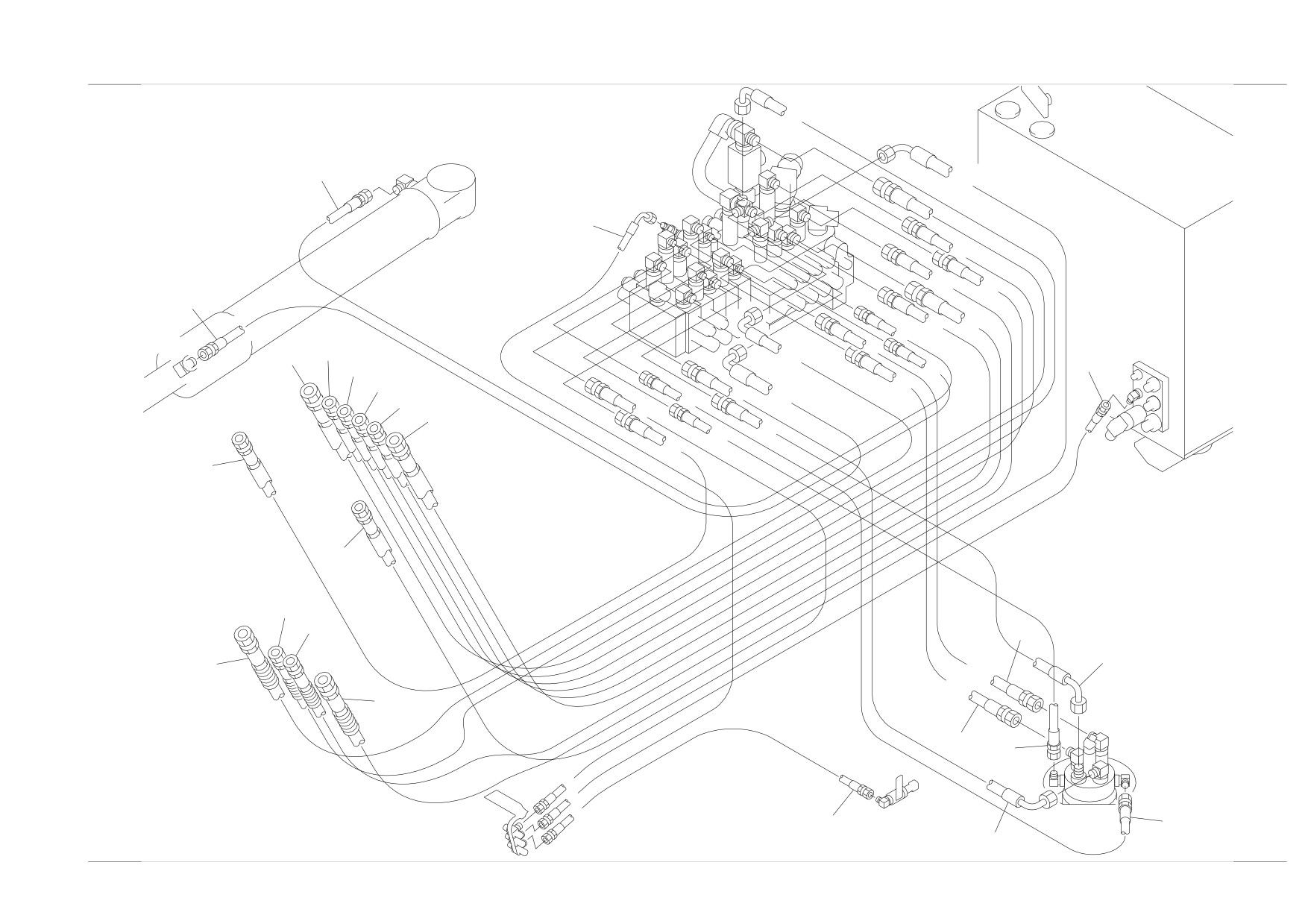

PIPING; UPPER (with blade float & high pressure 3rd auxiliary line)
X
86
A3
ST
91
SWG-H
B4-R
F1
26
89
P
85
F2
99
FT
92
A1
190000003~
190000007
A4-R
B1
B3
B2
T
27
A5
A6
SWG-R
A4-F
19
15
B5
B6
16
T2
A7
A8
B4-F
55
2117
B7
B8
B9
102
98
28
32
a4
22
SJ-D
SJ-B
23
SJ-C
24
29
91
SJ-F
25
86
92
SJ-A
F1
FT
1
F2
85
89
SJ-E
PSW
31
F2
2
3
F1
100
M0D090c
X
S=1/12
Reference M0D090a
ﾍﾟｰｼﾞ
4-12















Content      ..     2      3      4      5     ..
