Takeuchi Hydraulic excavator TB290 (Serial No. 190000001~). Parts Manual - page 2





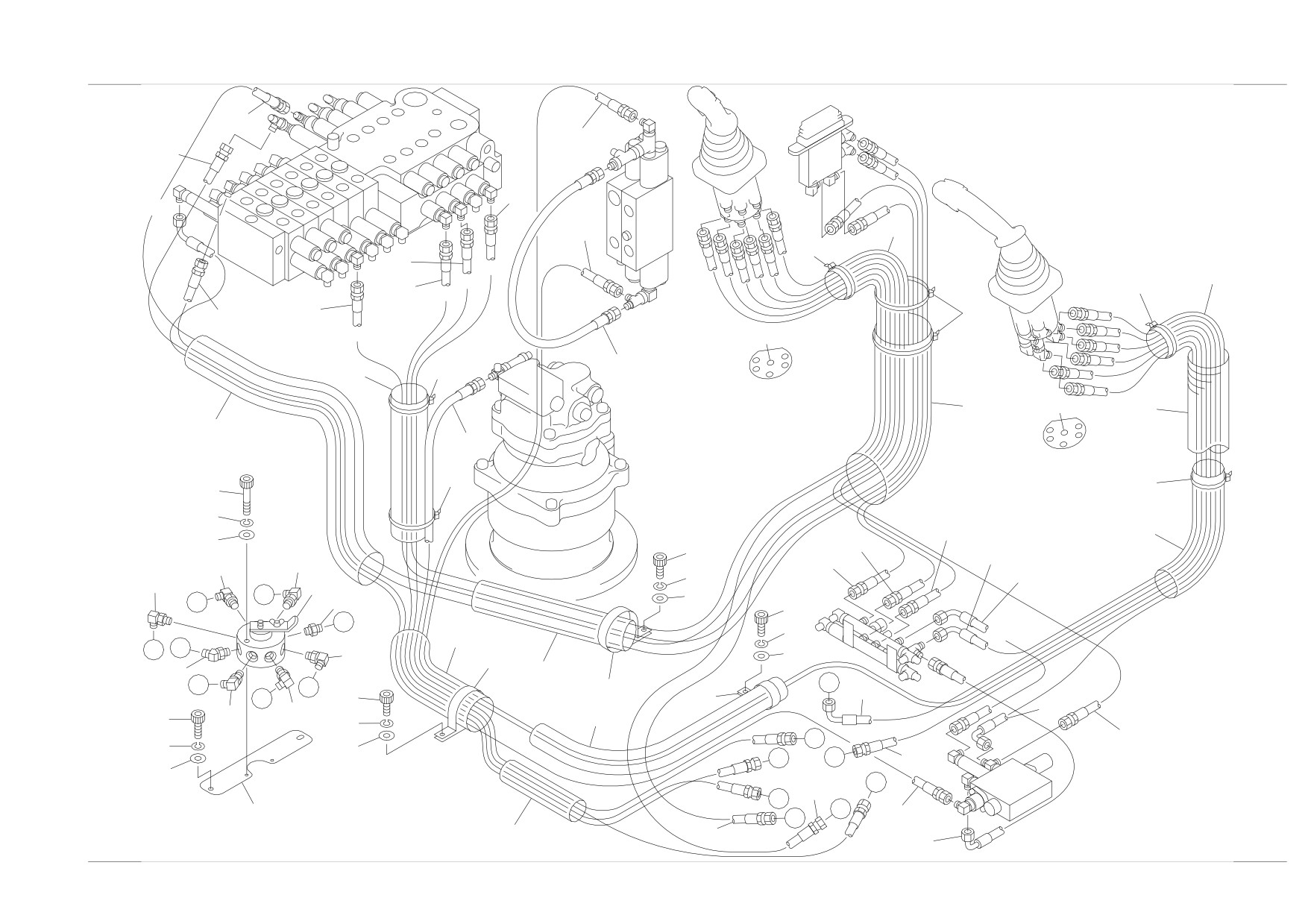

SLEWING DEVICE
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
DEVICE ASSY, slewing
1
1903130100
MOTOR, slew
1
2
1106241650
BOLT
8
3
1141550016
WASHER
8
4
1513390015
TEE
1
5
1513390038
TEE
1
1420010110
O-RING
1
6
1901754100
VALVE, shuttle
1
7
1515600202
ADAPTOR
2
1420010180
O-RING
1
8
1515100113
ELBOW
1
1420010240
O-RING
1
9
1515600200
ADAPTOR
1
1420010110
O-RING
1
10
1515600201
ADAPTOR
1
1420010140
O-RING
1
11
0007203078
ADAPTOR
1
12
1420010110
O-RING
1
13
0562313100
PIN, parallel
1
M1b010
Reference:M1B010
Page:2-1
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
TURNTABLE
27
12
2
18
8
11
17
15
26
21
1
9 10
Extra weight
3
2
23
18
13
22
19
3
19
16
25
16
14
14
19
4
20
16
19
7
16
6
14
5
16
14
M0B010
14
S=1/22, 1/26
Reference M0B010
ﾍﾟｰｼﾞ
2-2

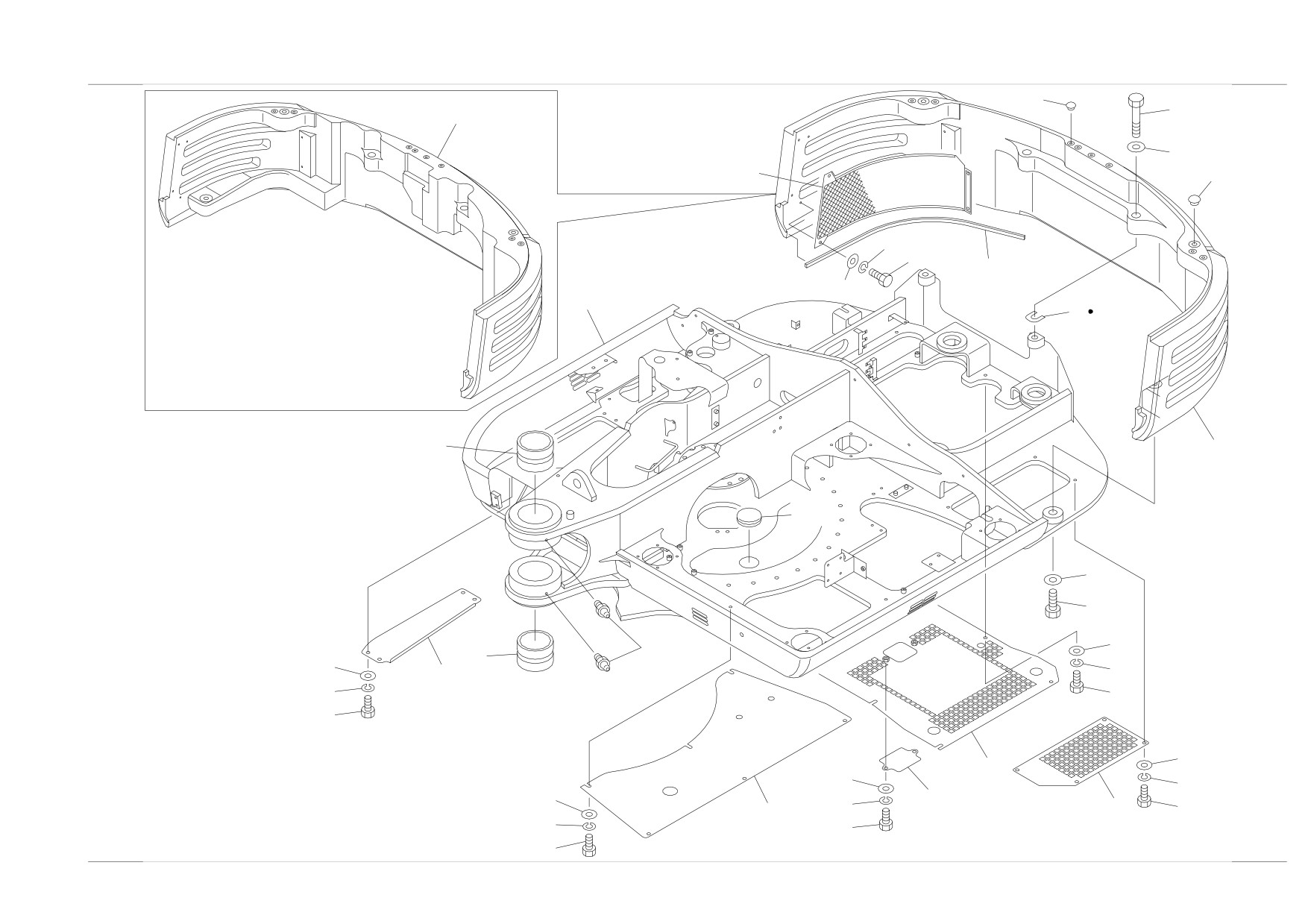

TURNTABLE
Item Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TURNTABLE ASSY
TURNTABLE ASSY (extra weight)
1
X
**********
TURNTABLE
1
2
0563056700
COUNTERWEIGHT
1
0563056800
COUNTERWEIGHT
1
extra weight
3
0563053003
BUSHING
2
4
0563056350
COVER
1
5
0563056005
COVER
1
6
0563053006
COVER
1
7
0563053007
COVER
1
8
0563056260
NET
1
9
0003600295
SHIM
AR
t=1.2mm
10
0003600296
SHIM
AR
t=2.3mm
11
1652533001
CAP
1
12
1101342420
BOLT
2
13
1101242470
BOLT
2
14
1101041225
BOLT
22
15
1100040820
BOLT
4
16
1140020012
WASHER, spring
22
17
1140020008
WASHER, spring
4
18
0003600235
WASHER
4
19
0003600024
WASHER
20
20
1141110012
WASHER
2
21
1141110008
WASHER
4
22
1560001000
FITTING, grease
2
23
1652030012
GROMMET
1
25
0563053025
COVER
1
26
1654352100
SPONGE
1
sold by the meter
27
1652533017
CAP
1
M0b010
Reference:M0B010
Page:2-2
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

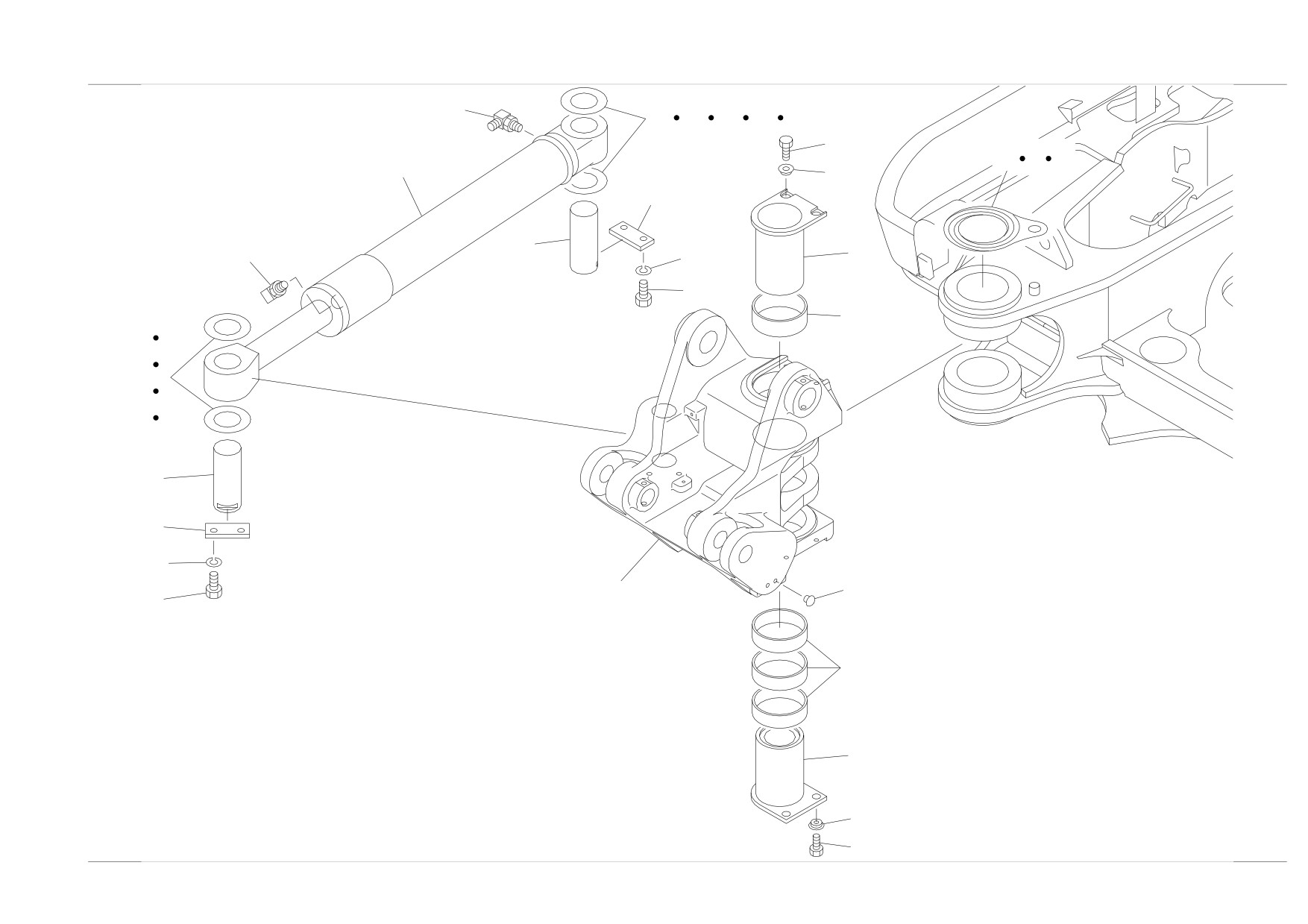

BOOM SWING
14
16 17 18
19 20
11
5
6
7
15
12
8
4
14
10
2
9
1-5
16
17
18
19
20
4
8
10
1
21
9
1-6
3
12
M1B030
11
S=1/15
Reference M1B030
ﾍﾟｰｼﾞ
2-3
BOOM SWING
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
SWING ASSY, boom
1
0563137100
BRACKET
1
1-5
0563137105
BUSHING
1
1-6
0563137106
BUSHING
3
2
0563137020
PIN
1
Φ130
3
0563137030
PIN
1
Φ130
4
0563137040
PIN
1
Φ75
5
0563137005
WASHER
AR
t=4.5mm
6
0563137006
WASHER
AR
t=5.0mm
7
0563137007
WASHER
AR
t=5.5mm
8
0563114300
PLATE
2
9
1101041435
BOLT
4
10
1140020014
WASHER, spring
4
11
1101041230
BOLT
4
12
0003900081
WASHER
4
14
1515010051
ELBOW
2
1420010180
O-RING
1
15
1900110000
CYLINDER, swing
1
16
0003600148
SHIM
AR
t=2.9mm
17
0003600104
SHIM
AR
t=1.6mm
18
0003600103
SHIM
AR
t=1.0mm
19
0003600102
SHIM
AR
t=0.5mm
20
0003600101
SHIM
AR
t=0.2mm
21
1652533018
CAP
2
M1b030
Reference:M1B030
Page:2-3
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

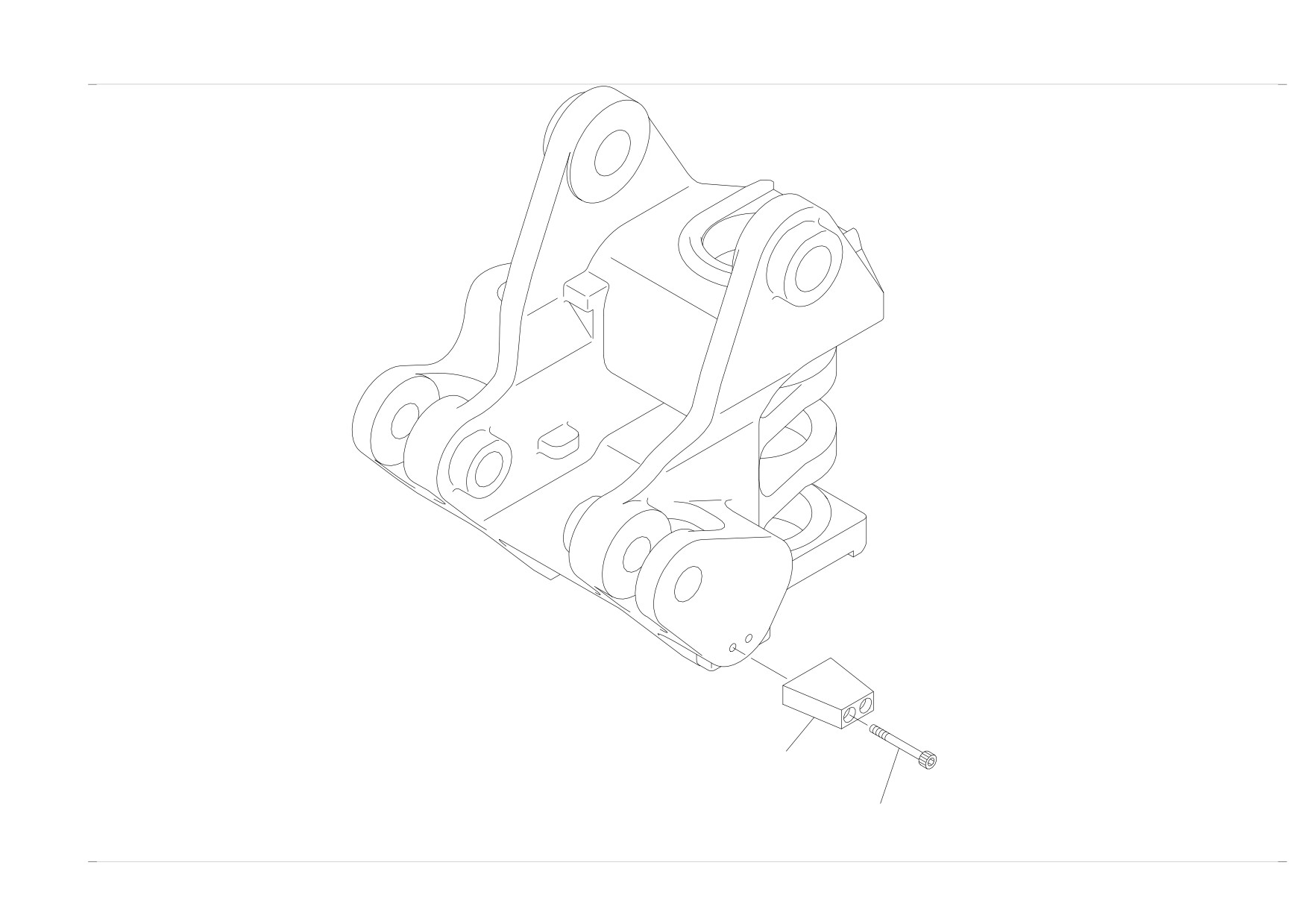

SWING STOPPER
1
2
M1B040
S=1/8
Reference M1B040
ﾍﾟｰｼﾞ
2-4
SWING STOPPER
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
STOPPER ASSY, swing
1
0563900100
PLATE
1
2
1111141200
SCREW, cap
2
M1b040
Reference:M1B040
Page:2-4
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

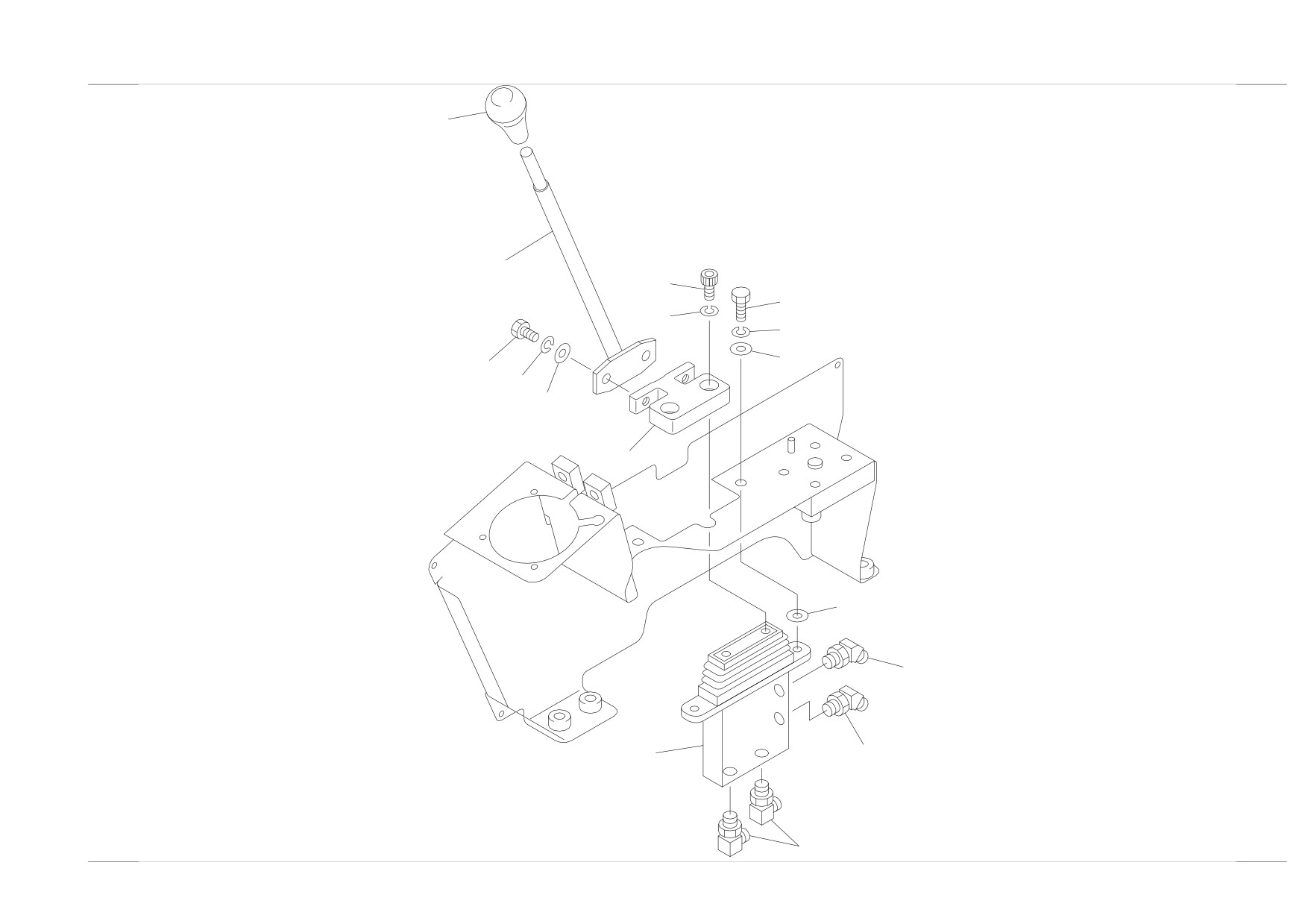

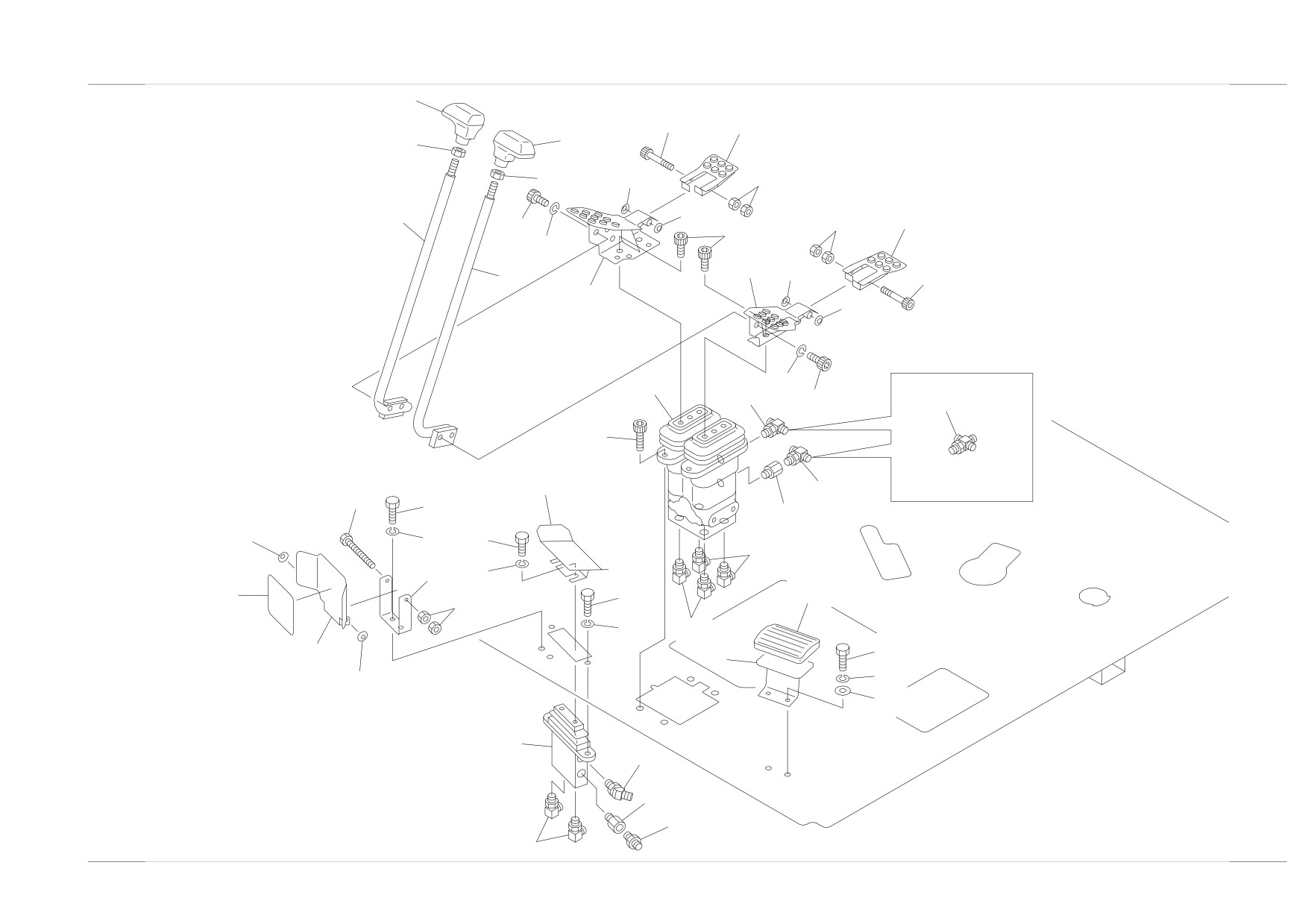

TRAVEL LEVER & SWING PEDAL
32
9-3
9-2
32
22
22
9-5
9-4
9-5
5
8-4
8-2
19
19
37
8-1
8-5
8-3
4
9-1
8-5
34
37
26
19
26
20
12
angle blade type
26
16
38
27
25
23
17
30
13
23
11
10
18
21
23
30
18
6
7
23
25
24
35
28
27
29
M1B051
30
S=1/10
Reference M1B051
ﾍﾟｰｼﾞ
2-5
TRAVEL LEVER & SWING PEDAL
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
LEVER ASSY, control
LEVER ASSY, control (angle blade type)
4
0373208670
LEVER (L.H.)
1
5
0373208680
LEVER (R.H.)
1
6
0333234260
COVER
1
7
0563219700
REST, foot
1
8
0563231540
PEDAL ASSY (L.H.)
1
8-1
0563231550
PEDAL (L.H.)
1
8-2
0373208630
PEDAL (L.H.)
1
8-3
1110040655
SCREW, cap
1
8-4
1130040006
NUT
2
8-5
1225110006
WASHER, conical
2
9
0563231560
PEDAL ASSY (R.H.)
1
9-1
0563231570
PEDAL (R.H.)
1
9-2
0373208660
PEDAL (R.H.)
1
9-3
1110040655
SCREW, cap
1
9-4
1130040006
NUT
2
9-5
1225110006
WASHER, conical
2
10
0333241250
SHEET
1
11
0563218500
COVER
1
12
0563228060
PEDAL
1
13
0563231710
PLATE
1
16
1100040680
BOLT
1
17
1100040814
BOLT
2
18
1100040820
BOLT
4
19
1110041016
SCREW, cap
8
20
1110041030
SCREW, cap
4
21
1130040006
NUT
2
22
1131040012
NUT
2
23
1140020008
WASHER, spring
8
24
1141110008
WASHER
2
25
1225110006
WASHER, conical
2
26
1512370010
TEE
2
1420010110
O-RING
1
1513390027
CROSS
2
angle blade type
1420010110
O-RING
1
27
1513370046
BUSHING (with filter)
2
1420010110
O-RING
1
28
1515100110
ELBOW
1
1420010110
O-RING
1
29
1515600200
ADAPTOR
1
1420010110
O-RING
1
30
1515012040
ELBOW
6
1420010110
O-RING
1
32
1650202610
GRIP
2
34
1901754800
VALVE, remote control
1
35
1901735000
VALVE, remote control
1
37
1140420010
WASHER, spring
4
38
1100040825
BOLT
2
M1b051
Reference:M1B051
Page:2-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
DOZER BLADE LEVER
18
1
11
10
14
13
15
9
13
15
2
15
6
4
5
M1B060
7
S=1/5
Reference M1B060
ﾍﾟｰｼﾞ
2-6
DOZER BLADE LEVER
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
LEVER ASSY, blade
1
0563313610
LEVER
1
2
0563313620
PLATE
1
4
1901745400
VALVE, remote control
1
5
1512370012
ELBOW (with filter)
1
1420010110
O-RING
1
6
1515100110
ELBOW
1
1420010110
O-RING
1
7
1515012040
ELBOW
2
1420010110
O-RING
1
9
1100040816
BOLT
2
10
1100040820
BOLT
2
11
1110040816
SCREW, cap
2
13
1140020008
WASHER, spring
4
14
1140420008
WASHER, spring
2
15
1141110008
WASHER
6
18
1650153655
GRIP
1
M1b060
Reference:M1B060
Page:2-6
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

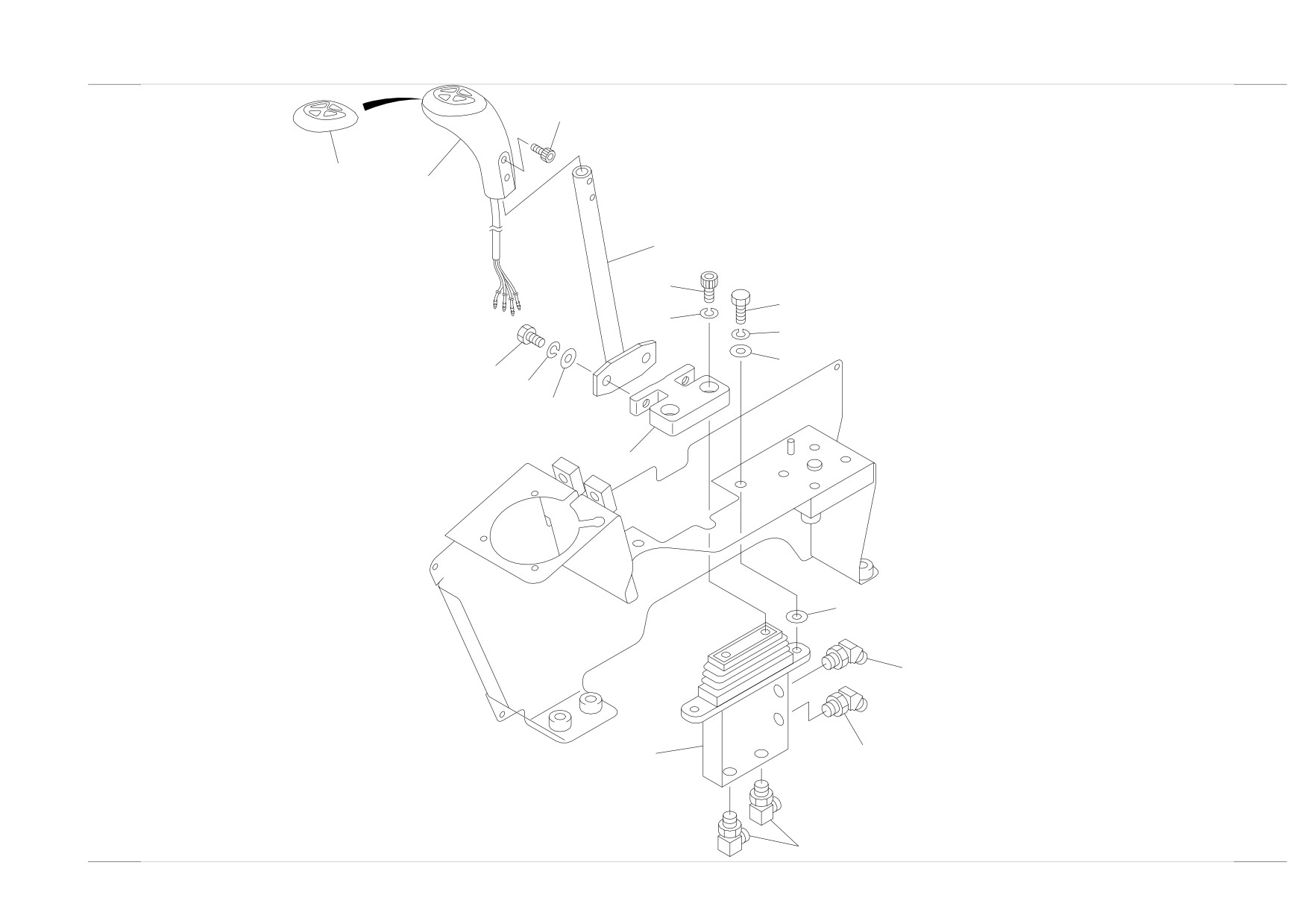

DOZER BLADE LEVER (angle blade type)
19
18-1
18
1
11
10
14
13
15
9
13
15
2
15
6
4
5
M1B110
7
S=1/5
Reference M1B110
ﾍﾟｰｼﾞ
2-7
DOZER BLADE LEVER (angle blade type)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
LEVER ASSY, blade
1
0563314110
LEVER
1
2
0563313620
PLATE
1
4
1901745400
VALVE, remote control
1
5
1512370012
ELBOW (with filter)
1
1420010110
O-RING
1
6
1515100110
ELBOW
1
1420010110
O-RING
1
7
1515012040
ELBOW
2
1420010110
O-RING
1
9
1100040816
BOLT
2
10
1100040820
BOLT
2
11
1110040816
SCREW, cap
2
13
1140020008
WASHER, spring
4
14
1140420008
WASHER, spring
2
15
1141110008
WASHER
6
18
1650204850
GRIP
1
18-1
1650204851
COVER
1
19
1111850610
SCREW, cap
2
M1b110
Reference:M1B110
Page:2-7
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

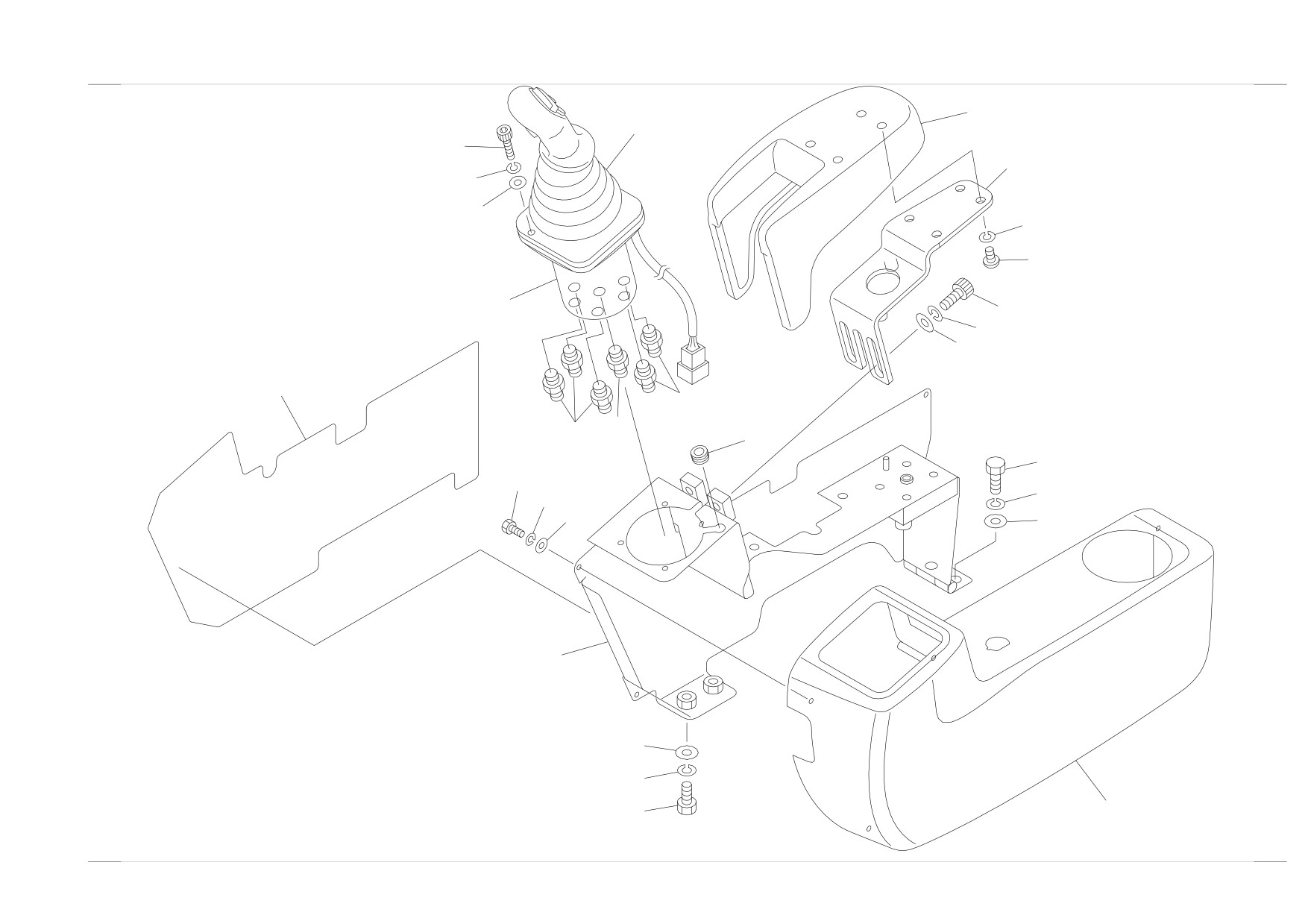

OPERATION LEVER & STAND (R.H.)
4-1
11
21
4-2
26
31
4-4
4-3
10
34
35
36
6
14
13
14
20
23
28
2225
30
33
3
33
28
23
1
M1B071
S=1/6
Reference M1B071
ﾍﾟｰｼﾞ
2-8
OPERATION LEVER & STAND (R.H.)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
VALVE ASSY (R.H.) (3 switch)
VALVE ASSY (R.H.) (4 switch)
1
0565127530
COVER (R.H.)
1
3
0565127930
BRACKET (R.H.)
1
M
4
0565128850
REST ASSY, arm (R.H.)
1
4-1
0565128840
REST, arm
1
4-2
0565127750
PLATE (R.H.)
1
4-3
1120530812
SCREW, cap
4
4-4
1140020008
WASHER, spring
4
6
0565129706
SPONGE
1
10
1901758000
VALVE, pilot (R.H.)
1
3 switch
1901759000
VALVE, pilot (R.H.)
1
4 switch
11
0375109110
BOOT
1
13
1512370008
ADAPTOR (with filter)
1
1420010110
O-RING
1
14
1515600200
ADAPTOR
5
1420010110
O-RING
1
20
1700100092
GROMMET
1
21
1110040625
SCREW, cap
3
22
1100040514
BOLT
4
23
1100041025
BOLT
5
25
1140020005
WASHER, spring
4
26
1140020006
WASHER, spring
3
28
1140020010
WASHER, spring
5
30
1141110005
WASHER
4
31
1141110006
WASHER
3
33
1141110010
WASHER
5
34
1110041025
SCREW, cap
2
35
1140020010
WASHER, spring
2
36
1141110010
WASHER
2
M1b071
Reference:M1B071
Page:2-8
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
OPERATION LEVER & STAND (L.H.)
10-1
26
10-2
31
3843
53
58
12
21
9
35
X
10-4
46
10-3
8
50
33
53
3247
19
52
4338
41
44
17
48
27
34
3247
Y
23
30
4549
46
29
51
28
20
46
18
28
48
51
Y
44
29
57
3-16
28
39
54
2
3-16
X
3
6
53
43
38
1
5
22
24
56
46
25
4-6
42
4
36
56
37
M1B081
55
S=1/7
Reference M1B081
ﾍﾟｰｼﾞ
2-9

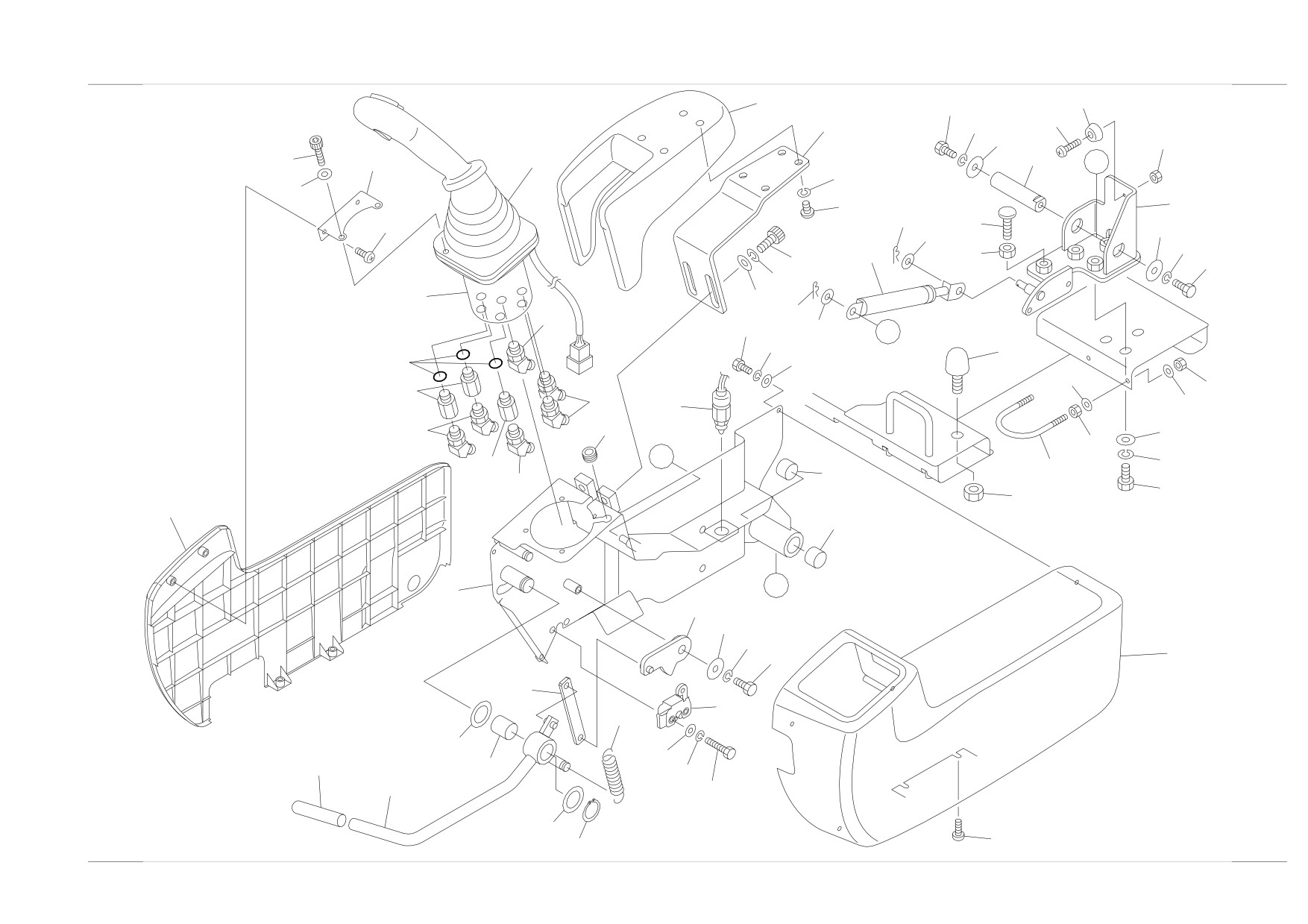

OPERATION LEVER & STAND (L.H.)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
VALVE ASSY (L.H.) (3 switch)
VALVE ASSY (R.H.) (4 switch)
1
0565127510
COVER (L.H.)
1
2
0565127520
COVER
1
3
0565129330
BRACKET (L.H.)
1
3-16
1333002015
BUSHING
2
4
0565129340
LEVER
1
4-6
1333002025
BUSHING
1
5
0565128550
PLATE
1
6
0565128560
PLATE
1
8
0565129380
BRACKET
1
9
0565128610
SHAFT
1
10
0565128860
REST ASSY, arm (L.H.)
1
10-1
0565128840
REST, arm
1
10-2
0565129311
PLATE (L.H.)
1
10-3
1120530812
SCREW
4
10-4
1140020008
WASHER, spring
4
12
0565127522
PLATE
1
17
1901758100
VALVE, pilot (L.H.)
1
3 switch
1901759100
VALVE, pilot (L.H.)
1
4 switch
18
1700100092
GROMMET
1
19
1653900057
SPRING, gas
1
20
1700000033
SWITCH, limit
1
21
0375109110
BOOT
1
22
1654011330
LOCK
1
23
1651101224
STOPPER
1
24
0007000070
SPRING
1
25
1650202300
CAP
1
26
1652102410
RUBBER
1
27
1512370012
ADAPTOR (with filter)
1
1420010110
O-RING
1
28
1515100110
ELBOW
5
1420010110
O-RING
1
29
0007213042
BUSHING
3
30
1420010110
O-RING
3
31
1120590414
SCREW
1
32
1214000008
PIN, snap
2
33
0335120970
BOLT
1
34
1100040514
BOLT
4
35
1110040625
SCREW, cap
3
36
1100040630
BOLT
2
37
1150420514
SCREW
2
38
1100040816
BOLT
3
39
1100041030
BOLT
3
41
1100041025
SCREW, cap
2
42
1140020006
WASHER, spring
2
43
1140020008
WASHER, spring
3
44
1140020010
WASHER, spring
5
45
1140020005
WASHER, spring
4
46
1141110006
WASHER
9
47
1141110008
WASHER
2
48
1141110010
WASHER
5
49
1141110005
WASHER
4
50
1150420510
SCREW
2
51
1130040006
NUT
4
52
1130040010
NUT
1
Reference:M1B081
Page:2-9
OPERATION LEVER & STAND (L.H.)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
53
0003609003
WASHER
3
54
1130040012
NUT
1
55
1220000020
RING, retaining
1
56
0093208300
WASHER
2
57
1533207020
U-BOLT
1
58
1130030004
NUT
1
M1b081
Reference:M1B081
Page:2-9
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; OPERATION LEVER
Pa3
2
S-Pa1
BLT
8
3
Pa4
BLP
PP22
9
10
BL1
53
BL2
69
4
Pb1
Pa8
57
Pb3
69
5
Pb4
S-Pb1
24
25
69
Pb8
RP
R4
R3
SH-B
70
R1
56
69
R2
RT
LP
54
49
L4
L3
55
L1
11
L2
LT
69
69
7
53
27
62
13
26
MT2
65
73
MP2
MT3
68
MP5
MT5
59
56
53
62
59
65
58
62
68
RVC2
65
RVC1
6
52
RVB
12
68
RVD
72
RVA
M1B091a
71
S=1/10
Reference M1B091a
ﾍﾟｰｼﾞ
2-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; OPERATION LEVER
Pa2
29
16
14
Pa5
28
Pb2
32
20
Pa6
Pa7
17
Pa9
21
Pb5
15
Pb6
Pb7
33
Pb9
MP1
MT1
30
19
MP6
MP7
MT7
TRT
MT6
TRP
2SSP
34
18
31
35
TRT
a
2SST
b
23
TRP
2SSA2
1SSA2
BST
BS1
d
BS2
f
2SSA1
1SSA1
TR4
BSP
a
TR3
22
b
TR2
c
TR1
c
d
1SST
e
e
f
1SSP
M1B091b
S=1/10
Reference M1B091a
ﾍﾟｰｼﾞ
2-10
PIPING; OPERATION LEVER
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks

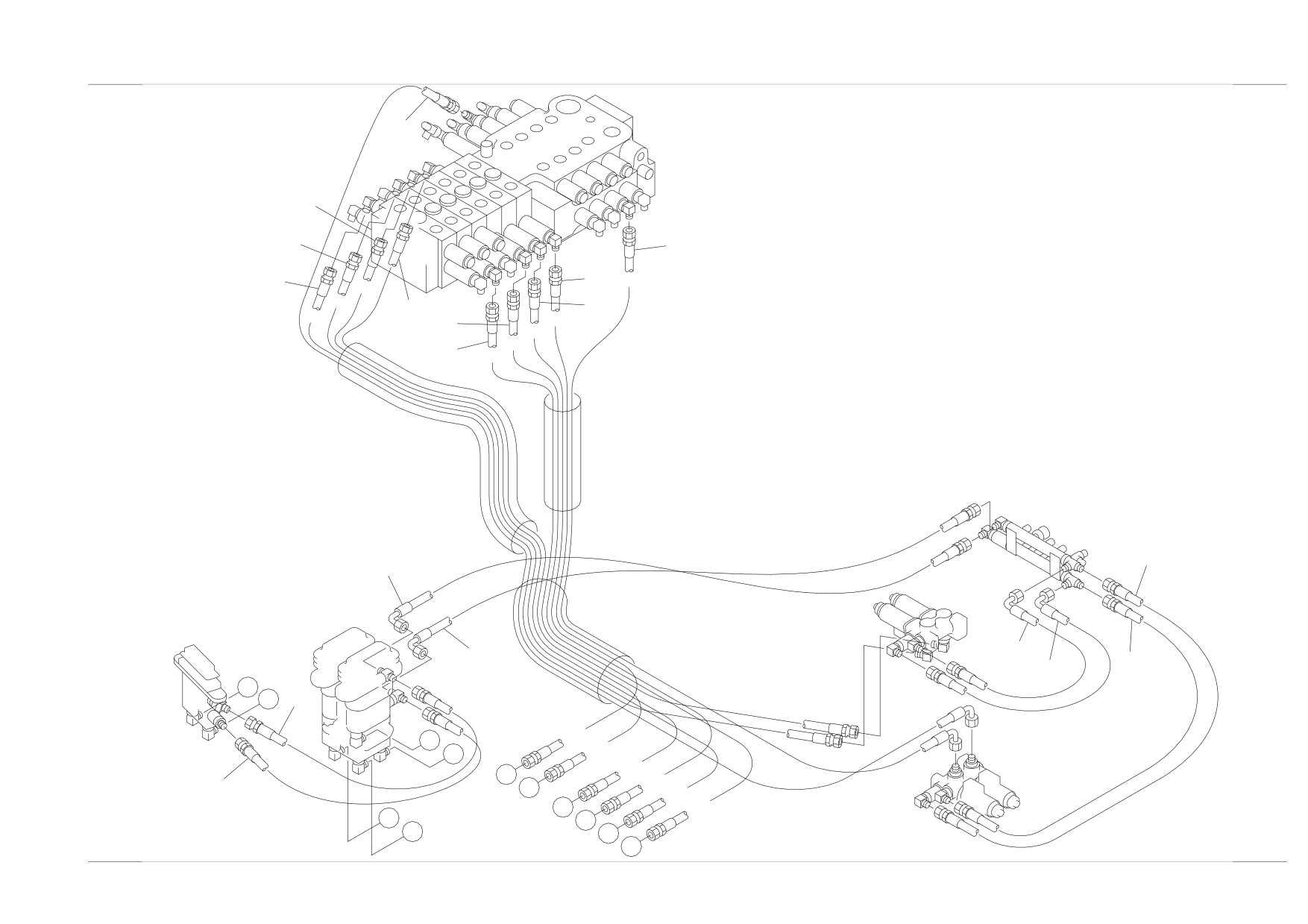

PIPING ASSY
2
0567153020
HOSE ASSY
1
19348-22300
3
0567153030
HOSE ASSY
1
19348-22300
4
0567153040
HOSE ASSY
1
19348-22210
5
0567153050
HOSE ASSY
1
19348-22210
6
0567153060
HOSE ASSY
1
19348-22175
7
0567153070
HOSE ASSY
1
19348-22135
8
0567153080
HOSE ASSY
1
19348-22355
9
0567153090
HOSE ASSY
1
19348-22330
10
0567153100
HOSE ASSY
1
19348-22330
11
0567153110
HOSE ASSY
1
19348-22300
12
0567153120
HOSE ASSY
1
19348-52120
13
0567153130
HOSE ASSY
1
19348-52115
14
0567153140
HOSE ASSY
1
19348-22220
15
0567153150
HOSE ASSY
1
19348-22170
16
0567153160
HOSE ASSY
1
19348-22215
17
0567153170
HOSE ASSY
1
19348-22165
18
0567153180
HOSE ASSY
1
19348-52048
19
0567153190
HOSE ASSY
1
19348-52050
20
0567153200
HOSE ASSY
1
19348-22144
21
0567153210
HOSE ASSY
1
19348-22215
22
0567153220
HOSE ASSY
1
19348-22066
23
0567153230
HOSE ASSY
1
19348-22062
24
0567153240
HOSE ASSY
1
19348-22250
25
0567153250
HOSE ASSY
1
19348-22200
26
0567153260
HOSE ASSY
1
19348-22105
27
0567153270
HOSE ASSY
1
19348-22105
28
0567153280
HOSE ASSY
1
19348-52190
29
0567153290
HOSE ASSY
1
19348-52275
30
0567153300
HOSE ASSY
1
19348-22056
31
0567153310
HOSE ASSY
1
19348-22052
32
0567153320
HOSE ASSY
1
19348-22210
33
0567153330
HOSE ASSY
1
19348-22165
34
0567153340
HOSE ASSY
1
19348-52058
35
0567153350
HOSE ASSY
1
19348-52064
49
1567525033
DUCT
1
52
1531335070
PROTECTOR
1
sold by the meter
53
1531345030
PROTECTOR
3
sold by the meter
54
1531350030
PROTECTOR
1
sold by the meter
55
1531350110
PROTECTOR
1
M
sold by the meter
56
1531360035
PROTECTOR
2
sold by the meter
57
1531645020
PROTECTOR
1
sold by the meter
58
0007300030
CLAMP
1
59
0007300044
CLAMP
2
62
1110041020
SCREW, cap
3
65
1140020010
WASHER, spring
3
68
1141110010
WASHER
3
69
1652201007
BAND
7
70
0567153700
HOSE ASSY
1
19348-22054
71
0567153710
HOSE ASSY
1
19348-52048
72
0567153720
HOSE ASSY
1
19348-52255
73
0567153730
HOSE ASSY
1
19348-52038
M1b091
Reference:M1B091a
Page:2-10
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; OPERATION LEVER (ISO-JCB pattern)
Pa3
2
S-Pa1
BLT
8
40
Pa4
BLP
42
PP22
10
BL1
53
BL2
69
4
Pb1
Pa8
57
Pb3
69
41
Pb4
S-Pb1
25
69
24
Pb8
RP
R4
R3
SH-B
70
R1
56
69
R2
RT
LP
54
49
L4
L3
55
L1
43
L2
LT
69
69
60
63
7
53
66
27
62
13
45
26
45
MT2
65
73
S4
45
S1
48
MP2
b
MT3
SC
a
47
68
62
c
SD
65
MP5
S2
56
g
MT5
h
68
45
59
SB
S3
46
SA
53
f
h
d
59
38
e
62
58
12
45
45
52
61
65
RVC2
RVC1
b
RVB
6
64
68
a
c
39
67
d
g
36
e
RVD
44
f
72
37
RVA
51
71
M1B101a
S=1/10
Reference M1B101a
ﾍﾟｰｼﾞ
2-11
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
PIPING; OPERATION LEVER (ISO-JCB pattern)
P
29
16
14
P
28
Pb2
32
20
P
P
17
P
21
Pb5
15
Pb6
Pb7
33
Pb9
a2
MP1
MT1
30
19
MP6
MP7
MT7
TR
MT6
a5
TRP
2SSP
34
18
31
a6
35
TR
a
a7
2SST
b
23
a9
TRP
2SSA2
1SSA2
BST
BS1
d
BS2
f
2SSA1
1SSA1
TR4
BSP
a
TR3
22
b
TR2
c
TR1
c
d
1SST
e
e
f
1SSP
M1B101b
S=1/10
Reference M1B101a
ﾍﾟｰｼﾞ
2-11
PIPING; OPERATION LEVER (ISO-JCB pattern)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
PIPING ASSY
2
0567153020
HOSE ASSY
1
19348-22300
4
0567153040
HOSE ASSY
1
19348-22210
6
0567153060
HOSE ASSY
1
19348-22175
7
0567153070
HOSE ASSY
1
19348-22135
8
0567153080
HOSE ASSY
1
19348-22355
10
0567153100
HOSE ASSY
1
19348-22330
12
0567153120
HOSE ASSY
1
19348-52120
13
0567153130
HOSE ASSY
1
19348-52115
14
0567153140
HOSE ASSY
1
19348-22220
15
0567153150
HOSE ASSY
1
19348-22170
16
0567153160
HOSE ASSY
1
19348-22215
17
0567153170
HOSE ASSY
1
19348-22165
18
0567153180
HOSE ASSY
1
19348-52048
19
0567153190
HOSE ASSY
1
19348-52050
20
0567153200
HOSE ASSY
1
19348-22144
21
0567153210
HOSE ASSY
1
19348-22215
22
0567153220
HOSE ASSY
1
19348-22066
23
0567153230
HOSE ASSY
1
19348-22062
24
0567153240
HOSE ASSY
1
19348-22250
25
0567153250
HOSE ASSY
1
19348-22200
26
0567153260
HOSE ASSY
1
19348-22105
27
0567153270
HOSE ASSY
1
19348-22105
28
0567153280
HOSE ASSY
1
19348-52190
29
0567153290
HOSE ASSY
1
19348-52275
30
0567153300
HOSE ASSY
1
19348-22056
31
0567153310
HOSE ASSY
1
19348-22052
32
0567153320
HOSE ASSY
1
19348-22210
33
0567153330
HOSE ASSY
1
19348-22165
34
0567153340
HOSE ASSY
1
19348-52058
35
0567153350
HOSE ASSY
1
19348-52064
36
0567153360
HOSE ASSY
1
19348-22190
37
0567153370
HOSE ASSY
1
19348-22180
38
0567153380
HOSE ASSY
1
19348-52135
39
0567153390
HOSE ASSY
1
19348-22125
40
0567153400
HOSE ASSY
1
19348-22275
41
0567153410
HOSE ASSY
1
19348-22190
42
0567153420
HOSE ASSY
1
19348-22220
43
0567153430
HOSE ASSY
1
19348-22185
44
0377103300
PLATE
1
45
1515012040
ELBOW
6
1420010110
O-RING
1
46
1515100110
ELBOW
1
1420010110
O-RING
1
47
1515600200
ADAPTOR
1
1420010110
O-RING
1
48
1901730500
VALVE, selector
1
49
1567525033
DUCT
1
51
1531335030
PROTECTOR
1
sold by the meter
52
1531335070
PROTECTOR
1
sold by the meter
53
1531345030
PROTECTOR
3
sold by the meter
54
1531350030
PROTECTOR
1
sold by the meter
55
1531350110
PROTECTOR
1
M
sold by the meter
56
1531360035
PROTECTOR
2
sold by the meter
57
1531645020
PROTECTOR
1
sold by the meter
58
0007300030
CLAMP
1
Reference:M1B101a
Page:2-11

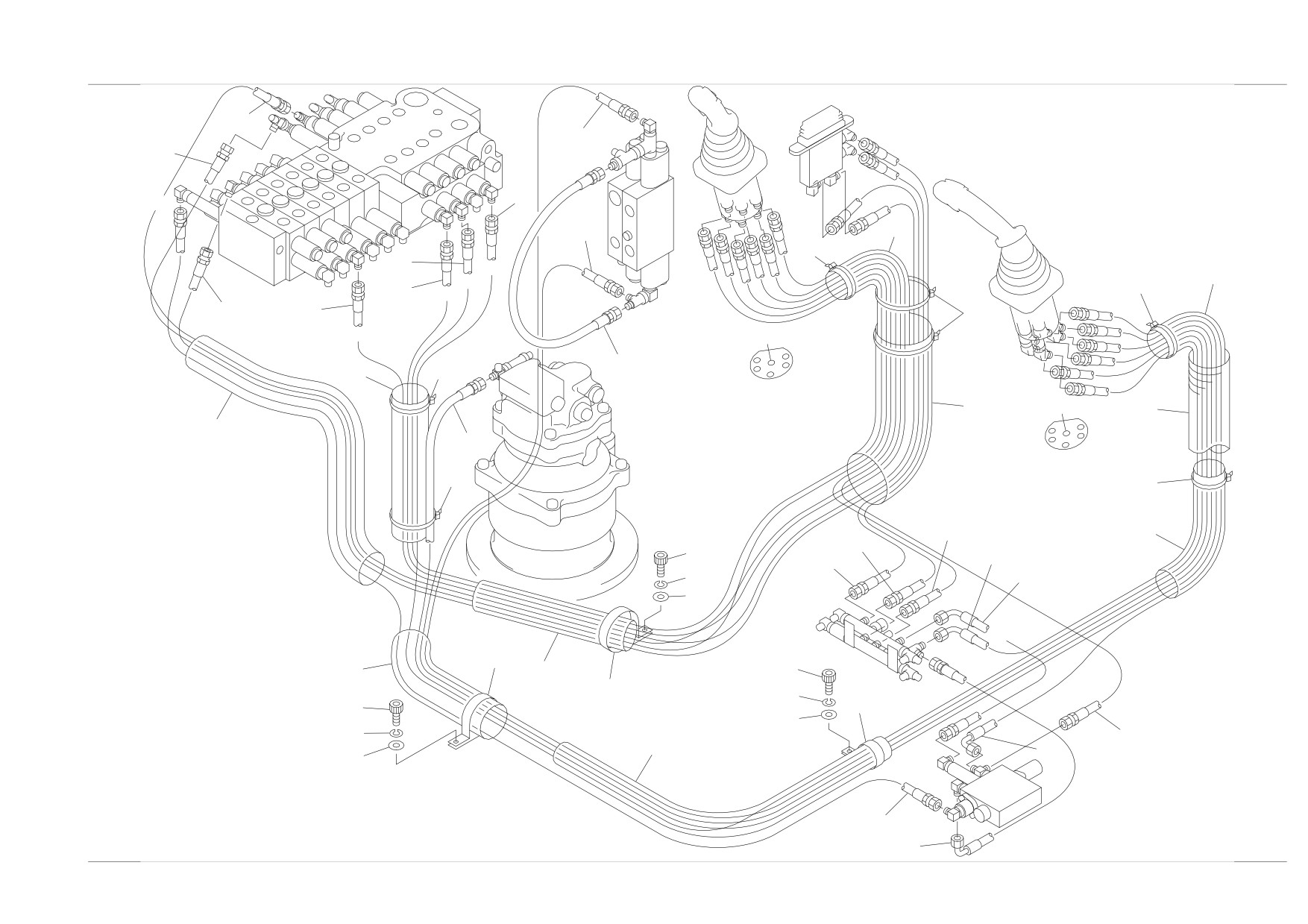

PIPING; OPERATION LEVER (ISO-JCB pattern)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
59
0007300044
CLAMP
2
60
1110040650
SCREW, cap
2
61
1110040820
SCREW, cap
2
62
1110041020
SCREW, cap
3
63
1140020006
WASHER, spring
2
64
1140020008
WASHER, spring
2
65
1140020010
WASHER, spring
3
66
1141110006
WASHER
2
67
1141110008
WASHER
2
68
1141110010
WASHER
3
69
1652201007
BAND
7
70
0567153700
HOSE ASSY
1
19348-22054
71
0567153710
HOSE ASSY
1
19348-52048
72
0567153720
HOSE ASSY
1
19348-52255
73
0567153730
HOSE ASSY
1
19348-52038
M1b101
Reference:M1B101a
Page:2-11
Memo
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
ENGINE & ACCESSORIES (1/3)
35
X
34
35
18
45
13
31
17
42
54
6
8
25
58
29
22
54
64
315543
58
7
50
5
Z
5749
56
55
4
51
46
18
35
12
42
51
Y
Z
8
55
32
36
54
27
22
18
15
58
50
5
X
24
11
42
57
49
8
54
Y
22
58
18
48
52
50
57
59
42
61
23
56
2
8
52
22
3
30
50
56
M0C010a
47
S=1/15
Reference M0C010a
ﾍﾟｰｼﾞ
3-1
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
ENGINE & ACCESSORIES (1/3)
44
44
55
55
63
63
43
71
55
67
66
6055
43
39
40
28
33
68
a
26
10
69
a
46
70
14
56
19
61
33
43
33
55
16
1
a
9
65
33
57
53
a
72
37383921
M0C010b
S=1/12
Reference M0C010a
ﾍﾟｰｼﾞ
3-1
ENGINE & ACCESSORIES (1/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0564063000
ENGINE ASSY
1
1
0564063100
RADIATOR ASSY
1
see page (2/3)
2
0564061090
BRACKET
1
3
0564061080
BRACKET
1
4
0564061010
PIPE
1
5
0574002310
FOOT, engine
2
6
0564061130
HOSE
1
7
0564061170
BRACKET
1
8
0564017470
STOPPER
4
9
0564063010
BRACKET
1
10
0564063200
GUARD
1
11
0574000150
U-BOLT
2
12
0564061180
PIPE
1
13
0564061120
HOSE
1
14
0564061060
HOSE
1
15
0564061140
HOSE
1
16
0564061070
HOSE
1
17
0684001360
PIPE
1
18
0564017460
STOPPER
4
19
0564061050
BRACKET
1
21
0882401210
ADAPTOR
1
22
0882400190
WASHER
4
23
1910297001
ENGINE
1
AU-4JJ1TYSB-03
24
1910288005
MUFFLER
1
IF-10812-012-F
25
1911260300
CLEANER, air
1
see page (3/3)
26
1910288020
TANK, sub
1
IF-90912-001-F
27
1910188030
GASKET
1
I894369-0210
28
1911900004
VALVE, drain
1
29
0007300071
CLAMP
1
30
0003600020
WASHER
4
31
0003608252
WASHER
5
32
1533701250
BAND
1
33
1533700057
BAND
4
34
1533700081
BAND
2
35
1533700096
BAND
4
36
1533300063
CLAMP
1
37
1531118150
PROTECTOR
1
sold by the meter
38
1530808160
HOSE
1
sold by the meter
39
1533120512
BAND
3
40
1533120010
BAND
1
42
1651030010
RUBBER, cushion
8
43
1100040816
BOLT
8
44
1110040825
SCREW, cap
4
45
1100040835
BOLT
2
46
1100041020
BOLT
4
47
1100041025
BOLT
4
48
1100041220
BOLT
1
49
1100041235
BOLT
8
50
1100141660
BOLT
4
51
1130040008
NUT
5
52
1130040010
NUT
8
53
1130040012
NUT
2
54
1130040016
NUT
8
55
1140020008
WASHER, spring
17
56
1140020010
WASHER, spring
12
57
1140020012
WASHER, spring
11
Reference:M0C010a
Page:3-1
ENGINE & ACCESSORIES (1/3)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
58
1140020016
WASHER, spring
4
59
1140330012
WASHER
1
60
1141110008
WASHER
2
61
1141110010
WASHER
6
63
1141550008
WASHER
4
64
0564061030
COVER
1
65
0003600123
WASHER
2
66
1910297013
HOSE
1
I898067-5031
67
1910297017
BAND
1
I894121-1130
68
1910297018
CLAMP
1
I897177-5800
69
1910297019
CLAMP
1
I109700-1261
70
1910297051
BOLT
1
I028050-8200
71
1652231250
BAND
2
72
0872433150
TUBE
6
M0c010
Reference:M0C010a
Page:3-1
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

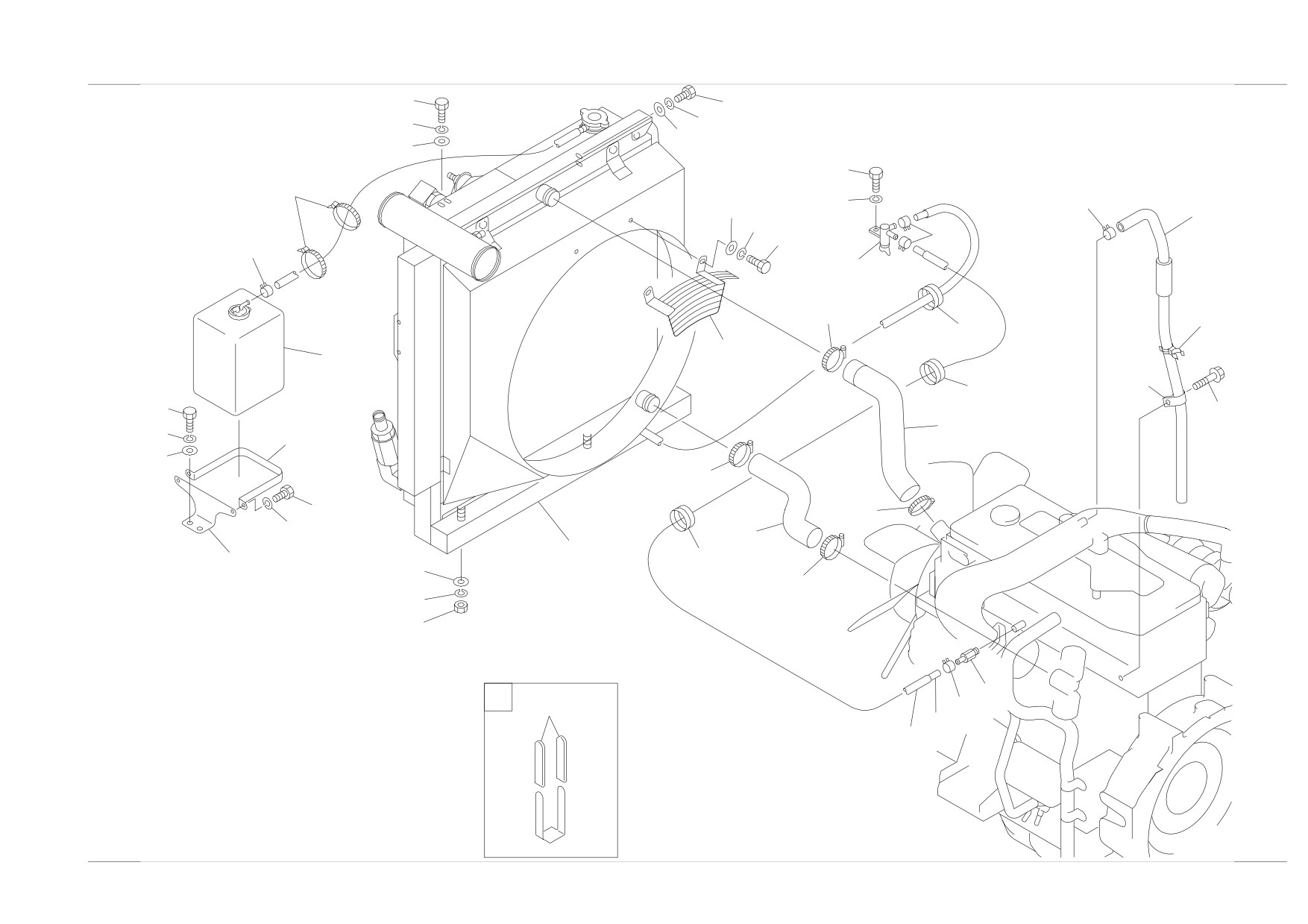

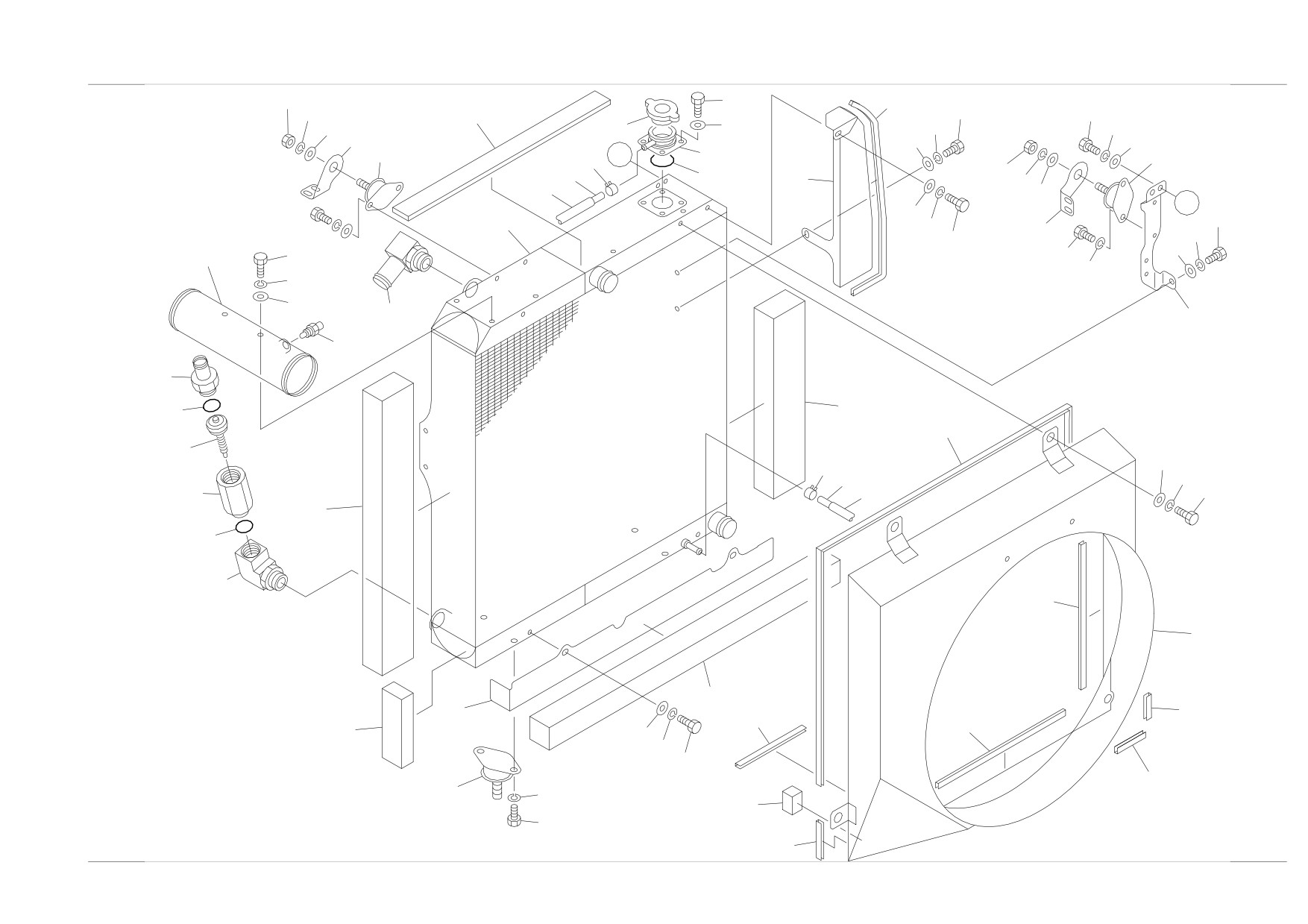

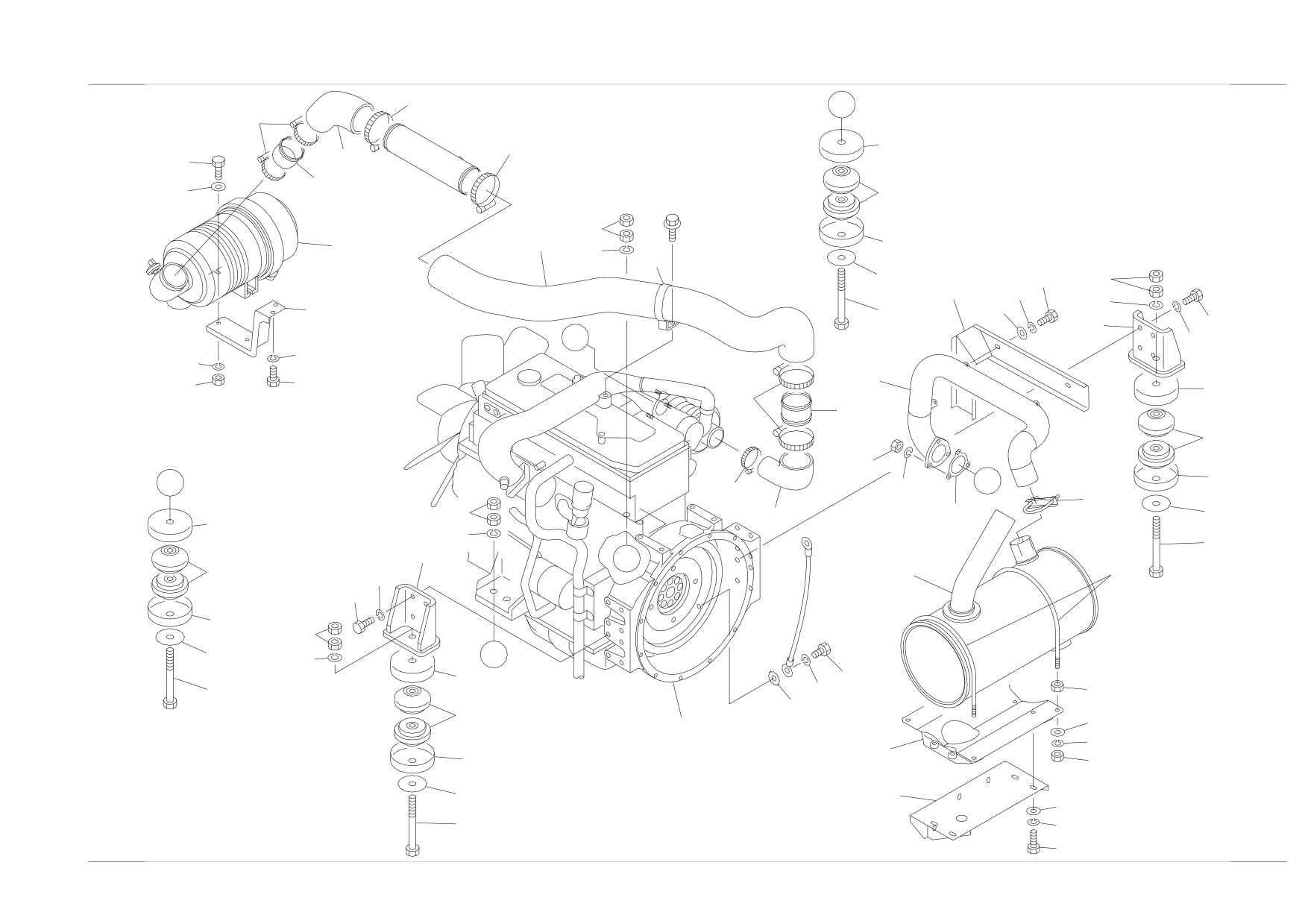

ENGINE & ACCESSORIES (2/3)
37
12-3
31
39
11
33
14
12-4
38
12-1
5
403834
25
X
12-2
4025
22
21
37
12-5
3
20
39
14
X
12
40
38
5
33
403834
6
33
33
38
38
40
17
4
13
42
7
16
32
24
46
38
2319
43
33
15
10
16
18
28
1
8
2
27
30
28
9
4038
33
47
26
39
41
35
M0C020
29
S=1/10
Reference M0C020
ﾍﾟｰｼﾞ
3-2
ENGINE & ACCESSORIES (2/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
0564063100
RADIATOR ASSY
1
1
0564063110
SHROUD
1
2
0564061240
PLATE
1
3
0564061260
PLATE
1
4
0564061220
BRACKET
1
5
0564061210
BRACKET
2
6
0564061230
PIPE
1
7
0564061250
SPONGE
1
8
0564061251
SPONGE
1
9
0564061252
SPONGE
1
10
0564061253
SPONGE
1
11
0564061254
SPONGE
1
12
1911300850
RADIATOR
1
12-1
1911300851
CAP
1
12-2
1911300852
NECK
1
12-3
1911300853
BOLT
4
12-4
1911300854
WASHER
4
12-5
1911300855
O-RING
1
13
1910230055
SENSOR
1
14
0003600025
WASHER
2
15
0007213083
BUSHING
1
16
1420010290
O-RING
2
17
1513350020
ELBOW
1
1420010290
O-RING
1
18
1513300026
ELBOW
1
1420010240
O-RING
1
19
1530808055
HOSE
1
sold by the meter
20
1531115118
PROTECTOR
1
sold by the meter
21
1531211128
HOSE
1
sold by the meter
22
1533120010
BAND
1
23
1533120512
BAND
1
24
1540140810
VALVE, check
1
25
1651024007
RUBBER, cushion
2
26
1651024009
RUBBER, cushion
2
27
1654605005
RUBBER
1
sold by the meter
28
1654605031
TRIM
2
sold by the meter
29
1654606006
SEAL
1
sold by the meter
30
1654606022
SEAL
1
sold by the meter
31
1654606051
TRIM
1
sold by the meter
32
1654606140
SEAL
1
sold by the meter
33
1100040816
BOLT
12
34
1100040825
BOLT
2
35
1100041016
BOLT
4
37
1130040010
NUT
2
38
1140020008
WASHER, spring
14
39
1140020010
WASHER, spring
6
40
1141110008
WASHER
9
41
0564062201
SPONGE
1
42
0007224015
ADAPTOR
1
43
1531118045
PROTECTOR
1
sold by the meter
46
0003609003
WASHER
4
47
1654605007
RUBBER
1
sold by the meter
M0c020
Reference:M0C020
Page:3-2
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

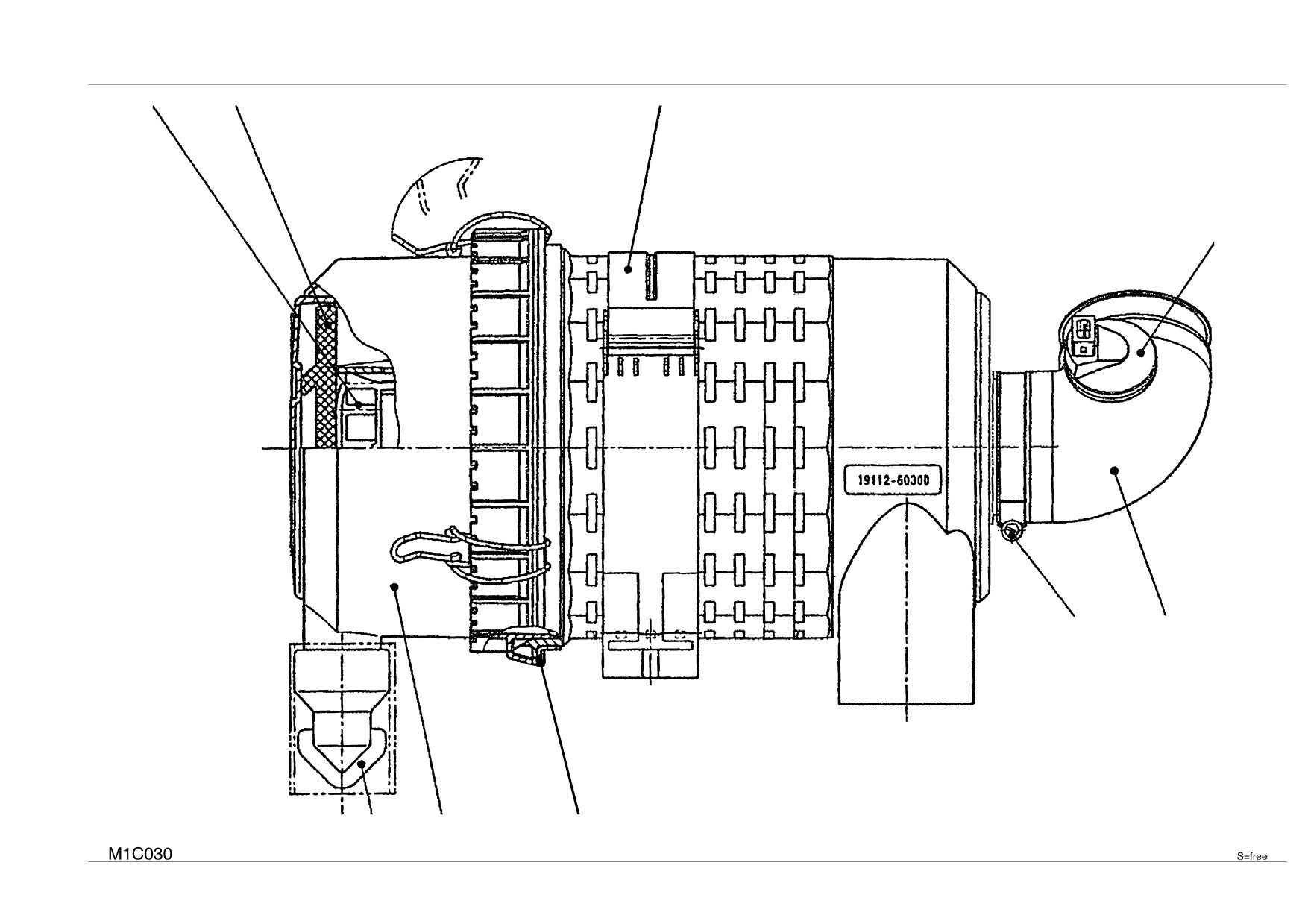

ENGINE & ACCESSORIES (3/3)
3
2
4
7
8
6
9
1
5
Reference M1C030
ﾍﾟｰｼﾞ
3-3
ENGINE & ACCESSORIES (3/3)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0-2
1911260300
CLEANER, air
1
1
1911260301
COVER
1
2
1911113001
ELEMENT
1
3
1911113002
ELEMENT, secondary
1
4
1911260302
BRACKET
1
5
1911260303
O-RING
1
6
1911260304
MANIFOLD
1
7
1911260305
SWITCH, service
1
8
1911260306
BAND
1
9
0664006355
VALVE
1
M1c030
Reference:M1C030
Page:3-3
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

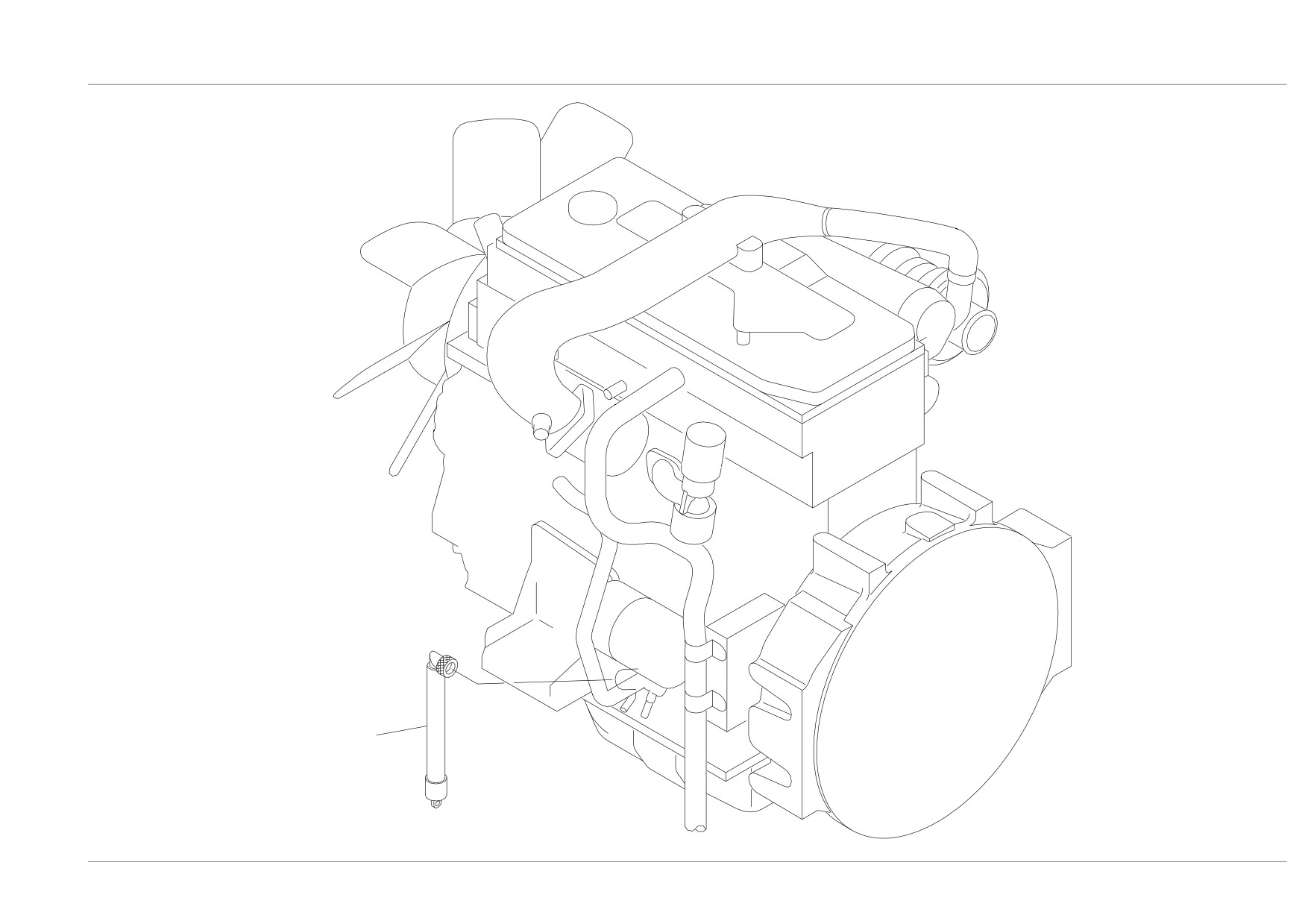

DRAIN PLUG
1
M0C030
S=1/8
Reference M0C030
ﾍﾟｰｼﾞ
3-4
DRAIN PLUG
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
PLUG ASSY, drain
1
1554512601
TUBE
1
S5c130
Reference:M0C030
Page:3-4
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-
CONTROL BOX (R.H.)
2
3
4
1-1-1
1-1
1-3
1-2
M1C050
S=1/4
Reference M1C050
ﾍﾟｰｼﾞ
3-5

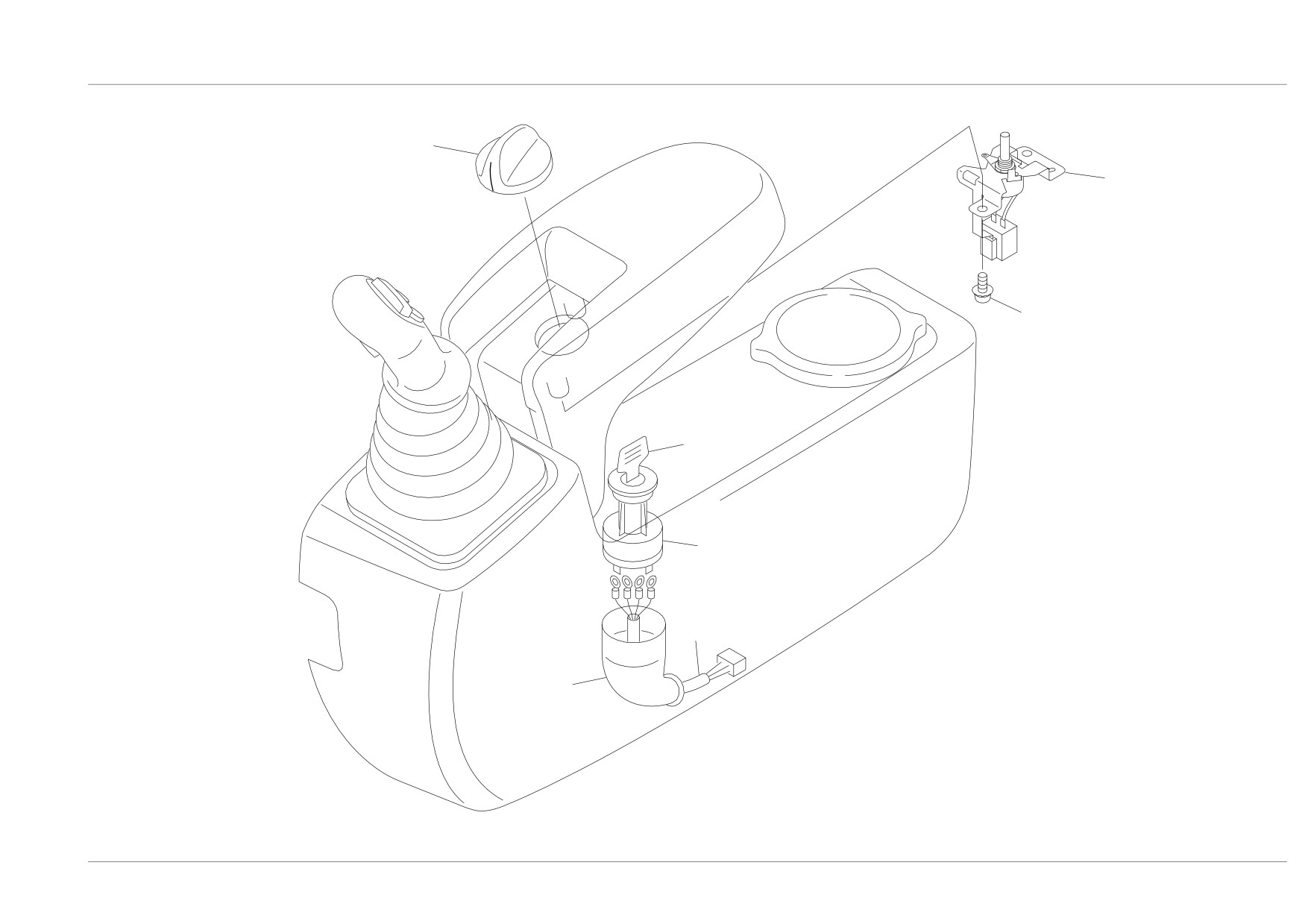

CONTROL BOX (R.H.)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
BOX ASSY, control (R.H.)
1
0574301410
SWITCH ASSY, starter
1
1-1
1700100098
SWITCH, starter
1
1-1-1
1700100019
KEY
1
1-2
0870431821
COVER
1
1-3
0574300530
HARNESS ASSY
1
2
1700000059
KNOB
1
3
1700000060
RESISTER ASSY
1
4
1150420614
SCREW
2
M1c050
Reference:M1C050
Page:3-5
TB290 [P-TB290BAD] Book No. BM0Z001-2 S/N 190000001-

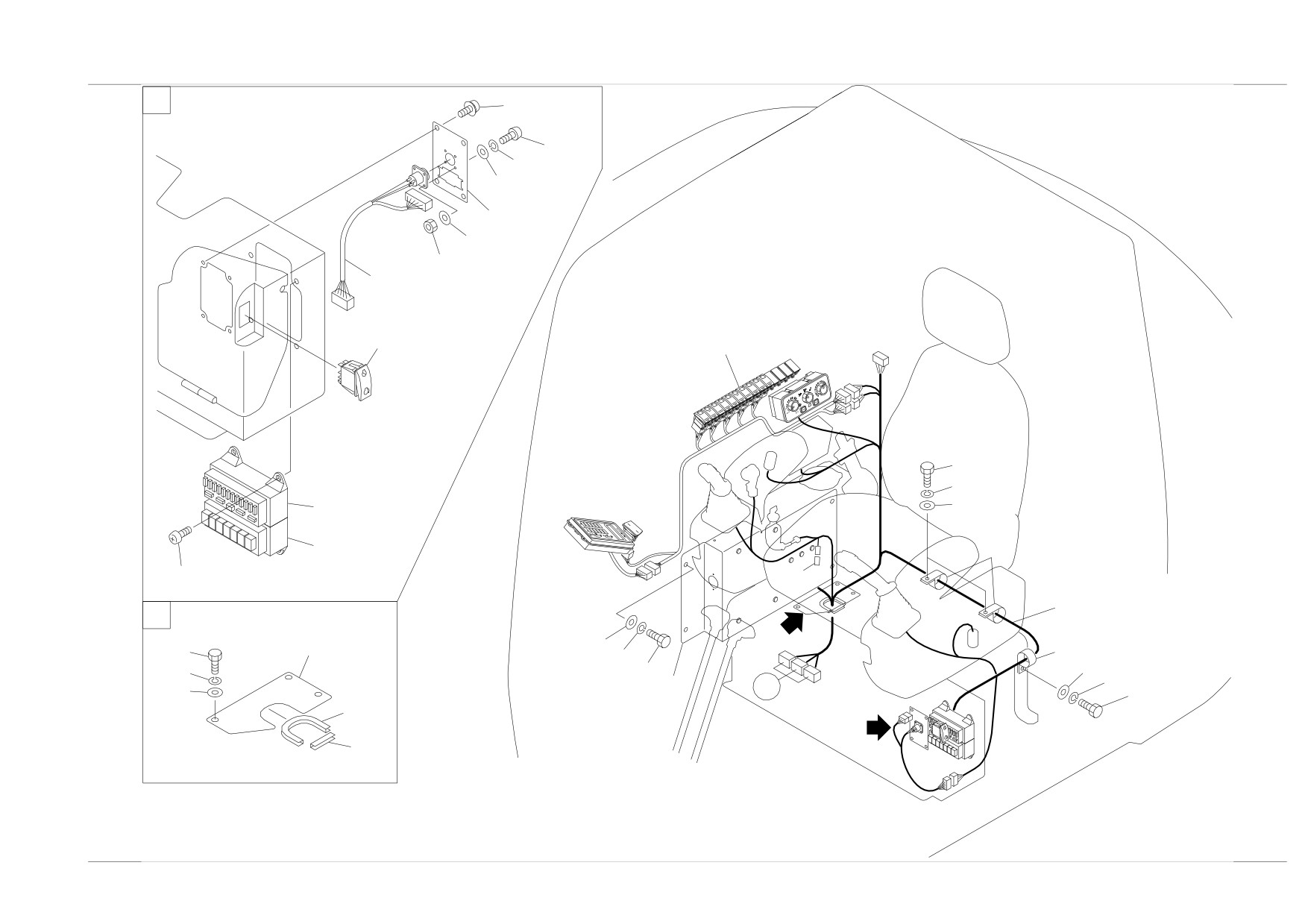

ELECTRICAL (1/4)
A
52
33-3
33-4
33-6
33-2
33-6
33-5
33-1
35
18
22
23
24
5-1
37
5-2
53
5-3
5
B
B
21
22
51
37
24
23
5045
23
X
24
14
22
63
A
62
M0C040a
S=1/8, 1/15
Reference M0C040a
ﾍﾟｰｼﾞ
3-6















Content      ..      1      2      3      ..
