CAB INTERIOR (with auto tank switch)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CAB INTERIOR ASSY
1
0558600064
PANEL ASSY
1
1-1
0558602110
PANEL
1
1-2
1730143650
CLUSTER
1
1-3
0558600046
BRACKET
1
1-4
1911510001
LOUVER
1
1-5
1911510003
LOUVER
1
1-6
0558600069
DUCT
1
1-7
1566165011
HOSE
1
1-8
1533001065
BAND
2
1-9
1100040625
BOLT
4
1-10
1100040610
BOLT
3
1-11
1141110006
WASHER
7
1-12
1140020006
WASHER, spring
7
1-13
1150420410
SCREW
4
1-14
0558600071
SPONGE
1
2
0558600066
PANEL ASSY
1
2-1
0558602210
PANEL
1
2-2
1911513420
PANEL
1
126000002~126000146
1911514516
PANEL
1
(H)
126000147~
2-3
1700008260
SWITCH
1
light
2-4
1700008200
SWITCH
1
wiper
2-5
1700008210
SWITCH
1
window washer
2-6
1700008220
SWITCH
1
auto-decel.
2-7
1700008234
SWITCH
1
power and highland mode
2-8
1700008250
SWITCH
1
service detent
2-9
1700008255
SWITCH
1
auto tank
2-10
1700008270
SWITCH
1
lift alarm
2-11
1700008280
SWITCH
1
beacon lamp
2-12
1700008035
ORNAMENT
2
(L)
126000002~126000109
1700008129
ORNAMENT
2
(H)
126000110~
2-13
1911510003
LOUVER
1
2-14
1654010500
ASHTRAY
1
2-15
1711900520
SOCKET ASSY
1
2-16
1120630412
SCREW
2
2-17
1150420412
SCREW
2
2-18
1911514521
BUSHING
1
126000110~
3
0558602300
PANEL ASSY
1
3-1
0558602310
PANEL
1
3-2
0568661120
POCKET
1
3-3
0568661130
BRACKET
1
3-4
0378606250
LEVER
1
3-5
0378606134
COLLAR
3
3-6
0378606280
SPACER
2
3-7
1654008800
KNOB
1
3-8
0007000123
SPRING
1
3-10
1120590512
SCREW
4
3-11
1150020635
SCREW
3
3-12
1100040630
BOLT
1
3-13
1111820830
BOLT
1
3-14
1130040005
NUT
4
3-15
1130040006
NUT
4
3-16
1130190008
NUT
2
3-17
1140020005
WASHER, spring
4
3-18
1140020006
WASHER, spring
4
3-20
1141110005
WASHER
4
Reference:Q0E100aA
Page:5-23
CAB INTERIOR (with auto tank switch)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
3-21
0003600110
WASHER
2
3-22
0003600043
WASHER
2
3-23
0003608252
WASHER
1
4
0558600067
PANEL ASSY
1
4-1
0558602220
PANEL
1
4-2
1911510003
LOUVER
2
5
0558600040
DUCT
1
6
1652900016
WASHER
15
7
1120790620
SCREW
14
8
1120790614
SCREW
1
9
1566165090
HOSE
1
10
1566165070
HOSE
1
11
1566165045
HOSE
1
12
1566165011
HOSE
1
13
1566165009
HOSE
1
14
1533001065
BAND
10
Q0e111
Reference:Q0E100aA
Page:5-23
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

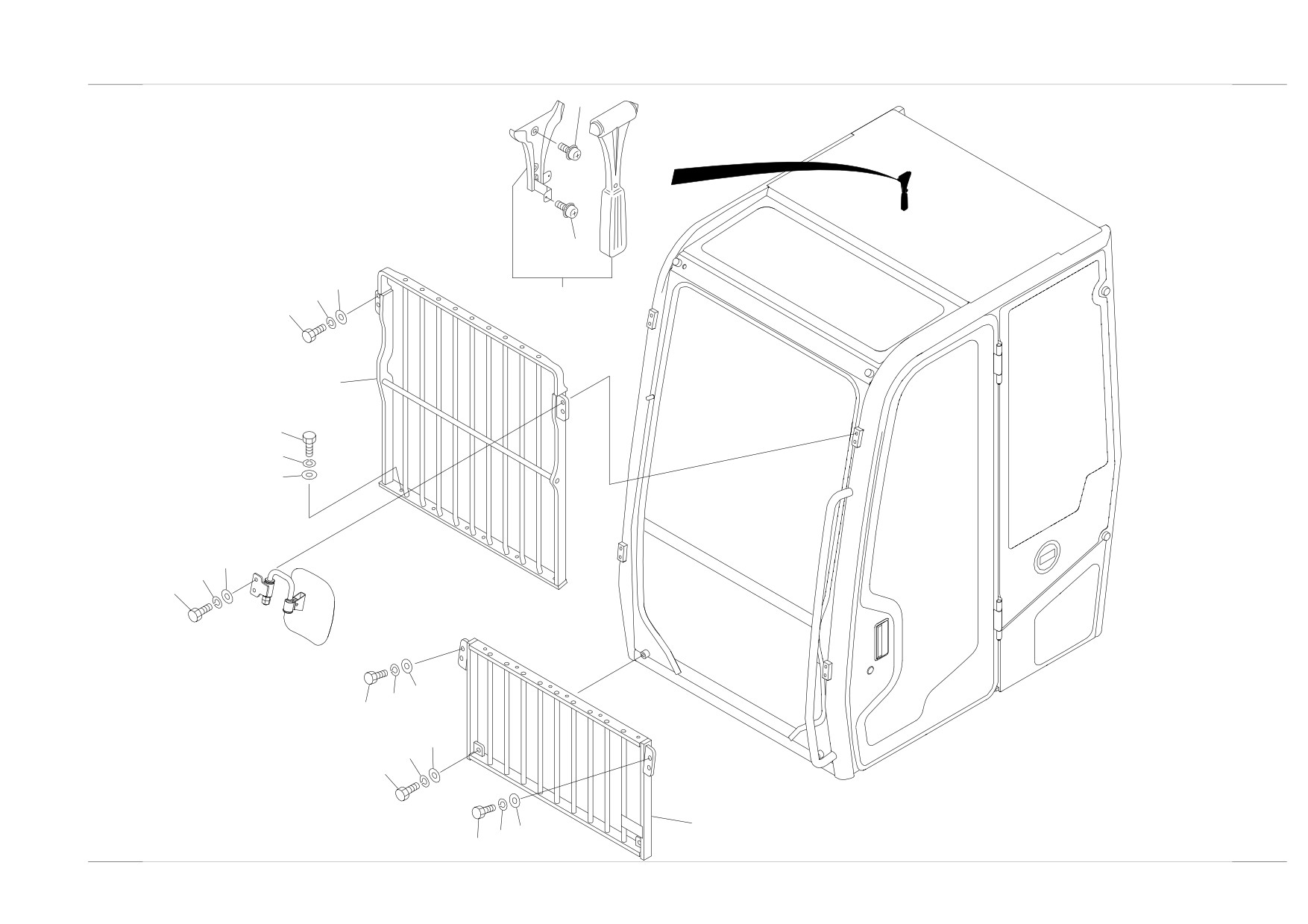

FRONT GUARD
7
6
10
8
12
3
1
5
9
11
10
8
4
10
8
3
11
9
13
2
10
㪤㪈㪜㪈㪐㪈㪄㪈
8
㪪㪔㪈㪆㪌㪃㪈㪆㪉㪇
3
Reference
M1E191-1
ﾍﾟｰｼﾞ
5-24
FRONT GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0558600057
GUARD ASSY, front
1
1
0558600085
GUARD
1
2
0558600086
GUARD
1
3
1100041030
BOLT
6
4
1100041035
BOLT
2
5
1100041225
BOLT
6
6
1122410304
SCREW
1
7
1122410412
SCREW
2
8
1140020010
WASHER, spring
8
9
1140020012
WASHER, spring
8
10
1141110010
WASHER
8
11
1141110012
WASHER
8
12
1654011920
HAMMER
1
13
1100041235
BOLT
2
M1e191-1
Reference:M1E191-1
Page:5-24
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
RAIN GUARD
23
3
263438
22
24
5
22
4
24
22
4
23
21
22
2
5
1
38
2634
M1E210
S=1/8, 1/20
Reference
M1E210
ﾍﾟｰｼﾞ
5-25
RAIN GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
GUARD ASSY, rain
1
0568662190
GUARD
1
2
0568662200
STAY (L.H.)
1
3
0568662210
STAY (R.H.)
1
4
0568662520
BRACKET
2
5
0568662530
RUBBER
2
21
1654606079
SEAL
1
sold by the meter
22
1652520006
NUT
8
23
1150410625
SCREW
4
24
1150410630
SCREW
4
26
1100040820
BOLT
4
34
1140020008
WASHER, spring
4
38
1141110008
WASHER
4
M1e210
Reference:M1E210
Page:5-25
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

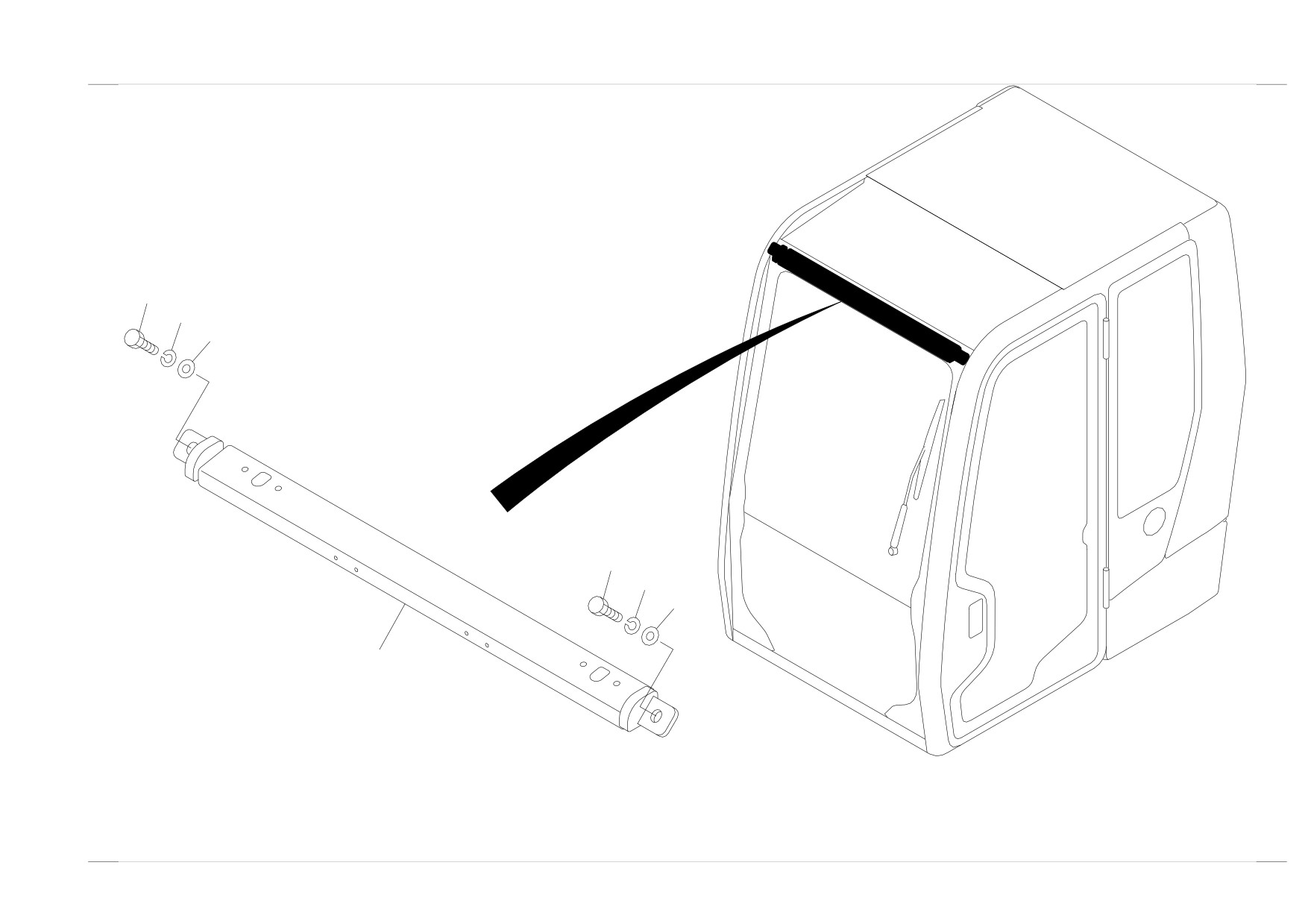

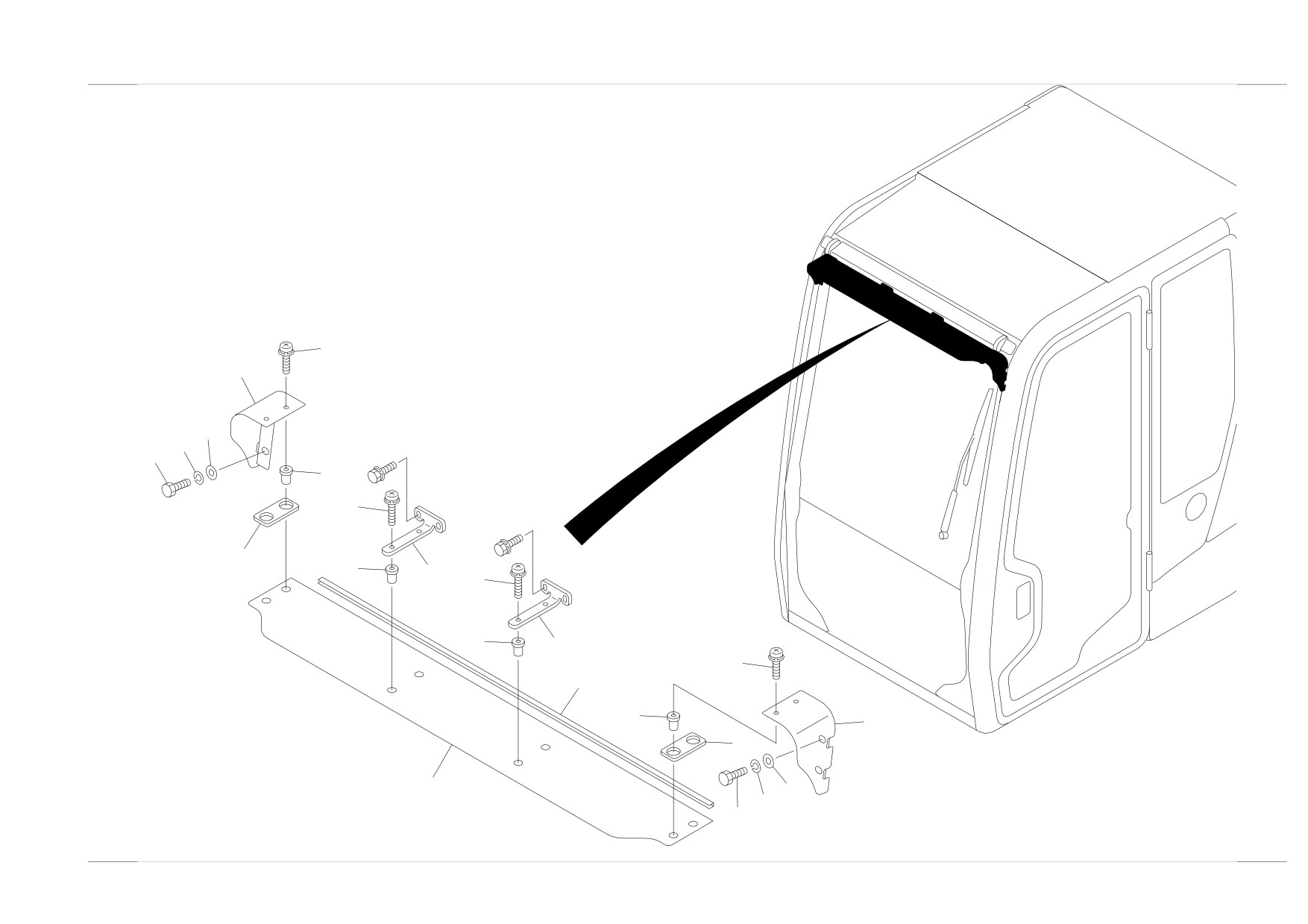

FRONT STAY
31
36
40
31
36
40
10
M1E220
S=1/8, 1/20
Reference
M1E220
ﾍﾟｰｼﾞ
5-26
FRONT STAY
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
STAY ASSY, front
10
0568662710
STAY
1
31
1100041230
BOLT
2
36
1140020012
WASHER, spring
2
40
1141110012
WASHER
2
M1e220
Reference:M1E220
Page:5-26
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

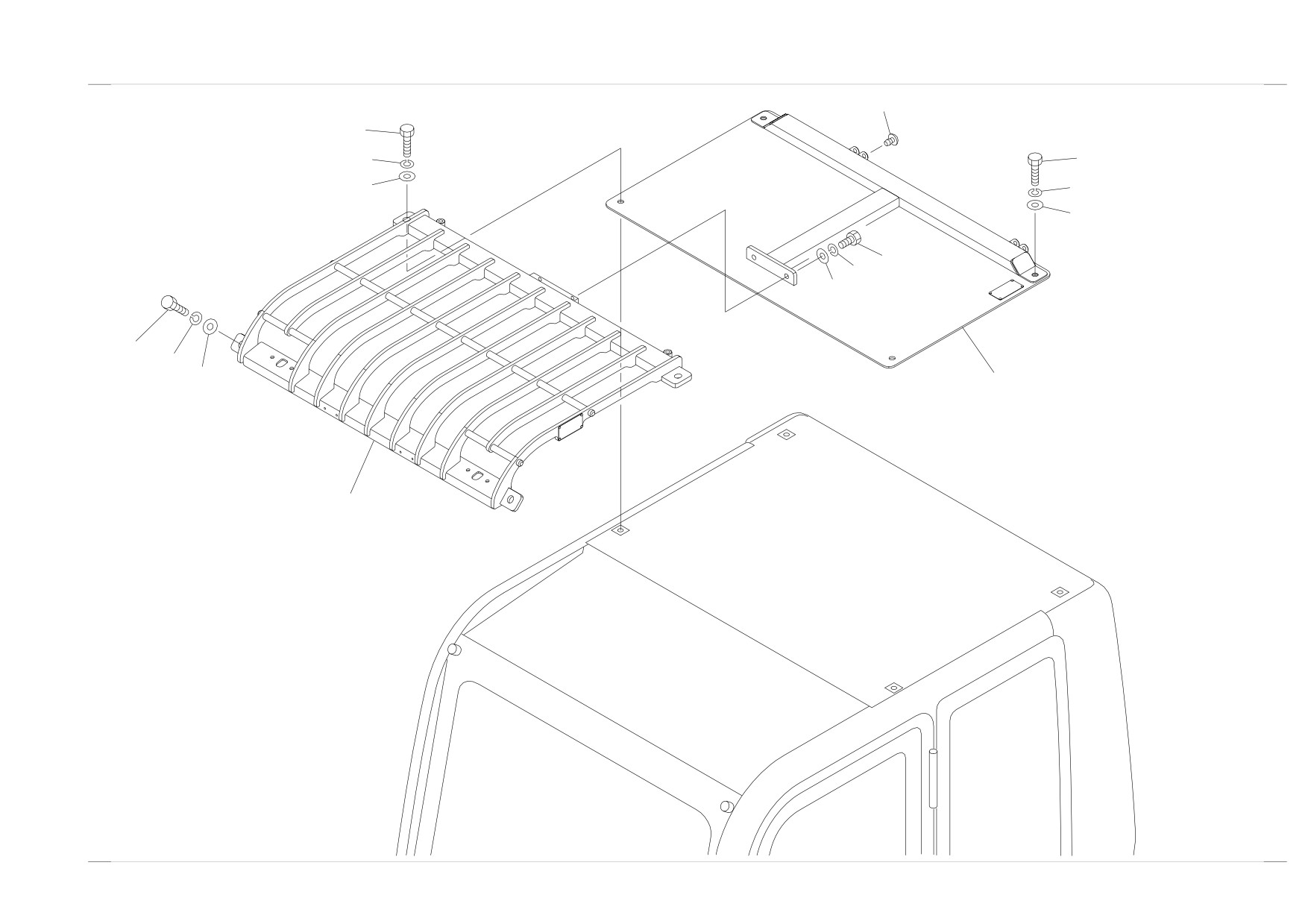

ROOF GUARD
10
4
5
3
6
5
6
9
8
7
3
5
6
2
1
㪨㪇㪜㪉㪋㪇
㪪㪔㪈㪆㪈㪋
Reference
Q0E240
ﾍﾟｰｼﾞ
5-27
ROOF GUARD
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
GUARD ASSY, roof
1
1
0558600213
GUARD
1
2
0558600214
GUARD
1
3
1100041230
BOLT
4
4
1100041240
BOLT
2
5
1140020012
WASHER, spring
6
6
1141110012
WASHER
6
7
1141110010
WASHER
2
8
1140020010
WASHER, spring
2
9
1100041025
BOLT
2
10
1653303010
CAP
4
Q0e240
Reference:Q0E240
Page:5-27
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

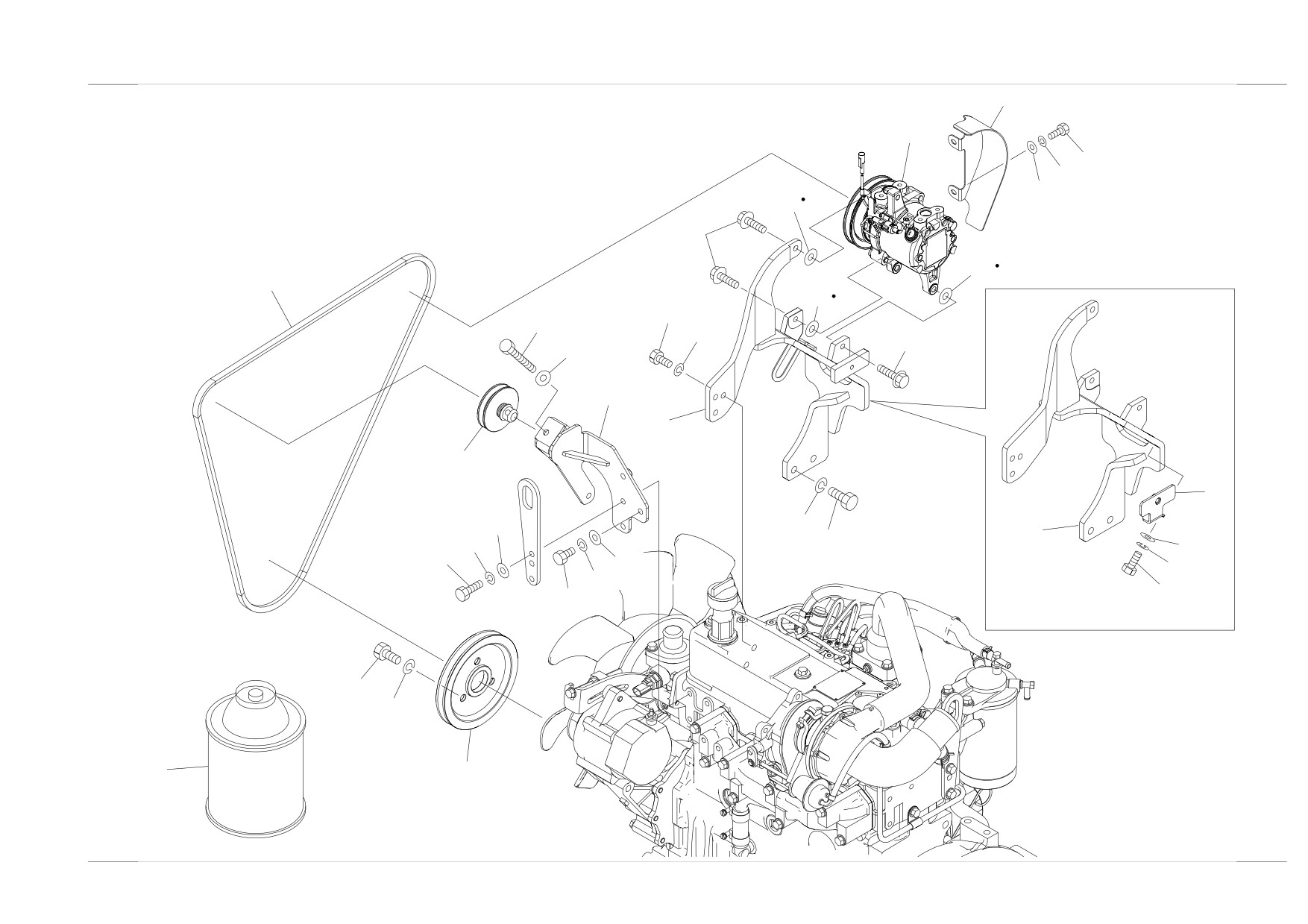

AIR CONDITIONER (1/4) (compressor)
4
24
7
14
17
21
22
10
21
22
5
21
22
9
13
15
10
18
20
1
3
2
18
16
1
15
11
18
8
18
15
15
9
25
㪈㪉㪍㪇㪇㪇㪇㪇㪉㫕㪈㪉㪍㪇㪇㪇㪈㪇㪈
11
16
23
6
㪨㪇㪜㪉㪇㪈
㪪㪔㪈㪆㪏
Reference
Q0E201
ﾍﾟｰｼﾞ
5-28
AIR CONDITIONER (1/4) (compressor)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
0554600027
COMPRESSOR ASSY
1
1
0554600058
BRACKET
1
2
0554600034
STAY
1
126000002~126000109
3
1911513040
PULLEY, idle
1
4
0554600044
GUARD
1
5
1621075061
V-BELT
1
6
0554600049
PULLEY
1
7
1100040614
BOLT
2
8
1100040825
BOLT
2
9
1100040820
BOLT
2
10
1106640825
BOLT
3
11
1100041020
BOLT
5
13
1100240885
BOLT
1
14
1140020006
WASHER, spring
2
15
1140020008
WASHER, spring
5
16
1140020010
WASHER, spring
5
17
1141110006
WASHER
2
18
1141110008
WASHER
4
20
0554600038
BRACKET
1
21
0003600223
SHIM
AR
t=0.3mm
22
0003600222
SHIM
AR
t=0.2mm
23
X
**********
GAS
7
not service
24
1911513010
COMPRESSOR
1
25
1100040816
BOLT
1
Q0e201
Reference:Q0E201
Page:5-28
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

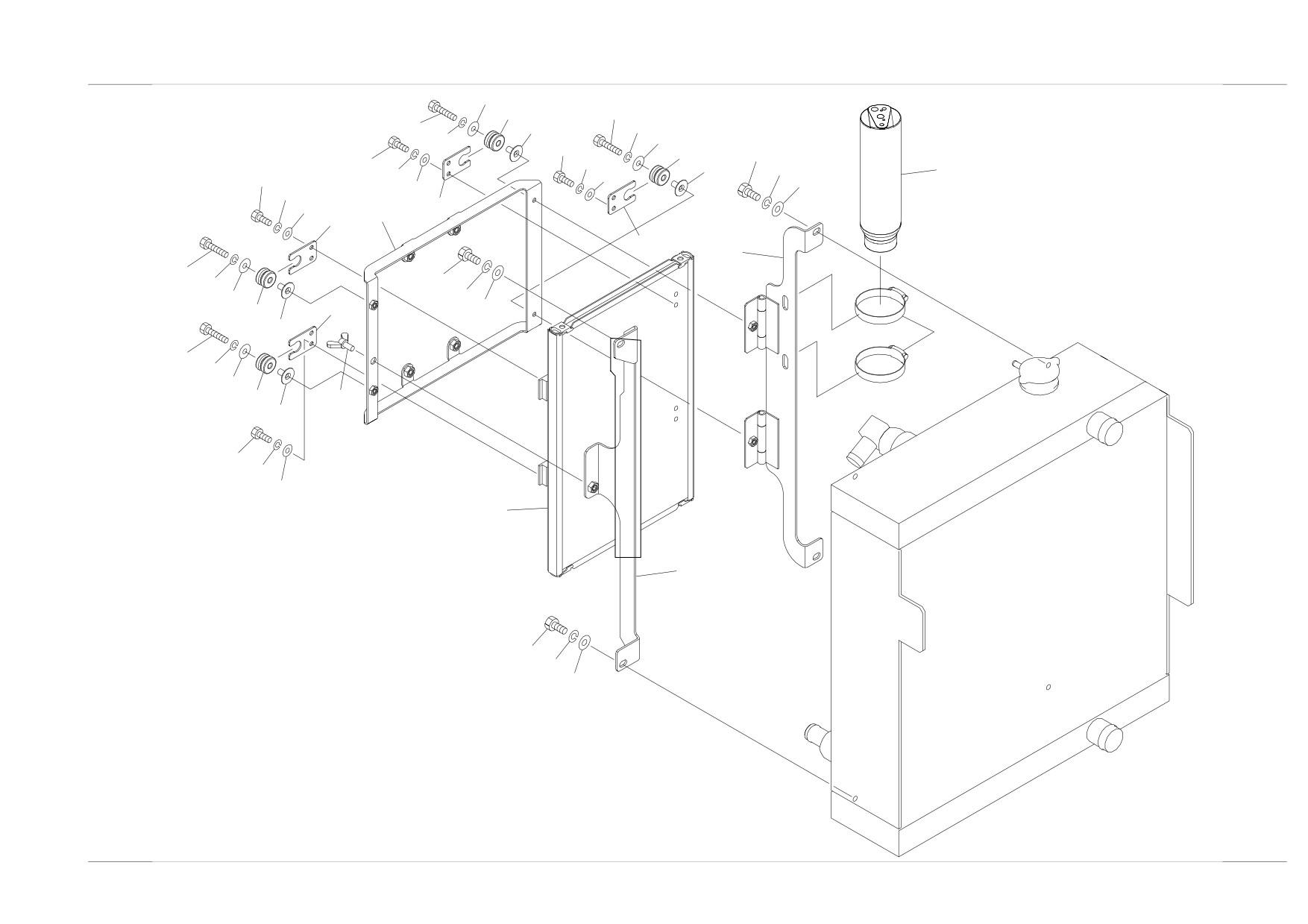

AIR CONDITIONER (2/4) (condenser)
5
18
9
19
12
9
5
12
7
18
10
12
7
19
13
4
7
14
12
15
12
14
14
6
3
6
6
2
8
12
17
5
13
6
18
15
19
16
8
12
5
18
11
19
7
12
14
20
1
10
13
15
㪨㪇㪜㪉㪈㪈
㪪㪔㪈㪆㪏
Reference
Q0E211
ﾍﾟｰｼﾞ
5-29
AIR CONDITIONER (2/4) (condenser)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-2
0554600028
CONDENSER ASSY
1
1
0554600054
BRACKET
1
126000002~126000122
0554600075
BRACKET
1
126000123~
2
0554600017
BRACKET
1
3
0554600057
BRACKET
1
4
1911513025
DRYER
1
126000002~126000146
1911514513
DRYER
1
(H)
126000147~
5
0003606202
WASHER
4
6
0554602240
PLATE
4
7
1100040614
BOLT
8
8
1100040630
BOLT
2
9
1100040635
BOLT
2
10
1100040816
BOLT
3
11
1121530816
BOLT, wing
1
12
1140020006
WASHER, spring
12
13
1140020008
WASHER, spring
4
14
1141110006
WASHER
8
15
1141110008
WASHER
4
16
1533700071
BAND
2
17
1100040820
BOLT
1
18
1911513021
GROMMET
4
19
1911513022
BUSHING
4
20
1911513020
CONDENSER
1
Q0e211
Reference:Q0E211
Page:5-29
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

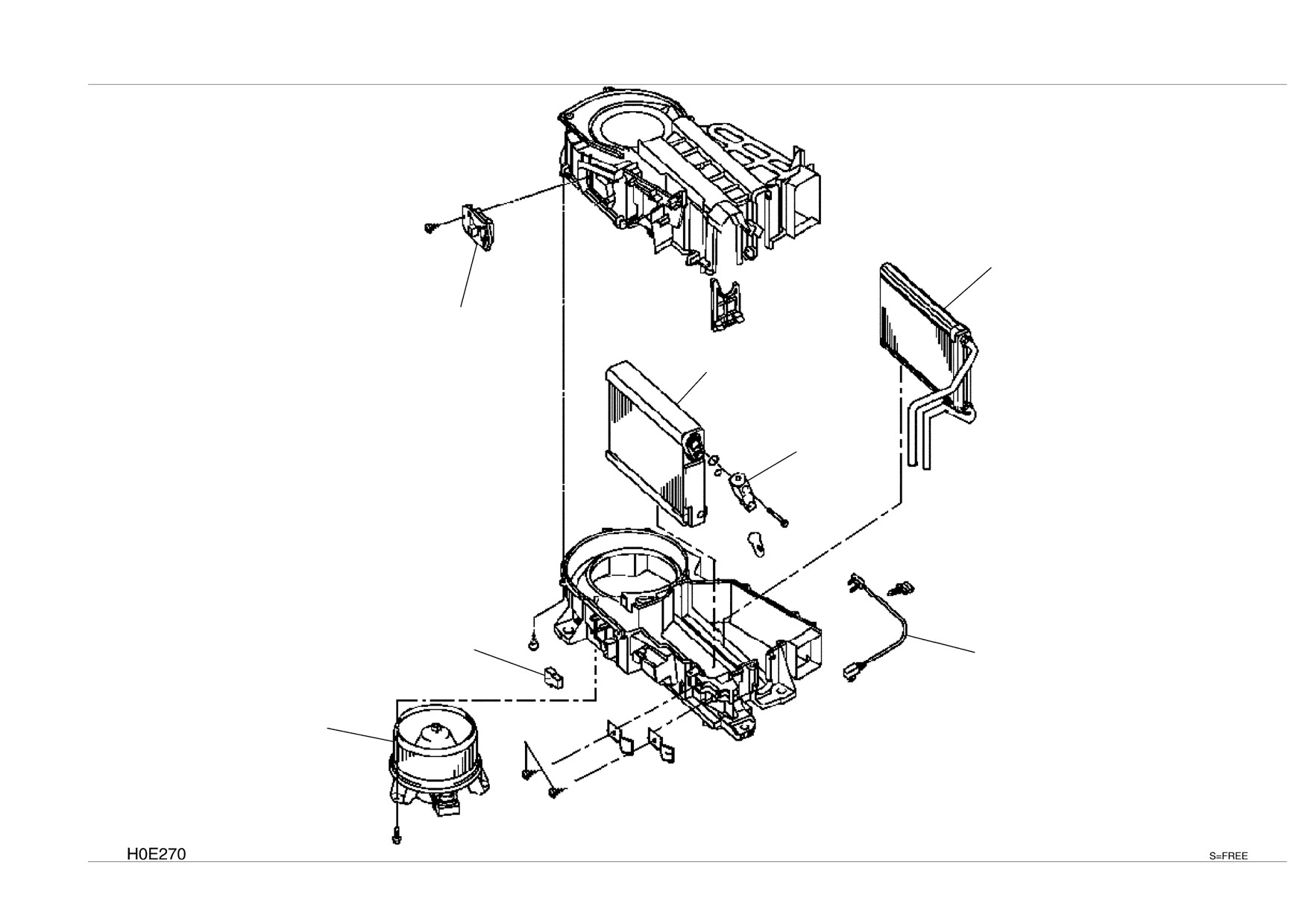

AIR CONDITIONER (3/4) 1/2 (air-conditioner unit-1)
14
14
23
14
23
15
27
23
27
41-1
23
27
41-2
27
39-1
42
15
23
41
42-1
27
39
40-1
39-1
40-1
13
12
15
24
23
18
27
40
29
8
19
54
24
16
35
42-1
7
41-2
6
43
24
16
20
43
25
2
6
52
1
17
24
5
28
10
㪨㪇㪜㪉㪉㪇㪸
㪪㪔㪈㪆㪈㪇
Reference
Q0E220a
ﾍﾟｰｼﾞ
5-30
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
AIR CONDITIONER (3/4) 2/2 (air-conditioner unit-1)
46
32
48
34
32
35
3
36
34
38
36
35
11
21
34
22
49
26
34
37
34
47
49
33
44
31
16
35
45
24
34
28
4
49
34
51
㪨㪇㪜㪉㪉㪇㪹
50
㪪㪔㪈㪆㪏
Reference
Q0E220a
ﾍﾟｰｼﾞ
5-30
AIR CONDITIONER (3/4) (air-conditioner unit-1)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-3
0554600029
UNIT ASSY, air conditioner
1
1
1911514508
UNIT, air conditioner
1
see page (4/4)
2
1911513130
CONNECTOR
1
3
0554600025
FILTER
1
4
0554600030
BRACKET
1
5
0554600036
GUARD
1
6
0554600042
SPONGE
2
7
0007300065
CLAMP
1
8
0007300019
CLAMP
1
10
0554602350
COLLAR
5
11
0554603101
FILTER
1
12
0564612250
PLATE
1
13
0564612260
RUBBER
1
14
1100040625
BOLT
3
15
1100040630
BOLT
3
16
1100040816
BOLT
4
17
1100040825
BOLT
5
18
1100040835
BOLT
1
19
1100041020
BOLT
1
20
1110040625
SCREW, cap
1
21
1120530410
SCREW
2
22
1140020004
WASHER, spring
2
23
1140020006
WASHER, spring
6
24
1140020008
WASHER, spring
10
25
1140420006
WASHER, spring
1
26
1141110004
WASHER
2
27
1141110006
WASHER
6
28
1141110008
WASHER
7
29
1141110010
WASHER
1
31
1531325020
PROTECTOR
1
sold by the meter
32
1531325045
PROTECTOR
2
sold by the meter
33
1531645085
PROTECTOR
1
sold by the meter
34
1533120020
BAND
10
35
1652231250
BAND
4
36
1911502200
NIPPLE
2
37
1911513120
VALVE, water
1
38
1911513430
CABLE
1
39
1911514505
HOSE ASSY
1
39-1
1911513085
O-RING
1
40
1911514507
HOSE ASSY
1
40-1
1911513447
O-RING
1
41
1911514506
HOSE ASSY
1
41-1
1911513452
SWITCH, pressure
1
41-2
1911513447
O-RING
1
42
1911514504
HOSE ASSY
1
42-1
1911513055
O-RING
1
43
0554600043
SPONGE
2
44
1911514518
HOSE
1
sold by the meter
45
1911514517
HOSE
1
sold by the meter
46
1911511890
HOSE
1
47
1911505128
HOSE
1
48
1911505160
HOSE
1
49
0394617670
PIPE
2
50
1911505155
HOSE
1
51
1911501855
HOSE
1
52
0554600062
SPONGE
1
Reference:Q0E220a
Page:5-30

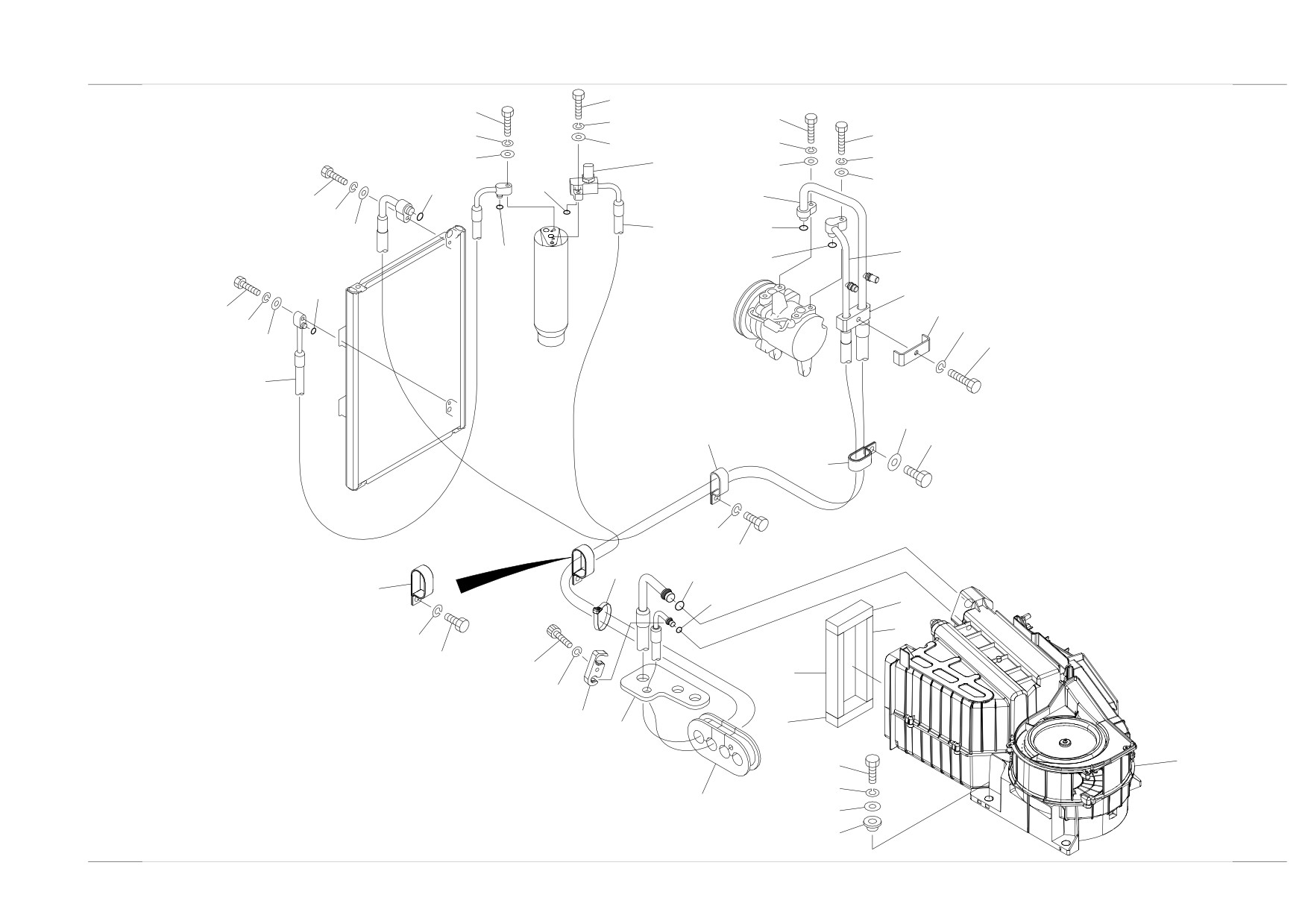

AIR CONDITIONER (3/4) (air-conditioner unit-1)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
54
0007300018
CLAMP
1
Q0e221
Reference:Q0E220a
Page:5-30
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

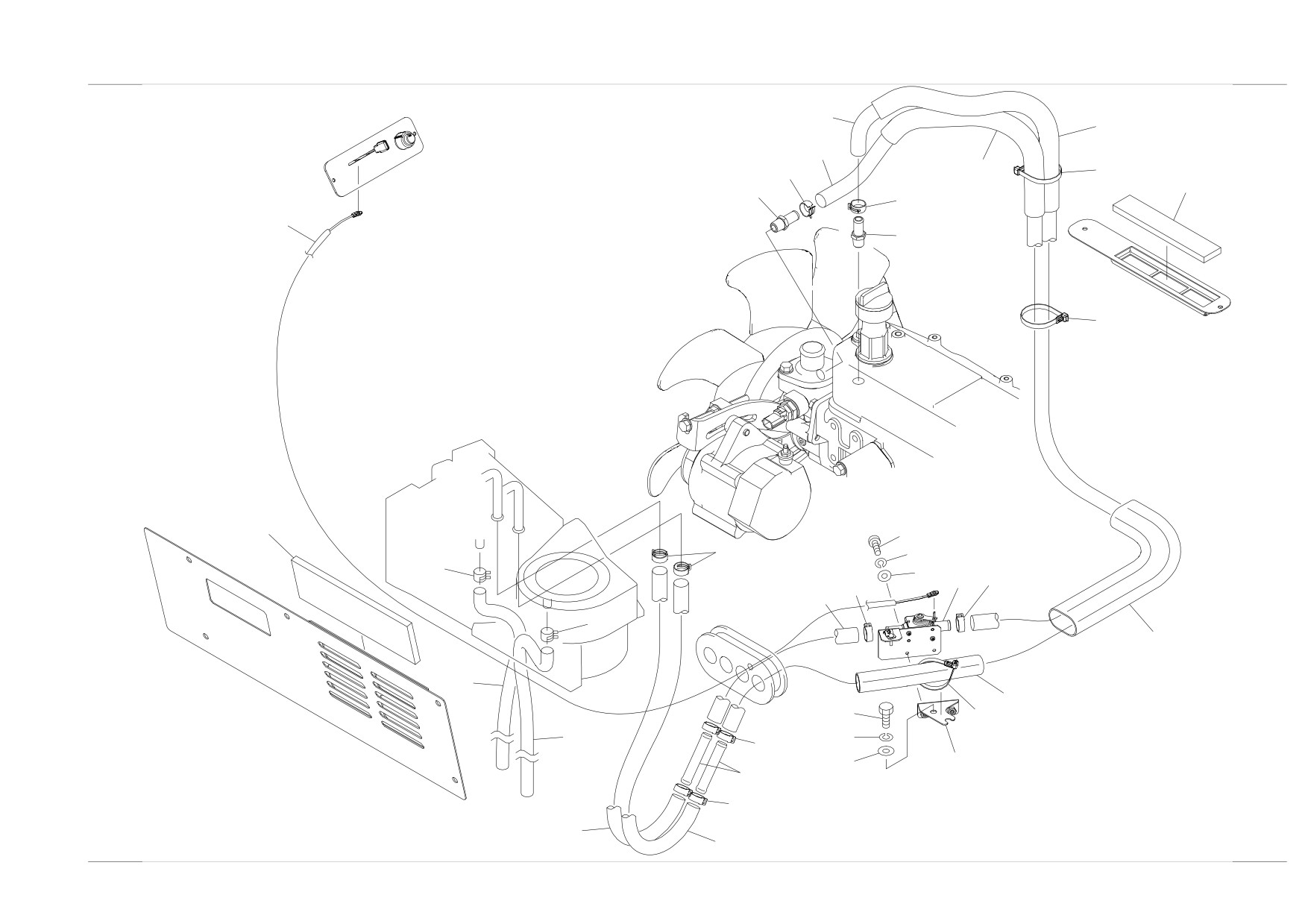

AIR CONDITIONER (4/4) (air-conditioner unit-2)
5
6
1
2
4
3
7
Reference
H0E270
ﾍﾟｰｼﾞ
5-31
AIR CONDITIONER (4/4) (air-conditioner unit-2)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0-4
1911514508
UNIT, air conditioner
1
1
1911514509
EVAPORATOR
1
2
1911514519
VALVE, expansion
1
3
1911513413
SET ASSY, thermistor
1
4
1911513414
AMPLIFIER ASSY, air conditioner
1
5
1911514511
CORE ASSY, heater
1
6
1911513416
RESISTOR, blower
1
7
1911514512
MOTOR ASSY, fan
1
Q0e250
Reference:H0E270
Page:5-31
