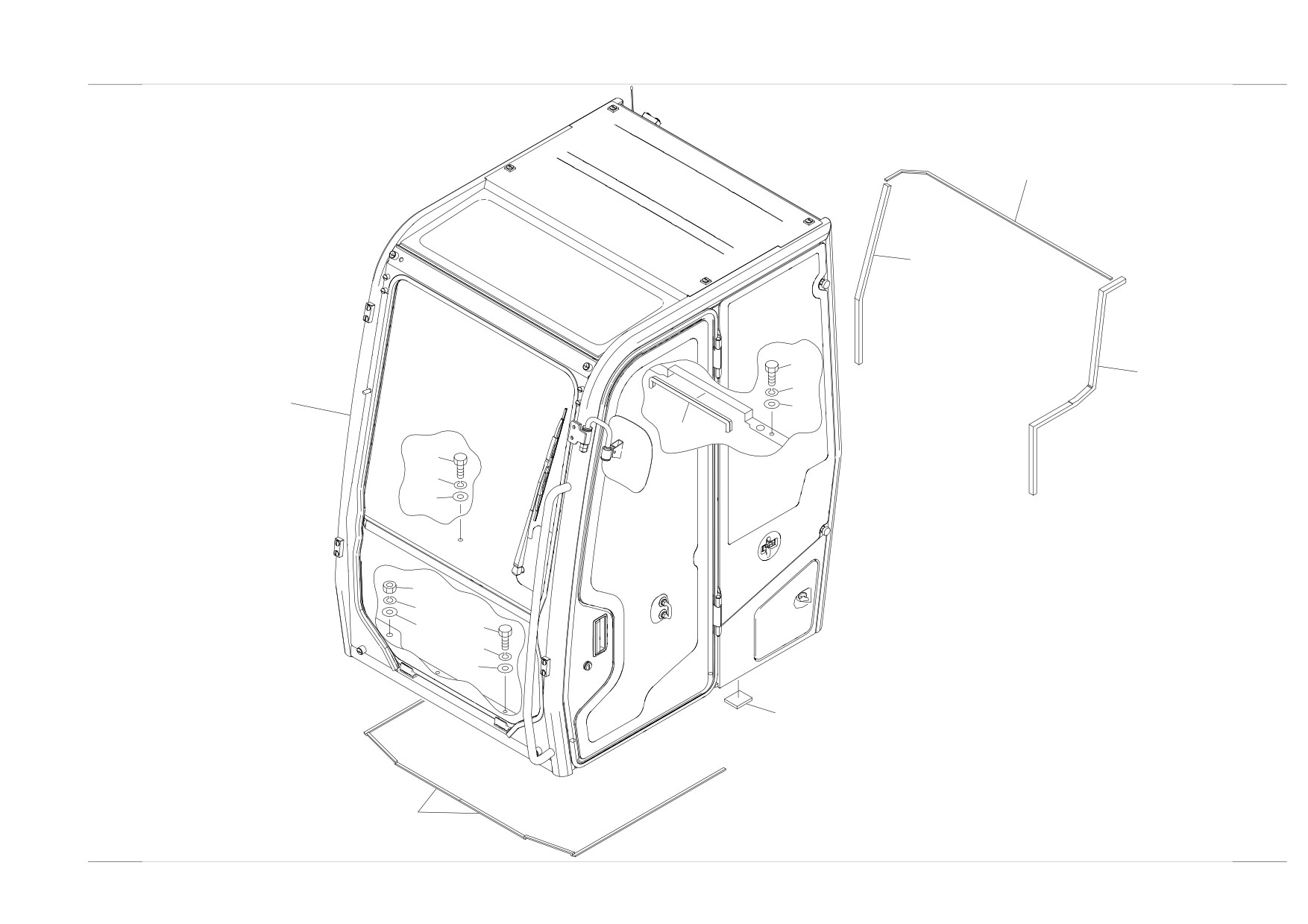

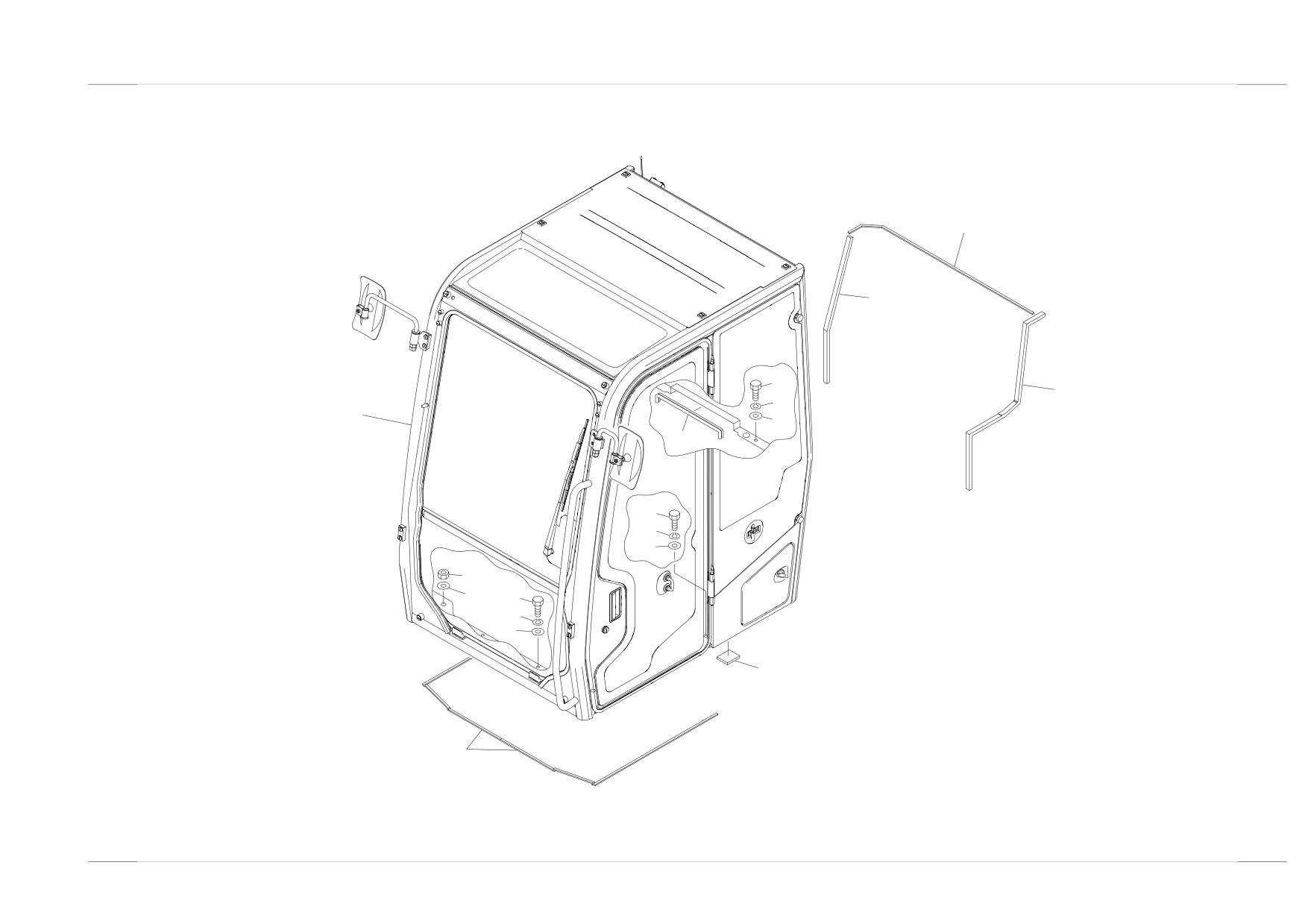

CAB MOUNT (126000002-126000845)
6
5
13
4
12
1
11
16
13
12
11
14
8
15
7
10
9
3
2
㪨㪇㪜㪇㪐㪈
㪪㪔㪈㪆㪈㪏
Reference
Q0E091
ﾍﾟｰｼﾞ
5-11
CAB MOUNT (126000002-126000845)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CAB MOUNT
1
0558603100
CAB
1
see page (1/4)
2
0558600082
SEAL
2
3
0558600060
SEAL
1
4
1654304102
SPONGE
1
sold by the meter
5
1654304068
SPONGE
1
sold by the meter
6
0558600059
SEAL
1
7
1141110016
WASHER
2
8
1140020016
WASHER, spring
2
9
1141550010
WASHER
2
10
1140020010
WASHER, spring
2
11
1141550012
WASHER
4
12
1140020012
WASHER, spring
4
13
1101041235
BOLT
4
14
1130540016
NUT
2
15
1100041030
BOLT
2
16
1654606043
SEAL
1
sold by the meter
Q0e091
Reference:Q0E091
Page:5-11
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (1/4) 1/4 (126000002-126000845)
13
14
15
88
89
60
62
86
90
61
59
11
93
89
42
94
43
29
40
82
81
67
41
30
88
89
66
39
84
42-3
83
12
42-5
1
53
42-2
2
16
42-5
4
42-1
42-4

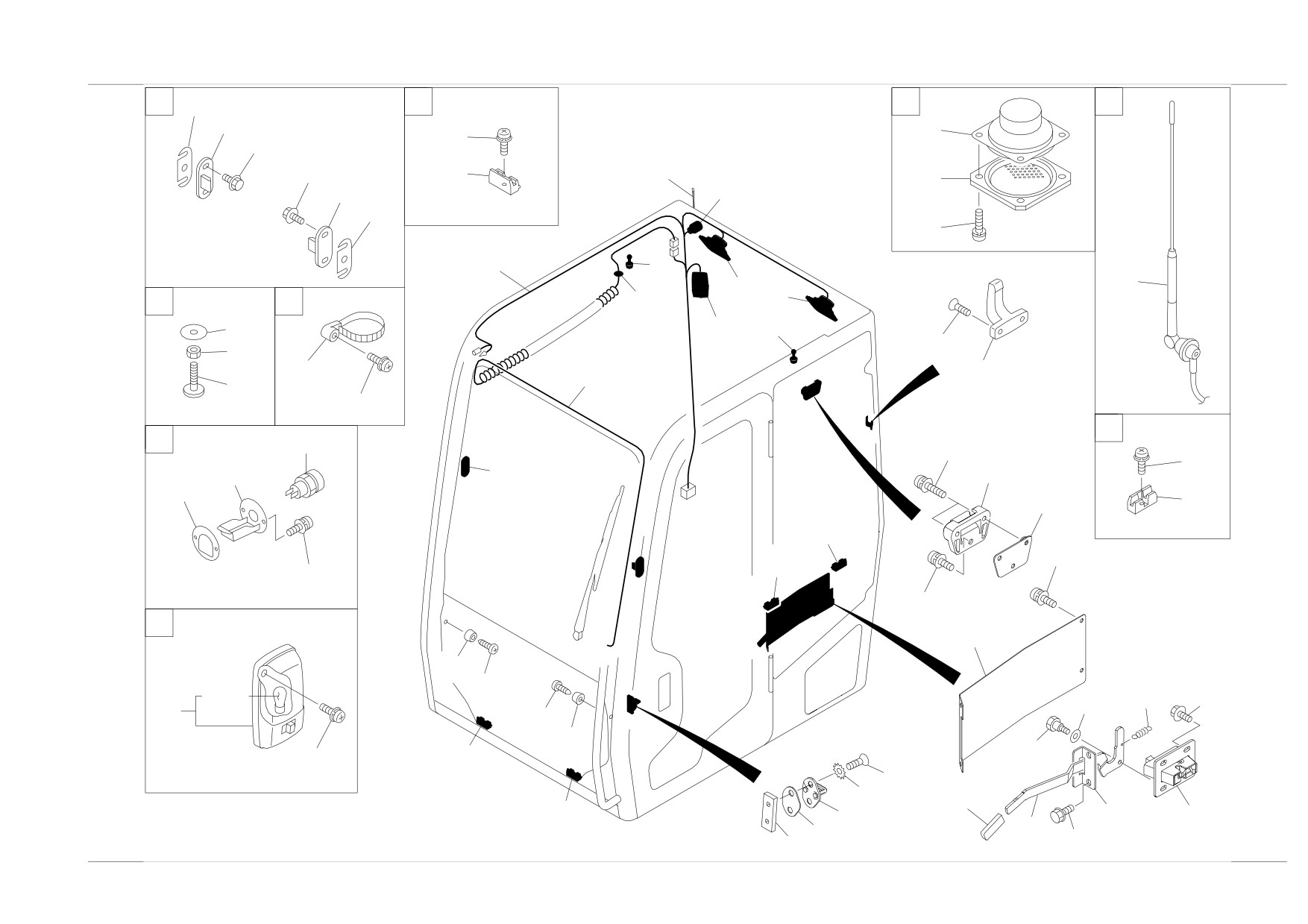

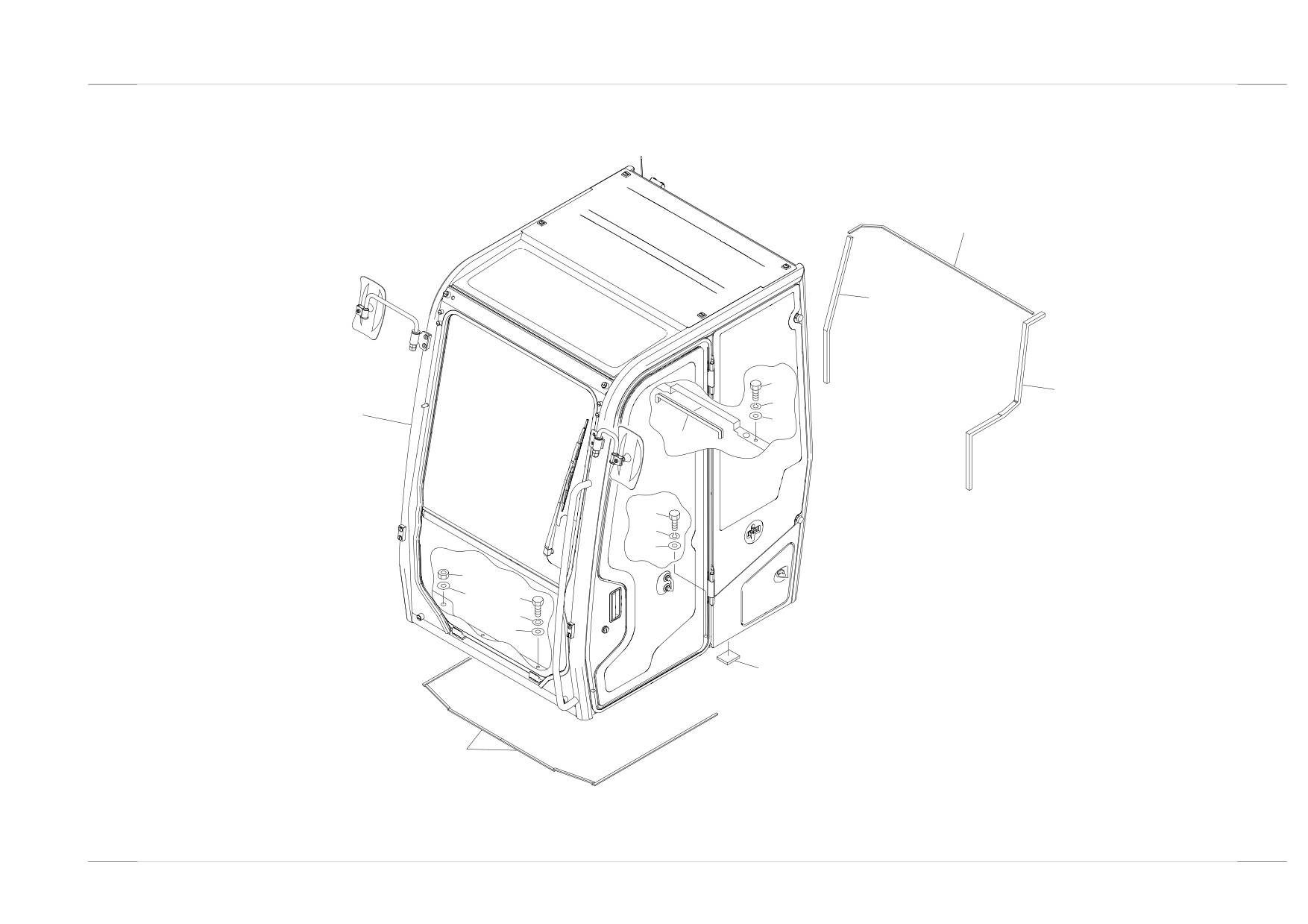

㪨㪇㪜㪈㪉㪈㪸
㪪㪔㪈㪆㪉㪋㪃㩷㪈㪆㪈㪌
Reference
Q0E121a
ﾍﾟｰｼﾞ
5-12
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (1/4) 2/4 (126000002-126000845)
54
74
76
㪯
55
75
67
19
㪰
75
㪯
76
74
18-1
18-7
87
18-2
㪰
18-6
18-3
18-5
67
18-4
55
87
54
67
74
17-1
75
67
76
17-5
76
17-3
75
17-4
19
74
17-6
17-2
17-7
3

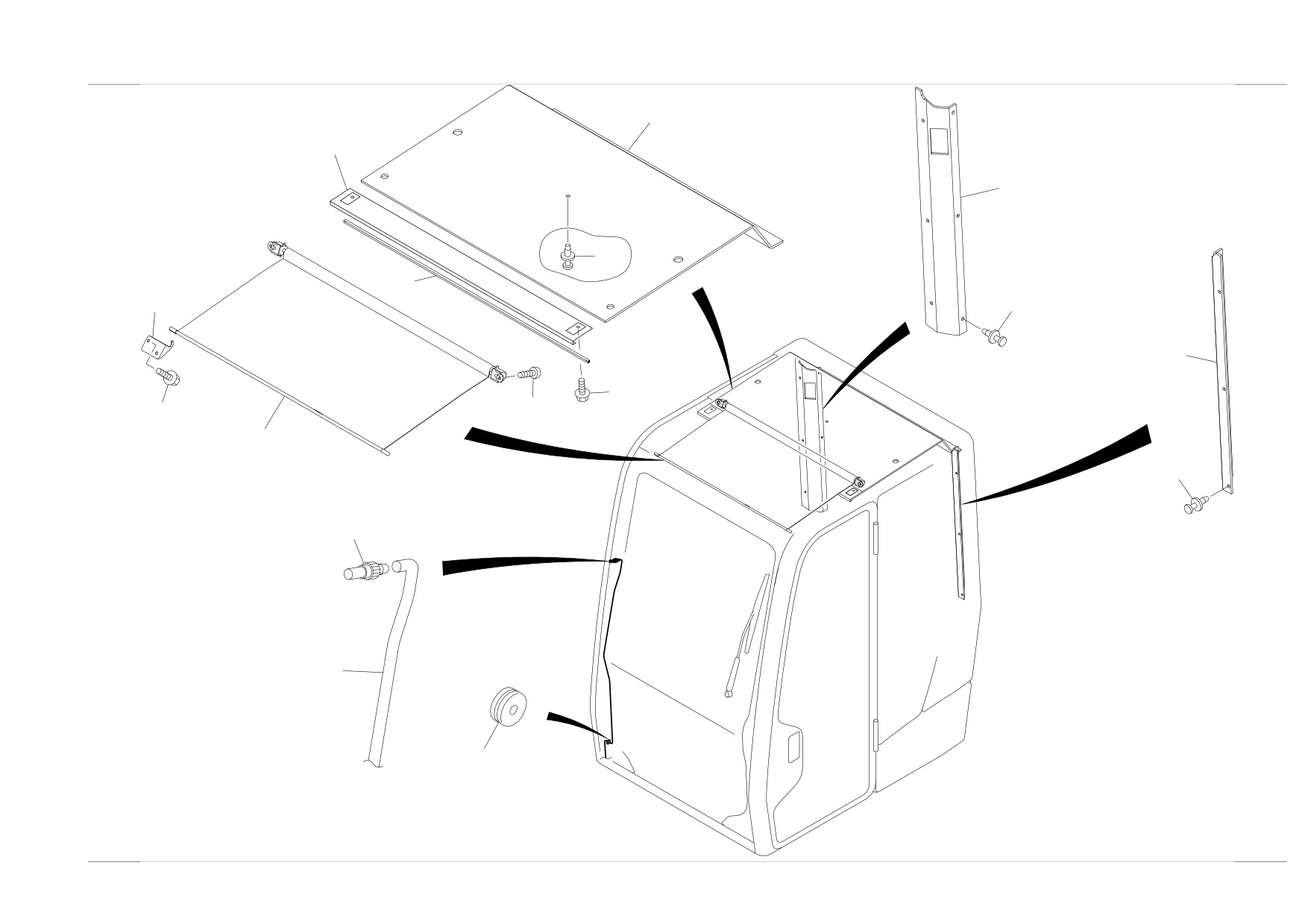

㪨㪇㪜㪈㪉㪈㪹
㪪㪔㪈㪆㪈㪉
Reference
Q0E121a
ﾍﾟｰｼﾞ
5-12
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (1/4) 3/4 (126000002-126000845)
20
6
22
73
51
52
73
21
63
65
63
5
73
31
32
85
㪨㪇㪜㪈㪉㪈㪺
㪪㪔㪈㪆㪉㪋㪃㩷㪈㪆㪈㪌
Reference
Q0E121a
ﾍﾟｰｼﾞ
5-12
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (1/4) 4/4 (126000002-126000845)
㪾
㪸
34
㪹
㪿
33
26
63
77
77
38
㪿
27
33
㪼
34
72
23
㪺
㪾
25
㪾
㪺
㪻
㪻
44
㪽
㪺
80
95
68
50
24
43
69
㫁
㪼
28-2
64
63
28-1
㪸
36
28-3
35
37
㪸
㫁
63
㫁
70
63
㪽
48
91
92
49-1
58
67
57
49
92
91
56
㪹
71
78
79
10
㪹
9
47
7
46
8
77

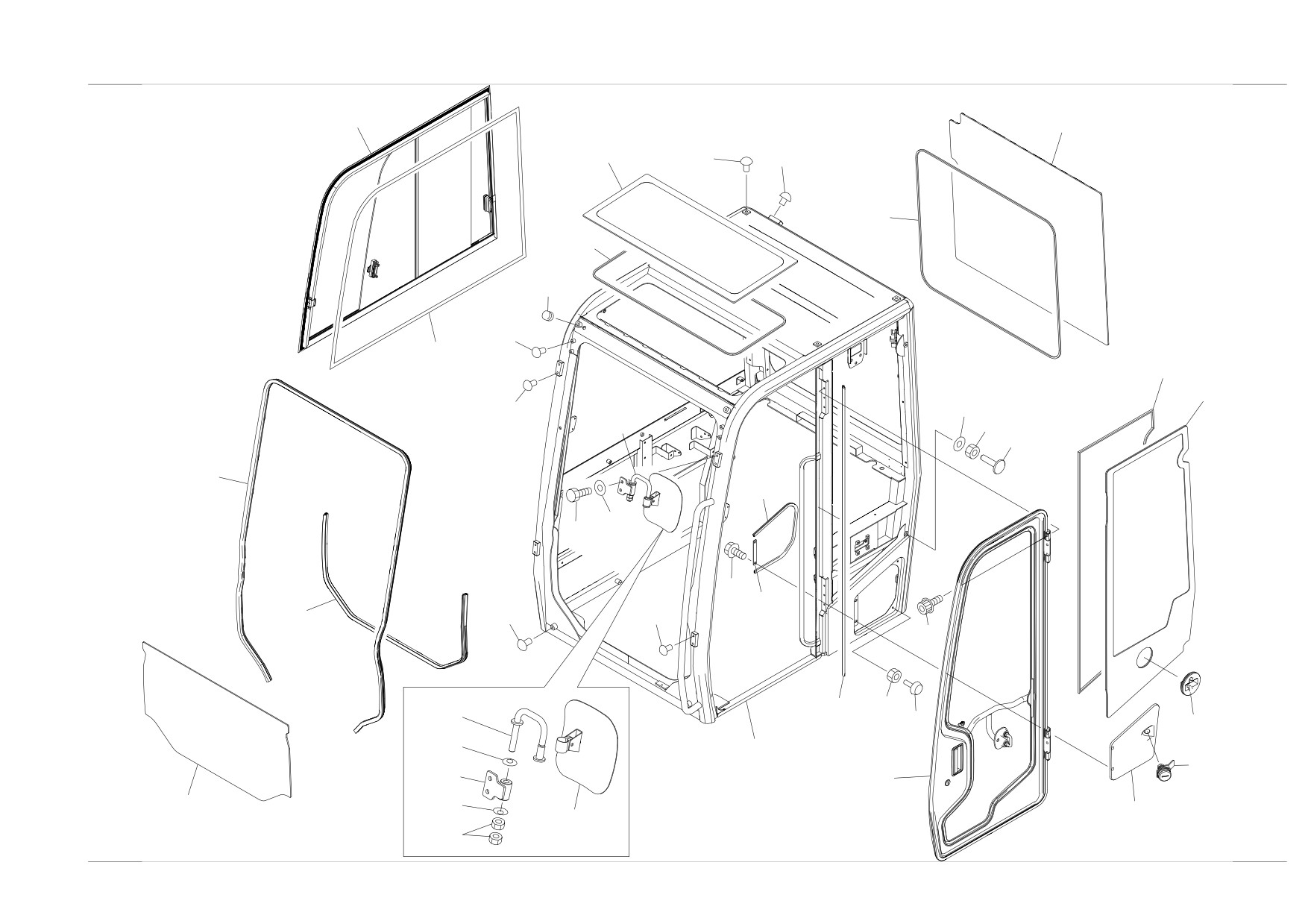

㪨㪇㪜㪈㪉㪈㪻
45
㪪㪔㪈㪆㪏㪃㩷㪈㪆㪈㪇㪃㩷㪈㪆㪉㪇
Reference
Q0E121a
ﾍﾟｰｼﾞ
5-12
CAB (1/4) (126000002-126000845)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0558603100
CAB ASSY
1
1
X
**********
CAB
1
2
0558603800
DOOR ASSY
1
see page (2/4)
3
0558604100
SASH ASSY, front
1
see page (3/4)
4
0558603180
COVER
1
5
0558604470
BLIND, roll
1
6
0558604500
BRACKET
1
7
0558604270
LOCK ASSY
1
8
0558604771
LEVER
1
9
0558604410
PLATE
1
10
0558604703
GRIP
1
11
0558604220
GLASS
1
12
0578600087
GROMMET
1
13
0558604300
SASH ASSY, side
1
see page (4/4)
14
0558604230
GLASS
1
15
0558604240
WINDOW, roof
1
16
0558604210
GLASS
1
17
0558604610
ARM ASSY
1
17-1
0558604620
ARM
1
17-2
0083252100
WASHER
2
17-3
0578600089
WASHER
1
17-4
0558604630
BRACKET
1
17-5
1100790820
BOLT, sems
1
17-6
0558604640
BRACKET
1
17-7
1106690616
BOLT
2
18
0558604650
ARM ASSY
1
18-1
0558604660
ARM
1
18-2
0083252100
WASHER
2
18-3
0578600089
WASHER
1
18-4
0558604630
BRACKET
1
18-5
1100790820
BOLT, sems
1
18-6
0558604670
BRACKET
1
18-7
1106690616
BOLT
2
19
0558604601
SPRING, gas
2
20
0558604430
COVER
1
21
0558604460
COVER
1
22
0558604450
COVER
1
23
0558600218
HARNESS, wiring
1
24
0558600219
HARNESS
1
25
0578600050
ANTENNA
1
26
0558604720
SPEAKER
2
27
0558604725
GRILLE
2
28
0558604550
SOCKET ASSY
1
28-1
0558604520
BRACKET
1
28-2
1711900066
SOCKET
1
28-3
0558604523
SEAL
1
29
0558600124
SEAL
1
30
0558600125
SEAL
1
31
0558604740
NOZZLE, washer
1
32
0558604741
HOSE
1
33
0558604760
STRIKER
2
34
0558604763
SHIM
2
35
0558604590
PLATE ASSY
1
36
0558604708
HOLDER
1
37
0558604702
HOLDER
2
38
0558604701
HOLDER
2
Reference:Q0E121a
Page:5-12
CAB (1/4) (126000002-126000845)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
39
0558600126
SEAL
1
40
0558600221
TRIM
1
41
0558603196
SHIM
1
42
0558604560
MIRROR ASSY
(L.H.)
1
42-1
0558604565
MIRROR
1
42-2
0558604570
HOLDER
1
42-3
0558604580
STAY
1
42-4
1130040016
NUT
2
42-5
1225111016
WASHER, conical
2
43
0578600093
RUBBER
4
44
0558603921
WASHER
2
45
0558603512
PLATE
1
46
0558603513
SHIM
1
47
0578600088
STRIKER
1
48
0558604420
COVER
1
49
0558604710
LAMP, room
1
49-1
1703007301
BULB
1
50
0558604715
HOOK
1
51
0558604716
TRIM
1
52
0558604510
PLATE
1
53
0378219330
LOCK
1
54
0083252100
WASHER
4
55
0578600089
WASHER
2
56
0578600094
PIN
1
57
0578600095
WASHER
1
58
0578600096
SPRING
1
59
0558600119
DAM
1
60
0558600120
DAM
1
61
0558600121
DAM
1
62
0558600122
DAM
1
63
1150410616
SCREW
13
64
1150410620
SCREW
2
65
1122513512
SCREW
4
66
1120990816
BOLT
6
67
1100790820
BOLT, sems
12
68
1652221050
BAND
1
69
1150420512
SCREW
1
70
1150410612
SCREW
2
71
1150410416
SCREW
2
72
1120590412
SCREW
8
73
0558600222
PIN
19
74
0558604602
BUSHING
4
75
0558604603
WASHER
4
76
0558604604
BOLT
4
77
1106690612
BOLT
6
78
1120891025
BOLT
2
79
1140330010
WASHER
2
80
1120790412
SCREW
2
81
1100041020
BOLT
2
82
1141550010
WASHER
2
83
0558600223
RUBBER
2
84
1130020006
NUT
2
85
0558604742
GROMMET
1
86
0578600097
GROMMET
1
87
0578600098
CUSHION, rubber
2
88
0558600224
CAP
8
Reference:Q0E121a
Page:5-12
CAB (1/4) (126000002-126000845)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
89
0558600225
CAP
10
90
0558600226
CAP
4
91
0558600227
RUBBER
2
92
1122500416
SCREW
2
93
1141110010
WASHER
2
94
1130040010
NUT
2
95
1130090010
NUT
2
Q0e121
Reference:Q0E121a
Page:5-12
Memo
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

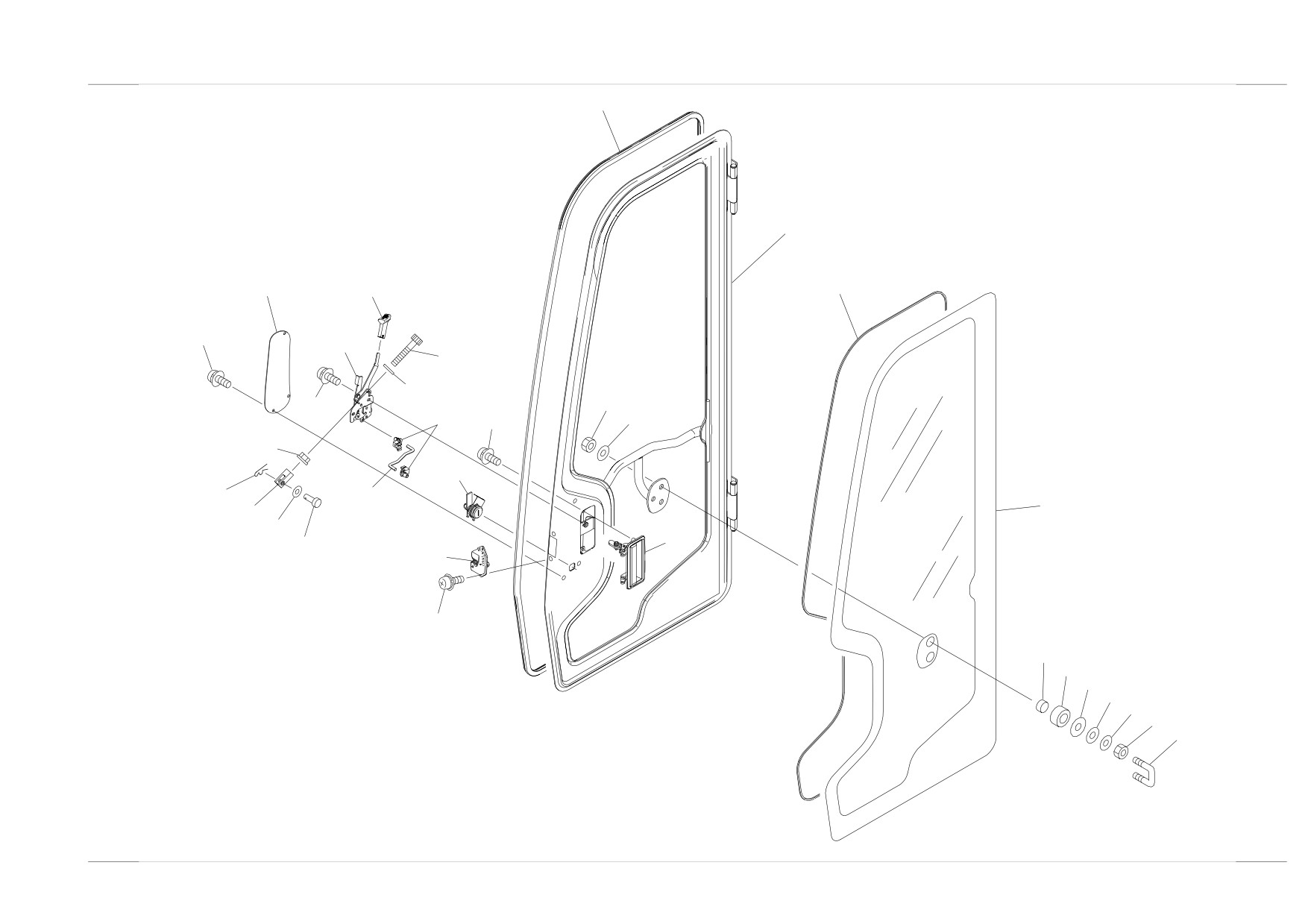

CAB (2/4) (door)
(126000002-126000845)
10
1
25
27
3
23
26
16
18
6
28
20
23
5
17
21
13
19
2
15
18
22
14
11
12
9
8
7
24
5
6
4

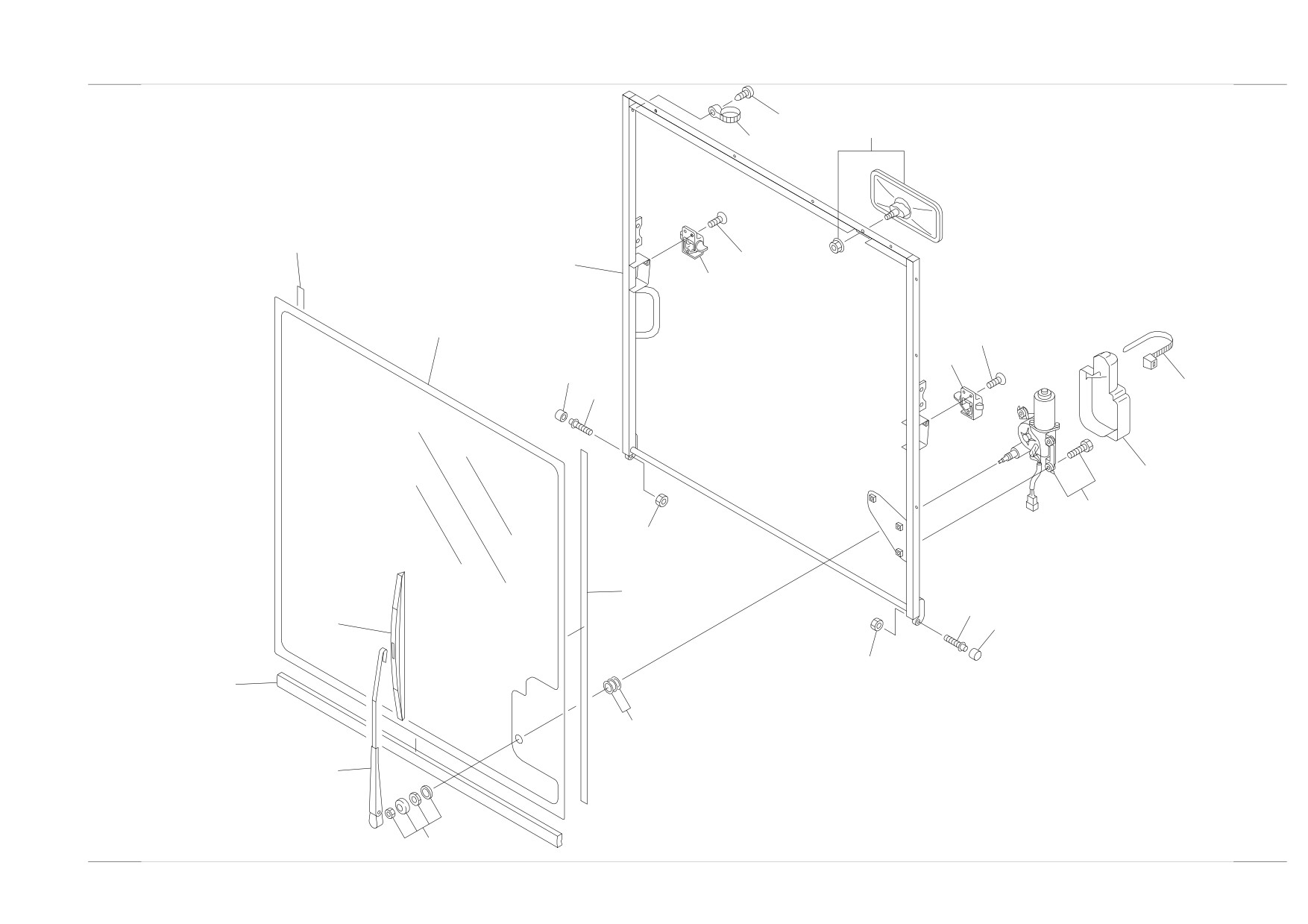

㪨㪇㪜㪈㪊㪈
㪪㪔㪈㪆㪈㪌
Reference
Q0E131
ﾍﾟｰｼﾞ
5-13
CAB (2/4) (door)
(126000002-126000845)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0558603800
DOOR ASSY
1
1
0558603810
DOOR
1
2
0558603910
GLASS
1
3
0558603901
DAM
1
4
0558603911
STRIKER
1
5
0558603920
WASHER
4
6
1130090010
NUT
4
7
0558603921
WASHER
2
8
0558603902
SEAL
2
9
0558603912
COLLAR
2
10
0558603903
SEAL
1
11
0558603930
LOCK ASSY
1
12
1106690612
BOLT
2
13
1214000004
PIN, snap
1
14
0558603913
PIN
1
15
0558603914
YOKE
1
16
1110040430
SCREW, cap
1
17
1131242004
NUT
1
18
1141110004
WASHER
2
19
0558603915
ROD
1
20
0558603916
SNAP
2
21
1653611527
KEY
1
22
0558603940
HANDLE
1
23
1150410612
SCREW
5
24
1654011812
WASHER
2
25
0558603917
COVER
1
26
0558603970
CONTROL ASSY
1
27
0558603918
KNOB
1
28
1150410616
SCREW
2
Q0e131
Reference:Q0E131
Page:5-13
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

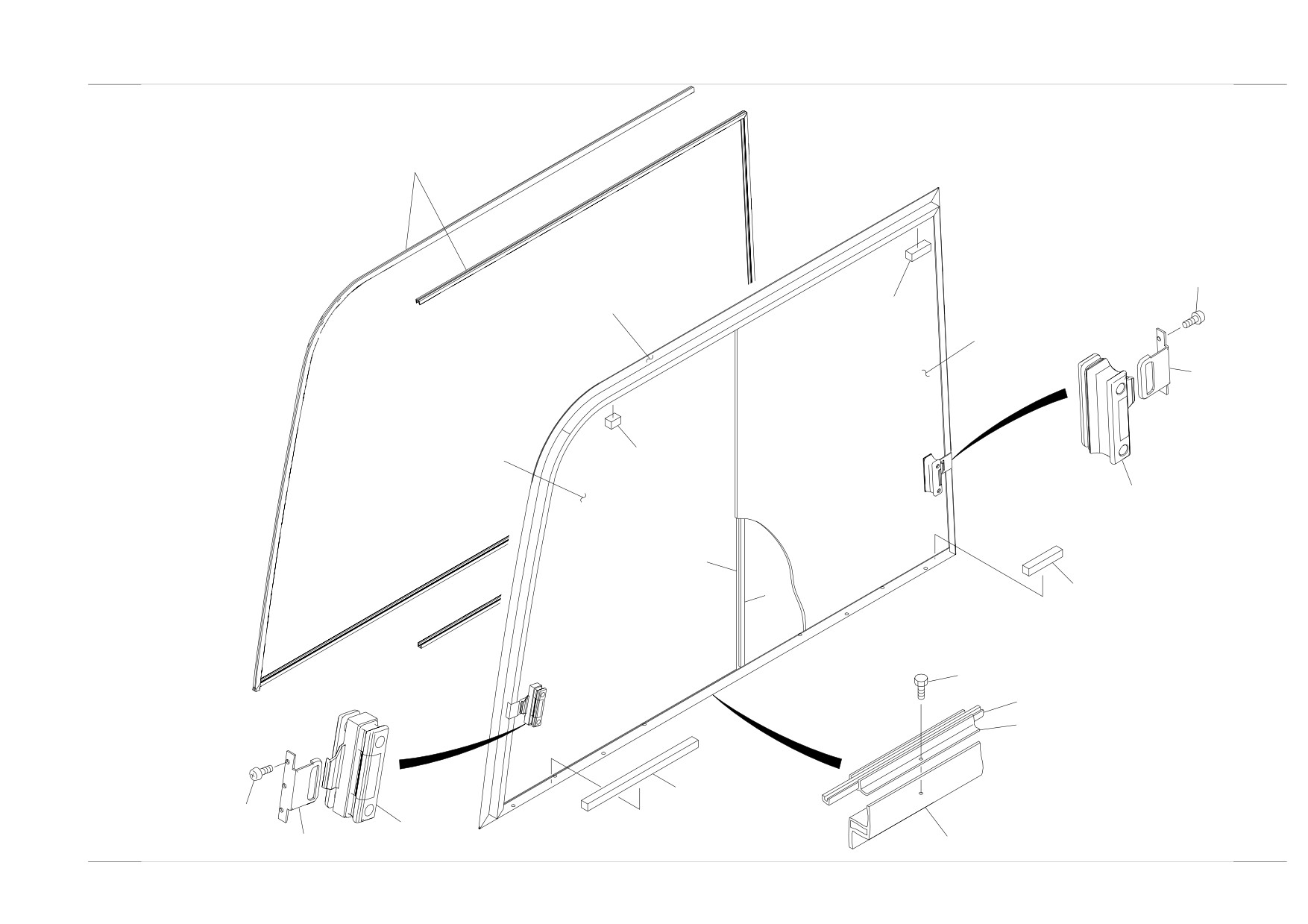

CAB (3/4) (front sash) (126000002-126000373)
17
18
9
3
1
16
13
2
16
14
7
11
15
8
4
12
3
11
6
7
12
10
4
5

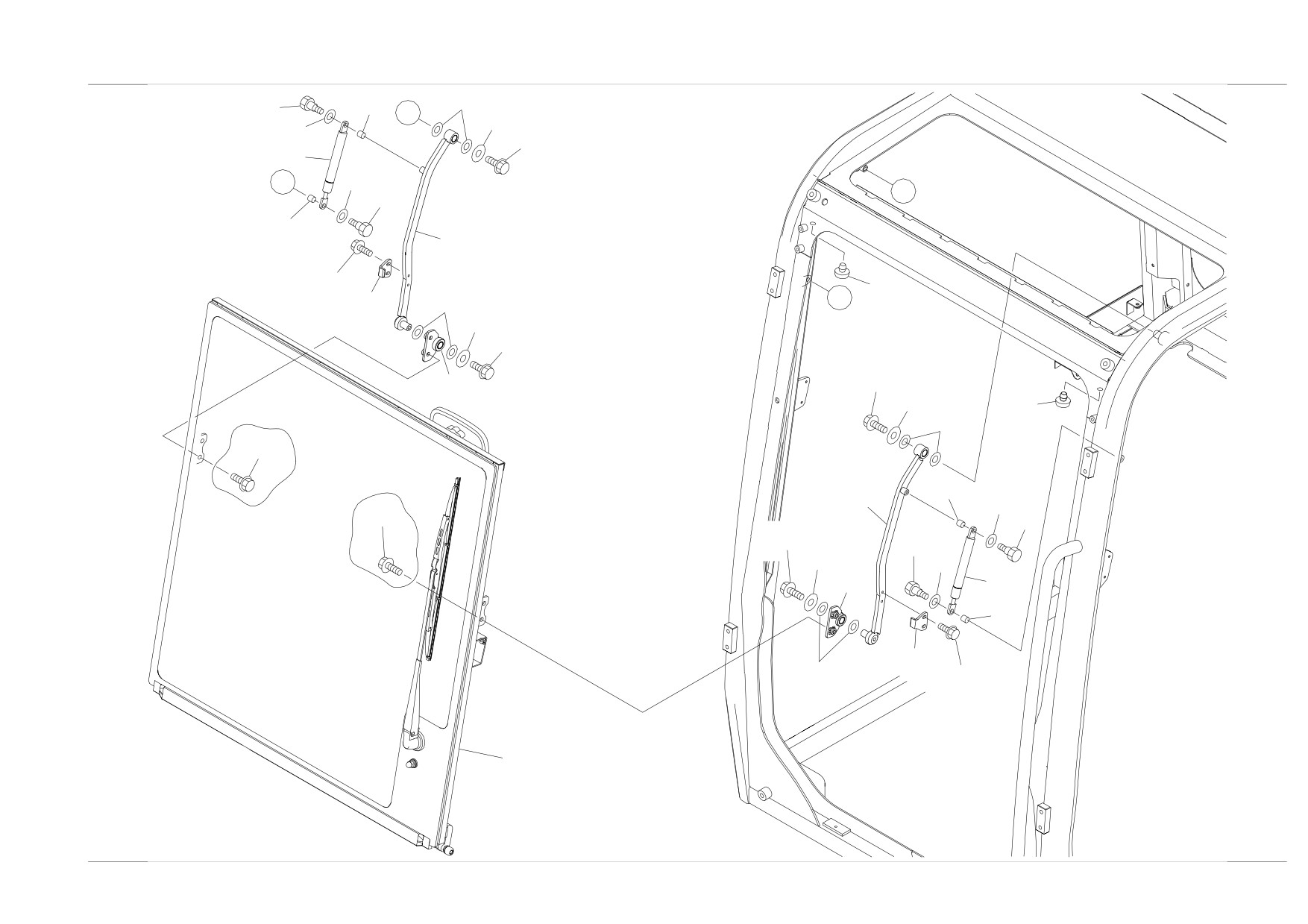

M1E160-1
4
S=1/12
Reference
M1E160-1
ﾍﾟｰｼﾞ
5-14
CAB (3/4) (front sash) (126000002-126000373)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0558604100
SASH ASSY, front
1
1
X
**********
SASH ASSY
1
2
0558604160
GLASS
1
3
0558600110
DAM
2
4
1704051212
MOTOR, wiper
1
5
1704000100
ARM, wiper
1
6
1704200530
BLADE
1
7
0578600084
ROLLER
2
8
0578600085
COVER
1
9
1652221050
BAND
4
10
0558600114
SEAL
1
11
0578600086
BOLT
2
12
1130090010
NUT
2
13
0558604280
LOCK ASSY (R.H.)
1
14
0558604290
LOCK ASSY (L.H.)
1
15
1652200005
BAND
5
16
1120890616
SCREW
4
17
1122400512
SCREW
4
18
0578600039
MIRROR, room
1
Q0e141-1
Reference:M1E160-1
Page:5-14
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (3/4) (front sash) (126000374-126000845)
㪸
㪸
㪹
㪹
15
17
18
9
3
16
㪸
㪹
1
13
2
16
7
14
6
11
12
㪹
3
5
4
12
11
7
8
10

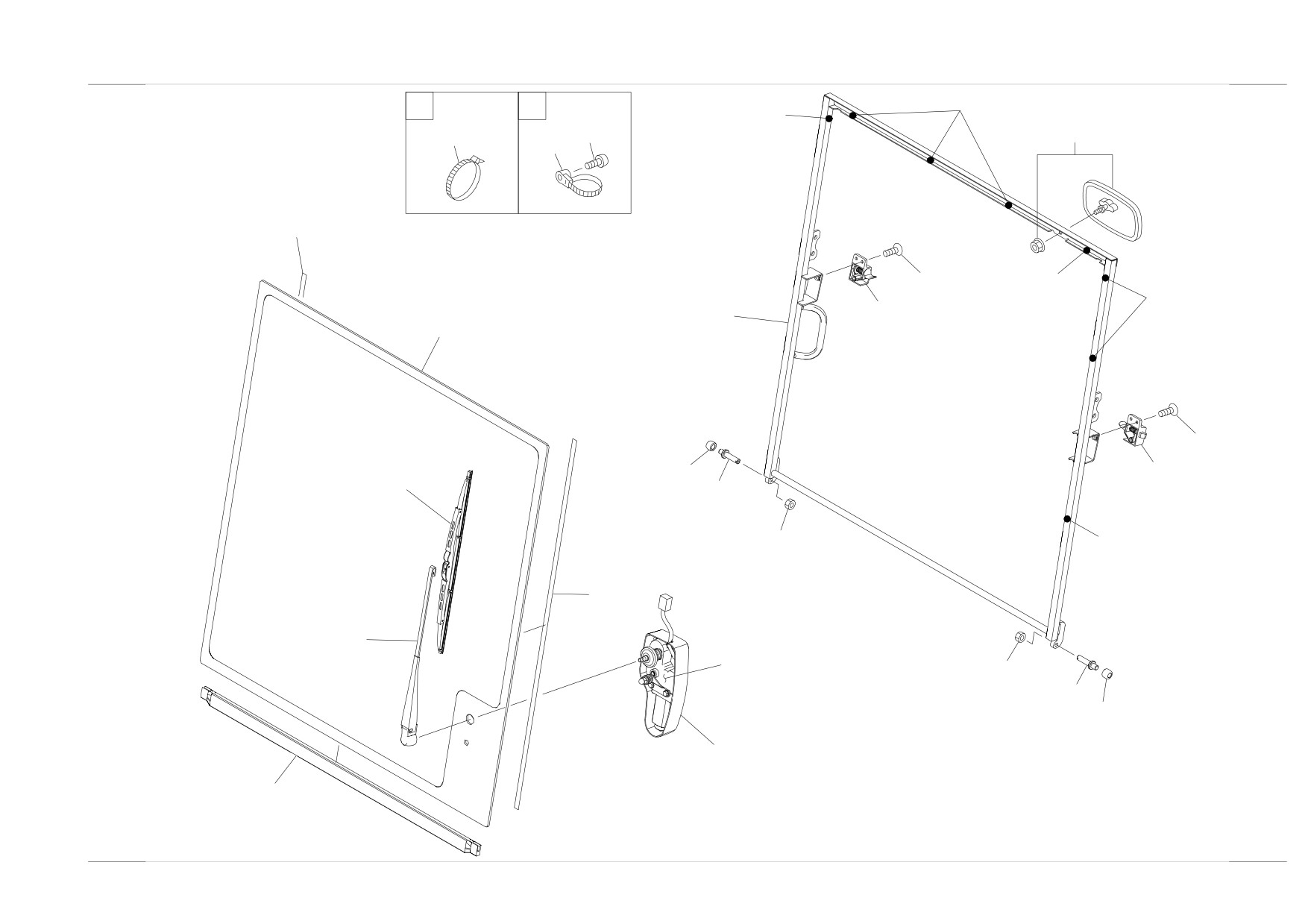

㪨㪇㪜㪈㪋㪈
㪪㪔㪈㪆㪈㪉
Reference
Q0E141
ﾍﾟｰｼﾞ
5-15
CAB (3/4) (front sash) (126000374-126000845)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0558600238
SASH ASSY, front
1
1
X
**********
SASH ASSY
1
2
0558600072
GLASS
1
3
0558600110
DAM
2
4
0558600244
MOTOR, wiper
1
5
0558600245
ARM, wiper
1
6
0558600246
BLADE
1
7
0578600084
ROLLER
2
8
0558600247
COVER
1
9
1652221050
BAND
4
10
0558600114
SEAL
1
11
0578600086
BOLT
2
12
1130090010
NUT
2
13
0558604280
LOCK ASSY (R.H.)
1
14
0558604290
LOCK ASSY (L.H.)
1
15
1652200005
BAND
4
16
1120890616
SCREW
4
17
1122400512
SCREW
4
18
0578600039
MIRROR, room
1
Q0e141-2
Reference:Q0E141
Page:5-15
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB (4/4) (side sash) (126000002-126000845)
10
9
1
17
4
2
7
18
3
5
6
11
14
10
12
16
9
8
㪨㪇㪜㪈㪌㪈
15
1
㪪㪔㪈㪆㪊㪃㪈㪆㪈㪇
Reference
Q0E151
ﾍﾟｰｼﾞ
5-16
CAB (4/4) (side sash) (126000002-126000845)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0558604300
SASH ASSY, side
1
1
0558604301
SASH ASSY
1
2
0558604302
STRIKER
1
3
0558604303
LOCK ASSY
1
4
0558600093
GLASS
1
5
0558600094
SEAL
1
6
0558600095
SEAL
1
7
0558600096
GLASS
1
8
0558604308
LOCK ASSY
1
9
0558604309
SCREW
6
10
0558604310
GLASS RUN
2
11
0558604311
RUBBER
1
12
0558604312
FRAME
1
14
0558604314
BOLT
8
15
0558604315
STRIKER
1
16
0558604316
RUBBER
1
17
0558604317
RUBBER
1
18
0558604318
RUBBER
1
Q0e151
Reference:Q0E151
Page:5-16
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
CAB MOUNT (126000846-)
6
5
13
4
12
1
11
16
13
12
11
14
7
15
10
9
3
2
㪞㪏㪜㪈㪈㪇㪄㪈
㪪㪔㪈㪆㪈㪏
Reference
G8E110-1
ﾍﾟｰｼﾞ
5-17
CAB MOUNT (126000846-)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CAB MOUNT
1
0558600254
CAB ASSY
1
M
see page (1/4)
2
0558600082
SEAL
2
M
sold by the meter
3
0558600060
SEAL
1
M
sold by the meter
4
1654343102
SPONGE
1
M
5
1654343068
SPONGE
1
M
6
0558600059
SEAL
1
M
sold by the meter
7
1141550016
WASHER
2
M
9
1141550010
WASHER
2
M
10
1140020010
WASHER, spring
2
M
11
1141550012
WASHER
3
M
12
1140020012
WASHER, spring
3
M
13
1101041235
BOLT
3
M
14
1130040016
NUT
2
M
15
1100041030
BOLT
2
M
16
1654606043
SEAL
1
M
G8e110-1
Reference:G8E110-1
Page:5-17
