Takeuchi TB260 Mini Excavator (Serial No.12600002~). Parts Manual - page 18





TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

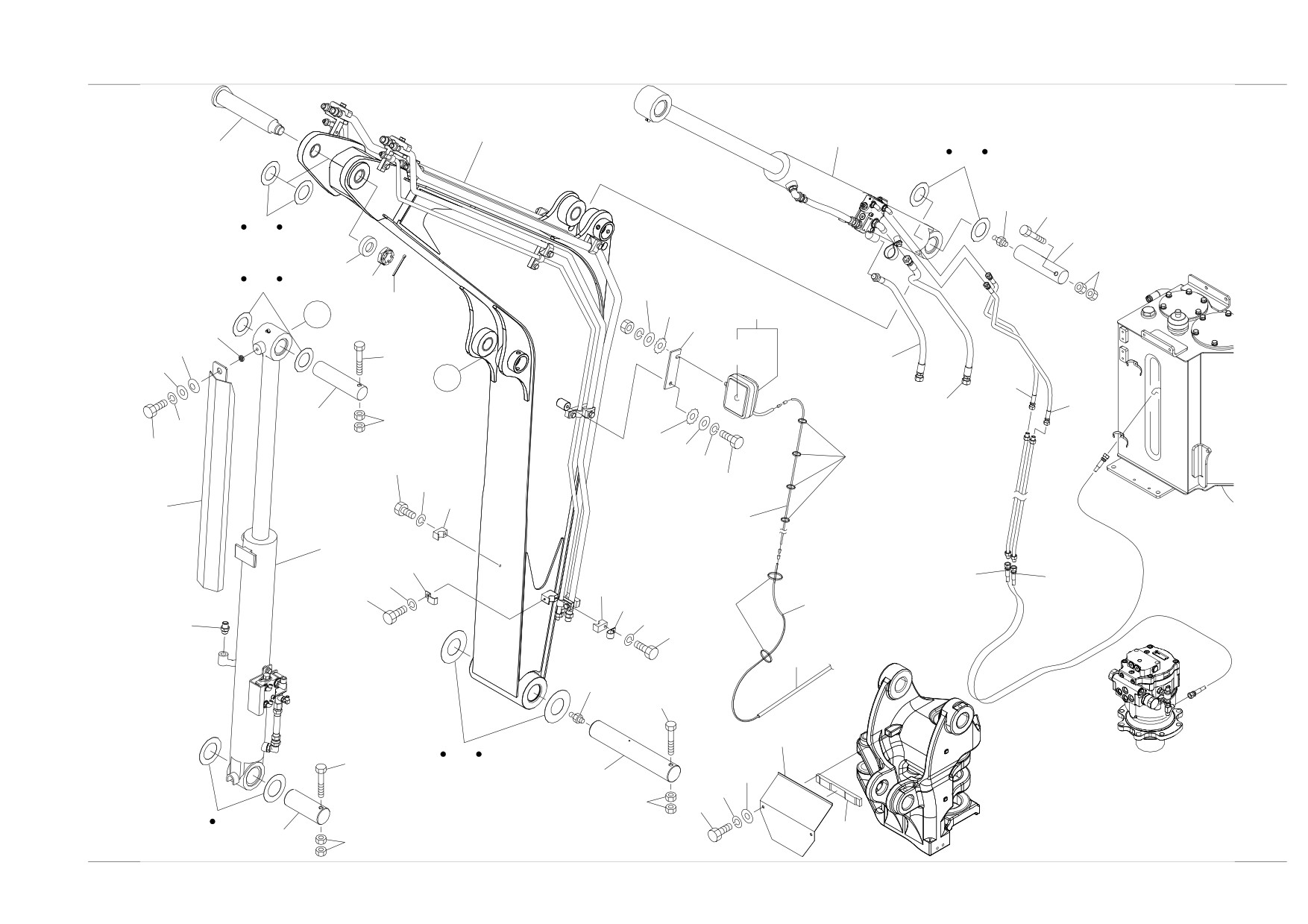

BOOM (1/4) (with shut-off valve + 2nd aux. line)
1
3
8
47
49
50
19
37
47
49
50
7
38
㪧㪠㪣
㪫
23
47
49
50
24
30
㪭㪉
25
26
11
X
10
20
21
11-1
37
22
13
X
16
15
14
6
38
27
26
㪫㪈
31
30
39
34
27
28
33
17
9
45
2
43
28
57
56
17
44
55
40
46
28
18
34
41
19
36
㪪㪟㪘㪄㪛
12
48
51
52
35
29
4
28
38
32
53
54
42
5
38
㪨㪇㪝㪇㪈㪇
㪪㪔㪈㪆㪉㪇
Reference
Q0F010
ﾍﾟｰｼﾞ
6-1
BOOM (1/4) (with shut-off valve + 2nd aux. line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY (with shut-off valve + 2nd aux. line)
1
X
**********
BOOM SUB ASSY
1
see page (2/4)
2
X
**********
CYLINDER ASSY, boom
1
see page (3/4)
3
X
**********
CYLINDER ASSY, arm
1
see page (4/4)
4
0011577006
PIN
1
5
0001618170
PIN
1
6
0001616005
PIN
1
7
0001675003
PIN
1
8
0011905006
PIN
1
9
0556000002
COVER, rod
1
10
0556000001
PLATE
1
11
1703002700
LAMP ASSY
1
11-1
1703002706
BULB
1
12
0556025001
COVER
1
13
0556026020
HOSE ASSY
1
18045-43070
14
0556025430
HOSE ASSY
1
18045-40092
15
0556025440
HOSE ASSY
1
18010-22101
16
0556025450
HOSE ASSY
1
18010-22096
17
0376006282
CLAMP
2
18
1515600202
ADAPTOR
1
19
1560001000
FITTING, grease
2
20
0003600159
COLLAR
1
21
1225120022
WASHER, conical
1
22
0003600057
WASHER
1
23
0003900085
WASHER
1
24
1132630039
NUT
1
25
1210010670
PIN, split
1
26
1140330012
WASHER
2
27
1140020012
WASHER, spring
2
28
1140020008
WASHER, spring
5
29
1141110008
WASHER
2
30
1141110012
WASHER
2
31
1101041225
BOLT
1
32
1100040820
BOLT
2
33
1100041230
BOLT
1
34
1100040840
BOLT
2
35
1100141240
BOLT
1
36
1100141250
BOLT
1
37
1103141200
BOLT
2
38
1130240012
NUT
8
39
1652200004
BAND
4
40
1652201005
BAND
8
41
1531312050
PROTECTOR
1
42
0556026001
RUBBER
1
43
0395012150
CLAMP
1
44
1100040816
BOLT
1
45
0434200600
WIRE
1
46
0556024300
HARNESS, wiring
1
47
0003600156
SHIM
AR
t-1.0mm
48
0003600211
SHIM
AR
t-1.0mm
49
0003600108
SHIM
AR
t-0.2mm
50
0003600109
SHIM
AR
t-0.5mm
51
0003600209
SHIM
AR
t-0.2mm
52
0003600210
SHIM
AR
t-0.5mm
53
0003600214
SHIM
AR
t-0.2mm
54
0003600215
SHIM
AR
t-0.5mm
Reference:Q0F010
Page:6-1
BOOM (1/4) (with shut-off valve + 2nd aux. line)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
55
0007300050
BAND
1
56
0556000024
HOSE ASSY
1
18010-22270
57
0556000025
HOSE ASSY
1
18010-22300
Q0f011
Reference:Q0F010
Page:6-1
Memo
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

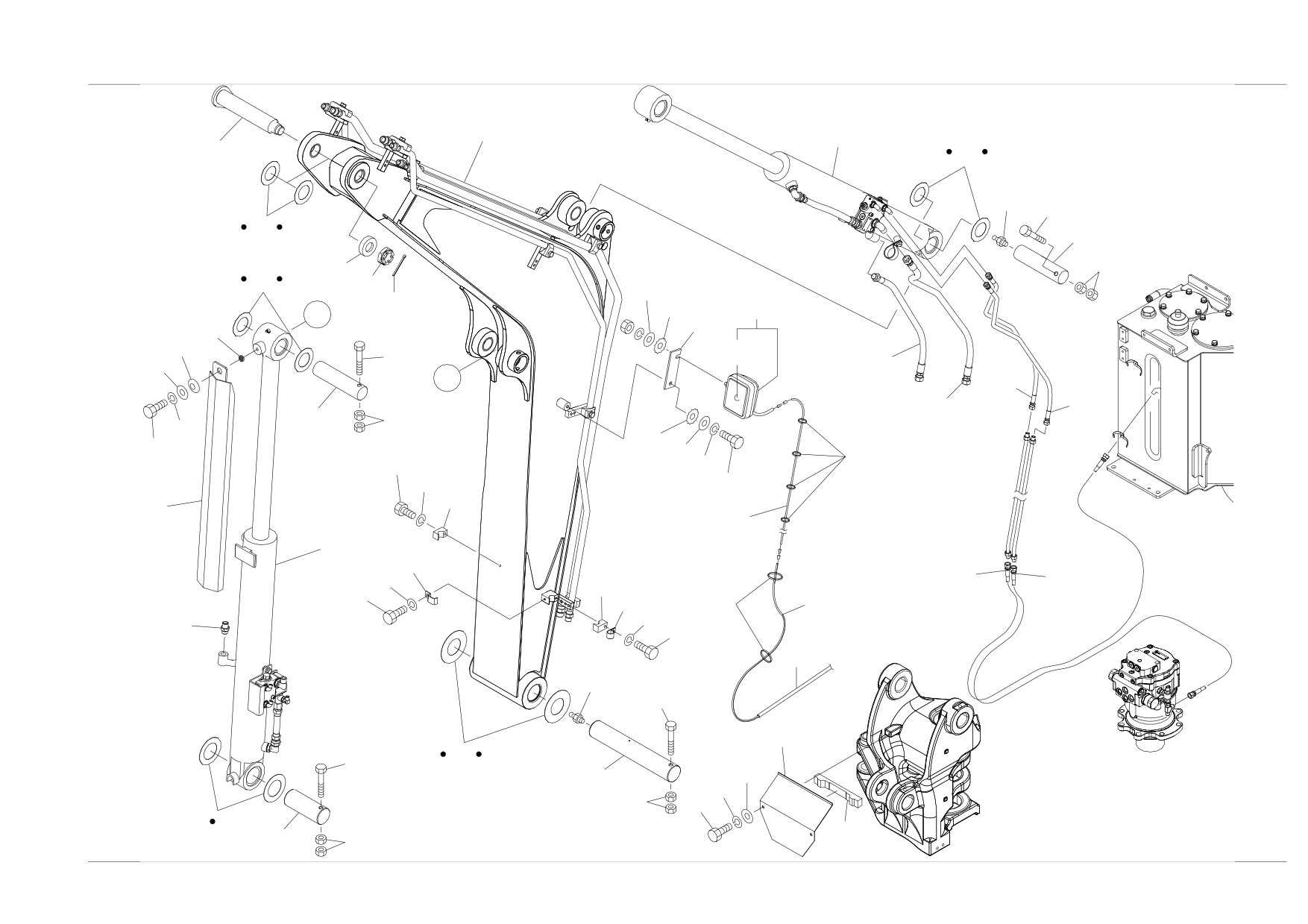

BOOM (1/4) (with shut-off valve + 3rd aux. line)
1
3
8
47
49
50
19
37
47
49
50
7
38
㪧㪠㪣
㪫
23
47
49
50
24
30
㪭㪉
25
26
11
X
10
20
21
11-1
37
22
13
X
16
15
14
6
38
27
26
㪫㪈
31
30
39
34
27
28
33
17
9
45
2
43
28
57
56
17
44
55
40
46
28
18
34
41
19
36
㪪㪟㪘㪄㪛
12
48
51
52
35
29
4
28
38
32
53
54
42
5
38
㪨㪇㪝㪇㪉㪇
㪪㪔㪈㪆㪉㪇
Reference
Q0F020
ﾍﾟｰｼﾞ
6-2
BOOM (1/4) (with shut-off valve + 3rd aux. line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY (with shut-off valve + 3rd aux. line)
1
X
**********
BOOM SUB ASSY
1
see page (2/4)
2
X
**********
CYLINDER ASSY, boom
1
see page (3/4)
3
X
**********
CYLINDER ASSY, arm
1
see page (4/4)
4
0011577006
PIN
1
5
0001618170
PIN
1
6
0001616005
PIN
1
7
0001675003
PIN
1
8
0011905006
PIN
1
9
0556000002
COVER, rod
1
10
0556000001
PLATE
1
11
1703002700
LAMP ASSY
1
11-1
1703002706
BULB
1
12
0556025001
COVER
1
13
0556026020
HOSE ASSY
1
18045-43070
14
0556025430
HOSE ASSY
1
18045-40092
15
0556025440
HOSE ASSY
1
18010-22101
16
0556025450
HOSE ASSY
1
18010-22096
17
0376006282
CLAMP
2
18
1515600202
ADAPTOR
1
19
1560001000
FITTING, grease
2
20
0003600159
COLLAR
1
21
1225120022
WASHER, conical
1
22
0003600057
WASHER
1
23
0003900085
WASHER
1
24
1132630039
NUT
1
25
1210010670
PIN, split
1
26
1140330012
WASHER
2
27
1140020012
WASHER, spring
2
28
1140020008
WASHER, spring
5
29
1141110008
WASHER
2
30
1141110012
WASHER
2
31
1101041225
BOLT
1
32
1100040820
BOLT
2
33
1100041230
BOLT
1
34
1100040840
BOLT
2
35
1100141240
BOLT
1
36
1100141250
BOLT
1
37
1103141200
BOLT
2
38
1130240012
NUT
8
39
1652200004
BAND
4
40
1652201005
BAND
8
41
1531312050
PROTECTOR
1
42
0556025002
RUBBER
1
43
0395012150
CLAMP
1
44
1100040816
BOLT
1
45
0434200600
WIRE
1
46
0556024300
HARNESS, wiring
1
47
0003600156
SHIM
AR
t-1.0mm
48
0003600211
SHIM
AR
t-1.0mm
49
0003600108
SHIM
AR
t-0.2mm
50
0003600109
SHIM
AR
t-0.5mm
51
0003600209
SHIM
AR
t-0.2mm
52
0003600210
SHIM
AR
t-0.5mm
53
0003600214
SHIM
AR
t-0.2mm
54
0003600215
SHIM
AR
t-0.5mm
Reference:Q0F020
Page:6-2
BOOM (1/4) (with shut-off valve + 3rd aux. line)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
55
0007300050
CLAMP
1
56
0556000024
HOSE ASSY
1
18010-22270
57
0556000025
HOSE ASSY
1
18010-22300
Q0f021
Reference:Q0F020
Page:6-2
Memo
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

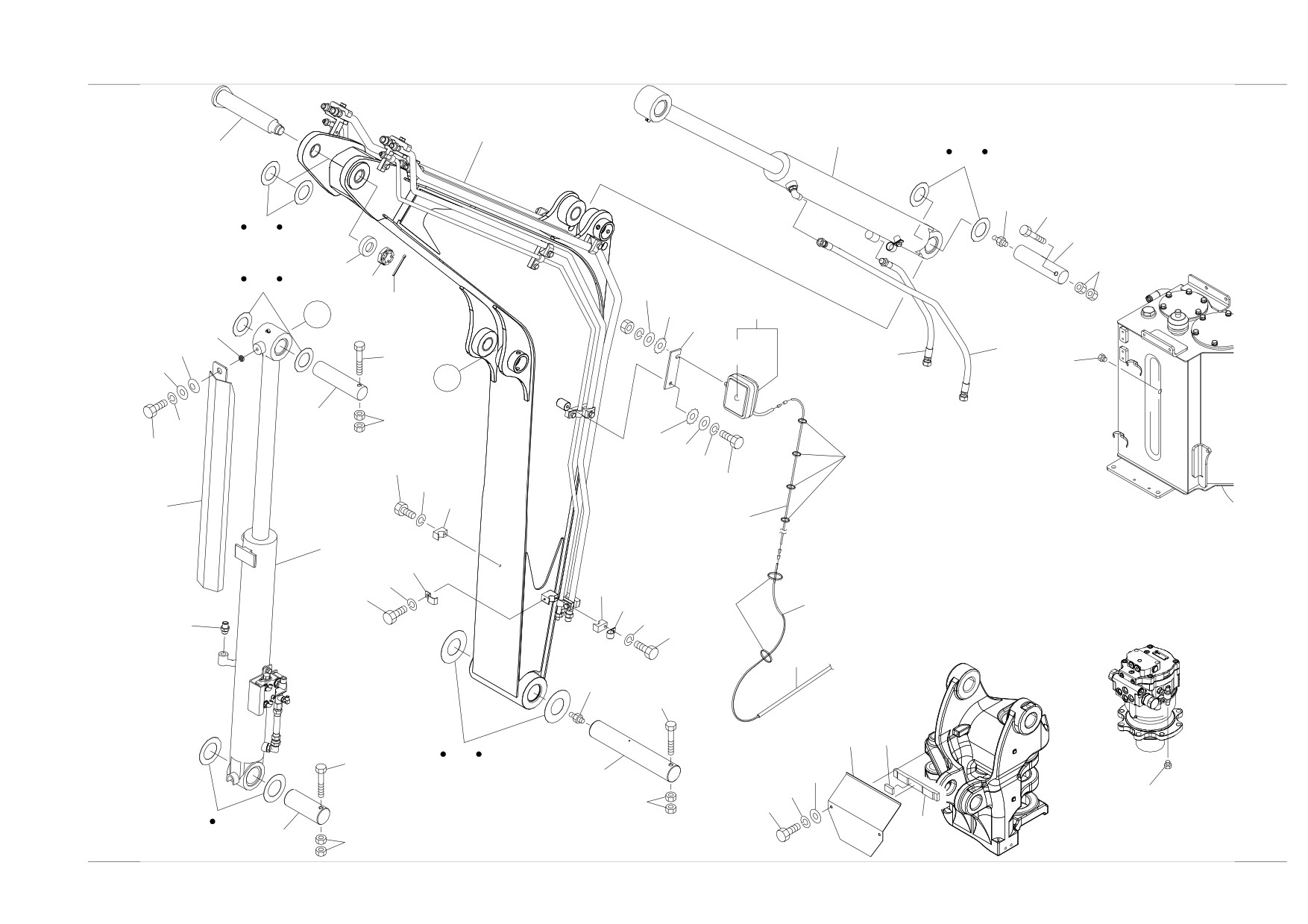

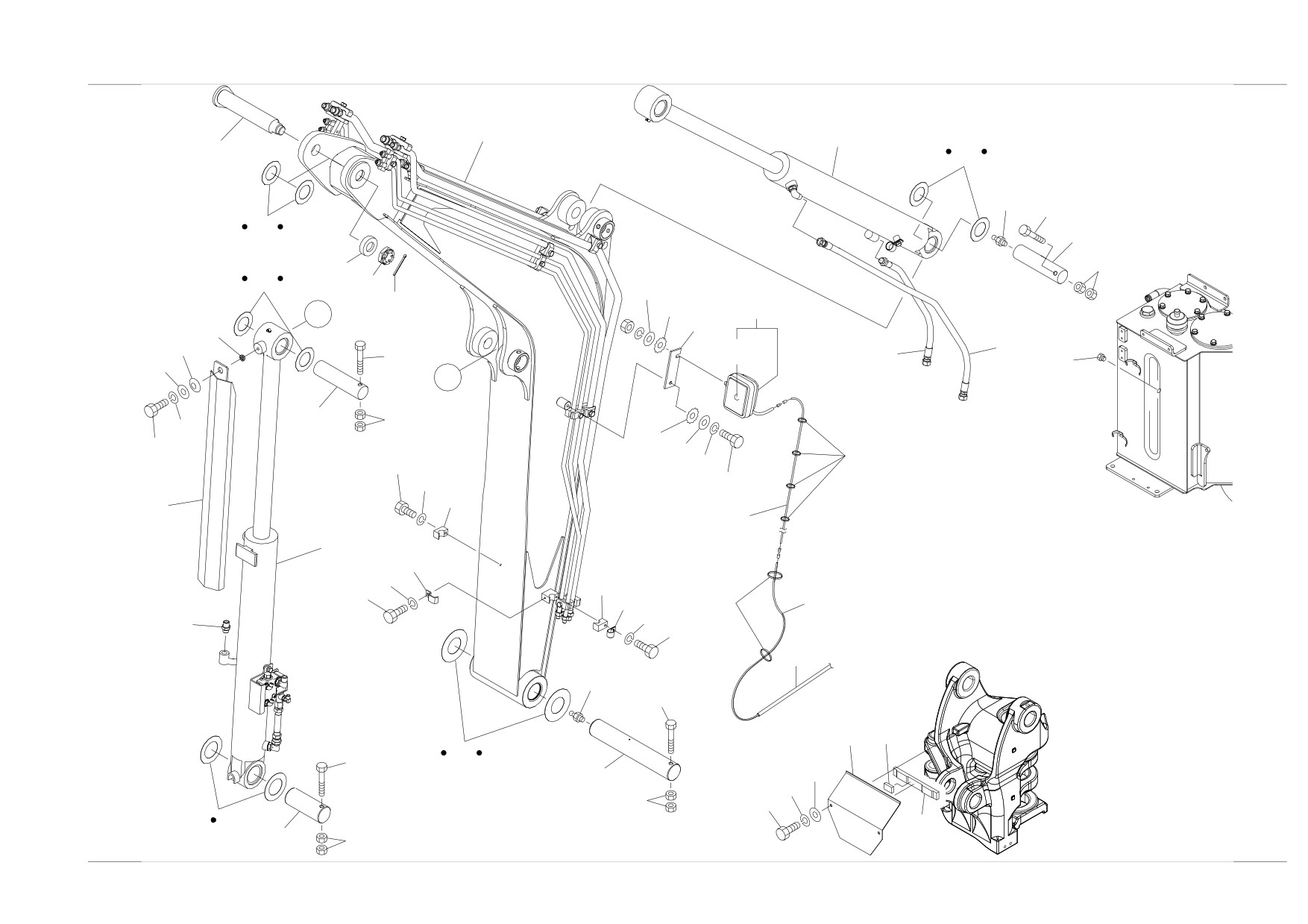

BOOM (1/4) (with boom shut-off valve + 3rd aux. line)
1
3
8
45
47
48
17
35
45
47
48
7
36
21
45
47
48
22
28
23
24
11
X
10
18
19
13
11-1
35
14
20
55
㪫㪈
X
6
36
25
24
29
28
37
32
25
26
31
15
9
43
2
41
26
15
42
53
38
44
26
16
32
39
17
34
12
54
46
49
50
33
㪪㪟㪘
27
4
26
55
36
30
51
52
40
5
36
㪨㪇㪝㪇㪊㪇
㪪㪔㪈㪆㪉㪇
Reference
Q0F030
ﾍﾟｰｼﾞ
6-3
BOOM (1/4) (with boom shut-off valve + 3rd aux. line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY (with boom shut-off valve + 3rd aux. line)
1
X
**********
BOOM SUB ASSY
1
see page (2/4)
2
X
**********
CYLINDER ASSY, boom
1
see page (3/4)
3
X
**********
CYLINDER ASSY, arm
1
see page (4/4)
4
0011577006
PIN
1
5
0001618170
PIN
1
6
0001616005
PIN
1
7
0001675003
PIN
1
8
0011905006
PIN
1
9
0556000002
COVER, rod
1
10
0556000001
PLATE
1
11
1703002700
LAMP ASSY
1
11-1
1703002706
BULB
1
12
0556025001
COVER
1
13
0556026010
HOSE ASSY
1
18045-40138
14
0556026020
HOSE ASSY
1
18045-43070
15
0376006282
CLAMP
2
16
1515600202
ADAPTOR
1
17
1560001000
FITTING, grease
2
18
0003600159
COLLAR
1
19
1225120022
WASHER, conical
1
20
0003600057
WASHER
1
21
0003900085
WASHER
1
22
1132630039
NUT
1
23
1210010670
PIN, split
1
24
1140330012
WASHER
2
25
1140020012
WASHER, spring
2
26
1140020008
WASHER, spring
5
27
1141110008
WASHER
2
28
1141110012
WASHER
2
29
1101041225
BOLT
1
30
1100040820
BOLT
2
31
1100041230
BOLT
1
32
1100040840
BOLT
2
33
1100141240
BOLT
1
34
1100141250
BOLT
1
35
1103141200
BOLT
2
36
1130240012
NUT
8
37
1652200004
BAND
4
38
1652201005
BAND
8
39
1531312050
PROTECTOR
1
40
0556025002
RUBBER
1
41
0395012150
CLAMP
1
42
1100040816
BOLT
1
43
0434200600
WIRE
1
44
0556024300
HARNESS, wiring
1
45
0003600156
SHIM
AR
t-1.0mm
46
0003600211
SHIM
AR
t-1.0mm
47
0003600108
SHIM
AR
t-0.2mm
48
0003600109
SHIM
AR
t-0.5mm
49
0003600209
SHIM
AR
t-0.2mm
50
0003600210
SHIM
AR
t-0.5mm
51
0003600214
SHIM
AR
t-0.2mm
52
0003600215
SHIM
AR
t-0.5mm
53
0007300050
BAND
1
54
0656000017
RUBBER
1
Reference:Q0F030
Page:6-3
BOOM (1/4) (with boom shut-off valve + 3rd aux. line)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
55
1501750002
PLUG
2
Q0f031
Reference:Q0F030
Page:6-3
Memo
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

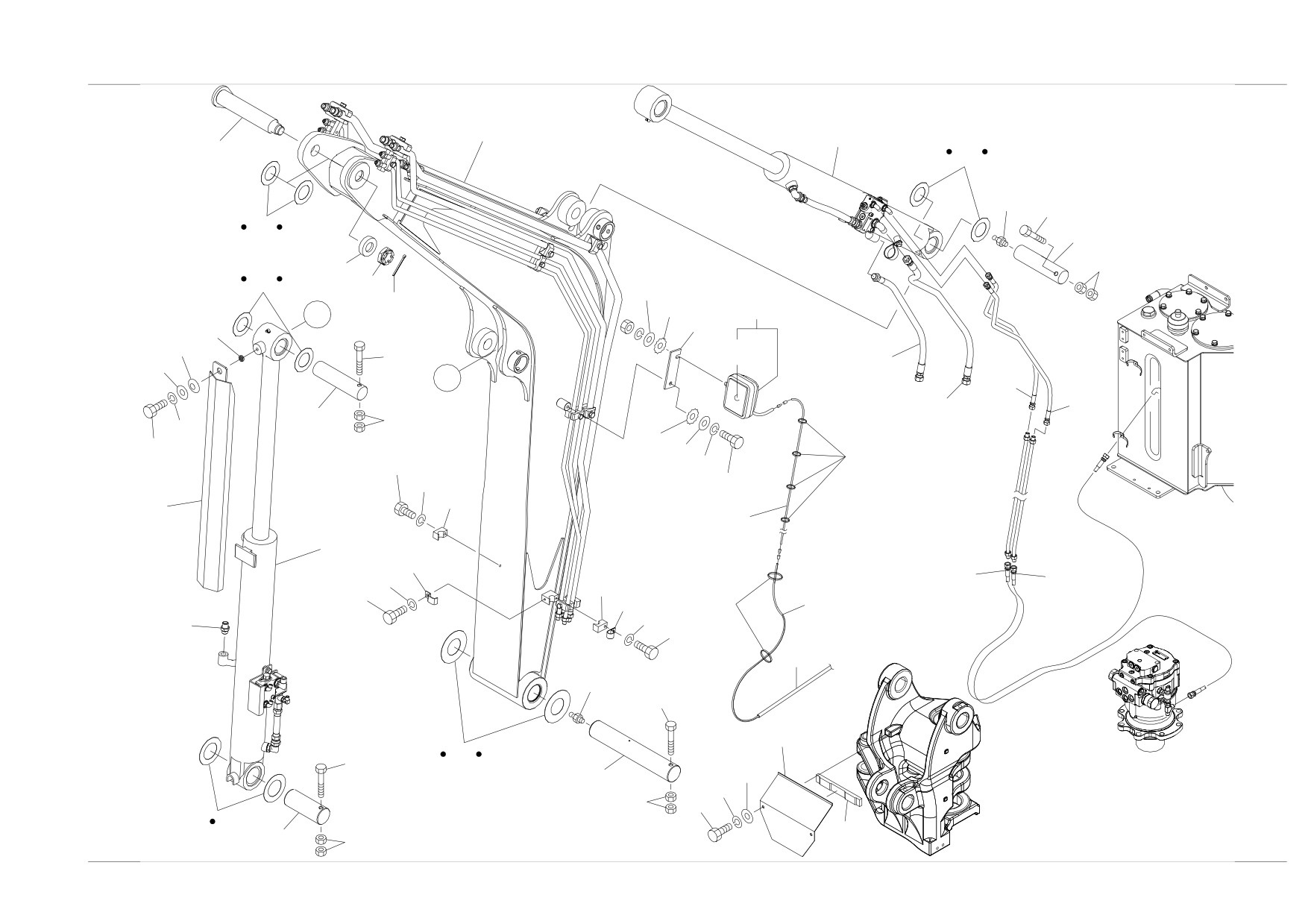

BOOM (1/4) (with shut-off valve + 4th aux. line)
1
3
8
47
49
50
19
37
47
49
50
7
38
㪧㪠㪣
㪫
23
47
49
50
24
30
㪭㪉
25
26
11
X
10
20
21
11-1
37
22
13
X
16
15
14
6
38
27
26
㪫㪈
31
30
39
34
27
28
33
17
9
45
2
43
28
57
56
17
44
55
40
46
28
18
34
41
19
36
㪪㪟㪘㪄㪛
12
48
51
52
35
29
4
28
38
32
53
54
42
5
38
㪨㪇㪝㪇㪋㪇
㪪㪔㪈㪆㪉㪇
Reference
Q0F040
ﾍﾟｰｼﾞ
6-4
BOOM (1/4) (with shut-off valve + 4th aux. line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY (with shut-off valve + 4th aux. line)
1
X
**********
BOOM SUB ASSY
1
see page (2/4)
2
X
**********
CYLINDER ASSY, boom
1
see page (3/4)
3
X
**********
CYLINDER ASSY, arm
1
see page (4/4)
4
0011577006
PIN
1
5
0001618170
PIN
1
6
0001616005
PIN
1
7
0001675003
PIN
1
8
0011905006
PIN
1
9
0556000002
COVER, rod
1
10
0556000001
PLATE
1
11
1703002700
LAMP ASSY
1
11-1
1703002706
BULB
1
12
0556025001
COVER
1
13
0556026020
HOSE ASSY
1
18045-43070
14
0556025430
HOSE ASSY
1
18045-40092
15
0556025440
HOSE ASSY
1
18010-22101
16
0556025450
HOSE ASSY
1
18010-22096
17
0376006282
CLAMP
2
18
1515600202
ADAPTOR
1
19
1560001000
FITTING, grease
2
20
0003600159
COLLAR
1
21
1225120022
WASHER, conical
1
22
0003600057
WASHER
1
23
0003900085
WASHER
1
24
1132630039
NUT
1
25
1210010670
PIN, split
1
26
1140330012
WASHER
2
27
1140020012
WASHER, spring
2
28
1140020008
WASHER, spring
5
29
1141110008
WASHER
2
30
1141110012
WASHER
2
31
1101041225
BOLT
1
32
1100040820
BOLT
2
33
1100041230
BOLT
1
34
1100040840
BOLT
2
35
1100141240
BOLT
1
36
1100141250
BOLT
1
37
1103141200
BOLT
2
38
1130240012
NUT
8
39
1652200004
BAND
4
40
1652201005
BAND
8
41
1531312050
PROTECTOR
1
42
0556025002
RUBBER
1
43
0395012150
CLAMP
1
44
1100040816
BOLT
1
45
0434200600
WIRE
1
46
0556024300
HARNESS, wiring
1
47
0003600156
SHIM
AR
t-1.0mm
48
0003600211
SHIM
AR
t-1.0mm
49
0003600108
SHIM
AR
t-0.2mm
50
0003600109
SHIM
AR
t-0.5mm
51
0003600209
SHIM
AR
t-0.2mm
52
0003600210
SHIM
AR
t-0.5mm
53
0003600214
SHIM
AR
t-0.2mm
54
0003600215
SHIM
AR
t-0.5mm
Reference:Q0F040
Page:6-4
BOOM (1/4) (with shut-off valve + 4th aux. line)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
55
0007300050
BAND
1
56
0556000024
HOSE ASSY
1
18010-22270
57
0556000025
HOSE ASSY
1
18010-22300
Q0f041
Reference:Q0F040
Page:6-4
Memo
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
BOOM (1/4) (with boom shut-off valve + 4th aux. line)
1
3
8
45
47
48
17
35
45
47
48
7
36
21
45
47
48
22
28
23
24
11
X
10
18
19
13
11-1
35
14
20
55
㪫㪈
X
6
36
25
24
29
28
37
32
25
26
31
15
9
43
2
41
26
15
42
53
38
44
26
16
32
39
17
34
12
54
46
49
50
33
27
4
26
36
30
51
52
40
5
36
㪨㪇㪝㪉㪇㪇
㪪㪔㪈㪆㪉㪇
Reference
Q0F200
ﾍﾟｰｼﾞ
6-5
BOOM (1/4) (with boom shut-off valve + 4th aux. line)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY (with boom shut-off valve + 4th aux. line)
1
X
**********
BOOM SUB ASSY
1
see page (2/4)
2
X
**********
CYLINDER ASSY, boom
1
see page (3/4)
3
X
**********
CYLINDER ASSY, arm
1
see page (4/4)
4
0011577006
PIN
1
5
0001618170
PIN
1
6
0001616005
PIN
1
7
0001675003
PIN
1
8
0011905006
PIN
1
9
0556000002
COVER, rod
1
10
0556000001
PLATE
1
11
1703002700
LAMP ASSY
1
11-1
1703002706
BULB
1
12
0556025001
COVER
1
13
0556026010
HOSE ASSY
1
M
18045-40138
14
0556026020
HOSE ASSY
1
18045-43070
15
0376006282
CLAMP
2
16
1515600202
ADAPTOR
1
17
1560001000
FITTING, grease
2
18
0003600159
COLLAR
1
19
1225120022
WASHER, conical
1
20
0003600057
WASHER
1
21
0003900085
WASHER
1
22
1132630039
NUT
1
23
1210010670
PIN, split
1
24
1140330012
WASHER
2
25
1140020012
WASHER, spring
2
26
1140020008
WASHER, spring
5
27
1141110008
WASHER
2
28
1141110012
WASHER
2
29
1101041225
BOLT
1
30
1100040820
BOLT
2
31
1100041230
BOLT
1
32
1100040840
BOLT
2
33
1100141240
BOLT
1
34
1100141250
BOLT
1
35
1103141200
BOLT
2
36
1130240012
NUT
8
37
1652200004
BAND
4
38
1652201005
BAND
8
39
1531312050
PROTECTOR
1
40
0556025002
RUBBER
1
41
0395012150
CLAMP
1
42
1100040816
BOLT
1
43
0434200600
WIRE
1
44
0556024300
HARNESS, wiring
1
45
0003600156
SHIM
AR
t-1.0mm
46
0003600211
SHIM
AR
t-1.0mm
47
0003600108
SHIM
AR
t-0.2mm
48
0003600109
SHIM
AR
t-0.5mm
49
0003600209
SHIM
AR
t-0.2mm
50
0003600210
SHIM
AR
t-0.5mm
51
0003600214
SHIM
AR
t-0.2mm
52
0003600215
SHIM
AR
t-0.5mm
53
0007300050
BAND
1
54
0656000017
RUBBER
1
M
Reference:Q0F200
Page:6-5
BOOM (1/4) (with boom shut-off valve + 4th aux. line)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
55
1501750002
PLUG
1
M
Q0f200
Reference:Q0F200
Page:6-5
Memo















Content      ..     16      17      18      19     ..
