Takeuchi Mini Excavator TB235 (Serial No.123500001~). Parts Manual - page 9
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

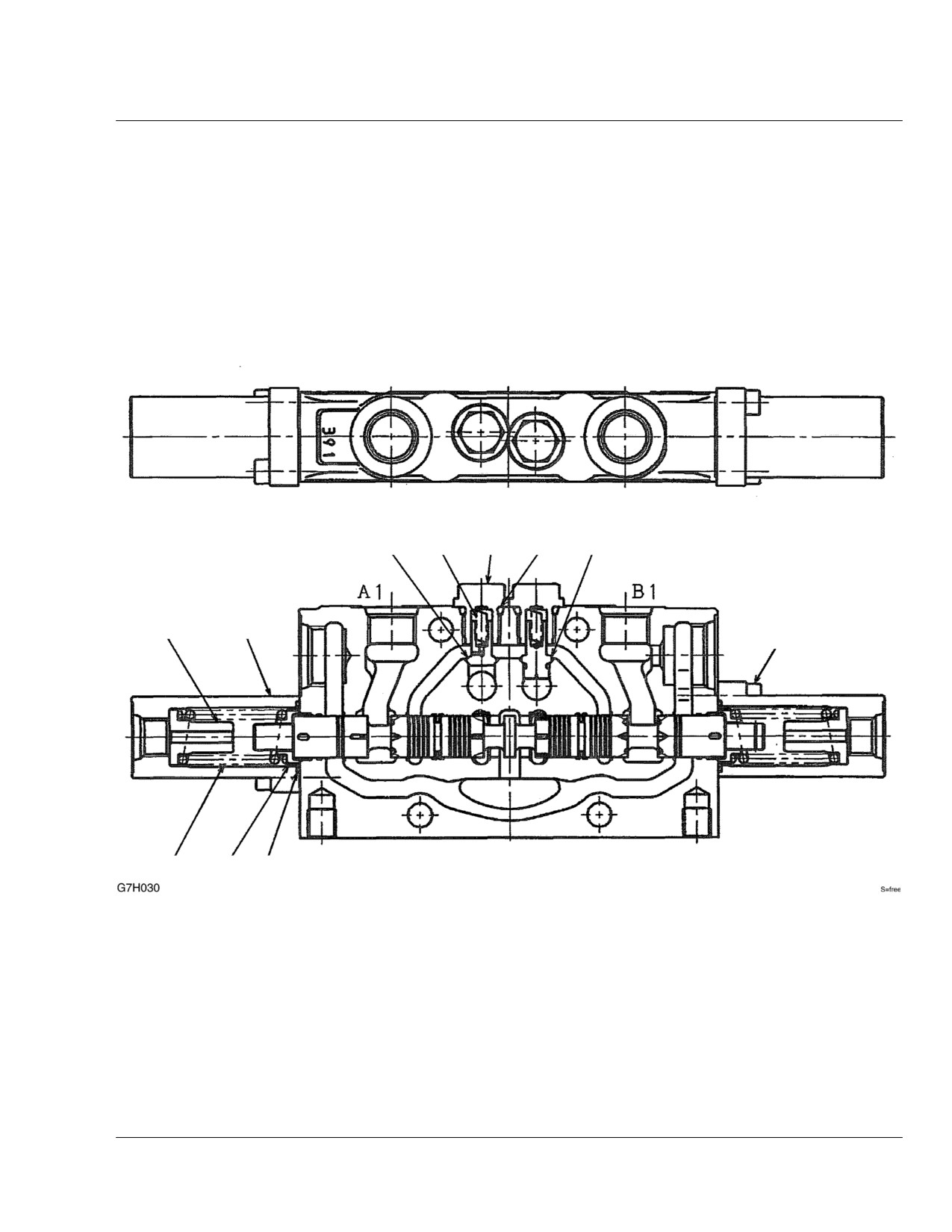

BLOCK ASSY; No. 1
7
8
9
10
11
3
4
6
2
1
5
Ref. G7H030
Page
8-3
BLOCK ASSY; No. 1
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045613
BLOCK ASSY, No.1
1
bucket
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
2
9
1901038890
PLUG
2
10
1420010110
O-RING
2
11
1901038827
PLUNGER
1
G7h030
Reference:G7H030
Page:8-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

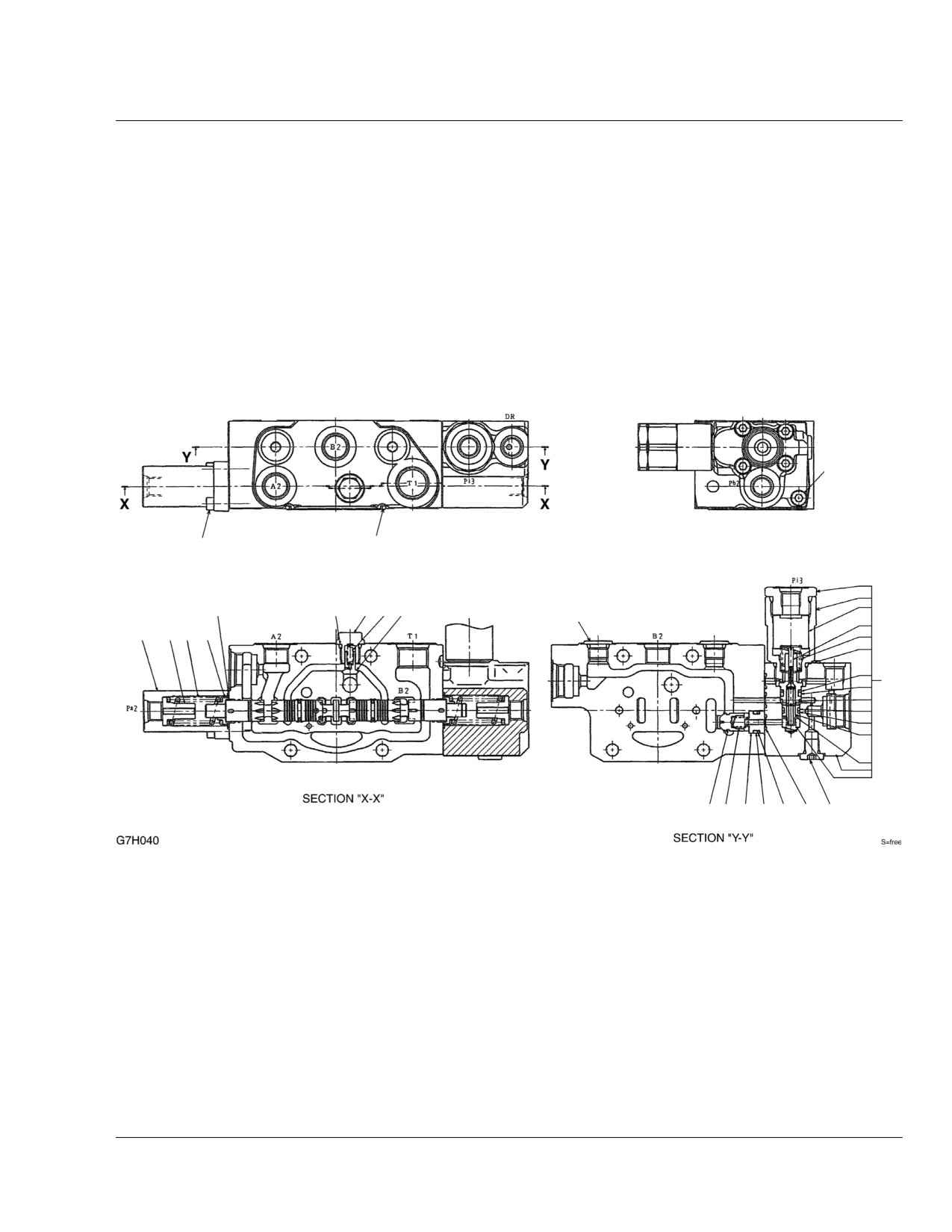

BLOCK ASSY; No. 2
18
6
19
5
10
9
8
7
17
4
3
2
1
16
11 12 13 10 14
15
20
Ref. G7H040
Page
8-4
BLOCK ASSY; No. 2
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901045611
BLOCK ASSY, No.2
1
boom
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
1
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
2
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
1
10
1420010110
O-RING
2
11
1901042660
PLUNGER
1
12
1901042659
SPRING
1
13
1901042658
SPACER
1
14
1421020110
RING, back-up
1
15
1420010070
O-RING
3
16
1901042798
PISTON ASSY
1
17
1901038893
PLUG ASSY
2
18
1110020660
SCREW, cap
5
19
1901038881
O-RING
1
20
1901036677
PLUG ASSY
1
G7h040
Reference:G7H040
Page:8-4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

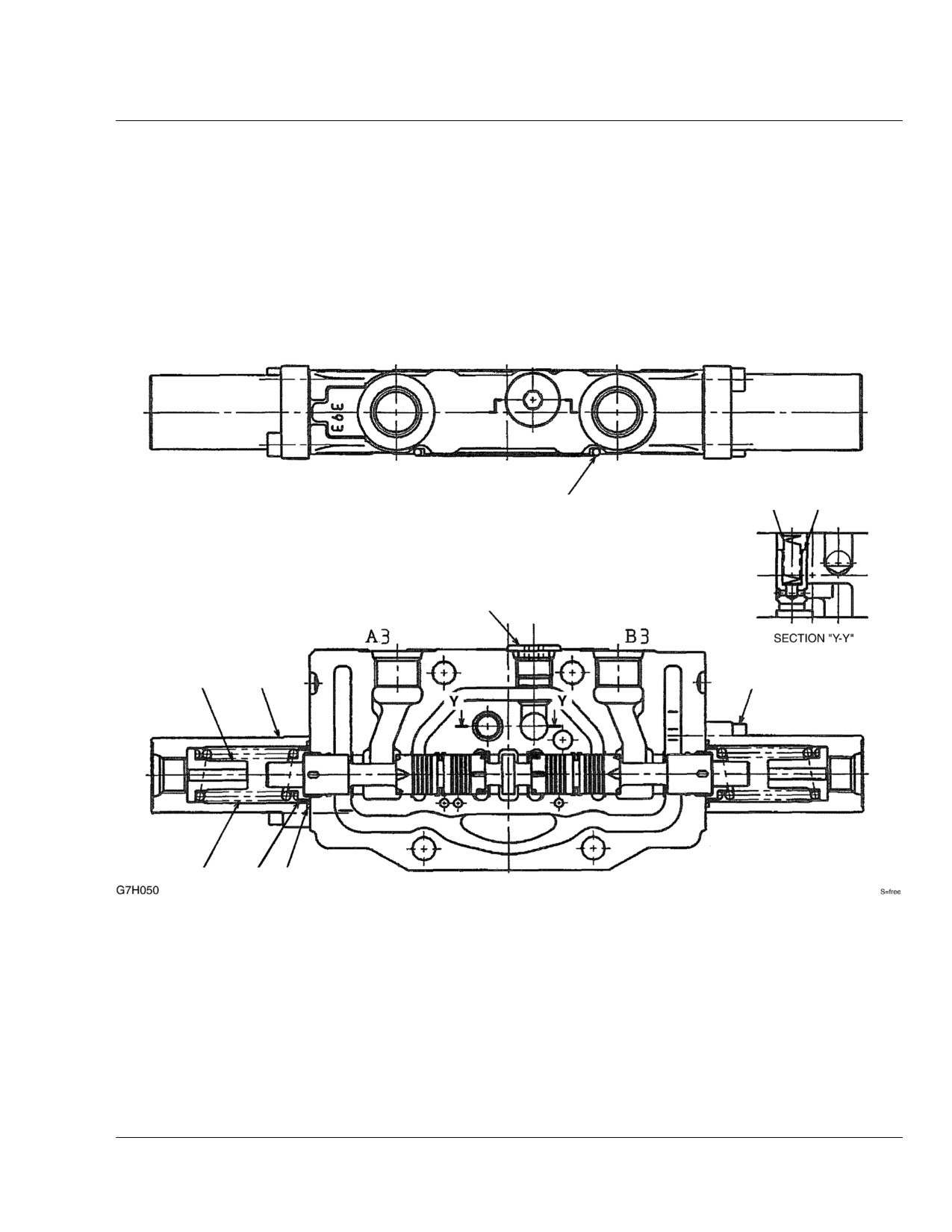

BLOCK ASSY; No. 3
10
9
8
7
3
4
6
2
1
5
Ref. G7H050
Page
8-5
BLOCK ASSY; No. 3
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045615
BLOCK ASSY, No.3
1
traction R.H.
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038893
PLUG ASSY
1
8
1901038829
PLUNGER
1
9
1901027757
SPRING
1
10
1901038881
O-RING
1
G7h050
Reference:G7H050
Page:8-5
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

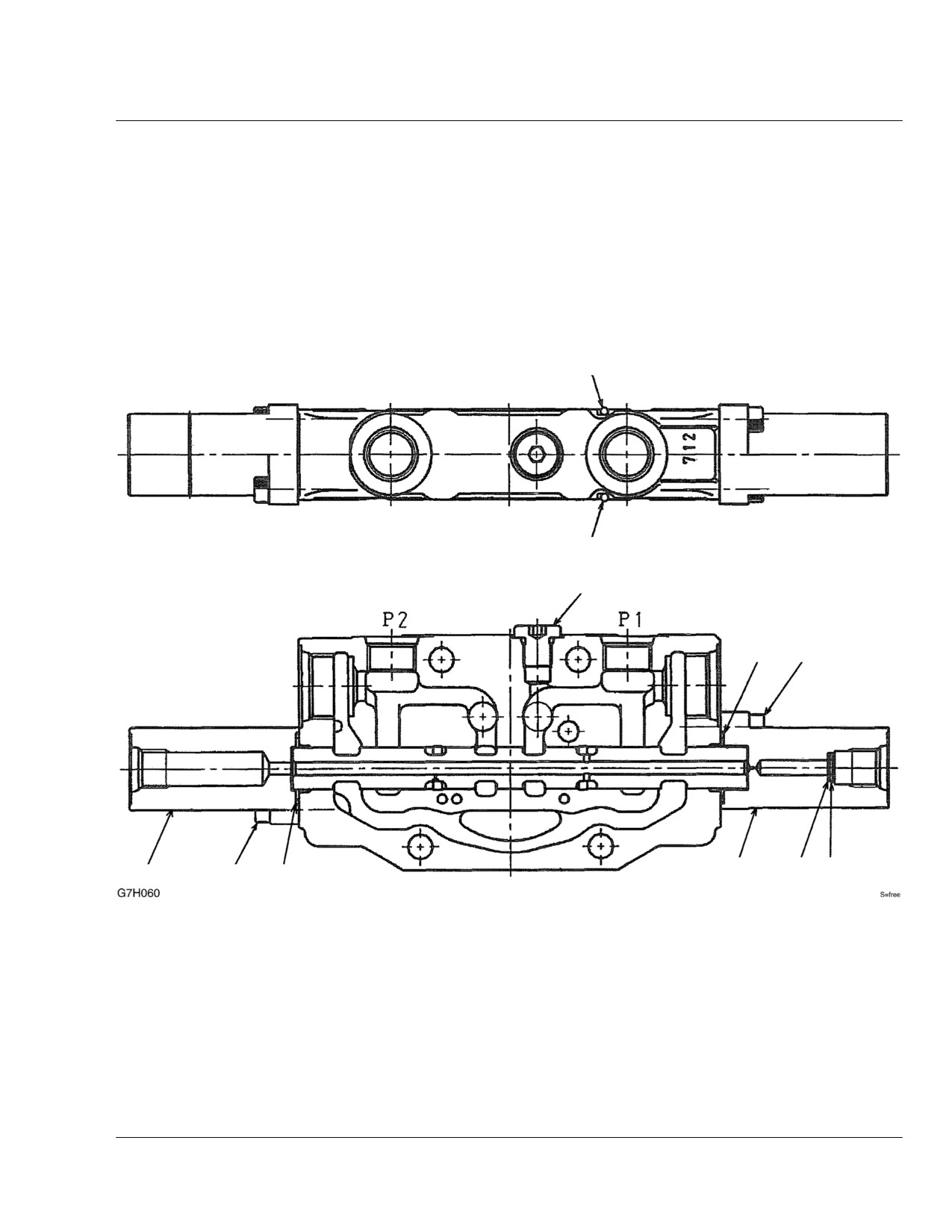

BLOCK ASSY; No. 4
8
8
7
4
6
1
2
3
5
6
4
Ref. G7H060
Page
8-6
BLOCK ASSY; No. 4
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045603
BLOCK ASSY, No.4
1
P1, P2
1
1901038869
CAP
1
2
1901042672
FILTER
1
3
1901042673
WASHER
1
4
1420500220
O-RING
2
5
1901044466
CAP
1
6
1110020518
SCREW, cap
4
7
1901036677
PLUG ASSY
1
8
1901038881
O-RING
2
G7h060
Reference:G7H060
Page:8-6
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

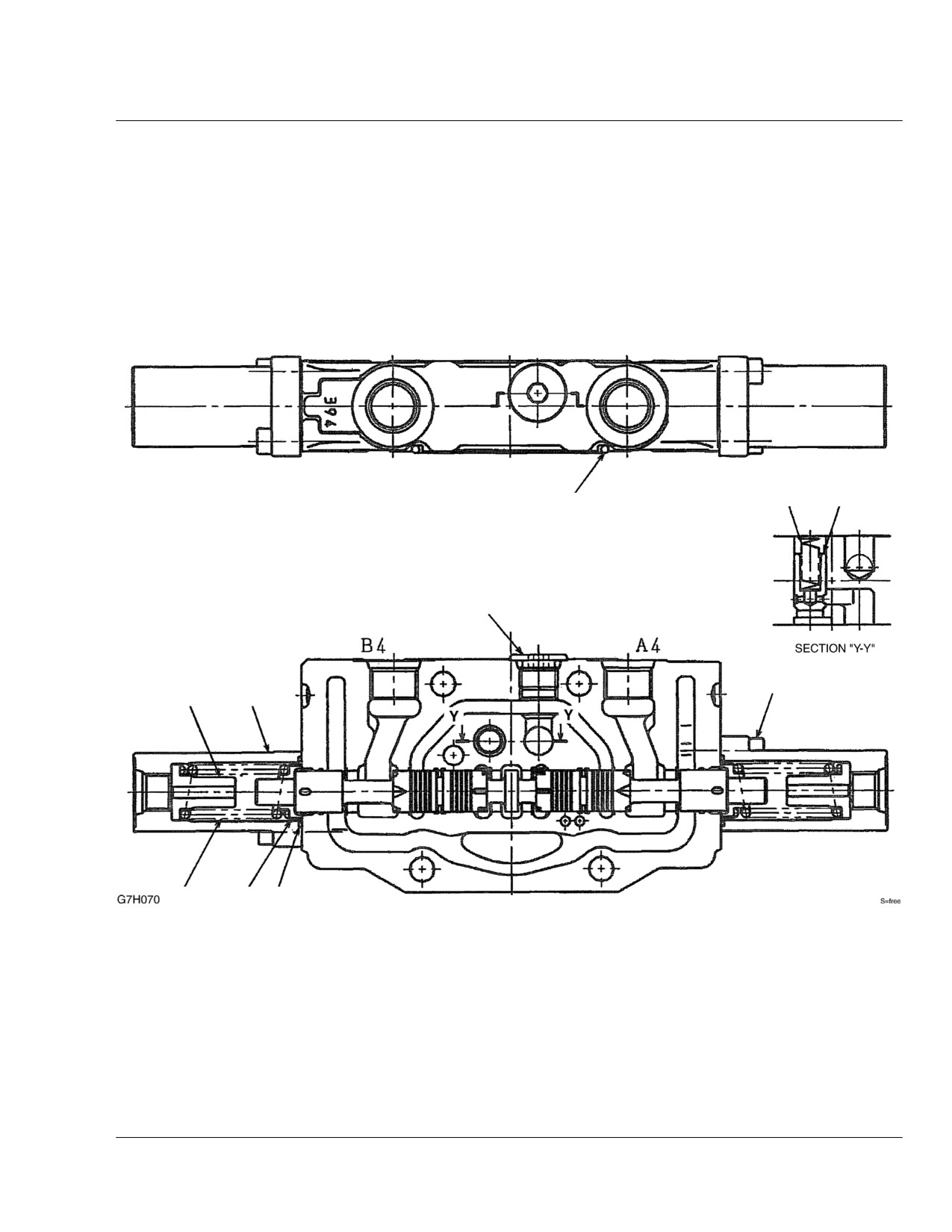

BLOCK ASSY; No. 5
10
9
8
7
6
3
4
2
1
5
Ref. G7H070
Page
8-7
BLOCK ASSY; No. 5
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045616
BLOCK ASSY, No.5
1
traction L.H.
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038893
PLUG ASSY
1
8
1901038829
PLUNGER
1
9
1901027757
SPRING
1
10
1901038881
O-RING
1
G7h070
Reference:G7H070
Page:8-7
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

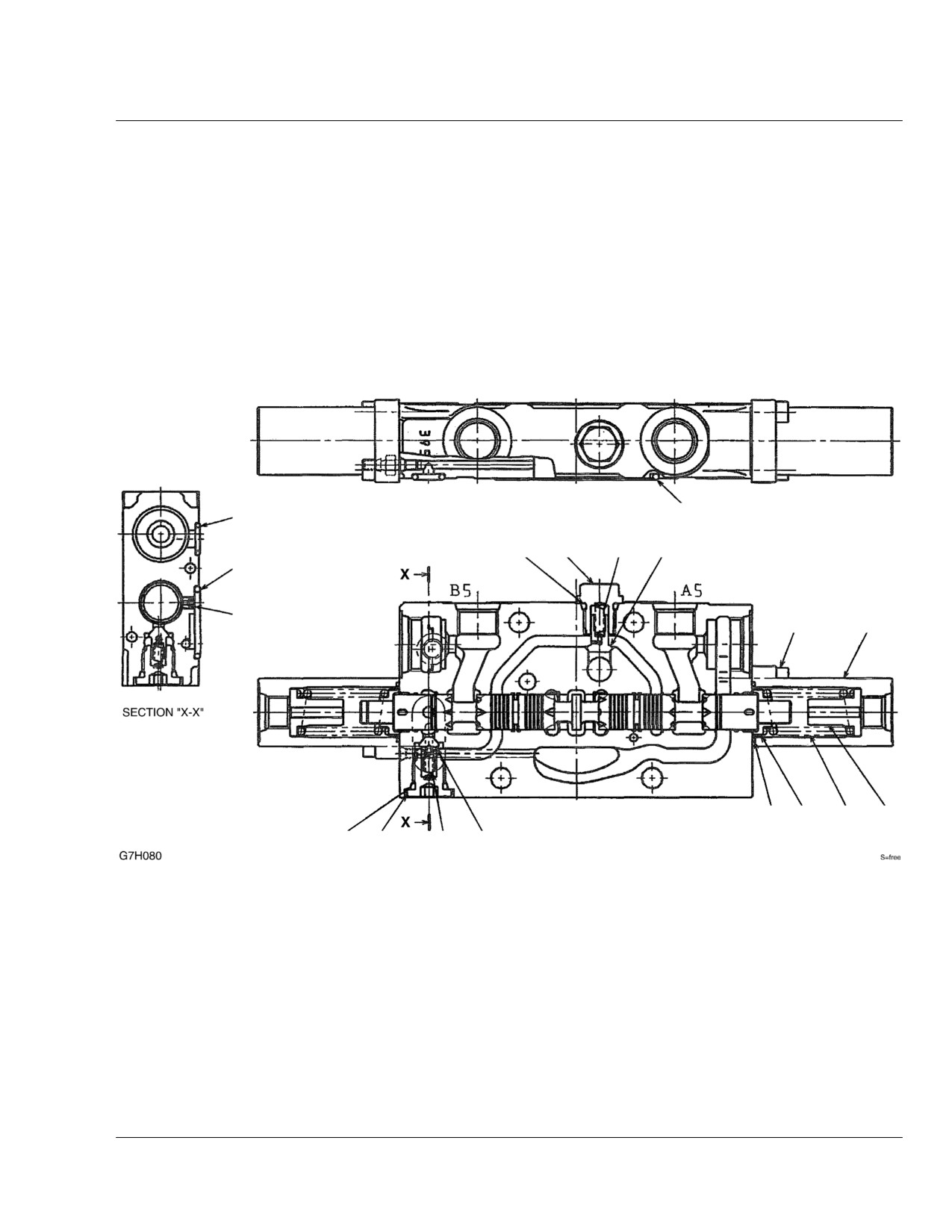

BLOCK ASSY; No. 6
15
17
5
14
13
12
16
1
11
9
10
6
7
8
5
4
3
2
Ref. G7H080
Page
8-8
BLOCK ASSY; No. 6
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045612
BLOCK ASSY, No.6
1
arm
1
1901044471
PLUG
1
2
1901038828
PLUNGER
1
3
1901027858
SPRING
1
4
1901038892
PLUG
1
5
1420010110
O-RING
2
6
1901031752
HOLDER, spring
2
7
1901048656
SPRING
2
8
1901038851
HOLDER, spring
2
9
1901038866
CAP
2
10
1420500220
O-RING
2
11
1110020518
SCREW, cap
4
12
1901038826
PLUNGER
1
13
1901038857
SPRING
1
14
1901038890
PLUG
1
15
1420000100
O-RING
1
16
1420010200
O-RING
1
17
1901038881
O-RING
1
G7h080
Reference:G7H080
Page:8-8
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

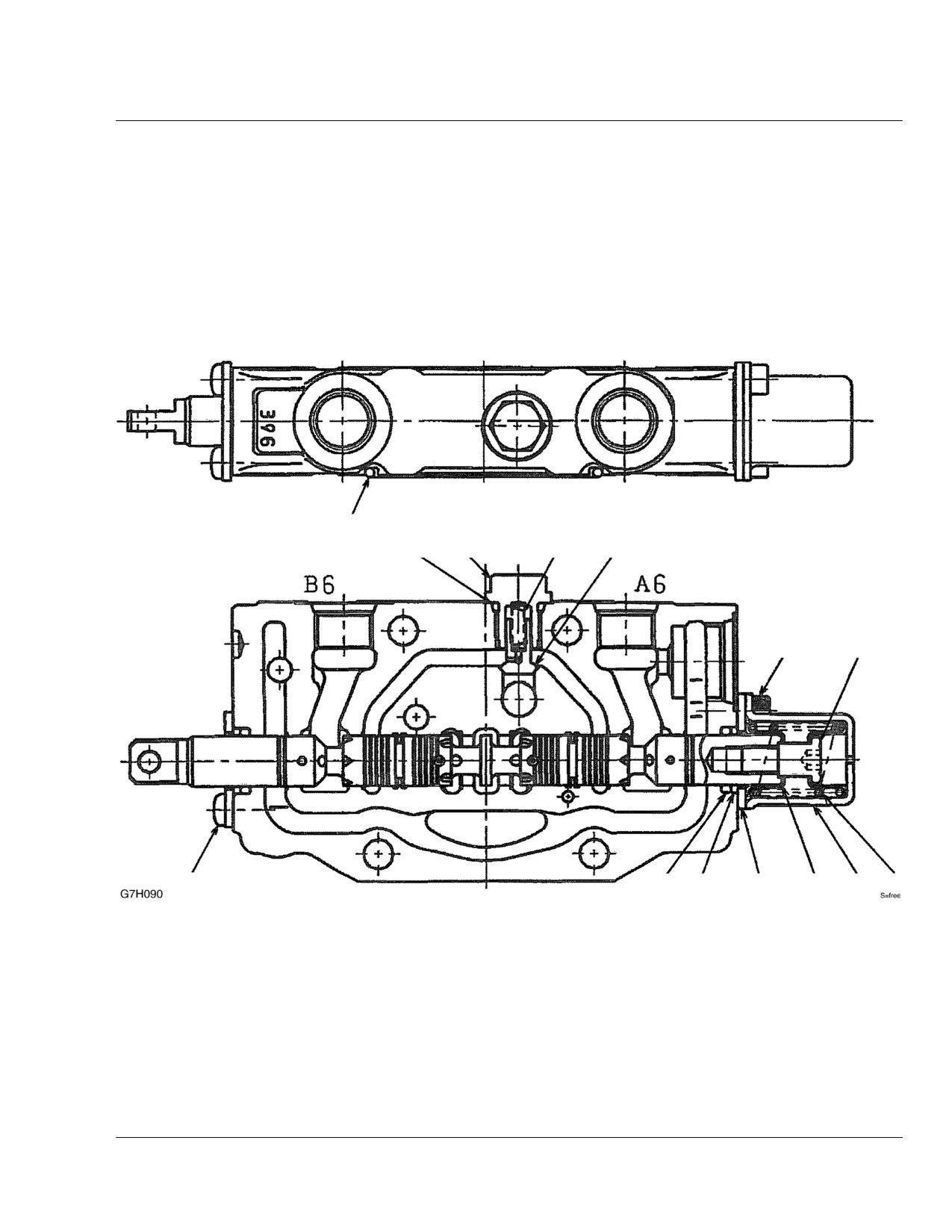

BLOCK ASSY; No. 7
14
13
12
11
10
8
6
9
1
2
3
4
7
5
Ref. G7H090
Page
8-9
BLOCK ASSY; No. 7
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045618
BLOCK ASSY, No.7
1
swing
1
1901025484
O-RING
2
2
1901025485
WIPER
2
3
1901048641
PLATE, seal
2
4
1901025453
HOLDER, spring
2
5
1901048658
SPRING
1
6
1901043232
SCREW
1
7
1901048666
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038826
PLUNGER
1
11
1901038857
SPRING
1
12
1901038890
PLUG
1
13
1420010110
O-RING
1
14
1901038881
O-RING
1
G7h090
Reference:G7H090
Page:8-9
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

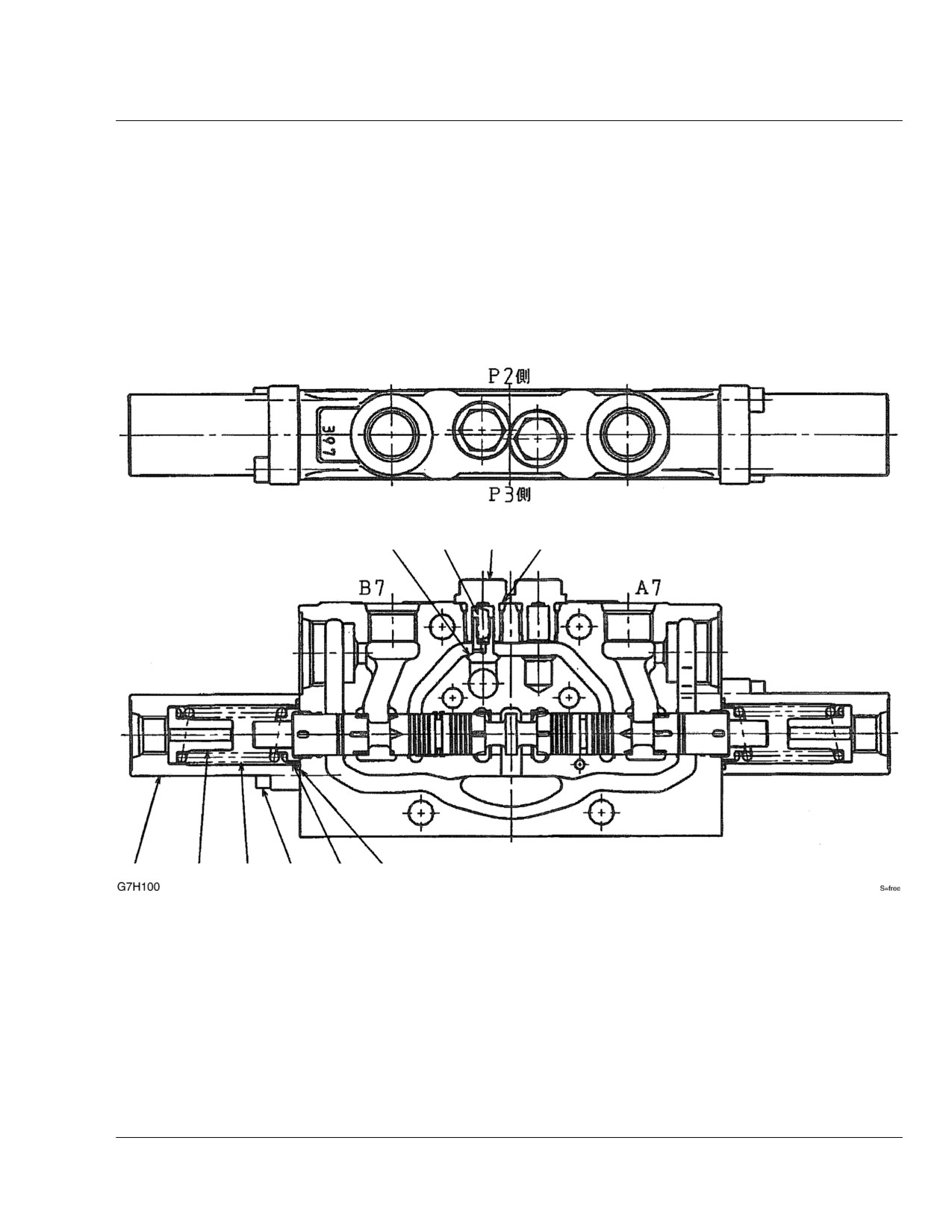

BLOCK ASSY; No. 8
7
8
9
10
4
3
2
6
1
5
Ref. G7H100
Page
8-10
BLOCK ASSY; No. 8
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045619
BLOCK ASSY, No.8
1
auxiliary
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
2
10
1420010110
O-RING
2
G7h100
Reference:G7H100
Page:8-10
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

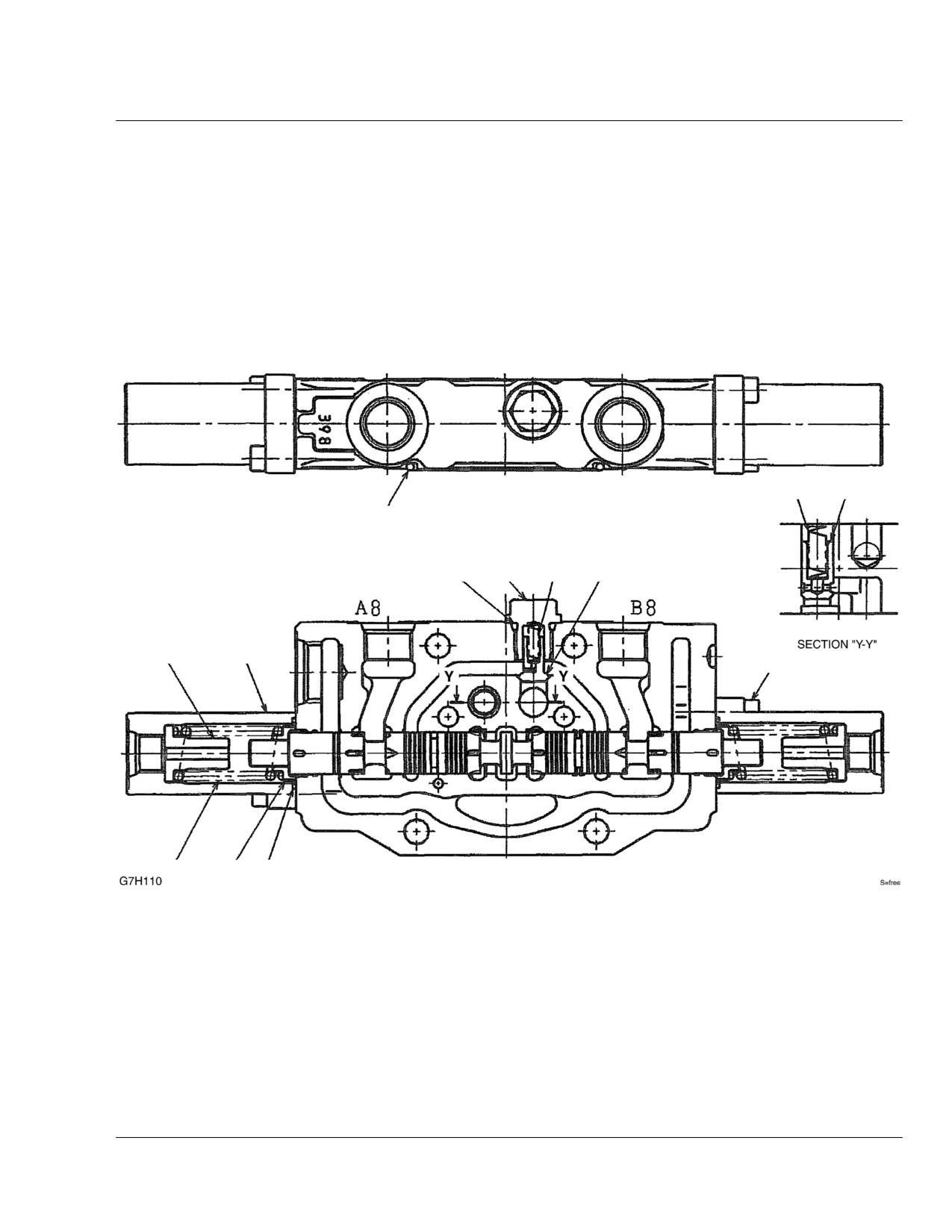

BLOCK ASSY; No. 9
12
11
13
10
9
8
7
3
4
6
2
1
5
Ref. G7H110
Page
8-11
BLOCK ASSY; No. 9
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045614
BLOCK ASSY, No.9
1
slew
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
1
10
1420010110
O-RING
1
11
1901038829
PLUNGER
1
12
1901027757
SPRING
1
13
1901038881
O-RING
1
G7h110
Reference:G7H110
Page:8-11
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

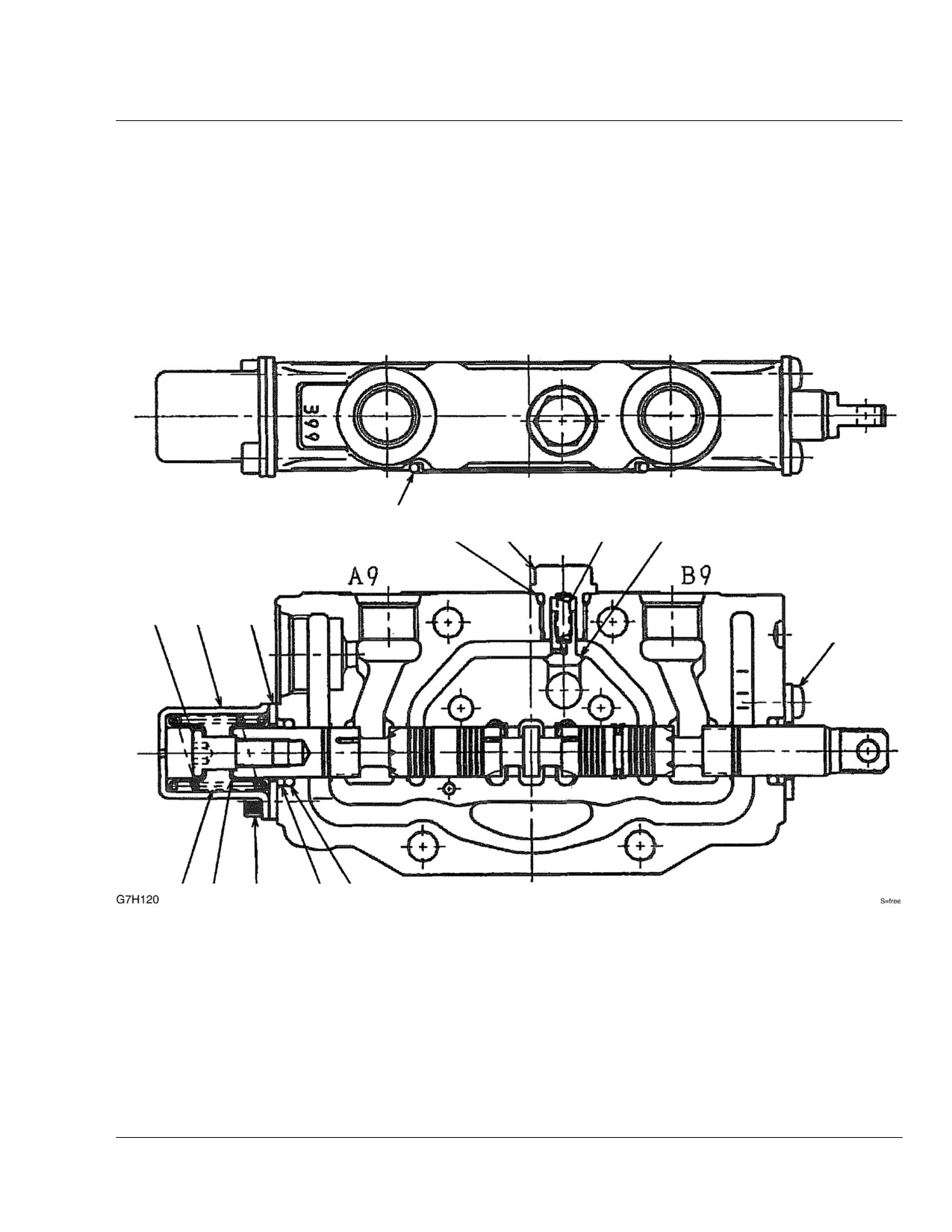

BLOCK ASSY; No. 10
14
13
12
11
10
6
7
3
9
5
4
8
2
1
Ref. G7H120
Page
8-12
BLOCK ASSY; No. 10
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045617
BLOCK ASSY, No.10
1
blade
1901045717
BLOCK ASSY, No.10 (with 2nd aux. line)
1
blade
1
1901025484
O-RING
2
2
1901025485
WIPER
2
3
1901048641
PLATE, seal
2
4
1901025453
HOLDER, spring
2
5
1901048658
SPRING
1
6
1901043232
SCREW
1
7
1901048666
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038826
PLUNGER
1
11
1901038857
SPRING
1
12
1901038890
PLUG
1
13
1420010110
O-RING
1
14
1901038881
O-RING
1
G7h120
Reference:G7H120
Page:8-12
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

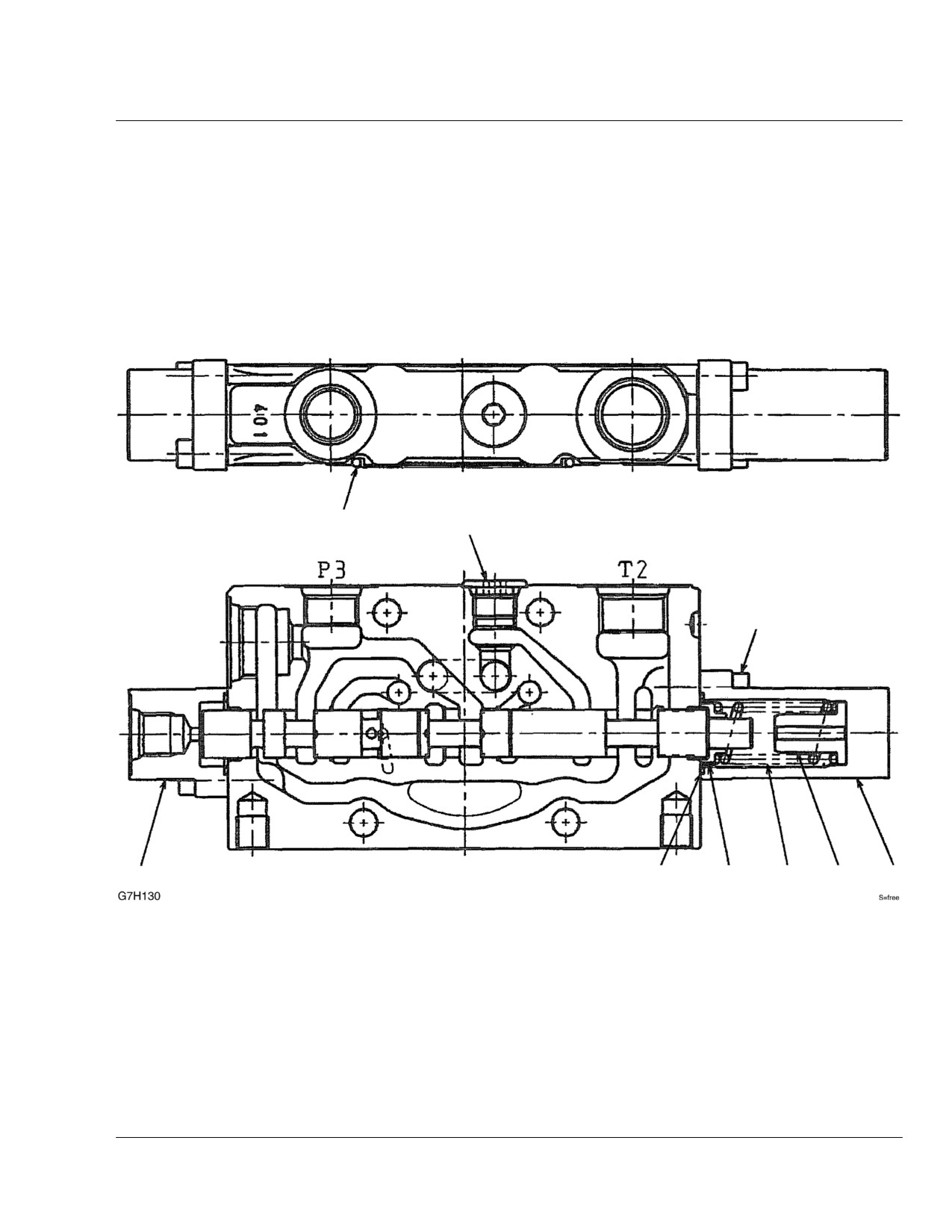

BLOCK ASSY; No. 11
9
8
6
7
5
1
2
3
4
Ref. G7H130
Page
8-13
BLOCK ASSY; No. 11
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045620
BLOCK ASSY, No.11
1
T2, P3
1
1901031752
HOLDER, spring
1
2
1901048657
SPRING
1
3
1901038851
HOLDER, spring
1
4
1901038868
CAP
1
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901035667
CAP
1
8
1901038893
PLUG ASSY
1
9
1901038881
O-RING
1
G7h130
Reference:G7H130
Page:8-13
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

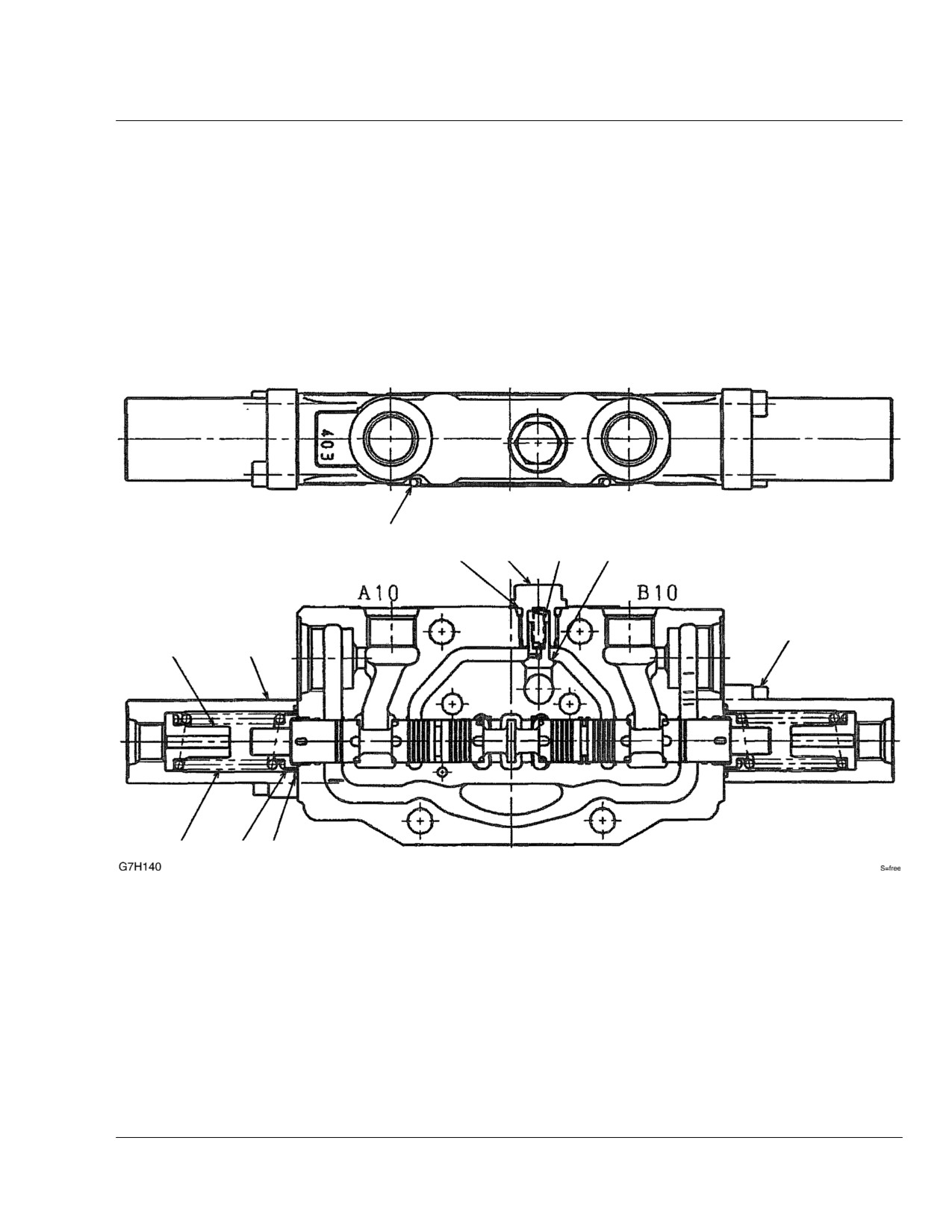

BLOCK ASSY; No. 12 (with 2nd aux. line)
11
10
9
8
7
6
3
4
2
1
5
Ref. G7H140
Page
8-14
BLOCK ASSY; No. 12 (with 2nd aux. line)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901045719
BLOCK ASSY, No.12
1
auxiliary 2
1
1901031752
HOLDER, spring
2
2
1901048656
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
1
10
1420010110
O-RING
1
11
1901038881
O-RING
1
G7h140
Reference:G7H140
Page:8-14
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

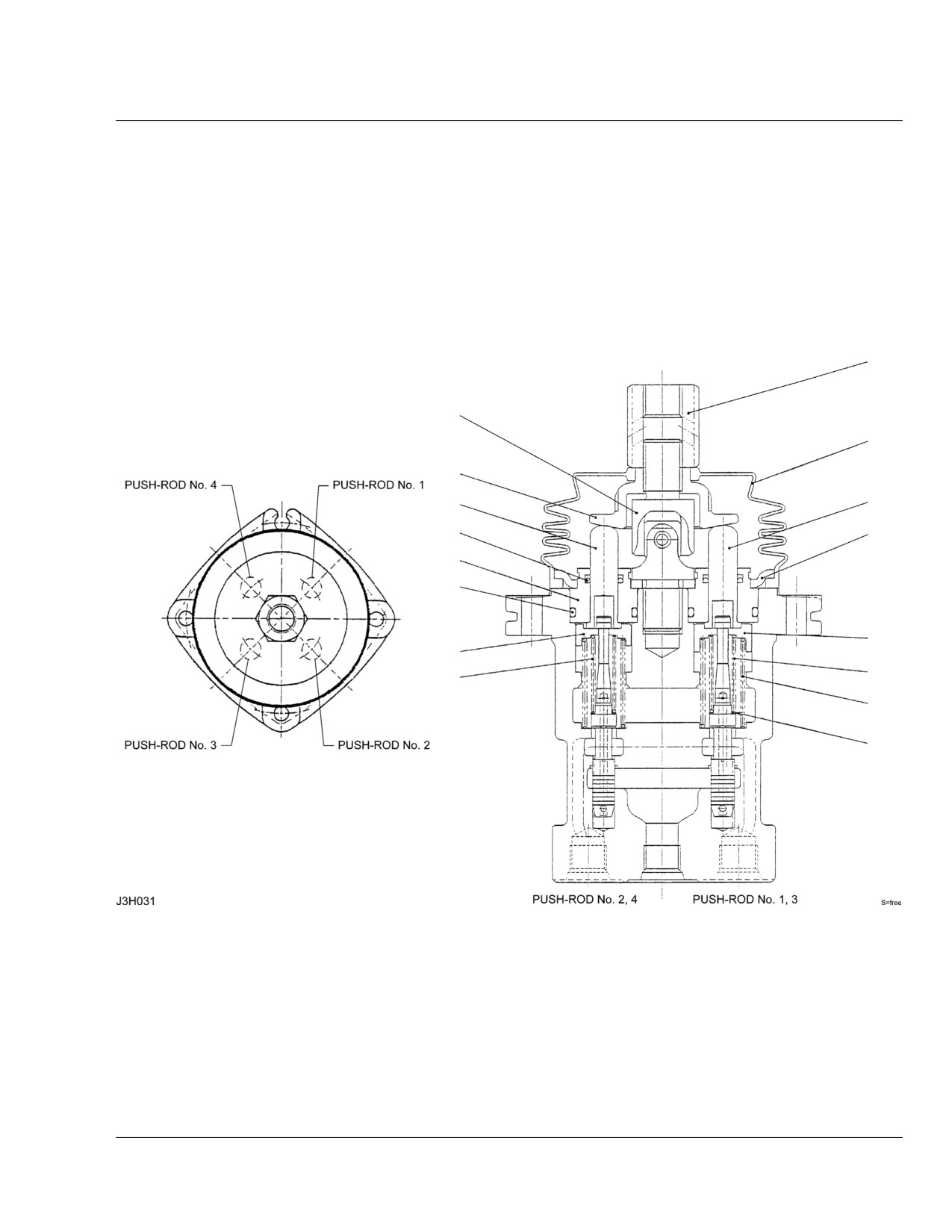

PILOT VALVE
15
13
16
14
4
3
5
1
2
6
7
8
11
12
10
9
Ref. J3H031
Page
8-15
PILOT VALVE
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901751100
VALVE ASSY, pilot
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901703222
NUT
1
16
1901742619
BUSHING
1
J3h030
Reference:J3H031
Page:8-15
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

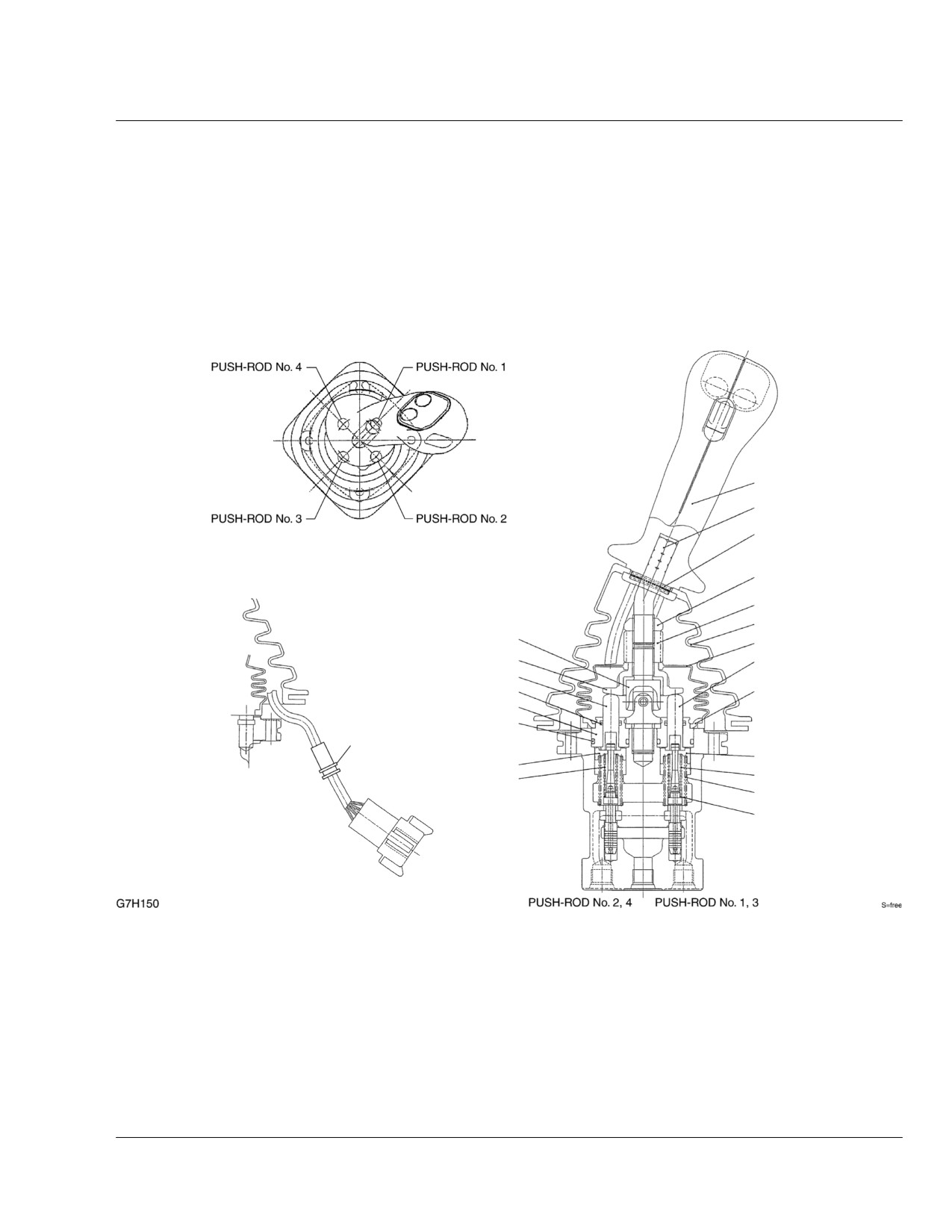

PILOT VALVE (R.H.) (with 3 switch)
18
17
19
16
15
21
13
20
14
3
4
1
5
2
6
22
7
8
11
12
10
9
Ref. G7H150
Page
8-16
PILOT VALVE (R.H.) (with 3 switch)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901751200
VALVE ASSY, pilot (R.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901741210
HANDLE
1
19
1901746521
PIN, spring
1
20
1901742619
BOOT
1
21
1901735632
BOOT
1
22
1700100092
GROMMET
1
G7h150
Reference:G7H150
Page:8-16
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

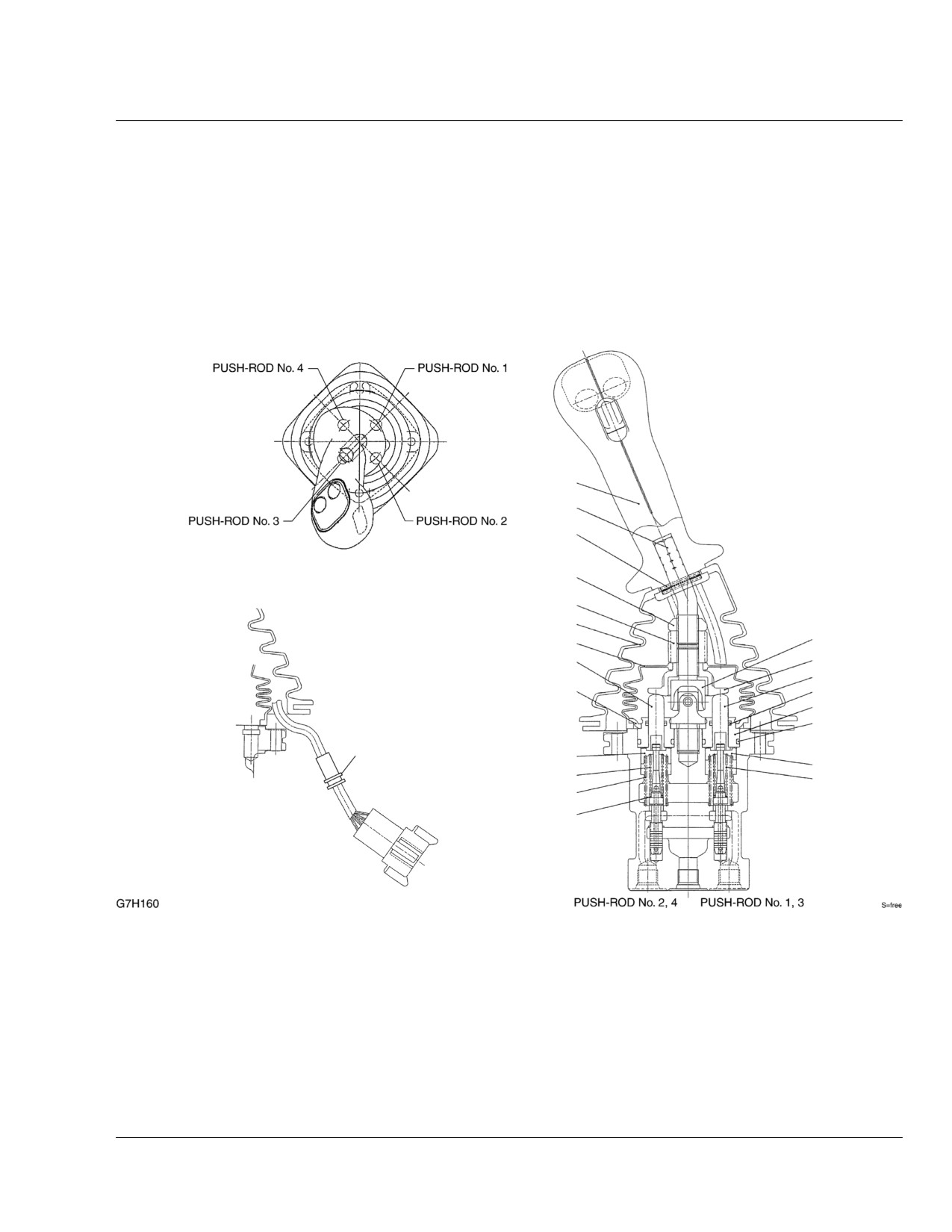

PILOT VALVE (L.H.) (with 3 switch)
18
17
19
16
15
21
13
20
4
14
3
1
5
2
6
22
8
7
12
11
10
9
Ref. G7H160
Page
8-17
PILOT VALVE (L.H.) (with 3 switch)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901751300
VALVE ASSY, pilot (L.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901741210
HANDLE
1
19
1901746521
PIN, spring
1
20
1901742619
BOOT
1
21
1901735632
BOOT
1
22
1700100092
GROMMET
1
G7h160
Reference:G7H160
Page:8-17
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

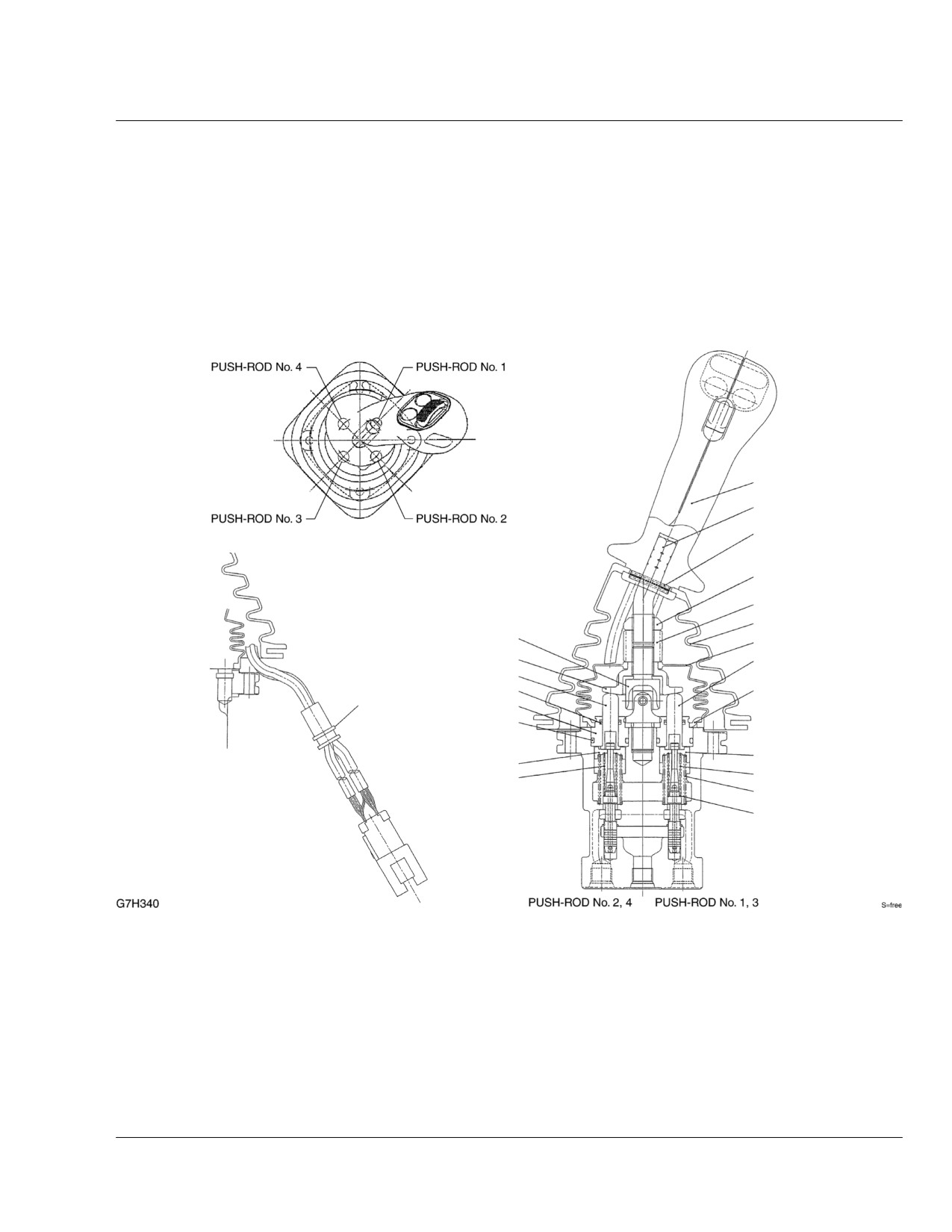

PILOT VALVE (R.H.) (with slide switch)
18
17
19
16
15
21
13
20
14
3
4
5
1
22
2
6
7
8
11
12
10
9
Ref. G7H340
Page
8-18
PILOT VALVE (R.H.) (with slide switch)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901751400
VALVE ASSY, pilot (R.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901751410
HANDLE
1
19
1901746521
PIN, spring
1
20
1901742619
BOOT
1
21
1901735632
BOOT
1
22
1700100092
GROMMET
1
G7h341
Reference:G7H340
Page:8-18
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

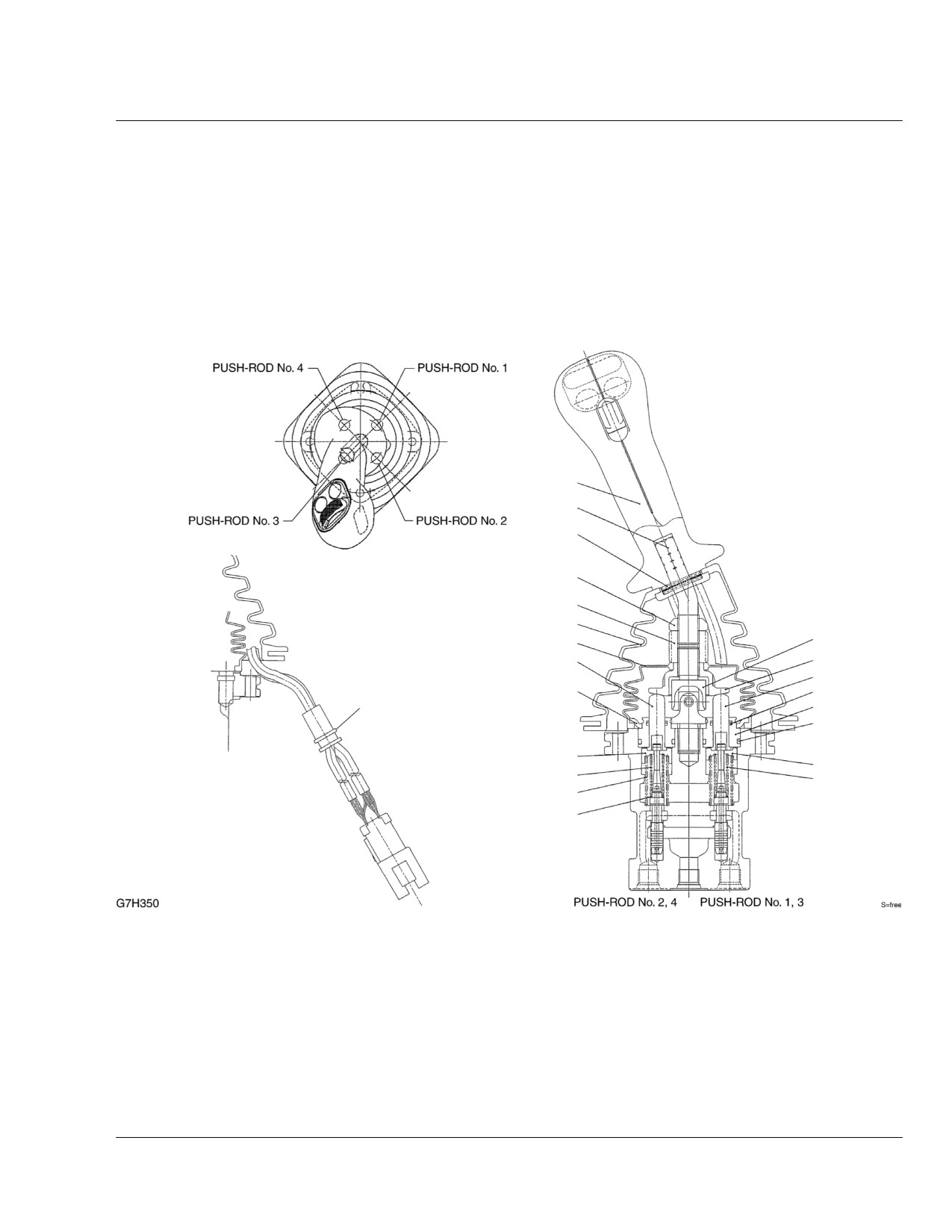

PILOT VALVE (L.H.) (with slide switch)
18
17
19
16
15
21
13
20
4
14
3
1
5
22
2
6
8
7
12
11
10
9
Ref. G7H350
Page
8-19
PILOT VALVE (L.H.) (with slide switch)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901751500
VALVE ASSY, pilot (L.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901751410
HANDLE
1
19
1901746521
PIN, spring
1
20
1901742619
BOOT
1
21
1901735632
BOOT
1
22
1700100092
GROMMET
1
G7h350
Reference:G7H350
Page:8-19
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

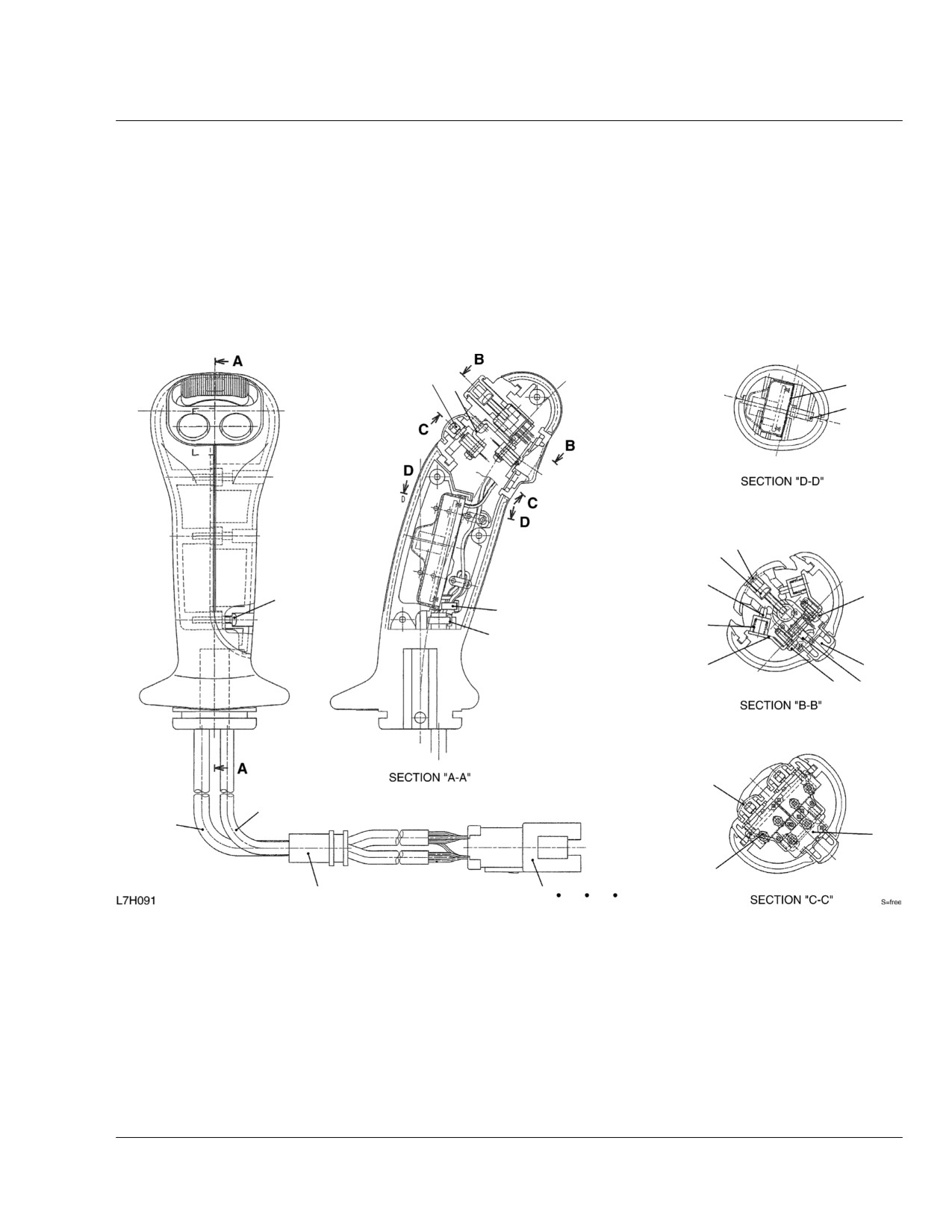

HANDLE (with slide switch)
25
4
14
15
8
9
6
11
1
23
7
23
2
3
12
20
5
21
22
13
10
24
16
17
18
19
Ref. L7H091
Page
8-20
HANDLE (with slide switch)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901751410
HANDLE ASSY
1
1
1122400316
SCREW
4
2
1901740401
PLATE
1
3
1901740402
BUTTON
1
4
1901751405
BRACKET
1
5
1901741216
BUTTON
2
6
1901740405
PISTON
2
7
1901740406
SPRING
2
8
1901740407
CAP
1
9
1150010312
SCREW
1
10
1901751472
SCREW
6
11
1122400306
SCREW
3
12
1122400308
SCREW
1
13
1901740408
SWITCH
3
14
1901751452
COVER
1
15
1901740412
CAP
2
16
1901751483
RECEPTACLE
1
17
1901751484
WEDGE
1
18
1901740413
PIN
11
19
1901741263
CAP
1
20
1901751489
TERMINAL
1
21
1901751490
PROTECTOR
1
22
1901751491
PROTECTOR
1
23
1901751492
BAND
4
24
1901751495
GROMMET
1
25
1901741312
RETAINER
2
M
L7h091
Reference:L7H091
Page:8-20
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

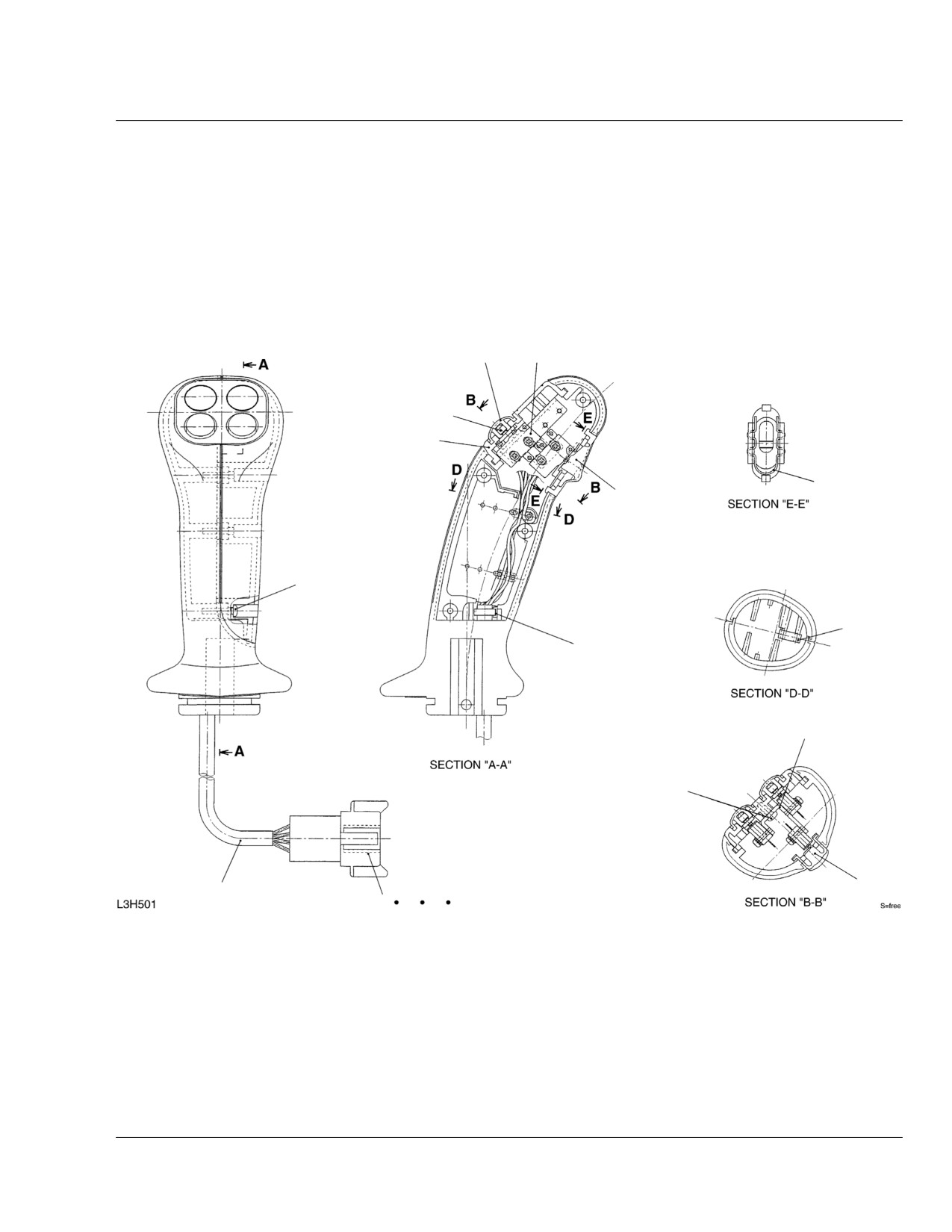

HANDLE (with 3 switch)
3
8
16
2
6
4
1
9
15
5
7
4
14
10
11
12
13
Ref. L3H501
Page
8-21
HANDLE (with 3 switch)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901741210
HANDLE ASSY
1
1
1122400312
SCREW
4
2
1901741211
CASE
1
3
1901741216
BUTTON
2
4
1901740402
BUTTON
1
5
1901741218
BRACKET
1
6
1901740404
CLIP
1
7
1122400306
SCREW
2
8
1901740408
SWITCH
3
9
1901740412
CAP
2
10
1901740446
RECEPTACLE
1
11
1901740447
WEDGE
1
12
1901740413
PIN
5
13
1901741263
PIN, BLANKING
3
14
1901740414
PROTECTOR
1
15
1901740415
BAND
1
16
1901741312
RETAINER
2
M
L3h501
Reference:L3H501
Page:8-21
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

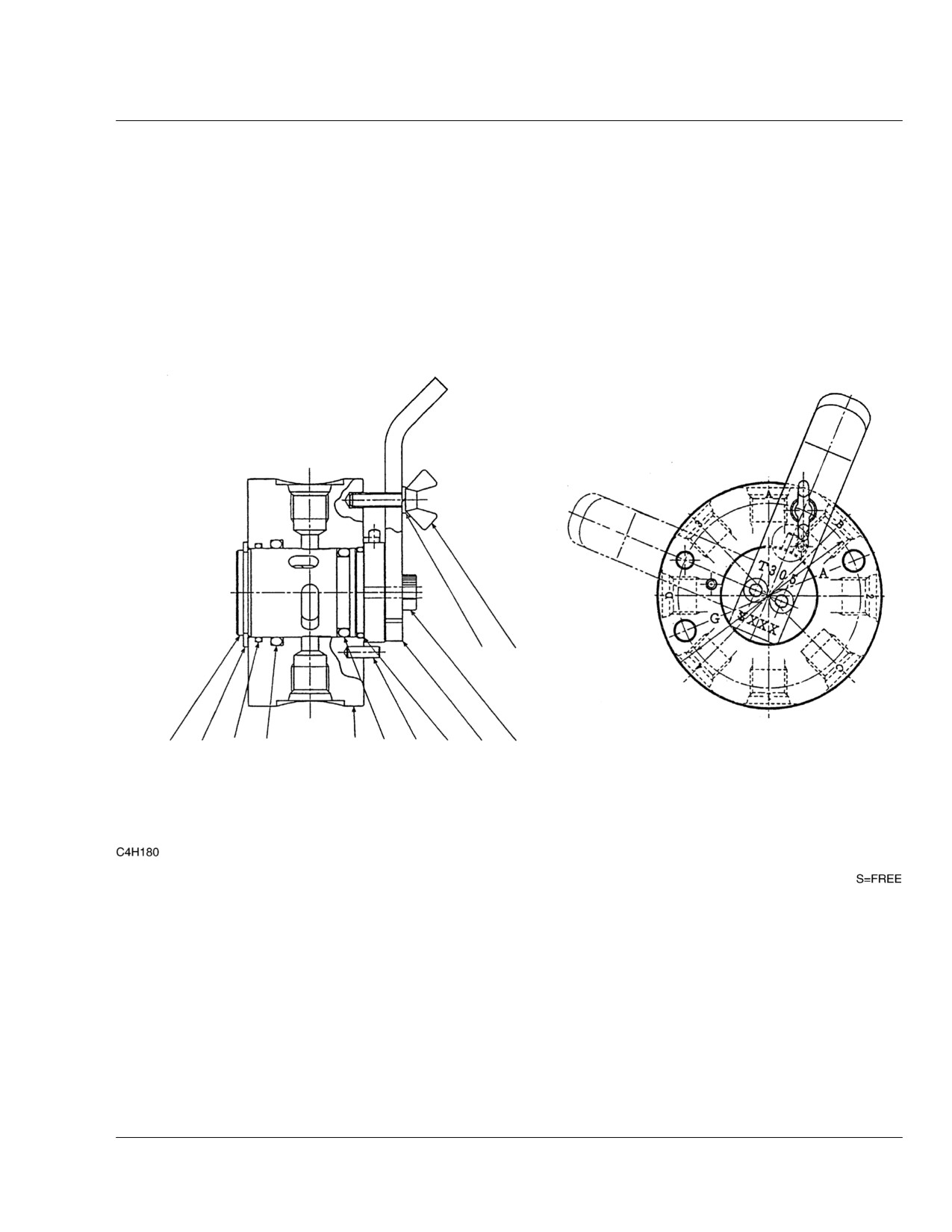

SELECTOR VALVE (ISO-JCB pattern)
12
4
2
10
5
6
1
7
9
8
3
11
Ref. C4H180
Page
8-22
SELECTOR VALVE (ISO-JCB pattern)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901730500
VALVE ASSY, selector
1
1
1901730501
BODY
1
2
1901730502
ROTOR
1
3
1901730503
LEVER
1
4
1901730504
BOLT
1
5
1901730505
O-RING
1
6
1901730506
O-RING
1
7
1901730507
O-RING
1
8
1901730508
O-RING
1
9
1213000412
PIN, spring
3
10
1220000030
RING, snap
1
11
1110050514
SCREW, cap
2
12
1140010005
WASHER, spring
1
C4h180
Reference:C4H180
Page:8-22
