3RD AUXILIARY LINE (1/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0377313900
LINE ASSY, 3rd aux.
1
123500001~123500972
0377315200
LINE ASSY, 3rd aux. (middle arm)
1
123500001~123500972
0377314000
LINE ASSY, 3rd aux. (long arm)
1
123500001~123500972
0377316700
LINE ASSY, 3rd aux.
1
123500973~
M
0377316800
LINE ASSY, 3rd aux. (middle arm)
1
123500973~
M
0377316900
LINE ASSY, 3rd aux. (long arm)
1
123500973~
M
1
0377313910
PIPE (R.H.)
1
123500001~123500972
0377316710
PIPE (R.H.)
1
123500973~
M
2
0377313920
PIPE (L.H.)
1
123500001~123500972
0377316720
PIPE (L.H.)
1
123500973~
M
3
0377312730
VALVE ASSY, solenoid
1
3-1
1512370011
TEE
1
1420010110
O-RING
1
3-2
1515012040
ELBOW
2
1420010110
O-RING
1
3-3
0007203034
ADAPTOR
1
1420010110
O-RING
1
3-4
1700100065
SWITCH, pressure
1
1420010110
O-RING
1
3-5
1901750700
VALVE, solenoid
1
3-5-1
1901741402
SOLENOID
1
3-5-2
1901750703
COIL
1
3-6
1513370046
BUSHING (with filter)
1
1420010110
O-RING
1
3-7
1420010110
O-RING
1
5
0377313950
RUBBER
1
6
0377312760
ADAPTOR
2
8
1100040816
BOLT
4
9
1100040835
BOLT
8
11
1140020008
WASHER, spring
15
12
1501750002
PLUG
2
1420010110
O-RING
1
13
1534000015
CLAMP
8
14
1801032066
HOSE ASSY
2
15
1515100110
ELBOW
2
1420010110
O-RING
1
16
1801032092
HOSE ASSY
2
for long arm
17
1141110008
WASHER
6
18
1515600200
ADAPTOR
1
1420010110
O-RING
1
19
0377312770
HOSE ASSY
1
18010-52034
20
0377312780
HOSE ASSY
1
21
0377312790
HOSE ASSY
1
18019-00220
23
0377312910
HOSE ASSY
1
18019-00220
29
1100040880
BOLT
3
39
1801032081
HOSE ASSY
2
middle arm
G7f162
Reference:G7F161
Page:6-17
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

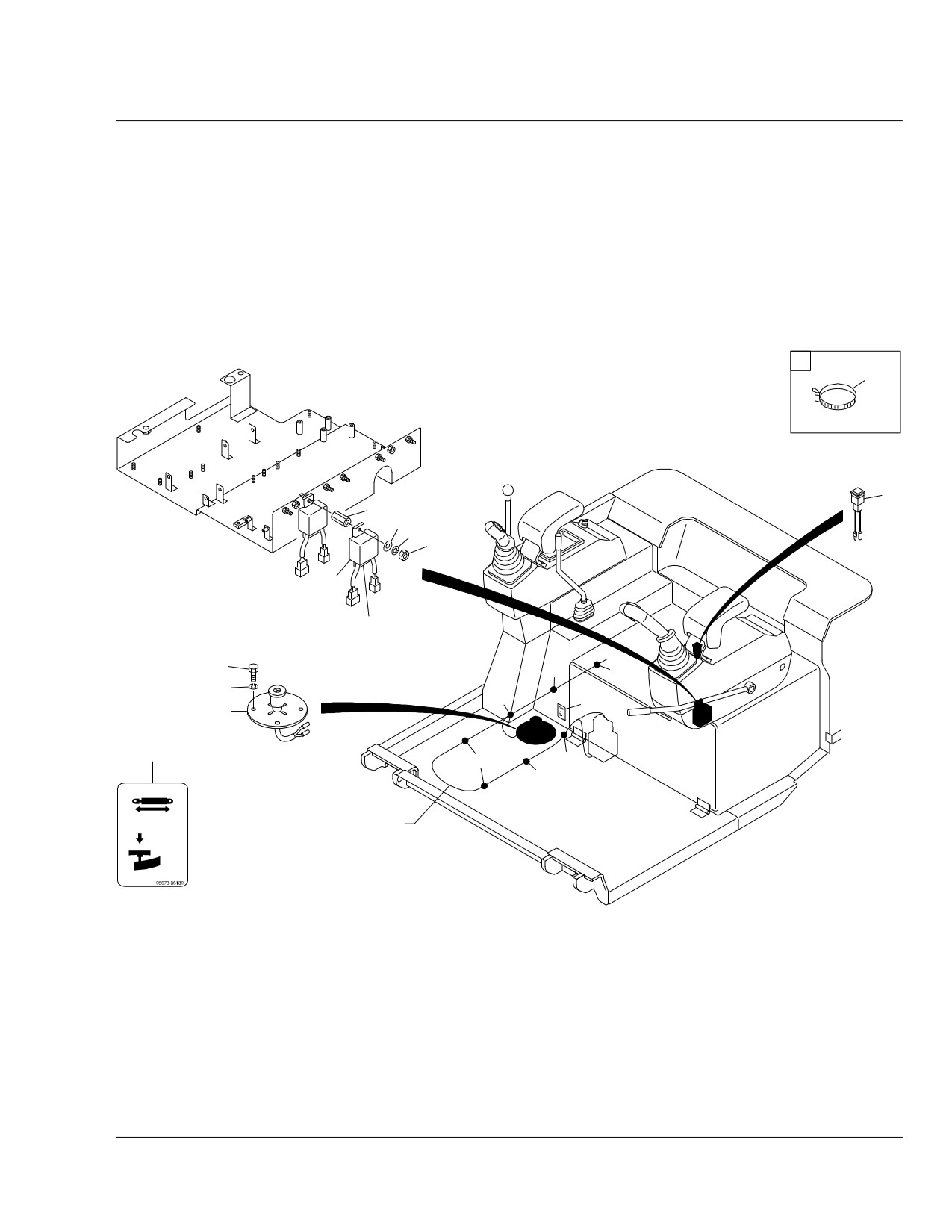

3RD AUXILIARY LINE (2/2)
a
34
32
30
36
37
35
33
Relay for 3rd Auxiliary Port
7
a
a
11
a
22
31
22
a
a
a
See "2ND AUXILIARY LINE"
G7F172
S=1/8, 1/12
Ref. G7F172
Page
6-18
3RD AUXILIARY LINE (2/2)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
0377313900
LINE ASSY, 3rd aux.
1
123500001~123500972
0377315200
LINE ASSY, 3rd aux. (middle arm)
1
123500001~123500972
0377314000
LINE ASSY, 3rd aux. (long arm)
1
123500001~123500972
0377316700
LINE ASSY, 3rd aux.
1
123500973~
M
0377316800
LINE ASSY, 3rd aux. (middle arm)
1
123500973~
M
0377316900
LINE ASSY, 3rd aux. (long arm)
1
123500973~
M
7
1100040820
BOLT
4
11
1140020008
WASHER, spring
4
22
0567336130
DECAL
1
30
1134830625
NUT
1
31
1700100064
SWITCH, foot
1
32
1700550032
LAMP, pilot
1
33
1711900062
RELAY
1
34
1652231250
BAND
9
35
1130040006
NUT
1
36
1141110006
WASHER
1
37
1140020006
WASHER, spring
1
G7f172
Reference:G7F172
Page:6-18
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

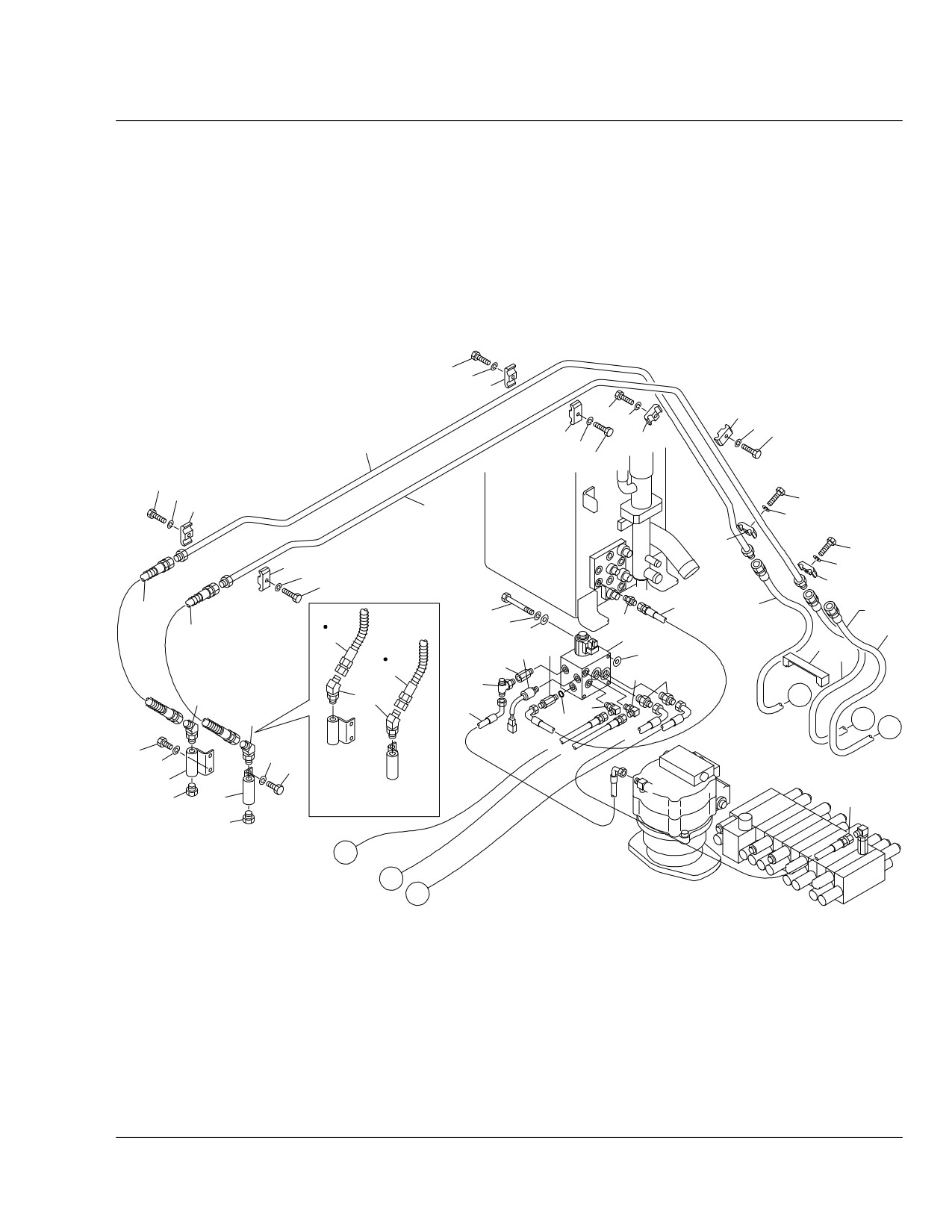

3RD AUXILIARY LINE (1/2) (high pressure type)
9 11
13
9 11
1311
9
13
13
1
11
9
9 11
13
9
2
11
13
9
11
1311
9
13
T10
20
23
AUX2 L
26
40
1011
18
25
14
27
17
4-7
39
4-4
5
4-6
17
21
4-8
16
4-3 4-5
4-2
2A
15
15
P
X
28
4-1
15
T
4-9
Y
Z
2P
8
3B 3A
11
11
8
PG
6
MIDDLE ARM
12
6
24
LONG ARM
A10
12
X
Y
Z
G7F181
S=1/10
Ref. G7F181
Page
6-19
3RD AUXILIARY LINE (1/2) (high pressure type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0377314100
LINE ASSY, 3rd aux.
1
123500001~123500972
0377315300
LINE ASSY, 3rd aux. (middle arm)
1
123500001~123500972
0377314200
LINE ASSY, 3rd aux. (long arm)
1
123500001~123500972
0377317000
LINE ASSY, 3rd aux.
1
123500973~
M
0377317100
LINE ASSY, 3rd aux. (middle arm)
1
123500973~
M
0377317200
LINE ASSY, 3rd aux. (long arm)
1
123500973~
M
1
0377313910
PIPE (R.H.)
1
123500001~123500972
0377316710
PIPE (R.H.)
1
123500973~
M
2
0377313920
PIPE (L.H.)
1
123500001~123500972
0377316720
PIPE (L.H.)
1
123500973~
M
4
0377312940
VALVE ASSY, solenoid
1
4-1
0575003630
ELBOW (with orifice)
1
4-2
1512370010
TEE
1
1420010110
O-RING
1
4-3
1515012040
ELBOW
1
1420010110
O-RING
1
4-4
0007203034
ADAPTOR
1
1420010110
O-RING
1
4-5
1515600577
ADAPTOR
2
1420010180
O-RING
1
4-6
1700100065
SWITCH, pressure
1
1420010110
O-RING
1
4-7
1901751600
VALVE, solenoid
1
4-8
1513370046
BUSHING (with filter)
1
1420010110
O-RING
1
4-9
1420010110
O-RING
1
5
0377313950
RUBBER
1
6
0377312760
ADAPTOR
2
8
1100040816
BOLT
4
9
1100040835
BOLT
8
10
1100040890
BOLT
3
11
1140020008
WASHER, spring
15
12
1501750002
PLUG
2
1420010110
O-RING
1
13
1534000015
CLAMP
8
14
1801032066
HOSE ASSY
1
15
1515100110
ELBOW
2
1420010110
O-RING
1
16
1801032092
HOSE ASSY
1
for long arm
17
1141110008
WASHER
6
18
1515600200
ADAPTOR
1
1420010110
O-RING
1
20
0377312780
HOSE ASSY
1
21
0377312790
HOSE ASSY
1
18019-00220
23
0377312910
HOSE ASSY
1
18019-00220
24
0377312920
HOSE ASSY
1
18015-21125
25
0377312930
HOSE ASSY
1
18019-21230
26
1801600066
HOSE ASSY
1
27
1801600092
HOSE ASSY
1
for long arm
28
0377312950
HOSE ASSY
1
39
1801032081
HOSE ASSY
1
middle arm
40
1801600081
HOSE ASSY
1
middle arm
G7f182
Reference:G7F181
Page:6-19
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

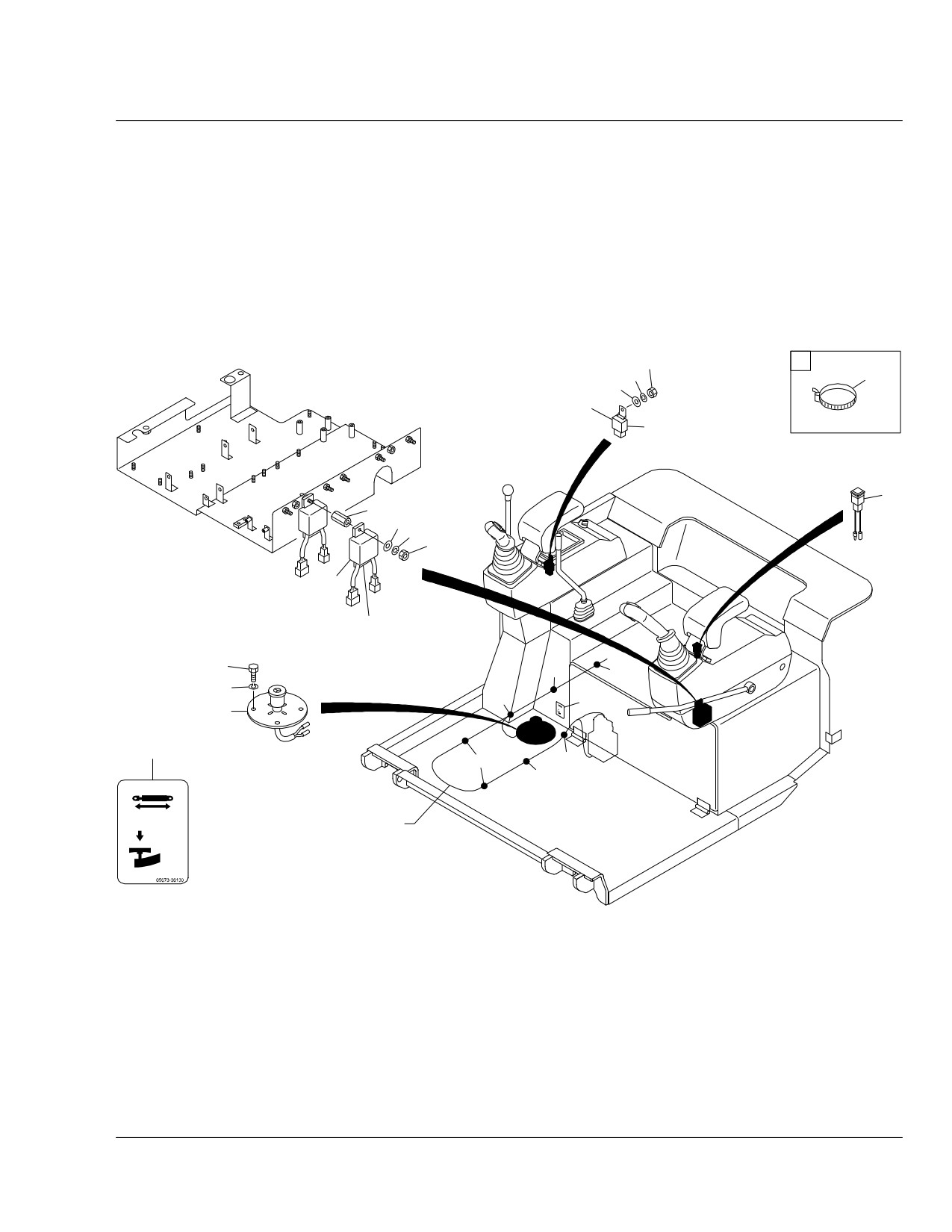

3RD AUXILIARY LINE (2/2) (high pressure type)
a
34
363735
Relay for 3rd Auxiliary Port (High Pressure)
38
32
30
36
37
35
33
Relay for 3rd Auxiliary Port
7
a
a
11
a
22
31
22
a
a
a
See "2ND AUXILIARY LINE"
G7F192
S=1/8, 1/12
Ref. G7F192
Page
6-20
3RD AUXILIARY LINE (2/2) (high pressure type)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
0377314100
LINE ASSY, 3rd aux.
1
123500001~123500972
0377315300
LINE ASSY, 3rd aux. (middle arm)
1
123500001~123500972
0377314200
LINE ASSY, 3rd aux. (long arm)
1
123500001~123500972
0377317000
LINE ASSY, 3rd aux.
1
123500973~
M
0377317100
LINE ASSY, 3rd aux. (middle arm)
1
123500973~
M
0377317200
LINE ASSY, 3rd aux. (long arm)
1
123500973~
M
7
1100040820
BOLT
4
11
1140020008
WASHER, spring
4
22
0567336130
DECAL
1
30
1134830625
NUT
1
31
1700100064
SWITCH, foot
1
32
1700550032
LAMP, pilot
1
33
1711900062
RELAY
1
34
1652231250
BAND
9
35
1130040006
NUT
2
36
1141110006
WASHER
2
37
1140020006
WASHER, spring
2
38
1711900042
RELAY
1
G7f192
Reference:G7F192
Page:6-20
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

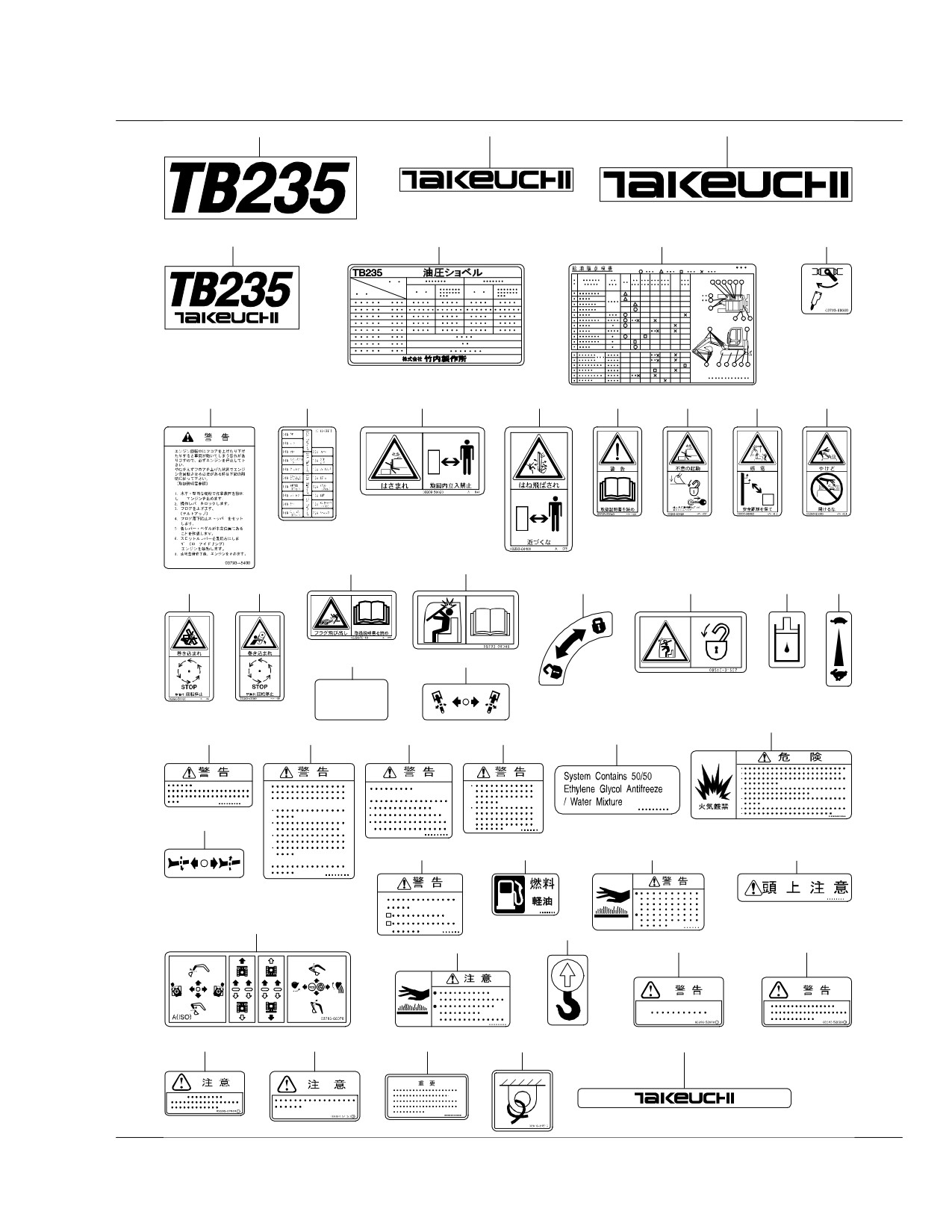

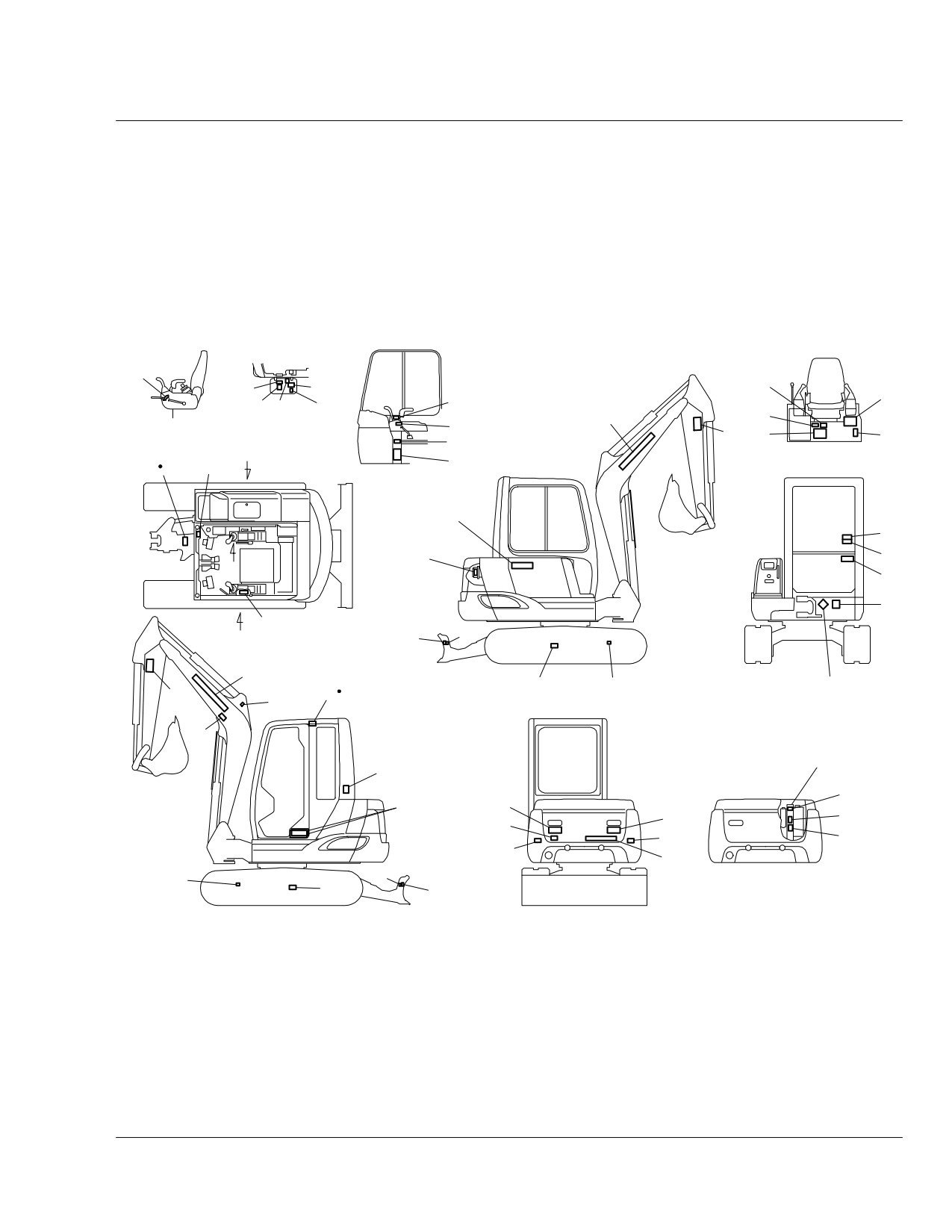

DECAL (for Japanese)
37
30
3
26
48
12
A
9
54
VIEW "A"
46
52 23
14
28
1
41
13
15
21
5
49
38
36
24
34
4
31
6
32
55
CAB
53
8
27
30
45
40
43
19
53
10
3
33
50 29
9
48
52 23
38
12
45
VIEW "B"
VIEW "A"
B
47
22 23
26
37
VIEW "C"
C
27
1 42
RADIATOR
35
51
11
11
16
39
20
A
17
20
2
18
53
53
19
45
G7G011
31
S=FREE
Ref. G7G011
Page
7-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
for Japan
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
19
21
17
18
27
28
29
30
20
26
36
31
32
33
34
35
37
39
40
41
42
38
45
43
47
48
49
50
51
53
54
G7G021
S=free
Ref. G7G011
Page
7-1

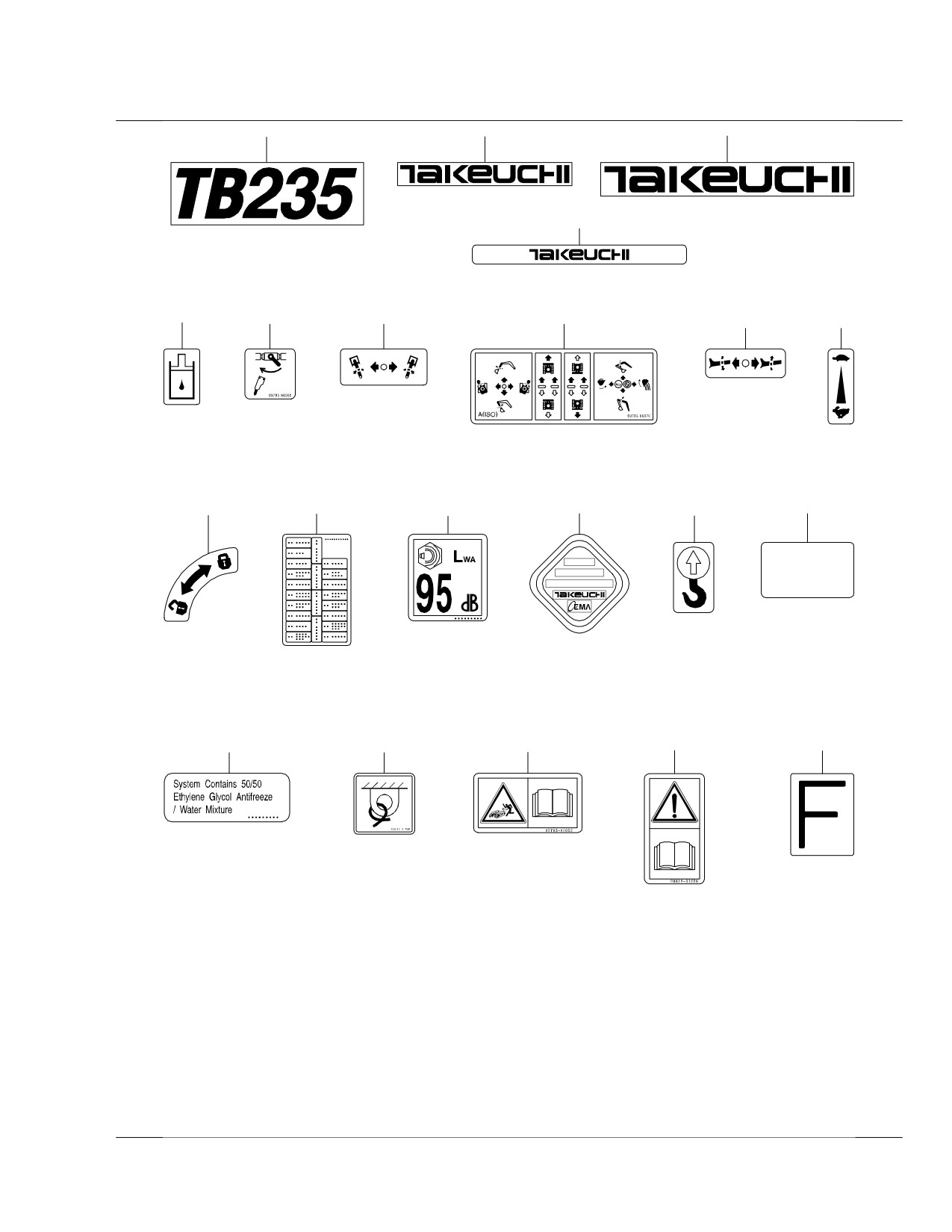

DECAL (for Japan)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0379367300
DECAL SET (canopy)
1
0379366600
DECAL SET (cab)
1
1
0379366030
DECAL
2
2
0008500038
DECAL
1
3
0008500060
DECAL
2
4
0379366040
DECAL
2
cab
5
0379366630
DECAL
1
6
0379366620
DECAL
1
8
0379366060
DECAL
1
9
0379345400
DECAL
1
10
0379366610
DECAL
1
11
0339350020
DECAL
2
12
0329360400
DECAL
2
13
0339350040
DECAL
1
14
0339350050
DECAL
1
15
0339350060
DECAL
1
16
0339350070
DECAL
1
17
0339350080
DECAL
1
18
0339350090
DECAL
1
19
0339350110
DECAL
2
20
0379358560
DECAL
2
21
0579300045
DECAL
2
cab
22
X
**********
DECAL
1
23
X
**********
SCREW
8
24
X
**********
DECAL
1
26
0329360060
DECAL
1
27
0329360100
DECAL
1
28
0881031557
DECAL
1
cab
29
0359306700
DECAL
1
30
0359317200
DECAL
1
31
0359325020
DECAL
1
32
0359325030
DECAL
1
33
0359325080
DECAL
1
34
0359325090
DECAL
1
35
0359313900
DECAL
1
36
0359325140
DECAL
1
37
0359325190
DECAL
1
38
0379366070
DECAL
1
39
0871082120
DECAL
1
40
0871082240
DECAL
1
41
0871082280
DECAL
1
42
0871082300
DECAL
1
43
0871082220
DECAL
1
45
0399300500
DECAL
3
46
0189311800
DECAL
1
cab
47
0339352010
DECAL
1
48
0339352020
DECAL
1
49
0339352040
DECAL
1
50
0339352050
DECAL
1
51
0339377640
DECAL
1
52
X
**********
DECAL
1
cab
X
**********
DECAL
1
canopy
53
0881031549
DECAL
4
54
0379366704
DECAL
1
M
canopy
55
X
**********
DECAL
1
M

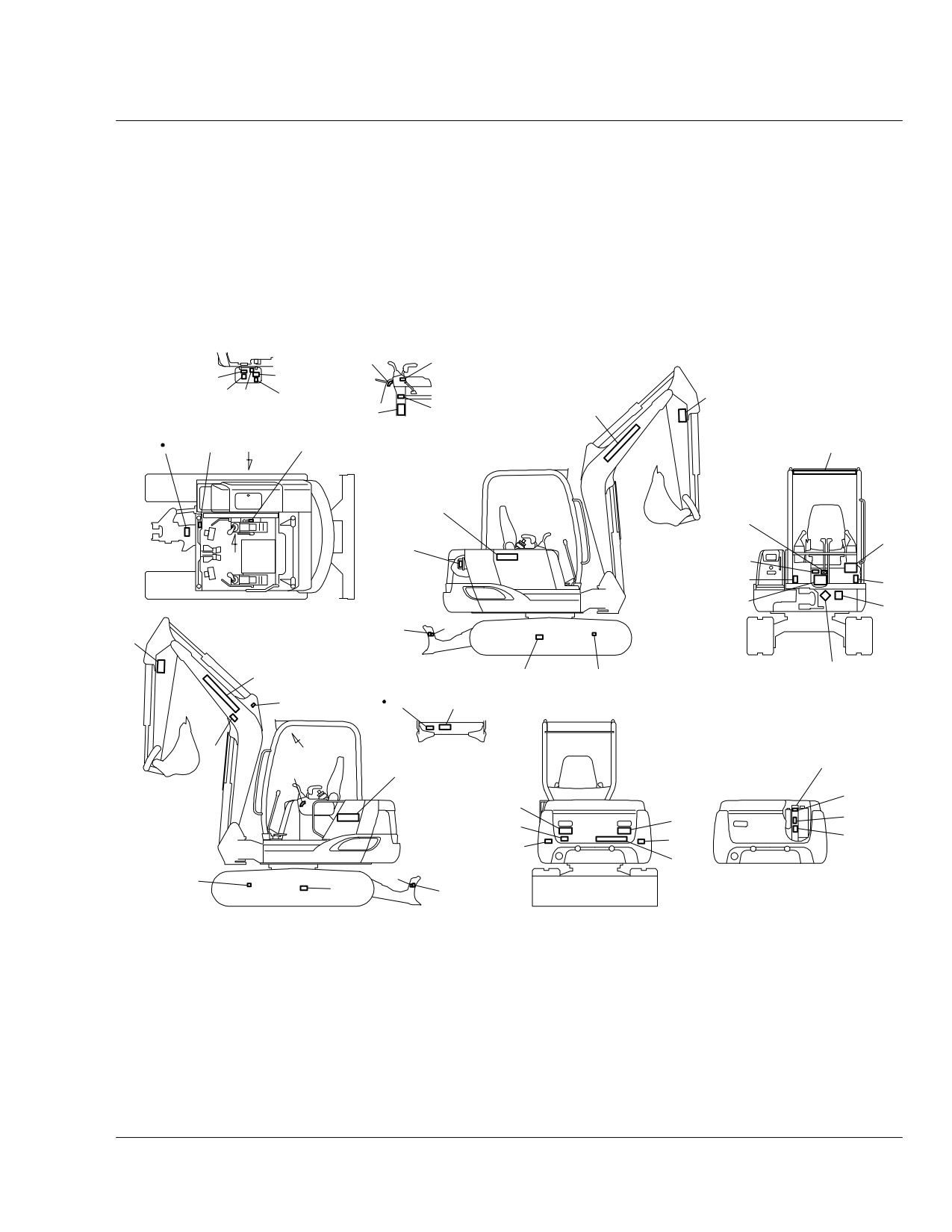

G7g011
Reference:G7G011
Page:7-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

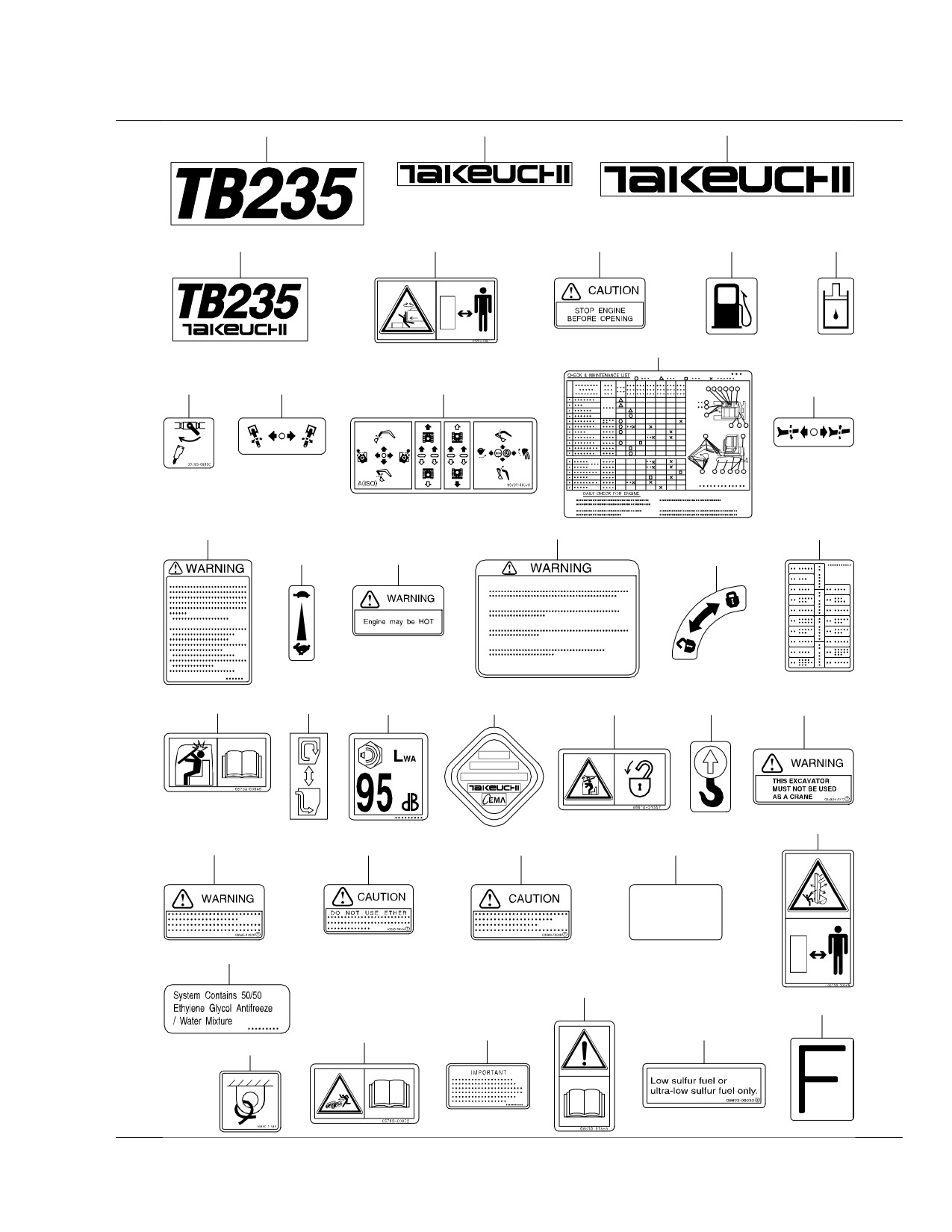

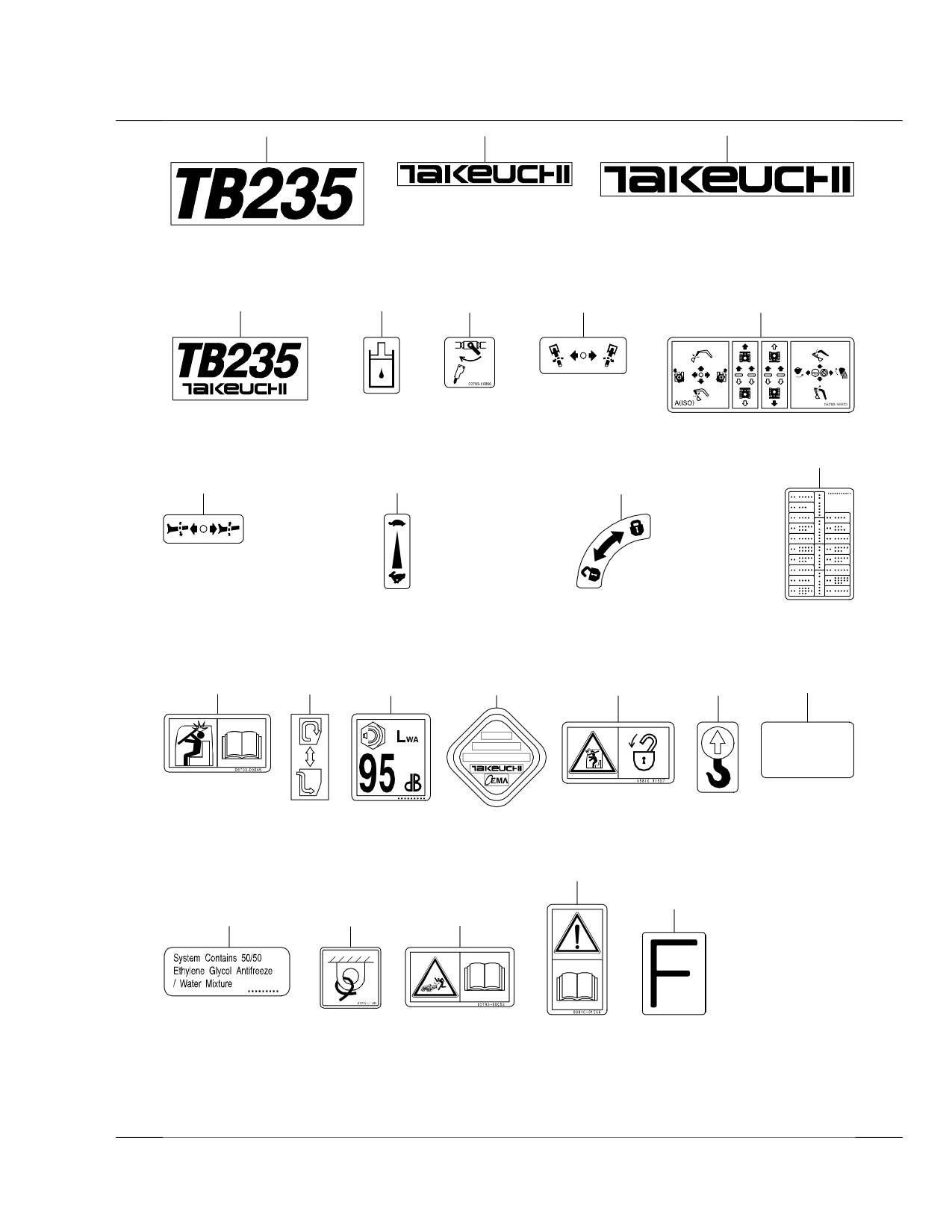

DECAL (canopy)
23
20
42
34
7
9
8
36
19
32
3
VIEW "B"
VIEW "A"
16 18
10
B
14
4
1
24
22
33
A
15
43
41
12
27
38
30
36
3
28
39
38
30
17 18
11
31
C
VIEW "C"
RADIATOR
23
1
37
5
5
40
6
35
21
35
2
38
38
39
30

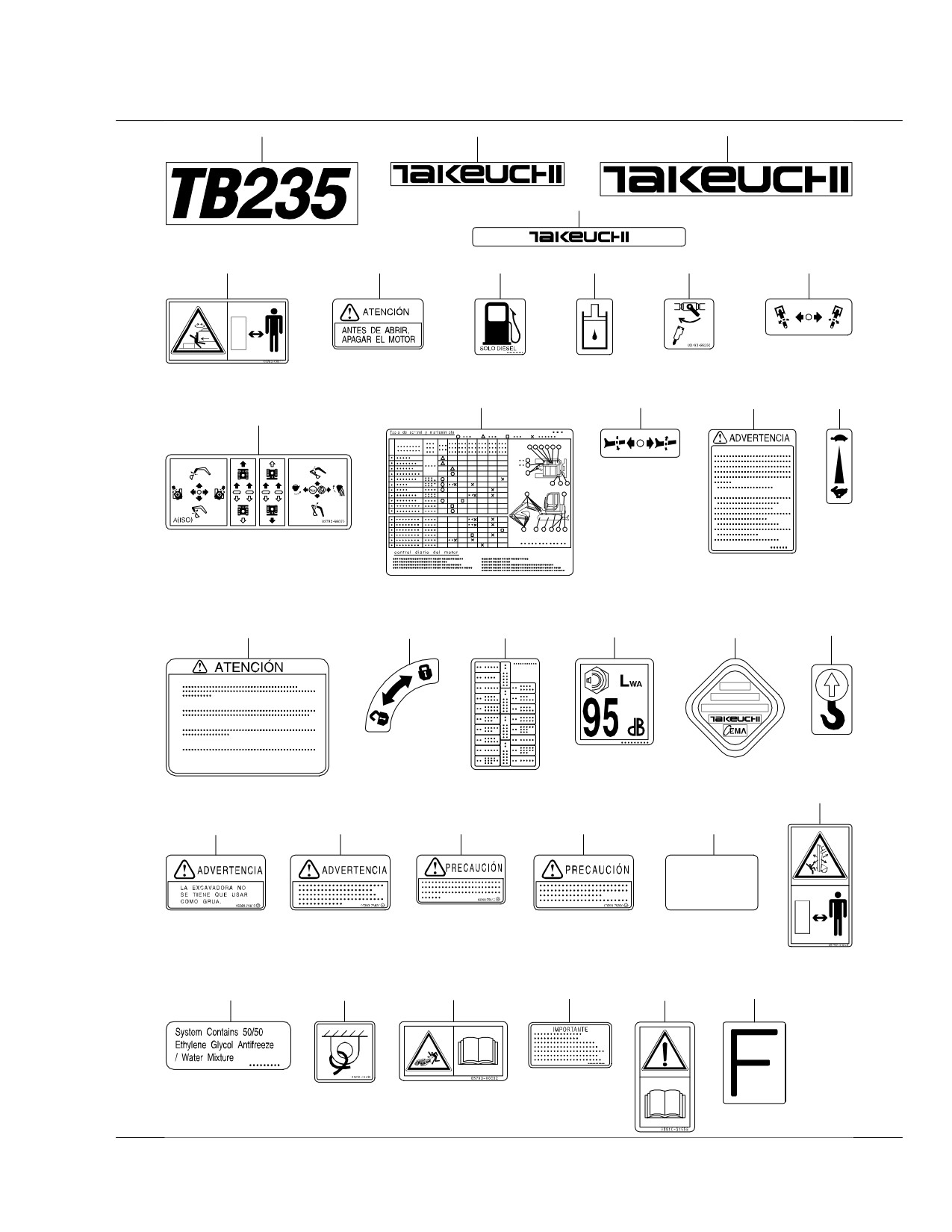

G7G031
S=FREE
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
English
1
2
3
4
5
6
7
8
9
10
12
14
19
20
11
21
23
24
27
28
30
22
36
31
32
33
34
35
(except for UK TAKEUCHI)
37
39
40
41
42
43
38
(for US TAKEUCHI, CANADA)
G7G041
S=free
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
German
1
2
3
4
5
6
7
8
9
10
12
14
19
20
11
22
23
24
27
28
30
36
31
32
33
34
35
37
38
39
40
41
43
G7G051
S=free
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

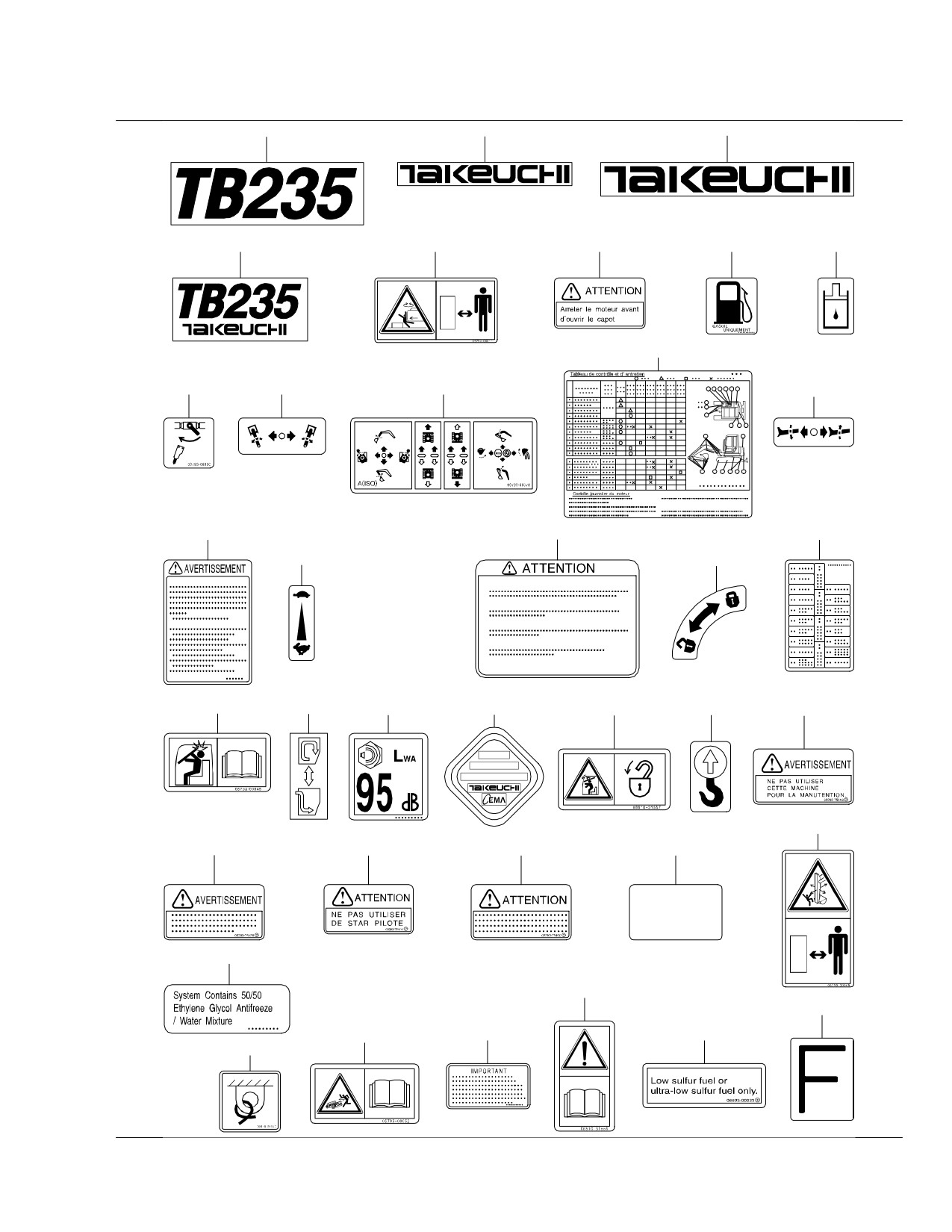

French
1
2
3
4
5
6
7
8
9
10
12
14
19
20
11
22
23
24
27
28
30
36
31
32
33
34
35
37
39
40
41
42
43
38
(for CANADA)
G7G061
S=free
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Italian
1
2
3
4
5
6
7
8
9
10
12
14
19
20
11
22
23
24
27
28
30
36
31
32
33
34
35
37
38
39
40
41
43

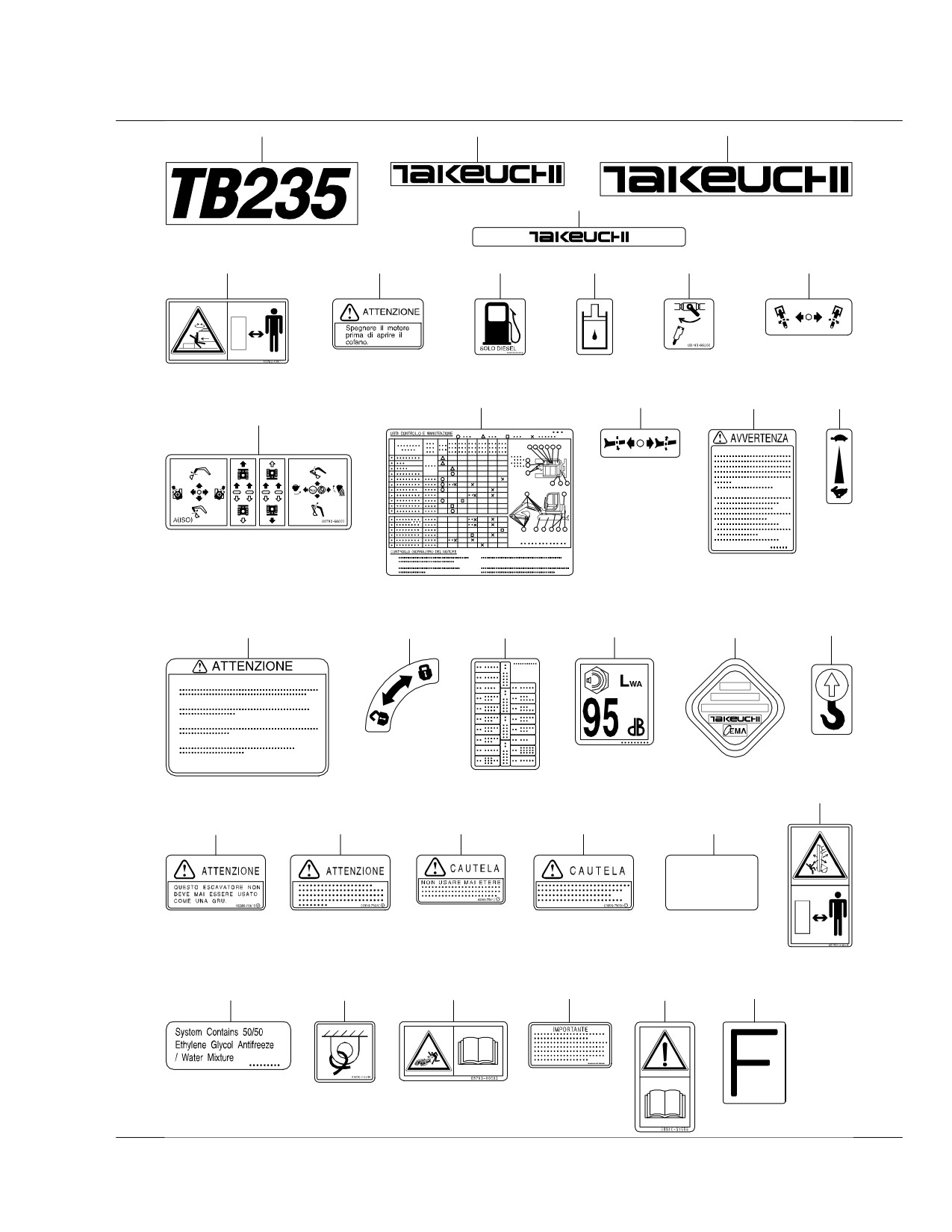

G7G071
S=free
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Spanish
1
2
3
4
5
6
7
8
9
10
12
14
19
20
11
22
23
24
27
28
30
36
31
32
33
34
35
37
38
39
40
41
43
G7G081
S=free
Ref. G7G031
Page
7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Dutch
1
2
3
4
8
9
10
11
14
20
23
24
27
28
30
35
37
38
39
41
43
G7G091
S=free
Ref. G7G031
Page
7-2
DECAL (canopy)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0379366700
DECAL SET (English)
1
0379366800
DECAL SET (German)
1
0379366900
DECAL SET (French)
1
0379367000
DECAL SET (Italian)
1
0379367100
DECAL SET (Spanish)
1
0379367200
DECAL SET (Dutch)
1
0379367600
DECAL SET (U.S. TAKEUCHI)
1
0379367700
DECAL SET (U.K. TAKEUCHI)
1
0379368700
DECAL SET (CANADA; English)
1
0379368800
DECAL SET (CANADA; French)
1
1
0379366030
DECAL
2
2
0008500038
DECAL
1
3
0008500060
DECAL
2
4
0379366704
DECAL
1
M
5
0579300011
DECAL
2
6
0359307400
DECAL (English)
1
0359314400
DECAL (German)
1
0359315400
DECAL (French)
1
0359316400
DECAL (Italian)
1
0339364200
DECAL (Spanish)
1
7
0359306600
DECAL (English)
1
0339375260
DECAL (German)
1
0339375460
DECAL (French)
1
0339375660
DECAL (Italian, Spanish)
1
8
0359306700
DECAL
1
9
0379366060
DECAL
1
10
0329360060
DECAL
1
11
0379366070
DECAL
1
12
0379366020
DECAL (English)
1
0379366120
DECAL (German)
1
0379366220
DECAL (French)
1
0379366320
DECAL (Italian)
1
0379366420
DECAL (Spanish)
1
14
0359325190
DECAL
1
15
X
**********
DECAL
1
16
X
**********
DECAL
1
17
X
**********
DECAL
1
18
X
**********
SCREW
8
19
0379337300
DECAL (English)
1
0379338300
DECAL (German)
1
0379339300
DECAL (French)
1
0379340300
DECAL (Italian)
1
0379354200
DECAL (Spanish)
1
20
0359317200
DECAL
1
21
0569321980
DECAL (English)
1
22
0359313700
DECAL (English)
1
0359314700
DECAL (German)
1
0359315700
DECAL (French)
1
0359316700
DECAL (Italian)
1
0359365323
DECAL (Spanish)
1
23
0329360100
DECAL
2
24
0379366010
DECAL (English, Dutch)
1
0379366110
DECAL (German)
1
0379366210
DECAL (French)
1
0379366310
DECAL (Italian)
1
0379366410
DECAL (Spanish)
1
27
X
**********
DECAL
1
except for U.S. TAKEUCHI
28
X
**********
DECAL
1
30
0399300500
DECAL
3
31
0359347010
DECAL (English)
1
except for U.K. TAKEUCHI
Reference:G7G031
Page:7-2
DECAL (canopy)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
31
0339375210
DECAL (German)
1
0339375410
DECAL (French)
1
0339375610
DECAL (Italian)
1
0339375810
DECAL (Spanish)
1
32
0359347020
DECAL (English)
1
0339375220
DECAL (German)
1
0339375420
DECAL (French)
1
0339375620
DECAL (Italian)
1
0339375820
DECAL (Spanish)
1
33
0339375040
DECAL (English)
1
0339375240
DECAL (German)
1
0339375440
DECAL (French)
1
0339375640
DECAL (Italian)
1
0339375840
DECAL (Spanish)
1
34
0339375050
DECAL (English)
1
0339375250
DECAL (German)
1
0339375450
DECAL (French)
1
0339375650
DECAL (Italian)
1
0339375850
DECAL (Spanish)
1
35
0379358560
SEAL
2
36
0579300049
DECAL
2
37
0359313900
DECAL
1
38
0881031549
DECAL
4
39
0579300052
DECAL
2
40
0339376240
DECAL (English)
1
0339376340
DECAL (German)
1
0339379440
DECAL (French)
1
0339379540
DECAL (Italian)
1
0339379640
DECAL (Spanish)
1
41
0881031556
DECAL
1
42
0669300033
DECAL (U.S. TAKEUCHI, CANADA)
1
43
0399300400
DECAL
1
M

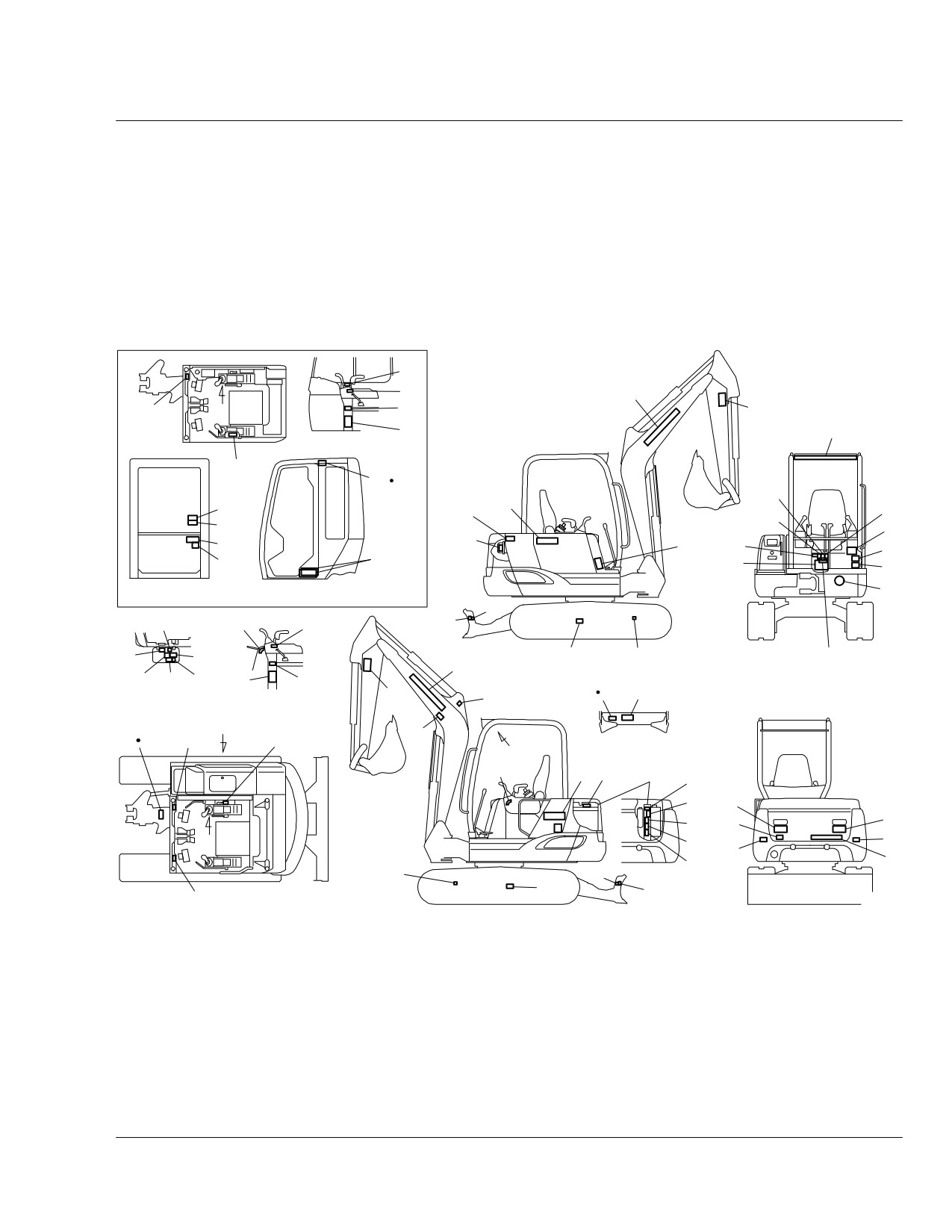

G7g031
Reference:G7G031
Page:7-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

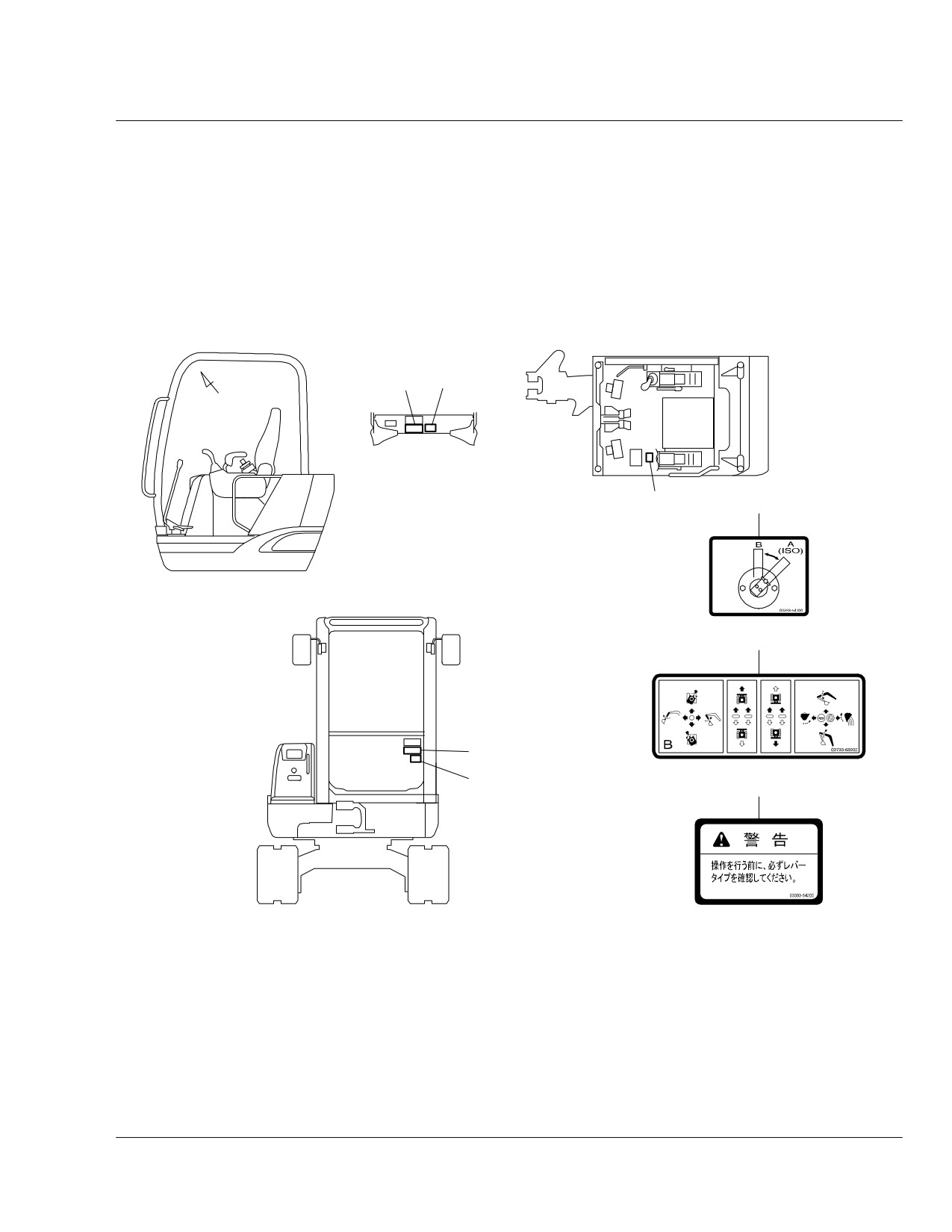

DECAL (cab)
23
24
42
34
22
14
7
9
8
3
15
20
VIEW "C"
VIEW "B"
36
12
41
32
B
19
16
18
10
VIEW "A"
1
29
33
25
A
11
27
26
38
C
30
3
39
38
28
17
18
36
30
31
RADIATOR
43
37
4
5
5
40
6
35
21
35
2
38
38
39
30

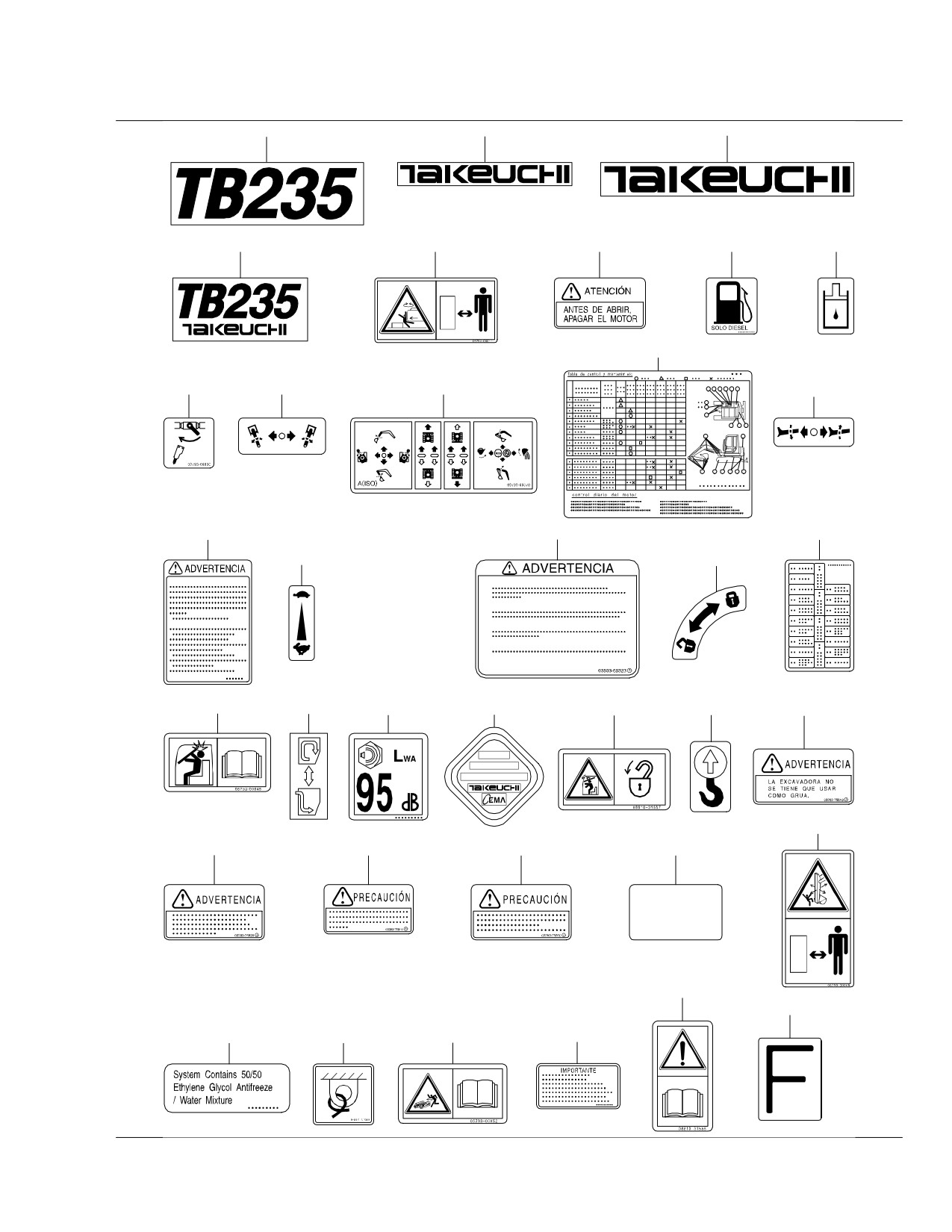

G7G101
S=FREE
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

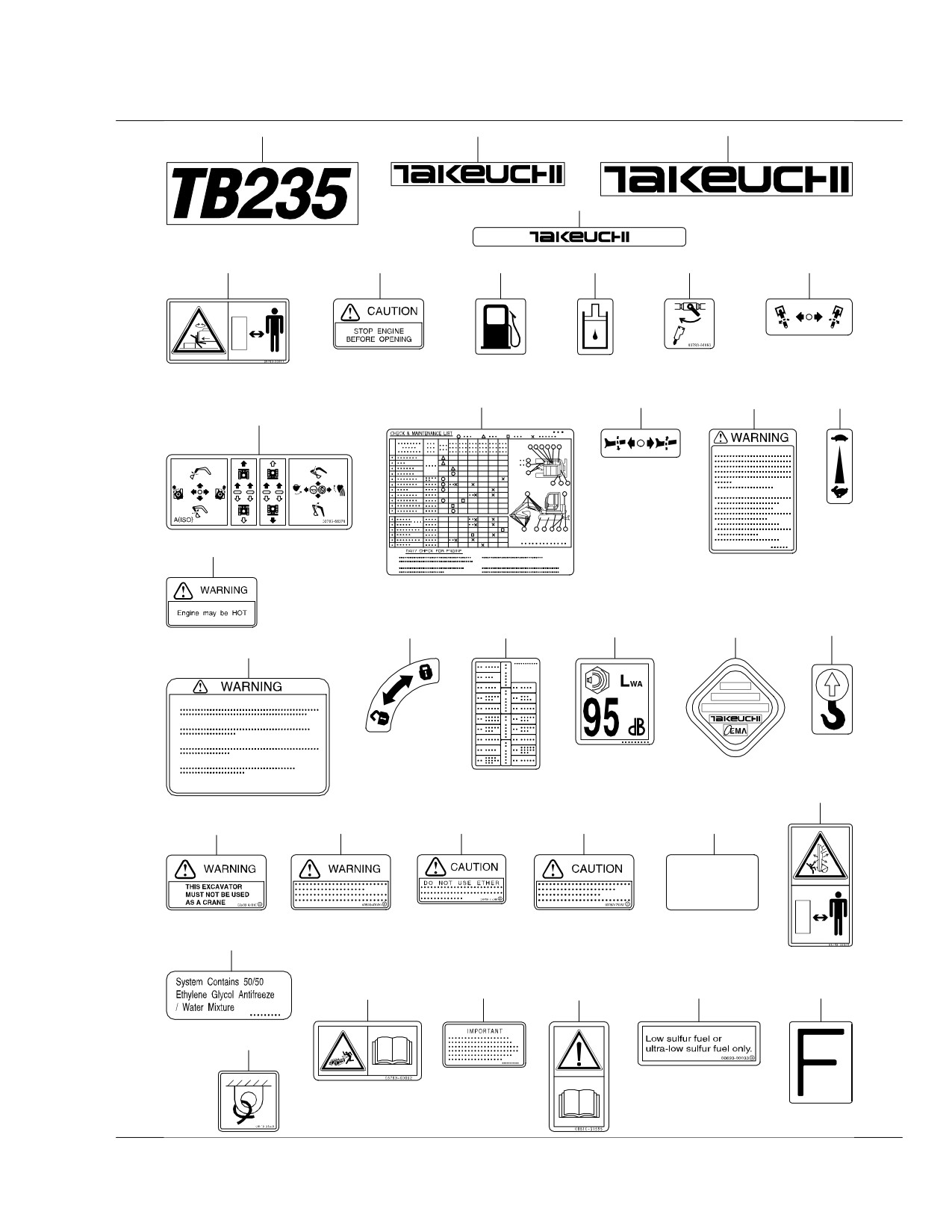

English
1
2
3
4
5
6
7
8
12
9
10
11
14
19
22
24
20
21
23
25
26
27
28
29
30
31
36
32
33
34
35
37
41
43
39
40
42
38
(for US TAKEUCHI, CANADA)
G7G111
S=free
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
German
1
2
3
4
5
6
7
8
12
9
10
11
14
19
22
24
20
23
25
26
27
28
29
30
31
36
32
33
34
35
41
43
37
38
39
40
G7G121
S=free
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

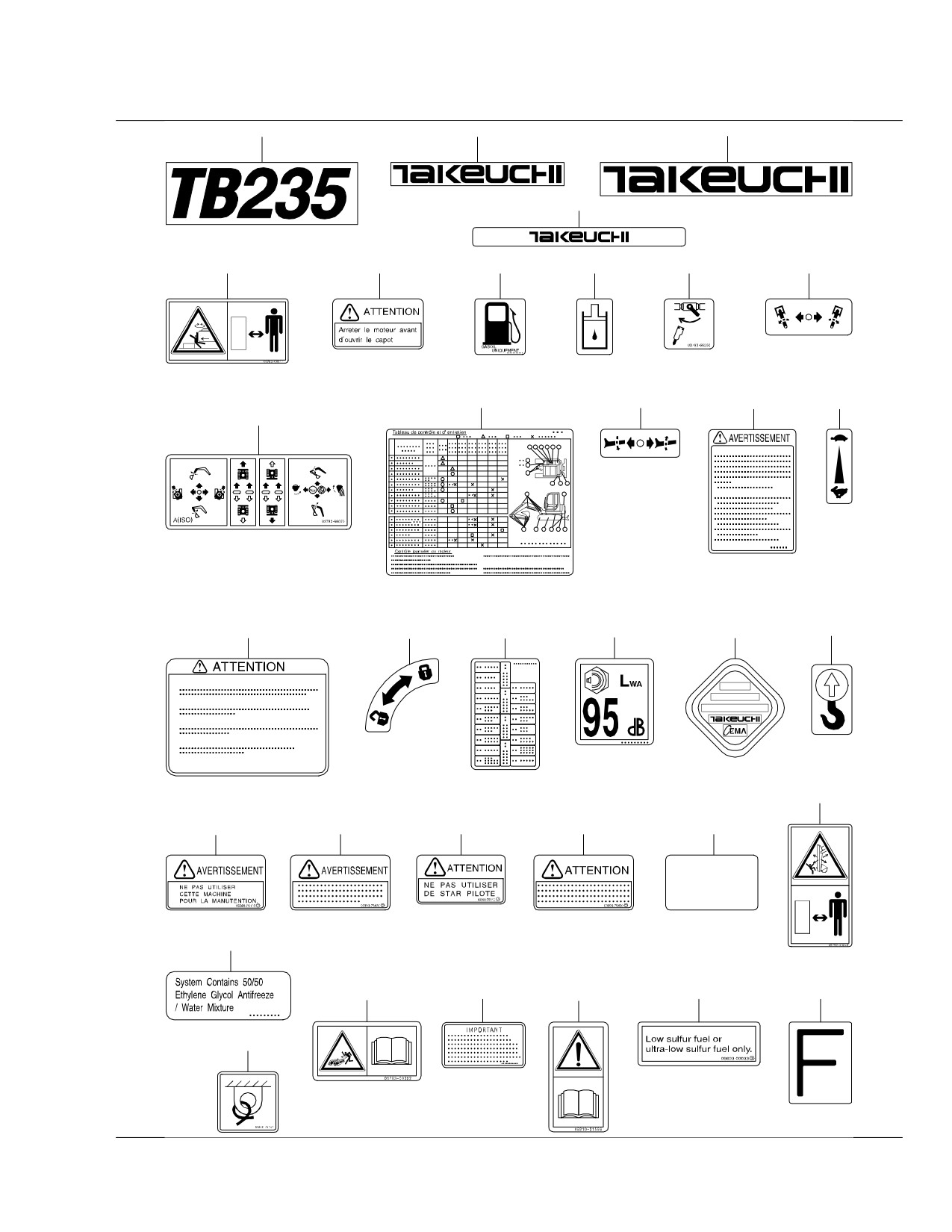

French
1
2
3
4
5
6
7
8
12
9
10
11
14
19
22
24
20
23
25
26
27
28
29
30
31
36
32
33
34
35
37
41
43
39
40
42
38
(for CANADA)
G7G131
S=free
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Italian
1
2
3
4
5
6
7
8
12
9
10
11
14
19
22
24
20
23
25
26
27
28
29
30
31
36
32
33
34
35
41
43
37
38
39
40
G7G141
S=free
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Spanish
1
2
3
4
5
6
7
8
12
9
10
11
14
19
22
24
20
23
25
26
27
28
29
30
31
36
32
33
34
35
41
43
37
38
39
40
G7G151
S=free
Ref. G7G101
Page
7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
Dutch
1
2
3
4
8
9
10
11
24
14
20
23
25
26
27
28
29
30
35
41
43
37
38
39
G7G161
S=free
Ref. G7G101
Page
7-3
DECAL (cab)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0379366000
DECAL SET (English)
1
0379366100
DECAL SET (German)
1
0379366200
DECAL SET (French)
1
0379366300
DECAL SET (Italian)
1
0379366400
DECAL SET (Spanish)
1
0379366500
DECAL SET (Dutch)
1
0379367400
DECAL SET (U.S. TAKEUCHI)
1
0379367500
DECAL SET (U.K. TAKEUCHI)
1
0379368000
DECAL SET (CANADA; English)
1
0379368100
DECAL SET (CANADA; French)
1
1
0379366030
DECAL
1
2
0008500038
DECAL
1
3
0008500060
DECAL
2
4
0379366040
DECAL
2
5
0579300011
DECAL
2
6
0359307400
DECAL (English)
1
0359314400
DECAL (German)
1
0359315400
DECAL (French)
1
0359316400
DECAL (Italian)
1
0339364200
DECAL (Spanish)
1
7
0359306600
DECAL (English)
1
0339375260
DECAL (German)
1
0339375460
DECAL (French)
1
0339375660
DECAL (Italian, Spanish)
1
8
0359306700
DECAL
1
9
0379366060
DECAL
1
10
0329360060
DECAL
1
11
0379366070
DECAL
1
12
0379366020
DECAL (English)
1
0379366120
DECAL (German)
1
0379366220
DECAL (French)
1
0379366320
DECAL (Italian)
1
0379366420
DECAL (Spanish)
1
14
0359325190
DECAL
1
15
X
**********
DECAL
1
16
X
**********
DECAL
1
17
X
**********
DECAL
1
18
X
**********
SCREW
8
19
0379337300
DECAL (English)
1
0379338300
DECAL (German)
1
0379339300
DECAL (French)
1
0379340300
DECAL (Italian)
1
0379354200
DECAL (Spanish)
1
20
0359317200
DECAL
1
21
0569321980
DECAL (English)
1
22
0359313700
DECAL (English)
1
0359314700
DECAL (German)
1
0359315700
DECAL (French)
1
0359316700
DECAL (Italian)
1
0359365323
DECAL (Spanish)
1
23
0329360100
DECAL
1
24
0379366010
DECAL (English, Dutch)
1
0379366110
DECAL (German)
1
0379366210
DECAL (French)
1
0379366310
DECAL (Italian)
1
0379366410
DECAL (Spanish)
1
25
0579300045
DECAL
1
26
0189311800
DECAL
1
27
X
**********
DECAL
1
except for U.S. TAKEUCHI
28
X
**********
DECAL
1
Reference:G7G101
Page:7-3
DECAL (cab)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
29
0881031557
DECAL
1
30
0399300500
DECAL
3
31
0359347010
DECAL (English)
1
except for U.K. TAKEUCHI
0339375210
DECAL (German)
1
0339375410
DECAL (French)
1
0339375610
DECAL (Italian)
1
0339375810
DECAL (Spanish)
1
32
0359347020
DECAL (English)
1
0339375220
DECAL (German)
1
0339375420
DECAL (French)
1
0339375620
DECAL (Italian)
1
0339375820
DECAL (Spanish)
1
33
0339375040
DECAL (English)
1
0339375240
DECAL (German)
1
0339375440
DECAL (French)
1
0339375640
DECAL (Italian)
1
0339375840
DECAL (Spanish)
1
34
0339375050
DECAL (English)
1
0339375250
DECAL (German)
1
0339375450
DECAL (French)
1
0339375650
DECAL (Italian)
1
0339375850
DECAL (Spanish)
1
35
0379358560
SEAL
2
36
0579300049
DECAL
2
37
0359313900
DECAL
1
38
0881031549
DECAL
4
39
0579300052
DECAL
2
40
0339376240
DECAL (English)
1
0339376340
DECAL (German)
1
0339379440
DECAL (French)
1
0339379540
DECAL (Italian)
1
0339379640
DECAL (Spanish)
1
41
0881031556
DECAL
1
42
0669300033
DECAL (U.S. TAKEUCHI, CANADA)
1
43
0399300400
DECAL
1
M
G7g101
Reference:G7G101
Page:7-3
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

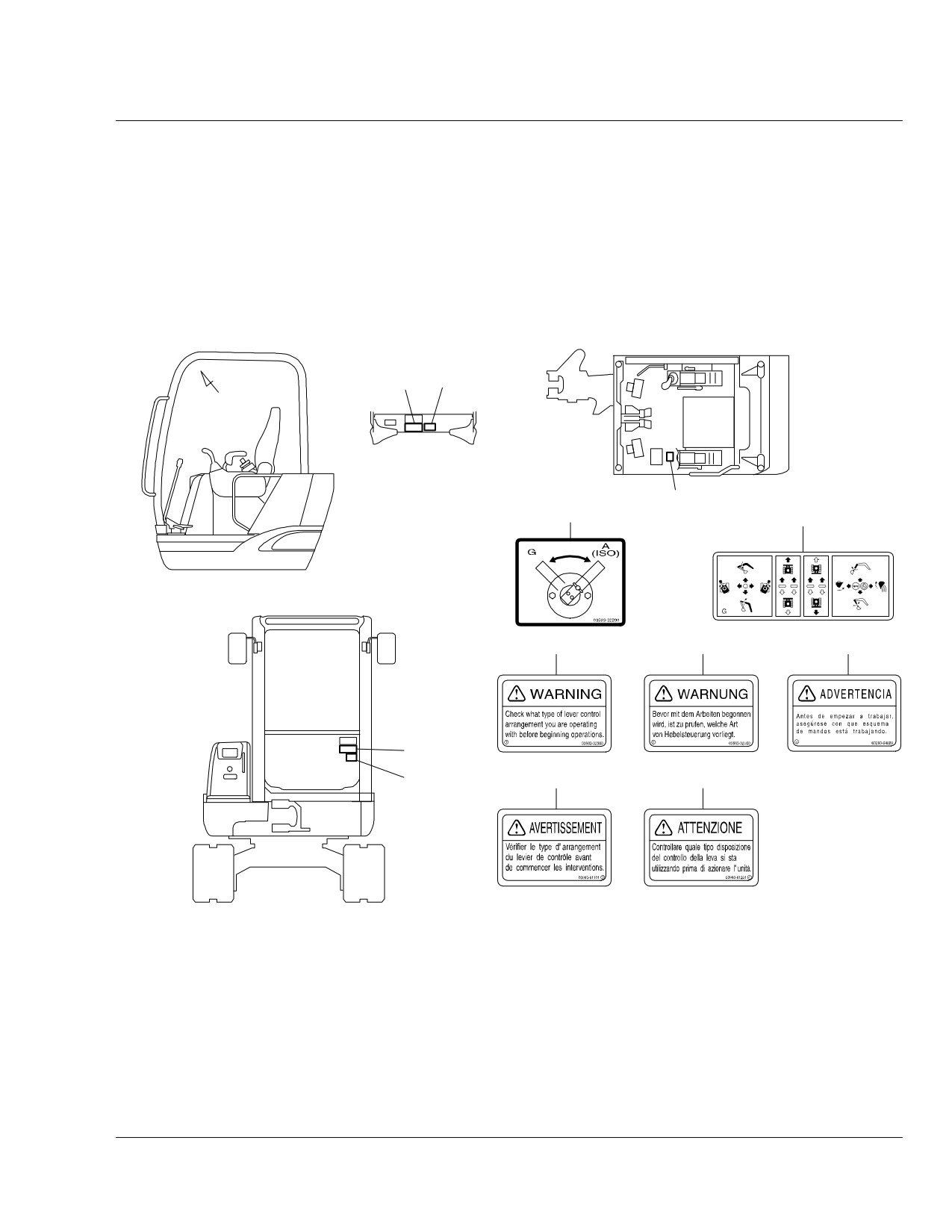

DECAL (selector valve)
2
3
A
VIEW "A"
1
1
2
CANOPY
3
3
3
2
(English)
(German)
(Spanish)
3
3
3
G7G170
(French)
(Italian)
S=FREE
Ref. G7G170
Page
7-4
DECAL (selector valve)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0379368200
DECAL SET (English)
1
0379368300
DECAL SET (German)
1
0379368400
DECAL SET (French)
1
0379368500
DECAL SET (Italian)
1
0379368600
DECAL SET (Spanish)
1
1
0359332200
DECAL
1
ISO-JCB
2
0379368202
DECAL
1
JCB
3
0359332300
DECAL (English)
1
0359332400
DECAL (German)
1
0329364020
DECAL (Spanish)
1
0399361101
DECAL (French)
1
0399361201
DECAL (Italian)
1
G7g170
Reference:G7G170
Page:7-4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
DECAL (selector valve, A-B pattern)
2
3
A
VIEW "A"
1
1
CANOPY
2
2
3
3
E7G170
S=FREE
Ref. E7G170
Page
7-5
DECAL (selector valve, A-B pattern)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0
0379368900
DECAL SET
1
1
0339354100
DECAL
1
2
0379368902
DECAL
1
3
0339354200
DECAL
1
E7g170
Reference:E7G170
Page:7-5
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
TOOL & ACCESSORIES
1
2
3
4
6
7
8
9
10
11
12
13
22
20
23
14
15
16
21
24
17
18
19
G4G153
S=FREE
Ref. G4G153
Page
7-6

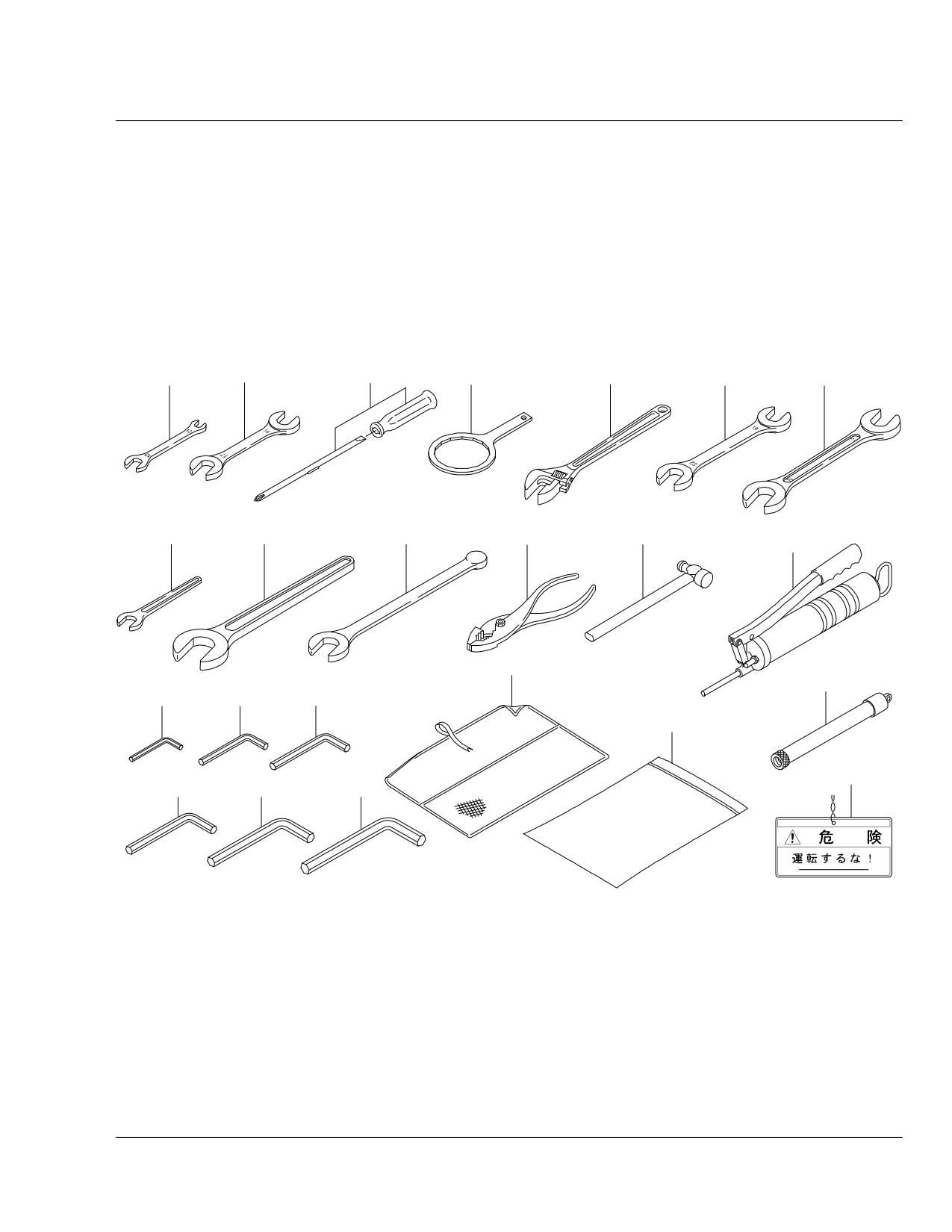

TOOL & ACCESSORIES
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TOOL SET (for Japan)
TOOL SET
0
0379207010
TOOL ASSY
1
1
1910047081
SPANNER
1
Y28110-100120
2
1910047082
SPANNER
1
Y28110-140170
3
1910006112
DRIVER, screw
1
Y104200-92350
4
1910065081
WRENCH, filter
1
Y119640-92750
6
1690400250
WRENCH, monkey
1
7
1690001922
SPANNER
1
8
1690002427
SPANNER
1
9
1690100013
SPANNER
1
10
1690100041
SPANNER
1
11
1690900026
SPANNER
1
12
1690500200
PLIER
1
13
1690300330
HAMMER
1
14
1690600400
WRENCH, hex
1
15
1690600500
WRENCH, hex
1
16
1690600600
WRENCH, hex
1
17
1690600800
WRENCH, hex
1
18
1690601000
WRENCH, hex
1
19
1690601400
WRENCH, hex
1
20
1691400001
CASE, tool
1
21
1691900001
CASE
1
22
1691010800
GUN ASSY, grease
1
for Japan
1691060600
GUN ASSY, grease
1
23
1554512600
TUBE
1
for EU
24
0359325160
PLATE
1
for Japan
G7g180
Reference:G4G153
Page:7-6
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
PAINTED COLOR
4
4
1
2
3
6
4
G7G190
Ref. G7G190
Page
7-7

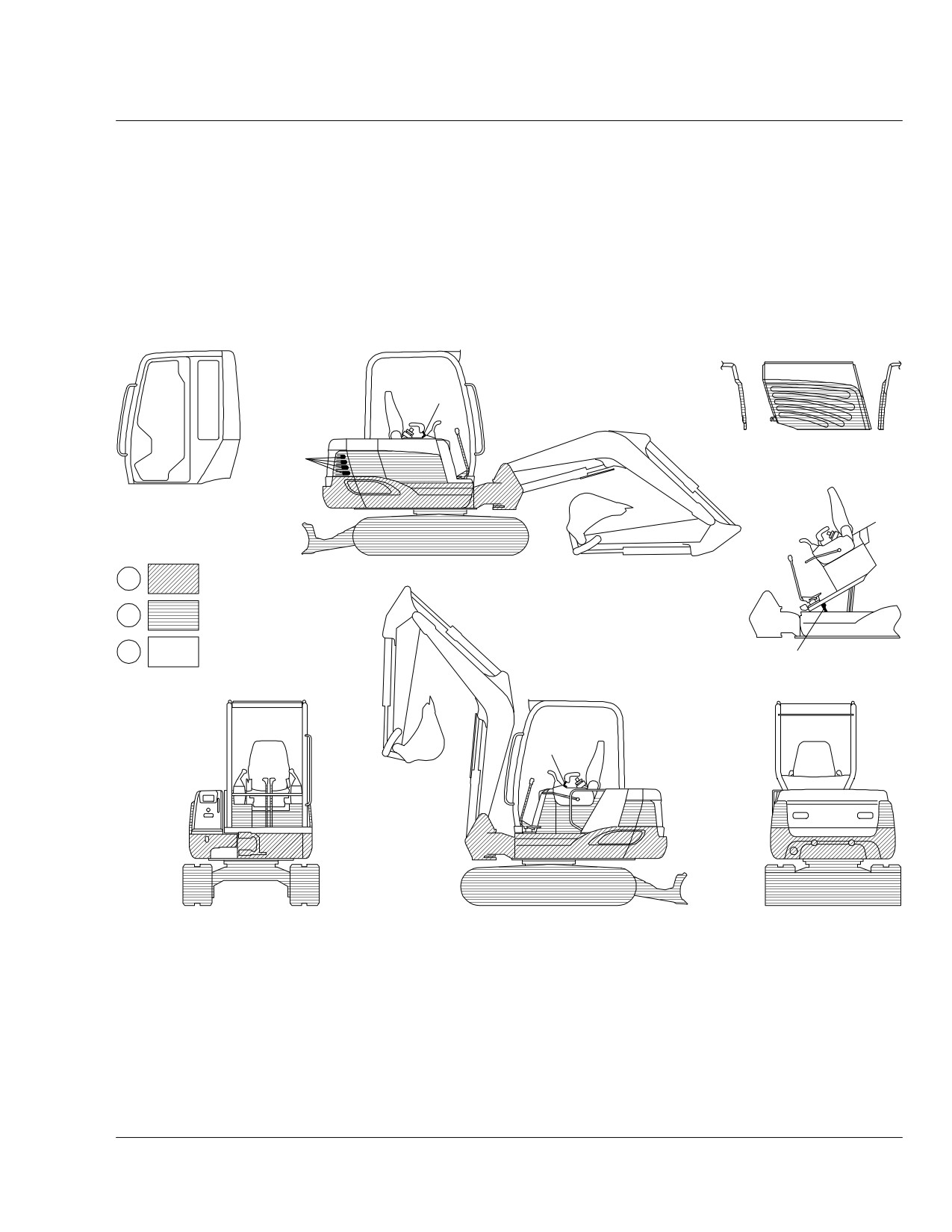

PAINTED COLOR
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
PAINTED COLOR (cab, rubber crawler)
PAINTED COLOR (cab, steel crawler)
PAINTED COLOR (canopy, rubber crawler)
PAINTED COLOR (canopy, steel crawler)
1
1919060105
RED
1
1919069105
RED
1
spray
2
1919060144
GRAY
1
1919069144
GRAY
1
spray
3
1919060142
LIGHT GRAY
1
1919069142
LIGHT GRAY
1
spray
4
1919060005
BLACK
1
1919069005
BLACK
1
spray
6
1919060175
YELLOW
1
1919069175
YELLOW
1
spray
<<NOTE>>
The part of the steel carawler uses item 2.
G7g190
Reference:G7G190
Page:7-7
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
SWIVEL JOINT
6
1
12
10
4
9
11
7
8
3
2
14
13
G7H010
S=1/5
Ref. G7H010
Page
8-1

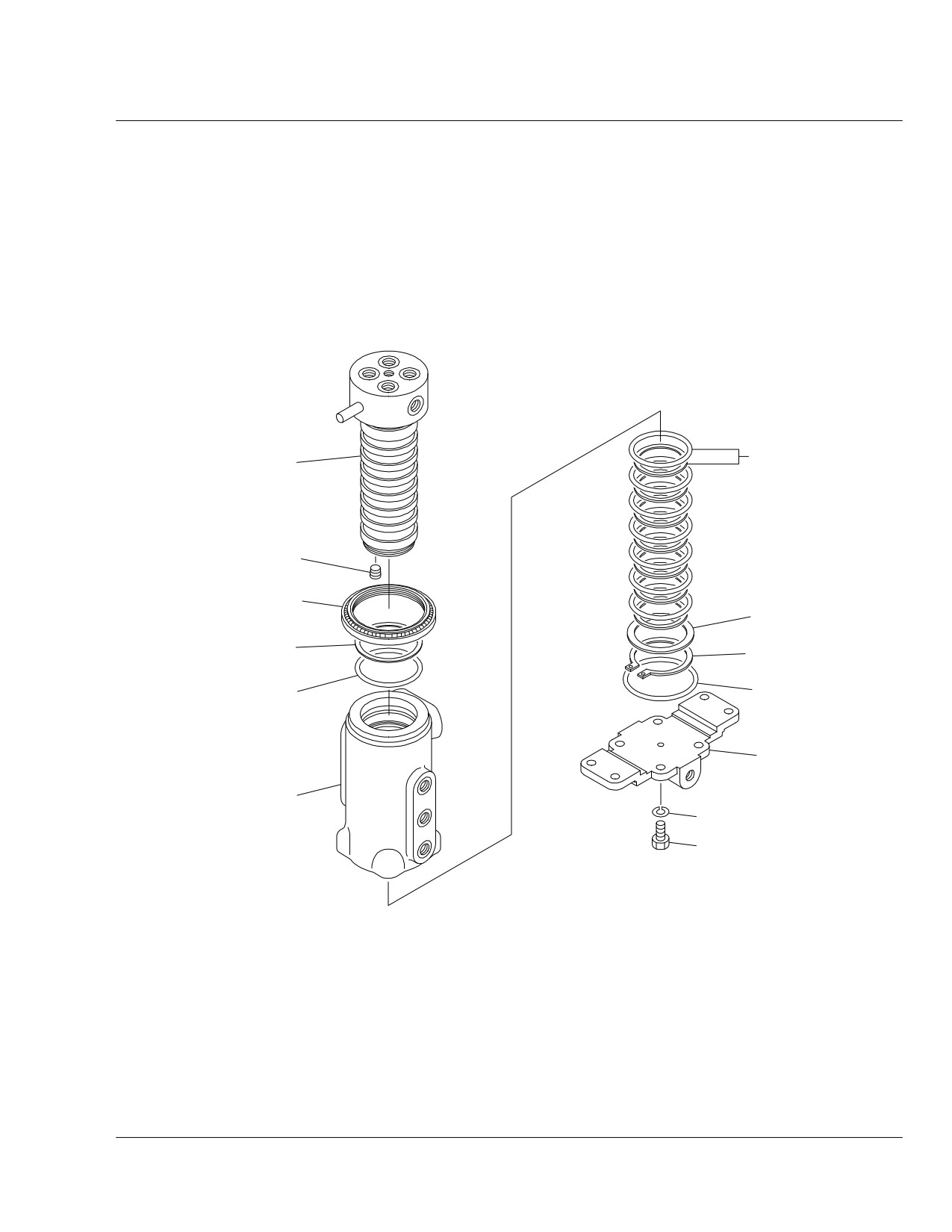

SWIVEL JOINT
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1904008600
JOINT ASSY, swivel
1
1
1904008601
SHAFT
1
2
1904008302
HUB
1
3
1904008602
FLANGE
1
4
1904004604
SPACER
1
6
1904008606
SEAL, slipper
7
7
1420010600
O-RING
1
8
1420310040
O-RING
1
9
1421030600
RING, back-up
1
10
1904001695
SEAL, dust
1
11
1221000055
RING, snap
1
12
1501810001
PLUG
3
13
1100040820
BOLT
4
14
1140020008
WASHER, spring
4
G7h010
Reference:G7H010
Page:8-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
CONTROL VALVE
19
19
15
25
28
19
19
13
12
11
18
10
9
18
8
7
14
5
24
4
27
18
18
29
1
2
26
18
16
20
18
22
18
14
6
20
18
3
19
17
21
19
23
19
15
21
19
Ref. G7H020
Page
8-2

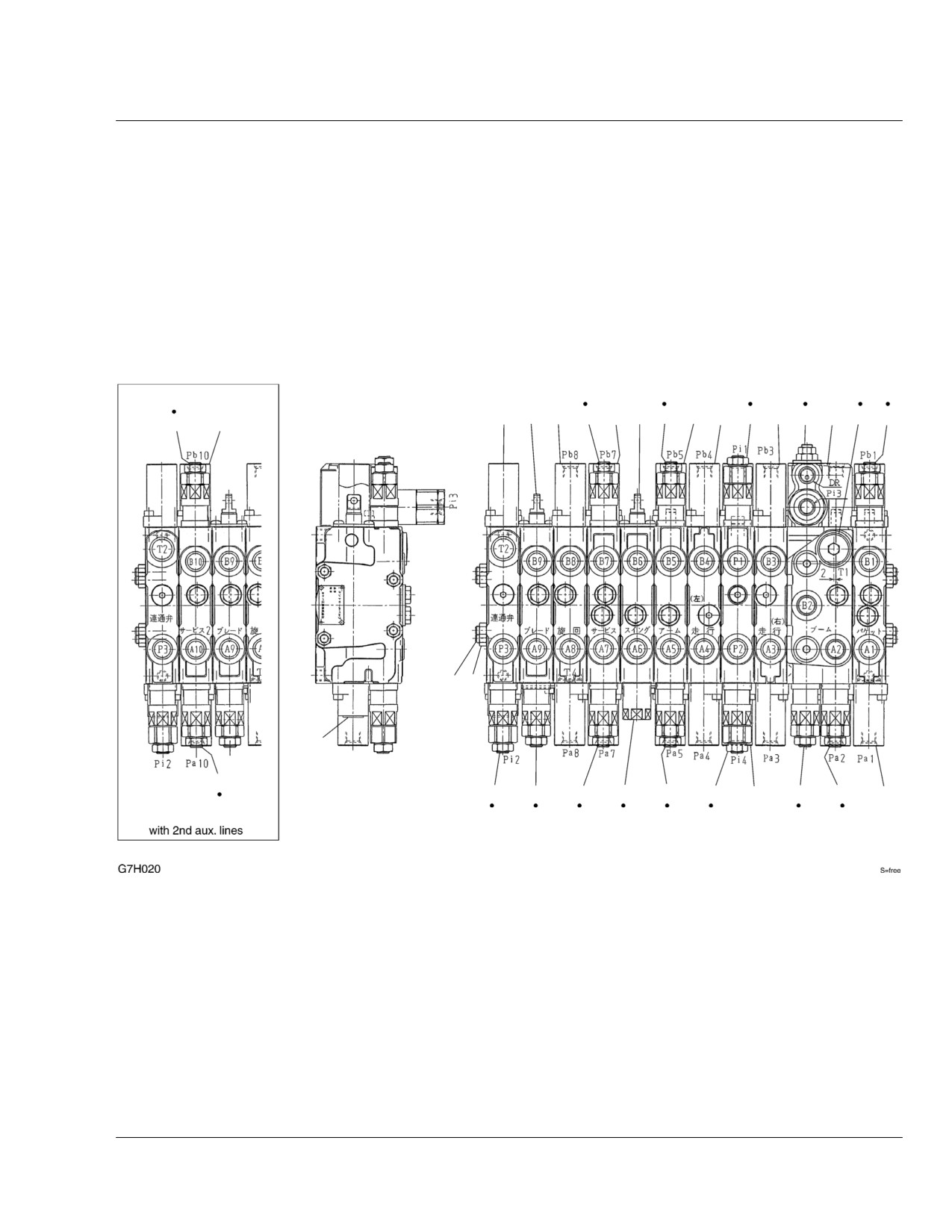

CONTROL VALVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901045600
VALVE ASSY, control
1
1901045700
VALVE ASSY, control
1
with 2nd aux. line
1
1901042607
ROD, tie
4
1901045707
ROD, tie
4
with 2nd aux. line
2
1130050008
NUT
8
3
1901045613
BLOCK ASSY, No.1
1
bucket
4
1901045611
BLOCK ASSY, No.2
1
boom
5
1901045615
BLOCK ASSY, No.3
1
traction R.H.
6
1901045603
BLOCK ASSY, No.4
1
P1, P2
7
1901045616
BLOCK ASSY, No.5
1
traction L.H.
8
1901045612
BLOCK ASSY, No.6
1
arm
9
1901045618
BLOCK ASSY, No.7
1
swing
10
1901045619
BLOCK ASSY, No.8
1
auxiliary
11
1901045614
BLOCK ASSY, No.9
1
slew
12
1901045617
BLOCK ASSY, No.10
1
blade
1901045717
BLOCK ASSY, No.10 (with 2nd aux. line)
1
blade
13
1901045620
BLOCK ASSY, No.11
1
T2, P3
14
1901045621
VALVE ASSY
2
relief
15
1420310910
O-RING
1
16
1901035322
VALVE ASSY
1
relief
17
1420310910
O-RING
1
18
1901038823
VALVE ASSY
6
over load
1901038823
VALVE ASSY (with 2nd aux. line)
8
over load
19
1420310910
O-RING
1
20
1901042624
VALVE ASSY
2
over load
21
1420310910
O-RING
1
22
1901042625
VALVE ASSY
1
antivoid
23
1420310910
O-RING
1
24
1901042626
VALVE ASSY
1
shut-off
25
1420310910
O-RING
1
26
1901038893
PLUG ASSY
1
27
1901036572
PLUG ASSY
1
28
1420010180
O-RING
1
29
1901045719
BLOCK ASSY, No.12
1
auxiliary 2
G7h020
Reference:G7H020
Page:8-2















Content      ..     6      7      8      9     ..
