AIR CONDITIONER (5/5) (air conditioner unit)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1911511030
UNIT, air conditioner
1
1
1911512101
EVAPORATOR
1
2
1911512102
CORE, heater
1
3
1911512103
COVER
1
4
1911512104
COVER
1
5
1911512105
INSULATOR
1
6
1911512106
GROMMET
1
7
1911512107
GROMMET
1
8
1911512108
GROMMET
1
9
1911512109
PLATE
1
11
1911512111
STAY
1
12
1911512112
STAY
1
13
1911512113
MOTOR, blower
1
14
1911512114
VALVE, expansion
1
15
1911512115
THERMISTOR
1
16
1911512116
RESISTOR
1
17
1911512117
SCREW
1
18
1911512118
SCREW
2
19
1911512119
SCREW
3
20
1911512120
CLAMP
11
21
1911512121
STAY
1
22
1911512122
HOLDER
1
G7e232
Reference:G7E231
Page:5-34
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

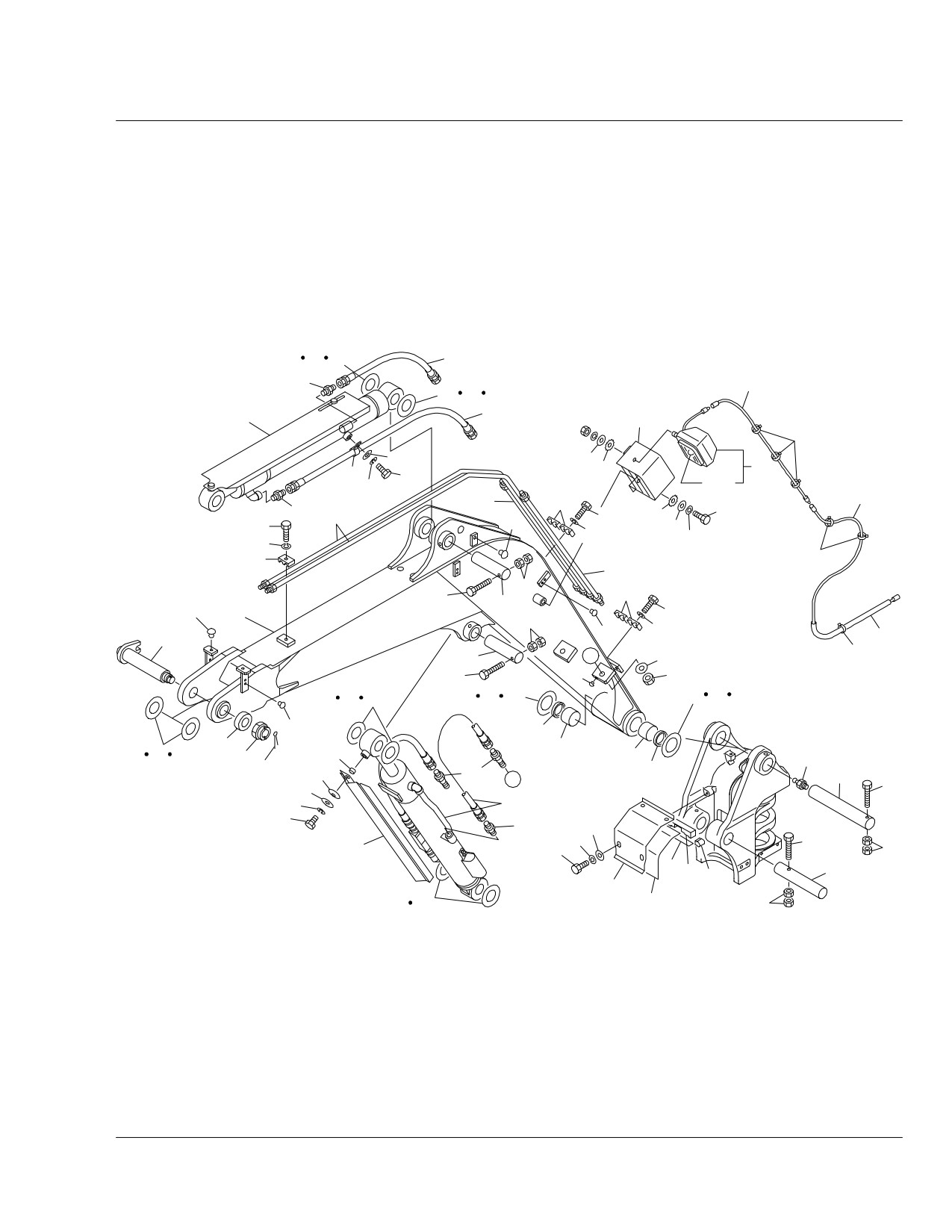

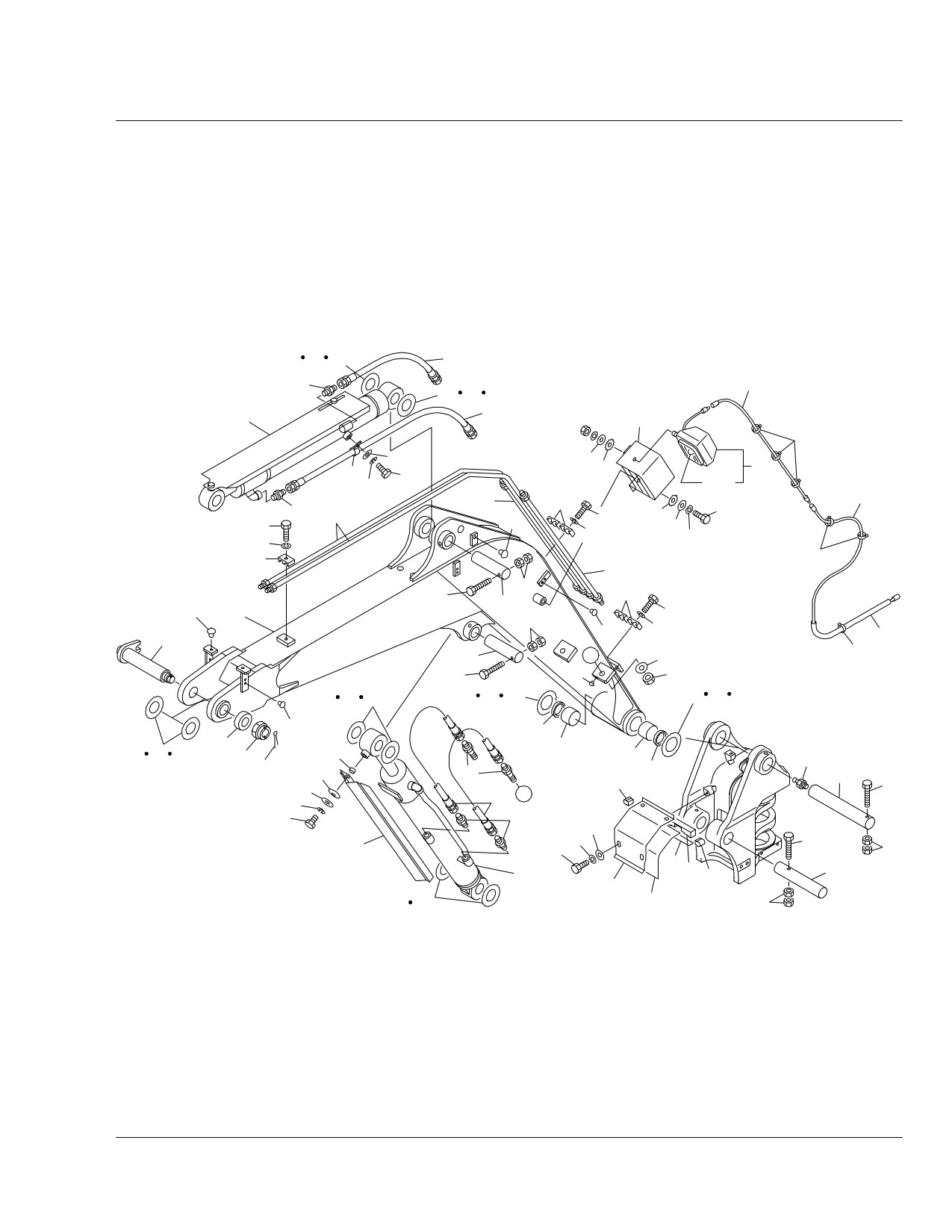

BOOM (1/4)
61 60 11
12
43
10
11 60 61
13
48
9
45
39
4037
46
18
26
46-1
35
50
3
6
56
27
2
37
14
24
24
34
4036
34
6
52
3
31
28
6
19
14
1
24
31
34
22
62
49
19
X
75
53
62
74
28
61 60 11
58
57 15
15 57 58
62
1-30
1-29
61
60 11
17 33
55
1-29
44
41
1-30
42
72
21
59
30
16
X
35
73
71
43
38
34
29
5
51
32
8
23
20
47
59
4
G7F011
65 66
64
31
S=1/15
Ref. G7F011
Page
6-1

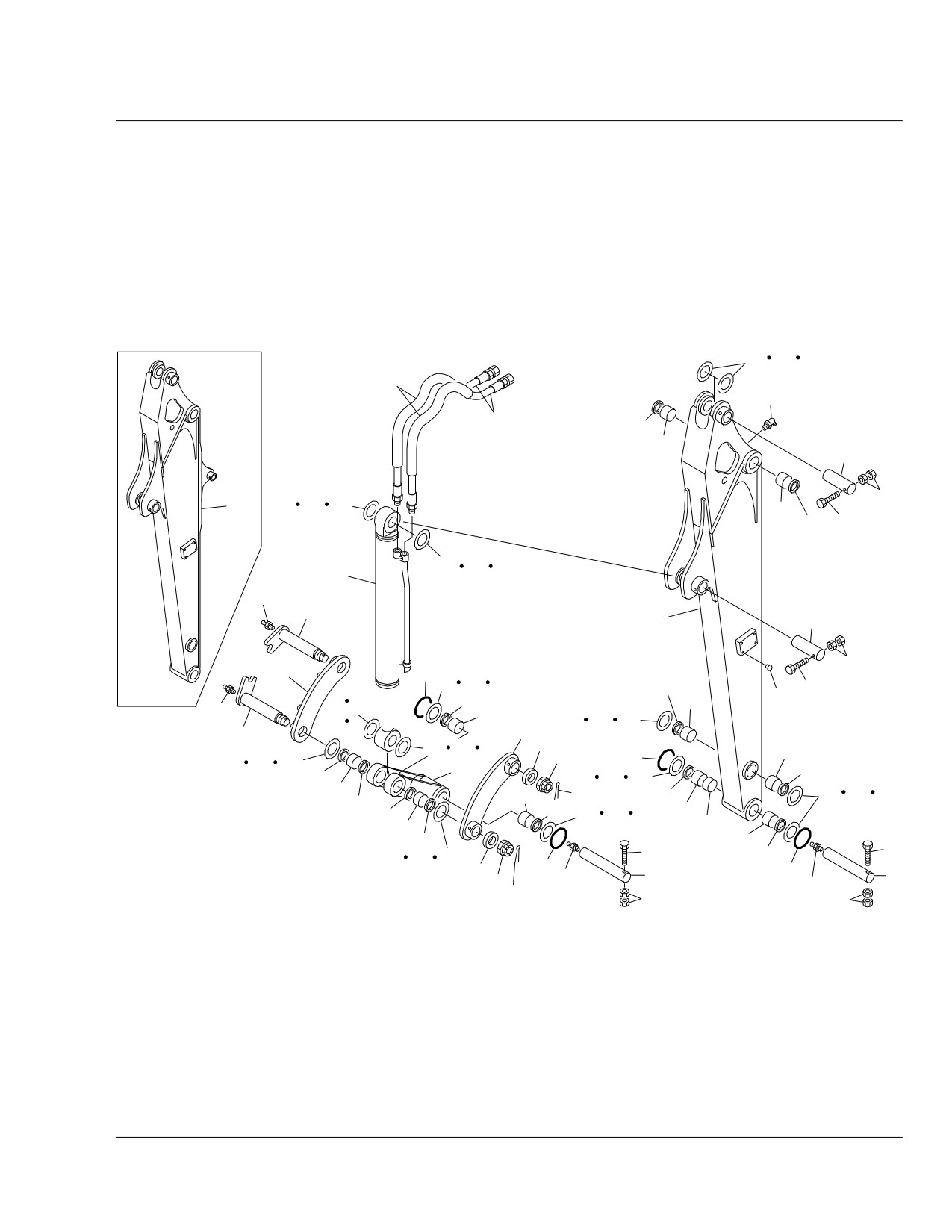

BOOM (1/4)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
M
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10082
13
0376007700
HOSE ASSY
1
18015-10138
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
18
0007300058
CLAMP
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
3
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
47
1900096900
CYLINDER, boom
1
48
1900091400
CYLINDER, arm
1
123500001~123500516
1900101500
CYLINDER, arm
1
(H)
123500517~
49
1531312050
PROTECTOR
1
sold by the meter
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
55
0003600237
COLLAR
1
Reference:G7F011
Page:6-1
BOOM (1/4)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
56
1515600577
ADAPTOR
1
M
1420010180
O-RING
1
M
57
0003600108
SHIM
AR
t=0.2mm
58
0003600109
SHIM
AR
t=0.5mm
59
0376015359
RUBBER
2
60
0003600056
SHIM
AR
t=0.5mm
61
0003600055
SHIM
AR
t=0.2mm
62
1652533016
CAP
20
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
73
1801720078
HOSE ASSY
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f012
Reference:G7F011
Page:6-1
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BOOM (1/4) (with boom shut-off valve)
61 60 11
12
43
10
11 60 61
13
48
9
45
39
40
37
46
18
26
35
46-1
50
3
6
56
27
2
37
14
24
24
34
4036
34
6
52
3
31
28
6
19
14
1
24
31
62
34
22
49
19
X
75
53
62
74
28
61 60 11
58 57 15
15 57 58
62
1-30
17
1-29
61
60 11
55
1-29
44
3341
1-30
42
72
21
X
30
16
35
63
71
43
38
34
29
5
51
32
8
20
23
59
4
G7F021
65 66
64
31
S=1/15
Ref. G7F021
Page
6-2
BOOM (1/4) (with boom shut-off valve)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Rema
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10
13
0376007700
HOSE ASSY
1
18015-10
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
18
0007300058
CLAMP
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
2
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
48
1900091400
CYLINDER, arm
1
123500001~123500516
1900101500
CYLINDER, arm
1
(H)
123500517~
49
1531312050
PROTECTOR
1
sold by th
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
55
0003600237
COLLAR
1
56
1515600577
ADAPTOR
1
Reference:G7F021
Page:6-2
BOOM (1/4) (with boom shut-off valve)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Rema
56
1420010180
O-RING
1
57
0003600108
SHIM
AR
t=0.2mm
58
0003600109
SHIM
AR
t=0.5mm
59
0376015359
RUBBER
1
60
0003600056
SHIM
AR
t=0.5mm
61
0003600055
SHIM
AR
t=0.2mm
62
1652533016
CAP
19
63
0376015250
EMERGENCY SHUT-OFF VALVE ASSY, boom
1
see page
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f022
Reference:G7F021
Page:6-2
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BOOM (1/4) (with boom, arm shut-off valve)
61 60 11
12
43
10
11 60 61
54
9
45
48
26
40
37
46
39
6
46-1
35
50
3
24
27
2
14
24
34
3740
36
34
6
52
3
31
28
6
19
14
1
24
31
62
34
22
49
19
X
75
53
62
74
28
61 60 11
58 57 15
15 57 58
62
1-30
17
1-29
61
60 11
55
1-29
44
3341
1-30
42
72
21
X
30
16
35
63
71
43
38
34
29
5
51
32
8
20
23
4
G7F032
65 66
64
31
S=1/15
Ref. G7F032
Page
6-3
BOOM (1/4) (with boom, arm shut-off valve)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Rema
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
2
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
48
1900101500
CYLINDER, arm
1
49
1531312050
PROTECTOR
1
sold by th
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
54
0376017350
EMERGENCY SHUT-OFF VALVE ASSY, arm
1
see page
55
0003600237
COLLAR
1
57
0003600108
SHIM
AR
t=0.2mm
58
0003600109
SHIM
AR
t=0.5mm
60
0003600056
SHIM
AR
t=0.5mm
Reference:G7F032
Page:6-3
BOOM (1/4) (with boom, arm shut-off valve)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Rema
61
0003600055
SHIM
AR
t=0.2mm
62
1652533016
CAP
17
63
0376015250
EMERGENCY SHUT-OFF VALVE ASSY, boom
1
see page
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f032
Reference:G7F032
Page:6-3

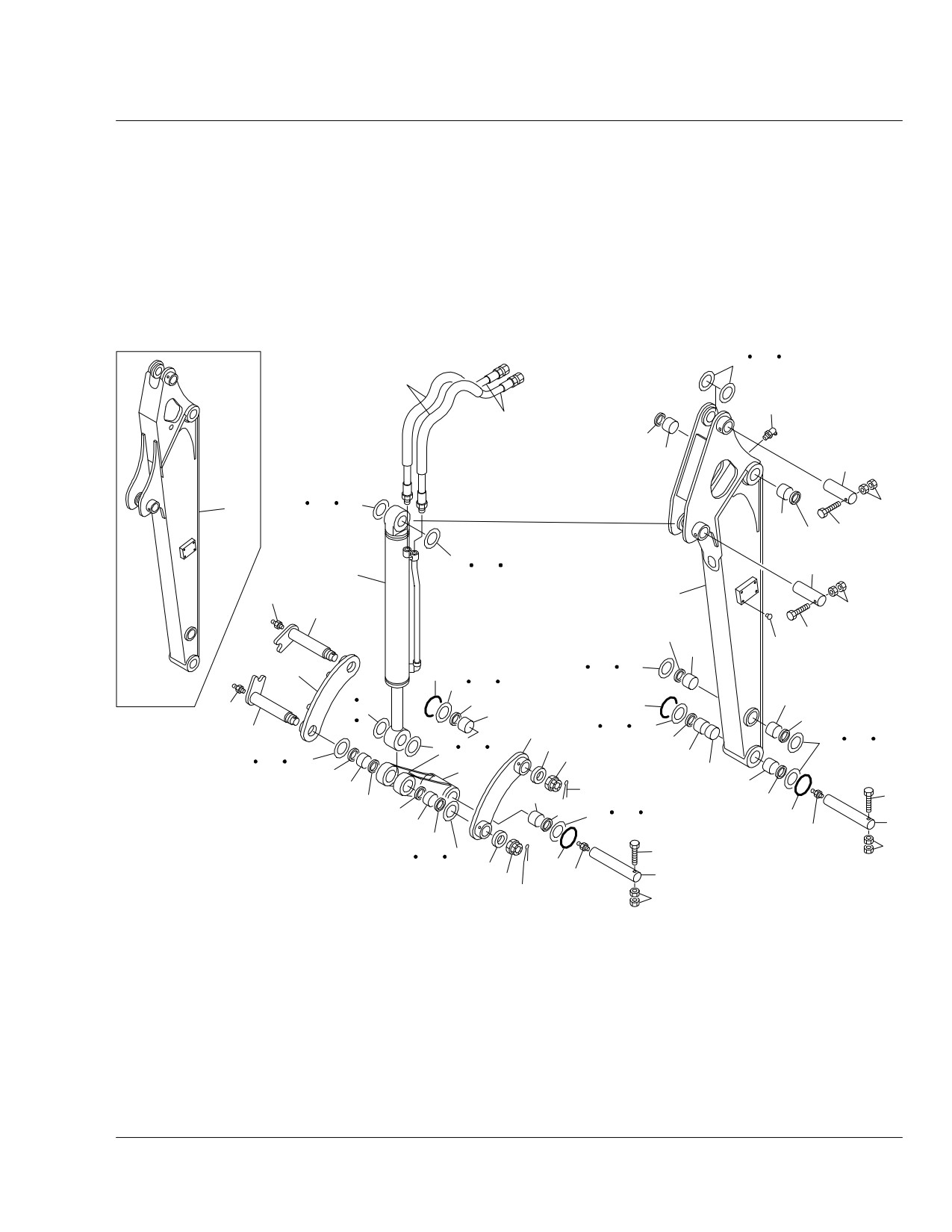

TB235 (P-TB235BAC) BG7Z002S/N 123500001-

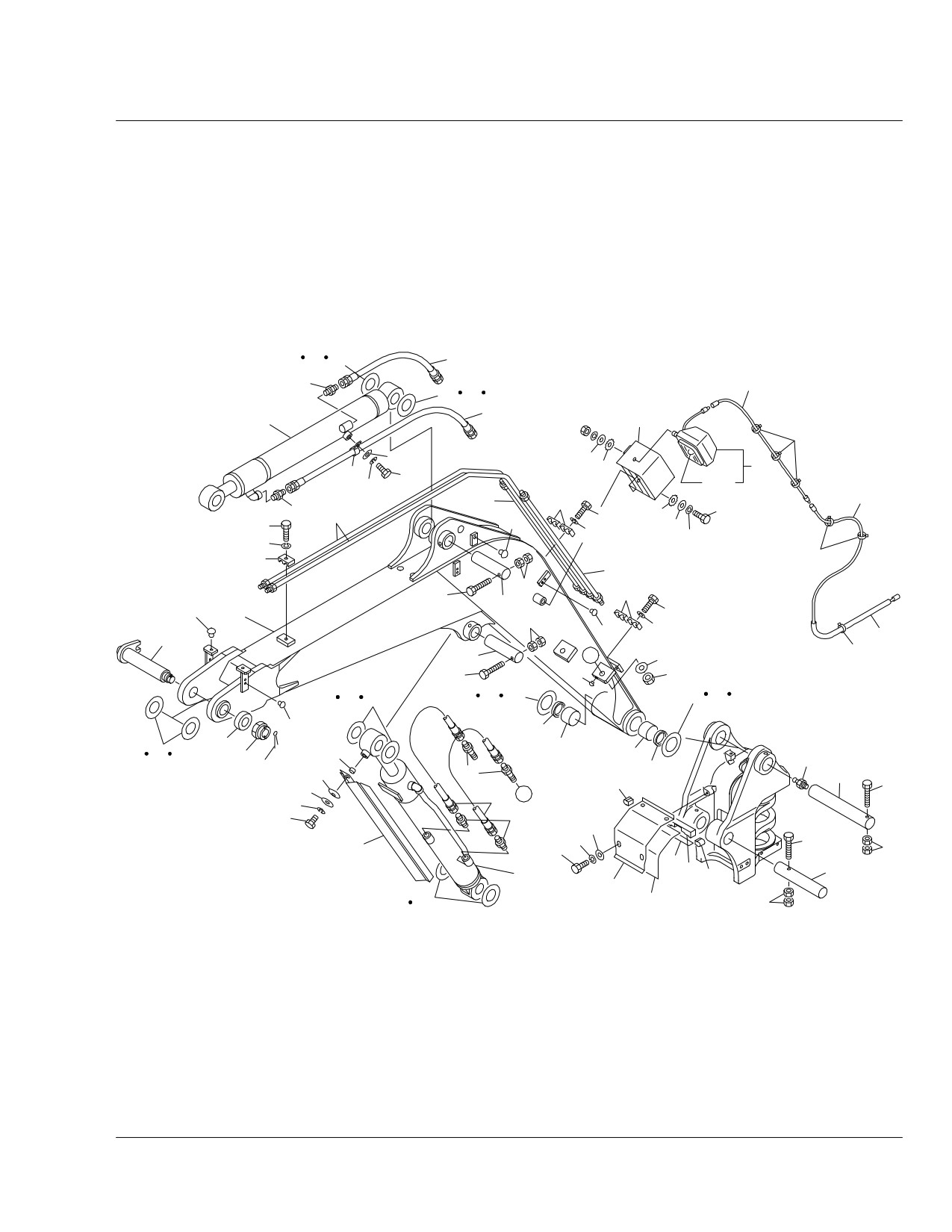

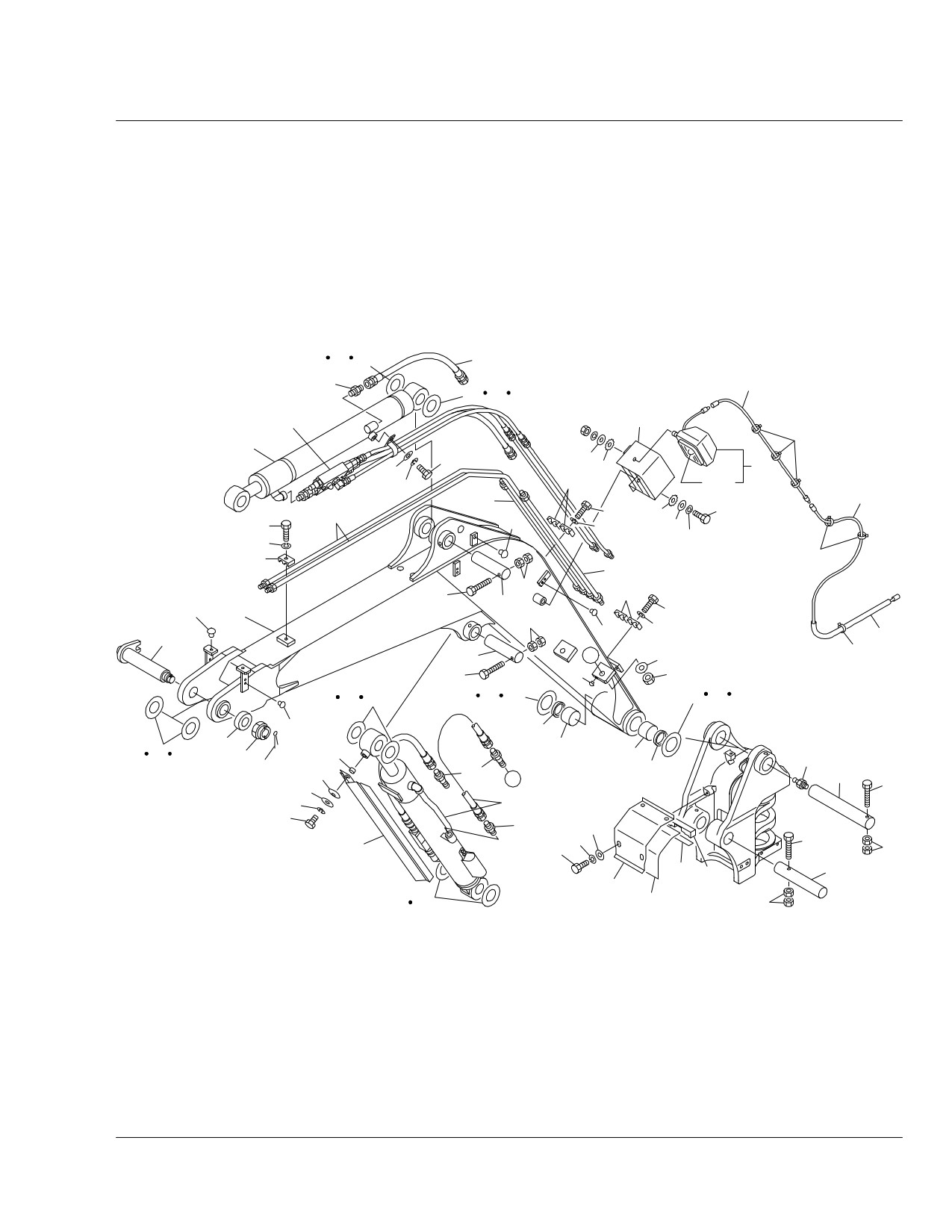

BOOM (1/4) (with arm-in restriction)
61 60 11
12
43
10
11 60 61
13
69
9
45
39
40
37
46
18
26
46-1
35
50
3
6
56
27
2
37
14
24
24
34
4036
34
6
52
3
31
28
6
19
14
1
24
31
62
34
22
49
19
X
75
53
62
74
28
61 60 11
58 57 15
15 57 58
62
1-30
1-29
61
60 11
55
1733
1-29
44
41
1-30
42
72
21
59
30
16
X
35
73
71
43
38
34
29
5
51
32
8
20
47
2359
4
G7F041
65 66
64
31
S=1/15
Ref. G7F041
Page
6-4
BOOM (1/4) (with arm-in restriction)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10082
13
0376007700
HOSE ASSY
1
18015-10138
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
18
0007300058
CLAMP
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
3
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
47
1900096900
CYLINDER, boom
1
49
1531312050
PROTECTOR
1
sold by the meter
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
55
0003600237
COLLAR
1
56
1515600577
ADAPTOR
1
1420010180
O-RING
1
Reference:G7F041
Page:6-4

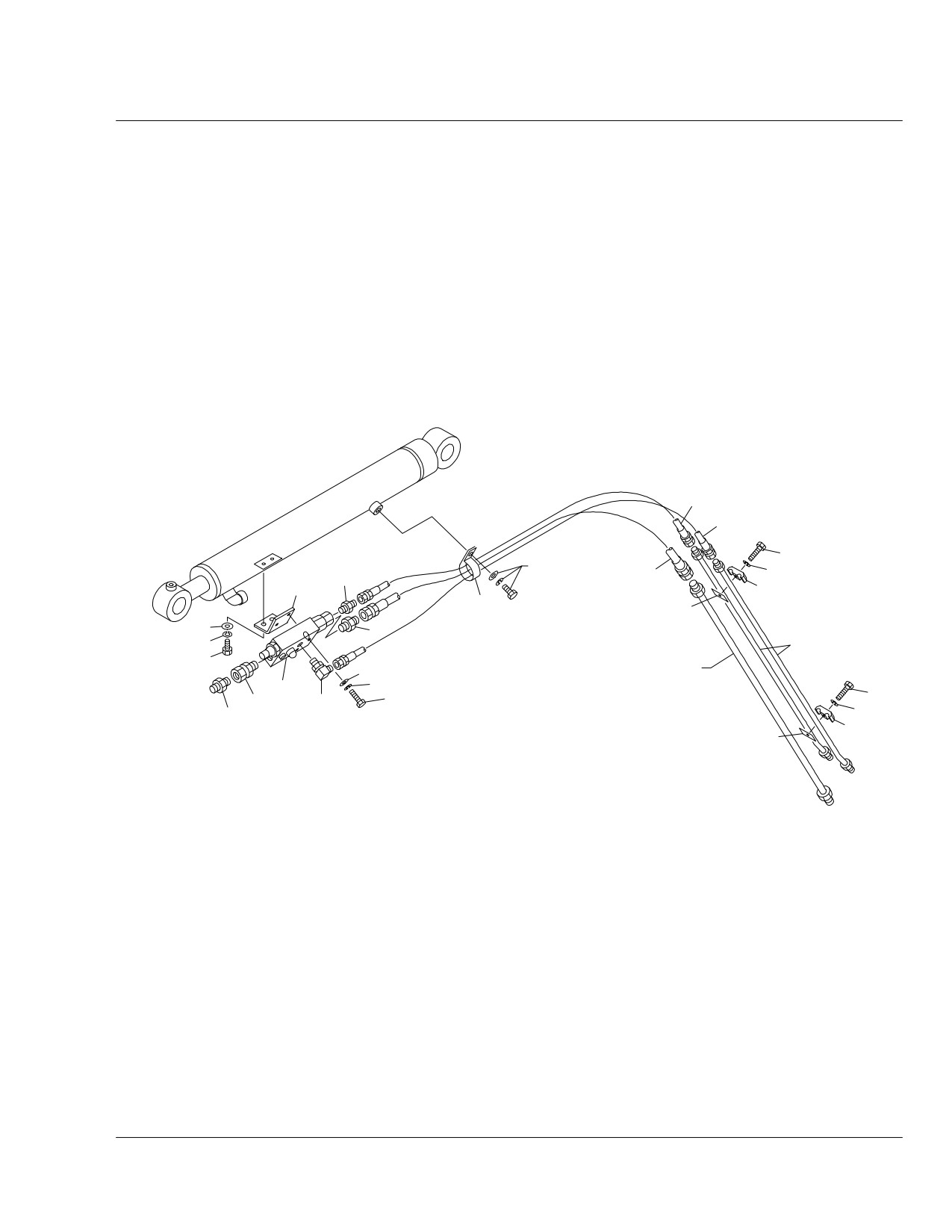

BOOM (1/4) (with arm-in restriction)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
57
0003600108
SHIM
AR
t=0.2mm
58
0003600109
SHIM
AR
t=0.5mm
59
0376015359
RUBBER
2
60
0003600056
SHIM
AR
t=0.5mm
61
0003600055
SHIM
AR
t=0.2mm
62
1652533016
CAP
17
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
69
0376015450
ARM-IN RESTRICTION ASSY
1
see page (4/4)
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
73
1801720078
HOSE ASSY
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f042
Reference:G7F041
Page:6-4
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

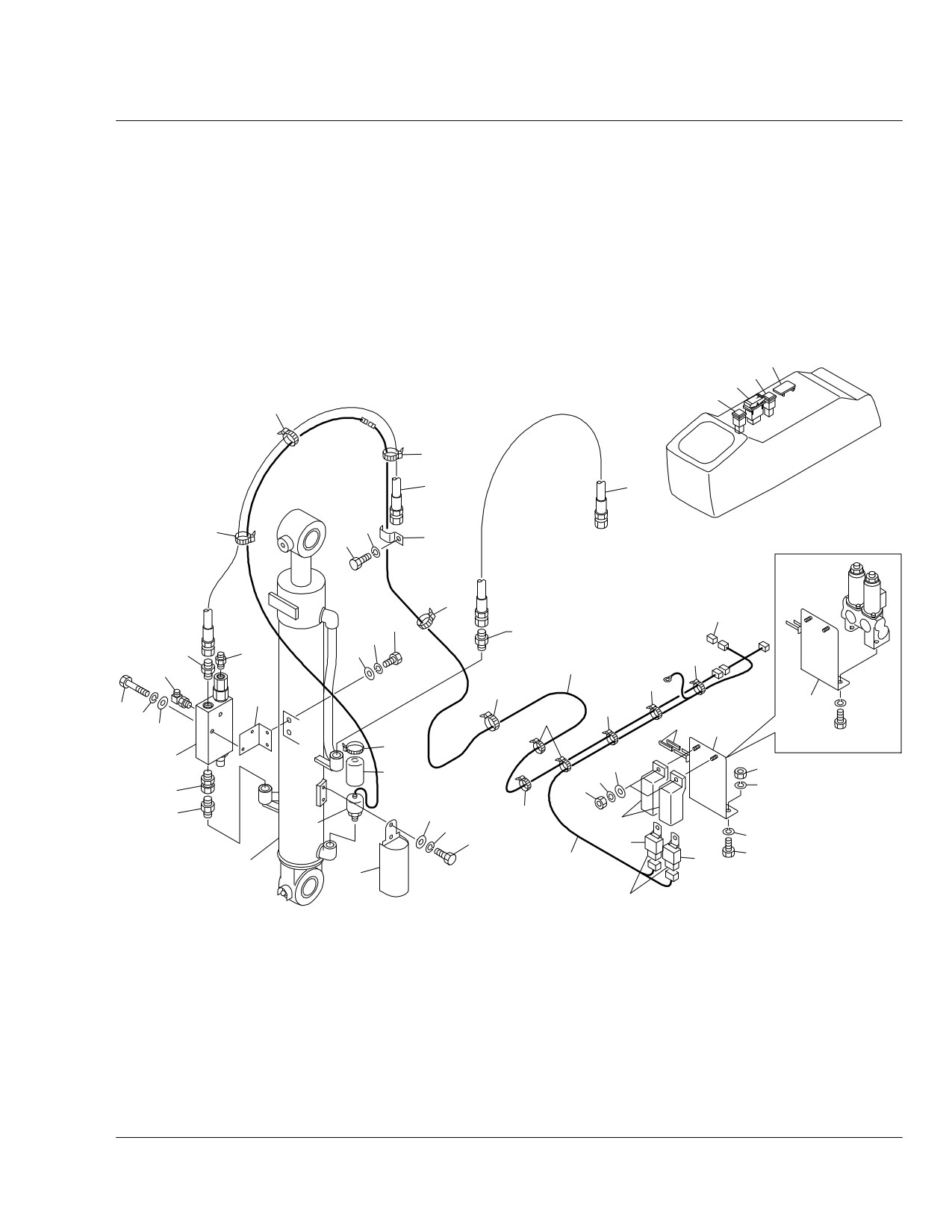

BOOM (1/4) (with boom shut-off valve, arm-in restriction)
61 60 11
12
43
10
11 60 61
13
69
9
45
39
4037
46
18
26
46-1
35
50
3
6
56
27
2
37
14
24
24
34
4036
34
6
52
3
31
28
6
19
14
1
24
31
62
34
22
49
53
19
X
75
62
74
28
61 60 11
58 57 15
15 57 58
62
1-30
1-29
61
60 11
55
17 33
1-29
44
41
1-30
42
72
21
X
30
16
35
63
71
43
38
34
29
5
51
32
8
20
23
59
4
G7F051
65 66
64
31
S=1/15
Ref. G7F051
Page
6-5
BOOM (1/4) (with boom shut-off valve, arm-in restriction)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Rema
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10
13
0376007700
HOSE ASSY
1
18015-10
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
18
0007300058
CLAMP
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
2
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
49
1531312050
PROTECTOR
1
sold by th
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
55
0003600237
COLLAR
1
56
1515600577
ADAPTOR
1
1420010180
O-RING
1
57
0003600108
SHIM
AR
t=0.2mm
Reference:G7F051
Page:6-5
BOOM (1/4) (with boom shut-off valve, arm-in restriction)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Rema
58
0003600109
SHIM
AR
t=0.5mm
59
0376015359
RUBBER
1
60
0003600056
SHIM
AR
t=0.5mm
61
0003600055
SHIM
AR
t=0.2mm
62
1652533016
CAP
19
63
0376015250
EMERGENCY SHUT-OFF VALVE ASSY, boom
1
see page
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
69
0376015450
ARM-IN RESTRICTION ASSY
1
see page
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f052
Reference:G7F051
Page:6-5
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BOOM (1/4) (with boom, arm shut-off valve, arm-in restriction)
61 60 11
12
43
10
11 60 61
54
9
69
45
26
40
37
46
39
6
46-1
35
50
3
24
27
2
14
24
34
3740
36
34
6
52
3
31
28
6
19
14
1
24
31
34
22
62
49
19
X
75
53
62
74
28
61 60 11
58 57 15
15 57 58
62
1-30
17
1-29
61
60 11
55
1-29
44
3341
1-30
42
72
21
X
30
16
35
63
71
43
38
34
29
5
51
32
8
20
23
4
G7F062
65 66
64
31
S=1/15
Ref. G7F062
Page
6-6

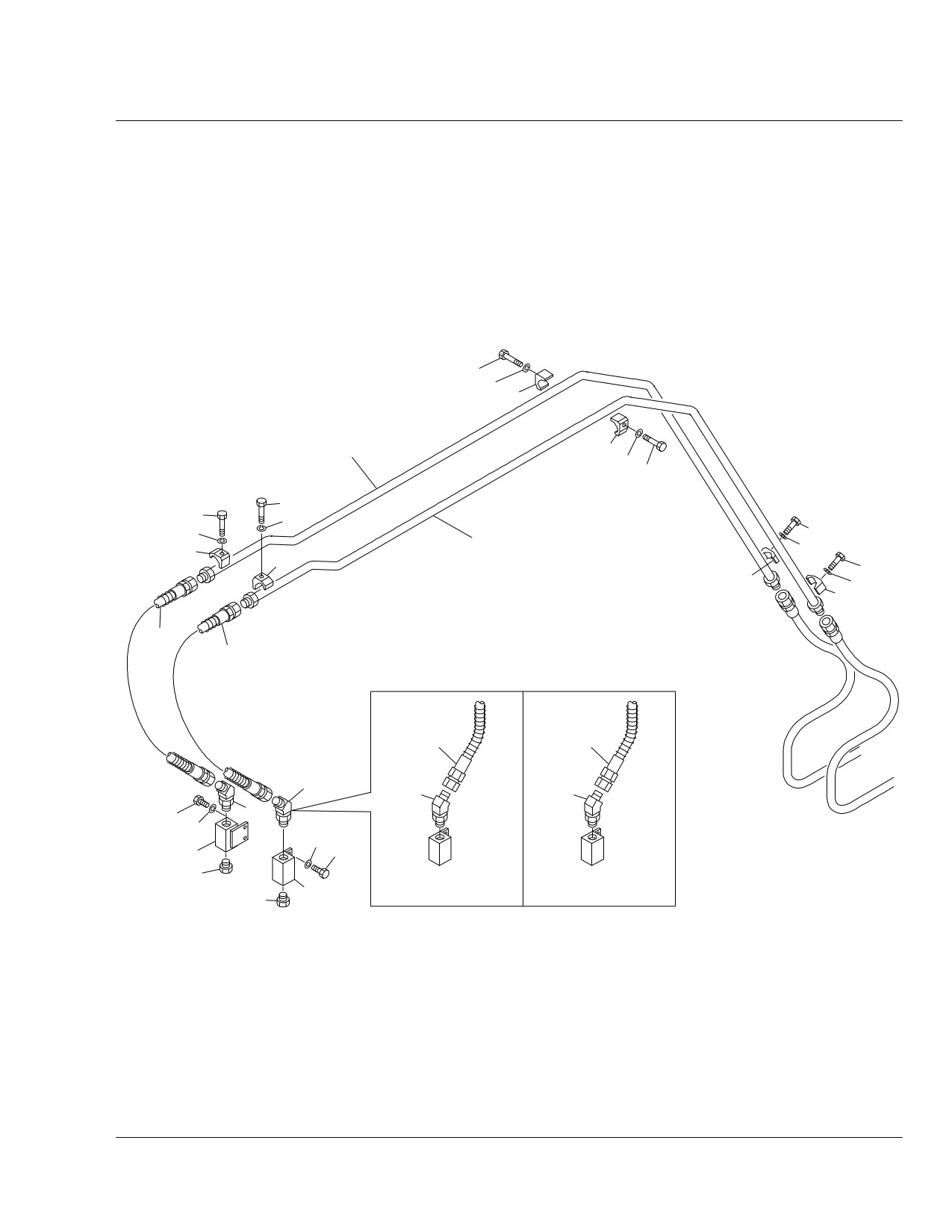

BOOM (1/4) (with boom, arm shut-off valve, arm-in restriction)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Rema
BOOM ASSY
1
0376016100
BOOM
1
(L)
123500001~123500942
0376018100
BOOM
1
(H)
123500943~
1-29
0002400075
BUSHING
2
1-30
1432200055
SEAL, dust
2
2
0376006020
PIPE
2
3
0446008500
PIPE
2
4
0376015304
COVER
1
5
0376015390
COVER, rod
1
6
1534000015
CLAMP
5
8
0376015308
RUBBER
1
9
0376007500
GUARD
1
10
0436011100
HARNESS, wiring
1
11
0456008600
SHIM
AR
t=1.0mm
12
0376007600
HOSE ASSY
1
18015-10
14
1652533017
CAP
6
15
0003600156
SHIM
AR
t=1.0mm
16
0003610002
WASHER
1
17
0003900020
WASHER
1
19
0001614006
PIN
2
20
0011515009
PIN
1
21
0011576005
PIN
1
22
0011904007
PIN
1
23
0376015023
RUBBER
1
123500001~123500288
0376017023
RUBBER
1
(H)
123500289~
24
1100040835
BOLT
5
26
1100041016
BOLT
1
27
1100041230
BOLT
1
28
1103041085
BOLT
2
29
1103141010
BOLT
1
30
1103141210
BOLT
1
31
1130240010
NUT
6
32
1130240012
NUT
2
33
1132630030
NUT
1
34
1140020008
WASHER, spring
9
35
1140020010
WASHER, spring
2
36
1140020012
WASHER, spring
1
37
1140330012
WASHER
2
38
1141110008
WASHER
4
39
1141110010
WASHER
1
40
1141110012
WASHER
2
41
1210010655
PIN, split
1
42
1225120018
WASHER, conical
1
43
1515600201
ADAPTOR
2
1420010140
O-RING
1
44
1560001000
FITTING, grease
1
45
1652200004
BAND
3
46
1703002700
LAMP ASSY
1
46-1
1703002706
BULB
1
49
1531312050
PROTECTOR
1
sold by th
50
0434200500
WIRE
1
51
1100040820
BOLT
4
52
1652201004
BAND
2
53
1652201005
BAND
1
54
0376017350
EMERGENCY SHUT-OFF VALVE ASSY, arm
1
see page
55
0003600237
COLLAR
1
57
0003600108
SHIM
AR
t=0.2mm
58
0003600109
SHIM
AR
t=0.5mm
60
0003600056
SHIM
AR
t=0.5mm
61
0003600055
SHIM
AR
t=0.2mm
Reference:G7F062
Page:6-6
BOOM (1/4) (with boom, arm shut-off valve, arm-in restriction)
Item Part number
Description
Q'ty Chan.
Serial No.
Serv.
Rema
62
1652533016
CAP
19
63
0376015250
EMERGENCY SHUT-OFF VALVE ASSY, boom
1
see page
64
0376015364
RUBBER
1
65
0003600060
SHIM
AR
t=0.2mm
66
0003600061
SHIM
AR
t=0.5mm
69
0376015450
ARM-IN RESTRICTION ASSY
1
see page
71
1100041020
BOLT
1
72
0376015072
ADAPTOR
2
74
0007200154
NUT
2
75
1141110016
WASHER
2
G7f062
Reference:G7F062
Page:6-6
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BOOM (2/4) (boom shut-off valve)
24252423
19
19
36
36
22
19
21
20
19
29-1
See "BOOM (1/4)"
119
4
5
13
18
31
6
V2
18
19
14
18
27
8
18
11
33
27
12
18
with 2nd aux. lines
2
12
35
17
3211
22
3
7
12
18
30
16
11
22
10
28
34
1
29
28
15
G7F071
Relay for Lift Alarm
S=1/8
Ref. G7F071
Page
6-7
BOOM (2/4) (boom shut-off valve)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0376015250
EMERGENCY SHUT-OFF VALVE ASSY, boom
1
1
1900097800
CYLINDER, boom
1
2
1901745200
VALVE, emergency shut-off
1
3
0007236041
ADAPTOR
1
1420010180
O-RING
1
4
1515600577
ADAPTOR
1
1420010180
O-RING
1
5
1515600200
ADAPTOR
1
1420010110
O-RING
1
6
1515012040
ELBOW
1
1420010110
O-RING
1
7
1515600572
ADAPTOR
1
1420010140
O-RING
1
8
1100040645
BOLT
2
9
1100040616
BOLT
2
10
1100040612
BOLT
2
11
1140020006
WASHER, spring
8
12
1141110006
WASHER
6
13
0003606202
WASHER
2
14
0375019030
PLATE
1
15
0375019020
COVER
1
16
1700100082
SWITCH, pressure
1
17
1700100061
COVER
1
18
1652231250
BAND
7
19
1652201005
BAND
12
20
0395012150
CLAMP
1
21
1100040816
BOLT
1
22
1140020008
WASHER, spring
1
with 2nd aux. line
1140020008
WASHER, spring
5
without 2nd aux. line
23
1700008035
ORNAMENT
1
24
1700550024
ORNAMENT
2
25
1700008070
SWITCH, lift alarm
1
27
0376015260
BRACKET
1
28
1711900042
RELAY
2
29
0376015270
HARNESS, wiring
1
29-1
1730500008
DIODE (3A, yellow)
1
30
1700100038
COVER
2
31
0395012130
HARNESS, wiring
1
32
1130040006
NUT
2
33
0872433150
TUBE
2
34
1100040825
BOLT
2
without 2nd aux. line
35
1130040008
NUT
2
without 2nd aux. line
36
1801720070
HOSE ASSY
2
G7f070
Reference:G7F071
Page:6-7
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BOOM (3/4) (arm shut-off valve)
17
16
20
See "BOOM (1/4)"
18
11
5
T
15
19
8
22
V2
14
4
11
21
10
13
See "BOOM (1/4)"
PIL
2
12
20
3
6
9
11
7
19
22
G7F081
S=1/10
Ref. G7F081
Page
6-8
BOOM (3/4) (arm shut-off valve)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0376017350
EMERGENCY SHUT-OFF VALVE ASSY, arm
1
2
1901745200
VALVE, emergency shut-off
1
3
0007236041
ADAPTOR
1
1420010180
O-RING
1
4
1515600577
ADAPTOR
1
1420010180
O-RING
1
5
1515600200
ADAPTOR
1
1420010110
O-RING
1
6
1515012040
ELBOW
1
1420010110
O-RING
1
7
1515600202
ADAPTOR
1
1420010180
O-RING
1
8
0007300030
CLAMP
1
9
1100040645
BOLT
2
10
1100040816
BOLT
2
11
1140020008
WASHER, spring
4
12
1140020006
WASHER, spring
2
13
1141110006
WASHER
2
14
0003600079
WASHER
2
15
0376015355
PLATE
1
16
0376015340
HOSE ASSY
1
18010-22125
17
0376015330
HOSE ASSY
1
18010-22118
18
0376015310
HOSE ASSY
1
18015-10122
19
1534000012
CLAMP
2
20
1100040855
BOLT
2
21
0376015320
PIPE
2
22
0376015351
PLATE
2
G7f081
Reference:G7F081
Page:6-8
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

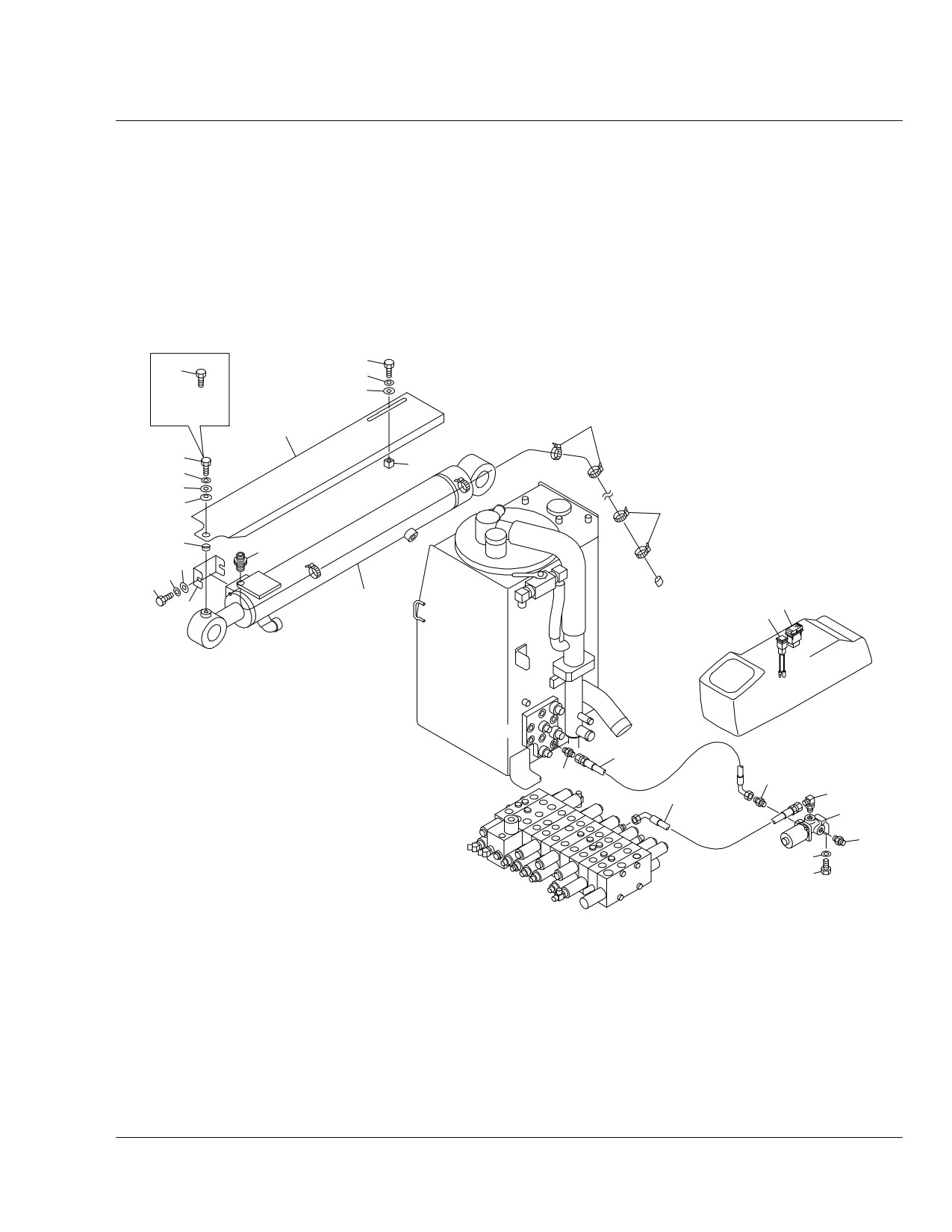

BOOM (4/4) (arm-in restriction)
13
13
15
18
123500001~
123500372
20
3
33
4
15
11
16
20
10
6
17
14
12
2
5
89
T4
25
34
21-2
21-1
24
A
Pa5
DR
21-3
P
21-2
23
22
G7F092
S=1/10
Ref. G7F092
Page
6-9
BOOM (4/4) (arm-in restriction)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0376015450
ARM-IN RESTRICTION ASSY
1
2
1900101700
CYLINDER, arm
1
3
0376015460
COVER, rod
1
4
0376015470
COLLAR
1
5
0376015480
COVER
1
6
1700009020
SENSOR
1
8
1700550036
LAMP, pilot
1
9
1700008090
SWITCH
1
10
0003600228
COLLAR
1
123500001~123500372
0003600237
COLLAR
1
123500373~
11
0003610002
WASHER
1
12
1100040816
BOLT
2
13
1100041016
BOLT
1
14
1140020008
WASHER, spring
2
15
1140020010
WASHER, spring
3
16
1225120018
WASHER, conical
1
17
1141110008
WASHER
2
18
1141110010
WASHER
1
20
1652200004
BAND
6
21
0376015560
VALVE ASSY, solenoid
1
21-1
1515012040
ELBOW
1
1420010110
O-RING
1
21-2
1515600200
ADAPTOR
2
1420010110
O-RING
1
21-3
1901750800
VALVE, solenoid
1
22
1100040614
BOLT
2
23
1140020006
WASHER, spring
2
24
0376015570
HOSE ASSY
1
19347-52030
25
0376015580
HOSE ASSY
1
19347-52095
33
1100041020
BOLT
1
123500373~
34
1515600200
ADAPTOR
1
1420010110
O-RING
1
G7f092
Reference:G7F092
Page:6-9
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
ARM
18
26
27
31
20
22
1-21
1-19
8
30
29
17
1
12
1-19
1-21
11
17
29
30
9
21
19
1
6
12
1-22
10
24
1-20
30
29
17
3
15
17
29
30
17
middle arm
2-4
1-20
16
19
29
2-3
1-22
30
29
17
7
30
4
17
29
30
17
29
30
1-22
2313
1-20
30
29
17
2-1
1-23
2-4
2-2
14
1-20
2-3
10
2-4
1-22
2-4
17
29
30
2-4
16
5
2-2
19
2-4
12
10
30
29
17
23
15 19
5
13
14
12
G7F101
S=1/15
Ref. G7F101
Page
6-10
ARM
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ARM ASSY
MIDDLE ARM ASSY
1
0376117100
ARM SUB ASSY
1
0376120700
ARM SUB ASSY (1450mm)
1
middle arm
1-19
0002400022
BUSHING
2
1-20
0002400019
BUSHING
4
1-21
1432200045
SEAL, dust
2
1-22
1432200040
SEAL, dust
4
1-23
0003043000
COLLAR
1
2
0376117600
LINK ASSY, arm
1
2-1
0376117610
LINK, arm
1
2-2
0002100031
BUSHING
2
2-3
0002400019
BUSHING
2
2-4
1432200040
SEAL, dust
6
3
0376100300
LINK, guide (R.H.)
1
4
0456100500
LINK, guide (L.H.)
1
5
0001524004
PIN
2
6
0001793001
PIN
1
7
0001793002
PIN
1
8
0001614005
PIN
1
9
0001613006
PIN
1
10
1103041080
BOLT
3
11
1103041085
BOLT
1
12
1130240010
NUT
8
13
1132630030
NUT
2
14
1210010655
PIN, split
2
15
1432900003
O-RING
2
16
1432900046
O-RING
2
17
0436011300
SHIM t=1.0
AR
18
0456008600
SHIM t=1.0
AR
19
1560001000
FITTING, grease
4
20
1560001675
FITTING, grease
1
21
1900097100
CYLINDER, bucket
1
22
1801522090
HOSE ASSY
2
1801522104
HOSE ASSY
2
middle arm
23
0003900013
WASHER
2
24
1652533016
CAP
8
26
0003600056
SHIM t=0.5
AR
27
0003600055
SHIM t=0.2
AR
29
0003600036
SHIM t=0.5
AR
30
0003600035
SHIM t=0.2
AR
31
1531335072
PROTECTOR
2
sold by the meter
1531335086
PROTECTOR (middle arm)
2
sold by the meter
G7f101
Reference:G7F101
Page:6-10
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
ARM (long arm)
18 27 28
25
20
22
1-24
1-22
8
12
32
31 30 17
1-22
1-24
11
17 30 31
21
19
6
1
9
12
3
15
17 30 31
1-25
17
10
for US
2-4
24
1-23
19
30
2-3
31 30 17
7
31
4
17 30 31
1-23
2313
16
31
30
17
1-25
2-1
2-4
31 30 17
2-2
17 30
31
2-3
14
1-25
2-4
2-4
1-23
2-4
17 30 31
1-26
2-2
2-4
1-23
10
10
31 30 17
1-25
16
1519
5
5
2313
19
14
G7F111
12
12
S=1/15
Ref. G7F111
Page
6-11
ARM (long arm)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ARM ASSY, long
ARM ASSY, long (for U.S.)
1
0376117300
ARM SUB ASSY, long (1600mm)
1
1-22
0002400022
BUSHING
2
1-23
0002400019
BUSHING
4
1-24
1432200045
SEAL, dust
2
1-25
1432200040
SEAL, dust
4
1-26
0003043000
COLLAR
1
2
0376117600
LINK ASSY, arm
1
2-1
0376117610
LINK, arm
1
2-2
0002100031
BUSHING
2
2-3
0002400019
BUSHING
2
2-4
1432200040
SEAL, dust
6
3
0376100300
LINK, guide (R.H.)
1
4
0456100500
LINK, guide (L.H.)
1
5
0001524004
PIN
2
6
0001793001
PIN
1
7
0001793002
PIN
1
8
0001614005
PIN
1
9
0001613006
PIN
1
10
1103041080
BOLT
3
11
1103041085
BOLT
1
12
1130240010
NUT
8
13
1132630030
NUT
2
14
1210010655
PIN, split
2
15
1432900003
O-RING
2
16
1432900046
O-RING
2
17
0436011300
SHIM t=1.0
AR
18
0456008600
SHIM t=1.0
AR
19
1560001000
FITTING, grease
4
20
1560001675
FITTING, grease
1
21
1900097100
CYLINDER, bucket
1
22
1801522118
HOSE ASSY
2
23
0003900013
WASHER
2
24
1652533016
CAP
8
25
1531335100
PROTECTOR
2
sold by the meter
27
0003600056
SHIM t=0.5
AR
28
0003600055
SHIM t=0.2
AR
30
0003600036
SHIM t=0.5
AR
31
0003600035
SHIM t=0.2
AR
32
0376117700
ARM SUB ASSY, long (for U.S.) (1600mm)
1
G7f111
Reference:G7F111
Page:6-11
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BUCKET 1
4
1-13
5
7
2
6
500 WIDE
6
3
7
1
570 WIDE / STANDARD
G4F050
S=1/8
Ref. G4F050
Page
6-12

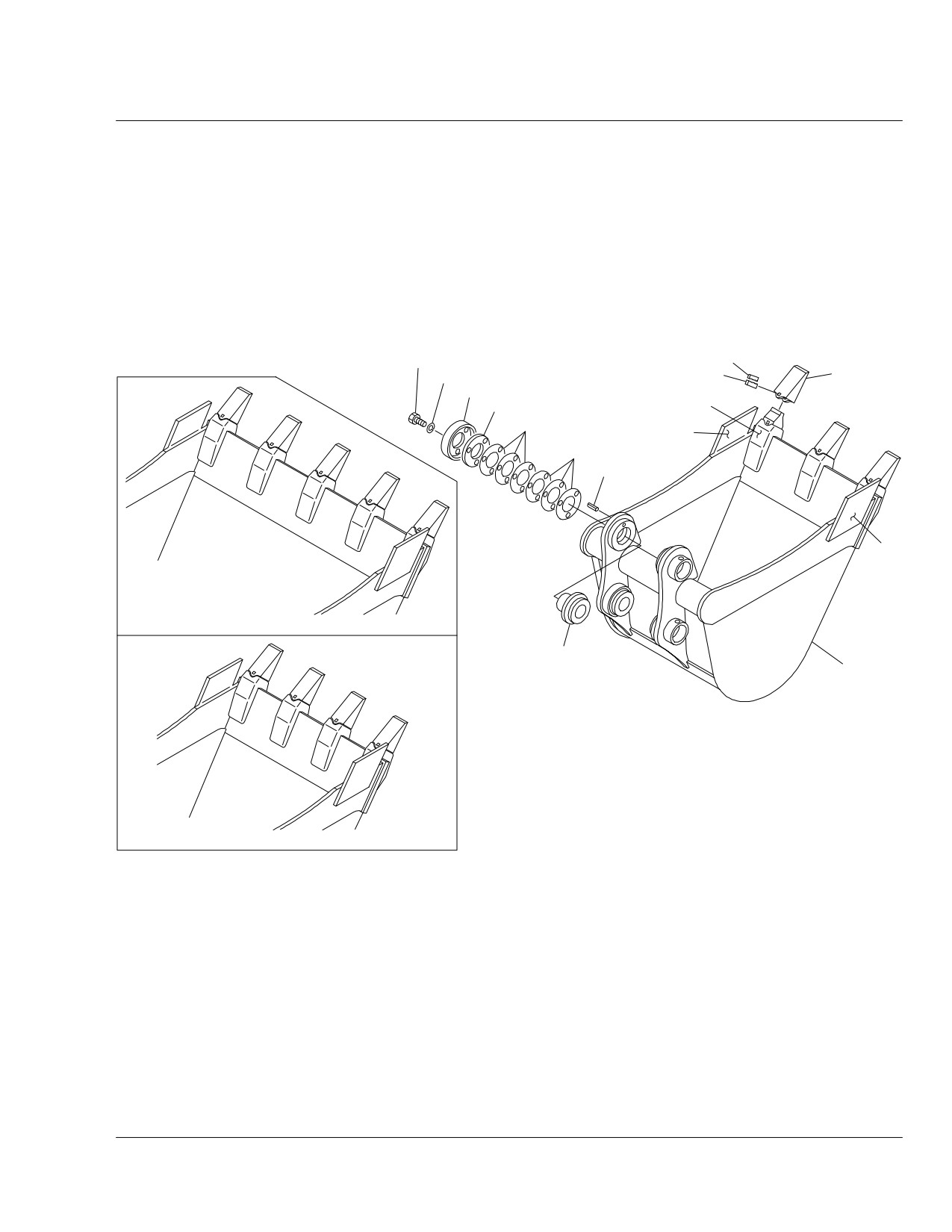

BUCKET 1
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0376218000
BUCKET ASSY
1
570wide
0376219000
BUCKET ASSY
1
500wide
1
X
**********
BUCKET
1
1-13
1914201201
ADAPTOR, tooth
4
570w
1914201201
ADAPTOR, tooth
3
500w
2
0436201200
CUTTER (R.H.)
1
3
0436201300
CUTTER (L.H.)
1
4
1914201202
POINT, tooth
4
570w
1914201202
POINT, tooth
3
500w
5
1914201203
PIN, lock
4
570w
1914201203
PIN, lock
3
500w
6
1100041635
BOLT
6
7
1130050016
NUT
6
G4f050
Reference:G4F050
Page:6-12
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BUCKET 2
9
8
10
7
6
3
1-15
4
5
1-5
5
11
1-5
800 WIDE
2
1
310, 380, 400 WIDE
630 WIDE
G4F090
S=1/10
Ref. G4F090
Page
6-13

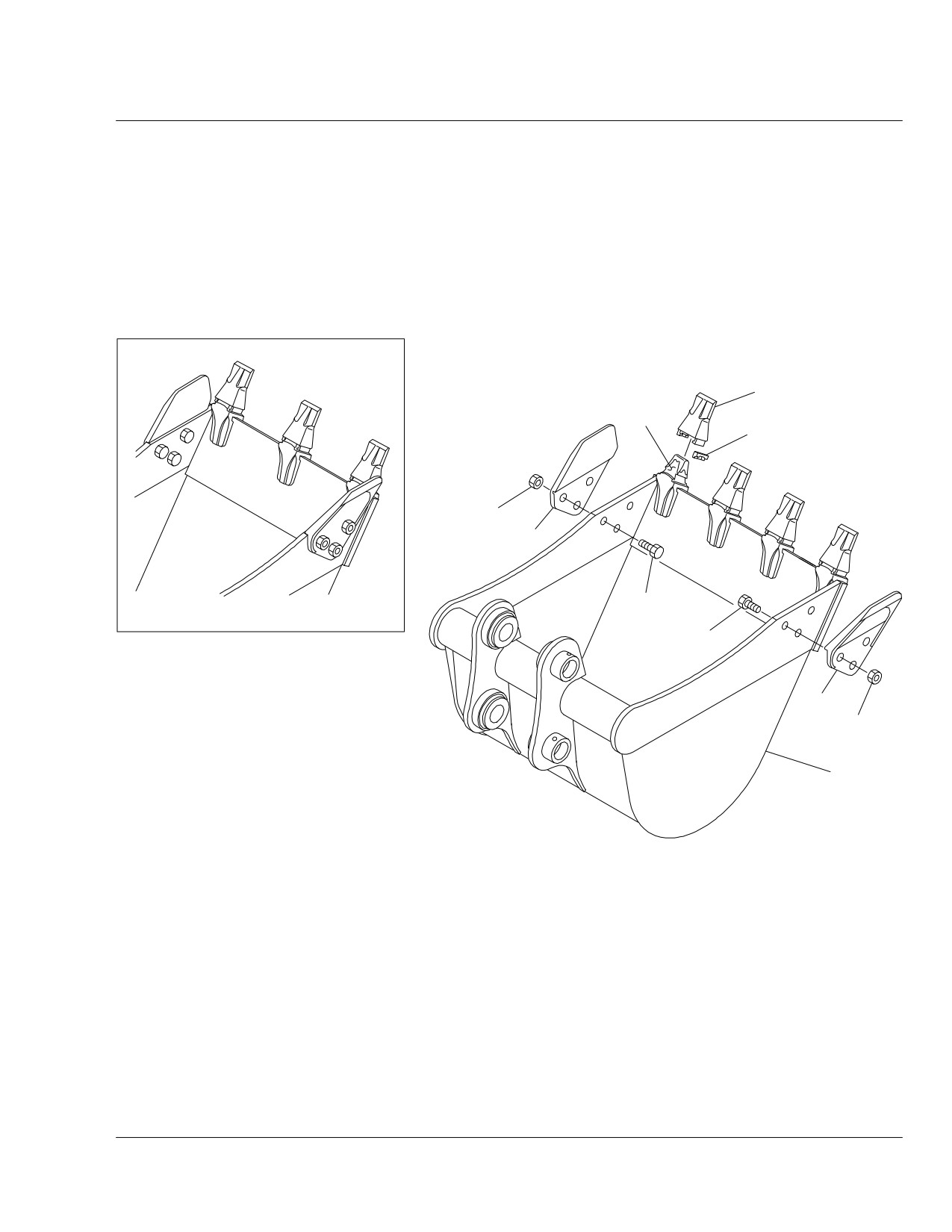

BUCKET 2
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0376208000
BUCKET ASSY
1
310wide
0376209000
BUCKET ASSY
1
380wide
0376213000
BUCKET ASSY
1
400wide
0376211000
BUCKET ASSY
1
630wide
0376214000
BUCKET ASSY
1
800wide
1
X
**********
BUCKET
1
1-5
0356200105
CUTTER side
2
1-15
1914200381
ADAPTOR, tooth
3
310w, 380w, 400w
1914200381
ADAPTOR, tooth
4
630w
1914200381
ADAPTOR, tooth
5
800w
2
0376201200
BUSHING
1
3
0356201300
PLATE, end
1
4
0376201300
FRANGE
1
5
0356201500
SHIM
6
6
1914200182
POINT, tooth
3
310w, 380w, 400w
1914200182
POINT, tooth
4
630w
1914200182
POINT, tooth
5
800w
7
1914200183
PIN, lock
3
310w, 380w, 400w
1914200183
PIN, lock
4
630w
1914200183
PIN, lock
5
800w
8
1914200184
PIN
3
310w, 380w, 400w
1914200184
PIN
4
630w
1914200184
PIN
5
800w
9
1100051025
BOLT
3
10
1140010010
WASHER, spring
3
11
1213000830
PIN, sping
1
G4f090
Reference:G4F090
Page:6-13
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
BUCKET 3
2
3
4
1-14
1
609 WIDE
G4F100
S=1/8
Ref. G4F100
Page
6-14

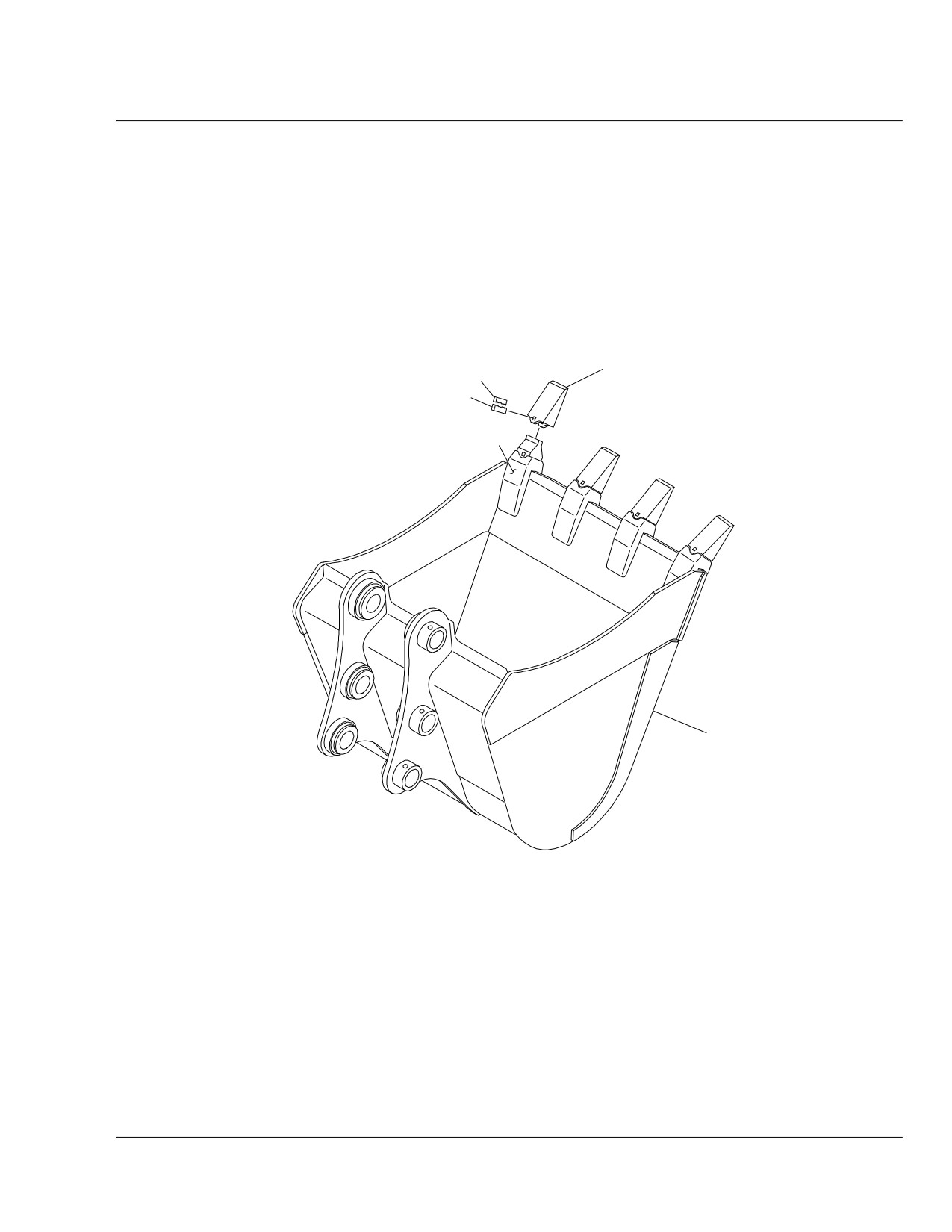

BUCKET 3
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0376221500
BUCKET ASSY
1
609wide
1
X
**********
BUCKET
1
1-14
1914200381
ADAPTOR, tooth
4
2
1914200182
POINT, tooth
4
3
1914200184
PIN, lock
4
4
1914200183
PIN
4
G4f100
Reference:G4F100
Page:6-14
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
AUXILIARY LINE
10
8
13
1
13
8
10
10
10
8
8
10
2
13
8
13
10
13
8
13
14
14
16
17
15
15
15
15
9
11
11
6
9
12
6
LONG ARM
MIDDLE ARM
G7F131
12
S=1/10
Ref. G7F131
Page
6-15

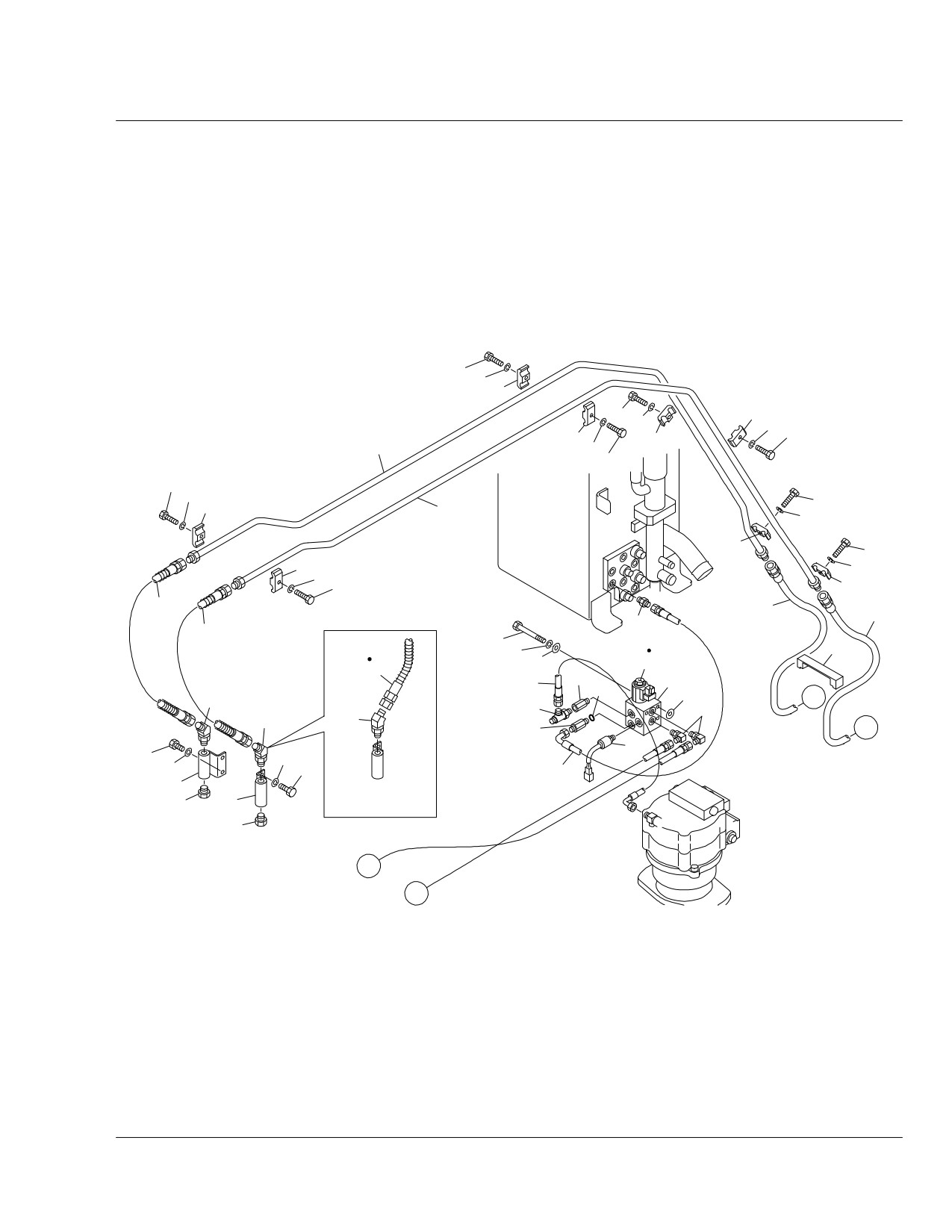

AUXILIARY LINE
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
0377313500
AUXILIARY LINE ASSY
1
123500001~123500972
0377314900
AUXILIARY LINE ASSY (for middle arm)
1
123500001~123500972
0377313600
AUXILIARY LINE ASSY (for long arm)
1
123500001~123500972
0377315800
AUXILIARY LINE ASSY
1
123500973~
M
0377315900
AUXILIARY LINE ASSY (for middle arm)
1
123500973~
M
0377316000
AUXILIARY LINE ASSY (for long arm)
1
123500973~
M
1
0377313510
PIPE (R.H.)
1
123500001~123500972
0377315810
PIPE (R.H.)
1
123500973~
M
2
0377313520
PIPE (L.H.)
1
123500001~123500972
0377315820
PIPE (L.H.)
1
123500973~
M
6
1901719800
VALVE , stop
2
8
1140020010
WASHER, spring
6
9
1100040816
BOLT
4
10
1100041045
BOLT
6
11
1140020008
WASHER, spring
4
12
1501750004
PLUG
2
1420010180
O-RING
1
13
1534100218
CLAMP
6
14
1801640084
HOSE ASSY
2
15
1515100112
ELBOW
2
1420010180
O-RING
1
16
1801640108
HOSE ASSY
2
for long arm
17
1801640095
HOSE ASSY
2
middle arm
G7f132
Reference:G7F131
Page:6-15
TB235 (P-TB235BAC) BG7Z002S/N 123500001-

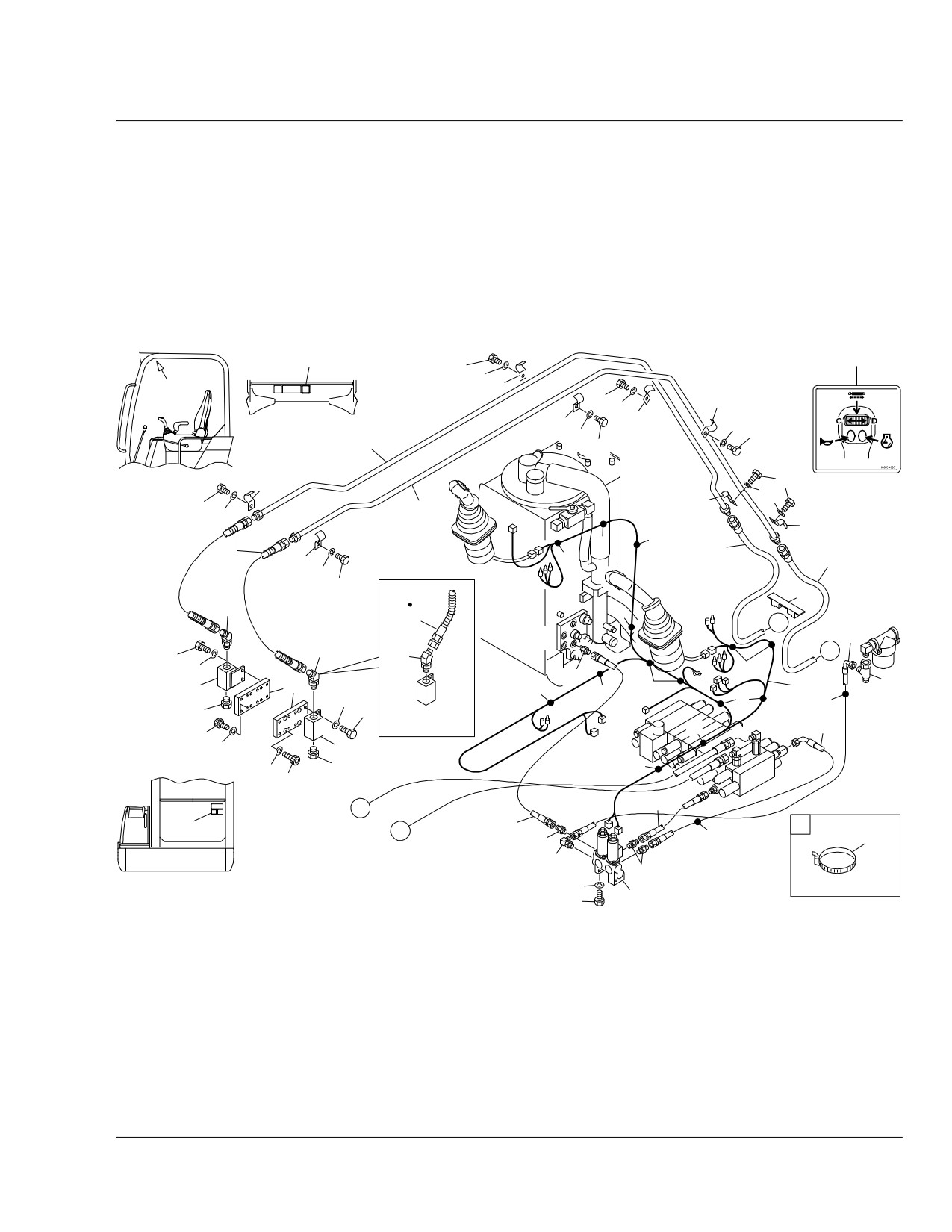

2ND AUXILIARY LINE
29
29
9
11
A
13
9
13
11
VIEW "A"
13
13
11
11
9
1
9
CANOPY
13
9
11
9
13
2
11
13
a
a
21
14
a
22
13
11
9
17
30
15
a
16
X
25
15
Y
9
15
11
T7
a
19
10
31
6
a
a
a
5
11
a
a
12
9
MIDDLE ARM
LONG ARM
a
24
A10
Pa10
7
8
6
a
8
12
7
B10
23
Pb10
X
T
29
26
A1
a
Y
a
28
4-3
P
A2
4-2
4-3
CAB
11
4-1
G7F141
9
S=1/12
Ref. G7F141
Page
6-16
2ND AUXILIARY LINE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv
0
0377313700
LINE ASSY, 2nd aux.
1
123500001~123500972
0377315000
LINE ASSY, 2nd aux. (middle arm)
1
123500001~123500972
0377313800
LINE ASSY, 2nd aux. (long arm)
1
123500001~123500972
0377314300
LINE ASSY, 2nd aux. (3rd aux. high press. type)
1
123500001~123500972
0377315100
LINE ASSY, 2nd aux. (middle arm) (3rd aux. high press. type)
1
123500001~123500972
0377314400
LINE ASSY, 2nd aux. (long arm) (3rd aux. high press. type)
1
123500001~123500972
0377316100
LINE ASSY, 2nd aux.
1
123500973~
M
0377316200
LINE ASSY, 2nd aux. (middle arm)
1
123500973~
M
0377316300
LINE ASSY, 2nd aux. (long arm)
1
123500973~
M
0377316400
LINE ASSY, 2nd aux. (3rd aux. high press. type)
1
123500973~
M
0377316500
LINE ASSY, 2nd aux. (middle arm) (3rd aux. high press. type)
1
123500973~
M
0377316600
LINE ASSY, 2nd aux. (long arm) (3rd aux. high press. type)
1
123500973~
M
1
0377313710
PIPE (R.H.)
1
123500001~123500972
0377316110
PIPE (R.H.)
1
123500973~
M
2
0377313720
PIPE (L.H.)
1
123500001~123500972
0377316120
PIPE (L.H.)
1
123500973~
M
4
0377312540
VALVE ASSY, solenoid
1
4-1
1901752100
VALVE, solenoid
1
4-2
1512375004
ELBOW
1
1420010110
O-RING
1
4-3
1515600200
ADAPTOR
3
1420010110
O-RING
1
5
0377313750
HARNESS, wiring
1
6
1901719800
VALVE, stop
2
7
1110040816
SCREW, cap
8
8
1140420008
WASHER, spring
8
9
1100040816
BOLT
14
10
0377313740
PLATE
2
11
1140020008
WASHER, spring
14
12
1501750004
PLUG
2
1420010180
O-RING
1
13
0567339570
CLAMP
8
14
1801620072
HOSE ASSY
2
15
1515100047
ELBOW
2
1420010440
O-RING
1
16
1801620098
HOSE ASSY
2
17
1801620087
HOSE ASSY
2
19
1515600200
ADAPTOR
1
1420010110
O-RING
1
21
0377312610
HOSE ASSY
1
22
0377312620
HOSE ASSY (without 3rd aux. high press. type)
1
23
0377312630
HOSE ASSY
1
24
0377312640
HOSE ASSY
1
25
0377312650
HOSE ASSY
1
26
0377312660
HOSE ASSY
1
28
1652231250
BAND
15
29
0569349961
DECAL
1
30
0377313730
RUBBER
1
123500001~123500288
0377313760
RUBBER
1
(H)
123500289~
31
1513390043
TEE
1
G7f142
Reference:G7F141
Page:6-16
TB235 (P-TB235BAC) BG7Z002S/N 123500001-
3RD AUXILIARY LINE (1/2)
9 11
13
9 11
1311
9
13
13
1
11
9
9 11
13
9
2
11
13
9
11
1311
9
13
T10
14
23
21
18
14
3-5-1
39
5
2911
17
3-5-2
16
3-6
3-5
19
3-7
17
15
P
X
3-1
3-2
15
15
3-3
Y
T
A
3-4
B
8
11
11
8
20
6
MIDDLE ARM
12
6
LONG ARM
PG
12
X
Y
G7F161
S=1/10
Ref. G7F161
Page
6-17















Content      ..     5      6      7      8     ..
