Takeuchi Mini Excavator TB016 (Serial No.11610001~). Parts Manual - page 8
Engine for TB016 3TNV70- STB

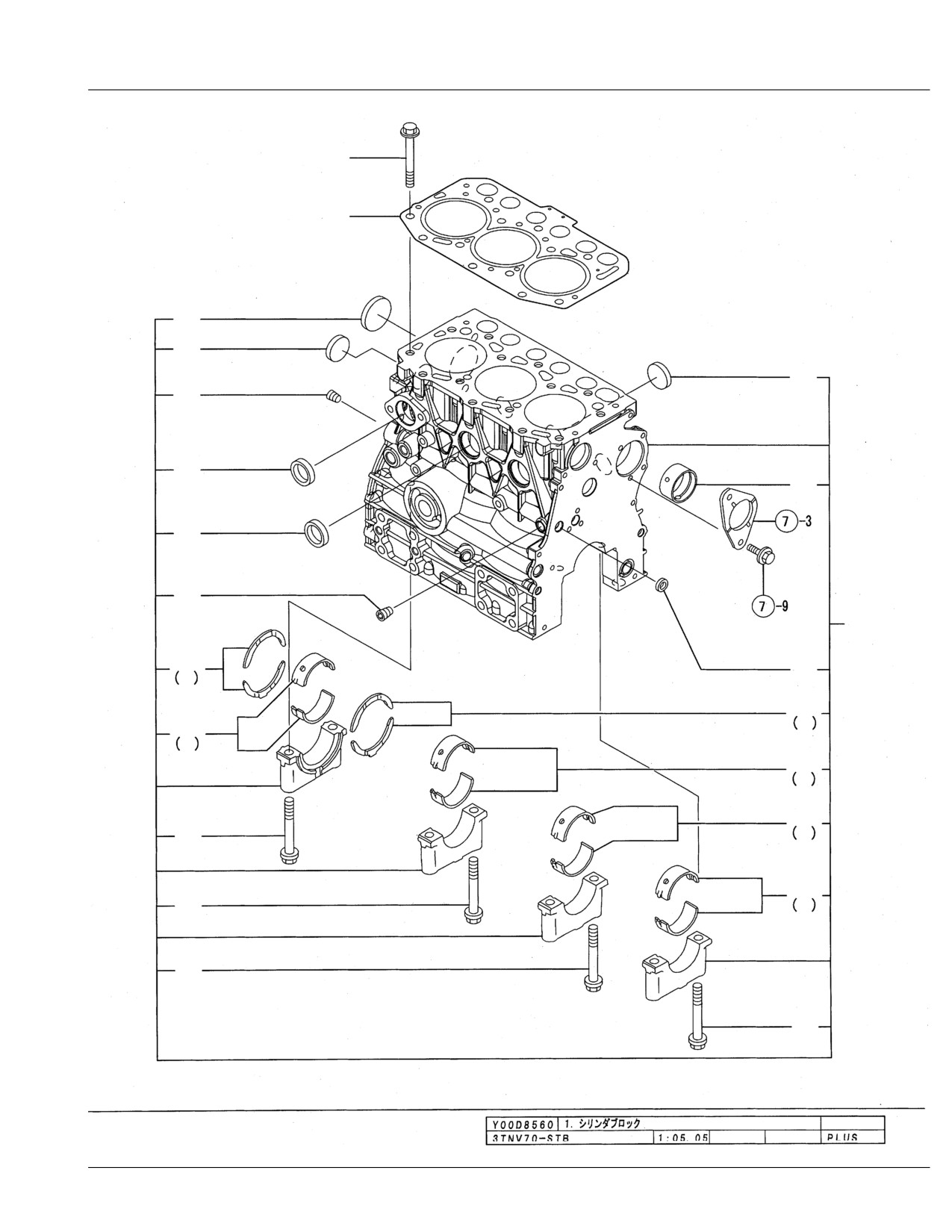

CYLINDER BLOCK
30
31
7
6
9
8
6
13
6
5
1
27
14
32
27
15
32
35
15
35
15
35
10
15
10
35
10
10
Ref Fig01
Page
01
¼ØÝÀÞÌÞÛ¯¸ CYLINDER BLOCK
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y719515-01560
BLOCK ASSY, CYLINDER
1
5
Y124060-01050
PLUG PT1/8
1
6
Y105311-01090
PLUG 30 (SUS)
4
7
Y119623-01250
PLUG 45
1
8
Y124160-01910
PLUG PT1/4
1
9
Y119285-01990
PLUG 25
3
10
Y119620-02020
BOLT
8
13
Y119717-02410
BUSH, CAMSHAFT
1
14
Y27241-120000
PLUG 12
1
15
Y719717-02900
MAIN BEARING SET
4
27
Y119717-02930
BEARING, THRUST
2
30
Y119515-01200
BOLT, CYLINDER HEAD
14
31
Y119515-01330
GASKET, CYL.HEAD
1
32
Y119810-02940
BEARING,THRUST .25OS
2
35
Y719717-02910
MAIN METAL US=0.25
4
Reference:Fig01
Page:01
Engine for TB016 3TNV70- STB

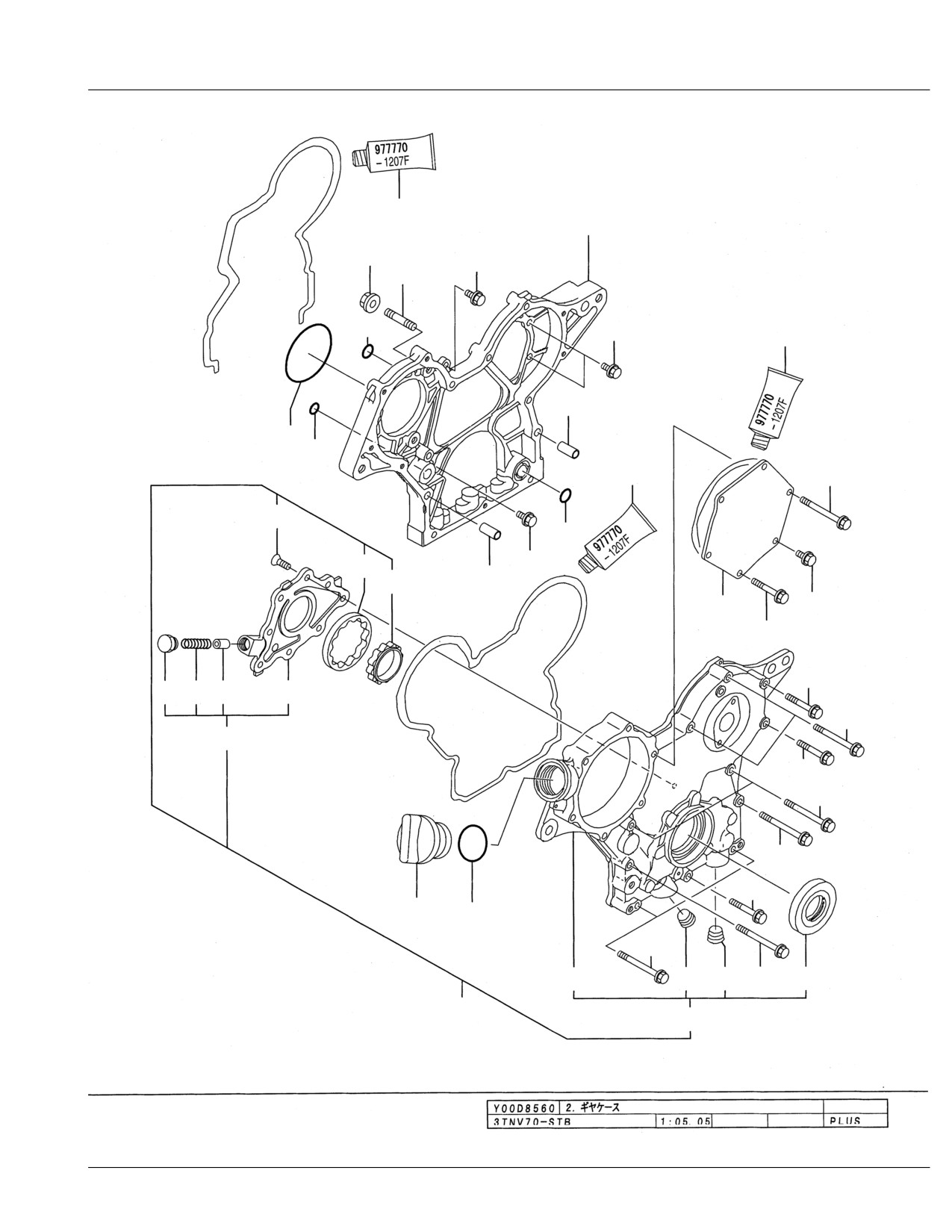

GEAR HOUSING
32
1
29
24
3
21
24
32
19
22
20
32
27
17
21
16
24
19
15
18
23
25
26
14
13
12
11
27
10
26
27
28
26
30
31
27
6
9
9
28
8
4
5
Ref Fig02
Page
02
·ÞÔ¹-½ GEAR HOUSING
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y119717-01501
CASE, GEAR
1
3
Y119717-01570
BOLT, STUD M8
3
4
Y119734-01590
COVER ASSY,GEAR CASE
1
5
Y719734-01500
COVER ASSY,GEAR CASE
1
6
Y119717-01521
COVER, GEAR CASE
1
8
Y119717-01800
SEAL, OIL
1
9
Y23876-030000
PLUG PT3/8,SCREW
2
10
Y119717-32100
COVER ASSY, PUMP
1
11
Y119717-32080
COVER, LUB.OIL PUMP
1
12
Y129900-32130
VALVE, RELIEF
1
13
Y129001-32320
SPRING
1
14
Y129001-32330
PLUG
1
15
Y119717-32110
ROTOR, INNER
1
16
Y119717-32120
ROTOR, OUTER
1
17
Y119802-32130
SCREW, M6X16
8
18
Y119717-01750
COVER, PUMP TIMING
1
19
Y119660-01911
PIPE, KNOCK
4
20
Y119624-32040
O-RING P 12.0
1
21
Y119717-32050
O-RING, P17.0
3
22
Y121850-51960
O-RING, F.I.PUMP
1
23
Y26106-060122
BOLT M 6X 12 PLATED
1
24
Y26106-060162
BOLT M 6X 16 PLATED
4
25
Y26106-060402
BOLT M 6X 40 PLATED
4
26
Y26106-060402
BOLT M 6X 40 PLATED
3
27
Y26106-060602
BOLT M 6X 60 PLATED
7
28
Y26106-060652
BOLT M 6X 65 PLATED
2
29
Y26306-080002
NUT
3
30
Y124160-01751
COVER,FILLER
1
31
Y24311-000320
O-RING 1A P-32.0
1
32
Y977770-1207F
GASKET, LIQUID
1
Reference:Fig02
Page:02
Engine for TB016 3TNV70- STB

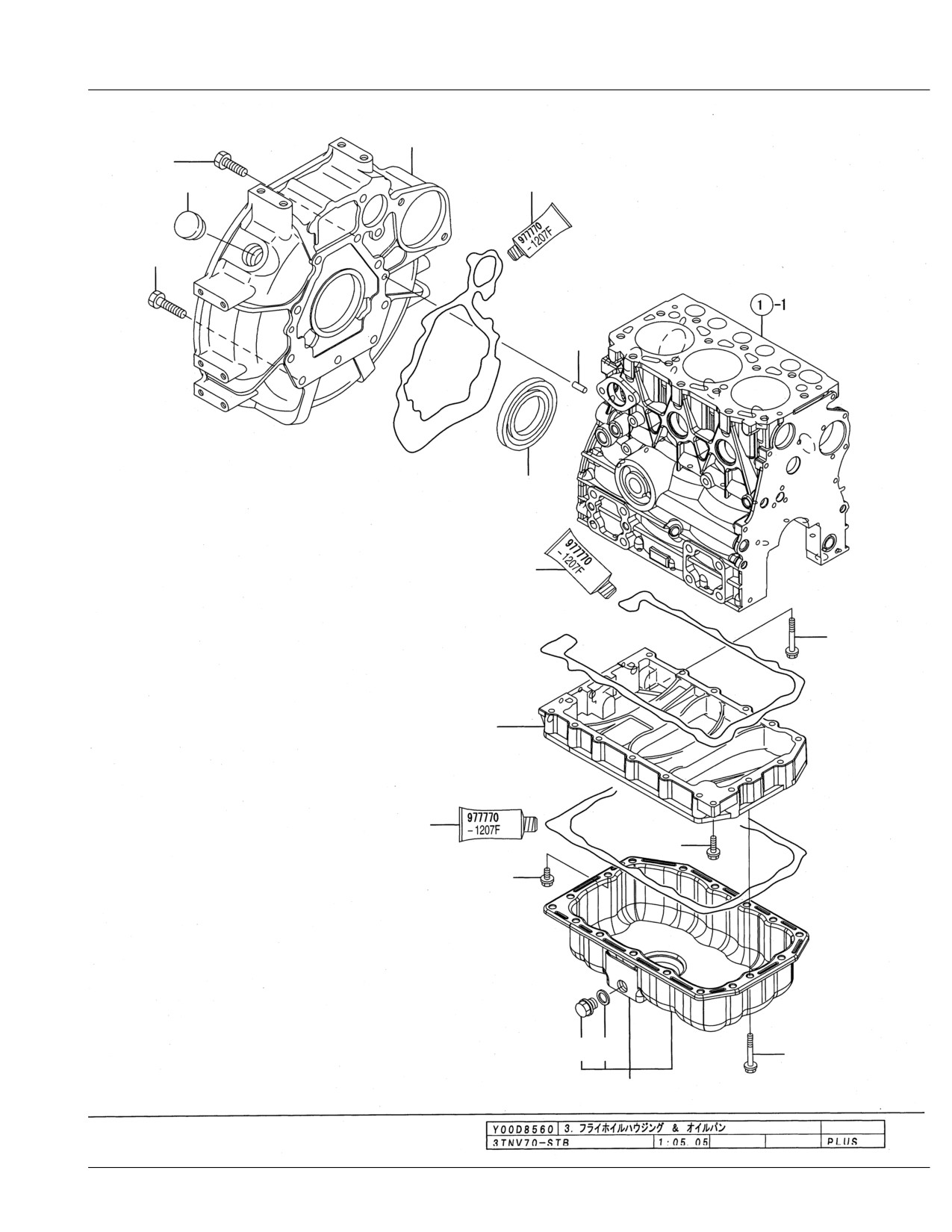

FLYWHEEL HOUSING & OIL SUMP
2
6
4
16
3
1
5
16
15
7
16
14
13
10 12
15
9
Ref Fig03
Page
03
ÌײβÙʳ¼ÞÝ¸Þ & µ²ÙÊßÝ FLYWHEEL HOUSING & OIL SUMP
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y129100-01580
PARALLEL PIN 8X16
2
2
Y119717-01601
HOUSING, FLYWHEEL
1
3
Y121120-01620
BOLT M 10X 28
3
4
Y119620-01750
CAP, FLYWHEEL COVER
1
5
Y124085-02220
SEAL, OIL
1
6
Y26206-100252
BOLT M10X25
8
7
Y119515-01720
SPACER, OIL SUMP
1
9
Y119515-01770
SUMP ASSY, LUB.OIL
1
10
Y105425-01690
PLUG M16
1
12
Y22190-160002
SEAL WASHER 16S
1
13
Y26106-060122
BOLT M 6X 12 PLATED
1
14
Y26106-060252
BOLT M 6X 25 PLATED
1
15
Y26106-060452
BOLT M 6X 45 PLATED
17
16
Y977770-1207F
GASKET, LIQUID
1
Reference:Fig03
Page:03
Engine for TB016 3TNV70- STB

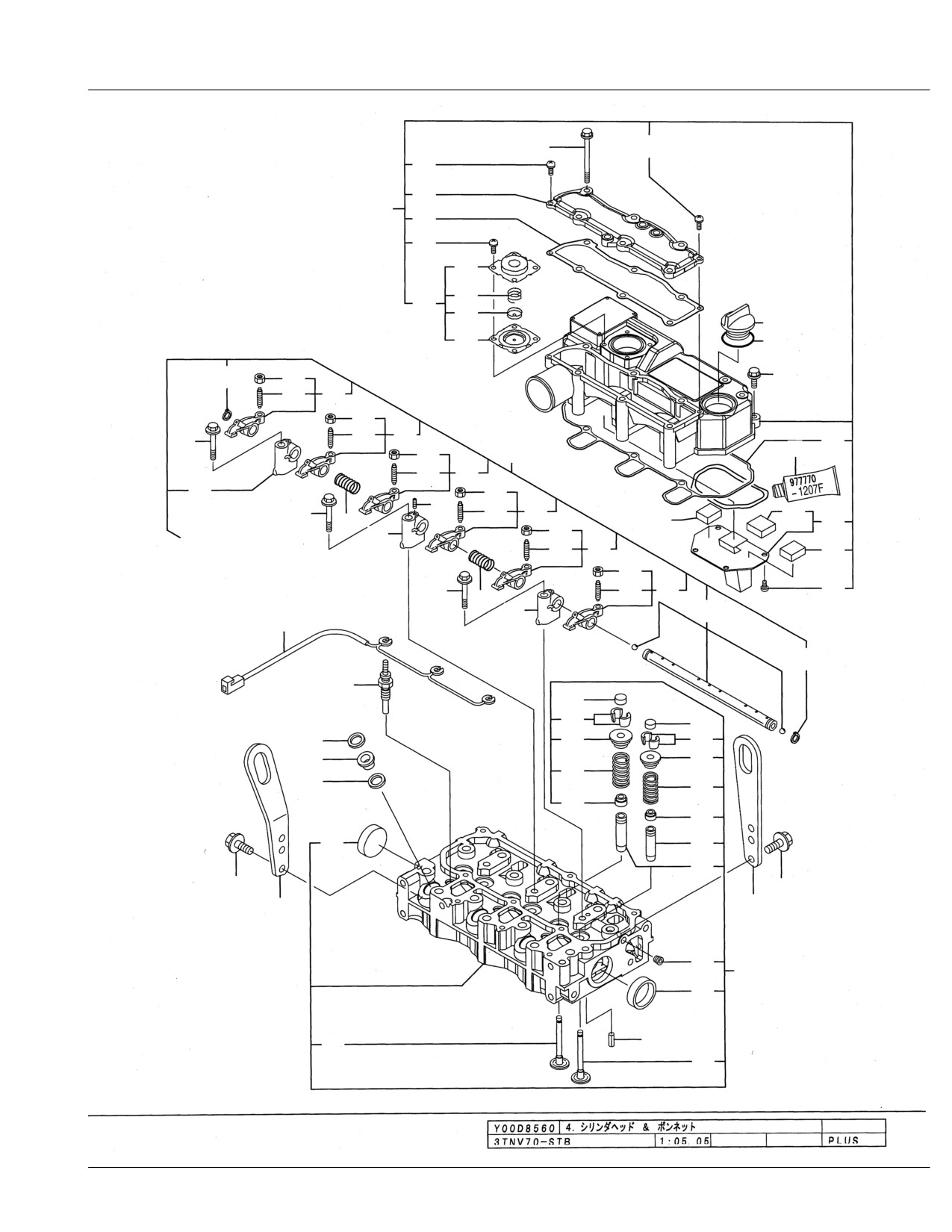

CYLINDER HEAD & BONNET
56
53
53
49
37
50
52
43
45
41
42
36
44
54
33
32
55
30
29
32
30
29
35
48
23
59
32
30
29
27
32
34
35
30
29
39
40
38
28
27
32
30
29
40
32
35
30
29
51
28
27
24
58
33
57
5
19
5
4
18
19
3
18
17
4
17
21
20
13
11
11
2
2
60
1
14
6
13
22
16
15
Ref Fig04
Page
04
¼ØÝÀÞÍÂÄÞ & ÎÞÝÈÂÄ CYLINDER HEAD & BONNET
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y129900-07900
LIFTER, ENGINE
1
2
Y26106-080162
BOLT M 8X 16 PLATED
4
3
Y129901-11450
PROTECTER, NOZZLE
3
4
Y119600-11460
GASKET, NOZZLE
6
5
Y105010-11490
CAP, VALVE
6
6
Y119515-11740
HEAD ASSY, CYLINDER
1
11
Y119515-11800
GUIDE, VALVE
6
13
Y119285-11990
PLUG 35
2
14
Y23876-005000
PLUG PT 1/16,SCREW
1
15
Y119515-11100
VALVE, INTAKE
3
16
Y119515-11110
VALVE, EXHAUST
3
17
Y119717-11131
SPRING, VALVE
6
18
Y129508-11180
RETAINER, SPRING
6
19
Y119717-11190
COTTER, VALVE
12
20
Y119717-11340
SEAL, VALVE STEM
3
21
Y119717-11350
SEAL, VALVE STEM
3
22
22351-060012
SPRING PIN 6X12
2
23
119515-11200
SUPPORT ASSY, ARM
1
24
Y119515-11240
SHAFT ASSY, ROCKER
1
27
Y119717-11260
SUPPORT, ROCKER ARM
3
28
Y119515-11280
SPRING, SHAFT
2
29
Y119717-11650
ARM ASSY, ROCKER
6
30
Y129150-11230
SCREW, VALVE
6
32
Y129150-11750
NUT M8XP1.0
6
33
Y22242-000120
CIRCLIP
12
2
34
Y26979-050162
SCREW M 5X16
1
35
Y26106-080402
BOLT M 8X 40 PLATED
3
36
Y124160-01751
COVER,FILLER
1
37
Y119515-11380
BONNET ASSY, HEAD
1
38
Y119717-03031
PLATE, BAFFLE
1
39
Y119717-03070
BAFFLE, BREATHER
1
40
Y119717-03070
BAFFLE, BREATHER
2
41
Y119802-03100
DIAPHRAGM ASSY
1
42
Y119802-03110
PLATE, DIAPHRAGM
1
43
Y119802-03121
COVER, DIAPHRAGM
1
44
119802-03131
DIAPHRAGM
1
45
119802-03141
SPRING, DIAPHRAGM
1
48
119515-11310
GASKET, BONNET
1
49
119515-11320
PLATE, BAFFLE
1
50
119515-11330
PLATE, BAFFLE
1
51
Y22857-500100
SCREW 5X10,TAPPING
4
52
Y22857-500100
SCREW 5X10,TAPPING
4
53
Y22857-500160
SCREW 5X16
2
54
Y24311-000320
O-RING 1A P-32.0
1
55
Y26106-060202
BOLT M 6X 20 PLATED
3
56
Y26106-060752
BOLT M 6X 75 PLATED
6
57
Y119717-77800
PLUG, GLOW
3
58
Y119717-77820
CONNECTOR, GLOW PLUG
1
59
Y977770-1207F
GASKET, LIQUID
1
60
Y119540-07920
LIFTER, ENGINE
1
Reference:Fig04
Page:04
Engine for TB016 3TNV70- STB

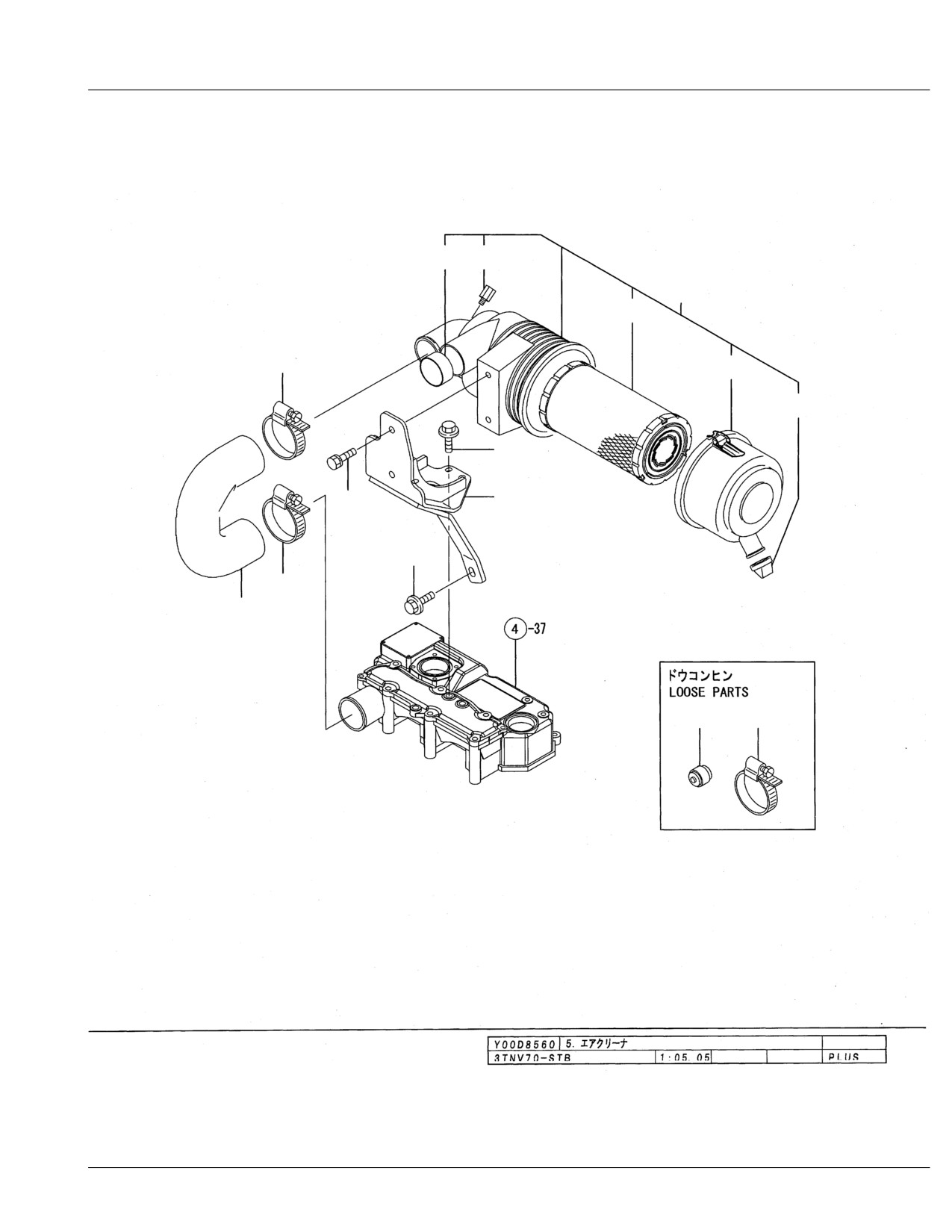

AIR CLEANER
6
7
2
3
9
5
4
11
8
10
12
9
1
13
14
Ref Fig05
Page
05
´±¸Ø-Å AIR CLEANER
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119761-12020
HOSE, AIR INTAKE
1
2
Y119540-12500
CLEANER ASSY, AIR
1
3
Y119515-12520
ELEMENT 4,CLEANER
1
4
Y119808-12540
VALVE, UNLOADER
1
5
Y119336-12570
COVER ASY
1
6
Y105027-12580
RING
1
7
Y121820-12590
NIPPLE
1
8
Y119515-12600
BRACKET(AIR CLEANER
1
9
Y23000-054000
CLAMP 54
2
10
Y26013-080222
BOLT M 8X 22
2
11
Y26106-060142
BOLT M 6X 14 PLATED
3
12
Y26106-080162
BOLT M 8X 16 PLATED
1
13
Y126650-12680
INDICATOR
1
14
Y23000-054000
CLAMP 54
1
Reference:Fig05
Page:05
Engine for TB016 3TNV70- STB

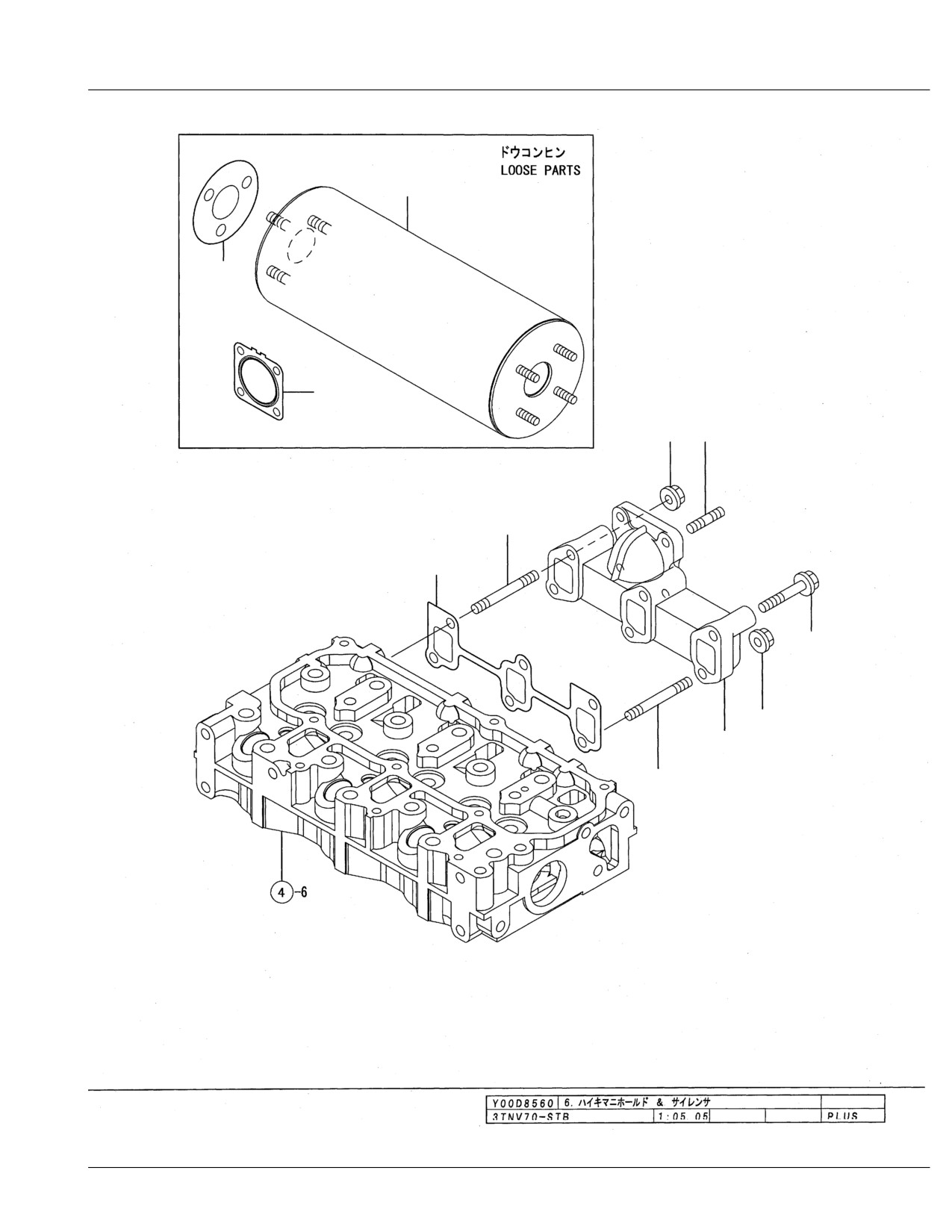

EXHAUST MANIFOLD & SILENCER
9
8
7
6
5
3
2
4
6
1
3
Ref Fig06
Page
06
ʲ·ÏÆÎ-ÙÄÞ & »²ÚÝ» EXHAUST MANIFOLD & SILENCER
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119718-13100
MANIFOLD, EXHAUST
1
2
Y119717-13110
GASKET, MANIFOLD
1
3
Y119717-13600
STUD, M8X50
2
4
Y119802-13620
BOLT M 8X 50 PLATED
4
5
Y119131-18320
BOLT M 8X 22
4
6
Y26306-080002
NUT
2
7
Y119515-13200
GASKET, SILENCER
2
8
Y103954-13201
GASKET, SILENCER
1
9
Y119515-13550
SILENCER
1
Reference:Fig06
Page:06
Engine for TB016 3TNV70- STB

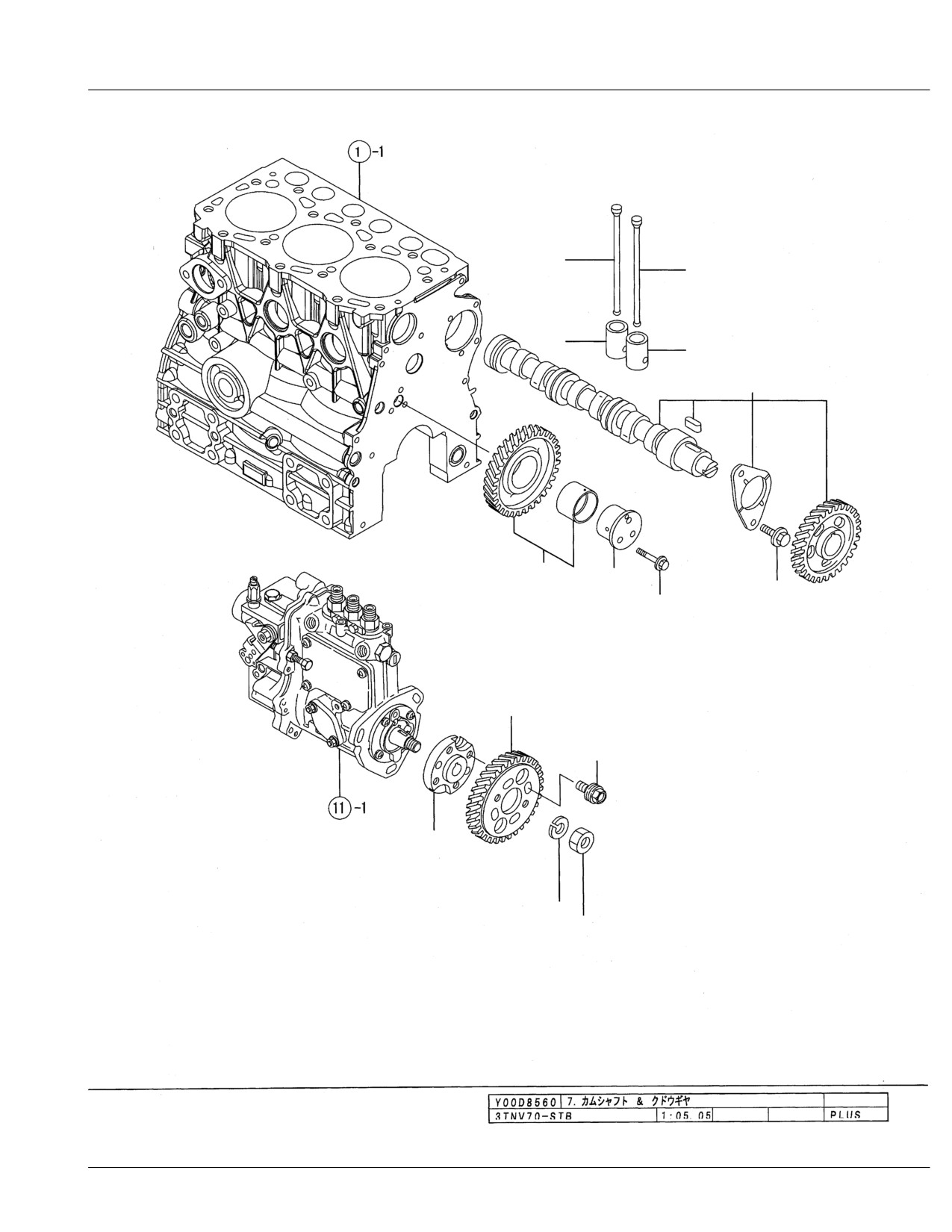

CAMSHAFT & DRIVING GEAR
2
2
1
1
3
11
10
9
14
16
15
17
18
19
Ref Fig07
Page
07
¶Ñ¼ÔÌÄ & ¸ÄÞ³·ÞÔ CAMSHAFT & DRIVING GEAR
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119620-14200
TAPPET
6
2
Y119515-14400
ROD, PUSH
6
3
Y119515-14580
CAMSHAFT ASSY
1
9
Y26106-060122
BOLT M 6X 12 PLATED
2
10
Y119717-25050
SHAFT, IDLE GEAR
1
11
Y119717-25100
GEAR ASSY, IDLE
1
14
Y26106-060352
BOLT M 6X 35 PLATED
3
15
Y129150-25301
BOLT,FI-P
4
16
Y119717-25930
GEAR, PUMP
1
17
Y119717-51150
FLANGE
1
18
Y22217-120000
SPRING WASHER 12
1
19
Y26716-120002
NUT 12
1
Reference:Fig07
Page:07
Engine for TB016 3TNV70- STB

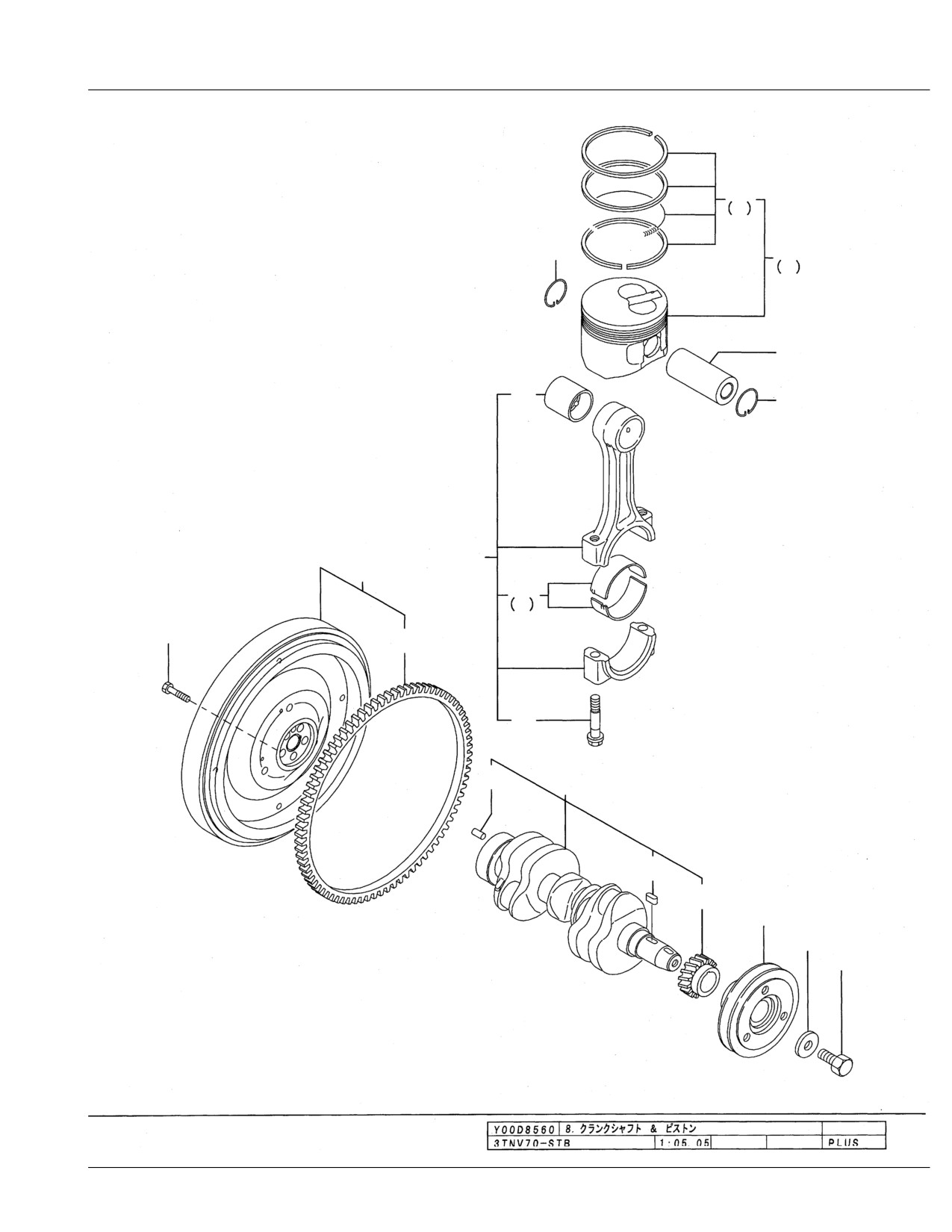

CRANKSHAFT & PISTON
18
34
23
16
32
22
28
23
24
9
30
38
8
12
29
2
1
5
6
13
15
14
Ref Fig08
Page
08
¸×ݸ¼ÔÌÄ & Ëß½ÄÝ CRANKSHAFT & PISTON
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119515-21700
CRANKSHAFT ASSY
1
2
Y129100-01580
PARALLEL PIN 8X16
1
5
Y22512-040120
KEY 4X 12
1
6
Y119717-21200
GEAR, CRANKSHAFT
1
8
Y119620-21500
BOLT, FLYWHEEL
5
9
Y119740-21590
FLYWHEEL ASSY
1
12
Y119865-21600
GEAR, RING
1
13
Y119717-21650
V-PULLEY, CRANKSHAFT
1
14
Y119621-21680
BOLT M12X1.25,FLANGE
1
15
Y119620-21941
WASHER
1
16
Y119515-22080
PISTON ASSY
3
18
Y119515-22500
RING SET
3
22
Y119515-22300
PIN, PISTON
3
23
Y22252-000220
CIRCLIP
22
6
24
Y119515-23000
ROD ASSY, CONNECTING
3
28
Y119717-23910
BUSH, PISTON PIN
3
29
Y119717-23200
BOLT, CONNECTING ROD
6
30
Y119515-23600
METAL ASSY,CRANK PIN
3
32
Y119515-22900
PISTON ASSY(O.S=0.25
3
34
Y119515-22550
RING SET (O.S=0.25)
3
38
Y119515-23610
BEARING,PIN US=0.25
3
Reference:Fig08
Page:08
Engine for TB016 3TNV70- STB

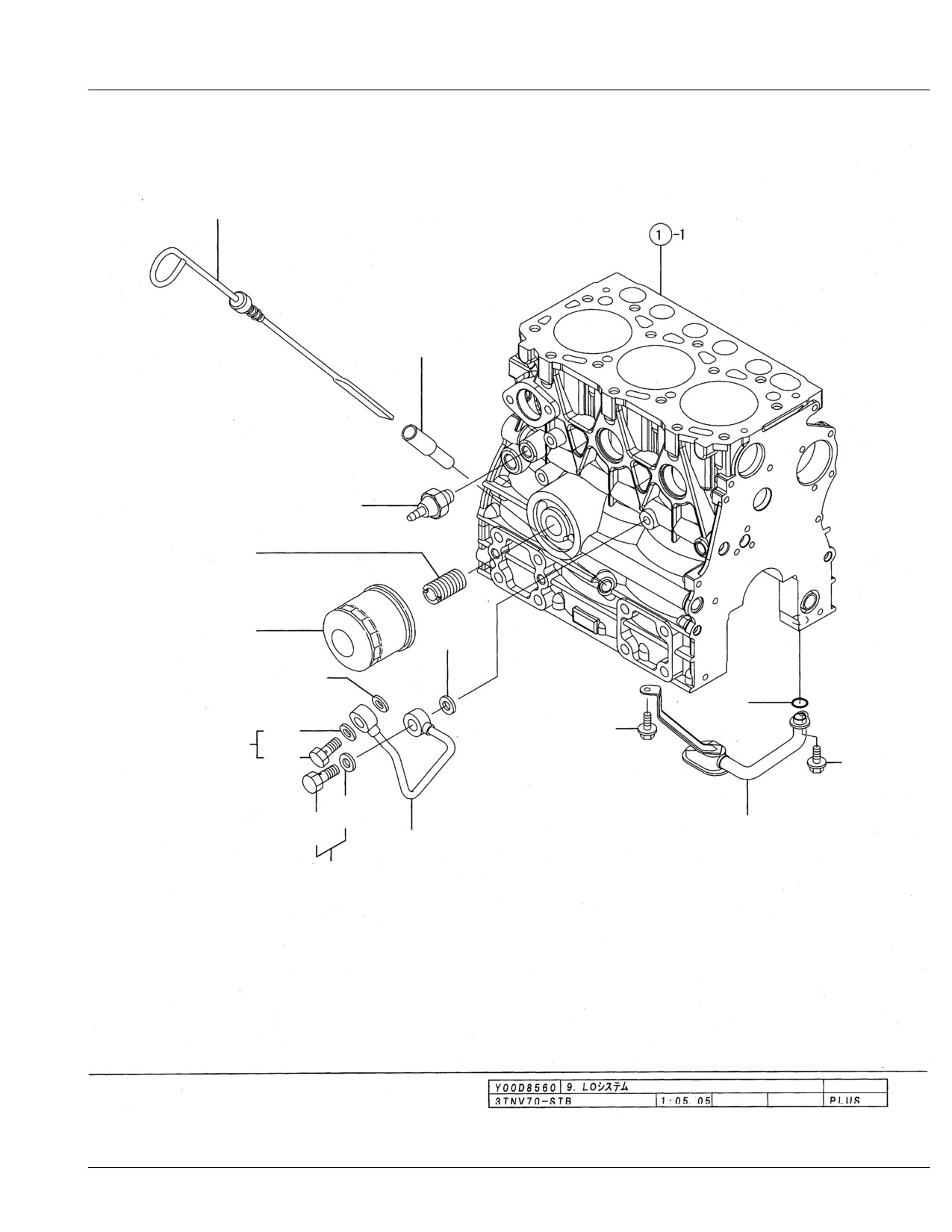

LUB.OIL SYSTEM
1
16
10
2
3
15
15
4
13
9
12
14
9
13
14
5
11
12
Ref Fig09
Page
09
LO¼½ÃÑ LUB.OIL SYSTEM
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119515-34801
DIPSTICK, LUB.OIL
1
2
Y129100-35140
STUD
1
3
Y119305-35160
FILTER ASSY, LUB.OIL
1
4
Y119717-32060
O-RING, P15.0
1
5
Y119515-35080
PIPE ASSY, LUB,OIL
1
9
Y26106-060102
BOLT M 6X 10 PLATED
2
10
Y114250-39450
SWITCH,(0.5KG)L.O.
1
11
Y119717-39210
PIPE ASSY, HYDRAULIC
1
12
Y129005-59830
BOLT ASSY, JOINT
2
13
Y22190-080002
SEAL WASHER 8S
2
14
Y23857-030000
JOINT BOLT 3
2
15
Y22190-080002
SEAL WASHER 8S
2
16
Y121520-34810
GUIDE, DIPSTICK
1
Reference:Fig09
Page:09
Engine for TB016 3TNV70- STB

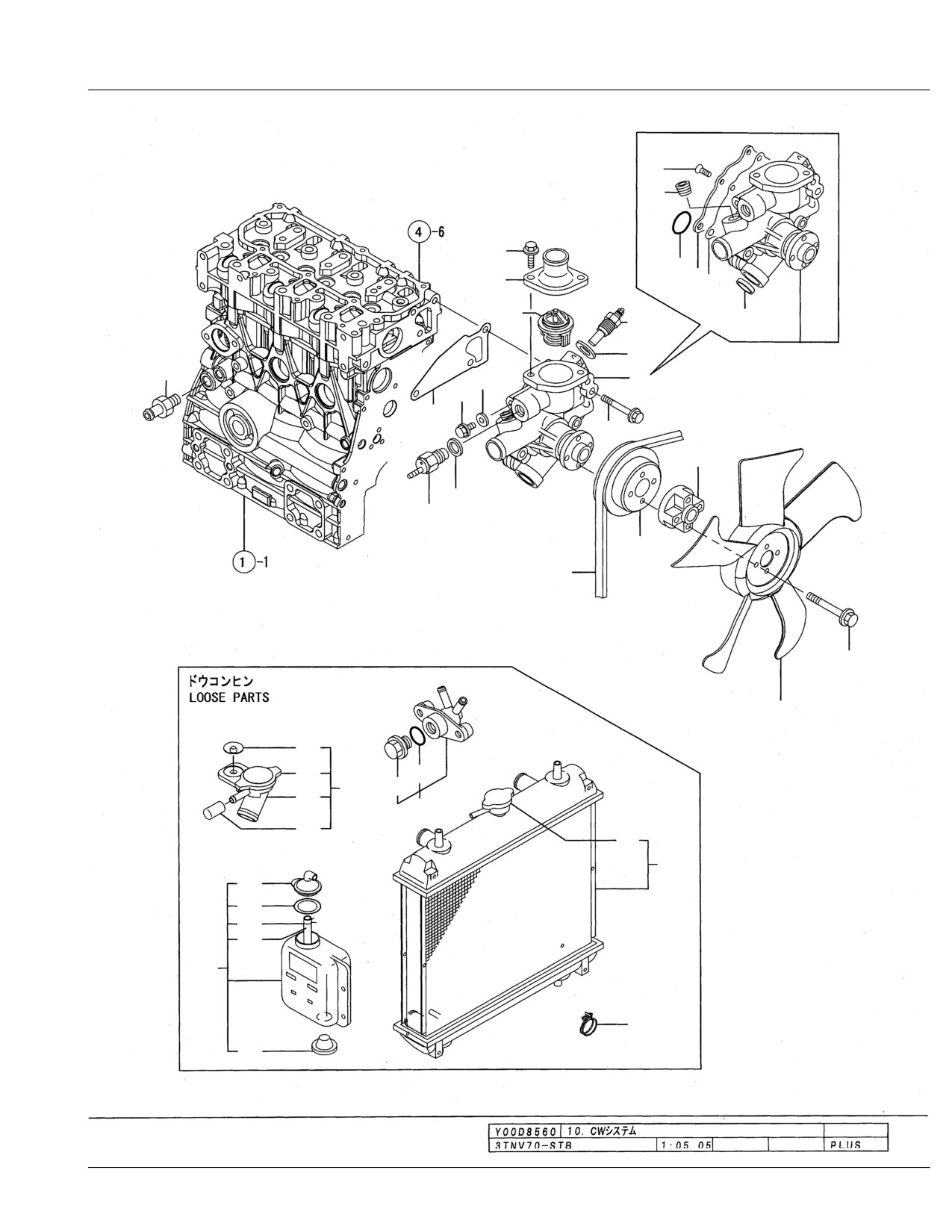

COOLING WATER SYSTEM
9
12
25
11
23
34
24
28
10
29
17
14
1
15
13
16
21
27
26
18
19
22
20
47
48
40
44
39
46
37
45
43
42
32
35
34
36
30
41
33
Ref Fig10
Page
10
CW¼½ÃÑ COOLING WATER SYSTEM
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y119540-42000
PUMP ASSY,WATER
1
3
Y119515-42041
COVER
1
4
Y119717-42031
GASKET
1
9
Y26577-060122
SCREW M 6X 12
4
10
Y27241-250000
PLUG 25
1
11
Y119717-42320
O-RING
1
12
Y129916-49740
PLUG, DRAIN R03
1
13
Y119515-42020
GASKET, WATER PUMP
1
14
Y23414-080000
GASKET 8, ROUND
1
15
Y26106-080122
BOLT M 8X 12 PLATED
1
16
Y26106-080502
BOLT M 8X 50 PLATED
3
17
Y121550-49111
JOINT PT1/4
1
18
Y119717-42350
V-PULLEY, C.W.PUMP
1
19
Y25152-003500
V BELT, A 35
1
20
Y119258-44740
FAN(D300,SUCTION
1
21
Y171353-44760
SPACER
1
22
Y26106-060402
BOLT M 6X 40 PLATED
4
23
Y129350-49530
COVER, THERMOSTAT
1
24
Y119718-49800
THERMOSTAT, 71
1
25
Y26106-080202
BOLT M 8X 20 PLATED
2
26
Y121250-44901
SWITCH, THERMO(110ßC
1
27
Y124465-44950
GASKET 16
1
28
Y119266-49350
SENSOR, THERMO.
1
29
Y129150-49360
GASKET 10
1
30
Y121468-44510
SUB-TANK ASSY
1
32
Y121450-44531
CAP
1
33
Y121468-44540
PLUG, SUB-TANK
1
34
Y124450-44560
CLAMP
1
35
Y121470-44581
GASKET
1
36
Y23065-070130
PIPE 7X 130
1
37
Y121450-49110
COCK ASSY, 3-WAY
1
39
Y23491-140002
PLUG 14
1
40
Y24311-000160
O-RING 1A P-16.0
1
41
Y23010-038000
CLAMP 38
6
42
Y119540-44500
RADIATOR ASSY
1
43
Y129107-44590
CAP, RADIATOR
1
44
Y119527-44601
FILLER ASSY
1
45
Y129457-44520
CAP
1
46
Y119527-44610
FILLER BODY
1
47
Y119527-44630
SPACER
1
48
Y119527-44640
CAP, RADIATOR
1
Reference:Fig10
Page:10
Engine for TB016 3TNV70- STB

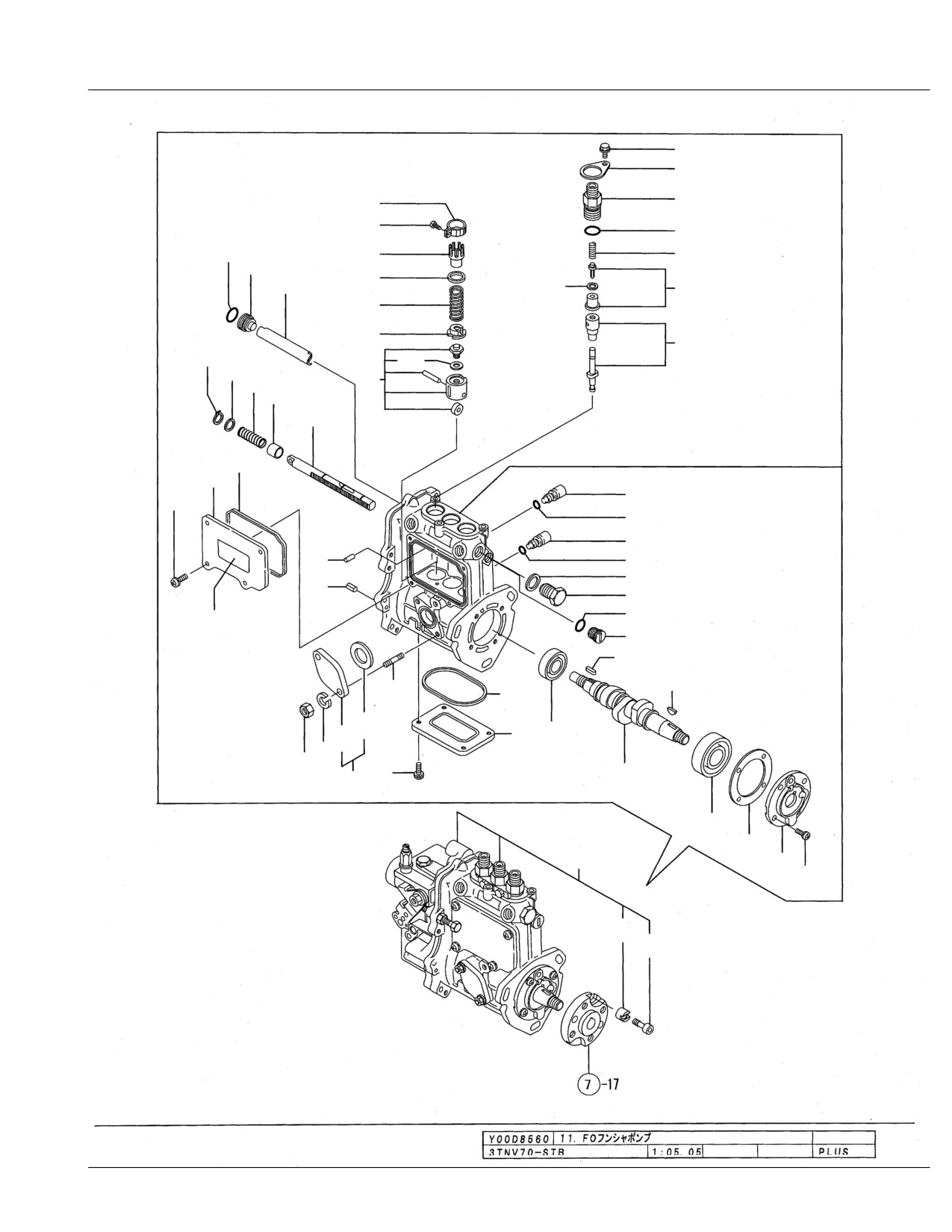

FUEL INJECTION PUMP
89
55
49
70
71
56
86
69
47
58
14
57
48
44
16
15
10
68
22
67
17
74 66
65
78
77
79
87
43
41
13
42
81
83
59
73
80
72
8
9
5
76
95
75
84
96
82
90
87
6
94
85
60
1
7
88
91
92
Ref Fig11
Page
11
FOÌݼÔÎßÝÌß FUEL INJECTION PUMP
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y719540-51380
FIE ASSY,3TNV70-STB
1
5
Y129155-51020
STUD, FEED PUMP
2
6
Y119717-51030
CAMSHAFT
1
7
Y119717-51060
SUPPORT, BEARING
1
8
Y119717-51070
PARALLEL PIN
1
9
Y122710-51090
KEY
1
10
Y119515-51100
PLUNGER ASSY
3
13
Y129155-51140
PIN, BARREL LOCKING
3
14
Y158600-51170
SEAT SPRING
3
15
Y119717-51180
RETAINER, SPRING
3
16
Y119717-51190
SPRING, PLUNGER
3
17
Y119717-51200
TAPPET ASSY
3
22
Y129155-51600
SHIM PACK
3
41
Y158600-51270
STOPPER
3
42
Y129155-51280
O-RING S6
3
43
Y129155-51280
O-RING S6
1
44
Y119717-51300
VALVE ASSY, DELIVERY
3
47
Y119717-51330
SPRING, DELIVERY
3
48
Y124550-51350
GASKET, DELIVERY
3
49
Y158600-51441
VALVE ASSY, DELIVERY
3
55
Y118400-51370
LOCKING
3
56
Y24316-000150
O-RING 4D P15
3
57
Y129155-51400
DEFLECTOR
1
58
Y158600-51410
PLUG
1
59
Y158600-51420
PLUG
1
60
Y129155-51450
SHIM SET, ADJUSTING
1
65
Y119717-51500
RACK, CONTROL
1
66
Y129155-51521
BUSH, RACK
1
67
129155-51530
SPACER, AUX. SPRING
1
68
Y129155-51540
CIRCLIP
1
69
Y129155-51550
PINION, CONTROL
3
70
Y129100-51560
PINION
3
71
Y129100-51570
SCREW
3
72
Y158600-51570
PLUG
1
73
Y129155-51580
O-RING
1
74
Y129155-51591
SPRING, RACK
1
75
Y129155-51701
COVER
1
76
Y119717-51710
PACKING
1
77
Y119717-51750
COVER, BODY SIDE
1
78
Y119717-51760
GASKET
1
79
Y158600-51790
GUIDE, RACK
1
80
Y129156-51910
LABEL, CAUTION
1
81
Y22190-160002
SEAL WASHER 16S
1
82
Y22217-060000
SPRING WASHER 6
2
83
Y22351-050010
SPRING PIN 5X10
2
84
Y24101-060034
BALL BEARING
1
85
24101-063034
BALL BEARING
1
86
119717-51420
O-RING
1
87
26022-050122
SCREW M 5X 12
8
88
Y26022-060162
SCREW M 6X 16
4
89
Y26106-050102
BOLT M 5X 10 PLATED
3
90
Y26716-060002
NUT 6
2
91
Y119717-51480
COLLAR. FIC FIX
1
92
Y119717-51490
BOLT, FIXATION
1
94
Y129255-52000
COVER ASSY,FUEL FEED
1
95
Y129155-52051
GASKET
1
96
Y129100-52200
COVER
1
Reference:Fig11
Page:11
Engine for TB016 3TNV70- STB

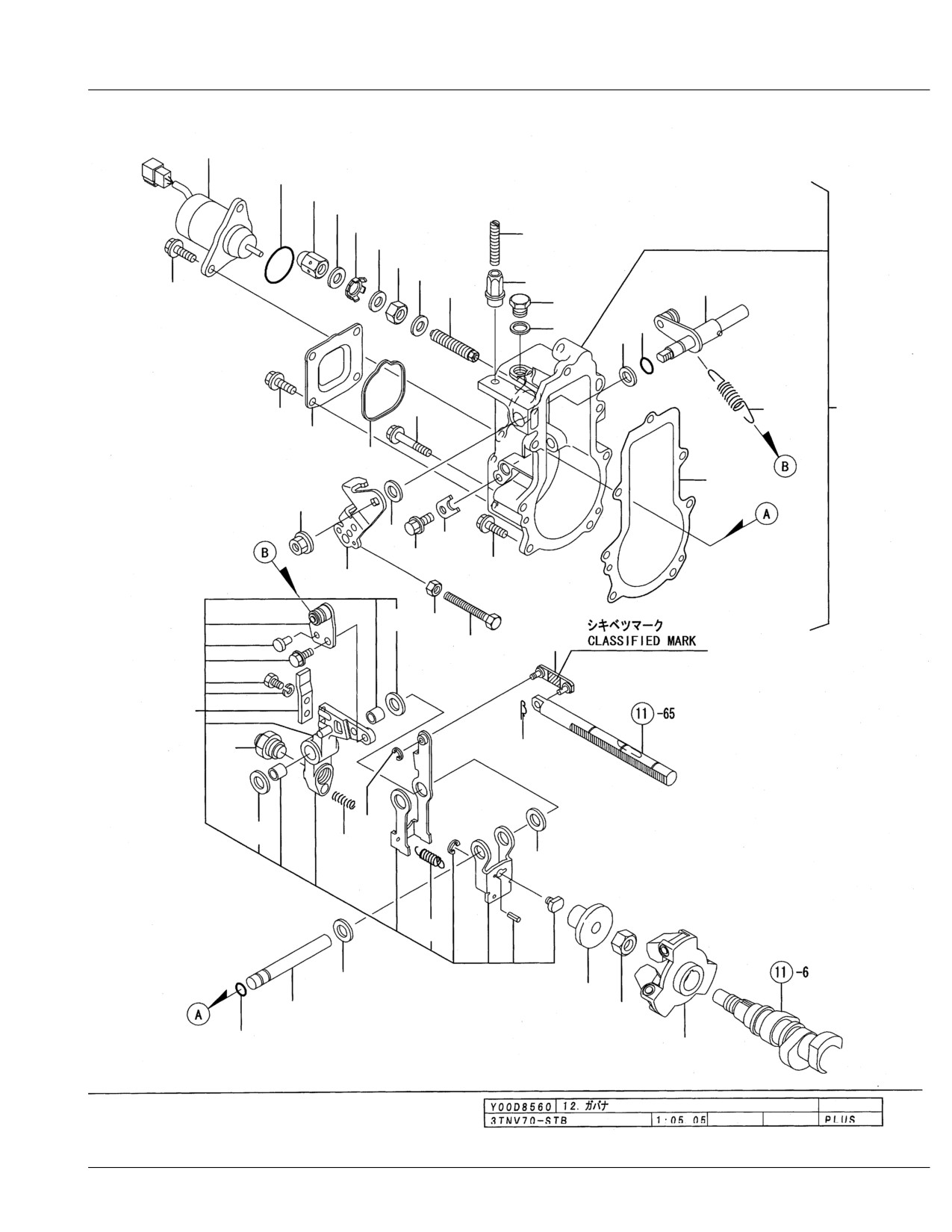

GOVERNOR
125
85
123
82
124
126
22
72
82
127
12
14
87
84
68
81
65
71
122
5
86
3
4
2
70
61
66
69
88
21
8
9
31
10
73
11
80
30
89
83
67
31
60
24
50
23
79
13
78
6
74
Ref Fig12
Page
12
¶ÞÊÞÅ GOVERNOR
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
2
Y119717-61050
GASKET, CASE
1
3
Y119717-61060
CASE, GOVERNOR
1
4
Y119717-61070
GASKET, COVER
1
5
Y119761-61100
CASE ASSY, GOVERNOR
1
6
Y129155-51280
O-RING S6
1
8
Y119717-61120
LINK, L=29.3
1
9
Y119717-61130
LINK, L=29.8
1
10
Y119717-61140
LINK, L=28.8
1
11
Y119717-61150
LINK, L=303
1
12
Y129209-61370
NUT M6
1
13
Y129052-61390
SHAFT, GOV. LEVER
1
14
Y119717-61400
SHAFT ASSY, CONTROL
1
21
Y119515-61440
LEVER, CONTROL
1
22
129155-61450
BOLT, REVOL. LIMIT
1
23
129156-61460
SHIM T=0.6
1
24
Y129155-61480
SPACER ASSY
1
30
Y119761-61500
LEVER ASSY, GOVERNOR
1
31
Y174307-51700
SHIM SET
2
50
Y129486-61540
SPRING, SET
1
60
Y129100-61650
SPRING, FUEL CONTROL
1
61
Y158552-61700
SHIM ASSY
1
65
Y158552-61710
SHIM T=1.0
1
66
Y119660-61901
RETAINER, SHAFT
1
67
Y22272-000030
CIRCLIP E- 3
1
68
Y24341-000070
O-RING 1A S-7.0
1
69
Y26106-060102
BOLT M 6X 10 PLATED
1
70
Y26366-080002
NUT M 8
1
71
Y26106-060452
BOLT M 6X 45 PLATED
3
72
Y26736-120002
NUT M12
1
73
Y26756-060002
LOCK NUT 6
1
74
Y119717-61200
WEIGHT ASSY
1
78
Y119660-61300
NUT, GOVERNOR WEIGHT
1
79
Y129155-61341
SLEEVE
1
80
Y129155-61460
BOLT, IDLE LIMIT
1
81
Y22190-100002
SEAL WASHER 10S
1
82
Y22190-120002
SEAL WASHER 12
2
83
Y22372-040000
SNAP PIN 4
1
84
Y23887-100002
PLUG 10
1
85
Y24341-000280
O-RING 1A S-28.0
1
86
Y26106-060102
BOLT M 6X 10 PLATED
4
87
Y26106-060142
BOLT M 6X 14 PLATED
2
88
Y26106-060202
BOLT M 6X 20 PLATED
4
89
Y119717-61550
ANGLEICH ASSY
1
122
Y171353-61720
SPRING, GOVERNOR
1
123
Y129209-61930
CAP NUT
1
124
Y129209-61970
PLATE
1
125
Y119233-77932
SOLENOID, STOP
1
126
Y23414-120016
GASKET 12
1
127
Y158601-61790
LIMITER ASSY, FUEL
1
Reference:Fig12
Page:12
Engine for TB016 3TNV70- STB

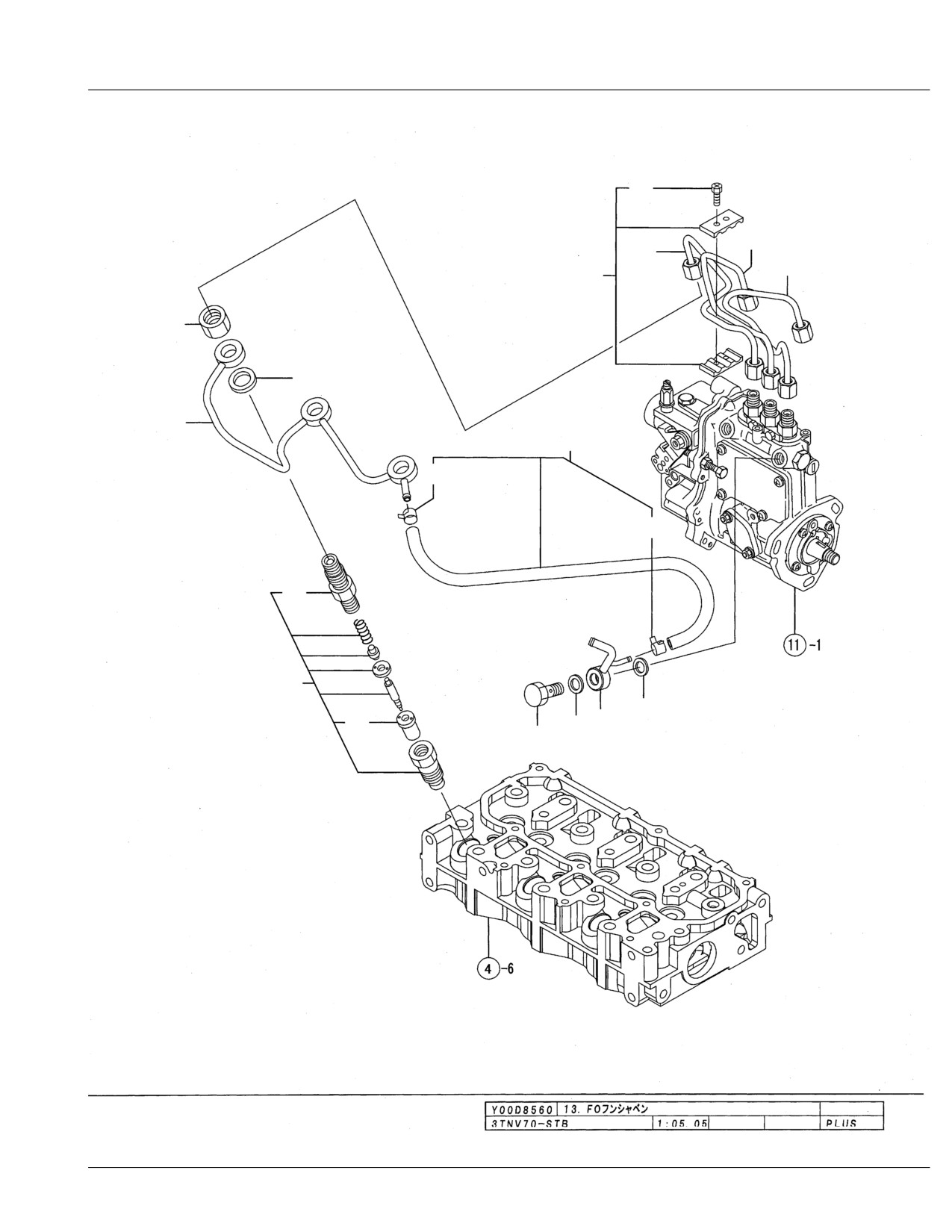

FUEL INJECTION VALVE
7
10
9
11
4
23
19
13
20
21
21
2
1
30
3
12
30
24
Ref Fig13
Page
13
FOÌݼ¬ÍÞÝ FUEL INJECTION VALVE
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R ”õ l
1
Y119517-53001
VALVE ASSY,INJECTION
3
2
Y118200-53010
HOLDER, NOZZLE
3
3
Y119517-53010
NOZZLE ASSY
3
4
Y129150-59120
RETAINER, INJ. PIPE
1
7
Y129150-59131
BOLT M4X14,HEX.SCKT.
2
9
Y119546-59810
PIPE, FUEL INJECTION
1
10
Y119546-59820
PIPE, FUEL INJECTION
1
11
Y119546-59830
PIPE, FUEL INJECTION
1
12
Y119515-59580
JOINT, OVER FLOW
1
Y119515-59581
JOINT, OVER FLOW
1
S
(2005.08-)
13
Y119515-59540
PIPE ASSY, RETURN
1
19
Y129901-59560
GASKET, RETURN
3
20
Y119540-59570
PIPE, FUEL RETURN
1
Y119744-59560
PIPE, FUEL RETURN
1
S
(2005.08-)
21
Y124066-59100
CLAMP 8
2
23
Y119620-59700
NUT
3
24
Y119813-59950
VALVE ASSY, CHECK
1
30
Y22190-120002
SEAL WASHER 12
2
Reference:Fig13
Page:13
Engine for TB016 3TNV70- STB

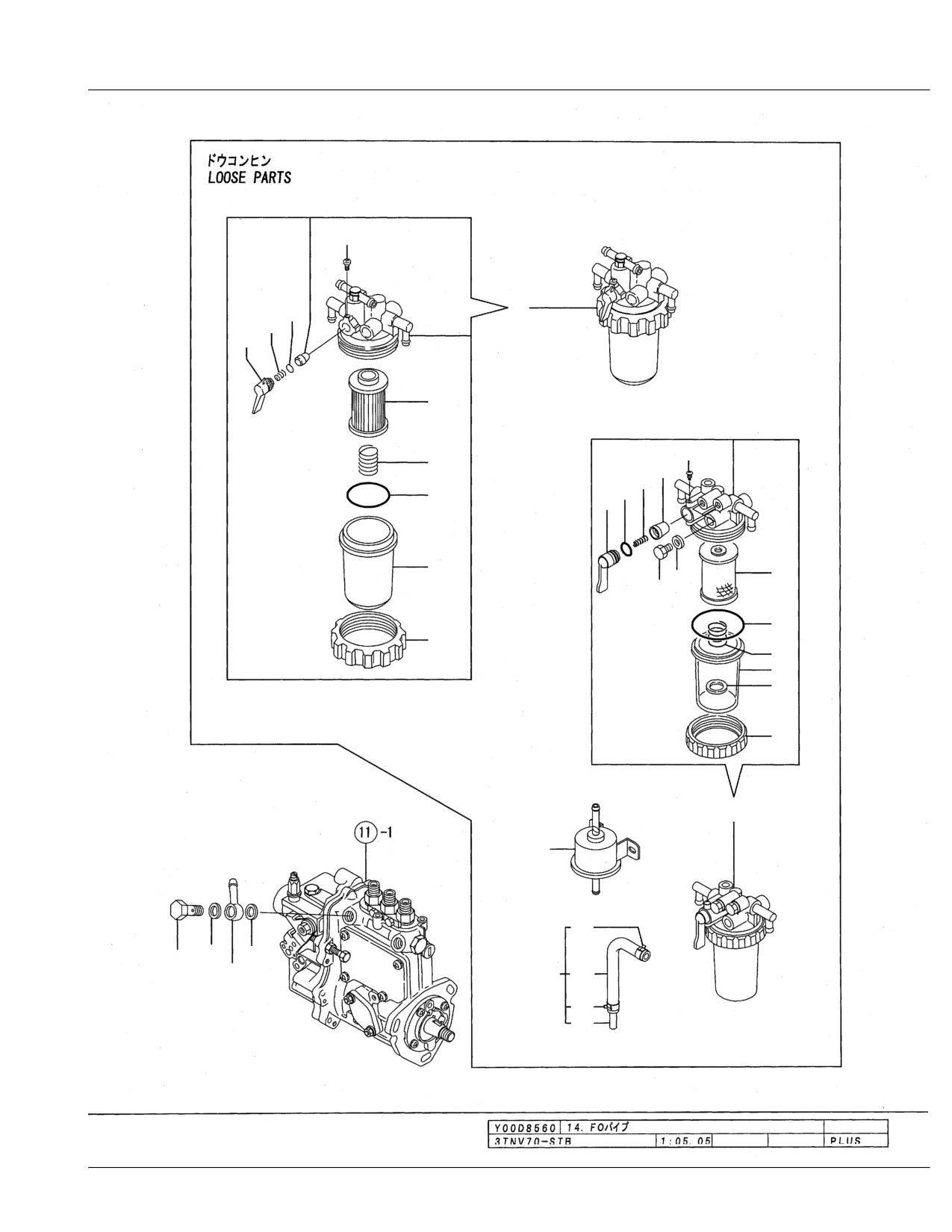

FUEL LINE
9
10
1
2
3
8
27
7
17
18
16
5
19
4
28
29
26
21
6
23
20
24
22
15
11
31
14
14
12
13
30
32
31
33
Ref Fig14
Page
14
FOÊß²Ìß FUEL LINE
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y119833-55620
STRAINER ASSY, FUEL
1
2
Y104200-55330
SPRING, TAPER VALVE
1
3
Y119810-55340
LEVER
1
4
Y121254-55510
CUP, STRAINER
1
5
Y102103-55520
O-RING
1
6
Y110250-55610
RING, RETAINING
1
7
Y121250-55620
SPRING
1
8
Y119810-55650
ELEMENT
1
9
Y104200-55750
SCREW M 4
1
10
Y24311-240100
O-RING 1A P-10A
1
11
Y129612-52100
FUEL PUMP
1
12
Y103854-39140
BOLT, PIPE JOINT
1
13
Y101304-59020
JOINT 12, PIPE
1
14
Y22190-120002
SEAL WASHER 12
2
15
Y129335-55700
SEPARATOR, WATER
1
16
Y24311-240100
O-RING 1A P-10A
1
17
Y104200-55321
VALVE, TAPER
1
18
104200-55330
SPRING, TAPER VALVE
1
19
104200-55341
HANDLE, COCK
1
20
124064-55510
BOWL, FUEL STRAINER
1
21
102103-55520
O-RING
1
22
Y110250-55610
RING, RETAINING
1
23
Y121257-55720
SPRING, SCREEN
1
24
Y121257-55731
FLOAT
1
26
Y101720-55750
PLUG 6
2
27
Y104200-55750
SCREW M 4
1
28
Y171081-55910
SCREEN
1
29
Y23418-060000
GASKET 6, NYLON
2
30
Y119840-59601
BEND ASSY
1
31
Y124766-59050
CLAMP 12
2
32
Y119840-59611
BEND, RETURN
1
33
Y119840-59621
JOINT
1
Reference:Fig14
Page:14
Engine for TB016 3TNV70- STB

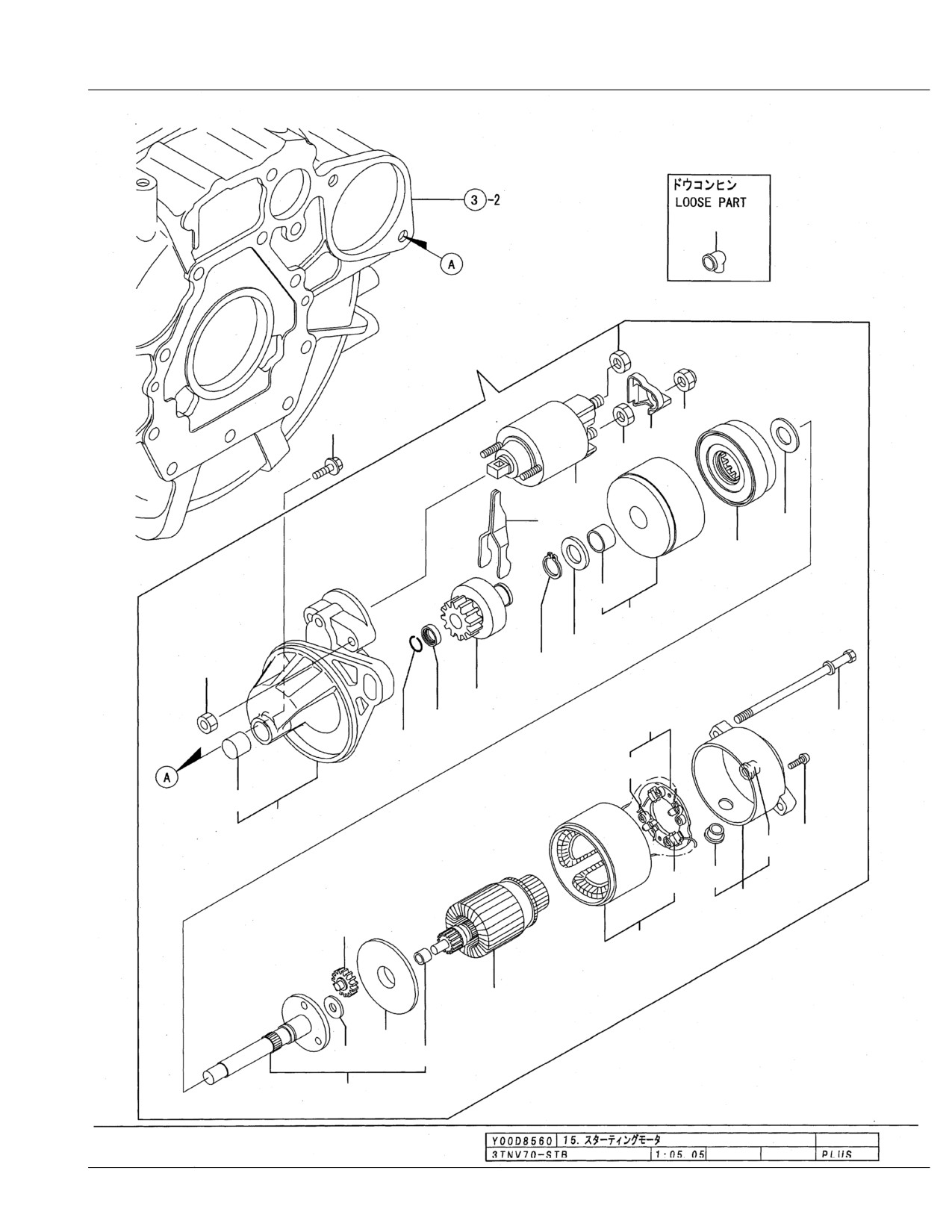

STARTING MOTOR
36
2
1
35
34
29
21
20
27
19
15
14
25
30
22
8
24
5
31
23
6
10
9
33
12
13
4
11
18
3
7
28
26
17
16
Ref Fig15
Page
15
½À-òݸÞÓ-À STARTING MOTOR
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y26106-100252
BOLT M10X 25 PLATED
2
2
Y119515-77010
STARTER, P1.1
1
3
YX0281007680
COIL ASSY, FIELD
1
4
YX0280996180
STARTER KIT
2
5
YX0285105190
HOLDER ASSY.
1
6
YX0285205030
SPRING
4
7
YX0282005871
ARMATURE ASSY
1
8
YX0283006960
CLUTCH SUB-ASSY.
1
9
YX4284001590
HOUSING ASSY,STARTER
1
10
YX9491050100
NEEDLE BEARING
1
11
YX0285007030
FRAME ASSY.
1
12
YX9491040990
BEARING
1
13
YX0280626010
COVER
1
14
YX0284105040
BEARING SUB-ASSY.
1
15
YX9491034330
BEARING
1
16
YX0286105010
SHAFT SUB-ASSY.
1
17
YX9491034320
BEARING
1
18
YX0286305010
GEAR
3
19
YX0286355010
GEAR
1
20
YX0287405140
LEVER
1
21
YX0534007800
SWITCH,EMERGENCY
1
22
YX9055715000
RING
1
23
YX9490721360
RING
1
24
YX0280210331
NUT
1
25
YX9490138110
WASHER
1
26
YX9490138090
WASHER
1
27
YX9490138100
WASHER
1
28
YX0284525010
PLATE
1
29
YX9490562360
NUT
1
30
YX9490560750
NUT
2
31
YX9490423520
BOLT, THROUGH
2
33
YX9490065670
SCREW M 4X 6 (BS)
2
34
YX0280335360
COVER SET, TERMINAL
1
35
YX1289510130
NUT
1
36
Y124160-77020
COVER, TERMINAL
1
Reference:Fig15
Page:15
Engine for TB016 3TNV70- STB

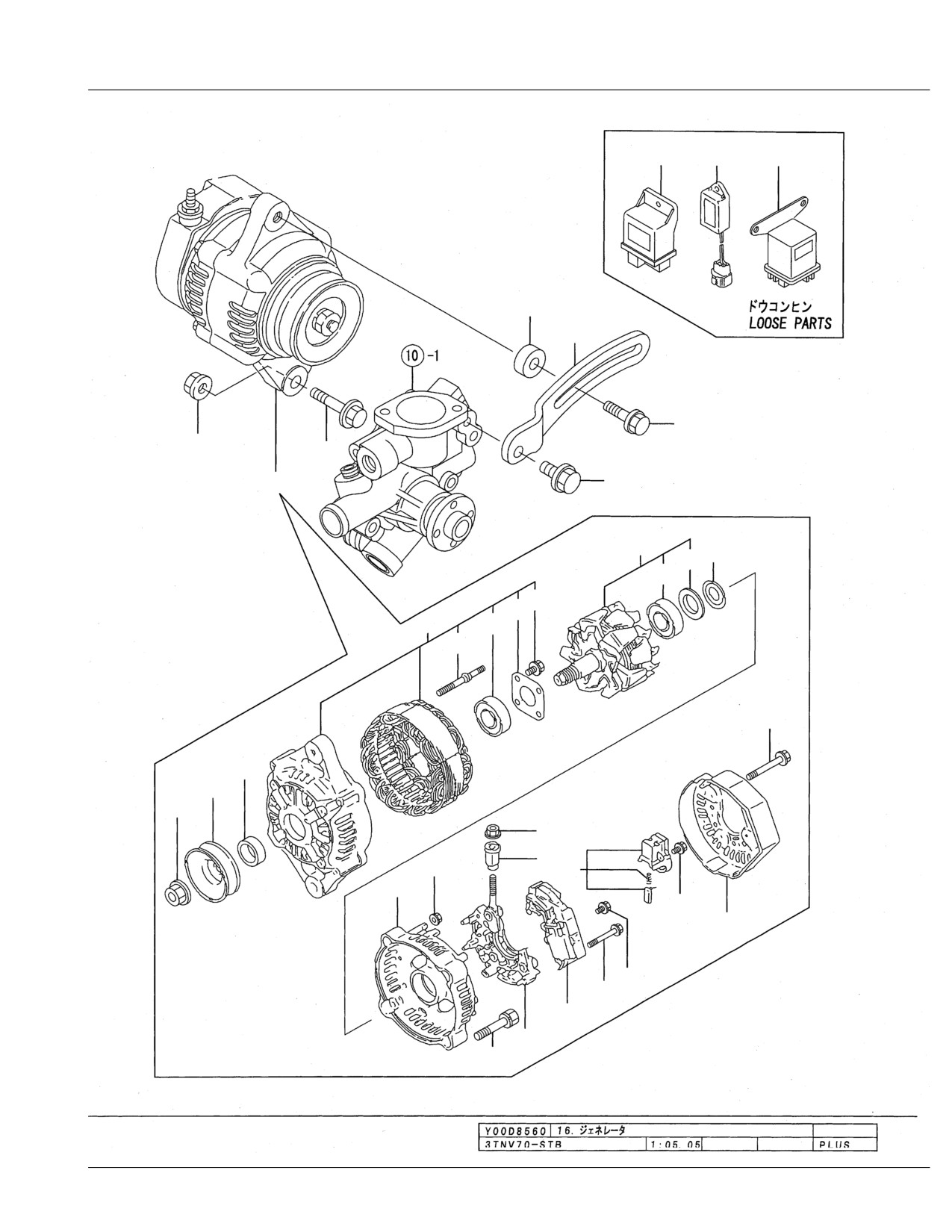

GENERATOR
33
34
35
29
2
31
1
30
3
32
5
26
7
6
11
10
8
9
12
20
25
14
15
4
23
24
17
13
18
28
19
21
27
16
22
Ref Fig16
Page
16
¼Þ´ÈÚ-À GENERATOR
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y26306-100002
NUT
1
2
Y119717-77340
ADJUSTER, BELT
1
3
Y129240-77200
ALTERNATOR
1
4
Y129240-79310
NUT
1
5
Y119620-77380
ROTOR ASSY
1
6
Y126501-79240
BALL BEARING
1
7
Y119620-79250
COVER, BEARING
1
8
Y119620-77421
FLAME ASSY, DRIVE
1
9
Y119620-79200
BALL BEARING
1
10
Y119620-79210
PLATE
1
11
Y119620-79220
SCREW
4
12
Y119620-79230
BOLT, STUD
2
13
Y119620-77440
FLAME ASSY, REAR
1
14
Y119620-77461
PULLEY
1
15
Y119620-77471
NUT
1
16
Y119620-79260
HOLDER
1
17
Y129052-79270
HOLDER, BRUSH
1
18
Y119620-79290
SCREW
6
19
Y119620-79300
SCREW
1
20
Y119620-79310
BOLT
3
21
Y119620-79320
SCREW W/WASHER
2
22
Y119620-79330
BOLT
2
23
Y119620-79340
INSULATION BUSH
1
24
Y119620-79350
NUT
2
25
Y119620-77490
COLLAR
1
26
Y119620-79360
THRUST WASHER
1
27
Y129240-77710
REGULATOR ASSY
1
28
Y129240-79300
COVER
1
29
Y119940-77270
ADJUSTER, BELT
1
30
Y119740-77250
BOLT, M10X76
1
31
Y129972-77341
BOLT, ADJUSTING
1
32
Y26106-080202
BOLT M 8X 20 PLATED
1
33
Y119802-77200
RELAY, SAFETY
1
34
Y129211-77920
TIMER
1
35
Y119646-77900
RELAY, POWER
1
Reference:Fig16
Page:16
Engine for TB016 3TNV70- STB

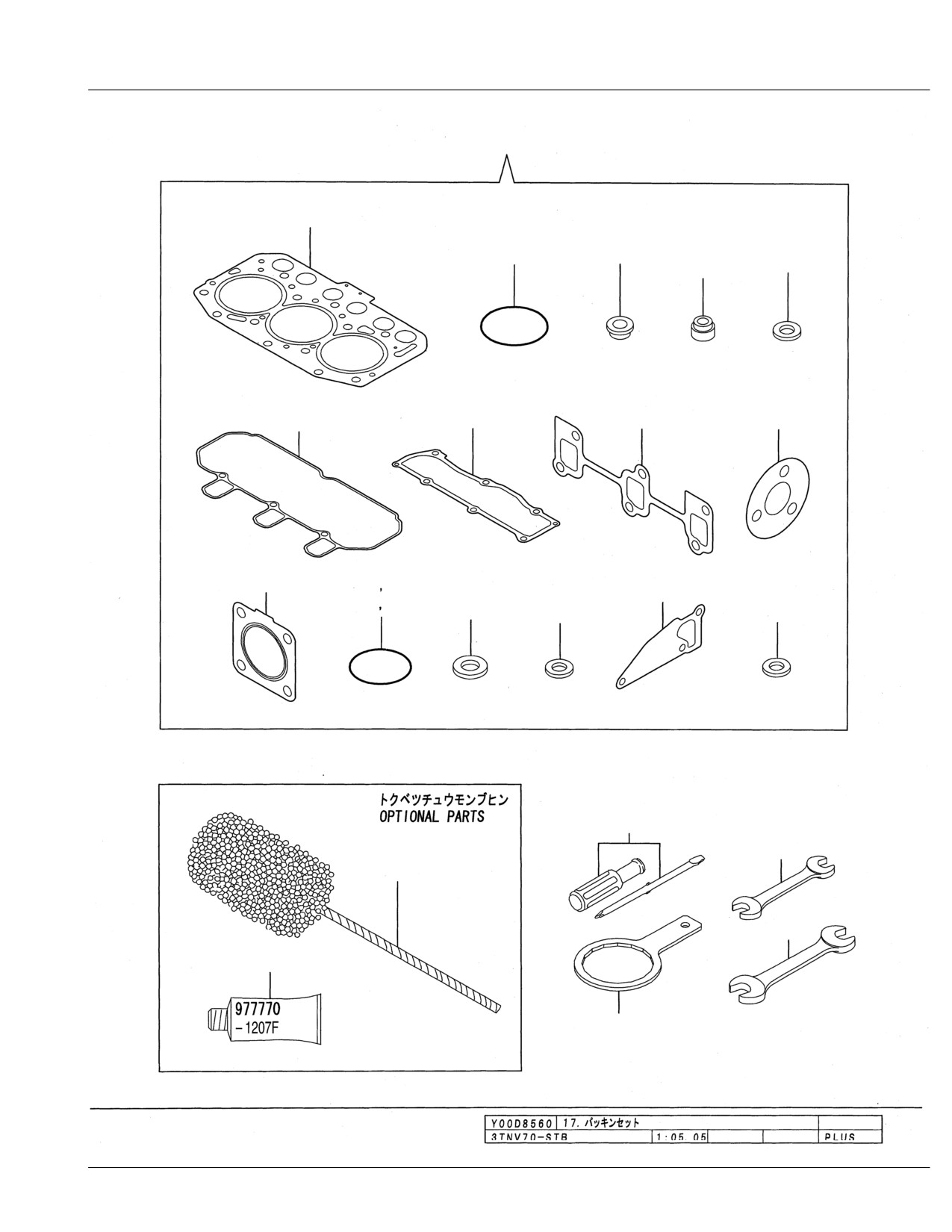

GASKET SET
1
2
3
5
4
15
9
6
16
7
24
8
19
11 12
10
20
22
17
13 14
18
23
21
25
27
29
28
30
26
Ref Fig17
Page
17
Êß·ݾÂÄ GASKET SET
Ω o
•”•i”Ô †
”—Ê
ŒÝŠ· «
REF NO.
PARTS NO.
•”•i-¼
Description
Q'ty
I
R
”õ l
1
Y719515-92650
GASKET SET(NON-ASB.)
1
2
Y119515-01330
GASKET, CYL.HEAD
1
3
Y121850-51960
O-RING, F.I.PUMP
1
4
Y119717-11340
SEAL, VALVE STEM
3
5
Y129901-11450
PROTECTER, NOZZLE
3
6
Y119515-11310
GASKET, BONNET
1
7
Y119717-13110
GASKET, MANIFOLD
1
8
Y119515-13200
GASKET, SILENCER
2
9
Y119717-11350
SEAL, VALVE STEM
3
10
Y22190-080002
SEAL WASHER 8S
4
11
Y24311-000320
O-RING 1A P-32.0
2
12
Y119717-32060
O-RING, P15.0
1
13
Y119624-32040
O-RING P 12.0
1
14
Y119717-32050
O-RING, P17.0
3
15
Y119600-11460
GASKET, NOZZLE
6
16
Y119515-11330
PLATE, BAFFLE
1
17
Y22190-160002
SEAL WASHER 16S
1
18
Y22190-120002
SEAL WASHER 12
4
19
Y129901-59560
GASKET, RETURN
3
20
Y119515-42020
GASKET, WATER PUMP
1
21
Y23414-080000
GASKET 8, ROUND
1
22
Y124465-44950
GASKET 16
1
23
Y129150-49360
GASKET 10
1
24
Y103954-13201
GASKET, SILENCER
1
25
Y104200-92350
DRIVER, SCREW
1
26
Y119332-92751
WRENCH, FILTER
1
27
Y28110-100120
WRENCH 10X12
1
28
Y28110-140170
WRENCH 14X17
1
29
Y129400-92410
FLEX HORN
1
30
Y977770-1207F
GASKET, LIQUID
1
Reference:Fig17
Page:17
