Takeuchi Mini Excavator TB016 (Serial No.11610001~). Parts Manual - page 7

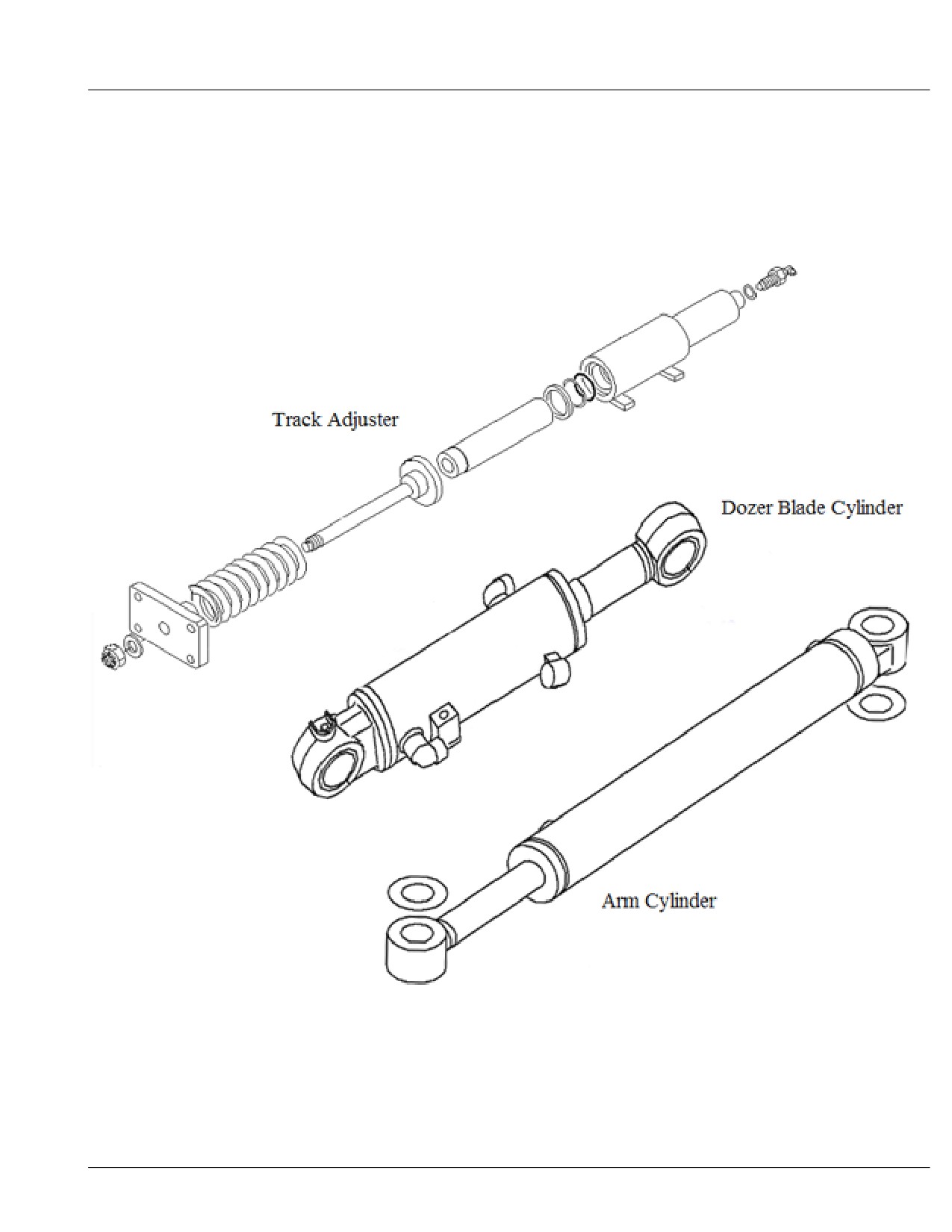

BUCKET CYLINDER
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900095300
CYLINDER ASSY
1
bucket
0-1
1900072299
KIT, seal
1
1
X
1900056931
PACKING, piston
1
2
X
1410530408
PACKING, rod
1
3
X
1900073733
SEAL, dust
1
4
X
1411240302
RING, back-up
1
5
X
1421130450
RING, back-up
1
6
X
1420110450
O-RING
1
7
X
1420500500
O-RING
1
8
1900072297
ROD ASSY, piston
1
9
1900046302
BUSHING
1
10
1900059003
COVER, rod
1
11
1900061506
PISTON
1
12
1900095398
TUBE ASSY
1
13
1900046302
BUSHING
1
14
1900061526
RING, wear
2
15
1333003025
BUSHING
1
16
1390020250
BALL, steel
1
17
1121040605
SET-SCREW
1
18
1432200030
SEAL, dust
4
19
1560001900
FITTING, grease
1
20
1560001000
FITTING, grease
1
21
1900095310
PIPE ASSY
1
22
1900095319
PIPE ASSY
1
23
1900095328
PLUG
2
24
1420010150
O-RING
4
25
1100040816
BOLT
2
26
1141110008
WASHER
2
27
1900095317
HOLDER
2
C4h720
Reference:C4H720
Page:8-21
TB016 Book No. BD4Z105 S/N 11610001-

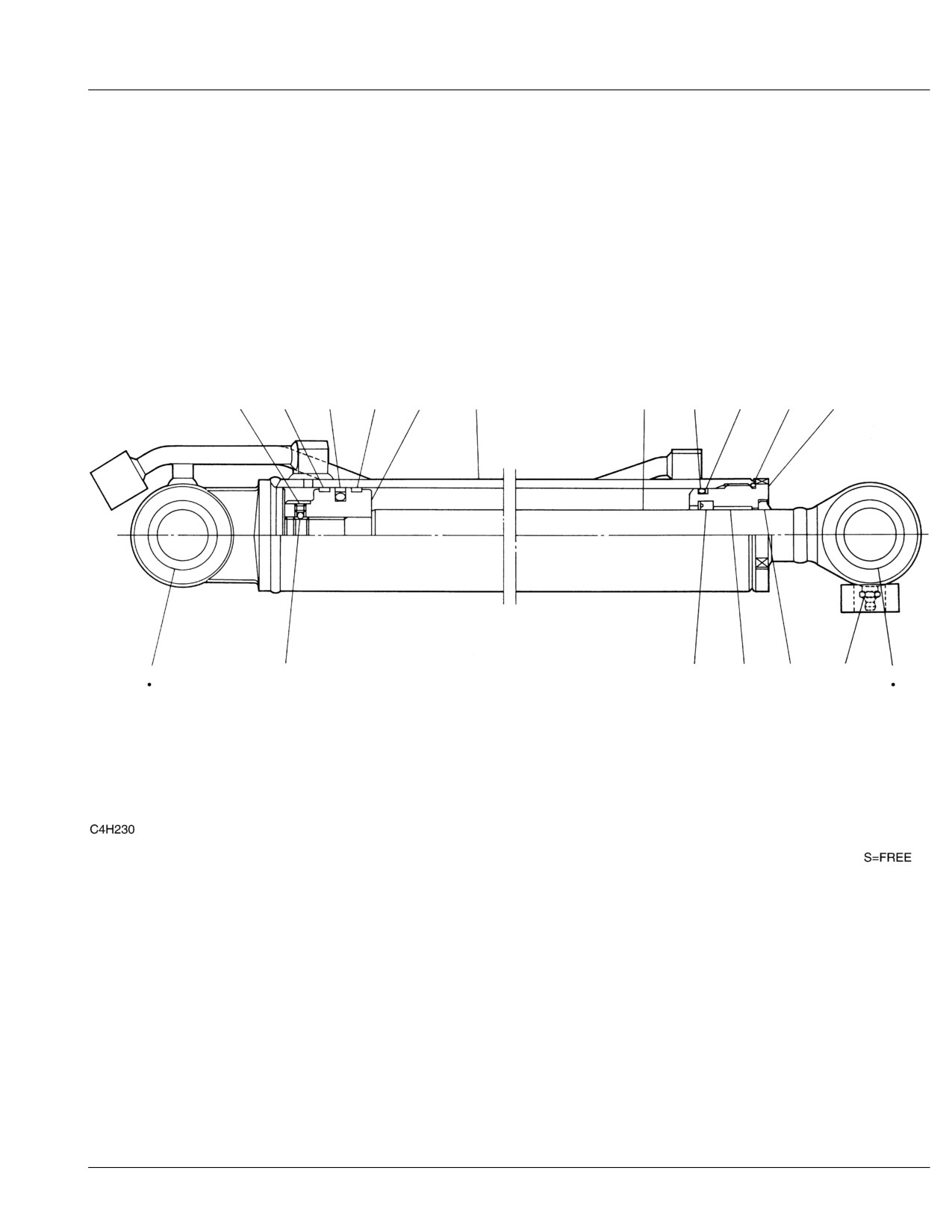

BUCKET CYLINDER (telescopic)
15
13
1
13
10
11
7
5
4
6
9
8
14
2
12
3
17
8
16
16
Ref C4H230
Page
8-22
BUCKET CYLINDER (telescopic)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1900062700
CYLINDER ASSY
1
bucket
0-1
1900051999
KIT, seal
1
1
X
1900051932
PACKING, piston
1
2
X
1410530408
PACKING, rod
1
3
X
1900051931
SEAL, dust
1
4
X
1421130500
RING, back-up
1
5
X
1420110500
O-RING
1
6
X
1420500550
O-RING
1
7
1900062701
ROD, piston
1
8
1900046320
BUSHING
2
19000-00202
9
1900053503
COVER, rod
1
10
1900053506
PISTON
1
11
1900062707
TUBE
1
12
1333003025
BUSHING
1
13
1900051926
RING, wear
2
14
1390010250
BALL, steel
1
15
1121050605
SET-SCREW
1
16
1432200030
SEAL, dust
4
17
1560001000
FITTING, grease
1
C4h231
Reference:C4H230
Page:8-22
TB016 Book No. BD4Z105 S/N 11610001-
DOZER BLADE CYLINDER
17
15
16
14
1
14
10
5
4
6
9
3
17
12
8
2
13
7
11
Ref C4H240
Page
8-23
DOZER BLADE CYLINDER
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900096000
CYLINDER ASSY
1
blade
0-1
1900070399
KIT, seal
1
1
X
1900070334
PACKING, piston
1
2
X
1410535458
PACKING, rod
1
3
X
1900073533
SEAL, dust
1
4
X
1900051832
RING, back-up
1
5
X
1420110550
O-RING
1
6
X
1420110600
O-RING
1
7
1900096097
ROD ASSY, piston
1
8
1900058502
BUSHING
1
9
1900051803
COVER, rod
1
10
1900070306
PISTON
1
11
1900096098
TUBE ASSY
1
12
1900058502
BUSHING
1
13
1333003525
BUSHING
1
14
1900070326
RING, wear
2
15
1390010250
BALL, steel
1
16
1121040607
SET-SCREW
1
17
1432200030
SEAL, dust
4
C4h730
Reference:C4H240
Page:8-23
TB016 Book No. BD4Z105 S/N 11610001-
DOZER BLADE CYLINDER (for long dozer blade)
19
17
18
14
1
14
12
5
4
6
11
3
19
8
10
16
13
2
15
7
9
Ref C4H250
Page
8-24
DOZER BLADE CYLINDER (for long dozer blade)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900096100
CYLINDER ASSY
1
blade
0-1
1900054399
KIT, seal
1
1
X
1900050333
PACKING, piston
1
2
X
1900005612
PACKING, rod
1
3
X
1900048431
SEAL, dust
1
4
X
1421130700
RING, back-up
1
5
X
1420110700
O-RING
1
6
X
1420110750
O-RING
1
7
1900096198
TUBE ASSY
1
8
1900058502
BUSHING
1
9
1900074997
ROD ASSY, piston
1
10
1900058502
BUSHING
1
11
1900054303
COVER, rod
1
12
1900054306
PISTON
1
13
1900013508
HOLDER, rod packing
1
14
1900050332
RING, wear
2
15
1333004030
BUSHING
1
16
1221000060
RING, snap
1
17
1390020250
BALL, steel
1
18
1121050608
SET-SCREW
1
19
1432200030
SEAL, dust
4
C4h740
Reference:C4H250
Page:8-24
TB016 Book No. BD4Z105 S/N 11610001-
SWING CYLINDER
23
22
21
20
8
20
12
16
6
4
5
4
7
11
2
23
14
10
17
18
19
15
1
3
24
13
9
Ref C4H260
Page
8-25

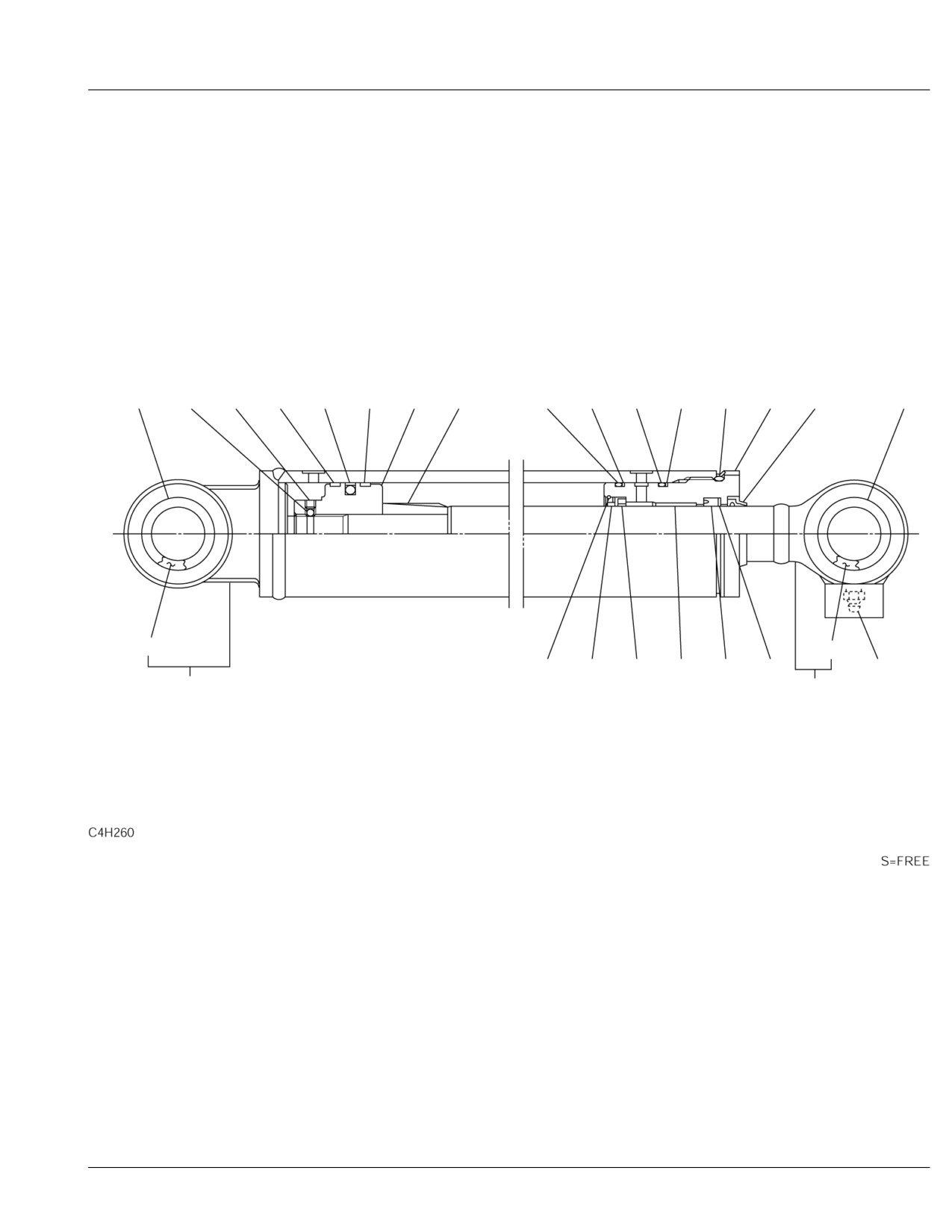

SWING CYLINDER
Item
Part number
Description
Q'ty Chan. Serial No.
Serv.
Remarks
0
1900095900
CYLINDER ASSY
1
swing
0-1
1900070599
KIT, seal
1
1
X
1410535458
PACKING, rod
1
2
X
1900073533
SEAL, dust
1
3
X
1411245352
RING, back-up
1
4
X
1421130550
RING, back-up
2
5
X
1420110550
O-RING
1
6
X
1420110500
O-RING
1
7
X
1420110600
O-RING
1
8
X
1900053331
PACKING, piston
1
9
1900070597
ROD ASSY, piston
1
10
1900024720
BUSHING
1
11
1900053303
COVER, rod
1
12
1900053306
PISTON
1
13
1900070598
TUBE ASSY
1
14
1900024720
BUSHING
1
15
1333003525
BUSHING
1
16
1900057705
CUSHON, rod
1
17
1900048826
STOPPER
1
18
1900048815
SPACER
1
19
1900046316
RING, cushion
1
20
1900065326
RING, wear
2
21
1121040607
SET-SCREW
1
22
1390010250
BALL, steel
1
23
1432200030
SEAL, dust
4
24
1560001000
FITTING, grease
1
C4h750
Reference:C4H260
Page:8-25
TB016 Book No. BD4Z105 S/N 11610001-
SPANNER CYLINDER
13
14
11
1
11
9
10
7
5
4
6
8
3
2
12
16
18
17
19
20
15
Ref C4H760
Page
8-26
SPANNER CYLINDER
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
1900095400
CYLINDER ASSY
1
spanner
0-1
1900072399
KIT, seal
1
1
X
1900051932
PACKING, piston
1
2
X
1410530408
PACKING, rod
1
3
X
1900073733
SEAL, dust
1
4
X
1421130500
RING, back-up
1
5
X
1420110500
O-RING
1
6
X
1420500550
O-RING
1
7
1900072301
ROD, piston
1
8
1900053503
COVER, rod
1
9
1900053506
PISTON
1
10
1900095407
TUBE
1
11610001~11610192
1900095427
TUBE
1
11610193~
11
1900066726
RING, wear
2
12
1333003025
BUSHING
1
13
1390020250
BALL, steel
1
14
1121050606
SET-SCREW
1
15
1900097610
PIPE ASSY
1
11610001~11610192
1900095420
PIPE ASSY
1
11610193~
16
1900095328
PLUG
1
17
1420010150
O-RING
2
18
1100040816
BOLT
1
19
1141110008
WASHER
1
20
1900095317
HOLDER
1
C4h761
Reference:C4H760
Page:8-26
TB016 Book No. BD4Z105 S/N 11610001-
TRAVEL MOTOR (1/3) (reduction sec.)
6
0-2
3
20
7
2
8
5
11
0-2
13
0-3
16
17
19
4
22
15
14
18
16
9
1
12
21
10
Ref C4H540
Page
8-27
TRAVEL MOTOR (1/3) (reduction sec.)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1903121400
MOTOR ASSY
1
0-1
1903121299
KIT, seal
1
1
X
1420101300
O-RING
1
2
X
1420300248
O-RING
1
3
X
1420010110
O-RING
2
4
X
1420010140
O-RING
2
0-2
1903121298
KIT, carrier 2
1
5
1220000026
RING, snap
1
6
1213000312
PIN, spring
3
7
1903918137
RING, snap
3
8
1903121202
COVER
1
9
1903121206
GEAR
4
10
1903121212
RING, seal
1
11
1903118113
RING, snap
1
12
1903121214
PLATE
1
13
1903121215
RING
1
14
1903118116
NEEDLE
60
15
1903121218
SEAL, floating
1
16
1903121220
BEARING
2
17
1903121222
RING, snap
1
18
1903118932
PLUG
2
0-3
1903905300
KIT, motor
1
19
1903121234
WASHER
4
20
1903121235
PLUG
2
21
1903118137
RING, snap
4
22
1903121238
RING
4
C4h570
Reference:C4H540
Page:8-27
TB016 Book No. BD4Z105 S/N 11610001-
TRAVEL MOTOR (2/3) (motor sec.)
14
13
0-5
12
0-6
9
6
8
4
10
16
0-8
3
5
7
19
2
2
18
15
17
1
11
0-9
0-9
0-7
Ref C4H550
Page
8-28

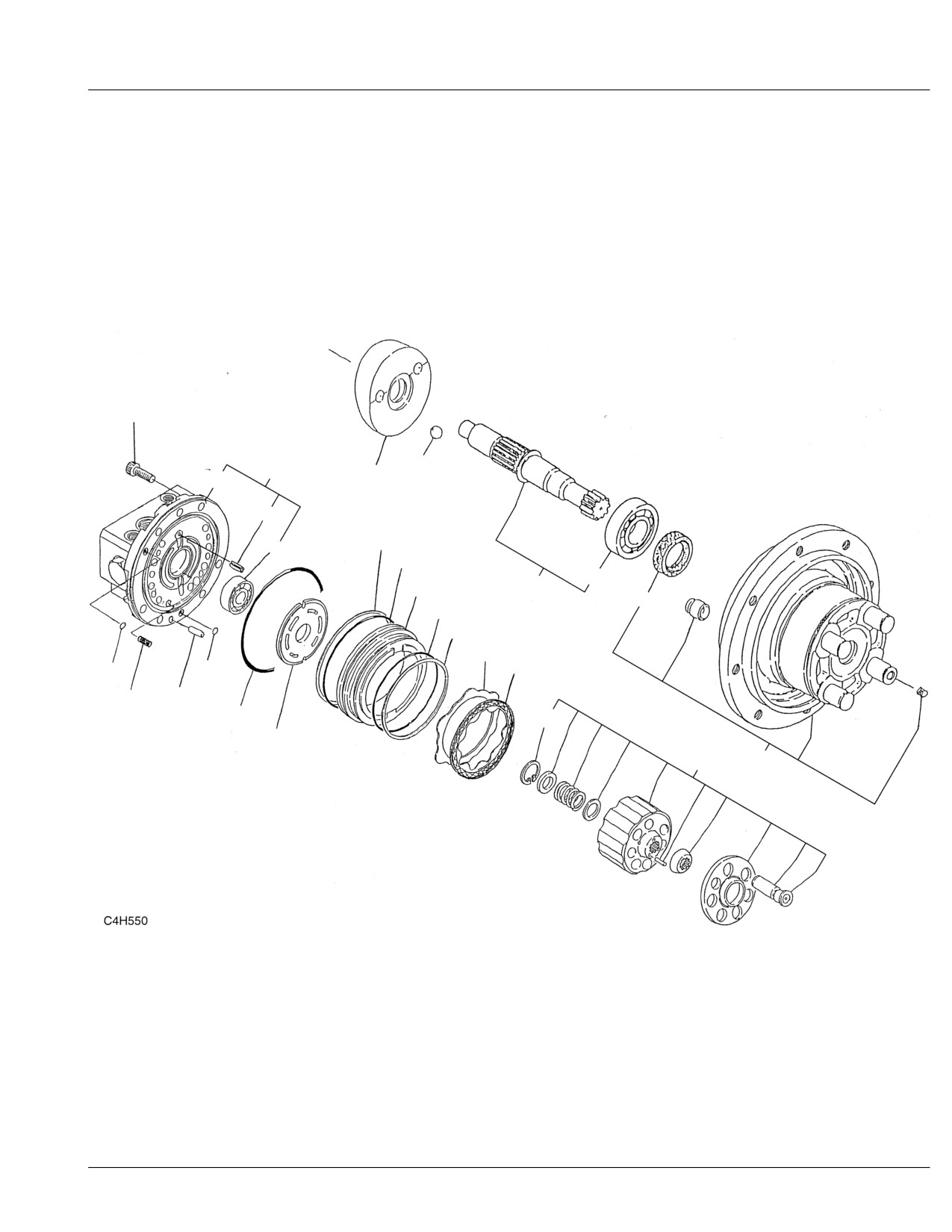

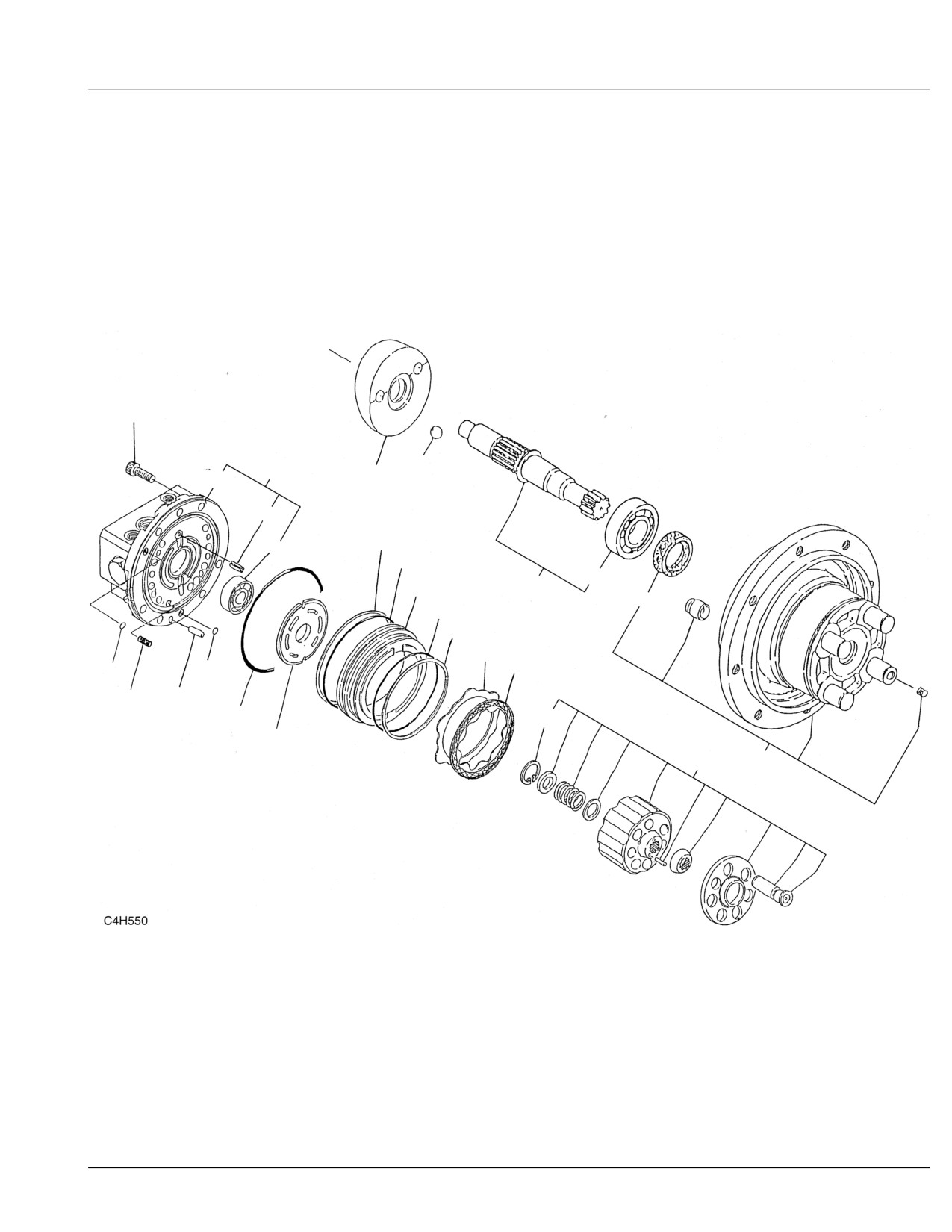

TRAVEL MOTOR (2/3) (motor sec.)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903121400
MOTOR ASSY
1
0-3
1903905300
KIT, motor
1
0-4
1903905299
KIT, seal
1
1
X
1420111050
O-RING
1
2
X
1420010090
O-RING
1
3
X
1903904226
SEAL, oil
1
4
X
1420110950
O-RING
1
5
X
1420110900
O-RING
1
6
X
1421130950
RING, back-up
1
7
X
1421130900
RING, back-up
1
0-5
1903905298
KIT, body 1
1
0-6
X
**********
BODY ASSY
1
8
1300006201
BEARING
1
9
1213000512
PIN, spring
1
0-7
1903905297
KIT, body 2
1
0-8
1903905296
KIT, shaft
1
10
1300006004
BEARING
1
0-9
1903905295
KIT, cylinder
1
11
1221000028
RING, snap
1
12
1903905310
SWASH PLATE
1
13
1390010750
BALL, steel
2
14
1903904230
SCREW
7
15
1212010614
PIN
1
16
1903905226
PISTON
1
17
1903904218
SPRING
10
18
1903905228
PLATE
1
19
1903904225
PLATE
1
C4h581
Reference:C4H550
Page:8-28
TB016 Book No. BD4Z105 S/N 11610001-
TRAVEL MOTOR (3/3) (valve sec.)
3
11
1
7
6
7
8
7
10
5
2
9
4
6
1
11
3
Ref C4H560
Page
8-29
TRAVEL MOTOR (3/3) (valve sec.)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1903121400
MOTOR ASSY
1
0-6
X
**********
BODY ASSY
1
1
1903905208
SPRING
2
2
1903904139
SPRING
1
3
1901807010
PLUG
2
4
1901807011
PLUG
2
5
1501810000
PLUG
2
6
1901804510
RING
2
7
1501810000
PLUG
8
8
1501810001
PLUG
2
9
1420010140
O-RING
2
10
1903905221
NEEDLE
2
11
1420010180
O-RING
2
C4h591
Reference:C4H560
Page:8-29
TB016 Book No. BD4Z105 S/N 11610001-
SLEW MOTOR (1/2) (motor sec.)
39
36 38
37
7
20
23
12 22 15
1
24
19
2
13
27 29
9
11
39
18
30
35
8
41
25
6
32
14
5
15
31
33
40
34
3
10
15
28 17 16 21 4
26
Ref C4H790
Page
8-30
SLEW MOTOR (1/2) (motor sec.)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903124700
MOTOR ASSY, slew
1
0-1
1903907000
MOTOR ASSY
1
0-2
1903124799
KIT, seal
1
1
X
1903124715
X-RING
1
2
X
1420111200
O-RING
3
3
X
1420111050
O-RING
1
4
X
1432900017
SEAL
1
5
X
1903905918
SEAL
1
6
X
1903905920
SEAL
1
7
X
1420010140
O-RING
2
8
X
1420310041
O-RING
2
9
X
1420310038
O-RING
1
10
X
1420310011
O-RING
3
11
X
1420010180
O-RING
2
12
1903124701
HOUSING
1
13
1903124702
MOUNTING
1
14
1903124703
GEAR
1
15
1501810001
PLUG
4
16
1903124705
PISTON
1
17
1903124706
RING
1
18
1903124707
RING, snap
1
19
1903124708
PLATE
6
20
1903124709
PLATE
7
21
1903124710
SPRING
8
22
1903124711
BEARING
1
23
1221000100
RING, snap
1
24
1220000045
RING, snap
1
25
1903124714
BEARING
1
26
1110020820
SCREW, cap
8
27
1903903628
GEROLLER
1
28
1903117922
DRIVE
1
29
1903103628
PLATE
1
30
1903102624
DRIVE
1
31
1903103630
VALVE
1
32
1903103631
RING
1
33
1903103632
SPRING
2
34
1903103634
PIN
2
35
1903124730
HOUSING
1
36
1390010700
BALL, steel
2
37
1903117933
PLUG
2
38
1903117935
SPRING
2
39
1903905118
PLUG
2
40
1903009347
BOLT
4
41
1903117942
COLLAR
1

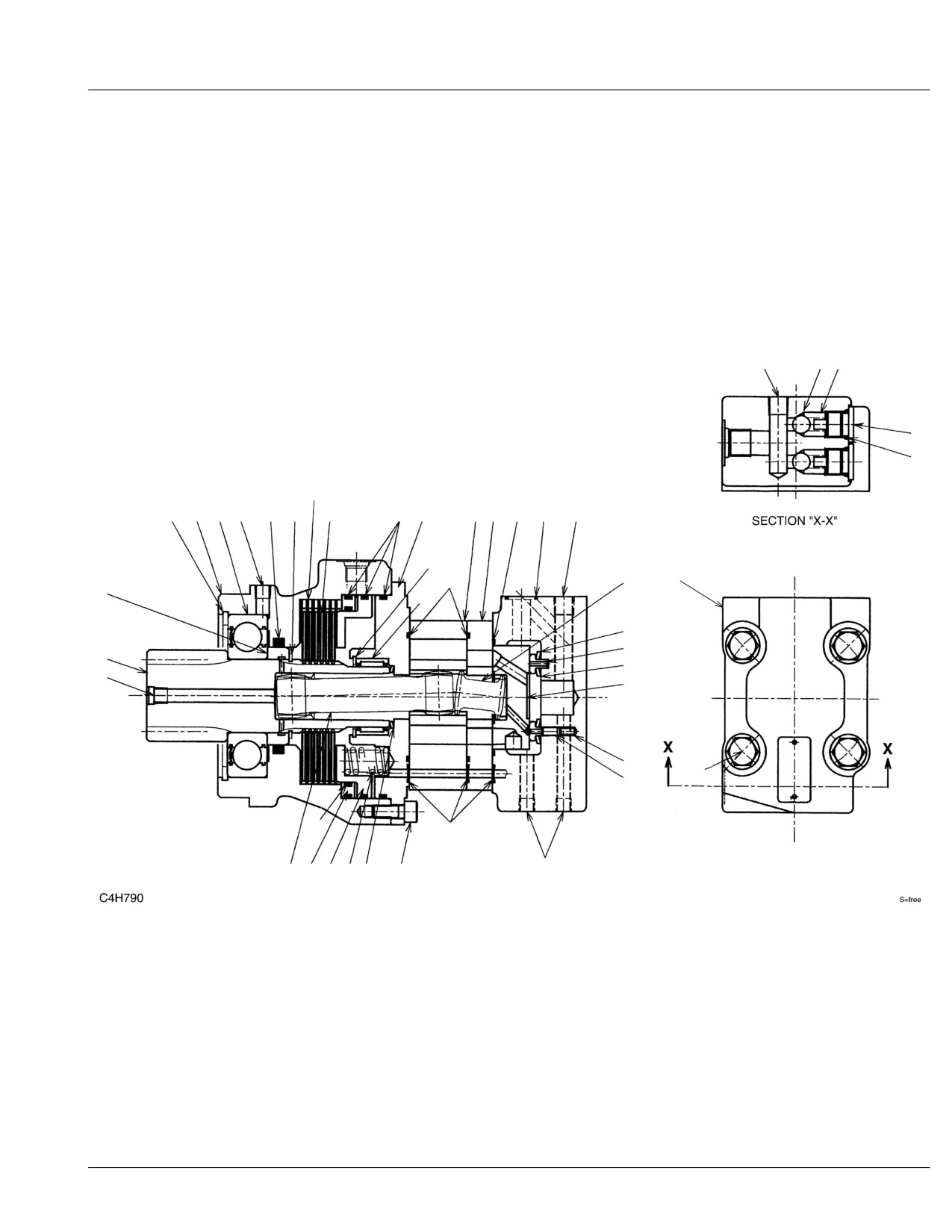

C4h790
Reference:C4H790
Page:8-30
TB016 Book No. BD4Z105 S/N 11610001-
SLEW MOTOR (2/2)(valve sec.)
4
1
2
3
5
Ref C4H800
Page
8-31
SLEW MOTOR (2/2)(valve sec.)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1903124700
MOTOR ASSY, slew
1
0-3
1901810600
VALVE ASSY
1
0-4
1901810699
KIT, seal
1
1
X
1420010240
O-RING
4
2
X
1901810607
SEAL
2
3
X
1420010180
O-RING
4
4
1501810002
PLUG
4
5
1110021055
SCREW, cap
2

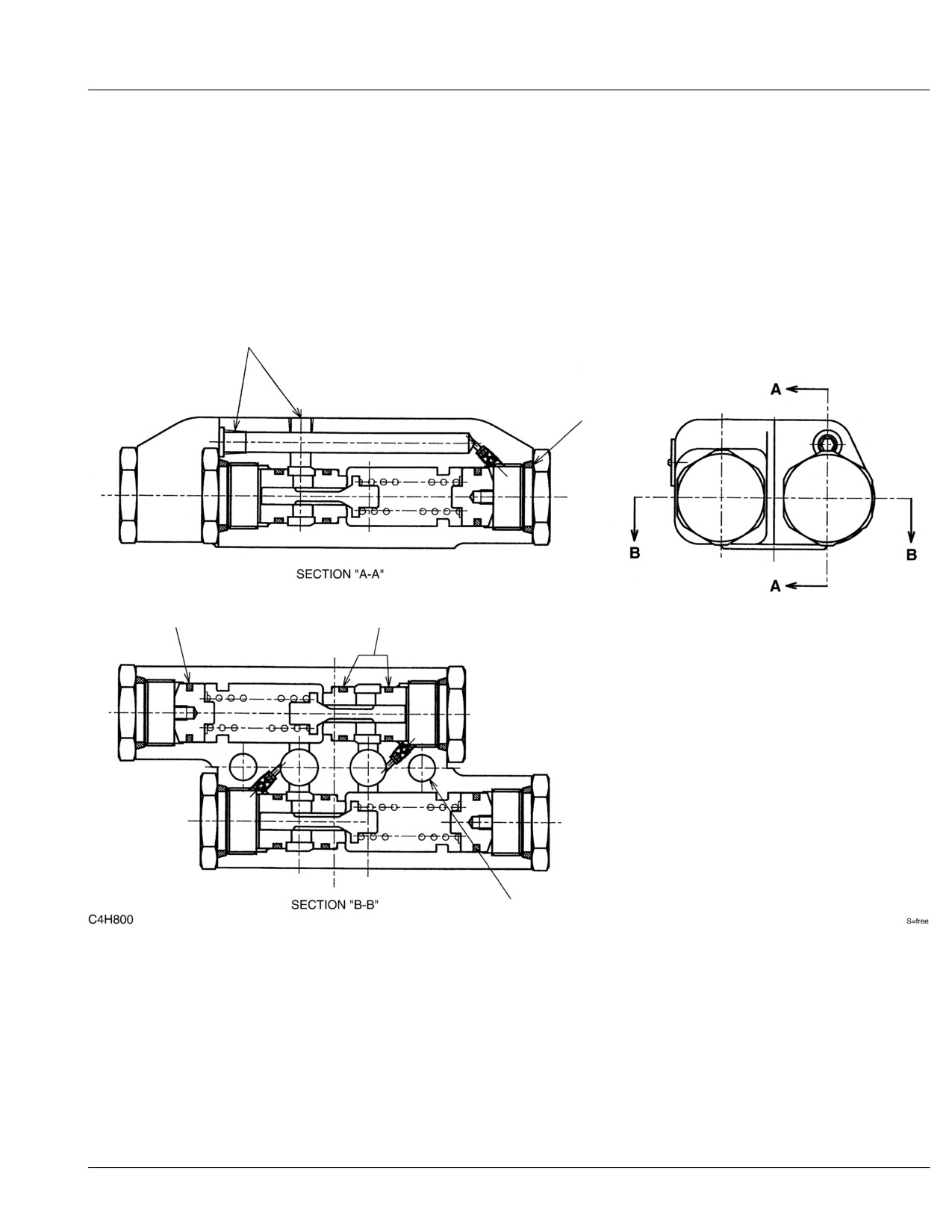

C4h800
Reference:C4H800
Page:8-31
TB016 Book No. BD4Z105 S/N 11610001-
HYDRAULIC PUMP
20
9
0-2
19
24
11
29
23
30
3
27
1
28
17
12
22
6
7
26
10
25
2
5
16
8
15
21
14
22
22
4
13
18
Ref C4H770
Page
8-32
HYDRAULIC PUMP
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1902021500
PUMP ASSY
1
0-1
1902021399
KIT, seal
1
1
X
1902021313
PACKING
1
2
X
1902021332
SEAL, oil
1
3
X
1420010110
O-RING
1
4
X
1420010080
O-RING
2
5
X
1902016062
WASHER, seal
1
6
X
1420010070
O-RING
1
7
X
1420110550
O-RING
1
8
X
1420010080
O-RING
1
0-2
1902910500
BARREL KIT
1
9
1221000028
RETAINER
1
10
1902910600
PUMP ASSY, gear
1
11
1902021310
PLATE, swash
1
12
1902016012
PIN
2
13
1902021315
SPRING
1
14
1902011518
HOLDER, spring
1
15
1902021319
GUIDE, spring
1
16
1902011526
PIN
1
17
1902014721
ROD
1
18
1902016027
PIN
1
19
1300006004
BEARING
1
20
1221000042
RETAINER
1
21
1110051040
SCREW, cap
4
22
1501810000
PLUG
4
23
1902014742
PLUG
1
24
1213000512
PIN, spring
1
25
1121050830
SET-SCREW
1
26
1130050008
NUT
1
27
1902016166
COUPLING
1
28
1902021367
COLLAR
1
29
1100050825
BOLT
2
30
1902019870
WASHER
2

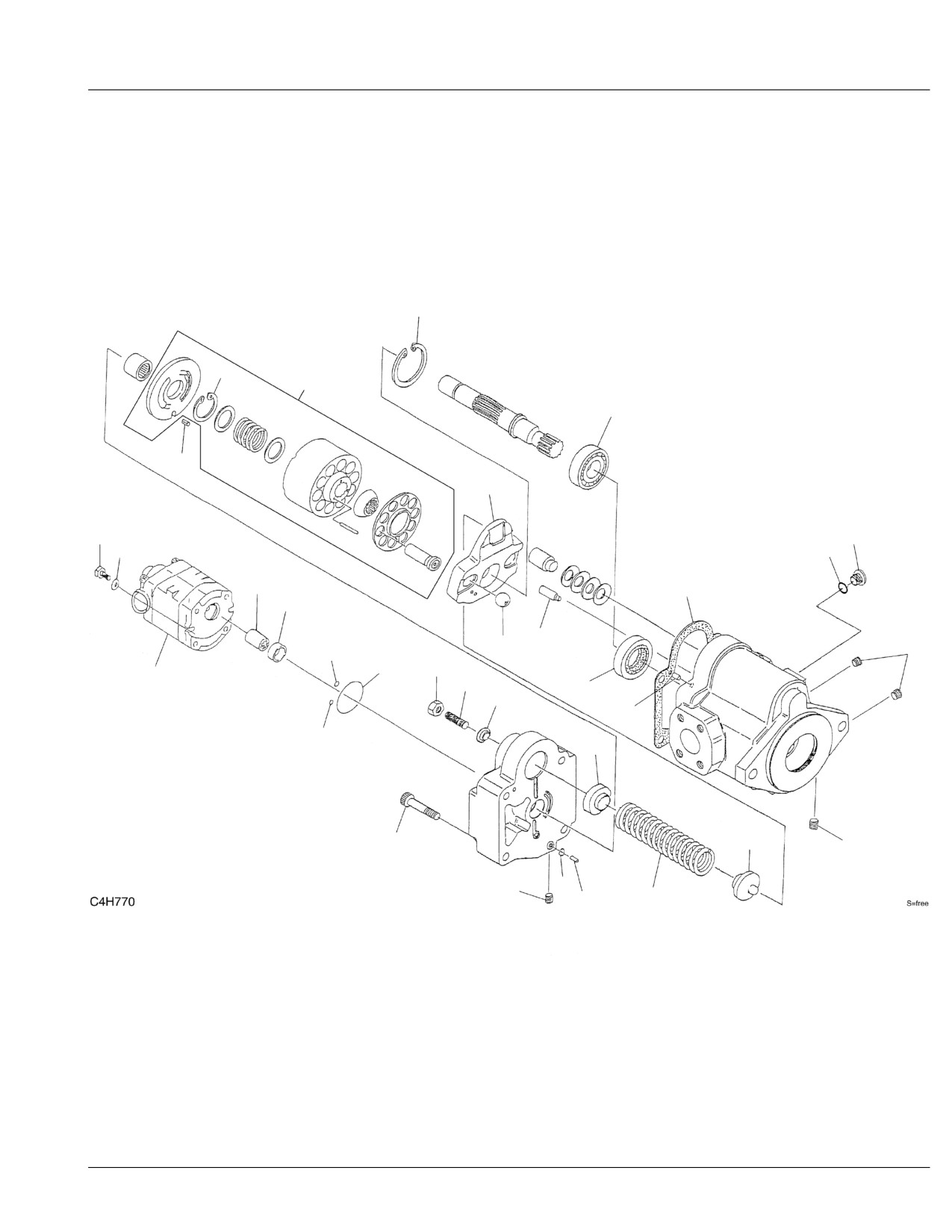

C4h780
Reference:C4H770
Page:8-32
TB016 Book No. BD4Z105 S/N 11610001-

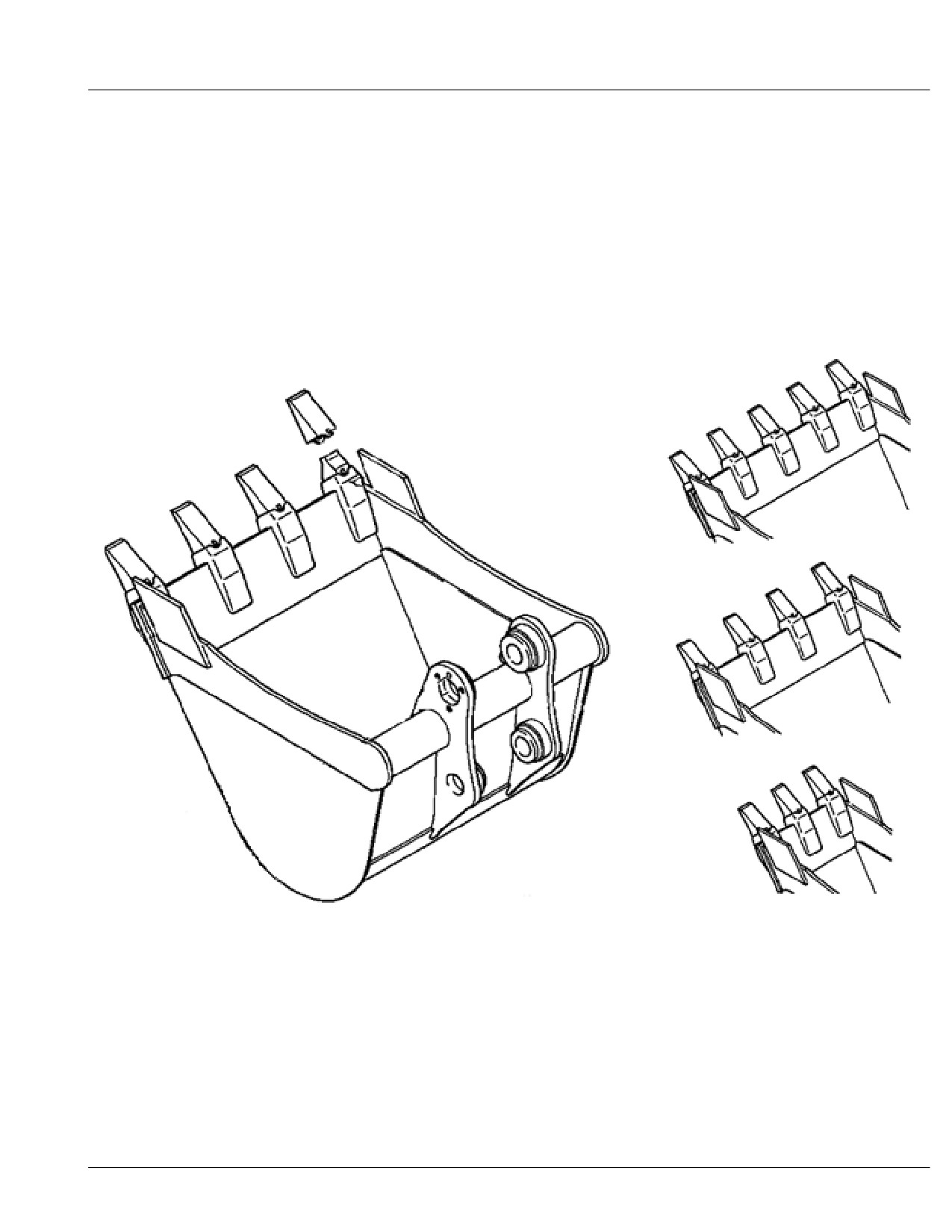

TB016 Buckets
Ref MISC016BKT
Page
99-1
TB016 Buckets
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
TB016 Buckets
BQC01610
10" Coupler Bucket TB014/TB016 (requires
1
BQC01600)(special)
BQC01612
12" Coupler Bucket TB014/TB016 (requires
1
BQC01600)
BQC01616
16" Coupler Bucket TB014/TB016 (requires
1
BQC01600)(special)
BQC01618
18" Coupler Bucket TB014/TB016 (requies
1
BQC01600)
BQC01624
24" Coupler Bucket TB014/TB016 (requires
1
BQC01600)
BQC01630
30" Coupler Bucket TB014/TB016 (requires
1
BQC01600)(special)
BQC01636
36" Coupler Buclet TB014/TB016 (requires
1
BQC01600)(special)
BTB01608
8" Pin-on Bucket TB014/TB015/TB016
1
BTB01610
10" Pin-on Bucket TB014/TB015/TB016 (special)
1
BTB01612
12" Pin-on Bucket TB014/TB015/TB016
1
BTB01616
16" Pin-on Bucket TB014/TB015/TB016 (special)
1
BTB01618
18" Pin-on Bucket TB014/TB015/TB016
1
BTB01624
24" Pin-on Bucket TB014/TB015/TB016
1
BTB01630
30" Pin-on Bucket TB014/TB015/TB016 (special)
1
BTB01636
36" Pin-on Bucket TB014/TB015/TB016 (special)
1
Reference:MISC016BKT
Page:99-1
TB016 Book No. BD4Z105 S/N 11610001-
Bucket Teeth New
2
4
5
1
3
Ref MISC016BKTTEETH
Page
99-2
Bucket Teeth New
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks

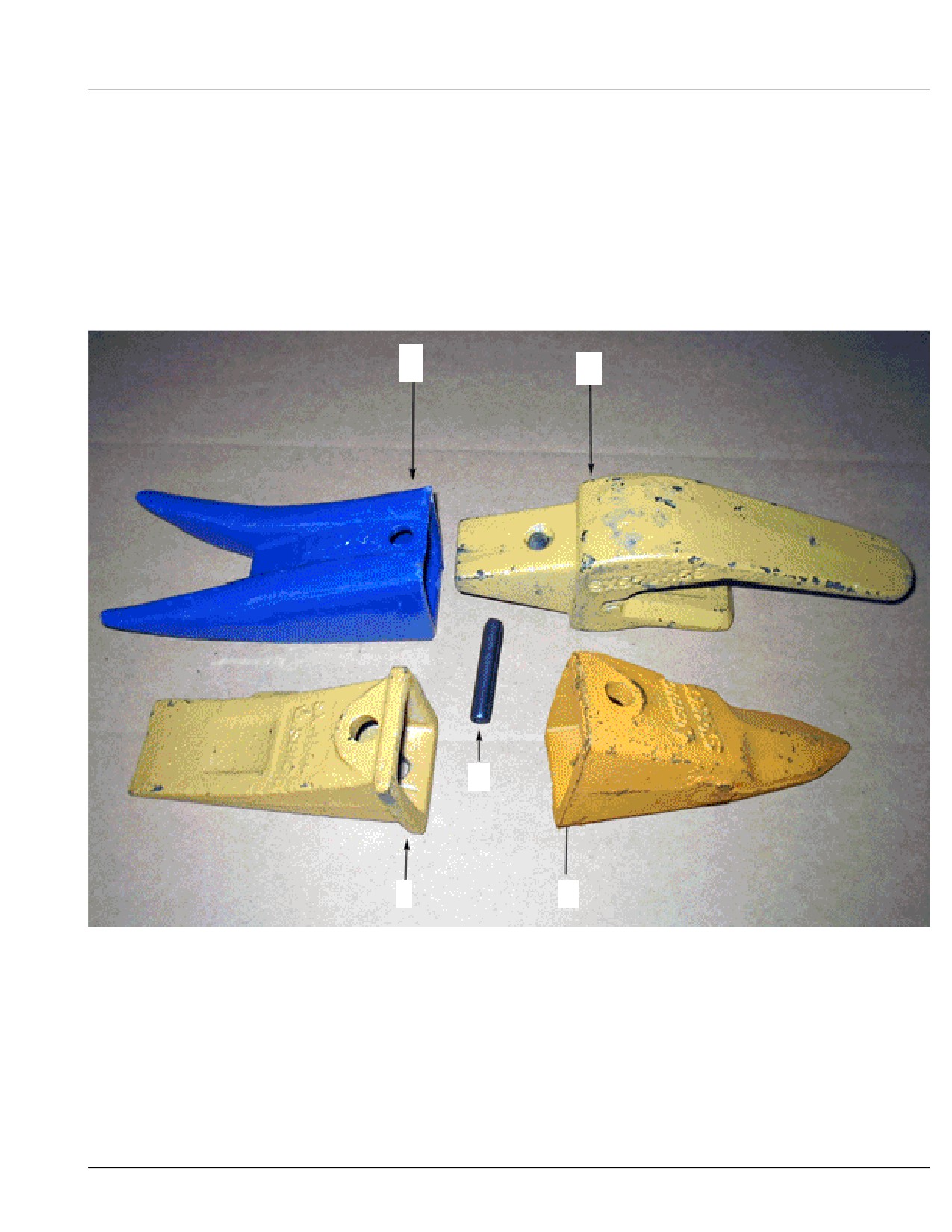

TB016 Bucket Teeth New
1
1914210182
Tooth
1
2
1914299142
Double Tiger
1
3
1914299942
Single Tiger (C&P) Tooth
1
4
19142181-1
Adaptor Shank 550 X 156 New Style
1
1914210181
Adaptor Shank 230 X 156 Old Style
1
5
1914210183
Pin - Metal
1
Reference:MISC016BKTTEETH
Page:99-2
TB016 Book No. BD4Z105 S/N 11610001-
250 Hour Filter Kit
Ref MISC016F250
Page
99-3
250 Hour Filter Kit
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
1909901400
250 Hour Filter Kit TB108/TB014/TB016
1
2
Y119305-35150
* Engine Oil Filter
1
3
Y124550-55700
* Fuel Filter
1
4
Y119655-12560
* Air Filter
1
Reference:MISC016F250
Page:99-3
TB016 Book No. BD4Z105 S/N 11610001-

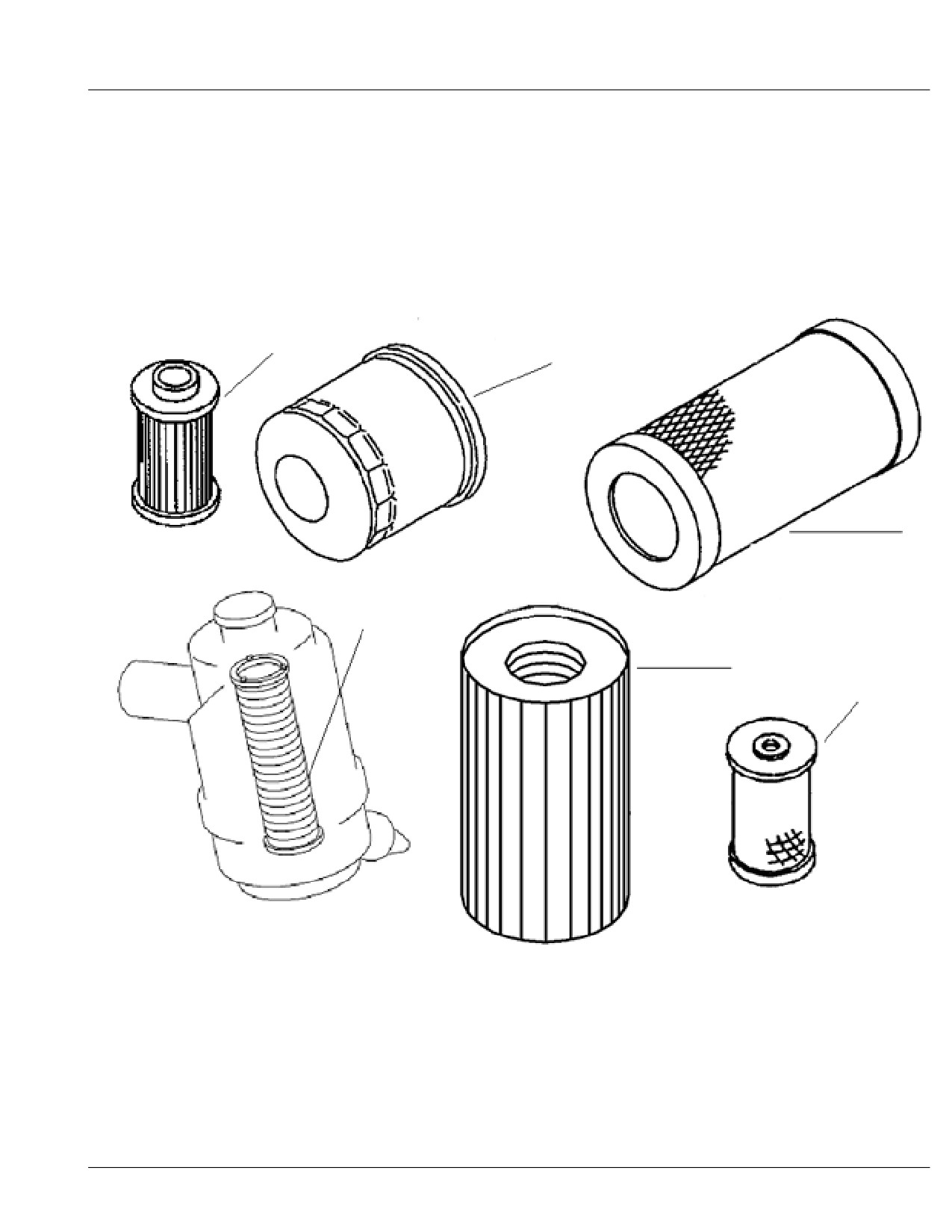

Annual Filter Kit
3
2
4
5
6
7
Ref MISC016FANN
Page
99-4
Annual Filter Kit
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
1909901410
Annual Filter Kit TB014/TB016
1
2
Y119305-35150
* Engine Oil Filter
1
3
Y124550-55700
* Fuel Filter
1
4
Y119655-12560
* Air Filter
1
5
1911101342
* Inner Air Filter TB014/TB016
1
6
1551101300
* Hydraulic Filter TB014/TB016
1
7
Y171081-55910
* Screen Check SN for Application TNE
1
Reference:MISC016FANN
Page:99-4
TB016 Book No. BD4Z105 S/N 11610001-

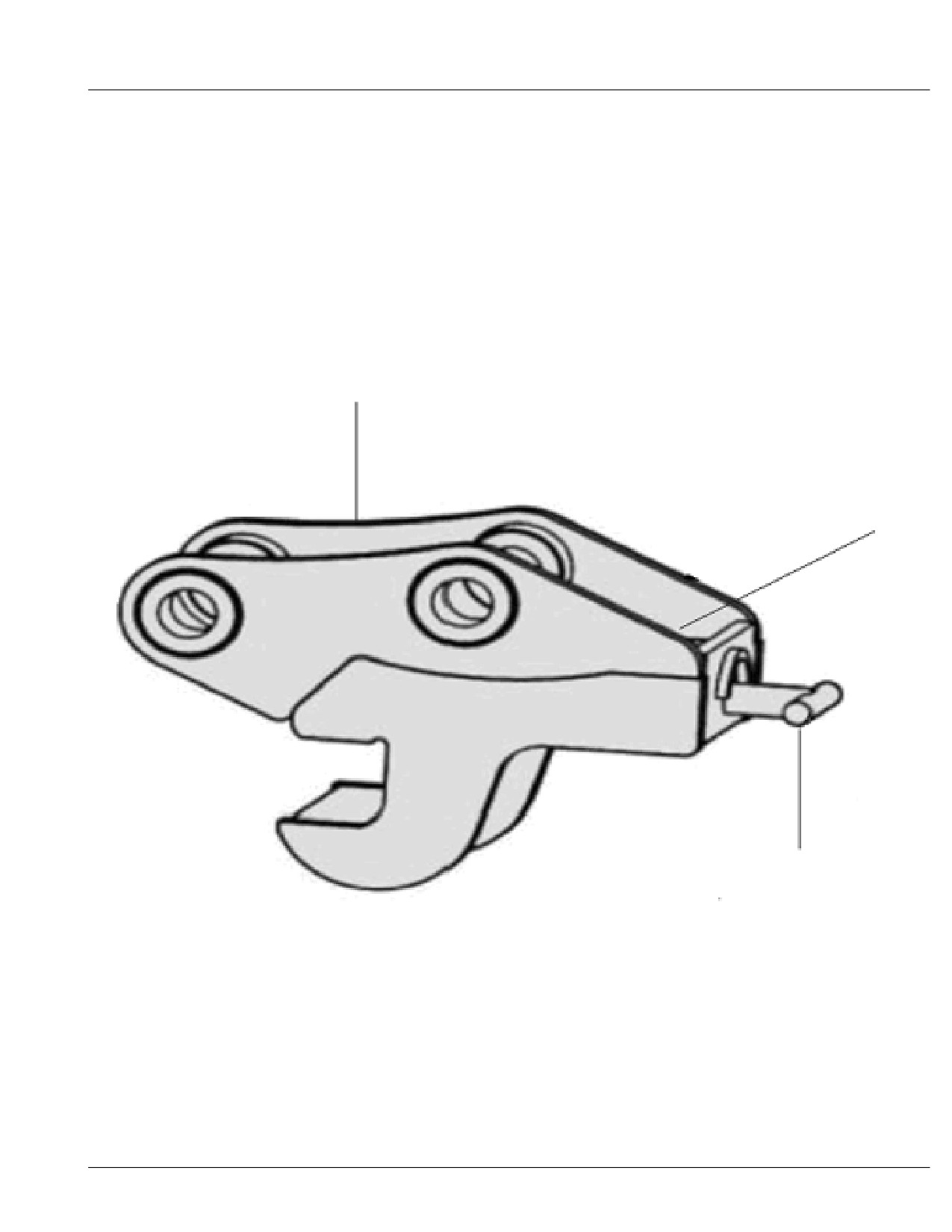

Quick Coupler
1
3
2
Ref MISC016QC
Page
99-5
Quick Coupler
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
1
BQC01600
Coupler TB014/TB016
1
2
BQC12501
Coupler T Pin TB125/TB135/TB145
1
3
BQCCLEVIS
Clevis pin for all BQC T-pins
1
Reference:MISC016QC
Page:99-5
TB016 Book No. BD4Z105 S/N 11610001-
Recommended Stock Order
Ref MISC016RECSTOCK
Page
99-6
Recommended Stock Order
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
Recommended Stock Order
1551101300
Hydraulic Filter TB014/TB016
2
Y171081-55910
Screen Check SN for Application TNE
2
Y119655-12560
Air Filter
4
Y119305-35150
Engine Oil Filter
4
Y124550-55700
Fuel Filter
2
1900070599
Swing Cylinder Seal Kit
1
1900072399
Spanner Cylinder Seal Kit
1
1900054399
Blade Cylinder Seal Kit
1
1900072299
Bucket Cylinder Seal Kit TB014/TB016
1
1900051999
Multi Use Seal Kit (bt)
1
1900070499
Boom Cylinder Seal Kit
1
1914201202
Tooth TB007/TB015
4
1914201203
Lock
4
1914201201
Adaptor
4
1432200030
Dust Sel 30/40 TB014/TB016
6
1432200035
Seal Pin 35/45 T/4
6
1541301602
Valve Assy
4
1400502033
Seal
4
1420010350
O-Ring P-35
4
1421020360
Backup Ring P-36 Biascut
4
1420111050
O-Ring G-105 1b
2
1515600200
Adaptor
2
1909920106
Male Fitting w/O-Ring
6
1909920109
3/8" Straight Male Fitting
6
1909920112
1/2" BSPP Male Fitting w/O-Ring
2
1909920406
1/4" PF Fitting
6
1909920409
3/8" PF Fitting
6
1909920413
1/2" PF Fitting
2
1909920506
1/4" 90 degree Female Fitting
2
1909920509
3/8" 90 degree Female Fitting
2
1909920512
1/2" 90 degree Female Fitting
2
1909920696
90 degree Female Fitting (block style)
2
1909920609
3/8" Female Fitting
2
1909920612
1/2" 90 degree PF Fitting
2
Reference:MISC016RECSTOCK
Page:99-6
TB016 Book No. BD4Z105 S/N 11610001-
Seal Kits
Ref MISC016SKITS
Page
99-7
Seal Kits
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
Seal Kits
1900070599
Swing Cylinder Seal Kit
1
1900072399
Spanner Cylinder Seal Kit
1
1900054399
Blade Cylinder Seal Kit
1
1900072299
Bucket Cylinder Seal Kit TB014/TB016
1
1900051999
Multi Use Arm Cylinder Seal Kit (bt)
1
1900070499
Boom Cylinder Seal Kit
1
0331506199
Seal Kit please check if Assembly has been changed
1
SN11600003-116102089
0331508699
Seal Kit (tr) TB015/TB016 SN 11602090-up
1
Reference:MISC016SKITS
Page:99-7
TB016 Book No. BD4Z105 S/N 11610001-
Thumbs
8
9
5A
5B
11A
11B
10B
10A
2
6
3
4
12
Ref MISC016THUMBS
Page
99-8

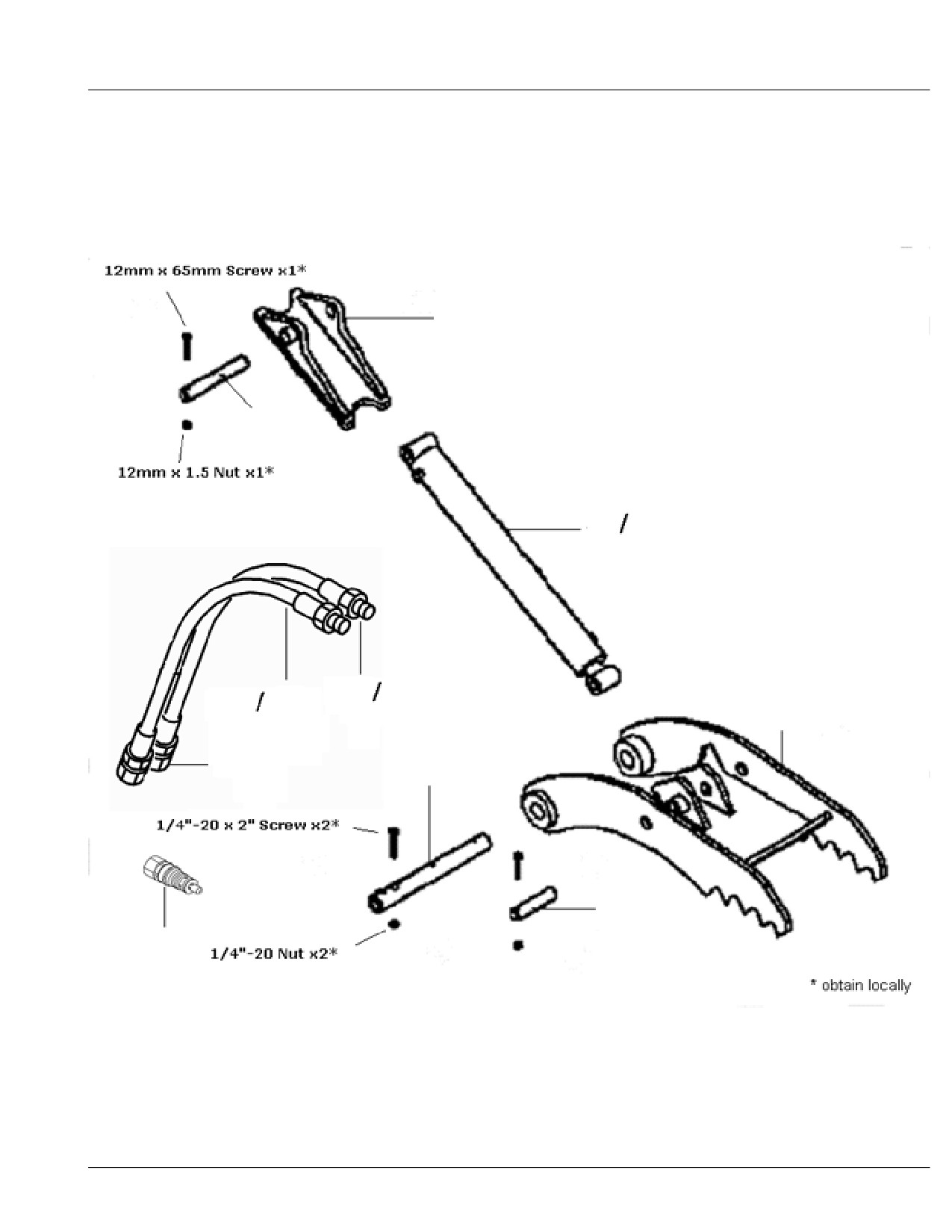

Thumbs
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
TB016 Thumbs
2
01140114TA Bracket
1
3
01140114P1
Pivot pin
1
4
01140114P2
Cylinder Rod pin
1
5A
1900021014
Cylinder Assy - Old Style
1
5B
1900021014A
Cylinder Assy - New Style
1
1900021014S
Seal Kit
1
6
1513110040
1/2" JIC X 1/2" BSPP Adpt New Style
2
Thumb(1513110038-39) and Old Style
8
01140114HB Bracket
1
9
01140114PC Cylinder pin TB016
1
10A
BTH114A-1
Long Hose TB014/TB016 New Style Thumb
1
10B
BTH114B-1
Short Hose TB014/TB016 New Style Thumb
1
11A
BTH114A
Long Hose TB014/TB016 Old Style Thumb
1
11B
BTH114B
Short Hose TB014/TB016 Old Style Thumb
1
BTH016K
Seal Kit TB016 (compatible w/12" or Larger
1
Bucket)
12
1901736200
Valve Overload TB016 SN 11602090-up
1
Reference:MISC016THUMBS
Page:99-8
TB016 Manuals
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
TB016 Manuals
L016000001TNV
Operators Manual TB016 AC4E023 (English)
1
TNV
L016000001TNVSP Operators Manual TB016 AC4S000
1
(Spanish) TNV
L01600003TNV
Parts Manual TB016 BD4-Z105 SN
1
11610001-up TNV
L016000004TNV
Service Manual TB016 CC4E002 TNV
1
Reference:Manuals
Page:99-9
ENGINE MODEL
Ω o
•”•i”Ô †
”—Ê ŒÝŠ· «
REF NO. PARTS NO.
•”•i-¼ Description Q'ty
I
R ”õ l
ENGINE
3TNV70-STB
2006.6.6
Reference:0-1
Page:0-1
