Takeuchi Mini Excavator TB016 (Serial No.11610001~). Parts Manual - page 6





TB016 Book No. BD4Z105 S/N 11610001-

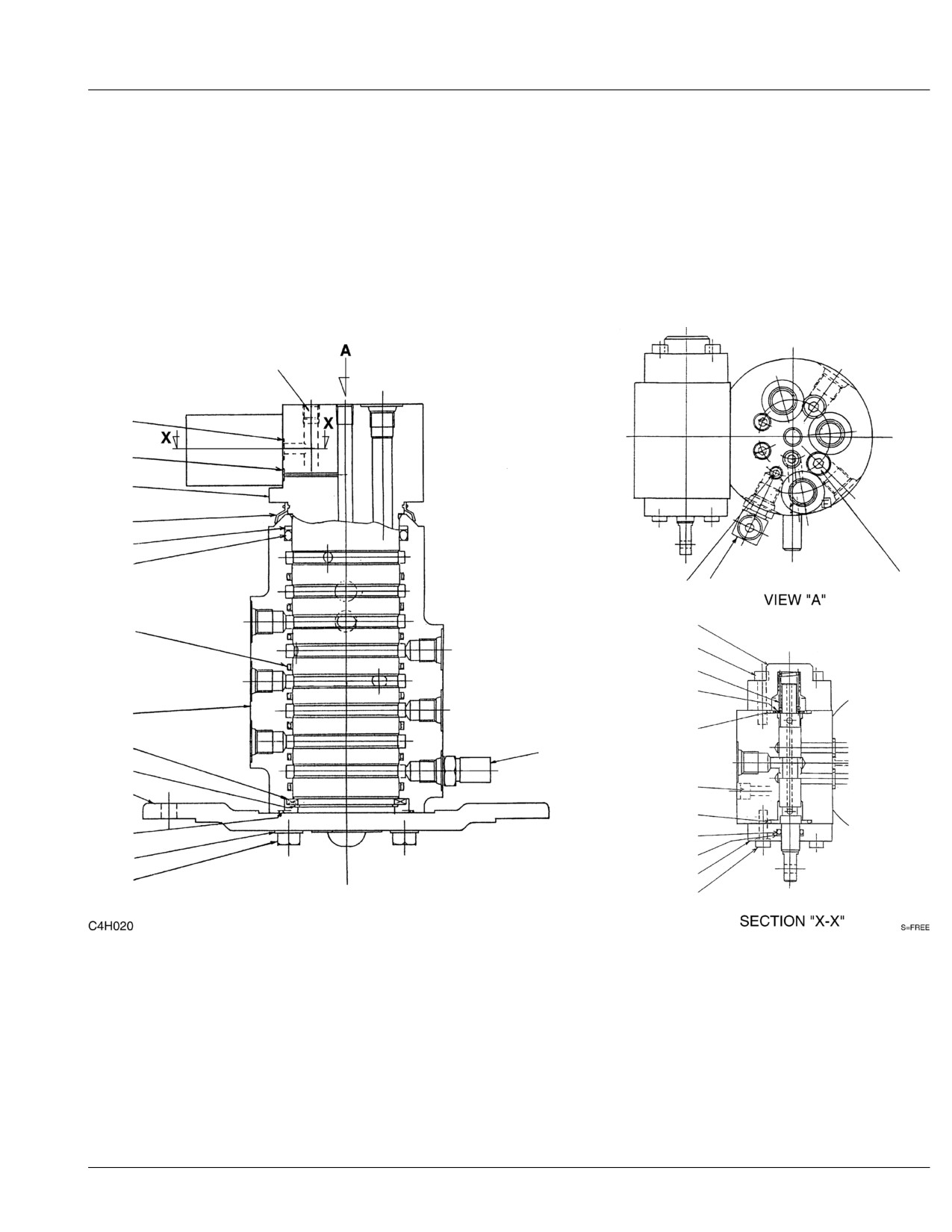

SWIVEL JOINT
24
3
4
19
7
6
2
23
25
28
9
1
16
10
14
18
11
21
28
22
15
20
11
5
12
27
13
8
26
17
Ref C4H020
Page
8-1
SWIVEL JOINT
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1904007600
JOINT ASSY, swivel
1
0-1
1904007099
KIT, seal
1
1
X
1904006416
SEAL, sliper
8
2
X
1420010600
O-RING
1
3
X
1420010090
O-RING
2
4
X
1420010050
O-RING
1
5
X
1420310040
O-RING
1
6
X
1421030600
RING, back-up
1
7
X
1904001695
SEAL, dust
1
0-2
1904100300
SELECTOR ASSY
1
8
1904006653
COVER
1
9
1904100304
COVER
1
10
1904100305
SPRING
1
11
1420010220
O-RING
2
12
1420000100
O-RING
1
13
1421020100
RING, back-up
1
14
1141190008
WASHER
1
15
1110040555
BOLT
4
16
1110050525
SCREW, cap
4
17
1110040516
SCREW, cap
4
18
X
**********
HUB
1
19
X
**********
SHAFT
1
20
1904007121
FLANGE
1
21
1904004604
RING, thrust
1
22
1220000055
RING, snap
1
23
1501810002
PLUG
2
24
1501810001
PLUG
3
25
1501810000
PLUG
1
26
1100050825
BOLT
4
27
1140010008
WASHER, spring
4
28
1515010040
ELBOW
2
1420010110
O-RING
1
C4h022
Reference:C4H020
Page:8-1
TB016 Book No. BD4Z105 S/N 11610001-

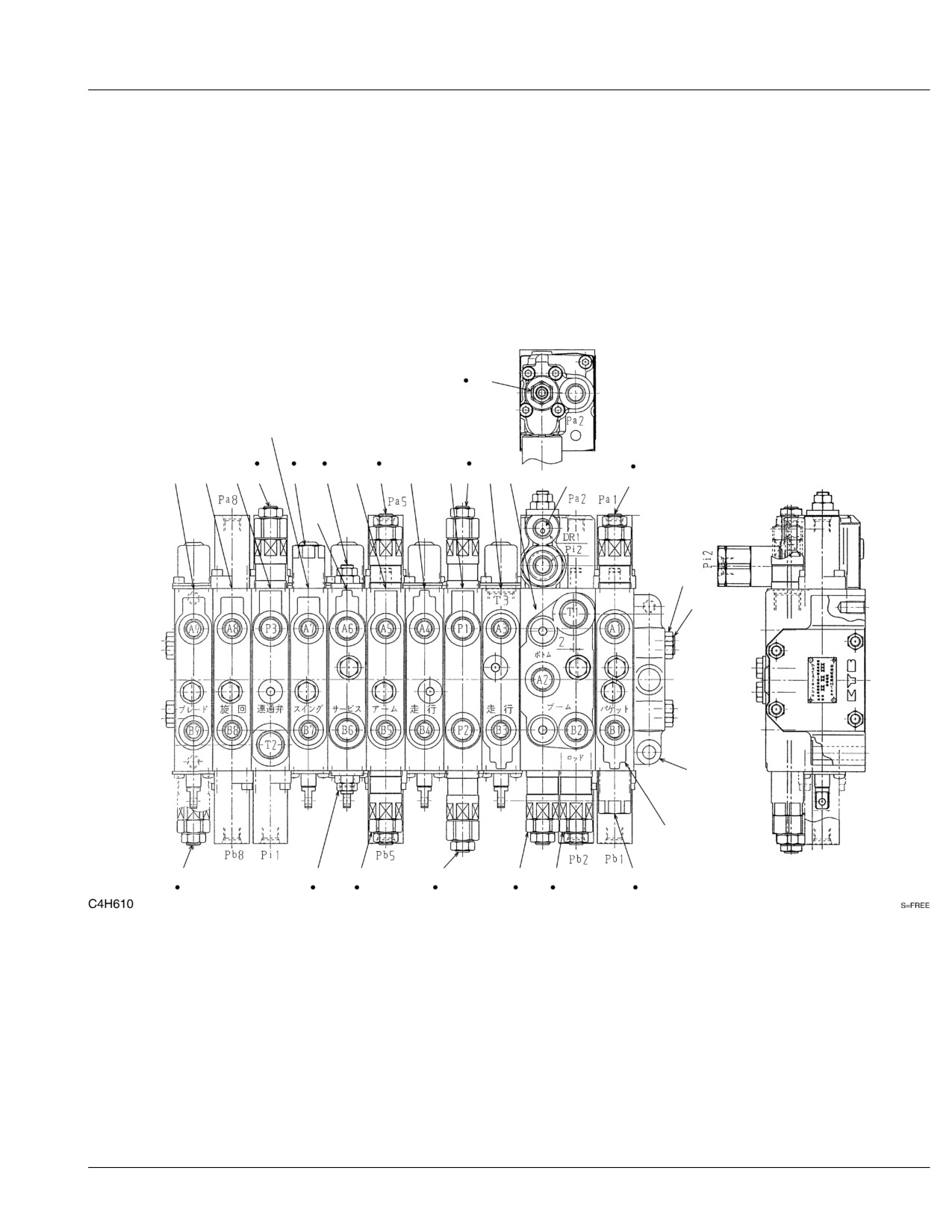

CONTROL VALVE
26
25
11
18
24
26
20
16
20
14
13
12 17
23
25
9
19
8
7
15
6
5
27
19
10
2
1
3
4
19
25
21
15
19
19
23
20
26
22
16
20
20
24
Ref C4H610
Page
8-2
CONTROL VALVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901042700
VALVE ASSY, control
1
1
1901038807
BOLT
4
2
1901034907
NUT
8
3
1901038806
HOUSING
1
4
1901042713
BLOCK ASSY, No. 1
1
bucket
5
1901042711
BLOCK ASSY, No. 2
1
boom
6
1901038816
BLOCK ASSY, No. 3
1
traction L.H.
7
1901038803
HOUSING ASSY
1
P1. P2
8
1901038815
BLOCK ASSY, No. 4
1
traction R.H.
9
1901042712
BLOCK ASSY, No. 5
1
arm
10
1901038819
BLOCK ASSY, No. 6
1
service
11
1901038818
BLOCK ASSY, No. 7
1
swing
12
1901042718
BLOCK ASSY, No. 8
1
P3, T2
13
1901042714
BLOCK ASSY, No. 9
1
slew
14
1901042717
BLOCK ASSY, No. 10
1
blade
15
1901033821
VALVE ASSY
2
relief
16
1420310910
O-RING
1
17
1901033822
VALVE ASSY
1
relief
18
1420310910
O-RING
1
19
1901038822
VALVE ASSY
5
over load
20
1420310910
O-RING
1
21
1901038823
VALVE ASSY
1
antivoid
22
1420310910
O-RING
1
23
1901042625
VALVE ASSY
2
antivoid
24
1420310910
O-RING
1
25
1901042626
VALVE ASSY
3
shut-off
26
1420310910
O-RING
1
27
1901036572
PLUG ASSY
1
C4h620
Reference:C4H610
Page:8-2
TB016 Book No. BD4Z105 S/N 11610001-

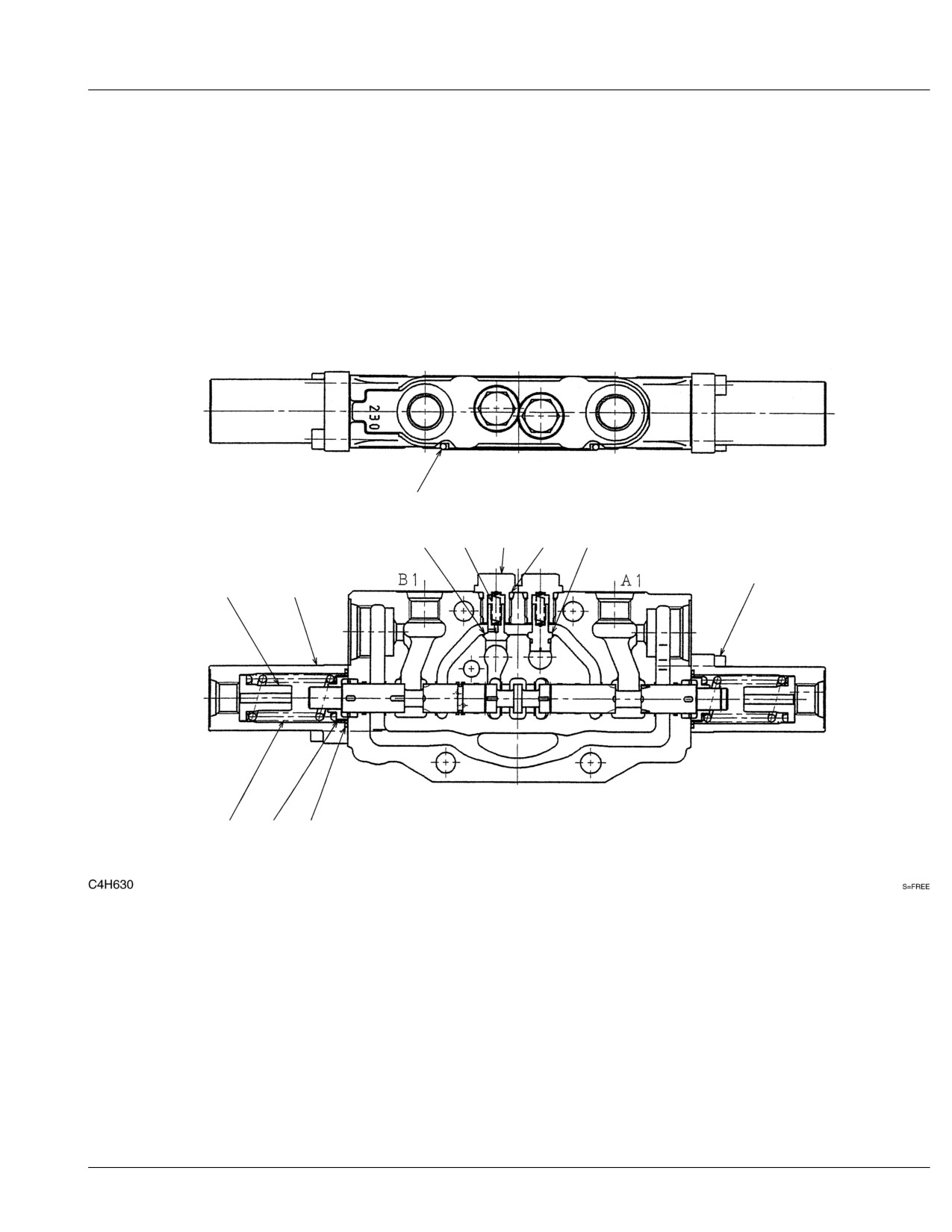

BLOCK ASSY; No. 1
12
7
8
9
10
11
6
3
4
2
1
5
Ref C4H630
Page
8-3
BLOCK ASSY; No. 1
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901042713
BLOCK ASSY, No. 1
1
bucket
1
1901031752
HOLDER, spring
2
2
1901038856
SPRING
2
3
1901038851
HOLDER, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
2
9
1901038890
PLUG
2
10
1420010110
O-RING
2
11
1901038827
PLUNGER
1
12
1901038881
O-RING
1
C4h630
Reference:C4H630
Page:8-3
TB016 Book No. BD4Z105 S/N 11610001-
BLOCK ASSY; No. 2
19
6
20
4
3
2
1
5
10
9
8
7
18
17
12
10
15
21
11
13
14
16

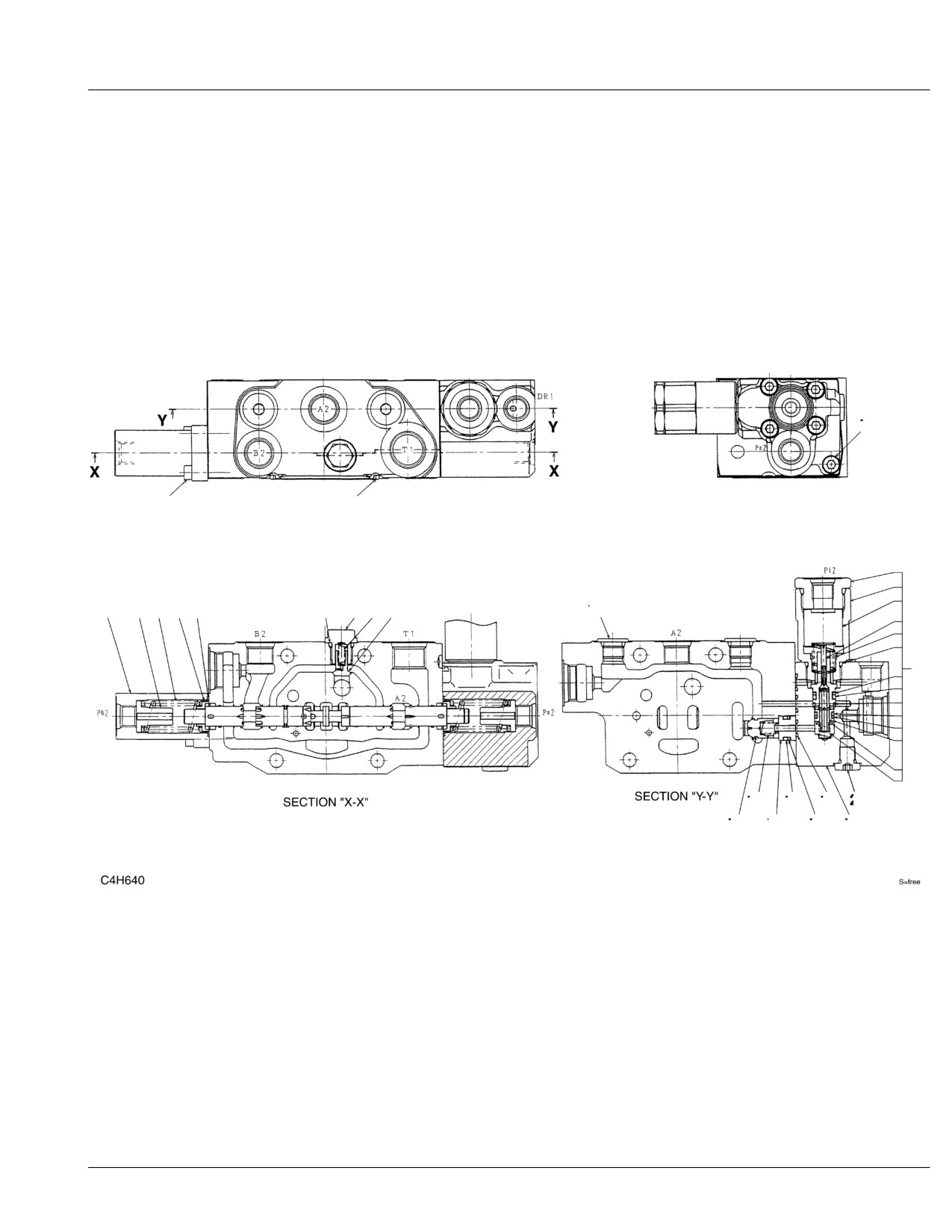

Ref C4H640
Page
8-4
BLOCK ASSY; No. 2
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901042711
BLOCK ASSY, No. 2
1
boom
1
1901031752
HOLDER, spring
2
2
1901038856
SPRING
2
3
1901038851
SEAT, spring
2
4
1901038866
CAP
1
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
2
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
1
10
1420010110
O-RING
2
11
1901042660
PLUNGER
1
12
1901042659
SPRING
1
13
1901042658
SPACER
1
14
1421020110
RING, back-up
1
15
1420010070
O-RING
3
16
1901042701
BODY
1
17
1901042798
PISTON ASSY
1
18
1901038893
PLUG ASSY
2
19
1110020660
SCREW, cap
5
20
1901038881
O-RING
1
21
1901036677
PLUG ASSY
1
C4h640
Reference:C4H640
Page:8-4
TB016 Book No. BD4Z105 S/N 11610001-

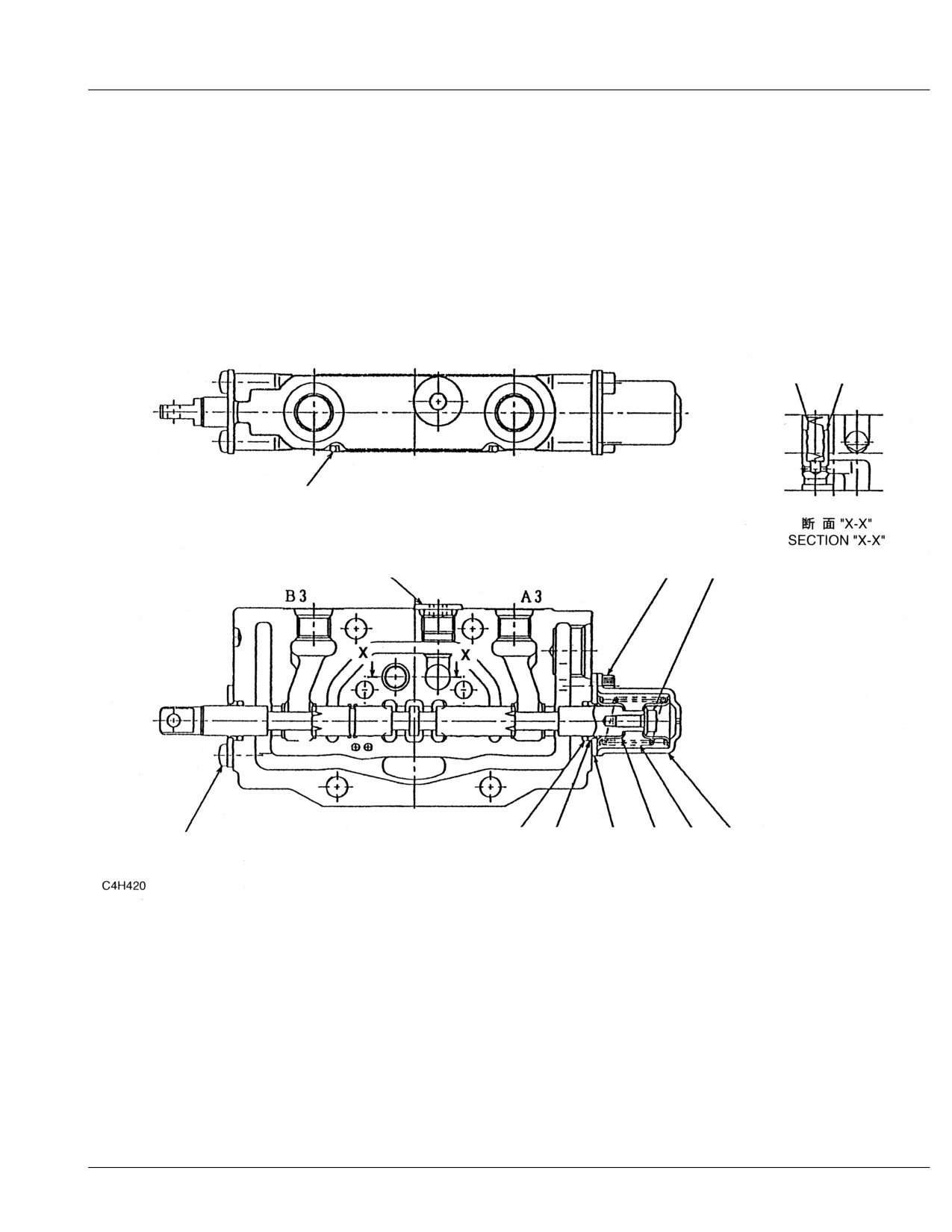

BLOCK ASSY; No. 3
12
11
13
10
8
6
1
2
3
4
5
7
9
Ref C4H420
Page
8-5
BLOCK ASSY; No. 3
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901038816
BLOCK ASSY, No. 3
1
traction L.H.
1
1420000120
O-RING
2
2
1901027771
SEAL
2
3
1901027772
PLATE
2
4
1901027792
HOLDER, spring
2
5
1901027758
SPRING
1
6
1901038831
SCREW, cap
1
7
1901038870
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038893
PLUG ASSY
1
11
1901038829
PLUNGER
1
12
1901027757
SPRING
1
13
1901038881
O-RING
1
C4h420
Reference:C4H420
Page:8-5
TB016 Book No. BD4Z105 S/N 11610001-
HOUSUNG ASSY
1
1

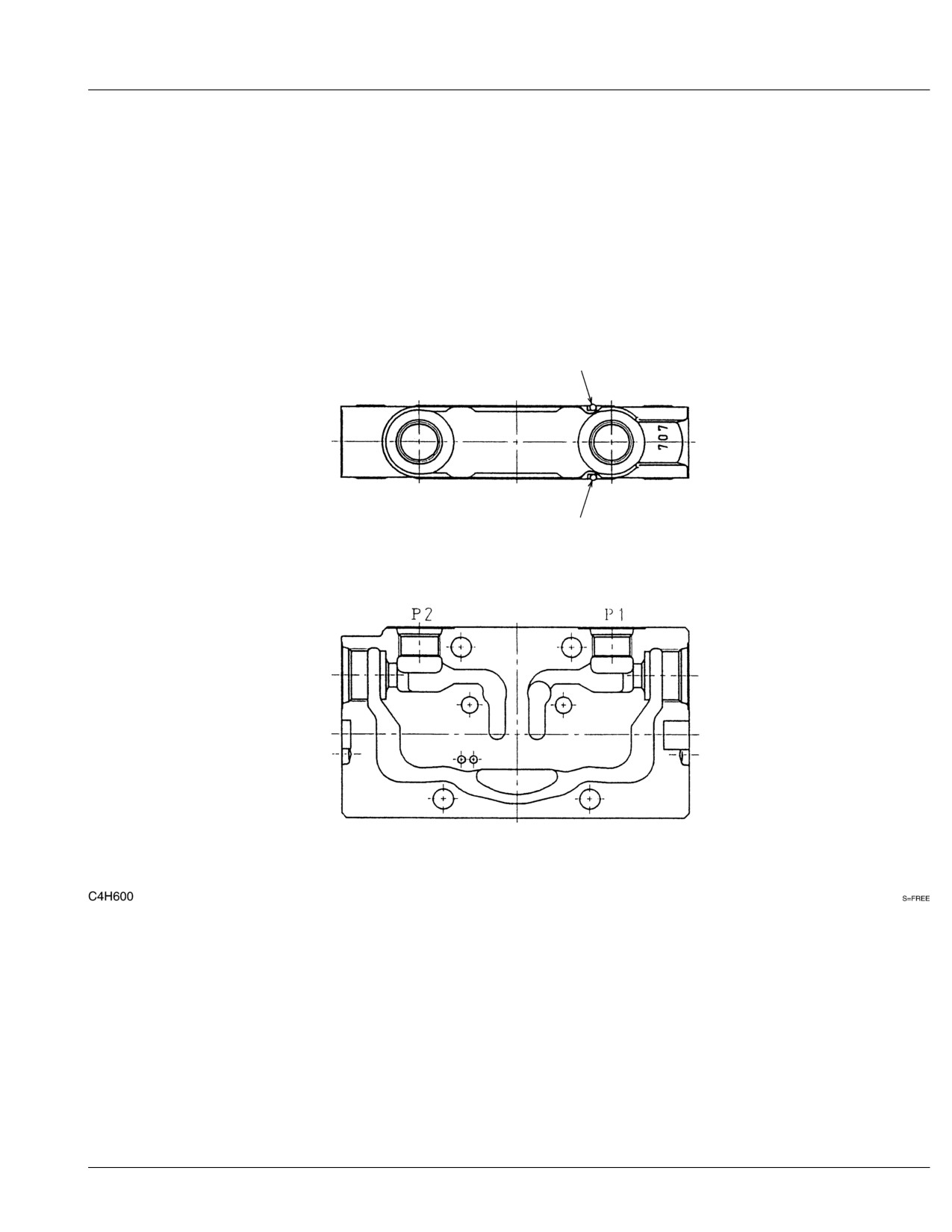

Ref C4H600
Page
8-6
HOUSUNG ASSY
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901038803
HOUSING ASSY
1
P1, P2
1
1420300144
O-RING
2
C4h600
Reference:C4H600
Page:8-6
TB016 Book No. BD4Z105 S/N 11610001-

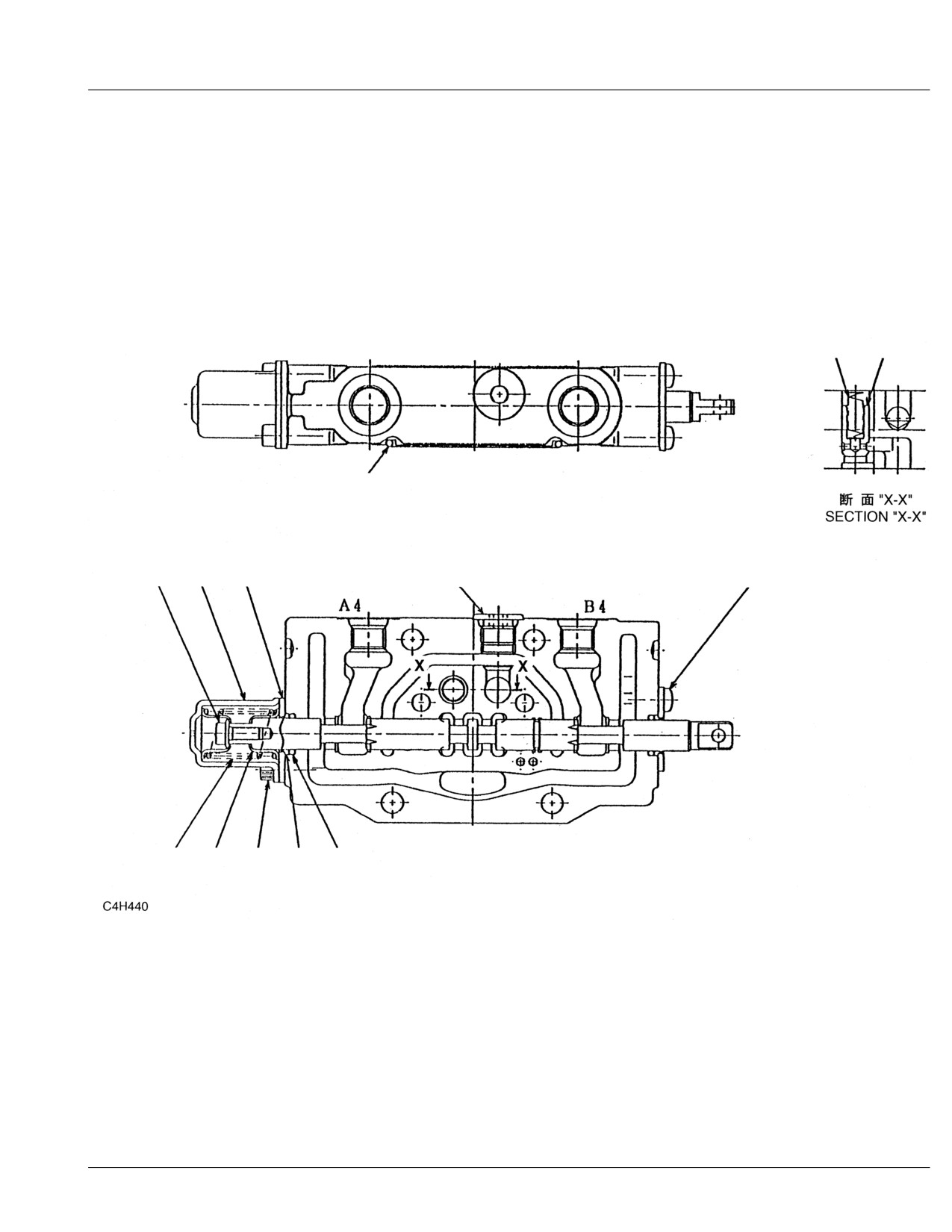

BLOCK ASSY; No. 4
12
11
13
6
7
3
10
9
5
4
8
2
1
Ref C4H440
Page
8-7
BLOCK ASSY; No. 4
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901038815
BLOCK ASSY, No. 4
1
traction R.H.
1
1420000120
O-RING
2
2
1901027771
SEAL
2
3
1901027772
PLATE
2
4
1901027792
HOLDER, spring
2
5
1901027758
SPRING
1
6
1901038831
SCREW, cap
1
7
1901038870
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038893
PLUG ASSY
1
11
1901038829
PLUNGER
1
12
1901027757
SPRING
1
13
1901038881
O-RING
1
C4h440
Reference:C4H440
Page:8-7
TB016 Book No. BD4Z105 S/N 11610001-

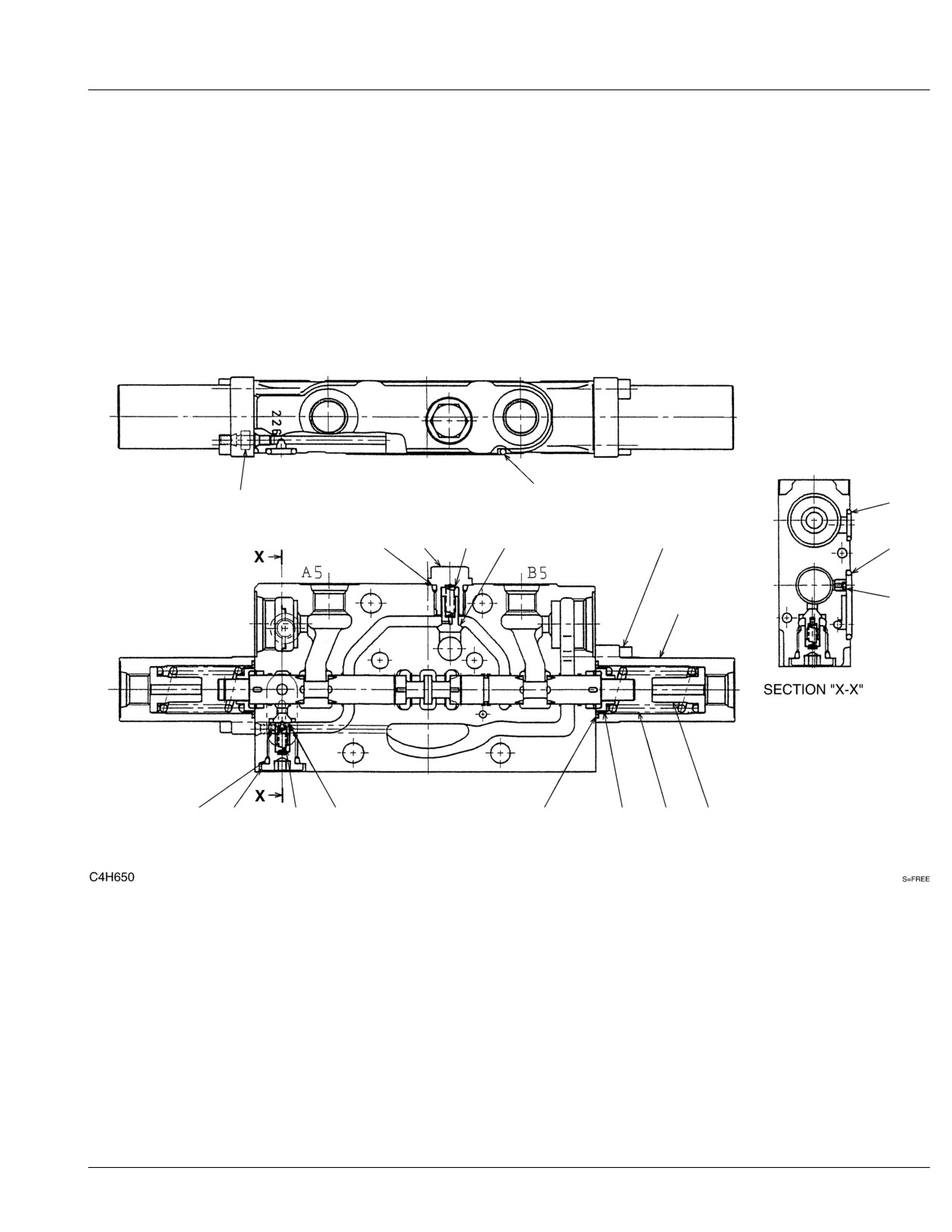

BLOCK ASSY; No. 5
18
1
16
6
15
14
13
12
17
2
10
6
5
4
3
11
7
8
9
Ref C4H650
Page
8-8
BLOCK ASSY; No. 5
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901042712
BLOCK ASSY, No. 5
1
arm
1
1901042790
PLUG
1
2
1901042789
ORIFICE
1
3
1901038828
PLUNGER
1
4
1901027858
SPRING
1
5
1901038892
PLUG
1
6
1420010110
O-RING
2
7
1901031752
HOLDER, spring
2
8
1901038856
SPRING
2
9
1901038851
SEAT, spring
2
10
1901038866
CAP
1
11
1420500220
O-RING
2
12
1110020518
SCREW, cap
4
13
1901038826
PLUNGER
1
14
1901038857
SPRING
1
15
1901038890
PLUG
1
16
1420000100
O-RING
1
17
1420010200
O-RING
1
18
1901038881
O-RING
1
C4h650
Reference:C4H650
Page:8-8
TB016 Book No. BD4Z105 S/N 11610001-
BLOCK ASSY; No. 6
14
6
7
3
13
12
11
10
9
5
4
8
2
1

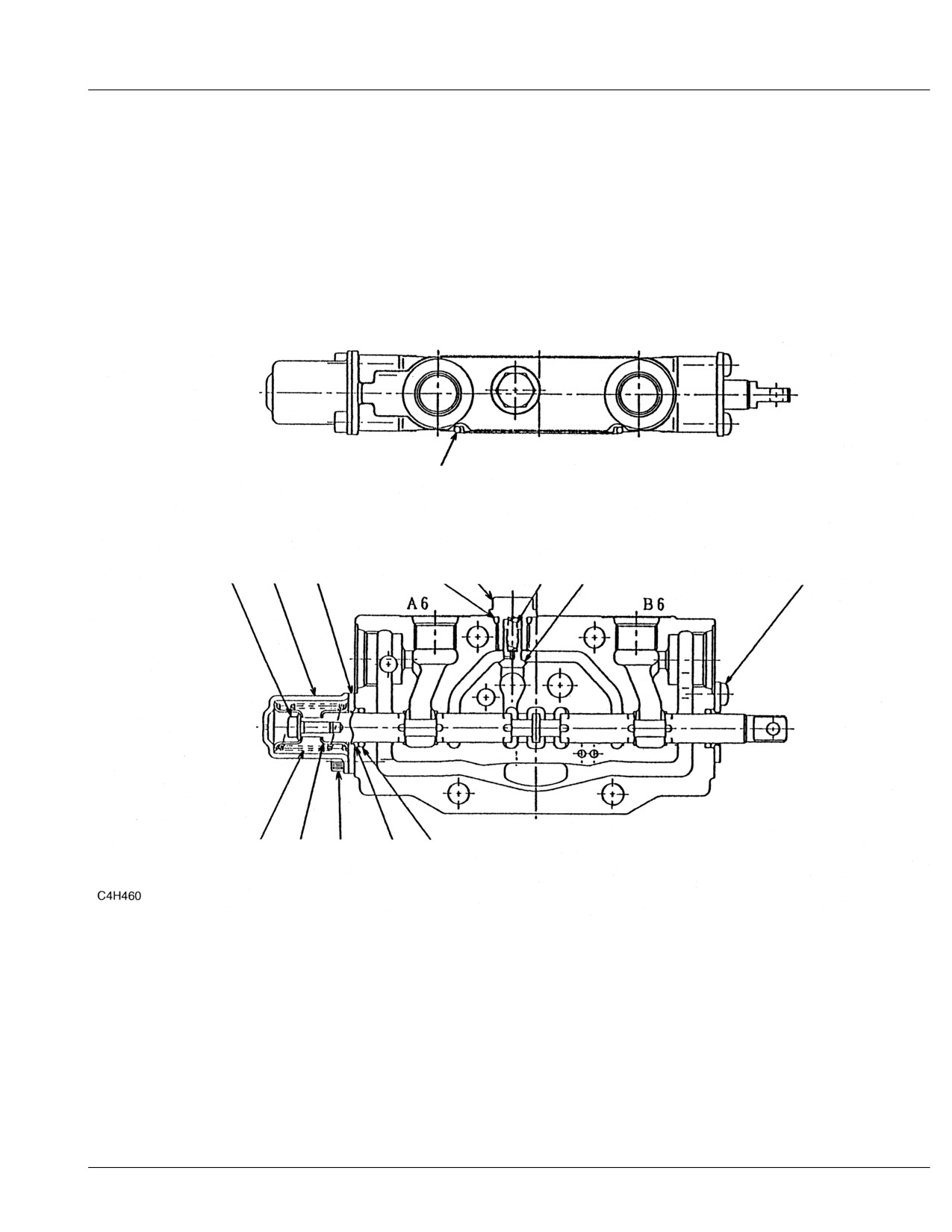

Ref C4H460
Page
8-9
BLOCK ASSY; No. 6
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901038819
BLOCK ASSY, No. 6
1
service
1
1420000120
O-RING
2
2
1901027771
SEAL
2
3
1901027772
PLATE
2
4
1901027792
HOLDER, spring
2
5
1901027857
SPRING
1
6
1901038831
SCREW, cap
1
7
1901038870
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038829
PLUNGER
1
11
1901038857
SPRING
1
12
1901038890
PLUG
2
13
1420010110
O-RING
2
14
1901038881
O-RING
1
C4h460
Reference:C4H460
Page:8-9
TB016 Book No. BD4Z105 S/N 11610001-
BLOCK ASSY; No. 7
14
6
7
3
13
12
11
10
9
5
4
8
2
1

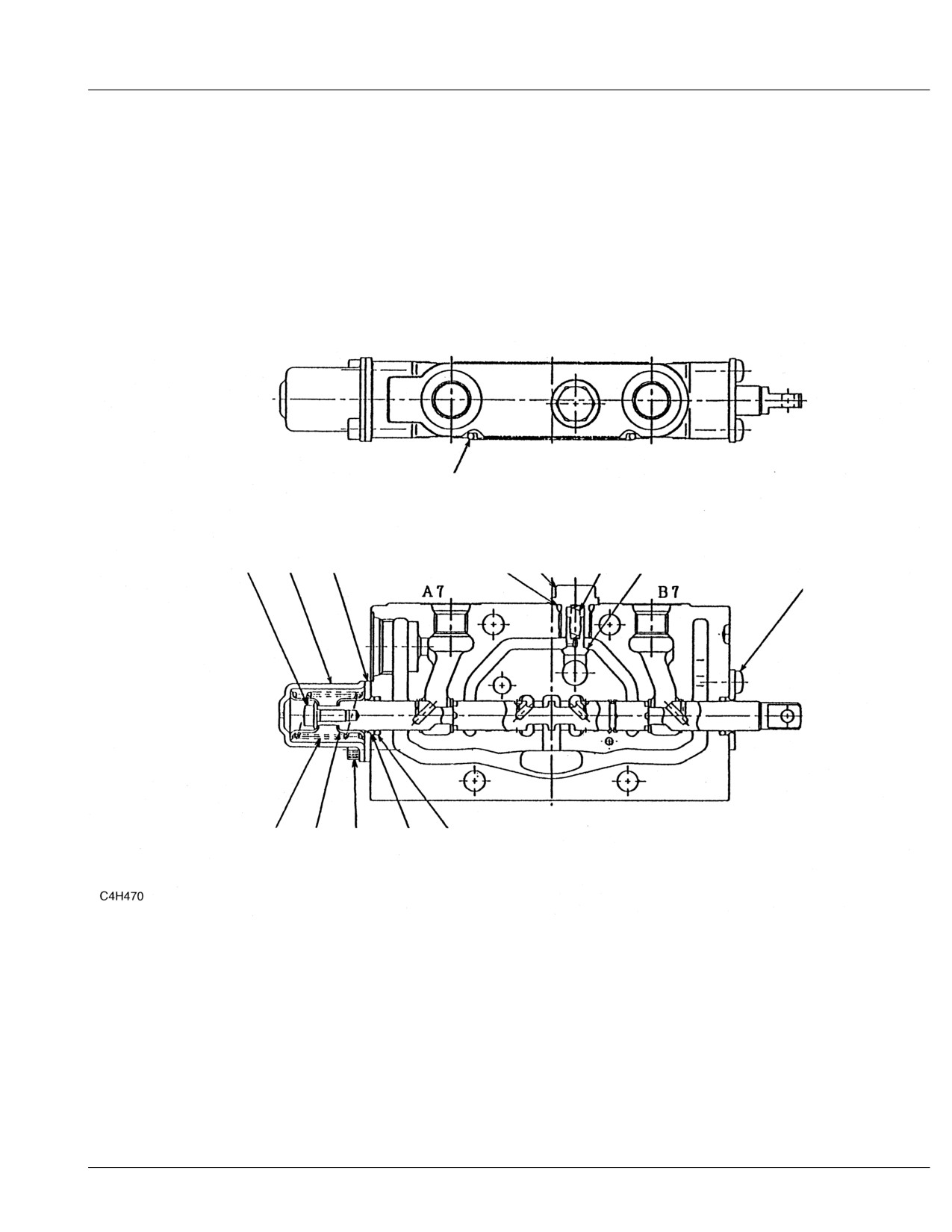

Ref C4H470
Page
8-10
BLOCK ASSY; No. 7
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901038818
BLOCK ASSY, No. 7
1
swing
1
1420000120
O-RING
2
2
1901027771
SEAL
2
3
1901027772
PLATE
2
4
1901027792
HOLDER, spring
2
5
1901027857
SPRING
1
6
1901038831
SCREW, cap
1
7
1901038870
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038826
PLUNGER
1
11
1901038857
SPRING
1
12
1901038890
PLUG
1
13
1420010110
O-RING
1
14
1901038881
O-RING
1
C4h470
Reference:C4H470
Page:8-10
TB016 Book No. BD4Z105 S/N 11610001-
BLOCK ASSY; No. 8
11
10
3
4
2
6
1
5
5
7
8
9

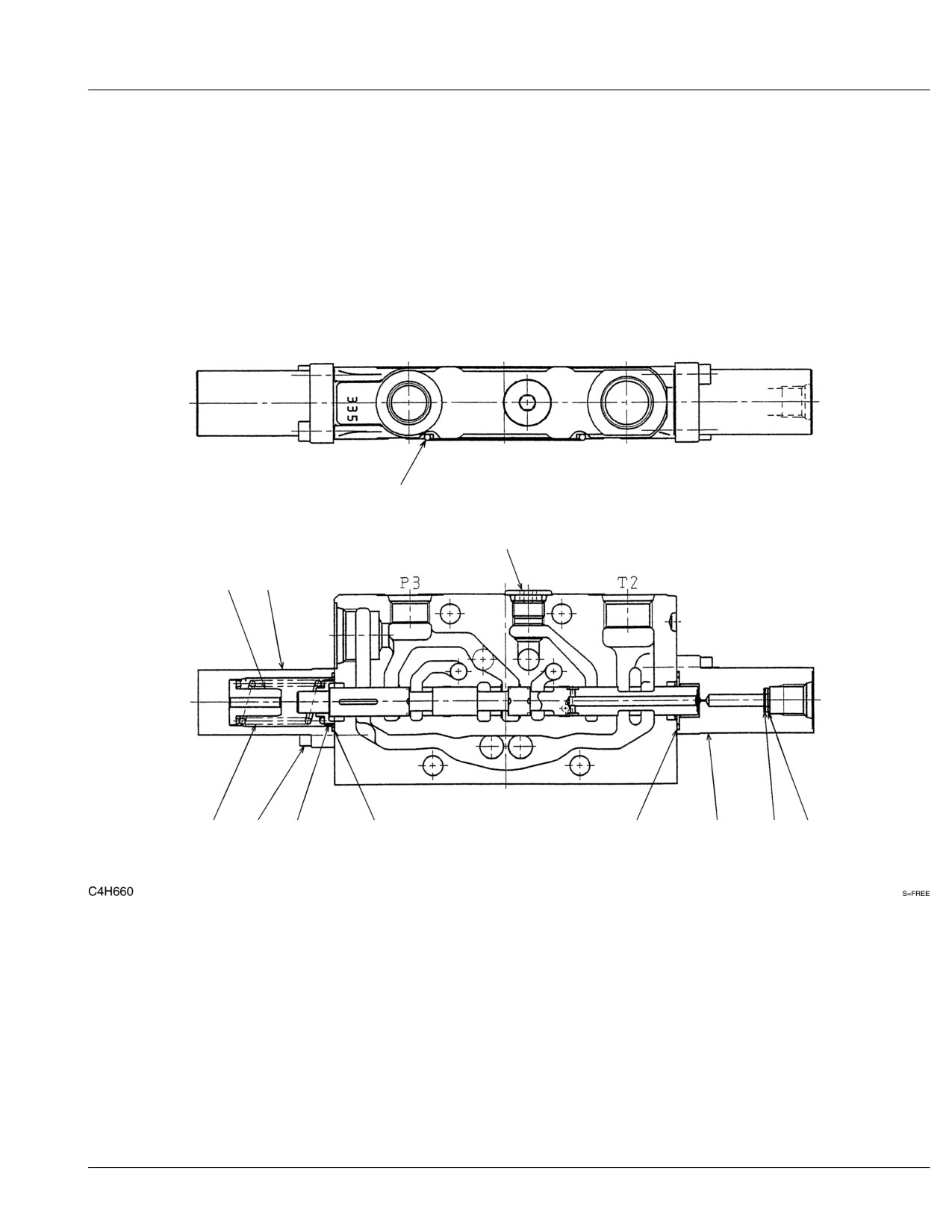

Ref C4H660
Page
8-11
BLOCK ASSY; No. 8
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
1901042718
BLOCK ASSY, No. 8
1
P3, T2
1
1901031752
HOLDER, spring
1
2
1901038859
SPRING
1
3
1901038851
SEAT, spring
1
4
1901038868
CAP
1
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038869
CAP
1
8
1901042672
FILTER
1
9
1901042673
WASHER
1
10
1901038893
PLUG ASSY
1
11
1901038881
O-RING
1
C4h660
Reference:C4H660
Page:8-11
TB016 Book No. BD4Z105 S/N 11610001-

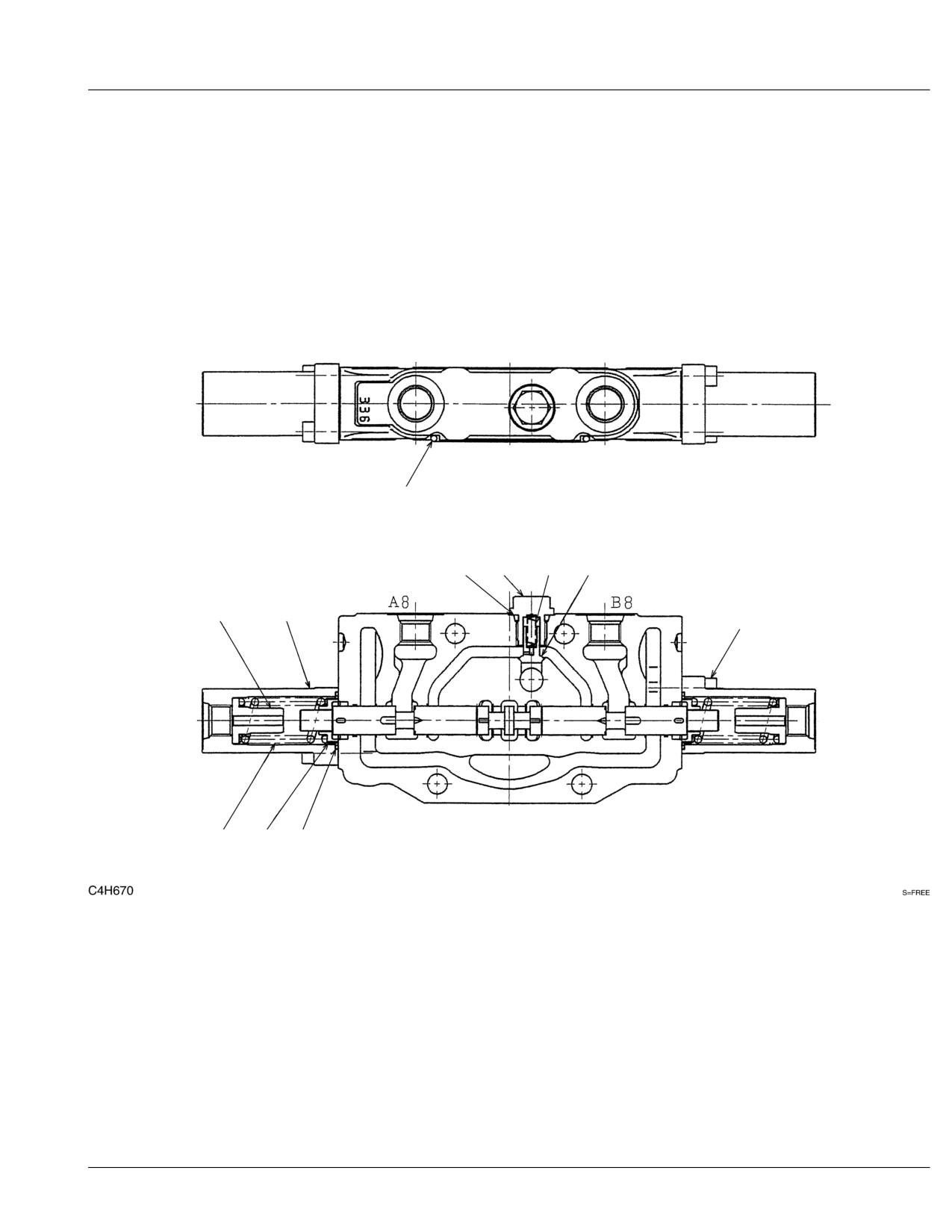

BLOCK ASSY; No. 9
11
10
9
8
7
3
4
6
2
1
5
Ref C4H670
Page
8-12
BLOCK ASSY; No. 9
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901042714
BLOCK ASSY, No. 9
1
slew
1
1901031752
HOLDER, spring
2
2
1901038856
SPRING
2
3
1901038851
SEAT, spring
2
4
1901038866
CAP
2
5
1420500220
O-RING
2
6
1110020518
SCREW, cap
4
7
1901038826
PLUNGER
1
8
1901038857
SPRING
1
9
1901038890
PLUG
1
10
1420010110
O-RING
1
11
1901038881
O-RING
1
C4h670
Reference:C4H670
Page:8-12
TB016 Book No. BD4Z105 S/N 11610001-

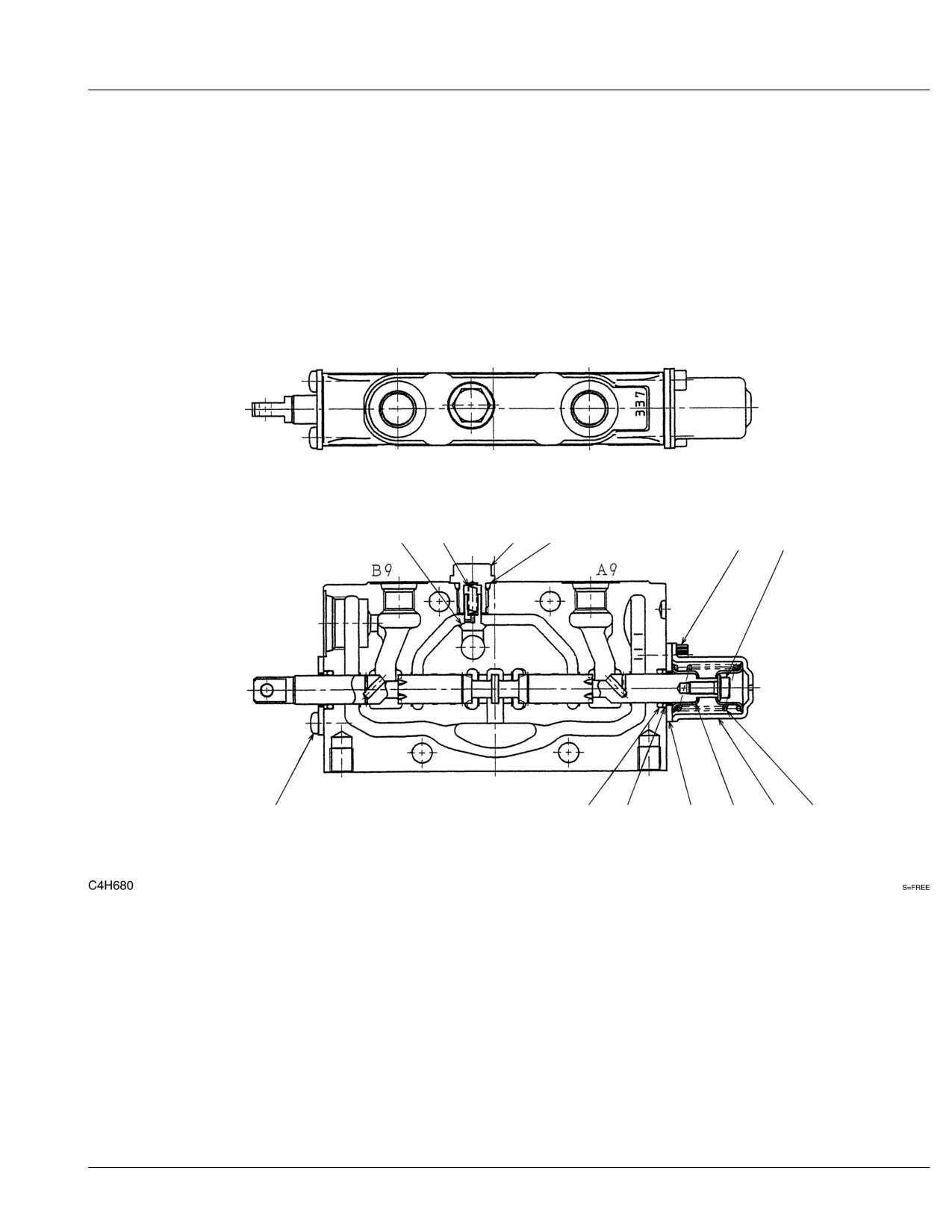

BLOCK ASSY; No. 10
10
11
12
13
8
6
9
1
2
3
4
7
5
Ref C4H680
Page
8-13
BLOCK ASSY; No. 10
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901042717
BLOCK ASSY, No. 10
1
blade
1
1420000120
O-RING
2
2
1901027771
SEAL
2
3
1901027772
PLATE
2
4
1901027792
HOLDER, spring
2
5
1901027857
SPRING
1
6
1901038831
SCREW, cap
1
7
1901038870
CAP
1
8
1110020512
SCREW, cap
2
9
1120540510
SCREW
2
10
1901038826
PLUNGER
1
11
1901038857
SPRING
1
12
1901038890
PLUG
1
13
1420010110
O-RING
1
C4h680
Reference:C4H680
Page:8-13
TB016 Book No. BD4Z105 S/N 11610001-

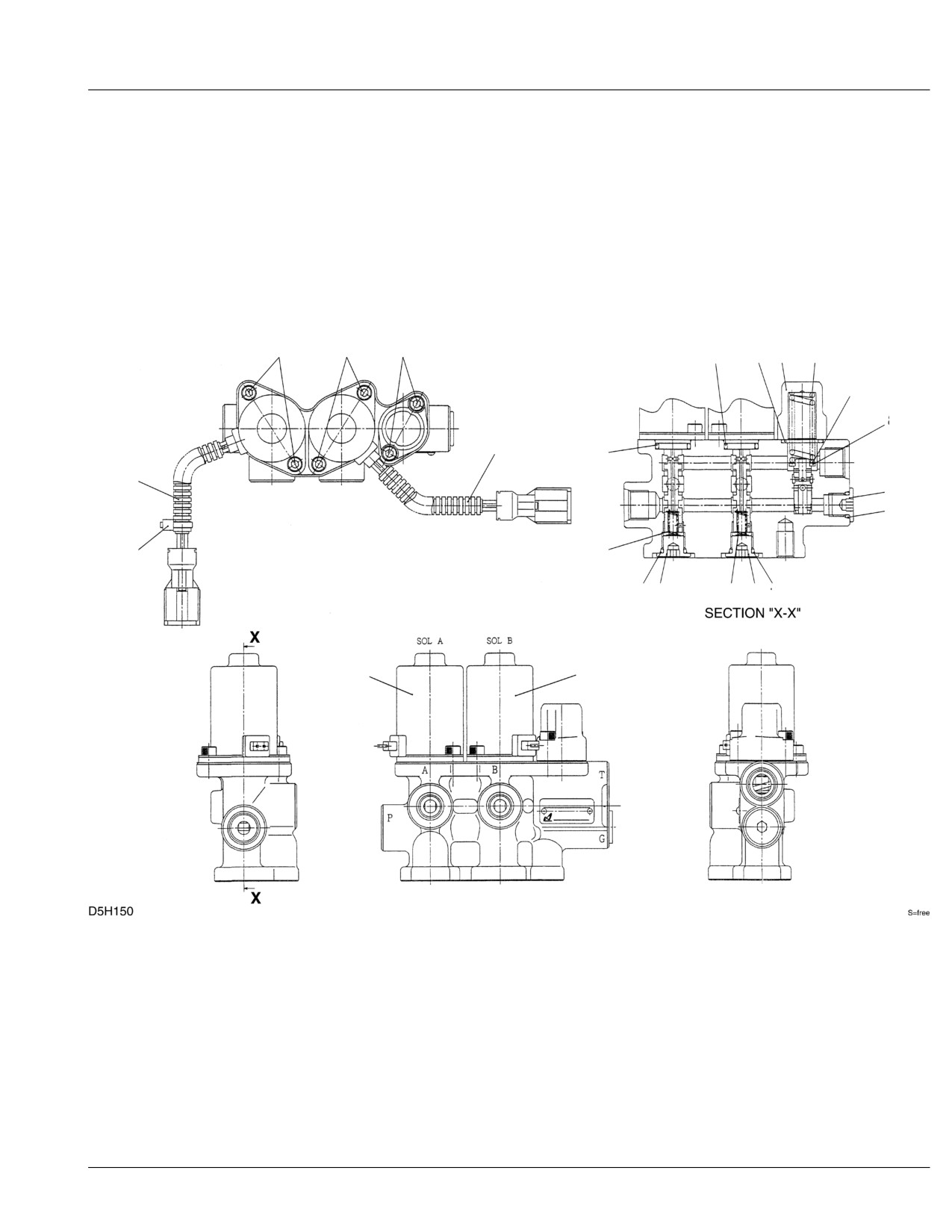

SOLENOID VALVE (2 blocks)
6
6
7
9
11
4
3
1
8
13
9
13
5
10
2
12
10
5
2
5
10
14
14
Ref D5H150
Page
8-14
SOLENOID VALVE (2 blocks)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901742400
VALVE ASSY, solenoid (2-blocks)
1
1
1901728701
SHIM
1
t=0.2mm
2
1901735511
SPRING
2
3
1901742408
SPRING
1
4
1901742409
COVER
1
5
1901738312
PLUG
3
6
1110040512
SCREW, cap
4
7
1110040520
SCREW, cap
2
8
1141110008
WASHER
1
9
1420000160
O-RING
2
10
1420010110
O-RING
3
11
1420010200
O-RING
1
12
1901738918
BAND
1
13
1901044619
TUBE
2
14
1901746604
SOLENOID
2
D5h151
Reference:D5H150
Page:8-14
TB016 Book No. BD4Z105 S/N 11610001-

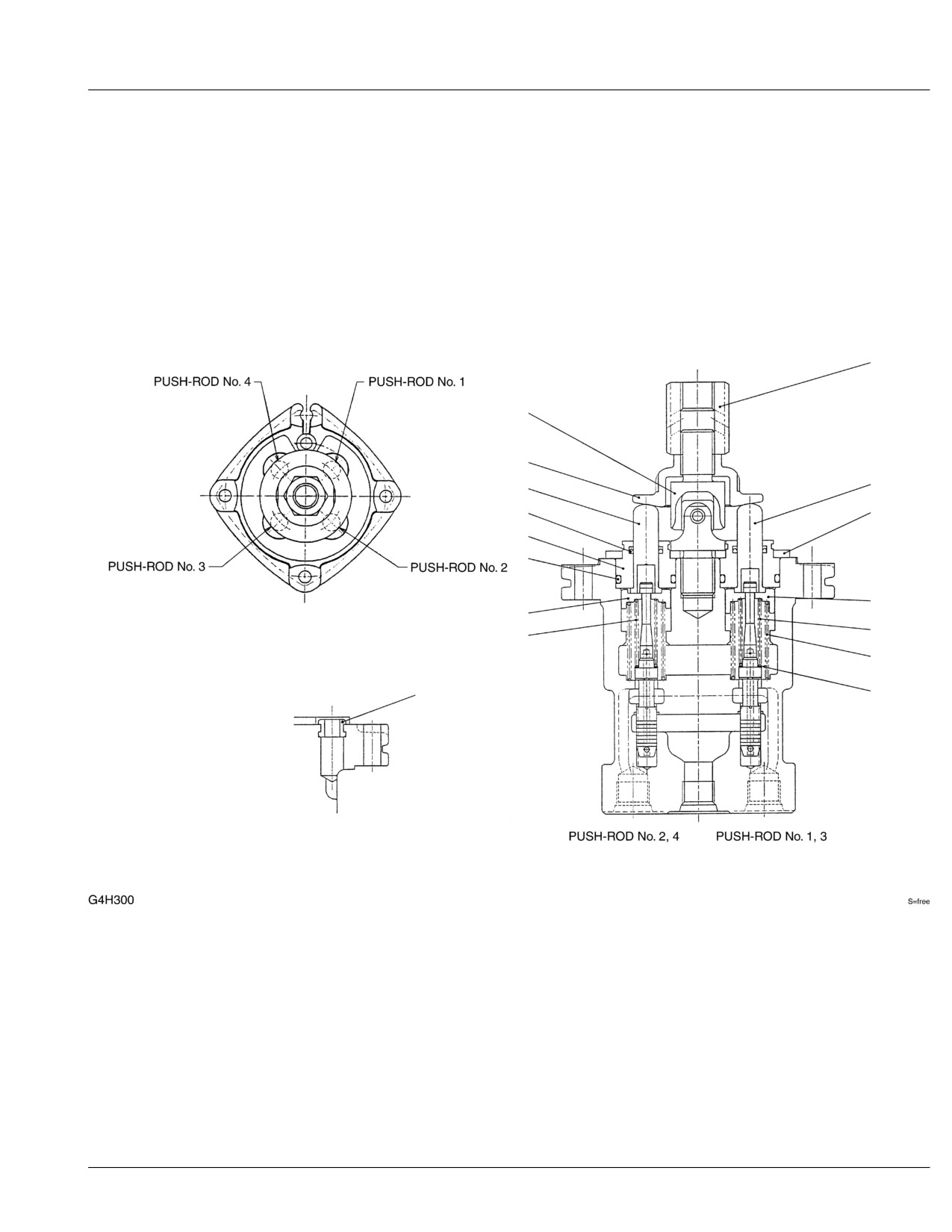

PILOT VALVE
15
13
14
3
4
5
1
2
6
7
8
11
12
10
16
9
Ref G4H300
Page
8-15
PILOT VALVE
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901745600
VALVE ASSY, pilot
1
1
1901745702
PLATE
1
2
1901710912
PLUG
4
3
1901710911
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
ROD
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901703222
NUT
1
16
1901735630
BUSHING
1
G4h300
Reference:G4H300
Page:8-15
TB016 Book No. BD4Z105 S/N 11610001-

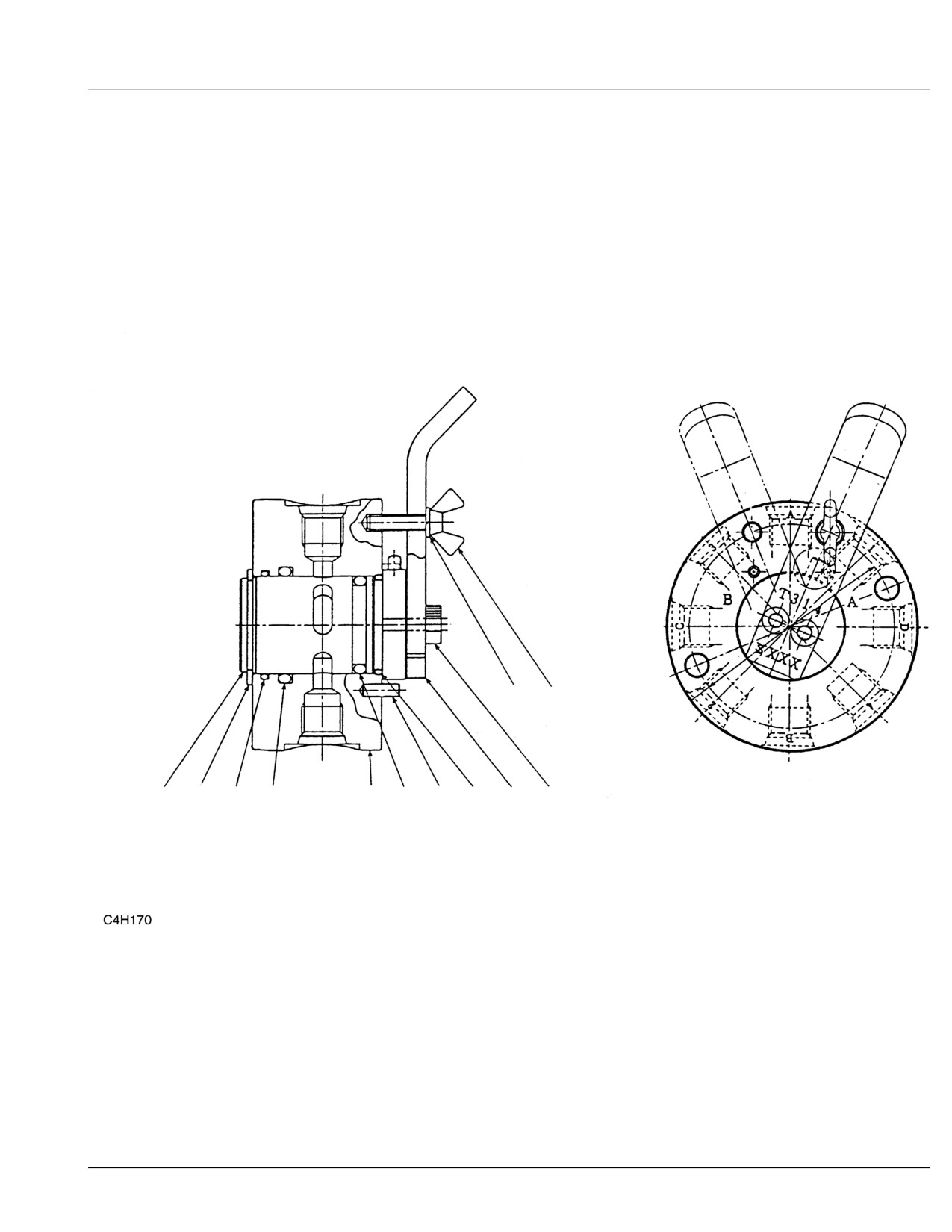

SELECTOR VALVE (A-B pattern)
12
4
2
10
5
6
1
7
9
8
3
11
Ref C4H170
Page
8-16
SELECTOR VALVE (A-B pattern)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901731400
VALVE ASSY, selector
1
1
1901731401
BODY
1
2
1901731402
ROTOR
1
3
1901730503
LEVER
1
4
1901730504
BOLT
1
5
1901730505
O-RING
1
6
1901730506
O-RING
1
7
1901730507
O-RING
1
8
1901730508
O-RING
1
9
1213000412
PIN, spring
3
10
1220000030
RING, snap
1
11
1110050514
SCREW, cap
2
12
1140010005
WASHER, spring
1
C4h170
Reference:C4H170
Page:8-16
TB016 Book No. BD4Z105 S/N 11610001-

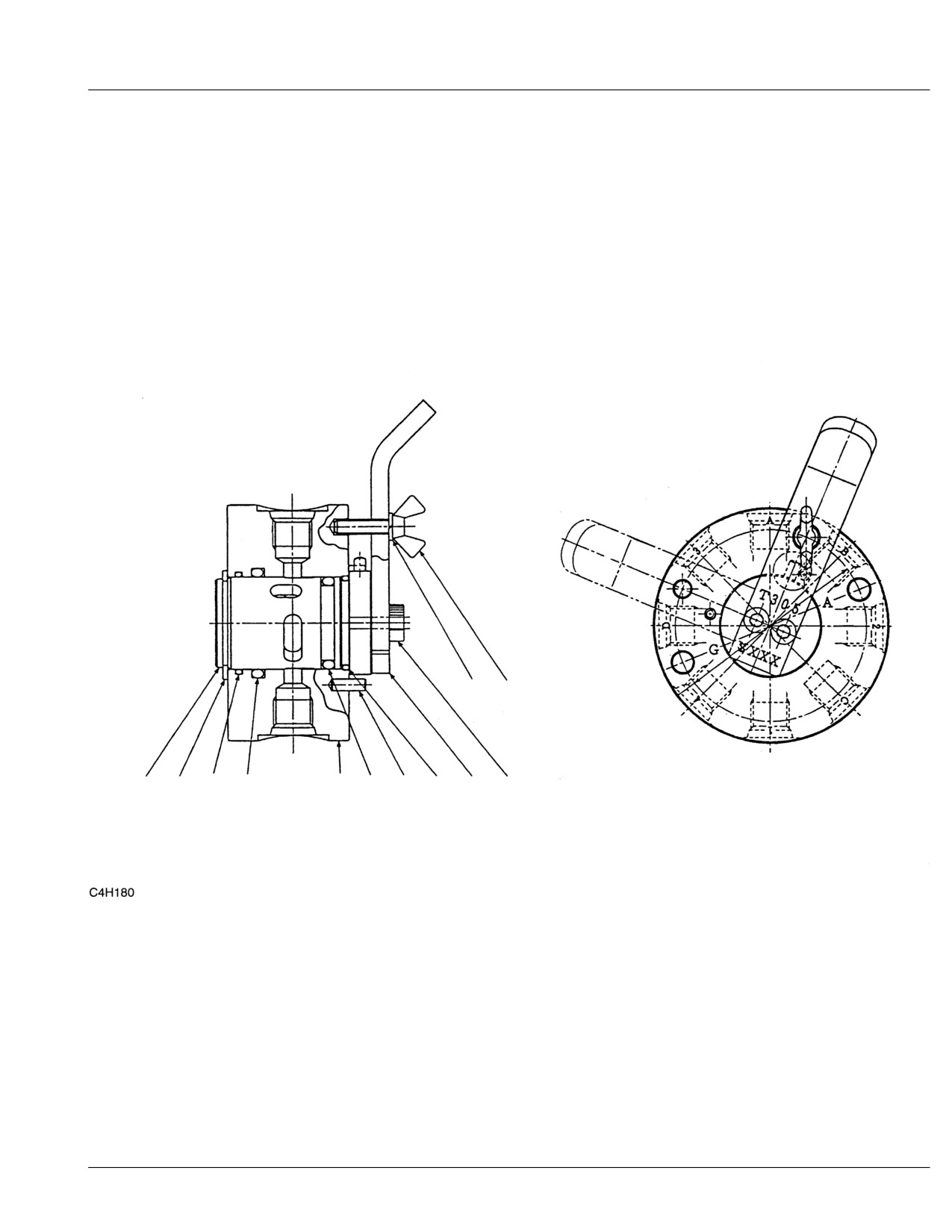

SELECTOR VALVE (A-G pattern)
12
4
2
10
5
6
1
7
9
8
3
11
Ref C4H180
Page
8-17
SELECTOR VALVE (A-G pattern)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901730500
VALVE ASSY, selector
1
1
1901730501
BODY
1
2
1901730502
ROTOR
1
3
1901730503
LEVER
1
4
1901730504
BOLT
1
5
1901730505
O-RING
1
6
1901730506
O-RING
1
7
1901730507
O-RING
1
8
1901730508
O-RING
1
9
1213000412
PIN, spring
3
10
1220000030
RING, snap
1
11
1110050514
SCREW, cap
2
12
1140010005
WASHER, spring
1
C4h180
Reference:C4H180
Page:8-17
TB016 Book No. BD4Z105 S/N 11610001-

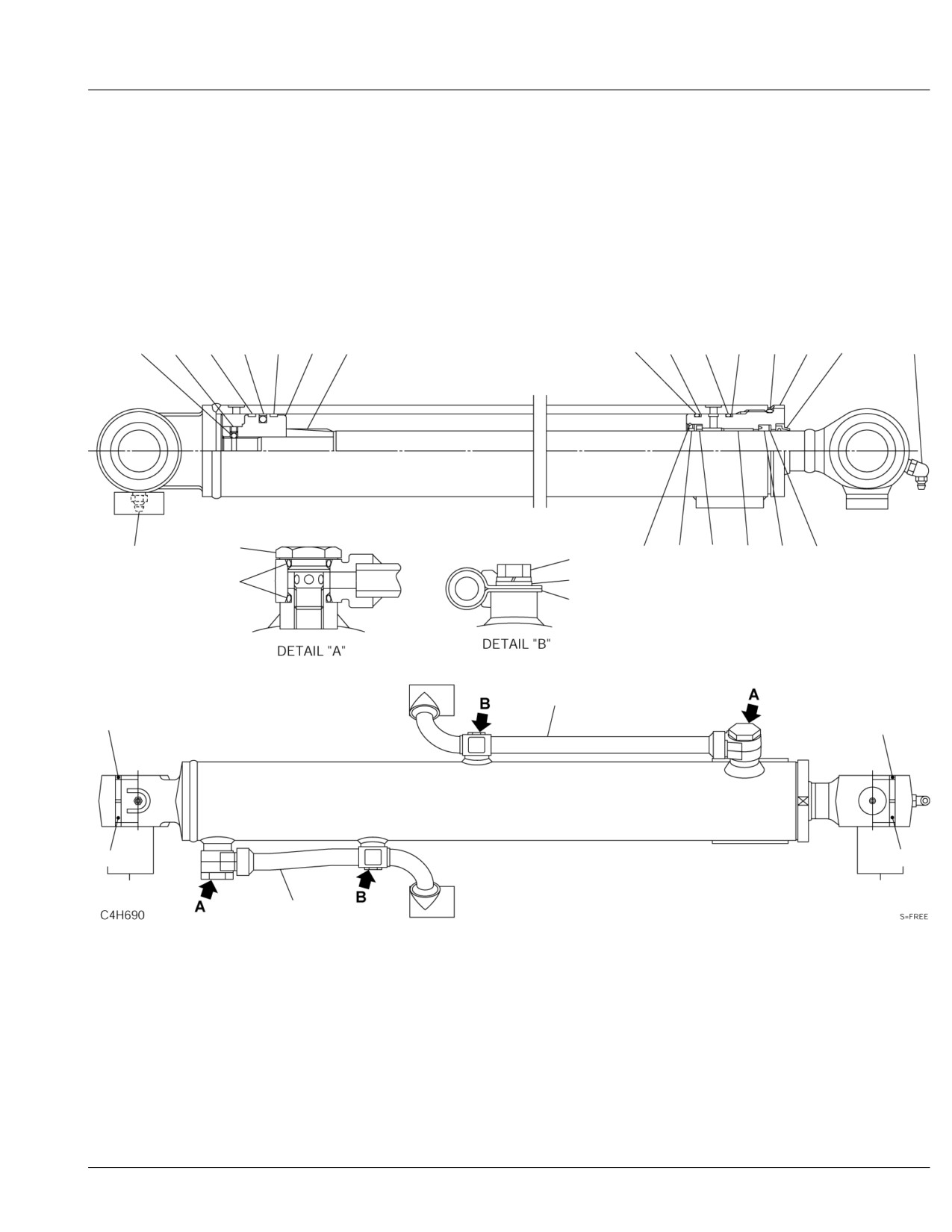

BOOM CYLINDER
21
22
20
1
20
13
12
7
5
6
5
8
11
3
25
28
24
30
17
18
19
16
2
4
29
31
32
27
23
23
15
10
14
9
26
Ref C4H690
Page
8-18
BOOM CYLINDER
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900095500
CYLINDER ASSY (canopy)
1
boom
1900095600
CYLINDER ASSY (cab)
1
0-1
1900070499
KIT, seal
1
1
X
1900051932
PACKING, piston
1
2
X
1410530408
PACKING, rod
1
3
X
1900073733
SEAL, dust
1
4
X
1411240302
RING, back-up
1
5
X
1421130500
RING, back-up
2
6
X
1420110500
O-RING
1
7
X
1420110450
O-RING
1
8
X
1420500550
O-RING
1
9
1900095597
ROD ASSY, piston
1
10
1900024720
BUSHING
1
11
1900058803
COVER, rod
1
12
1900058816
CUSHON, rod
1
13
1900095506
PISTON
1
14
1900095598
TUBE ASSY
1
canopy
1900095698
TUBE ASSY
1
cab
15
1900024720
BUSHING
1
16
1333003025
BUSHING
1
17
1900058626
STOPPER
1
18
1900058615
SPACER
1
19
1900058616
RING, cushion
1
20
1900066726
RING, wear
2
21
1390010250
BALL, steel
1
22
1121040606
SET-SCREW
1
23
1432200030
SEAL, dust
4
24
1560001000
FITTING, grease
1
25
1560001675
FITTING, grease
1
26
1900095510
PIPE ASSY
1
27
1900095519
PIPE ASSY
1
canopy
1900097419
PIPE ASSY
1
cab
28
1900095328
PLUG
2
29
1420010150
O-RING
4
30
1100040816
BOLT
2
31
1141110008
WASHER
2
32
1900095317
HOLDER
2
C4h691
Reference:C4H690
Page:8-18
TB016 Book No. BD4Z105 S/N 11610001-

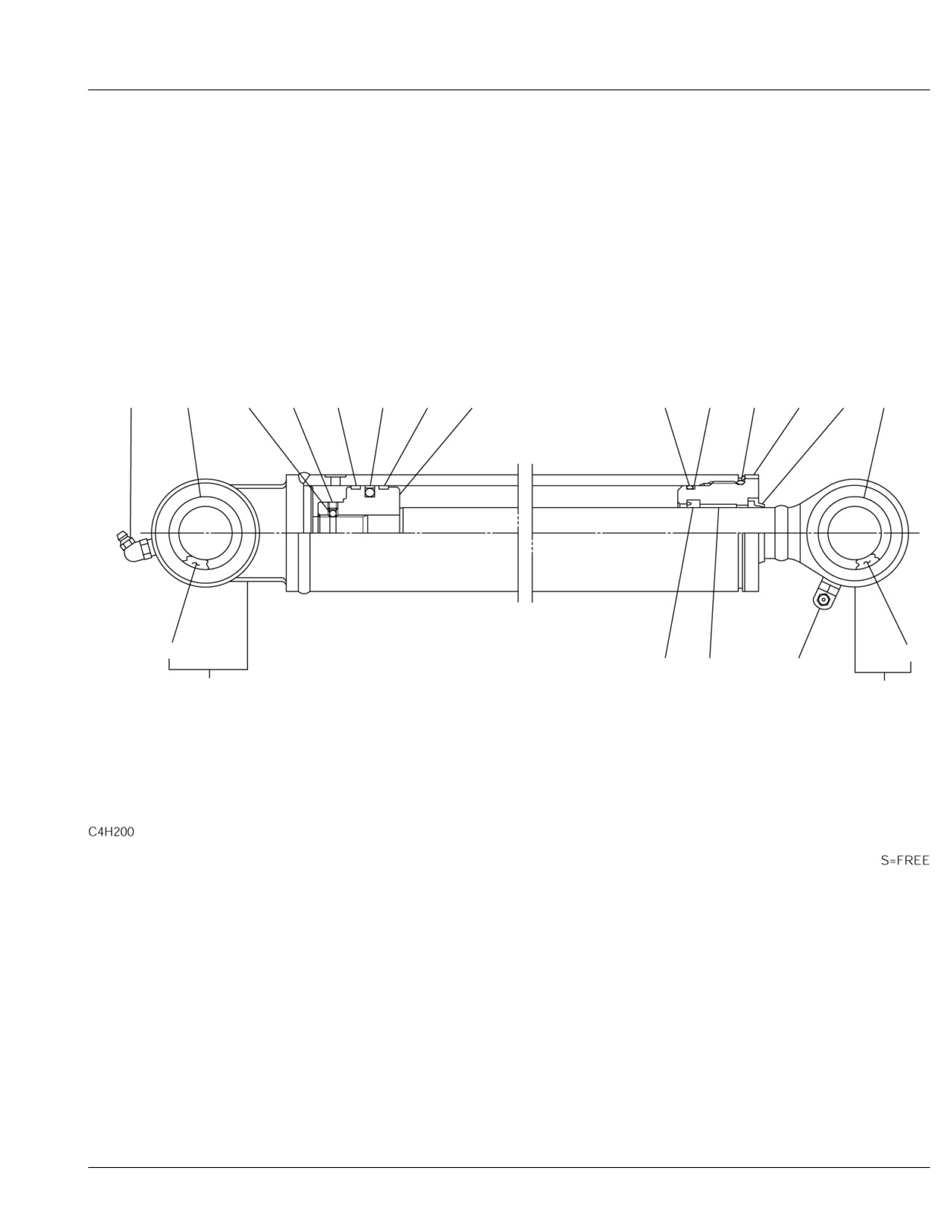

ARM CYLINDER
18
17
15
16
13
1
13
12
5
4
6
11
3
17
8
10
2
14
19
7
9
Ref C4H200
Page
8-19
ARM CYLINDER
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900095700
CYLINDER ASSY
1
arm
0-1
1900051999
KIT, seal
1
1
X
1900051932
PACKING, piston
1
2
X
1410530408
PACKING, rod
1
3
X
1900051931
SEAL, dust
1
4
X
1421130500
RING, back-up
1
5
X
1420110500
O-RING
1
6
X
1420500550
O-RING
1
7
1900095798
TUBE ASSY
1
8
1900024720
BUSHING
1
9
1900078397
ROD ASSY, piston
1
10
1900024720
BUSHING
1
11
1900053503
COVER, rod
1
12
1900078306
PISTON
1
13
1900066726
RING, wear
2
14
1333003025
BUSHING
1
15
1390020250
BALL, steel
1
16
1121050608
SET-SCREW
1
17
1432200030
SEAL, dust
4
18
1560001675
FITTING, grease
1
19
1560001900
FITTING, grease
1
C4h710
Reference:C4H200
Page:8-19
TB016 Book No. BD4Z105 S/N 11610001-

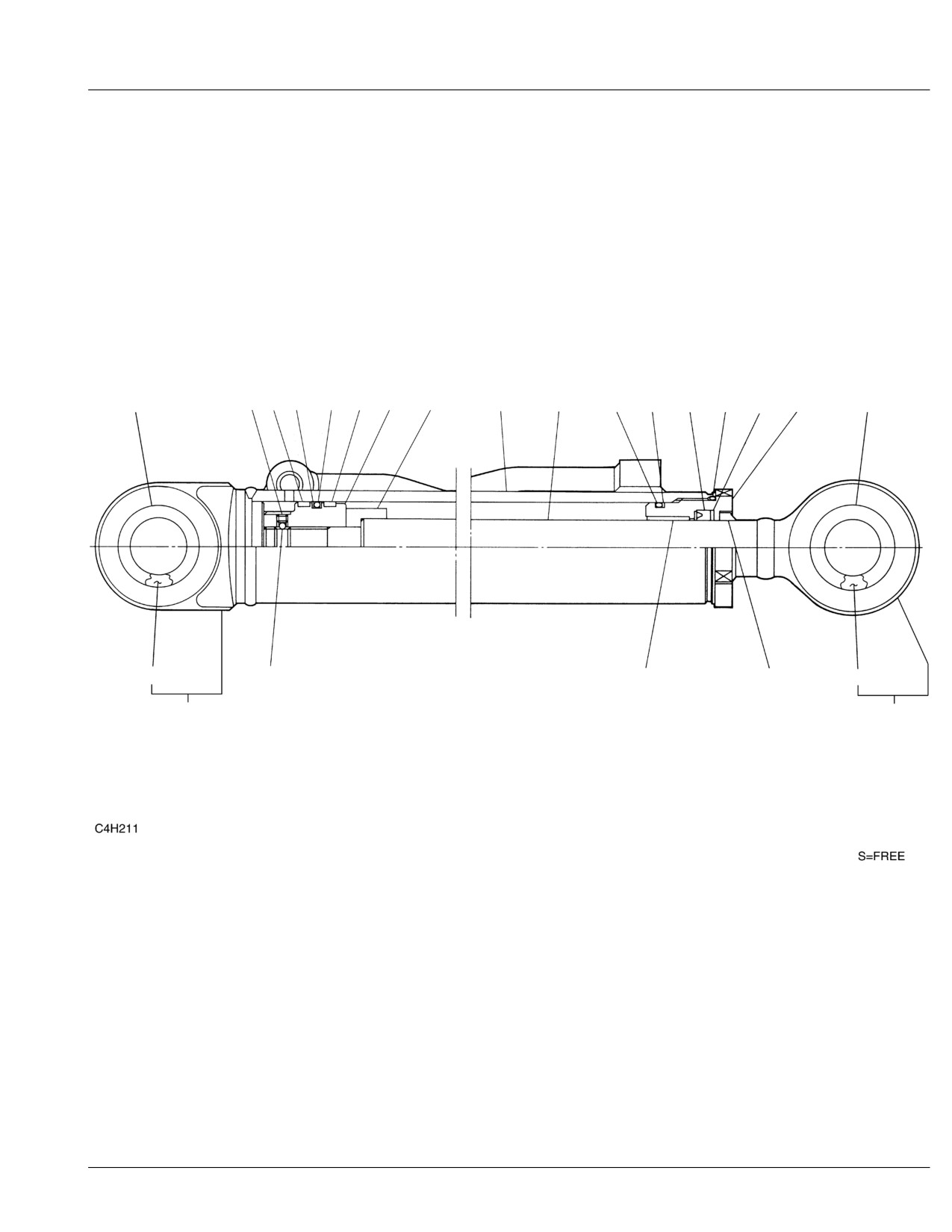

TELESCOPIC CYLINDER
20
19 17
8
7
17
12
16
13
9
4
5
1
6
2
11
20
14
18
15
3
10
13
9
Ref C4H211
Page
8-20
TELESCOPIC CYLINDER
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900077500
CYLINDER ASSY
1
telescopic
0-1
1900062699
KIT, seal
1
1
X
1900056932
PACKING, rod
1
2
X
1900062132
RING, back-up
1
3
X
1900056933
SEAL, dust
1
4
X
1420110350
O-RING
1
5
X
1421130350
RING, back-up
1
6
X
1420500400
O-RING
1
7
X
1900062133
PACKING, piston
1
8
X
1900062134
RING, back-up
2
9
1900062901
ROD, piston
1
10
1900062102
BUSHING
1
11
1900062103
COVER, rod
1
12
1900062106
PISTON
1
13
1900077507
BUSHING
1
14
1900062102
TUBE
1
15
1900062113
BUSHING
1
16
1900077515
SPACER
1
17
1900077526
RING, wear
2
18
1390010250
BALL, steel
1
19
1121040505
SET-SCREW
1
20
1432200025
SEAL, dust
4
C4h211
Reference:C4H211
Page:8-20
TB016 Book No. BD4Z105 S/N 11610001-

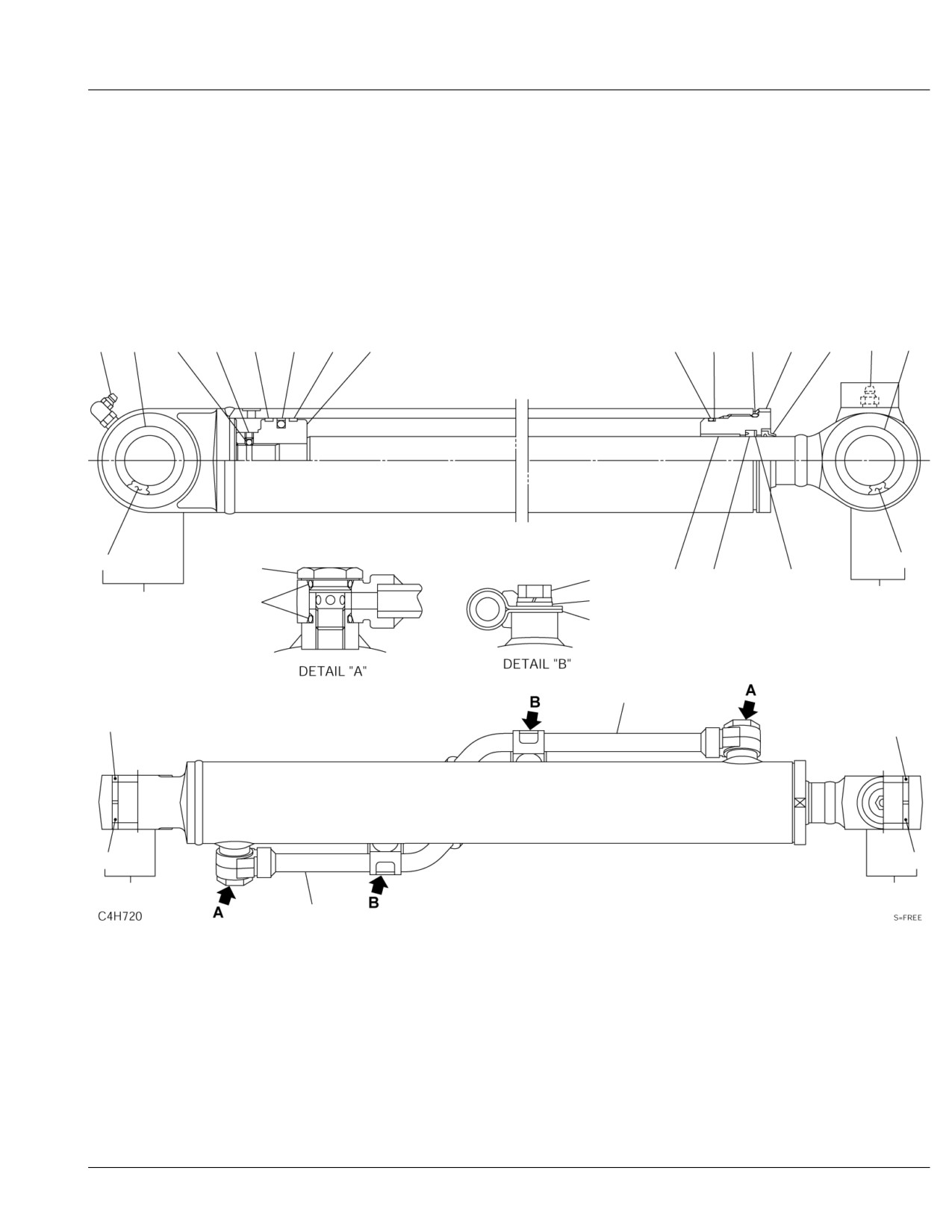

BUCKET CYLINDER
19
18
16
17
14
1
14
11
6
5
7
10
3
20
18
13
9
23
25
15
2
4
8
12
24
26
27
22
18
18
13
9
12
8
21
Ref C4H720
Page
8-21















Content      ..     4      5      6      7     ..
