Takeuchi Mini Excavator TB016 (Serial No.11610001~). Parts Manual - page 4
TB016 Book No. BD4Z105 S/N 11610001-

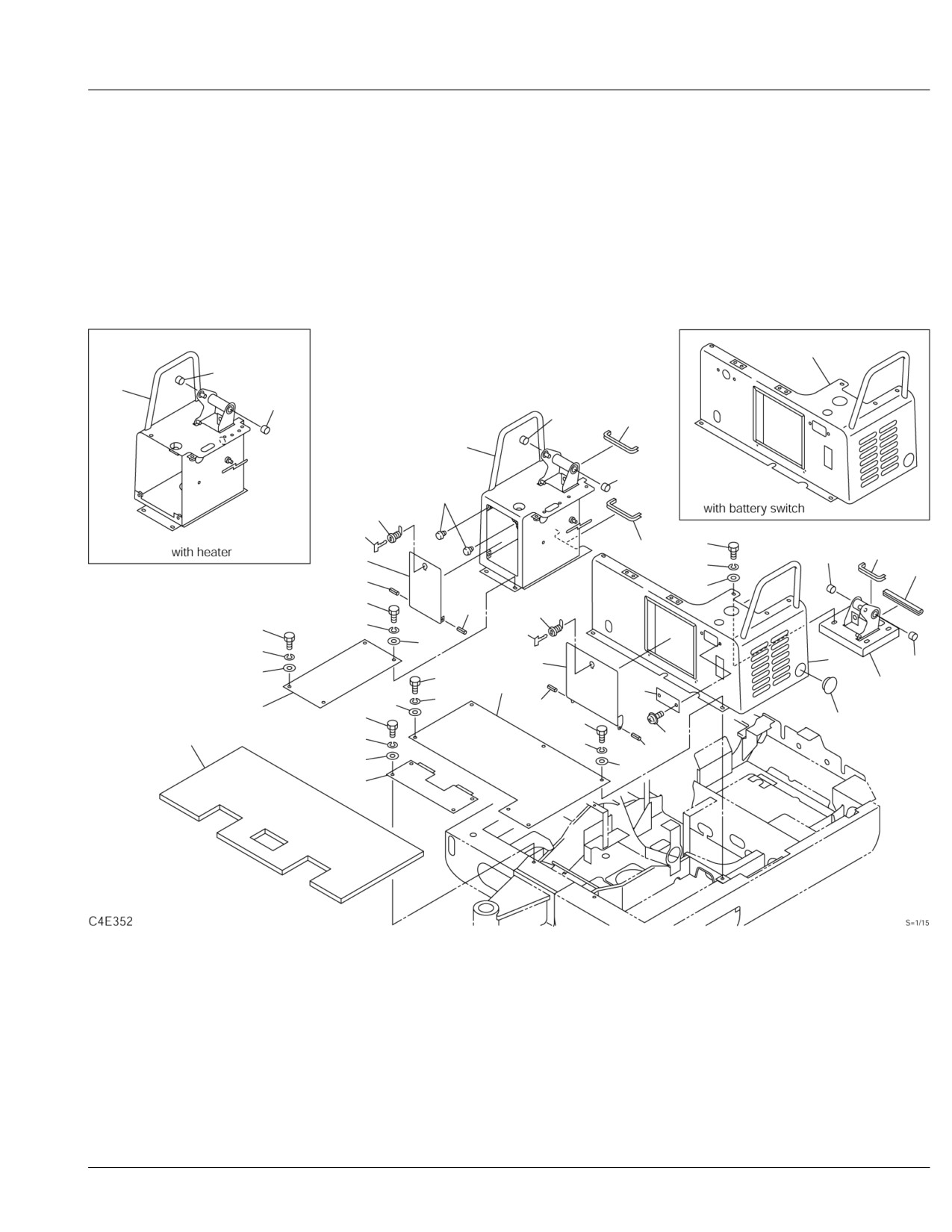

COVER (2/4) (canopy)
62
4-20
4
4-20
4-20
51
4
4-20
20
19
19-1
33
52
50
5-4
26
38
22
21
54
31
21
19
37
19-1
31
39
37
55
3
5-4
39
31
14
5
28
60
37
12
21
31
31
48
15
37
29
37
21
60
60
13
Ref C4E352
Page
5-2
COVER (2/4) (canopy)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
COVER ASSY
X03382-45600-1
COVER ASSY (with battery switch)
X03382-45800-1
COVER ASSY (with heater)
X03382-46000-1
COVER ASSY (with heater & battery
X03382-46100-1
switch)
3
0338243200
COVER
1
4
0338239400
COVER (R.H.)
1
0334521100
COVER (R.H.)
1
with heater
4-20
1333002015
BUSHING
2
5
0338239500
COVER (L.H.)
1
5-4
1333002015
BUSHING
2
12
0338235760
PLATE
1
13
0338235770
PLATE
1
14
0338235830
PLATE
1
15
0338239350
MAT, floor
1
19
1653601395
LOCK
3
19-1
1700100019
KEY
3
20
1652515000
RUBBER, cushion
4
21
1213000420
PIN, spring
8
22
1654606017
SEAL
1
sold by the meter
26
0338230820
COVER
1
28
0338230850
COVER
1
29
1150110612
SCREW
2
31
1100040820
BOLT
17
33
1100041020
BOLT
4
37
1140020008
WASHER, spring
16
38
1140020010
WASHER, spring
4
39
1141110008
WASHER
6
48
1652060051
BUSHING
1
50
1653917010
TRIM
1
sold by the meter
51
1653917015
TRIM
1
sold by the meter
52
1653917017
TRIM
1
sold by the meter
54
0003600025
WASHER
4
55
0338235950
COVER
1
60
0003608252
WASHER
10
62
0338245200
COVER
1
with battery switch
C4e352
Reference:C4E352
Page:5-2
TB016 Book No. BD4Z105 S/N 11610001-

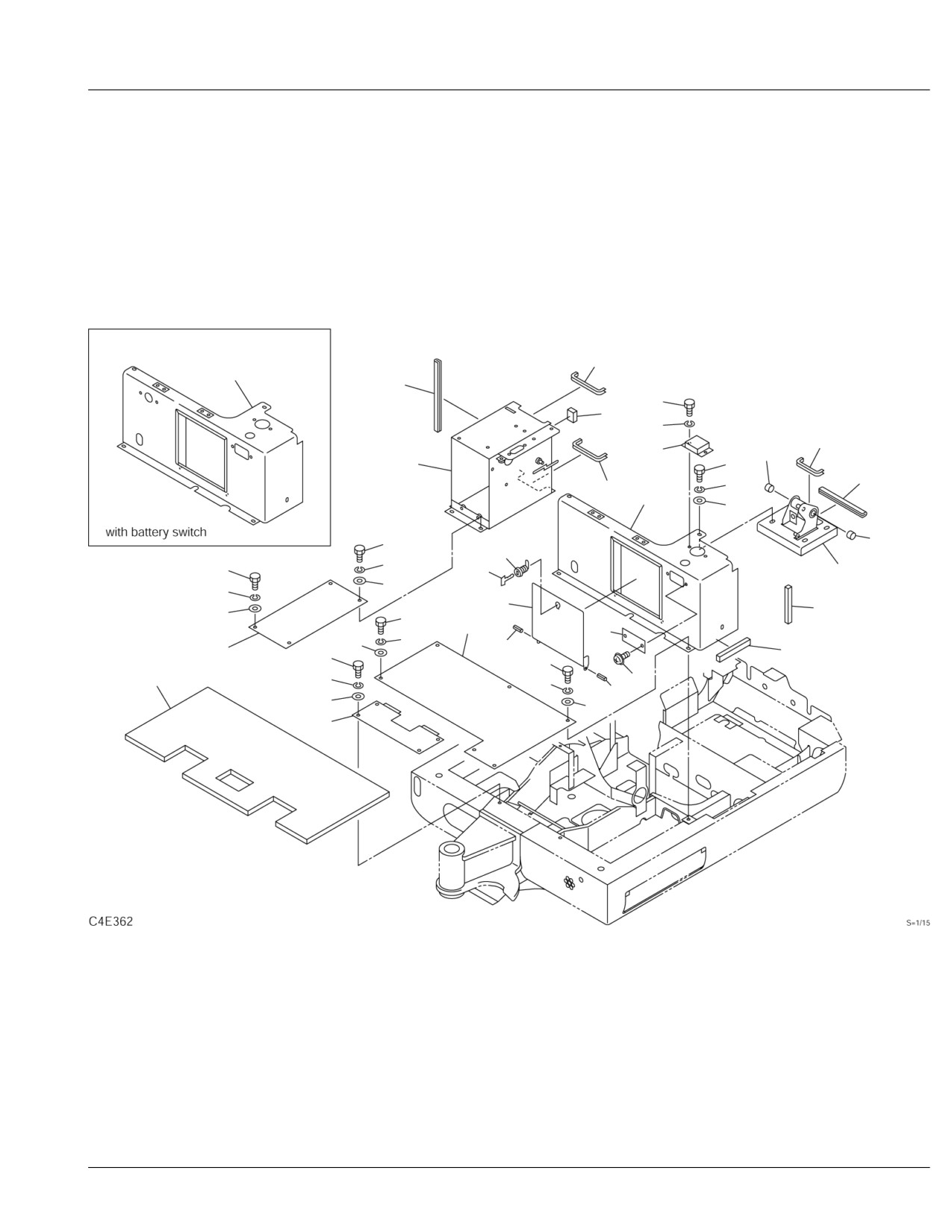

COVER (2/4) (cab)
51
62
47
56
24
58
50
45
5-4
4
33
22
38
52
3
54
31
5-4
19
37
19-1
31
5
39
37
55
42
39
31
14
28
60
37
12
21
42
31
31
15
37
29
37
21
60
60
13
Ref C4E362
Page
5-3
COVER (2/4) (cab)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
COVER ASSY
X03382-45700-1
COVER ASSY (with battery switch)
X03382-45900-1
3
0338244100
COVER
1
4
0338238100
COVER (R.H.)
1
5
0338239500
COVER (L.H.)
1
5-4
1333002015
BUSHING
2
12
0338235760
PLATE
1
13
0338235770
PLATE
1
14
0338235830
PLATE
1
15
0338239350
MAT, floor
1
19
1653601395
LOCK
2
19-1
1700100019
KEY
2
21
1213000420
PIN, spring
6
22
1654606021
SEAL
1
sold by the meter
24
1654308004
SPONGE
1
sold by the meter
28
0338230850
COVER
1
29
1150110612
SCREW
2
31
1100040820
BOLT
17
33
1100041020
BOLT
4
37
1140020008
WASHER, spring
16
38
1140020010
WASHER, spring
4
39
1141110008
WASHER
6
42
1654304015
SPONGE
2
sold by the meter
45
0338236900
COVER
1
47
1654606030
SEAL
1
sold by the meter
50
1653917010
TRIM
1
sold by the meter
51
1653917015
TRIM
1
sold by the meter
52
1653917017
TRIM
1
sold by the meter
54
0003600025
WASHER
4
55
0338235950
COVER
1
56
1100040510
BOLT
2
58
1140020005
WASHER, spring
2
60
0003608252
WASHER
10
62
0338245300
COVER
1
with battery switch
C4e362
Reference:C4E362
Page:5-3
TB016 Book No. BD4Z105 S/N 11610001-

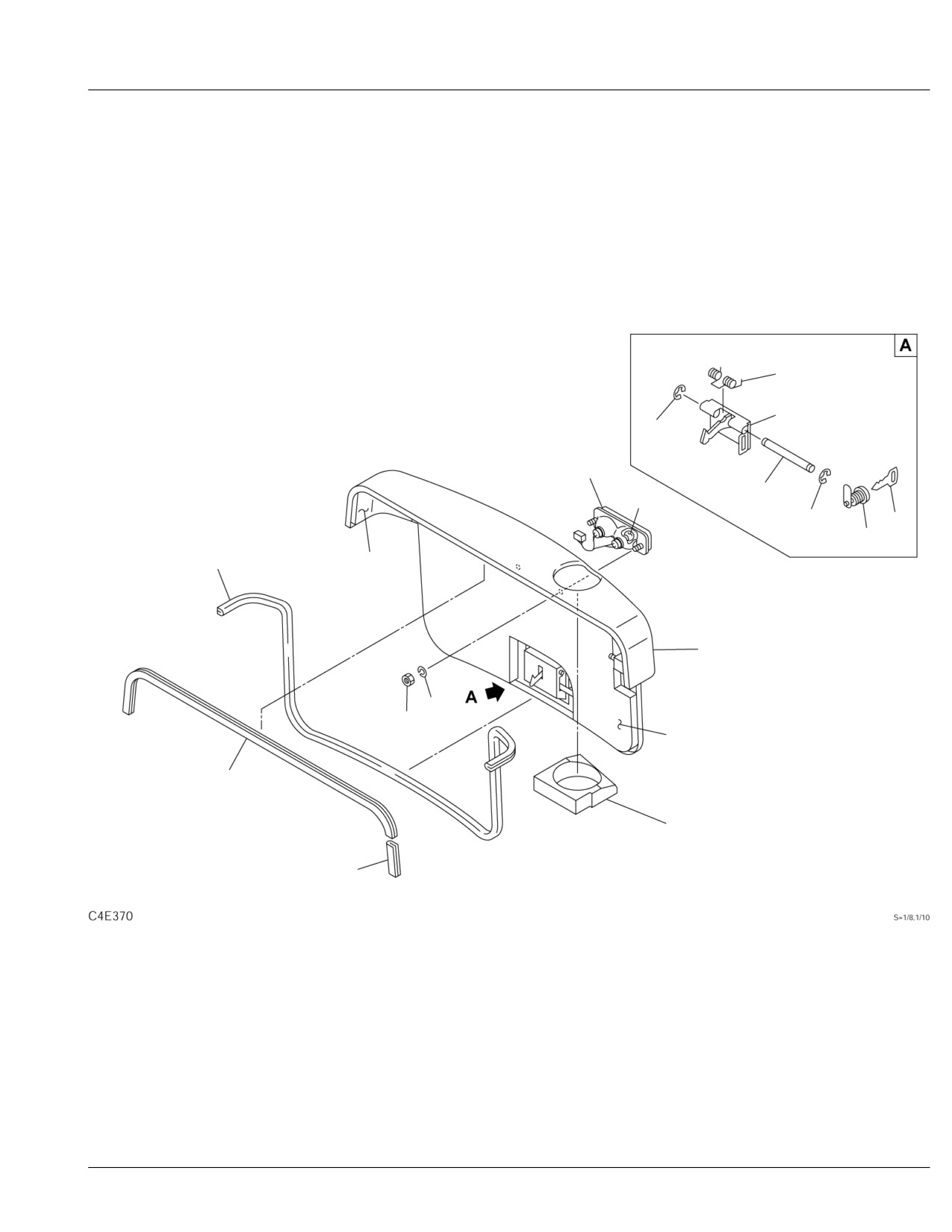

COVER (3/4) (engine hood)
8
3
10
11
9
11-3
10
2-1
2
4
14
1
13
12
6
5
7
15
Ref C4E370
Page
5-4
COVER (3/4) (engine hood)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0-1
0338243400
HOOD ASSY, engine
1
X03382-43400-4
1
0338235130
HOOD, engine
1
2
1653601395
LOCK
1
2-1
1700100019
KEY
1
3
0338235180
LOCK
1
4
1654606172
SEAL
1
sold by the meter
5
1654605096
SEAL
1
sold by the meter
6
0338233111
ABSORBENT, noise
1
7
0338233120
SPONGE
1
8
0007000095
SPRING
1
9
0004206111
SHAFT
1
10
1224010004
E-RING
2
11
1703002000
LAMP, tail
1
11-3
1703002003
BULB
2
12
1130030004
NUT
2
13
1140020004
WASHER, spring
2
14
0338233112
ABSORBENT, noise
1
15
1654319007
SPONGE
1
sold by the meter
C4e373
Reference:C4E370
Page:5-4
TB016 Book No. BD4Z105 S/N 11610001-

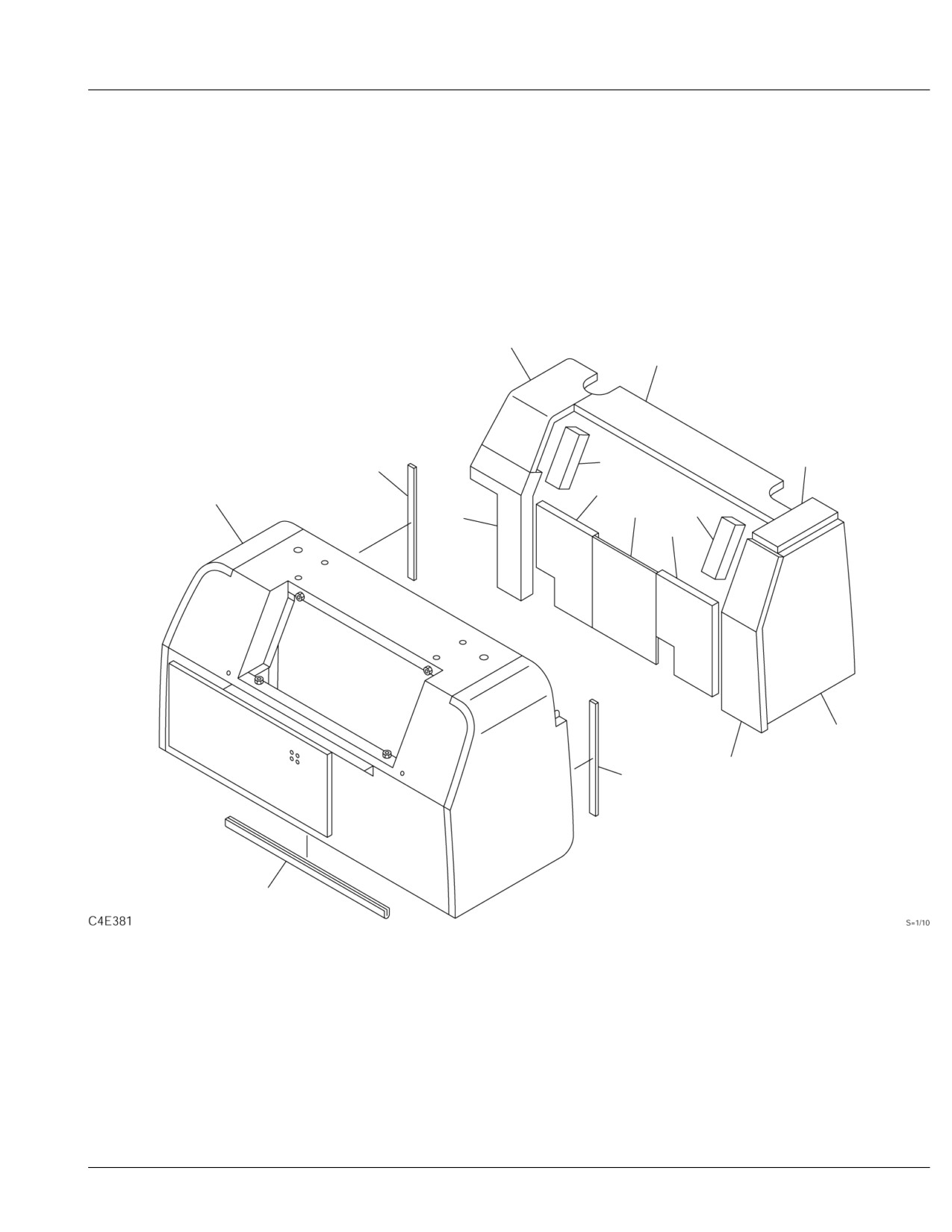

COVER (4/4) (engine cover)
2
10
11
12
6
4
1
5
12
3
4
8
7
11
9
Ref C4E381
Page
5-5
COVER (4/4) (engine cover)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0-2
0338243100
COVER ASSY, engine
1
X03382-43100-2
1
0338239200
COVER, engine
1
2
0338243102
ABSORBENT, noise
1
3
0338243140
SPONGE
1
4
0338243141
ABSORBENT, noise
2
5
0338243150
INSULATOR
1
6
0338235260
ABSORBENT, noise
1
7
0338230270
ABSORBENT, noise
1
8
0338230280
ABSORBENT, noise
1
9
1654606052
SEAL
1
sold by the meter
10
0338235222
ABSORBENT, noise
1
11
1654303032
SPONGE
2
sold by the meter
12
0338243142
ABSORBENT, noise
2
C4e381
Reference:C4E381
Page:5-5
TB016 Book No. BD4Z105 S/N 11610001-

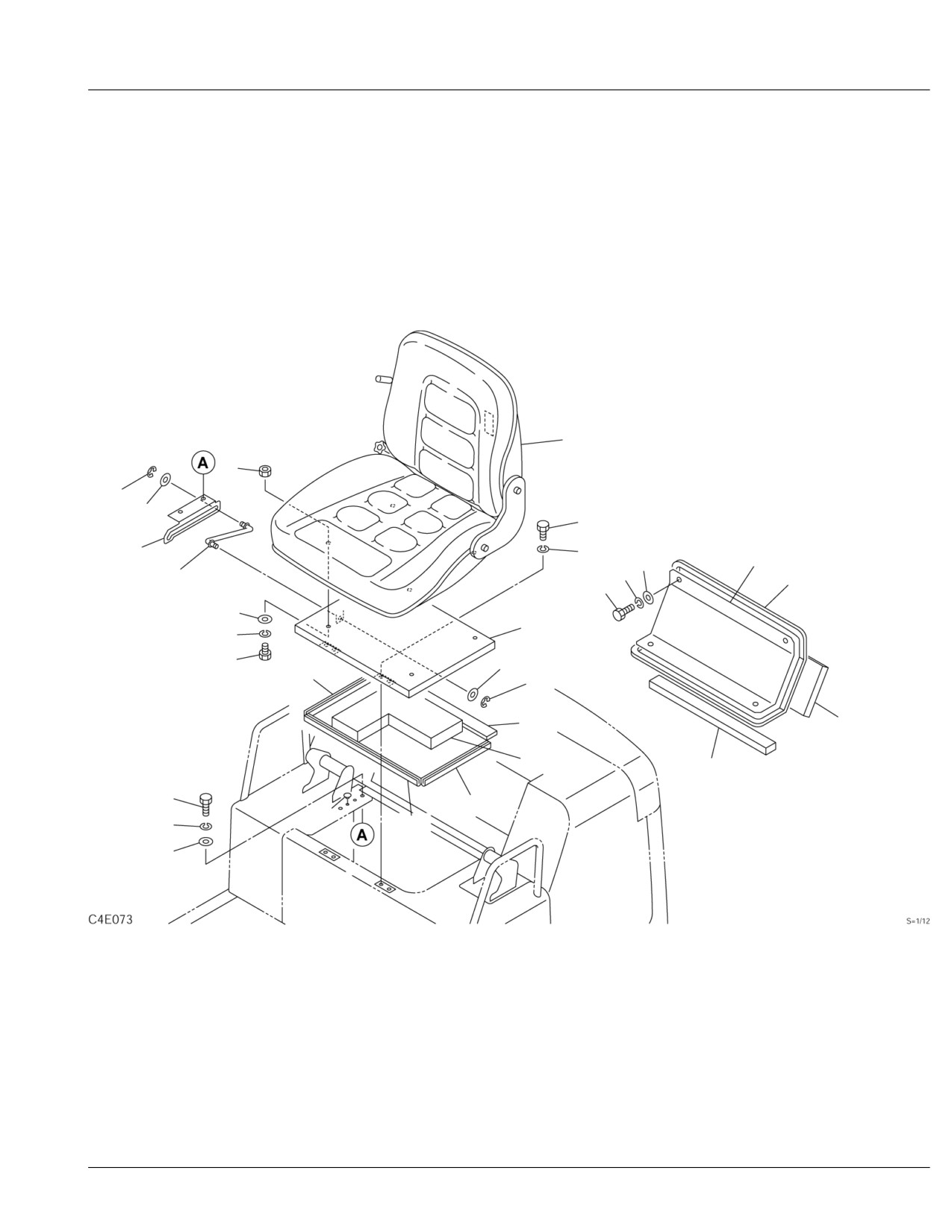

SEAT (1/2)
4
8
5
10
6
2
9
11-1
10
3
9
11-4
6
10
1-1
9
6
10
1-4
5
1-3
11-3
1-2
11-2
7
1-4
12
9
1-5
10
Ref C4E073
Page
5-8
SEAT (1/2)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
SEAT ASSY (P.V.C.)
X03334-31000-3
SEAT ASSY (fabric)
X03334-35000-3
1
0333427100
COVER ASSY
1
1-1
0333427110
COVER
1
1-2
0333425120
ABSORBENT, noise
1
1-3
0333427120
RUBBER
1
1-4
1654606025
SEAL
2
sold by the meter
1-5
1654606044
SEAL
1
sold by the meter
2
0333425200
BRACKET
1
3
0333420300
ROD
1
4
1914100063
SEAT ASSY (P.V.C.)
1
see page (2/2)
1914100059
SEAT ASSY (fabric)
1
see page (2/2)
5
1224010006
E-RING
2
6
1100040816
BOLT
12
7
1100040820
BOLT
2
8
1130040008
NUT
4
9
1140020008
WASHER, spring
14
10
1141110008
WASHER
12
11
0333431100
COVER ASSY
1
11-1
0333431110
COVER ASSY
1
11-2
0333431120
ABSORBENT, noise
1
11-3
0338230793
ABSORBENT, noise
1
11-4
1654605149
SEAL
1
sold by the meter
12
1652515000
CUSHING, rubber
2
C4e420
Reference:C4E073
Page:5-8
TB016 Book No. BD4Z105 S/N 11610001-
SEAT (2/2)
3
4
2
1

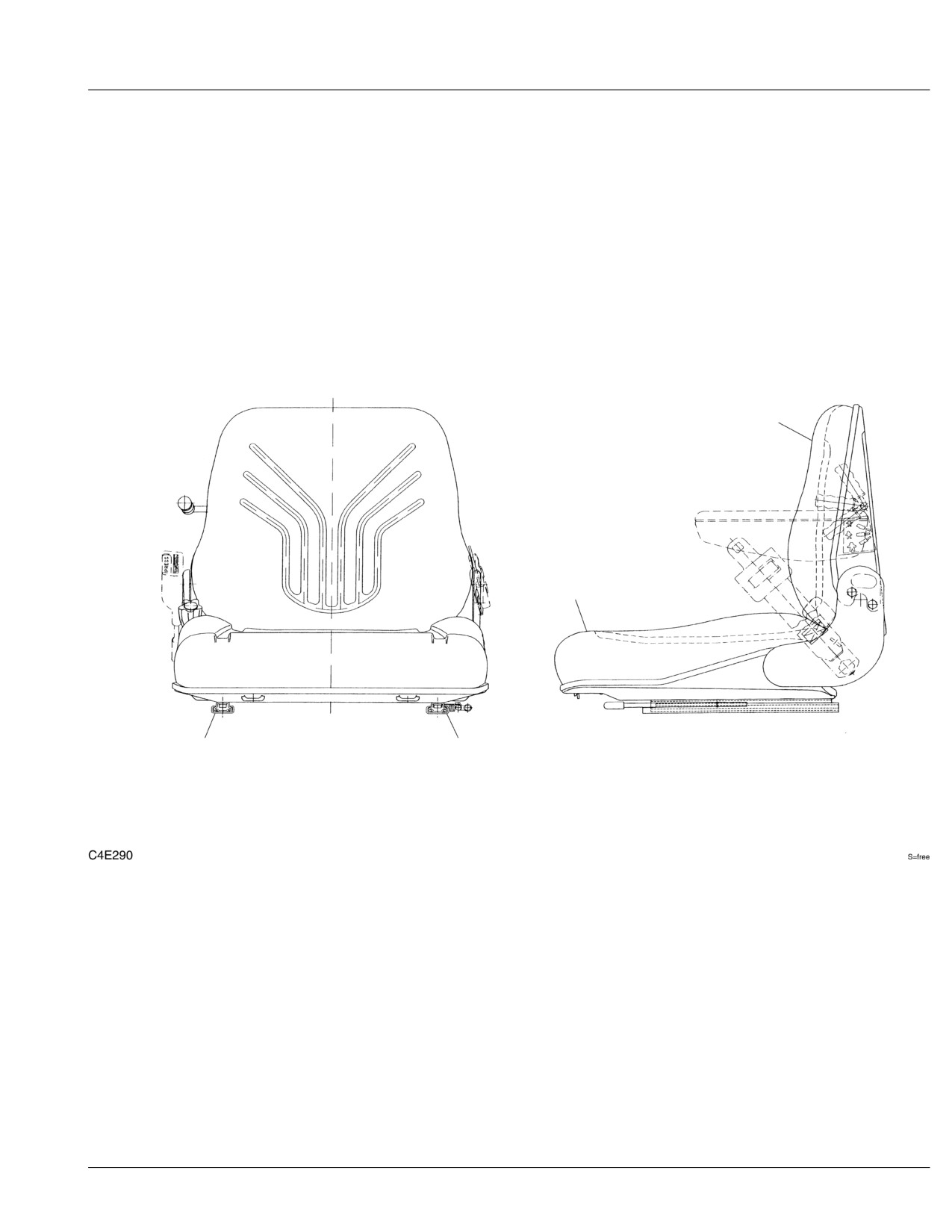

Ref C4E290
Page
5-9
SEAT (2/2)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1914100063
SEAT ASSY (P.V.C.)
1
X19141-00063-1
1914100059
SEAT ASSY (fabric)
1
X19141-00059-1
1
1914103059
RAIL, slide
1
2
1914104059
RAIL, slide
1
3
1914110063
CUSHION
1
P.V.C.
1914110059
CUSHION
1
fabric
4
1914111063
CUSHION
1
P.V.C.
1914111059
CUSHION
1
fabric
C4e290
Reference:C4E290
Page:5-9
TB016 Book No. BD4Z105 S/N 11610001-

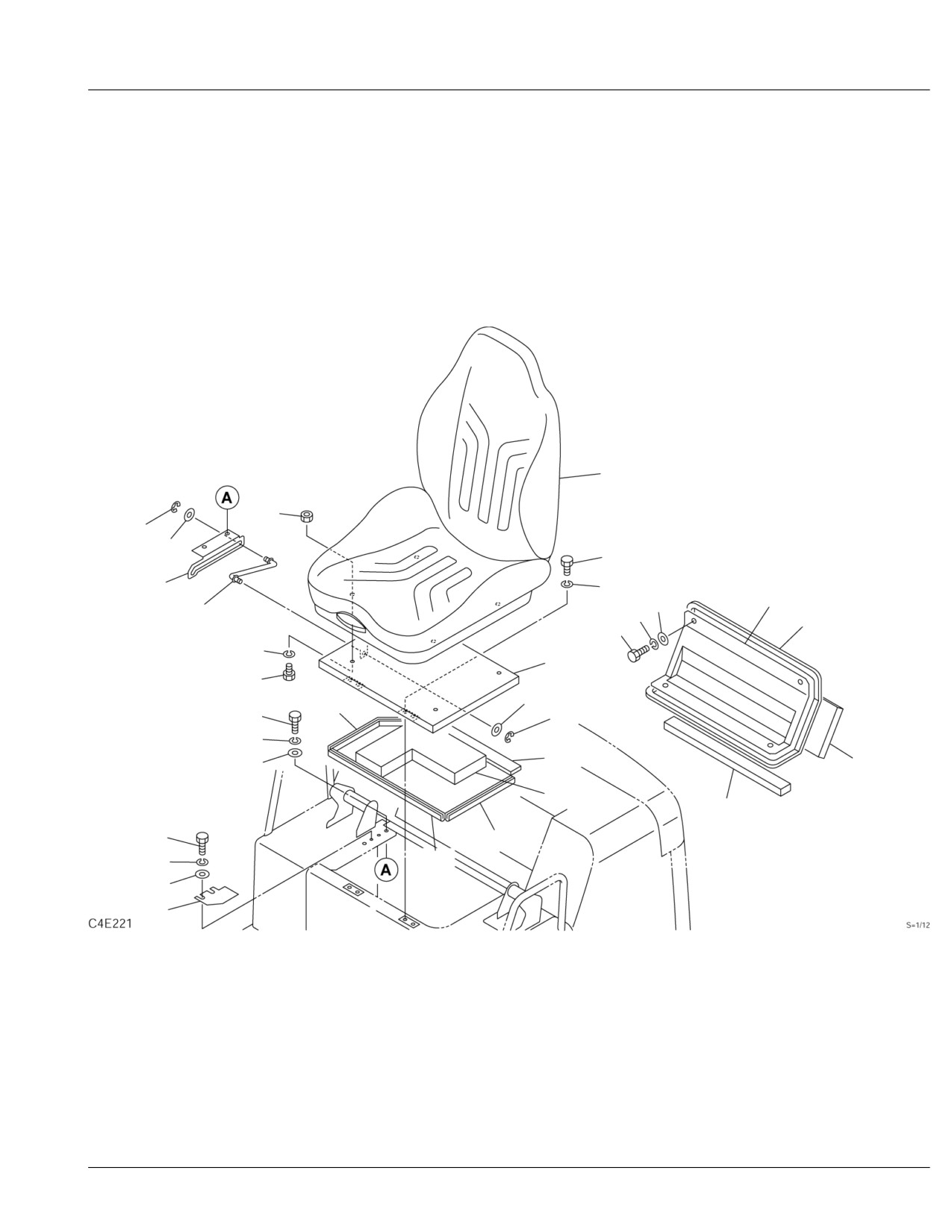

SEAT (1/2) (high back)
6
11
7
15
9
2
13
3-1
15
5
13
3-4
9
13
1-1
9
15
1-6
10
7
13
1-3
15
3-3
1-2
3-2
8
1-4
12
1-5
14
4
Ref C4E221
Page
5-10
SEAT (1/2) (high back)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
SEAT ASSY (fabric)
1
X03334-29000-0
SEAT ASSY (PVC)
1
X03334-33000-0
1
0333429100
COVER ASSY
1
1-1
0333429110
COVER
1
1-2
0333425120
ABSORBENT, noise
1
1-3
0333429120
RUBBER
1
1-4
1654606025
SEAL
1
sold by the meter
1-5
1654606044
SEAL
1
sold by the meter
1-6
1654606026
SEAL
1
sold by the meter
2
0333425200
BRACKET
1
3
0333429200
COVER ASSY
1
3-1
0333429210
COVER
1
3-2
0333429250
ABSORBENT, noise
1
3-3
0333429260
ABSORBENT, noise
1
3-4
1654605149
SEAL
1
sold by the meter
4
0333429130
PLATE
1
5
0333420300
ROD
1
6
1914100070
SEAT ASSY (fabric)
1
see page (2/2)
1914100077
SEAT ASSY (P.V.C.)
1
see page (2/2)
7
1224010006
E-RING
2
8
1100040616
BOLT
2
9
1100040816
BOLT
12
10
1100040820
BOLT
2
11
1130040008
NUT
4
12
1140020006
WASHER, spring
2
13
1140020008
WASHER, spring
14
14
1141110006
WASHER
2
15
1141110008
WASHER
8
C4e222
Reference:C4E221
Page:5-10
TB016 Book No. BD4Z105 S/N 11610001-
SEAT (2/2) (high back)
3
4
2
1
Ref C4E300
Page
5-11
SEAT (2/2) (high back)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1914100070
SEAT ASSY (fabric)
1
X19141-00070
1914100077
SEAT ASSY (P.V.C.)
1
X19141-00077
1
1914103070
RAIL, slide
1
2
1914104070
RAIL, slide
1
3
1914110070
CUSHION
1
fabric
1914110077
CUSHION
1
P.V.C.
4
1914111070
CUSHION
1
fabric
1914111077
CUSHION
1
P.V.C.
C4e300
Reference:C4E300
Page:5-11
TB016 Book No. BD4Z105 S/N 11610001-

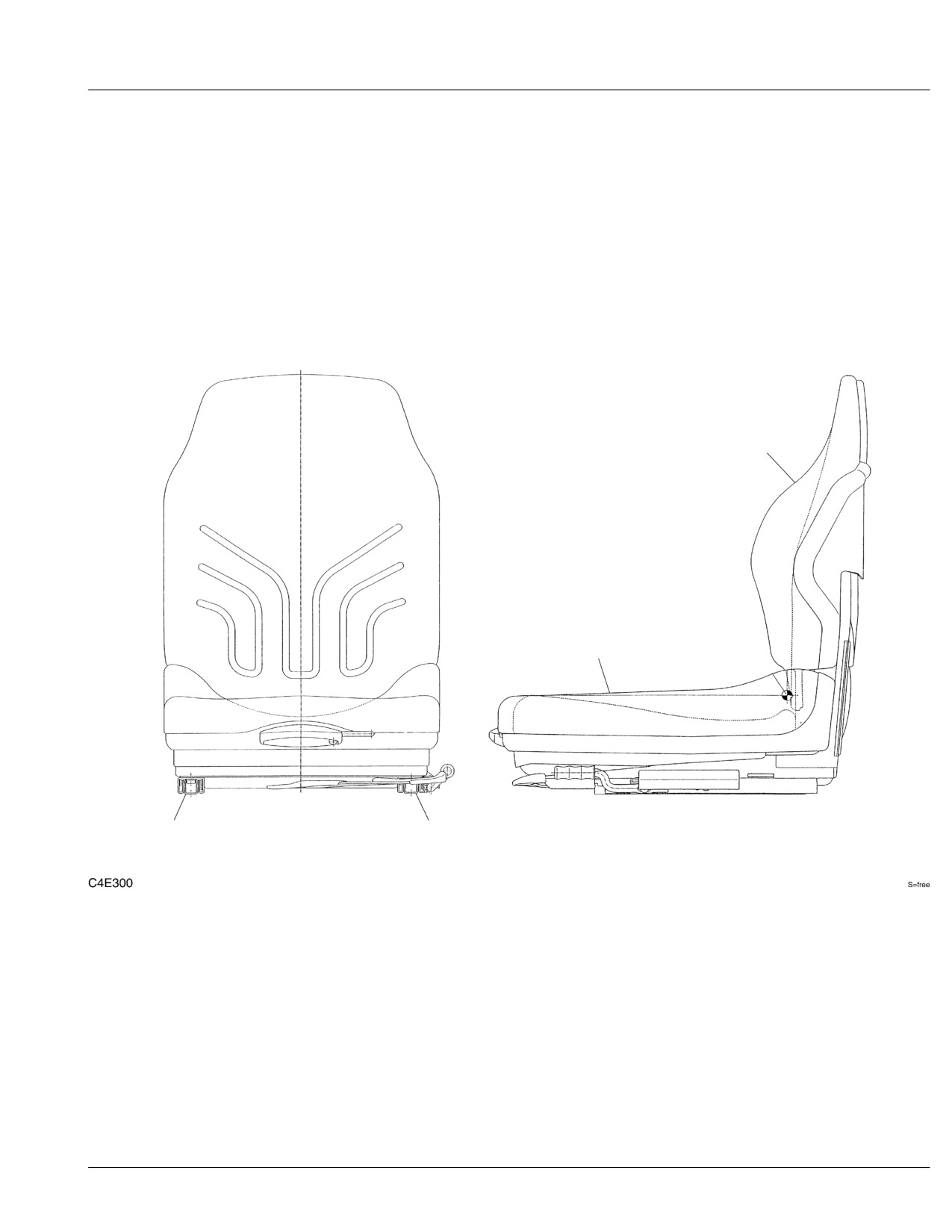

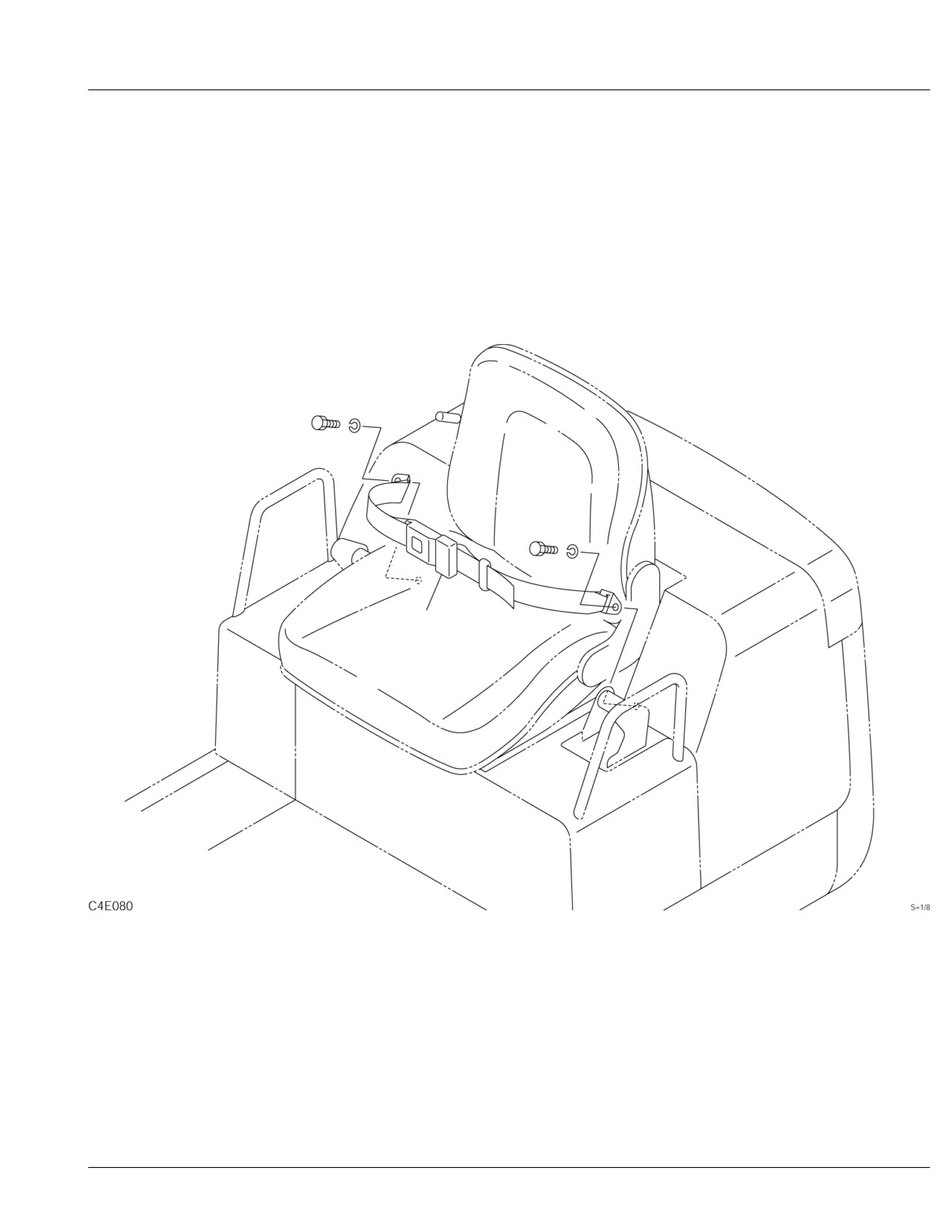

SEAT BELT
1
Ref C4E080
Page
5-12
SEAT BELT
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
BELT ASSY, seat
1
X03334-22000-1
1
1914100080
BELT, seat
1
C4e082
Reference:C4E080
Page:5-12
TB016 Book No. BD4Z105 S/N 11610001-

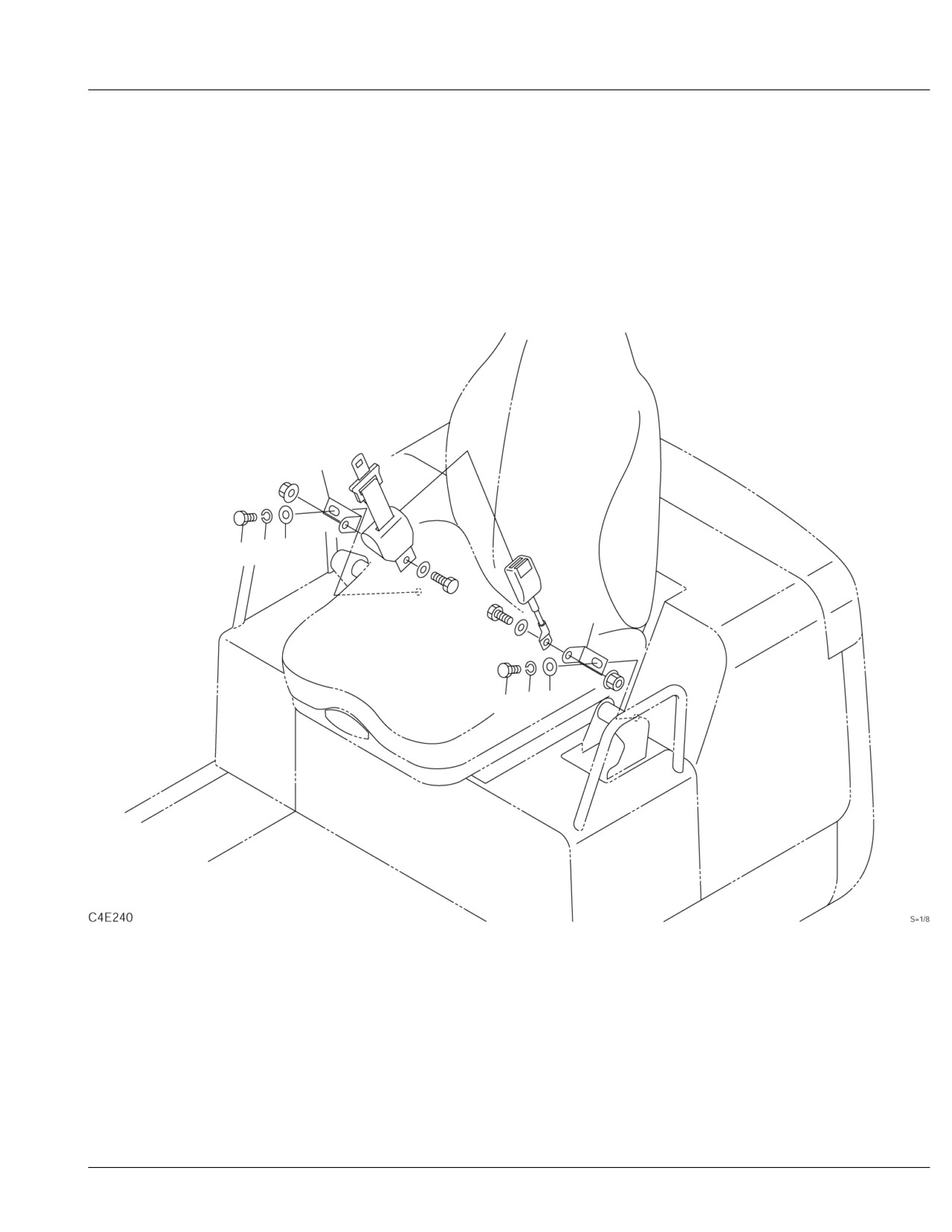

SEAT BELT (retractable)
6
1
5
4
3
2
5
4
3
Ref C4E240
Page
5-13
SEAT BELT (retractable)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
BELT ASSY, seat
1
X03334-30000-0
1
0333430100
BRACKET (R.H.)
1
2
0333430200
BRACKET (L.H.)
1
3
0003600024
WASHER
2
4
1140210007
WASHER, spring
2
5
1111940725
BOLT
2
6
1914100069
BELT, seat
1
C4e241
Reference:C4E240
Page:5-13
TB016 Book No. BD4Z105 S/N 11610001-
CAB MOUNT
20
1
19
18
7
8
5
4
9
11
19
13
18
12
6
10
14
8
7
3
10
9

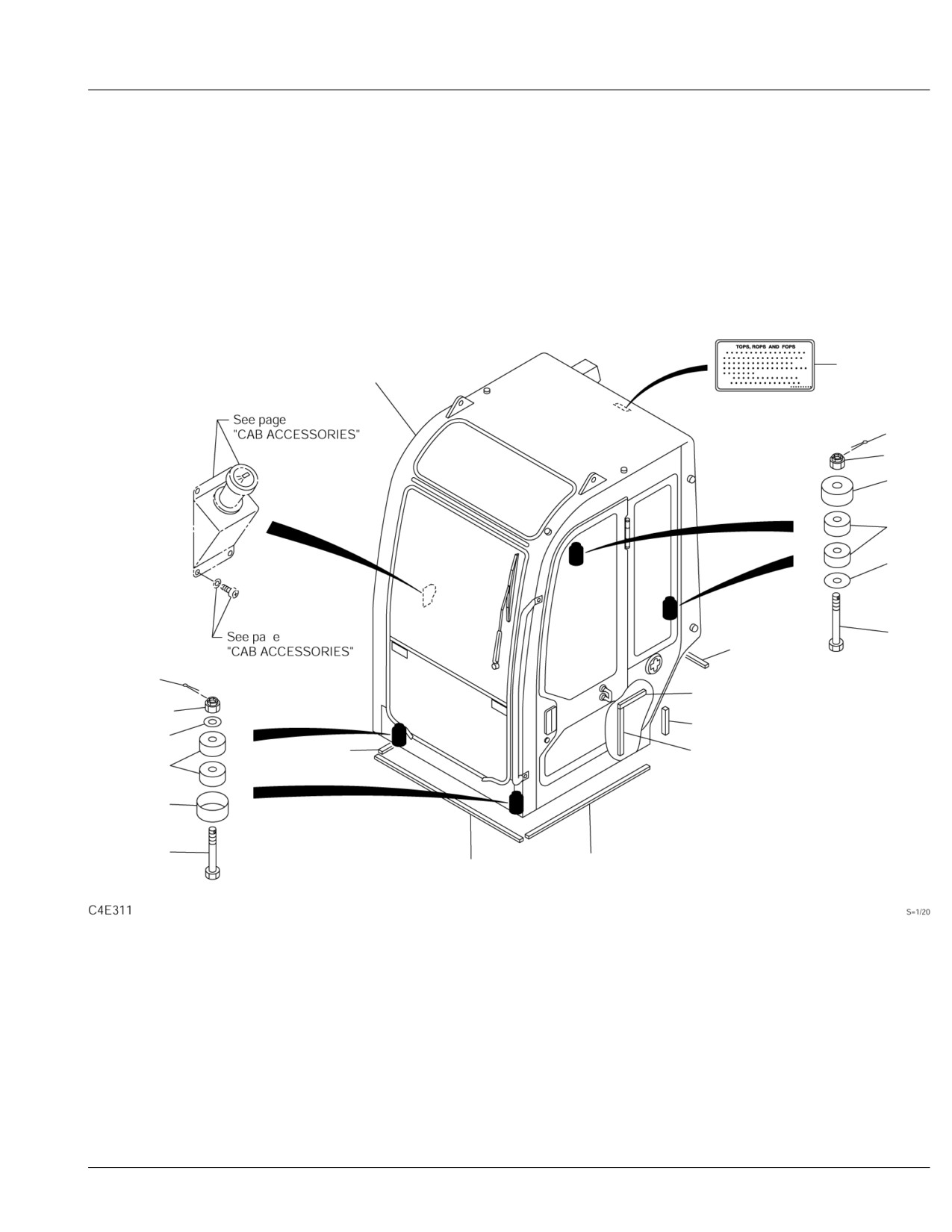

Ref C4E311
Page
5-14
CAB MOUNT
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0338642000
CAB MOUNT
1
X03386-42000-1
1
0338642500
CAB
1
see page (1/4)
3
0338624020
BOLT
2
4
0338624030
BOLT
2
5
0003000010
COLLAR
2
6
0003600129
WASHER
2
7
0278609000
STOPPER
4
8
1651005030
RUBBER, cushion
8
9
1654304097
SPONGE
1
sold by the meter
10
1654304080
SPONGE
2
sold by the meter
11
1654306085
SPONGE
1
sold by the meter
12
1654306015
SPONGE
1
sold by the meter
13
1654304017
SPONGE
1
sold by the meter
14
1654304027
SPONGE
1
sold by the meter
18
1132080016
NUT
4
19
1210010430
PIN, split
4
20
X
**********
DECAL
1
C4e312
Reference:C4E311
Page:5-14
TB016 Book No. BD4Z105 S/N 11610001-
CAB (1/4)
46
26
8
36
15
9
4-8
4-3
4-9
45
86
4-2
52
85
4-8
4
16
51
6
44
7
67
76
48
70
57
49
43
2
50
28
1
50
10
5-5
76
3
71
5-4
65
5-3
5-1
47
5-2

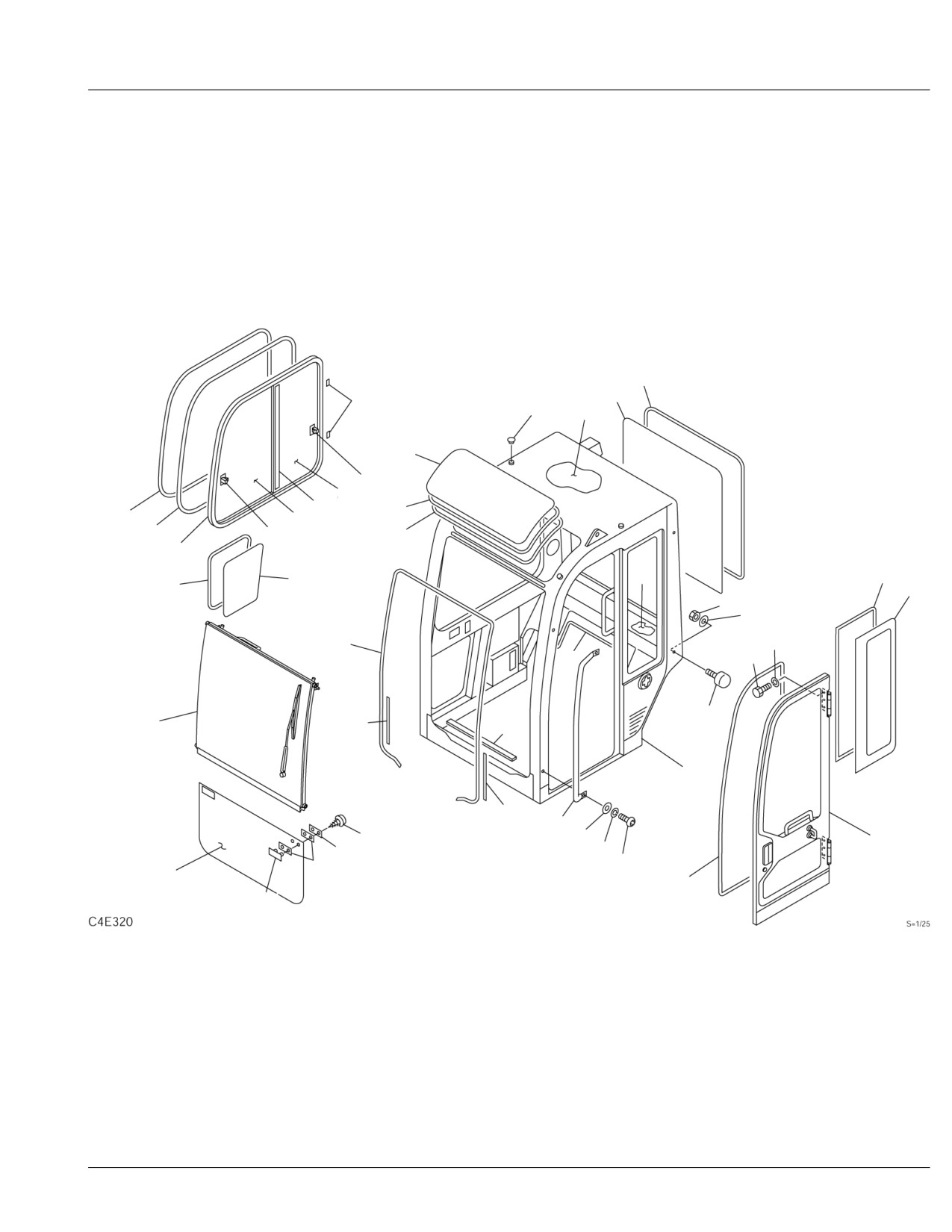

Ref C4E320
Page
5-15
CAB (1/4)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0338642500
CAB ASSY
1
X03386-42500-2
1
X
**********
CAB
1
2
0338630400
SASH, front
1
see page (3/4)
3
0338630500
DOOR
1
see page (4/4)
4
0338630600
SASH ASSY
1
4-2
0338630630
GLASS
1
4-3
0338630640
GLASS
1
4-8
0338630650
LOCK ASSY
2
4-9
0338630006
STRIP, weather
1
5
0338630700
GLASS, front
1
5-1
0338630710
GLASS
1
5-2
1654010900
RETAINER
2
5-3
1654011100
PACKING
4
5-4
1654011000
PLATE
2
5-5
1122410412
SCREW
4
6
0338630800
GLASS
1
7
0338630810
GLASS
1
8
0338630820
GLASS
1
9
0358605300
GLASS
1
10
0338630840
HANDLE
1
15
0338630890
ABSORBENT, noise
1
16
0338630900
ABSORBENT, noise
1
26
0438601770
SPACER
7
28
0568634100
SEAL
1
36
1653303010
CAP
3
43
1651101042
RUBBER
2
44
1654262140
H-RUBBER
1
sold by the meter
45
1654615216
DAM
1
sold by the meter
46
1654231336
H-RUBBER
1
sold by the meter
47
1654605338
SEAL
1
sold by the meter
48
1654605374
RUBBER
1
sold by the meter
49
1654520168
RUBBER
1
sold by the meter
50
1654605033
RUBBER
2
sold by the meter
51
1654615220
DAM
1
sold by the meter
52
1653930315
TRIM
1
sold by the meter
57
1100090820
BOLT
6
65
1120800830
SCREW
2
67
1130090010
NUT
2
70
1140090008
WASHER, spring
6
71
1140090010
WASHER, spring
2
76
1141190010
WASHER
4
85
1653916222
TRIM
1
sold by the meter
86
1654620330
SEAL
1
sold by the meter
C4e322
Reference:C4E320
Page:5-15
TB016 Book No. BD4Z105 S/N 11610001-
CAB (2/4)
32
20
17
61
68
84
67
55
53
32-1
66
34
42
40
64
22
41
66
31
20
23
35
37
63
18
57
75
24
59
27
78
82
62
72
60
74
25
58
38
77
12
33
54
81
72
60
56
79
61
106
69
73
73
107
19
69
14
11
61
39
25
30
29
108
80
21
83
13

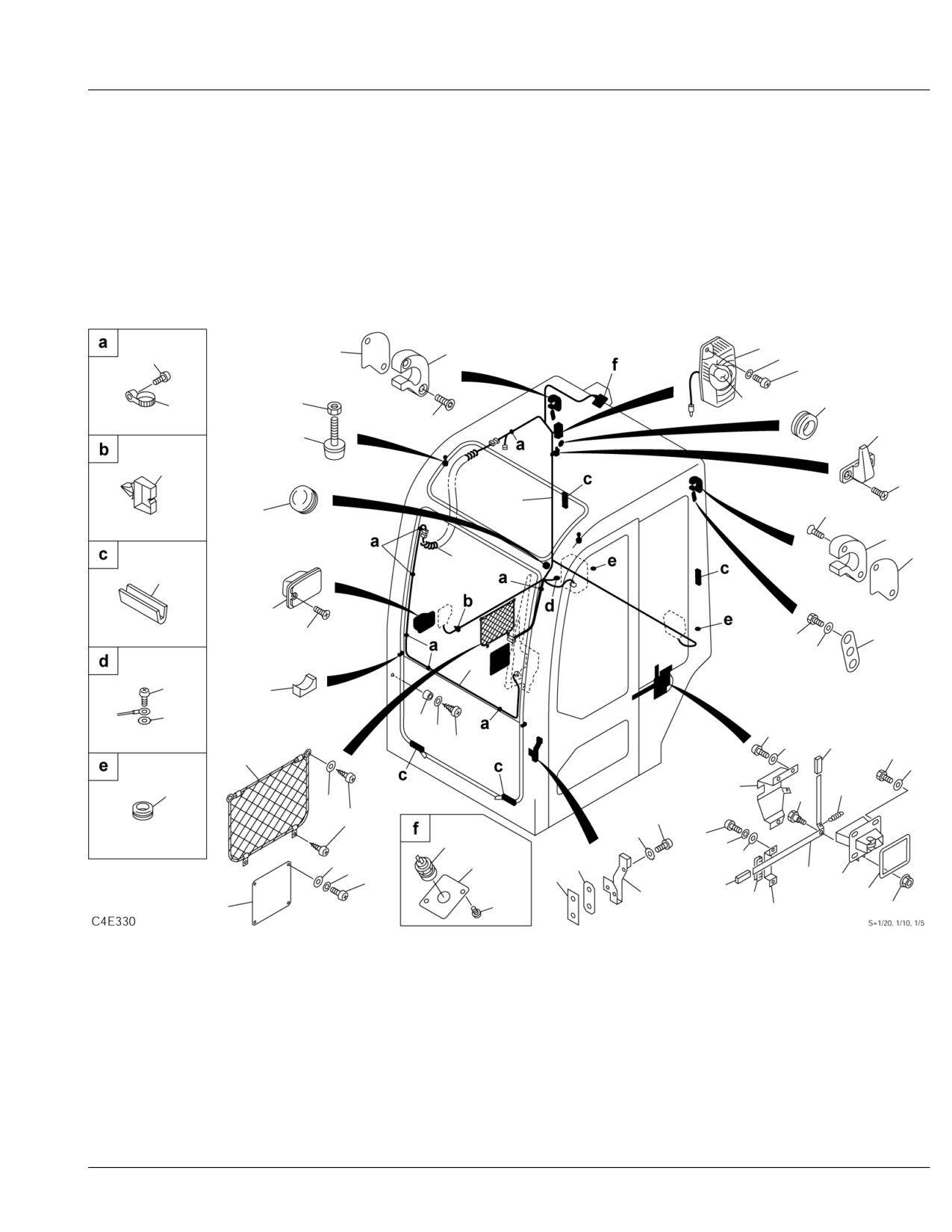

Ref C4E330
Page
5-16
CAB (2/4)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0338642500
CAB ASSY
1
X03386-42500-2
11
0338630850
PLATE
1
12
0338630860
PLATE
1
13
0338630870
PLATE
1
14
0338630880
PLATE
1
17
0338630910
STOPPER (R.H.)
1
18
0338630920
PLATE
2
19
0338630930
PACKING
1
20
0338630940
SHIM
2
21
0338630970
COVER
1
22
0338642110
HARNESS, wiring
1
23
0398802200
HARNESS, wiring
1
24
0338631010
HARNESS, wiring
1
25
0438601760
COVER
2
27
0568633300
STOPPER
2
29
0568634400
SEAL
1
30
0068620500
STRIKER
1
31
0338630960
STOPPER (L.H.)
1
32
1703001700
LAMP, room
1
32-1
1703001701
BULB
1
33
0007000096
SPRING
1
34
1654004800
HANGER
1
35
1654004900
STOPPER
4
37
1654010500
ASHTRAY
1
38
1654010600
POCKET
1
39
1654010700
LOCK
1
40
1652341547
CLAMP
1
41
1652050900
GROMMET
1
42
1651101028
STOPPER
2
53
1652221050
BAND
6
54
1652060016
GROMMET
2
55
1652060031
BUSHING
1
56
0068621300
SCREW
2
57
1100090820
BOLT
10
58
1100040825
BOLT
4
59
1120590516
SCREW
1
60
1122410416
SCREW
8
61
1120590512
SCREW
12
62
1120590616
SCREW
5
63
1120630412
SCREW
2
64
1120790412
SCREW
2
66
1120890830
SCREW
4
67
1130090010
NUT
4
68
1140090004
WASHER, spring
2
69
1140090005
WASHER, spring
6
72
1141190004
WASHER
6
73
1141190005
WASHER
6
74
1140090006
WASHER, spring
3
75
1141190008
WASHER
4
77
1141550008
WASHER
4
78
1140330005
WASHER
1
79
1140330010
WASHER
2
80
1653916007
TRIM
1
sold by the meter
81
1654010800
PIN
1
82
1652101811
RUBBER
2
83
1131242006
NUT
1
84
1120540408
SCREW
2
106
1711900066
SOCKET
1
107
0578600143
COVER
1
108
1150420512
SCREW
2
C4e332
Reference:C4E330
Page:5-16
TB016 Book No. BD4Z105 S/N 11610001-
CAB (3/4) (front sash)
10
9
11
5
16
8
26
10
7
9
26
15
8
21
22
1
11
6
25
36
13
19
31
32
17
18
29
34
3
5
21
2
4
28
22

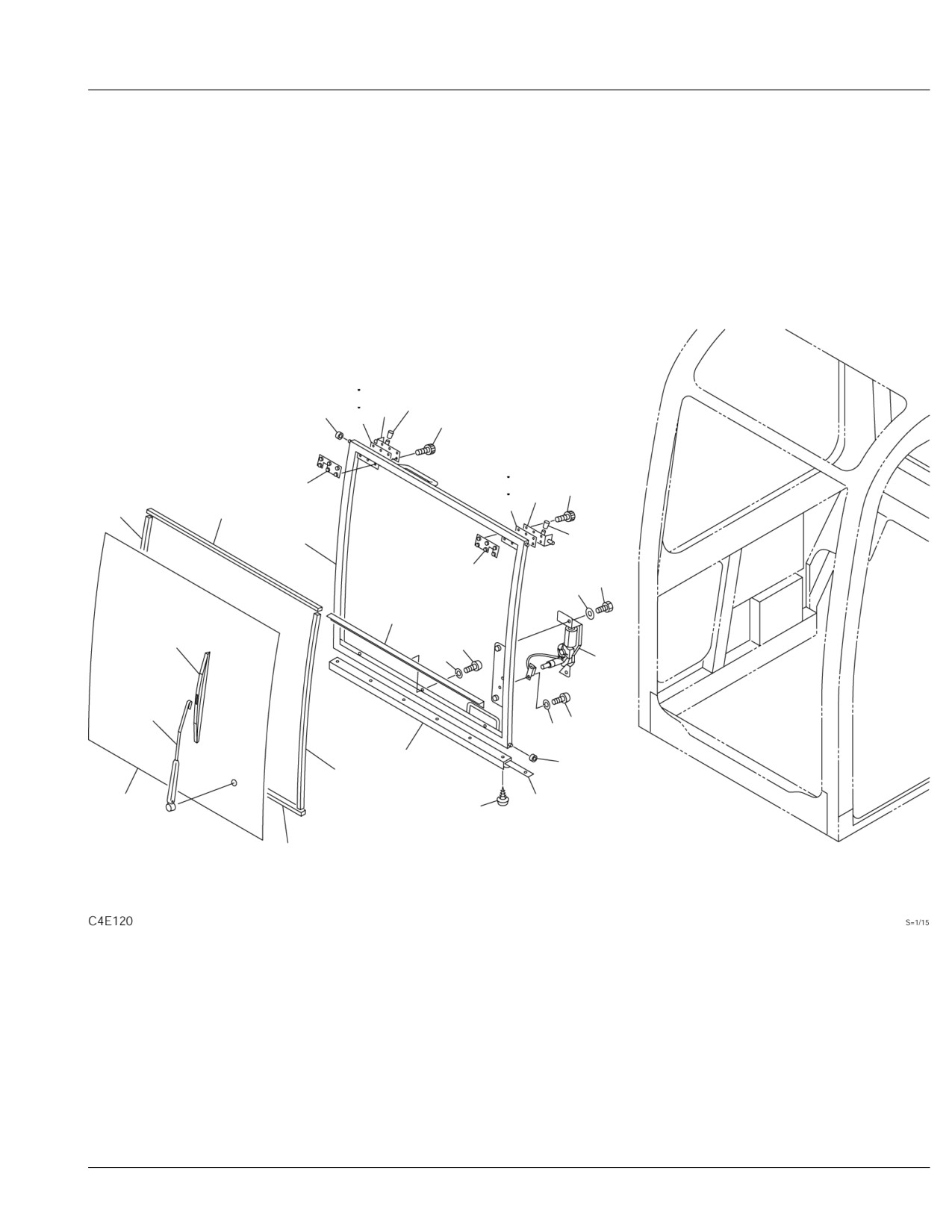

Ref C4E120
Page
5-17
CAB (3/4) (front sash)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
0338630400
SASH ASSY, front
1
1
0338630430
SASH, front
1
2
0568639330
GLASS
1
3
0568621800
SEAL
1
4
0568621900
PLATE
1
5
0568622200
ROLLER
4
6
0568622400
PLATE (L.H.)
1
7
0568622300
PLATE
1
8
0468605031
SHIM t=0.7
AR
9
0468605032
SHIM t=1.2
AR
10
0468605033
SHIM t=1.6
AR
11
0398612500
COVER
2
13
0338630440
PLATE
1
15
1654005350
LATCH (L.H.)
1
16
1654005300
LATCH (R.H.)
1
17
1704078912
MOTOR, wiper
1
18
1704100530
ARM, wiper
1
19
1704200530
BLADE
1
21
1654616080
DAM
2
sold by the meter
22
1654615085
DAM
2
sold by the meter
25
1100290820
BOLT
2
26
1110090516
SCREW, cap
12
28
1122510412
SCREW
6
29
1120590408
SCREW
2
31
1120590516
SCREW
3
32
1140090005
WASHER, spring
3
34
1140090004
WASHER, spring
2
36
1141190008
WASHER
2
C4e122
Reference:C4E120
Page:5-17
TB016 Book No. BD4Z105 S/N 11610001-
CAB (4/4) (door)
21
1
29
17
34
19
36
18
32
26
3
24
38
31
2
34
25
23
36
7
25
5
24
6
15
30
34
14
8
33
28
9
13
38
15-1
4
39
16
22

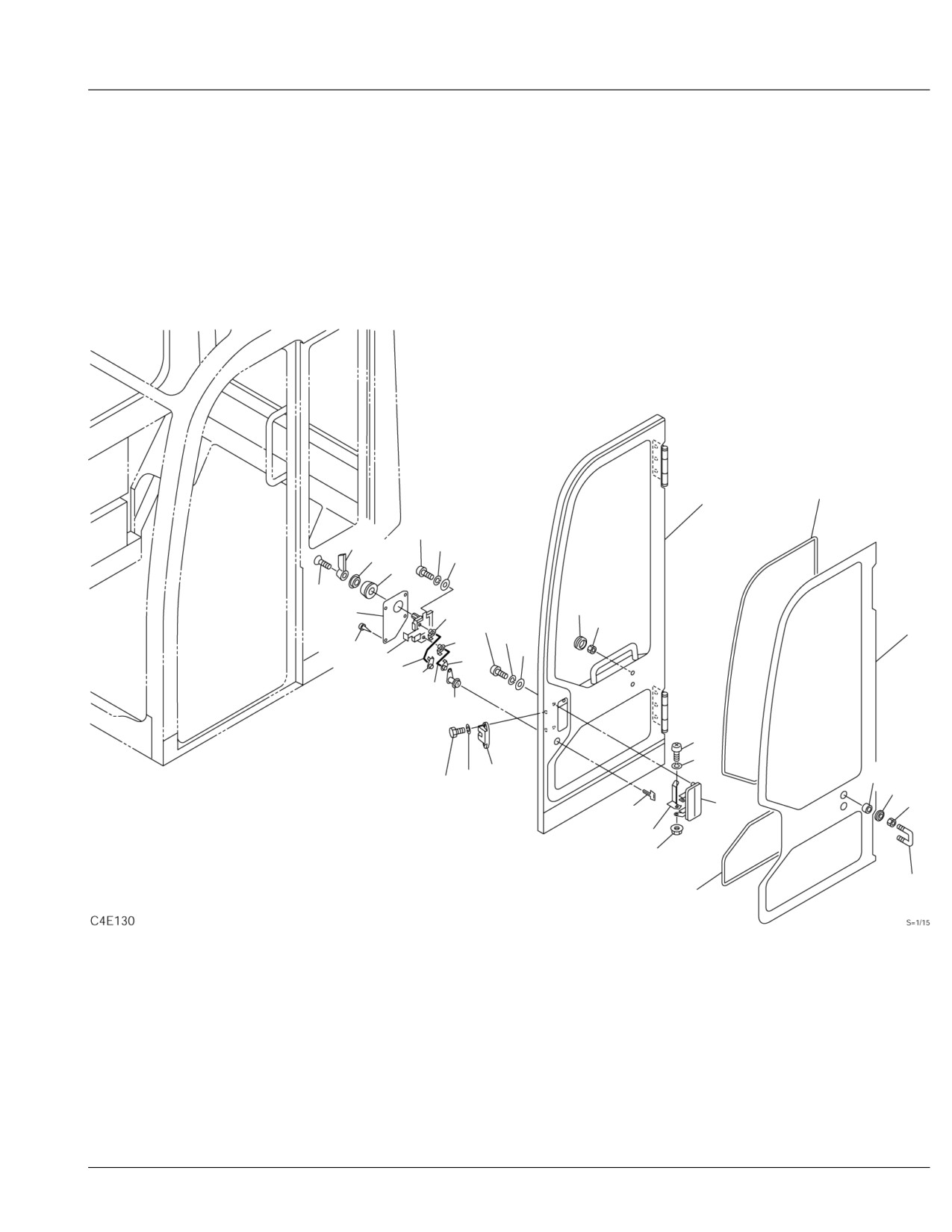

Ref C4E130
Page
5-18
CAB (4/4) (door)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-2
0338630500
DOOR ASSY
1
1
0338630540
DOOR
1
2
0338630550
GLASS
1
3
0568623300
COVER
1
4
0568630900
PLATE
1
5
0568630800
ROD
1
6
0568630600
ROD
1
7
0568623400
UNIT, control
1
8
0568623500
COLLAR
2
9
0568623600
SEAL
2
13
1654005600
HANDLE
1
14
0068620400
LOCK
1
15
1653611527
LOCK
1
15-1
1700100019
KEY
1
16
1654005900
STRIKER
1
17
1654005500
HANDLE
1
18
1654005800
BASE
1
19
1654005700
ESCUTCHEON
1
21
1654615280
DAM
1
sold by the meter
22
1654615160
DAM
1
sold by the meter
23
1652711432
CLIP
4
24
0068621500
SNAP
2
25
0398610900
SNAP
2
26
1652053200
GROMMET
2
28
1100290616
BOLT
2
29
1120530612
SCREW
2
30
1120530616
SCREW
1
31
1120530608
SCREW
2
32
1120790516
SCREW
1
33
1140090006
WASHER, spring
2
34
1140020006
WASHER, spring
5
36
1141110006
WASHER
4
38
1130040010
NUT
4
39
1131242006
NUT
1
C4e132
Reference:C4E130
Page:5-18
TB016 Book No. BD4Z105 S/N 11610001-
CAB ACCESSORIES
93
94
97
95
96
101
103
100
102
98
88
104
103
89
90
92
91
91

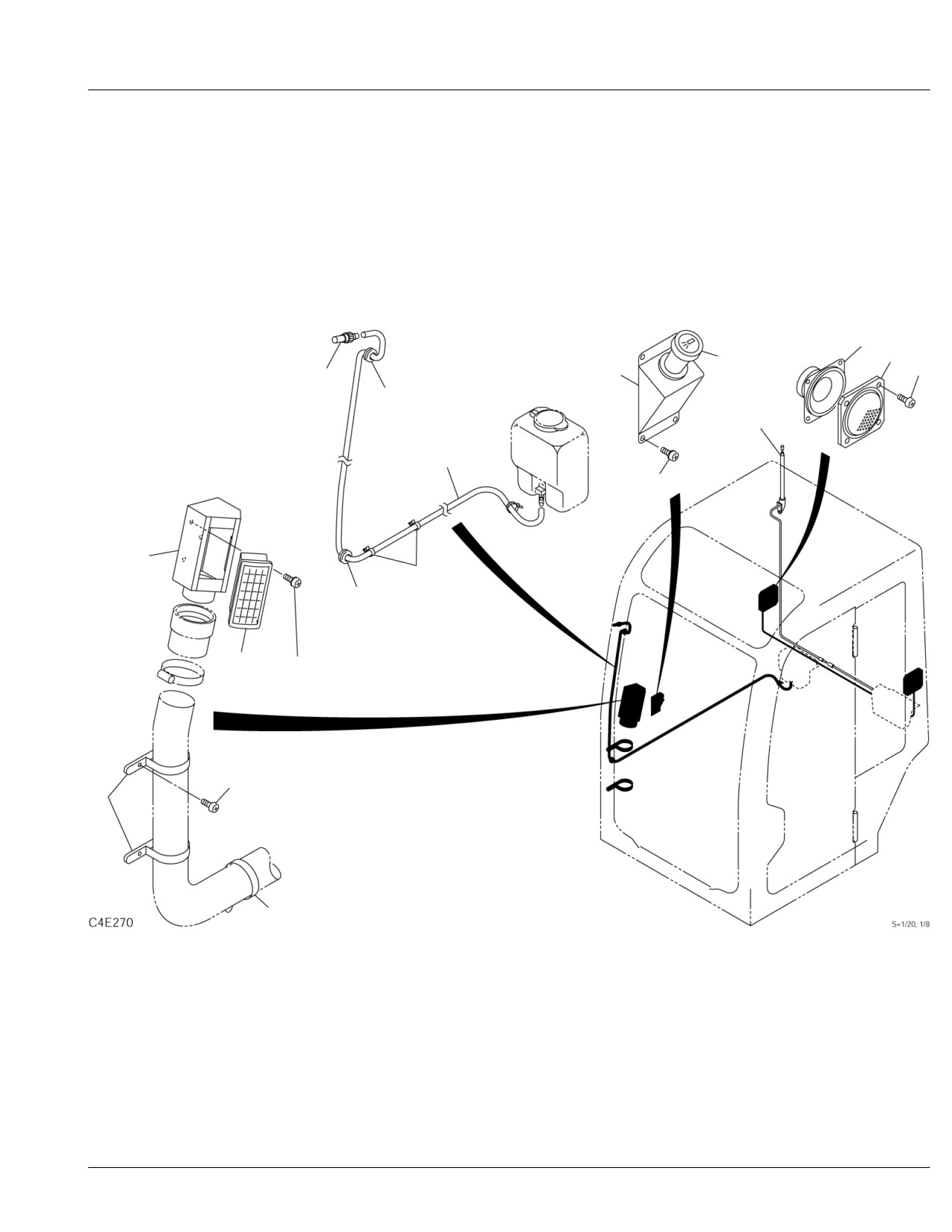

Ref C4E270
Page
5-19
CAB ACCESSORIES
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
88
0872453510
DEFROSTER
1
89
1911504000
LOUVER
1
90
1150120512
SCREW
3
91
1652261410
BAND
3
92
1120590514
SCREW
3
93
1705003500
SPEAKER
2
94
1705003550
GRILLE
2
95
1120590410
SCREW
8
96
0338627020
BRACKET
1
97
1711900059
LIGHTER
1
98
1150120410
SCREW
4
100
1705003400
ANTENNA
1
11610001~11610793
1705003450
ANTENNA
1
(H)
11610794~1161#
1705003460
ANTENNA
1
(H)
1161#~
M No. 23948
101
1711910040
NOZZLE
1
102
1711919180
HOSE
1
sold by the meter
103
1652001002
GROMMET
2
104
1652351054
BAND
2
C4e461
Reference:C4E270
Page:5-19
TB016 Book No. BD4Z105 S/N 11610001-
REARVIEW MIRROR
1
2

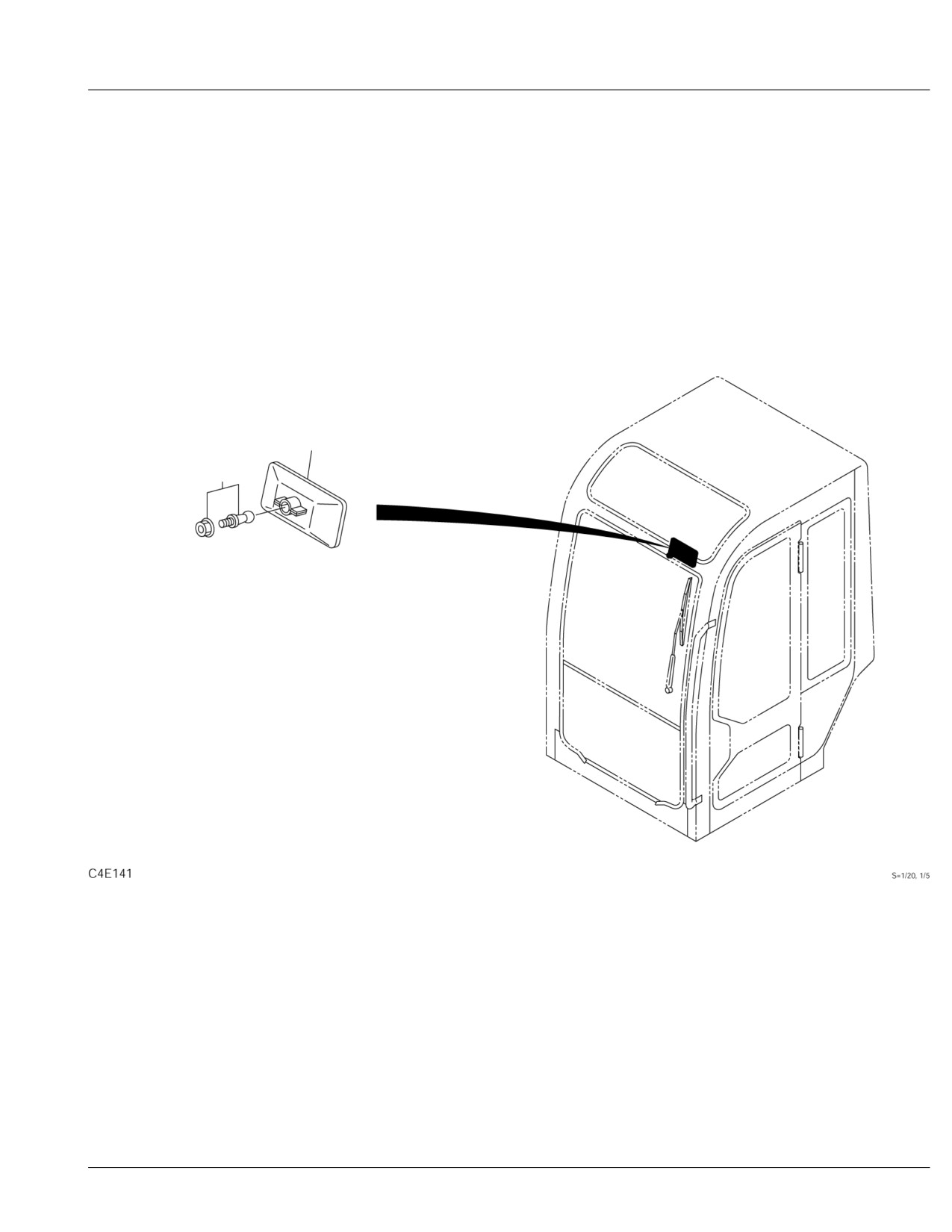

Ref C4E141
Page
5-20
REARVIEW MIRROR
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
MIRROR ASSY, rearview
X03387-00000-1
1
1654005400
MIRROR
1
2
1654006000
PIVOT
1
C4e142
Reference:C4E141
Page:5-20
TB016 Book No. BD4Z105 S/N 11610001-
CANOPY
2
10
9
7
1
11
4
6
8
3
12
5
7

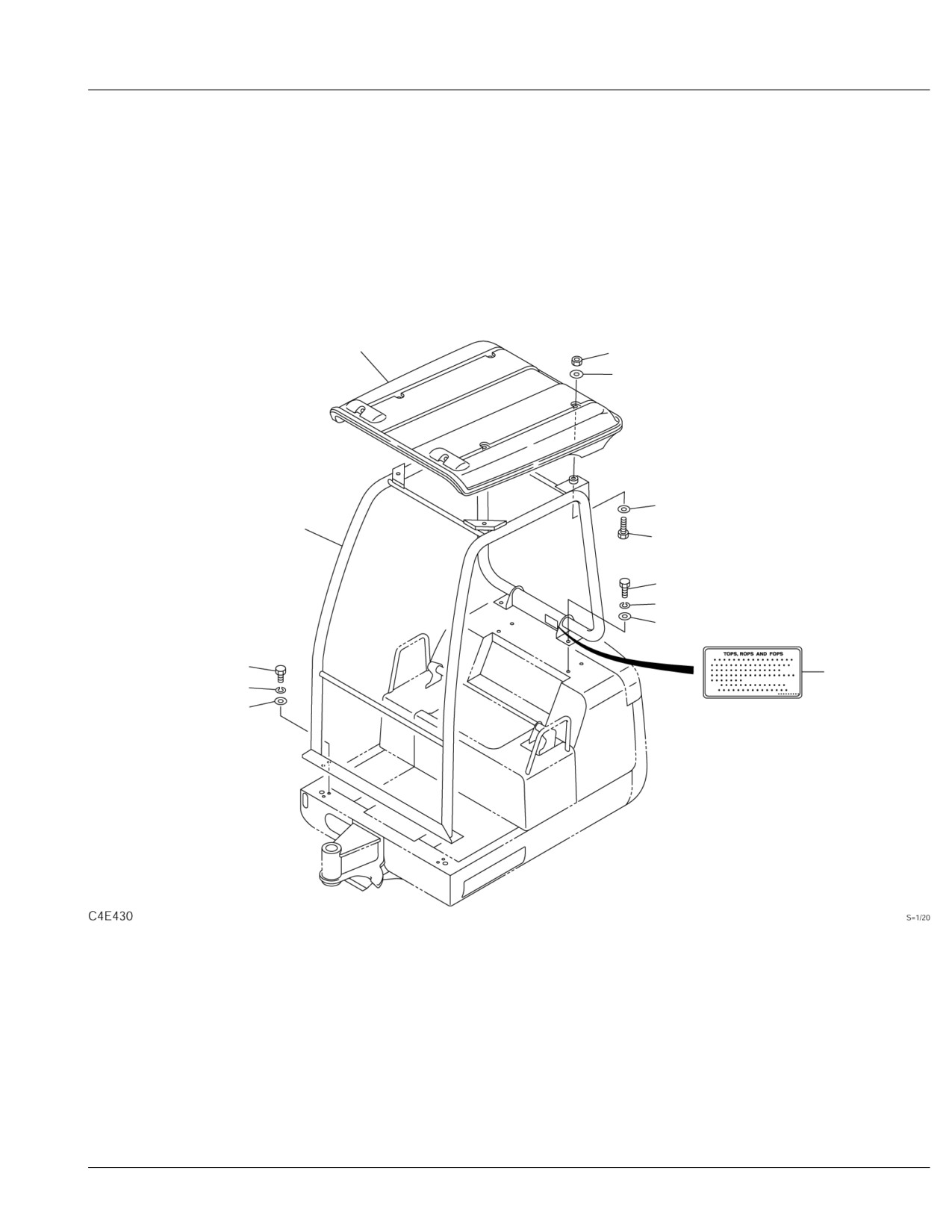

Ref C4E430
Page
5-21
CANOPY
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CANOPY ASSY
X03384-25000-6
1
0338425200
POLE
1
2
0368416300
ROOF
1
3
1100041025
BOLT
4
4
1101041230
BOLT
4
5
1140020010
WASHER, spring
4
6
1140020012
WASHER, spring
4
7
1141110010
WASHER
8
8
0003600024
WASHER
4
9
0003600020
WASHER
4
10
1130040010
NUT
4
11
1100041040
BOLT
4
12
X
**********
DECAL
1
C4e432
Reference:C4E430
Page:5-21
TB016 Book No. BD4Z105 S/N 11610001-

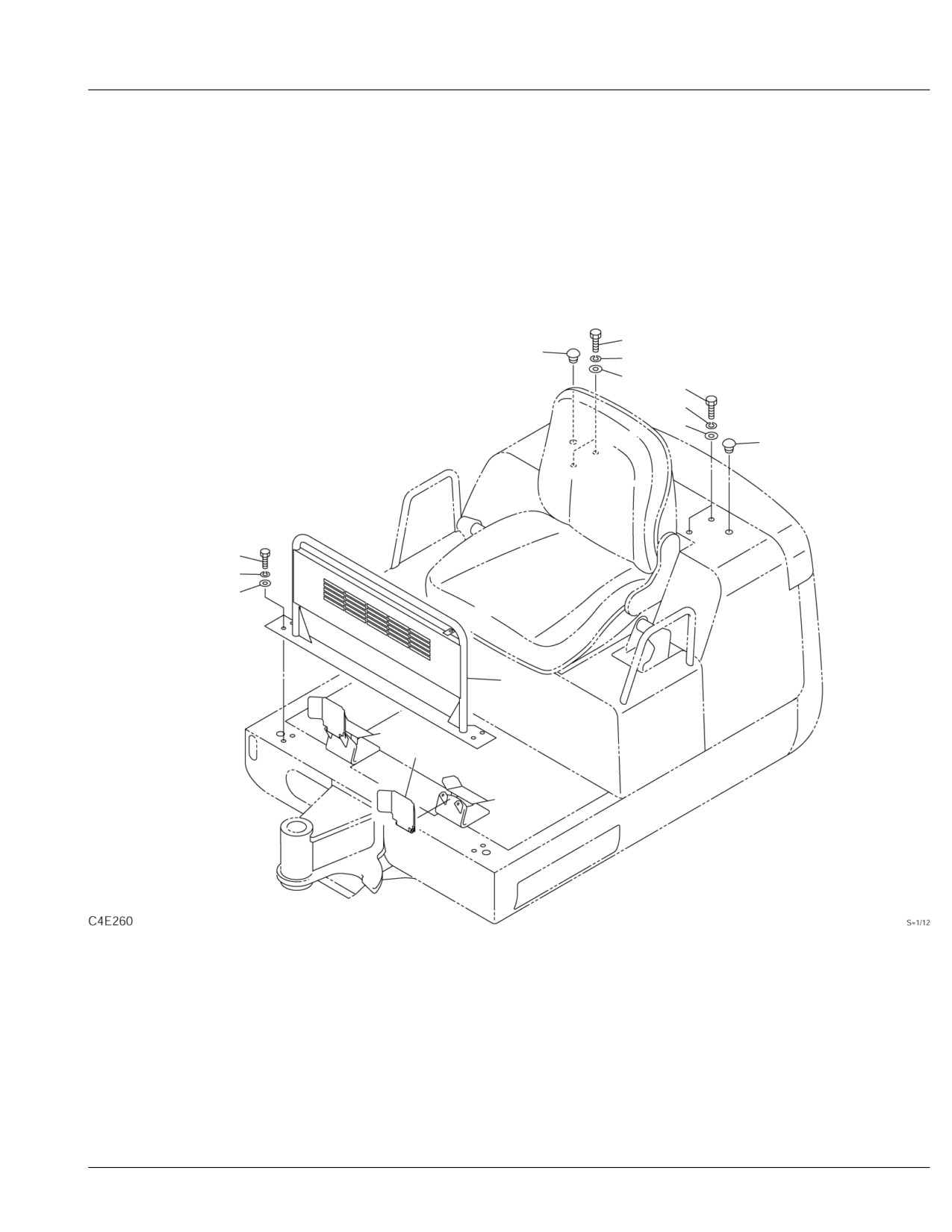

FRONT GUARD (for YBM)
3
8
5
7
3
5
7
8
2
4
6
1
9
Ref C4E260
Page
5-22
FRONT GUARD (for YBM)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
GUARD ASSY
1
X03384-27000-1
1
0338427200
GUARD
1
2
1100041025
BOLT
4
3
1101041230
BOLT
4
4
1140020010
WASHER, spring
4
5
1140020012
WASHER, spring
4
6
1141110010
WASHER
4
7
1141110012
WASHER
4
8
1652530002
PLUG
2
9
0338427300
COVER
1
C4e260
Reference:C4E260
Page:5-22
TB016 Book No. BD4Z105 S/N 11610001-
HEATER (cab)
30
10
36
2-3
2-1
12
3-1
11
14
5
14
2-2
6
15
23
32
10
9
3-2
31
27 24
20
8
10
23
31
3426
5
29
4-1
19
17
10
4-2
16
22
21
26
29
25
28
7
29
18
26
33
35
1
2825
21
28
2125

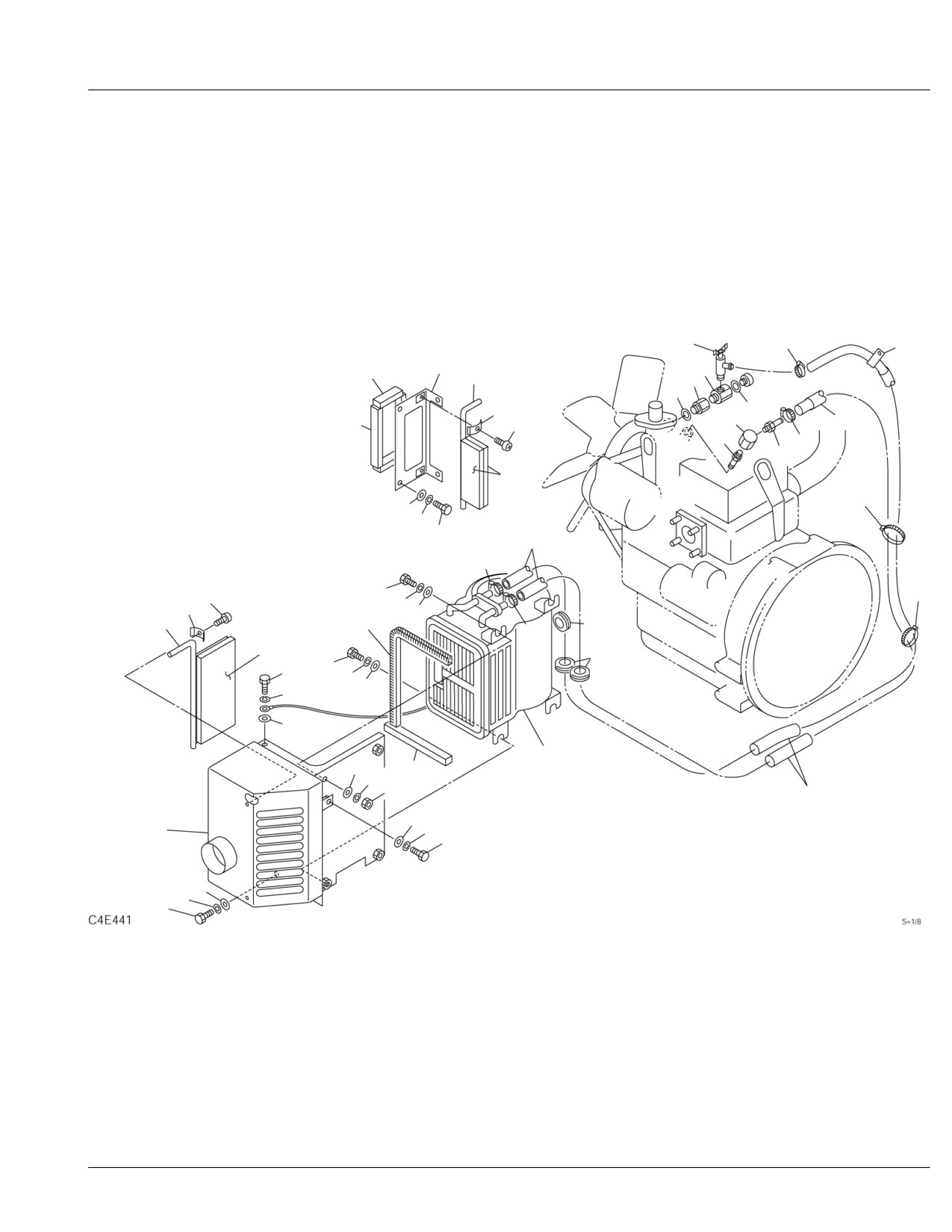

Ref C4E441
Page
5-23
HEATER (cab)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03345-21700-3
1
0334519100
BRACKET
1
2
0334519200
PLATE ASSY
1
2-1
0334519210
PLATE
1
2-2
1654311013
URETHANE
2
sold by the meter
2-3
1654311006
URETHANE
2
sold by the meter
3
0334519300
LEVER ASSY
1
3-1
0334519310
LEVER
1
3-2
0334519320
SPONGE
2
4
0334517400
LEVER ASSY
1
4-1
0334515410
LEVER
1
4-2
0334517420
SPONGE
1
5
0334517500
PLATE
4
6
0007262009
ELBOW
1
7
1911508100
HEATER
1
8
1911521850
HOSE
2
sold by the meter
9
1911502200
NIPPLE
1
10
1911500500
CLAMP
4
11
0007211017
BUSHING
1
12
0007261004
JOINT
1
14
1541400516
WASHER
2
15
1531325080
PROTECTOR
2
sold by the meter
16
1652002201
GROMMET
2
17
1652052800
GROMMET
1
18
1654304016
SPONGE
1
sold by the meter
19
1654606035
SEAL
1
sold by the meter
20
1100040612
BOLT
4
21
1100040816
BOLT
4
22
1100041016
BOLT
3
23
1120530410
SCREW
4
24
1140020006
WASHER, spring
4
25
1140020008
WASHER, spring
4
26
1140020010
WASHER, spring
5
27
1141110006
WASHER
4
28
1141110008
WASHER
4
29
1141110010
WASHER
5
30
1911502300
VALVE
1
31
1652201007
BAND
2
32
1501500003
NIPPLE
1
33
1130040010
NUT
1
34
1100041020
BOLT
1
35
1531325013
PROTECTOR
2
sold by the meter
36
0007300050
CLAMP
1
11611250~
C4e443
Reference:C4E441
Page:5-23
TB016 Book No. BD4Z105 S/N 11610001-
HEATER (canopy)
23
26
19
29
17
13
36
18
10
11
12
18-1
14
6
14
15
31
10
9
7
16
5
30 27
24
2
16
8
28
25
20
29
22
26
23
10
21
4
3
32

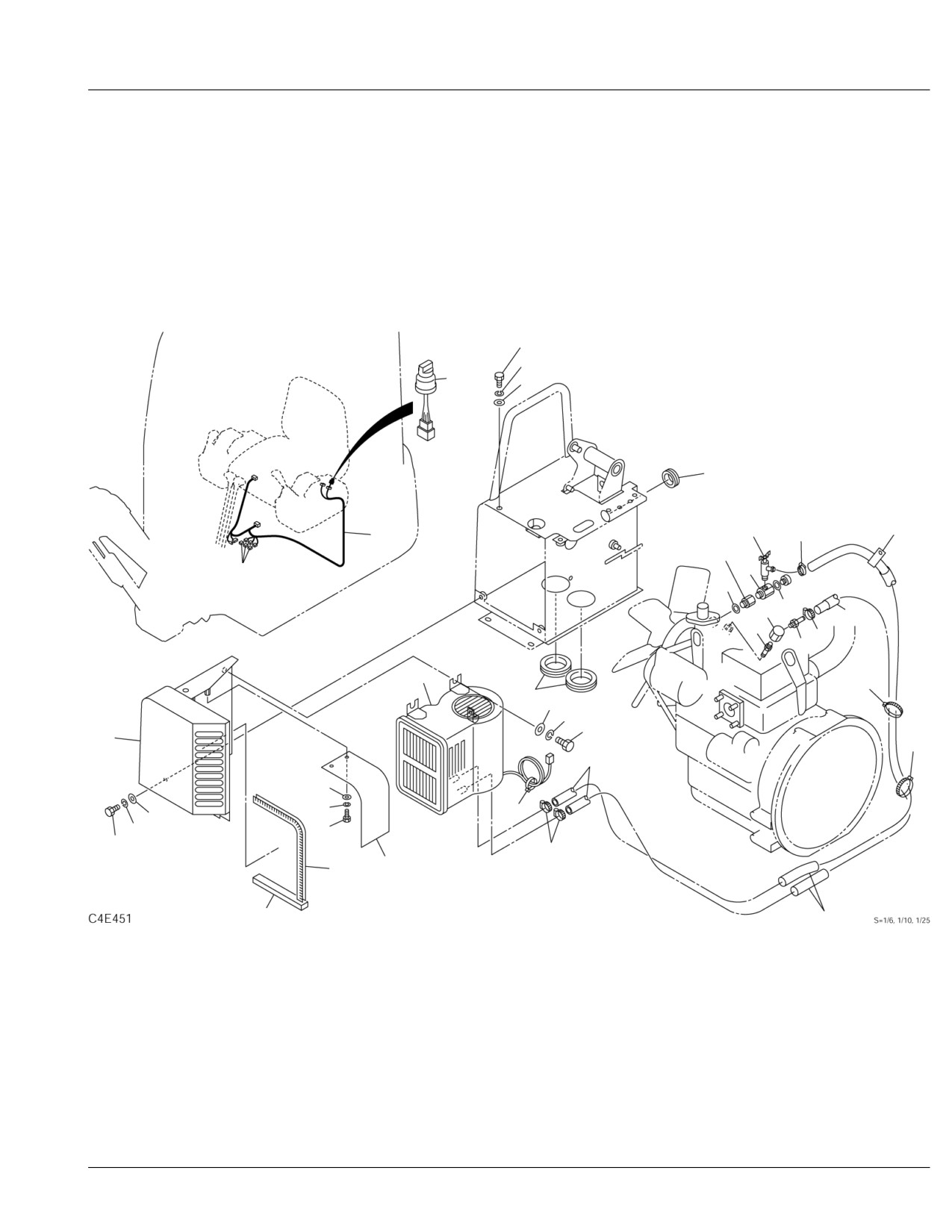

Ref C4E451
Page
5-24
