(b) Fold back the floor carpet.

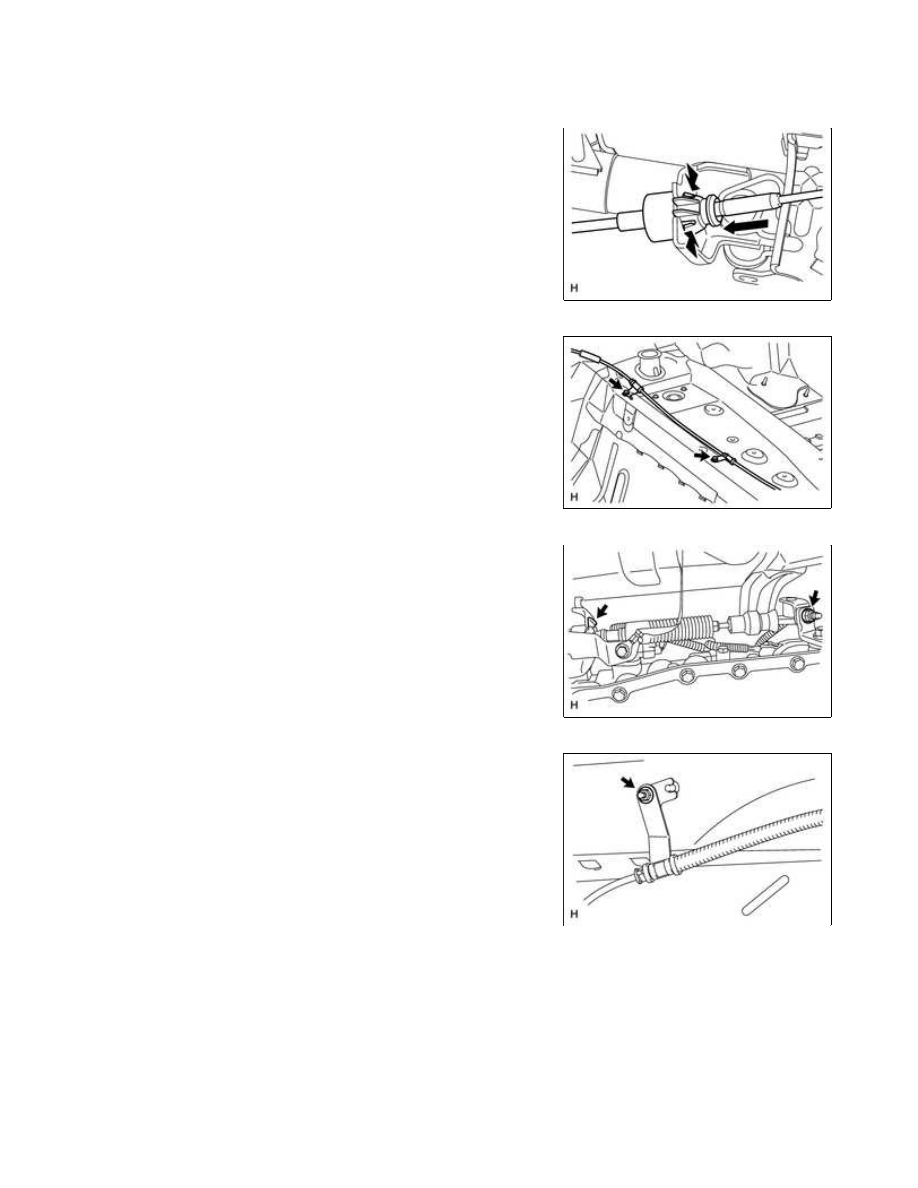

(e) Remove the 2 bolts and disconnect the 2 cable clamps.

(f) Remove the nut and clip, and disconnect the transmission

control cable from the automatic transmission.

(g) Remove the nut and disconnect the transmission control cable

support.

A760E AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...

(h) Remove the 2 bolts and then pull the transmission control cable

into the vehicle to remove it.

A760E AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002Y0A01FX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: A760E AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE (for Column Shift Type):

INSTALLATION; 2015 MY Tundra [08/2014 - ]

INSTALLATION

1. INSTALL COLUMN SHIFT TRANSMISSION CONTROL CABLE ASSEMBLY

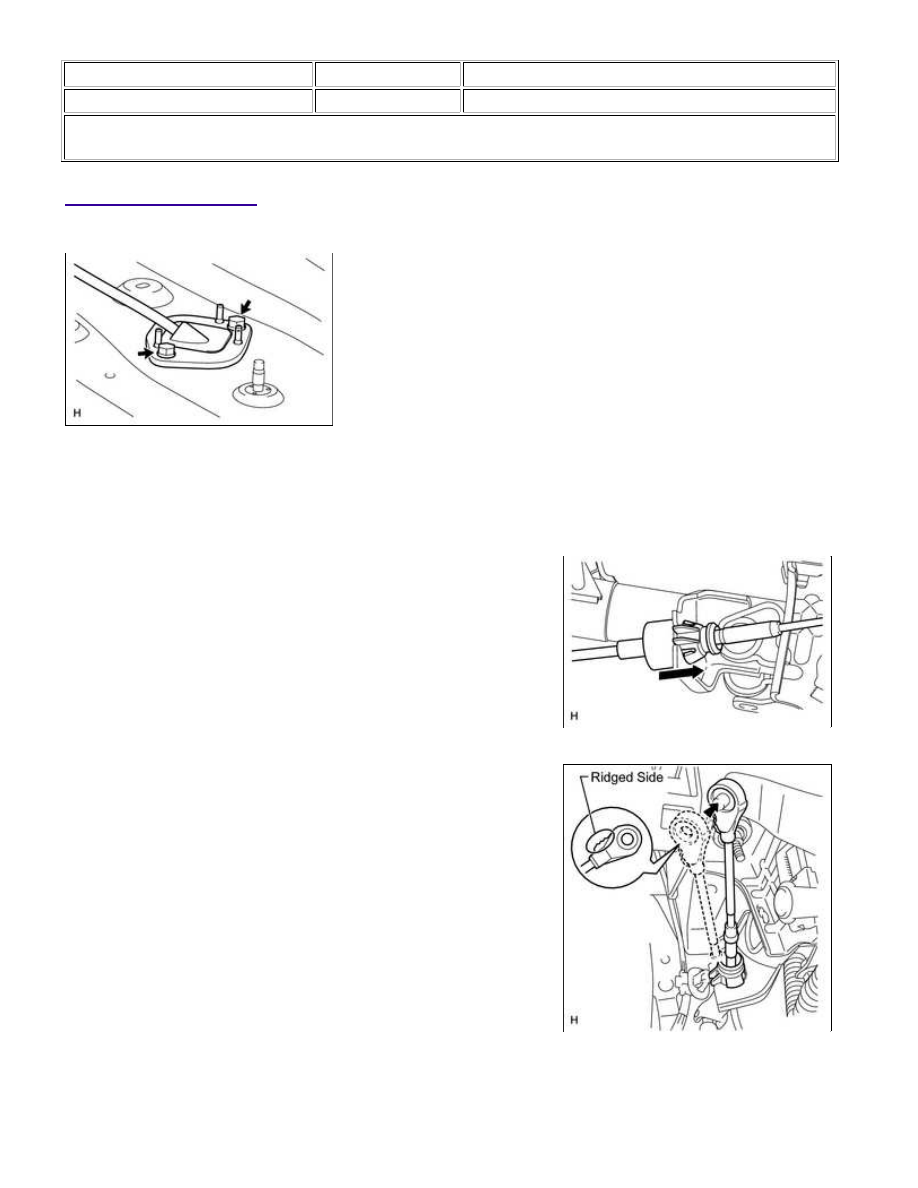

(a) Insert the transmission control cable from the vehicle interior, and install the cable retainer with the 2

bolts.

Torque:

5.5 N·m {56 kgf·cm, 49in·lbf}

(b) Connect the cable to the steering column shaft bracket so that

column shift.

NOTICE:

Make sure to connect the cable end so that the inner cable is not

(d) Connect the 2 cable clamps with the 2 bolts.

Torque:

5.5 N·m {56 kgf·cm, 49in·lbf}

(e) Return the floor carpet to its original position.

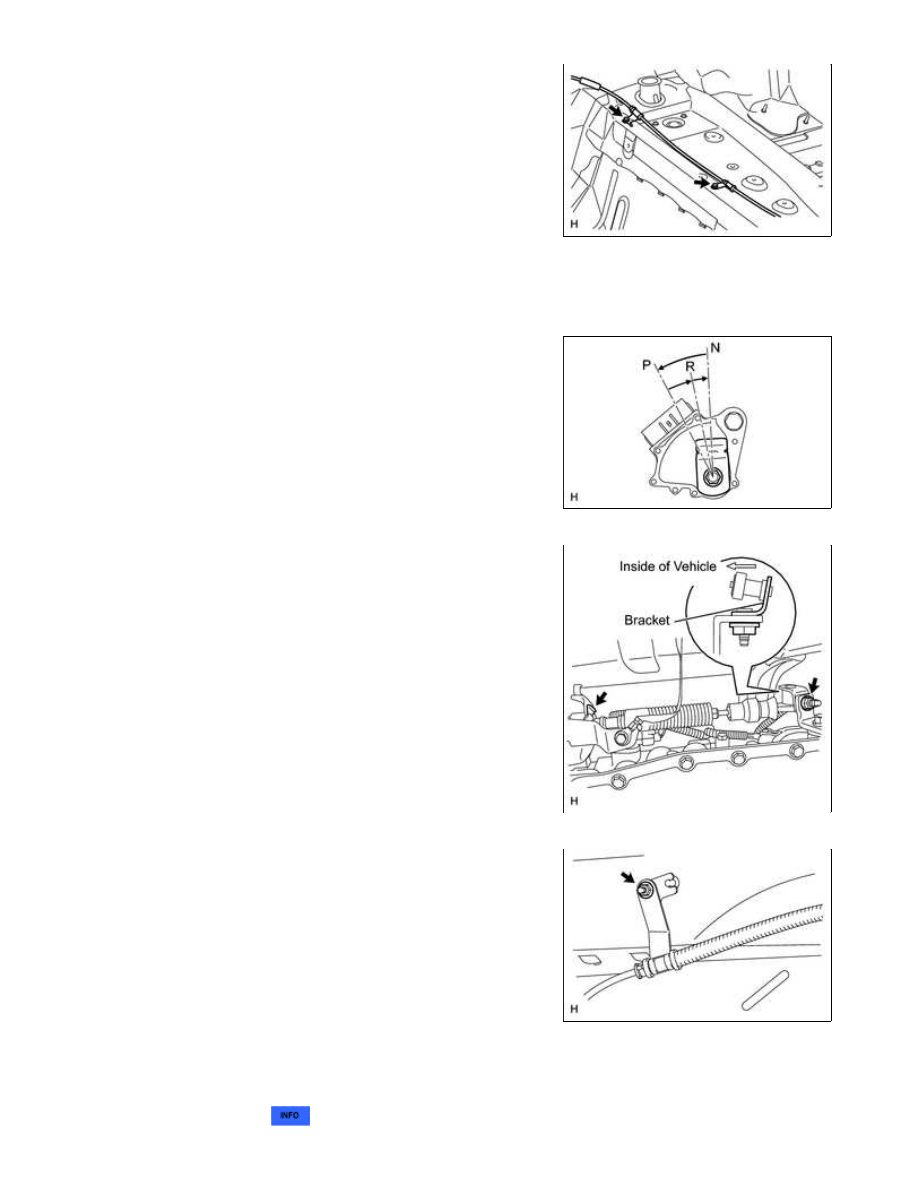

(f) Move the shift lever to N.

(g) Turn the control shaft lever counterclockwise until it stops, and

then turn it clockwise 2 notches to set it to the N position.

(h) Connect the control cable with a new clip and the nut.

Torque:

13 N·m {133 kgf·cm, 10ft·lbf}

NOTICE:

When connecting the cable to the transmission control shaft

Torque:

5.4 N·m {55 kgf·cm, 48in·lbf}

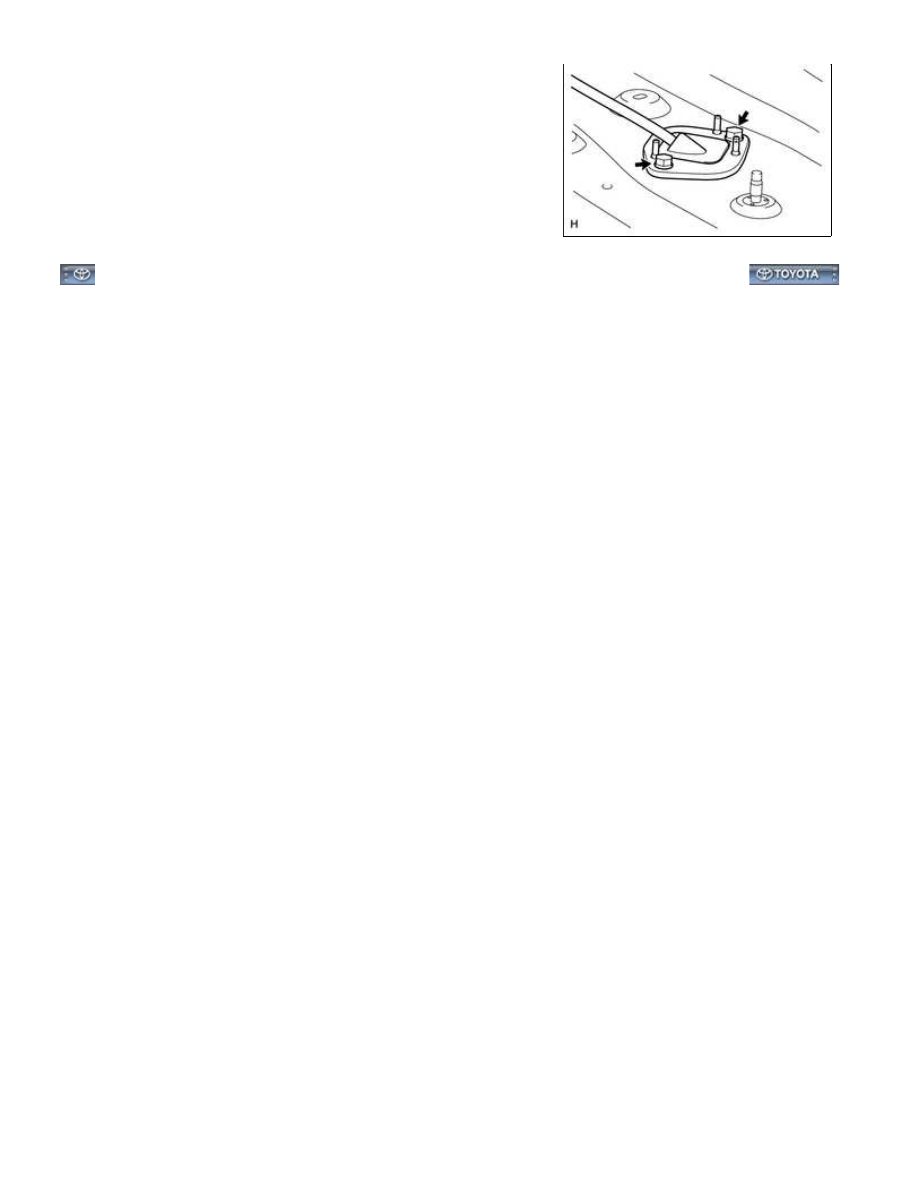

2. INSTALL FRONT SEAT ASSEMBLY LH

(a) for Manual Seat Type:

Install the front seat LH

A760E AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...
