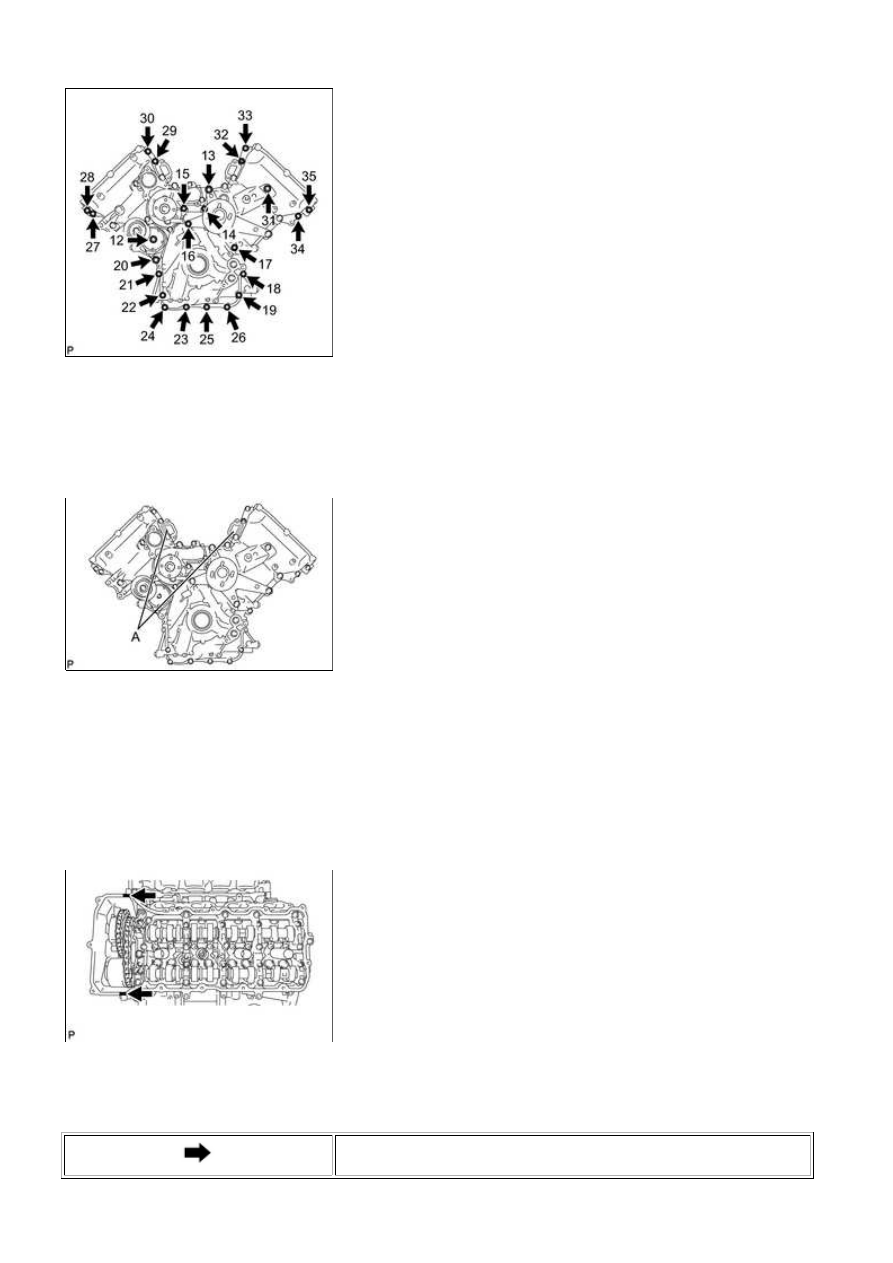

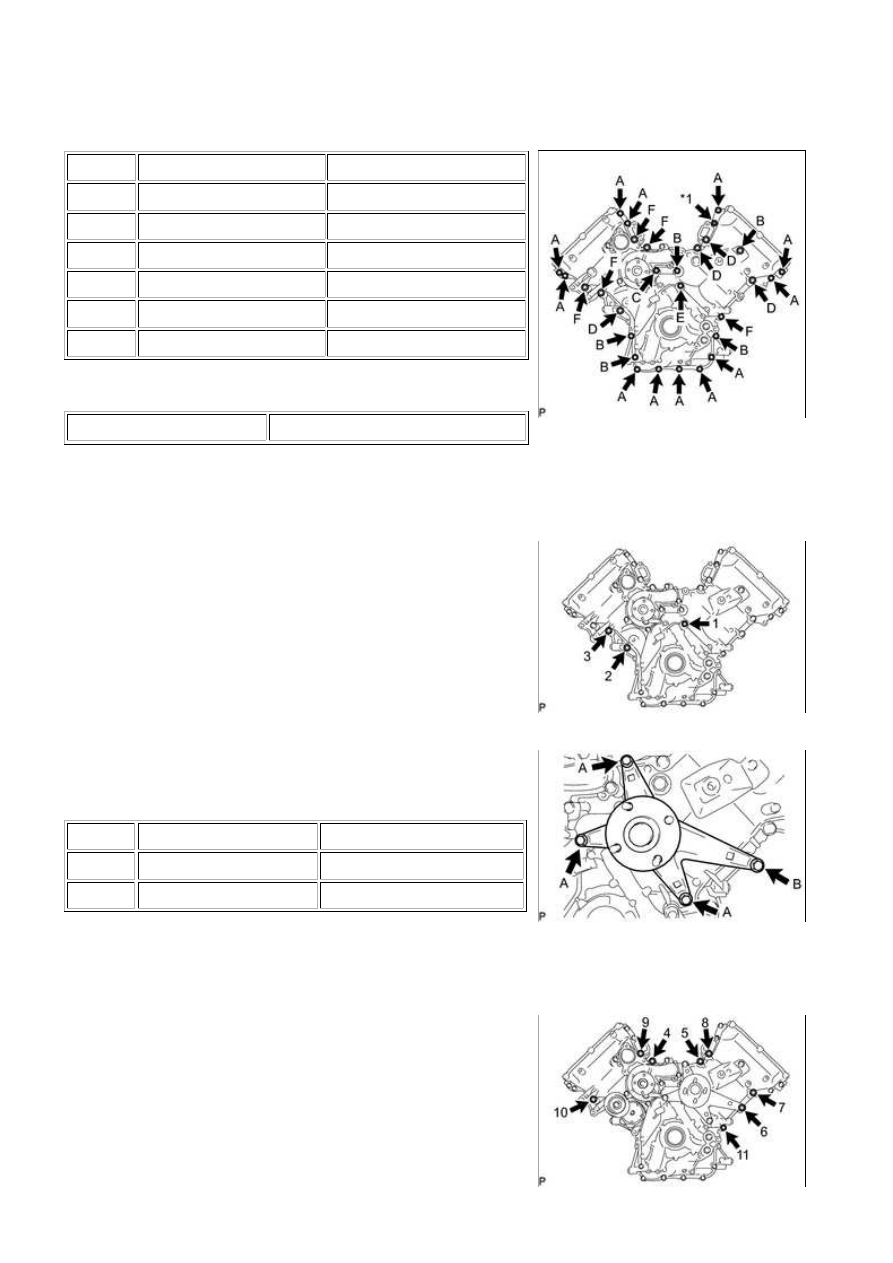

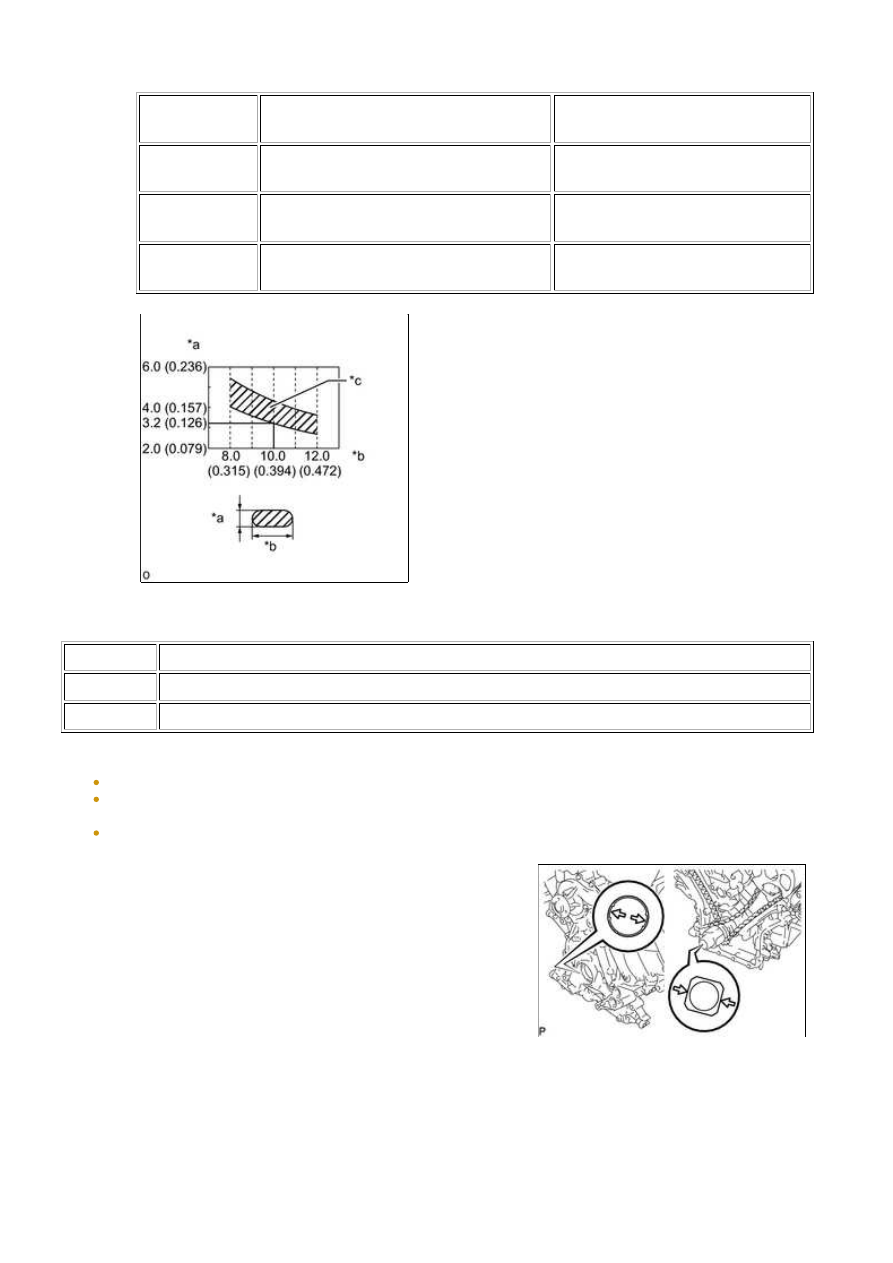

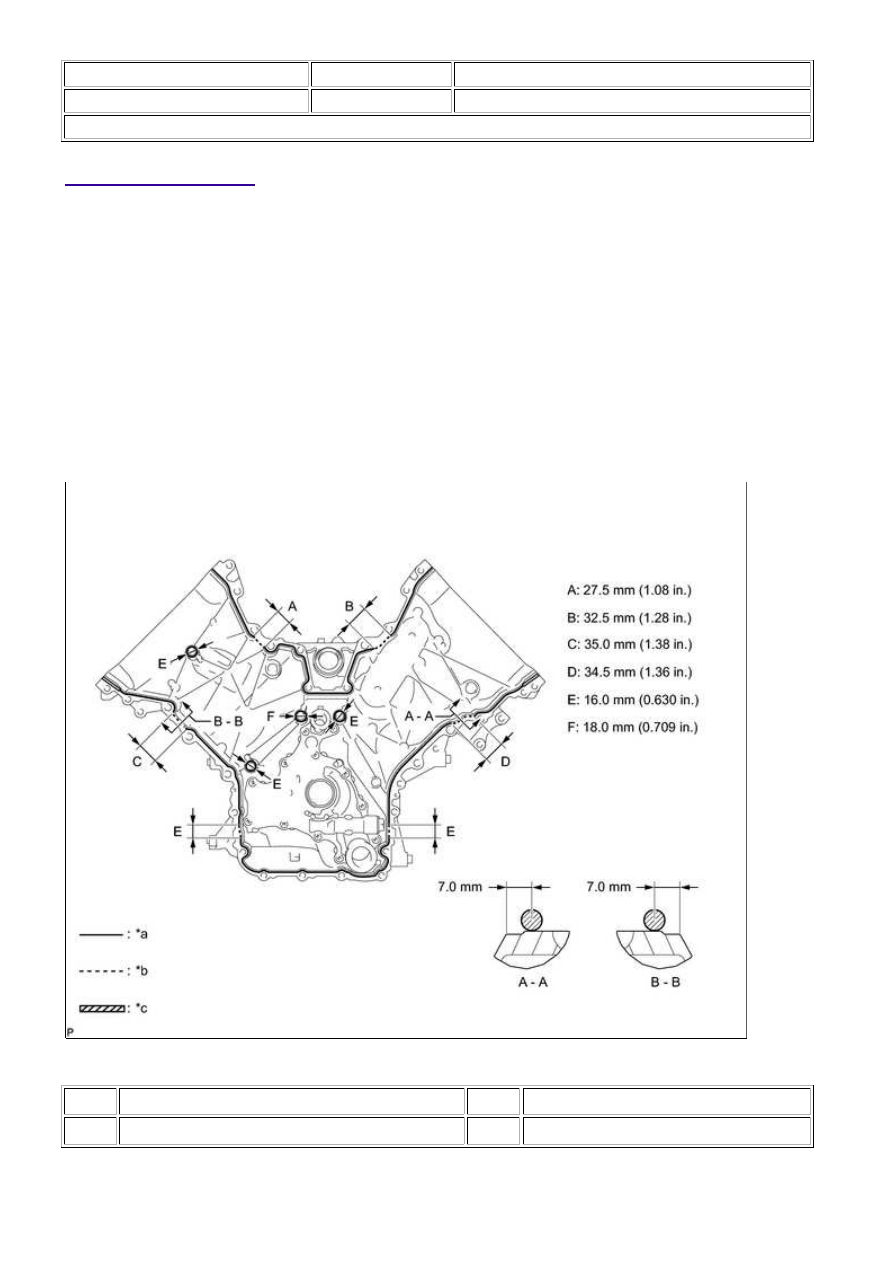

Last Modified: 9-16-2014 6.6 A Doc ID: RM000002S4U04HX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: 3UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tundra [08/2014 - ] INSTALLATION 1. INSTALL WATER INLET PIPE (a) Apply soapy water to 2 new O-rings and install them to the water inlet pipe. (b) Install the water inlet pipe to the No. 1 heat exchanger cover. 2. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY (e) Apply seal packing in a continuous line to the timing chain cover sub-assembly as shown in the following illustration. Text in Illustration *a Continuous Line Area *b Dashed Line Area *c Diagonal Line Area - - Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent 3UR-FE LUBRICATION: OIL PUMP: INSTALLATION; 2015 MY Tund... |
