Toyota Tundra (2015 year). Manual - part 2331





Last Modified: 9-16-2014

6.6 J

Doc ID: RM000002VRR00RX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Driver Side Door UNLOCK Detection Switch Circuit;

2015 MY Tundra [08/2014 -        ]

Driver Side Door UNLOCK Detection Switch Circuit

DESCRIPTION

The driver side door unlock detection switch is built into the front driver's door lock motor. The switch turns on

when the driver's door is unlocked and turns off when the door is locked. The main body ECU is connected to the

front driver's door lock motor via terminal LSWD and driver's door lock/unlock state signals are input to the main

body ECU. The main body ECU applies voltage to the door unlock detection switch via terminal LSWD. When the

door unlock detection switch is off (there is continuity between the switch terminals), a lock state signal is input to

the main body ECU. When the switch is on (there is no continuity between the switch terminals), an unlock state

signal is input.

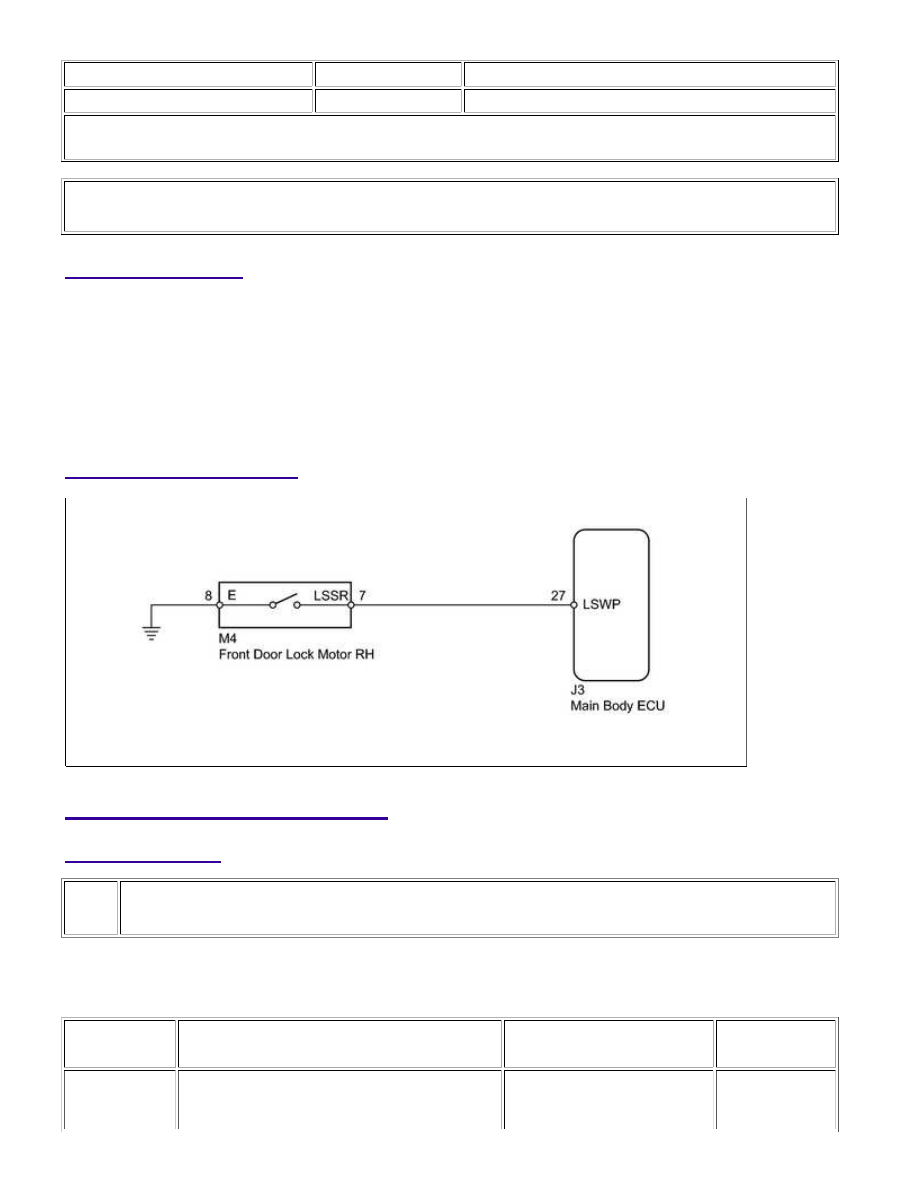

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

READ VALUE USING TECHSTREAM (UNLOCK DETECTION SWITCH)

TESTER DISPLAY

MEASUREMENT ITEM/RANGE

NORMAL CONDITION

DIAGNOSTIC

NOTE

D-Door Lock Pos

SW

Driver side door unlock detection switch signal

/ ON or OFF

ON: Driver side door is

unlocked

-

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Driver Sid...

TESTER DISPLAY

MEASUREMENT ITEM/RANGE

NORMAL CONDITION

DIAGNOSTIC

NOTE

OFF: Driver side door is

locked

OK:

The display is as specified in the normal condition column.

NG

GO TO STEP 2

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN

IN PROBLEM SYMPTOMS TABLE

2.

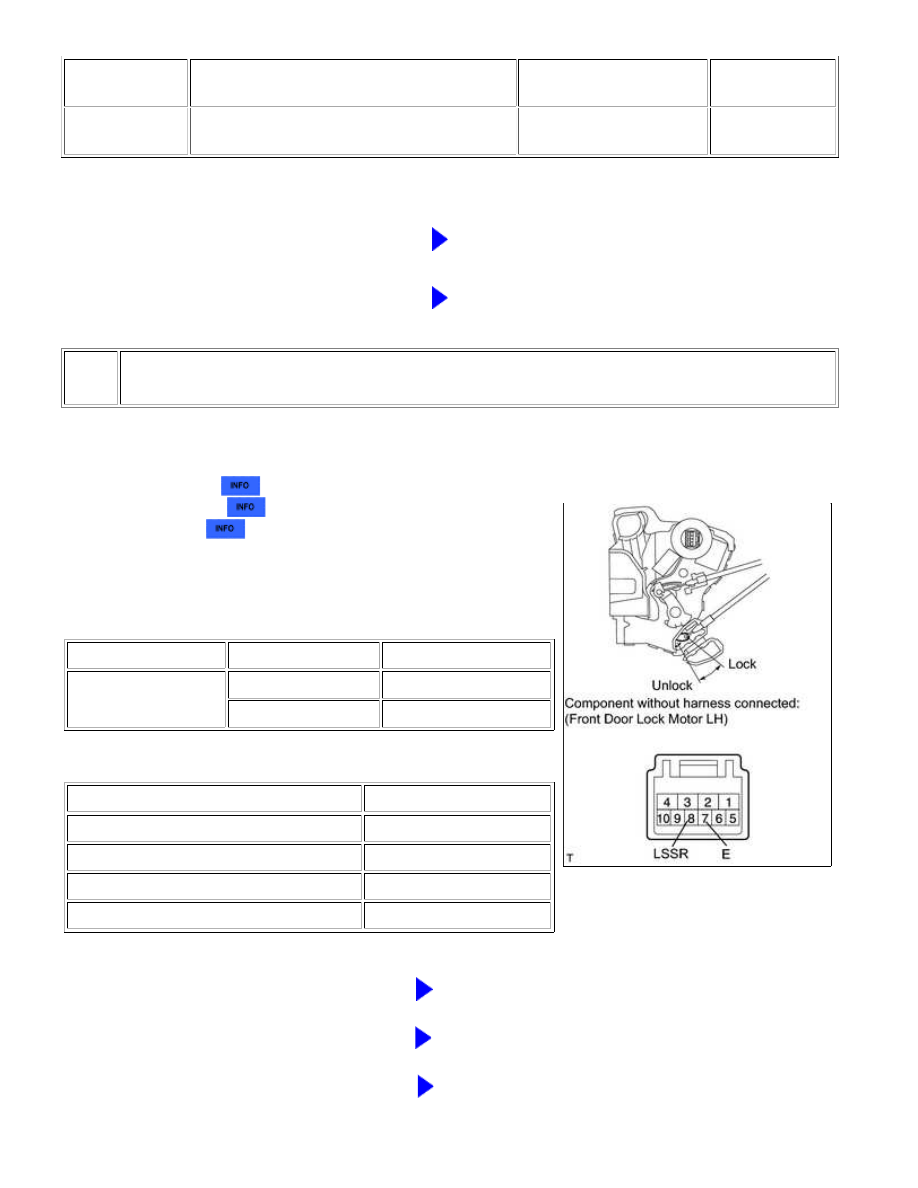

INSPECT FRONT DOOR LOCK MOTOR ASSEMBLY LH (UNLOCK DETECTION SWITCH)

(a) Remove the front door lock motor LH.

for Double Cab:

for Regular Cab:

for CrewMax:

(b) Measure the resistance according to the value(s) in the

table below.

Standard resistance:

TESTER CONNECTION SWITCH CONDITION SPECIFIED CONDITION

8 (LSSR) - 7 (E)

Lock

10 kΩ or higher

Unlock

Below 1 Ω

Result

RESULT

PROCEED TO

OK

A

NG (for Double Cab)

B

NG (for Regular Cab)

C

NG (for CrewMax)

D

B

REPLACE FRONT DOOR LOCK MOTOR ASSEMBLY LH

C

REPLACE FRONT DOOR LOCK MOTOR ASSEMBLY LH

D

REPLACE FRONT DOOR LOCK MOTOR ASSEMBLY LH

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Driver Sid...

A

3.

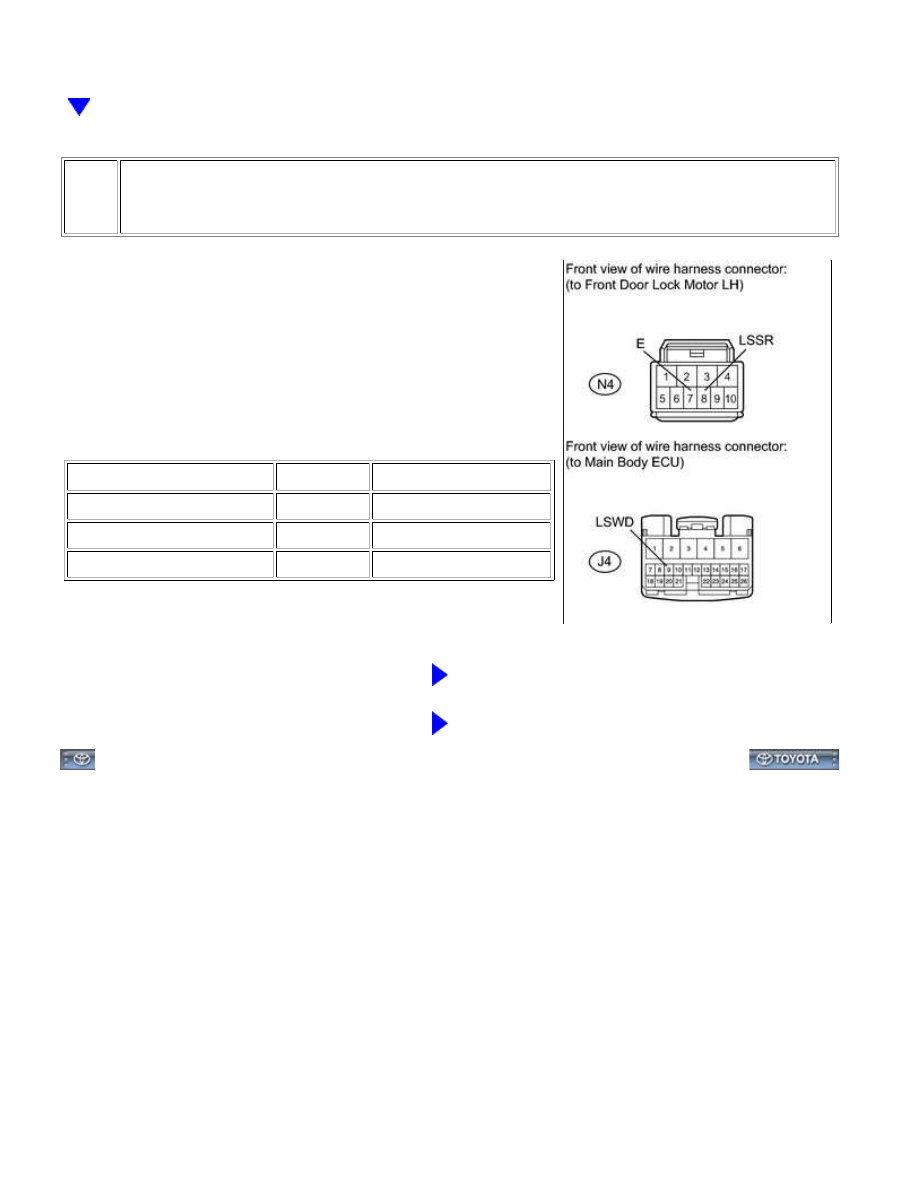

CHECK HARNESS AND CONNECTOR (FRONT DOOR LOCK MOTOR LH - MAIN BODY
ECU AND BODY GROUND)

(a) Disconnect the N4 door lock connector.

(b) Disconnect the J4 ECU connector.

(c) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

N4-8 (LSSR) - J4-9 (LSWD)

Always

Below 1 Ω

N4-8 (LSSR) - Body ground

Always

10 kΩ or higher

N4-7 (E) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

REPLACE MAIN BODY ECU

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Driver Sid...

Last Modified: 9-16-2014

6.6 J

Doc ID: RM000002VRS00RX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Front Passenger Side Door UNLOCK Detection

Switch Circuit; 2015 MY Tundra [08/2014 -        ]

Front Passenger Side Door UNLOCK Detection Switch Circuit

DESCRIPTION

The front passenger side door unlock detection switch is built into the front passenger door lock motor. The switch

turns on when the front passenger door is unlocked and turns off when the door is locked. The main body ECU is

connected to the front passenger door lock motor via terminal LSWP and front passenger door lock/unlock state

signals are input to the ECU. The main body ECU applies voltage to the door unlock detection switch via terminal

LSWP. When the door unlock detection switch is off (there is continuity between the switch terminals), a lock state

signal is input to the ECU. When the switch is on (there is no continuity between the switch terminals), an unlock

state signal is input.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.

READ VALUE USING TECHSTREAM (UNLOCK DETECTION SWITCH)

TESTER

DISPLAY

MEASUREMENT ITEM/RANGE

NORMAL CONDITION

DIAGNOSTIC

NOTE

P-Door Lock

Pos SW

Front passenger side door unlock detection

switch signal / ON or OFF

ON: Front passenger side

door is unlocked

-

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Front Pass...
