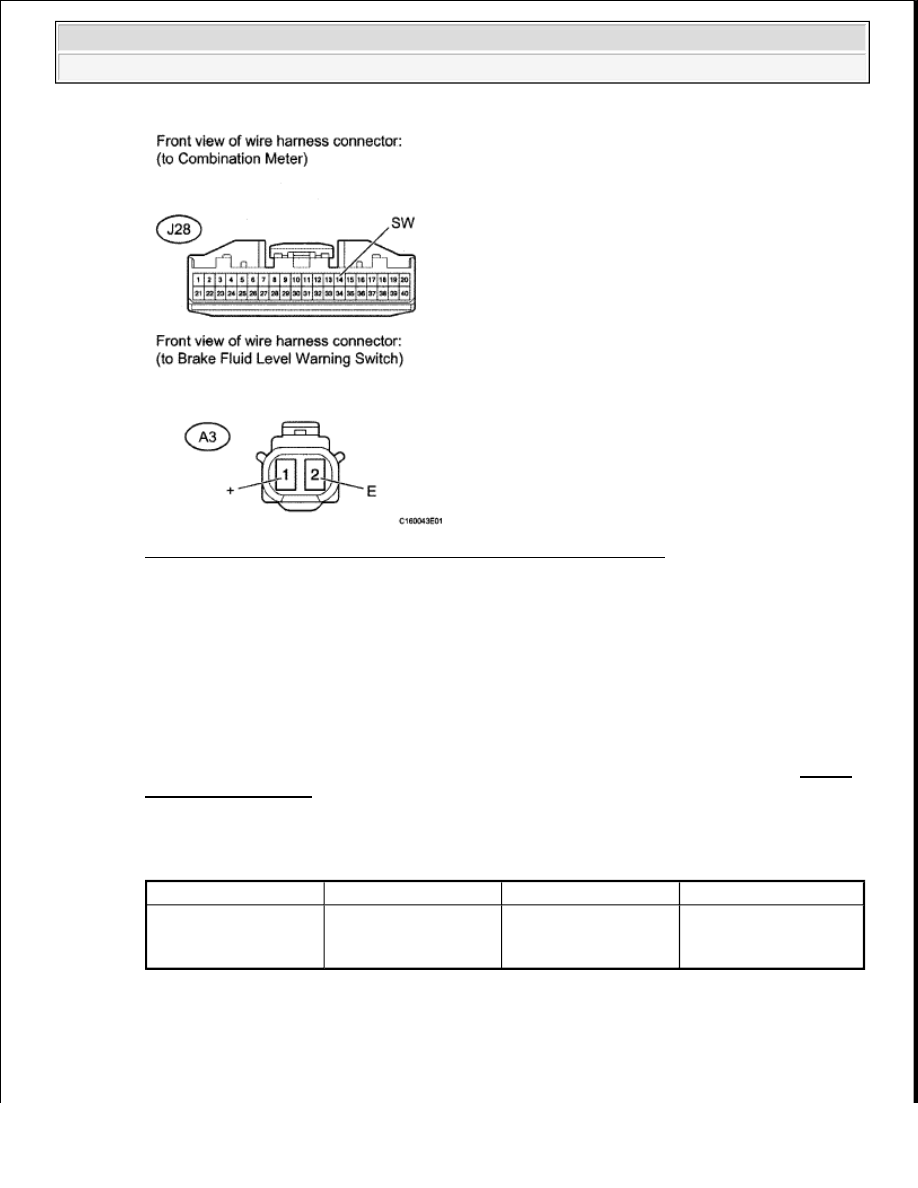

Fig. 93: Identifying J28 Meter And A3 Switch Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step

8. INSPECT COMBINATION METER

a. Connect the Techstream to the DLC3.

b. Turn the ignition switch to ON and the Techstream on.

c. Perform the Active Test of the combination meter (meter CPU) using the Techstream (See DATA

LIST/ACTIVE TEST ).

Combination Meter

DIAGNOSTIC NOTE TABLE

d. Check that the BRAKE warning light turns on and off in the combination meter using Techstream.

OK: The BRAKE warning light turns on and off in accordance with the Techstream
operation.


Tester Display

Test Part

Control Range

Diagnostic Note

Indicat. Lamp Brake

Brake warning light

ON or OFF

Perform the test with the

vehicle stopped and

engine idling



2009 Toyota Tundra

2009 BRAKES Brake Control - Tundra































NG: GO TO METER/GAUGE SYSTEM (See HOW TO PROCEED WITH
TROUBLESHOOTING
 )

OK: REPLACE VSC ACTUATOR ASSEMBLY (See REMOVAL )

9. INSPECT PARKING BRAKE SWITCH ASSEMBLY

a. Disconnect the A5 switch connector.

b. Measure the resistance according to the value (s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

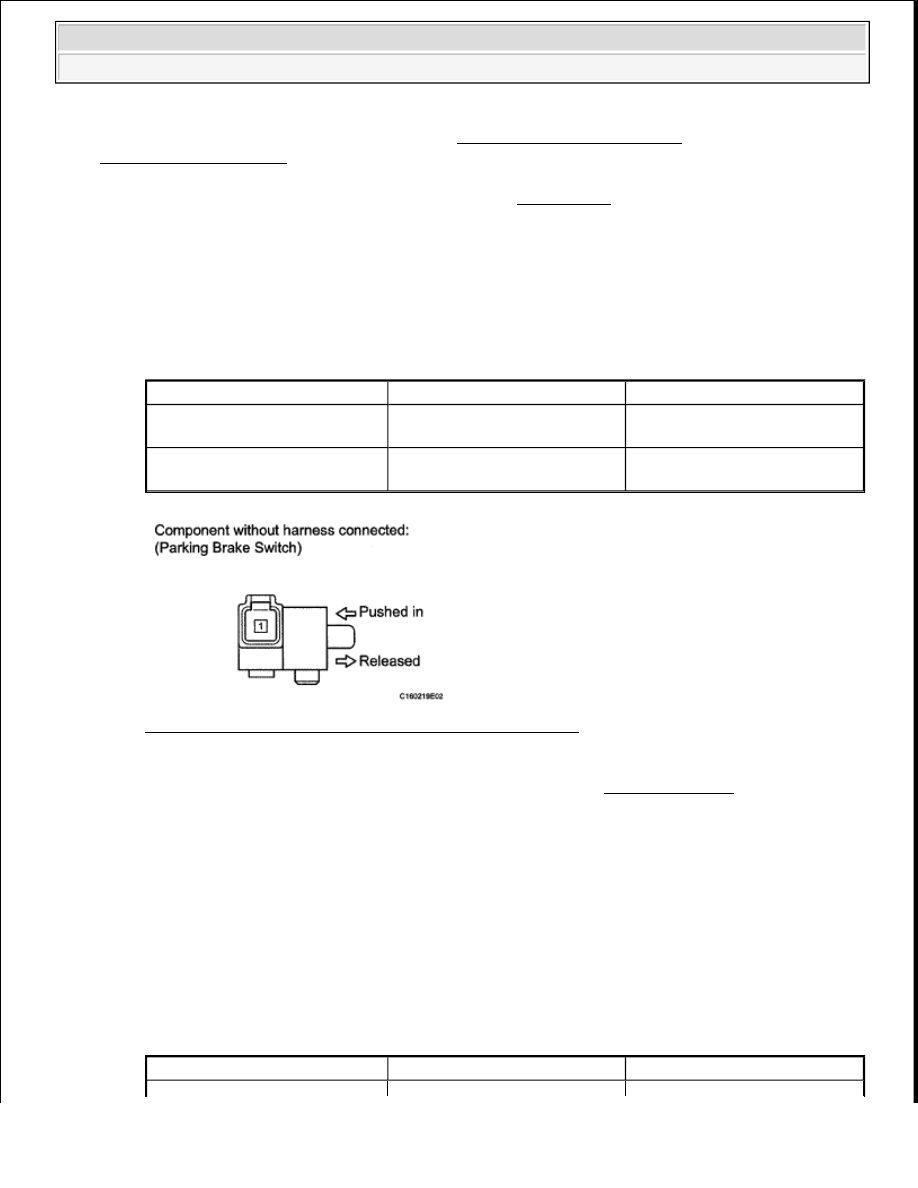

Fig. 94: Identifying A5 Parking Brake Switch Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPLACE PARKING BRAKE SWITCH ASSEMBLY (See DISASSEMBLY )

OK: Go To Next Step

10. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - PARKING BRAKE

SWITCH)

a. Disconnect the A17 ECU connector.

b. Disconnect the A5 switch connector.

c. Measure the resistance according to the value (s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection

Switch Condition

Specified Condition

A5-1 - Body ground

Parking brake switch ON

(Switch pin released)

Below 1 ohms

A5-1 - Body ground

Parking brake switch OFF

(Switch pin pushed in)

10 kohms or higher

Tester Connection

Condition

Specified Condition



2009 Toyota Tundra

2009 BRAKES Brake Control - Tundra































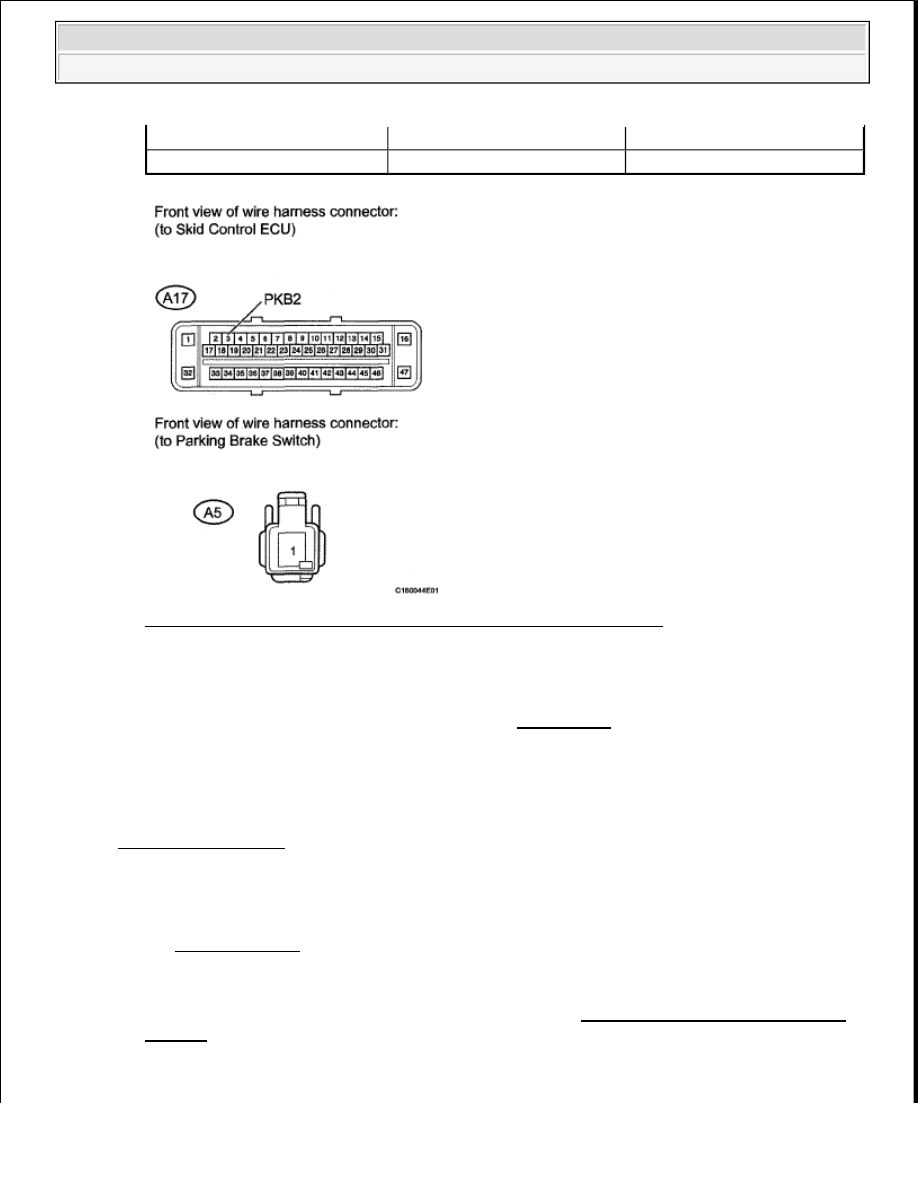

Fig. 95: Identifying A17 ECU Connector And A5 Switch Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE VSC ACTUATOR ASSEMBLY (See REMOVAL )

BRAKE WARNING LIGHT DOES NOT COME ON

WIRING DIAGRAM

Refer to WIRING DIAGRAM .

INSPECTION PROCEDURE

1. INSPECT CAN COMMUNICATION SYSTEM

a. Check if a CAN communication system DTC is output (See DIAGNOSTIC TROUBLE CODE

TABLE ).

Result

A17-3 (PKB2) - A5-1

Always

Below 1 ohms

A17-3 (PKB2) - Body ground

Always

10 kohms or higher

NOTE:

When replacing the VSC actuator assembly, perform zero point calibration (See
CALIBRATION ).



2009 Toyota Tundra

2009 BRAKES Brake Control - Tundra































RESULT TABLE

B: GO TO CAN COMMUNICATION SYSTEM (See HOW TO PROCEED WITH
TROUBLESHOOTING
 )

A: Go To Next Step

2. PERFORM ACTIVE TEST USING TECHSTREAM (BRAKE WARNING LIGHT)

a. Connect the Techstream to the DLC3.

b. Turn the ignition switch to ON.

c. Turn the Techstream on.

d. Select the Active Test mode and operate the BRAKE warning light using the Techstream.

ABS/VSC/TRAC

DIAGNOSTIC NOTE TABLE

e. Check that the BRAKE warning light turns on and off in the combination meter using the

Techstream.

OK: The BRAKE warning light turns on and off in accordance with the Techstream
operation.


NG: GO TO METER/GAUGE SYSTEM (See HOW TO PROCEED WITH
TROUBLESHOOTING
 )

OK: REPLACE VSC ACTUATOR ASSEMBLY (See REMOVAL )

VSC OFF INDICATOR LIGHT REMAINS ON

DESCRIPTION

If the skid control ECU stores any DTCs which relate to the VSC system, the VSC OFF indicator light comes
on in the combination meter.

The skid control ECU is connected to the combination meter via the CAN communication system.

When the transfer is in 4WD, VSC control turns off and the VSC OFF indicator illuminates. The VSC OFF
indicator light also comes ON when the VSC system is in the fail-safe mode.

Result

Proceed to

DTC is not output

A

DTC is output

B

Tester Display

Test Part

Control Range

Diagnostic Note

Brake Warning Light

Brake warning light

ON/OFF

Observe combination

meter



2009 Toyota Tundra

2009 BRAKES Brake Control - Tundra
