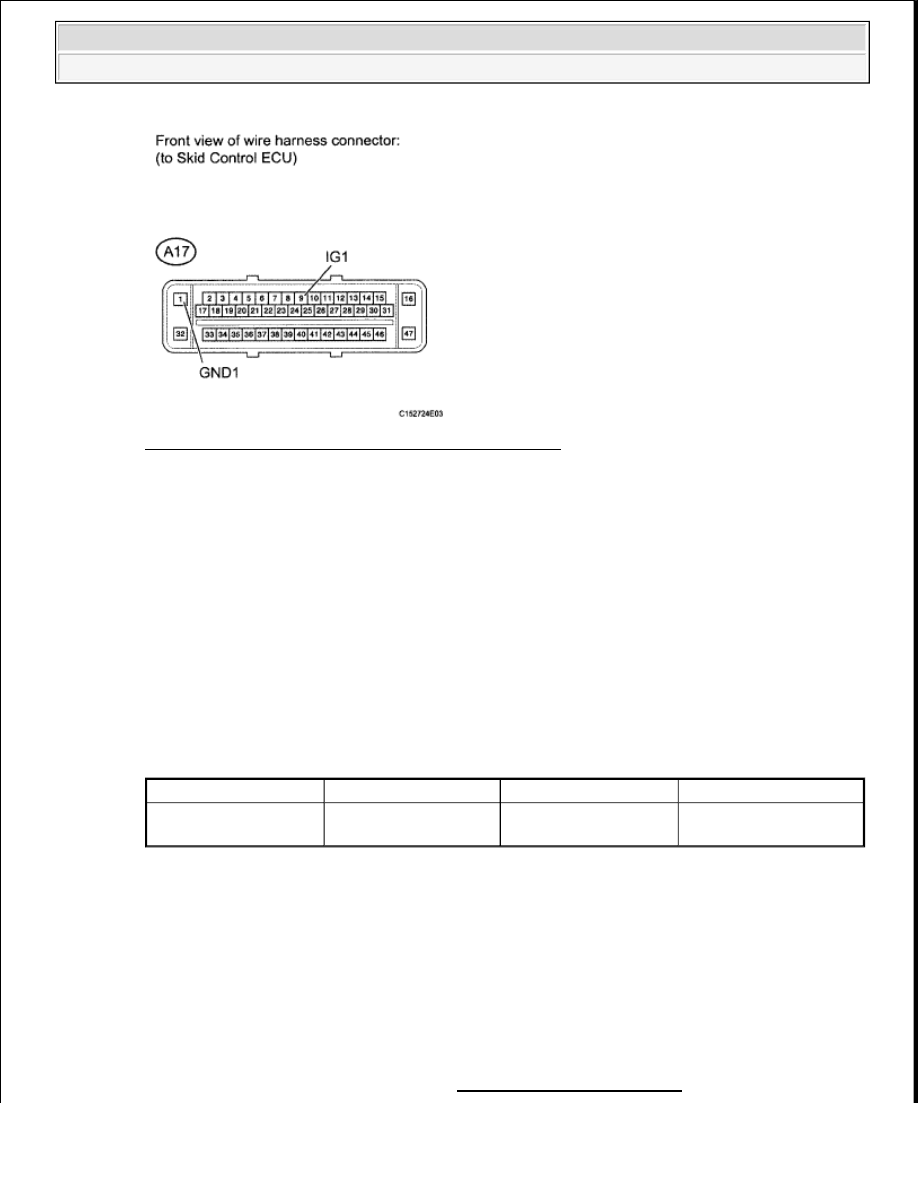

RESULT TABLE B: GO TO CAN COMMUNICATION SYSTEM (See HOW TO PROCEED WITH A: Go To Next Step 2. INSPECT CONNECTOR CONNECTION CONDITION a. Check the skid control ECU connector connection condition. OK: The connector is securely connected. NG: CONNECT CONNECTOR CORRECTLY OK: Go To Next Step 3. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BATTERY AND BODY GROUND) a. Disconnect the A17 ECU connector. b. Measure the voltage according to the value (s) in the table below. Standard Voltage TESTER CONNECTION SPECIFIED CONDITION TABLE c. Measure the resistance according to the value (s) in the table below. Standard Resistance TESTER CONNECTION SPECIFIED CONDITION TABLE Result Proceed to DTC is not output A DTC is output B Tester Connection Switch Condition Specified Condition A17-9 (IG1) - Body ground Ignition switch ON 11 to 14 V Tester Connection Condition Specified Condition A17-1 (GND-I) - Body ground Always Below 1 ohms
